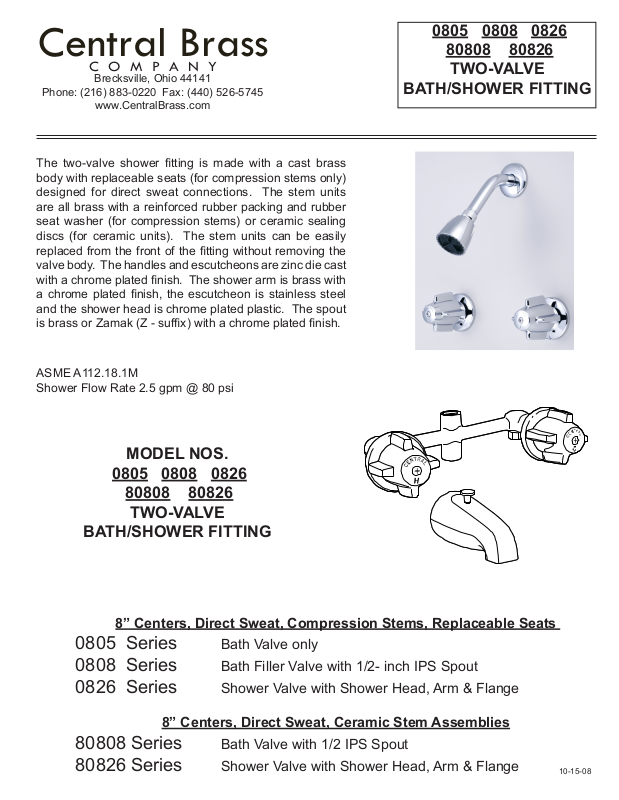

0805 0808 0826
Central Brass
C O M P A N Y
80808 80826
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The two-valve shower tting is made with a cast brass
body with replaceable seats (for compression stems only)
designed for direct sweat connections. The stem units
are all brass with a reinforced rubber packing and rubber
seat washer (for compression stems) or ceramic sealing
discs (for ceramic units). The stem units can be easily
replaced from the front of the tting without removing the
valve body. The handles and escutcheons are zinc die cast
with a chrome plated nish. The shower arm is brass with
a chrome plated nish, the escutcheon is stainless steel
and the shower head is chrome plated plastic. The spout
is brass or Zamak (Z - sufx) with a chrome plated nish.
TWO-VALVE
BATH/SHOWER FITTING
ASME A112.18.1M
Shower Flow Rate 2.5 gpm @ 80 psi
MODEL NOS.
0805 0808 0826
80808 80826
TWO-VALVE
BATH/SHOWER FITTING
8” Centers, Direct Sweat, Compression Stems, Replaceable Seats
0805 Series Bath Valve only
0808 Series Bath Filler Valve with 1/2- inch IPS Spout
0826 Series Shower Valve with Shower Head, Arm & Flange
8” Centers, Direct Sweat, Ceramic Stem Assemblies
80808 Series Bath Valve with 1/2 IPS Spout
80826 Series Shower Valve with Shower Head, Arm & Flange
10-15-08
0805 0808 0826
Central Brass
C O M P A N Y
80808 80826
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
TWO-VALVE
BATH/SHOWER FITTING
Installation
Drawings
Accessories available
Brass
Stem Extension
G-1548-ET
(Available Separately)
Used for thicker wall dimensions
10-15-08
0805 0808 0826
Central Brass
C O M P A N Y
80808 80826
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Spout variations available
TWO-VALVE
BATH/SHOWER FITTING
Z - Sufx
Zamak Spout
3154-Z
Accessories available
Brass
Stem Extension
G-1548-ET
(Available Separately)
Used for thicker wall dimensions
10-15-08
0805 0808 0826
Central Brass
C O M P A N Y
80808 80826
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
TWO-VALVE
BATH/SHOWER FITTING
Parts Breakdown
# Part # Description
1 1504-T Brass 2-Valve Body
2 PF-263-B Brass Seat
3 1028-Y Nylon Gasket
4 104 Brass Seat Washer Screw
5 901-WNN Seat Washer
6 1548-CT Right Thread Brass Stem
7 1549-CT Right Thread Brass Bonnet
8 4-L Brass Washer
9 814-AFGA Packing
10 765-TA Brass Packing Nut
11 269-29/16 Brass Threaded Nipple
12 521-B Escutcheon
13 508-H Handle Indexed “H”
13 508-C Handle Indexed “C”
14 107-F Brass Phillips Head Screw
15 601-P1/2B Brass Plug
16 SU-1548-CTP Right Thread Assembly
(used for both hot & cold sides)
17 1035-SS Shower Arm Flange (0826 only)
18 714-WT-02 Brass Shower Arm (0826 only)
19 3034-1/2-02 Showerhead (0826 only)
20 3145-D 1/2” IPS Brass Spout (0808 only)
20 3154-Z 1/2” IPS Zamak Spout (0808-Z only)
The parts listed in the parts breakdown above
may not be offered separately as replacement
parts. Please review the Replacement Parts
page for the authorized replacement parts that
are available for this item.
10-15-08
0805 0808 0826
Central Brass
C O M P A N Y
80808 80826
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
TWO-VALVE
BATH/SHOWER FITTING
80808 80826
Ceramic Stem Parts
replaces compression stem
SU-1548-CTP
Parts Breakdown
# Part # Description
2 1028-Y Nylon Gasket
3 184-A Celcon Retainer
4 183-A Rubber Seal
5 182 Ceramic Disc - Lower
6 181 Ceramic Disc - Upper
7 351-S Brass Stem
8 180 Celcon Washer
9 1038-E14 O-Ring
10 351-B Brass Bonnet
11 351-W Brass Stop Washer
12 351-C Brass Cap
13 269-29-/16 Brass Threaded Nipple
18 SU-351-L Left Thread Ceramic Disc Cartridge
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
10-15-08
