Catler ES 8012 User Manual
Instructions
for use
ESPRESSO
MACHINE
ES 8012
ESPRESSO
MACHINE
CONTENTS
4 Congratulations
6 Catler recommends safety first
8 Key features of your Espresso Machine ES 8012
13 Know your Espresso Machine ES 8012
16 Before first use
17 Assembling your Espresso Machine ES 8012
19 Operating your Espresso Machine ES 8012
29 Programming your Espresso Machine ES 8012
31 The art of texturing milk
33 Coffee making tips
34 Care and cleaning
42 Trouble Shooting guide
47 Coffees to try
R1 Recipes
CONTENTS
3
3
Congratulations
on the purchase of your new Espresso Machine ES 8012.
44
CONGRATULATIONS
Freshly ground coffee is one of the four most important factors in the preparation of coffee.
This attribute is often referred to as one of the ‘four hands’ in espresso preparation. The others are the grinder, the espresso machine and the barista.
While the degree and the selection of roast is a personal preference, correctly roasted and rested coffee beans produce espresso with much more
taste, flavour and body than coffee that is pre-ground.
Pre-ground coffee deteriorates rapidly and over time produces thin flat coffee that has a light and small amount of crema.
Jason Chan
Melbourne Barista of the Year 2005
With this in mind the Catler Espresso Machine ES 8012 was developed
with an integrated, dosing grinder. By using only the required amount
of coffee, instantly after being ground, the Espresso Machine ES 8012
ensures all grounds are fresh, for a richer, full espresso.
CONGRATULATIONS
5
5
CATLER RECOMMENDS SAFETY FIRST
At Catler we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in mind. In
addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR ESPRESSO MACHINE ES 8012 AND ALL ELECTRONICAL APPLIANCES
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that
they will not play with the appliance.
• Carefully read all instructions before operating and save for future reference.
• Remove any promotional stickers before using the Espresso Machine for the first time.
• Do not place the Espresso Machine near the
edge of a bench or table during operation. Ensure the surface is level, clean and free of water.
• Do not place the Espresso Machine on or
near a hot gas or electric burner, or where it
could touch a heated oven.
• Warning: The appliance is not intended to
be operated by means of an external timer or
separate remote control system.
• Do not use attachments other than those
provided with the Espresso Machine.
• Do not attempt to operate the Espresso Machine by any method other than those described in this book.
• Do not operate the grinder without the hopper lid in position. Keep fingers, hands, hair,
clothing and utensils away from the hopper
during operation.
• Use only cold water in the water tank. Do not
use any other liquid.
• Never use the Espresso Machine without water in the water tank.
• Warning: Do not remove the Water Tank
while the Espresso Machine is in use.
• Never remove the filter holder during the
brewing operation as the machine is under
pressure.
• Do not move the Espresso Machine whilst in
operation.
• Do not leave the Espresso Machine unattended when in use.
• Do not touch hot surfaces. Allow the Espresso Machine to cool down before moving or
cleaning any parts.
• Do not place anything, other than cups for
warming, on top of the Espresso Machine.
• Always switch the Espresso Machine off by
pressing the Power button to ‚Off‘, then
switch off at the power outlet and unplug if
appliance is to be left unattended, if not in
use, before cleaning, before attempting to
move the appliance, disassembling, assembling and when storing the appliance.
• Do not use the Espresso Machine on metal
surfaces, for example, a sink drain board.
• Always make sure the Espresso Machine is
properly assembled before connecting to
power outlet and operating.
6
CATLER RECOMMENDS SAFETY FIRST
• Ensure the filter holder is firmly inserted and
secured into the brewing head before using
the machine.
• Keep the appliance and accessories clean.
Follow the cleaning instructions provided in
this book.
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES
• Unwind the cord before use.
• To protect against electric shock, do not immerse cord, plug or appliance in water or
any other liquid.
• Do not let the cord hang over the edge of
a table or counter, touch hot surfaces, or become knotted.
• Do not use this appliance for anything other
than its intended use. Do not use in moving
vehicles or boats. Do not use outdoors.
• It is recommended to inspect the appliance
regularly. Do not use the appliance if power
supply cord, plug or appliance becomes
damaged in anyway. Return the entire appliance to the nearest authorised Catler service
centre for examination and/or repair.
• Any maintenance other than cleaning should
be performed at an authorised Catler Service Centre.
• The installation of a residual current device
(safety switch) is recommended to provide
additional safety protection when using
electrical appliances. It is advisable that
a safety switch with a ra-ted residual operating current not exceeding 30mA be installed
in the electrical circuit supplying the appliance. See your electrician for professional
advice.
CATLER RECOMMENDS SAFETY FIRST
7
KEY FEATURES OF YOUR ESPRESSO MACHINE ES 8012
Integrated conical burr grinder
The integrated conical burr grinder allows each
espresso to be created using freshly ground
beans - the key to achieving your ideal espresso.
The grinder has been specially designed to combine with the other key features of the Espresso
Machine.
Adjustable grind size
The GRIND SIZE selector allows the fineness/
coarseness of the coffee grind to be accurately
adjusted for optimal espresso extraction.
The GRIND SIZE selector adjusts the grinding
burrs to either move closer together for a finer
grind or further apart for a coarser grind.
Refer to ‘A LIFETIME OF EXPERIMENTATION’ on
page 24.
Preset grind amount – single or double
cup amount
The preset grind amount feature automatically
dispenses the required amount of ground coffee for either a single or double filter. Accurately
adjust the grind amount to suit the fineness or
coarseness of the grind.
The single or double grind option can be easily
increased or decreased by the user to suit personal preference.
Refer to ‘A LIFETIME OF EXPERIMENTATION’ on
page 24.
8
KEY FEATURES OF YOUR ESPRESSO MACHINE ES 8012
Hands free, direct grinding to portafilter
The Espresso Machine features an integrated
grinding cradle which fully supports the portafilter located below the integrated conical burr
grinder. The ‘hands free’ grinding feature allows
you to continue with other preparations while
the portafilter is being evenly filled with the selected amount of freshly ground coffee.
An integrated micro switch allows the start and
stop of the grind function with a simple push on
the portafilter.
Place the portafilter into the cradle and simply
push the portafilter toward the machine lightly
to activate the grind function.
Tamper ‘on board’
The ‘on board’ tamper assists the user to evenly
and accurately tamp freshly ground coffee into
the filter basket. The tamper is conveniently located ‘on board’ the machine and can be used
both in the ‘on board’ position or whilst removed
depending on your preference.
Portafilter inserted into grinding cradle
Tamper on board
Tamper on its own
KEY FEATURES OF YOUR ESPRESSO MACHINE ES 8012
9
9
Accurate temperature control
Catler digital technology provides accurate temperature control for a full flavoured espresso.
Dry puck feature
The ‘Dry Puck’ feature uses an electronic valve to
remove excess water from the ground coffee in
the filter basket. This takes place after espresso
extraction, whilst the Portafilter is locked into the
group head. This results in a desirable ‘dry coffee
puck’ which can then be disposed of easily and
cleanly.
Programmable function
This espresso machine offers a convenient
choice between the Manual Operation or the
intelligent Programmable Function that can be
personalised with the user’s favourite espresso
setting.
Espresso pressure gauge
The espresso pressure gauge assists in obtaining
the most favourable extraction pressure. This is
achieved by measuring the pressure at which
the water is being forced through the ground
coffee in the portafilter.
Ideal espresso zone
The gauge needle, when positioned within the
Espresso range during pouring, indicates that
the espresso will be produced at the ideal pressure. The brewed espresso should have a generous layer of fine textured and evenly coloured,
golden crema. Refer to the Extraction Guide for
more information.
10
KEY FEATURES OF YOUR ESPRESSO MACHINE ES 8012
UNDER EXTRACTED ZONE
The gauge needle when positioned within the
lower zone during pouring indicates that the
espresso will be produced with insufficient pressure resulting in an ‘under extracted’ espresso.
This occurs when the water flow through the
ground coffee in the filter is too fast. As a result
the optimal flavour will not be extracted and the
coffee will be watery and lack thick crema on the
top. Possible other causes for under extraction
are: coffee grind is too coarse and/or insufficient
coffee in filter and/or under tamping.
OVER EXTRACTED ZONE
The gauge needle when positioned within the
upper zone during pouring will indicate that the
espresso will be produced with too much pressure resulting in an ‘over extracted’ espresso. This
occurs when the water flow through the ground
coffee in the filter is too slow. As a result the coffee will be very dark and bitter, with a mottled
and uneven crema on top. Possible other causes
for over extraction are: ground coffee is too fine
and/or too much ground coffee in filter and/or
over tamping.
COMMERCIAL STYLE STEAM WAND
The swivel-action steam wand with stainless
steel frothing attachment, easily adjusts to the
perfect position for texturing milk. The wand has
a commercial style 360° ball joint.
KEY FEATURES OF YOUR ESPRESSO MACHINE ES 8012
11
11
Advanced dual wall crema system filters
- ‘A minute to learn’
The Advanced Dual Wall Crema System Filters
are designed to intentionally slow the water flow
rate during brewing, allowing easy extraction at
the ideal pressure, for the enhanced crema.
The filters are suited to both pre-ground vacuum
packed coffee and freshly ground coffee on the
DUAL WALL setting.
Single wall filters – ‘A lifetime of experimentation’
The single wall filter baskets are designed to be
used with freshly ground coffee only. These filters provide no additional slowing of the water
flow rate, hence experimentation with the grind
size and volume, along with the tamp force, is required to achieve the desired results.
Once the use of these filter baskets has been
mastered, they offer a ‘A LIFETIME OF EXPERIMENTATION’ with different grind size, grind
amounts and tamping forces to create a variety
of espresso styles.
Energy saving features
The Espresso Machine will enter the ‘Power Save
Mode’ if not used for 30 minutes, and will automatically switch off if not used for a further two
hours. The ‘Power Save Mode’ uses 50% less power than when the machine is in ‘Stand by’ Mode.
During ‘Power Save Mode’ only the POWER button surround will flash slowly. All other button
light surrounds will not be illuminated.
To re-activate the machine during ‘Power Save
Mode’ simply press any button except POWER.
The POWER button surround will then illuminate
and flash while the machine quickly reheats to
operational temperature. When the correct temperature has been reached, all the button surrounds on the control panel will illuminate.
To switch off the espresso machine whilst it is in
‘Power Save Mode’, simply press the POWER button once.
12
KNOW YOUR ESPRESSO MACHINE ES 8012
KNOW YOUR ESPRESSO MACHINE ES 8012
FILTER SIZE button
select between SINGLE
or DOUBLE filter
Single and Double Filter Size
lights
illuminates to indicate whether a
single or double filter is selected
GRIND SIZE selector
choose from fine for single wall
filter baskets to coarse coffee
grind for dual wall filter baskets
Cup warming tray
STEAM light
illuminates to indicate that the
steam function is selected
CLEAN ME light
indicates when a cleaning cycle is
required
surround illuminates when the
POWER button
button is pressed to ‘On’
GRIND AMOUNT dial
control the amount of fresh
ground coffee dosed into the
filter basket
Integrated / Removable
TAMPER
for expert tamping control
Grinding Cradle
push portafilter into cradle for
direct ground coffee fill into filter
and grind on demand
Group head
for easy fitment of the portafilter
Extra-tall cup height for coffee
mugs
Removable Wet and Dry Coffee
Separator Drip Tray
Drip tray full indicator
KNOW YOUR ESPRESSO MACHINE ES 8012
13
13
Removable 2 litre water tank
filled from the top of the water
tank
Espresso range gauge
monitors extraction pressure, guiding you towards the ideal espresso
Bean Hopper: 200g capacity
hopper locking system allows
removal of hopper without
removing beans
Integrated conical burr grinder
adjustable to achieve your
perfect grind
FEATURES
Custom designed accessories:
Stainless Steel frothing jug
Measuring / tamping spoon
Quick Start Guide
Extraction Guide
to help interpret the Espresso Gauge
and create better, more consistent
results
Single wall filter baskets
for ‘a lifetime of experimentation’
Advanced dual wall crema system
for ‘a minute to learn’ and enhanced
crema
Cleaning accessories:
Cleaning tool / brush
Allen key
Cleaning Guide

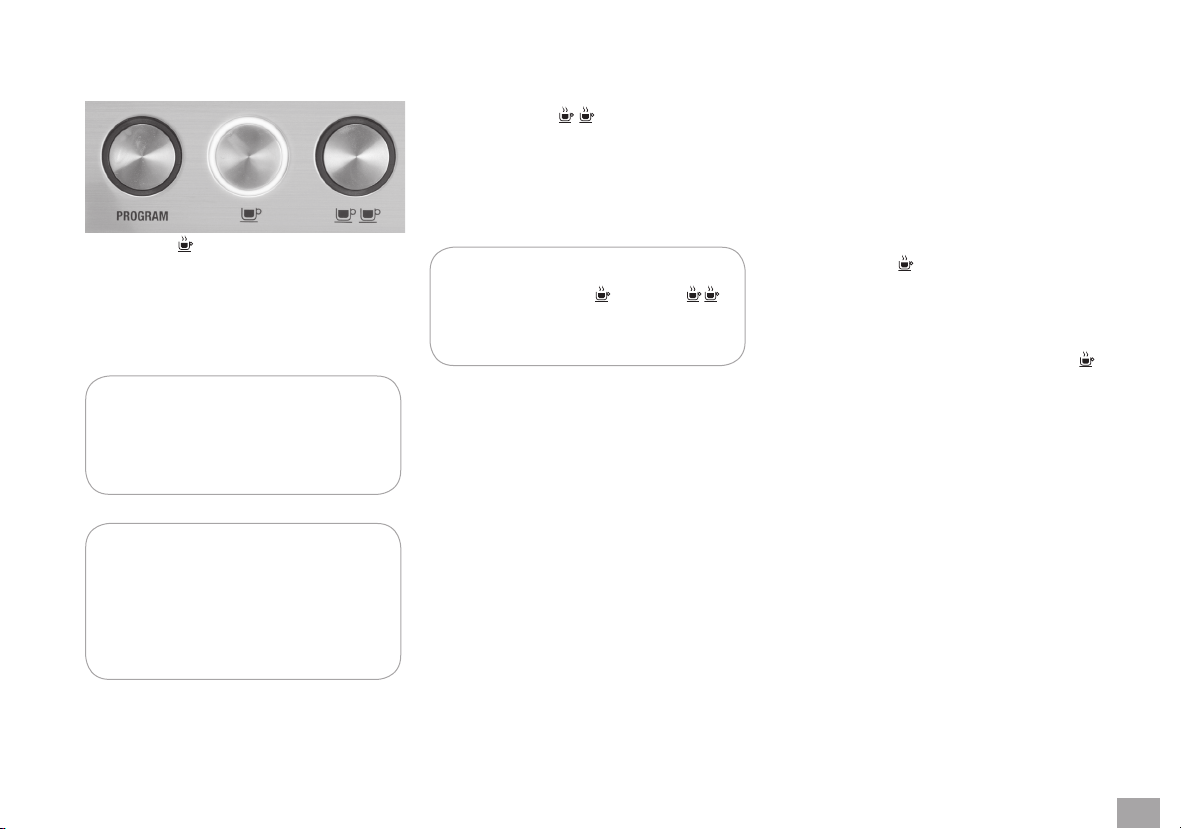

Program button
intelligent programmable function
that can be personalised with your
favourite espresso setting
Steam Dial
selector control for steam
Programmable feature
1 cup button and 2 cup button
Forged portafilter
commercial style with extended
outlets
Swivel steam wand and stainless
steel frothing attachment
easily adjusts to perfect positioning
for steaming and frothing milk
NOT SHOWN
Cord storage
located under the water tank
Storage tray
located behind the drip tray for
storage of accessories
Water filter
located in the water tank
14
KNOW YOUR ESPRESSO MACHINE ES 8012
ADDITIONAL FEATURES
15 bar pump
Italian-designed and made
Accurate temperature control
Catler digital technology provides accurate temperature control for a full flavoured espresso
Thermocoil heating system with integrated
stainless steel water coil
ensures accurately controlled water temperature
Pre-brew function
for optimal extraction and distribution of water
through the coffee puck
Auto purge function
for optimal coffee extraction temperature
Control Dry Puck feature
removes excess water from the filter basket after
coffee extraction
Flat shower head
for even distribution of water through the coffee puck
KNOW YOUR ESPRESSO MACHINE ES 8012
15
15
BEFORE FIRST USE
Your Catler Espresso Machine ES 8012 has the
drip tray, water tank and storage tray in place
when you unpack it from the box. The drip tray
is located in the base, towards the front of the
machine.
The water tank is located in the back of the machine. The water lter is located inside the water
tank. It needs to be removed before washing
the water tank. The storage tray is located at the
base of the machine behind the drip tray. The
drip tray, water tank and storage tray slide in and
out for easy access.
The bean hopper is located on top of the drip
tray when the machine is rst unpacked.
Ensure you have removed all parts and accessories before discarding the packaging.
Remove the water tank and wash in warm, soapy
water using a non-abrasive washing liquid. Rinse
and dry thoroughly.
Wipe the outer housing, bean hopper and drip
tray with a soft damp cloth and dry thoroughly.
Do not immerse the outer housing, power cord
or power plug in water or any other liquid.
NOTE:
Do not clean any of the parts or accessories in the dishwasher.
16
BEFORE FIRST USE
ASSEMBLING YOUR ESPRESSO MACHINE ES 8012
STEP 1
STEP 2
STEP 3
Insert the storage tray into the base of the machine and slide towards the back wall. The storage tray conveniently stores the cleaning tool,
cleaning brush, allen key, stainless steel lters,
measuring/tamping spoon, Cleaning Guide and
Quick Start Guide when not in use, so they are
not misplaced.
Insert the ‘Empty Me!’ full indicator into the drip
tray and place the drip tray cover on top.
Then place grill on top. Slide the drip tray into
position in the base of the machine in front of
the storage tray.
Before installing the water lter, remove the lter
from the plastic bag, and soak in a cup of water
for 5 minutes.
Rinse the lter under cold running water for 5
seconds.
Wash the stainless steel mesh in the plastic lter
compartment with water and assemble.
Set the date dial to 2 months ahead.
Insert the lter into the empty water tank and
push to lock into place.
NOTE:
Please refer to Care and Cleaning on
page 35, ‘Installing the Filter in the Water Tank’
ASSEMBLING YOUR ESPRESSO MACHINE ES 8012
17
17
Loading...
