Page 1
Operating Weight (with ROPS and cab)
with universal rotor 24 450 kg
with soil rotor 23 920 kg
with combination rotor 24 640 kg
Cat®C11 Engine with ACERT®Technology
Gross Power (SAE J1995) 261 kW/355 hp
Net Power (ISO 9249) at 1800 rpm 260 kW/354 hp
Rotor Width 2438 mm
Rotor Depth (maximum) 508 mm
RM300
Rotary Mixer
®
Page 2
2
Productivity, Serviceability and Comfort in a Durable Package
The RM300 offers enhanced production capabilities, optimized performance, simplified
service and exceptional operator comfort.
C11 Engine with ACERT®Technology
ACERT Technology works at the point
of combustion to optimize engine
performance and provide low exhaust
emissions. The C11 engine with
ACERT Technology provides clean
burning power. Electronically controlled
on-demand variable speed cooling fan
provides the lowest overall noise levels
and high ambient operation capability.
pg. 4
Cab
The optional cab increases machine
utilization, provides greater year-round
comfort and offers reduced interior
sound levels. The pressurized cab slides
side-to-side and includes a rotating
cloth seat, left and right side doors,
tinted windows, front and rear windshield wipers, heater/defroster and air
conditioning. Sound absorbing floor
mat reduces sound and machine
vibration transmitted to the operator.
pg. 6
Operator’s Station
Ergonomic design emphasizes comfort,
visibility and easy operation.
Isolated operator’s station with heavyduty rubber mounts reduce machine
vibration transmitted to the operator.
The hydraulically-assisted platform
slides side-to-side to an infinite number
of positions. A switch on the side
console allows the operator to select
any desired position for better overall
visibility leading to increased
productivity. The fully adjustable
steering column and rotating seat are
positioned to provide an optimal
operating position. Machine controls
are grouped and conveniently located
to enhance operator productivity and
reduce fatigue. pg. 5

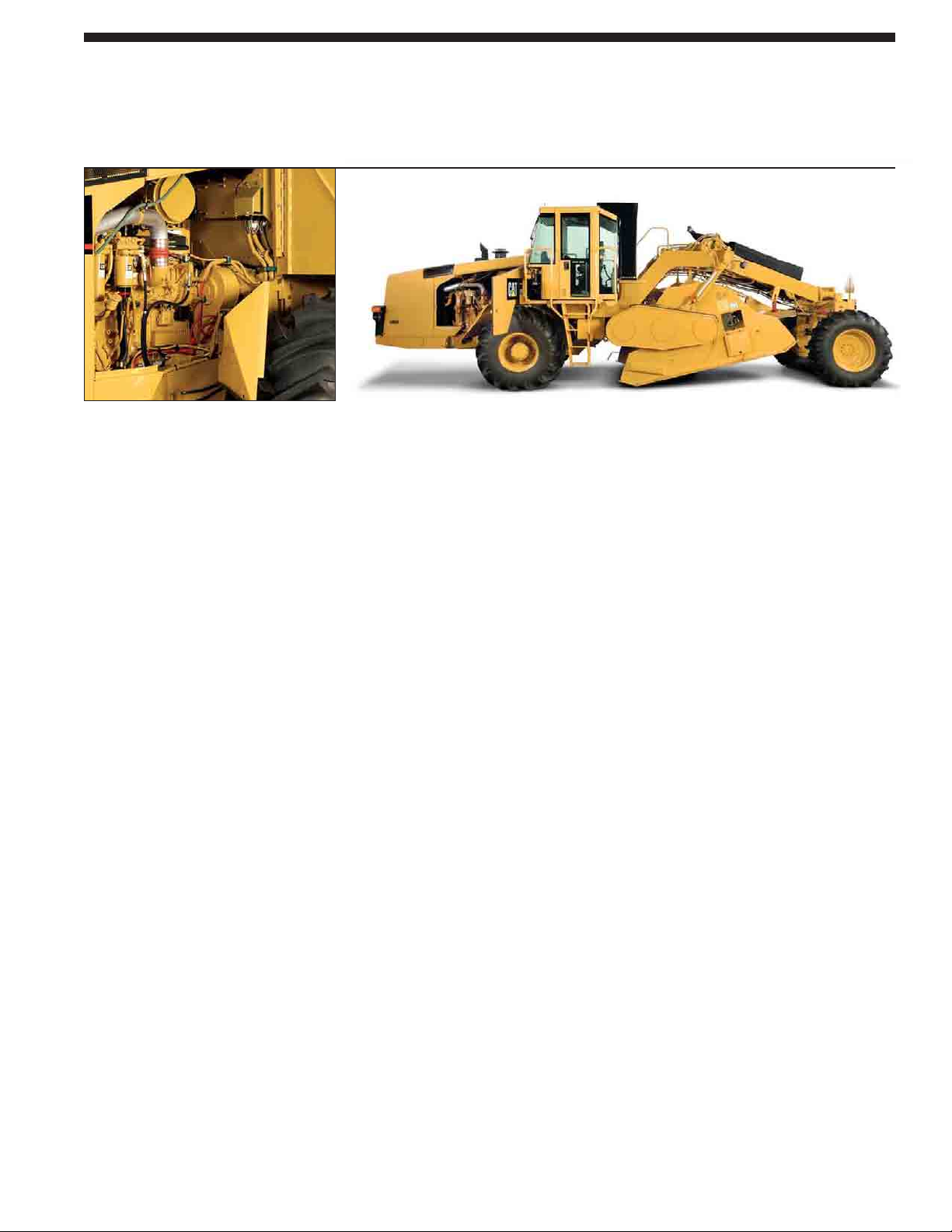

Serviceability
The rotor hood tilts forward to allow
access to the rotor and cutting tools.
Ground level side access doors on the
rotor hood provide convenient access
for easy cutting tool removal and
replacement. Hinged side access doors
open wide for exceptional access
to the engine and cooling system.
Daily service points are accessible
from ground level and are grouped on
one side of the engine. Hinged service
doors open wide for access to power
train and rotor drive components.
pg. 11

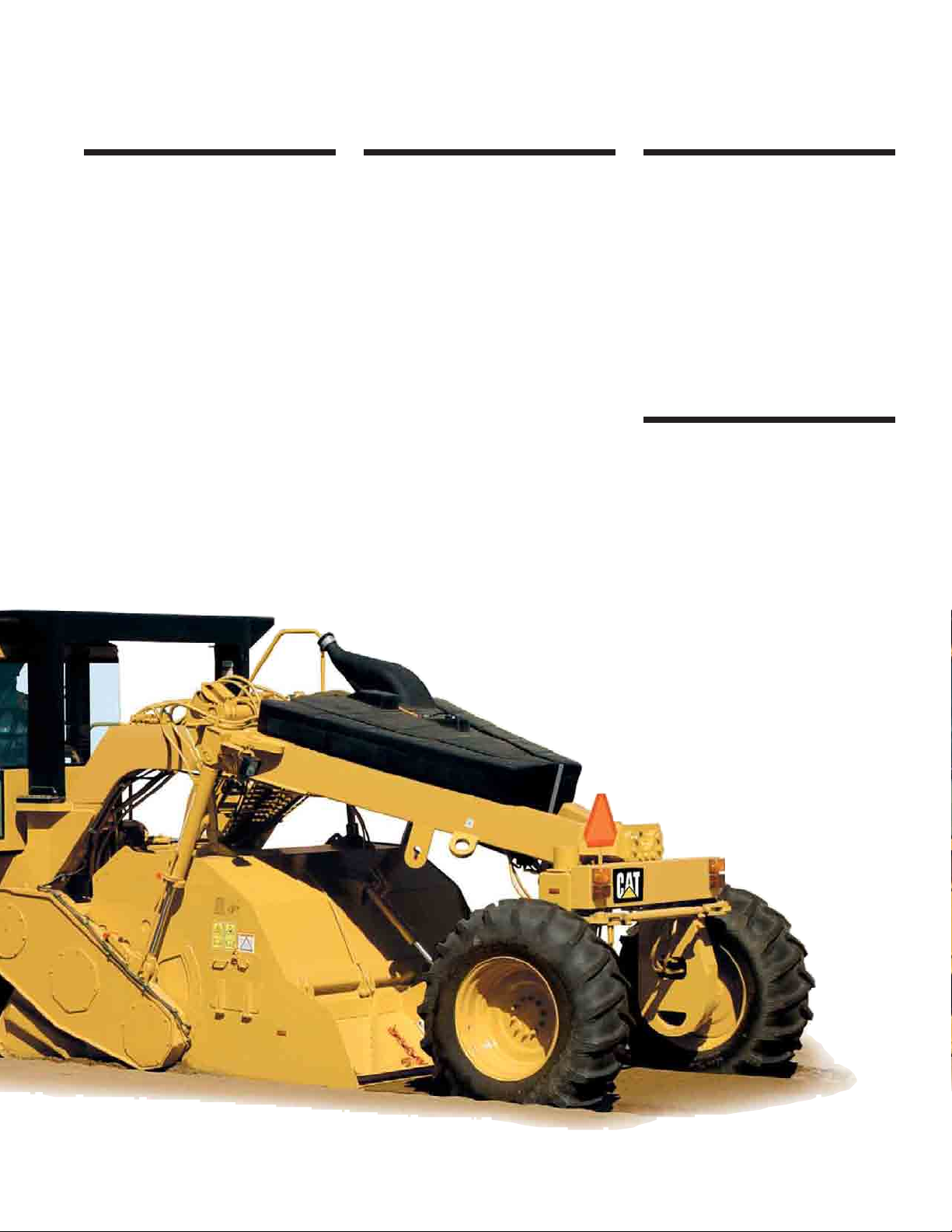

Performance and reliability you expect.
The RM300 combines superior performance
and reliability to achieve the most demanding
job specifications while maximizing machine uptime.
With many enhanced features and options,
the RM300 is designed to work well in both full depth
reclamation and soil stabilization applications.
Page 3
3

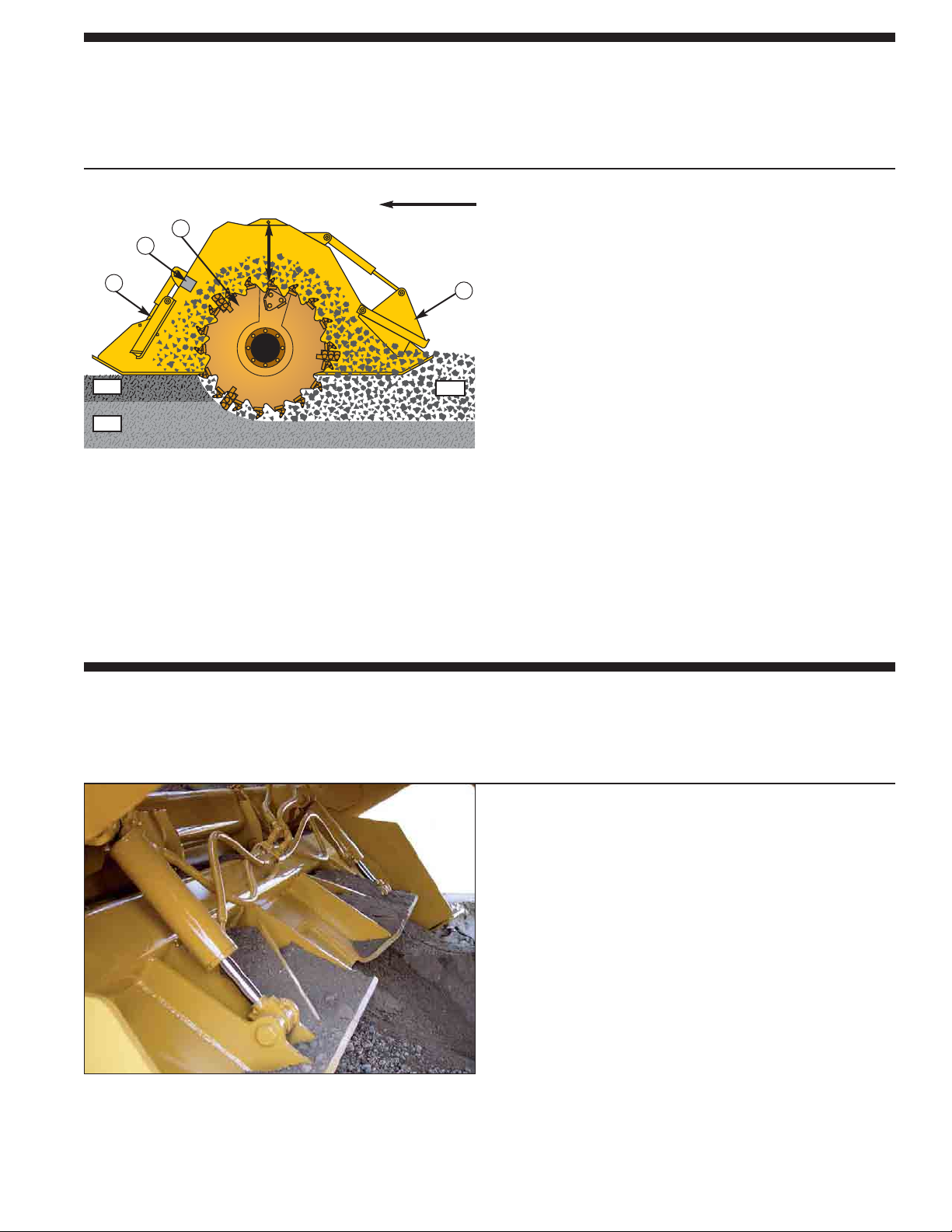

Mixing Chamber
Mixing chamber allows the rotor to
move independently so that the
capacity of the chamber actually
increases in deeper cuts to allow
better material mixing and excellent
gradation. Machine weight is well
distributed to provide stability in
the cut for uniform depth control.
pg. 9

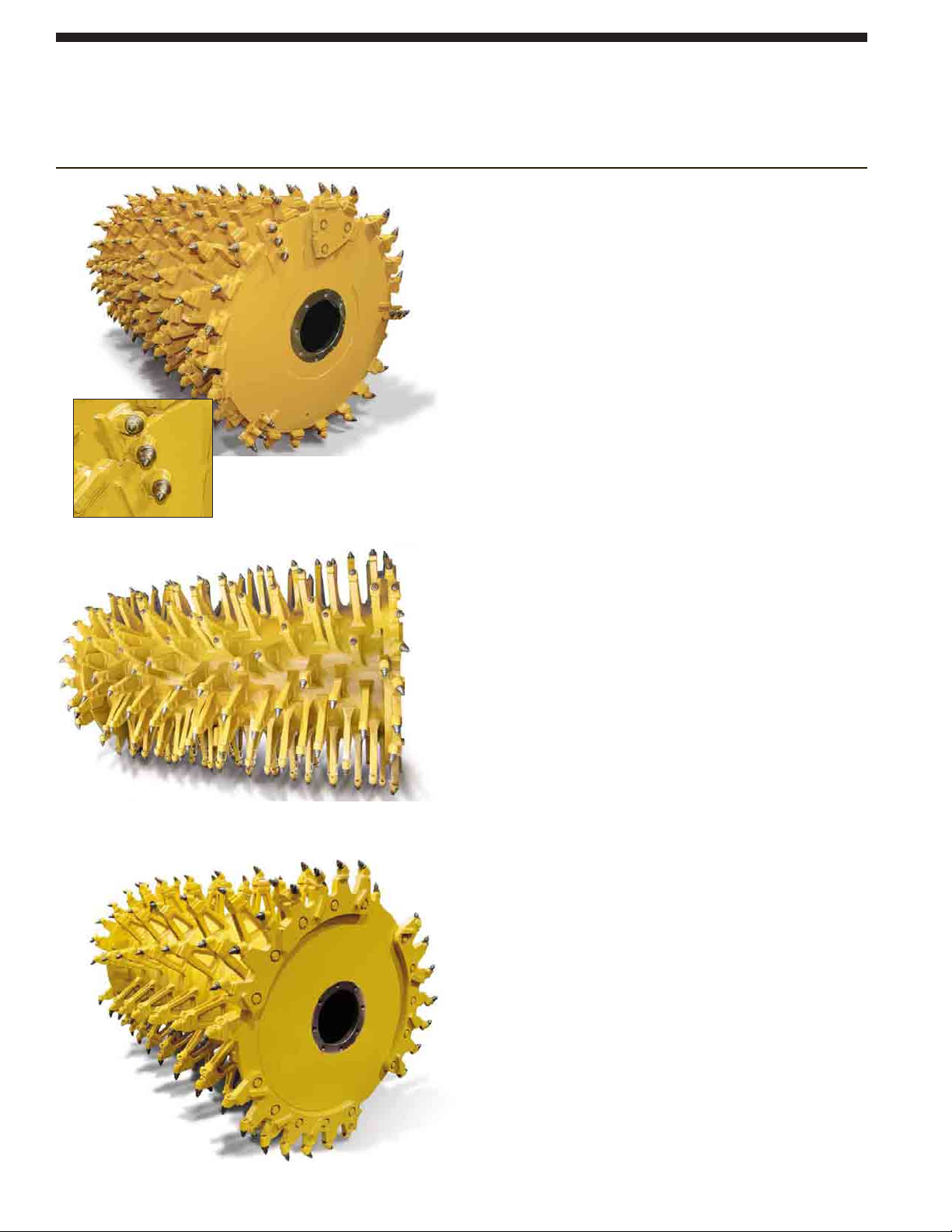

Rotor Options
With a choice of three rotor options,
the RM300 can be configured for
different applications and depth
specifications. The universal rotor is
intended primarily to pulverize asphalt
layers. The soil rotor is intended
primarily for soil stabilization.
The combination rotor is intended
primarily for use in soil stabilization
with secondary application in light cuts
of asphalt reclamation. pg. 10

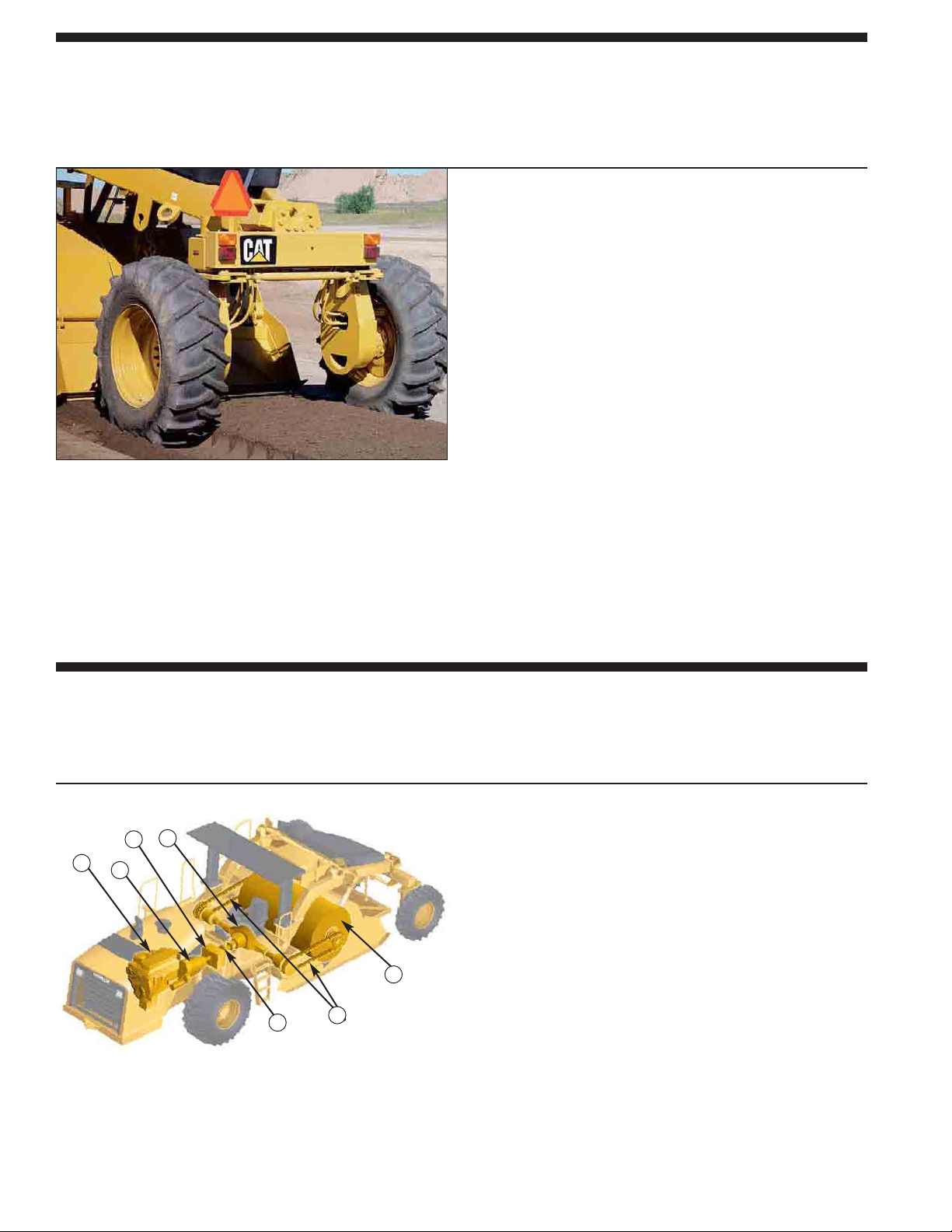

Rear Wheel-Drive
The optional rear wheel-drive propel
system features a dedicated propel
pump to provide separate balanced
hydraulic flow to both the rear drive
motors. This system enables the
operator to achieve superior tractive
effort for soil stabilization applications
that require maximum cutting depth
and that are also high in moisture
content. pg. 8
Rotor Drive
A direct-drive mechanical transmission
drives the rotor and provides three
rotor speeds for maximum performance
in a variety of materials and cutting
depths. Heavy-duty shear disc or
optional torque limiter protects rotor
drive components from torsional
stress and shock loads. pg. 8
Page 4
4

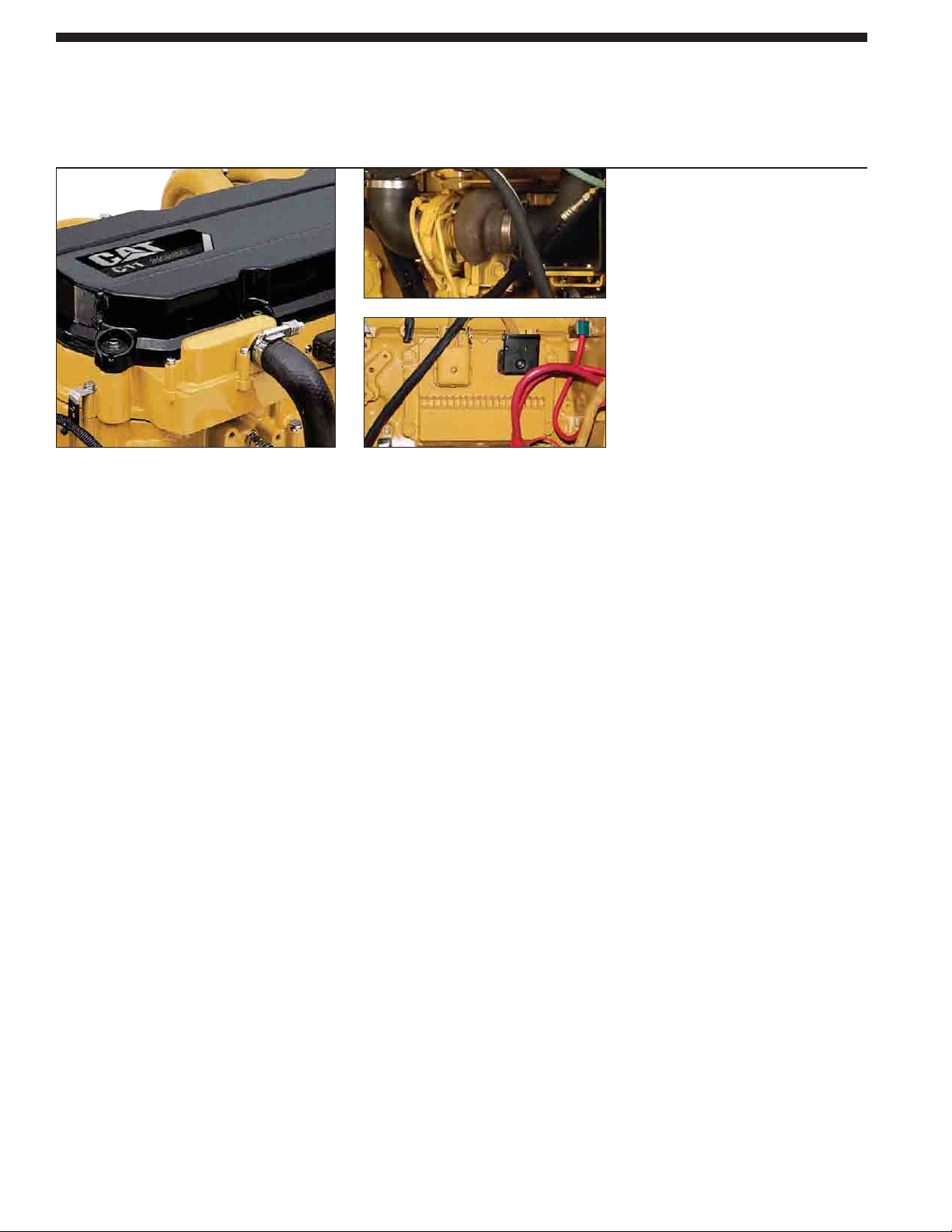

C11 Engine with ACERT Technology
A combination of innovations working at the point of combustion, ACERT Technology
optimizes engine performance while meeting European EU Stage IIIA emission regulations
for off-road applications.
Cat C11 Engine with ACERT Technology.
The C11 engine provides a full-rated gross
power (SAE J1995) of 261 kW (355 hp)
at 1800 rpm with a torque of 1384 Nm.
The combination of large displacement and
high torque allow the RM300 to propel
through the toughest materials.
Mechanically-Actuated Electronically
Controlled Unit Injection (MEUI).
The MEUI fuel system is a unique system
that combines the technical advancement
of an electronic control system with the
simplicity of direct mechanically controlled
unit fuel injection. The MEUI system excels
in its ability to control injection pressure
over the entire engine operating speed
range. These features allow the C11 to have
complete control over injection timing,
duration and pressure.
Multiple Injection Fuel Delivery.
Multiple injection fuel delivery involves a
high degree of precision. Precisely shaping
the combustion cycle lowers combustion
chamber temperatures, which generates
fewer emissions, optimizes fuel combustion;
translating into more work output for your
fuel cost.
C11 Cylinder Block. The cylinder
block is a one-piece, grey iron block
that features generous ribbing for
stiffness and heavy bearing bulkheads
for rigidity and strength as the crankshaft turns. This new design supports
the engine’s higher compression ratios
and increases its power density.
The incorporation of straight-thread,
o-ring connection points reduces
the loss of engine oil and fluids.
High Cylinder Pressures.
High cylinder pressures combined
with tightly controlled tolerances
promote extremely efficient fuel burn,
less blow by and lower emissions.
Single Overhead Cam. One single
overhead cam is driven by a gear on
the flywheel end of the engine.
Placing the cam gear at the flywheel
end significantly reduces noise and
vibration. To reduce wear, a pendulum
absorber is mounted at the front of
the camshaft. Together these two
features contribute to the long-life
and durability of this engine.
Service, Maintenance and Repair.
Easier service, maintenance and
repair is accomplished by monitoring
key functions and logging critical
indicators. Advanced electronic
diagnostic capabilities are possible
using Cat Electronic Technician.
Turbocharged and Air-to-Air
Aftercooling (ATAAC).
The turbocharged air-to-air
aftercooling system provides
high horsepower with increased
response time while keeping
exhaust temperatures low for long
hours of continuous operation.
Air-to-Air Aftercooling.
Air-to-air aftercooling keeps air intake
temperatures down and in concert
with the tight tolerance combustion
chamber components, maximizes fuel
efficiency and minimizes emissions.
New turbocharger, unique cross-flow
head, single, rear driven, overhead
cam and a more efficient intake
manifold generate significant
improvements in air flow.
This generates significant
improvements in efficiency
and reduced emissions
ADEM™ A4 electronic Control
Module. The ADEM A4 electronic
control module manages fuel delivery,
valve timing and airflow to get the
most performance per liter of fuel
used. The control module provides
flexible fuel mapping, allowing the
engine to respond quickly to varying
application needs. It keeps track of
engine and machine conditions while
keeping the engine operating at
peak efficiency.
Page 5
5

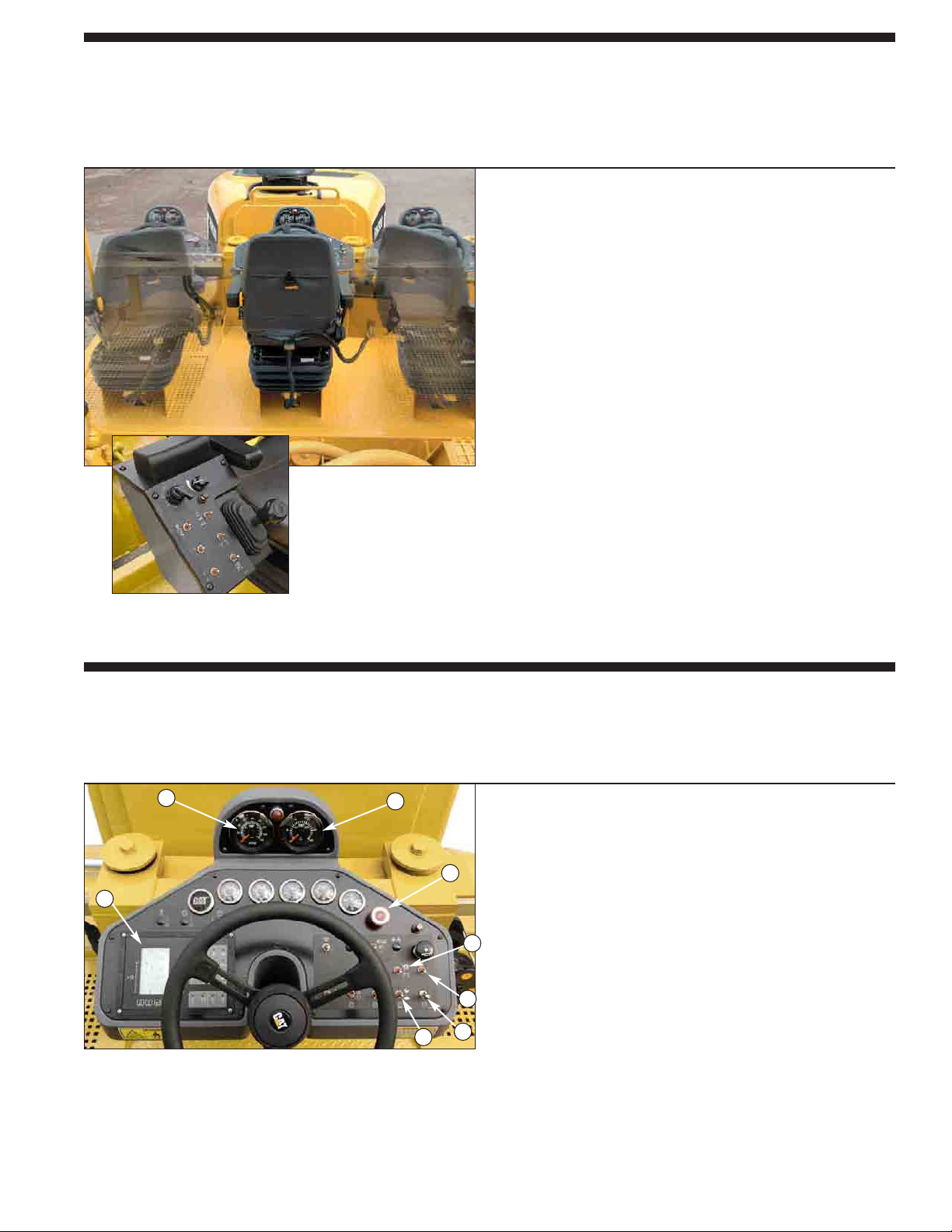

Operator’s Station
Ergonomic design emphasizes operator comfort, visibility and easy operation.
The sliding platform slides side-to-side to reduce operator fatigue for increased productivity.
Hydraulically-assisted sliding platform. The operator can
position the platform to any desired position to provide clear,
all-around visibility to both sides of the machine. Platform
can be accessed from either side of the machine.
Comfortable and durable seat. The seat has adjustable fore/aft
position, bottom cushion height, suspension stiffness and flipup arm rests. Seat and side control console rotates to seven
positions to enhance operator comfort.
Controls are conveniently located for easy one-handed
control while seated. Propel lever with center detent allows
forward/reverse operation and variable machine speed.
Adjustable steering column. The telescoping and tilt feature
of the steering column provides a comfortable operating
position for the operator.
Operational Controls
All machine controls, switches and gauges are positioned to minimize operator fatigue and
maximize productivity.
Clear instrumentation. Includes gauges for engine oil
pressure, engine coolant temperature, hydraulic oil
temperature, charging system voltage and fuel level.
Large analog gauges. Large gauges display propel ground
speed, engine rpm, engine hour meter and fault codes.

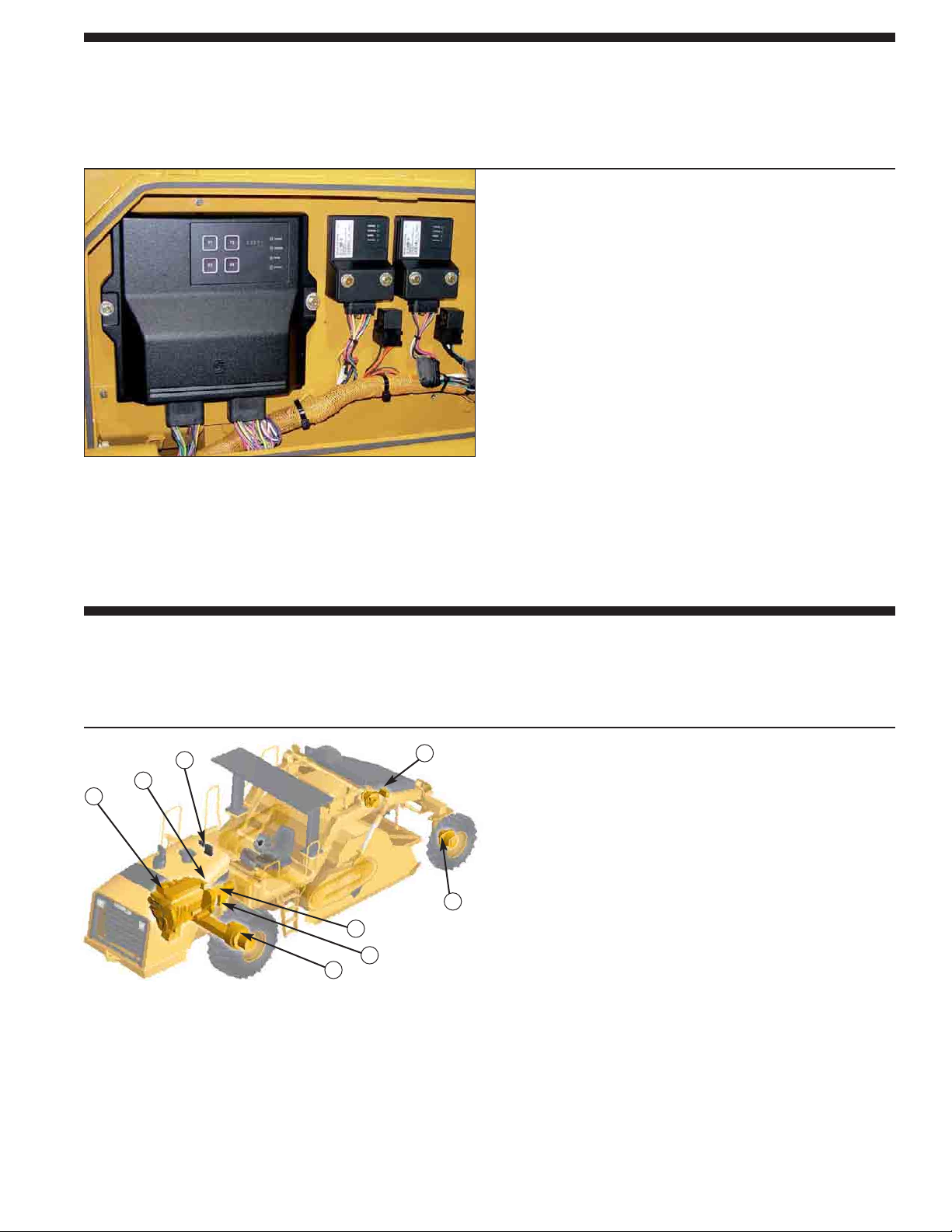

Electronic monitoring system. Input signals are constantly
monitored from sensors and switches in various machine
systems and operator is alerted if a problem occurs.
Load control selection switch. Controls propel speed
manually or automatically by the ECM.
Standard rear wheel steering control. Rear wheel steering
control allows operator to position rear wheels for
maneuvering in tight quarters. Automatic four mode steering
including crab and coordinated position is optional.
1 Electronic Monitoring System
2 Ground Speed Indicator
3 Engine Tachometer
4 Park Brake Switch
5 Propel Speed Selector Switch
The side console features a padded arm
rest, the four mode steering switch,
speed control dial, propel lever, rotor
elevation, front and rear rotor hood
door switches, rear steering switch
and sliding operator’s station switch.
1
2
3
4
5
6
7
8
6 Load Control Selection
Switch
7 Rotor On/Off Switch
8 Engine Speed Switch
Page 6
6

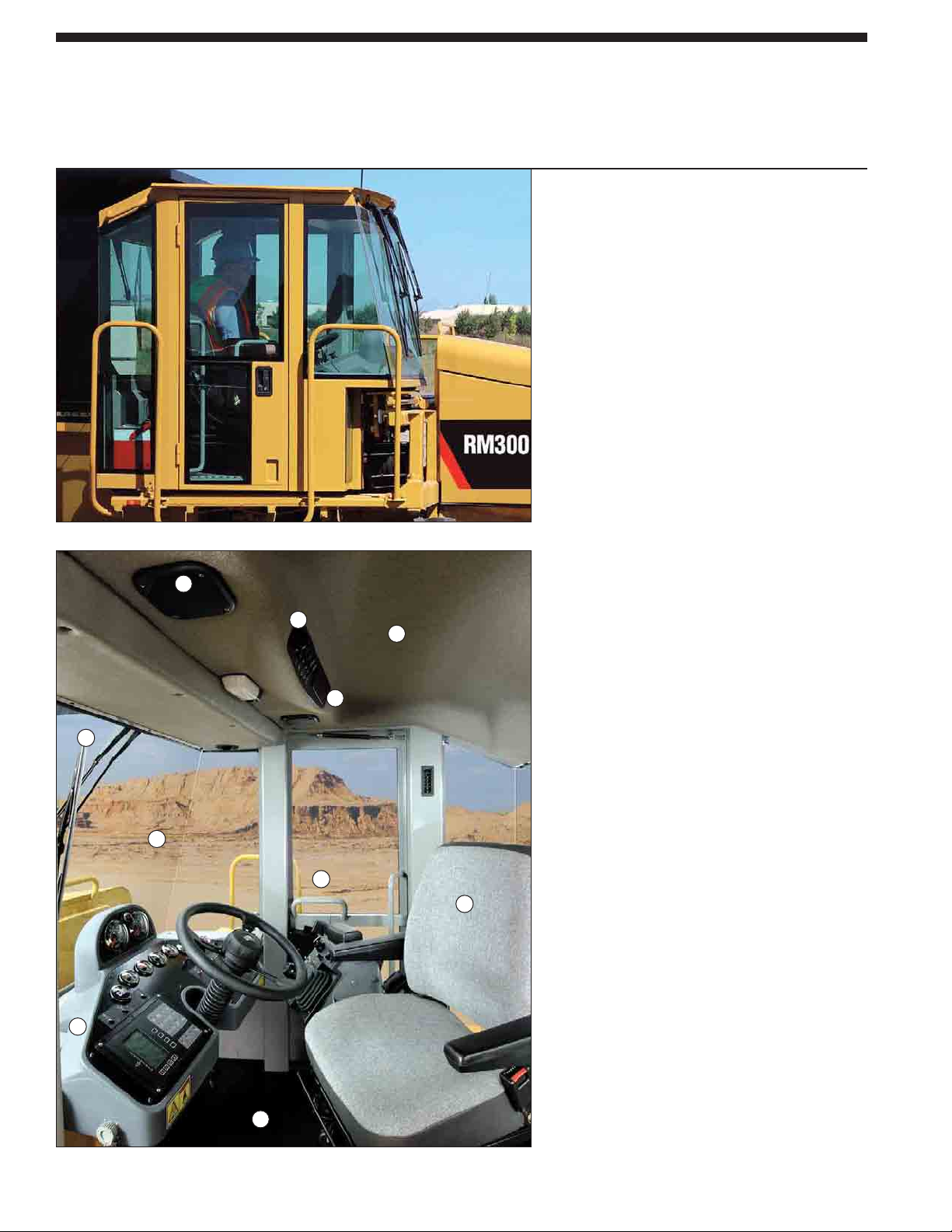

Sliding Cab
Optional cab can increase machine utilization and provides greater year-round comfort in
extreme environment conditions. The cab is fully pressurized and includes air conditioning.
Pressurized iso-mounted cab. Maintains noise,
dust and the elements out, and comfort in.
Fully-equipped cab. Items included with cab are:
rotating cloth seat, left and right side lockable
doors, tinted glass, air conditioning,
heater/defroster, dual front and rear windshield
wipers and sound absorbing floor mat.
Additional operator comforts. The cab also
includes two cup holders and a 12-volt power
receptacle. The cab is also radio-ready and
includes a power converter, antenna with cable,
two speakers and a headliner location for
mounting radio.
Excellent all-round visibility. The cab offers an
exceptional viewing area to the front tire edge,
mixing chamber and to the rear wheels.
The following features further enhance
operator comfort;
1 Heating/air conditioning controls.
2 Left and right access doors.
3 Rotating cloth seat.
4 Sound absorbing headliner.
5 Tinted glass.
6 Windshield wipers.
7 Cushioned floor mat.
8 Dual front mounted speakers.
9 Radio-ready mount.
10 Heavy-duty isolation mounts.
1
2
3
4
5
6
7
8
9
10
Page 7
7
Electronic Control Modules
Reliable field-proven technology makes machine operation simple and self-diagnostics
simplifies troubleshooting.
Reliable field-proven technology. Field-proven technology
provides maximum productivity and simplifies
troubleshooting.
Electronic Control Module (ECM). Input signals from sensors
in the engine, propel, steering and rotor drive systems monitor
current operating conditions.
Self-diagnostics. Provides information for troubleshooting
and alerts the operator of potential system problems.
Automatic load control. The load control system
automatically adjusts propel speed so that engine speed does
not drop below 1800 rpm. Machine always works at peak
efficiency for maximum output.
Optional automatic rotor depth control. Provides consistent
quality and performance.
Propel System
Hydrostatic drive provides balanced tractive effort to each drive motor.
Optimum tractive effort. The propel pump provides balanced
flow to the dual displacement front drive motors. Provides
optimum tractive effort in soft underfoot conditions.
Load sensing system. The Electronically Controlled Module
(ECM) matches propel speed to the load on rotor.
Two speed ranges. The machine operates at either maximum
torque to propel the machine through the toughest conditions
or a faster speed for moving around the job site.
Infinitely variable machine speed. The propel lever and speed
dial control infinitely variable machine speed.
Flow divider control valve. Equal hydraulic oil flow to each
drive motor increases tractive effort in slippery conditions.
1 Caterpillar C11 Engine
2 Electronic Control Modules
3 Front Wheel Propel Pump
4 Front Flow Divider
Control Valve
5 Front Wheel Drive Motor
1
2
3
4
5
6
7
8
6 Rear Wheel Propel Pump
(optional)
7 Rear Flow Divider
Control Valve (optional)
8 Rear Wheel Drive Motor
(optional)
Page 8
Rotor Drive
Maximum production with high reliability. The mechanical rotor drive system provides
three rotor speeds for maximum performance in a variety of materials and cutting depths.
8
Maximum production. The hydraulically engaged clutch,
high torque mechanical transmission and drive axle allows
efficient and reliable transfer of engine power to rotor and
is sized to handle tough cutting and deep mixing.
Rotor drive. Rugged drive chains provide efficient, continuous
power to the rotor. Single strand heavy-duty chain resists
breakage. High capacity rotor drive shafts and maintenancefree universal joints.
Three rotor speeds. Three rotor speed selection provides
maximum performance in a variety of materials and cutting
depths. First speed is used primarily for pulverizing
the material. Second and third rotor speeds can be used
as blending or mixing passes.
Heavy-duty shear disc or optional torque limiter.
Protects rotor drive components from torsional stress
and shock loads.
Rear Wheel-Drive
Optional rear wheel-drive includes a separate hydraulic pump and large displacement
motors on each rear wheel. The system propels the machine with all-wheel drive.
Two propel pump system. One pump is dedicated to drive
the front wheels, while the second propel pump is dedicated
to drive the rear wheels.
Superior tractive effort. Increased tractive effort for those
tough soil or reclamation jobs.
Flow divider control valve. Equal hydraulic flow to each rear
wheel to provide all-wheel drive.
Four-wheel drive. High torque large displacement motors on
rear wheels makes this a true four-wheel drive machine.
Large rear tyres. Tyres with an aggressive tread and large
footprint propels the machine easily in the most severe
applications.
Rear wheel-drive. This feature can be activated by a switch
on the operator’s console when maximum tractive effort
is required.
1 Caterpillar C11 Engine
2 Clutch
3 Transmission
4 Axle
1
2
3
4
5
6
7
5 Rotor
6 Rotor Drive Chains
7 Shear Disc
Page 9
Hydraulic Front Door
Optional front door is ideal for peak efficiency on soil stabilization, bio-remediation or
mixing passes on asphalt reclamation.
9
Mixing Chamber
Mixing chamber is a heavy-duty hood with large volume to handle deep mixing.
Ensures depth control, proper sizing and thorough blending of reclaimed materials.
Optimum material mixing. The mixing chamber allows
the rotor to move independently so that the capacity of
the chamber actually increases in deeper cuts to allow
better material mixing.
Mid-machine rotor. Total machine weight on rotor helps keep
rotor steady in the cut for uniform depth control.
Increased machine efficiency. Bi-directional mixing
capability increases machine efficiency.
Uniform material sizing. Large heavy-duty breaker bars help
achieve uniform sizing.
Hydraulically adjustable rear door. Provides optimum control
of gradation and material uniformity.
Optional hydraulically adjustable front door. Allows more
precise sizing control when operating in the reverse direction.
Quick tool replacement. Side access doors enable quick and
simple replacement of cutting tools on rotor ends.
Machine Travel
Rotor Movement
A Asphalt
B Base
R Reclaimed Material
Hydraulically operated front door. Allows the operator to
control the opening of the front door from the operator’s
station.
Precise control. Dual hydraulic cylinders offer increased
lifting force and precise control of the front door. The front
door raises parallel to the cutting surface to prevent the door
from plowing material in harsh soil stabilization conditions.
Increased machine versatility. Forward or reverse operation
increases machine versatility in soil stabilization.
Visual site gauge. The visual site gauge on rotor hood
displays door position and allows the operator to precisely
control the opening of the front door.
B
R
A
1
2
3
4
1 Fully Adjustable Rear Door
2 Universal Rotor (shown)
3 Breaker Bars (if equipped)
4 Fully Adjustable Front Door
(optional)
Page 10
10
Rotor Selection
Choice of three rotor designs for different applications and depth specifications.
Tools are mounted in drive-in, knock-out holders for quick and easy replacement.
Universal Rotor. Designed primarily for use in asphalt
reclamation.
200 point-attack carbide-tipped tools. Tools are mounted
in drive-in, knock-out bolt-on tool holders and arranged in
a chevron pattern for maximum breakout force.
Breakaway design tool holders. Allow for fast
replacement without welding.
Kicker paddles placed on every stand-off. Improves
mixing in soil stabilization and provides more efficient
material movement in full depth reclamation.
Triple-tree tool placement. Tool placement on rotor ends
cleans up loose material and reduces wear on drum when
maneuvering in the cut.
Maximum depth is 457 mm.
Triple-tree tool placement.
Soil Rotor. Designed primarily for use in soil stabilization.
238 point-attack carbide-tipped tools. Tools are mounted
in drive-in, knock-out weld-on tool holders and arranged
in a chevron pattern for maximum breakout force.
Versatile applications. Blends additives with cohesive,
semi-cohesive or granular materials.
Replaceable end rings. Rotor mandrel are protected from
wear. Rings are hard-faced for extended service.
Maximum depth is 508 mm.
Combination Rotor. Designed primarily for use in soil
stabilization with secondary application in light cuts of
road reclamation.
114 point-attack carbide-tipped tools. Tools are mounted
in drive-in, knock-out breakaway bolt-on tool holders.
Replaceable end rings. Rotor mandrel are protected from
wear. Rings are hard-faced for extended service.
Maximum depth is 508 mm.
Page 11
11
Serviceability
Less time on maintenance means more time on the job.
Self-lubricating rotor drive chains
in sealed chain cases partially filled
with oil.
Electronic Control Module (ECM).
ECM monitors machine systems and
provides self-diagnostics for operator
or service personnel.
Warning levels. Three warning levels
alert operator to conditions on
the machine that require attention.
Encourages repair before major failure.
Level One – a flashing gauge indicator
and a flashing alert indicator light.
Level Two – level one warning plus
the warning action lamp flashing.
Level Three – level two warning plus
the warning action horn sounds.
Visual indicators. Allows easy check of
engine coolant, rotor axle and hydraulic
oil level and air restriction indicator.
Quick-connect hydraulic test ports
simplify system diagnostics.
Ecology drains provide an environmental
method to drain fluids. They are included
on the radiator, engine oil pan, hydraulic
and fuel tank.
S•O•SSMports allow for simple fluid
collection of engine oil, engine coolant
and hydraulic oil.
Secure hose routing. Polyethylene
routing blocks reduce rubbing and
increase service life.
Nylon braided wrap and all-weather
connectors ensure electrical system
integrity. Electrical wiring is colourcoded, numbered and labeled with
component identifiers to simplify
troubleshooting.
Maintenance-free Caterpillar batteries
are mounted on the side of the machine
and are accessible from ground level.
Cat batteries are specifically designed
for maximum cranking power and
protection against vibration.
Machine is Product Link wire-ready.
The Caterpillar Product Link System
(CPLS) ensures maximum uptime and
minimum repair costs by simplifying
tracking of equipment fleets. Provides
automatic machine location and hour
updates. Can be obtained through your
local Caterpillar dealer.
Daily service points are accessible from
ground level and are grouped on one
side of the engine. Hinged ground level
side panels open wide for total access
to engine components. Lower side
panels can easily be removed for even
greater access.
Cooling package. A multi-row modular
design, stacked in series provides easy
access for cleaning and service.
A modular stacked cooling system
provides more efficient cooling of
individual systems and makes
replacement and routine cleaning easier.
Electronically controlled on-demand
variable speed cooling fan provides
the lowest overall noise levels and high
ambient operation capability.
Hydraulic rotor hood tilt rotates hood
forward for convenient access to rotor
for inspection and tool maintenance.
Hinged service doors open wide on
sides of engine, rotor hood and on top
deck for access to power train and rotor
drive components.
Page 12
12
RM300 Rotary Mixer specifications
Propel System
Brakes
Primary Brake Features
Closed-loop hydrostatic drive
provides dynamic braking during
normal operation.
Parking Brake Features
Spring-applied/hydraulically-released
multiple disc type brake mounted on
each gear reducer. Secondary brakes
are activated by a button on the
operator’s console, loss of hydraulic
pressure in the brake circuit or when
the engine is shut down.
Propel pumps are destroked when
parking brake is engaged. Propel lever
must be returned to neutral after brake
is released before machine will propel.
Engine
The Caterpillar®C11 engine with
ACERT®Technology is a six cylinder,
turbocharged air-to-air after-cooled
diesel engine. The engine meets
European EU Stage IIIA engine
emission regulations.
Gross Power 1800 rpm
SAE J1995 261 kW/355 hp
Rated Net Power 1800 rpm
ISO 9249 260 kW/354 hp
EEC 80/1269 260 kW/354 hp
Bore 130 mm
Stroke 140 mm
Displacement 11.1 liters
All engine horsepower (hp) are
metric including front page.
The power ratings are tested under
the reference conditions for the
specific standard.
Net power advertised is the power
available at the flywheel when the
engine is equipped with an alternator,
air cleaner, muffler and fan at
minimum speed.
The engine provides a torque of
1384 Nm.
Derating is not required up to an
altitude of 2100 m.
Front wheel drive is standard. Rear
wheel-assist is optional to provide ondemand all-wheel drive for increased
tractive effort. Operator can activate by
a switch on the front control console.
Features
Front wheels are hydrostatically
driven by two dual displacement
piston-type motors. A separate
variable displacement, piston-type
pump with electronic displacement
control supplies pressurized flow.
Planetary gear reduction on each
front wheel end.
Front drive motors have two
swashplate positions allowing
operation at either maximum torque
for work or greater speed for moving
around the job site.
Gear selection controlled electrically
by a two-position switch on the
operator’s console.
Rear wheels are hydrostatically
driven by two radial piston-type
motors. A separate variable
displacement, piston-type pump
with electronic displacement control
supplies pressurized flow.
Infinitely variable machine speed
and direction of travel controlled by
propel lever.
Speed control dial allows the operator
to set the maximum working speed so
that when the propel lever is placed in
the full forward position, the machine
will return to the pre-set speed.
Load sensing system, controlled by
Electronic Control Module (ECM),
matches propel speed to load on
the rotor.
Flow divider control valve provides
equal hydraulic oil flow to each drive
motor to increase tractive effort in
slippery conditions. Operator can
activate by a switch on the front
control console. The rear propel
system also includes a flow divider
control valve if machine is equipped
with the rear wheel-assist option.
Max. Speeds (forward and reverse):
Working 4.3 km/h
Roading 9.7 km/h
Electrical
The 24-volt electrical system consists
of two maintenance-free Cat batteries.
Electrical wiring is colour-coded,
numbered, wrapped in vinyl-coated
nylon braid and labeled with component
identifiers. The starting system provides
1365 cold cranking amps (cca). The
system includes a 95-amp alternator.
Frame
Fabricated from heavy gauge steel
plates and structural steel tubing. Frame
joined to rear bolster with welded-in
trunion and spherical plain bearings to
allow rear bolster oscillation of 15°.
Page 13
13
RM300 Rotary Mixer specifications
Rotor Drive System
Operates direct through a hydraulically
actuated clutch driving a mechanical
transmission.
Features
ON/OFF switch controls
hydraulically actuated clutch driving
transmission and rotor drive axle.
Three rotor speeds are created
through transmission and rotor drive
axle. Choice of rotor speeds permits
working in a wide range of materials,
depths and applications.
Rotor speed selection controlled
electrically by a three-position switch
on the operator’s console.
Single strand, high strength rotor
drive chains on both sides are
contained in heavy-duty chain cases
partially filled with oil.
Shear disc or optional torque limiter
protect rotor drive components.
Rotor drive Chain
Transmission Mechanical
Clutch Hydraulic
Rotor Speeds at 1800 engine rpm
First 106 rpm
Second 144 rpm
Third 216 rpm
Rotor Depth Control
Manual rotor height and depth
controlled by operator is standard.
Automatic rotor height and depth is
optional and features electronic over
hydraulic control. ECM controls two
double-acting hydraulic cylinders on
sides of mixing chamber. Actual rotor
height and depth are displayed on the
electronic control panel.
Features
Three-position mode switch allows
rotor depth to be controlled manually
or automatically.
Manual mode controls depth using
the raise/lower switch. Visual depth
gauge easily seen from operator’s
station.
AUTOMATIC mode automatically
controls rotor depth to a preset
cutting depth. Setting cutting depth is
easily accomplished first in manual
mode by a switch on the operator’s
console.
TRAVEL mode selection
automatically raises rotor and hood
to a preset travel height.
Steering
A hydraulic power-assist, two mode
steering system – front and rear wheel
is standard. Four mode features crab
and coordinated steering through ECM
is optional.
Features
Two double-acting steering cylinders
control the front wheels and are
powered by a pressure-compensated,
piston-type pump. One double-acting
steering cylinder is attached to the
rear bolster. Constant pressure is
assured in the steering system.
Switch on operator’s side console
provides rear wheel steering mode.
Steering Modes
Front steer only – controlled by a
hand metering unit, maintained by
closed-loop control. When equipped
with four mode steering, ECM
automatically aligns rear wheels to
the center position for straight
tracking.
Rear steer – controlled by a toggle
switch, maintained by closed-loop
control.
Crab – front and rear wheels turn
simultaneously in the same direction.
Coordinated – front and rear wheels
turn simultaneously in the opposite
direction.
Switch on operator’s side console
provides four steering modes.
Rotor Specifications
Cutting width 2438 mm
Cutting depth
Universal 457 mm
Soil 508 mm
Combination 508 mm
Drum diameter
Universal 1525 mm
Soil 1625 mm
Combination 1625 mm
Number of tools
Universal 200
Soil 238
Combination 114
Tool spacing (tip)
Universal 15 mm
Soil 11.5 mm
Combination 32 mm
Page 14
14
RM300 Rotary Mixer specifications

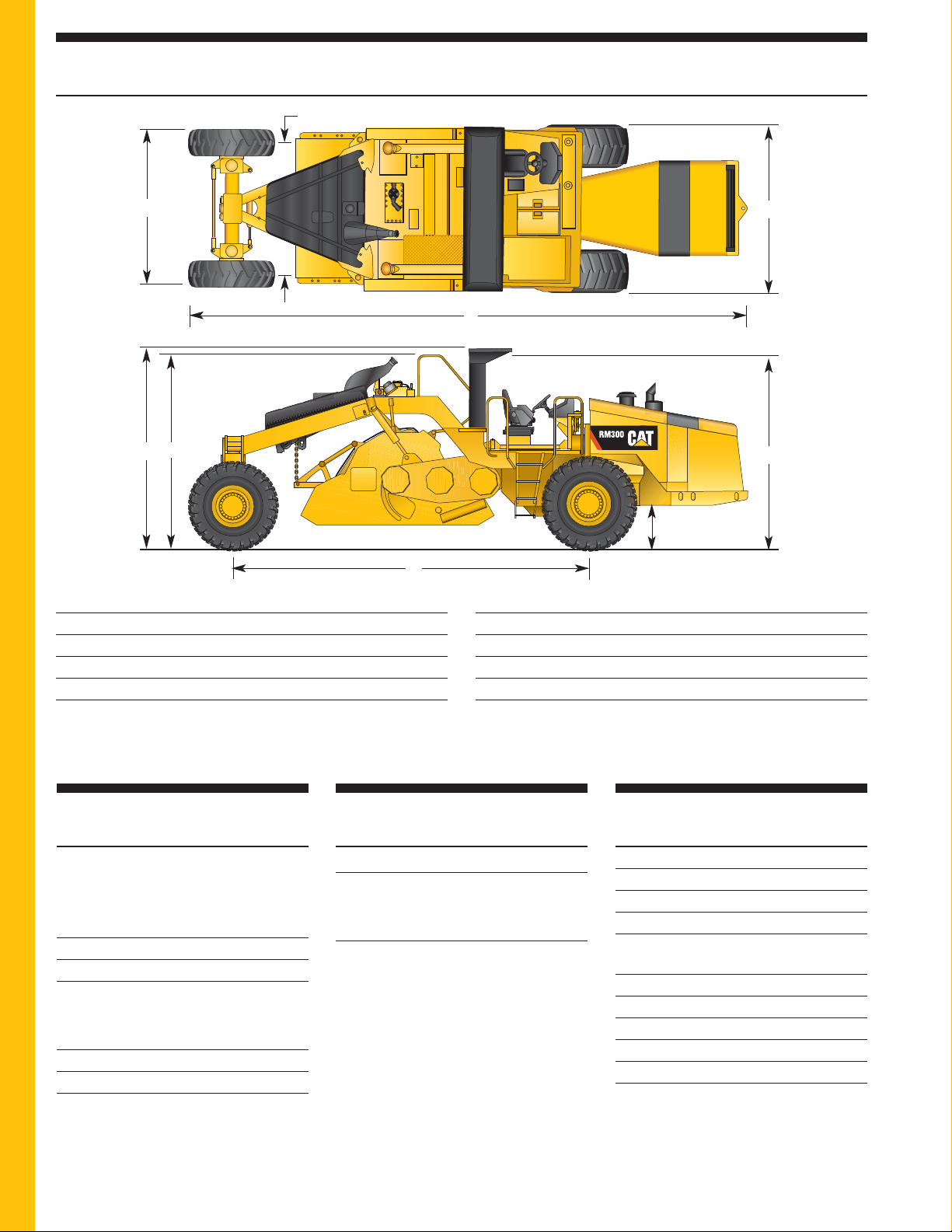

Operating Dimensions
mm
A Overall length 1000
B Overall machine width 3000
C Width at rear wheels 2820
D Rotor hood width 2730
E Height at ROPS 3500
mm
F Height at cab (if equipped) 3400
G Height at handrail 3370
H Wheelbase 6320
I Ground clearance 720
Inside turning radius 3900
I
B
F
E
H
C
D
G
A
Operating Weights
Weights shown are approximate and
include coolant, lubricants, 50% fuel
level and a 75 kg operator.
Machine Weights with sliding platform
with universal rotor 24 450 kg
with soil rotor 23 920 kg
with combination rotor 24 640 kg
Optional Configurations
(add to above figures)
ROPS 512 kg
FOPS 213 kg
Cab 468 kg
Tires
Front
713 mm x 660 mm 18-ply lug-type R-1
262 kPa
Rear
467 mm x 762 mm 12-ply lug-type R-1
221 kPa
Service Refill Capacities
Liters
Fuel tank (useable) 1056
Cooling system 62.5
Engine oil w/filter 32
Propel planetary
gear reducer (each) 5
Hydraulic tank 233
Rotor drive axle 17
Rotor axle hub (each) 3.8
Rotor bearing reservoir 2
Chain case (each) 25.6
Rotor transmission 5.7
Page 15
15
RM300 Rotary Mixer specifications
Optional Equipment
Some options listed may be an option in some areas and standard in others. Consult your dealer for specifics.
Roll Over Protective Structure (ROPS).
The two-post structure that bolts directly
onto flanges welded to the mainframe.
The structure meets ISO 3471.
The structure can be field installed.
Falling Object Protective Structure
(FOPS). Bolts directly to the ROPS
which provides Level 1 protection
and also serves as a sun canopy.
The structure meets ISO 3449.
The structure can be field installed.
Sliding Cab. includes a rotating cloth
seat, sound absorbing headliner, left and
right side lockable doors, tinted glass, air
conditioning, heater/defroster, dual front
and rear windshield wipers and rubber
floor mat. The cab is also radio-ready
and includes a power converter, antenna
with cable, two speakers and
a headliner location for mounting.
Rear Wheel-Drive. propels the machine
with on-demand all-wheel drive in
the work mode to increase tractive
effort. Highly recommended for soil
stabilization applications. Includes
separate propel pump, two radial piston
hydraulic drive motors, flow divider
and free wheeling valve. The rear wheels
freewheel when rear wheel-drive is not
engaged.
Automatic Rotor Depth Control.
ECM automatically controls rotor
depth to a preset cutting depth. Setting
cutting depth is easily accomplished first
in manual mode by a switch on
the operator’s console. Actual rotor
height and depth are displayed on
the electronic control panel.
Includes four mode steering.
Four Mode Steering. ECM monitors
the position of the steering mode switch
and controls the rear wheels to provide
automatic crab and coordinated
steering. (Includes automatic rotor
depth control.)
Hydraulically Operated Front Door.
Allows the operator to control the
opening of the front door from the
operator’s station. Offers better control
of gradation in reclamation and
increased versatility in soil stabilization
because the machine is able to work in
both directions.
Friction Torque Limiter. Protects rotor
drive train from high torque loads in
the event the rotor strikes an
immovable object. The limiter slips
momentarily without interrupting
machine operation.
Working Light Package. Includes six
adjustable halogen floodlights,
two front-facing, two rear-facing and
two facing each rotor chamber door.
Two red tail lamps, eight amber and
two red reflectors are also included.
Roading Light Package. Includes two
front-facing headlights, two amber
running lamps, four amber turn signal/
hazard lamps and a slow moving
vehicle sign. Light package used for
highway transport purposes only.
Warning Beacon Light. Includes an
amber rotating beacon mounted on
a retractable pole and mount.
Mirror Package. Includes an adjustable
mirror mounted on both sides of the
machine for improved visibility to the
rear and along the sides of the machine.
Water Spray System. Accurately adds
water to processed material. System
includes a operator interface panel,
hydraulic filter, EDC controlled
hydraulic pump, a 379 - 1895 liters
per minute vane-type centrifugal pump,
in-line flow meter, spray bar with
nozzles and hydraulically operated
single valve spray bar shut-off.
Powertrain Guard. Includes three bolton steel guards to provide protection
for the engine crankcase and hydraulic
hoses at front axle area.
Universal Rotor. Designed for use
in asphalt reclamation and features
breakaway bolt-on tool holders.
Maximum cutting depth is 457 mm.
Soil Rotor. Designed for use in soil
stabilization and features weld-on tool
holders. Maximum cutting depth is
508 mm.
Combination Rotor. Designed primarily
for use in soil stabilization with
secondary application in light cuts of
road reclamation and features bolt-on
tool holders. Maximum cutting depth is
508 mm.
Page 16
HEHG3301-02 (07/2007) hr
RM300 Rotary Mixer
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at
www.cat.com
Materials and specifications are subject to change without notice. Featured machines in photos
may include additional equipment. See your Caterpillar dealer for available options.
© 2007 Caterpillar -- All rights reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the POWEREDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
®
Loading...
