Getting Started

I About fx-CG10/20 Manager PLUS

• fx-CG10/20 Manager PLUS is an emulator that lets you perform fx-CG10/fx-CG20 operations on your computer.

• You can record key operations you perform on the emulator as “Key-Log records”, and edit KeyLog records as required.

• The keys on the Key-Log editor screen as well as the emulator LCD screen contents can be pasted into other applications. This means that emulator data can be used to create assignments, tests, and other materials.

• A presentation feature lets you play back saved Key-Log records.

• You can connect your fx-CG10/fx-CG20 unit to your computer and display its contents on your computer screen.

Important!

• Be sure to install the fx-CG10/20 Manager PLUS before you connect fx-CG10/fx-CG20 to your computer. Connecting before you install the fx-CG10/20 Manager PLUS can result in improper operation.

I Using This Manual

• For details about operation of the fx-CG10/fx-CG20 Graphic Scientific Calculator, see the user documentation that comes with the calculator.

• The procedures in this manual assume that you are already familiar with the following standard computer operations.

- Menu operations using the mouse, including: clicking, double-clicking, dragging, etc.

- Text input using the keyboard

- Icon operations, general window operations, etc.

- If you are not familiar with these types of operations, refer to the user documentation for your

computer.

• The screen shots shown in this manual are all from the English version of Windows

• Note that the actual appearance of the screen that appears when using this software depends on your computer system setup and on the operating system you are using.

• Screen shots shown in this User’s Guide are intended for illustrative purposes only. The actual text and values that appear on display may differ from the examples shown in this User’s Guide.

XP.

E-1

I System Requirements

Operating Systems: Windows® XP Home Edition, Windows® XP Professional (32-bit), Windows

Vista Your hardware configuration needs higher than functionalities that operating system recommends.

Computer: IBM PC/AT or compatible computer

Computer with one of the Windows (Excluding computers with an upgraded operating system and self-built computers.)

Disk Space: 100MB for installation and uninstall

Note: Actual requirements and product functionality may vary based on your system

configuration and operating system.

Other: USB port for direct connection. Do not connect via a USB hub.

Video adapter and display must support resolution of XGA (1024×768) or higher, 16 bit or higher system color. Internet Explorer CD-ROM drive Adobe® Reader® 6.0 or later. Microsoft Microsoft

(32-bit), Windows® 7 (32-bit/64-bit)

operating systems pre-installed

6.0 or later.

Excel® 2000, Microsoft® Excel® 2003, Microsoft® Excel® 2007 or

Excel® 2010

Note

• Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

• Microsoft Excel is a trademark of Microsoft Corporation registered in the United States and/or other countries.

• Company and product names used herein are trademarks of their respective owners.

E-2

1. Installing and Uninstalling fx-CG10/20 Manager PLUS ...................... E-4

2. Screen Configuration ............................................................................. E-9

Menu Bar .......................................................................................................................E-10

Toolbar ..........................................................................................................................E-15

Status Bar .....................................................................................................................E-16

3. Emulator Mode and Key-Log Editor Mode ......................................... E-17

4. Emulating fx-CG10/fx-CG20 Calculator Operation ............................ E-18

5. Using the Emulator Key-Log ............................................................... E-24

6. Configuring Options Dialog Box Setting ........................................... E-30

7. Other Functions .................................................................................... E-32

Printing ..........................................................................................................................E-32

Shortcut Menu ...............................................................................................................E-34

8. File Types Supported by fx-CG10/20 Manager PLUS ....................... E-35

9. Differences between fx-CG10/fx-CG20 Calculator and

fx-CG10/20 Manager PLUS Functions ................................................ E-36

10. Using Screen Receiver to Display the Calculator Screen Image

on Your Computer ................................................................................ E-46

11. Error Message Table ............................................................................ E-49

E-3

1. Installing and Uninstalling fx-CG10/20

Manager PLUS

This section explains how to install and uninstall fx-CG10/20 Manager PLUS.

To install fx-CG10/20 Manager PLUS

1. Place the CD-ROM into your computer’s CD-ROM drive.

• After a short while, the fx-CG Manager PLUS screen will appear on the display.

2. Click “fx-CG10/20 Manager PLUS”, and then click “Install”.

• This will display a dialog box for selecting the screen language.

E-4

3. Select the language you want and then click [OK].

4. Click the [Next] button.

• This will display the end user license agreement (EULA).

5. Carefully read the EULA.

E-5

6. If you agree to the terms and conditions of the license agreement, click “I accept the terms…”,

and then click the [Next] button.

• If you do not agree to the terms and conditions of the license agreement, click “I do not accept the terms…” and then click [Cancel] button to exit the install procedure.

7. Perform either of the two following steps to specify the installation drive and folder.

7-a: If you want to use default settings, simply click the [Next] button. This is the method you

normally should use.

7-b: If you want to specify a different folder, click the [Change] button. Select the folder you

want and then click [Next].

E-6

8. Click the [Install] button.

• This will start installation.

9. The dialog box shown below will appear when installation is complete.

10. Click the [Finish] button.

• This completes installation.

Note

• Installing the software will put a “fx-CG10_20 Manager PLUS” shortcut icon on your Windows desktop.

E-7

To uninstall fx-CG10/20 Manager PLUS

1. Display the Windows Control Panel.

2. Click [Add/Remove Program].

3. On the list of applications that appears, select “fx-CG10/20 Manager PLUS”.

4. Click the [Add/Remove] button.

• This will display the program maintenance wizard.

5. Click the [Yes] button.

• This completes the uninstall operation.

To start up fx-CG10/20 Manager PLUS

1. On your computer’s desktop, click the “fx-CG10_20 Manager PLUS” icon.

• You could also start up the application by clicking [Start] - [Program] - [CASIO] - [fx-CG10/20 Manager PLUS] - [fx-CG10/20 Manager PLUS].

E-8

2. Screen Configuration

The following shows the fx-CG10/20 Manager PLUS screen.

Menu Bar Toolbar

Emulator

Status Bar

File Display Area

* When you have both the emulator window and Key-Log (or bitmap file) window open on the

display, the emulator window always will be displayed on top.

E-9

Menu Bar

• This section explains the fx-CG10/20 Manager PLUS menu bar.

• If a menu command can also be executed by clicking a toolbar button, the applicable toolbar button is also provided.

I File Menu

File History

New

Open

Close Closes the currently open file.

Capture Screen

Save

Save As Saves the current work file under a new name.

Toolbar

Button

Description

Creates a new Key-Log file.

Opens an existing file.

Captures the emulator screen.

Saves the current work file, overwriting the previous (unedited) version.

Prints the currently displayed bitmap file.

Print Preview

Print Setup Displays the print setup dialog box.

Displays a preview of the print image.

E-10

(File History) Shows up to four of the last files you worked on.

Exit Exits fx-CG10/20 Manager PLUS.

Toolbar

Button

Description

I Edit Menu

Undo

Redo

Cut

Copy

Paste

Clear Deletes the currently selected area.

Select All Selects all Key-Log records.

Toolbar

Button

Description

Undoes the last operation.

Redoes the last undone operation.

Cuts the currently selected screen area and places it onto the clipboard.

Copies the currently selected screen area to the clipboard.

Pastes the clipboard contents.

* The Edit menu is disabled during emulator operation.

E-11

I View Menu

Menu Submenu Description

Calc Key

Calc Screen

Toolbar

I Key-Log Menu

Emulator mode Key-Log editor mode

Small Selects small-size calculator keys. Normal Selects normal-size calculator keys. Small Selects small-size display. Normal Selects normal-size display. Standard Toggles display of the standard toolbar on and off. Log Toggles display of the log toolbar on and off. Edit Toggles display of the edit toolbar on and off. Bitmap Toggles display of the bitmap toolbar on and off.

E-12

Toolbar

Button

Description

Add

Delete

Emulator

Editor

Auto Play

Step Play

Stop

Pause

Adds a new Key-Log record.

Deletes the currently displayed Key-Log record.

Enters the emulator mode.

Enters the Key-Log editor mode.

Starts Key-Log auto playback. If a calculation contains a Memory Character to the left of the cursor, Key- Log playback automatically starts from the Memory Character position.

Starts Key-Log manual playback. Except during step playback, Key-Log playback manually starts from the Memory Character position to the left of the cursor.

Stops Key-Log playback or recording.

Pauses Key-Log playback.

Record

Insert Pause

Starts Key-Log record operation.

During Key-Log editing, inserts a pause character into Key-Log playback.

I Window Menu

Menu Description

Tiled Displays all windows in a tiled configuration. Horizontal Displays all windows in a horizontal line.

• The Window menu also shows the names of files that you have open. When you have multiple files open, the file name at the top of the list is the one you are currently working with the active file.

E-13

I Tools Menu

Screen Receiver

Options Displays a dialog box for configuring optional settings.

Toolbar

Button

Description

Starts up Screen Receiver.

I Help Menu

Menu Submenu Description

Manual

License Displays the end user license agreement.

Calculator Displays the Calculator User’s Guide. Manager PLUS Displays the Manager PLUS User’s Guide.

About Displays version information.

E-14

Toolbar

• This section explains the fx-CG10/20 Manager PLUS toolbar buttons.

• The toolbar buttons correspond to menu bar commands. See the section of this manual that explains the menu bar for details about each button’s function.

I Standard Toolbar

Editor

New Open Save Print Print Cut Copy Paste Undo Redo Screen Emulator Preview Receiver

I Log Toolbar

Play Step Stop Pause Record

I Edit Toolbar

     

 Add  Delete  Insert Pause  Font ... Specifies the font of input text.  Font Size ... Specifies the font size of input text.  Key-Log Record ... Selects the Key-Log record to be played back or edited.

I Bitmap Toolbar

  

 Capture Screen  Outer Frame

Specifies an outer frame for screen captures.

 Bitmap Size

Specifies the bitmap size. Supported sizes are Small, Normal, s2 and s3.

E-15

Status Bar

  

 Help text is displayed here.  Displays the process currently being performed.  Toggles between the insert and overwrite modes.

Clicking here while in the Key-Log editor mode toggles between the insert mode and overwrite mode.

E-16

3. Emulator Mode and Key-Log Editor Mode

fx-CG10/20 Manager PLUS has two modes. You can use either of the following to operations to select the mode you want.

• On the [KeyLog] menu, select either [Emulator] or [Editor].

• On the standard toolbar, click

Emulator Mode

Use this mode when you want to perform mainly emulator operations.

Key-Log Editor Mode

Use this mode when you want to perform mainly Key-Log data operations.

or .

E-17

4. Emulating fx-CG10/fx-CG20 Calculator

Operation

• The emulator makes it possible to mimic fx-CG10/fx-CG20 calculator operation using your computers mouse and keyboard.

• For details about emulator operations, see the fx-CG10/fx-CG20 User’s Guide. You can view the User’s Guide by selecting [Manual] - [Calculator] on the Help menu.

• Note that some emulator functions are different from the functions of the fx-CG10/fx-CG20 calculator. For details, see “9. Differences between fx-CG10/fx-CG20 Calculator and fx-CG10/20 Manager PLUS Functions” (page E-36).

Note

• Image files (g3b/g3p) created with fx-CG10/20 Manager PLUS and eActivity files that contain image data created with the fx-CG10/20 Manager PLUS cannot be opened with the fx-CG10 calculator.

I Using the Emulator

• Key operations are identical to those you perform on the calculator.

• Operation results appear on the LCD screen.

LCD Screen

Keypad

E-18

In the Emulator Mode, you use your computer keyboard to operate the emulator. The following explains the keyboard keys you should use to perform each emulator key operation.

(1) Computer keyboard keys that have the same key markings as the emulator keys ?—H, , , , , , , ,, —, D, A, B, C (2) Computer keyboard keys that have different key markings as the emulator keys

Computer Key Emulator Key

[Tab] [Insert] [Home] [Page Up] [Page Down] [End] [Esc] [Delete] [Back Space] [Enter] [*] [/]



)





I Changing the Size of the Emulator

The emulator’s keypad and LCD screen each can be toggled between two sizes: small and normal.

To specify the size of the keypad

1. On the [View] menu, select [Calc Key].

2. From the submenu that appears, select the keypad size you want.

To specify the size of the LCD screen

1. On the [View] menu, select [Calc Screen].

2. From the submenu that appears, select the LCD screen size you want.

Note

• If the LCD screen or keypad is displayed as a floating window (page E-20), you also can resize the window by dragging the one side of the window frame upwards, downwards, left, or right. Resizing by dragging the window frame lets make the floating window larger than the normal size selectable on the submenu above.

• Use of the “Normal” LCD screen size setting is recommended.

E-19

I Moving the LCD Screen Area and Keypad

• You can drag the LCD screen and the keypad to any location you want on your computer screen.

I Using the Floating Emulator Feature

• You can display the emulator LCD screen and its keypad in their own windows that are separate from the fx-CG10/20 Manager PLUS window.

To make the LCD screen a floating window

1. Double-click the LCD screen.

2. Drag the LCD screen to the left so it is outside of the main application window, and drop it

there.

E-20

To make the keypad a floating window

1. Double-click the keypad.

2. Drag the keypad to the left so it is outside of the main application window, and drop it there.

I Moving the LCD Screen and Keypad Back into the Main Window

• Perform the following steps to move the LCD screen and/or keypad back into the fx-CG10/20 Manager PLUS main window from independent floating windows.

- Double-click the floating LCD screen and/or keypad.

- Drag the LCD screen and/or keypad back to the left side of the fx-CG10/20 Manager PLUS

main window.

Important!

• You can return an independent floating window to the main window by dragging the floating window to the left side of the main window only. Dragging top, bottom, or right side of the main window will not work.

E-21

I Capturing the Emulator LCD Screen Image

• You can use the following procedure to capture an image of the emulator LCD screen.

To capture the emulator LCD screen image

1. On the [File] menu, select [Capture Screen] to display a capture of the emulator LCD screen.

• You could also click

on the bitmap toolbar.

• You can also add a frame to the captured image or change the image zoom factor, if you want. For details, see “Bitmap Toolbar” (page E-15) and “LCD Screen Capture Settings” (page E-30).

• If either a window containing of a captured image or the Key-Log screen is currently maximized (using the Windows maximize command) on your computer display, any window produced by the capture operation will also be maximized. This is true regardless of the size setting specified for screen capture on the Options dialog box (page E-30).

2. Select the captured screen image window and then click to save it to a file.

* You can save a screen capture as either of the two following file formats.

• Bitmap format

• JPEG format This application uses libraries by the Independent JPEG Group.

E-22

I Opening a Saved LCD Screen Image

• You can open a saved LCD screen image and display it on your computer. You can have multiple screen images open at the same time.

• LCD screen images can be copied and pasted into other applications in order to create operation example handouts, assignments, etc.

* Only bitmap files can be opened using this procedure. Opening of JPEG files is not supported.

To copy an LCD screen image and paste it into another application

1. Click and then open the file that contains the LCD screen image you want to copy.

2. Select the LCD screen image window and then click to copy it to the clipboard.

3. Open the other application and then paste the contents of the clipboard.

E-23

5. Using the Emulator Key-Log

This section explains how to use the Key-Log, which is a log of the emulator’s key operations. It also covers playback of recorded key operations and editing of Key-Log records.

All of the operations in this section are performed using toolbar buttons.

I Key-Log File Structure

A Key-Log file can contain multiple Key-Log records. Key-Log records contain recorded key operations, text and Main Memory data. The following shows the Key-Log file structure.

Key-Log File

Key-Log Records

Key

• You can assign names (up to 20 single-byte characters) to Key-Log records.

Important!

• Key-Log data processing can take a long time when there is a lot of data. This is normal and does not indicate malfunction.

• A key operation may not be stored to a Key-Log if you click it while an emulator calculation operation is in progress.

Note

• Storage Memory data is not stored in Key-Log records.

• Opening the Storage Memory file during Key-Log playback can produce different results from those recorded to the Key-Log.

Mathematics

Memory

Text Data

E-24

To record emulator key operations using Key-Log

1. Click to start Key-Log recording.

• The Main Menu will appear with the Run-Matrix mode icon already highlighted.

• Click Character ( ) at the current cursor location on the emulator screen. The Memory Character tells your computer to look up the memory contents saved at that location for use in the calculation.

to save the calculator’s current Main Memory contents and insert a Memory

2. Perform operations on the emulator.

Keys appear in the sequence you press them.

Cursor Position

Memory Character

3. Click to stop Key-Log recording.

4. Repeat steps 1 through 3 as required.

5. Click to save the Key-Log file.

Note

• If you click while an fx-9860GII Manager PLUS Key-Log file is open, memory contents are not saved (and a Memory Character is not inserted).

E-25

To perform Key-Log auto play of a recorded key operation

1. Click and then open the Key-Log file you want to play.

2. Click to start playback.

The next key to be played back is orange.

Played key operations are blue.

The last played key is blue.

• Click

Click

to pause playback.

to restart playback after pausing it.

The next key to be played is framed in orange.

3. To stop playback, click . Stopping playback causes all keys to return to their original colors.

E-26

Note

• Executing a playback operation while the cursor is located within a calculation will cause the cursor to move back to the nearest Memory Character before (to the left of) the current cursor position (in order to determine the current Main Memory contents) and start playback from there.

• Each time playback comes to a Memory Character, the Main Memory contents that were stored for that location are looked up, and playback then proceeds to the next operation using the looked up contents.

• Current Main Memory contents are automatically backed up whenever you click new Key-Log playback operation. This will allow you later to restore memory contents to what

they were before you started playback (if you want).

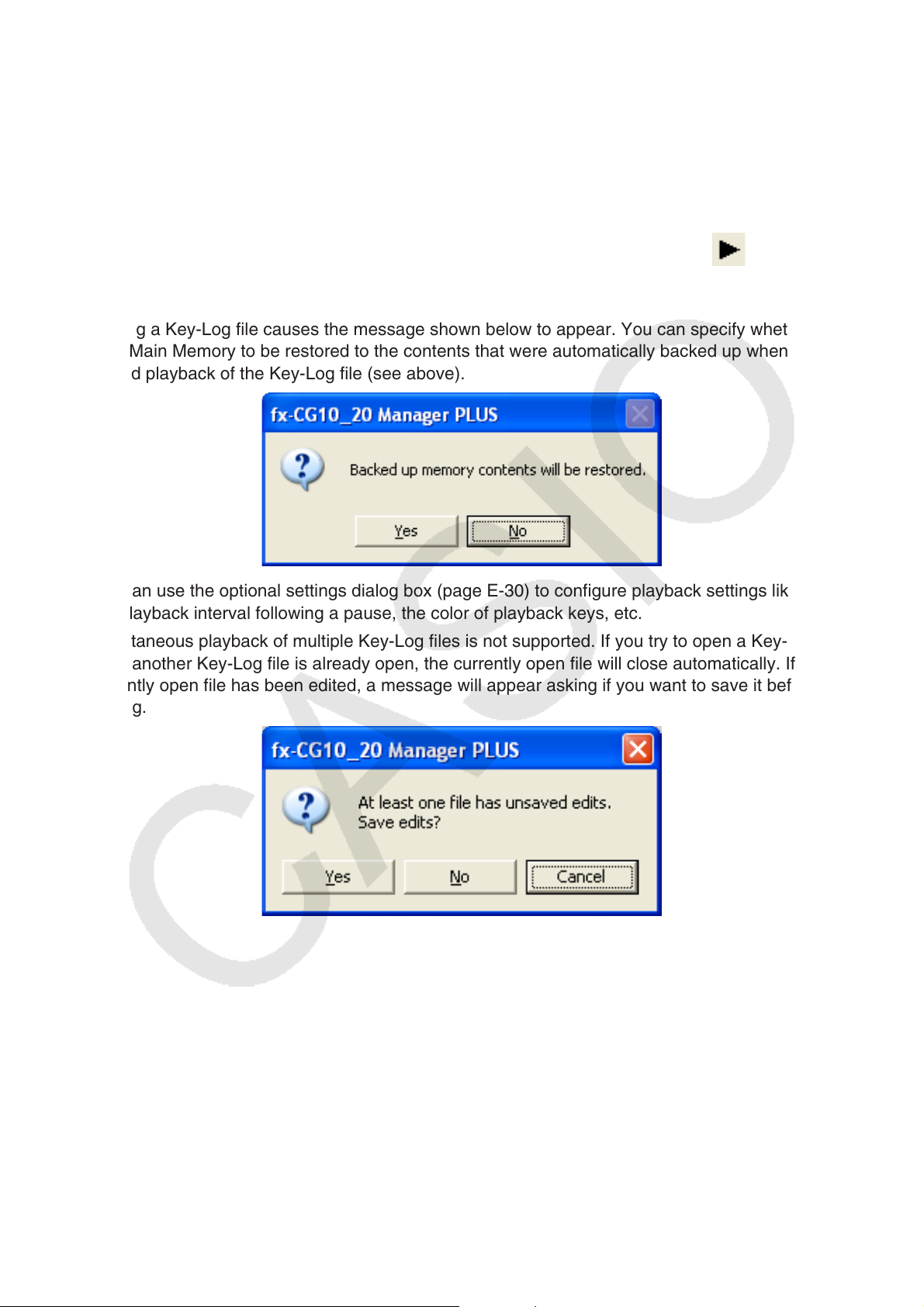

• Closing a Key-Log file causes the message shown below to appear. You can specify whether you want Main Memory to be restored to the contents that were automatically backed up when you started playback of the Key-Log file (see above).

• You can use the optional settings dialog box (page E-30) to configure playback settings like the key playback interval following a pause, the color of playback keys, etc.

• Simultaneous playback of multiple Key-Log files is not supported. If you try to open a Key-Log file while another Key-Log file is already open, the currently open file will close automatically. If the currently open file has been edited, a message will appear asking if you want to save it before closing.

to start a

E-27

To playback a Key-Log record manually (STEP playback)

1. Click and then open the Key-Log file you want to play.

2. Click to play the first key operation in the Key-Log.

3. Keep pressing to play Key-Log contents one step at a time.

4. To stop playback, click .

To edit a Key-Log record

1. Click and then open the Key-Log file you want to edit.

2. Select the Key-Log record you want to edit.

Select the Key-Log record from this menu.

3. Edit the key operations and text of the Key-Log record.

• You can use normal text input and editing operations to edit the keys in a Key-Log record.

• When inputting text, you can specify the font and font size you want to use.

Font Font Size

Note

• Copying and pasting of Memory Characters is supported. Pasting a Memory Character to a different location causes the Main Memory contents that were saved at the original Memory Character location to be referenced at the new (pasted) location.

4. Click to save the Key-Log file.

To add a Key-Log record to the currently open Key-Log file

After opening the Key-Log file to which you want to add the record, click . This automatically assigns the Key-Log record a name (Example: “Data1”) and displays it in the

menu.

E-28

To rename a Key-Log record

1. Select the Key-Log record you want to rename from the menu.

2. Click the name of the Key-Log record and then change it.

3. Press the [Enter] key.

To delete a Key-Log record

1. Select the Key-Log record you want to delete from the menu.

2. Click to delete the selected Key-Log record and display the next one.

Note

• There must be at least one Key-Log record in memory. You will not be able to delete a Key-Log record if it is the only one left in memory.

I Inputting a Pause Character

A pause character causes Key-Log playback to pause automatically when it reaches the character. To input a pause character, click

I Copying Keys or Text and Pasting It into Another Application

Keys and text can be copied and pasted into other applications in order to create operation example handouts, assignments, etc.

To copy keys or text and paste it into another application

1. Drag the cursor across the keys or text you want to copy.

2. Click to copy the selected keys or text to the clipboard.

3. Open the other application and then paste the contents of the clipboard.

Note

• A Memory Character also can be copied into another application. A Memory Character that has been pasted into another application can be copied and pasted into fx-CG10/20 Manager PLUS. When a Memory Character that has been pasted into fx-CG10/20 Manager PLUS is played back, it reproduces the applicable memory contents. Note, however, that this is true only when the number of Memory Characters that were initially copied from a calculation in fx-CG10/20 Manager PLUS is the same as the number of Memory Characters that were pasted from the other application.

E-29

6. Configuring Options Dialog Box Setting

• This section explains the settings on the Options dialog box.

I LCD Screen Capture Settings





 Select this option to add a frame to an LCD screen capture.  Specifies the screen size during LCD screen capture. Supported sizes are Small, Normal, s2

and s3.

I Key-Log Playback

  



 Select this option to highlight the current key in blue.  Select this option to frame the next key in orange.  Specifies how much time should be allowed to elapse to resume paused playback. You can set

an interval in the range of 10 seconds to 10 minutes in 10-second steps.

 Specifies the key playback interval during auto play. You can set an interval of 0.1 second, or

any interval in the range of 0.5 to 5 seconds, in 0.5-second steps.

E-30

I Spread Sheet Setting





 You can configure Copy & Paste so either values or Excel

formulas are pasted into a

spreadsheet. Paste Formulas ... Pastes formulas. Paste Values ... Pastes values only.  You also can specify the language to be used when pasting to Microsoft Whenever you copy from Spreadsheet and paste to an Excel

formula, the formula will be

converted to the selected language.

Example: CellIf( IF( : English

SI( : Spanish

SI( : French

WENN( : German

When using the following language versions of Excel

, configure the Excel Language setting as

shown below.

Arabic: English2

Slovenian: English3

Portuguese (European): PortugueseEu

Portuguese (Brazilian): PortugueseBr

• For details about copying and pasting Excel

formulas, see page E-40.

Excel®.

E-31

7. Other Functions

Printing

• You can use the following procedure to print LCD screen captures.

1. Click the window of the LCD screen capture that you want to print to select it.

2. Click . This will display the Print dialog box.

3. Click [OK] to start printing.

Important!

• Each screen image is printed on a separate page.

• Images are printed in accordance with width setting of the paper size selected on the Print dialog

box.

• If you are printing a bitmap image that was created using another application and does not fit

within the preview area, only the part within the preview area will be visible. Also, only that part will be printed.

E-32

I Print Preview

• Selecting [Print Preview] on the [File] menu displays the print preview image.

   

 Displays the Print dialog box.  Enlarges the preview image.  Reduces the size of the preview image.  Closes the print preview window image.

I Print Setup Dialog Box

• Selecting [Print Setup] on the [File] menu displays the Print Setup dialog box.

E-33

Shortcut Menu

• Right-clicking the mouse displays one of the shortcut menus shown below.

• During Key-Log Editing

• During Bitmap Display of the Calculator Screen

A screen zoom operation affects only the screen where you display the shortcut menu. If you have multiple screens on the display, the other screens are not affected by the zoom operation.

• When Using the Emulator

Note

Select [Copy] to copy the screen to the clipboard.

• On the Emulator Keypad

E-34

8. File Types Supported by fx-CG10/20

Manager PLUS

• The following are the file name extensions that are supported by the Memory application.

File Extension Description

.g1m, .g2m, .g3m, .g1r, or .g2r

.g1e, .g2e, or .g3e eActivity files

.g3a, .g3l

.g3p Picture files .g3b Flipbook files .bmp Bitmap files .txt Text files .csv CSV files Other file name

extensions

• The following are the file name extensions that are supported by the [File] menu’s [Open]

command.

File Extension Description

.g1k

Data items listed in the Main Memory information screen that has been copied to Storage Memory.

.g3a: Add-in applications .g3l: Add-in languages and add-in menus

These files are not supported by this calculator.

fx-9860G

II Manager PLUS Key-Log file

.g3k fx-CG10/20 Manager PLUS Key-Log file

Note

• You can use the Memory application to import all file types (except g1k and g3k) into the

emulator.

• Files with the extension g1k/g3k can be used in Key-Log files.

E-35

9. Differences between fx-CG10/fx-CG20

Calculator and fx-CG10/20 Manager PLUS Functions

• This section explains the differences between fx-CG10/fx-CG20 calculator functions and fx-

CG10/20 Manager PLUS emulator functions.

I Link Application

Calculator: Data transfer execution supported. Emulator: Data send/receive, and configuring cable, and wakeup are not supported. Attempting to

perform any of these operations causes an error.

I System Applications (Display Settings, Power Properties Settings,

Battery Settings, OS Update)

Calculator: Display Settings, Power Properties Settings, Battery Settings and OS Update

supported.

Emulator: Display Settings, Power Properties Settings, Battery Settings and OS Update not

supported. Attempting to perform any of these operations causes an error.

I Program Application

Calculator: Stores created text files in Main Memory Program folder. Emulator: Stores created text files in Storage Memory Program folder.

I Importing and Exporting Files

You can perform the following operations on the emulator to import and export files.

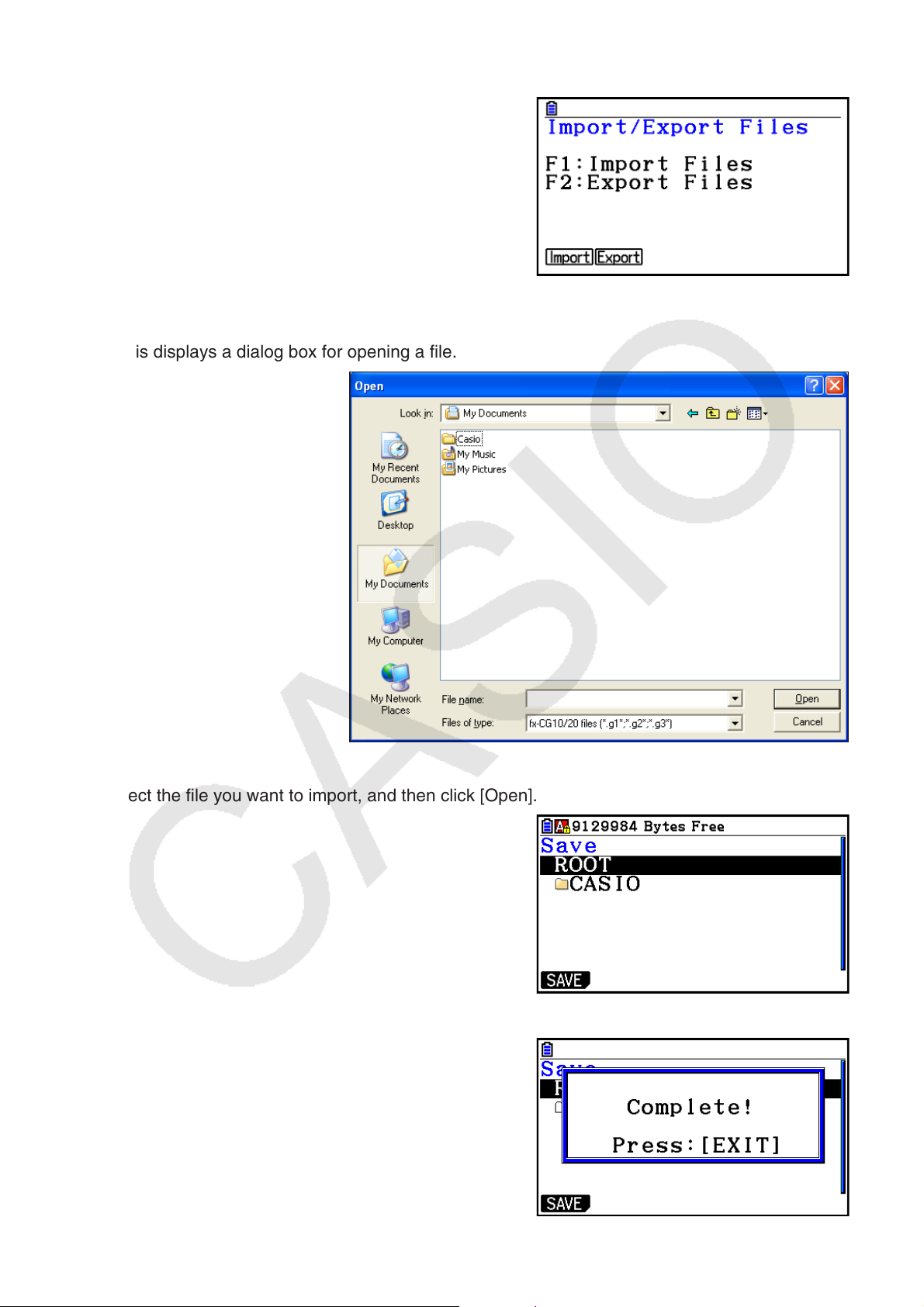

To import a file

1. From the Main Menu, enter the Memory mode.

E-36

2. Click (PC).

3. Click (Import).

• This displays a dialog box for opening a file.

4. Select the file you want to import, and then click [Open].

5. Select the folder where you want to import the file and then click (SAVE).

6. Click ).

E-37

To export a file

1. From the Main Menu, enter the Memory mode.

2. Click (PC).

3. Click (Export).

4. Highlight the file you want to export. Next, click (SELECT) and then (Copy).

• This displays a dialog box for selecting the destination folder of the exported file.

5. Select the destination folder you want and then click [OK].

6. Click ).

E-38

I Installing an Add-In

You can perform the following procedure on the emulator to install an Add-In application or Add-In language.

To install an Add-In application

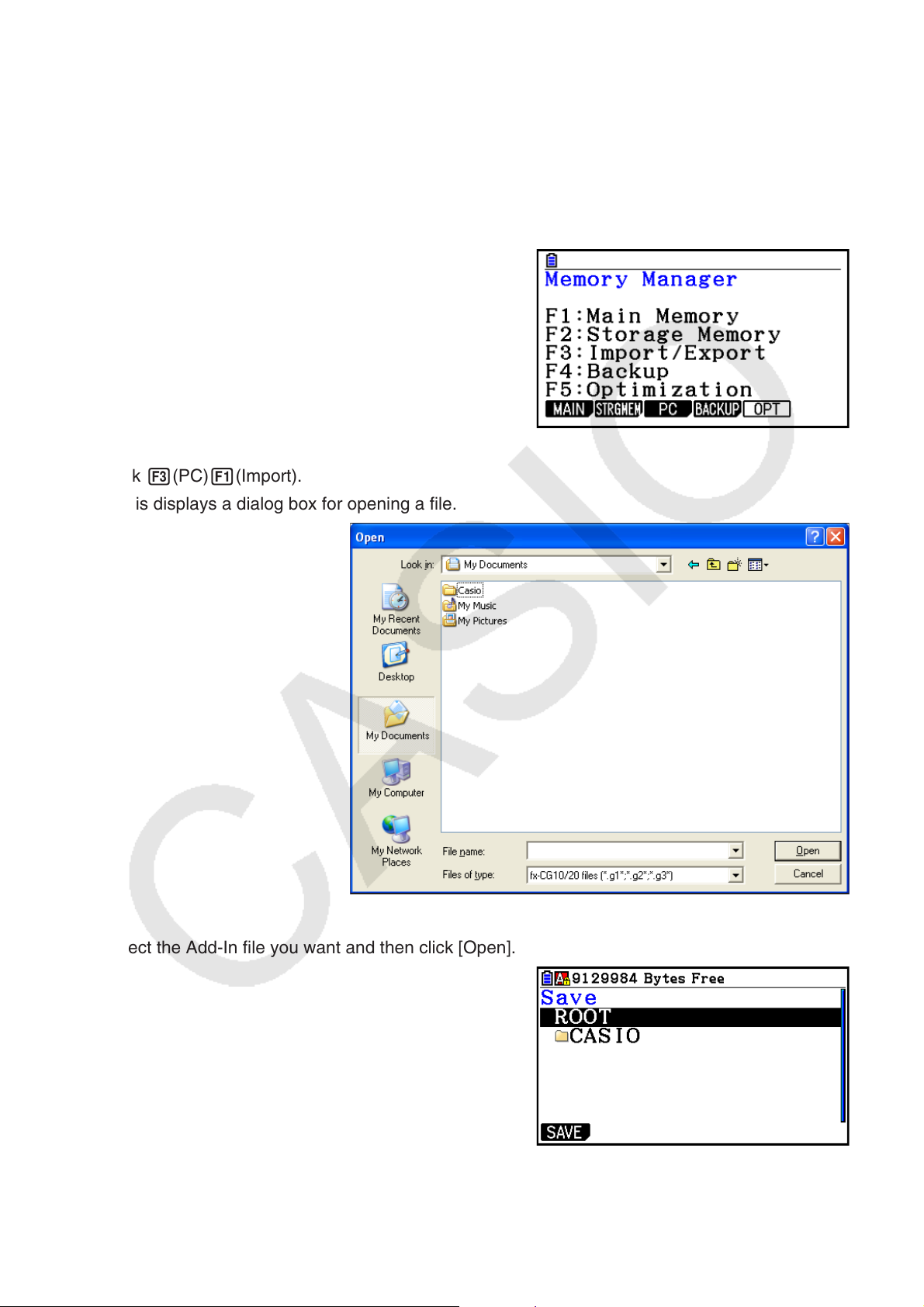

1. From the Main Menu, enter the Memory mode.

2. Click (PC)(Import).

• This displays a dialog box for opening a file.

3. Select the Add-In file you want and then click [Open].

E-39

4. Select the folder where you want to save the Add-In file and then click (SAVE).

5. Click ).

6. Click K.

• The icon of the application you just installed should be visible on the Main Menu.

• Some Add-In applications may act differently on the fx-CG10/fx-CG20 calculator than they do on the emulator.

I OFF ( + )

Calculator: Turns off power. Emulator: Does not turn off the emulator. ( + does not perform any operation.)

I COPY & PASTE

Calculator: COPY & PASTE supported on the calculator. Emulator: COPY & PASTE supported on the calculator, and between the calculator and other

applications running on the computer.

Copy and paste of fx-CG10/fx-CG20 calculator-specific input codes between fx-CG10/20 Manager PLUS and other applications is not supported in some cases.

Supports copy and paste between an emulator spreadsheet and an Excel your computer.

• Copy and paste of the following formulas is supported between an emulator spreadsheet and an

Excel

spreadsheet running on your computer.

spreadsheet running on

+, –, >, /, ^, =, <>, >, <, >=, <=, $, : IF, MIN, MAX, AVERAGE, MEDIAN, SUM, PRODUCT LOG, FACT, POWER, SQRT, LOG10, LN, PI SIN, COS, TAN, ASIN, ACOS, ATAN, SINH, COSH, TANH, ASINH, ACOSH, ATANH ABS, GCD, LCM, MOD, TRUNC, INT, ROUND, PERMUT, COMBIN, RAND, NOT, AND, OR

E-40

The table below shows how some formulas may be modified automatically when a paste operation is performed.

Modified Formulas

Spreadsheet Paste Operation* Excel

 

 

x





Omitted multiplication sign CellIf( CellMin( CellMax( CellMean( CellMedian( CellSum( CellProd( logab(#1,#2

–1



/ <> >= <=

IF( MIN( MAX( AVERAGE( MEDIAN( SUM( PRODUCT( LOG(#2,#1 #1^2 #1^–1

#1!

#2

#1 #1Y#2 #1

#1 log #1 ln #1 e^#1



P

E#n1 #n1E#n2 #1^#2 sin #1 cos #1 tan #1

–1

sin

–1

cos

–1

tan



FACT(#1) #2^(1/#1) #1/#2 SQRT(#1) #1^(1/3) LOG10(#1) LN(#1) EXP(#1) 10^#1 PI() 10^#n1 #n1>10^#n2 POWER(#1, #2) SIN(#1) COS(#1) TAN(#1) ASIN(#1) ACOS(#1)

ATAN(#1) sinh #1 cosh #1 tanh #1



E-41

SINH(#1)

COSH(#1)

TANH(#1)

Spreadsheet Paste Operation* Excel

sinh–1 #1

–1

cosh tanh Abs #1 GCD( LCM( MOD( Int #1 Intg #1 RndFix( #1P#2 #1C#2 P( Ran# Not #1 #1 And #2 #1 Or #2



ASINH(#1)

ACOSH(#1)

ATANH(#1)

ABS(#1)

GCD(

LCM(

MOD(

TRUNC(#1)

INT(#1)

ROUND(

PERMUT(#1,#2)

COMBIN(#1,#2)

NORMSDIST(

RAND()

NOT(#1)

AND(#1,#2)

OR(#1,#2)

* The following are the meanings of the symbols in the “Paste Operation” column of the above

table.

: Either way m: From emulator spreadsheet to Excel

k: From Excel® to emulator spreadsheet

• For information about how formulas are modified when using a non-English version of Excel

, see

the Formula List (page E-43).

• If a paste operation includes an unsupported formula or an operation whose value causes an error, only the final value will pasted without the formula.

• If a formula being pasted into an emulator spreadsheet exceeds 255 bytes after being modified as described in the table above, only the final value will be pasted without the formula.

• An error will occur if the argument of a formula is outside the argument range of the location where it is being pasted.

• When pasting a formula with a relative cell reference (such as: =A1+1) from Spreadsheet to

Excel

, make sure you paste it into the cell with the same name as the cell you copied it from.

Copying it into a different cell will cause an incorrect cell reference.

E-42

㺕

Czech Danish Dutch Finnish Calculator

(European)

Portuguese

Calculator English French German Spanish

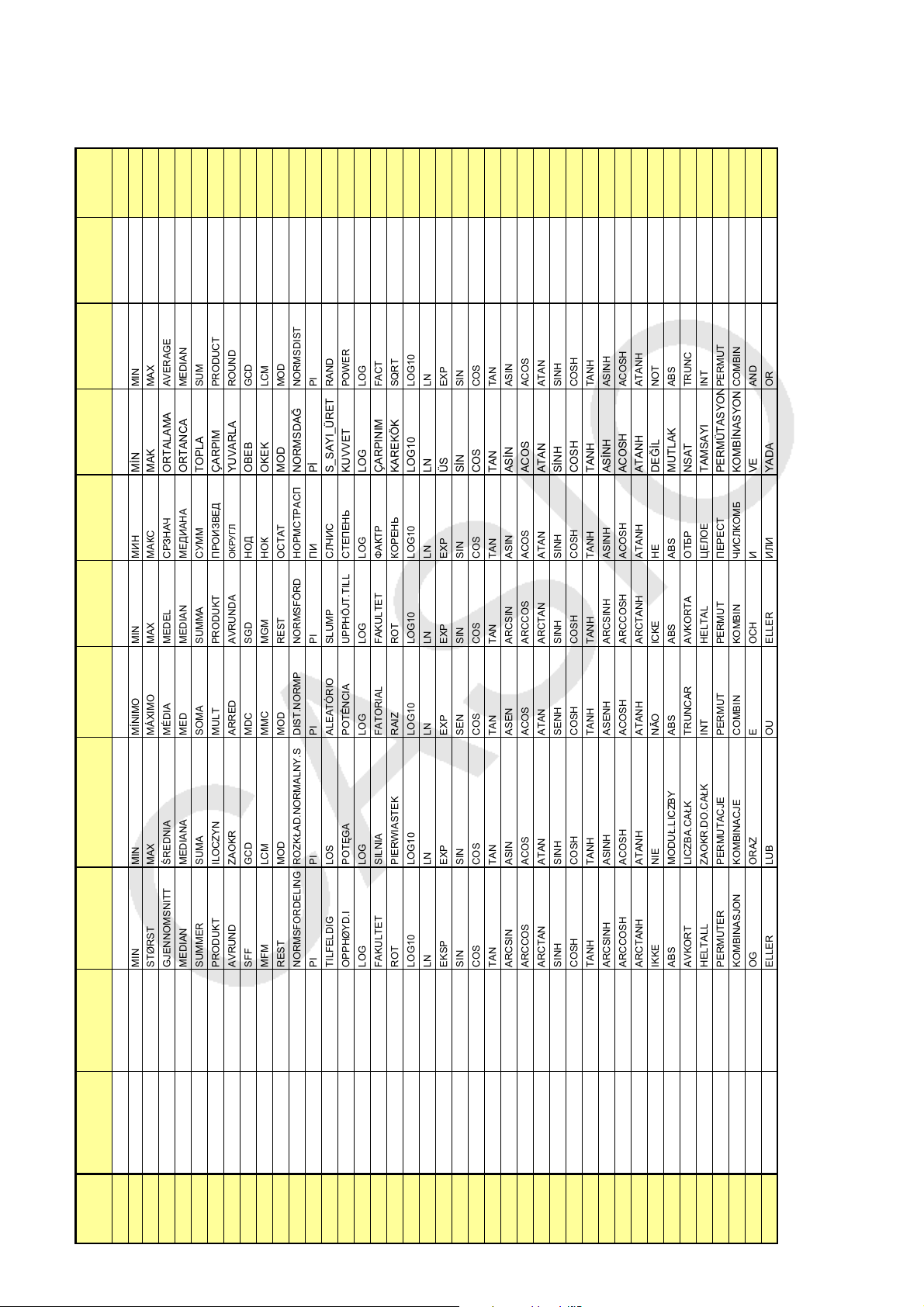

Formula List

CellIF IF SI WENN SI SE KDYŽ HVIS ALS JOS CellIF

CellMin MIN MIN MIN MIN MÍNIMO MIN MIN MIN MIN CellMin

CellMax MAX MAX MAX MAX MÁXIMO MAX MAKS MAX MAKS CellMax

CellMean AVERAGE MOYENNE MITTELWERT PROMEDIO MÉDIA PRMR MIDDEL GEMIDDELDE KESKIARVO CellMean

CellMedian MEDIAN MEDIANE MEDIAN MEDIANA MED MEDIAN MEDIAN MEDIAAN MEDIAANI CellMedian

CellSum SUM SOMME SUMME SUMA SOMA SUMA SUM SOM SUMMA CellSum

CellProd PRODUCT PRODUIT PRODUKT PRODUCTO PRODUTO SOUIN PRODUKT PRODUCT TULO CellProd

RndFix ROUND ARRONDI RUNDEN REDONDEAR ARRED ZAOKROUHLIT AFRUND AFRONDEN PYÖRISTÄ RndFix

GCD GCD PGCD GGT M.C.D MDC GCD STØRSTE.FÆLLES.DIVISOR GGD SUURIN.YHT.TEKIJÄ GCD

LCM LCM PPCM KGV M.C.M MMC LCM MINDSTE.FÆLLES.MULTIPLUM KGV PIENIN.YHT.JAETTAVA LCM

MOD MOD MOD REST RESIDUO RESTO MOD REST REST JAKOJ MOD

P NORMSDIST LOI.NORMALE.STANDARD STANDNORMVERT DISTR.NORM.ESTAND DIST.NORMP NORMSDIST STANDARDNORMFORDELING STAND.NORM.VERD NORM.JAKAUMA.NORMIT P

PIPI PI PI PIPIPI PI PII 

Ran# RAND ALEA ZUFALLSZAHL ALEATORIO ALEATÓRIO NÁHÍSLO SLUMP ASELECT SATUNNAISLUKU Ran#

SQRT RACINE WURZEL RAIZ RAIZQ ODMOCNINA KVROD WORTEL NELIÖJUURI

^ POWER PUISSANCE POTENZ POTENCIA POTÊNCIA POWER POTENS MACHT POTENSSI ^

log LOG LOG LOG LOG LOG LOGZ LOG LOG LOG log

! FACT FACT FAKULTÄT FACT FACTORIAL FAKTORIÁL FAKULTET FACULTEIT KERTOMA !

log10 LOG10 LOG10 LOG10 LOG10 LOG10 LOG LOG10 LOG10 LOG10 log10

ln LN LN LN LN LN LN LN LN LUONNLOG ln

10^ EXP EXP EXP EXP EXP EXP EKSP EXP EKSPONENTTI 10^

sin SIN SIN SIN SENO SEN SIN SIN SIN SIN sin

cos COS COS COS COS COS COS COS COS COS cos

tan TAN TAN TAN TAN TAN TG TAN TAN TAN tan

sin-1 ASIN ASIN ARCSIN ASENO ASEN ARCSIN ARCSIN BOOGSIN ASIN sin-1

cos-1 ACOS ACOS ARCCOS ACOS ACOS ARCCOS ARCCOS BOOGCOS ACOS cos-1

tan-1 ATAN ATAN ARCTAN ATAN ATAN ARCTG ARCTAN BOOGTAN ATAN tan-1

sinh SINH SINH SINHYP SENOH SENH SINH SINH SINH SINH sinh

cosh COSH COSH COSHYP COSH COSH COSH COSH COSH COSH cosh

tanh TANH TANH TANHYP TANH TANH TGH TANH TANH TANH tanh

sinh-1 ASINH ASINH ARCSINHYP ASENOH ASENH ARCSINH ARCSINH BOOGSINH ASINH sinh-1

cosh-1 ACOSH ACOSH ARCCOSHYP ACOSH ACOSH ARCCOSH ARCCOSH BOOGCOSH ACOSH cosh-1

tanh-1 ATANH ATANH ARCTANHYP ATANH ATANH ARCTGH ARCTANH BOOGTANH ATANH tanh-1

Not NOT NON NICHT NO NÃO NE IKKE NIET EI Not

Abs ABS ABS ABS ABS ABS ABS ABS ABS ITSEISARVO Abs

Int TRUNC TRONQUE KÜRZEN TRUNCAR TRUNCAR USEKNOUT AFKORT GEHEEL KATKAISE Int

Intg INT ENT GANZZAHL ENTERO INT CELÁ.ÁST HELTAL INTEGER KOKONAISLUKU Intg

nPr PERMUT PERMUTATION VARIATIONEN PERMUTACIONES PERMUTAR PERMUTACE PERMUT PERMUTATIES PERMUTAATIO nPr

nCr COMBIN COMBIN KOMBINATIONEN COMBINAT COMBIN KOMBINACE KOMBIN COMBINATIES KOMBINAATIO nCr

And AND ET UND Y E A OG EN JA And

㺕

Or OR OU ODER O OU NEBO ELLER OF TAI Or

E-43

IF IF CellIF

MIN MIN CellMin

EER

MN

Swedish Russian Turkish *3) Arabic *3) Slovenian Calculator

MAX MAX CellMax

AVERAGE AVERAGE CellMean

MAK

ORTALAMA

MEDIAN MEDIAN CellMedian

SUM SUM CellSum

PRODUCT PRODUCT CellProd

ORTANCA

TOPLA

ÇARPIM

ROUND ROUND RndFix

GCD GCD GCD

LCM LCM LCM

YUVARLA

OBEB

OKEK



MOD MOD MOD

NORMSDIST NORMSDIST P

PI PI 

MOD

NORMSDA

P

RAND RAND Ran#

POWER POWER ^

LOG LOG log

FACT FACT !

S_SAYI_ÜRET

KUVVET

LOG

ÇARPINIM

㺕

SQRT SQRT

LOG10 LOG10 log10

LN LN ln

KAREKÖK

LOG10

EXP EXP 10^

ÜS

SIN SIN sin

SN

COS COS cos

COS

TAN TAN tan

TAN

ASIN ASIN sin-1

ASN

ACOS ACOS cos-1

ATAN ATAN tan-1

ACOS

ATAN

SINH SINH sinh

SNH

COSH COSH cosh

TANH TANH tanh

COSH

TANH

ASINH ASINH sinh-1

ACOSH ACOSH cosh-1

ASNH

ACOSH

ATANH ATANH tanh-1

NOT NOT Not

ATANH

DEL

ABS ABS Abs

TRUNC TRUNC Int

MUTLAK

NSAT

INT INT Intg

PERMUT PERMUT nPr

COMBIN COMBIN nCr

TAMSAYI

PERMÜTASYO

KOMBNASYON

AND AND And

OR OR Or

YADA

(Brazilian)

*2) Portuguese

GYÖK RADQ ROT PIERWIASTEK RAIZ ROT 

Calculator Hungarian Italian Norwegian Polish

CellIF HA SE HVIS JEELI SE OM 

CellMin MIN MIN MIN MIN MÍNIMO MIN 

CellMax MAX MAX STØRST MAX MÁXIMO MAX 

CellMean ÁTLAG MEDIA GJENNOMSNITT REDNIA MÉDIA MEDEL 

CellMedian MEDIÁN MEDIANA MEDIAN MEDIANA MED MEDIAN 

CellSum SZUM SOMMA SUMMER SUMA SOMA SUMMA 

CellProd SZORZAT PRODOTTO PRODUKT ILOCZYN MULT PRODUKT 

RndFix *1) KEREKÍTÉS ARROTONDA AVRUND ZAOKR ARRED AVRUNDA

GCD GCD MCD SFF GCD MDC SGD 

LCM LCM MCM MFM LCM MMC MGM 

MOD MARADÉK RESTO REST MOD MOD REST 

P STNORMELOSZL DISTRIB.NORM.ST NORMSFORDELING ROZKAD.NORMALNY.S DIST.NORMP NORMSFÖRD 

 PI PI.GRECO PI PI PI PI 

Ran# VÉL CASUALE TILFELDIG LOS ALEATÓRIO SLUMP 

^ HATVÁNY POTENZA OPPHØYD.I POTGA POTÊNCIA UPPHÖJT.TILL 

log LOG LOG LOG LOG LOG LOG LOG

! FAKT FATTORIALE FAKULTET SILNIA FATORIAL FAKULTET 

㺕

ln LN LN LN LN LN LN LN

log10 LOG10 LOG10 LOG10 LOG10 LOG10 LOG10 LOG10

10^ KITEV EXP EKSP EXP EXP EXP EXP

sin SIN SEN SIN SIN SEN SIN SIN

cos COS COS COS COS COS COS COS

tan TAN TAN TAN TAN TAN TAN TAN

sin-1 ARCSIN ARCSEN ARCSIN ASIN ASEN ARCSIN ASIN

cos-1 ARCCOS ARCCOS ARCCOS ACOS ACOS ARCCOS ACOS

tan-1 ARCTAN ARCTAN ARCTAN ATAN ATAN ARCTAN ATAN

sinh SINH SENH SINH SINH SENH SINH SINH

cosh COSH COSH COSH COSH COSH COSH COSH

tanh TANH TANH TANH TANH TANH TANH TANH

sinh-1 ASINH ARCSENH ARCSINH ASINH ASENH ARCSINH ASINH

cosh-1 ACOSH ARCCOSH ARCCOSH ACOSH ACOSH ARCCOSH ACOSH

tanh-1 ATANH ARCTANH ARCTANH ATANH ATANH ARCTANH ATANH

Not NEM NON IKKE NIE NÃO ICKE 

Abs ABS ASS ABS MODU.LICZBY ABS ABS ABS

Int CSONK TRONCA AVKORT LICZBA.CAK TRUNCAR AVKORTA 

Intg INT INT HELTALL ZAOKR.DO.CAK INT HELTAL 

nPr VARIÁCIÓK PERMUTAZIONE PERMUTER PERMUTACJE PERMUT PERMUT 

nCr KOMBINÁCIÓK COMBINAZIONE KOMBINASJON KOMBINACJE COMBIN KOMBIN 

And ÉS E OG ORAZ E OCH 

Or VAGY O ELLER LUB OU ELLER 

*3) Pretvori samo decimalni simbol in loilo. .     (3*

*2) Atualiza o conversor em português incorporado.

*1) Magyar Excel(R) 2000 felhasználóknál az RndFix függvény az Emulátorban történ másolásakor és az Excelbe való beillesztéskor a =KEREKÍTÉS jelenik meg. (Módosítsa a „KEREKÍTÉS” nevet „KEREK”

névre a helyes mködéshez.)

E-44

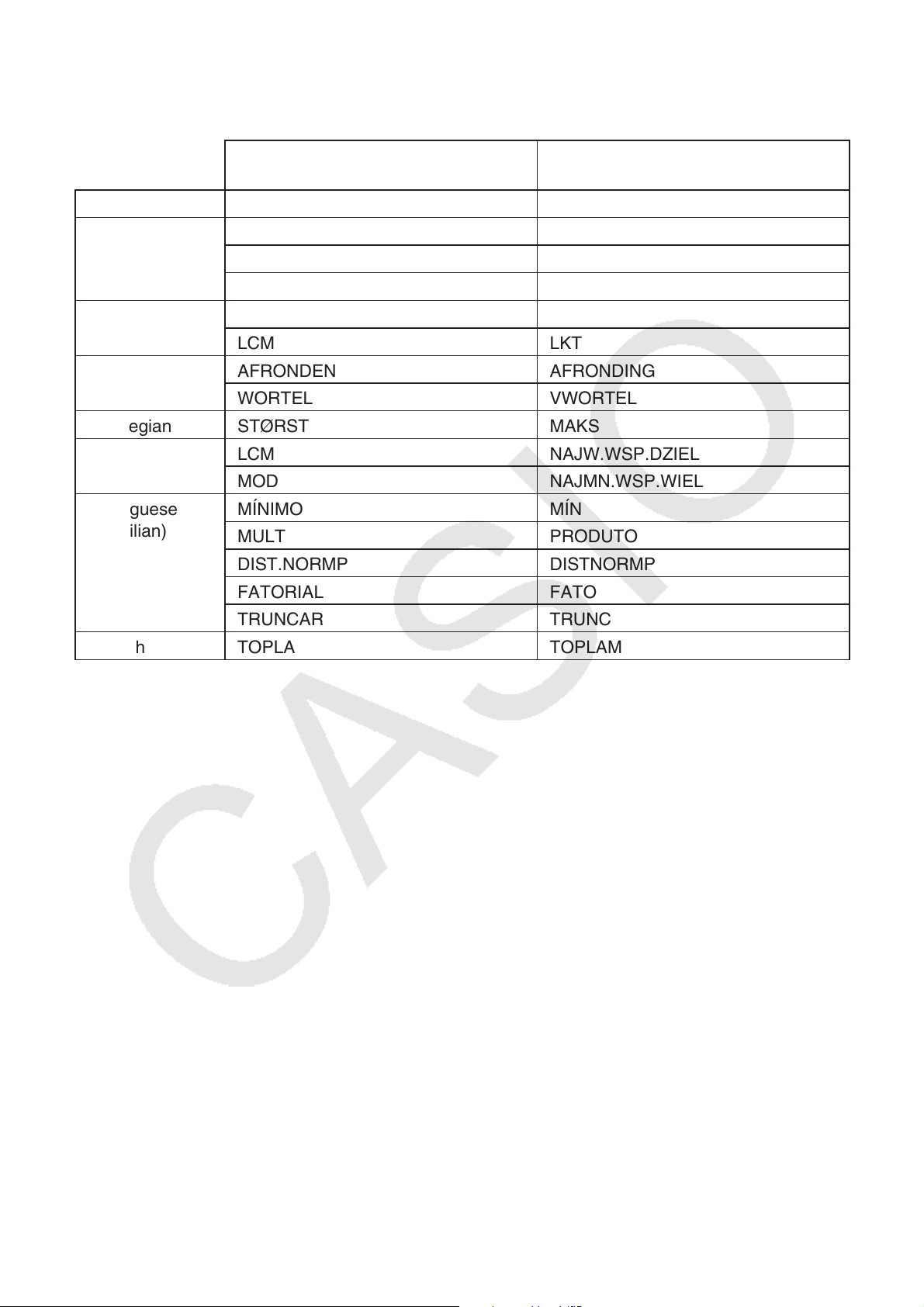

Note

Some mathematical functions do not copy and paste correctly between Microsoft Excel® 2010 and the Emulator Spreadsheet. Change the functions below in Excel® to the proper function names.

Pasted Function Name

Czech NE NENÍ Danish MIDDEL GENNEMSNIT

STØRSTE.FÆLLES.DIVISOR FÆLLES.DIVISOR HELTAL HEL

Hungarian GCD LKO

LCM LKT

Dutch AFRONDEN AFRONDING

WORTEL VWORTEL Norwegian STØRST MAKS Polish LCM NAJW.WSP.DZIEL

MOD NAJMN.WSP.WIEL Portuguese

(Brazilian)

MÍNIMO MÍN

MULT PRODUTO

DIST.NORMP DISTNORMP

FATORIAL FATO

Correct Function Name (Rename as shown below.)

TRUNCAR TRUNC Turkish TOPLA TOPLAM

E-45

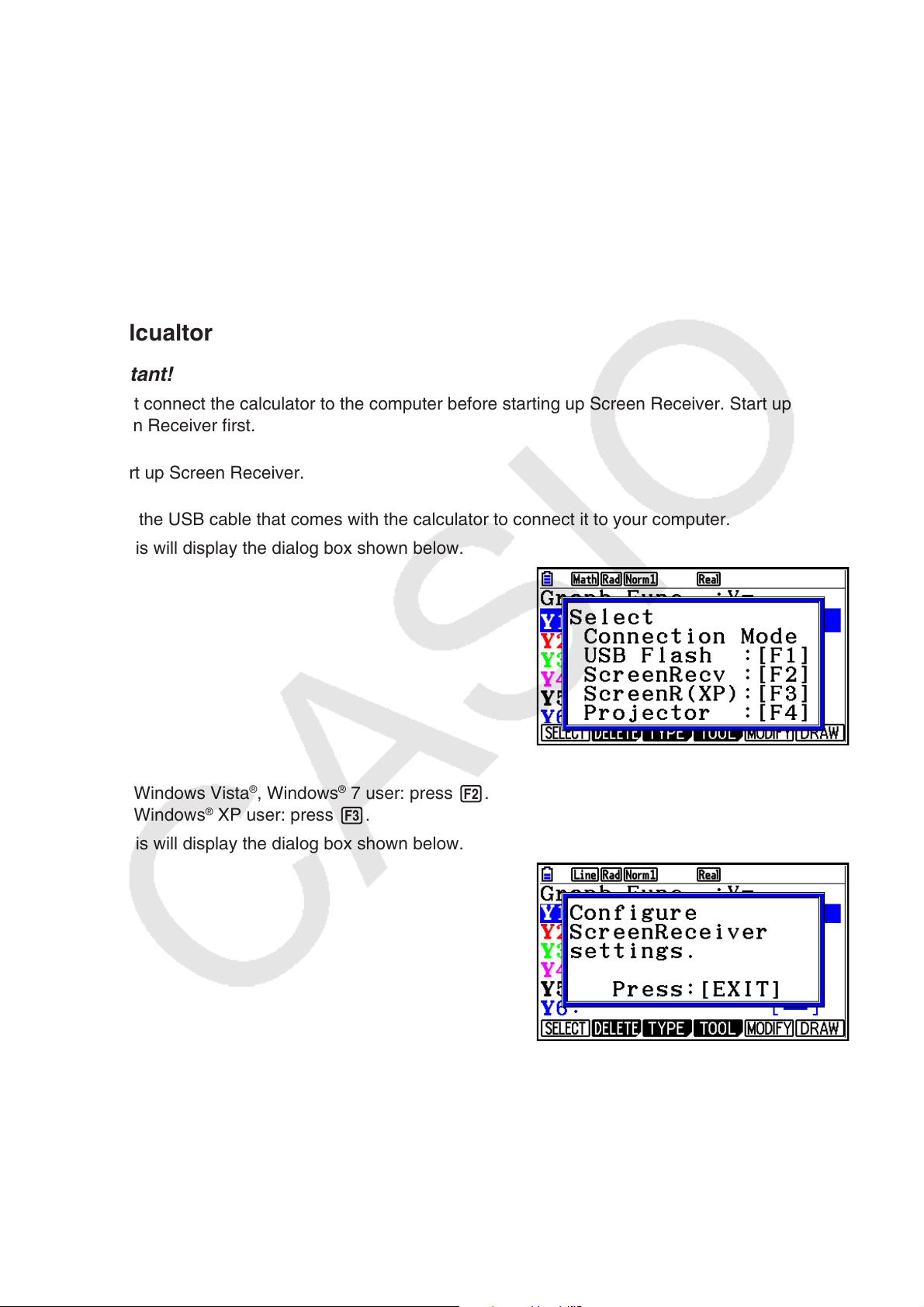

10. Using Screen Receiver to Display the Calculator Screen Image on Your Computer

This section explains how to connect an fx-CG10/fx-CG20 calculator to a computer and display the calculator screen image on the computer.

See the Screen Receiver User’s Guide for details.

I Establishing a Connection between Screen Receiver and a

Calcualtor

Important!

• Do not connect the calculator to the computer before starting up Screen Receiver. Start up

Screen Receiver first.

1. Start up Screen Receiver.

2. Use the USB cable that comes with the calculator to connect it to your computer.

• This will display the dialog box shown below.

3. For Windows Vista

For Windows® XP user: press .

• This will display the dialog box shown below.

, Windows® 7 user: press .

E-46

• Windows

XP Users

If this is the first time you are connecting the calculator to your computer, use the following

procedure to install the USB driver.

3-1. Connecting the calculator to a computer running Windows

XP causes the screen shown

below to appear on your computer display.

Select “No, not this time”.

3-2. Select “Install the software automatically (Recommended)” and then click [Next].

E-47

3-3. Though a message appears to let you know that the software has not passed the

“Windows Logo Test”, there is no need for concern. Simply click [Continue Anyway] and proceed with installation.

3-4. Click [Finish].

4. Press ).

• This automatically establishes a connection between Screen Receiver and the calculator, and displays the calculator screen on the Screen Receiver window. Wait until the calculator screen appears on the Screen Receiver window before performing any calculator operation.

Calculator screen

5. Perform the operations you want on the calculator.

• The calculator screen displayed by Screen Receiver will change in real time as you perform operations on the calculator.

6. To terminate the connection between Screen Receiver and calculator, click .

7. Disconnect the USB cable from the computer and calculator.

Note

• If the connection between Screen Receiver and the calculator terminates for some reason, click to reconnect.

E-48

11. Error Message Table

Message Description Required Action

An error occurred while reading the file <file name>. The file may be corrupted.

There is no more playable data.

You cannot delete all Key- Log records. Before deleting the selected record, first add a new record.

<file name> This file is read-only. Use a different file name.

A problem occurred while adding a Key-Log record. After confirming there is enough memory capacity to store the record, try again.

Wrong file format. Check the file to see if it is

corrupted.

There are no playable keys to the right of the input cursor.

You are trying to delete all Key-Log records, which is not allowed.

You are trying to save a read- only Key-Log file after editing or recording to it.

Some problem occurred while adding a Key-Log record.

Move the input cursor to the left of the keys you want to play back, and perform the play operation.

To delete all of the current records, first add a different record. At least one Key-Log record must be remaining in memory.

Save the Key-Log file under a different file name.

Make sure there is enough free memory remaining to complete the operation and try again.

A problem occurred while writing to the file <file name> because not enough disk space is available. Check the remaining capacity of your disk and try again.

This application cannot be started up because the DLL version is wrong. This may be due to a problem during installation. Re-install the application.

A problem occurred while reading file <file name>. The disk being read from may be damaged or may not exist. Check the disk and try again.

A problem occurred while writing file <file name>. The disk being written to may be damaged or may not exist. Check the disk and try again.

There is not enough disk space available to save the file.

Your computer has the wrong DLL version.

A problem occurred while reading from a disk.

A problem occurred while writing to a disk.

Make sure there is enough free memory available and try again.

Installation may have failed, so re-install the application.

Check the disk for data corruption and confirm that the disk exists. Then try again.

A problem occurred while reading file <file name>. The file may have been moved or deleted.

A problem occurred when you tried opening a file from the list of previously opened files on the File menu.

E-49

Check to see if the file has been moved or deleted.

Message Description Required Action

There is not enough memory. Increase memory capacity and try again.

A problem occurred while launching the emulator. Try re-starting the application. If you still cannot launch, it could mean that the emulator is damaged. Update the emulator or reinstall it.

A problem occurred while launching the manual (***.pdf) viewer. Download the viewer from the site below and reinstall it. http://get.adobe.com/reader/ otherversions/

The following characters cannot be used in a Key-Log record name. :\/?*[]

There is not enough memory to perform the operation.

A problem occurred during emulator startup.

A problem occurred during manual viewer startup.

The Key-Log record name you are trying to use contains an illegal character.

Increase memory capacity and try again.

Try restarting the application. If this does not work, it could mean that the emulator is damaged. Update the emulator or reinstall it.

Download and install a new viewer from http://get.adobe.com/reader/ otherversions/.

The following characters are not allowed in Key-Log record names. :\/?*[]

A system error has occurred. (1) Shut down all other

applications that you are not currently using.

(2) Check how much free

space is available on your computer’s hard disk.

(3) Exit the emulator and

restart it. If this does not correct the problem, it could mean that the emulator file is damage. Reinstall the emulator.

The path and/or filename exceeds the maximum length allowed by your Windows operating system.

A problem occurred while importing <file name>. Note that import of a file created on another model is not supported.

—

The number of letters in the path or file name you specified exceeds the allowable limit.

Some problem occurred while importing the file.

Follow the steps that are shown on the display and try again.

Shorten the specified path or file name.

Make sure that the file was created using a calculator with the same model name as this calculator.

A Key-Log file cannot be created or opened while KeyLog data is being played back or recorded. Stop playback or recording and try again.

You are trying to create a new Key-Log file or open an existing Key-Log file while KeyLog data is being played back or recorded on the calculator.

E-50

Stop playback or recording and try again.

Message Description Required Action

File Extension Error The file you selected has an

invalid file name extension.

<path> Invalid Extension The file path you selected has

an invalid file name extension.

A problem occurred while accessing the registry.

Some problem occurred during

registry access. Check to make sure that the emulator is installed correctly.

A system error has occurred.

A system error occurred. Re-installation of the emulator Exit the emulator and restart it. If this does not correct the problem, it could mean that the emulator file is damaged. Reinstall the emulator.

Invalid File Name You specified an invalid file

name.

Make sure that the extension of the file you are selecting is bmp or jpg.

Make sure that the extension of the file path you are selecting is bmp or jpg.

Re-installation of the emulator is recommended.

is recommended.

Make sure that you are specifying the file name correctly.

Invalid Folder Name You specified an invalid folder

name.

Too Many Files Selected The number of files you

selected exceeds the allowable

limit. This data was created with

<model name> <version>. Because of this, some key names may be wrong. Though the Key-Log will play back,

You are attempting to open

a Key-Log file (g1k) created

using software that is different

from the software you are

currently running. some operations may not be performed correctly.

This data was created using an old version of <model name>. Because of this, some key names may be wrong. Though the Key-Log will play back, some operations may not be performed correctly.

You are attempting to open

a Key-Log file (g1k) whose

version is older than that of

the software you are currently

running. Note that operations

may not match the operations

in the Key-Log file.

Make sure that you are specifying the folder name correctly.

Reduce the number of selected files.

Open the Key-Log file with the same software used to create it.

—

E-51

CASIO COMPUTER CO., LTD.

6-2, Hon-machi 1-chome

Shibuya-ku, Tokyo 151-8543, Japan

SA1011-A

Casio fx-CG10, fx-CG20, fx-CG10 Manager PLUS, fx-CG20 Manager PLUS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Getting Started

Contents

2. Screen Configuration

Menu Bar

Toolbar

Status Bar

3. Emulator Mode and Key-Log Editor Mode

5. Using the Emulator Key-Log

6. Configuring Options Dialog Box Setting

7. Other Functions

Printing

Shortcut Menu

10. Using Screen Receiver to Display the Calculator Screen Image on Your Computer

11. Error Message Table
