Preparation
DO NOT attempt to power from an external source
without first consulting Section 1.8 of the handbook.
Install 4 x AA size batteries in the compartment in the
underside of the unit.
Screw the Type 1 microphone finger-tight on to the
preamplifier.
Connect the Type 1 preamplifier plus microphone or the
Type 2 microphone/preamplifier assembly by inserting it
into the socket in the top of the instrument case with
the red dot facing the front to ensure correct pin location.
Menus & Control
All operations are based upon a series of menus
arranged as shown in the figure.
A combination of function keys and navigator keys on
the front panel are used to move around the menu
system and implement commands. The functions are as
follows.
Power on/off.
and Move the highlight around the options.
and Change the contents of a field.
MENU
DATA
Enable/Disable Quick Edit.
Display Main menu (may require several presses).
Accesses data screens.
On screen show active keys.
Shows that Quick Edit mode is available.
Menu options are implemented in two ways.
1. Leave the required option highlighted.
2. Use the quick edit function (press to activate)
to change the option.
Configuring the Instrument
The instrument configuration specifies how the
instrument communicates with the operator and via the
RS232 interface.
Press to switch the instrument on and obtain the
Calibration Check screen.
MENU
Press twice to see the Main menu which gives
access to further menus that select Measurement
Mode, Setup, Calibration, Data Recall from Memory and
Configuration.
A message such as 2/6 at the bottom of a screen
indicates that the second of six possible options is
highlighted.
Press to move to Configure.
Press to see the configuration menu.
Make choices about the RS232 Communication Baud
rate, Menu Language, Backlight operation and
Microphone Response (Free Field or Random) as
appropriate by leaving the required choice highlighted on
the screen.
The instrument Time and Date can also be set from the
Configuration menu.
Press (several times) to return to the Main menu.
Calibration
Calibration ensures that the instrument is measuring
noise accurately. The Calibration menu is displayed at
the end of the self test sequence.
If Scale is mentioned, move to the Main menu, select
Calibration, then press to see the Calibration menu.
Insert the 1/2" microphone far enough into the calibrator
cavity to be in contact with the shoulders in the cavity.
Insert the 1/4" microphone far enough into the coupler
cavity to be in contact with the shoulders in the cavity
and the microphone plus coupler far enough into the
calibrator cavity also to be in contact with the shoulders.
Avoid distorting the calibration volume by supporting the
calibrator and sound level meter on a horizontal surface.
Switch the calibrator on.
L
ZF
dB
Last Cal.
Ø9Jan98 12.22
01031
Depending on the microphone type and the response
set, the display should show one of these levels.
Microphone Response Calibration Level
1/2" Free Field 114.0 dB
1/2" Random 113.8 dB
1/4" Free Field & Random 113.6 dB
If it does not, press then use and to adjust
the display to the correct value.
Press to save the calibration.
Select Mode
The measurement mode specifies the bandwidth to be
used for measurement. With a CEL-480, the mode also
specifies how measurements will be timed.
Either select a measurement mode, or use a pre-stored
setup (see below).
Instruments with only broadband measurement have no
Mode option.
In the Main menu, move to Mode (if available) and press
to see the Mode menu.
Select a bandwidth for use by highlighting it.
On a CEL-480 press again to see a Timers menu for
the bandwidth that gives the option of switching the
Timers Off, setting a Duration Timer or setting a Delay
Timer.
Make choices as appropriate by leaving each one
highlighted on the screen.
Press (several times) to return to the Main menu.
Select Setup
The Setup specifies the particular parameters that are to
be measured.
In the Main menu, move to Setup and press to see
the Setup menu.
Select a setup for use by highlighting it.
When a setup is to be prepared and saved, press to
move to a setup options menu.
This allows the following measurement parameters to
be specified (when available).
Mode: Broadband,
Octaves,
Third-octaves.
The following broadband parameters can be specified
(when available).
SLM Response:
RMS-, time- and peak-weightings, plus
energy exchange rate Q.
Measured Functions:
Up to 14 parameters.
Dose Results:
Threshold, for including values in calculation
Normalisation period, allows results from
different durations to be compared.
Period Results (CEL-480 only):
Interval between measurements,
Intervals for up to 2 profiles.
The following narrowband parameters can be specified
(when available).
Measured Functions:
Up to 3 functions.
Frequency Scanning Mode:
Manual, the user judges when the level is stable,
Auto, the SLM determines when the level is
stable,
Timed, measurements are taken at user pre-set
intervals,
Repeat, on the CEL-480 auto and timed scans
can be repeated automatically at user pre-set
intervals.
Broadband Measurement
From any menu press several times until a broad-
band measurement screen is displayed.
L
AF
L
AFmx
LL
AFmn Zpk
30 100
Broadband measurement screens show one principal
and four secondary parameters that can all be changed
by the quick edit function.
Press and to change the range.
Press to start a measurement run and store results.
If a clock is shown, a timed measurement has been set,
refer to Section 3.1 of the Handbook.
Data stored during the current (or other) runs can be
reviewed while more data is being collected.
DATA
Press then use the navigator keys to review data
screens.
When sufficient data has been inspected, press to
return to the measurement screen.
When the run is to be stopped, press .
Three options are offered:
Stop run (and store data),
Restart run (abandon the current run and start a
new run),
Continue run (continue the interrupted run).
Select an option and confirm it by pressing .
dB
01010
Quick Edit is
available
MENU
L
Aeq
Cut Here
TOP
Cut Here
Preparation
DO NOT attempt to power from an external source
without first consulting Section 1.8 of the handbook.
Install 4 x AA size batteries in the compartment in the
underside of the unit.
Screw the Type 1 microphone finger-tight on to the
preamplifier.
Connect the Type 1 preamplifier plus microphone or the
Type 2 microphone/preamplifier assembly by inserting it
into the socket in the top of the instrument case with
the red dot facing the front to ensure correct pin location.
Menus & Control
All operations are based upon a series of menus
arranged as shown in the figure.
A combination of function keys and navigator keys on
the front panel are used to move around the menu
system and implement commands. The functions are as
follows.
Power on/off.
and Move the highlight around the options.
and Change the contents of a field.
MENU
DATA
Menu options are implemented in two ways.
1. Leave the required option highlighted.
2. Use the quick edit function (press to activate)
Configuring the Instrument
The instrument configuration specifies how the
instrument communicates with the operator and via the
RS232 interface.
Enable/Disable Quick Edit.
Display Main menu (may require several presses).
Accesses data screens.
On screen show active keys.
Shows that Quick Edit mode is available.
to change the option.
Fold as Shown
Press to switch the instrument on and obtain the
Calibration Check screen.
MENU
Press twice to see the Main menu which gives
access to further menus that select Measurement
Mode, Setup, Calibration, Data Recall from Memory and
Configuration.
A message such as 2/6 at the bottom of a screen
indicates that the second of six possible options is
highlighted.
Press to move to Configure.
Press to see the configuration menu.
Make choices about the RS232 Communication Baud
rate, Menu Language, Backlight operation and
Microphone Response (Free Field or Random) as
appropriate by leaving the required choice highlighted on
the screen.
The instrument Time and Date can also be set from the
Configuration menu.
Press (several times) to return to the Main menu.
Calibration
Calibration ensures that the instrument is measuring
noise accurately. The Calibration menu is displayed at
the end of the self test sequence.
If Scale is mentioned, move to the Main menu, select
Calibration, then press to see the Calibration menu.
Insert the 1/2" microphone far enough into the calibrator
cavity to be in contact with the shoulders in the cavity.
Insert the 1/4" microphone far enough into the coupler
cavity to be in contact with the shoulders in the cavity
and the microphone plus coupler far enough into the
calibrator cavity also to be in contact with the shoulders.
Avoid distorting the calibration volume by supporting the
calibrator and sound level meter on a horizontal surface.
Switch the calibrator on.

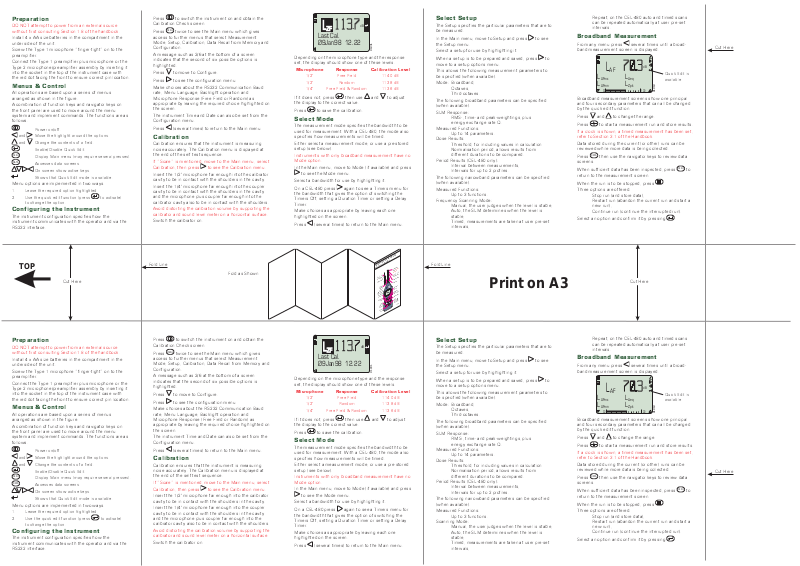

FIELD GUIDE TO CEL-440/480
Sound Level Meters
Protective
donot
)
grill(
remove
Type1, 1/2"
Microphone
Type2, 1/4"
&
Microphone
Preamplifier
Preamplifier
Reddot
Pullthe
Change
knurled
menu
sleeve
Enables
outwardsto
Quickedit
releasethe
connector
Backlight
ON/OFF
U
N
ME
Stop
Navigator
keys
(needs
toconfirm)
Start/
ATA
D
01009
Pause/
Restart
Access
data
L
ZF
dB
Last Cal.
Ø9Jan98 12.22
01031
Depending on the microphone type and the response
set, the display should show one of these levels.
Microphone Response Calibration Level
1/2" Free Field 114.0 dB
1/2" Random 113.8 dB
1/4" Free Field & Random 113.6 dB
If it does not, press then use and to adjust
the display to the correct value.
Press to save the calibration.
Select Mode
The measurement mode specifies the bandwidth to be
used for measurement. With a CEL-480, the mode also
specifies how measurements will be timed.
Either select a measurement mode, or use a pre-stored
setup (see below).
Instruments with only broadband measurement have no
Mode option.
In the Main menu, move to Mode (if available) and press
to see the Mode menu.
Select a bandwidth for use by highlighting it.
On a CEL-480 press again to see a Timers menu for
the bandwidth that gives the option of switching the
Timers Off, setting a Duration Timer or setting a Delay
Timer.
Make choices as appropriate by leaving each one
highlighted on the screen.
Press (several times) to return to the Main menu.
Fold LineFold Line
Print on A3
Select Setup
The Setup specifies the particular parameters that are to
be measured.
In the Main menu, move to Setup and press to see
the Setup menu.
Select a setup for use by highlighting it.
When a setup is to be prepared and saved, press to
move to a setup options menu.
This allows the following measurement parameters to
be specified (when available).
Mode: Broadband,
Octaves,
Third-octaves.
The following broadband parameters can be specified
(when available).
SLM Response:
RMS-, time- and peak-weightings, plus
energy exchange rate Q.
Measured Functions:
Up to 14 parameters.
Dose Results:
Threshold, for including values in calculation
Normalisation period, allows results from
different durations to be compared.
Period Results (CEL-480 only):
Interval between measurements,
Intervals for up to 2 profiles.
The following narrowband parameters can be specified
(when available).
Measured Functions:
Up to 3 functions.
Scanning Mode:
Manual, the user judges when the level is stable,
Auto, the SLM determines when the level is
stable,
Timed, measurements are taken at user pre-set
intervals,
Cut Here
Repeat, on the CEL-480 auto and timed scans
can be repeated automatically at user pre-set
intervals.
Broadband Measurement
From any menu press several times until a broad-
band measurement screen is displayed.
L
AF
L
AFmx
LL
AFmn Zpk
30 100
Broadband measurement screens show one principal
and four secondary parameters that can all be changed
by the quick edit function.
Press and to change the range.
Press to start a measurement run and store results.
If a clock is shown, a timed measurement has been set,
refer to Section 3.1 of the Handbook.
Data stored during the current (or other) runs can be
reviewed while more data is being collected.
DATA
Press then use the navigator keys to review data
screens.
When sufficient data has been inspected, press to
return to the measurement screen.
When the run is to be stopped, press .
Three options are offered:
Stop run (and store data),
Restart run (abandon the current run and start a
new run),
Continue run (continue the interrupted run).
Select an option and confirm it by pressing .
dB
01010
Quick Edit is
available
MENU
L
Aeq
Cut Here

Narrowband Measurement
From any menu press several times until a narrow-
band measurement screen is displayed.
L
Z
I
100
80
60
40
Narrowband measurement screens show a single
parameter and a frequency range. Both can be changed
Z 73.6
500
12532AZ
by the quick edit function enabled and disabled by .
Press to scan frequencies and store the
measurement results.
If a clock is shown, a timed measurement has been set,
refer to Section 3.1 of the Handbook.
When an auto-stabilised or timed scan is in use, the
instrument waits a short while with the highlight on the
lowest frequency, then steps through the frequency
bands.However, when a manual scan is in use, the
highlight will not move until is pressed to step to
the next frequency band.
Data stored during the current (or other) runs can be
reviewed while more data is being collected. Press
then use the navigator keys to review the data screens.
When sufficient data has been inspected, press to
return to the measurement screen.
When the run is to be stopped, press .
Three options are offered:
Stop run (and store data),
Restart run (abandon current run and start a
new run),
Continue run (continue interrupted run).
Select an option and confirm it by pressing .
dB
8k
2k
01011
DATA
MENU
Indicated Parameters
F: Fast
S: Slow
I
: Impulse
pk: Peak
mx: Maximum
mn: Minimum
eq: Equivalent Level
av: Average
Tm3: Taktmaxim al 3 sek
Tm5: Taktmaxim al 5 sek
EP,d: 8 hr Exposure
EP,v: Projected Exposure
N: Noise Percentile
AE: Sound Exposure
TWA: 8 hr Time Wtd Av
TWAv:Projected TWA
Casella CEL
Regent House, Wolseley Road,
Kempston, Bedford,
MK42 7JY, United Kingdom.
Phone: +44 (0) 1234 844 100
Fax: +44 (0) 1234 841 490
E-mail: info@casellagroup.com
Web: www.casellagroup.com
Casella USA
17 Old Nashua Road #15
Amherst, NH 03031, U.S.A
Toll Free: +1 800 366 2966
Fax: +1 603 672 8053
E-mail: info@casellaUSA.com
Web: www.casellaUSA.com
CEL48ØA.1 vNN.NN
Type 1
Preamp
None
I/O
16/1Ø
Tes t
NNNNNN
ID:
13Jan98 1Ø:54:42
512Kb
Memory
Full
1%
Runs
2
Format
Setup
User Setup 1
Press MENU
Key to Start
Calibrate
L
ZF
Last Cal.
Ø9Jan98 12.22
Measure
dB
Broadband
Narrowband
Instrument
Ver sio n:
A=Broadband
XX
B=Octaves
XX
C=Third-octaves
XX
Type 1 or 2
Firmware version
Instrument ID
MENU
MENU
Narrow band
models only
Measure Mode
Setup
Calibration
Memory
2/6
Configure
Status
Obtain Menu
L
AF
L
L
AFmx
LL
Aeq
AFmn Zpk
30 100
Single Band
Octaves
Third Octaves
2/3
Factory Setup
User Setup 1
User Setup 2
User Setup 3
2/5
User Setup 4
View Current
View All
Delete Current
Delete All
1/4
13Jan98 1Ø:54:42
512Kb
Memory
1%
Full
2
Runs
L
dB
ZIZ73.6
100
80
60
40
500
12532AZ
2k
8k
dB
Timers Off
Duration Timer
Delay Timer
1/3
Mode
SLM Response
Functions
Dose Results
1/5
Period
Wed 7 Jan1998
9 Jan1998
Fri
13 Jan1998
Tue
15 Jan1998
Thu
1
3
Wed 7 Jan1998
Fri
9 Jan1998
13 Jan1998
Tue
15 Jan1998
Thu
RS232 Comms
Language
Backlight
Time & Date
1/5
Mic. Response
CEL-480
Models only
More
Options
Runs
Runs
More
Options
Broadband
Octaves
Third Octaves
RMS Weight
Time Weight F
Peak Weight Z
Exchange Q 3
L
LL
LL
LL
More Broadband Functions
Threshold
8Hours
L
EP,d
Period 1min
Profile -----
1
2
CEL-440 & CEL-480 SOUND LEVEL METERS Menu Structure
CEL-440/480 SLM
060334 FG-02/June 02
www.casellagroup.com
Think environment Think Casella
AFmx
AFmn
Aeq
Zpk
1/3
1/4
1/14
1/2
1/4
7Ø
T&
WA
-----
-----
01012
A
Broadband
Mode only
3 Narrowband
14
Broadband
Functions
Broadband
Mode only
More
Options
CEL-480
Models only
FIELD GUIDE to CEL-440/480
Sound Level Meters
Type 2, 1/4"
Microphone
&
Preamplifier
Pull the
knurled
sleeve
outwards to
release the
connector
ON/OFF
Navigator
keys
Start/
MENU
Pause/
Restart
DATA
Access
data
The CEL-440 and CEL-480 Sound Level Meters consist
of the instrument unit preamplifier and microphone
shown.
Protective
do not
grill (
remove
)
Type 1, 1/2"
Microphone
Preamplifier
Red dot
Change
menu
Enables
Quick edit
Back light
Stop
(needs
to confirm)
01009
Narrowband Measurement
From any menu press several times until a narrow-
band measurement screen is displayed.
L
Z
I
100
80
60
40
Narrowband measurement screens show a single
parameter and a frequency range. Both can be changed
Z 73.6
500
12532AZ
by the quick edit function enabled and disabled by .
Press to scan frequencies and store the
measurement results.
If a clock is shown, a timed measurement has been set,
refer to Section 3.1 of the Handbook.
When an auto-stabilised or timed scan is in use, the
instrument waits a short while with the highlight on the
lowest frequency, then steps through the frequency
bands.However, when a manual scan is in use, the
highlight will not move until is pressed to step to
the next frequency band.
Data stored during the current (or other) runs can be
reviewed while more data is being collected. Press
then use the navigator keys to review the data screens.
When sufficient data has been inspected, press to
return to the measurement screen.
When the run is to be stopped, press .
Three options are offered:
Stop run (and store data),
Restart run (abandon current run and start a
new run),
Continue run (continue interrupted run).
Select an option and confirm it by pressing .
dB
8k
2k
01011
DATA
MENU
Fold Line
Indicated Parameters
F: Fast
S: Slow
I
: Impulse
pk: Peak
mx: Maximum
mn: Minimum
eq: Equivalent Level
av: Average
Tm3: Taktmaximal 3 sek
Tm5: Taktmaximal 5 sek
EP,d: 8 hr Exposure
EP,v: Proj. Exposure
N: Noise Percentile
AE: Sound Exposure
TWA: 8 hr Time Wtd Av
TWAv: Proj. TWA.
Casella CEL
Regent House, Wolseley Road,
Kempston, Bedford,
MK42 7JY, United Kingdom.
Phone: +44 (0) 1234 844 100
Fax: +44 (0) 1234 841 490
E-mail: info@casellagroup.com
Web: www.casellagroup.com
Casella USA
17 Old Nashua Road #15
Amherst, NH 03031, U.S.A
Toll Free: +1 800 366 2966
Fax: +1 603 672 8053
E-mail: info@casellaUSA.com
Web: www.casellaUSA.com
Fold Line
CEL48ØA.1 vNN.NN
Preamp
Type 1
None
I/O
16/1Ø
Tes t
NNNNNN
ID:
13Jan98 1Ø:54:42
Memory
512Kb
Full
1%
Runs
2
Format
Setup
User Setup 1
Press MENU
Key to Start
Calibrate
L
ZF
Last Cal.
Ø9Jan98 12.22
Measure
dB
Broadband
Narrowband
Instrument
Ver sio n:
A=Broadband
XX
B=Octaves
XX
C=Third-octaves
XX
Type 1 or 2
Firmware version
Instrument ID
MENU
MENU
Narrow band
models only
Measure Mode
Setup
Calibration
Memory
2/6
Configure
Status
Obtain Menu
L
AF
L
L
AFmx
LL
Aeq
AFmn Zpk
30 100
Single Band
Octaves
Third Octaves
2/3
Factory Setup
User Setup 1
User Setup 2
User Setup 3
2/5
User Setup 4
View Current
View All
Delete Current
Delete All
1/4
13Jan98 1Ø:54:42
Memory
512Kb
Full
1%
Runs
2
L
dB
ZIZ73.6
100
80
60
40
500
12532AZ
2k
8k
dB
Timers Off
Duration Timer
Delay Timer
1/3
Mode
SLM Response
Functions
Dose Results
1/5
Period
Wed 7 Jan1998
9 Jan1998
Fri
13 Jan1998
Tue
15 Jan1998
Thu
1
3
Wed 7 Jan1998
Fri
9 Jan1998
13 Jan1998
Tue
15 Jan1998
Thu
RS232 Comms
Language
Backlight
Time & Date
1/5
Mic. Response
CEL-480
Models only
More
Options
Runs
Runs
More
Options
Broadband
Octaves
Third Octaves
RMS Weight
Time Weight F
Peak Weight Z
Exchange Q 3
L
LL
LL
LL
More Broadband Functions
Threshold
8Hours
L
EP,d
Period 1min
Profile -----
1
2
CEL-440 & CEL-480 SOUND LEVEL METERS Menu Structure
CEL-440/480 SLM
060334 FG-02/June 02
www.casellagroup.com
Think environment Think Casella
AFmx
AFmn
Aeq
Zpk
1/3
1/4
1/14
1/2
1/4
7Ø
T&
WA
-----
-----
01012
A
Broadband
Mode only
3 Narrowband
14
Broadband
Functions
Broadband
Mode only
More
Options
CEL-480
Models only
TOP
FIELD GUIDE to CEL-440/480
Sound Level Meters
Type 2, 1/4"
Microphone
&
Preamplifier
Pull the
knurled
sleeve
outwards to
release the
connector
ON/OFF
Navigator
keys
Start/
MENU
Pause/
Restart
DATA
Access
data
The CEL-440 and CEL-480 Sound Level Meters consist
of the instrument unit preamplifier and microphone
shown.
Protective
do not
grill (
remove
)
Type 1, 1/2"
Microphone
Preamplifier
Red dot
Change
menu
Enables
Quick edit
Back light
Stop
(needs
to confirm)
01009
