Carrier 69RG15 PARTS LIST

Diesel Generator Set

r

3
4

1
2

5
6

SERVICE PARTS LIST

for

69RG15

Generator Set Units

PID RG1402 and Higher

T--345PL Rev A Change 02/11

SERVICE PARTS LIST

DIESEL DRIVEN GENERATOR SET

MODEL

69RG15

TABLE OF CONTENTS

PARAGRAPH NUMBER Page

INTRODUCTION ii...........................................................................

MODEL AND PRODUCT IDENTIFICATION (PID) NUMBERS ii....................................

ORDERING INSTRUCTIONS ii................................................................

GENERAL NOTES ii.........................................................................

PAINTED PARTS COLOR SYSTEM ii..........................................................

MODEL CHART iii............................................................................

1 RG GENSET CONFIGURATION 2.......................................................

2 UNIDRIVE 4...........................................................................

3 UNIT MOUNTING 8....................................................................

4 COOLANT SYSTEM 10..................................................................

5 FUEL SYSTEM 12.......................................................................

6AIRFILTERS 15........................................................................

7 CONTROL BOXES 17...................................................................

8 VOLTAGE 26...........................................................................

9 SOLID STATE BATTERY CHARGER 28....................................................

10 BATTERIES 30.........................................................................

11 EXHAUST SYSTEM 32..................................................................

12 LABELS 34.............................................................................

13 SKINS OPTION 36......................................................................

14 RECEPTACLE BOX ASSEMBLY 48.......................................................

15 WIRE HARNESS 52.....................................................................

16 RETROFIT KITS 54.....................................................................

PART NUMBER INDEX Index--1..................................................................

i

T--345PL

INTRODUCTION

This parts list identifies service replacement parts for the Carrier Transicold Diesel-Driven Generator Set
listed inthemodelchartbelow. This partslistdoesnotincludedetailedreplacementpartsfortheenginelisted
in the first chart below. Detailed parts identification for these items may be found in the applicable parts list.
Theformnumbers for the engineomit revision dashnumbers.Forexample, the latest enginelistmay havean

-01addedto thebasic numbertoread62-03459-01. Therefore,when formsareordered thelatestrevisionwill
be sent.

MANUAL/

FORM NO.

62-03741 26-00105-00 CT4-134-DI Workshop
62-03459 26-00105-00 CT4-134-DI Engine Parts List

MODEL AND PRODUCT IDENTIFICATION (PID) NUMBERS

Beginning with early 1995 production, in addition to a model number, Carrier Transicold began using a parts
identification (PID) number in the format of RG0000. In this manual, the PID number is shown in boldface to
point out variations within models. Please include the PID number, in addition to the model number, when
ordering and inquiring about your unit.

ORDERING INSTRUCTIONS

All orders and inquiries for parts must include:

SPart Identification Number (PID)
SUnit Serial Number
SPart Number
SDescription of Part
SQuantity Required

Address all correspondence for parts to the following address:

GENERAL NOTES

To find replacement parts, consult table of contents, and turn to the appropriate page for the illustrated
breakdown of replacement parts. The following letter designations are used to classify parts throughout this
list:

A/R As Required.
NSS Not Sold Seperately -- Order next higher assembly or kit.
PID Parts Identification Number -- essential to identify unit configuration.
PL Purchase locally.
SST Stainless Steel -- 300 Series unless otherwise specified.
SV Suffix SV -- added to the part number designates service part replacement part.

ENGINE

PART NO.

EQUIPMENT

COVERED

CARRIER TRANSICOLD DIVISION
Replacement Components Group
TR-20, P.O. Box 4805
Syracuse, New York 13221
or
Fax to: [phone]

TYPE OF

MANUAL/FORM

T-345PL

ii

PAINTED PARTS COLOR SYSTEM

Available paint colors: (Other than White Cloud or Hull Blue)

PAINT COLOR

Sky Blue 36-00048-28

Flame Orange 36-00048-27

Citrus Orange 36-00048-29

Raven Black 36-00048-04

Red 36-00048-57

Overview of the new numbering system:
A typical part number appears as: 79--01741--00 (access door). Toorder an access door in sky blue you add

the last three digits of the special color paint and thenadd thespecific dash number for the color of that paint.
For example:
Sky blue paint P/N is 36--00048--28.

The last three digits of the blue paint are: 048
The specific dash number is: 28

The painted parts system looks like this:
79-01741-00 Standard P/N for the access door.

048 Last 3 digits of special color paint.
28 Specific dash # for color of paint.

79-01741-0004828 P/N For Special Painted Door

PART NO.

Data Entry Note:
The above is how you should see most parts being ordered. Certain customers may have a character
constraintthatwillonly allowthem toinput 14characters in theirsystemandour newpaintedpart numbersare
16 characters long. Therefore, they will be ordering these parts without the dashes, which will look like the
following, 79017410004828.

iii

T-345PL

Wire Harness

Receptacle

Skins Option

Labels

Exhaust System

Battery

Battery Charger

Voltage

Control Box

Air Filter

Fuel System

6.a 7.b 8.b 9 10.b 11.a 12 13.b 14.c 15.a

6.a 7.g 8.b 9 10.b 11.a 12 13.c 14.c 15.a

5.f

5.c

5.f

5.c

Coolant System

NOTE

Unit Mounting

Unidrive

3.b 4 5.b 6.a 7.a 8.a 9 10.b 11.a 12 13.c 14.a 15.c

3.b 4 5.b 6.b 7.a 8.a 9 10.b 11.a 12 13.c 14.a 15.c

3.b 4 5.b 6.a 7.d 8.b 9 10.b 11.b 12 13.b 14.d 15.b

3.b 4 5.b 6.b 7.d 8.b 9 10.b 11.b 12 13.b 14.d 15.b

3.d 4

3.d 4

3.a 4 5.b 6.a 7.a 8.a 9 10.b 11.a 12 13.c 14.a 15.c

3.a 4 5.b 6.a 7.a 8.a 9 10.b 11.a 12 13.d 14.a 15.c

3.a 4 5.b 6.b 7.a 8.a 9 10.b 11.a 12 13.c 14.a 15.c

3.a 4 5.b 6.b 7.a 8.a 9 10.b 11.a 12 13.d 14.a 15.c

3.a 4 5.b 6.a 7.c 8.a 9 10.b 11.a 12 13.c 14.a 15.a

3.a 4 5.b 6.b 7.c 8.a 9 10.b 11.a 12 13.c 14.a 15.a

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

2.a

2.b

Fuel Tank
Assembly
Service
Part

Please refer to the table of contents for page numbers.

Number

Schematic/
Wiring
Diagram
Decals

The numbers shown in the model chart below refer to the section numbers that cover that option.

PID Number

MODEL CHART

Model Number

RG1405 62-11292--00 86-04301-05

69RG15-130C--05

RG1411 62-11292--00 86-04301-05

RG1403 62--11419--00 86-04301-10

RG1409 62--11419--00 86-04301-10

RG1514 62--10144--61 86-04301-10

RG1515 62--11584--00 86-04301-10

RG1406 62-11292--00 86-04301-05

RG1407 62-11429--00 86-04301-05

RG1412 62-11292--00 86-04301-05

RG1413 62-11429--00 86-04301-05

RG1402 62--11287--00 86-04301-05

RG1408 62--11287--00 86-04301-05

69RG15-130C-07

69RG15-130C-08

iv

69RG15-130P-06

69RG15-130P--07

T-345PL

Wire Harness

Receptacle

Skins Option

Labels

xhaust System

Battery

atteryCharger

Voltage

Control Box

Air Filter

Fuel System

Coolant System

Unit Mounting

nidrive

Fuel Tank
Assembly
Service
Part
Number

Schematic/
Wiring
Diagram
Decals

PID Number

3.c 4 5.b 6.a 7.a 8.a 9 10.b 11. a 12 13.c 14.a 15.a

3.c 4 5.b 6.b 7.a 8.a 9 10.b 11. a 12 13.c 14.a 15.a

2.a

2.b

2.a

2.b

RG1404 62-11292--00 86-04301-05

RG1410 62-11292--00 86-04301-05

Model Number

MODEL CHART (Continued)

Change 02/11

69RG15-130W- -05

iv

T-345PL

1

T-345PL

1 RG GENSET CONFIGURATION

2

9

8

1

6
7

5

2

11

10

1

2

3

4

2

12

2

2

13

T-345PL

2

1 RG GENSET CONFIGURATION (Continued)

Item Section Number Area Description

1 Refer to Section 2 Unidrive
2 Refer to Section 3 Unit Mounting
3 Refer to Section 4 Coolant System
4 Refer to Section 5 Fuel System
5 Refer to Section 6 Air Filter
6 Refer to Section 7 Control Boxes
7 Refer to Section 8 Voltage
8 Refer to Section 9 Battery Charger

9 Refer to Section 10 Battery
10 Refer to Section 11 Exhaust System
11 Refer to Section 12 Labels
12 Refer to Section 13 Skins Options
13 Refer to Section 14 Receptacles

NS Refer to Section 15 Wire Harness

3

T-345PL

2 UNIDRIVE

2.a UNIDRIVE ASSEMBLY

23
24
25
26

27
28

See

Section

2.b

29
30
31

32

33

34

35

1

2

3

23
24
25

22

21

20

19

18

GENERATOR

17

15
16

FLYWHEEL

HOUSING

27

14

13

12

11

4

9

8

5
6

39

7

35
34

10

36

37

38

40
41

42

43

44

45

35
49

GENERATOR

DISC DRIVE

T-345PL

FLYWHEEL VIEW

FLYWHEEL

46

21

47

47

48

PULLEY END VIEW

4

2.a UNIDRIVE ASSEMBLY (Continued)

Item Part Number Description Qty

1 26--00128--01 Engine, Kubota Tier 4i 1
2 50--60330--03 V--Belt,Poly 1
3 34--00945--06 Washer, Lock M6 Spring 4
4 66U1--2823--3 Sender, Oil Pressure 1
5 12--00592--00 Switch, Pressure Oil 1
6 40--00107--01 Tee 1/8 1
7 40--00067--01 Nipple, Hex 1/8 x 1/8 1
8 40--00566--00 Elbow, 90 Degree Street 1

9 40--00043--05 Plug 1/2 Inch Flare 1
10 66CH1--123--100 Hose Assembly, 12.00 Inches Long 1
11 34--00667--13 Nut, Self Lock 3/8--16 4
12 73--00175--01 Shockmount, Generator 2
13 34--00829--13 Washer, Plain 3/8 8
14 34--00890--09 Washer, Flat, 0.515 ID X 2.00 OD 2
15 34--00829--15 Washer, Plain, 1/2 2
16 66U1--5331--9 Washer, Lock 1/2 Spring 2
17 86--04182--00 Base, Mounting Generator 1
18 34--00804--18 Screw, Cap Hex Head 5/8--18 x 2.25 Inches Long 4
19 34--00807--10 Screw, Cap Hex Head 3/8--16 x 1.25 Inches Long 4
20 34--00833--24 Screw, Cap Hex Head 1/2--13 x 3.00 Inches Long 2
21 66U1--5321--9 Washer, Plain 5/8 N Type A 10
22 34--00795--17 Nut, Self Lock 5/8--18 4
23 34--00655--04 Screw, Cap Hex Head 1/4--20 x 0.50 Inch Long 10
24 AU11JR171 Washer, Lock 1/4 Spring 10
25 34--00662--11 Washer, Plain 1/4 10
26 68--12166--00 Plate 1
27 34--00807--12 Screw, Cap Hex Head 3/8--16 x 1.50 Inches Long 12
28 AU11JR241 Washer, Lock 3/8 Spring 12
29 68--12174--00 Strap 1
30 66U1--5321--5 Washer, Plain 3/8 N Type A 1
31 34--00807--04 Screw, Cap Hex Head 3/8--16 x 0.62 Inch Long 1
32 86--04676--00 Bracket Assembly 1
33 34--01153--82 Bolt, Hex 8 mm x 16 mm 2
34 34--01146--08 Washer, Lock M8 Spring 4
35 34--01151--08 Washer,FlatM8 10
36 12--00098--04 Sending Unit, Water Temp 1
37 10--00158--02 Switch, Safety 1/2 Inch Water Temperature 1
38 34--00667--15 Nut, Self Lock 1/2--13 1
39 66U1--5321--11 Washer, Plain 1/2 N Type A 1
40 86--04674--00 Weld Assembly 1
41 34--01145--06 Nut, Hex M8 2
42 73--00305--00 Shockmount 1
43 34--00890--08 Washer 1
44 AA06BZ300 Screw, Cap Hex Head 1/2--13 x 3.25 1
45 66U1--5361--36 Screw, Cap Hex Head 5/8--11 x 4.00 Inches Long 2
46 66U1--5331--8 Washer, Lock 5/8 Spring 2
47 34--06060--01 Washer, Snubbing 4
48 73--00198--00 Shockmount 2
49 34--01153--15 Screw, Cap Hex Head 8 mm x 15 mm 6

5

T-345PL

2.b GENERATOR -- MAIN ALTERNA T OR

1

3

6
7
8

19

18

20
21

22

24

2

5

4

6
7
8

23

MUST BE USED
ON RE--ASSEMBLY

17

16

15

13
14

10

12

9

11

T-345PL

6

2.b GENERATOR -- MAIN ALTERNATOR (Continued)

Item Part Number Description Qty

1 54--00576--03 Generator, 15 KW, with Hub/Key way -- Includes: 1
2 22--50206--00 Rectifier Assembly -- Includes: 1
3 NSS Diode Assembly, Forward (With Red Stud) 1
4 NSS Diode Assembly, Reverse (With Black Stud) 1
5 54--50083--00 Side Cover 1
6 34--00655--04 Bolt, Hex Head, 1/4--20 x 1/2 Lg -- SST 2
7 AU11JR171 Washer, Lock, 1/4--20 -- Steel Plated 10
8 34--00662--12 Washer, Flat, 1/4--20 x 11/2 -- SST 2

9 76--50110--00 Bearing Kit -- Includes: 1
10 04--50012--00 Bearing 1
11 42--50010--00 O--Ring 1
12 54--50084--00 Fan, One--Piece, Die Cast 1
13 34--00304--08 Bolt, Hex Head Socket, 3/8--24 x 1--1/4 Lg -- SST 6
14 34--06278--00 Washer, Belleville -- 3/8 6
15 68--14699--01 Disc, Pilot, Generator 2
16 68--14698--01 Disc, Drive, Generator 2
17 48--00392--00 Hub, Generator 1
18 54--50085--00 Terminal Block, 1 1 Poles 1
19 54--50082--00 Air Baffle 1
20 34--00655--06 Bolt, Hex Head, 1/4--20 x 3/4 Lg -- SST 4
21 66U1--5321--3 Washer,Flat1/4--SST 4
22 54--50039--00 End Cover 1
23 02--00083--00 Anti--Corrosion Coating (1 Ounce Syringe) 1
24 42--00348--00 Gasket 1

7

T-345PL

3 UNIT MOUNTING

3.a,3.b,3.c,3.d UNIT MOUNTING

3.a, 3.b, 3.d

CONFIGURATION

16
17

3.d

ONLY

1
2

12

See

DETAIL A

13
14
15

16
17

3.d

ONLY

11

3.c

CONFIGURATION

16

16

12
14
15

DETAIL B

See

3
4

(LEFT

HAND

SIDE)

OR

5

(RIGHT

HAND

SIDE)

6
7

9

10

DETAIL A:

3.a, 3.b, 3.c

1
2
8

18

3
4

(LEFT

HAND

SIDE)

OR

5

(RIGHT

HAND

SIDE)

6
7

See

DETAIL A

T-345PL

9
10
19

DETAIL A:

3.d ONLY

12
13
14

DETAIL B:

3.d ONLY

8

3 UNIT MOUNTING (Continued)

Item Part Number Description Qty

COMMON PARTS FOR OPTIONS 3.a THROUGH 3.d

1 68--12997--00 Bracket, Mounting, T--Bolt, Painted -- See NOTE 2
2 34--00667--12 Nut, Self Locking, 5/16--18, SST 4
3 34--06207--00 Knob, Hex, 1/2--13, Brass 2
4 68--12998--01 Retainer, Lower Mounting Bolt, Left Side -- See NOTE 1
5 68--12998--00 Retainer, Lower Mounting Bolt, Right Side -- See NOTE 1
6 34--00667--13 Nut, Self Locking, 3/8--16, SST 2
7 34--06200--00 Screw, Cap Hex Head, 3/8--16 x 4.88 Inches Long, SST 2
8 34--06201--00 Bolt, T--Head, 1/2--13 x 2.75 Inches Long, SST 2

3.a UNIT MOUNTING -- PIN MOUNT (INCLUDES COMMON P ARTS AND ITEMS BELOW)

9 34--06149--02 Screw, Cap Hex Head, 3/4--10 x 2.25 Inches Long 2
10 68--12996--01 Plate, Spacer, Painted -- See NOTE 2
11 69GC15--1602 Pin, Unit Mounting 2

3.b UNIT MOUNTING -- CLAMP MOUNT (INCLUDES COMMON PARTS AND ITEMS BELOW)

9 34--06149--02 Screw, Cap Hex Head, 3/4--10 x 2.25 Inches Long 2
11 68--12996--01 Plate, Spacer, Painted -- See NOTE 2
12 44--00362--02 Clamp, Unit Mounting, Clip--On, Right Side (Cast) 1
13 44--00362--03 Clamp, Unit Mounting, Clip--On, Left Side (Cast) 1
14 34--06170--08 Screw, Cap Socket Head, 5/8--11 x 1.75 Inches Long 8
15 66U1--5331--8 Washer, Split Lock, 5/8, SST 8
16 48--00309--00 Mounting Block 4

3.c UNIT MOUNTING -- PIN MOUNT WITH CLAMP PROVISION (INCLUDES COMMON P ARTS AND

3.d UNIT MOUNTING -- PIN MOUNT WITH TETHER (INCLUDES COMMON PARTS AND ITEMS BELOW)

ITEMS BELOW)

9 34--06149--02 Screw, Cap Hex Head, 3/4--10 x 2.25 Inches Long 2
10 68--12996--01 Plate, Spacer, Painted -- See NOTE 2
11 69GC15--1602 Pin, Unit Mounting 2
16 48--00309--00 Mounting Block 4
17 58--00024--01 Caplug 8

9 34--06149--03 Screw, Cap Hex Head, 3/4--10 x 2.25 Inches Long 2
10 48--00354--00 Spacer, Plate, SST 2
11 69GC15--1602 Pin, Unit Mounting 2
12 44--00402--00 Tether Assembly 2
13 34--06229--00 Bolt, Shoulder, Socket Head, #10--32 x 0.250 Inch Long, SST 2
16 48--00309--00 Mounting Block 4
17 58--00024--01 Caplug 8
18 66U1--5321--4 Washer,Plain,TypeA,5/16N,SST 4
19 34--06205--00 Washer, Retaining, SST 2

NOTE: See page iv for painted parts color system.

9

T-345PL

4 COOLANT SYSTEM

26
30

10
11
28

29

11
28
31
32

33

7,

34,35,736

1
2

3

4
5
6

9
10
11

19
20
21

25

26
27

22
23
24

8

9
10
11

12

9
10
11

13
14
15

16

T-345PL

14
15
17
18

10

4 COOLANT SYSTEM (Continued)

Item Part Number Description Qty

1 81--04054--00 Radiator Assembly -- Includes: 1
2 40--00117--01 Valve, Drain Cock, 1/4 Inch MPT, Brass 1
3 58--04765--00 Venturi 1
4 34--00667--11 Nut, Self Locking, 1/4--20, SST 1
5 44--00102--52 Clamp, Hose, Cushioned, 0.56 Diameter, SST 1
6 34--00655--08 Screw, Cap Hex Head, 1/4--20 x 1.00 Inch Long, SST 1
7 66U1--3882 Wire Tie, Self--Locking, 7.00 Inches, Black 4
8 58--00848--00 Tubing, Split, Corrugated, 1/2 Inch ID x 25 Feet Long 1

9 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 4
10 69NT35--2692--1 Washer, Fender, 1/4, SST 5
11 AU1 1JR171 Washer, Split Lock, 1/4, SST 6
12 44--00102--54 Clamp, Hose, Cushioned, 0.75 Diameter, SST 1
13 66U1--5361--39 Screw, Cap Hex Head, 5/16--18 x 1.00 Inch Long, SST 5
14 34--00663--12 Washer, Split Lock, 5/16, SST 7
15 66U1--5321--4 Washer,Plain,TypeA,5/16N,SST 7
16 42--00264--09 Seal, Trim, Black, 14.50 Inches Long 1
17 86--04470--00 Bracket Assembly, Coolant Bottle, Painted 1
18 66U1--5361--6 Screw, Cap Hex Head, 5/16--18 x 0.75 Inch Long, SST 2
19 34--01155--25 Screw, Cap Hex Head, M12 x 25.00 MM Long, SST 3
20 34--01151--12 Washer, Flat, M12, SST 3
21 34--01146--12 Washer, Split Lock, M12, SST 3
22 34--01154--25 Screw, Cap Hex Head, M10 x 25.00 MM Long, SST 3
23 34--01151--10 Washer, Flat, M10, SST 3
24 34--01146--10 Washer, Split Lock, M10, SST 3
25 86--04288--01 Support Assembly, Radiator, Painted 1
26 KA69JM824 Clamp, Hose, Worm Type, Range: 1.06 to 2.00, SST 4
27 58--04268--00 Hose, Formed, Inlet, 1--1/8 ID 1
28 66U1--5361--14 Screw, Cap Hex Head, 1/4--20 x 0.88 Inch Long, SST 2
29 44--00102--61 Clamp, Hose, Cushioned, 1.56 Diameter, SST 1
30 58--04267--00 Hose, Formed, Outlet, 1--1/8 ID 1
31 86--04675--00 Support Assembly, Radiator, Painted 1
32 66U1--5321--7 Washer,Plain,TypeA,1/4W,SST 1
33 30--00397--00 Cap, Radiator, 16 Lbs. 1
34 58--04184--04 Hose, Fuel, 1/4 ID x 42.00 Inches Long 1
35 44--00388--00 Clamp, Hose, Flat Band, 0.50 ID 2
36 58--04316--00 Base, Push Mount, Cable Tie 2

11

T-345PL

5 FUEL SYSTEM

5.a,5.b,5.c,5.d,5.e FUEL SYSTEM

32

21
22
23
28

5.e ONLY

32

5.c ONLY

22

31

21
22
23
28
29

11

22
23

13

14
15
16

17

12

1
18
19
20

11

31

31

21
22

14

15
16
30

27

26

25

23
24

23

5.a ONLY

1

10

9

8

6
7

5

2
3

4

T-345PL

12

5.a,5.b,5.c,5.d,5.e FUEL SYSTEM (Continued)

Item Part Number Description Qty

FUEL SYSTEMS -- COMMON PARTS FOR OPTIONS 5.a THROUGH 5.e

1 30--01101--07 Filter Assembly, Fuel System, With Heater -- Includes: 1
2 30--01101--69 Fitting, Straight, MPT x 5/16 Hose 1
3 30--01101--70 Fitting, 90 Degree Street Elbow, MPT x FPT 1
4 30--01101--71 Fitting, 90 Degree Elbow, MPT x 5/16 Hose 1
5 30--01101--74 Drain, Fuel Filter 1
6 30--01101--50 Element, Fuel Filter, With O--Rings 1
7 30--01101--73 Canister, Fuel Filter 1
8 30--01101--72 Head, Fuel Heater, With 90 Degree Fittings 1

9 30--01101--68 Fitting, Bleed Orifice, 90 Degree, MPT x 3/16 Hose 1
10 30--01101--59 Heater, Fuel Filter, With O--Rings 1
11 65--00131--02 Valve, Vent, Fuel Tank 2
12 69GC15--3212 Label, Fuel Shutoff 1
13 44--00102--54 Clamp, Hose, Cushioned, 0.75 Diameter, SST 2
14 66U1--5321--3 Washer, Plain 1/4 N Type A 3
15 66U1--5361--25 Screw,Cap Hex Head 1/4--20 X 0.75 3
16 AU11JR171 Washer, Spring 1/4 3
17 40--00213--00 Fitting, Hose, 90 Degree, 1/4 ID x 1/8 MPT, Brass 1
18 34--00792--10 Screw, Cap Hex Head, 5/16--18 x 1.25 Inches Long, SST 2
19 34--00829--12 Washer, Plain, 5/16 SAE, SST 2
20 66U1--5331 Washer, Split Lock, 5/16, SST 2
21 58--00848--33 Slit Tube, 1/2 ID, Bulk 1
22 66U1--3882 Wire Tie, Self--Locking, 7.00 Inches, Black 10
23 44--00045--25 Clamp, Hose, Worm Type, Range: 0.22 to 0.62, SST 12
24 58--00658--00 Fuel Hose, 5/16 ID x 50 Feet Roll 1
25 40--00420--01 Fitting, Hose Barb, 5/16 ID x 1/4 MPT, Brass 1
26 69GC15--172--2 Connector Assembly, Fuel Tank, 3/8 MPT x 1/4 MPT x 12.68 Inches Long 1
27 40--00469--00 Valve, Fuel Shutoff, 1/4 FPT 1
28 58--00659--00 Fuel Hose, 3/16 ID x 50 Feet Roll 1
29 40--01156--00 Fitting, Tee, 3/16 ID Hose x 1/4 OD Tube x 3/16 ID Hose, Brass 1
30 44--00102--52 Clamp, Hose, Cushioned, 0.56 Diameter, SST 1

5.a FUEL SYSTEM -- 102GALLONCAPACITYWITH ALUMINUM CAP (INCLUDESCOMMON PARTS AND

5.b FUELSYSTEM -- 130 GALLON CAPACITYWITH ALUMINUMCAP (INCLUDESCOMMON PARTSAND

5.c FUEL SYSTEM -- 130 GALLON CAPACITY WITH BRASS CAP (INCLUDES COMMON PARTS AND

5.d FUEL SYSTEM -- 130 GALLON CAPACITY, TIR (INCLUDES COMMON PARTS AND ITEMS BELOW)

5.e FUEL SYSTEM -- 130 GALLON CAPACITY WITH DUAL FUNCTION FUEL GAUGE

ITEMS BELOW)

31 44--00046--13 Cap Assembly, Fuel Tank, Non--Vented, Aluminum 1
32 12--01098--05 Gauge, Fuel, 1--1/2 MPT x 34.38 Inches Long 1

ITEMS BELOW)

31 44--00046--13 Cap Assembly, Fuel Tank, Non--Vented, Aluminum 2
32 12--01098--03 Gauge, Fuel, 1--1/2 MPT x 34.38 Inches Long 1

ITEMS BELOW)

31 44--00046--14 Cap Assembly, Fuel Tank, Non--Vented, Brass 2
32 12--01098--03 Gauge, Fuel, 1--1/2 MPT x 34.38 Inches Long 1

31 44--00046--14 Cap Assembly, Fuel Tank, Non--Vented, Brass 2
32 12--01098--07 Gauge, Fuel, 1--1/2 MPT x 34.38 Inches Long, With 0.094 Thru Hole 1

(INCLUDES COMMON PARTS AND ITEMS BELOW)

31 44--00046--13 Cap Assembly, Fuel Tank, Non--Vented, Aluminum 2
32 12--01098--08 Gauge, Fuel, 1--1/2 MPT x 34.38 Inches Long 1

13

T-345PL

5 FUEL SYSTEM (Continued)

5.f FUEL WARMER SYSTEM (Includes Common Parts, Specific System Parts & Items Listed Below)

33
34
35
40

36

39

33
34
35
37

38

Item Part Number Description Qty

33 66U1--5321--3 Washer, Plain 1/4 N Type A 7
34 AU11JR171 Washer, Lock 1/4 Spring 7
35 66U1--5361--25 Screw, Cap Hex Head 1/4--20 X 0.75 7
36 30--00344--04 Fuel Warmer 1
37 44--00459--00 Clamp,Tube Cushion 1
38 58--04840--00 Hose, Formed Fuel Warmer 1
39 58--04839--00 Hose, Formed Fuel Warmer 1
40 68--15898--00 Bracket, 69 Rg Fuel Warmer 1

T-345PL

14

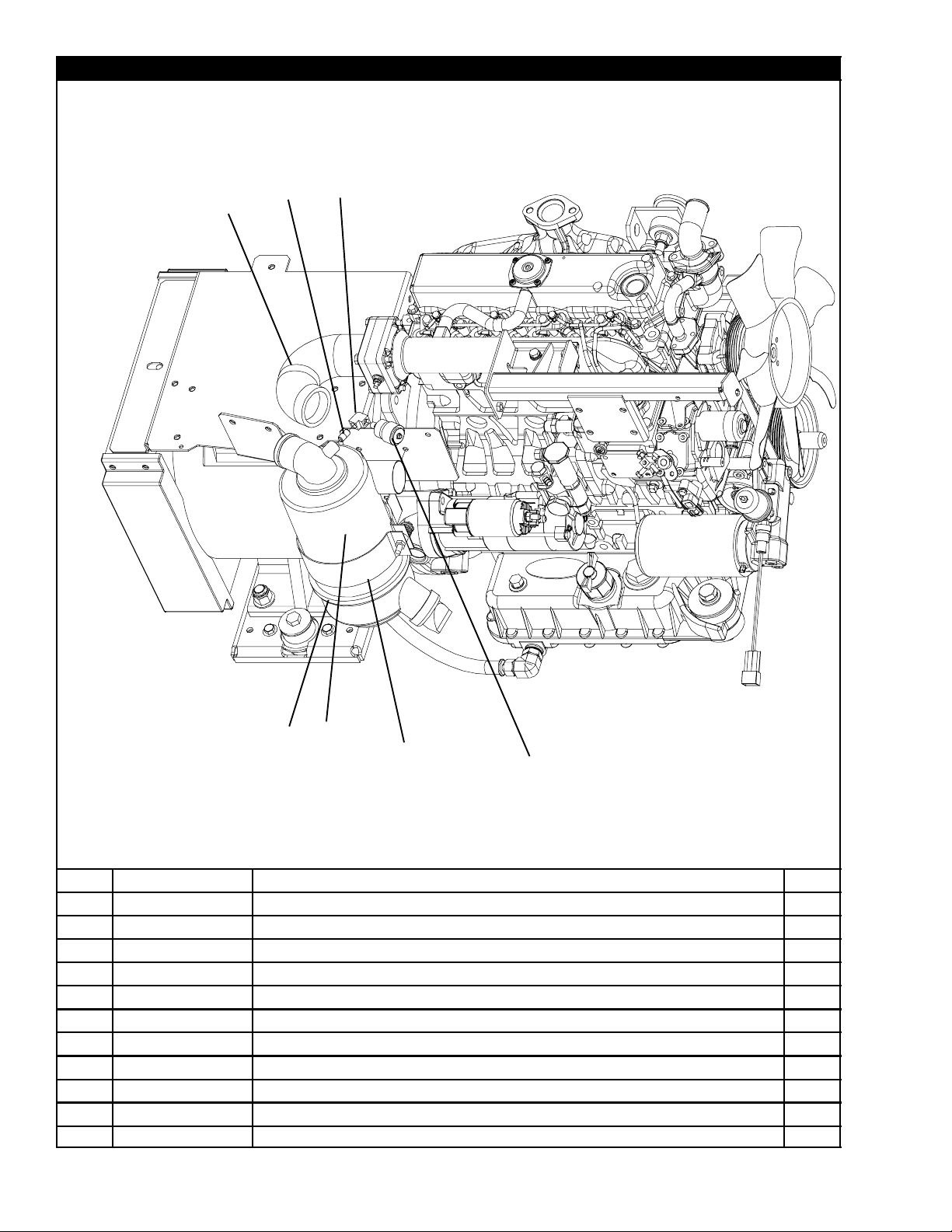

6AIRFILTERS

6.a OIL BATH AIR FILTER

3
4

1
2

5
6
7
8

Item Part Number Description Qty

1 30--00473--03 Air Cleaner Assembly, Oil Bath -- Includes: 1

2 30--00473--20 Gasket 1

3 58--04766--00 Hose, Formed, Air Cleaner 1

4 KA69JM840 Clamp, Hose, Worm Type, Range: 1.13 to 3.00 Inches 2

5 44--00447--01 Bracket, Mounting, Air Cleaner 1

6 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 2

7 34--00667--11 Nut, Self Locking, 1/4--20, SST 2

8 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 2

15

T-345PL

6.b DRY ELEMENT AIR FILTER

3
4

5

6

1

2

8

9
10
11

Item Part Number Description Qty

1 30--00426--05 Air Cleaner, Dry Element -- Includes: 1
2 30--00426--27 Filter, Air Cleaner 1
3 58--04836--00 Hose, Air Cleaner 1
4 KA69JM840 Clamp, Hose, Worm Type, Range: 1.13 to 3.00 Inches 2
5 40--01176--52 Nipple, 1/8 x 1/8 FPT 1
6 40--00512--00 Elbow, Union, 1/8 x 1/8 FPT 1
7 30--00328--00 Indicator, Air Cleaner 1
8 44--00454--00 Bracket, Mounting, Air Cleaner 1

9 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 2
10 34--00667--11 Nut, Self Locking, 1/4--20, SST 2
11 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 2

7

T-345PL

16

7 CONTROL BOXES

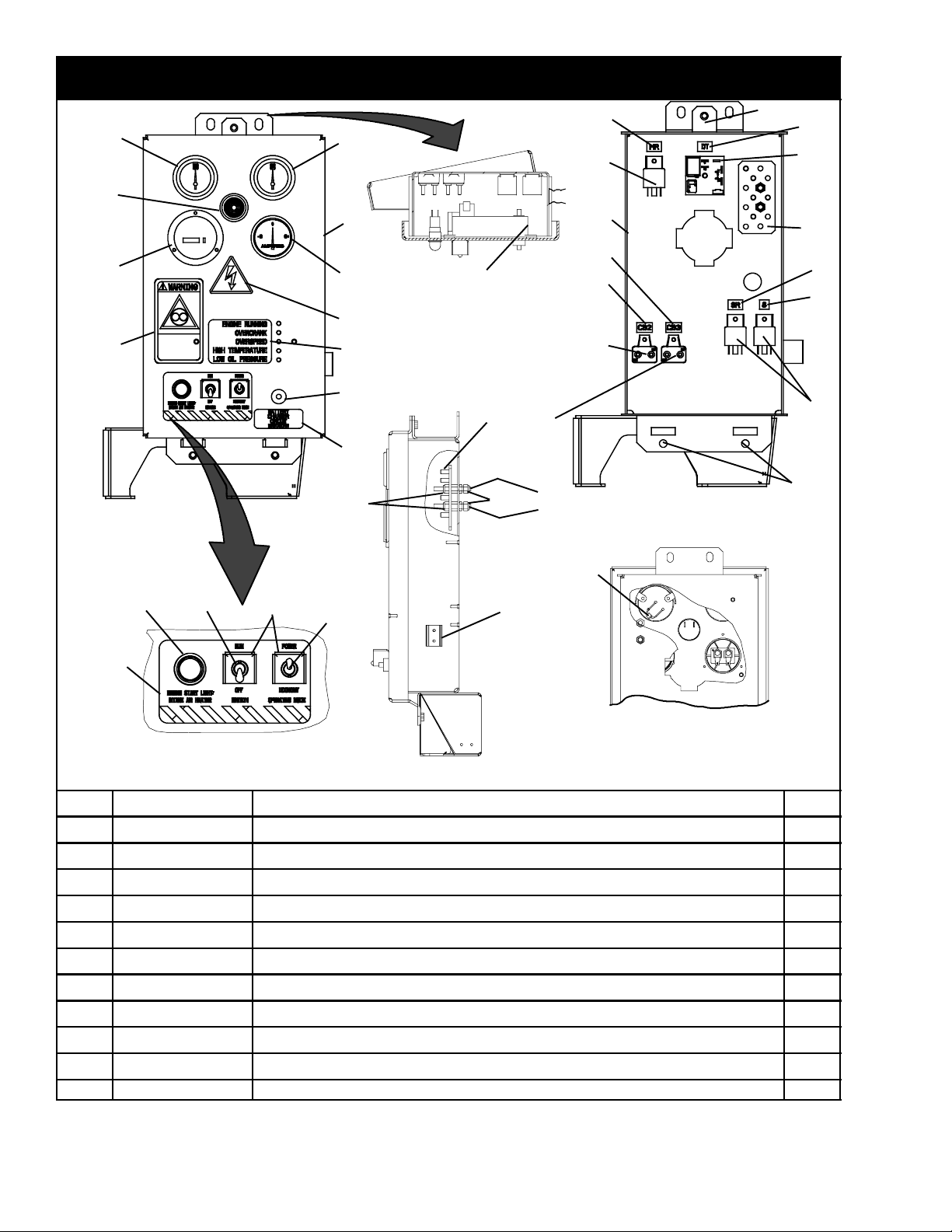

7.a, 7.b STANDARD CONTROL BOX, STANDARD CONTROL BOX WITH 2--SPEED

7
8
9

5
6

1
2
3
4

49

6

10
11

50

6

12

13

30
27

28
29

26
25

19
20
21
22
23
24

14
15
16

17

18
19
20
21
22
23

7
8
9

36

FRONT VIEW WITH

COVER REMOVED

40

31

32

33
19

20
21

34

19
20
21
35

44
45
46
47

36

36

37

41
42 52

43

41

51

38
39

48

REAR VIEW OF COVER

Item Part Number Description Qty

COMMON PARTS -- ST ANDARD CONTROL BOX AND 2--SPEED

91--00398--XX Control Box Assembly, -- See Sections 7.a or 7.b 1
1 10--00448--00 Meter, Hour (Operating Range: 10--80 VDC) 1
2 66U1--6651--15 Screw, Machine, Pan Head Slotted, #4--40 x 0.75 Long, SST. 3
3 34--00667--05 Nut, Self Locking, #4--40, SST 3
4 69GS4--1582--1 Gasket, Hour Meter 1
5 12--00097--03 Gauge, Water Temperature, 100--240 Degrees F, 12 VDC 1
6 KK71EW223 O--Ring 3
7 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 3

17

T-345PL

COMMON PARTS -- STANDARD CONTROL BOX AND 2--SPEED (Continued)

Item Part Number Description Qty

8 AU11JR171 Washer, Lock, 1/4, SST 3

9 66U1--5361--25 Screw, Hex Head, 1/4--20 x 0.75 Inch Long, SST 3
10 66U1--2823 Gauge, Oil Pressure, 0--100 PSI, 12 VDC 1
11 42--00341--00 Gasket, Control Box 1
12 22--00538--01SV Ammeter Gauge Kit, +60/--60 Amp 1
13 62--03957--04 Label, HIGH VOLT AGE WARNING 1
14 10--00365--00 Circuit Breaker, 3 Amp 1
15 KK71GW007 O--Ring 1
16 10--00365--10 Boot, Circuit Breaker 1
17 69GC15--3812 Label, BATTER Y CHARGER, CIRCUIT BREAKER 1
18 10--00171--12 Circuit Breaker, 30 Amp, 12 VDC 1
19 66U1--5331--4 Washer, Lock, #8, SST 7
20 34--00666--08 Nut, Hex, #8--32, SST 7
21 66U1--5321--2 Washer, Plain, Type A, #8, SST 7
22 66U1--5331--3 Washer, Lock, #10, SST 4
23 AT39QA132 Nut, Hex, #10--32, Brass 4
24 10--00171--13 Circuit Breaker, 50 Amp, 12 VDC 1
25 66U1--3662--21 Label, CB2 1
26 66CH1--1002--5 Label, CB3 1
27 10--00469--00 Time Delay 1
28 66U1--5321--8 Washer, Plain #10 Type A 1
29 34--00795--09 Nut, Self Lock 10--32 1
30 62--10530--25 Label, IHT 1
31 69NT41--982--2 Strap Assembly, Ground, Copper 1
32 66CH1--1002--38 Label, HR 1
33 66CH1--1002--132 Label, S 1
34 10--00286--03 Relay, SPST, Maximum 30 Amp 1
35 10--00328--00 Relay, 70 Amp 1
36 34--00667--11 Nut, Self Locking, 1/4--20, SST 9
37 66U1--9592--13 Standoff, Hex Head, 1/4--20 x 0.375 x 1/4--20 x 0.75 Long, SST 2
38 44--00094--09 Clip, Spring, “U” Type 1
39 34--00928--03 Rivet, Blind, 0.125 Diameter, Grip Range: 0.188 -- 0.250, SST 2
40 58--04316--00 Base, Cable Tie, Push Mount, 0.250 Diameter Mounting Hole 5
41 66U1--9752 Seal, Bushing, 0.427/0.432 1
42 10--01129--19 Switch, Toggle, 4 Pole 1
43 68--12973--00 Bracket, Protector, Toggle Switches, Painted -- See NOTE 1
44 22--01030--54 Diode Assembly, 6 Amp 1
45 22--02200--06 Washer, Plain #6 2
46 34--00667--07 Nut,Self Lock 6--32 2
47 66U1--8772 Diode Assembly, 6 Amp 1
48 66U1--3882 Wire Tie, Self--Locking, 7.00 Inches, Black (use for Wire Harness) 5

7.a STANDARD CONTROL BOX

91--00398--02 Control Box Assembly, Standard, Painted -- Includes: -- S e e N O T E 1
49 86--04231--07 Control Box 1
50 86--04165--04 Cover, Control Box, Standard, Painted 1
51 62--02669--01 Label, INTAKE HEATER AND IGNITION 1
52 10--01129--13 Switch, Toggle, 2 Pole, On/Off, With Hardware 1

NOTE: See page iv for painted parts color system.

T-345PL

18

7.b STANDARD CONTROL BOX WITH 2--SPEED

7
8
9

5
6

1
2

6

10

11
50

6

12

3
4

13

49

14
15
16

17

7
8
9

36
40

19
20
21
22
23
24

18
19
20
21
22
23

30
27

28
29

26

25

54

53

28
29

31

32

33

19
20
21

34

19
20
21
35

FRONT VIEW WITH

COVER REMOVED

44
45

36

36

37

41
42

43

41

52

41
55

56

46
47

51

38
39

48

REAR VIEW OF COVER

Item Part Number Description Qty

91--00398--05

Control Box Assembly, Standard, 2--Speed, Painted -- Includes: -- Se e

NOTE

1

49 86--04231--10 Box Assembly, Welded 1
50 86--04165--08 Cover 1
51 62--02669--02 Label, Ih/Ign/2Spd Switch 1
52 10--01129--14 Switch, Toggle, On/On/On Momentary 1
53 10--00475--00 Timer, Time Delay, 2Hr 1
54 66CH1--1002--89 Label 1
55 10--01129--15 Switch,Toggle 1 Pole 0ff/On 1
56 69GC15--3542 Bracket 1

NOTE: See page iv for painted parts color system.

19

T-345PL

7.c, 7.d, 7.e, 7.f CONTROL BOXES WITH AUTO RESTART, TIME DELAY, 2--SPEED

1
2

1

14

33
23

24
25

3

15

34
51

52

4
5
6

7

16
17

18
19

20
21

1

23
24
25
26
27

23
28
29

24

25

35
36
23

24
25
37
38
39

38

30

39

40

FRONT VIEW WITH

22

29

29

COVER REMOVED

41,42,

43

47

46
45

23
24
25
44

41
42
43

8
9

10

11

12
13

31
32

48
49
50

53

REAR VIEW OF

COVER

Item Part Number Description Qty

COMMON PARTS -- CONTROL BOXES WITH AUTO RESTART, TIME DELAY, 2--SPEED

91--00398--XX Control Box Assembly -- Includes: -- See 7.c,7.d
1 KK71EW223 O--Ring 3
2 12--00097--03 Gauge, Water Temperature, 100--240 Degrees F, 12 VDC 1
3 42--00243--14 O--Ring 1
4 10--00448--00 Meter, Hour (Operating Range: 10--80 VDC) 1
5 66U1--6651--15 Screw, Machine, Pan Head Slotted, #4--40 x 0.75 Long, SST. 3
6 34--00667--05 Nut, Self Locking, #4--40, SST 3
7 62--02146--00 Label, WARNING, AUTO START 1
8 22--00049--00 Lamp, Incandescent, 12 VDC 1
9 22--00518--01 Base,PilotLight 1

10 22--00519--01 Jewel Assembly, Pilot Light, Red 1
11 69GC15--3542 Bracket, Protector, Toggle Switch, Painted -- See NOTE A/R
12 66U1--9752 Seal, Bushing, 0.427/0.432 A/R
13 10--01129--18 Switch, Toggle, 2--Pole, On/Off 1
14 66U1--2823 Gauge, Oil Pressure, 0--100 PSI, 12 VDC 1

T-345PL

20

COMMON PARTS -- CONTROL BOXES WITH AUTO RESTART, TIME DELAY, 2--SPEED (Continued)

Item Part Number Description Qty

15 42--00341--00 Gasket, Control Box 1
16 22--00538--01SV Ammeter Gauge Kit, +60 /--60 Amp 1
17 62--03957--04 Label, HIGH VOLT AGE WARNING 1
18 62--10387--01 Label, LIGHTS 1
19 10--00365--00 Circuit Breaker, 3 Amp 1
20 KK71GW007 O--Ring 1
21 10--00365--10 Boot, Circuit Breaker 1
22 69GC15--3812 Label, BATTER Y CHARGER CIRCUIT BREAKER 1
23 66U1--5331--4 Washer, Lock, #8, SST 7
24 34--00666--08 Nut, Hex, #8--32, SST 7
25 66U1--5321--2 Washer, Plain, Type A, #8, SST 7
26 12--00477--03 Module, Auto--Restart 1
27 42--00481--00 Gasket, Module, Auto--Restart 1
28 34--00372--41 Washer, Lock, External Tooth, 1/4, SST 4
29 34--00667--11 Nut, Self Locking, 1/4--20, SST 9
30 66U1--9592--13 Standoff, Hex Head, 1/4--20 x 0.375 x 1/4--20 x 0.75 Long, SST 2
31 44--00094--09 Clip, Spring, U” Type 1
32 34--00928--03 Rivet, Blind, 0.125 Diameter, Grip Range: 0.188 -- 0.250, SST 2
33 66CH1--1002--38 Label, HR 1
34 10--00328--00 Relay, 70 Amp 1
35 66CH1--1002--5 Label, CB3 1
36 66U1--3662--21 Label, CB2 1
37 10--00171--13 Circuit Breaker, 50 Amp, 12 VDC 1
38 AT39QA132 Nut, Hex, #10--32, Brass A/R
39 66U1--5331--3 Washer, Lock, #10, SST 4
40 10--00171--12 Circuit Breaker, 30 Amp, 12 VDC 1
41 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 3
42 AU11JR171 Washer, Lock, 1/4, SST 3
43 66U1--5361--25 Screw, Hex Head, 1/4--20 x 0.75 Inch Long, SST 3
44 10--00286--02 Relay, SPDT, 30 Amp, With Diode 2
45 66CH1--1002--132 Label, S 1
46 62--10530--02 Label, SR 1
47 69NT41--982--2 Strap Assembly, Ground, Copper 1
48 22--01030--54 Diode Assembly, 6 Amp 1
49 22--02200--06 Washer, Plain, #6 2
50 34--00667--07 Nut, Self Locking, #6--32, SST 2

NS 66U1--3882 Wire Tie, Self--Locking, 7.00 Inches, Black 7

7.c CONTROL BOX WITH AUTO RESTART (INCLUDES COMMON P ARTS AND ITEMS BELOW)

-- 91--00398--00 Control Box Assembly, Auto--Restart, Painted -- S e e N O T E 1
51 86--04231--06 Control Box 1
52 86--04165--05 Cover, Control Box, Auto--Restart, Painted 1
53 62--02973--04 Label, ENGINE START LIGHT, INTAKE AIR HEAT, IGNITION 1

7.d CONTROL BOX WITH AUTO RESTART AND TIME DELA Y (INCLUDES COMMON PARTS AND
ITEMS BELOW)

-- 91--00398--01 Control Box Weld Assembly, Auto--Restart/Time Delay , Painted -- See NOTE 1
51 86--04231--05 Control Box 1
52 86--04165--05 Cover, Control Box, Auto--Restart, Painted 1
53 62--02973--04 Label, ENGINE START LIGHT, INTAKE AIR HEAT, IGNITION 1

21

T-345PL

7.e CONTROL BOX WITH AUTO RESTART AND 2--SPEED (INCLUDES COMMON PARTS AND
ITEMS BELOW)

1

2

1

14

33
23

24
25

3

34

55

15

51

52

4
5
6

54

7

1

16
17

18
19

20
21

23
24
25
26
27

28
29

23
24
25

35
36
23

24
25
37
38
39

38

29

30

39
40

FRONT VIEW WITH

22

29

COVER REMOVED

41,42,

43
59

56
57
58

47

46
45

23
24
25
44

41
42
43

8
9

10

12
13

11

12
60

31
32

49
50

53

REAR VIEW OF

COVER

Item Part Number Description Qty

-- 91--00398--03 Control Box Assembly, Auto--Restart, 2--Speed, Painted -- S e e N O T E 1
51 86--04231--09 Control Box 1
52 86--04165--09 Cover, Control Box, Auto--Restart, 2-- Speed Painted 1
53 62--02973--05 Label, ENGINE START, IGNITION, 2--SPEED 1
54 69GS4--1582--1 Gasket 1
55 10--00375--01 Buzzer, Warning 1
56 66U1--5321--8 Washer, Plain, #10 Type A 1
57 34--00795--09 Nut, Self Lock, 10--32 1
58 10--00475--00 Timer, Time Delay, 2 Hour 1

48

59 66CH1--1002--89 Label 1
60 10--01129--18 Switch, Toggle, 1 Pole, On/Off 1

NOTE: See page iv for painted parts color system.

T-345PL

22

7.f CONTROL BOX WITH AUTO RESTART, TIME DELAY AND 2--SPEED (INCLUDES COMMON
PARTS AND ITEMS BELOW)

1
2

1

14

33
23

24

41,42,

25

3

34

55

15

51

52

4
5
6

54

7

1

16
17

18

19
20
21

22

29

23
24
25
26
27

28
29

29

23
24
25
38
39
40

30

35
36
23

24
25
37
38
39

FRONT VIEW WITH

COVER REMOVED

43
59

56
57
58

47

46
45

23
24
25
44

41
42
43

8
9

10

12
13

11

12
60

31
32

48
49
50

53

REAR VIEW OF

COVER

Item Part Number Description Qty

-- 91--00398--04

Control Box Assembly, Auto--Restart, Time Delay, 2--Speed, Painted -- S e e

NOTE

1

51 86--04231--08 Control Box 1
52 86--04165--09 Cover, Control Box, Auto--Restart, 2-- Speed Painted 1
53 62--02973--05 Label, ENGINE START, IGNITION, 2--SPEED 1
54 69GS4--1582--1 Gasket 1
55 10--00375--01 Buzzer, Warning 1
56 66U1--5321--8 Washer, Plain, #10 Type A 1
57 34--00795--09 Nut, Self Lock, 10--32 1
58 10--00475--00 Timer, Time Delay, 2 Hour 1
59 66CH1--1002--89 Label 1
60 10--01129--18 Switch, Toggle, 1 Pole, On/Off 1

NOTE: See page iv for painted parts color system.

23

T-345PL

7.g CONTROL BOX, 2--SPEED, NON--SELECTABLE

7

20

6

20

5

9

23
24
25

20

33

27
28
29

3

17

8
19
44

37

43

38
43

43

38
43

38

16

12
27

28
29
30
45

13
27
28
29
30

45

18
39
40

58

56

30
53
54
60

4

2

30
57
54
60

31

15

48
42

36

35

14

27
28
29

47
27
28
29

18
39
40

FRONT VIEW WITH

COVER REMOVED

D1-HS11

22

10
21

11
21

59
21

62

26

34

55
61

49
50

47

S85-D1

32

46
51

52

41

REAR VIEW OF

COVER

Item Part Number Description Qty

1 91--00407--07 Control Box Assembly Includes -- 1
2 86--04231--10 Box Assembly 1
3 86--04165--10 Cover 1
4 22--04139--06 Wire Harness -- See Section 15.a 1
5 22--00538--01 Ammeter +60 /--60 Amps 1
6 66U1--2823 Gauge Oil Pressure 1
7 12--00097--03 Gauge Dual Water T emperature 1
8 10--00365--00 Circuit Breaker 3 Amp 1

9 10--00448--00 Meter, Hour 1
10 10--01129--19 Switch, Toggle 4--Pole 1
11 10--01129--14 Switch,Toggle On/On/On Momentary 1
12 10--00171--12 Circuit Breaker 30 Amp 1
13 10--00171--13 Circuit Breaker 50 Amp 1
14 10--00286--18 Relay 1
15 22--01790--02 Harness Battery Charger 1

T-345PL

24

7.g CONTROL BOX, 2--SPEED, NON--SELECTABLE

Item Part Number Description Qty

16 66U1--9592--13 Standoff 1/4--20 X 0.375 Long 2
17 42--00341--00 Gasket Control Box 1
18 66U1--5361--25 Screw,Cap Hex Head 1/4--20 X 0.75 3
19 KK71GW007 O--Ring 1
20 KK71EW223 O--Ring 1
21 66U1--9752 Seal 3
22 68--12973--00 Bracket 1
23 69GS4--1582--1 Gasket 1
24 66U1--6651--15 Screw,Mach Pan Head #4--40 X 3/4 Long 3
25 34--00667--05 Nut,Self Lock 3
26 69GC15--3542 Bracket 1
27 66U1--5331--4 Washer,Lock #8 Spring 4
28 34--00666--08 Nut,Hex #8--32 4
29 66U1--5321--2 Washer,Plain #8 Type A 4
30 66U1--5331--3 Washer,Lock #10 Spring 4
31 69NT41--982--2 Strap Assy Ground 1
32 58--00079--02 Strap 10
33 62--03957--04 Decal, Warning High Voltage 1
34 62--02669--03 Label, 2 Speed Switch 1
35 66U1--3662--21 Label, Cb2 1
36 66CH1--1002--5 Label, Cb3 1
37 69GC15--3812 Label, Battery Charger C.B. 1
38 34--00667--11 Nut,Self Lock 9
39 66U1--5321--3 Washer, Plain 1/4 N Type A 3
40 AU11JR171 Washer, Lock 1/4 Spring 3
41 66U1--8772 Diode6Amp 1
42 66CH1--1002--132 Label, S 1
43 34--00372--41 Washer,Lock 1/4 11
44 10--00365--10 Boot Circuit Breaker 1
45 AT39QA132 Nut,Hex #10--32 4
46 22--01030--54 Diode Assy 6 Amp 1
47 10--00328--00 Relay 70 Amp 1
48 66CH1--1002--38 Label, Hr 1
49 44--00094--09 Spring Clip 1
50 34--00928--03 Rivet, Blind . 2
51 22--02200--06 Washer,Plain #6 2
52 34--00667--07 Nut,Self Lock 11841 2
53 10--00469--00 Time Delay 12 Vdc 1
54 66U1--5321--8 Washer,Plain #10 Type A 2
55 34--00795--09 Nut,Self Lock 11963 2
56 62--10530--25 Label, Iht 1
57 10--00475--00 Timer, Time Delay, 2Hr 1
58 66CH1--1002--89 Label, Dt 1
59 10--01129--01 Switch,Toggle 1
60 34--00665--09 Nut,Hex 1
61 34--00372--39 Washer, Lock 1
62 62--11583--00 Label, ECONOMY MODE TEST INSTRUCTIONS 1

25

T-345PL

8 VOLTAGE

8.a,8.b VOLT AGE

See

Section

7

1
2
3

5

4
6

2
3

4

7 (8.a, only)

OR

23 (8.b only)

7

1

8

3

9

10

2
3

22

3

22

16

16
17

12
13
14
15

11

1
2
3

See

Section

14

18
19

7

20

T-345PL

16, 21

1,2,3,

7 16,21

12,13,

14,

15

26

8.a,8.b VOLTAGE (Continued)

Item Part Number Description Qty

COMMON PARTS FOR SECTIONS 8.a,8.b (Continued)

1 66U1--5361--25 Screw, Hex Head, 1/4--20 x 0.75 Inch Long, SST 9
2 66U1--5321--7 Washer,Plain,TypeA,1/4,SST 12
3 AU11JR171 Washer, Lock, 1/4, SST 15
4 34--00655--04 Screw, Cap, Hex Head, 1/4--20 x 0.50 Inch Long, SST 3
5 22--01764--01 Cable Assembly, Receptacle Box 1
6 34--00372--41 Washer, Lock, External Tooth, 1/4, SST 1
7 44--00102--54 Clamp, Hose, Cushioned, 0.75 OD, SST 5
8 34--00662--12 Washer, Plain, 5/16, SST 1

9 34--00667--12 Nut, Self Locking, 5/16--18, SST 1
10 69NT35--2692--1 Washer, Fender, 1/4, SST 3
11 44--00102--56 Clamp, Hose, Cushioned, 0.88 OD, SST 1
12 44--00102--59 Clamp, Hose, Cushioned, 1.25 OD, SST 2
13 34--01155--25 Screw, Hex Head, M12 x 25 MM Long, SST 2
14 34--01146--12 Washer, Split Lock, M12, SST 2
15 34--01151--12 Washer, Flat, M12, SST 2
16 66U1--3882 Wire Tie, Self--Locking, 7.00 Inches, Black 15
17 52--00850--18 Tubing, Split, Corrugated, 1.00 Inch OD x 11 Inches Long 1
18 66U1--8472--5 Connector, Watertight, 90 Degree, 1.00 Inch Hub 1
19 66U1--1251--3 O--Ring, Sealing, Zinc 1
20 34--06136--02 Nut, Lock, Nylon, 1.00 Inch NPT 1
21 58--00850--00 Tubing, Split, Corrugated, 1.00 Inch ID (Bulk) 1
22 66U1--5361--47 Bolt, Machine, Hex Head 1/4--20 x 1.25 4

8.a VOL TAGE, 460 V (USED ON STANDARD UNIT OR UNIT WITH AUTO RESTART)

8.b VOLTAGE, 460 V (USED ON UNIT WITH POWER TIME DELAY AND AUTO RESTART)

(INCLUDES COMMON PARTS AND ITEMS BELOW)

23 44--00102--52 Clamp, Hose, Cushioned, 0.56 OD, SST 1

(INCLUDES COMMON PARTS AND ITEMS BELOW)

7 44--00102--54 Clamp, Hose, Cushioned, 0.75 OD, SST 1

27

T-345PL

9 SOLID STATE BATTER Y CHARGER

5
9

10

1
2
3
4

5
6

3
4
7

8

T-345PL

28

9 SOLID STATE BATTERY CHARGER

Item Part Number Description Qty

1 30--00460--04 Battery Charger Assembly, 50 Amp -- Includes: 1

2 34--06014--12 Screw, Cap Socket Head, 1/4--20 x 0.75 Inch Long, SST 4

3 AU11JR171 Washer , Split Lock, 1/4, SST 8

4 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 8

5 34--00829--13 Washer, Plain, 3/8 SAE, SST 3

6 86--04752--00 Channel Assembly 1

7 68--12132--00 Channel, Battery Support, Painted 1

8 42--00348--00 Gasket 1

9 34--00807--08 Screw, Cap Hex Head, 3/8--16 x 1.00 Inch Long, SST 4
10 AU11JR241 Washer, Split Lock, 3/8, SST 1

29

T-345PL

10 BATTERIES

10.a,10.b BATTERIES

11

1

2

3

4

5
6

7
8
9

10

12
13
14
15
16
17
18

13

13
19

T-345PL

30

10.a,10.b BATTERIES (Continued)

Item Part Number Description Qty

BA TTERIES -- COMMON PARTS FOR OPTIONS 10.a, 10.b

1 68--13946--00 Angle, Battery Hold Down, Painted 1
2 34--00667--12 Nut, Self Locking, 5/16--18, SST 2
3 34--00662--12 Washer, Plain, 5/16, SST 2

Battery, 12VDC, 3/8--16 SST Screw Type Studs,

4 30--00358--04
5 58--04503--00 Gasket, Battery Mat 1

6 34--06247--02 Bolt, “J” Hook, Battery Hold Down, 5/16--18 x 4.25 Inches Long, SST 2
7 86--04677--00 Battery Box Assembly, Painted 1
8 66U1--5361--25 Screw, Hex Head, 1/4--20 x 0.75 Inch Long, SST 4

9 AU11JR171 Washer , Split Lock, 1/4, SST 4
10 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 4
11 58--00969--00 Wire Tie, 2.80 Diameter Double Loop 1
12 34--01151--08 Washer, Flat, M8, SST 1
13 66U1--3882 Wire Tie, Self--Locking, 7.00 Inches, Black 8
14 58--00848--00 Tubing, Split, Corrugated, 1/2 Inch ID x 90.00 A/R
15 34--00372--44 Washer, Lock, External Tooth, 7/16, SST 1
16 34--01153--15 Screw, Cap Hex Head, M8 x 15MM Long, SST 1
17 34--01151--08 Washer, Flat, M8, SST 1

10.a BATTERY -- THREADED TYPE (INCLUDES COMMON PARTS AND ITEMS BELOW)

18 22--01576--06 Battery Cable, Negative, Black, 24 Inches Long With T erminal Boot (#2 AWG) 1
19 22--01633--45 Batte ry Cable, Positive, Red, 28 Inches Long With Terminal Cap (#2 AWG) 1

10.b BATTERY -- POST TYPE (INCLUDES COMMON PARTS AND ITEMS BELOW)

18 22--01633--47 Battery Cable, Negative, Black, 26 Inches Long With T erminal Boot (#2 AWG) 1
19 22--01633--46 Batte ry Cable, Positive, Red, 28 Inches Long With Terminal Boot (#2 AWG) 1

Reserve Capacity in Minutes at 80 Degrees F (27 Degrees C) = 170 Minutes
Cold Crank Amps at 0 Degrees F (--18 Degrees C) = 950 Amps

1

31

T-345PL

11 EXHAUST SYSTEM

11.a,11.b EXHAUST SYSTEM -- STEEL, WITH AND WITHOUT GUARD

1
2

1
2

3

1
2

4

5
6
7

11

8
9

10

T-345PL

32

11.a, 11.b EXHAUST SYSTEM -- STEEL, WITH AND WITHOUT GUARD (Continued)

Item Part Number Description Qty

11.a ALUMINIZED STEEL MUFFLER

1 30--00427--00 Clamp, U--Bolt, 3/8--16, Zinc 3
2 AU11JR241 Washer , Split Lock, 3/8, SST 6
3 30--00435--01 Pipe, Flexible, 1.50 ID x 40.25 Inches Long, SST 1
4 30--00424--02 Muffler, Kubota Engine, Aluminized Steel 1
5 34--00964--00 Stud, M10 x 3/8--24 x 1.50 Inches Long 2
6 34--00932--13 Nut, Jam, 3/8--24, Brass 4
7 66U1--5321--5 Washer,Plain,TypeA,3/8,SST 2
8 34--01146--08 Washer , Split Lock, M8, SST 2
9 34--01151--08 Washer , Flat, M8, SST 2

10 34--01153--15 Screw, Cap Hex Head, M8 x 15MM Long, SST 2

11.b ALUMINIZED STEEL MUFFLER, CE, WITH GUARD (INCLUDES ALL OF OPTION 11.a AND

ITEM BELOW):

11 68--12838--00 Guard, Exhaust 1

33

T-345PL

12 LABELS

1

4

2

3

6

7

5

10

8

9

Item Part Number Description Qty

1 62--10571--00 Label, Warning, Diesel Fuel Tank A/R
2 62--02146--00 Decal, Warning, Auto Start A/R
3 62--02937--00 Label, Refueling A/R
4 62--02895--00 Label, Danger, Fan Warning A/R
5 62--02785--00 Label, CE (European Conformity) A/R
6 62--02972--00 Label, Hot Surface -- English/Spanish A/R
7 62--02897--00 Label, Bolt Torque A/R
8 62--03882--09 Decal, Carrier Transicold A/R
9 62--10395--00 Label, Powerline A/R

10 62--11448--01 Label, Start/Stop/ 2 Speed A/R

T-345PL

34

12 LABELS (Continued)

11

14

17

12

18

13

15

50% PERMANENT

ANTI--FREEZE SOLUTION

DA TE CHECKED ______

16

19

21

22

22

20

Item Part Number Description Qty

11 62--02898--00 Label, Rotation -- English/Spanish A/R

62--02717--08 Label, Start--Stop -- English/Spanish A/R

12

62--02717--07 Label, Start--Stop -- English/Spanish (Auto Restart) A/R
62--02899--02 Label, Installation -- Pin Unit A/R

13

62--02899--03 Label, Installation -- Clamp Unit A/R
14 62--02896--00 Label, Safety Chains A/R
15 69GS4--1702 Label, Anti--Freeze A/R
16 62--02181--01 Decal, Diesel Fuel Only A/R
17 62--10572--00 Label, Genset A/R
18 62--11302--00 Warning Decal, Ether A/R

NS 62--10391--01 Label, Protective A/R

12.a RETROFIT LABELS

19 79--01909--07 Plate Assembly -- Includes: 1
20 62--11445--00 Plate 69 Rg Schematic/Art,2Speed 1
21 58--01097--00 Cord,Nylon 1
22 22--02205--00 Connector 2

35

T-345PL

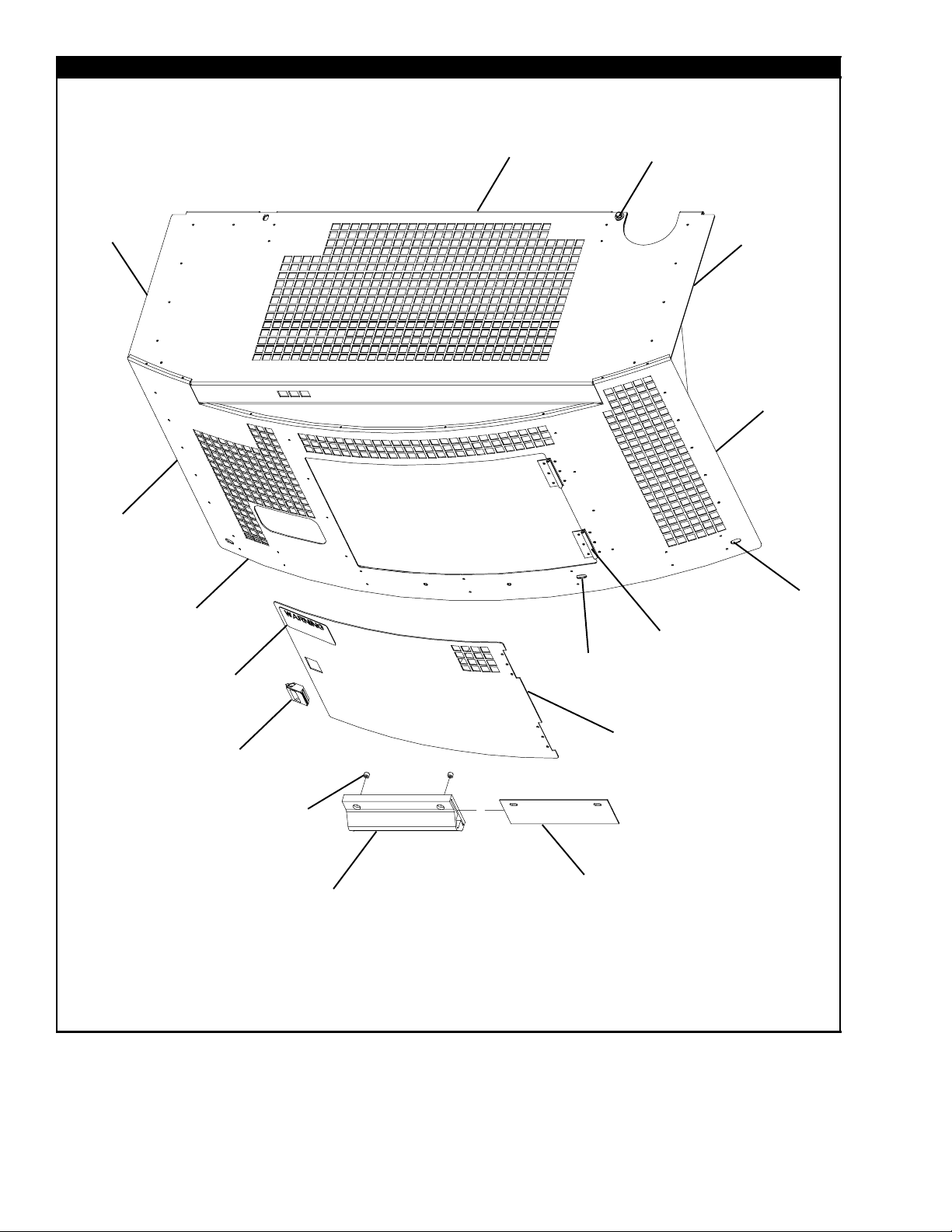

13 SKINS OPTION

13.a,13.b SKINS WITH TOP ACCESS DOORS AND BUMPERS, CE

13
24

27

28
29
30

2

1

3
4

22
23

21
24
25
26

5

6

16

14
13

12

15

9
7

10
11

3
4

17

5

6

8
9

21

31

13
19
20

32

18

13
24
30
33

OPTION 13.b ONLY

T-345PL

36

13.a,13.b SKINS WITH TOP ACCESS DOORS AND BUMPERS, CE (Co ntinued)

Item Part Number Description Qty

13.a SKINS OPTION WITH TOP ACCESS DOOR AND BUMPER, CE

1 86--04680--03 Cover Assembly 1
2 66U1--5361--39 Screw, Cap Hex Head, 5/16--18 x 1.00 Inch Long, SST 4
3 34--00663--12 Washer, Split Lock, 5/16, SST 5
4 34--00662--12 Washer, Plain, 5/16, SST 5
5 42--00363--00 Gasket, Cover, Neoprene, Adhesive Backed 2
6 42--00363--01 Gasket, Cover, Neoprene, Adhesive Backed 4
7 79--01674--08 Door Assembly, Access -- Includes: 1
8 44--00352--00 Hinge, Access Door, SST 2

9 34--00928--13 Rivet, Blind, 0.187 Diameter, Grip Range: 0.126 -- 0.250, SST 12
10 68--12540--00 Door, Access 1
11 66U1--2552--124 Gasket, Access Door, Neoprene, Adhesive Backed 2
12 66U1--6811--12 Screw, Retaining, #2 Phillips, SST 2
13 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 6
14 34--06053--03 Washer, Mylar, 0.250 ID x 1.00 OD 2
15 62--11302--00 Decal, Warning -- Ether 1
16 34--01226--00 Washer, Retaining, Nylon, Black 2
17 66U1--5361--38 Screw, Cap Hex Head, 5/16--18 x 1.50 Inches Long, SST 1
18 68--13483--00 Plate, Bumper 1
19 58--04402--00 Bumper, Black 1
20 34--00655--08 Screw, Cap Hex Head, 1/4--20 x 1.00 Inch Long, SST 2
21 34--01219--03 Spacer, SST 10
22 34--01142--01 Receptacle, #12, Saddle Type, SST 2
23 34--00928--01 Rivet, Blind, 0.125 Diameter, Grip Range: 0.063 -- 0.125, SST 4
24 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 12
25 58--04433--00 Bumper, Neoprene, Black 2
26 34--00588--11 Washer, Plain, 1/4 SAE, Zinc 8
27 66CH1--1172--59 Trim, Flexible, 16.50 Inches Long, White 2
28 68--12186--00 Cover, Battery -- See NOTE 1
29 42--00486--01 Gasket, Access Panel, Neoprene, Adhesive Backed 1
30 AU11JR171 Washer, Split Lock, 1/4, SST 14
31 68--15575--00 Bracket, Guard 1
32 34--06051--07 Rivnut, 1/4--20 10

13.b SKINS OPTION WITH TOP ACCESS DOOR, BUMPER AND REAR COVER, CE
(INCLUDES ALL OF OPTION 13.a AND ITEMS BELOW)

13 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 10
24 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 10
33 68--12536--00 Cover, Rear -- See NOTE 1

NOTE: See page iv for painted parts color system.

37

T-345PL

13.c SKINS OPTION WITH TOP ACCESS DOOR AND BUMPER

18
20
24

23

25
26

1

2
3
4

5

19
20
21

22

5

6

6

2
3
4

3
4

14

8
9

6

13

T-345PL

12

19

16
17
18

7
9

10

11

15

38

13.c SKINS OPTION WITH TOP ACCESS DOOR AND BUMPER (Continued)

Item Part Number Description Qty

1 86--04680--00 Cover Assembly 1
2 66U1--5361--39 Screw, Cap Hex Head, 5/16--18 x 1.00 Inch Long, SST 4
3 34--00663--12 Washer, Split Lock, 5/16, SST 5
4 34--00662--12 Washer, Plain, 5/16, SST 5
5 42--00363--00 Gasket, Cover, Neoprene, Adhesive Backed 2
6 42--00363--01 Gasket, Cover, Neoprene, Adhesive Backed 4
7 79--01674--05 Door Assembly, Access -- Includes: 1
8 44--00352--00 Hinge, Access Door, SST 2

9 34--00928--13 Rivet, Blind, 0.187 Diameter, Grip Range: 0.126 -- 0.250, SST 12
10 68--12110--02 Door, Access 1
11 66U1--2552--124 Gasket, Access Door, Neoprene, Adhesive Backed 2
12 44--00401--00 Latch, Door Spring Loaded 1
13 62--11302--00 Decal, Warning -- Ether 1
14 66U1--5361--38 Screw, Cap Hex Head, 5/16--18 x 1.50 Inches Long, SST 1
15 68--13483--00 Plate, 0.125 Thick Aluminum 1
16 58--04402--00 Bumper, Black 1
17 34--00655--08 Screw, Cap Hex Head, 1/4--20 x 1.00 Inch Long, SST 2
18 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 6
19 34--01219--03 Spacer, SST 10
20 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 12
21 58--04433--00 Bumper, Neoprene, Black 2
22 34--00588--11 Washer, Plain, 1/4 SAE, Zinc 8
23 66CH1--1172--59 Trim, Flexible, 16.50 Inches Long, White 2
24 68--12186--00 Cover, Battery -- See NOTE 1
25 42--00486--01 Gasket, Access Panel, Neoprene, Adhesive Backed 1
26 AU11JR171 Washer, Split Lock, 1/4, SST 4

NOTE: See page iv for painted parts color system.

39

T-345PL

13.d SKINS OPTION WITH TOP ACCESS DOOR, BUMPER AND DOCUMENT HOLDER

21

27

5

24
28

29
30

2
3
4

1

5

23
24
25
26

6

6

6

17

16

15

13

12

18

3
4

14

8
9

7

9
10
11

6

2
3
4

T-345PL

23

20
22
21

19

40

13.d SKINS OPTION WITH TOP ACCESS DOOR, BUMPER AND DOCUMENT HOLDER (Continued)

Item Part Number Description Qty

1 86--04680--00 Cover Assembly 1
2 66U1--5361--39 Screw, Cap Hex Head, 5/16--18 x 1.00 Inch Long, SST 4
3 34--00663--12 Washer, Split Lock, 5/16, SST 5
4 34--00662--12 Washer, Plain, 5/16, SST 5
5 42--00363--00 Gasket, Cover, Neoprene, Adhesive Backed 2
6 42--00363--01 Gasket, Cover, Neoprene, Adhesive Backed 4
7 79--01674--05 Door Assembly, Access -- Includes: 1
8 44--00352--00 Hinge, Access Door, SST 2

9 34--00928--13 Rivet, Blind, 0.187 Diameter, Grip Range: 0.126 -- 0.250, SST 12
10 68--12110--03 Door, Access 1
11 66U1--2552--124 Gasket, Access Door, Neoprene, Adhesive Backed 2
12 44--00401--00 Latch, Door Spring Loaded 1
13 62--11302--00 Decal, Warning -- Ether 1
14 66U1--5361--38 Screw, Cap Hex Head, 5/16--18 x 1.50 Inches Long, SST 1
15 58--04389--00 Pocket, 69NT Placard 1
16 66U1--3882 Wire Tie, Self locking 1
17 AU53VA061 Washer, Gasket, 0.125 Diameter Rivet 3
18 34--06107--00 Rivet, Blind, 0.125 Diameter, Grip Range: 0.188 -- 0.250, SST 3
19 68--13483--00 Plate, 0.125 Thick Aluminum 1
20 58--04402--00 Bumper, Black 1
21 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 6
22 34--00655--08 Screw, Cap Hex Head, 1/4--20 x 1.00 Inch Long, SST 2
23 34--01219--03 Spacer, SST 10
24 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 12
25 58--04433--00 Bumper, Neoprene, Black 2
26 34--00588--11 Washer, Plain, 1/4 SAE, Zinc 8
27 66CH1--1172--59 Trim, Flexible, 16.50 Inches Long, White 2
28 68--12186--00 Cover, Battery -- See NOTE 1
29 42--00486--01 Gasket, Access Panel, Neoprene, Adhesive Backed 1
30 AU11JR171 Washer, Split Lock, 1/4, SST 4

NOTE: See page iv for painted parts color system.

41

T-345PL

13.e SKINS OPTION WITH TOP ACCESS DOOR

14
17

16

5

18
19
20

2

1

3
4

5

6

6

2
3

8

6

13

7
9

10

12

11

3
4

15

9

4

T-345PL

42

13.e SKINS OPTION WITH TOP ACCESS DOOR (Continued)

Item Part Number Description Qty

1 86--04680--02 Cover Assembly 1
2 66U1--5361--39 Screw, Cap Hex Head, 5/16--18 x 1.00 Inch Long, SST 4
3 34--00663--12 Washer, Split Lock, 5/16, SST 5
4 34--00662--12 Washer, Plain, 5/16, SST 5
5 42--00363--00 Gasket, Cover, Neoprene, Adhesive Backed 2
6 42--00363--01 Gasket, Cover, Neoprene, Adhesive Backed 4
7 79--01674--05 Door Assembly, Access -- Includes: 1
8 44--00352--00 Hinge, Access Door, SST 2

9 34--00928--13 Rivet, Blind, 0.187 Diameter, Grip Range: 0.126 -- 0.250, SST 12
10 68--12110--02 Door, Access 1
11 66U1--2552--124 Gasket, Access Door, Neoprene, Adhesive Backed 2
12 44--00401--00 Latch, Door Spring Loaded 1
13 62--11302--00 Decal, Warning -- Ether 1
14 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 4
15 66U1--5361--38 Screw, Cap Hex Head, 5/16--18 x 1.50 Inches Long, SST 1
16 66CH1--1172--59 Trim, Flexible, 16.50 Inches Long, White 2
17 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 4
18 68--12186--00 Cover, Battery -- See NOTE 1
19 42--00486--01 Gasket, Access Panel, Neoprene, Adhesive Backed 1
20 AU11JR171 Washer, Split Lock, 1/4, SST 4

NOTE: See page iv for painted parts color system.

43

T-345PL

13.f SKINS OPTION

2

1

3
4

5

6

6

3

13

12

4

14

7

9
10
11

8
9

5

6

2
3
4

T-345PL

19

16
17
18

15

44

13.f SKINS OPTION (Continued)

Item Part Number Description Qty

1 86--04680--01 Cover Assembly 1
2 66U1--5361--39 Screw, Cap Hex Head, 5/16--18 x 1.00 Inch Long, SST 4
3 34--00663--12 Washer, Split Lock, 5/16, SST 5
4 34--00662--12 Washer, Plain, 5/16, SST 5
5 42--00363--00 Gasket, Cover, Neoprene, Adhesive Backed 2
6 42--00363--01 Gasket, Cover, Neoprene, Adhesive Backed 4
7 79--01674--05 Door Assembly, Access -- Includes: 1
8 44--00352--00 Hinge, Access Door, SST 2

9 34--00928--13 Rivet, Blind, 0.187 Diameter, Grip Range: 0.126 -- 0.250, SST 12
10 68--12110--02 Door, Access 1
11 66U1--2552--124 Gasket, Access Door, Neoprene, Adhesive Backed 2
12 44--00401--00 Latch, Door Spring Loaded 1
13 62--11302--00 Decal, Warning -- Ether 1
14 66U1--5361--38 Screw, Cap Hex Head, 5/16--18 x 1.50 Inches Long, SST 1
15 68--13483--00 Plate, 0.125 Thick Aluminum 1
16 58--04402--00 Bumper, Black 1
17 34--00655--08 Screw, Cap Hex Head, 1/4--20 x 1.00 Inch Long, SST 2
18 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 2
19 34--01219--03 Spacer, SST 2

NOTE: See page iv for painted parts color system.

45

T-345PL

13.g SKINS OPTION WITH BUMPER (TIR)

22
23
24
25

2
3

16

5

6

2
3
4

15

14

13

12

1

2
3

17

2
3
4

5

6

2
3

16

8
9

7

9
10
11

T-345PL

24

19
20
21

18

46

13.g SKINS OPTION WITH BUMPER (TIR) (Continued)

Item Part Number Description Qty

1 86--04680--04 Cover Assembly 1
2 34--00663--12 Washer, Split Lock, 5/16, SST 5
3 34--00662--12 Washer, Plain, 5/16, SST 5
4 34--06154--01 Screw, Cap Hex Head, 1/4--20 x 1.00 Inch Long, TIR 2
5 42--00363--00 Gasket, Cover, Neoprene, Adhesive Backed 2
6 42--00363--01 Gasket, Cover, Neoprene, Adhesive Backed 4
7 79--01674--06 Door Assembly, Access -- Includes: 1
8 44--00352--00 Hinge, Access Door, SST 2

9 34--00928--13 Rivet, Blind, 0.187 Diameter, Grip Range: 0.126 -- 0.250, SST 12
10 68--12110--04 Door, Access 1
11 66U1--2552--124 Gasket, Access Door, Neoprene, Adhesive Backed 2
12 44--00401--00 Latch, Door Spring Loaded 1
13 34--06154--02 Screw, Cap Hex Head, 5/16--18 x 0.75 Inch Long, TIR 1
14 34--06051--40 Rivnut, 5/16--18 1
15 62--11302--00 Decal, Warning -- Ether 1
16 66U1--5361--39 Screw, Cap Hex Head, 5/16--18 x 1.00 Inch Long, SST 2
17 66U1--5361--38 Screw, Cap Hex Head, 5/16--18 x 1.50 Inches Long, SST 1
18 68--13483--00 Plate, 0.125 Thick Aluminum 1
19 58--04402--00 Bumper, Black 1
20 34--00655--08 Screw, Cap Hex Head, 1/4--20 x 1.00 Inch Long, SST 2
21 66U1--5321--3 Washer,Plain,TypeA,1/4,SST 2
22 66U1--5361--25 Screw, Cap Hex Head, 1/4--20 x 0.75 Inch Long, SST 8
23 58--04433--00 Bumper, Neoprene, Black 2
24 34--01219--03 Spacer, SST 10
25 34--00588--11 Washer, Plain, 1/4 SAE, Zinc 8

NOTE: See page iv for painted parts color system.

47

T-345PL

14 RECEPTACLE BOX ASSEMBLY

14.a,14.b,14.c RECEPTACLES

21

6

7
8

9
10
11

1
2

3
4
5

22

12
13
14

18
19
20

15
16
17
23

T-345PL

48

14.a,14.b,14.c RECEPTACLES (Continued)

Item Part Number Description Qty

RECEPTACLES -- COMMON P ARTS FOR OPTIONS 14.a,14.b,14.c

1 86--04273--00 Cover, Receptacle Box, Painted 1
2 42--00340--01 Gasket, Cover 1
3 66U1--5361--25 Screw, Hex Head, 1/4--20 x 0.75 Inch Long, SST 3
4 AU11JR171 Washer, Lock, 1/4, SST 3
5 66U1--5321--7 Washer,Plain,TypeA,1/4,SST 3
6 62--02948--01 Label, Danger High Voltage 1
7 66U1--7842--11 Circuit Breaker, 480 Volt 1
8 66U2--1391--1 Boot, Protective -- Includes: (6) #6--32 x 1/2 Inch SST Screws 1

9 66CH1--1092--4 Boot, Frame, Painted 1
10 66U1--7842--6 Nut, Hex, Circuit Breaker, #10--32, Brass 6
11 66U1--7842--7 W asher, Flat, Circuit Breaker #10--32, Brass 12
12 66U1--8472--5 Connector, Watertight, 90 Degree, 1 Inch Hub 1
13 66U1--1251--3 O--Ring, Sealing, Zinc 1
14 34--06136--02 Nut, Lock, Nylon, 1.00 Inch NPT 1
15 66U1--5371--6 Screw, Hex Head Slotted, #10--24 x 0.75 Inch Long, SST 4
16 66U1--5331--3 Washer, Lock, #10, SST 4
17 66U1--5321--8 Washer, Plain, Type A, #10, SST 4
18 34--00372--41 Washer, Lock, External Tooth, 1/4, SST 3
19 34--00667--11 Nut, Self Locking, 1/4--20, SST 2
20 69NT41--982--2 Strap Assembly, Ground, Copper 1

14.a RECEPTACLE (91--00301--02) (INCLUDES COMMON PARTS AND ITEMS BELOW)

21 62--10021--00 Label, Line Voltage 1
22 86--04272--01 Receptacle Box Assembly, Painted 1
23 22--01679--00 Receptacle, 32 Amp 1

14.b RECEPTACLE (91--00301--04) (INCLUDES COMMON PARTS AND ITEMS BELOW)

22 86--04272--03 Receptacle Box Assembly, Painted 1
23 22--01938--00 Receptacle, 32 Amp 1

14.c RECEPTACLE (91--00301--05) (INCLUDES COMMON PARTS AND ITEMS BELOW)

21 62--10021--00 Label, Line Voltage 1
22 86--04272--01 Receptacle Box Assembly, Painted 1
23 22--01679--02 Receptacle, 32 Amp 1

NOTE: See page iv for painted parts color system.

49

T-345PL

14.d RECEPTACLE WITH TIME DELAY (91--00340--00)

10
11
12
13
14

9

8

15

1
2

3

6

6

18

7

4

16
17

5
6

7

19

16
2120

6
16
22
23

27
28
29
30

24
25
26

T-345PL

50

14.d RECEPTACLE WITH TIME DELAY (91--00340--00) (Continued)

Item Part Number Description Qty

1 86--04485--00 Cover, Receptacle Box, Painted 1
2 42--00550--00 Gasket, Cover 1
3 62--02670--01 Label, OFF 0 1
4 62--03957--04 Label, High Voltage Symbol 1
5 66U1--5361--25 Screw, Hex Head, 1/4--20 x 0.75 Inch Long, SST 3
6 66U1--5321--7 Washer,Plain,TypeA,1/4,SST 10
7 AU11JR171 Washer, Lock, 1/4, SST 5
8 62--11014--00 Label, Power Delay 1

9 62--02670--00 Label, ON 1 1
10 66U1--7842--11 Circuit Breaker, 480 Volt 1
11 66U2--1391--1 Boot, Protective, Circuit Breaker, With Hardware 1
12 66CH1--1092--4 Boot, Frame, Painted 1
13 66U1--7842--6 Nut, Hex, Circuit Breaker, #10--32, Brass 12
14 66U1--7842--7 Washer, Flat, Circuit Breaker #10--32, Brass 12
15 62--10021--00 Label, Line Voltage 1
16 34--00667--11 Nut, Self Locking, 1/4--20, SST 9
17 68--14179--01 Plate, Mounting, Contactor 1
18 86--04484--00 Receptacle Box Assembly, Painted 1
19 10--00433--00 Contactor, 30 Amp 1
20 34--06253--00 Screw, Socket Head, #8--32 x 0.50 Inch Long, SST 2
21 10--00461--00 Relay, Power, Time Delay 1
22 34--00372--41 Washer, Lock, External Tooth, 1/4, SST 2
23 69NT41--982--2 Strap Assembly, Ground, Copper 1
24 66U1--8472--5 Connector, Watertight, 90 Degree, 1 Inch Hub 1
25 66U1--1251--3 O--Ring, Sealing, Zinc 1
26 34--06136--02 Nut, Lock, Nylon, 1.00 Inch NPT 1
27 22--01679--00 Receptacle, 32 Amp 1
28 66U1--5371--6 Screw, Hex Head Slotted, #10--24 x 0.75 Inch Long, SST 4
29 66U1--5331--3 Washer, Lock, #10, SST 4
30 66U1--5321--8 Washer, Plain, Type A, #10, SST 4

51

T-345PL

15 WIRE HARNESS

2

1

18

15

3

11
12

4
5
6

7

13
14

16
17

1

28

29
30
31
32

8
9

10

19
20
21
22

23

24
25
26
27

3

1

T-345PL

52

15 WIRE HARNESS (Continued)

Item Part Number Description Qty

15.a ST ANDARD WIRE HARNESS

22--04139--02 Wire Harness, Complete -- Includes:
22--04139--05 Wire Harness, 2 Speed, Complete -- Includes:

22--04139--06 Wire Harness, 2 Speed, Non--Selectable, Complete -- Includes:
1 58--00848--34 Tubing, Split, Corrugated, 1/2 Inch ID x 25 Feet Long 1
2 66U1--3882 Wire Tie, Self--Locking, 7.00 Inches, Black 57
3 58--00858--16 Tubing, Split, Corrugated, 1/4 Inch ID x 25 Feet Long 1

Low Oil Pressure Connector (LOP) -- Includes:
4 22--50078--02 Block 1
5 22--01756--01 Terminal 2
6 22--50078--51B Seal, Cable 1
7 22--50078--01A Secondary Lock 1

Electronic Governor Module (EG) -- Includes:
8 22--50098--61 Block 1
9 22--50098--61C Plug 1

10 22--50098--61A Terminal 11

Engine Speed Sensor (ESS)-- Includes:
11 22--50098--50 Block 1
12 22--50098--50A Terminal 3
13 22--50098--50E Seal, Cable 3
14 22--50098--50D Secondary Lock 1

Fuel Solenoid (FS) -- Includes:
15 22--50098--62 Block 1
16 22--50098--62B Cable Seal 2
17 22--50098--62C Terminal 2
18 58--00906--15 Tubing, Split, Corrugated, 3/4 Inch ID x 25 Feet Long 1

Battery Charger (BC) Connector -- Includes:
19 22--50078--39 Block 1
20 22--50078--39A Secondary Lock 1
21 22--01756--00 Terminal 2
22 22--50078--52C Cable Seal 2
23 22--01613--20 Contact, Socket, #14 1

Fuel Heater (FH) Terminal -- Includes:
24 22--50078--02 Block 1
25 22--50078--01A Secondary Lock 1
26 22--01756--02 Terminal 2
27 22--50078--51C Cable Seal 2

15.b WIRE HARNESS WITH AUTO--RESTART (INCLUDES ALL OF OPTION 15.a AND ITEMS BELOW)

22--04139--00 Wire Harness, Complete -- Includes:
22--04139--03 Wire Harness, 2 Speed, Complete -- Includes:

Auto Restart (AR) Module -- Includes:
28 22--01613--25 Block 1
29 22--01613--13 Terminal 4
30 22--01613--20 Terminal 5
31 22--01613--29 Secondary Lock 1
32 22--01660--08 Seal 3

15.c WIRE HARNESS WITH AUTO--RESTART AND TIME DELAY (INCLUDES ALL OF OPTION 15.b
AND ITEMS BELOW)

22--04139--01 Wire Harness, Complete -- Includes:
22--04139--04 Wire Harness, 2 Speed, Complete -- Includes:

53

T-345PL

16 RETROFIT KITS

Item Part Number Description Qty

16.a RG T4I 2 Speed Standard

1 74--00288--00 Retrofit Kit RG T4I 2 Speed Standard Includes 1
2 34--00658--10 Screw, Machine Hex Head #10--32 X 1--1/4 1
3 62--02669--02 Label, Ih/Ign/2Spd Switch 1
4 66U1--3882 Wire Tie 1/16--1 --3/4 20
5 10--00475--00 Timer Time Delay , 2Hr 1
6 66CH1--1002--89 Label, Dt 1
7 10--01129--15 Switch,Toggle 1 Pole 0ff/On 1
8 22--04181--03 Wire Harness 1

9 62--11448--01 Label, Start/Stop 2Spd,A/R 1
10 62--11442--00 Label,Schematic 69Rg T4I Std,2 Spd 1
11 69GC15--3542 Bracket 1
12 66U1--5321--8 Washer, Plain 10 Type A 2
13 34--00665--09 Nut,Hex 10--32 1
14 66U1--5331--3 Washer,Lock 10 Spring 1

16.b RG T4I 2 Speed Auto Restart

1 74--00290--00 Retrofit Kit T4I RG 2 Speed Auto Restart Includes

2 34--00658--10 Screw, Machine Hex Head 10--32 X 1--1/4 1

3 62--02973--05 Label, ENGINE START, IGNITION, 2--SPEED 1

4 66U1--3882 Wire Tie 1/16--1 --3/4 20

5 10--00475--00 Timer Time Delay , 2 Hour 1

6 66CH1--1002--89 Label Dt 1

7 10--01129--15 Switch,Toggle 1 Pole 0ff/On 1

8 22--04181--02 Wire Harness 1

9 62--11448--00 Label, Start/Stop 2Spd,Std 1
10 62--11443--00 Label,Schematic 69Rg,T4I,A/R,2 Spd 1
11 69GC15--3542 Bracket 1
12 66U1--5321--8 Washer,Plain 10 Type A 1
13 34--00665--09 Nut,Hex 10--32 1
14 66U1--5331--3 Washer,Lock 10 Spring 1

T-345PL

54

16 RETROFIT KITS (Continued)

Item Part Number Description Qty

16.c RG T4I 2 Speed Auto With Fuel Warmer

1 74--00299--00 Retrofit kit RG T4I 2 Speed W/ Fuel Warmer 1
2 34--00658--10 Screw,Mach Hexhead #10--32 X 1--1/4 1
3 62--02669--02 Label, Ih/Ign/2Spd Switch 1
4 58--00079--02 Sta--Strap 0--1.75” Dia Cable 20
5 10--00475--00 Timer Time Delay , 2Hr 1
6 66CH1--1002--89 Label, Dt 1
7 10--01129--15 Switch,Toggle 1 Pole 0FF/On 1
8 22--04181--03 Wire Harness 69Rg T4I,2 Speed 1

9 62--11448--01 Label, Start/Stop 2 Speed 1
10 62--11442--00 Label,Schematic 69Rg T4I ,2 Speed 1
11 69GC--15--3542 Bracket 1
12 66U1--5321--8 Washer,Plain #10 Type A 2
13 34--00665--09 Nut,Hex #10--32 1
14 66U1--5331--3 Washer,Lock #10 Spring 1
15 44--00045--25 Clamp,Hose Worm Type 4
16 66U1--5321--3 Washer,Plain 1/4 N Type A 4
17 AU11JR171 Washer,Lock 1/4 Spring 4
18 66U1--5361--25 Screw,Cap Hex Head 1/4--20 X 0.75 4
19 66U1--8292--1 Cap,Insulating 2
20 30--00344--04 Fuel Warmer Diesel 1
21 44--00459--00 Clamp,Tube 1.69 Dia Cushion 1
22 58--04840--00 Hose,Formed Fuel Warmer 1
23 58--04839--00 Hose,Formed Fuel Warmer 1
24 68--15898--00 Bracket 69Rg Fuel Warmer 1
25 44--00045--02 Clamp,Hose .69--1.25 Worm Type 4
26 58--00658--23 Hose,Fuel 5/16 ID X 6 inch Long 1
27 58--00849--24 Tube,Slit 5/8 Id,5.00 inches Long 1
28 58--00658--24 Hose,Fuel 5/16 Id X 21 Long 1
29 58--00849--18 Tube,Slit 5/8 ID X8.50 Long 1
30 58--00850--24 Tube,Slit 1 Inch Od X 8 Inch Long 1
31 58--00850--25 Tube,Slit 1 Inch Od X 9.5Inch Long 1
32 58--00969--00 Wire Tie 1

55

T-345PL

16 RETROFIT KITS (Continued)

Item Part Number Description Qty

16.d RG T4I 2 Speed Auto With Fuel Warmer And Auto Restart

1 74--00301--00 Retrofit Kit RG T4I 2 Speed W/ Fuel Warmer And Auto Restart Includes 1
2 34--00658--10 Screw,Mach Hex Head 10--32 X 1--1/4 1
3 62--02973--05 Label, Eng Strt,Ign,2 Spd 1
4 58--00079--02 Sta--Strap 0--1.75” Dia Cable 20
5 10--00475--00 Timer Time Delay , 2Hr 1
6 66CH1--1002--89 Label, Dt 1
7 10--01129--15 Switch,Toggle 1 Pole 0FF/On 1
8 22--04181--02 Wire Harness 69Rg T4I,A/R,2 Speed 1

9 62--11448--00 Label, Start/Stop 2 Speed 1
10 62--11443--00 Label,Schematic 69Rg,T4I,A/R,2 Speed 1
11 69GC15--3542 Bracket 1
12 66U1--5321--8 Washer,Plain #10 Type A 2
13 34--00665--09 Nut,Hex #10--32 1
14 66U1--5331--3 Washer,Lock #10 Spring 1
15 44--00045--25 Clamp,Hose 4
16 66U1--5321--3 Washer,Plain 1/4 N Type A 4
17 AU11JR171 Washer,Lock 1/4 Spring 4
18 66U1--5361--25 Screw,Cap Hex Head 1/4--20 X 0.75 4
19 66U1--8292--1 Cap, Insulating 2
20 30--00344--04 Fuel Warmer Diesel 1
21 44--00459--00 Clamp,Tube 1.69 Dia Cushion 1
22 58--04840--00 Hose,Formed Fuel Warmer 1
23 58--04839--00 Hose,Formed Fuel Warmer 1
24 68--15898--00 Bracket69RgFuelWarmer 1
25 44--00045--02 Clamp,Hose 4
26 58--00658--23 Hose,Fuel 5/16 ID X 6 inch Long 1
27 58--00849--24 Tube,Slit 5/8 Id,5.00 inches Long 1
28 58--00658--24 Hose,Fuel 5/16 Id X 21 Long 1
29 58--00849--18 Tube,Slit 5/8 ID X8.50 Long 1
30 58--00850--24 Tube,Slit 1 Inch Od X 8 Inch Long 1
31 58--00850--25 Tube,Slit 1 Inch Od X 9.5Inch Long 1
32 58--00969--00 Wire Tie 1

T-345PL

56

PART NUMBER INDEX

PART NO. PAGE NO.
02--00083--00 7
04--50012--00 7
10--00158--02 5
10--00171--12 18, 21, 24
10--00171--13 18, 21, 24
10--00286--02 21
10--00286--03 18
10--00286--18 24
10--00328--00 18, 21, 25
10--00365--00 18, 21, 24
10--00365--10 18, 21, 25
10--00375--01 22, 23
10--00433--00 51
10--00448--00 17, 20, 24
10--00461--00 51
10--00469--00 18, 25
10--00475--00 19, 25, 54,

55, 56
10--01129--01 25
10--01129--13 18
10--01129--14 19, 24
10--01129--15 19, 54, 55,

56
10--01129--18 20
10--01129--19 18, 24
12--00097--03 17, 20, 24
12--00098--04 5
12--00477--03 21
12--00592--00 5
12--01098--03 13
12--01098--05 13
12--01098--07 13
12--01098--08 13
22--00049--00 20
22--00518--01 20
22--00519--01 20
22--00538--01 24
22--00538--01SV 18, 21

PART NO. PAGE NO.
22--01030--54 18, 21, 25
22--01576--06 31
22--01613--13 53
22--01613--20 53
22--01613--25 53
22--01613--29 53
22--01633--45 31
22--01633--46 31
22--01633--47 31
22--01660--08 53
22--01679--00 49, 51
22--01679--02 49
22--01756--00 53
22--01756--01 53
22--01756--02 53
22--01764--01 27
22--01790--02 24
22--01938--00 49
22--02200--06 18, 21, 25
22--02205--00 35
22--04139--00 53
22--04139--01 53
22--04139--02 53
22--04139--03 53
22--04139--04 53
22--04139--05 53
22--04139--06 24, 53
22--04181--02 54, 56
22--04181--03 54, 55
22--50078--01A 53
22--50078--02 53
22--50078--39 53
22--50078--39A 53
22--50078--51B 53
22--50078--51C 53
22--50078--52C 53
22--50098--50 53
22--50098--50A 53

PART NO. PAGE NO.
22--50098--50D 53
22--50098--50E 53
22--50098--61 53
22--50098--61A 53
22--50098--61C 53
22--50098--62 53
22--50098--62B 53
22--50098--62C 53
22--50206--00 7
26--00128--01 5
30--00328--00 16
30--00344--04 14, 55, 56
30--00358--04 31
30--00397--00 11
30--00424--02 33
30--00426--05 16
30--00426--27 16
30--00427--00 33
30--00435--01 33
30--00460--04 29
30--00473--03 15
30--00473--20 15
30--01101--07 13
30--01101--50 13
30--01101--59 13
30--01101--68 13
30--01101--69 13
30--01101--70 13
30--01101--71 13
30--01101--72 13
30--01101--73 13
30--01101--74 13
34--00304--08 7
34--00372--39 25
34--00372--41 21, 25, 27,

49, 51
34--00372--44 31
34--00588--11 37, 39, 41,

47

Index--1

T--345PL

PART NUMBER INDEX

PART NO. PAGE NO.
34--00655--04 5, 7, 27
34--00655--06 7
34--00655--08 11, 37, 39,

41, 45, 47
34--00658--10 54, 55, 56
34--00662--11 5
34--00662--12 7, 27, 31,

37, 39, 41,

43, 45, 47
34--00663--12 11, 37, 39,

41, 43, 45,

47
34--00665--09 25, 54, 55,

56
34--00666--08 18, 21, 25
34--00667--05 17, 20, 25
34--00667--07 18, 21, 25
34--00667--11 11, 15, 16,

18, 21, 25,

49, 51
34--00667--12 9, 27, 31
34--00667--13 5, 9
34--00667--15 5
34--00792--10 13
34--00795--09 18, 25
34--00795--17 5
34--00804--18 5
34--00807--04 5
34--00807--08 29
34--00807--10 5
34--00807--12 5
34--00829--12 13
34--00829--13 5, 29
34--00829--15 5
34--00833--24 5
34--00890--08 5
34--00890--09 5
34--00928--01 37
34--00928--03 18, 21, 25
34--00928--13 37, 39, 41,

43, 45, 47

PART NO. PAGE NO.
34--00932--13 33
34--00945--06 5
34--00964--00 33
34--01142--01 37
34--01145--06 5
34--01146--08 5, 33
34--01146--10 1 1
34--01146--12 1 1, 27
34--01151--08 5, 31, 33
34--01151--10 1 1
34--01151--12 1 1, 27
34--01153--15 5, 31, 33
34--01153--82 5
34--01154--25 1 1
34--01155--25 1 1, 27
34--01219--03 37, 39, 41,

45, 47
34--01226--00 37
34--06014--12 29
34--06051--07 37, 39, 41,

45, 47
34--06051--40 47
34--06053--03 37
34--06060--01 5
34--06107--00 41
34--06136--02 27, 49, 51
34--06149--02 9
34--06149--03 9
34--06154--01 47
34--06154--02 47
34--06170--08 9
34--06200--00 9
34--06201--00 9
34--06205--00 9
34--06207--00 9
34--06229--00 9
34--06247--02 31
34--06253--00 51

PART NO. PAGE NO.
34--06278--00 7
40--00043--05 5
40--00067--01 5
40--00107--01 5
40--00117--01 1 1
40--00213--00 13
40--00420--01 13
40--00469--00 13
40--00512--00 16
40--00566--00 5
40--01156--00 13
40--01176--52 16
42--00243--14 20
42--00264--09 11
42--00340--01 49
42--00341--00 18, 21, 25
42--00348--00 7, 29
42--00363--00 37, 39, 41,

43, 45, 47

42--00363--01 37, 39, 41,

43, 45, 47
42--00481--00 21
42--00486--01 37, 39, 41,

43
42--00550--00 51
42--50010--00 7
44--00045--02 55, 56
44--00045--25 13, 55, 56
44--00046--13 13
44--00046--14 13
44--00094--09 18, 21, 25
44--00102--52 11, 13, 27
44--00102--54 11, 13, 27
44--00102--56 27
44--00102--59 27
44--00102--61 11
44--00352--00 37, 39, 41,

43, 45, 47
44--00362--02 9
44--00362--03 9
44--00388--00 11

T--345PL

Index--2

PART NUMBER INDEX

PART NO. PAGE NO.
44--00401--00 39, 41, 43,

45, 47
44--00402--00 9
44--00447--01 15
44--00454--00 16
44--00459--00 14, 55, 56
48--00309--00 9
48--00354--00 9
48--00392--00 7
50--60330--03 5
52--00850--18 27
54--00085--00 7
54--00576--03 7
54--50039--00 7
54--50082--00 7
54--50083--00 7
54--50084--00 7
58--00024--01 9
58--00079--02 25, 55, 56
58--00658--00 13
58--00658--23 55, 56
58--00658--24 55, 56
58--00659--00 13
58--00848--00 11, 31
58--00848--33 13
58--00848--34 53
58--00849--18 55, 56
58--00849--24 55, 56
58--00850--00 27
58--00850--24 55, 56
58--00850--25 55, 56
58--00858--16 53
58--00906--15 53
58--00969--00 31, 55, 56
58--01097--00 35
58--04184--04 11
58--04267--00 11
58--04268--00 11

PART NO. PAGE NO.
58--04316--00 11, 18
58--04389--00 41
58--04402--00 37, 39, 41,

45, 47

58--04433--00 37, 39, 41,

47
58--04503--00 31
58--04765--00 11
58--04766--00 15
58--04836--00 16
58--04839--00 14, 55, 56
58--04840--00 14, 55, 56
62--02146--00 20, 34
62--02181--01 35
62--02669--01 18
62--02669--02 19, 54, 55
62--02669--03 25
62--02670--00 51
62--02670--01 51
62--02717--07 35
62--02717--08 35
62--02785--00 34
62--02895--00 34
62--02896--00 35
62--02897--00 34
62--02898--00 35
62--02899--02 35
62--02899--03 35
62--02937--00 34
62--02948--01 49
62--02972--00 34
62--02973--04 21
62--02973--05 22, 23, 54,

56
62--03882--09 34
62--03957--04 18, 21, 25,

51
62--10021--00 49, 51
62--10387--01 21
62--10391--01 35
62--10395--00 34

62--10530--02 21
62--10530--25 18, 25
62--10571--00 34
62--10572--00 35
62--11014--00 51
62--11302--00 35, 37, 39,

41, 43, 45,

47
62--11442--00 54, 55
62--11443--00 54, 56
62--11445--00 35
62--11448--00 54, 56
62--11448--01 34, 54, 55
62--11583--00 25
65--00131--02 13
66CH1--1002--132 18, 21, 25
66CH1--1002--38 18, 21, 25
66CH1--1002--5 18, 21, 25
66CH1--1002--89 19, 25, 54,

55, 56
66CH1--1092--4 49, 51
66CH1--1172--59 37, 39,

41, 43
66CH1--123--100 5
66U1--1251--3 27, 49, 51
66U1--2552--124 37, 39, 41,

43, 45, 47
66U1--2823 18, 20, 24
66U1--2823--3 5
66U1--3662--21 18, 21, 25
66U1--3882 11, 13, 18,

21, 27, 31,

41, 53, 54
66U1--5321--11 5
66U1--5321--2 18, 21, 25
66U1--5321--3 7, 13, 14,

15, 16, 17,

21, 25, 29,

31, 37, 39,

41, 43, 45,

47, 55, 56
66U1--5321--4 9, 11
66U1--5321--5 5, 33
66U1--5321--7 11, 27, 49,

51

Index--3

T--345PL

PART NUMBER INDEX

PART NO. PAGE NO.
66U1--5321--8 18, 25, 49,

51, 54, 55,

56
66U1--5321--9 5
66U1--5331 13
66U1--5331--3 18, 21, 25,

49, 51, 54,

55, 56
66U1--5331--4 18, 21, 25
66U1--5331--8 5, 9
66U1--5331--9 5
66U1--5361--14 11
66U1--5361--25 11, 13, 14,

15, 16, 18,

21, 25, 27,

31, 37, 39,

41, 43, 47,

49, 51, 55,

56
66U1--5361--36 5
66U1--5361--38 37, 39, 41,

43, 45, 47
66U1--5361--39 11, 37, 39,

41, 43, 45,

47
66U1--5361--47 27
66U1--5361--6 11
66U1--5371--6 49, 51
66U1--6651--15 17, 20, 25
66U1--6811--12 37
66U1--7842--11 49, 51
66U1--7842--6 49, 51
66U1--7842--7 49, 51
66U1--8292--1 55, 56
66U1--8472--5 27, 49, 51
66U1--8772 18, 25
66U1--9592--13 18, 21, 25
66U1--9752 18, 20, 25
66U2--1391--1 49, 51
68--12110--02 39, 43, 45

PART NO. PAGE NO.
68--12110--04 47
68--12132--00 29
68--12166--00 5
68--12174--00 5
68--12186--00 37, 39, 41,

43
68--12536--00 37
68--12540--00 37
68--12838--00 33
68--12973--00 18, 25
68--12996--01 9
68--12997--00 9
68--12998--00 9
68--12998--01 9
68--13483--00 37
68--13946--00 31
68--14179--01 51
68--14698--01 7
68--14699--01 7
68--15575--00 37
68--15898--00 14, 55, 56
69GC--15--3542 55
69GC15--1602 9
69GC15--172--2 13
69GC15--3212 13
69GC15--3542 19, 20, 25,

54, 56
69GC15--3812 18, 21, 25
69GS4--1582--1 17, 22, 23,

25
69GS4--1702 35
69NT35--2692--1 11, 27
69NT41--982--2 18, 21, 25,

49, 51
73--00175--01 5
73--00198--00 5
73--00305--00 5
74--00288--00 54

PART NO. PAGE NO.
74--00299--00 55
74--00301--00 56
76--50110--00 7
79--01674--05 39, 41, 43,

45
79--01674--06 47
79--01674--08 37
79--01909--07 35
81--04054--00 11
86--04165--04 18
86--04165--05 21
86--04165--08 19
86--04165--09 22, 23
86--04165--10 24
86--04182--00 5
86--04231--05 21
86--04231--06 21
86--04231--07 18
86--04231--08 23
86--04231--09 22
86--04231--10 19, 24
86--04272--01 49
86--04272--03 49
86--04273--00 49
86--04288--01 11
86--04470--00 11
86--04484--00 51
86--04485--00 51
86--04674--00 5
86--04675--00 11
86--04676--00 5
86--04677--00 31
86--04680--00 39, 41
86--04680--01 45
86--04680--02 43
86--04680--04 47
86--04752--00 29
91--00398--00 21

68--12110--03 41

T--345PL

74--00290--00 54

Index--4

91--00398--01 21

PART NUMBER INDEX

PART NO. PAGE NO.
91--00398--02 18
91--00398--03 22
91--00398--04 23
91--00398--05 19
91--00407--07 24
AA06BZ300 5
AT39QA132 18, 21, 25

PART NO. PAGE NO.

AU11JR171 5, 7, 11,

13, 14, 18,
21, 25, 27,
29, 31, 37,
39, 41, 43,
49, 51, 55,
56

PART NO. PAGE NO.
AU11JR241 5, 29, 33
AU53VA061 41
KA69JM824 11
KA69JM840 15, 16
KK71EW223 17, 20, 25
KK71GW007 18, 21, 25

Index--5

T--345PL

A member of the United Technologies Corporation family. Stock symbol UTX
©2010 Carrier Corporation D PrintedinU.S.A.3/10

Carrier Transicold Division,
Carrier Corporation
Container Products Group
P.O. Box 4805
Syracuse, N.Y. 13221 U.S A

www.carrier.transicold.com
