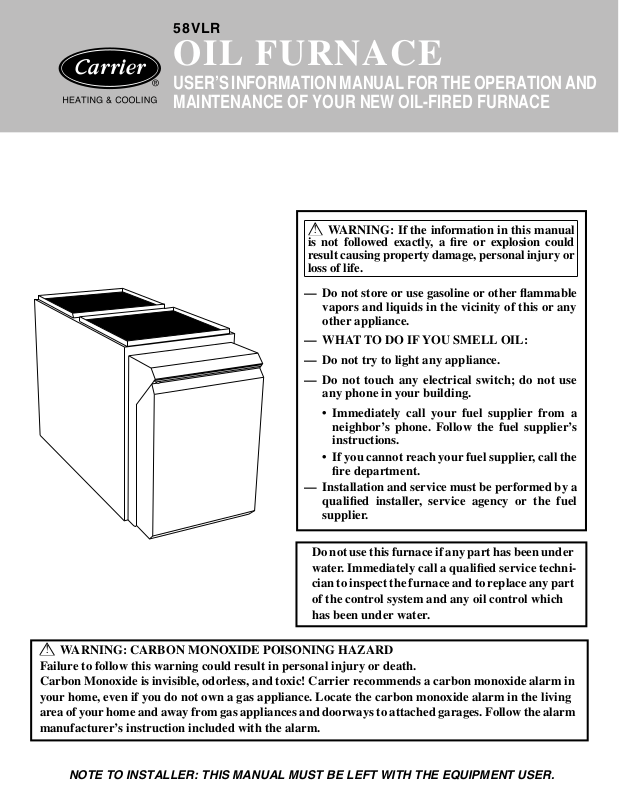

Carrier 58VLR User Manual
58VLR
OIL FURNACE
USER’S INFORMATION MANUAL FOR THE OPERATION AND
MAINTENANCE OF YOUR NEW OIL-FIRED FURNACE
!
WARNING: If the information in this manual
is not followed exactly, a fire or explosion could
result causing property damage, personal injury or
loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL OIL:
— Do not try to light any appliance.
— Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your fuel supplier from a
neighbor’s phone. Follow the fuel supplier’s
instructions.
• If you cannot reach your fuel supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the fuel
supplier.
Do not use this furnace if any part has been under
water. Immediately call a qualified service technician to inspect the furnace and to replace any part
of the control system and any oil control which
has been under water.
!
WARNING: CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal injury or death.
Carbon Monoxide is invisible, odorless, and toxic! Carrier recommends a carbon monoxide alarm in
your home, even if you do not own a gas appliance. Locate the carbon monoxide alarm in the living
area of your home and away from gas appliances and doorways to attached garages. Follow the alarm
manufacturer’s instruction included with the alarm.
NOTE TO INSTALLER: THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT USER.
WELCOME TO A NEW GENERATION
OF COMFORT
Congratulations! In light of rising energy costs, the
58VLR Variable Speed Low-Boy Oil Furnace is
among the soundest investments today’s homeowner
can make.
Your new furnace is truly a triumph of technology in
home heating. A unique silencer within the heat
exchanger, insulated cabinet, and rubber blower
mounts make it among the quietest units on the market. Variable speed technology creates more comfortable heating and cooling cycles, allows you to
economically run a constant fan, and eliminates temperature difference throughout the house.The combustion chamber is stainless steel for long life and it heats
up quickly resulting in higher energy efficiency.
With only minimal care, your new furnace will deliver
many years of money-saving home comfort and enjoyment. Spend just a few minutes with this manual to
learn the operation of your new furnace and the small
amount of maintenance it takes to help keep it operating at peak efficiency year after year.
MODEL 58VLR LOW-BOY FURNACE
1
INSTALLATION DATA
Date Installed
Dealer Name
Address
City
State Zip
Telephone
FURNACE
Product No.
Model No.
Serial No.
SPLIT-SYSTEM
OUTDOOR UNIT:
Product No.
ACCESSORIES
Product No.
Model No.
Serial No.
Product No.
Model No.
Serial No.
Product No.
Model No.
Serial No.
Model No.
Serial No.
INDOOR COIL:
Product No.
Model No.
Serial No.
2
FURNACE COMPONENTS
6
7
8
5
9
10
4
3
X
C
H
5
U
4
M
3
2
7
N
1
6
3
H
D
E
S
E
U
C
N
U
A
O
C
T
O
O
L
S
E
N
S
D
A
T
2
A
E
L
C
O
N
1
2
C
Y
R
W
G
11
2
12
1
13
1
Variable Speed blower circulates air across the
heat exchanger to transfer heat into the home.
2
Access door to air filters and blower.
3
Air filters.
4
Unique silencer system eliminates combustion
noise.
5
Return-air plenum.
6
Stainless steel combustion chamber.
7
Heat exchanger designed and shaped to efficiently transfer heat from furnace into the home.
8
Supply-air plenum.
9
Fully insulated internal walls minimize heat loss.
10
High limit control prevents overtemperature.
11
Adjustable electronic fan control (inside) with
low voltage electrical terminal strip for easy connection of thermostat, cooling control, electronic
air cleaner, and humidifier.
12
Aesthetic removable cabinet hides and protects
burner and controls.
13
High-performance oil burner.
2
