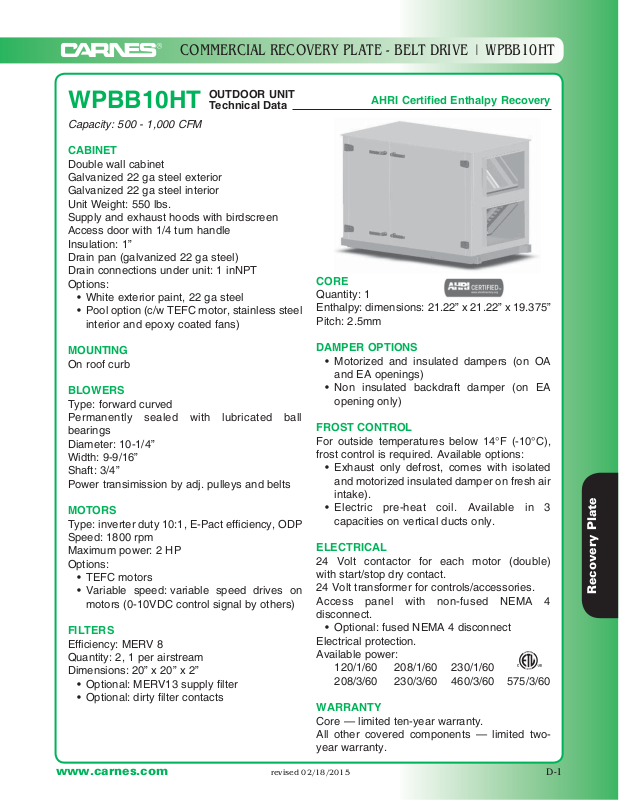

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB10HT
WPBB10HT
Capacity: 500 - 1,000 CFM
CABINET
Double wall cabinet
Galvanized 22 ga steel exterior
Galvanized 22 ga steel interior
Unit Weight: 550 lbs.
Supply and exhaust hoods with birdscreen
Access door with 1/4 turn handle
Insulation: 1”
Drain pan (galvanized 22 ga steel)
Drain connections under unit: 1 inNPT
Options:
• White exterior paint, 22 ga steel
• Pool option (c/w TEFC motor, stainless steel
interior and epoxy coated fans)
MOUNTING
On roof curb
BLOWERS
Type: forward curved
Permanently sealed with lubricated ball
bearings
Diameter: 10-1/4”
Width: 9-9/16”
Shaft: 3/4”
Power transimission by adj. pulleys and belts
MOTORS
Type: inverter duty 10:1, E-Pact efficiency, ODP
Speed: 1800 rpm
Maximum power: 2 HP
Options:
• TEFC motors
• Variable speed: variable speed drives on
motors (0-10VDC control signal by others)
FILTERS
Efficiency: MERV 8
Quantity: 2, 1 per airstream
Dimensions: 20” x 20” x 2”
• Optional: MERV13 supply filter
• Optional: dirty filter contacts
OUTDOOR UNIT
Technical Data
AHRI Certified Enthalpy Recovery
CORE
Quantity: 1
Enthalpy: dimensions: 21.22” x 21.22” x 19.375”
Pitch: 2.5mm
DAMPER OPTIONS
• Motorized and insulated dampers (on OA
and EA openings)
• Non insulated backdraft damper (on EA
opening only)
FROST CONTROL
For outside temperatures below 14°F (-10°C),
frost control is required. Available options:
• Exhaust only defrost, comes with isolated
and motorized insulated damper on fresh air
intake).
• Electric pre-heat coil. Available in 3
capacities on vertical ducts only.
ELECTRICAL
24 Volt contactor for each motor (double)
with start/stop dry contact.
24 Volt transformer for controls/accessories.
Access panel with non-fused NEMA 4
disconnect.
• Optional: fused NEMA 4 disconnect
Electrical protection.
Available power:
120/1/60 208/1/60 230/1/60
208/3/60 230/3/60 460/3/60 575/3/60
WARRANTY
Core — limited ten-year warranty.
All other covered components — limited twoyear warranty.
Recovery Plate
www.carnes.com revised 02/18/2015 D-1
DIMENSIONS | WPBB10HT
WPBB10HT
Dimensions
OUTDOOR UNIT
Technical Data
Recovery Plate
D-2 revised 02/18/2015 www.carnes.com
CORE & AIR FLOW PERFORMANCE | WPBB10HT
WPBB10HT
Core Performances
Standard Conditions AHRI Conditions
Outside Temperature Winter Summer
Exhaust Air Temperature Winter Summer
*The efficiencies are based on standard winter condition of AHRI.
OUTDOOR UNIT
Technical Data
WPBB10H - 2.5mmHE
Enthalpy Core Efficiency
Dry Bulb 35°F (1.7°C) 95°F (35°C)
Wet Bulb 33°F (0.6°C) 78°F (25.6°C)
Dry Bulb 70°F (21.1°C) 75°F (23.9°C)
Wet Bulb 58°F (14.4°C) 63°F (17.2°C)
Air Flow Performance Charts
WPBB10H Enthalpy Core 2.5mmHE
Supply Temperature T2 (T3 at 21°C DB/14°C WB)
Recovery Plate
WPBB10H (Enthalpy HE Core) - External Static Pressure (in H2O) - SUPPLY/RETURN AIR
www.carnes.com revised 02/18/2015 D-3
INTERNAL STATIC PRESSURE | WPBB10HT
WPBB10HT
Internal Static Pressure
WPBB10H
Internal APD
OUTDOOR UNIT
Technical Data
WPBB10H
Additional pressure drop
with MERV13 filters
Air Flow APD
(cfm) (in H2O)
500 0.07
600 0.10
700 0.12
800 0.15
900 0.17
1000 0.20
Recovery Plate
D-4 revised 02/18/2015 www.carnes.com
ORDERING INFORMATION | WPBB10HT
Plate Type - Belt Drive
Supply Exh.
Model Number Series Unit Size Type Type Duct HP HP Volt Listing
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
P
W
Design Plate Motor Motor Unit
B B
1 0
H T
OPTIONS
W - Energy
Recovery
P - Plate Type
B - Belt Drive
UNIT SIZE
10
H - Enthalpy
Core
T - Outdoor
H - Horizontal
V - Vertical
(Outdoor
Only)
J - Pool Option,
Horiz. Ducts
K - Pool Option,
Vert. Ducts
Plate Roof Curb, Insulated
Model Number Series Mat’l Wheel Size
1 2 3 4 5 6 7 8 9 10
X
W
W - Energy
Recovery
X - Accessory
Design
K A
G 1
Curb Height
0 S 1 4
10
R - 3/4 HP
S - 1 HP
T - 1-1/2 HP
V - 2 HP
14 - 14”
N - Non-Listed
E - ETL Listed
(Default)
A - 115V, 1 Ph.
B - 208V, 1 Ph.
C - 208V, 3 Ph.
D - 240V, 1 Ph.
E - 240V, 3 Ph.
G - 480V, 3 Ph.
H - 600V, 3 Ph.
G - Fused Disconnect & 24VAC
Transformer
H - Non-Fused Disconnect &
24VAC Transformer
(Default)
E - Electrical Protection (Default)
D - Painted Cabinet & Electrical Protection
S - Motorized Dampers, Electrical Protection
V - Motorized Dampers, Painted Cabinet
& Electrical Protection
K - 24V Contactor
(Double)
J - Exhaust Only
Frost Control
Preheat Defrost*
A - Low 10kW
B - Med 18kW
C - High 25kW
*(Available with
Vertical Duct
Only)
Contact Factory
For Approval
1 - Single VFD,
Runs Both Fans
2 - Supply & Exhaust
Fan VFD’s
3 - Supply Fan Only VFD
4 - Exhaust Fan Only VFD
K - Roof Curb
for Plate Units
G - Galvanized
S - Standard
Length
Optional Controls
Model Number Series Unit Size
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Y
W
W - Energy
Recovery
Y - Attached
and Wired
P - Plate Type
Design
P B
1
UNIT SIZE
10
0
OPTIONS
X X
F - Dirty Filter
Switch
X X X X X X X
WPBB’s Only
M - MERV13
Supply
Filters
www.carnes.com revised 02/18/2015 D-5
