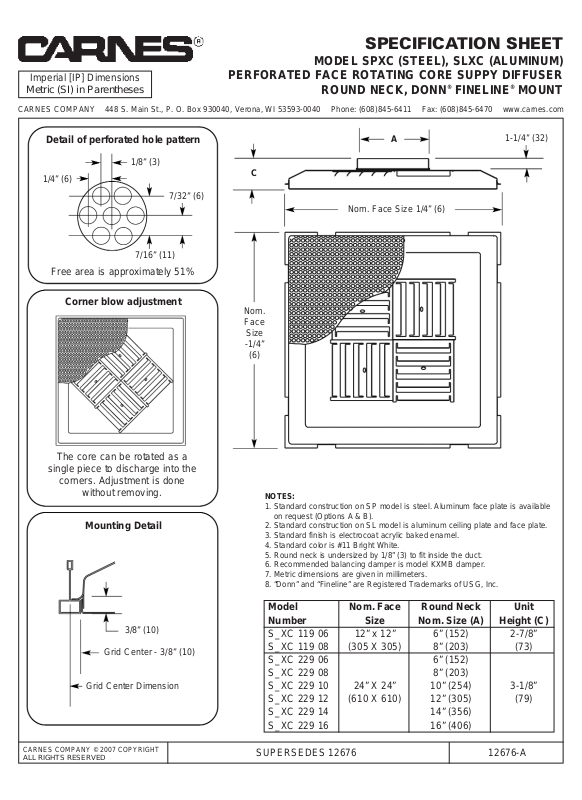

SPECIFICATION SHEET

MODEL SPXC (STEEL), SLXC (ALUMINUM)

PERFORATED FACE ROTATING CORE SUPPY DIFFUSER

ROUND NECK, DONN

®

FINELINE®MOUNT

CARNES COMPANY © 2007 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 12676 12676-A

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

Detail of perforated hole pattern

Corner blow adjustment

Free area is approximately 51%

The core can be rotated as a

single piece to discharge into the

corners. Adjustment is done

without removing.

Nom.

Face

Size

-1/4”
(6)

Model Nom. Face Round Neck Unit
Number Size Nom. Size (A) Height (C)

S_XC 119 06 12” x 12” 6” (152) 2-7/8”
S_XC 119 08 (305 X 305) 8” (203) (73)
S_XC 229 06 6” (152)
S_XC 229 08 8” (203)
S_XC 229 10 24” X 24” 10” (254) 3-1/8”
S_XC 229 12 (610 X 610) 12” (305) (79)
S_XC 229 14 14” (356)
S_XC 229 16 16” (406)

NOTES:

1. Standard construction on SP model is steel. Aluminum face plate is available
on request (Options A & B).

2. Standard construction on SL model is aluminum ceiling plate and face plate.

3. Standard finish is electrocoat acrylic baked enamel.

4. Standard color is #11 Bright White.

5. Round neck is undersized by 1/8” (3) to fit inside the duct.

6. Recommended balancing damper is model KXMB damper.

7. Metric dimensions are given in millimeters.

8. “Donn” and “Fineline” are Registered Trademarks of USG, Inc.

Mounting Detail

Nom. Face Size 1/4” (6)

1/4” (6)

1/8” (3)

7/16” (11)

7/32” (6)

3/8” (10)

Grid Center - 3/8” (10)

Grid Center Dimension

1-1/4” (32)

A

C
