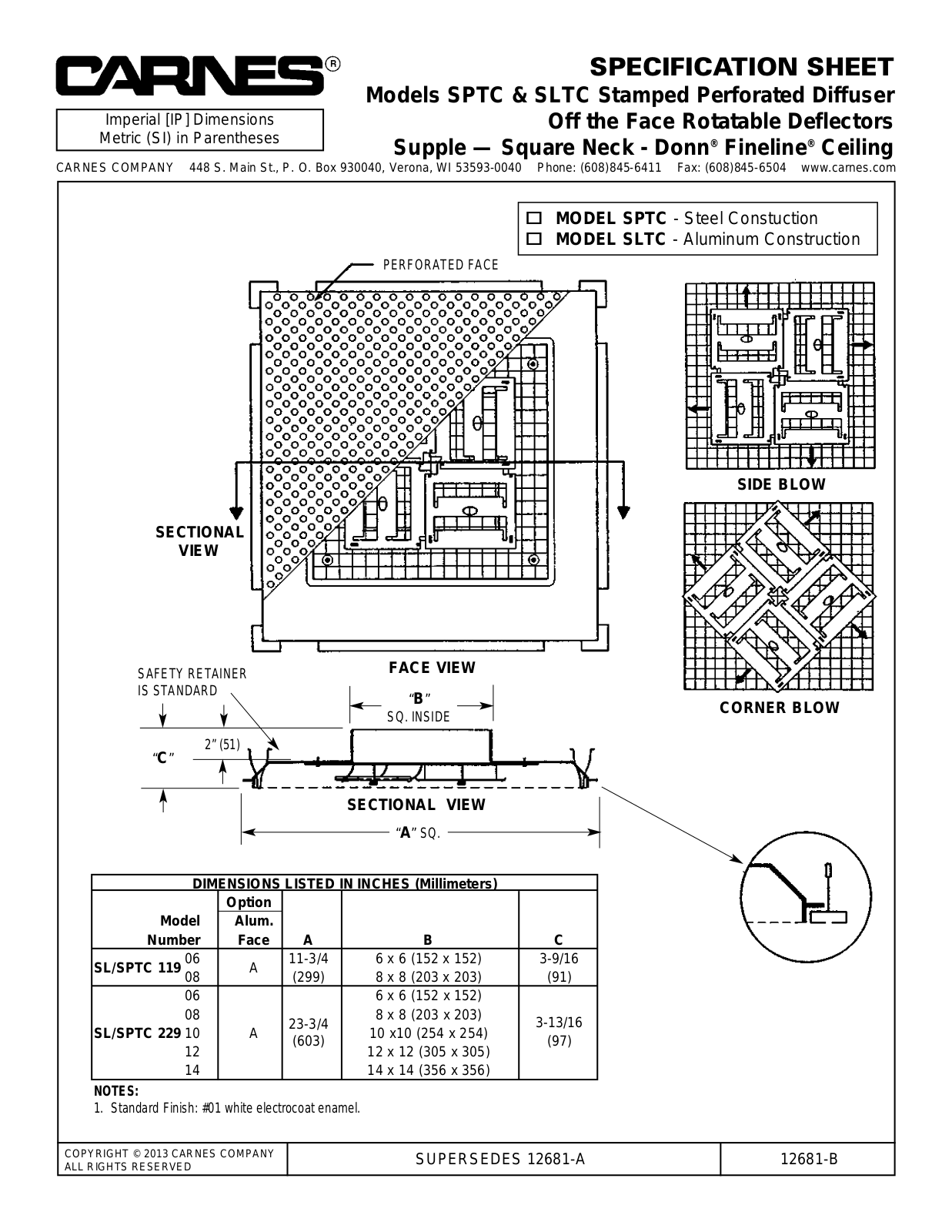

SPECIFICATION SHEET
Models SPTC & SLTC Stamped Perforated Diffuser
Off the Face Rotatable Deflectors
Supple — Square Neck - Donn
®
Fineline®Ceiling
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12681-A 12681-B
MODEL SPTC - Steel Constuction
MODEL SLTC - Aluminum Construction
PERFORATED FACE
SECTIONAL
VIEW
2” (51)
SAFETY RETAINER
IS STANDARD
FACE VIEW
SECTIONAL VIEW
“C”
“B”
SQ. INSIDE
SIDE BLOW
CORNER BLOW
“A”
SQ.
DIMENSIONS LISTED IN INCHES (Millimeters)
Option
Model Alum.
Number Face A B C
06 11-3/4 6 x 6 (152 x 152) 3-9/16
SL/SPTC 119
08
A
(299) 8 x 8 (203 x 203) (91)
06 6 x 6 (152 x 152)
08 8 x 8 (203 x 203)
3-13/16
SL/SPTC 229 10 A
23-3/4
10 x10 (254 x 254)
(97)
12
(603)
12 x 12 (305 x 305)
14 14 x 14 (356 x 356)
NOTES:
1. Standard Finish: #01 white electrocoat enamel.
Imperial [IP] Dimensions
Metric (SI) in Parentheses
