Carnes HRAB User Manual

COPYRIGHT © 2013 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 16836 16836-A

1-3/8” (35)

1-3/8”

(35)

1”

(25)

6-1/8”

(155)

5-5/8” (143)

7/8” Dia. Hole for

Control Wiring

Condensate
ReturnInlet

Line Recommended

Maximum Amp Disconnect Steam

Model Lb./Hr. kW Voltage Phase Rating Size (Amps) Cylinder

HRABA U 005 5 1.7 120 1 14.4 20 HXCBAX220
HRABD U 005 5 1.7 230 1 7.5 15 HXCBAX380
HRABD U 010 10 3.4 230 1 15.0 20 HXCBAX380

U = UL
C = cUL

SYSTEM INCLUDES: Cylinder installed in Cabinet; True Touchscreen Control Display; 20 gauge steel Cabinet with

Stainless Steel Bottom Panel; Prewired and Prepiped; Built-in Water Strainer; Electronic
Overload Protection; Digital Steam Output Meter Calibrated in Pounds of Steam per Hour;
Door Interlock to Disconnect Power to Cylinders; Hinged Door with Lock.

OPTION: Entire Stainless Steel Cabinet.
FINISH: Dipped Electrostatic Baked Enamel Undercoat with Multispec Textured Topcoat with Black

Accent; Architectural Grade.

5”

(127)

8-3/8” (213)

8-1/2” (216)

12-1/2” (318)

1-1/2” (38)

4-3/4” (121)

16-1/2” (419)

22-1/4”

(565)

17-1/2”

(444)

4-3/4”
(121)

7-1/2”

(190)

Steam Outlet

7/8” Hose For Power Wiring

1/4” FPT Water Inlet

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

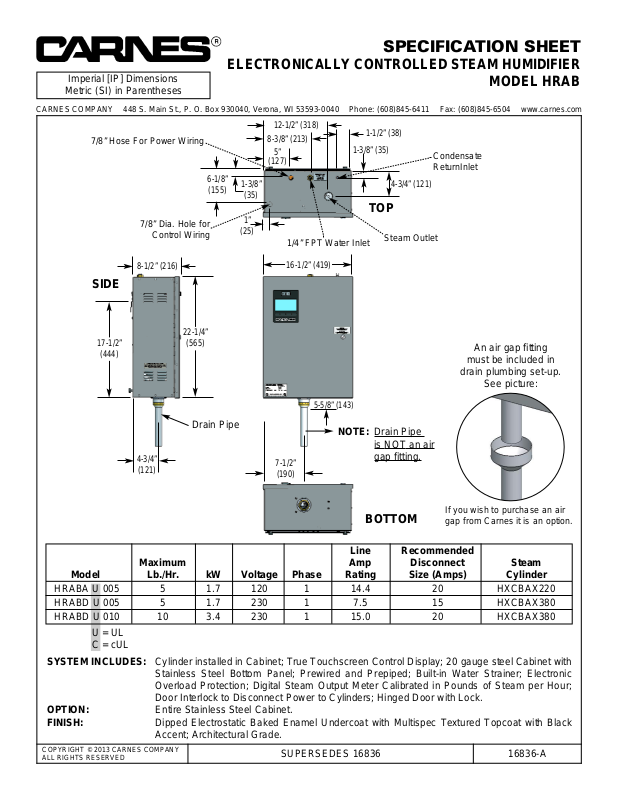

SPECIFICATION SHEET

ELECTRONICALLY CONTROLLED STEAM HUMIDIFIER

MODEL HRAB

TOP

BOTTOM

SIDE

Drain Pipe

If you wish to purchase an air
gap from Carnes it is an option.

NOTE: Drain Pipe

is NOT an air
gap fitting.

An air gap fitting

must be included in

drain plumbing set-up.

See picture:
