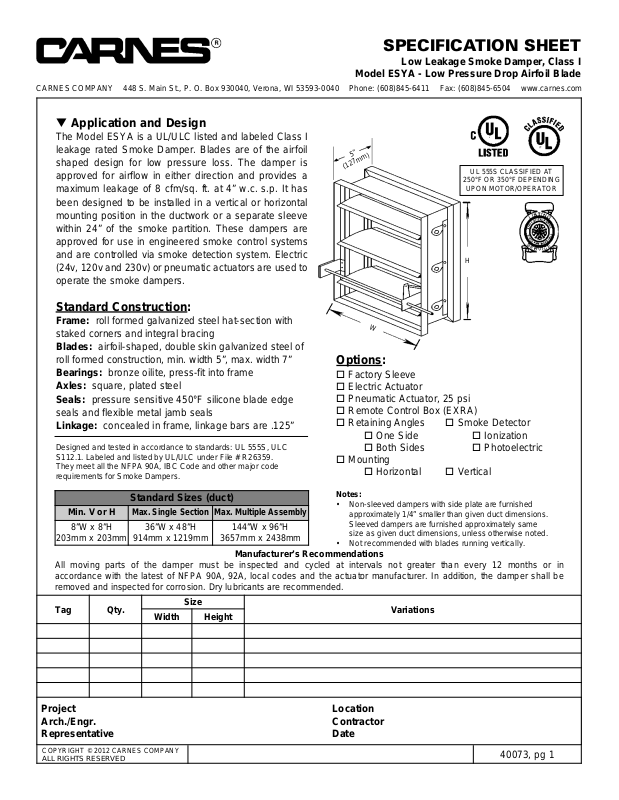

SPECIFICATION SHEET
Low Leakage Smoke Damper, Class I
Model ESYA - Low Pressure Drop Airfoil Blade
Tag Qty.
Size
Variations
Width Height
Project Location
Arch./Engr. Contractor
Representative Date
t Application and Design
The Model ESYA is a UL/ULC listed and labeled Class I
leakage rated Smoke Damper. Blades are of the airfoil
shaped design for low pressure loss. The damper is
approved for airflow in either direction and provides a
maximum leakage of 8 cfm/sq. ft. at 4” w.c. s.p. It has
been designed to be installed in a vertical or horizontal
mounting position in the ductwork or a separate sleeve
within 24” of the smoke partition. These dampers are
approved for use in engineered smoke control systems
and are controlled via smoke detection system. Electric
(24v, 120v and 230v) or pneumatic actuators are used to
operate the smoke dampers.
Standard Construction:
Frame: roll formed galvanized steel hat-section with
staked corners and integral bracing
Blades: airfoil-shaped, double skin galvanized steel of
roll formed construction, min. width 5”, max. width 7”
Bearings: bronze oilite, press-fit into frame
Axles: square, plated steel
Seals: pressure sensitive 450°F silicone blade edge
seals and flexible metal jamb seals
Linkage: concealed in frame, linkage bars are .125”
Designed and tested in accordance to standards: UL 555S, ULC
S112.1. Labeled and listed by UL/ULC under File # R26359.
They meet all the NFPA 90A, IBC Code and other major code
requirements for Smoke Dampers.
Options:
Factory Sleeve
Electric Actuator
Pneumatic Actuator, 25 psi
Remote Control Box (EXRA)
Retaining Angles Smoke Detector
One Side Ionization
Both Sides Photoelectric
Mounting
Horizontal Vertical
Notes:
• Non-sleeved dampers with side plate are furnished
approximately 1/4” smaller than given duct dimensions.
Sleeved dampers are furnished approximately same
size as given duct dimensions, unless otherwise noted.
• Not recommended with blades running vertically.
5”
(127mm)
H
W
Manufacturer’s Recommendations
All moving parts of the damper must be inspected and cycled at intervals not greater than every 12 months or in
accordance with the latest of NFPA 90A, 92A, local codes and the actuator manufacturer. In addition, the damper shall be
removed and inspected for corrosion. Dry lubricants are recommended.
Standard Sizes (duct)
Min. V or H
Max. Single Section Max. Multiple Assembly
8”W x 8”H
203mm x 203mm
36”W x 48”H
914mm x 1219mm
144”W x 96”H
3657mm x 2438mm
UL 555S CLASSIFIED AT
250°F OR 350°F DEPENDING
UPON MOTOR/OPERATOR
40073, pg 2
Model ESYA - Low Leakage Smoke Damper, Class I Rated
Low Pressure Drop Airfoil Blade
UL 555S Classified and ULC S112.1 Listed
PERFORMANCE DATA
Pressure drop testing was done by an independent laboratory to the AMCA Standard 500-D, Fig. 5.3
ductwork upstream and downstream.
DAMPER SIZE 36 x 36
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0
.9
.8
.7
.6
.5
.4
.3
.25
.2
.15
.1
.09
.08
.07
.06
.05
.04
.03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 15002000 3000 4000
6000
DAMPER SIZE 24 x 24
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0
.9
.8
.7
.6
.5
.4
.3
.25
.2
.15
.1
.09
.08
.07
.06
.05
.04
.03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000 3000 4000 6000
DAMPER SIZE 12 x 12
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0
.9
.8
.7
.6
.5
.4
.3
.25
.2
.15
.1
.09
.08
.07
.06
.05
.04
.03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000
3000 4000 6000
