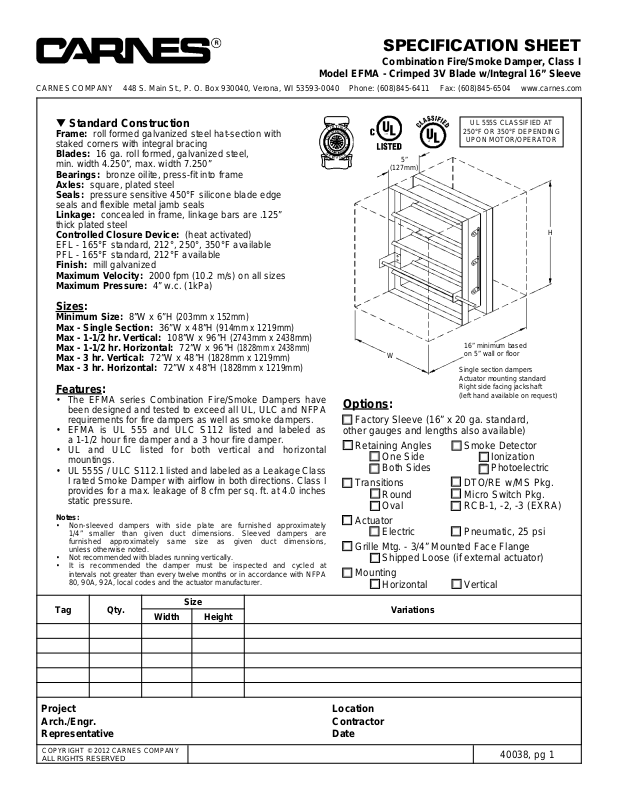

SPECIFICATION SHEET
Combination Fire/Smoke Damper, Class I
Model EFMA - Crimped 3V Blade w/Integral 16” Sleeve
Tag Qty.
Size
Variations
Width Height
Project Location
Arch./Engr. Contractor
Representative Date
t Standard Construction
Frame: roll formed galvanized steel hat-section with
staked corners with integral bracing
Blades: 16 ga. roll formed, galvanized steel,
min. width 4.250”, max. width 7.250”
Bearings: bronze oilite, press-fit into frame
Axles: square, plated steel
Seals: pressure sensitive 450°F silicone blade edge
seals and flexible metal jamb seals
Linkage: concealed in frame, linkage bars are .125”
thick plated steel
Controlled Closure Device: (heat activated)
EFL - 165°F standard, 212°, 250°, 350°F available
PFL - 165°F standard, 212°F available
Finish: mill galvanized
Maximum Velocity: 2000 fpm (10.2 m/s) on all sizes
Maximum Pressure: 4” w.c. (1kPa)
Sizes:
Minimum Size: 8”W x 6”H
(203mm x 152mm)
Max - Single Section: 36”W x 48”H
(914mm x 1219mm)
Max - 1-1/2 hr. Vertical: 108”W x 96”H
(2743mm x 2438mm)
Max - 1-1/2 hr. Horizontal: 72”W x 96”H
(1828mm x 2438mm)
Max - 3 hr. Vertical: 72”W x 48”H
(1828mm x 1219mm)
Max - 3 hr. Horizontal: 72”W x 48”H
(1828mm x 1219mm)
Features:
• The EFMA series Combination Fire/Smoke Dampers have
been designed and tested to exceed all UL, ULC and NFPA
requirements for fire dampers as well as smoke dampers.
• EFMA is UL 555 and ULC S112 listed and labeled as
a 1-1/2 hour fire damper and a 3 hour fire damper.
• UL and ULC listed for both vertical and horizontal
mountings.
• UL 555S / ULC S112.1 listed and labeled as a Leakage Class
I rated Smoke Damper with airflow in both directions. Class I
provides for a max. leakage of 8 cfm per sq. ft. at 4.0 inches
static pressure.
Notes:
• Non-sleeved dampers with side plate are furnished approximately
1/4” smaller than given duct dimensions. Sleeved dampers are
furnished approximately same size as given duct dimensions,
unless otherwise noted.
• Not recommended with blades running vertically.
• It is recommended the damper must be inspected and cycled at
intervals not greater than every twelve months or in accordance with NFPA
80, 90A, 92A, local codes and the actuator manufacturer.
Options:
Factory Sleeve (16” x 20 ga. standard,
other gauges and lengths also available)
Retaining Angles Smoke Detector
One Side Ionization
Both Sides Photoelectric
Transitions DTO/RE w/MS Pkg.
Round Micro Switch Pkg.
Oval RCB-1, -2, -3 (EXRA)
Actuator
Electric Pneumatic, 25 psi
Grille Mtg. - 3/4” Mounted Face Flange
Shipped Loose (if external actuator)
Mounting
Horizontal Vertical
Single section dampers
Actuator mounting standard
Right side facing jackshaft
(left hand available on request)
5”
(127mm)
16” minimum based
on 5” wall or floor
H
W
UL 555S CLASSIFIED AT
250°F OR 350°F DEPENDING
UPON MOTOR/OPERATOR
40038, pg 2
PERFORMANCE DATA
Pressure drop testing was done by an independent laboratory to the AMCA Standard 500-D, Fig. 5.3
ductwork upstream and downstream.
DAMPER SIZE 36 x 36
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0
.9
.8
.7
.6
.5
.4
.3
.25
.2
.15
.1
.09
.08
.07
.06
.05
.04
.03
.025
.02
.015
.01
100
1000
150 200 300 400500 700 900 1500 2000 3000 4000
6000
DAMPER SIZE 24 x 24
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0
.9
.8
.7
.6
.5
.4
.3
.25
.2
.15
.1
.09
.08
.07
.06
.05
.04
.03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000 3000 4000 6000
1.5
2.0
2.5
DAMPER SIZE 12 x 12
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0
.9
.8
.7
.6
.5
.4
.3
.25
.2
.15
.1
.09
.08
.07
.06
.05
.04
.03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000
3000 4000 6000
1.5
2.0
2.5
16”
Optional Sleeve
Motor
Location
Sleeve
5”
4¼”
2¼”
UL Rated
Fire Wall
Break Away Connection
Break Away Connection
Retaining Angle
Retaining
Angle
Actuator
Mounting Area
1½”
1½”
1½”
Model EFMA - Combination Fire/Smoke Damper, Class I
w/Sleeve, Crimped (3V) Blade
UL 555 and ULC S112 Listed, UL 555S and ULC S112.1 Listed, 1-1/2 and 3 Hour Rated
When the actuator is externally mounted and the wall thickness exceeds 5 inches, add 1
inch for each additional inch
of wall thickness increased to
ensure sleeve length through
the penetration. As standard
the actuator is externally
installed on the lower right
hand half of the damper when
viewed from the jackshaft
side. The damper may be
installed/rotated 180° such
the actuator will be located on
the upper left. The top of the
damper is either side of the
frame as long as the blades
are running horizontal. When
ordering internally mounted
actuators, be aware there is a
min. height requirement (in
some cases the sleeve can
be increased to allow for internally mounting). The entire
damper frame does not have
to be installed in the plane of
the wall or floor. The rule of
thumb is with the damper in
the closed position, the blade
plane should be within the
plane of the UL rated wall or
floor.
