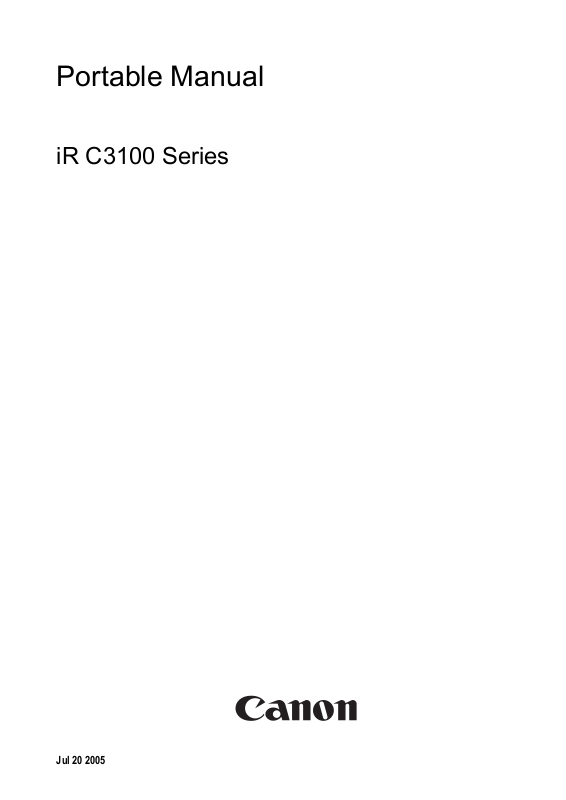

Portable Manual

iR C3100 Series

Jul 20 2005

Application

This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance, and repair

of products. This manual covers all localities where the products are sold. For this reason, there may be information in this

manual that does not apply to your locality.

Corrections

This manual may contain technical inaccuracies or typographical errors due to improvements or changes in products. When

changes occur in applicable products or in the contents of this manual, Canon will release technical information as the need

arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition

of this manual.

The following paragraph does not apply to any countries where such provisions are inconsistent with local law.

Trademarks

The product names and company names used in this manual are the registered trademarks of the individual companies.

Copyright

This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may not be copied, reproduced or

translated into another language, in whole or in part, without the written consent of Canon Inc.

COPYRIGHT © 2001 CANON INC.

Printed in Japan

Caution

Use of this manual should be strictly supervised to avoid disclosure of confidential information.

Symbols Used

This documentation uses the following symbols to indicate special information:

Symbol Description

Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning.

Indicates an item requiring care to avoid electric shocks.

Indicates an item requiring care to avoid combustion (fire).

Indicates an item prohibiting disassembly to avoid electric shocks or problems.

Indicates an item requiring disconnection of the power plug from the electric outlet.

Indicates an item intended to provide notes assisting the understanding of the topic in question.

Memo

Introduction

REF.

Indicates an item of reference assisting the understanding of the topic in question.

Provides a description of a service mode.

Provides a description of the nature of an error indication.

Introduction

The following rules apply throughout this Service Manual:

1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical and mechanical systems with refer­ence to the timing of operation.

In the diagrams, represents the path of mechanical drive; where a signal name accompanies the symbol , the arrow indicates the
direction of the electric signal.
The expression "turn on the power" means flipping on the power switch, closing the front door, and closing the delivery unit door, which results in
supplying the machine with power.

2. In the digital circuits, '1'is used to indicate that the voltage level of a given signal is "High", while '0' is used to indicate "Low".(The voltage value, how­ever, differs from circuit to circuit.) In addition, the asterisk (*) as in "DRMD*" indicates that the DRMD signal goes on when '0'.
In practically all cases, the internal mechanisms of a microprocessor cannot be checked in the field. Therefore, the operations of the microprocessors
used in the machines are not discussed: they are explained in terms of from sensors to the input of the DC controller PCB and from the output of the
DC controller PCB to the loads.

The descriptions in this Service Manual are subject to change without notice for product improvement or other purposes, and major changes will be com­municated in the form of Service Information bulletins.
All service persons are expected to have a good understanding of the contents of this Service Manual and all relevant Service Information bulletins and be
able to identify and isolate faults in the machine."

Contents

Contents

Chapter 1 Maintenance and Inspection

1.1 Periodically Replaced Parts .......................................................................................................................... 1- 1

1.1.1Overview .................................................................................................................................................... 1- 1

1.1.2Reader Unit................................................................................................................................................ 1- 1

1.1.3Printer Unit ................................................................................................................................................. 1- 1

1.2 Durables and Consumables.......................................................................................................................... 1- 1

1.2.1Overview .................................................................................................................................................... 1- 1

1.2.2Reader Unit................................................................................................................................................ 1- 1

1.2.3Printer Unit ................................................................................................................................................. 1- 1

1.3 Scheduled Servicing Basic Procedure ........................................................................................................ 1- 2

1.3.1Scheduled Servicing Basic Procedure .................................................................................................. 1- 2

1.3.2Items of Work for Scheduled Servicing (reader unit) .......................................................................... 1- 3

1.3.3Items of Work for Scheduled Servicing (printer unit) ..........................................................................1- 3

1.3.4Points to Note for Scheduled Servicing Work ...................................................................................... 1- 8

1.4 Cleaning ........................................................................................................................................................... 1- 9

1.4.1Cleaning the Primary Charging Roller................................................................................................... 1- 9

Chapter 2 Standards and Adjustments

2.1 Image Adjustments....................................................................................................................................... 2- 11

2.1.1Standards for Image Position ............................................................................................................... 2- 11

2.1.2Checking the Image Position ................................................................................................................ 2- 11

2.1.3Cassette ................................................................................................................................................... 2- 12

2.1.4Manual Feed Tray................................................................................................................................... 2- 13

2.1.5Side Paper Deck ..................................................................................................................................... 2- 13

2.2 Scanning System .......................................................................................................................................... 2- 14

2.2.1After Replacing the CIS ......................................................................................................................... 2- 14

2.2.2After Replacing the Copyboard Glass................................................................................................. 2- 14

2.2.3After Replacing the ADF Reading Glass............................................................................................. 2- 15

2.2.4After Replacing the Reader Controller PCB or After Initializing the RAM ..................................... 2- 15

2.3 Laser Exposure System............................................................................................................................... 2- 16

2.3.1After Replacing the Laser Scanner Unit.............................................................................................. 2- 16

2.4 Image Formation System ............................................................................................................................ 2- 16

2.4.1After Replacing the Intermediate Transfer Unit ................................................................................. 2- 16

2.4.2After Replacing the Intermediate Transfer Belt.................................................................................. 2- 16

2.4.3After Replacing the Primary Transfer Roller....................................................................................... 2- 16

2.4.4After Replacing the Drum Unit .............................................................................................................. 2- 16

2.4.5After Replacing the Developing Unit (Y, M, C)................................................................................... 2- 16

2.4.6After Replacing the Developing Unit (Bk) ........................................................................................... 2- 16

2.4.7After Replacing the Secondary Transfer Outside Roller .................................................................. 2- 16

2.4.8How to replace the primary transfer roller holder .............................................................................. 2- 16

2.5 Fixing System................................................................................................................................................ 2- 18

2.5.1After Disassembling the Fixing Unit..................................................................................................... 2- 18

Contents

2.5.2After Replacing the Fixing Unit .............................................................................................................2- 18

2.5.3After Replacing the Fixing Roller ..........................................................................................................2- 18

2.5.4Nip Adjustment ........................................................................................................................................2- 18

2.5.5Point to Note About the Position of the Fixing Main Thermistor......................................................2- 18

2.5.6Point to Note When Mounting the Fixing Sub Thermistor ................................................................2- 19

2.5.7Point to Note When Mounting the Fixing Thermal Switch ................................................................2- 19

2.6 Electrical Components .................................................................................................................................2- 19

2.6.1After Replacing the Reader Controller PCB .......................................................................................2- 19

2.6.2After Replacing the DC Controller PCB...............................................................................................2- 20

2.6.3After Replacing the Main Controller PCB (main) ...............................................................................2- 20

2.6.4After Replacing the SRAM Board.........................................................................................................2- 21

2.6.5After Replacing the HDD........................................................................................................................2- 21

2.6.6When Replacing the HVT PCB.............................................................................................................2- 21

2.7 Pickup/Feeding System ...............................................................................................................................2- 22

2.7.1Adjusting the Horizontal Registration When Replacing the Pickup Cassette................................2- 22

2.7.2Adjusting the Horizontal Registration When Replacing the Duplex Unit........................................2- 23

2.7.3Adjust the Horizontal Registration for the Manual Feed Tray..........................................................2- 23

2.7.4Registering the Paper Width Basic Value...........................................................................................2- 23

Chapter 3 Error Code

3.1 Error Code Details ........................................................................................................................................3- 25

3.1.1Error Code Details Table .......................................................................................................................3- 25

3.1.2E602 in Detail (iR C3100 Series)..........................................................................................................3- 39

3.1.3E602 in Detail (iR C3170/C2570 Series).............................................................................................3- 40

3.2 Error Code (SEND) .......................................................................................................................................3- 42

3.2.1Self-Diagnostic Display ..........................................................................................................................3- 42

3.2.2List of Error Codes without Messages .................................................................................................3- 44

3.3 Jam Codes .....................................................................................................................................................3- 48

3.3.1Jam Code (printer unit) ..........................................................................................................................3- 48

3.3.2Jam Code (finisher-related)...................................................................................................................3- 48

3.3.3Jam Code (ADF-related)........................................................................................................................3- 49

3.4 Alarm Codes ..................................................................................................................................................3- 49

3.4.1Alarm Code ..............................................................................................................................................3- 49

Chapter 4 User Mode Items

4.1 User Mode Items...........................................................................................................................................4- 51

4.1.1Common Settings....................................................................................................................................4- 51

4.1.2Timer Settings..........................................................................................................................................4- 51

4.1.3Adjustment and Cleaning.......................................................................................................................4- 52

4.1.4Printing Various Reports........................................................................................................................4- 52

4.1.5System Control Settings ........................................................................................................................4- 52

4.1.6Copy Function Settings..........................................................................................................................4- 53

4.1.7Common Transmission Function Settings ..........................................................................................4- 53

4.1.8Box Function Settings ............................................................................................................................4- 53

4.1.9Printer Function Setting..........................................................................................................................4- 53

4.1.10Address List Settings............................................................................................................................4- 54

Contents

Chapter 5 Service Mode

5.1 Test Print........................................................................................................................................................ 5- 55

5.1.1Overview .................................................................................................................................................. 5- 55

5.1.2Test Print TYPE ...................................................................................................................................... 5- 55

5.1.3Selecting Test Print TYPE..................................................................................................................... 5- 55

5.1.416-Gradation (TYPE=4)......................................................................................................................... 5- 55

5.1.5Full Page Halftone (TYPE=5) ............................................................................................................... 5- 56

5.1.6Grid (TYPE=6)......................................................................................................................................... 5- 56

5.1.7MCYBk Horizontal Stripes (TYPE=10)................................................................................................ 5- 56

5.1.864-Gradation (TYPE=12)....................................................................................................................... 5- 57

5.1.9Full Color 16-Gradation (TYPE=14) .................................................................................................... 5- 57

5.2 DISPLAY (Status Display Mode)................................................................................................................ 5- 58

5.2.1 COPIER ................................................................................................................................................... 5- 58

5.2.1.1 COPIER Table................................................................................................................................. 5- 58

5.2.2 FEEDER .................................................................................................................................................. 5- 64

5.2.2.1 FEEDER Table................................................................................................................................5- 64

5.3 I/O (I/O Display Mode) ................................................................................................................................. 5- 64

5.3.1Overview .................................................................................................................................................. 5- 64

5.3.2<DC-CON> .............................................................................................................................................. 5- 65

5.3.3<R-CON> ................................................................................................................................................. 5- 67

5.3.4<FEEDER> .............................................................................................................................................. 5- 67

5.3.5<SORTER>.............................................................................................................................................. 5- 68

5.3.6<MN-CONT> (iR C3100 Series)........................................................................................................... 5- 72

5.3.7<MN-CONT> (iR C3170/C2570 Series).............................................................................................. 5- 73

5.4 ADJUST (Adjustment Mode)....................................................................................................................... 5- 74

5.4.1 COPIER ................................................................................................................................................... 5- 74

5.4.1.1 COPIER Table................................................................................................................................. 5- 74

5.4.2 FEEDER .................................................................................................................................................. 5- 84

5.4.2.1 FEEDER Table................................................................................................................................5- 84

5.4.3 SORTER .................................................................................................................................................. 5- 84

5.4.3.1 SORTER Table ............................................................................................................................... 5- 84

5.5 FUNCTION (Operation/Inspection Mode)................................................................................................. 5- 84

5.5.1 COPIER ................................................................................................................................................... 5- 84

5.5.1.1 COPIER Table................................................................................................................................. 5- 84

5.5.2 FEEDER .................................................................................................................................................. 5- 93

5.5.2.1 FEEDER Table................................................................................................................................5- 93

5.6 OPTION (Machine Settings Mode) ............................................................................................................ 5- 94

5.6.1 COPIER ................................................................................................................................................... 5- 94

5.6.1.1 COPIER Table................................................................................................................................. 5- 94

5.6.1.2 Software Counter Specifications ................................................................................................ 5- 107

5.6.2 SORTER ................................................................................................................................................ 5- 113

5.6.2.1 SORTER Table ............................................................................................................................. 5- 113

5.6.3 BOARD .................................................................................................................................................. 5- 113

5.6.3.1 BOARD Table................................................................................................................................ 5- 113

5.7 TEST (Test Print Mode)............................................................................................................................. 5- 114

5.7.1 COPIER ................................................................................................................................................. 5- 114

5.7.1.1 COPIER Table............................................................................................................................... 5- 114

5.8 COUNTER (Counter Mode) ...................................................................................................................... 5- 115

Contents

5.8.1 COPIER..................................................................................................................................................5- 115

5.8.1.1 COPIER Table...............................................................................................................................5- 115

Chapter 6 Outline of Components

6.1 Clutch/Solenoid ...........................................................................................................................................6- 119

6.1.1Clutch/Solenoid Table ..........................................................................................................................6- 119

6.2 Motor .............................................................................................................................................................6- 119

6.2.1Motor Table ............................................................................................................................................6- 119

6.3 Fan ................................................................................................................................................................6- 121

6.3.1Fan Table ...............................................................................................................................................6- 121

6.3.2Fan Table ...............................................................................................................................................6- 122

6.4 Sensor...........................................................................................................................................................6- 123

6.4.1Sensor Table..........................................................................................................................................6- 123

6.5 Switch............................................................................................................................................................6- 125

6.5.1Switch Table ..........................................................................................................................................6- 125

6.5.2Switch Table ..........................................................................................................................................6- 126

6.6 Lamps, Heaters, and Others .....................................................................................................................6- 127

6.6.1Lamp. Heaters, and Others Table ......................................................................................................6- 127

6.6.2Lamp. Heaters, and Others Table ......................................................................................................6- 128

6.7 PCBs .............................................................................................................................................................6- 129

6.7.1PCBs Table............................................................................................................................................6- 129

6.7.2PCBs Table............................................................................................................................................6- 131

Chapter 7 System Construction

7.1 Construction .................................................................................................................................................7- 135

7.1.1Functional construction ........................................................................................................................7- 135

7.1.2Connections Among Major PCBs.......................................................................................................7- 135

7.1.3Connections Among Major PCBs.......................................................................................................7- 136

7.1.4DC Controller PCB................................................................................................................................7- 137

7.2 System Construction ..................................................................................................................................7- 138

7.2.1Overview of the Delivery Accessories System Configuration........................................................7- 138

7.2.2Delivery Accessorizes System Configuration 1................................................................................7- 138

7.2.3Delivery Accessorizes System Configuration 2................................................................................7- 140

7.2.4Delivery Accessories System Configuration 3..................................................................................7- 140

7.2.5Pickup/Original Handling Accessories System Configuration........................................................7- 141

7.2.6Reader Heater System Configuration................................................................................................7- 142

7.2.7Cassette Heater System Configuration 1..........................................................................................7- 143

7.2.8Cassette Heater System Configuration 2..........................................................................................7- 143

7.2.9Side Deck Heater System Configuration...........................................................................................7- 144

7.2.10System configuration of Accessory for Print/Transmission..........................................................7- 146

7.2.11Functions/Required Accessories List...............................................................................................7- 146

7.2.12System configuration of Accessory for Print/Transmission..........................................................7- 147

7.2.13Functions/Required Accessories List...............................................................................................7- 148

7.2.14Printing/Transmitting Accessories System Configuration.............................................................7- 148

7.2.15Functions of Printing/Transmitting Accessories.............................................................................7- 149

7.3 Product Specifications................................................................................................................................7- 149

7.3.1System and Functions..........................................................................................................................7- 149

Contents

7.3.2Others ..................................................................................................................................................... 7- 150

7.4 Function List ................................................................................................................................................ 7- 150

7.4.1First Copy Time ..................................................................................................................................... 7- 150

7.4.2Print speed............................................................................................................................................. 7- 151

7.4.3Print speed............................................................................................................................................. 7- 152

7.4.4Types of Paper ...................................................................................................................................... 7- 154

Chapter 8 Upgrading

8.1 Upgrading..................................................................................................................................................... 8- 155

8.1.1Outline of the Version Upgrade .......................................................................................................... 8- 155

8.1.2Overview of Upgrading Work.............................................................................................................. 8- 155

8.1.3Outline of the Functions and Operations .......................................................................................... 8- 156

8.1.4Outline of the Service Support Tool ................................................................................................... 8- 159

8.1.5Network Interface of the Machine with the SST in Use .................................................................. 8- 161

Chapter 1 Maintenance and Inspection

1.1 Periodically Replaced Parts

Chapter 1

1.1.1 Overview

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

Some parts of the machine must be replaced on a periodical basis so as to ensure a specific level of performance. They may be free of external changes or damage,
but they can significantly affect the machine performance once they lose their function.
It is best if replacement work is scheduled to coincide with a scheduled visit to the user's.

0000-9632

The values indicated herein are estimates only and are subject to change depending on the site environment and how the machine is used.

1.1.2 Reader Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

0000-9633

The machine's reader unit does not have parts that must be replaced on a periodical basis.

1.1.3 Printer Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

0000-9634

The machine's printer unit does not have parts that must be replaced on a periodical basis.

1.2 Durables and Consumables

1.2.1 Overview

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

Some parts of the machine may have to be replaced once or more over the period of machine warranty because of wear or damage. Replace them as needed by
referring to the table of estimated lives (expressed in terms of the number of prints they make).

Making Checks When Replacing Durables
Use the following service mode items to find out when to replace parts:

- Machine
COPIER>COUNTER>DRBL-1

COPIER>COUNTER>MISC(Bk developing unit only)

- Accessory
COPIER>COUNTER>DRBL-2

1.2.2 Reader Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

The machine's reader unit does not have parts that are classified as durables.

1.2.3 Printer Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

0000-9642

0000-9645

0000-9647

as of March 2005

Ref. Parts name Pats No. Q'ty Estimated life

[1] Developing unit (Bk) FM2-1751 1 500,000

[2] Developing unit (Y) FM2-1752 1 50,000

[3] Developing unit (M) FM2-1753 1 50,000

[4] Developing unit (C) FM2-1754 1 50,000

[5] Intermediate transfer belt (ITB) FC5-0334 1 300,000 images *1

[6] ITB cleaning blade FC5-0368 1 100,000 images *1

[7] Primary transfer roller FC5-6920 1 300,000 images *1

[8] Secondary transfer inside roller FC5-0337 1 300,000 images *1

[9] Secondary transfer outside roller FC5-0661 1 60,000

[10] Separation static eliminator FC5-0664 1 240,000

[11] Fixing assembly 100 V FM2-0172 1 200,000 *2

Fixing assembly 115 V FM2-0173 1 200,000 *2

Fixing assembly 230 V FM2-0174 1 200,000 *2

[12] Fixing roller FC5-0726 1 100,000 *3

[13] Pressure roller FC5-0727 1 100,000 *3

[14] Fixing upper frame unit FM2-0176 1 100,000 *3

[15] Separation roller FC5-6934 2 120,000

[16] Manual feed pickup roller FB1-8581 1 240,000

[17] Manual feed separation pad FC5-0488 1 240,000

[18] Dust-blocking glass cleaning pad FL2-0033 1 500,000

(prints)

Remarks

1-1

Chapter 1

as of March 2005

Ref. Parts name Pats No. Q'ty Estimated life

[19] ITB Waste Toner Unit FM2-0083 1 60,000 images *1

*1: The value here is an estimate expressed in terms of the number of mono color prints made. In the case of

full-color prints, the value will be 1/4 of that indicated.

*2: Be sure to replace the fixing roller, pressure roller, and fixing upper frame unit when 100,000 prints are

made.

*3: Be sure to replace the fixing roller, pressure roller, and fixing upper frame unit at a time; or to replace the

fixing assembly every 100,000 prints.

(prints)

Remarks

Expected service life shows the central value of a group of evaluation data points. Parts Numbers may subject to change because of design changes.

[12]

[13]

[11]

[5] [7]

[8]

[10]

[6]

[1][4]

[18]

1.3 Scheduled Servicing Basic Procedure

[9]

[2]

[3]

[14]

[16][17]

[15]

[15]

[19]

F-1-1

1.3.1 Scheduled Servicing Basic Procedure

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

- As a rule, provide scheduled servicing every 60,000 prints.

- Before setting out for a visit, check with the service book, and take parts for which replacement is expected.

- Disconnect the power plug on a periodical basis, and clean it and the area around it with a dry cloth. If left connected for a long time in an area subject to high

0000-9666

humidity or oily smoke, it can catch fire (the buildup of dust is likely to absorb moisture and cause insulation failure).

<Work Procedure>

1) Report to the person in charge, and check the general condition.

2) Record the counter readings, and check the faulty prints.

3) Make the following checks, and clean/adjust the components:

- COPIER > COUNTER > MISC > FX-UP-RL

- COPIER > COUNTER > MISC > DV-UNT-K

1-2

Any of the following indicates that the counter reading is incorrect:
a. the counter reading is lower than that recorded for the previous service visit.
b. the counter reading is excessively high in relation to the increase in the total counter reading recorded for the previous service visit.

If the counter reading is faulty, make the following computation, and enter the result:
A = current reading of 'total 2'.
B = reading of 'total 2' recorded for the previous service visit.
C = reading of 'FX-UP-RL' or 'DV-UNIT-K' recorded for the previous service visit.

Enter the result of the following for 'FX-UP-RL' or 'DV-UNIT-K':
(A - B) + C

4) Check the following item, and clean/adjust the parts as necessary.

Item to check

Test Copy image density standards

soiling of white background

clarity of characters

margin

fixing incorrect registration, soiling of back of paper

margin standards (singe-sided print) leading edge: 2.5 +/-1.5 mm

(double-sided print) leading edge: 2.5 +/- 2.0 mm

Laser Exposure System dust-blocking glass cleaning tool

Feeding System registration upper/lower roller

paper lint in front of registration assembly

5) Check the waste toner case.

If the case is half full, dispose of the waste toner in a plastic bag for collection. Or, replace it with a new one.

T-1-1

left edge: 2.5 +/-1.5 mm

left edge: 2.5 +/-2.0 mm

Chapter 1

- If you have to dispose of waste toner, be sure that you follow the rules and regulations imposed by the local authorities.

- Do not throw waste toner into fire. (It can explode, creating significant hazards.)

6) Clean the copyboard glass and the reading glass.

7) Make test copies.

8) Make sample copies.

9) Check the operation of the leakage breaker.
While the machine remains on, press the test switch of the leakage breaker to see if it operates normally (i.e., the lever shits to the OFF side to cut off the power).

- If the leakage breaker fails to operate normally, replace it, and make the foregoing check once again.

[Resetting]
After making the check, turn off the power switch; then, shift the lever back to the ON position, and turn on the power.

10) Put the sample copies in order, and clean up the area around the machine.

11) Record the final counter readings. At this time, be sure also to record the readings of 'FX-UP-RL' and 'DV-UNIT-K'.

12) Fill out the service book and report to the person in charge.
Be sure to record the result of the check on the leakage breaker in the service book.

1.3.2 Items of Work for Scheduled Servicing (reader unit)

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

The machine's reader unit does not have items that must be serviced on a scheduled basis.

Be sure to clean the copyboard glass and the ADF reading glass during each visit you make for scheduled servicing.

1.3.3 Items of Work for Scheduled Servicing (printer unit)

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

Do not use solvents or oils other than those indicated.

0000-9673

0000-9676

1-3

Chapter 1

Unit Location Item of

Transfer

Transfer/feed guide clean At the

work

assembly

Inter­vals

time of
drum
unit
replacem
ent

T-1-2

Remarks

Transfer
assembly

Transfer
assembly

patch image read
sensor

Drive roller/
Tension roller/
Inside brade

clean At the

time of
drum
unit
replacem
ent

clean 300,000

images

[1] Feed guide
[2] Secondary transfer front outside guide
[3] Secondary transfer front inside guide

[1] Drive roller
[2] Tension roller
[3] Inside blade

1-4

Chapter 1

Unit Location Item of

Transfer
assembly

Transfer
assembly

Mylar sheet clean 300,000

ITB cleaning blade
fixing base

work

clean At the

Inter­vals

images

time of
drum
unit
replacem
ent

Remarks

[1] Mylar sheet

Transfer
assembly

Transfer
assembly

Transfer
assembly

ATR sensor
window/shutter

rotary upper cover clean At the

ITB/HP sensor clean 300,000

clean At the

time of
drum
unit
replacem
ent

time of
drum
unit
replacem
ent

images

[1] ITB cleaning blade fixing base

[1] ATR sensor unit
[2] ATR sensor window
[3] Shutter

If there is no stained image at the time of drum unit
replacement, clean it at the time of 300,000 images.

For instructions on how to remove the rotary upper cover,
see "Disassembly and Assembly" under "Image
Formation System."

1-5

Chapter 1

Unit Location Item of

Transfer
assembly

Developing
assembly

ITB releasing part clean 300,000

Photosensitive
drum butting roll

work

clean 120,000

Inter­vals

images

images

Remarks

[1]

[1]ITB releasing part

Before cleaning the part, remove the ITB unit and the
drum unit from the machine.

Developing
assembly

Developing
assembly

Feeding
assembly

Developing
assembly casing

Rotary lower cover clean 120,000

Registration roller clean At the

clean 120,000

images

images

time of
drum
unit
replacem
ent

[1] Photosensitive drum butting rolls

Perform the work only for the Bk developing unit. The
color units need not be cleaned (as they are replaced after
50,000 images).

[1] Developing assembly casing

Perform the work only for the Bk developing unit. The
color developing units need not be cleaned (as they are
replaced after 50,000 images).

For instructions on how to remove the rotary lower cover,
see "Disassembly and Assembly" under "Image
Formation System."

1-6

Chapter 1

Unit Location Item of

Feeding
assembly

Registration front
guide

work

clean At the

Inter­vals

time of
drum
unit
replacem
ent

Remarks

Feeding
assembly

Feeding
assembly

Feeding
assembly

Fixing
assembly

Fixing
assembly

Transparency
sensor surface

Feeding roller,
scraping ring

Duplex feed roller
1/2

Fixing outlet roller,
roll

Fixing delivery
guide assembly

clean 240,000

images

clean as

needed

clean as

needed

clean as

needed

clean as

needed

[1] Registration front guide

[1] Delivery rollers
[2] Scrape rings

Clean the part only when dirt is conspicuous.
You need not clean the parts if a Finisher-P1 is installed.

Clean the part only when dirt is conspicuous.

Clean the part only when dirt is conspicuous.

[1] Fixing delivery guide

Clean the part if adhesion is found.

1-7

Chapter 1

Unit Location Item of

Others Dust-blocking

glass

Inter-

work

vals

clean At the

time of
drum
unit
replacem

Remarks

ent

[1] Dust-blocking guide

The above values are estimates only, and are subject to change according to future data.

1.3.4 Points to Note for Scheduled Servicing Work

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR C2570i

- If you used solvent, be sure to check that the part has completely dried before fitting it back to the machine.

- Do not use a wet (moist) cloth in areas not specifically indicated.

- Be sure to conduct scheduled servicing at the indicated intervals.

0000-9678

Drive roller

Dry wipe with
lint-free paper;
as necessary, use alcohol.

ITB cleaning
blade fixing

Patch image reading
sensor window

Use a blower brush or
lint-free paper with alcohol.

Never dry wipe.

Rotary upper
cover

ATR sensor
window shutter

Rotary lower cover

Dust-blocking
glass

Dry wipe with lint-free paper.
Be sure to clean in one
direction only. As necessary,
use alcohol, and dry wipe
thereafter.

Note:

Unless otherwise specified, use lint-free paper with alcohol.

ITB HP sensor

Dry wipe with

lint-free paper.

Delivery roller
Scraping ring

Fixing/delivery
guide assembly

Fixing outlet roller
Fixing outlet roll

Duplexing
feed roller 1

Feed guide

Duplex feed roller 2

Transfer guide
assembly

Registration roller

Transparency
sensor surface

Never use a blower brush.

Registration front
guide assembly

ITB releasing part

Dry wipe with

lint-free paper.

Photosensitive drum
Butting roll

Developing cartridge
assembly

1-8

F-1-2

1.4 Cleaning

Chapter 1

when viewing the drum unit from the front). This will rotate the primary
charging roller.

1.4.1 Cleaning the Primary Charging Roller

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR

0004-1957

C2570i

Cleaning the primary charging roller involves rotating the drum manu­ally. Be sure of the following during the work:

- Do not touch the imaging area of the drum surface. The presence of

finger prints or oils can cause cracking of the surface. Whenever
possible, try washing the hands before starting the work.

- Be sure to rotate the drum in the correct direction. Go over the

following, and make sure not to rotate it in the wrong direction.

Be sure to use paper under the drum unit to prevent adhesion of dust.

1) Insert paper through the gap under the primary charging roller cover [1],

all the way until it stops.

F-1-6

Do not touch the imaging area [A] (shown in moss green) of the
drum surface. The presence of fingerprints or oils will cause cracking
of the drum surface.

F-1-3

Be sure to perform step 1) without fail to protect the drum from

scratches and external light.

2) Free the 4 protrusions [1], and detach the primary charging roller cover
[2].

3) Dry wipe the primary charging roller [1] with lint-free paper. Be sure to

F-1-4

move the paper in axial direction and in one direction.

F-1-7

Be sure to pay attention to the direction of drum rotation. Do NOT
rotate it counterclockwise when viewing the drum unit from the
front. If you inadvertently started to turn it in the wrong direction,
stop immediately; then, put the drum unit back into the machine,
generate a halftone image, and check to see that the output is free of
image faults.

5) Repeat steps 3) and 4) to clean the entire surface of the primary charging
roller.

If subjected to light for a long time, the drum will deteriorate. Be sure to

work briskly (e.g., within 5 min or less).

When removing the primary charging roller cover, be sure also to keep
paper between the primary charging roller and the drum as you did when
removing the cover. Remove the paper after you have attached the cover.

4) Hold the end of the drum [A] (i.e., non-imaging area, shown in beige);
then, turn the drum in the direction of the arrow (clockwise direction

F-1-5

1-9

Chapter 2

Chapter 2 Standards and

Adjustments

2.1 Image Adjustments

2.1.1 Standards for Image Position

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

A print made at a magnification of 100% must meet the following standards
for image margin/non-image width:

- Margin Along the Leading Edge

1.5mm

2.5

254 6 8 1012141618 200

- Left/Right Image Margin

2.5 1.5mm
2nd side of double-sided copy

0
2
4

5
6

8

10

- Leading Edge Non-Image Width

2nd side of double-sided copy

F-2-1

F-2-2

2nd side of double-sided copy

2.5 2.0mm

1.5mm

2.5

2.5 2.0mm

2.5 1.5mm

0001-6001

Decrease the value of REGIST.

(A decrease by 10 will
increase the margin by 1 mm.)

1st side copy

254 6 8 1012141618 200

2. Left/right image margin (1st side)

2.5 1.5mm

F-2-5

Leading edge
of paper

Increase the value
of REGIST.
(An increase by

0

will decrease

1
the margin by
1 mm.)

Use it to adjust the horizontal registration mechanically.

3. Leading edge image margin (2nd side)
Use the following service mode item to adjust the registration:
COPIER> ADJUST> FEED-ADJ> RG-REFE

Decrease the value of RG-REFE.

(A decrease by 10 will

2nd side of
double-sided copy

254 6 8 1012141618 200

4. Left/right image margin (2nd side)

increase the margin by 1 mm.)

2.5 2.0mm

F-2-6

Leading edge
of paper

Increase the value
of RG-REFE.
(An increase by

0

will decrease

1
the margin by
1 mm.)

Use the following service mode item to adjust the horizontal registration:

- Cassette 1
COPIER> ADJUST> FEED-ADJ> ADJ-C1RE

Paper left edge

Decrease the value of
ADJ-C1RE

(A decrease by 1 will
increase the margin by

0.1 mm.)

Increase the value of

ADJ-C1RE

(An increase by 1 will
decrease the margin by

0.1 mm.)

2nd side of
double-sided copy
for cassette

2.5 2.0mm

1

254681012141618200

- Left/Right Non-Image Width

2.1.2 Checking the Image Position

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Make 10 prints each using the following sources of paper; then, check to
make sure that the image margin and the non-image width are as indicated;
[1] individual cassettes
[2] manual feed tray
[3] side paper deck

If not as indicated, make the following adjustments:

1. Leading edge image margin (1st side)
Use the following service mode item to adjust the registration:

F-2-3

2.5 1.5mm
2nd side of double-sided copy

0
2
4

5
6

8

10

2.5 1.5mm

F-2-4

0001-1715

COPIER> ADJUST> FEED-ADJ> REGIST

0
2
4

5
6

8

10

- Cassette 2
COPIER> ADJUST> FEED-ADJ> ADJ-C2RE

F-2-7

Paper left edge

Decrease the value of
ADJ-C2RE

(A decrease by 1 will
increase the margin by

0.1 mm.)

5. Leading edge non-image width
Use the following service mode item to make adjustments:
COPIER> ADJUST> ADJ-XY> ADJ-X

Increase the value of

ADJ-C2RE

(An increase by 1 will
decrease the margin by

0.1 mm.)

2nd side of
double-sided copy
for cassette

2.5 2.0mm

1

0
2
4

5
6

8

10

F-2-8

2-11

Chapter 2

Decrease the value

1st side copy
2nd side of double-sided copy

6. Left/right non-image width
Use the following service mode item to make adjustments:
COPIER> ADJUST> ADJ-XY> ADJ-Y

Decrease the value of
ADJ-Y.
(A decrease by 10 will
decrease the margin by
1 mm.)

2.5 1.5mm

2.5 1.5mm

254 6 8 1012141618 200

2.1.3 Cassette

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

of ADJ-X.
(A decrease by
10 will decrease
the margin by
1 mm.)

Leading edge
of paper

Increase the value
of ADJ-X
(An increase by
10 will increase
the margin by
1 mm.)

F-2-9

Paper left edge
Increase the value of

ADJ-Y.
(An increase by 10 will
increase the margin by
1 mm.)

2.5 1.5mm
2nd side of

double-sided copy

2.5 1.5mm

0
2
4

5
6

8

10

F-2-10

0001-1716

A. Left/Right Image Margin Adjustment (1st side)

1) Open the lower right cover [2]; then, remove the 2 screws, and detach the
cover (lower front) [1].

F-2-12

A-1. Making Adjustments of the Cassette 1 (left/right image margin; 1st

side)

4) Free the 2 claws [2], and detach the grip (right front) [1].

5) Loosen the fixing screw [2] of the horizontal registration adjusting plate
[1] of the cassette.

6) In keeping with the index you checked in step 3), move the horizontal
registration adjusting plate back and forth. Moving the adjusting plate
toward the rear of the machine will increase the left/right image margin

F-2-13

on the front of the image.

[2]

2) Slide out the cassette 1 or 2.
(In the case of a 2-cassette pedestal, slide out the cassette 3 or 4.)

3) Check the index [1].

F-2-11

[1]

(Perform this step also for a 2-cassette pedestal.)

2-12

7) Tighten the fixing screw.

8) Fit the cassette 1.

9) Make copies using the cassette 1 as the source of paper, and check to make
sure that the margin is as indicated.

10) Fit back the grip (right front).

11) Fit back the machine's right front cover.

F-2-14

A-2. Making Adjustments for the Cassette 2 ( left/right image margin;

1st side)

4) Loosen the fixing screw [2] of the horizontal registration adjusting plate
[1] of the cassette.

5) In keeping with the index you checked in step 3), move the horizontal
registration adjusting plate back and forth. Moving the adjusting plate
toward the rear of the machine will increase the left/right image margin
on the front of the image.

Chapter 2

6) Tighten the fixing screw.

7) Fit back the cassette 2.

8) Make copies using the cassette 2 as the source of paper, and check to make
sure that the margin is as indicated.

F-2-15

9) Fit back the machine's right front cover.

B. Left/Right Image Margin (2nd side)

B-1. Making Adjustments for Cassette 1 (left/right image margin; 2nd

side)

1) If the margin is not as indicated, change the adjustment value for the left/
right margin of the 2nd side.

COPIER>ADJUST>FEED-ADJ>ADJ-C1RE

An increase by 1 will decrease the left/right margin on the front by 0.1 mm.

Paper left edge

Decrease the value of
ADJ-C1RE

(A decrease by 1 will
increase the margin by

0.1 mm.)

B-2. Making Adjustments for Cassette 2 (left/right image margin; 2nd

side)

1) Enter the same value as for ADJ-C1RE using the following service mode
item:

COPIER>ADJUST>FEED-ADJ>ADJ-C2RE

2) Make double-sided copies from the cassette 2, and check to make sure that
the margin is as indicated.

3) If not as indicated, change the adjustment value of the left/right margin on
the 2nd side for the cassette 2.

COPIER>ADJUST>FEED-ADJ>ADJ-C2RE

An increase by 1 will decrease the left/right margin on the front by 0.1 mm.

Decrease the value of
ADJ-C2RE

(A decrease by 1 will
increase the margin by

0.1 mm.)

4) Record the new adjustment values on the service label.

- ADJ-C1RE

- ADJ-C2RE

Increase the value of

ADJ-C1RE

(An increase by 1 will
decrease the margin by

0.1 mm.)

2nd side of
double-sided copy
for cassette

2.5 2.0mm

1

0
2
4

5
6

8

10

F-2-16

Paper left edge
Increase the value of

ADJ-C2RE

(An increase by 1 will
decrease the margin by

0.1 mm.)

2nd side of
double-sided copy
for cassette

2.5 2.0mm

1

0
2
4

5
6

8

10

F-2-17

5) Press the Reset key twice to end service mode.

2.1.4 Manual Feed Tray

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR

0001-1718

C2570i

A. Left/Right Margin Adjustment (1st side; mechanical adjustment)

1) Place paper in the manual feed tray.

2) Make copies using the manual feed tray, and check to make sure that the
left/right margin is 2.5 +/-1.5 mm.

- If not as indicated, perform the following:

3) Remove the paper from the manual feed tray.

4) Loosen the manual feed tray upper cover fixing screw [1].

5) So that the margin is as indicated, move the manual feed tray upper cover
back and froth.
Moving the manual feed tray upper cover toward the rear of the machine
will decrease the left/right margin on the front side.

6) Tighten the manual feed tray upper cover fixing screw.

7) Place paper in the manual feed tray.

8) Make copies using the manual feed tray as the source of paper, and check
to make sure that the margin is as indicated.

B. Left/Right Margin Adjustment (2nd side)

1) Make double-sided copies using the manual feed tray as the source of
paper, and check to make sure that the left/right margin on the 2nd side is

2.5 ±2.0 mm.

2) If not as indicated, change the adjustment value of the left/right margin on
the 2nd side for the manual feed tray.

COPIER > ADJUST > FEED-ADJ > ADJ-MFRE

An increase by 1 will decrease the left/right image margin by 0.1 mm on
the front side.

Decrease the value of
ADJ-MFRE.
(A decrease by 1 will
increase the margin
by 0.1 mm.)

3) Record the new adjustment values on the service label.

- ADJ-MFRE

4) Press the Reset key twice to end service mode.

2.1.5 Side Paper Deck

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

1) Check to make sure that the 4 adjusters [1] of the pedestal are in firm
contact with the floor.

F-2-18

Paper left edge
Increase the value of

ADJ-MFRE.
(An increase by 1 will
decrease the margin
by 0.1 mm.)

2nd side of
double-sided copy
for manual feed
tray: 2.5

0
2
4

5
6

8

10

F-2-19

2.0mm

0001-1722

2-13

Chapter 2

[1]

COPIER>ADJUST>CCD>CCDU-RG

(offset value against color displacement caused by CIS)

COPIER>ADJUST>CCD>MTF-MG

(MTF correction value for main scanning direction)

COPIER>ADJUST>CCD>MTF-SG

(MTF correction value for sub scanning direction)

[1]

2) Connect the machine's power plug, and turn on the power.

3) When the machine has completed its wait period, make copies using the
paper deck as the source of paper; then, make checks.

A. Left/Right Margin Adjustment (1st side; mechanical adjustment)

1) Make copies using the paper deck as the source of paper, and check to
make sure that the left-right margin is 2.5 -1.5, +1.5 mm.

- If not as indicated, perform the following:

2) Slide out the compartment.

3) Turn the 2 screws [2] to adjust the position of the latch plate [1] of the deck
open solenoid (SL2D).

F-2-20

At this time, use the index [3] on the latch plate as a reference.

[1] [3] [2]

B. Left/Right Margin Adjustment (2nd side)

F-2-21

1) Start service mode, and check the left/right margin for the cassette 1:

COPIER>ADJUST>FEED-ADJ>ADJ-CIRE

2) Enter the adjustment value of the left/right margin on the 2nd side for the
cassette 1 as the left/right margin on the 2nd side of the side deck.

COPIER>ADJUST>FEED-ADJ>ADJ-DKRE
An increase by 1 will increase the left/right image on the front by 0.1 mm.

Paper left edge

Decrease the value of
ADJ-DKRE.
(A decrease by 1 will
decrease the margin by

0.1 mm.)

Increase the value of
ADJ-DKRE.
(An increase by 1 will
increase the margin
by 0.1 mm.)

2nd side of
double-sided copy
for paper deck

2.0mm

: 2.5

-012. 72. 70

CCDU-RG

MTF-MG

Also, be sure to update the values indicated on the service label attached be­hind the reader left cover by the values indicated on the CIS label.

Reference:
The machine is not shipped out of the factory with the CIS label attached to

F-2-23

it.

2.2.2 After Replacing the Copyboard Glass

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

A. Enter the value indicated by the bar code found at the upper right on the

copyboard glass (copyboard cover) using the following service mode
items:

COPIER>ADJUST>CCD>W-PLT-X
COPIER>ADJUST>CCD>W-PLT-Y
COPIER>ADJUST>CCD>W-PLT-Z

(standard white plate white level data X, Y, Z)

MTF-SG

0002-4561

0
2
4

5
6

8

10

3) Press the Reset key twice to end service mode.

F-2-22

2.2 Scanning System

2.2.1 After Replacing the CIS

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Be sure to enter the values indicated on the CIS label attached to the contact
image sensor (CIS) using the following service mode items:

2-14

0002-4555

W-PLT-X

W-PLT-Y

B. Enter the value indicated by the bar code found at the upper left of the

copyboard glass (copyboard sheet) using the following service mode
item:

COPIER>ADJUST>CCD>BOOK-RG

(offset value against color displacement caused by copyboard glass)

F-2-24

W-PLT-Z

Chapter 2

-04

BOOK-RG

F-2-25

2.2.3 After Replacing the ADF Reading Glass

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Enter the value indicated by the bar code found on the ADF reading glass us­ing the following service mode item:

COPIER>ADJUST>CCD>DF-RG

0002-4566

(offset value against color displacement caused by stream reading glass)

002

DF-RG

F-2-26

2.2.4 After Replacing the Reader Controller PCB or After Initializing the RAM

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

- Before replacing the reader controller PCB, be sure to generate the latest P-

PRINT printout.

<if you are initializing the RAM of the reader controller without replacing

the PCB>

- Using the SST, upload the reader controller backup data; after initializing

the RAM, download the data, thus eliminating the need for the following
adjustment.

1. Reader Unit-Related Adjustment

1) Using the SST, download the latest system software (R-CON).

2) Make the following selections in service mode:

COPIER>FUNCTION>CLEAR>R-CON; then, press the OK key to
initialize the RAM. Thereafter, turn off and then on the main power.

3) Enter the appropriate values using the following service mode items:

a. standard white plate white level data

COPIER>ADJUST>CCD>W-PLT-X,Y,Z
b. offset value against color displacement for copyboard glass (copyboard

cover)

COPIER>ADJUST>CCD>BOOK-RG
c. offset value against color displacement for copyboard glass (ADF)
COPIER>ADJUST>CCD>DF-RG

0002-4569

DF-RG

W-PLT-X

W-PLT-Y

d. service label (behind reader unit left cover) values

BOOK-RG

W-PLT-Z

F-2-27

d-1. CIS read position adjustment (fixed reading)

COPIER>ADJUST>ADJ-XY>ADJ-X

d-2. main scanning direction position adjustment (fixed reading)

COPIER>ADJUST>ADJ-XY>ADJ-Y

d-3. shading position adjustment (fixed reading)

COPIER>ADJUST>ADJ-XY>ADJ-S

d-4. sub scanning direction color displacement correction

COPIER>ADJUST>CCD>CCDU-RG

d-5. main/sub scanning direction MTF value

COPIER>ADJUST>CCD>MTF-MG,SG

d-6. auto gradation correction target value

COPIER>ADJUST>PASCAL>OFST-P-Y,M,C,K

If the value of the following was not 0 before the replacement of the

reader controller PCB: COPIER>OPTION>BODY>CCD-LUT.

Set a value other than '0' once again, and make the following adjustments

using the D-10 Chart.

COPIER>FUNCTION>CCD>LUT-ADJ2

2. ADF-Related Adjustment

The machine keeps ADF-related service mode data in the RAM of the
reader controller; as such, you will have to make the appropriate
adjustments if you have replaced the reader controller or initialized the
RAM.

1) Enter the values indicated in the P-PRINT printout you have previously
generated for the following:

a. main scanning direction position adjustment (stream reading)

COPIER>ADJSUT>ADJ-XY>ADJ-Y-DF
b. original stop position adjustment
FEEDER>ADJSUT>DOCST
c. original feed speed (magnification) adjustment
FEEDER>ADUST>LA-SPEED

2) Make adjustments using the following items:

a. tray width adjustment

FEEDER>FUNCTION>TRY-A4
FEEDER>FUNCTION>TRY-A5R
FEEDER>FUNCTION>TRY-LTR
FEEDER>FUNCTION>TRY-LTRR
b. CIS read position adjustment (stream reading)
COPIER>FUNCTION>INSTALL>STRD-POS
c. white level adjustment
COPIER>FUNCTION>CCD>DF-WLVL1
COPIER>FUNCTION>CCD>DF-WLVL2

When you have finished the foregoing adjustments, put the P-PRINT print­out [1] you have previously generated in the service book cassette to replace
the old P-PRINT printout.

2-15

Chapter 2

F-2-28

2.3 Laser Exposure System

2.3.1 After Replacing the Laser Scanner Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Enter the values indicated on the label attached to the laser scanner unit using
the following service mode item:

- COPIER>ADJUST>LASER>LA-DELAY

0001-6187

2.4 Image Formation System

2.4.1 After Replacing the Intermediate Transfer Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Execute the following service mode item:

- COPIER>FUNCTION>MISC-P>1ATVC-EX

2.4.2 After Replacing the Intermediate Transfer Belt

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Execute the following service mode item:

- COPIER>FUNCTION>MISC-P>1ATVC-EX

2.4.3 After Replacing the Primary Transfer Roller

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Execute the following service mode item:

- COPIER>FUNCTION>MISC-P>1ATVC-EX

2.4.4 After Replacing the Drum Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

1) Initialize the drum unit. Execute the following service mode item.

- COPIER>FUNCTION>CLEAR>DRM-LIFE
While initialization is under way, the machine flashes "ACTIVE" on its
screen. It indicates "OK!" at the end of initialization in about 1 min.

0001-6190

0001-6879

0001-6881

0001-6872

5) Execute 'Full Adjust' of auto gradation correction in Additional Function.

2.4.5 After Replacing the Developing Unit (Y, M, C)

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

1) Execute the following service mode item (color):

- COPIER> FUNCTION> INSTALL> STIR-Y/M/C

2) Execute the following service mode item (color):

- COPIER> FUNCTION> INSTALL> INIT-Y/M/C (If you have replaced
the Y, M, and C cartridges at the same time, execute INIT-3.)

3) Execute the following service mode item (color):

- COPIER> FUNCTION> INSTALL> SPLY-Y/M/C

4) Record the value for the following service mode item (color) on the
service label:

- COPIER> ADJUST> DENS> SGNL-Y/M/C

- COPIER> ADJUST> DENS> REF-Y/M/C

5) Execute 'Full Adjust' of auto gradation correction in Additional Function.

2.4.6 After Replacing the Developing Unit (Bk)

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR

F-2-29

0001-6772

0001-6193

C2570i

1) Execute the following service mode item:

- COPIER> FUNCTION> INSTALL> STIR-K

2) Execute the following service mode item:

- COPIER> FUNCTION> INSTALL> SPLY-K

3) Execute the following service mode item; thereafter, check to see that the
value has been initialized to '0':

- COPIER> COUNTER> MISC> DV-UNT-K

4) Execute 'Full Adjust' of auto gradation correction in Additional Function.

2.4.7 After Replacing the Secondary Transfer Outside

Roller

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

- If you have replaced the secondary transfer outside roller, be sure to apply
about 10 mg of grease (FY9-6008) to the end [2] (side without the blue
marking) at the rear of the secondary transfer outside roller [1].

0001-8396

Do not touch any of the keys, open the door, or turn off the power while

initialization is under way. Otherwise, go back to step 1) and start over.

2) When initialization is done, check to see that the value of the following
service mode item is '0':

- COPIER>DISPLAY>MISC>DRM-LIFE

If not '0', go back to sep 1) and start over.

3) Record the value indicated in the following service mode item in the
Remarks field of the drum initial value label (attached to the light­blocking sheet of a new drum unit):

- COPIER>ADJUST>HV-PRI>DR-I-INT

As necessary, record the date of drum unit replacement and the counter

reading on the drum initial value label.

4) Attach the drum initial value label to the front [1] of the drum unit.

2-16

F-2-30

2.4.8 How to replace the primary transfer roller holder

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

0006-9351

<Removing steps>

1) Draw a mark-off line at the attachment position of the primary transfer

roller holder. At this time, care should be taken to draw the line precisely
because the primary transfer roller holder is attached back based on the
line.

Chapter 2

2) Remove the bushing [1].

[1]

[1]

[1]

[2]

F-2-33

Do not reuse the removed contact plate. There are cases where the contact
plate that has been removed once fails to be attached securely or it is de­formed when being detached. Be sure to replace the contact plate with new
one.

4) Remove the 2 screws [1], and detach the primary transfer roller holder [2].

[2]

F-2-31

3) Remove the contact plate [1] from the boss [2].

F-2-32

[1]

<Attaching steps>

1) Attach the primary transfer roller holder [2] temporarily using the 2
screws [1].

F-2-34

[2]

[1]

2) Fit the primary transfer roller holder to the mark-off line, and tighten the
temporarily attached 2 screws securely. At this time, make sure that the
hole [A] (center hole of the 13 round holes) and hole [B] (center hole of
the 13 slotted holes) on the primary transfer roller holder and the ITB
frame are in correct positions as shown in the figures below.

F-2-35

2-17

Chapter 2

4) See that the paper is stopped once between the fixing roller and then
discharged in about

15 sec.

5) Check to see the nip width of the discharged paper is as indicated.

b

[A]

[B]

[A]

[B]

F-2-36

Image blanking may occur if the holes on the primary transfer roller holder
and the ITB frame are not in correct positions.

3) Attach the contact plate and the bushing back to the machine.

2.5 Fixing System

2.5.1 After Disassembling the Fixing Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

1) If you have detached any of the following electrical components, check to
see if it has been mounted back correctly;

- fixing main thermistor

- fixing sub thermistor

- fixing thermal switch

2) Adjust the fixing roller nip.

Service Mode;

COPIER>FUNCTION>FIXING>NIP-CHK

fixing nip width auto measurement output

0001-1743

a

c

standard: b, c

9.25 -0.25, +0.25 mm (less than 5000 sheets)

9.25 +1.25/ -0.25mm difference between b and c 0.5 mm or less (5000 sheets
or more)

standard: a (reference only)
from 8.5 to 9.0 mm (less than 5000 sheets)
from 8.5 to 10.0 mm (5000 sheets or more)

Note 1:
The point of measurement for a is in the middle of paper.

Note 2:
The points of measurement for b and c are 10 to 15 mm from the edge of pa-

F-2-37

per.

Note 3:
The arrow in the figure indicates the direction of paper movement.

Note 4:
The nip tends to increase as more and more paper is moved past. There is no
need, however,
for another session of adjustment each time 5000 sheets have been moved
past. If
adjustments are needed for some reason, try so that b and c are adjusted to
match the median
value of 9.25 mm.

6) If the nip width is not as indicated, perform the following:
6-1) Turn the front and rear adjusting screws to adjust the nip.

EX: if the median value of the nip measurements is closer to the lower limit,
tighten the screw of the side where the nip at the ends is smaller; a full turn

of the screw will

cause a change of about 0.5 mm.

EX: if the nip balance is correct, turn the screws of both sides.

2.5.2 After Replacing the Fixing Unit

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

1) Initialize the fixing roller counter in service mode:

COPIER>COUNTER>MISC>FX-UP-RL

2.5.3 After Replacing the Fixing Roller

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

1) Initialize the fixing roller counter in service mode:

COPIER>COUNTER>MISC>FX-UP-RL

0001-6541

0001-6546

2) Perform nip adjustments.

2.5.4 Nip Adjustment

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Generate a printout of automatic measurement of the fixing nip width.

Method of operation

1) Select 'plain paper' or 'recycled paper' as the type of paper for the cassette
1 (Additional

Function> common settings >paper type).

2) Place A4/LTR plain paper or recycled paper in the cassette 1.

3) Press the OK key (so that paper is picked up from the cassette 1).

0001-7823

2-18

7) After the work, generate a test print using the following: COPIER>
TEST> PG> TYPE6

(grid).

F-2-38

2.5.5 Point to Note About the Position of the Fixing Main

Thermistor

iR C3100 / / / iR C3100N / / / / iR C2570 / / iR C3170 / / iR C3170i / iR
C2570i

Caution 1

Check to be sure that the thermistor cover [2] is fitted under the fixing main

0003-5490
