Canon iPF850 series Basic Manual

Download

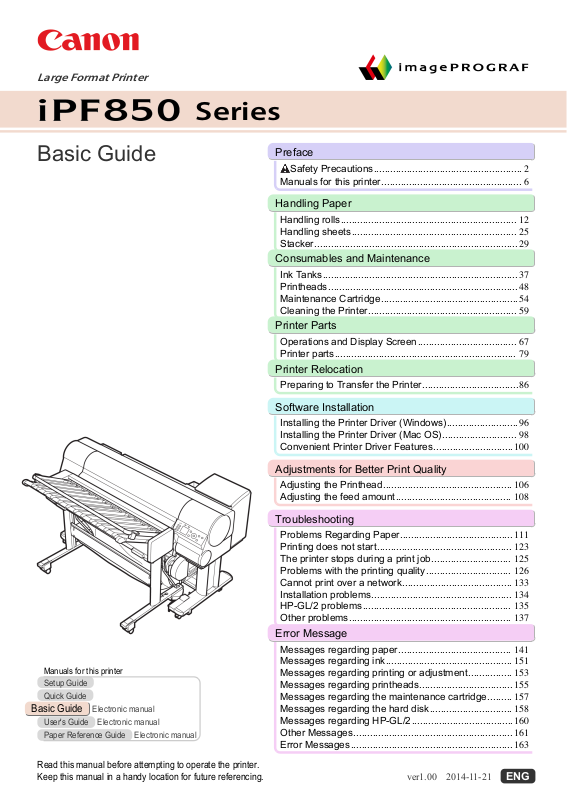

Page 1
Large Format Printer
Series
Basic Guide
Preface
Safety Precautions...................................................... 2
Handling Paper
Handling rolls................................................................ 12
Handling sheets............................................................ 25
Stacker.......................................................................... 29
Consumables and Maintenance
Ink Tanks....................................................................... 37
Printheads..................................................................... 48
Maintenance Cartridge.................................................. 54
Cleaning the Printer...................................................... 59
Printer Parts

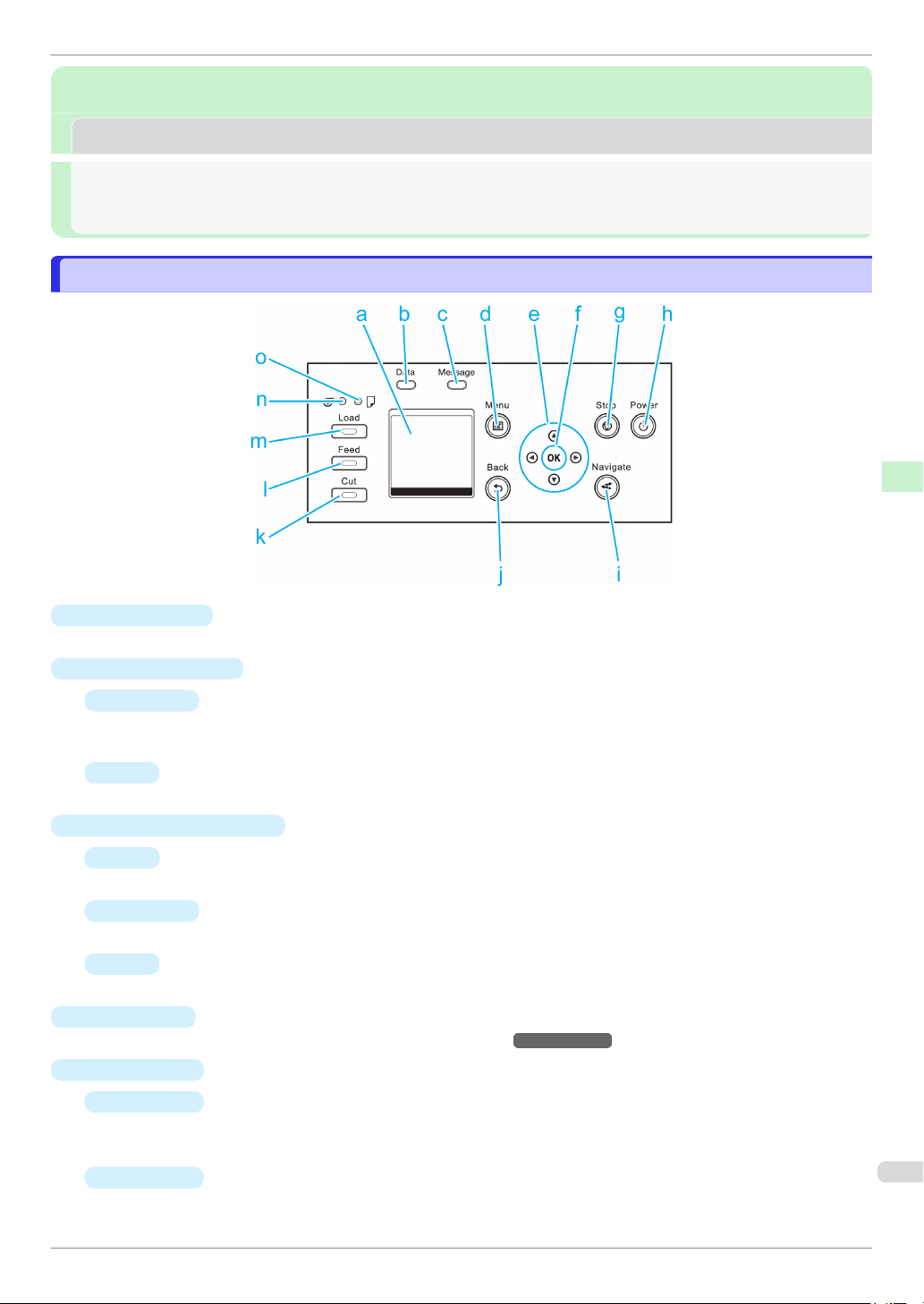

Operations and Display Screen.................................... 67
Printer parts.................................................................. 79
Printer Relocation
Preparing to Transfer the Printer...................................86
Software Installation

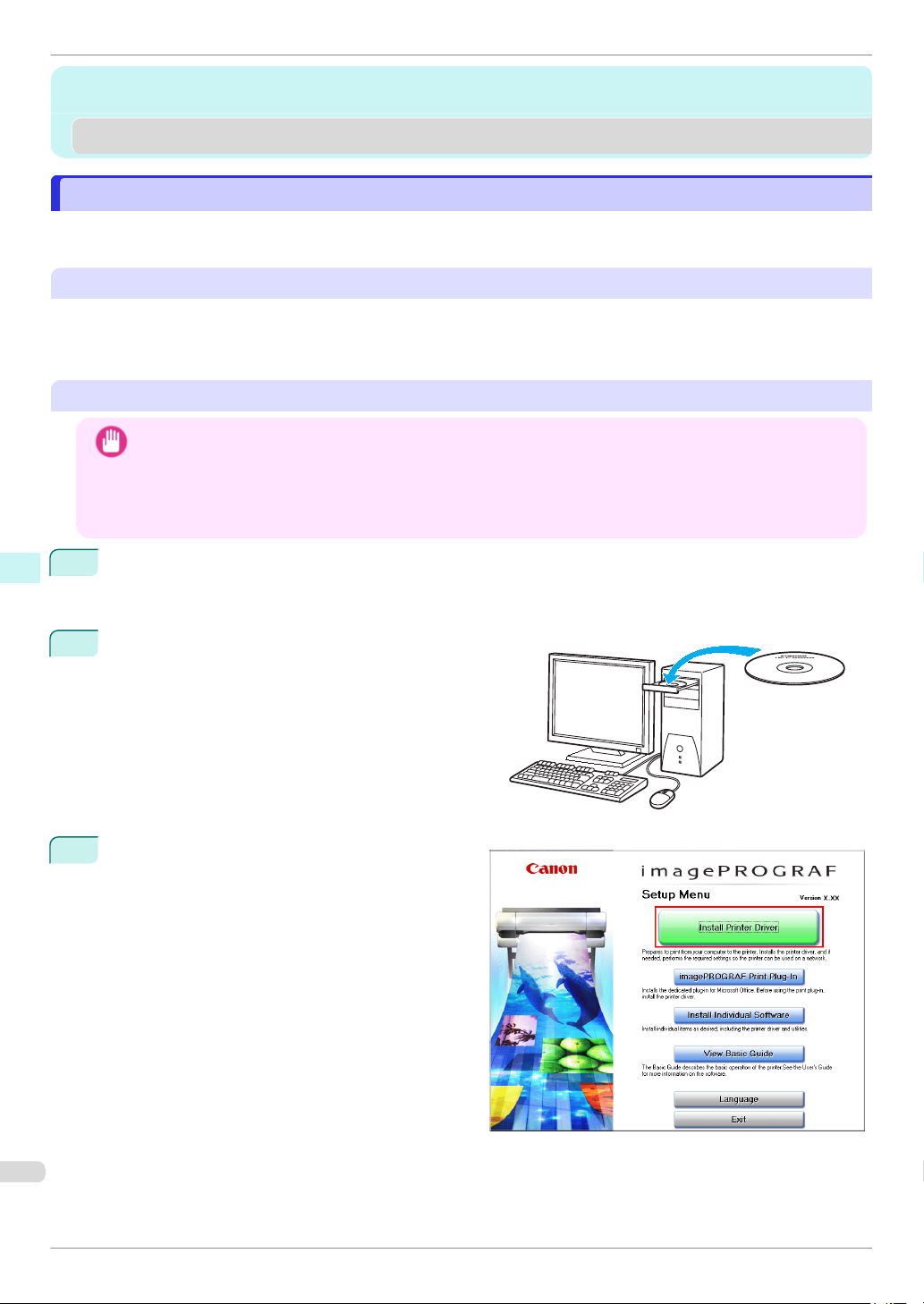

Installing the Printer Driver (Windows).......................... 96

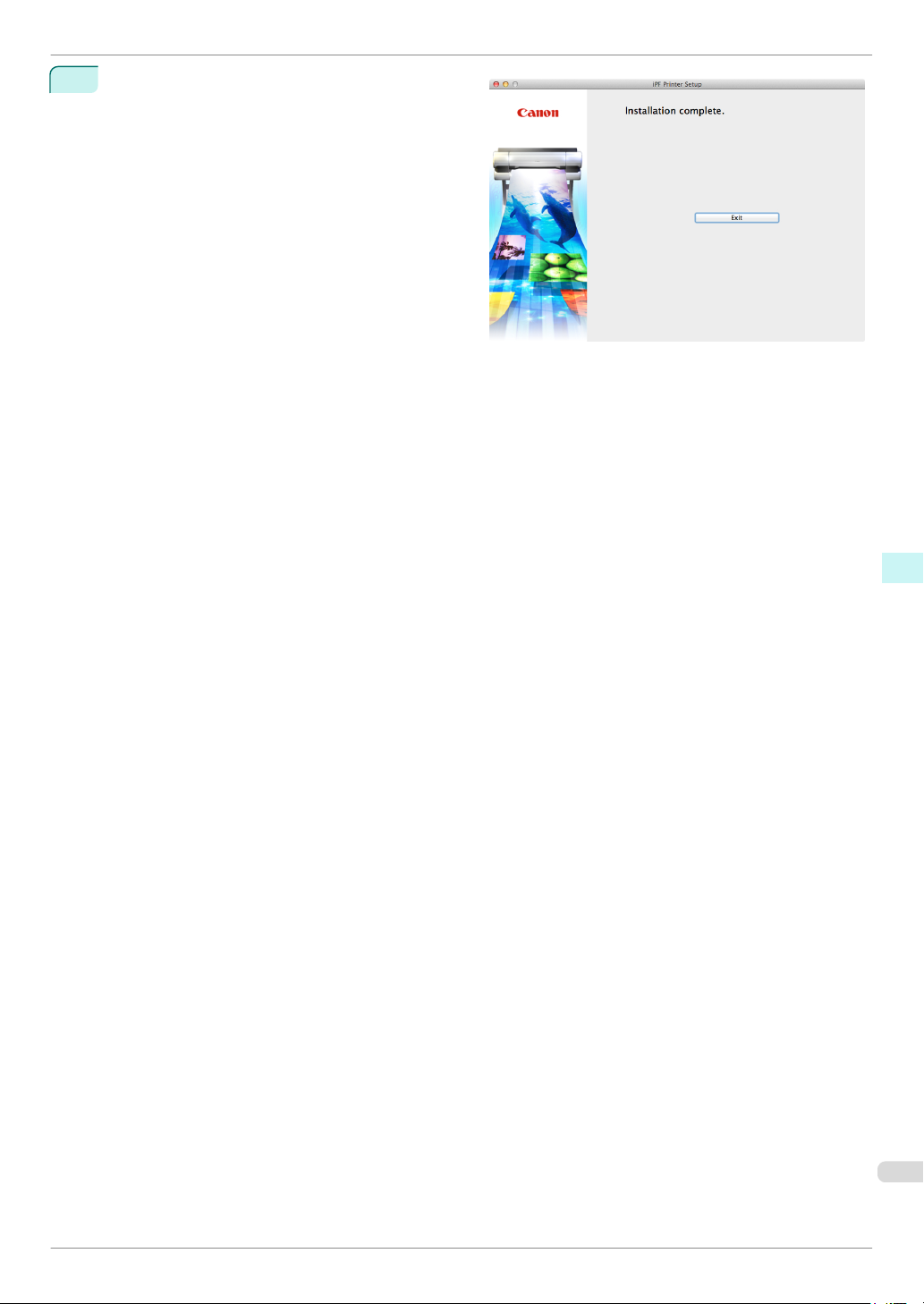

Installing the Printer Driver (Mac OS)........................... 98
Convenient Printer Driver Features............................. 100
Adjustments for Better Print Quality
Adjusting the Printhead............................................... 106
Adjusting the feed amount.......................................... 108
Troubleshooting
Error Message
Manuals for this printer
Setup Guide Quick Guide
Basic Guide Electronic manual
User's Guide Electronic manual Paper Reference Guide Electronic manual
Read this manual before attempting to operate the printer. Keep this manual in a handy location for future referencing.
Problems Regarding Paper......................................... 111
Printing does not start................................................. 123
The printer stops during a print job............................. 125
Problems with the printing quality............................... 126
Cannot print over a network........................................ 133
Installation problems................................................... 134
HP-GL/2 problems...................................................... 135
Other problems........................................................... 137
Messages regarding paper......................................... 141
Messages regarding ink.............................................. 151
Messages regarding printheads.................................. 155
Messages regarding the maintenance cartridge......... 157
Messages regarding the hard disk.............................. 158
Other Messages.......................................................... 161
Error Messages........................................................... 163
ver1.00 2014-11-21
ENG
Page 2

Safety Precautions

Preface

Preface

Safety Precautions

Safety Precautions
Safety Precautions ............................................................................................................................................ 2
Legal Notices ....................................................................................................................................................4
Safety Precautions
Preface Safety Precautions
Safety Precautions
Follow the warnings and precautions below to use the printer safely. Do not perform any operations or procedures other than as described in this manual. Doing so may result in unexpected accidents and can cause a fire or elec­trical shocks.
Printer location
•
Do not set up the printer in any location exposed to alcohol, thinner, or other volatile liquids. If these substances
Warning
Caution
come into contact with electrical components inside the printer, there is a risk of fire or electrical shock.
•
Never install the printer on an unstable or vibrating surface. If it falls over, this could cause personal injury.
•
Never set up the printer in a location that is exposed to high humidity or large amounts of dust, or exposed to direct sunlight, high temperature, or open flame. This could cause a fire or electrical shock. Use the printer loca­tion in an environment where temperature and humidity are within the ranges of 15 °C to 30 °C (59 °F to 86 °F) and 10 to 80% RH (with no condensation).
•
Never place the printer on a heavy wool or shag carpet. The fibers may enter the printer and cause a fire.
•
Keep the area around the power outlet clear of items so that you can disconnect the power cable immediately if the printer starts operating abnormally. In the event of a printer malfunction, remove the power cable from the outlet as soon as possible to prevent fire and electrical shocks.
•
Do not install the printer near sources of strong electromagnetic fields, whether equipment that generates such fields or places where such fields occur. This could damage the printer or cause malfunction.
iPF850 Series
Power Supply
•
Never handle the power cable with wet hands. Doing so may cause electrical shock.
•
Warning
Basic Guide
Insert the power cable securely and completely into the power source. If the power cable is not inserted com­pletely, this could cause a fire or electrical shock.
•
Do not use any power cable other than the one provided. This could cause a fire or electrical shock. Never use the power cable with any other electrical device.
•
Never cut the power cable or attempt to modify it, and never stretch it or bend it forcefully. Never place a heavy object on the power cable. Damaged sections of the power cable could cause a short circuit and may cause a fire or electrical shock.
•
Never connect the power cable to a power strip or any power source shared by other electrical devices. This could cause a fire or electrical shock.
Never knot the power cable or wrap it around itself. This could cause a fire or electrical shock.
•
Periodically disconnect the power cable and use a dry cloth to wipe away dust that has collected on the plug and
•
the area around the power outlet. Leaving the power cable plugged in and not cleaned for a long period, especial­ly in an area subject to dust, oil, and humidity, could cause the insulation material to deteriorate and lead to a fire.
Page 3
iPF850 Series
Caution
Safety Precautions
•
Always grip the plug to remove the power cable from the power outlet. Pulling on the power cable could damage the cable and lead to a fire or electrical shock.
•
Never use an extension cord. This could cause a fire or electrical shock.
•
Never use any power source other than 100–120 / 220–240 V AC. This could cause a fire or electrical shock. The printer operating conditions are described below. Use the printer under the following conditions. Power supply voltage: 100–120 / 220–240 V AC Power supply frequency: 50/60 Hz
In an Emergency
•
If the printer emits smoke or strange odors, continuing to use the printer may cause a fire or electrical shock.
Warning
Switch the printer off immediately and remove the power plug from the power outlet. Contact your Canon dealer or support center.
Cleaning the Printer
•
For cleaning, use a cloth dampened in water. Never use flammable solvents such as alcohol, benzene, or thinner.
Warning
Caution
If these substances come into contact with electrical components inside the printer, there is a risk of fire or electri­cal shock.
•
Always disconnect the power cable from the outlet before cleaning the printer. If the printer is switched on acci­dentally, moving parts inside the printer may cause personal injuries.
Pacemakers
•
This printer generates a low-level magnetic field. Anyone wearing a pacemaker who experiences discomfort while
Warning
working around the printer should leave the area. Consult a physician before continuing to work around the print­er.

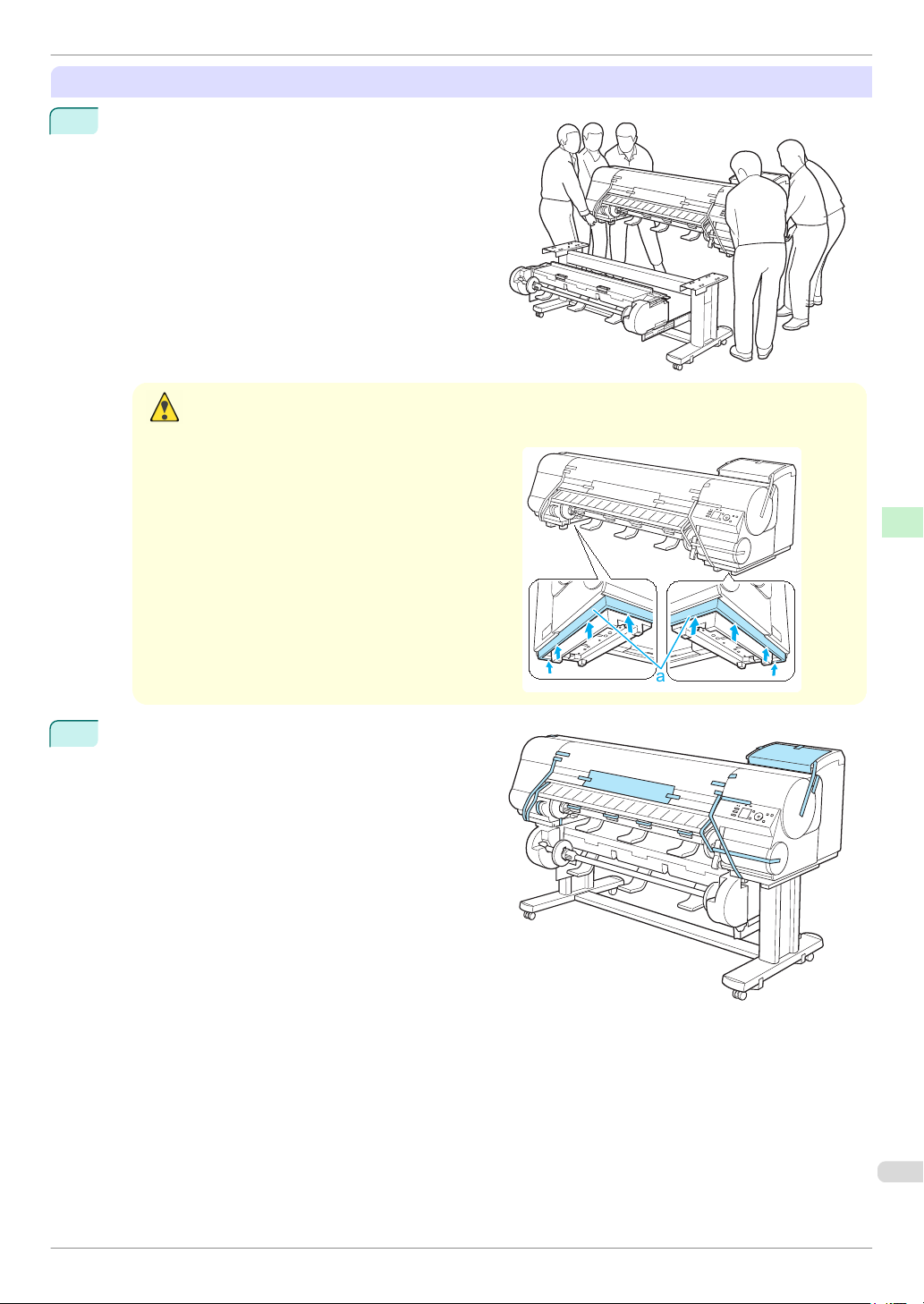

Moving the Printer
•
Moving the printer requires at least six people, holding it on both sides. Be careful to avoid back strain and other
Caution
injuries.
•
When moving the printer, firmly grasp the Carrying Handles under each side. The printer may be unsteady if you hold it at other positions, which poses a risk of injury from dropping the printer.
Preface Safety Precautions
Printhead, Ink Tanks, and Maintenance Cartridge
•
Always store consumables in a safe location out of the reach of small children. If a child licks or ingests ink acci-
Caution
Basic Guide
dentally, seek medical assistance immediately.
•
If ink accidentally gets in your eyes, immediately rinse with water. If ink gets on your skin, immediately clean it off with soap and water. If irritation persists in your eyes or on your skin, contact a physician immediately.
•
Avoid dropping or shaking printheads, ink tanks, and maintenance cartridges. Spilled ink can stain clothing and the work area.
•
Never touch the electrical contacts of the Printhead after printing. The contacts become extremely hot and can cause minor burns.
3
Page 4
a

Legal Notices

Other
•
Never disassemble the printer or attempt repairs. There are high voltage parts inside the printer that can cause a
Warning
Preface Safety Precautions
Caution
fire or electrical shock.
•
Never use flammable sprays around the printer. The gas of flammable sprays can cause a fire or electrical shock, if it contacts high voltage points inside the printer.
•

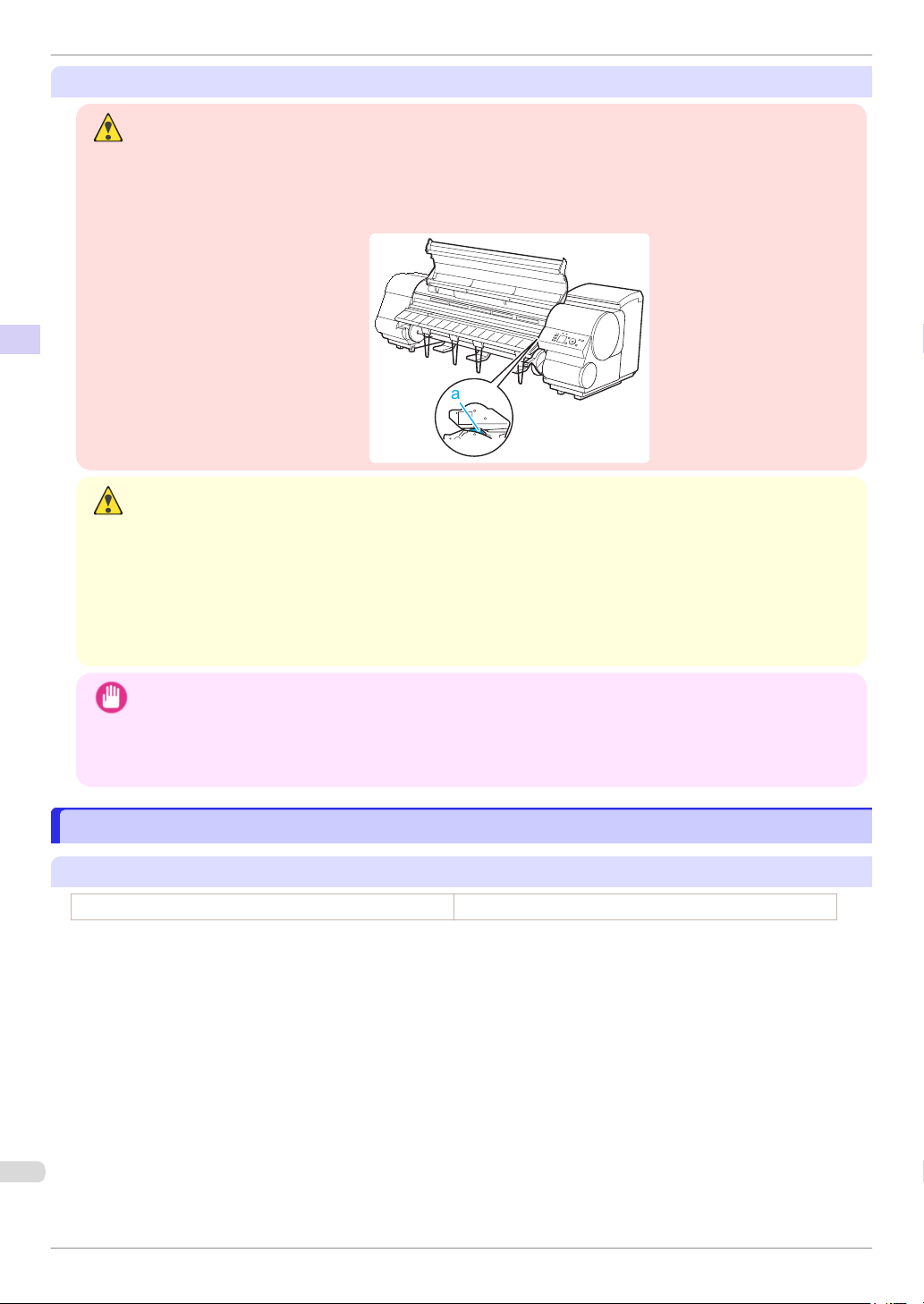

Never touch the cutting edge of Cutter Unit (a). This could cause personal injury.
•
Never insert your hand into the printer while it is printing. Moving parts inside the printer can cause injuries.
•
Never place anything on the printer such as small metal objects (paper clips, staples), liquids, any type of liquid container that contains flammable liquids (alcohol, benzene, etc.). If such objects fall into the printer, this could cause a fire or electrical shock.
•
To prevent a fire hazard or dangerous electric shock, if a foreign object falls into or a liquid spills into the printer, press the Power button immediately to switch the printer off, unplug the printer power cable from the outlet, and then contact your Canon dealer or support center. If you continue to use the printer, this could cause a fire or electrical shock.
iPF850 Series
•
Connect the interface cable correctly. To avoid damage, before connection make sure that the shape of the cable
Important
Legal Notices
Legal Notices
connector matches the connection point on the printer.
•
During printing, turn on the ventilation system in the room.
•
We recommend ensuring ample space for installation.
FCC Regulations (U.S.A)
Canon Large Format Printer iPF850
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accord­ance with the instructions, may cause harmful interference to radio communications.However, there is no guaran­tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
Basic Guide
Page 5
iPF850 Series
•
•
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A. Inc. One Canon Park Melville, NY 11747 , U.S.A. Tel No. 1-800-652-2666
Legal Notices
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
For CA, USA Only
Included battery contains Perchlorate Material - special handling may apply. See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ for detail.
Trademarks
•
Canon, the Canon logo, and imagePROGRAF are trademarks or registered trademarks of CANON INC.
•
Microsoft is a registered trademark of Microsoft Corporation.
•
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
•
Mac, Mac OS, Bonjour and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
•
Adobe RGB, a trademark of Adobe Systems Incorporated, is color space proposed by Adobe Systems Incor­porated.
Copyright
•
Unauthorized reproduction of this user manual in whole or part is prohibited.
Legal Notice
•
It is illegal to reproduce currency, bills, negotiable securities and other documents prohibited by law. Reproduc­tion of such items may be subject to criminal prosecution.
•
It is illegal to reproduce legal certificates, licenses, travel tickets, and certain public and private documents pro­hibited from reproduction by law. Reproduction of such items may be subject to criminal prosecution.
•
Please note that intellectual property protected by copyright may not be reproduced without the express per­mission of the copyright holder except for personal or household use under limited circumstances.
Preface Safety Precautions
Basic Guide
5
Page 6

Manuals for this printer

Manuals for this printer

Manuals for this printer
Manuals for this printer ..................................................................................................................................... 6
To view the User's Guide or Paper Reference Guide ......................................................................................... 6
About This User Manual .................................................................................................................................. 10
Manuals for this printer
Manuals for this printer
This printer has the following manuals.
Preface Manuals for this printer
Name Contents Medium
Setup Guide Instructions for unpacking and setting up the printer, and for
installing the software and electronic manuals.
Quick Guide Contains information such as a guide to exchanging paper,
Ink Tank, and Printhead, and cautions for using the product safely.
Basic Guide Descriptions of basic printer operations. Electronic manuals
User's Guide Detailed instructions for using the printer.
Paper Reference Guide This guide describes about the types and specifications of the
available media on the printer.
Setup Guide Quick Guide Basic Guide User's Guide Paper Reference Guide
Printed Manuals
iPF850 Series

To view the User's Guide or Paper Reference Guide

To view the User's Guide or Paper Reference Guide
To view the User's Guide or Paper Reference Guide, display the various manuals on the website from the links in the software installed on your computer.
•
Windows The basic instructions for displaying the User's Guide or Paper Reference Guide from the printer driver are as
follows.
1
Install the software. Note that the driver installation procedure varies depending on the type of connection.
(See "Installing the Software (Windows).") ➔P.96
2

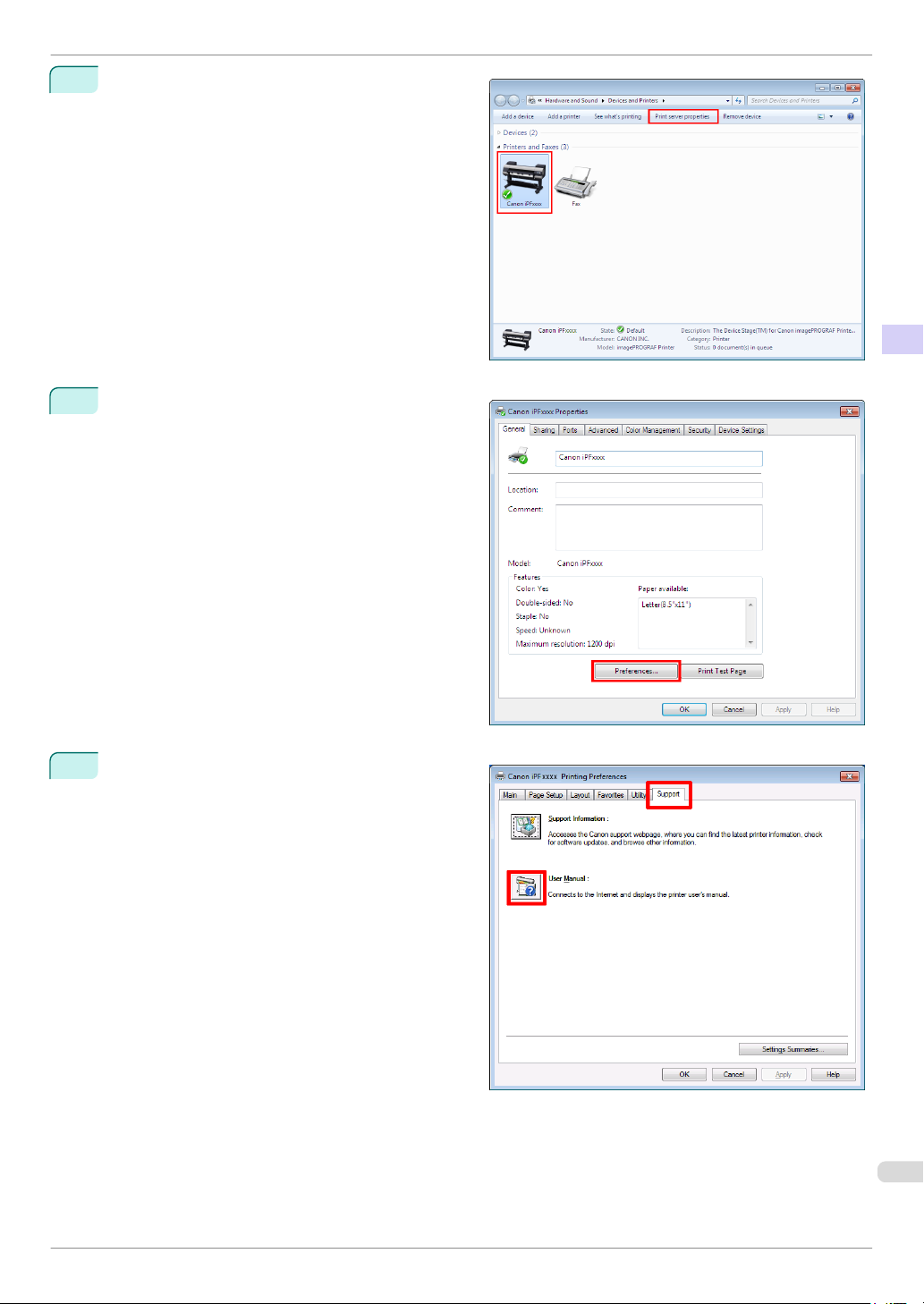

Click start > Printers and Faxes (or Printer, Devices and Printers).
Basic Guide
Page 7
iPF850 Series
Right-click the printer, and then click Properties (or
3
Printer Properties).
Click Preferences (or Printing Preferences) to
4
display the Printing Preferences dialog box with the printer name added to the title.
To view the User's Guide or Paper Reference Guide
Preface Manuals for this printer
Select the Support sheet and click the User Man-
5
ual button.
7
Basic Guide
Page 8
To view the User's Guide or Paper Reference Guide

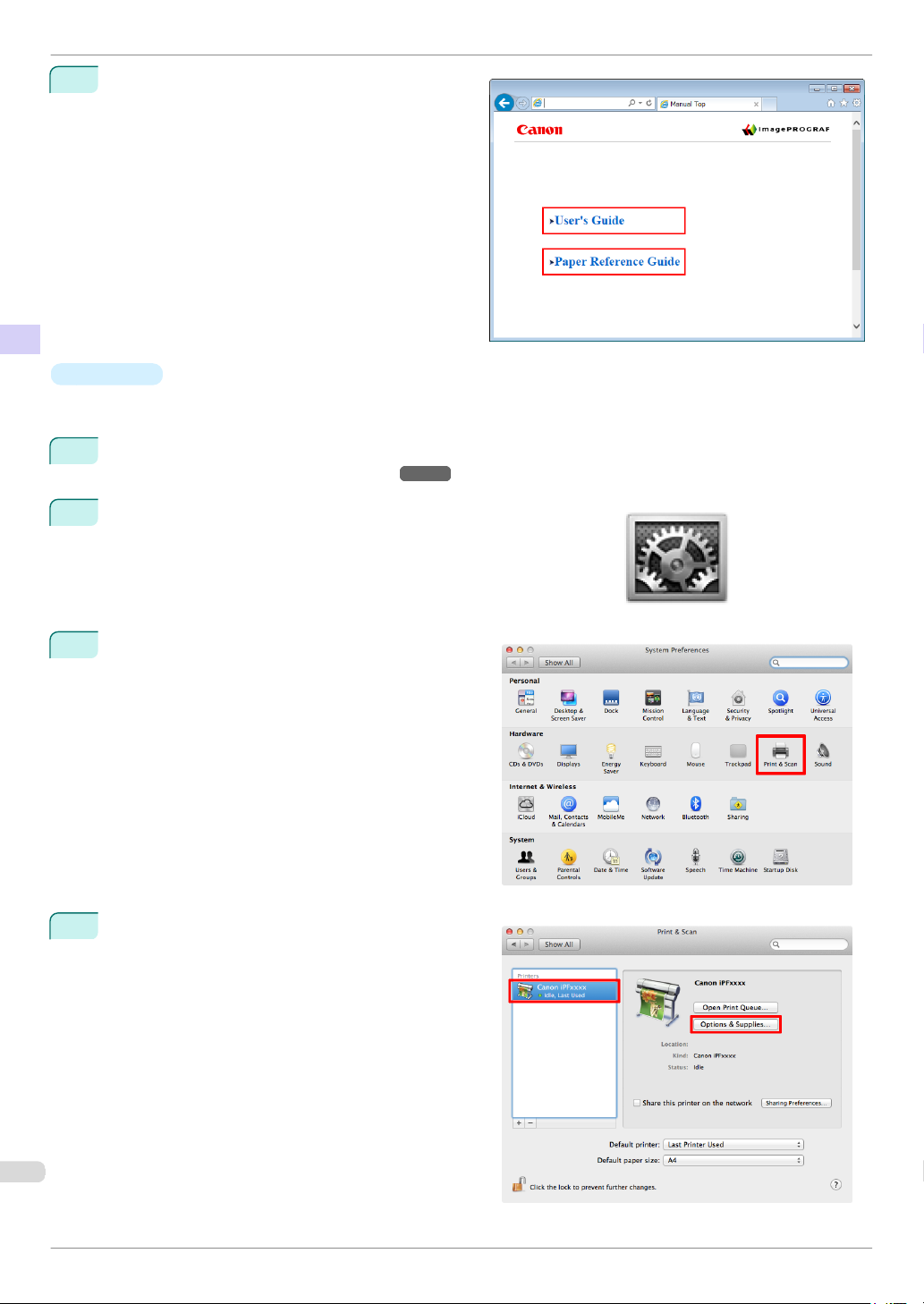

To display User's Guide, click User's Guide.
6
Alternately, to display Paper Reference Guide, click Paper Reference Guide.
Preface Manuals for this printer
•
Mac OS The basic instructions for displaying the User's Guide or Paper Reference Guide from imagePROGRAF Print-
monitor are as follows.
1
Install the software.
(See "Installing the Software (Mac OS).")
Click System Preferences icon in the Dock.
2
➔P.98
iPF850 Series
Click Printers & Scanners (Print & Scan or Print &
3
Fax).
Select the printer in the Printer list and click Options
4
& Supplies.
Basic Guide
Page 9
iPF850 Series

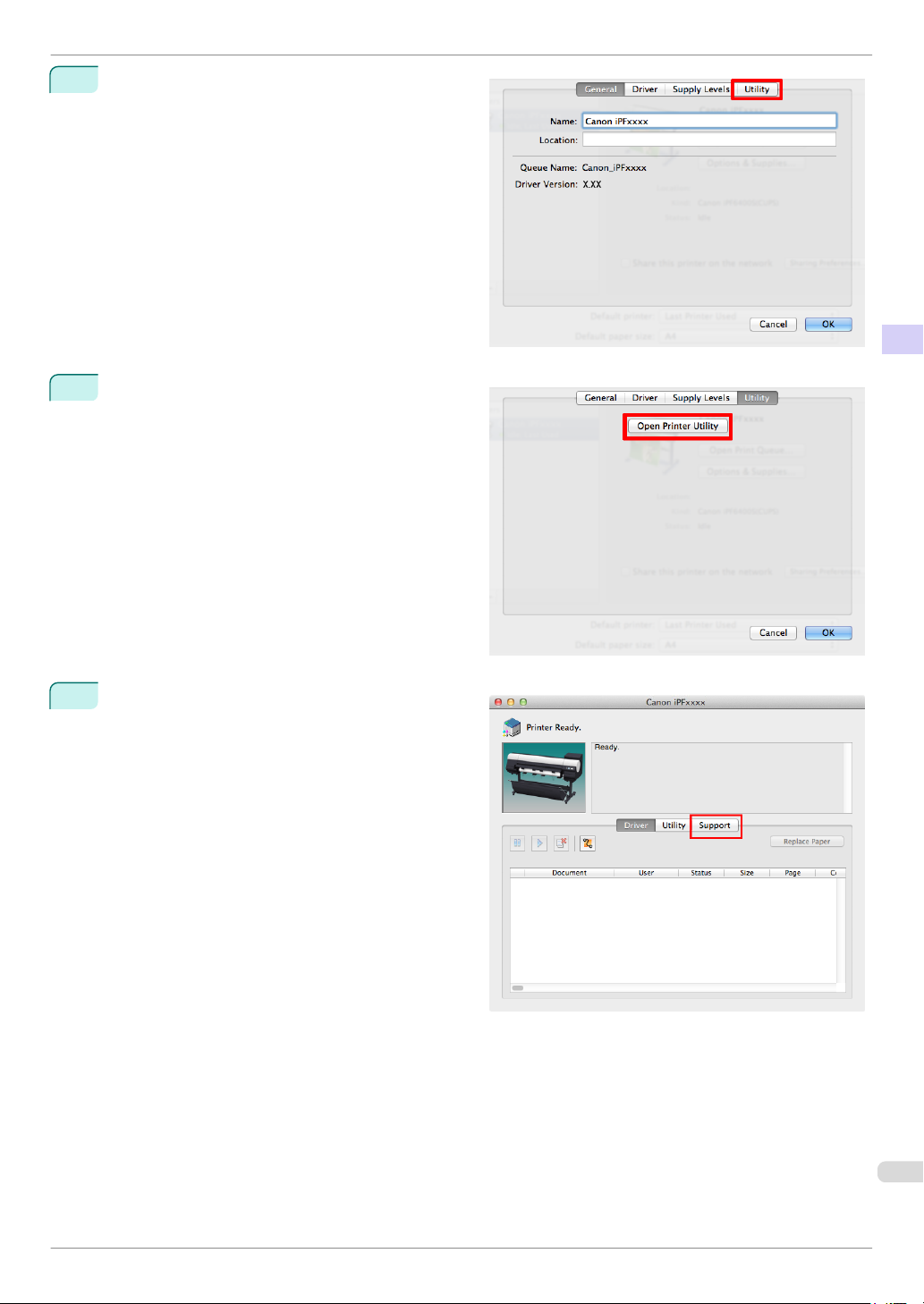

Click Utility.
5
Click Open Printer Utility.
6
To view the User's Guide or Paper Reference Guide
Preface Manuals for this printer

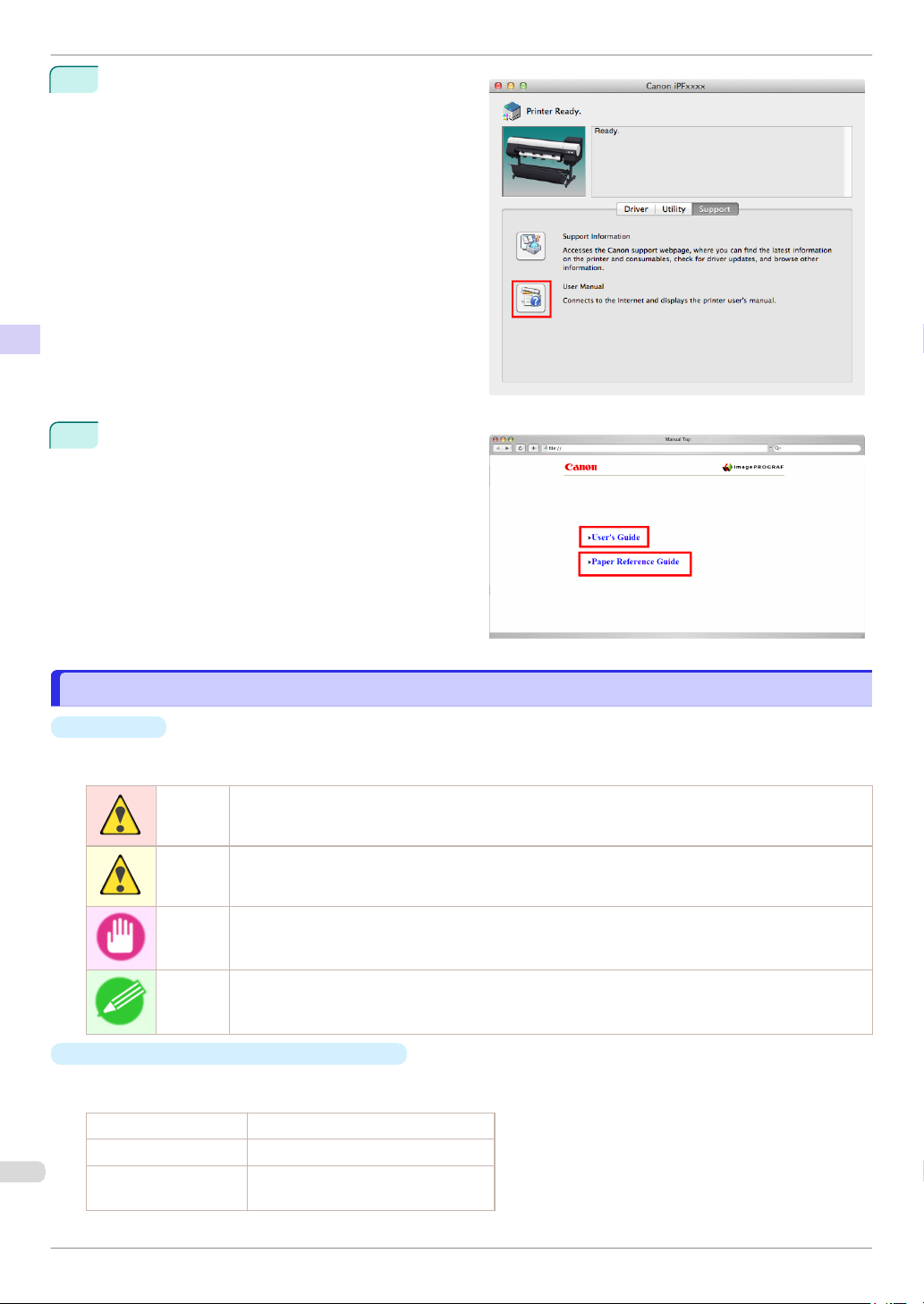

Click Support.
7
Basic Guide
9
Page 10

About This User Manual

Click the User Manual button.
8
Preface Manuals for this printer
To display User's Guide, click User's Guide.
9
Alternately, to display Paper Reference Guide, click Paper Reference Guide.
iPF850 Series
About This User Manual
About This User Manual
•
Symbols The following symbols are used in this user manual to indicate safety information and explanations on restric-
tions or precautions in use.
Warning Indicates warning items for which operating error poses a risk of death or serious injury. To ensure safe
use, always follow these warnings.
Caution Indicates caution items for which operating error poses a risk of injury. To ensure safe use, always follow
these cautions.
Important Indicates important information and restrictions that definitely are to be followed during operation. Be sure
to read this information to prevent troubles, malfunctions, or damage to equipment or property by operat­ing errors.
Note Indicates helpful reference information and supplemental information on particular topics.
•
Button names and user interface elements Key and button names on the control panel and user interface elements in software (such as menus and but-
tons) are indicated as follows in this user manual.
Control panel buttons Example: Press the OK button.
Control panel messages Example: Head Cleaning is displayed.
Software interface items (menus and buttons)
Example: Click OK.
Basic Guide
Page 11
iPF850 Series
•
•
•
About This User Manual
Keyboard keys Example: Press the Tab key.
Cross-reference Other pages or manuals that provide related information are indicated as follows in this user manual.
Cross-reference in the same user manual Example: see "Menu Structure." ➔ P.72
Cross-reference in related manuals Example: Refer to the Paper Reference Guide.
Other cross-reference Example: See the printer driver help.
Figures and software screens
•
Figures in this user manual may be different from the actual appearance of the printer in some cases.
•
Screens depicted in this user manual for the printer driver or other software may be different from the ac­tual screens because of subsequent updates.
May we request
•
The information in this user manual is subject to change without notice.
•
We strive to ensure accuracy of information in this user manual, but if you notice errors or omissions, con­tact support center.
Preface Manuals for this printer
Basic Guide
11
Page 12

Attaching the Roll Holder to Rolls

Handling Paper

Handling Paper

Handling rolls

Handling rolls
Attaching the Roll Holder to Rolls .................................................................................................................... 12
Loading Rolls in the Printer ............................................................................................................................. 15
Removing the Roll from the Printer .................................................................................................................. 21
iPF850 Series
Handling Paper Handling rolls
Attaching the Roll Holder to Rolls
Attaching the Roll Holder to Rolls
When printing on rolls, attach the Roll Holder to the roll. Rolls have a two- or three-inch paper core. Use the correct attachment for the paper core. The printer comes equipped with the 2-Inch Paper Core Attachment installed.

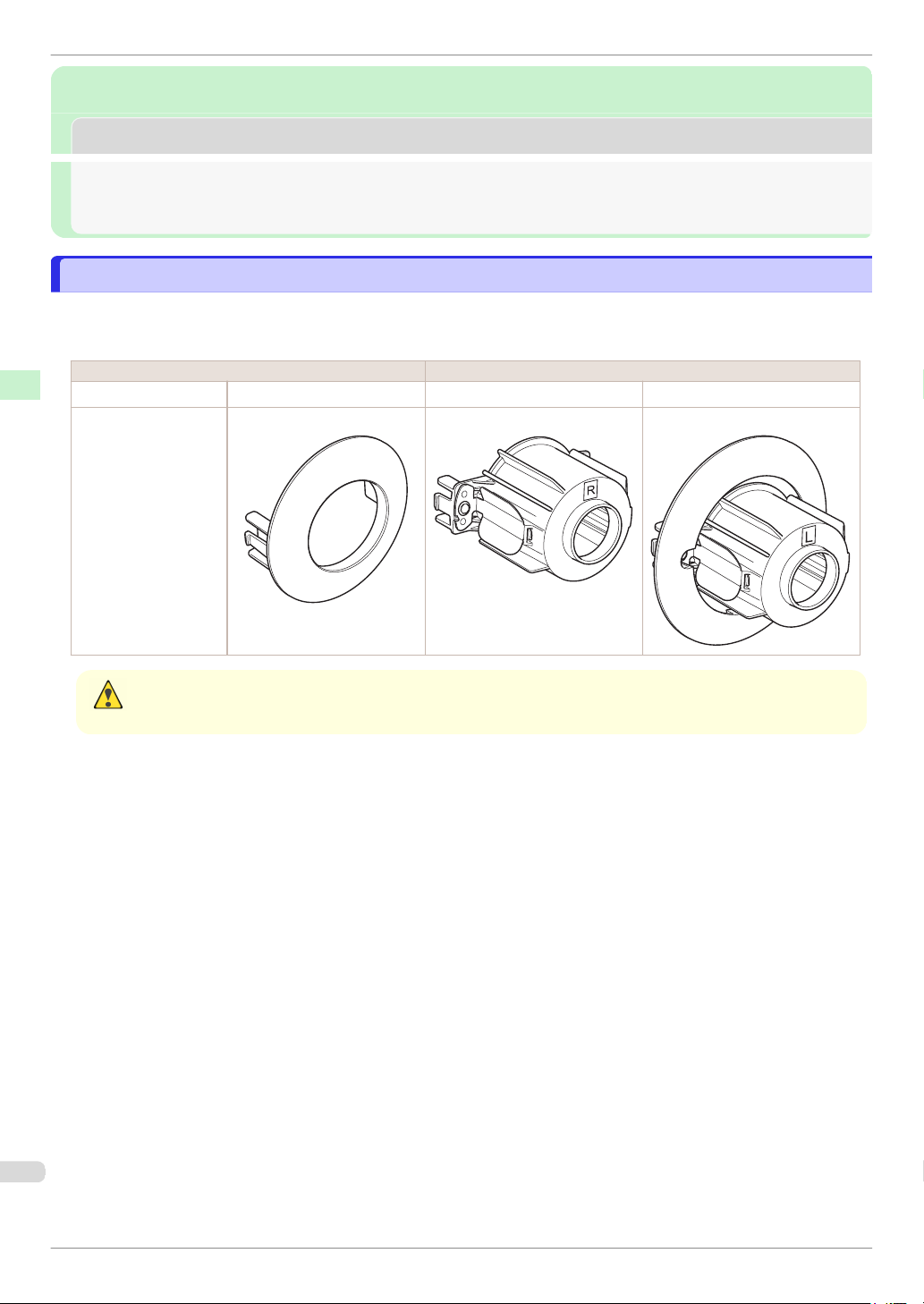

Using the 2-Inch Paper Core Attachment Using the 3-Inch Paper Core Attachment
Roll Holder Side Holder Stopper Side Roll Holder Side Holder Stopper Side
No Attachment Needed 2-Inch Paper Core Attachment 3-Inch Paper Core Attachment #1 3-Inch Paper Core Attachment #2
•
Set the roll on a table or other flat surface so that it does not roll or fall. Rolls are heavy, and dropping a roll may
Caution
cause injury.
Basic Guide
Page 13
㧪OO
a
b
iPF850 Series
Important
Attaching the Roll Holder to Rolls
•

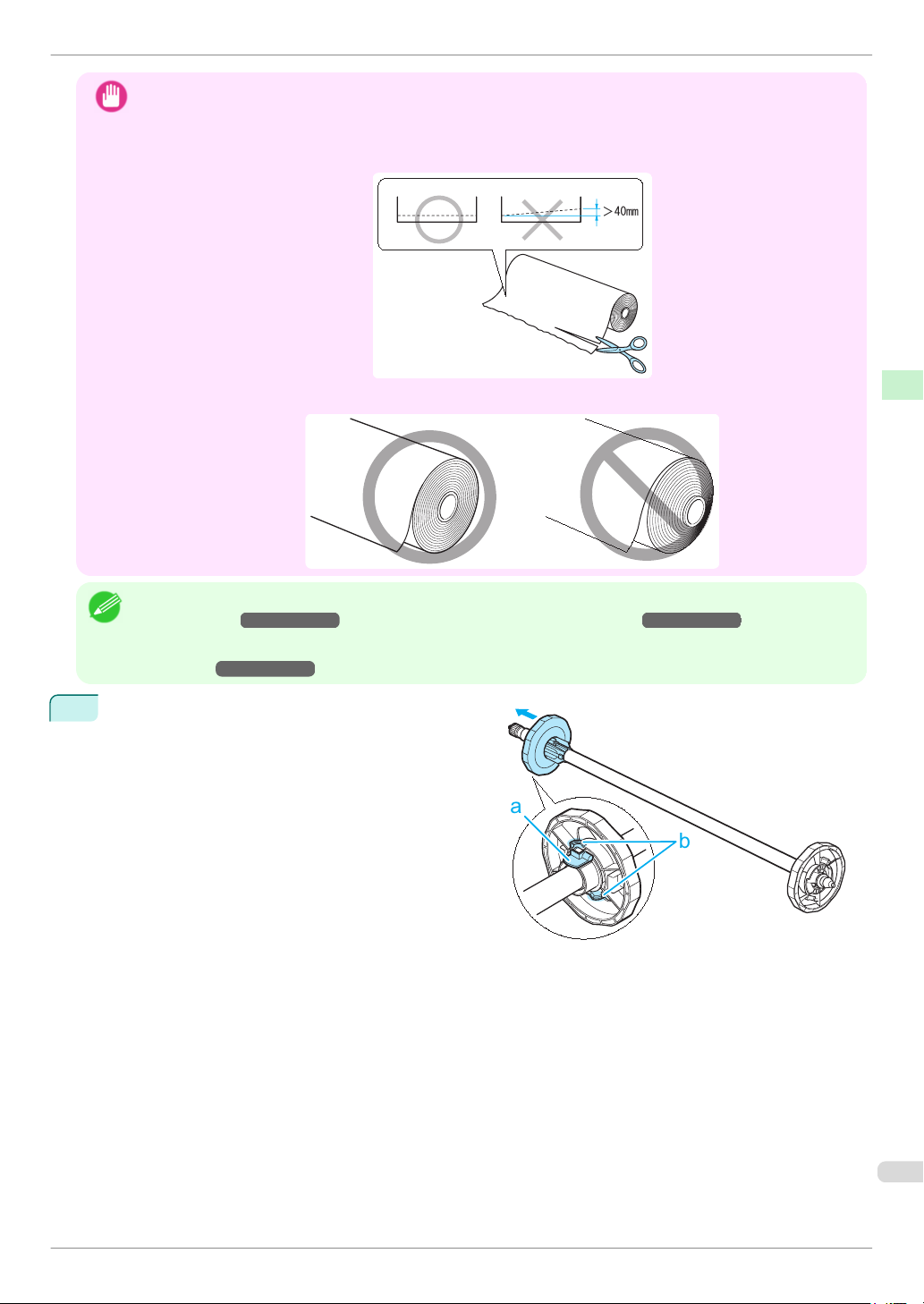

When handling the roll, be careful not to soil the printing surface. This may affect the printing quality. We recom­mend wearing clean cloth gloves when handling rolls to protect the printing surface.
•
Cut the edge of the roll paper if it is uneven, dirty, or has tape residue. Otherwise, it may cause feeding problems and affect the printing quality. Be careful not to cut through any barcodes printed on the roll.
Handling Paper Handling rolls
Align the edges of the paper on both ends of the roll. This may cause feeding problems.
•
•
For details on supported sizes and types of roll paper, see Paper Sizes or the Paper Reference Guide. (See
"Paper Sizes.") ➔User's Guide (See "Displaying the Paper Reference Guide.") ➔User's Guide
Note
•
To view instructions as you attach the Roll Holder, press the Navigate button. (See "How to View Instructions With
Navigate.") ➔User's Guide
Lift the Holder Stopper lever (a) from the shaft side to
1
unlock it. Holding the Holder Stopper at the position indicated (b), remove it from the Roll Holder.
Basic Guide
13
Page 14
a
b
a
a
b
Attaching the Roll Holder to Rolls

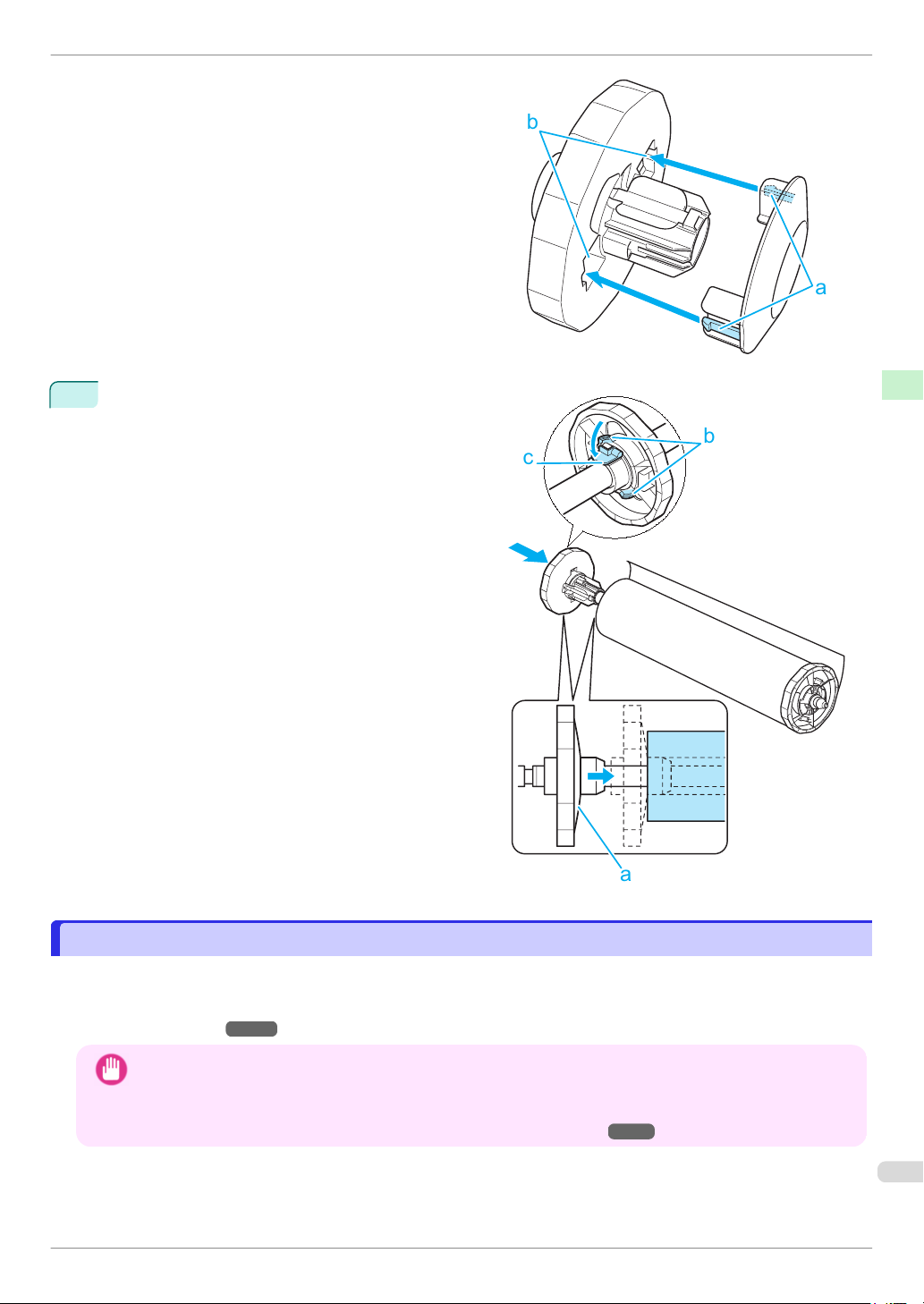

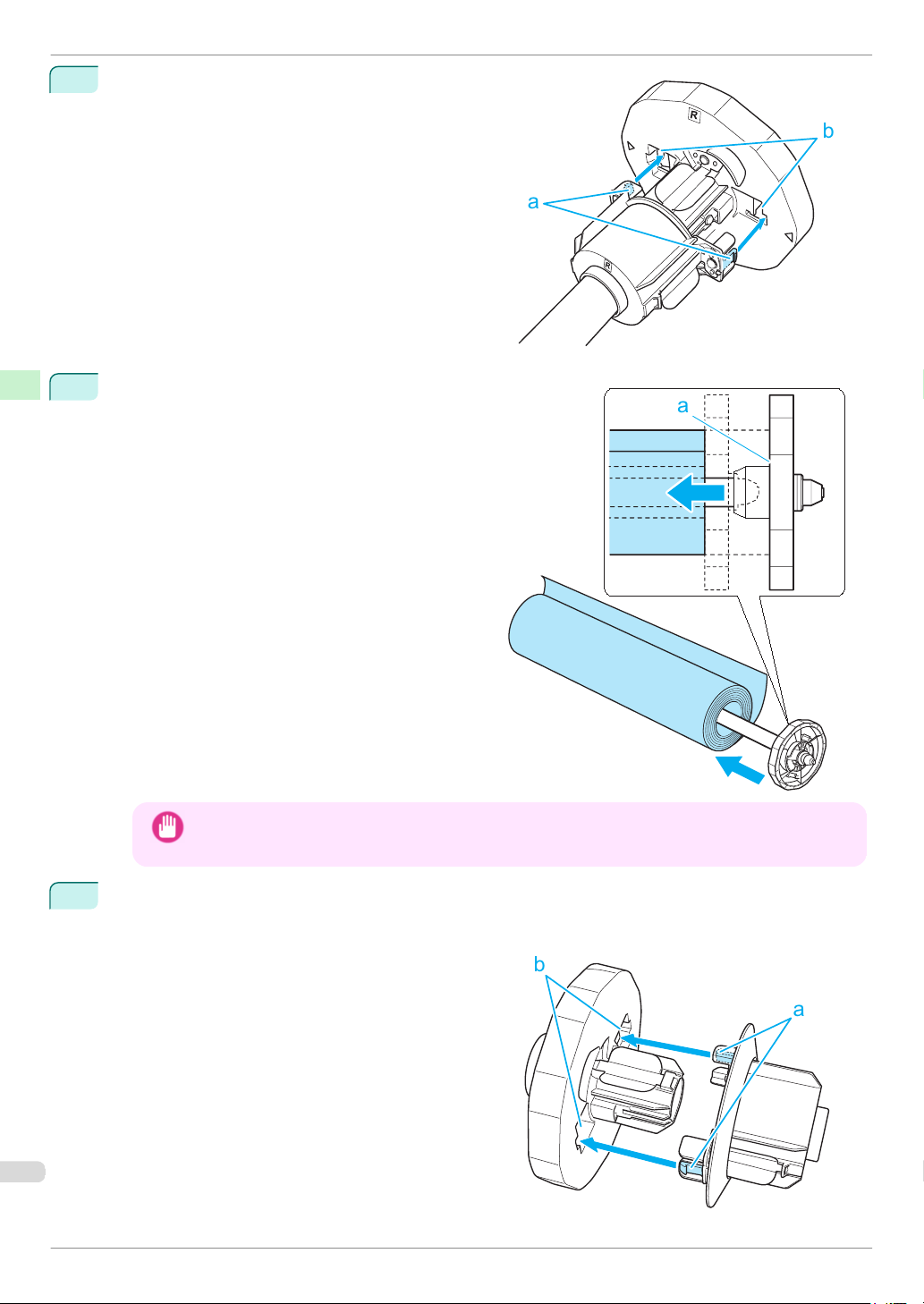

When using a 3-inch paper core, align the tips (a) of 3-
2
Inch Paper Core Attachment #1 with the holes (b) of the Roll Holder and insert it firmly.
Handling Paper Handling rolls
With the edge of the roll paper facing forward as
3
shown, insert the Roll Holder from the right of the roll. Insert it firmly until the roll touches the flange (a) of the Roll Holder.
iPF850 Series
•
When loading a roll, be careful to avoid hitting the printer hard with the roll. This may damage the Roll
Important
4
Insert the attachments for the roll paper core on the Holder Stopper. Align the tips (a) of the attachment with the holes (b) of the Holder Stopper and insert it firmly.
•
3-Inch Paper Core Attachment #2
Holder.
Basic Guide
Page 15
a
b
a
c
b
iPF850 Series
Insert the Holder Stopper from the left in the Roll
5
Holder as shown. Holding it at the position shown (b), push it firmly in until the flange (a) of the Holder Stop­per touches the roll. Lock the Holder Stopper lever (c) by pushing it down toward the shaft side.

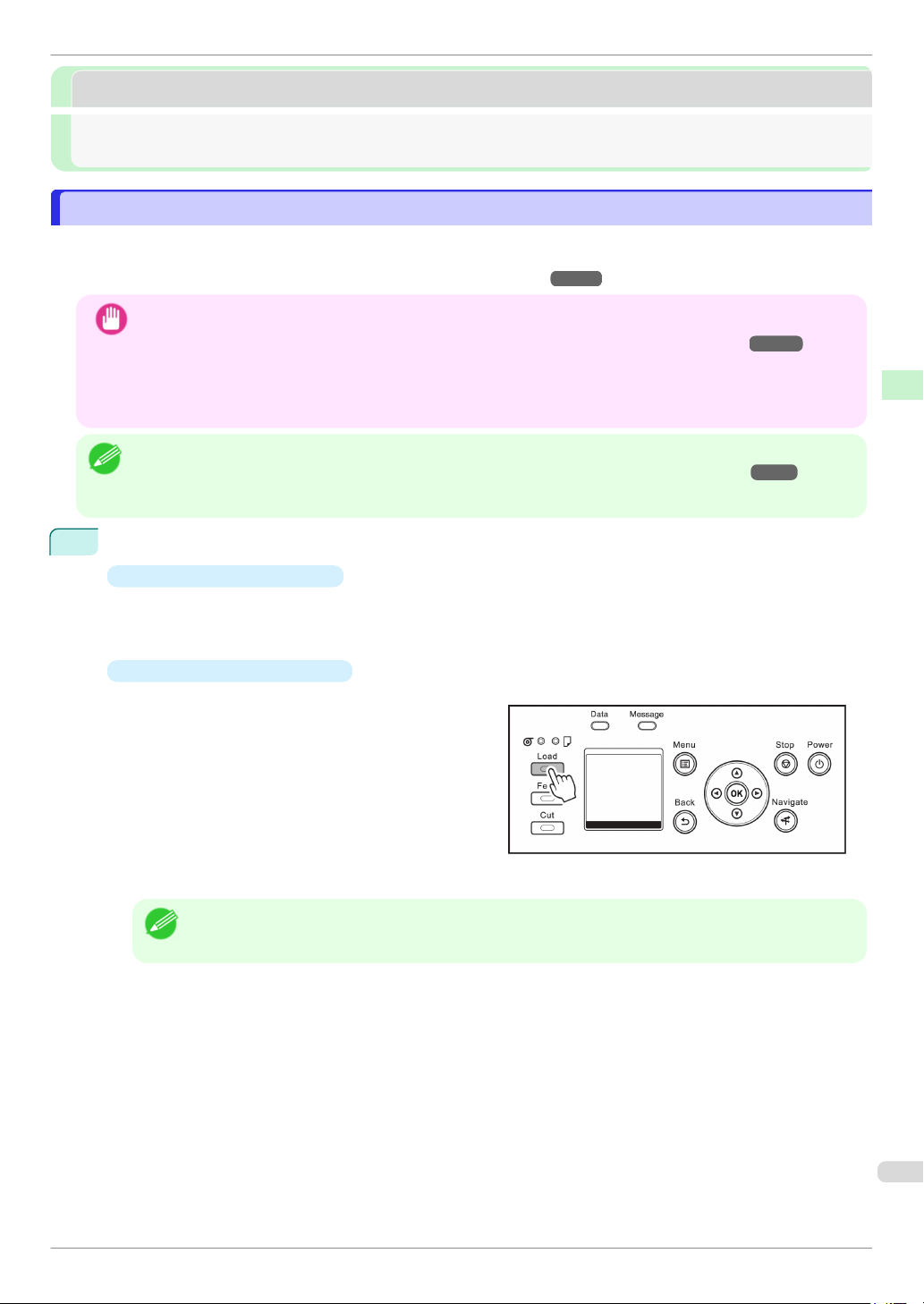

Loading Rolls in the Printer
•
2-Inch Paper Core Attachment
Handling Paper Handling rolls

Loading Rolls in the Printer

Loading Rolls in the Printer
Follow these steps to load rolls in the printer. You can load rolls in two positions, in the Roll 1 (Upper) and Roll 2 (Lower) holders. If the Stacker is installed on the printer, first remove the Stacker from the printer. (See "Installing and Removing the
Stacker On the Printer.")
Important
Always load rolls when the printer is on. If the printer is off when you load a roll, the paper may not be advanced
•
correctly when you turn the printer on.
•
Before loading a roll, confirm whether the inside of the Top Cover or the Ejection Guide is soiled. If soiled, we recommend cleaning in advance. (See "Cleaning Inside the Top Cover.") ➔ P.59
➔P.30
Basic Guide
15
Page 16
baba
Loading Rolls in the Printer

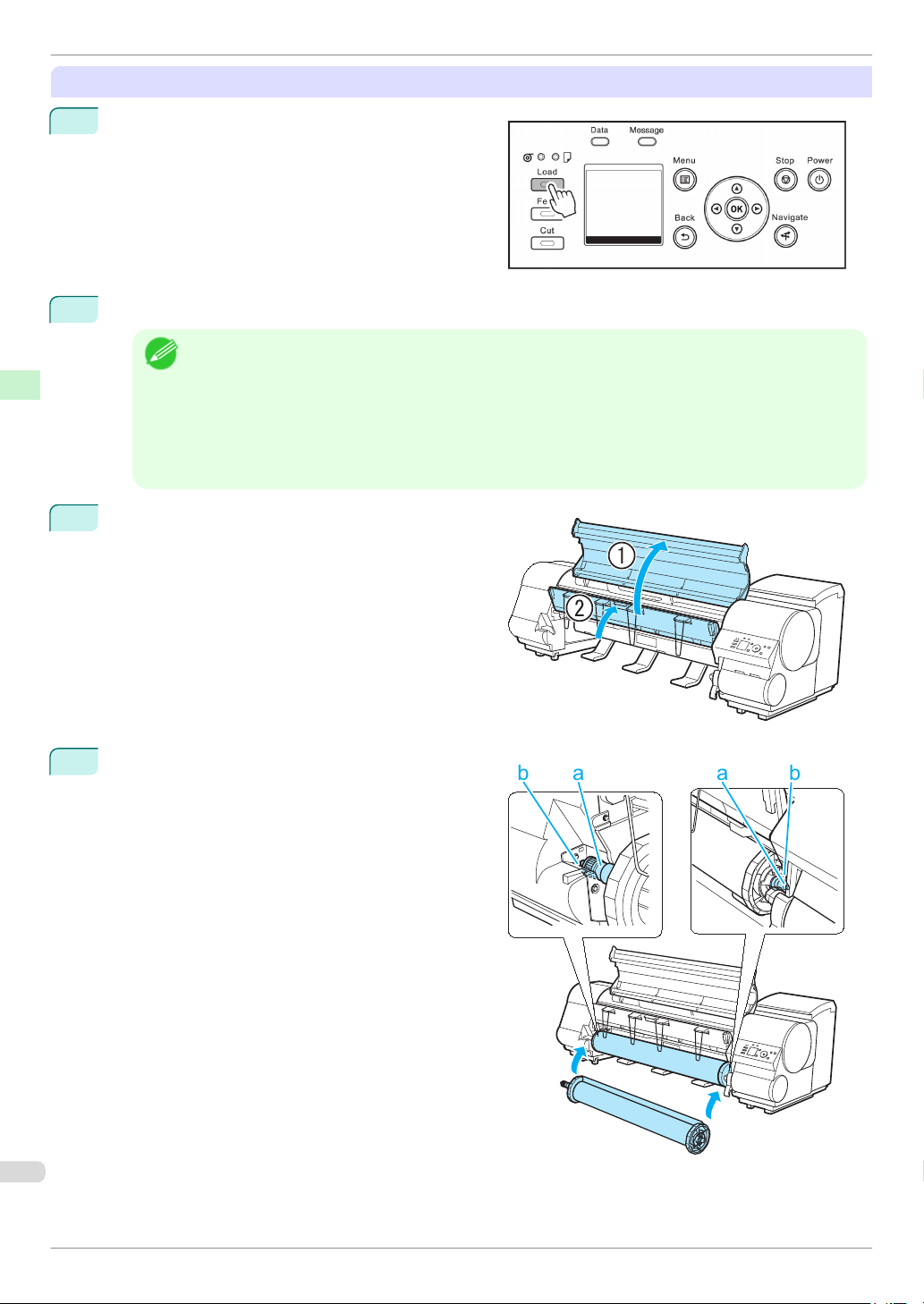

Loading rolls in the Roll 1 (Upper) holder

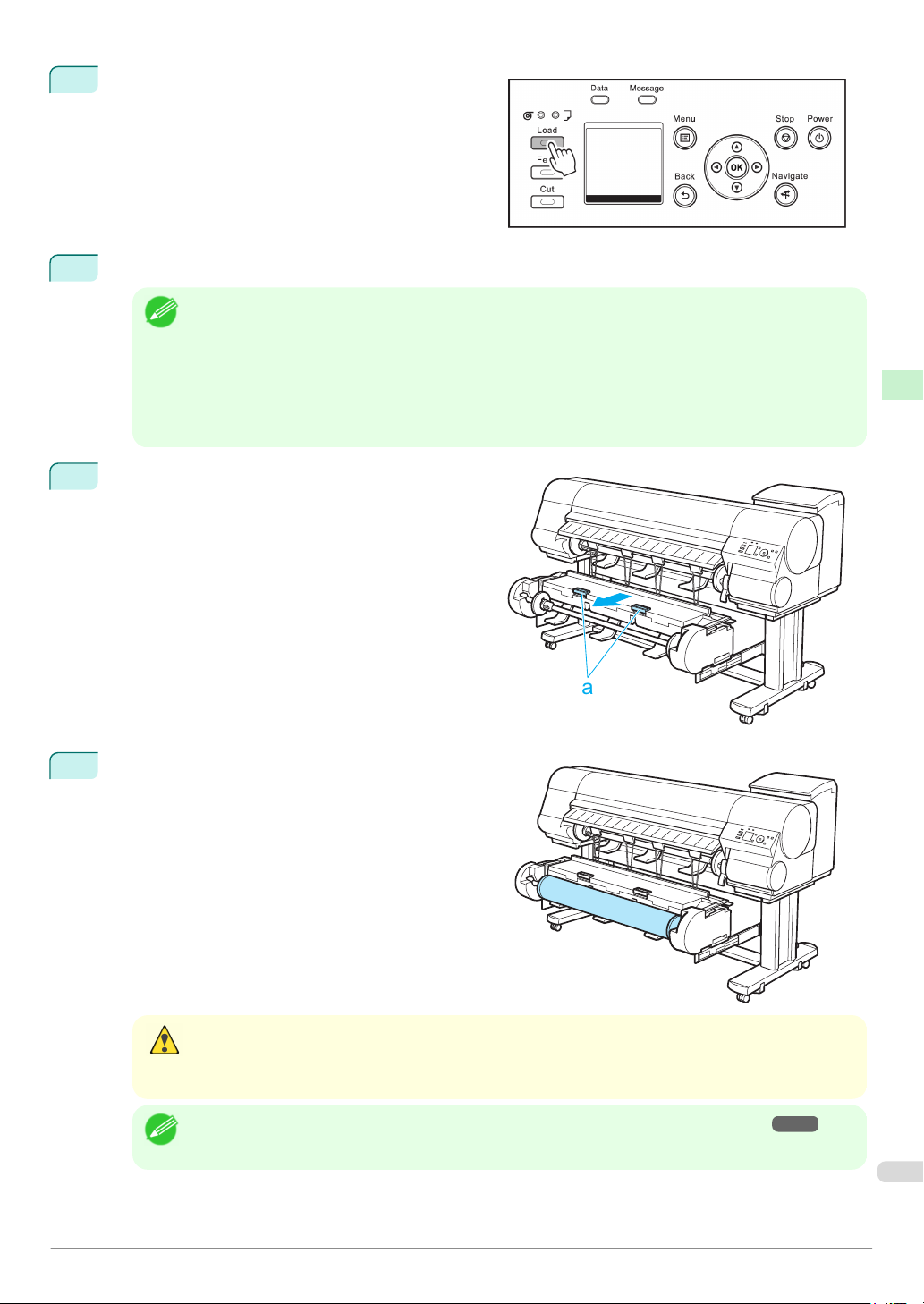

Press the Load button.
1
iPF850 Series
Handling Paper Handling rolls
2
3
4
Press ▲ or ▼ to select Roll 1 (Upper), and then press the OK button.
•
If any cut sheet has been fed, or roll paper that will not be used has been fed from Roll 1 (Upper), a message is shown requesting you to remove it.
Note
Press ▲ or ▼ to select Yes, and then press the OK button. Remove the paper and go to the next step.
•
If roll paper is loaded in Roll 1 (Upper) but Roll 1 (Upper) is not selected as the paper source, a message asking you whether or not to change paper is displayed. Press ▲ or ▼ to select Load, and then press the OK button. Remove the paper and proceed to the next step.

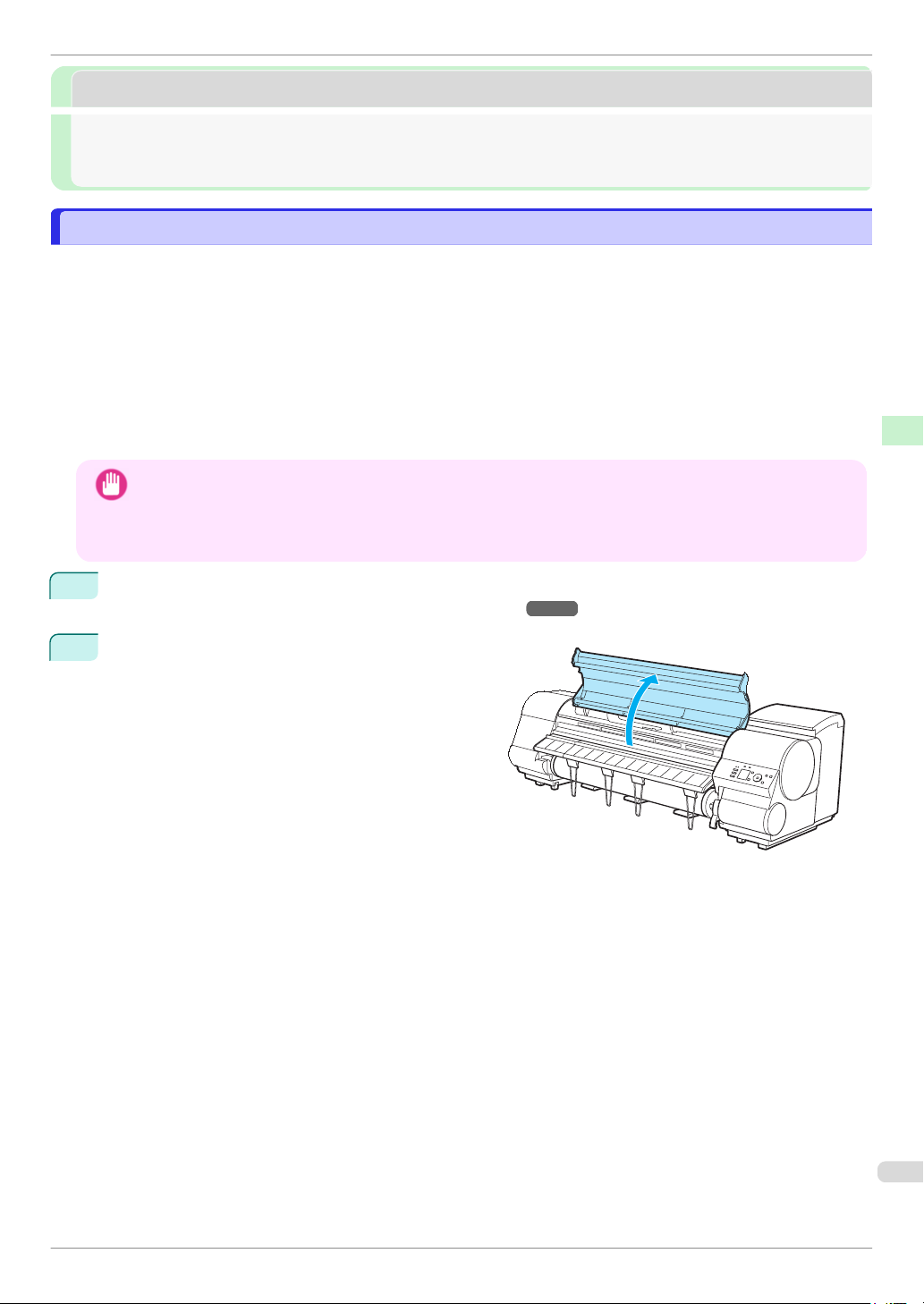

Open the Top Cover and lift the Ejection Guide.
Holding the Roll Holder so that the side with the white gear faces the side of the Roll Holder Slot with a white gear, load the Roll Holder shaft (a) into the grooves (b) on both ends of the Roll Holder Slot.
Basic Guide
Page 17
a
a
iPF850 Series

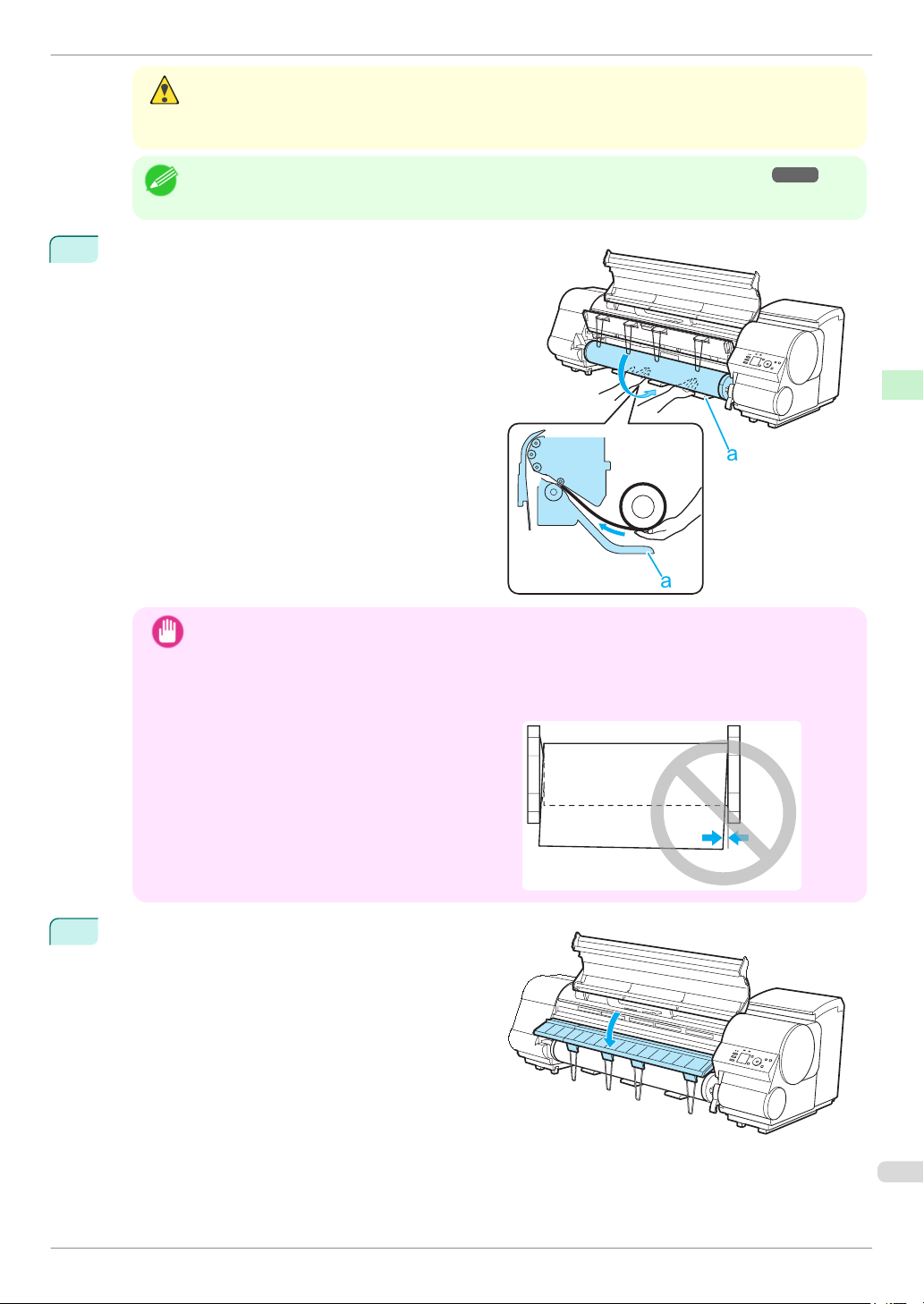

Using both hands, pull out the roll evenly on both
5
ends and insert it in the Paper Feed Slot (a). Advance the roll until the buzzer sounds.
Loading Rolls in the Printer
•
Be careful not to drop the roll and hurt yourself when loading it.
•
Caution
Note
Be careful not to pinch your fingers between the Roll Holder shaft (a) and the guide grooves (b) when loading rolls.
•
For instructions on attaching the Roll Holder to rolls, see "Attaching the Roll Holder to Rolls." ➔ P.12
Handling Paper Handling rolls
Important

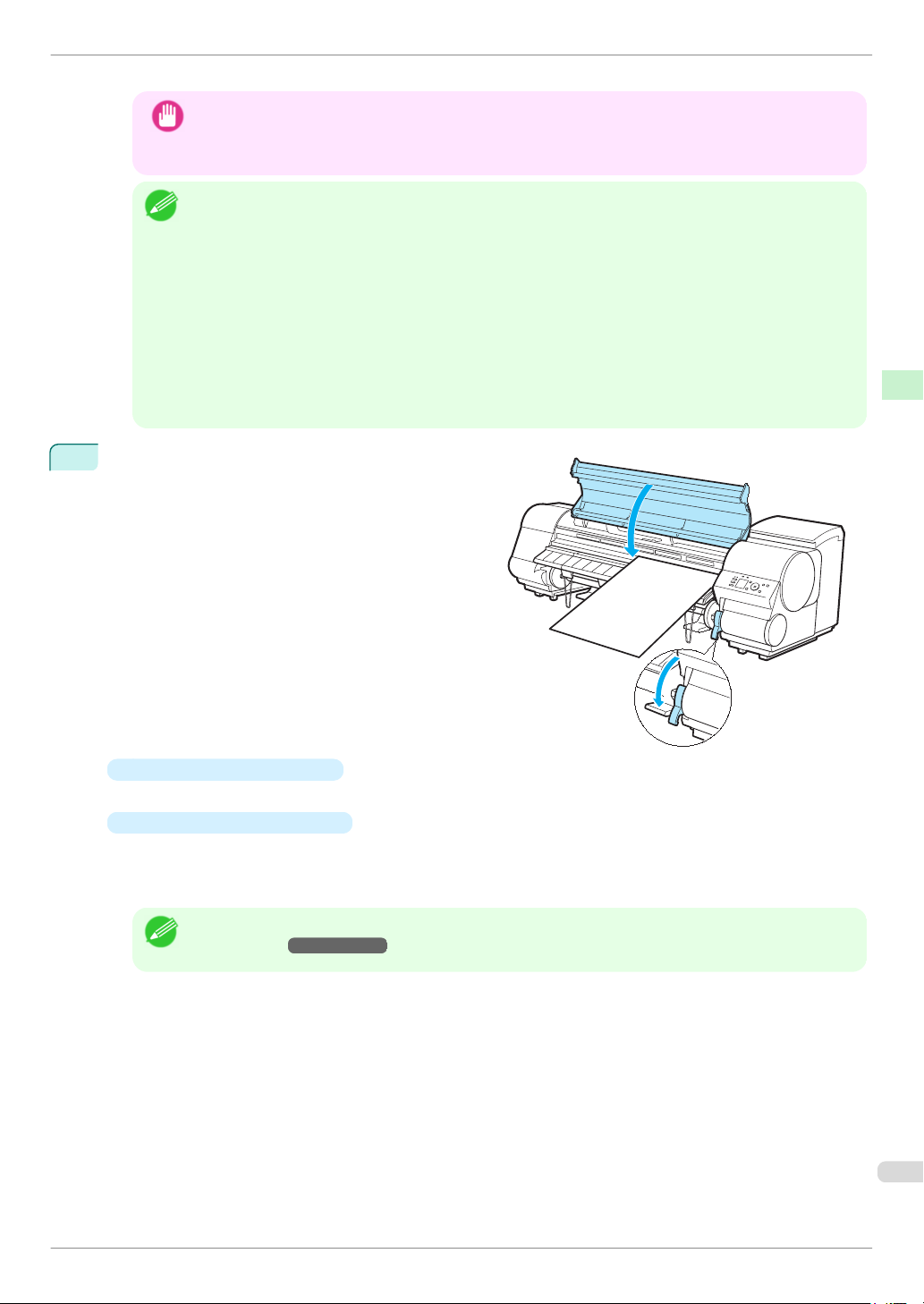

Lower the Ejection Guide.
6
•
Be careful not to soil the printing surface of roll paper as you insert it in the slot. This may affect the printing quality. We recommend wearing clean cloth gloves when handling rolls to protect the printing surface.
•
If the paper is wrinkled or warped, straighten it out before loading it.
Load the roll so that there is no gap between
•
the right edge of the paper and the Roll Holder.
Basic Guide
17
Page 18
a
Loading Rolls in the Printer

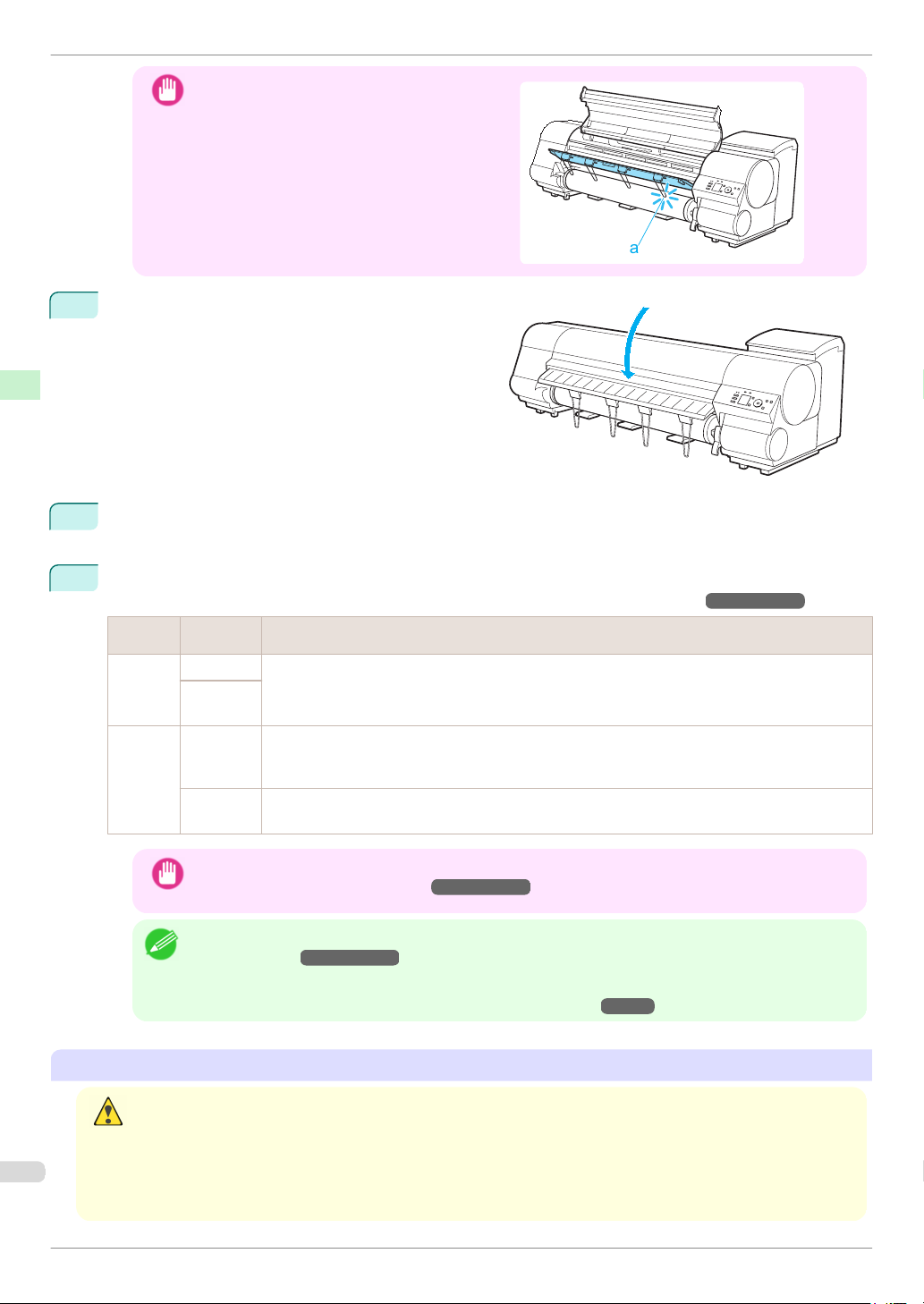

When lowering the Ejection Guide, lower it
•
Important
slowly. If the Ejection guide is lowed forcefully, the Ejection Supports (a) may hit the roll and scratch the printing surface.
iPF850 Series
Handling Paper Handling rolls
7
8
9
Close the Top Cover.
Press the OK button. The paper is now advanced.
Once paper feeding starts, you will need to do the following, based on the ManageRemainRoll setting and the barcode printed on rolls. (See "Keeping Track of the Amount of Roll Paper Left.")
ManageR­emainRoll
Off Printed A menu for selection of the type of paper is shown on the Display Screen.
On Printed The type and amount of paper left is automatically detected based on the barcode printed on the
Barcodes Printer Operation After the Paper is Fed
Not prin­ted
Not prin­ted
Press ▲ or ▼ to select the type of paper, and then press the OK button.
roll. There is no need to specify the type and length of the paper.
A menu for selection of the type and length of paper is shown on the Display Screen. Press ▲ or ▼ to select the type and length of paper loaded, and then press the OK button.
➔User's Guide
•
Cut the edge of the roll using the Paper Cutting function if the edge is creased or soiled. (See "Speci-
Important
Note
fying the Cutting Method for Rolls.") ➔User's Guide
•
For details on types of paper to select, see the Paper Reference Guide. (See "Displaying the Paper Ref-
erence Guide.") ➔User's Guide
•
Adjusting the printhead alignment with the type of paper to be used in printing may enhance printing qual­ity. (See "Automatic Adjustment to Straighten Lines and Colors.") ➔ P.106
Loading rolls in the Roll 2 (Lower) holder
Do not detach the Roll Unit in the following cases.
•
Caution
Basic Guide
•
During printing Vibration from removing the Roll Unit may affect the printing quality.
•
If a sheet is loaded in the printer The sheet may be ejected, and (rarely) it may be bent.
Page 19
a
iPF850 Series
Press the Load button.
1
Loading Rolls in the Printer
2
Press ▲ or ▼ to select Roll 2 (Lower), and then press the OK button.
•
If any cut sheet has been fed, or roll paper that will not be used has been fed from Roll 2 (Lower), a message is shown requesting you to remove it.
Note
Press ▲ or ▼ to select Yes, and then press the OK button. Remove the paper and go to the next step.
•
If roll paper is loaded in Roll 2 (Lower) but Roll 2 (Lower) is not selected as the paper source, a message asking you whether or not to change paper is displayed. Press ▲ or ▼ to select Load, and then press the OK button. Remove the paper and proceed to the next step.

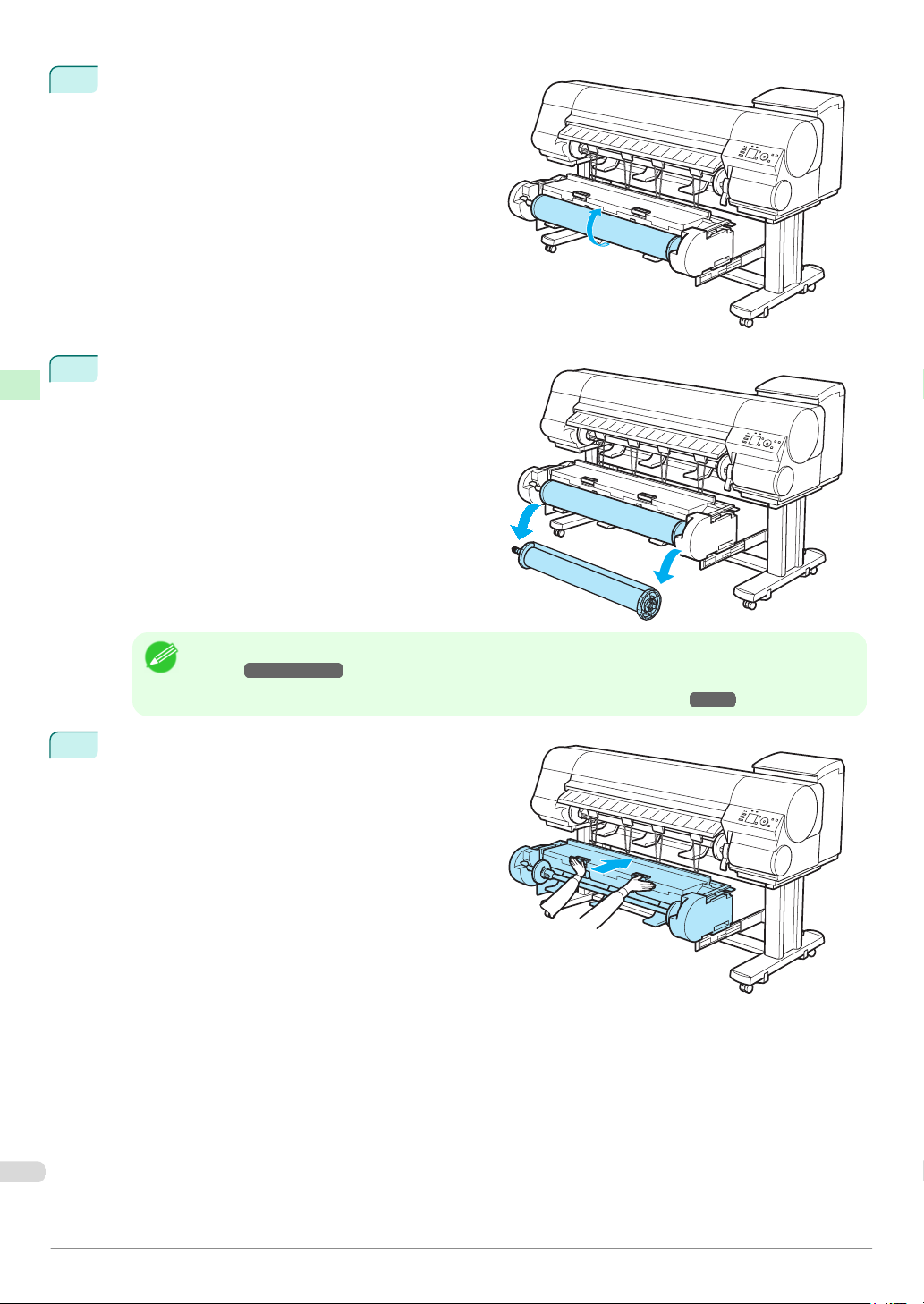

Holding the Roll Unit Lever (a), pull out the Roll Unit.
3
Holding the Roll Holder so that the side with the white
4
gear faces the side of the Roll Holder Slot with a white gear, load the Roll Holder shaft (a) into the grooves (b) on both ends of the Roll Holder Slot.
Handling Paper Handling rolls
•
Be careful not to drop the roll and hurt yourself when loading it.
•
Caution
Note
Basic Guide
Be careful not to pinch your fingers between the Roll Holder shaft (a) and the guide grooves (b) when loading rolls.
•
For instructions on attaching the Roll Holder to rolls, see "Attaching the Roll Holder to Rolls." ➔ P.12
19
Page 20
a
Loading Rolls in the Printer

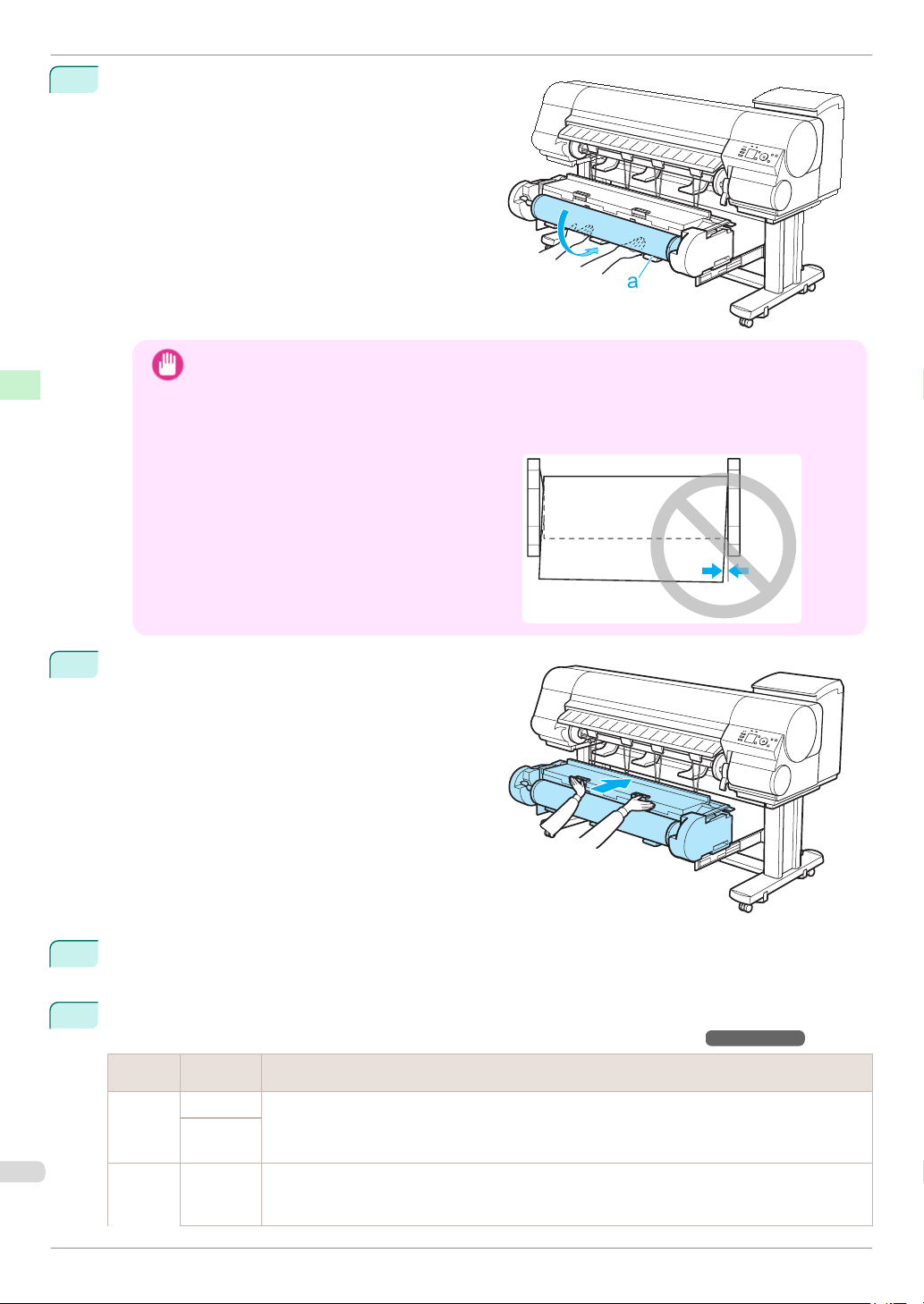

Pull out the roll evenly on both ends and insert it in
5
the Paper Feed Slot (a). Advance the roll until the buzzer sounds.
Handling Paper Handling rolls
•
Be careful not to soil the printing surface of roll paper as you insert it in the slot. This may affect the
Important
printing quality. We recommend wearing clean cloth gloves when handling rolls to protect the printing surface.
•
If the paper is wrinkled or warped, straighten it out before loading it.
Load the roll so that there is no gap between
•
the right edge of the paper and the Roll Holder.
iPF850 Series
In a crouching position, push the Roll Unit into the
6
printer.
7
Press the OK button. The paper is now advanced.
8
Once paper feeding starts, you will need to do the following, based on the ManageRemainRoll setting and the barcode printed on rolls. (See "Keeping Track of the Amount of Roll Paper Left.")
ManageR­emainRoll
Off Printed A menu for selection of the type of paper is shown on the Display Screen.
On Printed The type and amount of paper left is automatically detected based on the barcode printed on the
Barcodes Printer Operation After the Paper is Fed
Not prin­ted
Press ▲ or ▼ to select the type of paper, and then press the OK button.
roll. There is no need to specify the type and length of the paper.
➔User's Guide
Basic Guide
Page 21
Ready
Plain Paper
OK: Paper Menu
Plain Paper
iPF850 Series

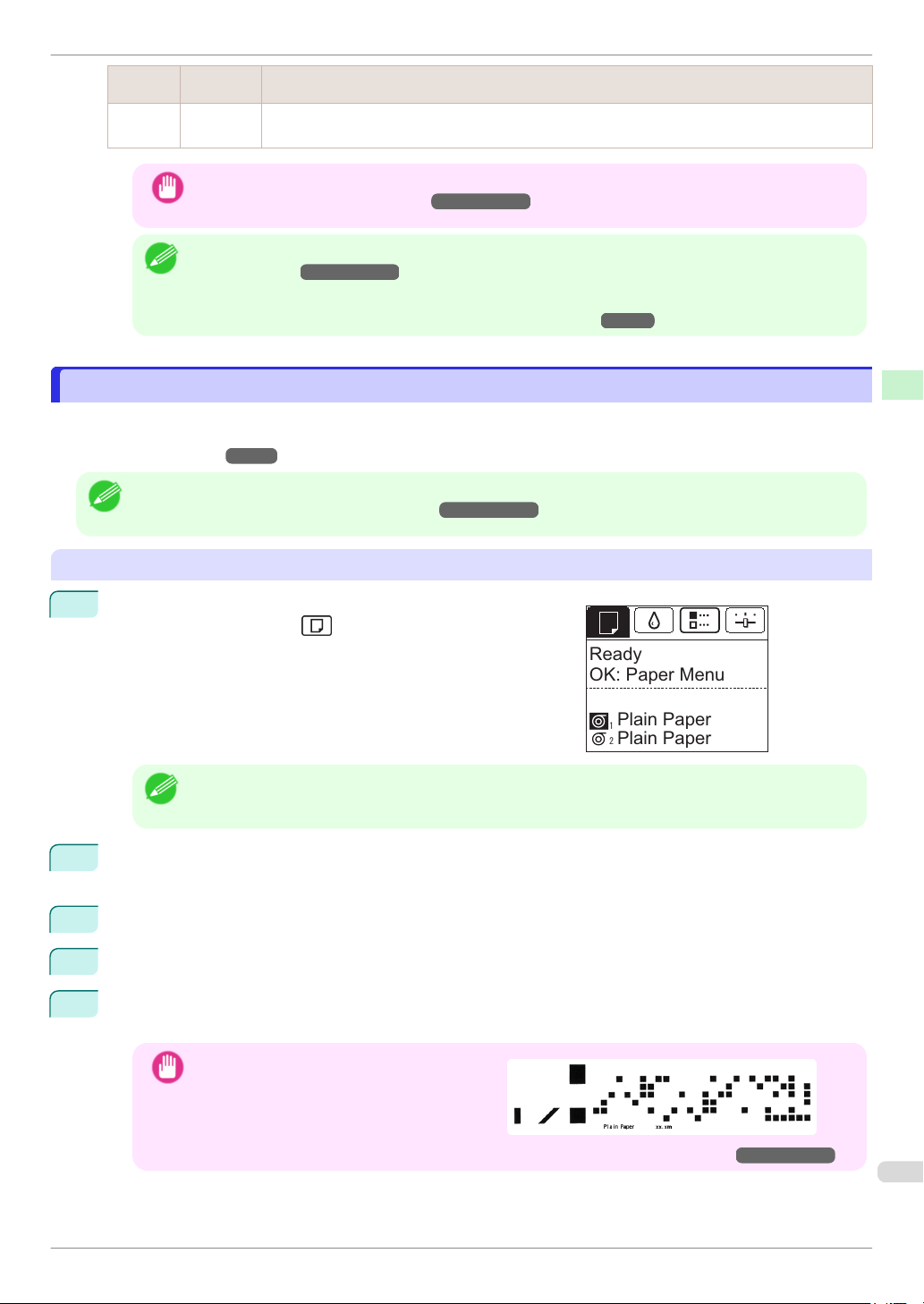

Removing the Roll from the Printer
ManageR­emainRoll
On

Removing the Roll from the Printer

Removing the Roll from the Printer
Remove rolls from the printer as follows. If the Stacker is installed on the printer, first remove the Stacker from the printer. (See "Installing and Removing the
Stacker On the Printer.") ➔P.30
•
Note
Barcodes Printer Operation After the Paper is Fed
Not prin­ted
•
Cut the edge of the roll using the Paper Cutting function if the edge is creased or soiled. (See "Speci-
Important
Note
If you need to cut a printed roll, select Paper Cutting in the printer menu and cut the roll at the desired position.
(See "Specifying the Cutting Method for Rolls.") ➔ User's Guide
fying the Cutting Method for Rolls.") ➔User's Guide
•
For details on types of paper to select, see the Paper Reference Guide. (See "Displaying the Paper Ref-
erence Guide.") ➔User's Guide
•
Adjusting the printhead alignment with the type of paper to be used in printing may enhance printing qual­ity. (See "Automatic Adjustment to Straighten Lines and Colors.") ➔ P.106
A menu for selection of the type and length of paper is shown on the Display Screen. Press ▲ or ▼ to select the type and length of paper loaded, and then press the OK button.

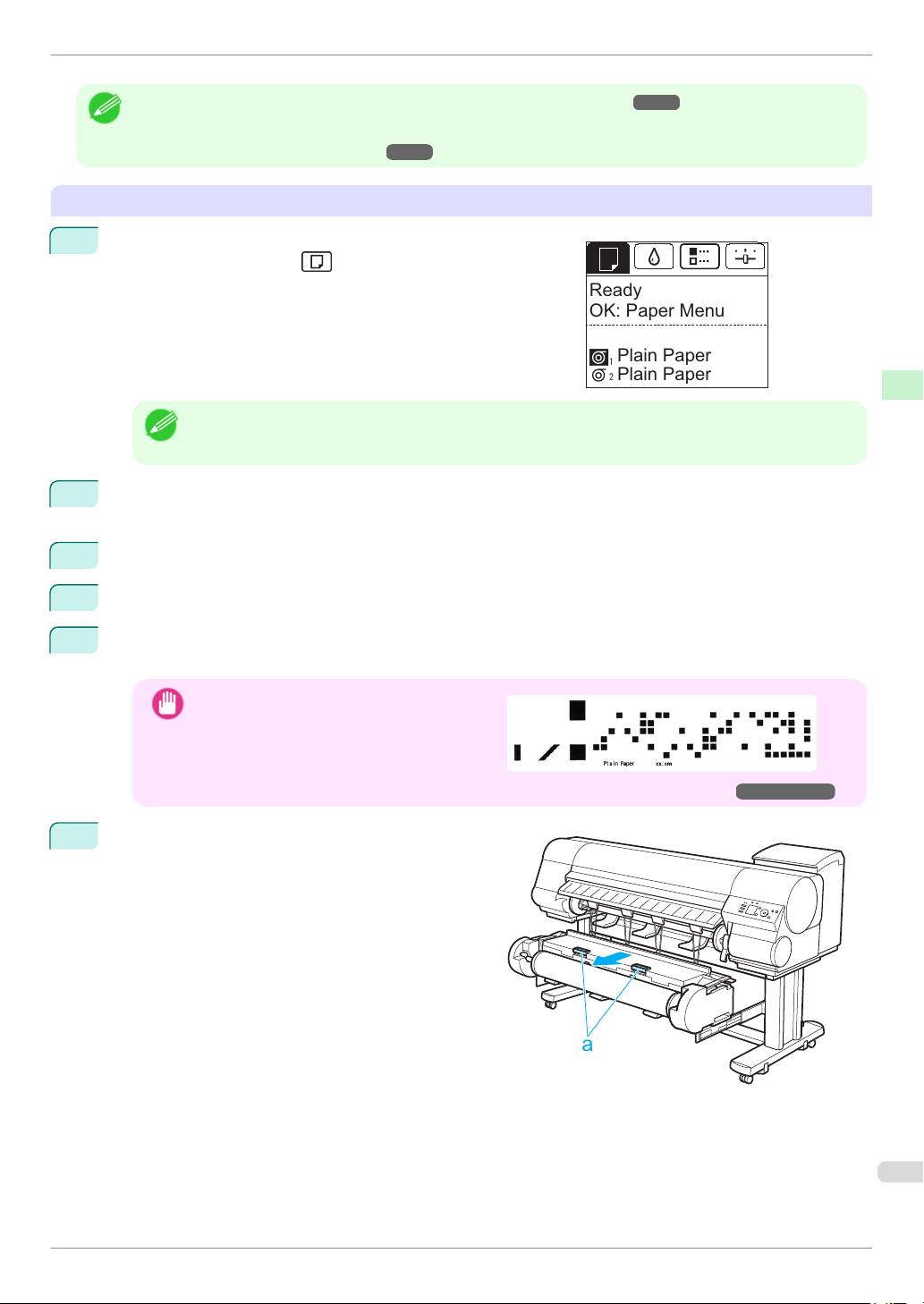

Removing rolls from the Roll 1 (Upper) position
On the Tab Selection screen of the Control Panel, press ◀ or
1
▶ to select the Paper tab ( ).
Handling Paper Handling rolls
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
2
Press the OK button. The Paper Menu is displayed.
3
Press ▲ or ▼ to select Remove Roll, and then press the OK button.
4
Press ▲ or ▼ to select Roll 1 (Upper), and then press the OK button.
5
Press ▲ or ▼ to select Yes, and then press the OK button. The roll is rewound.
If you have selected ManageRemainRoll >
•
Important
On in the Control Panel menu, a barcode is printed on the leading edge of the roll. Do not remove the roll before the barcode is printed. You will be unable to keep track of the amount of roll paper left. (See "Keeping Track of the Amount of Roll Paper Left.") ➔ User's Guide
Basic Guide
21
Page 22
Removing the Roll from the Printer

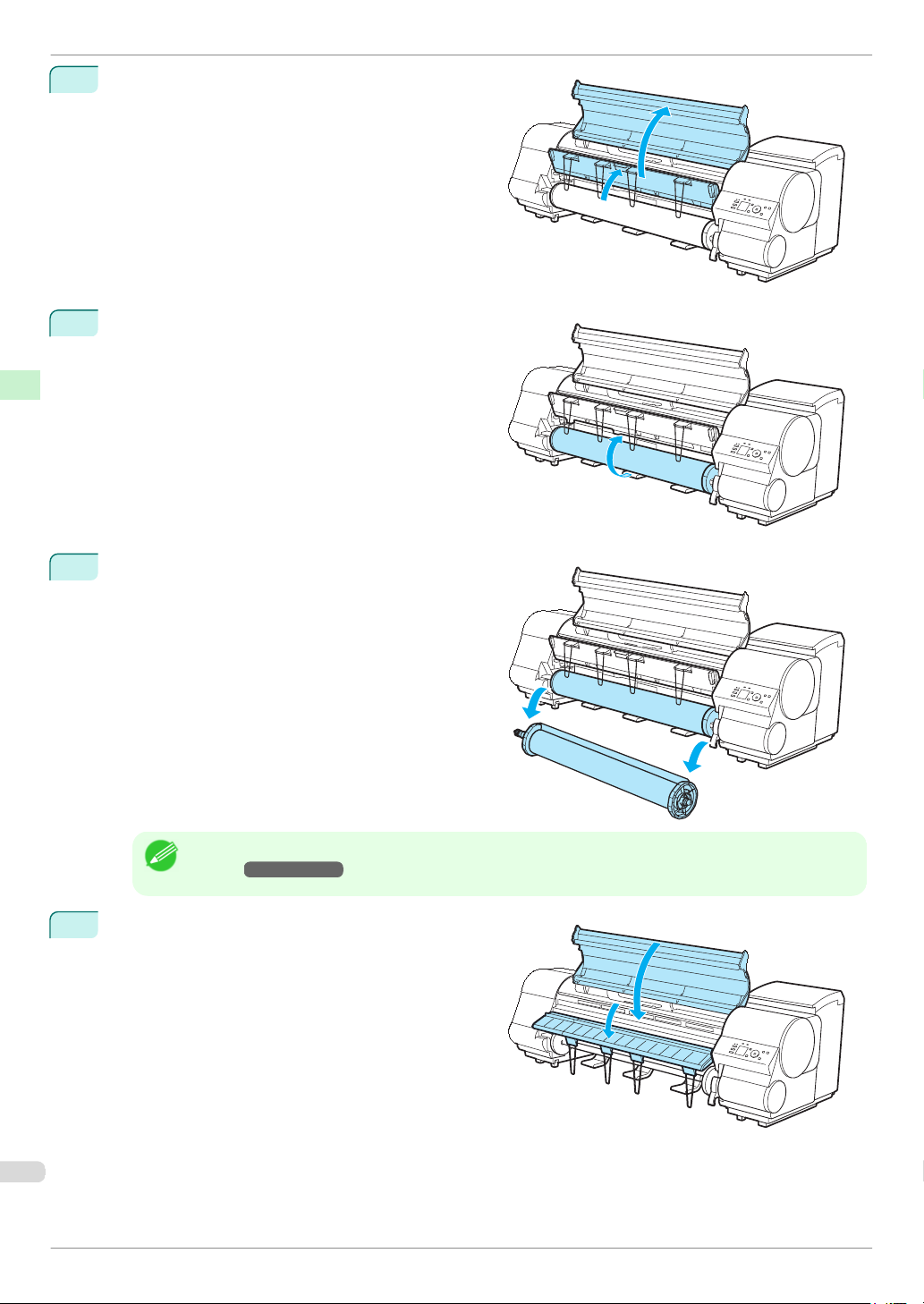

Open the Top Cover and lift the Ejection Guide.
6
iPF850 Series
Handling Paper Handling rolls
7
8
Using both hands, rotate the Roll Holder in the direc­tion of the arrow to rewind the roll.
Holding the Roll Holder flange (a), remove the holder from the Roll Holder Slot.
•
For instructions on removing the Roll Holder from rolls, see "Removing the Roll Holder from
Rolls." ➔User's Guide
Note
Lower the Ejection Guide and close the Top Cover.
9
Basic Guide
Page 23
Ready
Plain Paper
OK: Paper Menu
Plain Paper
a
iPF850 Series
Removing the Roll from the Printer
•
To load new paper in the printer at this point, see "Loading Rolls in the Printer." ➔ P.15
•
Clean inside the top cover before loading paper.
Note
(See "Cleaning Inside the Top Cover.") ➔ P.59
Removing rolls from the Roll 2 (Lower) position
On the Tab Selection screen of the Control Panel, press ◀ or
1
▶ to select the Paper tab (
).
Handling Paper Handling rolls
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
2
Press the OK button. The Paper Menu is displayed.
3
Press ▲ or ▼ to select Remove Roll, and then press the OK button.
4
Press ▲ or ▼ to select Roll 2 (Lower), and then press the OK button.
5
Press ▲ or ▼ to select Yes, and then press the OK button. The roll is rewound.
If you have selected ManageRemainRoll >
•
Important
Check that "No Paper Loaded" is displayed on the
6
Display Screen, and then grasp the Roll Unit Lever (a) and pull out the Roll Unit.
On in the Control Panel menu, a barcode is printed on the leading edge of the roll. Do not remove the roll before the barcode is printed. You will be unable to keep track of the amount of roll paper left. (See "Keeping Track of the Amount of Roll Paper Left.") ➔ User's Guide
Basic Guide
23
Page 24

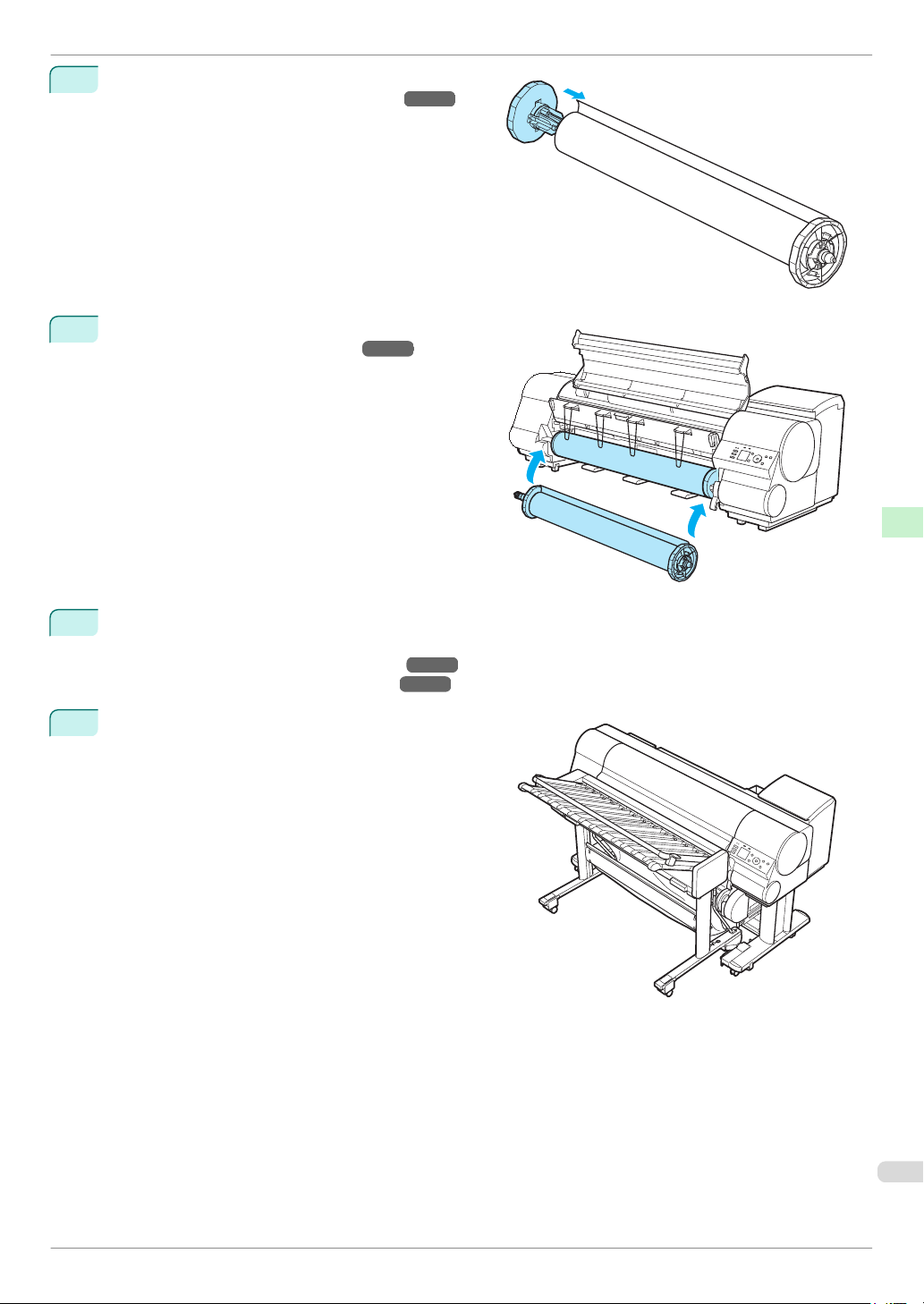

Removing the Roll from the Printer
Using both hands, rotate the Roll Holder in the direc-
7
tion of the arrow to rewind the roll.
Handling Paper Handling rolls
Remove the Roll Holder from the Roll Holder Slot.
8
iPF850 Series
•
For instructions on removing the Roll Holder from rolls, see "Removing the Roll Holder from
Rolls." ➔User's Guide
Note
•
To load new paper in the printer at this point, see "Loading Rolls in the Printer." ➔ P.15
In a crouching position, push the Roll Unit in with both
9
hands.
Basic Guide
Page 25
iPF850 Series

Loading Sheets in the Printer

Loading Sheets in the Printer
Follow these steps to load sheets in the printer. The Stacker cannot be used for cut sheets. If the Stacker is installed on the printer, first remove the Stacker from the printer. (See "Installing and Removing the Stacker On the Printer.")
1
Loading Sheets in the Printer

Handling sheets

Handling sheets
Loading Sheets in the Printer .......................................................................................................................... 25
Removing Sheets ............................................................................................................................................28
➔P.30
•
Paper that is wrinkled or warped may jam. If necessary, straighten the paper and reload it.
•
Important
Note
Load the paper straight. Loading paper askew will cause an error. (See "Paper loaded askew..") ➔ P.147
•
If you are using cut sheets of length 860 mm (33.9 in) or more, the loaded cut sheets may touch the floor, caus­ing soiling and scratching of the paper. If this happens, place a clean cloth or paper on the floor so that the cut sheets do not touch the floor directly.
•
Before loading sheets, make sure the printer is clean inside the Top Cover and around the Ejection Guide. If these areas are dirty, we recommend cleaning them in advance. (See "Cleaning Inside the Top Cover.") ➔ P.59
•
Store unused paper in the original package, away from high temperature, humidity, and direct sunlight.
Select sheets as the paper source.
Handling Paper Handling sheets
•
If a print job was received Sheets are automatically selected, and the media type and size specified by the print job are shown on
the Display Screen. Press ▲ or ▼ to select Load Paper, and then press the OK button.
•
If no print job was received
1.
Press the Load button.
2.
Press ▲ or ▼ to select Cut Sheet, and then press the OK button.
•
If any paper has been advanced that will not be used, a message is shown requesting you to remove it. Press ▲ or ▼ to select Yes, and then press the OK button. Remove the paper and go to the next step.
Note
Basic Guide
25
Page 26
c
a
b
d
c
c
b
a
Loading Sheets in the Printer

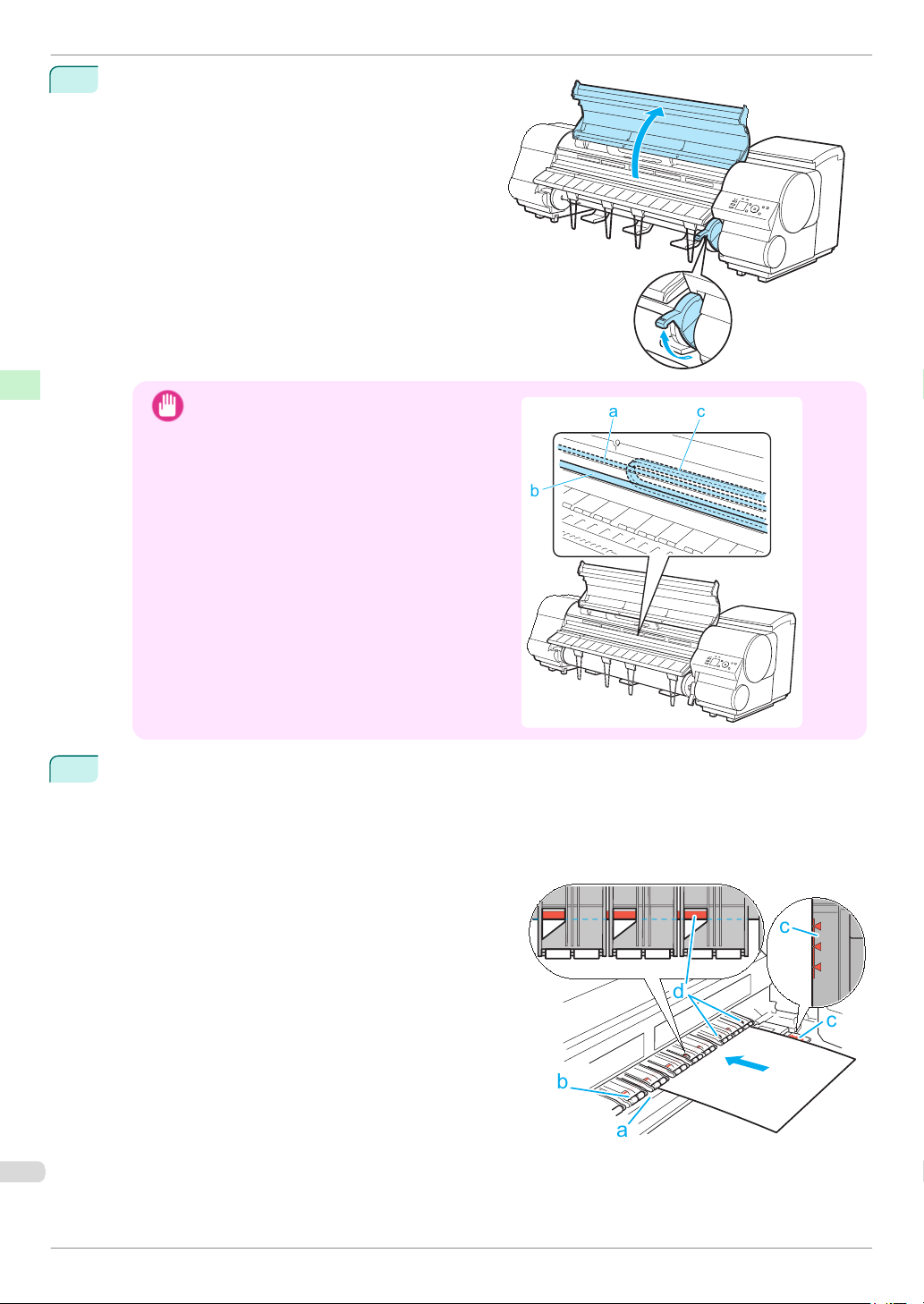

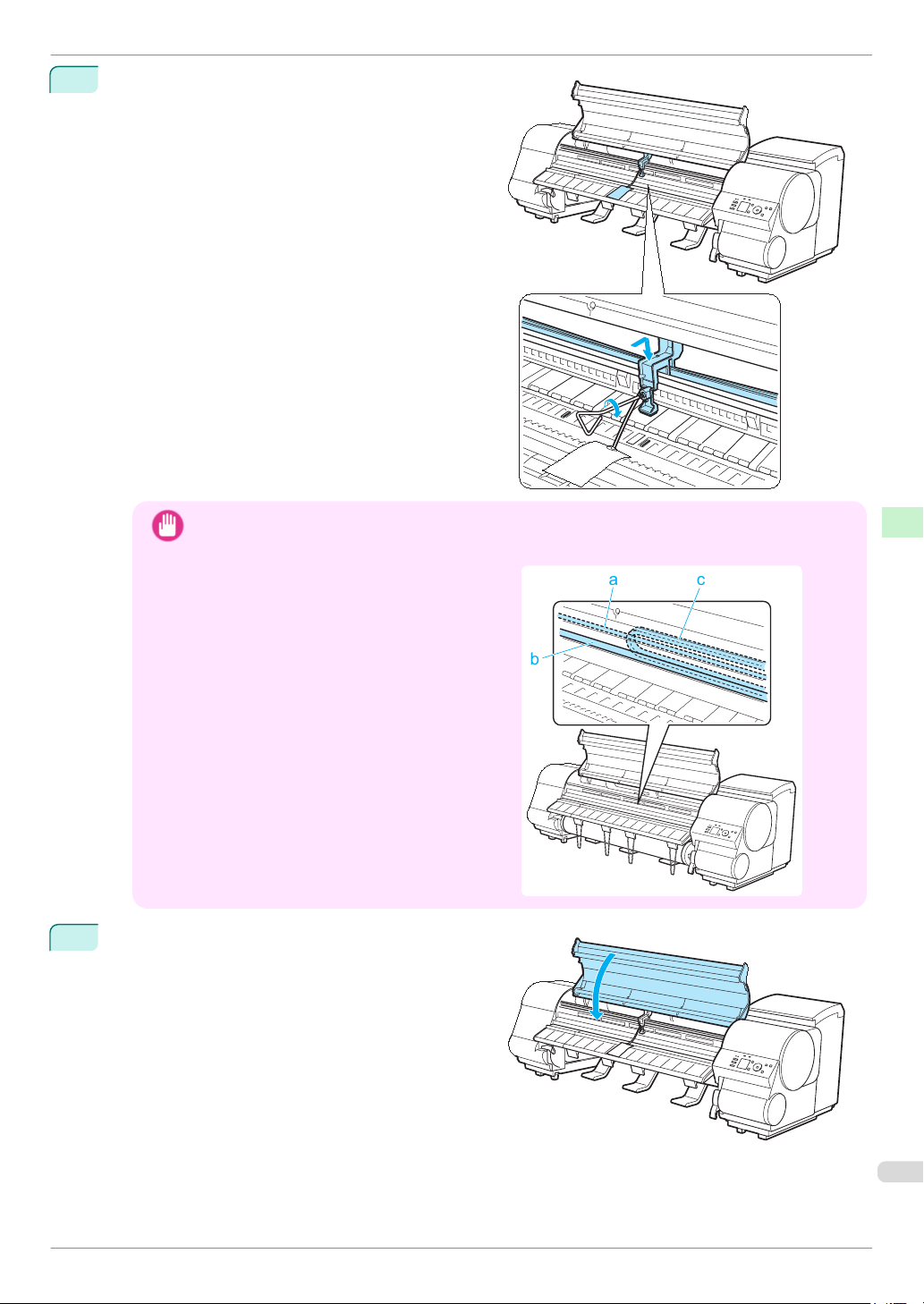

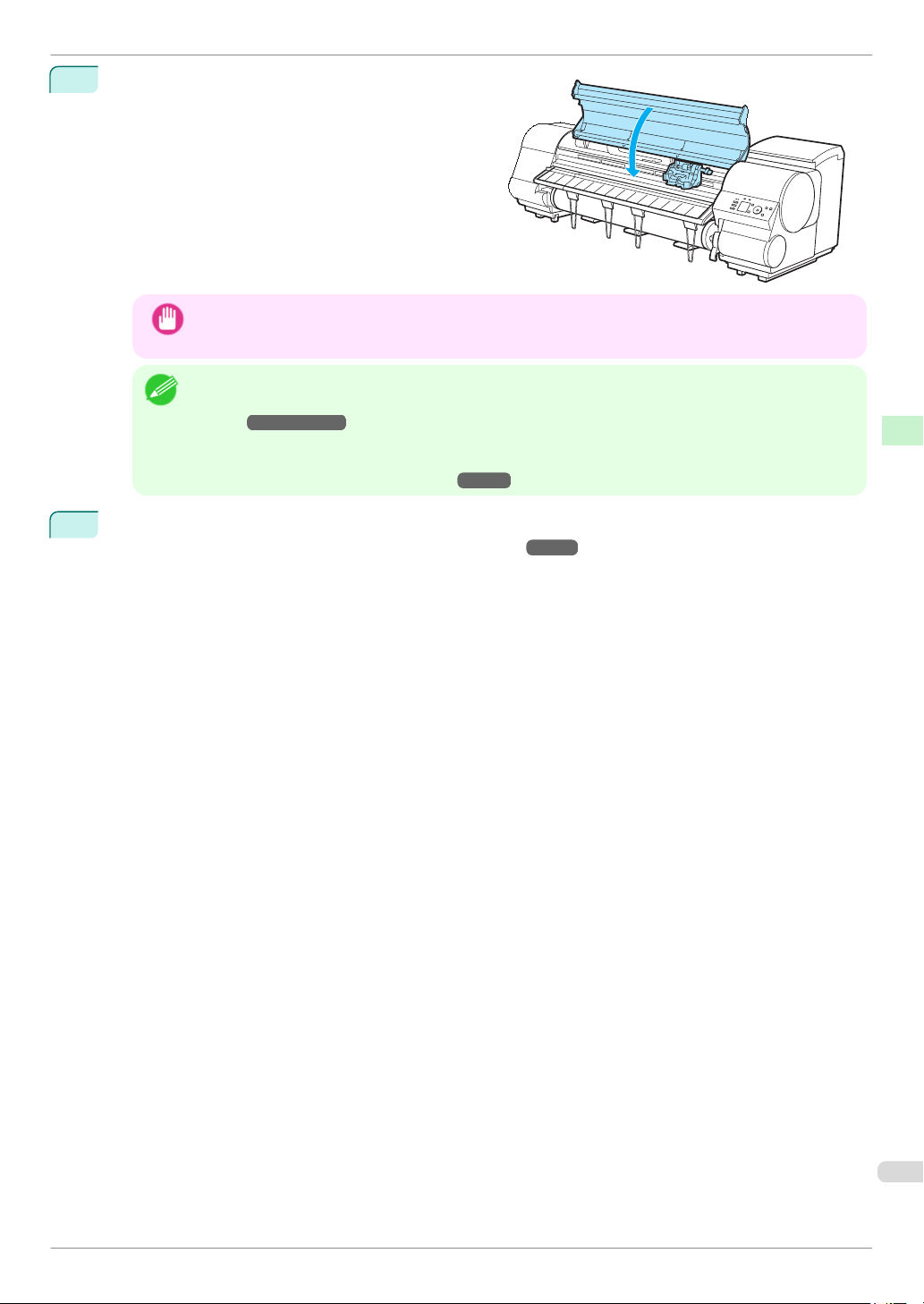

Lift the Release Lever and open the Top Cover.
2
Handling Paper Handling sheets

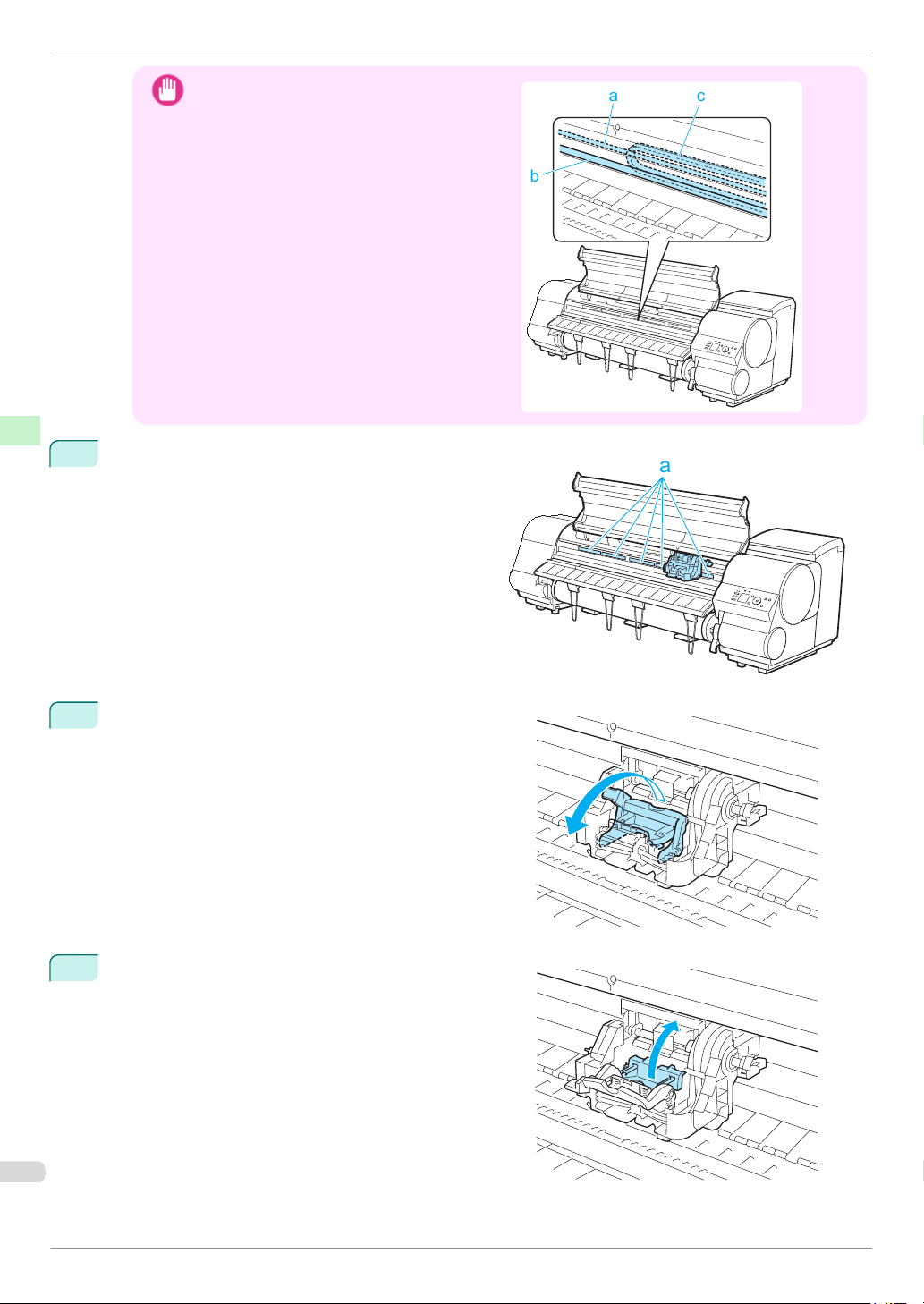

Do not touch the Linear Scale (a), Carriage
•
Important
Shaft (b), or Ink Tube Stabilizer (c). Touching these parts may damage them.
iPF850 Series
3
With a sheet lengthwise and printing-side up, insert it between the Platen (a) and the Paper Retainer (b). Align the edges of the sheet as follows.
1.
Align the sheet with the Paper Alignment Line (c) at right.
2.
Align the inserted edge of the sheet with the leading edge of the Paper Alignment Line (d), as shown.
Basic Guide
Page 27
iPF850 Series
When inserted, sheets are automatically held by suction against the Platen.
Lower the Release Lever and close the Top Cover.
4
Loading Sheets in the Printer
•
Load a sheet so that it is parallel to the Paper Alignment Line at right (c). Loading paper askew will
Important
Note
cause an error.
•
Warped paper may rub against the Printhead. Straighten paper if it is warped before loading it.
•
You can adjust the strength of suction holding paper against the Platen when the Release Lever is up. If it is difficult to load paper, press the ▲ or ▼ button on the Control Panel to adjust the strength. Set suction stronger by pressing the ▲ button or weaker with the ▼ button. Three settings are available. However, even if you increase the suction, it may not be sufficient to hold some types of paper against the Platen well. In this case, use your hand to load the paper.
•
Sheets are held in place by suction through holes on the Platen. Although the suction may produce a noise when paper is loaded in some positions, it does not indicate a problem. If the noise is distracting, try moving the paper over slightly to the left or right (up to 1 mm [0.039 in]) while keeping it parallel to the Paper Alignment Line.
•
The suction remains on for about 30 seconds during loading. If you cannot finish loading a sheet during this time, pull the sheet away and reinsert it to start the suction again.
Handling Paper Handling sheets
•
If a print job was received Pressing the OK button will advance the paper, and then printing will begin.
•
If no print job was received A menu for selection of the type of paper is shown on the Display Screen. Press ▲ or ▼ to select the type of paper, and then press the OK button. The printer now starts feeding the paper.
•
Refer to Paper Reference Guide for details on type of paper to select. (See "Displaying the Paper Refer-
ence Guide.") ➔User's Guide
Note
Basic Guide
27
Page 28

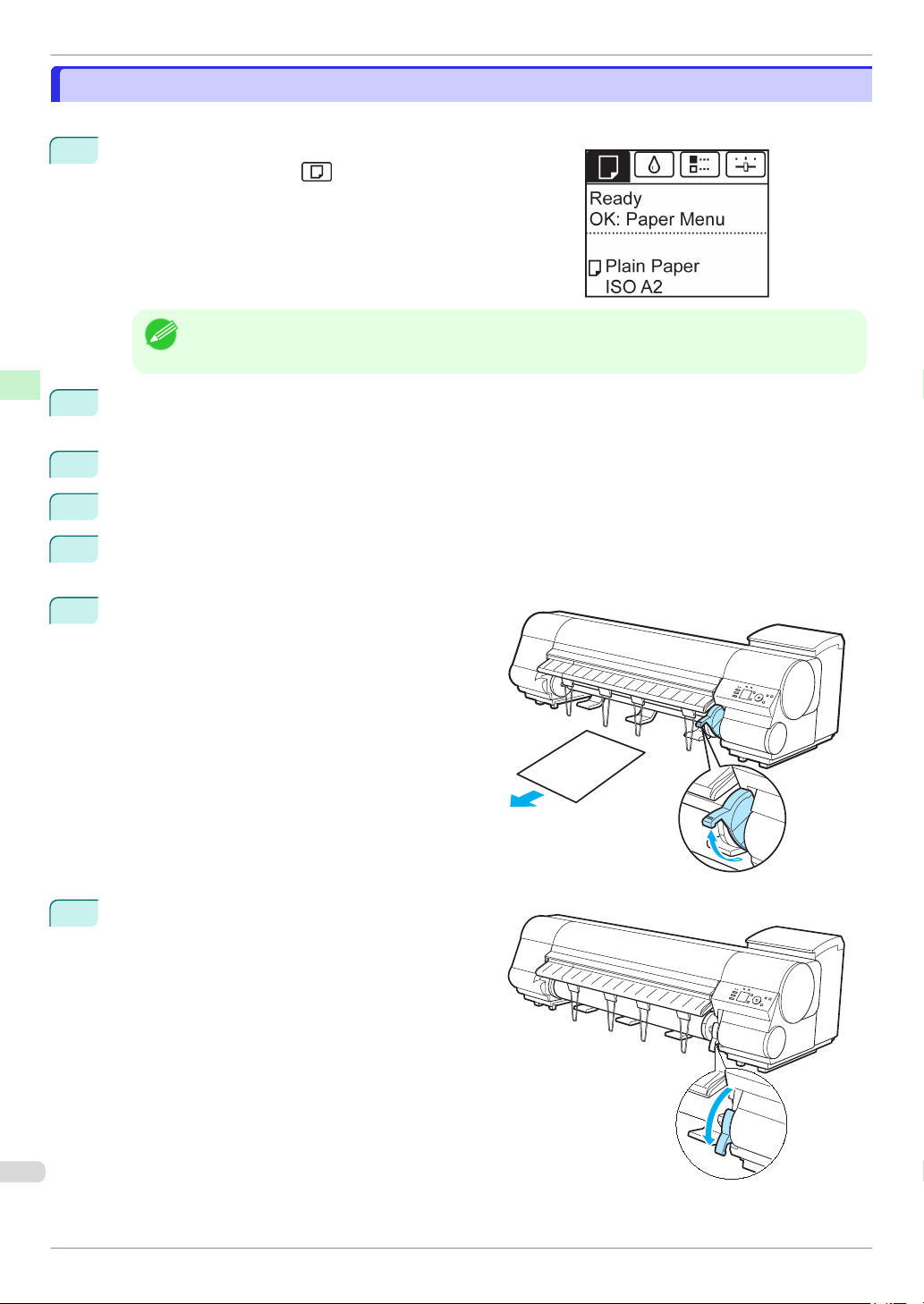

Removing Sheets

Removing Sheets
Removing Sheets
Remove sheets from the printer as follows.
On the Tab Selection screen of the Control Panel, press ◀ or
1
Handling Paper Handling sheets
2
3
4
5
6
▶ to select the Paper tab (
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
Press the OK button. The Paper Menu is displayed.
Press ▲ or ▼ to select Eject Paper, and then press the OK button.
Press ▲ or ▼ to select Cut Sheet, and then press the OK button.
Press ▲ or ▼ to select Yes, and then press the OK button. The paper is ejected from the front of the printer.
As you hold the sheet, lift the Release Lever and re­move the sheet.
).
iPF850 Series
Lower the Release Lever.
7
Basic Guide
Page 29
iPF850 Series

Stacker

Stacker

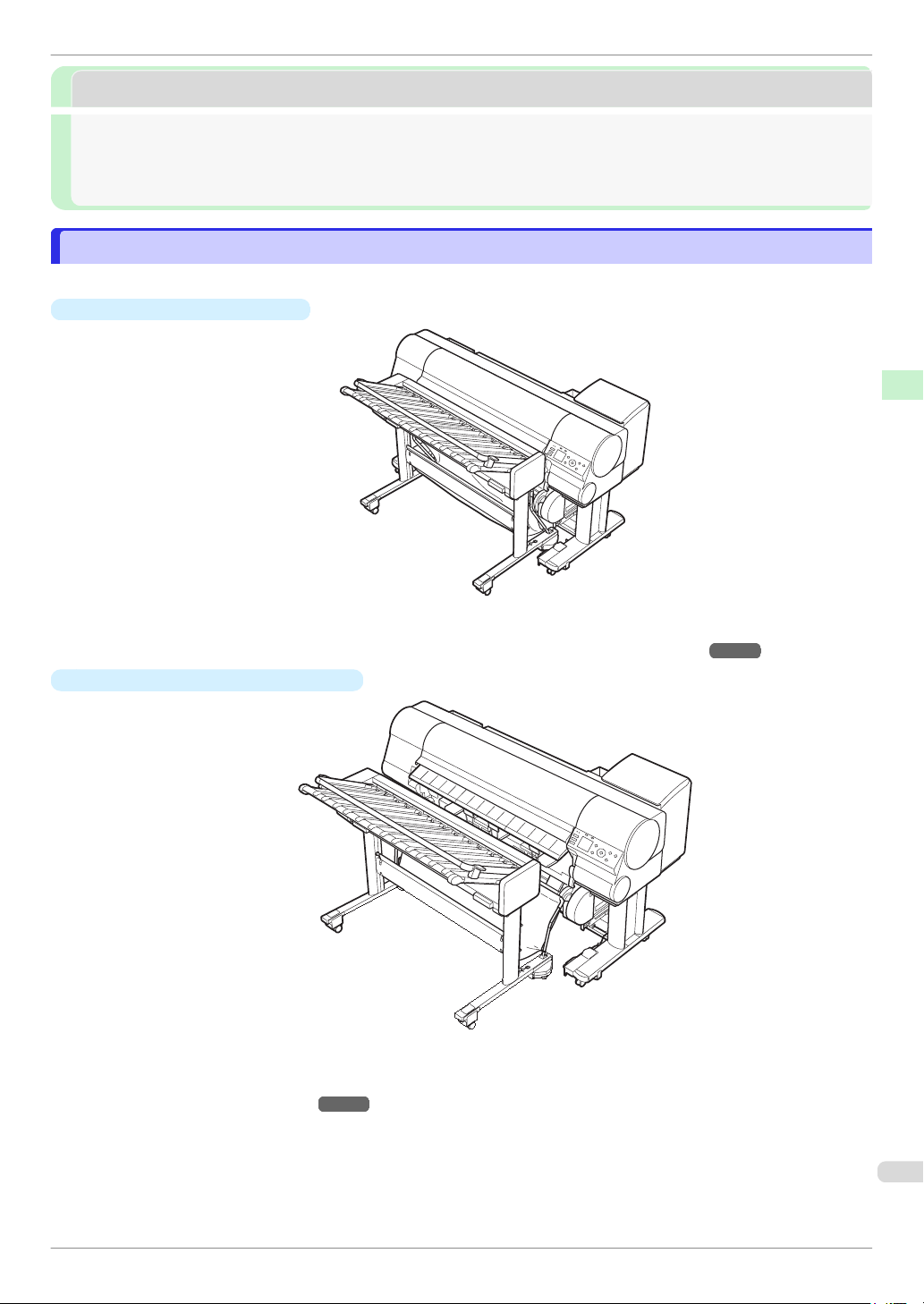

The Stacker can be used in two different positions depending on the ejection method.
•
Stacker
Stacker
Stacker
Stacker ........................................................................................................................................................... 29
Installing and Removing the Stacker On the Printer ......................................................................................... 30
Ejecting to the Stacker .................................................................................................................................... 34
Ejecting to the Output Stacker ........................................................................................................................ 35
When ejecting to the Stacker
Handling Paper Stacker
Use with the Stacker installed on the printer. This can be used when printing on supported roll paper. (See "Ejecting to the Stacker.")
•
When ejecting to the Output Stacker
Use with the Stacker removed from the printer. This can be used when printing on cut sheets and roll paper which is not supported by the stacker. (See
"Ejecting to the Output Stacker.") ➔P.35
➔P.34
Basic Guide
29
Page 30
b
a

Installing and Removing the Stacker On the Printer

•
When performing work between the Stacker and printer, such as when replacing the paper, take care that your
Caution
Handling Paper Stacker
Important
feet do not get caught on the cables.
•

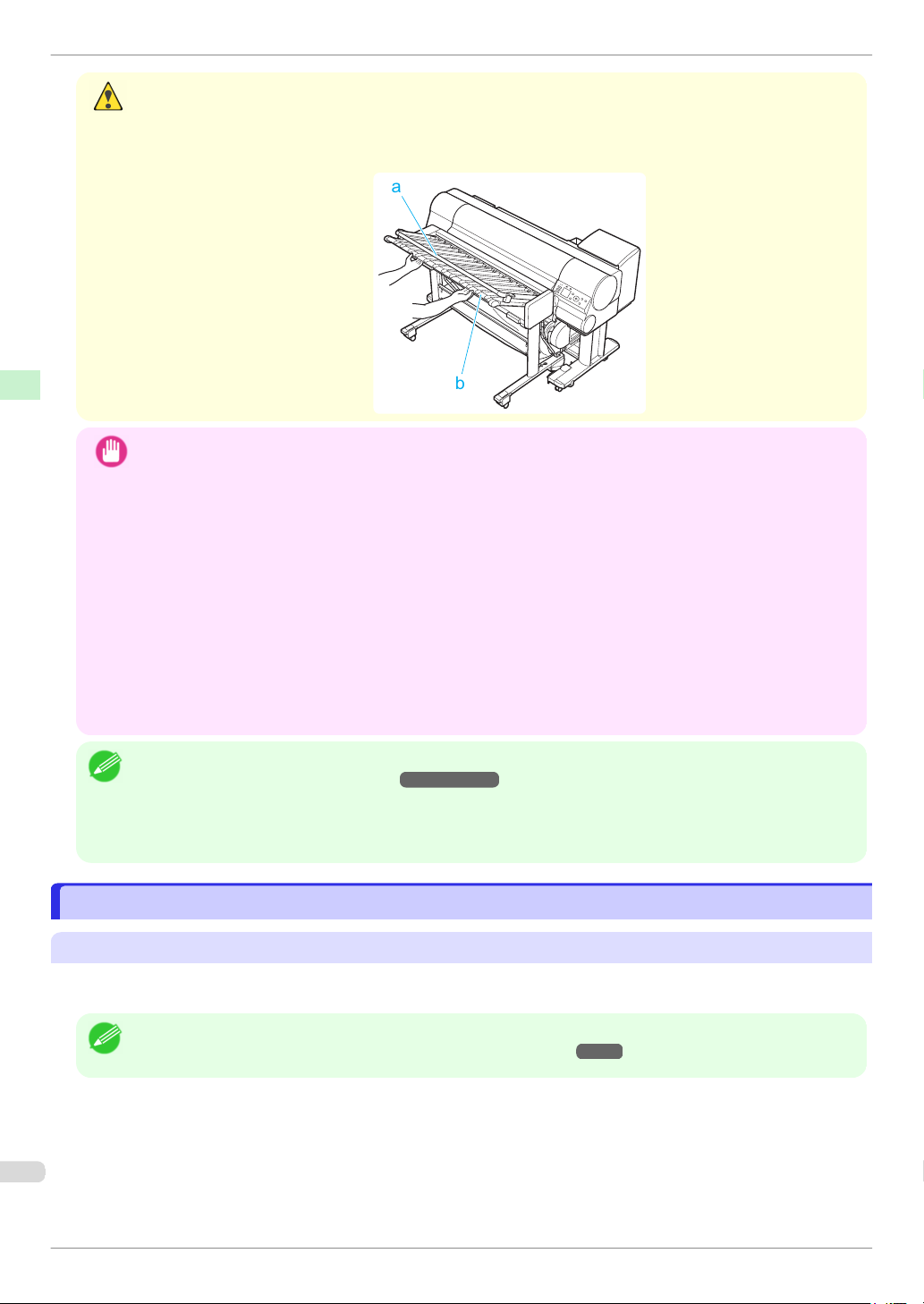

When moving the Stacker, move it by holding the Stacker outer frame (b) with the canopy (a) closed. Moving it by holding any other location may cause injuries or damage to the stacker.
•
When loading paper in the printer, first move the Stacker away from the printer.
•
When printing on cut sheets, always move the Stacker away from the printer.
•
When moving the Stacker, take care to ensure that the cables do not get caught on the casters.
•
Before moving the Stacker, clear away all the paper contained in the stacker. If you move the Stacker while it still contains paper, the printed documents may become scratched or misaligned and the next ejection may not be performed properly.
•
Do not place anything on top of the Stacker. Applying excessive force can cause damage.
•
Turn the printer and Stacker off before removing the Stacker cable.
•
When connecting the Stacker cable, turn the printer off, attach the cable, and then turn the printer on again.
The Stacker Canopy may become difficult to open depending on how it is stored. If this happens, have two peo-
•
ple hold the handles on the left and right side of the Canopy and open the left and right sides simultaneously while ensuring that the Canopy does not bend.
iPF850 Series
•
For information on paper that is supported for ejecting to the Stacker, refer to the Paper Reference Guide. (See
"Displaying the Paper Reference Guide.") ➔ User's Guide
Note
The operation may not function correctly for paper not listed here.
•
The Stacker can hold 100 sheets of A0 size. (When the AutoCAD LT2004 sample image Cottage Plan and Eleva­tion.dwg was printed.)
Installing and Removing the Stacker On the Printer
Installing and Removing the Stacker On the Printer
Installing the Stacker on the Printer
When ejecting to the Stacker, install the Stacker on the printer using the following procedure before starting print­ing.
Before installing the Stacker on the printer, load the roll paper you will use and check that "Ready to print" is
•
displayed on the Display Screen. (See "Loading Rolls in the Printer.") ➔ P.15
Note
Basic Guide
Page 31
OFF
a
b
a
b
a
b
c
iPF850 Series

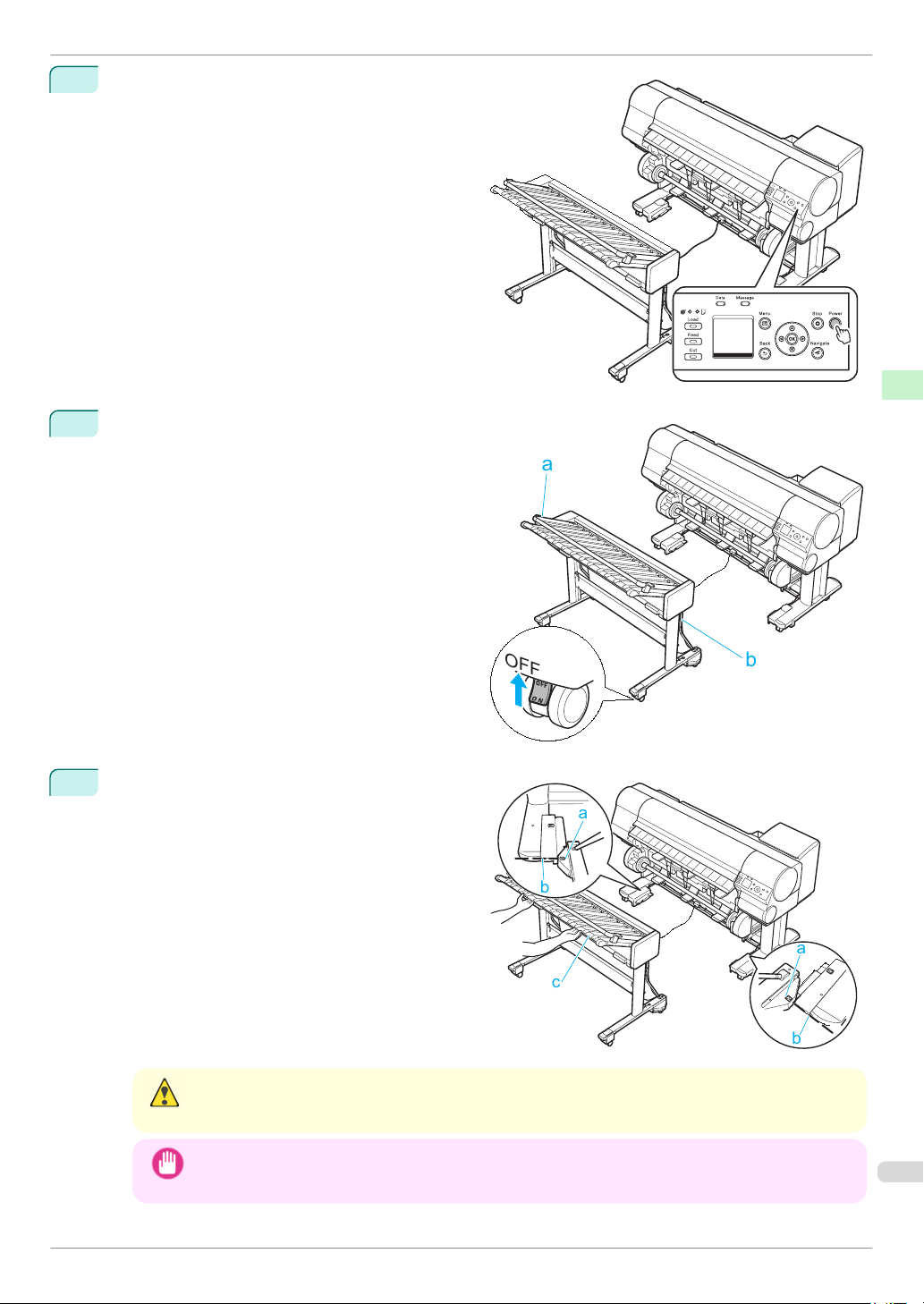

Turn the printer on.
1
Check that the Stacker Canopy (a) and Output
2
Stacker (b) are closed, and then unlock all of the casters on the stacker stand.
Installing and Removing the Stacker On the Printer
Handling Paper Stacker
Hold the Stacker outer frame (c) and move the
3
Stacker so that the triangle markings (a) on the left and right side of the Stacker stand are aligned with the sides (b) of the front face of the Docking unit left and Docking unit right.
•
Do not move the Stacker by holding at positions other than the specified ones. Moving it by holding at
Caution
Important
Basic Guide
other positions may cause injuries or damage the stacker.
•
Before moving the Stacker, clear away all of the paper contained in the stacker. If you move the Stacker while it still contains paper, the printed documents may become scratched.
31
Page 32
a
b
c
a
b
ON
Installing and Removing the Stacker On the Printer

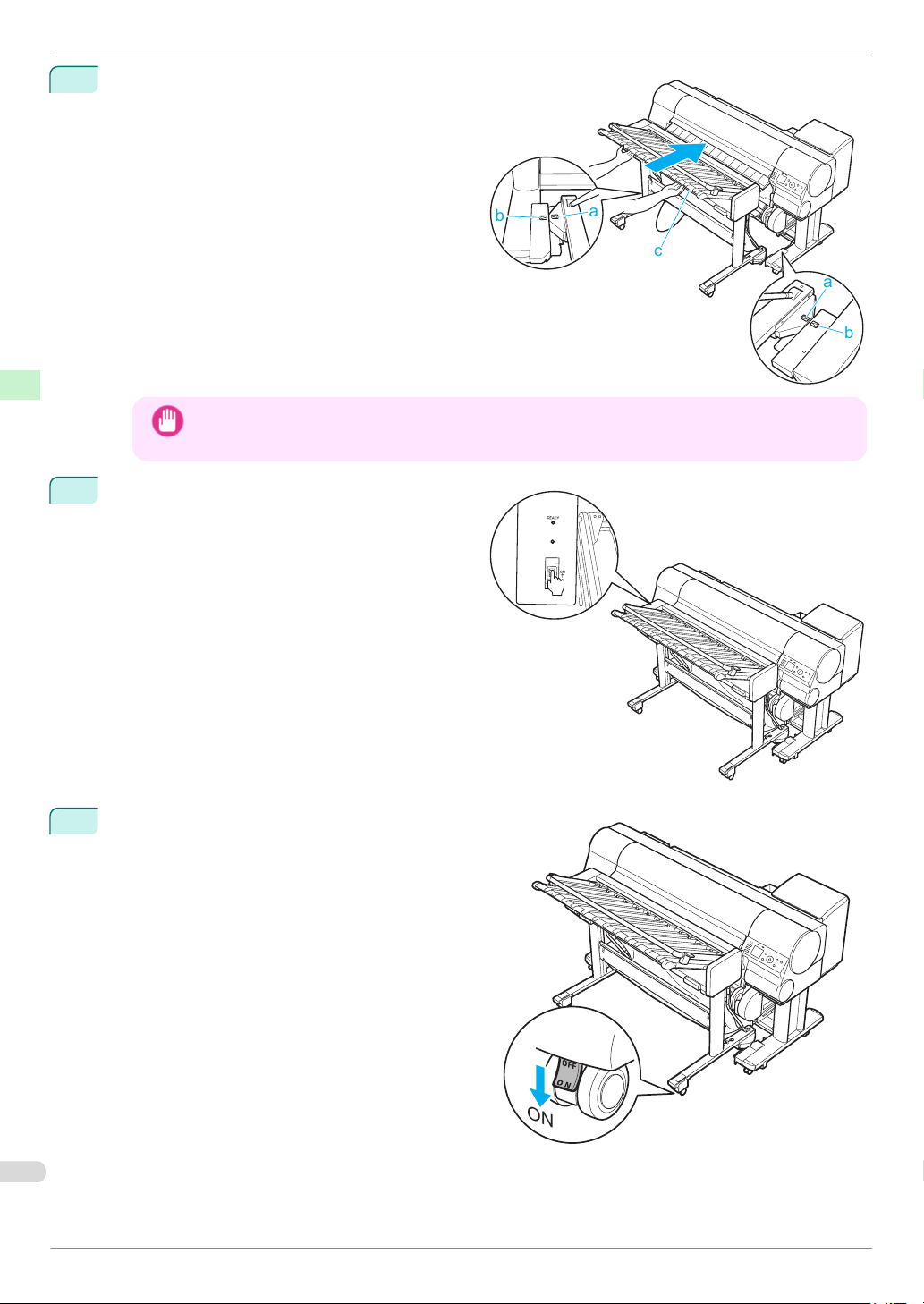

Hold the Stacker outer frame (c) and push the
4
Stacker straight in towards the printer so that the triangle markings (a) on the left and right side of the Stacker stand are aligned with the points of the triangle markings (b) on the Docking unit left and Docking unit right.
Handling Paper Stacker
•
Always push the Stacker in straight. If you do not push it in straight, the printer or stacker may be dam-
Important
Turn the Stacker on and check that both of the
5
aged.
lamps on the Stacker are lit. If only one of the lamps on the Stacker is lit, the Stacker might not be installed correctly on the print­er. Check that the Stacker is installed at the correct position in step 4.
iPF850 Series
Lock the two front casters on the Stacker stand.
6
Basic Guide
Page 33
OFF
a
iPF850 Series
Installing and Removing the Stacker On the Printer

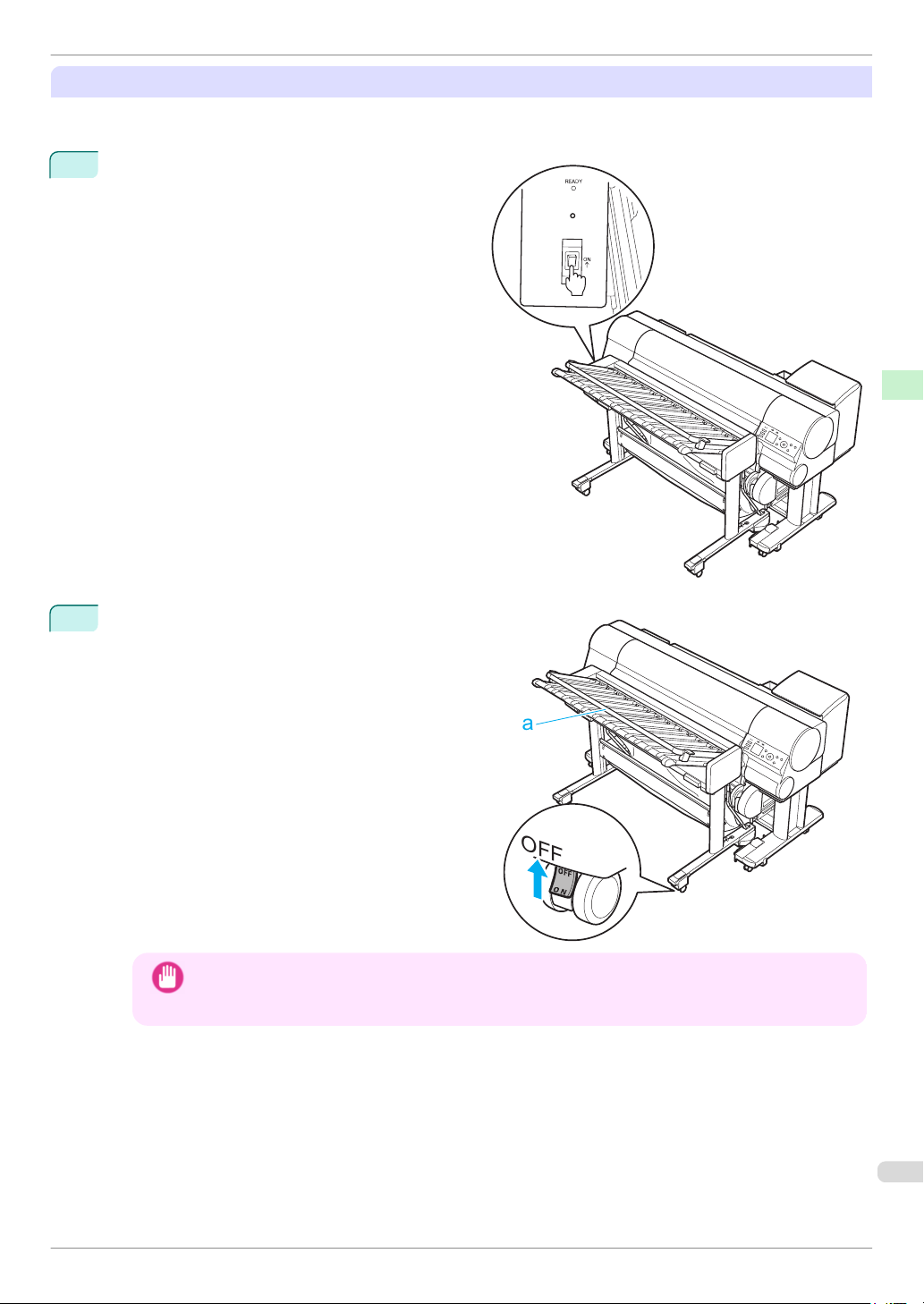

Removing the Stacker From the Printer
If the Stacker is installed on the printer when paper is loaded in the printer or when ejecting to the Output Stacker, remove the Stacker from the printer using the following procedure.
Turn the Stacker off.
1
Handling Paper Stacker
Check that the Stacker Canopy (a) is closed, and
2
then unlock all of the casters on the Stacker stand.
•
If the Stacker contains printed documents, open the Canopy and clear away all of the printed docu-
Important
ments, then close the Canopy. If you move the Stacker while it still contains paper, the printed docu­ments may become scratched or misaligned and the next ejection may not be performed properly.
Basic Guide
33
Page 34
a

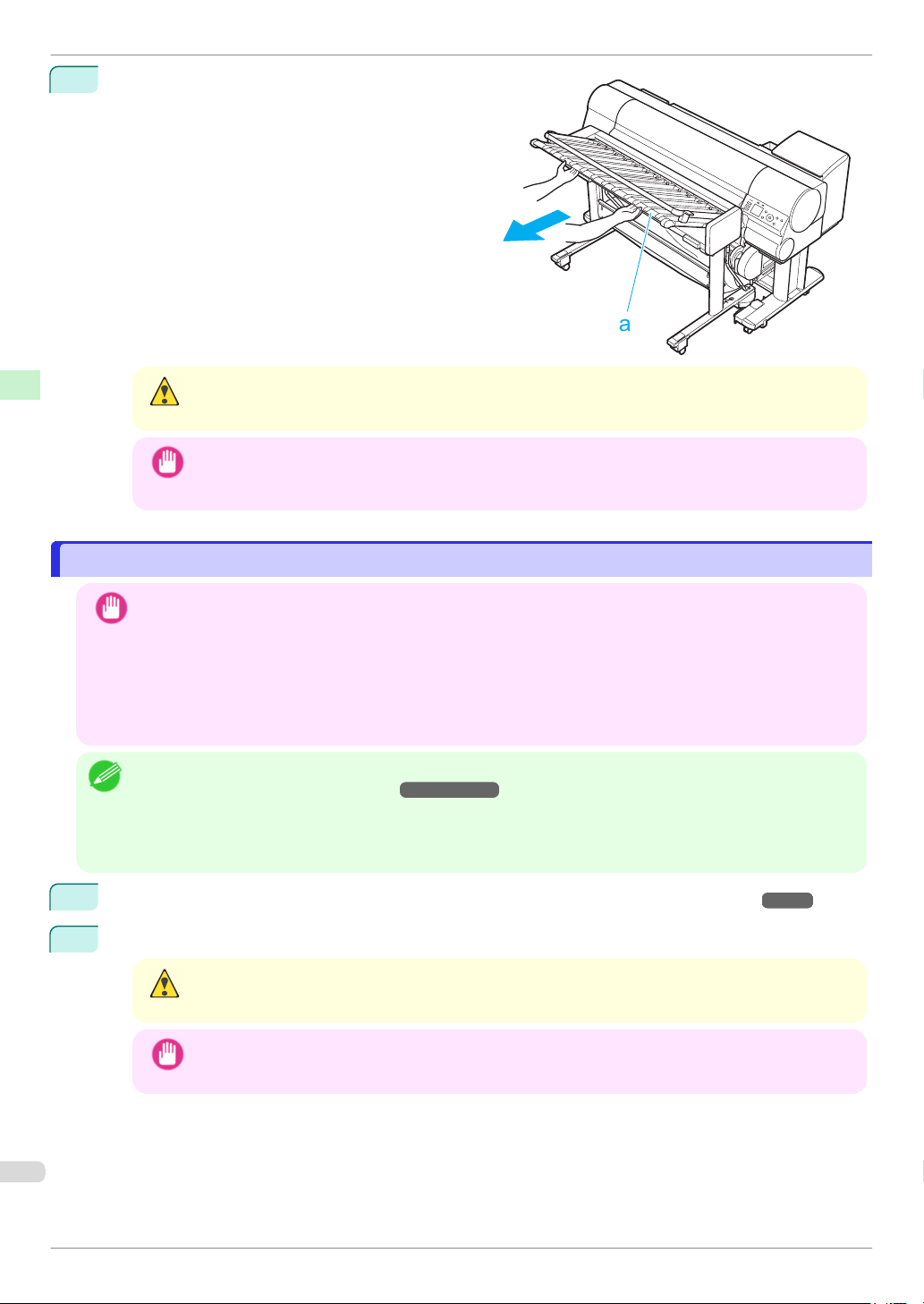

Ejecting to the Stacker

Holding the Stacker outer frame (a), pull the Stacker
3
and remove it away from the printer.
Handling Paper Stacker
•
Do not move the Stacker by holding at positions other than the specified ones. Moving it by holding at
Caution
Important
other positions may cause injuries or damage the stacker.
•
If you move the Stacker too far away from the printer, the Stacker cable may become unplugged from the connector. If the stacker cable becomes disconnected, turn off the printer and then connect the Stacker cable to the connector and turn the printer back on again.
iPF850 Series
Ejecting to the Stacker
Ejecting to the Stacker
•
When ejecting to the Stacker, do not print using the following settings. These can cause paper jams.
Important
Note
1
2
•
Borderless printing
•
Trim Edge First is On(Input Length), On (Preset Len), or Automatic
•
TrimEdge Reload is On or Automatic
•
Do not use the Stacker for printing that takes a long time, such as banner printing. This can cause paper jams, because the rollers that feed the paper stop rotating after a fixed time after paper is detected in the Stacker.
•
For information on paper that is supported for ejecting to the Stacker, refer to the Paper Reference Guide. (See
"Displaying the Paper Reference Guide.") ➔ User's Guide
The operation may not function correctly for paper not listed here.
•
The Stacker can hold 100 sheets of A0 size. (When the AutoCAD LT2004 sample image Cottage Plan and Eleva­tion.dwg was printed)
Install the Stacker on the printer. (See "Installing and Removing the Stacker On the Printer.") ➔P.30
Start printing on roll paper.
•
Do not put your hand, etc. in the paper ejection path during printing. This may cause injuries or damage
Caution
Important
the stacker.
•
Do not open the Canopy during printing.
Basic Guide
Page 35
iPF850 Series

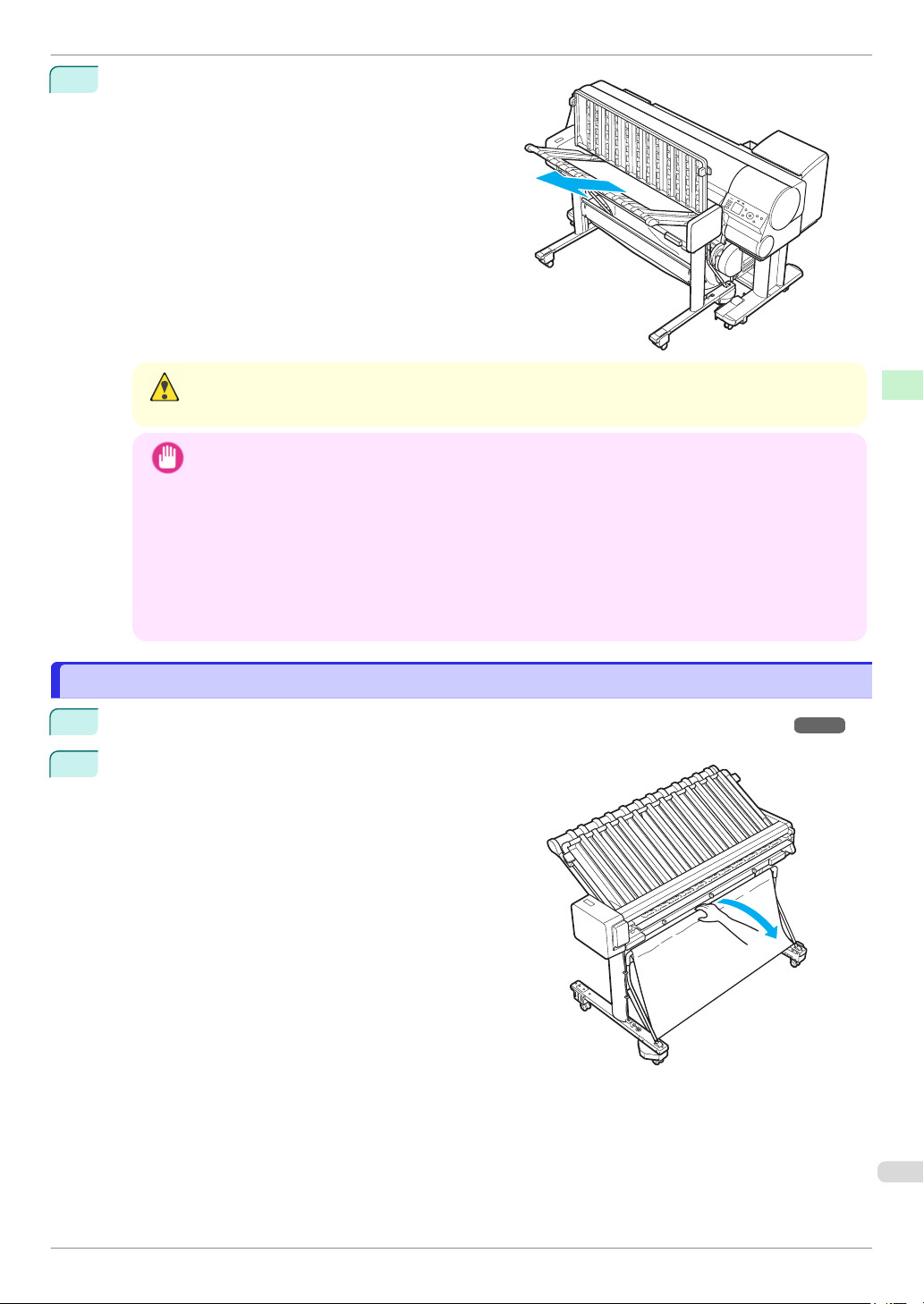

Open the Canopy and remove the printed documents
3
after the printing has finished.
Ejecting to the Output Stacker
•
Do not put your hand into the base part of the Canopy or the paper feed path when you open or close
Caution
Important
the Canopy. Your hand may get caught, causing injuries or damaging the Stacker.
•
The Stacker Canopy may become difficult to open depending on how it is stored. If this happens, have two people hold the handles on the left and right side of the Canopy and open the left and right sides simultaneously while ensuring that the Canopy does not bend.
•
When removing printed documents, remove them all at once so that there is no printed document left in the Stacker. Once removed, do not return the printed documents back into the Stacker. If there are any printed documents misaligned from the ejected position, the next ejection may not be performed proper­ly.
•
Remove printed documents after opening the Canopy. If you attempt to remove them while closed, the printed documents may become scratched.
Handling Paper Stacker

Ejecting to the Output Stacker

Ejecting to the Output Stacker
1
Remove the Stacker from the printer. (See "Installing and Removing the Stacker On the Printer.") ➔P.30
Go between the Stacker and the printer and open the Out-
2
put Stacker.
35
Basic Guide
Page 36
a
b
a
b
Ejecting to the Output Stacker

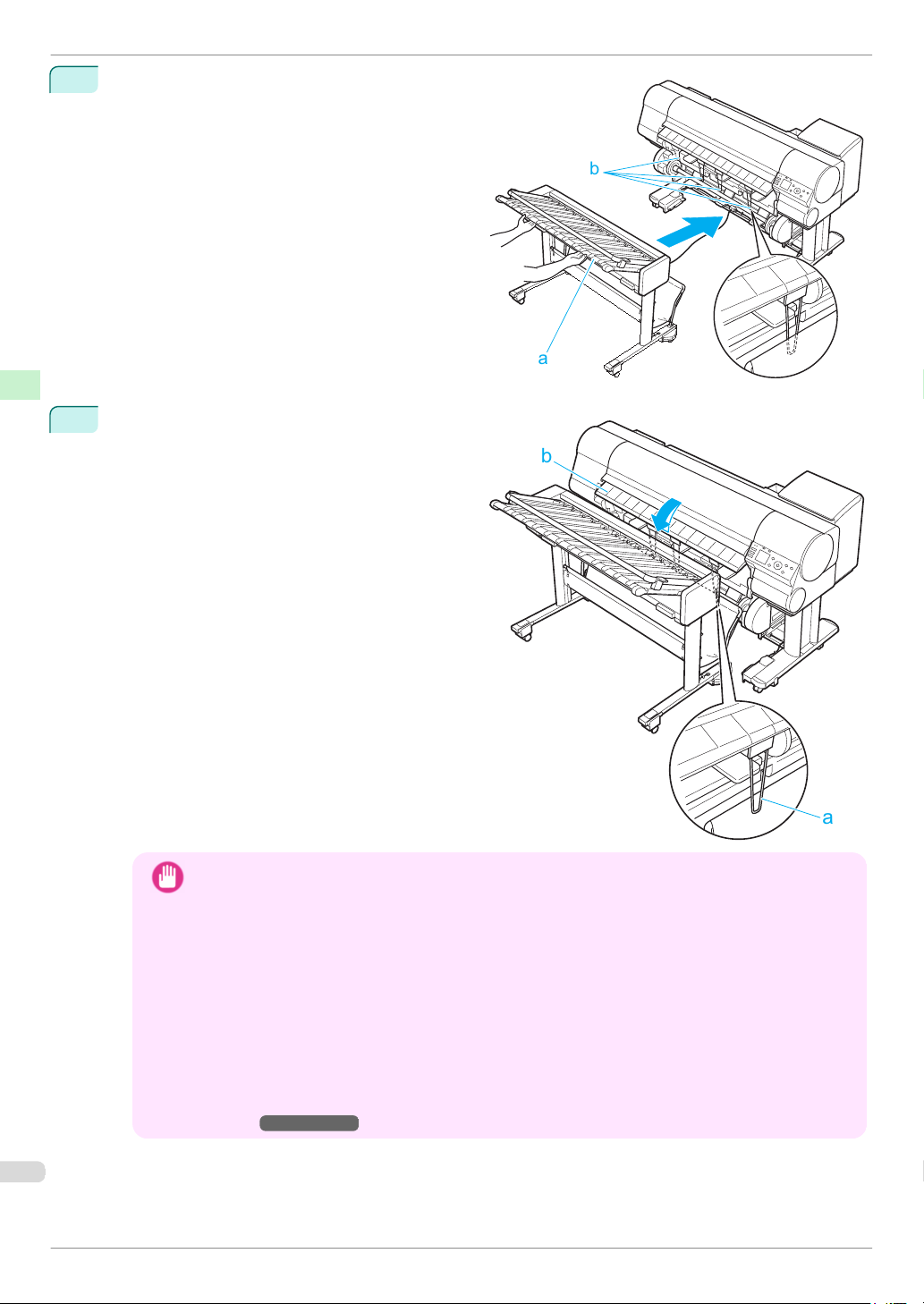

Grasp the Stacker outer frame (a) and push the
3
Stacker straight until the Ejection Support (b) touches the end of the Output Stacker.
Handling Paper Stacker
Lift up the Ejection Guide (b) until the Ejection Sup-

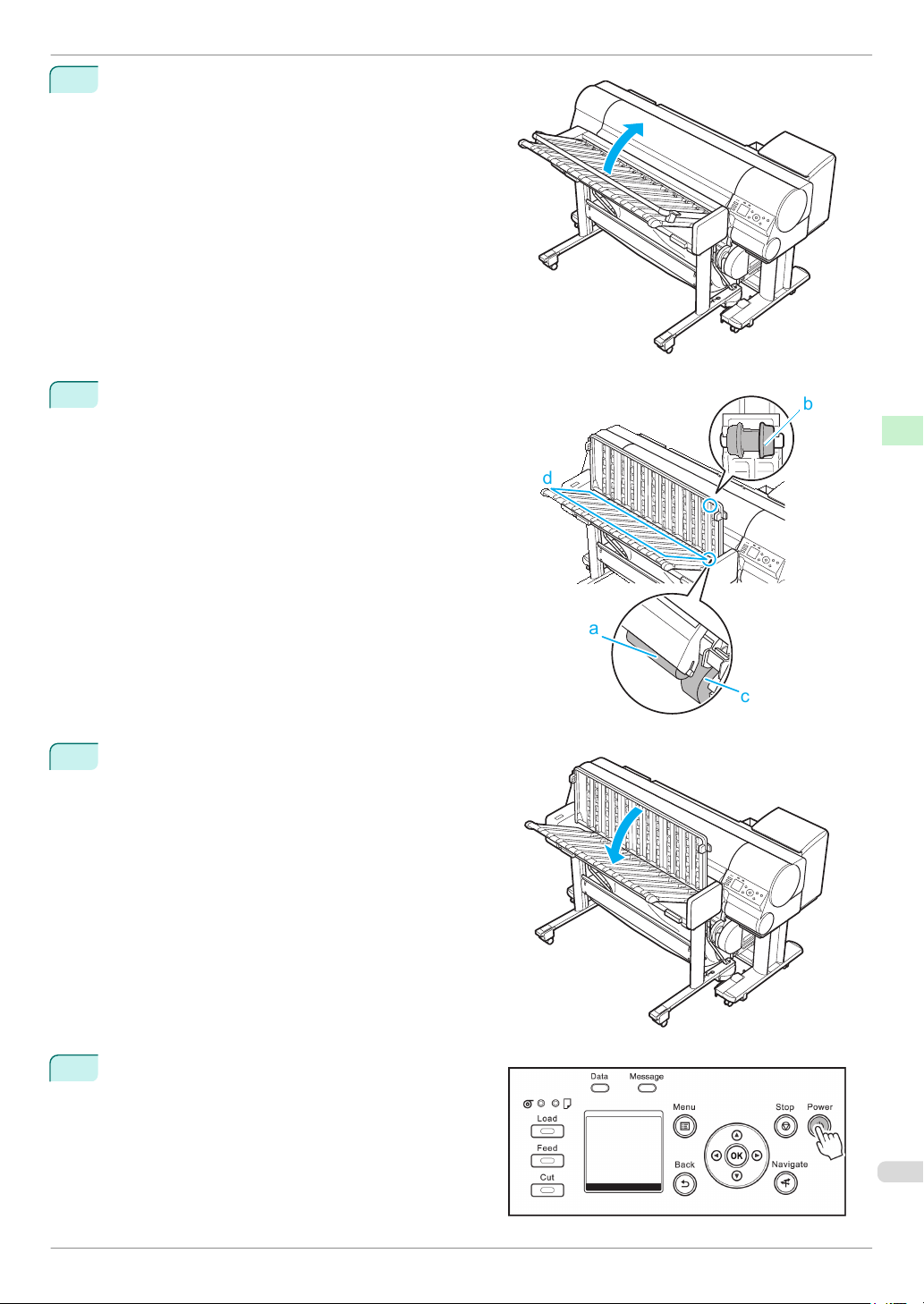

4
port (a) tip is at a higher position than the Output Stacker tip, and then lower it again. The Ejection Support is moved in front of the Out­put Stacker tip.

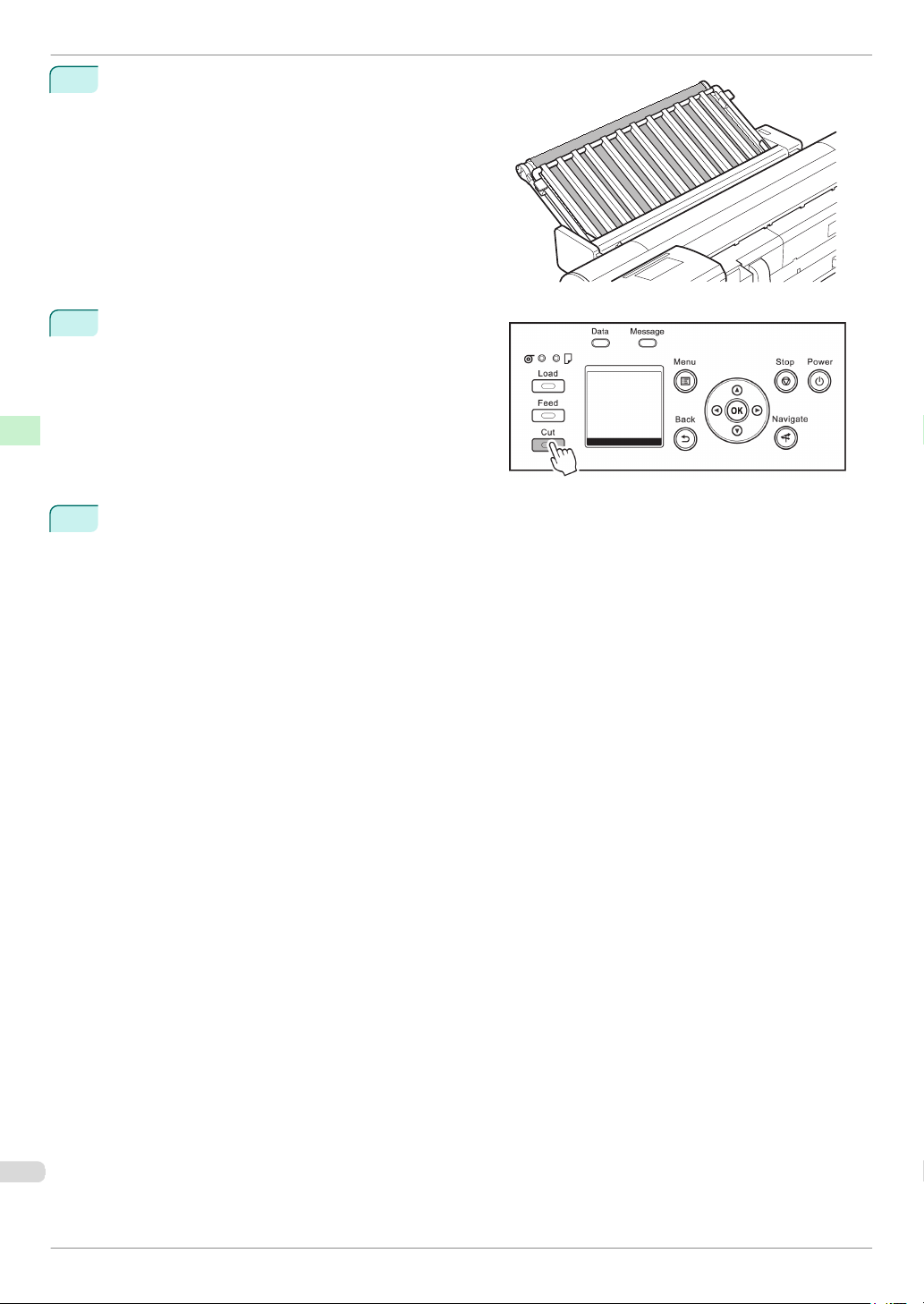

This completes the preparation for ejecting to the output stacker. Start printing.
iPF850 Series
•
When lifting up the Ejection Guide, lift it up slowly. If you lift it up too vigorously, the Ejection Guide may
Important
Basic Guide
strike the Top Cover, damaging the printer.
•
Do not leave printed documents in the stacker for a long period of time. This may cause uneven colors of the printed documents, etc.
•
Close the Output Stacker when you are not using the Output Stacker. If you install it on the Stacker while the Output Stacker is open, the Output Stacker will touch the printer and may cause damage.
•
Depending on the type of paper, the edge may curl or bend during ejection. In this case, straighten out the paper. If the paper is curled or bent, it may damage printed documents.
•
Store the Output Stacker when printing long documents such as banners. It is recommended that you spread a clean cloth or paper on the floor and select Eject as the method for cutting roll paper to pre­vent that printing from becoming soiled or scratched. (See "Specifying the Cutting Method for
Rolls.") ➔User's Guide
Page 37
iPF850 Series

Consumables and Maintenance

Consumables and Maintenance

Replacing Ink Tanks

Replacing Ink Tanks
Compatible ink tanks
For information on the compatible ink tanks for this printer, see "Ink Tanks." Replacement ink tanks in 330 ml (11.2 fl oz) and 700 ml (23.7 fl oz) capacities are supported.
Precautions when handling ink tanks
Take the following precautions when handling ink tanks.
Replacing Ink Tanks

Ink Tanks

Ink Tanks
➔User's Guide
•
Depending on the color, you can also use an ink tank with a different capacity.
Note
•
For safety, keep ink tanks out of the reach of children.
•
Caution
Important
If ink is accidentally ingested, contact a physician immediately.
•
There may be ink around the ink supply section of ink tanks you removed. Handle ink tanks carefully during replacement. The ink may stain clothing.
•
Do not install used ink tanks in another model of printer. This will prevent correct ink level detection, which may damage the printer or cause other problems.
•
We recommend using up an Ink Tank in the course of printing within six months after breaking the seal. Printing quality may be affected if you use older ink tanks.
•
Do not leave the printer without ink tanks installed for extended periods (a month or more). Residual ink may become clogged inside the printer and affect printing quality.
Consumables and Maintenance Ink Tanks
How to replace an Ink Tank
1.
Confirm the message ➔P.37
2.
Access the menu for Access the menu for Ink Tank replacement ➔P.38 (Otherwise, open the Ink Tank Cover.)
3.
Remove the Ink Tank.
•
Remove the Ink Tank (330 ml) ➔P.39
•
Remove the Ink Tank (700 ml) ➔P.40
4.
Load the new Ink Tank.
•
Load the Ink Tank (330 ml) ➔P.41
•
Load the Ink Tank (700 ml) ➔P.44
Confirm the message
When the ink level becomes low, a message is displayed on the Display Screen.
Basic Guide
37
Page 38

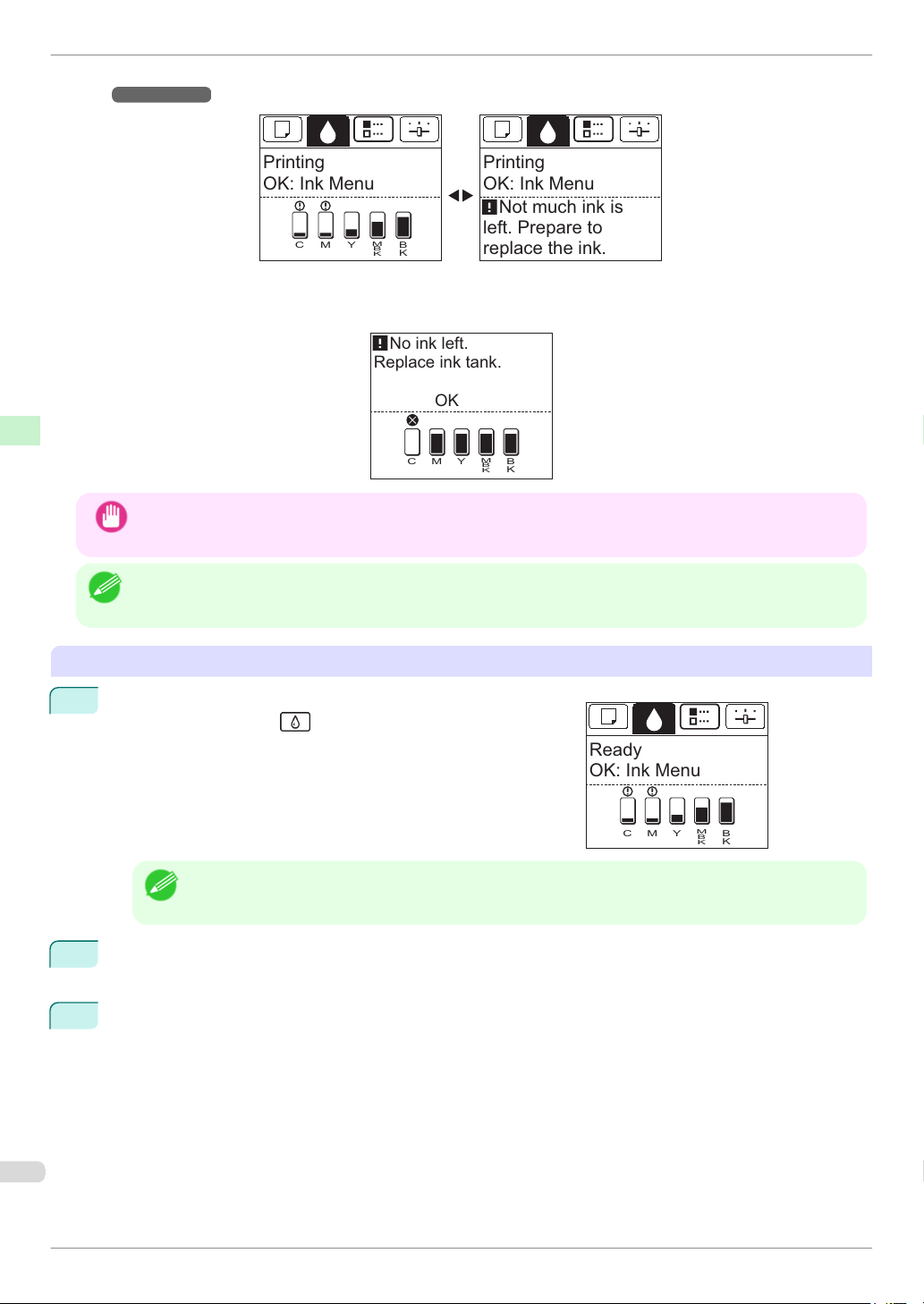

Printing OK: Ink Menu
Printing OK: Ink Menu
Not much ink is left. Prepare to replace the ink.
C M Y
M B K
B K
OK
Replace ink tank.
No ink left.
C M Y
M B K
B K
Ready OK: Ink Menu
C M Y
M B K
B K
Replacing Ink Tanks
According to the message, replace the ink tank or prepare a new ink tank. (See "When to Replace Ink
Tanks.")
Consumables and Maintenance Ink Tanks
➔User's Guide
If a message requests you to replace an Ink Tank, press the OK button. In this case, you can skip the step Access the menu for ink tank replacement. Follow the instructions in Remove the ink tanks.
•
Do not remove an Ink Tank during initialization immediately after turning on the printer, or during printhead clean-
Important
ing. Ink may leak out.
iPF850 Series
•
Ink Tank replacement is possible even during printing, when print jobs are being canceled, or when paper is being advanced.
Note
Access the menu for Ink Tank replacement
On the Tab Selection screen of the Control Panel, press ◀ or
1
▶ to select the Ink tab ( ).
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
2

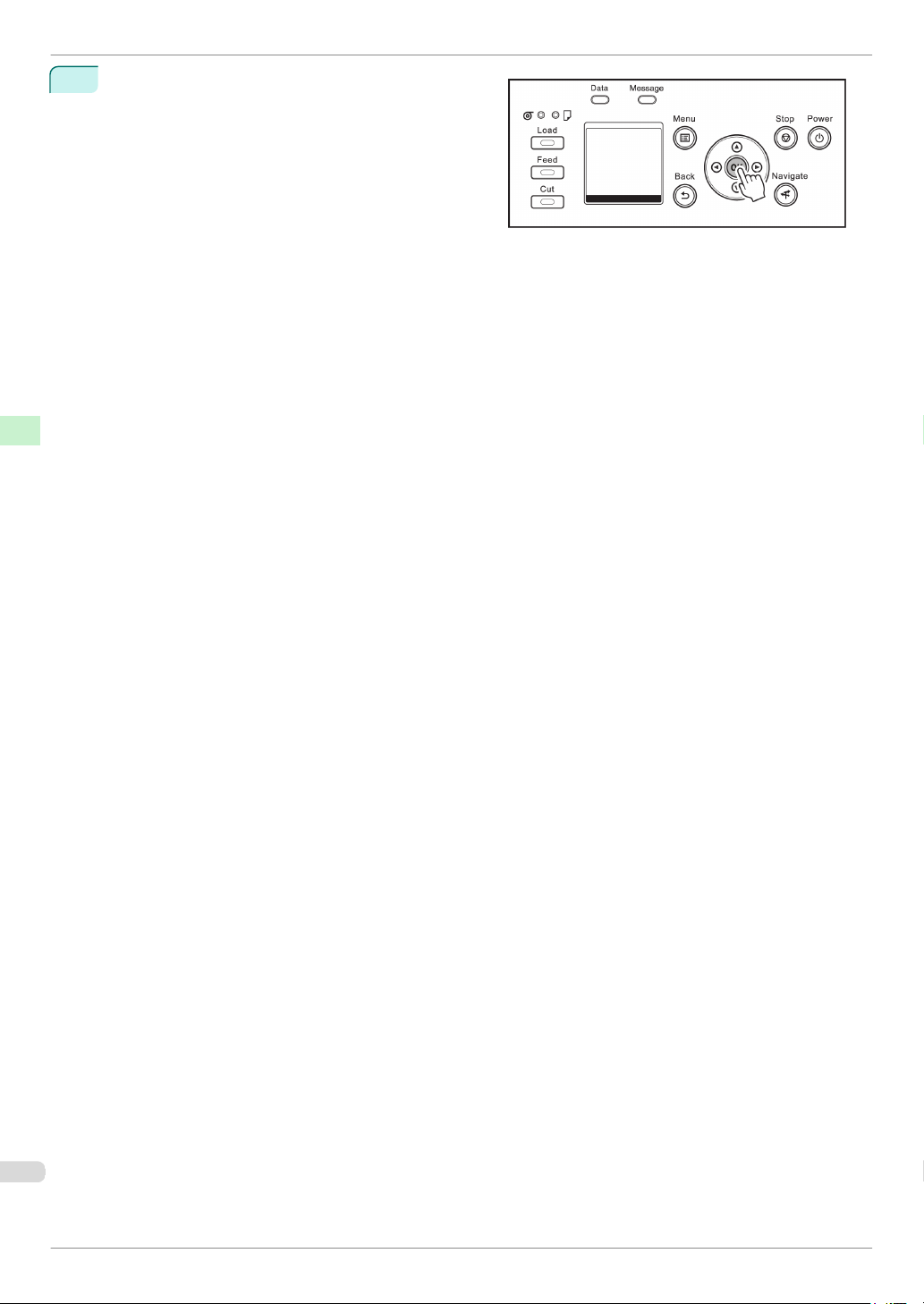

Press the OK button. The Ink Menu is displayed.
3
Press ▲ or ▼ to select Rep. Ink Tank, and then press the OK button. Instructions are displayed on the Display Screen.
Basic Guide
Page 39
a
G
G
a
iPF850 Series
Replacing Ink Tanks

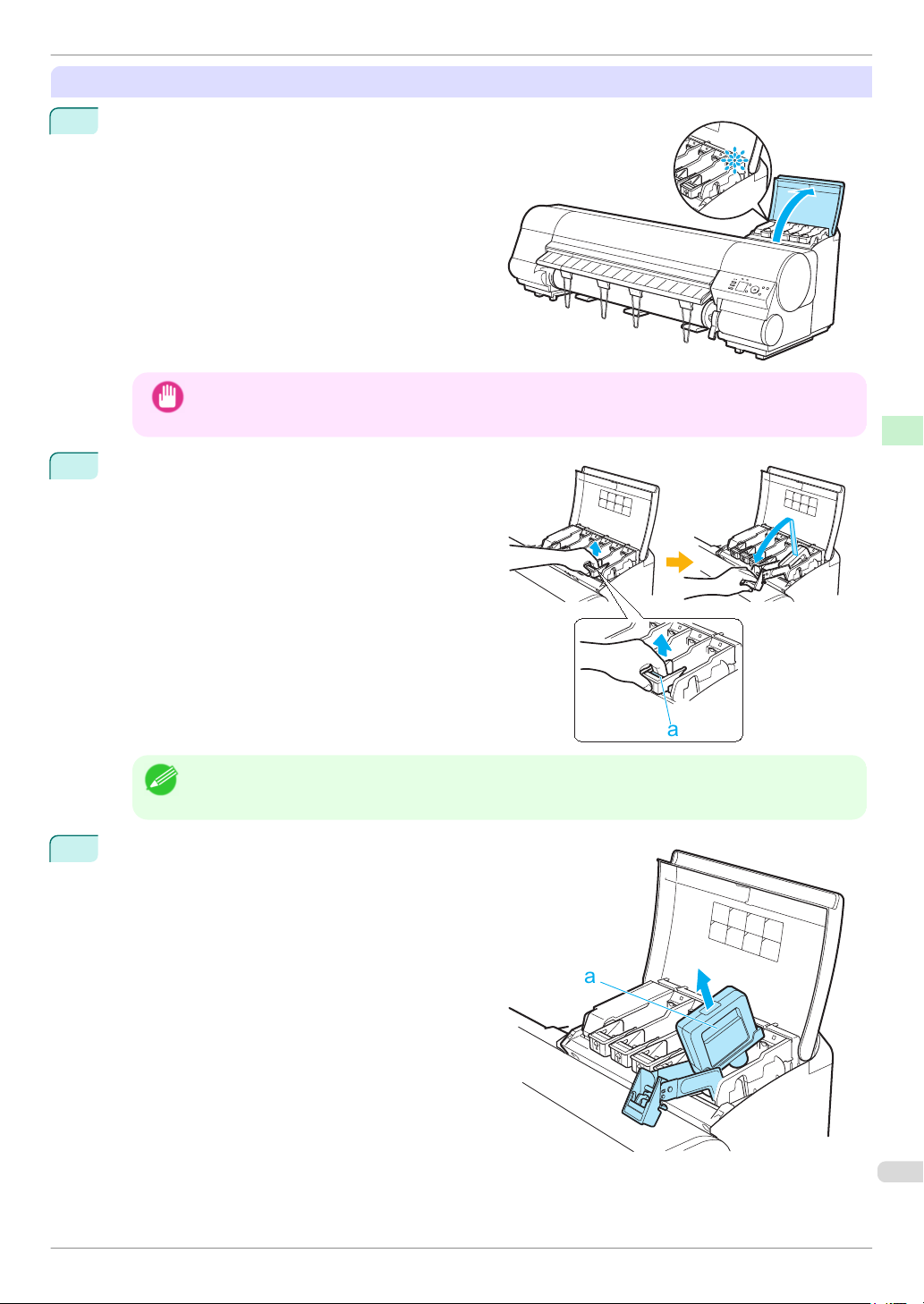

Remove the Ink Tank (330 ml)
Open the Ink Tank Cover of the tank for replacement
1
and check the Ink Lamp. The Ink Lamp flashes quickly if there is no ink left.
•
Avoid hitting the printer when replacing an Ink Tank. Handle the printer gently when replacing tanks.
Important
Lift the stopper (a) of the Ink Tank Lock Lever for the
2
color to replace. Lift the Ink Tank Lock Lever until it stops, and then push it down to the front.
Jolting the printer during printing may deteriorate print quality.
Consumables and Maintenance Ink Tanks
•
Push the Ink Tank Lock Lever down until it locks.
•
Make sure the Ink Tank Lock Lever does not return to the original position.
Note
Hold the Ink Tank by the grips (a) and remove it.
3
Press the OK button.
39
Basic Guide
Page 40
a
a
Replacing Ink Tanks
If there is still ink in the Ink Tank you removed, store it with the
•
Important
ink holes (a) facing up. Otherwise, ink may leak and cause stains. Put the removed Ink Tank in a plastic bag and seal it.
iPF850 Series
Consumables and Maintenance Ink Tanks
•
Note

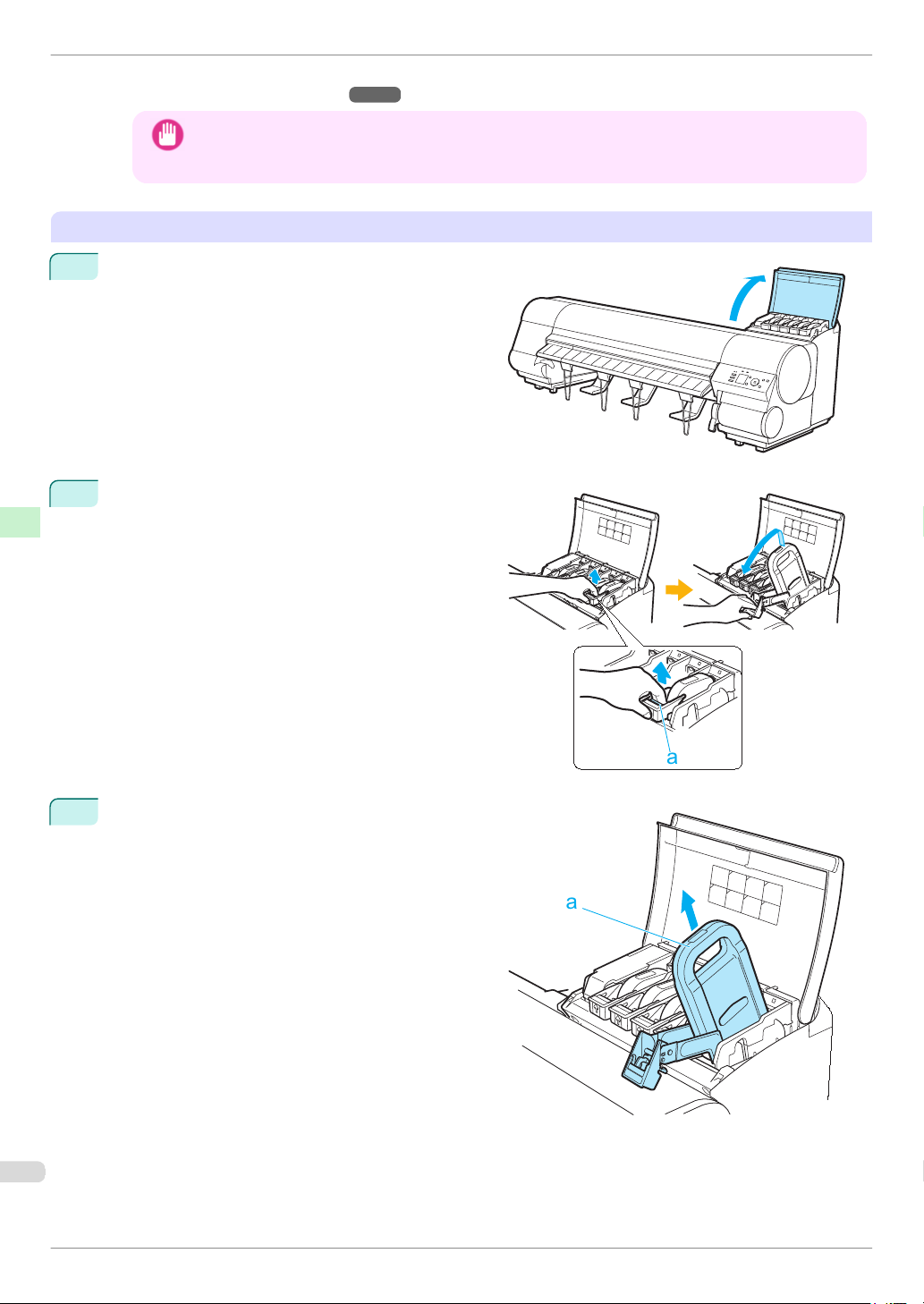

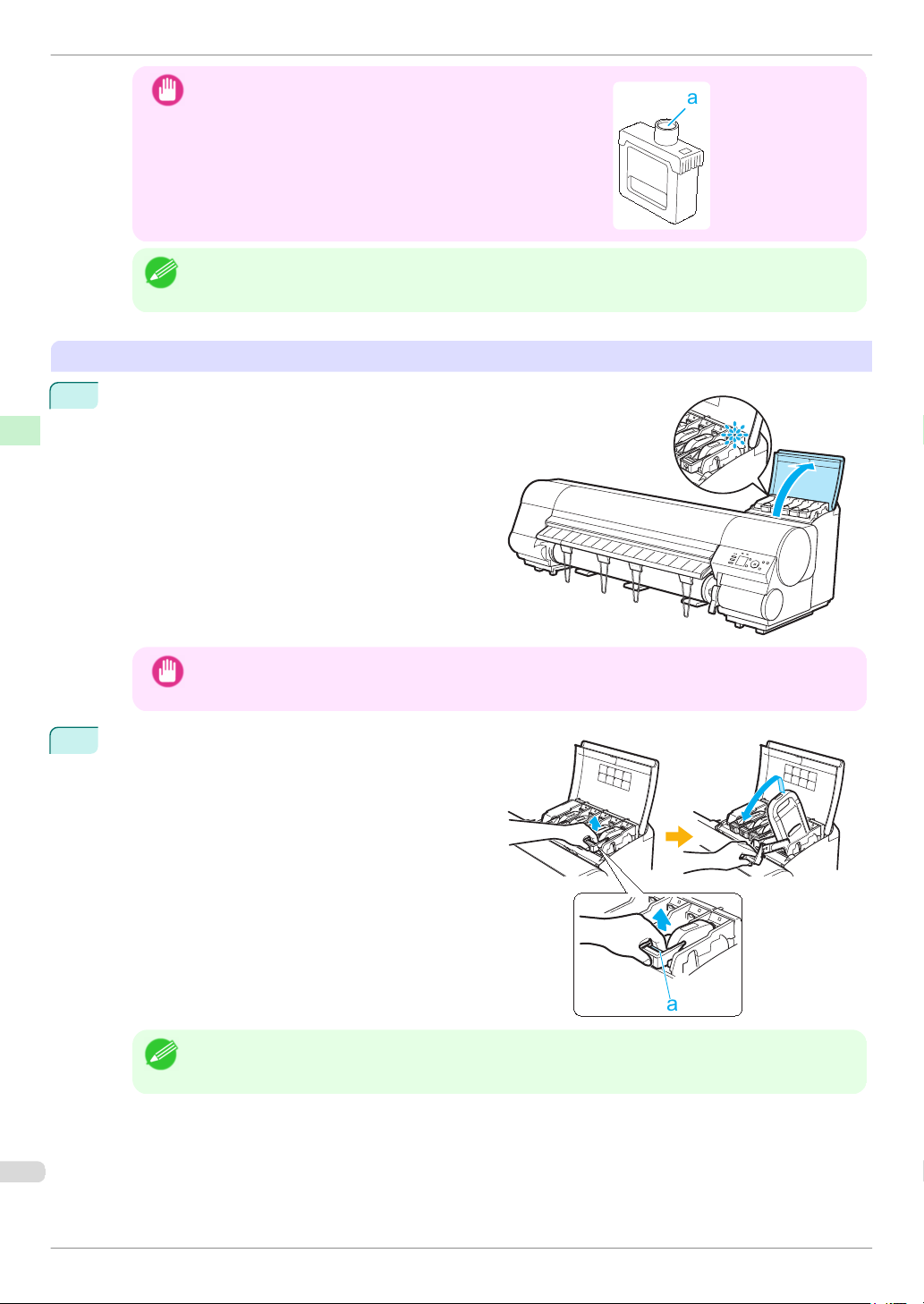

Remove the Ink Tank (700 ml)
Open the Ink Tank Cover of the tank for replacement
1
and check the Ink Lamp. The Ink Lamp flashes quickly if there is no ink left.
Important
Lift the stopper (a) of the Ink Tank Lock Lever for the
2
color to replace. Lift the Ink Tank Lock Lever until it stops, and then push it down to the front.
Dispose of used ink tanks according to local regulations.
•
Avoid hitting the printer when replacing an Ink Tank. Handle the printer gently when replacing tanks. Jolting the printer during printing may deteriorate print quality.
•
Push the Ink Tank Lock Lever down until it locks.
•
Make sure the Ink Tank Lock Lever does not return to the original position.
Note
Basic Guide
Page 41
a
B
K
a
iPF850 Series

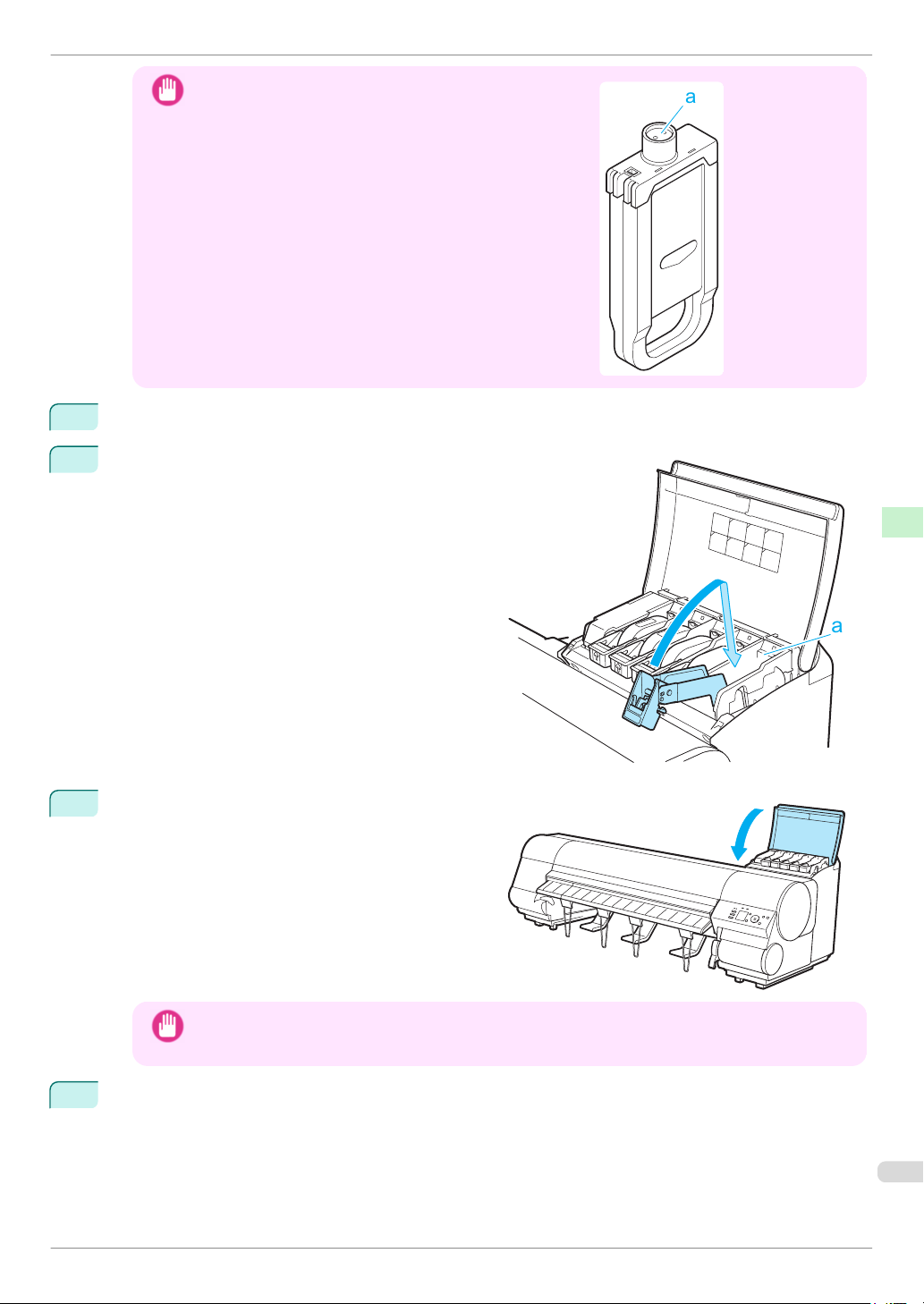

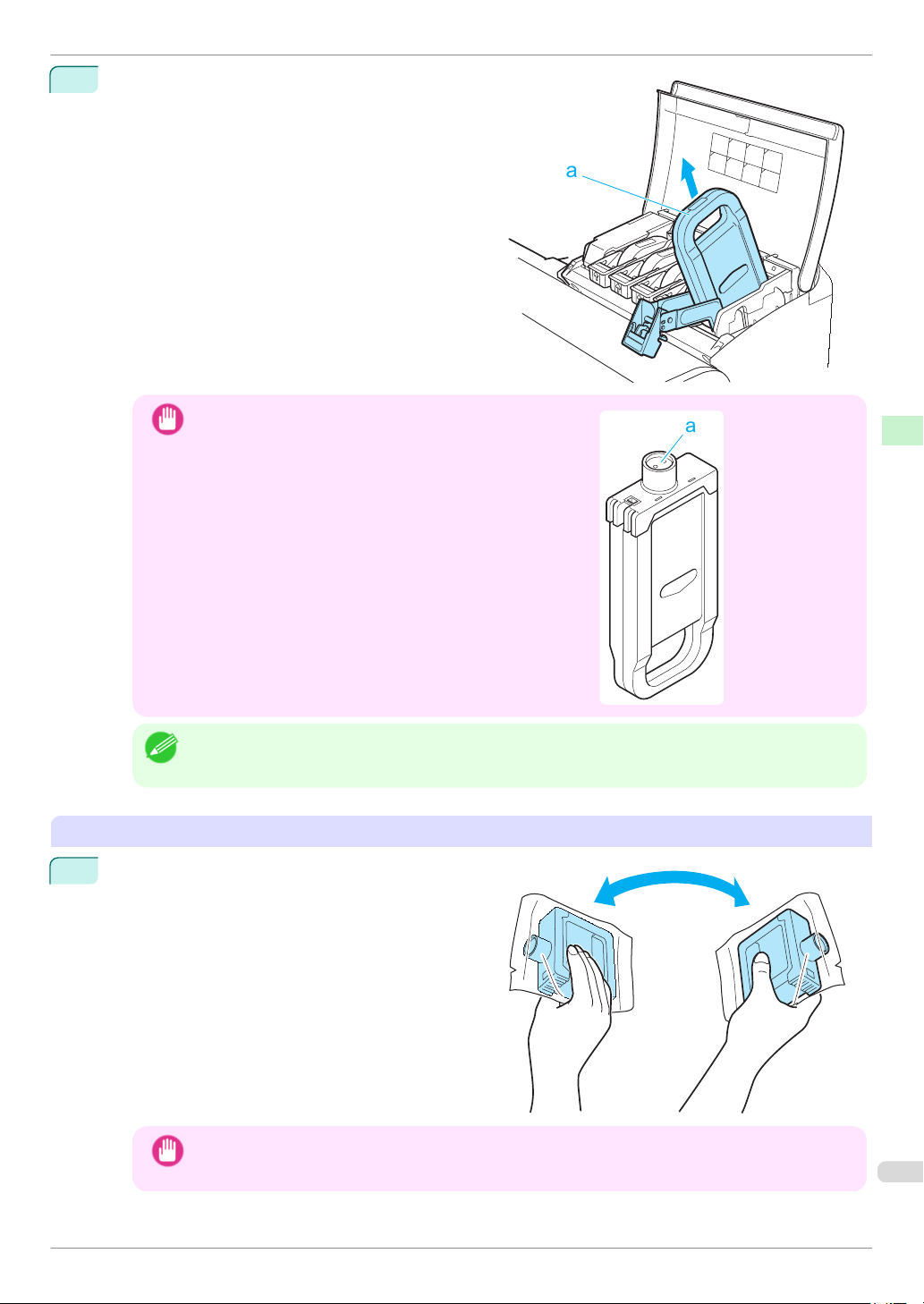

Hold the Ink Tank by the handle (a) and remove it.
3
Press the OK button.
Replacing Ink Tanks
If there is still ink in the Ink Tank you removed, store it in the
•
Important
box with the ink holes (a) facing up. Otherwise, ink may leak and cause stains.
Consumables and Maintenance Ink Tanks
•
Dispose of used ink tanks according to local regulations.
Note
Load the Ink Tank (330 ml)
Before opening the pouch, tilt the Ink Tank to the left
1
and right gently seven or eight times.
•
Do not remove and agitate ink tanks that have already been installed in the printer. Ink may leak out.
•
Important
If you do not agitate the Ink Tank, the ink may settle, which may affect printing quality.
41
Basic Guide
Page 42
Replacing Ink Tanks
•
If the Ink Tank is cold, allow it to adjust to room temperature before attaching it to the printer.
Note

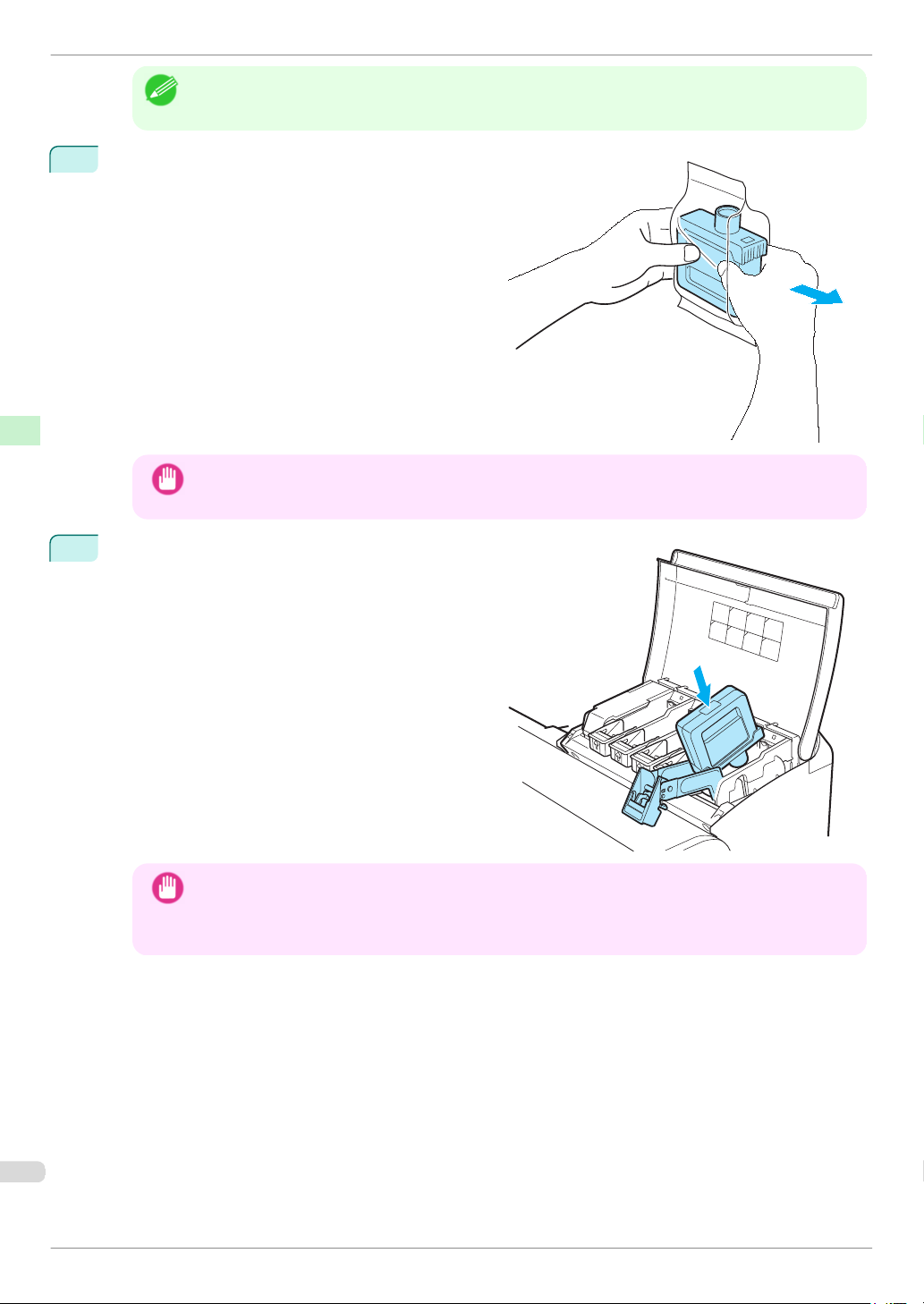

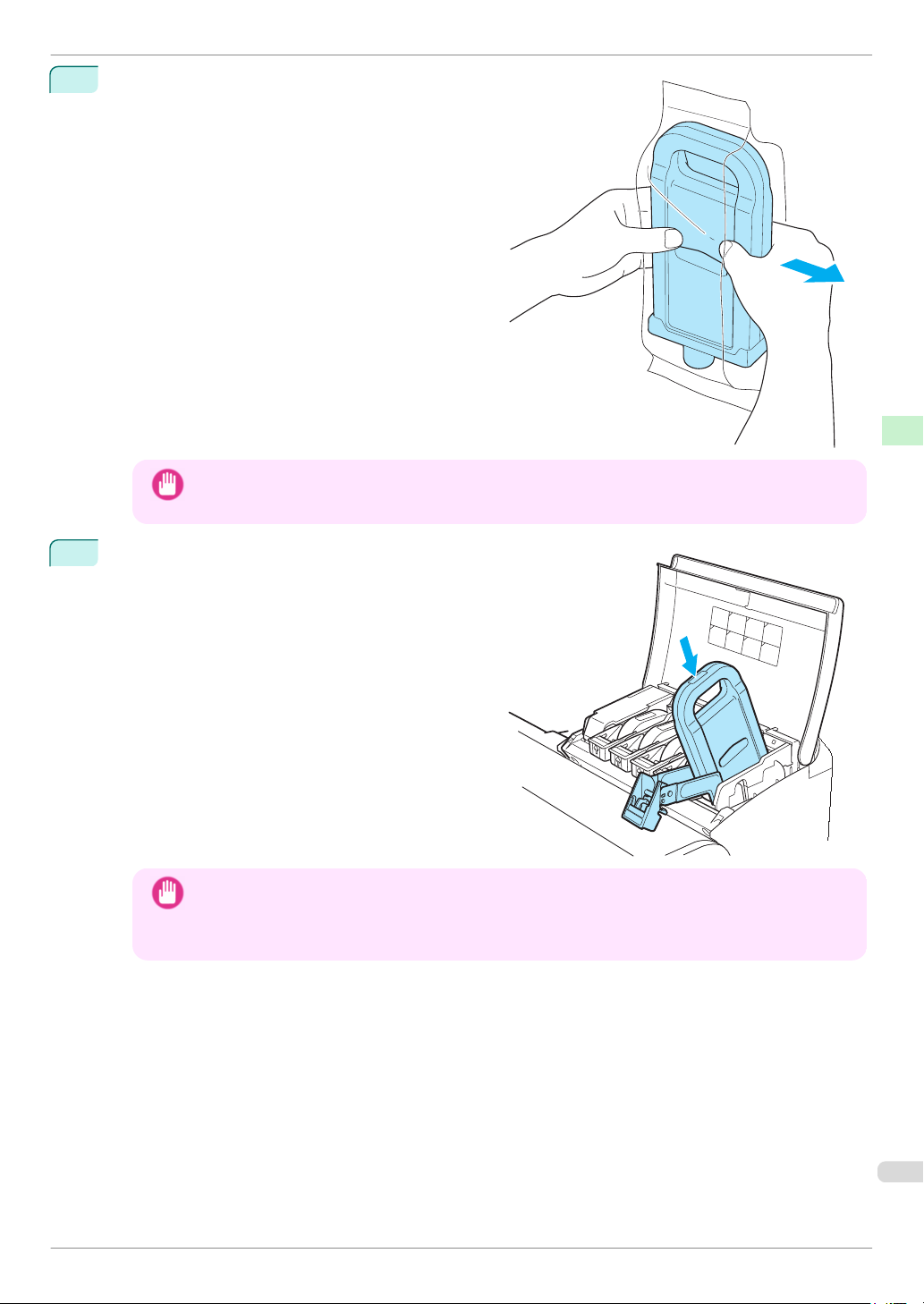

Open the pouch and remove the Ink Tank.
2
Consumables and Maintenance Ink Tanks
•
Never touch the ink holes or electrical contacts. This may cause stains, damage the Ink Tank, and af-
Important
Press the OK button and insert the Ink Tank into the
3
fect printing quality.
holder facing as shown, with the ink holes down.
iPF850 Series
•
Ink tanks cannot be loaded in the holder if the color or orientation is incorrect.
Important
If the Ink Tank does not fit in the holder, do not force it into the holder. Make sure the color of the Ink Tank Lock Lever matches the color of the Ink Tank, and check the orientation of the Ink Tank before reloading it.
Basic Guide
Page 43
iPF850 Series

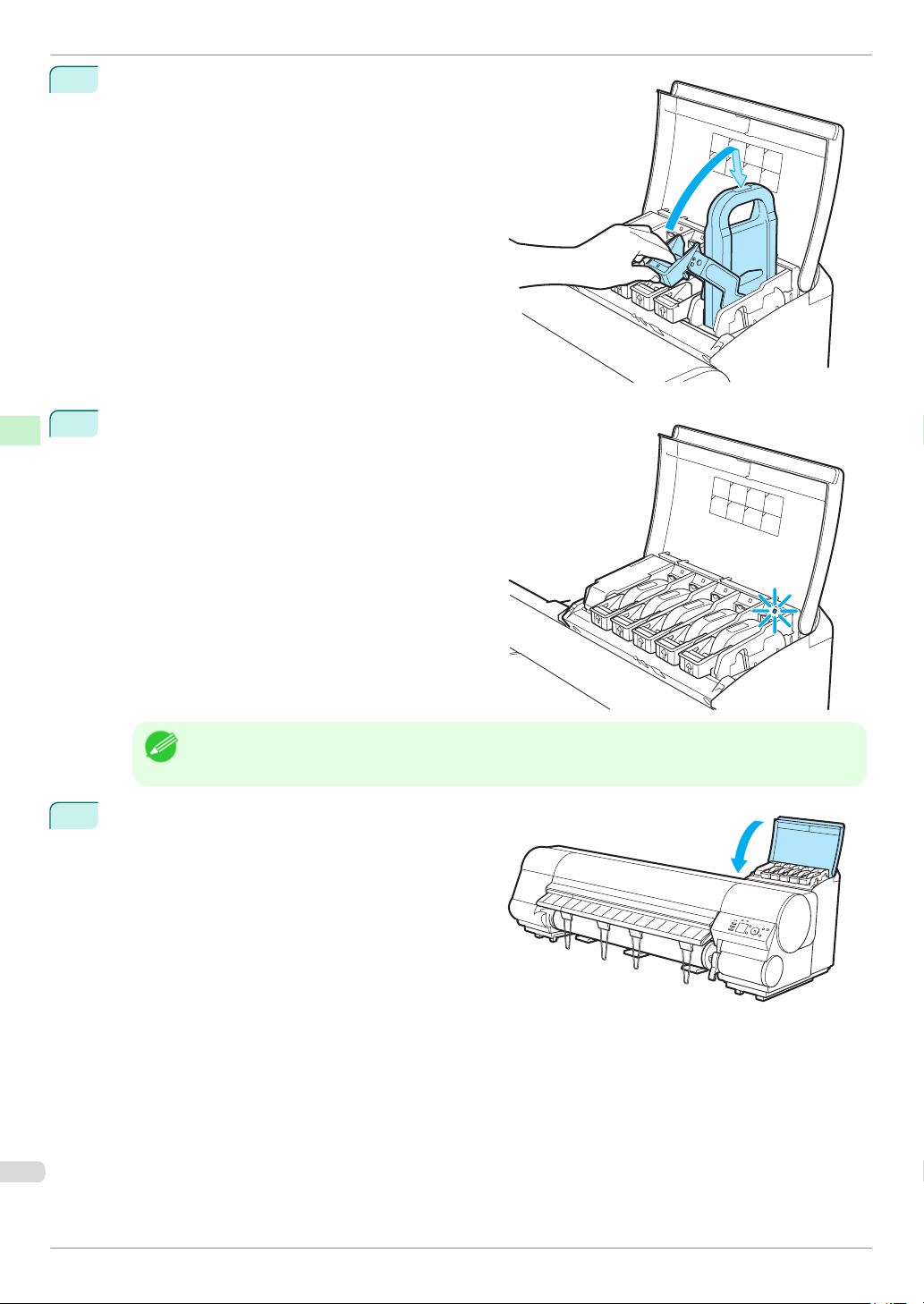

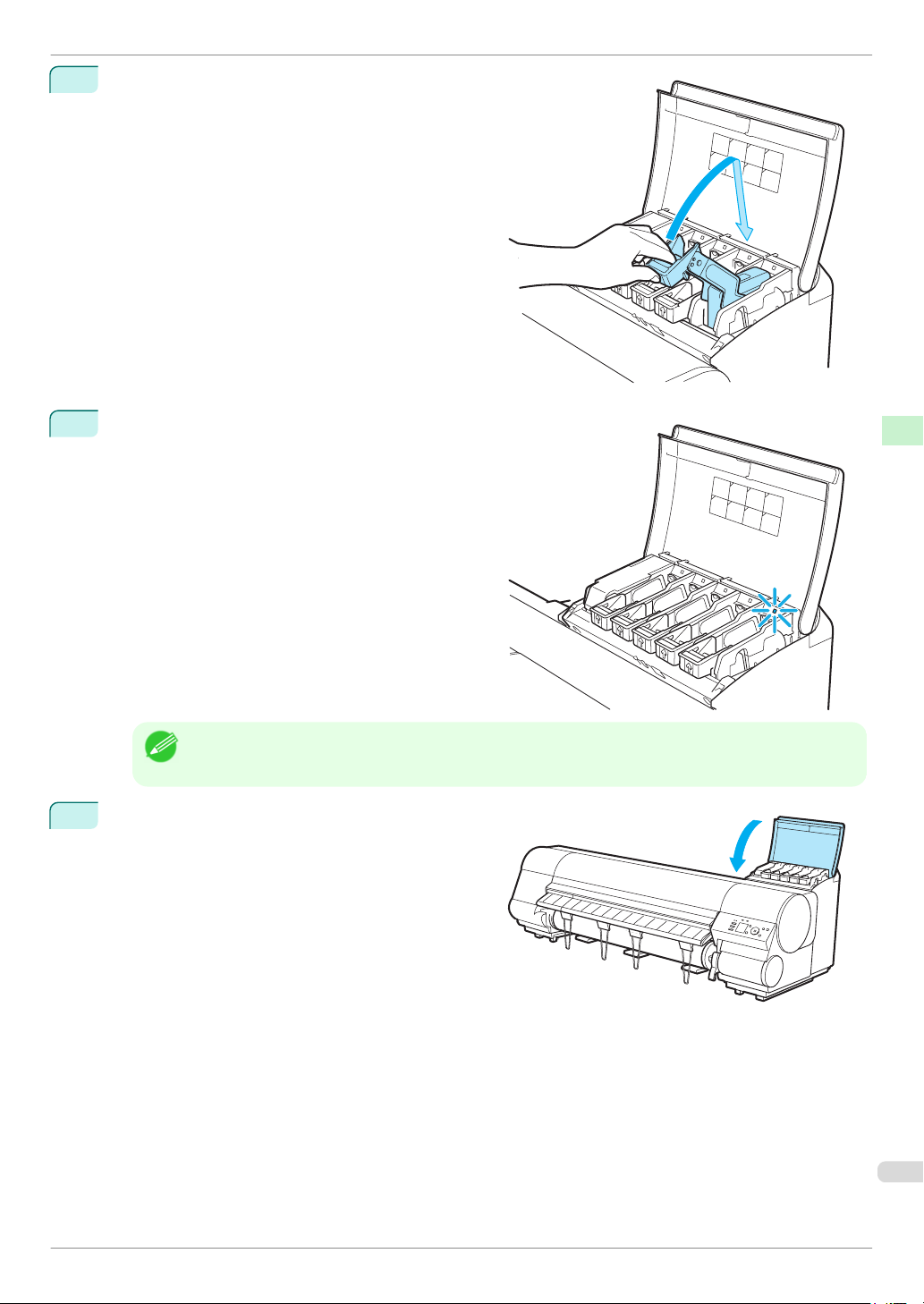

Lift the Ink Tank Lock Lever until it stops, and then
4
push it down until it clicks into place.
Make sure the Ink Lamp is lit in red.
5
Replacing Ink Tanks
Consumables and Maintenance Ink Tanks
•
Note
Close the Ink Tank Cover.
6
If the Ink Lamp is not lit in red, reload the tank.
43
Basic Guide
Page 44
BK
M
BK
G
Y
Y
M
a
Replacing Ink Tanks
•

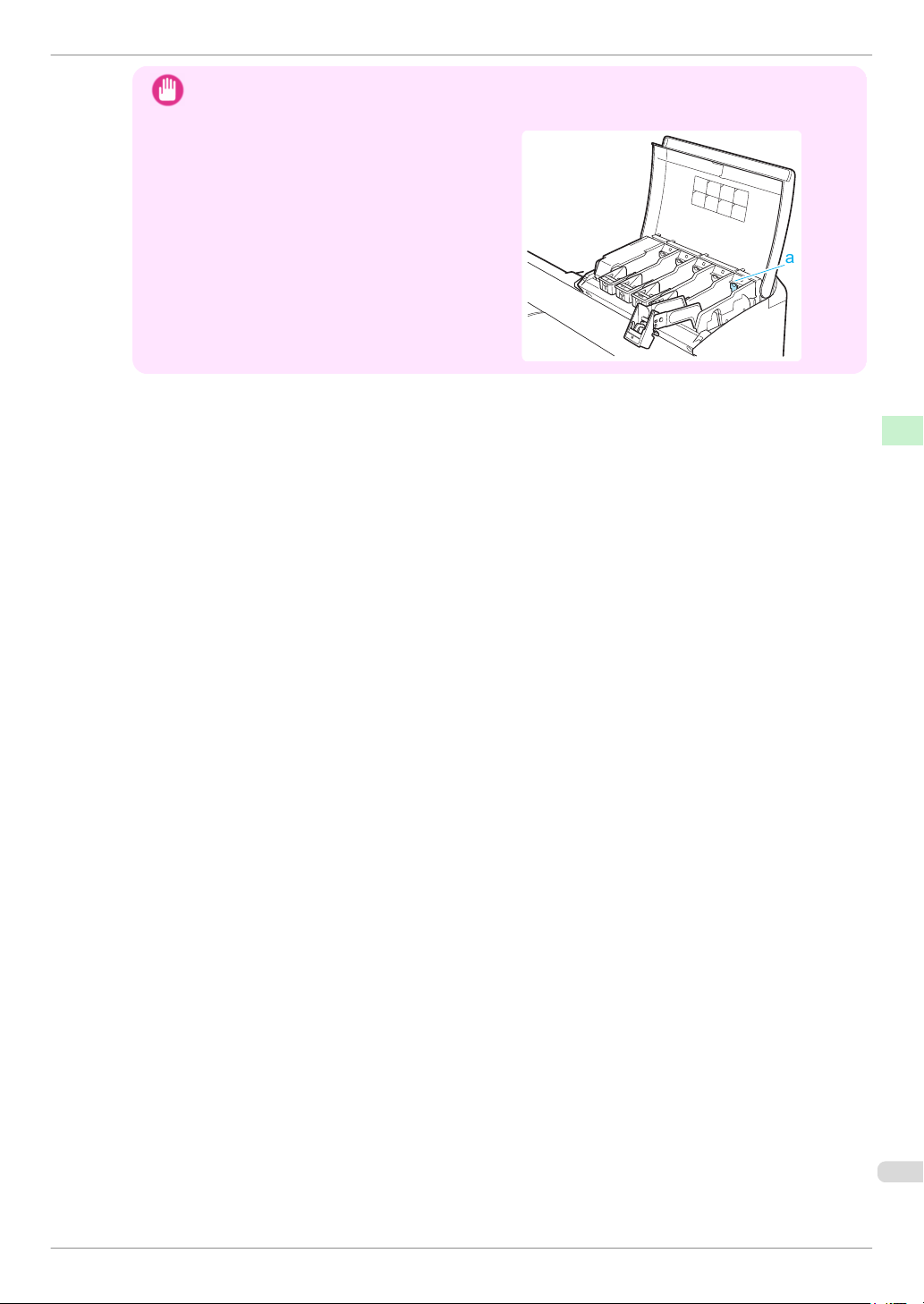

After Ink Tank replacement, always close the Ink Tank Cover. If the Ink Tank Cover cannot close, some
Important
Ink Tank Lock Lever may not be closed completely. Make sure all ink tank lock levers are fully closed.
To close the Ink Tank Cover when no Ink Tank is
•
installed (as when moving the printer), push the release lever (a) as shown while returning the Ink Tank Lock Lever to the original position.
Consumables and Maintenance Ink Tanks

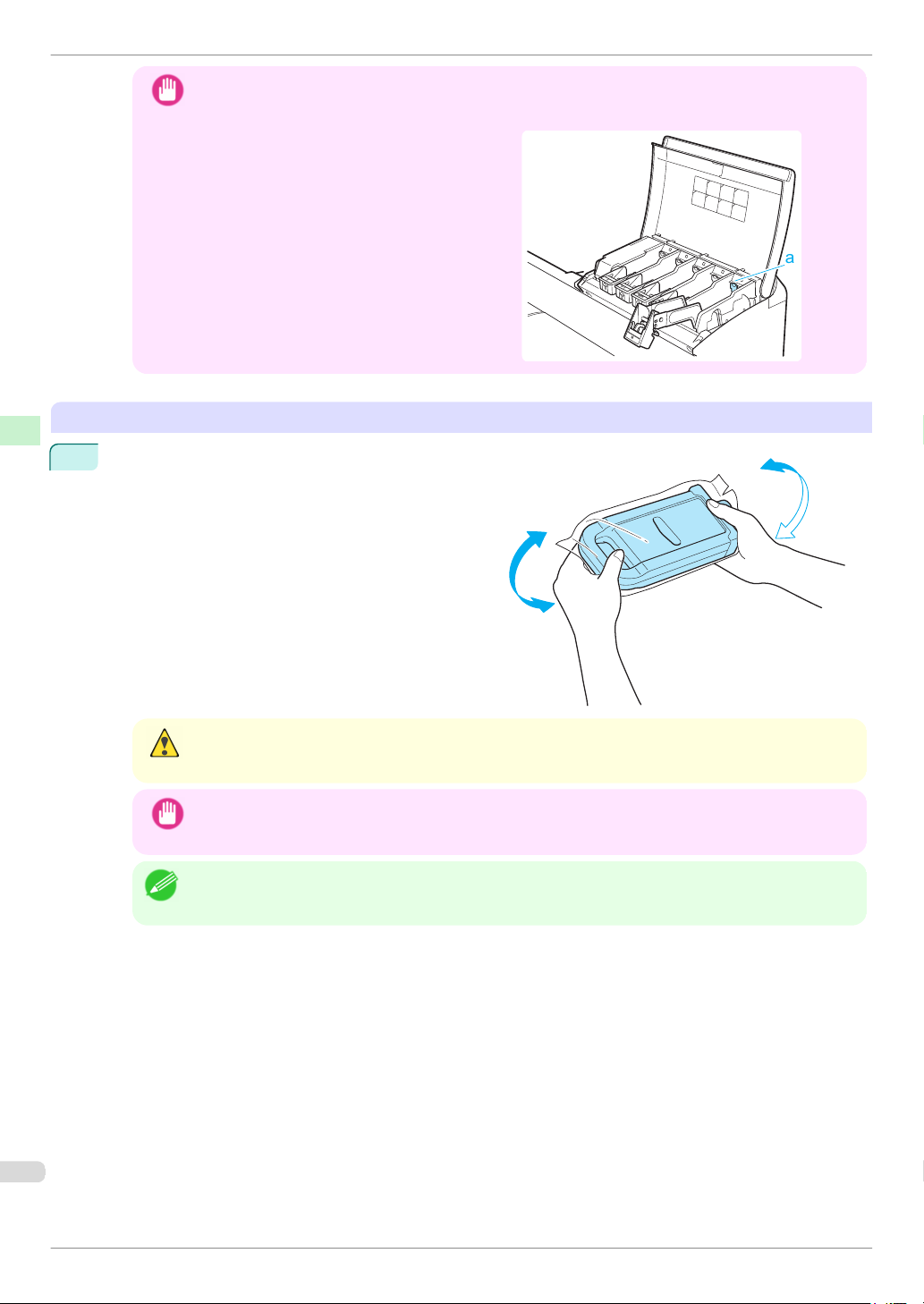

Load the Ink Tank (700 ml)
Before opening the pouch, hold the new Ink Tank with
1
both hands and tilt it to the left and right as shown, shaking gently it seven or eight times.
iPF850 Series
•
700 ml ink tanks are heavy, so use your whole arm to agitate it instead of just your wrist. If you agitate it
Caution
Important
using just your wrist, you may injure your wrist.
•
Do not remove and agitate ink tanks that have already been installed in the printer. Ink may leak out.
•
If you do not agitate the Ink Tank, the ink may settle, which may affect printing quality.
•
If the Ink Tank is cold, allow it to adjust to room temperature before attaching it to the printer.
Note
Basic Guide
Page 45
iPF850 Series
Open the pouch and remove the Ink Tank.
2
Press the OK button and insert the Ink Tank into the
3
holder facing as shown, with the ink holes down.
Replacing Ink Tanks
•
Never touch the ink holes or electrical contacts. This may cause stains, damage the Ink Tank, and af-
Important
fect printing quality.
Consumables and Maintenance Ink Tanks
•
Ink tanks cannot be loaded in the holder if the color or orientation is incorrect.
Important
Basic Guide
If the Ink Tank does not fit in the holder, do not force it into the holder. Make sure the color of the Ink Tank Lock Lever matches the color of the Ink Tank, and check the orientation of the Ink Tank before reloading it.
45
Page 46
M
Replacing Ink Tanks
Lift the Ink Tank Lock Lever until it stops, and then
4
push it down until it clicks into place.
Consumables and Maintenance Ink Tanks
Make sure the Ink Lamp is lit in red.
5
iPF850 Series
•
Note
Close the Ink Tank Cover.
6
If the Ink Lamp is not lit in red, reload the tank.
Basic Guide
Page 47
BK
M
BK
G
Y
Y
M
a
iPF850 Series
Replacing Ink Tanks
•
After Ink Tank replacement, always close the Ink Tank Cover. If the Ink Tank Cover cannot close, some
Important
Ink Tank Lock Lever may not be closed completely. Make sure all ink tank lock levers are fully closed.
To close the Ink Tank Cover when no Ink Tank is
•
installed (as when moving the printer), push the release lever (a) as shown while returning the Ink Tank Lock Lever to the original position.
Consumables and Maintenance Ink Tanks
Basic Guide
47
Page 48

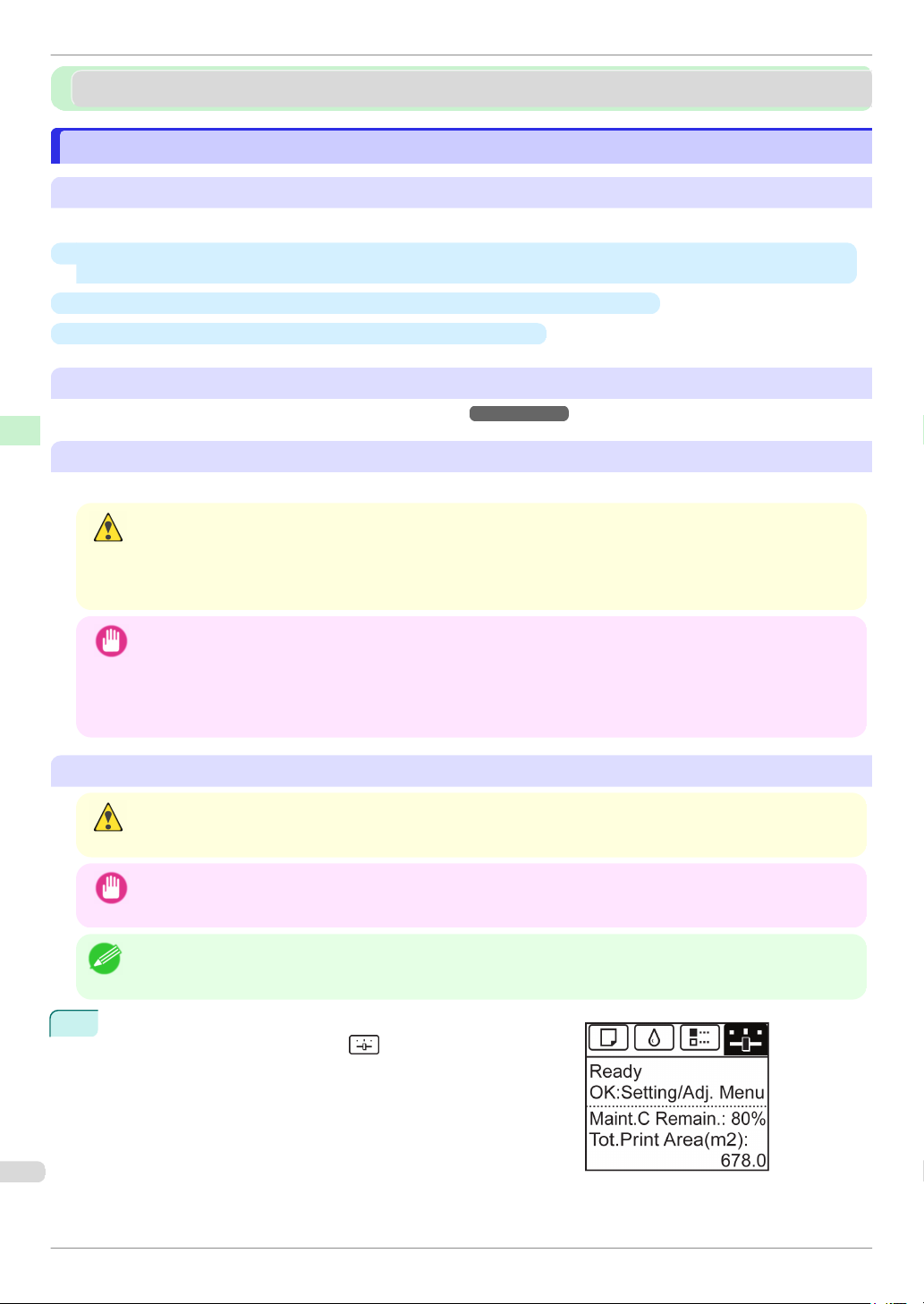

Replacing the Printhead

Printheads

Printheads
Replacing the Printhead
Replacing the Printhead
When to replace the Printhead
Consumables and Maintenance Printheads
Replace the Printhead in the following situations.
•
If the printing quality does not improve even after one or two cycles of Head Cleaning B from the printer menu
•
If the Display Screen indicates "Open top cover and replace the printhead."
•
If your Canon dealer has advised you to replace the Printhead
Compatible printheads
For information on compatible printheads, see "Printhead."
➔User's Guide
Precautions when handling the Printhead
Take the following precautions when handling the Printhead.
•
For safety, keep the Printhead out of the reach of children.
•
Caution
If ink is accidentally ingested, contact a physician immediately.
•
Do not touch the Printhead immediately after printing. The Printhead becomes extremely hot, and there is a risk of burns.
iPF850 Series
•
There may be ink around the nozzles of the Printhead you remove. Handle the Printhead carefully during re-
Important
placement. The ink may stain clothing.
•
Do not open the Printhead pouch until immediately before installation. After removing the Printhead from the pouch, install it right away. If the Printhead is left after the pouch is opened, the nozzles may dry out, which may affect printing quality.
Access the menu for Printhead replacement
•
When replacing the Printhead immediately after printing, wait a few minutes before replacing it. The metal parts of
Caution
Important
Note
1
the Printhead become hot during printing, and there is a risk of burns from touching these parts.
•
Your hands may become dirty during Printhead replacement. Use the gloves provided with the new Printhead for replacement.
•
Prepare a new Ink Tank when ink levels are low.
•
When the remaining capacity of Maintenance cartridge is low, prepare a new Maintenance cartridge.

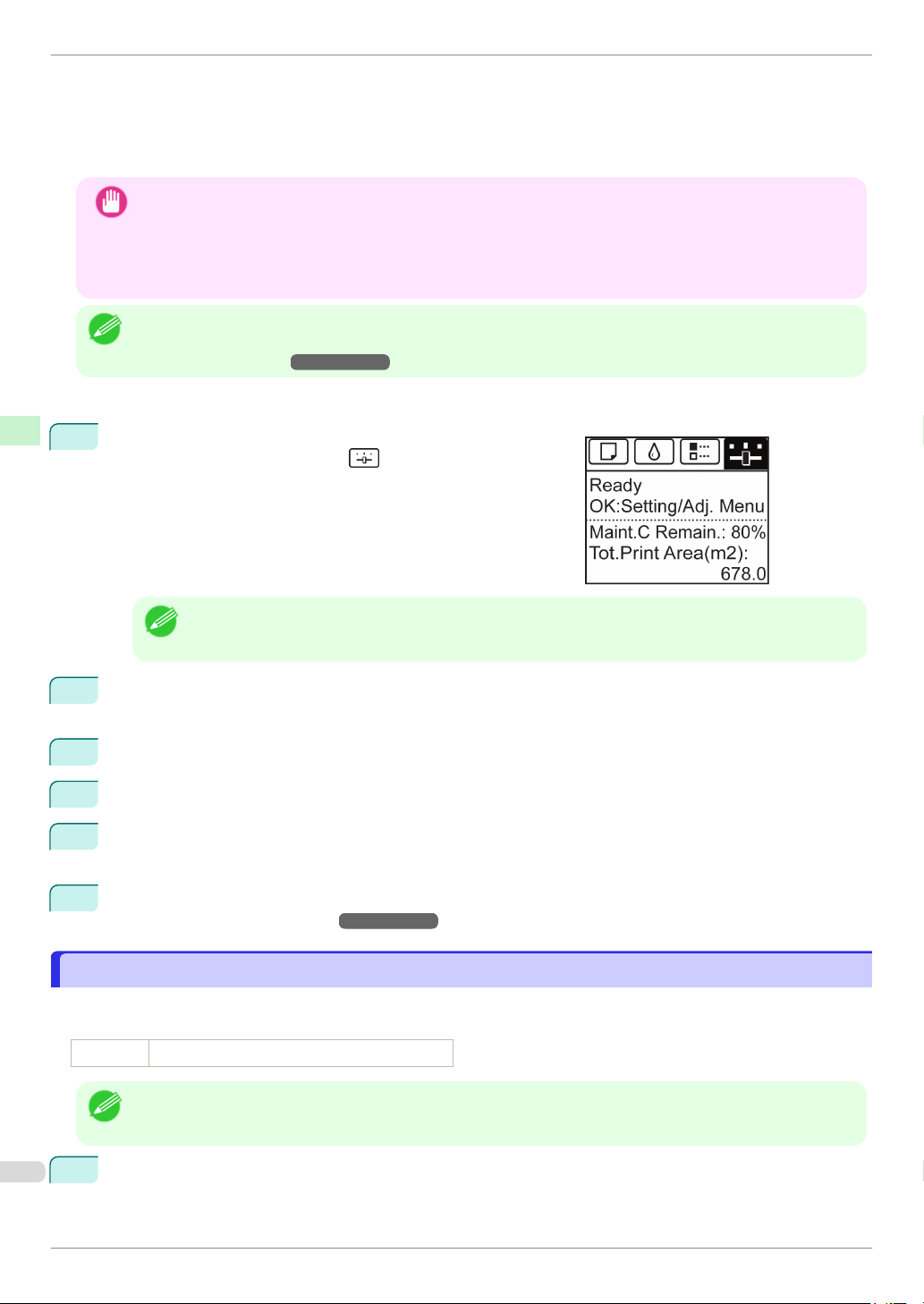

On the Tab Selection screen of the Control Panel, press ◀ or ▶ to select the Settings/Adj. tab ( ).
Basic Guide
Page 49
iPF850 Series
2
Press the OK button. The Set./Adj. Menu is displayed.
Replacing the Printhead
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
3
Press ▲ or ▼ to select Maintenance, and then press the OK button.
4
Press ▲ or ▼ to select Replace P.head, and then press the OK button. Ink begins being drawn in. When it finishes, instructions are displayed on the Display Screen.

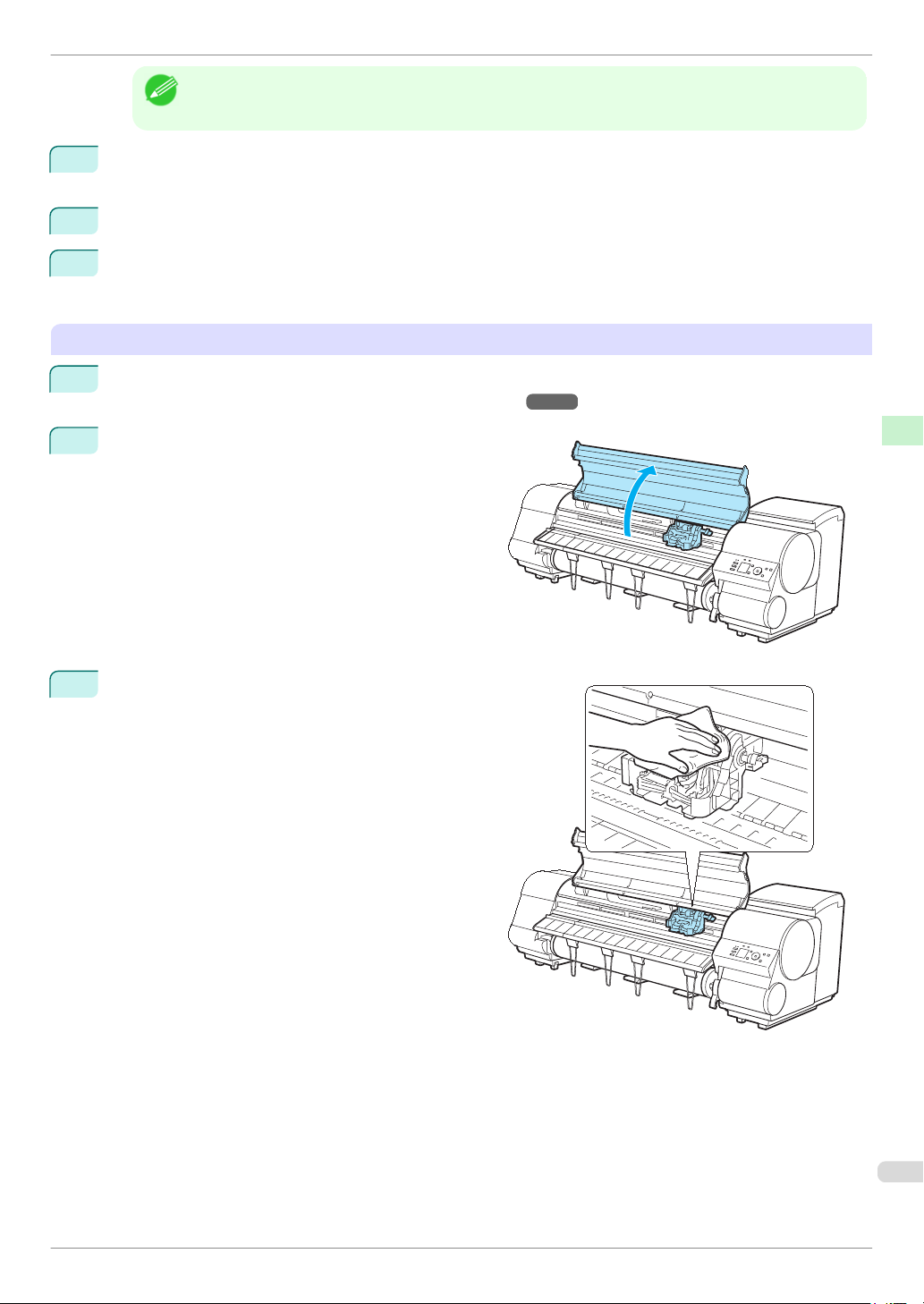

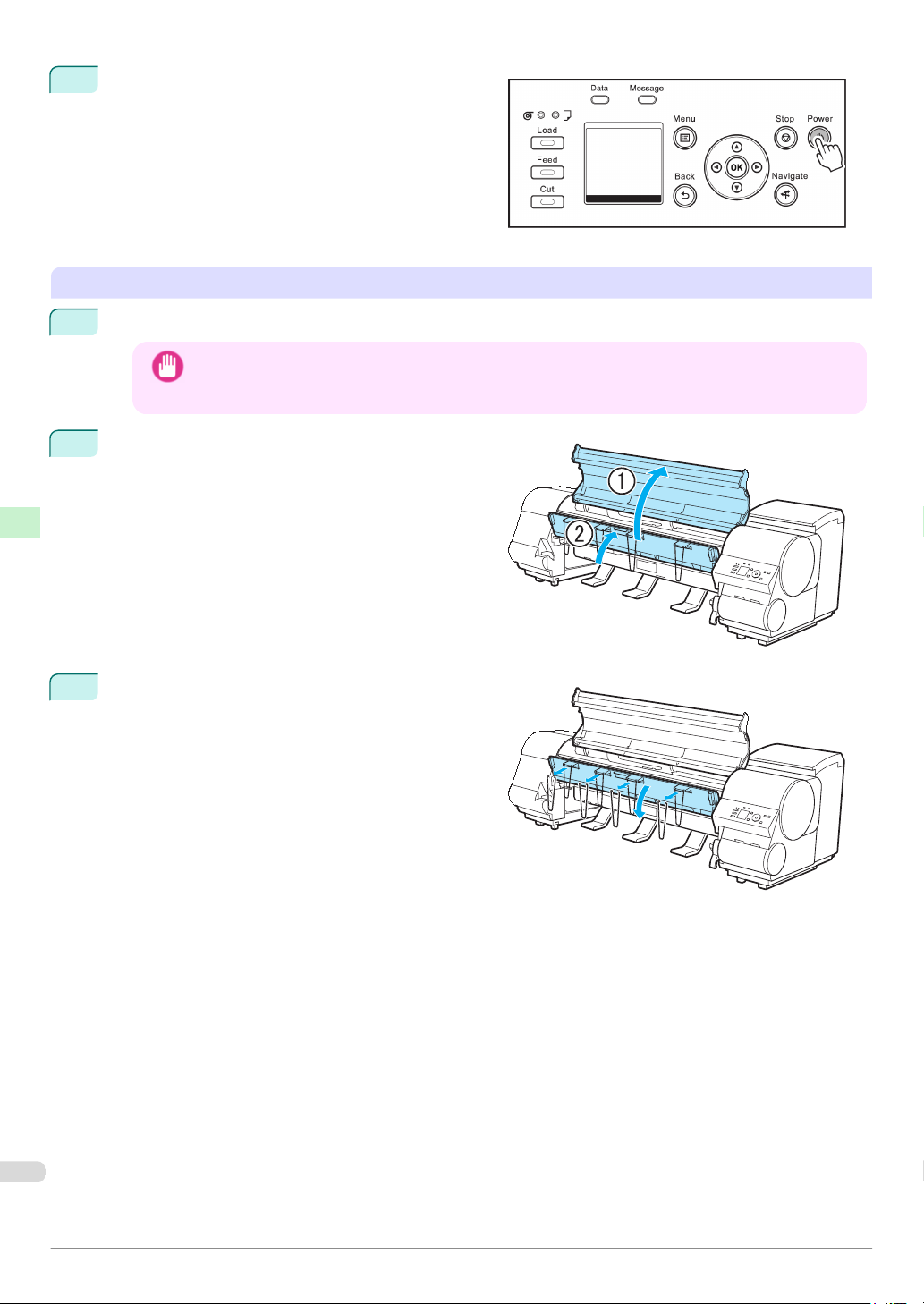

Replace the Printhead
1
Remove the Stacker from the printer.
(See "Installing and Removing the Stacker On the Printer.") ➔P.30
Open the Top Cover.
2
Instructions are now shown on the Display Screen re­garding Printhead replacement.

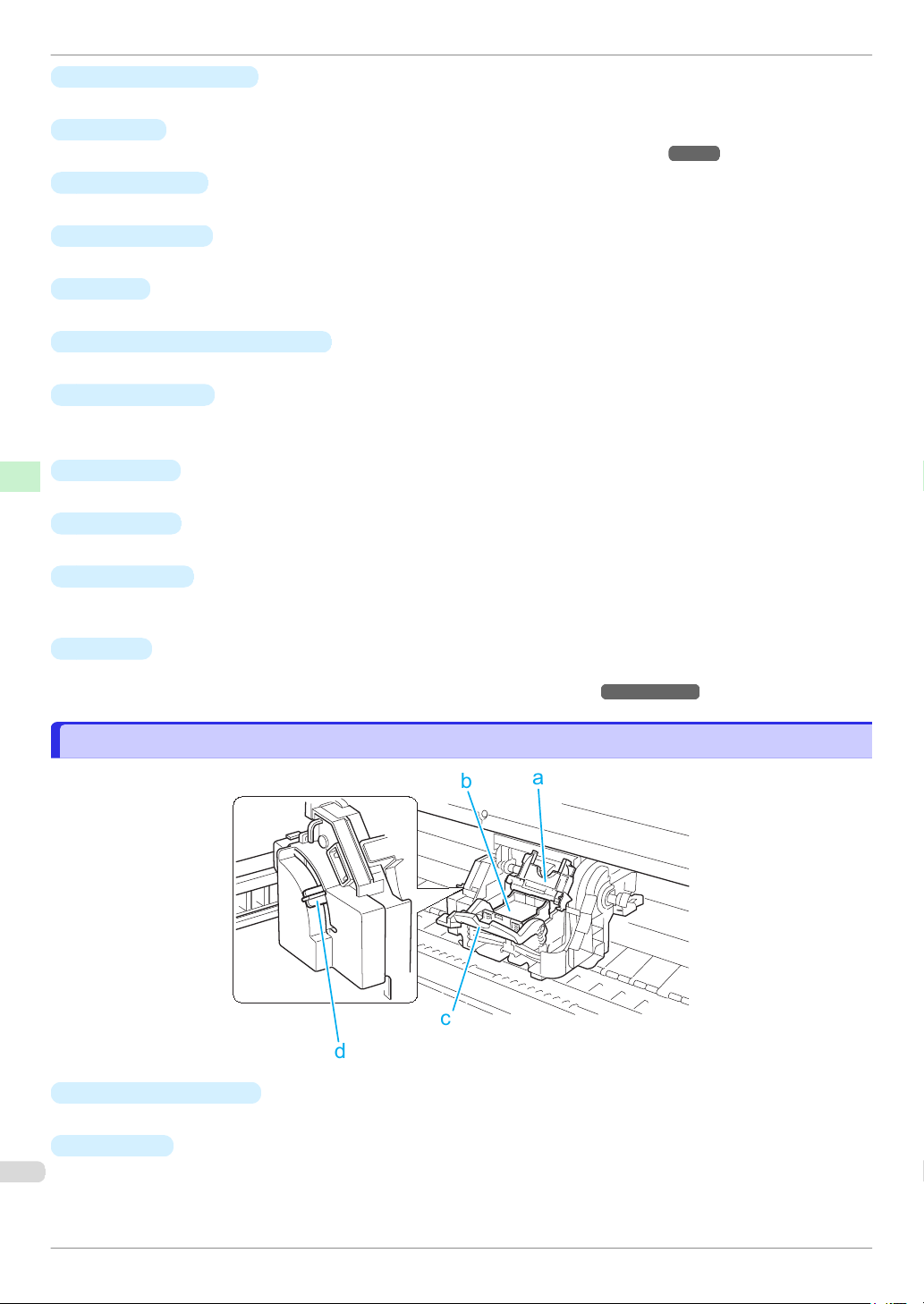

If the Printhead Fixer Cover or Printhead Fixer Lever
3
is dirty, use a damp cloth that you have wrung out completely to wipe it clean.
Consumables and Maintenance Printheads
Basic Guide
49
Page 50
c
a
b
a
Replacing the Printhead
Do not touch the Linear Scale (a), Carriage
•
Shaft (b), or Ink Tube Stabilizer (c). Touching these parts may damage them.
Consumables and Maintenance Printheads
Important
If the ventilation duct (a) is dirty, use a damp cloth that
4
you have wrung out completely to wipe it clean. Move the Carriage out of the way manually if the Carriage is concealing the ventilation duct, and then clean the duct.
iPF850 Series
Pull the Printhead Fixer Lever forward all the way to open
5
it completely.
Pull up the Printhead Fixer Cover to open it completely.
6
Basic Guide
Page 51
d
c
b
a
a
a
d
a
c
b
iPF850 Series

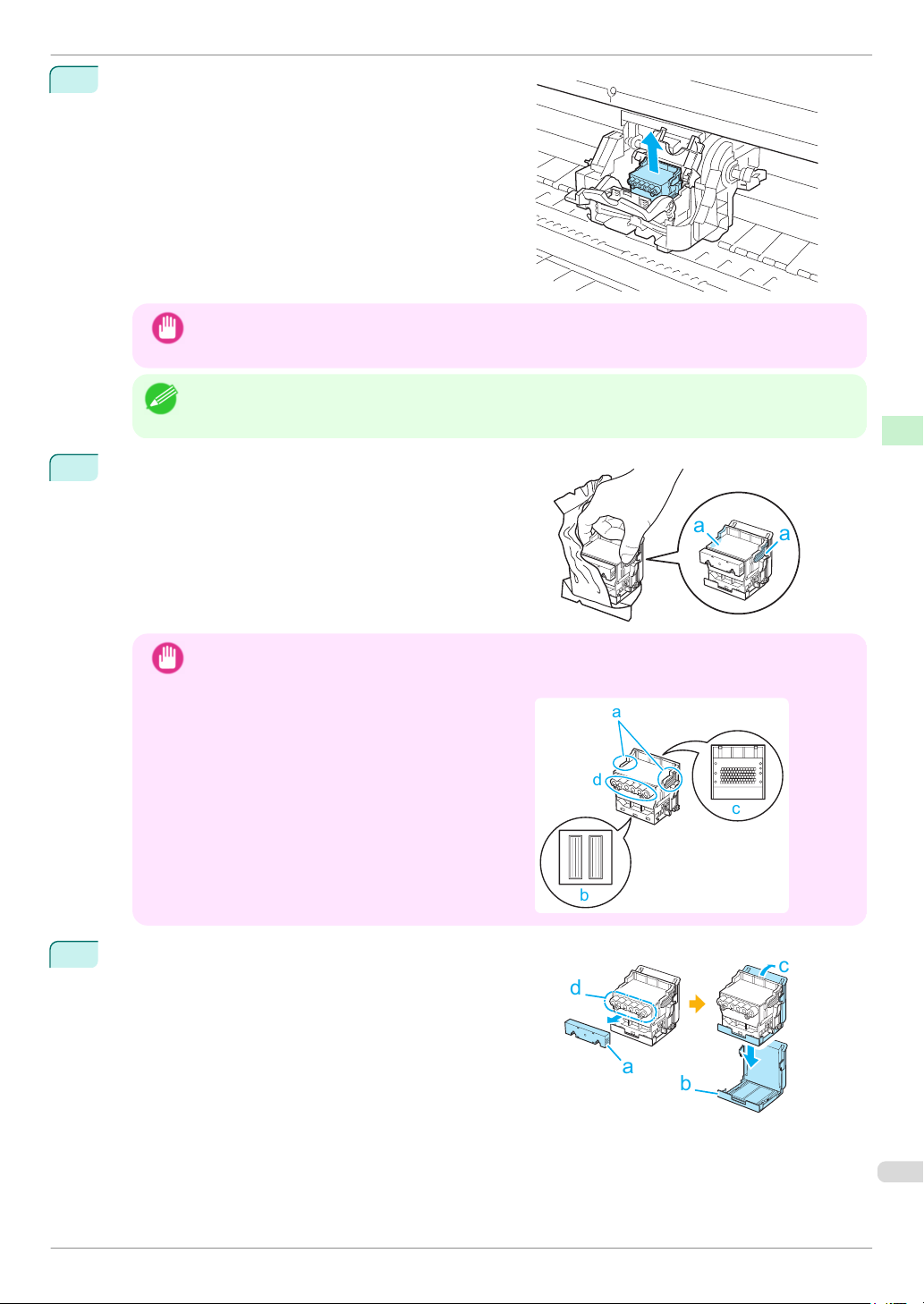

Remove the Printhead and press the OK button.
7
Replacing the Printhead
•
Never touch the metal contacts of the Carriage. Furthermore, do not allow any dirt or debris to become
Important
adhered to the metal contacts of the Carriage. These may damage the printer.
•
Dispose of the used Printhead in accordance with local regulations.
Consumables and Maintenance Printheads
Note
Holding the new Printhead by the grips (a), remove it from
8
the pouch.
•
When handling the Printhead, always hold it by the grips (a). Never touch the nozzles (b) or metal con-
Important
While firmly holding the Printhead you have removed, use
9
your other hand to remove the orange Protective Part (a). Squeeze the grips (c) of Protective Part (b) and pull it down to remove it.
tacts (c). This may damage the Printhead and affect printing quality.
Never touch the ink supply section (d). This may
•
cause printing problems.
Basic Guide
51
Page 52
Replacing the Printhead
•
The inside surface of the Protective Part (a) and Protective Part (b) is coated with ink to protect the
Important
nozzles. Be careful not to touch these surfaces when removing the caps.
•
The Printhead contains ink to protect the nozzles. We recommend removing Protective Part (b) as you hold it over the Printhead package or safely out of the way to avoid spilling ink and staining your clothes or the surrounding area. If ink accidentally spills, wipe off the ink with a dry cloth.
•
Consumables and Maintenance Printheads
If you need to put a Printhead somewhere temporarily before installation, do not keep the nozzles and metal contacts facing down. If the nozzles or metal contacts are damaged, it may affect the printing quality.
•
Do not reattach the removed Protective Part. Dispose of these materials in accordance with local regu­lations.

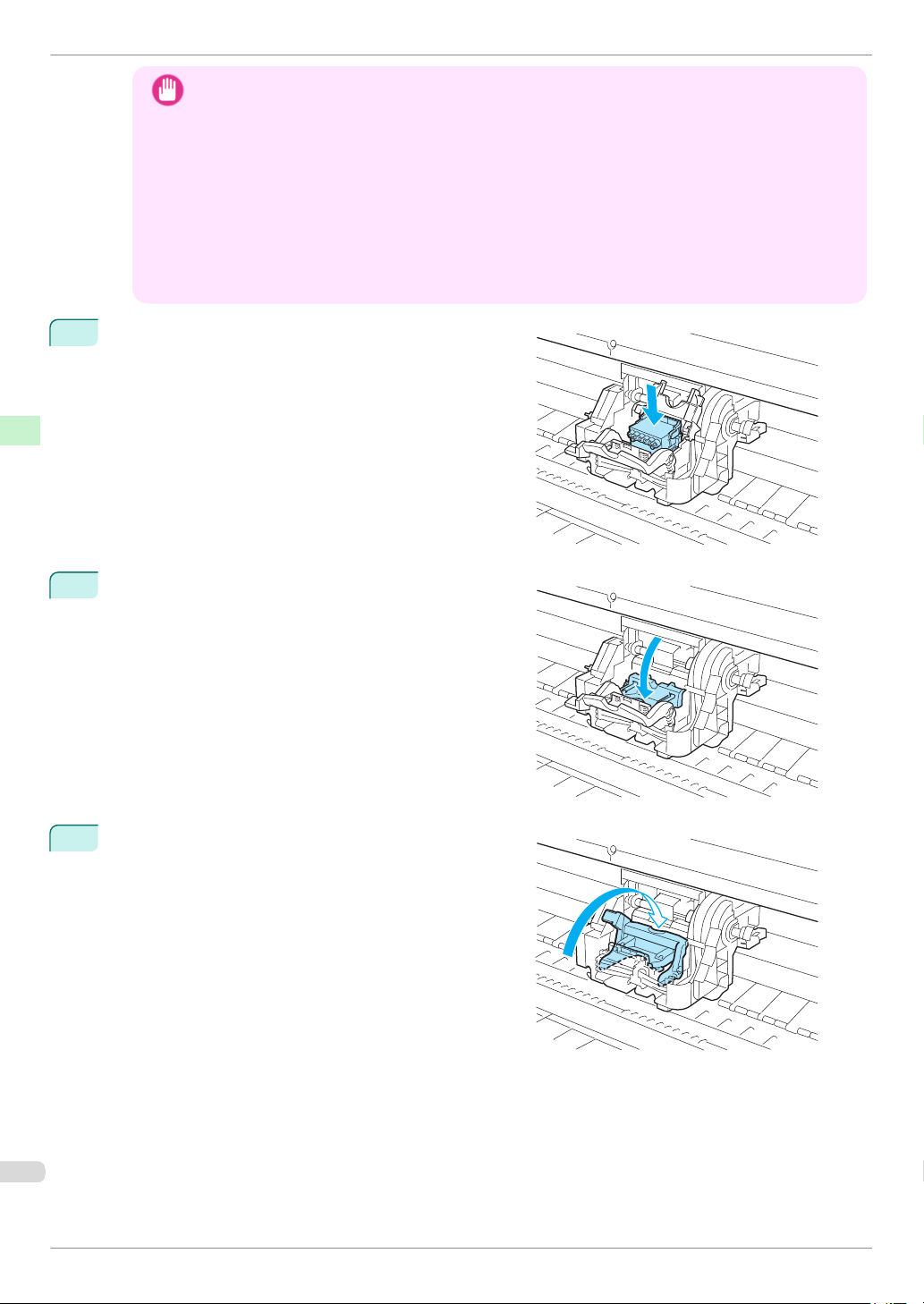

With the nozzles facing down and the metal contacts to-
10
ward the back, insert the Printhead into the Carriage. Carefully push the printhead firmly into the Carriage, en­suring that the nozzles and metal contacts do not touch the carriage.
Pull the Printhead Fixer Cover down toward the front to
11
lock the Printhead in place.
iPF850 Series
Push the Printhead Fixer Lever toward the back of the
12
printer until it clicks.
Basic Guide
Page 53
iPF850 Series
Close the Top Cover.
13
Ink now fills the system.
14
Install the Stacker on the printer.
(See "Installing and Removing the Stacker On the Printer.") ➔P.30
Replacing the Printhead
•
While ink is being filled, definitely do not remove the Ink Tank or Maintenance Cartridge. Ink may leak
Important
Note
out.
•
After Printhead has been replaced and filled with ink, Head Posi. Adj. ( Auto(Advanced) ) is performed if you have selected Rep.P.head Print > On in the Control Panel menu. (See "Menu Set-
tings.")
➔User's Guide
In this case, follow the instructions on the Display Screen for Printhead adjustment. If Rep.P.head Print is Off, perform Head Posi. Adj. ( Auto(Advanced) ) yourself. (See "Automatic Ad-
justment to Straighten Lines and Colors.") ➔ P.106
Consumables and Maintenance Printheads
Basic Guide
53
Page 54
㻞㻛㻞
>Ⴑ
3DXVH@
keeping it level.
MaintCart,
Replace the
㻝㻛㻞
>Ⴑ
3DXVH@
cartridge full.
Maintenance

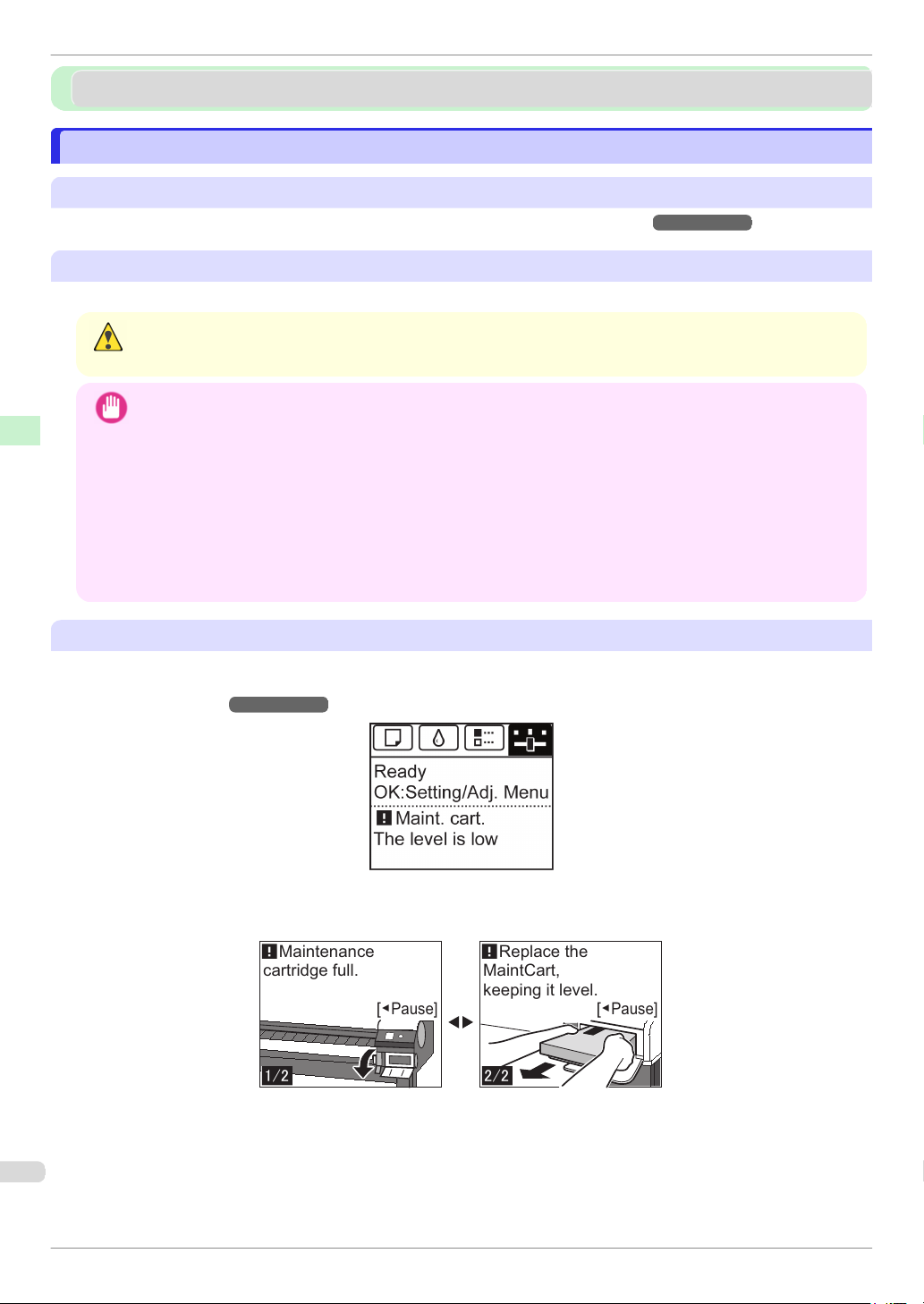

Replacing the Maintenance Cartridge

Maintenance Cartridge

Maintenance Cartridge
Replacing the Maintenance Cartridge
Replacing the Maintenance Cartridge
Compatible maintenance cartridges
Consumables and Maintenance Maintenance Cartridge
For information on compatible maintenance cartridges, see "Maintenance Cartridge."
➔User's Guide
Precautions when handling the Maintenance Cartridge
Take the following precautions when handling the Maintenance Cartridge.
•
For safety, keep the Maintenance Cartridge out of the reach of children.
•
Caution
Important
If ink is accidentally ingested, contact a physician immediately.
•
Do not remove the Maintenance Cartridge except to replace it. Ink may leak out.
•
Do not remove an Maintenance Cartridge during initialization immediately after turning on the printer, during Printhead cleaning, while ink is being drawn out, or during initialization immediately after replacing the Mainte­nance Cartridge. The Maintenance Cartridge may become damaged or ink may leak out.
•
To prevent ink from leaking from a used Maintenance Cartridge, avoid dropping the cartridge or storing it at an angle. Otherwise, ink may leak and cause stains.
•
Ink adheres to the top of the Maintenance Cartridge after it has been used. Handle the Maintenance Cartridge carefully during replacement. The ink may stain clothing.
iPF850 Series
Confirm the message
When the Maintenance Cartridge is almost empty, a message is shown on the Display Screen. According to the message, replace the Maintenance Cartridge or prepare a new Maintenance Cartridge. (See "When to Replace the
Maintenance Cartridge.")
If a message is displayed requesting Maintenance Cartridge replacement, you can skip the step Access the menu for Maintenance Cartridge replacement. Follow the instructions in Replace the Maintenance Cartridge.
➔User's Guide
Basic Guide
Page 55
a
iPF850 Series
Replacing the Maintenance Cartridge

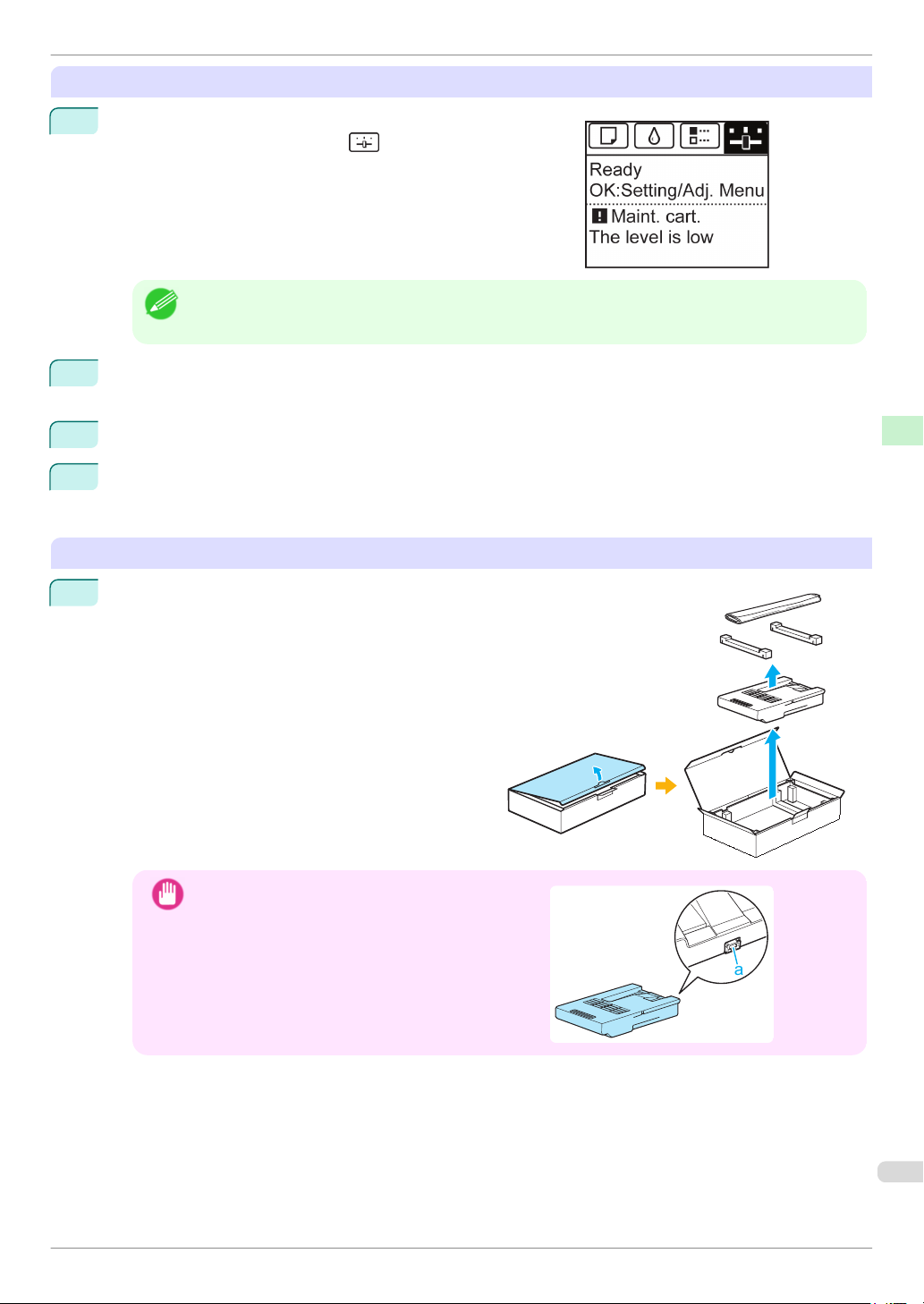

Access the menu for Maintenance Cartridge replacement
On the Tab Selection screen of the Control Panel, press ◀ or
1
▶ to select the Settings/Adj. tab ( ).
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
2
Press the OK button. The Set./Adj. Menu is displayed.
Consumables and Maintenance Maintenance Cartridge
3
Press ▲ or ▼ to select Maintenance, and then press the OK button.
4
Press ▲ or ▼ to select Repl. maint cart, and then press the OK button. Instructions are displayed on the Display Screen.
Replace the Maintenance Cartridge
Open the box, remove the plastic bag and packaging
1
material, and take out the Maintenance Cartridge.
Never touch the metal contacts (a). This may dam-
•
Important
age the Maintenance Cartridge.
Basic Guide
55
Page 56
a
Replacing the Maintenance Cartridge

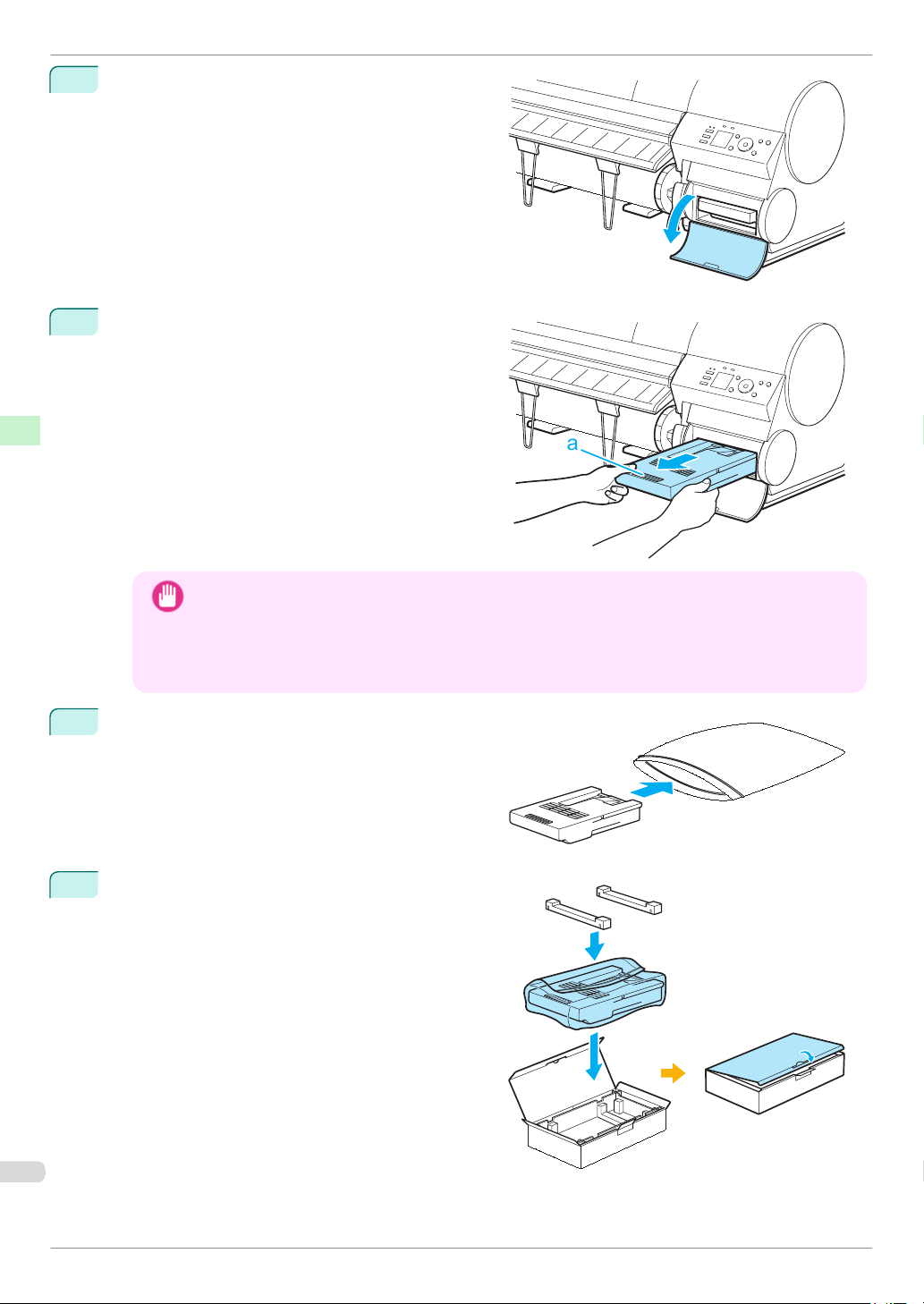

At this point, open the Maintenance Cartridge Cover.
2
Consumables and Maintenance Maintenance Cartridge
Hold the used Maintenance Cartridge by the grip (a)
3
with one hand and put your other hand under the Maintenance Cartridge to hold it firmly on the bottom, keeping it level as you pull it out.
iPF850 Series
•
Used maintenance cartridges are heavy. Always grasp the cartridge firmly and keep the cartridge level
Important
during removal and storage. If you drop a used Maintenance Cartridge or store it at an angle, ink may leak and cause stains.
•
The remaining Maintenance Cartridge capacity is recorded on each printer. Do not install a used Main­tenance Cartridge in another printer.
Keep the used Maintenance Cartridge level as you
4
put it in the plastic bag. Expel excess air from the plastic bag and seal the zipper.
Confirm the Maintenance Cartridge is right-side up,
5
put it in the box with the packaging material attached, and store it so that it stays level.
Basic Guide
Page 57
a
iPF850 Series

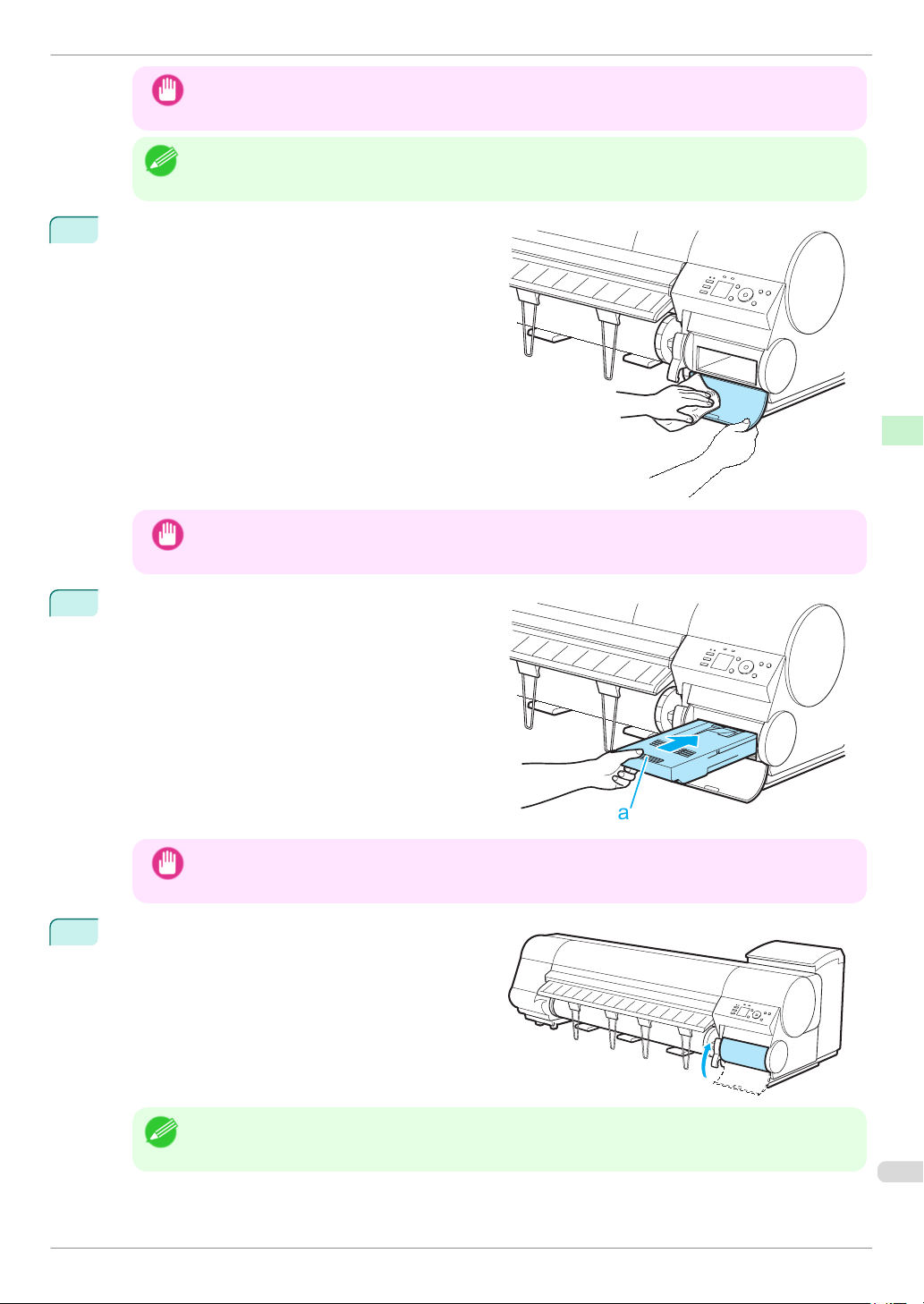

Wipe away any soiling on the Maintenance Cartridge
6
Cover.
Keeping the new Maintenance Cartridge level, insert it
7
all the way in. The printer now initializes the Maintenance Cartridge.
Replacing the Maintenance Cartridge
•
Always put the used Maintenance Cartridge back in the box and store the box on a flat surface. Also,
Important
Note
Important
seal the zipper thoroughly. Otherwise, ink may leak and cause stains.
•
Put the used Maintenance Cartridge in the plastic bag of the new cartridge, and dispose of it in accord­ance with local regulations.
•
Support the Maintenance Cartridge Cover from underneath as you wipe it.
Consumables and Maintenance Maintenance Cartridge
•
Do not remove the Maintenance Cartridge during initialization immediately after replacing the Mainte-
Important
Close the Maintenance Cartridge Cover.
8
Note
Basic Guide
nance Cartridge. The Maintenance Cartridge may become damaged.
•
If you did not perform the operation in Access the menu for Maintenance Cartridge replacement, this is the end of the procedure and you do not need to press the OK key in the next step.
57
Page 58
Replacing the Maintenance Cartridge
Press the OK button.
9
iPF850 Series
Consumables and Maintenance Maintenance Cartridge
Basic Guide
Page 59
iPF850 Series
Cleaning Inside the Top Cover

Cleaning the Printer

Cleaning the Printer
Cleaning Inside the Top Cover .........................................................................................................................59
Cleaning the Printhead .................................................................................................................................... 61
Cleaning the Stacker ....................................................................................................................................... 62

Cleaning Inside the Top Cover

Cleaning Inside the Top Cover
Clean inside the Top Cover about once a month to maintain better printing quality and help prevent problems. Also clean inside the Top Cover in the following situations to ensure optimal operation.
•
If the printed surface or the underside of paper is dirty after printing
•
After you have used up a roll
•
After borderless printing
•
After printing on small paper
•
After printing on paper that generates a lot of cutting debris
•
If you have replaced the roll
•
After printing on paper that generates a lot of paper dust
•
If the message "Blue platen switch is dirty." is displayed
•
If the Platen inside the Top Cover becomes dirty, it may soil the underside of paper. We recommend cleaning the
Important
1
2
Platen after borderless printing or printing on small paper.
•
If the Ejection Guide is dirty, it may soil the edge of the paper when the paper is cut. We recommend cleaning the Ejection Guide even if it does not appear dirty, because it may actually be covered with paper dust.
Remove the Stacker from the printer.
(See "Installing and Removing the Stacker On the Printer.") ➔P.30
Open the Top Cover.
Consumables and Maintenance Cleaning the Printer
Basic Guide
59
Page 60
c
a
b
d
e
c
b
a
Cleaning Inside the Top Cover

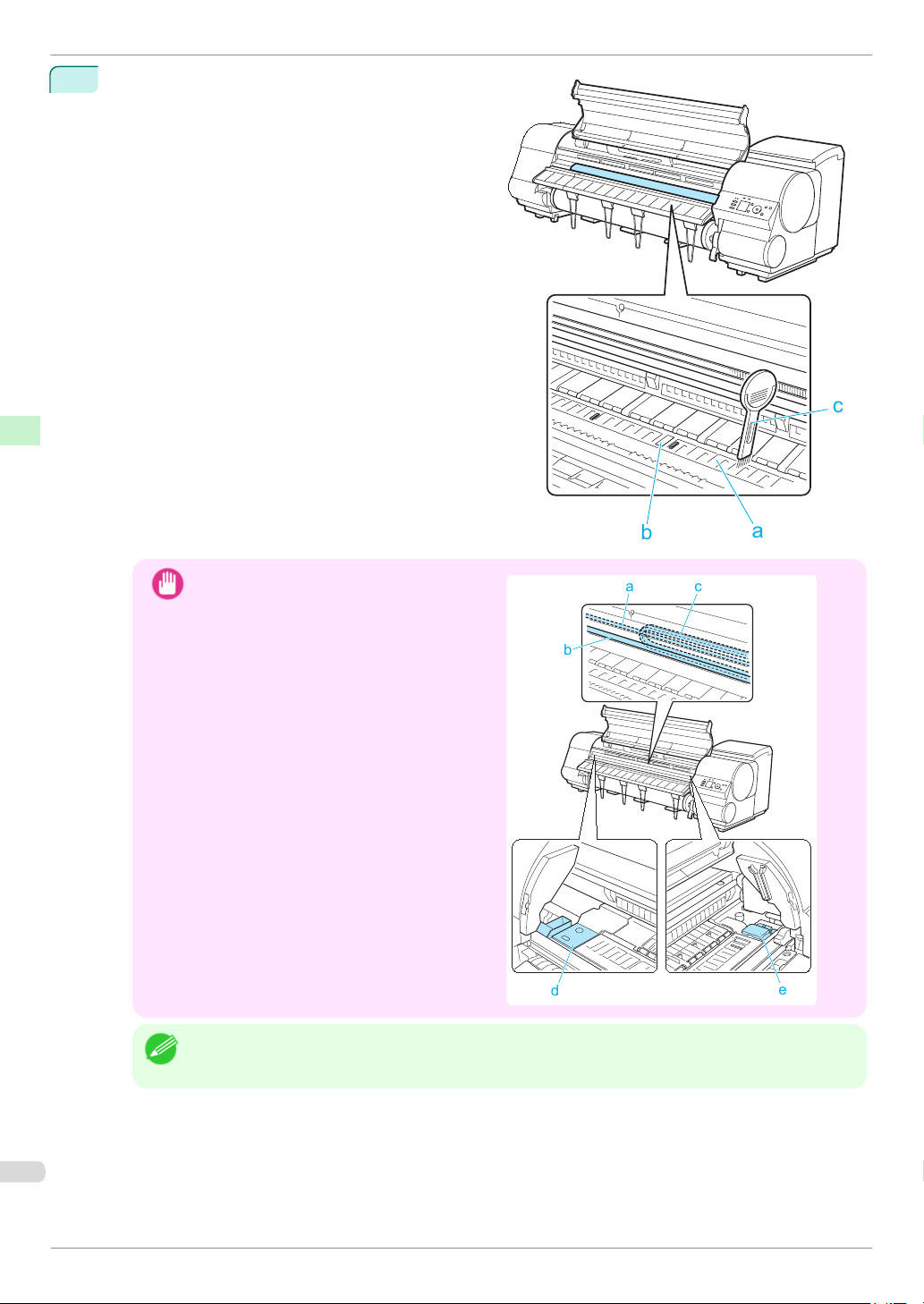

If paper dust has accumulated in the Vacuum holes
3
(a) on the Platen or in the Borderless Printing Ink Grooves (b), use the Cleaning Brush (c) provided with the printer to wipe it away.
Consumables and Maintenance Cleaning the Printer
iPF850 Series
Do not touch the Linear Scale (a), Carriage
•
Important
Note
Shaft (b), or Ink Tube Stabilizer (c). Touching these parts may damage them. Avoid cleaning where the Carriage is retrac­ted, in position (d) or (e).
•
If the Cleaning Brush is dirty, rinse it in water.
Basic Guide
Page 61
c
bfd
e
g
a
iPF850 Series

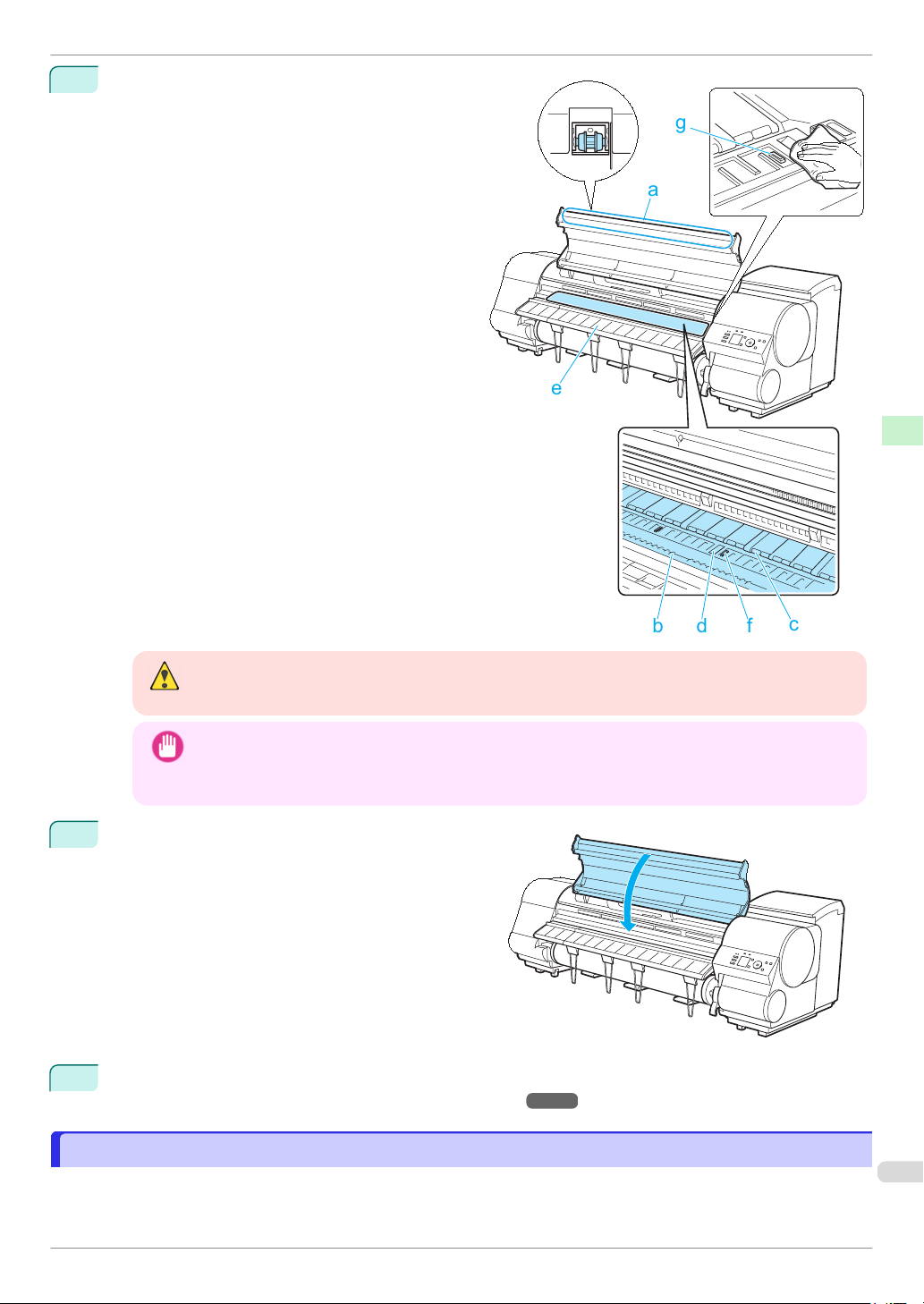

Using a damp cloth that you have wrung out com-
4
pletely, wipe away dirt or paper dust (debris from cutting) inside the Top Cover. Wipe away any ink residue and paper dust (debris from cutting) on the Top Cover Roller (a), all over the Platen (b), the Paper Retainer (c), the Border­less Printing Ink Grooves (d), the Ejection Guide (e), the blue Switch (f), the section around the right­side Borderless Printing Ink Grooves (g), and so on.
Cleaning the Printhead
Consumables and Maintenance Cleaning the Printer
•
Never use flammable solvents such as alcohol, benzene, or thinner. If these substances come into con-
Warning
Important
Close the Top Cover.
5
tact with electrical components inside the printer, there is a risk of fire or electrical shock.
•
Do not use a dry cloth to wipe inside the Top Cover. This may create a static charge, which may attract dust and affect the printing quality.
•
Do not touch the clear sheet on the side of the Top Cover Roller. This may damage the roller.
6
Install the Stacker on the printer.
(See "Installing and Removing the Stacker On the Printer.") ➔P.30

Cleaning the Printhead

Cleaning the Printhead
If printing is faint, cleaning the Printhead may improve results. Choose one of two Printhead cleaning modes ( Head Cleaning A or Head Cleaning B ), depending on the prob­lem to resolve.
Basic Guide
61
Page 62

Cleaning the Stacker

•
Head Cleaning A
Use this mode if printing is faint or contains foreign substances. This method of cleaning consumes the least amount of ink.
•
Head Cleaning B Use this mode if no ink is ejected at all, or if Head Cleaning A does not solve the problem.
•
Do not remove the Maintenance Cartridge or ink tanks during either Head Cleaning A or Head Cleaning B.
Consumables and Maintenance Cleaning the Printer
Important
Note
Perform cleaning as follows.
1
Ink may leak or an error may occur.
•
If printing does not improve even if you execute Head Cleaning B, try repeating Head Cleaning B once or twice. If this still does not improve printing, the Printhead may have reached the end of its useful life. Contact your Canon dealer for assistance.
•
By default, nozzles are checked at fixed intervals. Configure the settings on the Control Panel menu in Nozzle Check.
(See "Menu Settings.")
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to select the Settings/Adj. tab (
➔User's Guide
).
iPF850 Series
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
2
Press the The Set./Adj. Menu is displayed.
3
Press ▲ or ▼ to select Maintenance, and then press the OK button.
4
Press ▲ or ▼ to select Head Cleaning, and then press the OK button.
5
Press ▲ or ▼ to select Head Cleaning A or Head Cleaning B, and then press the OK button. Head cleaning is now executed.
6
Print a test pattern to check the nozzles, and determine whether cleaning has cleared the nozzles. (See
"Checking for Nozzle Clogging.")
Cleaning the Stacker
Cleaning the Stacker
If the front or back surfaces of the paper are soiled, clean the Stacker.
Items to Prepare
Roll paper An unused roll at least 254.0 mm (10.00 in) wide
OK button.
➔User's Guide
•
Approximately 1 m (1.09 yd) of roll paper is used by this operation.
Note
1
Turn the printer and Stacker off.
Basic Guide
Page 63
a
b
c
d
iPF850 Series
Open the Canopy.
2
Using a damp cloth that you have wrung out completely,
3
wipe away ink and paper dust from the Paper Retainer (a), roller (b), and rubber roller (c) which become soiled easily. At this time, also wipe away soiling from the entire tray (d).
Cleaning the Stacker
Consumables and Maintenance Cleaning the Printer
Close the Canopy.
4
Turn the printer on.
5
63
Basic Guide
Page 64

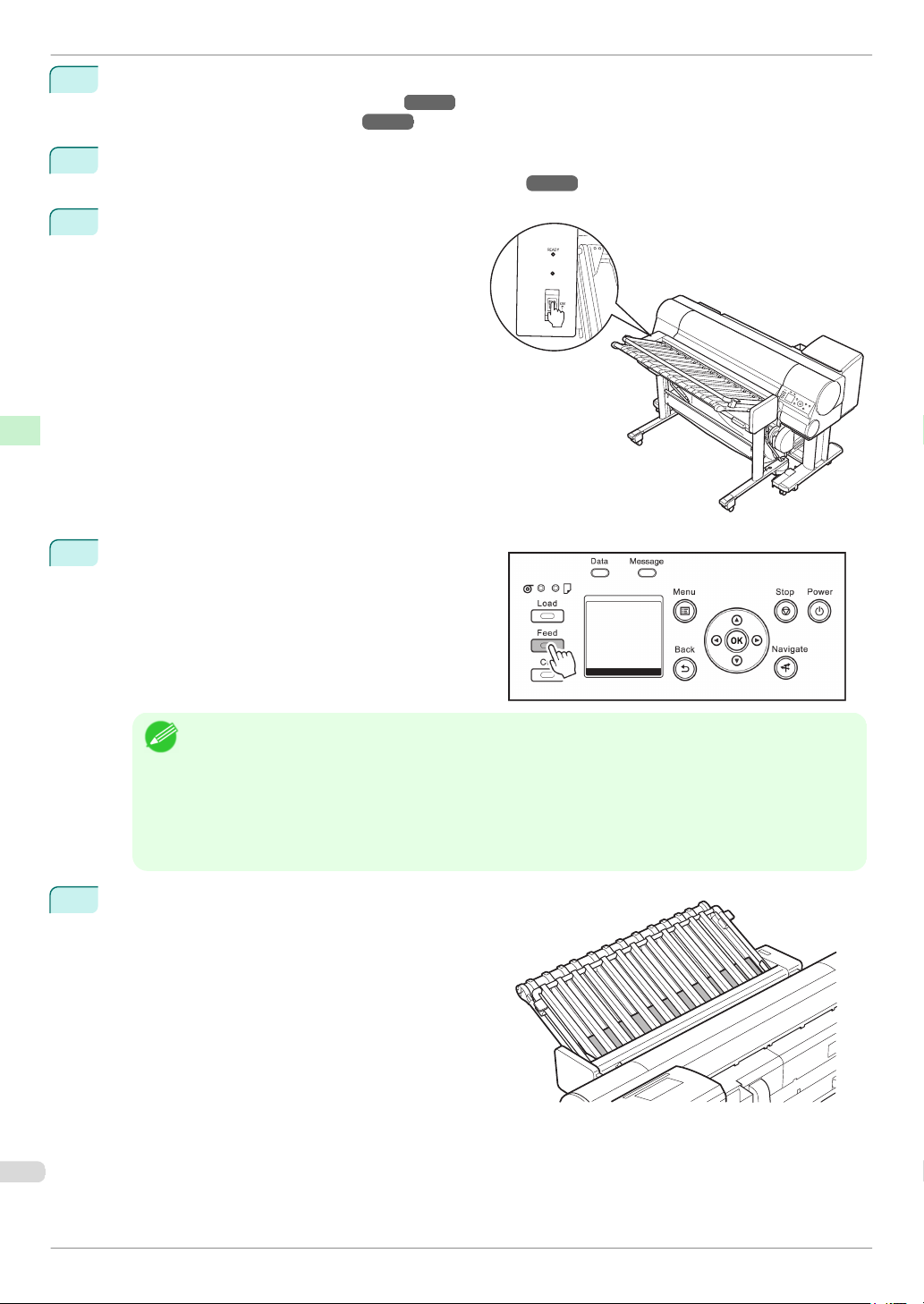

Cleaning the Stacker
6
If roll paper is not loaded in the printer, load roll paper in the printer.
(See "Attaching the Roll Holder to Rolls.") ➔P.12 (See "Loading Rolls in the Printer.") ➔P.15
7
If the Stacker is removed from the printer, install the Stacker on the printer.
(See "Installing and Removing the Stacker On the Printer.") ➔P.30
Consumables and Maintenance Cleaning the Printer
Turn the Stacker on.
8
Press the Feed button.
9
iPF850 Series
•
A message is displayed on the Display Screen. If you are unable to execute paper advance, feed the paper using the following procedure.
Note
1.
Press the Back button to display the Tab Selection screen.
2.
Press the Load button.
3.
When a message is displayed, press ▲ or ▼ to select Reload Roll Paper, and then press the OK button.
Press the ▼ button to advance the roll paper until ap-
10
proximately 20 cm (7.87 in) is ejected into the tray.
Basic Guide
Page 65
a
a
a
a
iPF850 Series

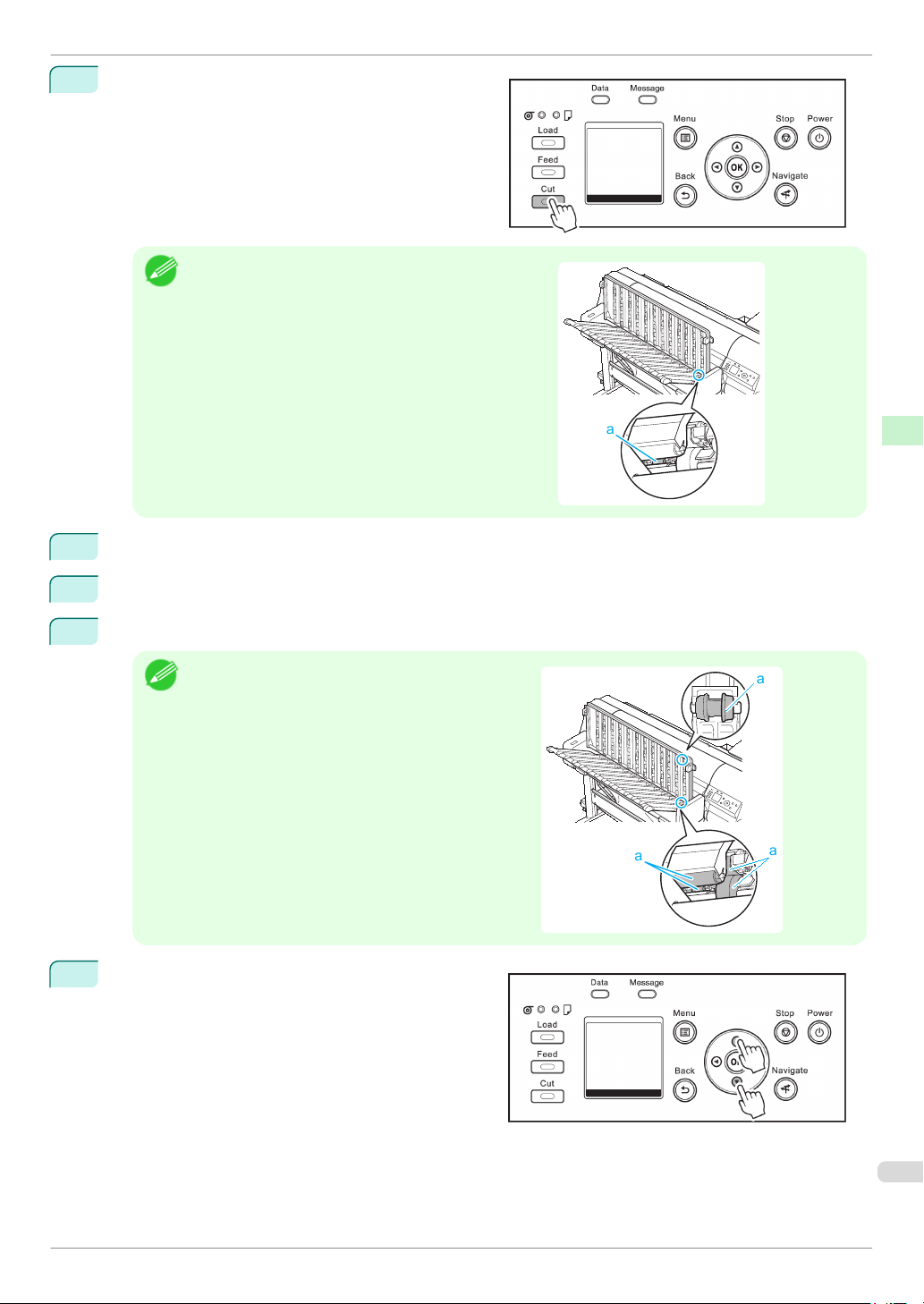

Press the Cut button to cut the roll paper.
11
12
Press the Feed button.
Cleaning the Stacker
Do not remove the cut roll paper. It is used for cleaning
•
the roll paper feed components (a).
Note
Consumables and Maintenance Cleaning the Printer
13
Press the ▼ button to advance the roll paper until approximately 20 cm (7.87 in) is ejected into the tray.
14
Press the ▲ button and rewind the roll paper until "End of paper feed." is displayed on the Display Screen.
The entire roll paper feed components (a) are
•
cleaned by moving the roll paper backwards and for-
Note
wards.
Repeat steps 13 and 14.
15
Basic Guide
65
Page 66
Cleaning the Stacker
Eject the leading edge of the roll paper until it reaches
16
the end of the tray.
Consumables and Maintenance Cleaning the Printer
Press the Cut button to cut the roll paper.
17
18
Open the Canopy and remove the two sheets of cut roll paper.
iPF850 Series
Basic Guide
Page 67
iPF850 Series

Printer Parts

Printer Parts

Control Panel

Control Panel
Control Panel

Operations and Display Screen

Operations and Display Screen
Control Panel .................................................................................................................................................. 67
Menu Operations ............................................................................................................................................ 68
Menu Structure ............................................................................................................................................... 72
Printer Parts Operations and Display Screen
a
Display Screen Shows printer menus, as well as the printer status and messages.
b
Data Lamp (green)
•
Flashing During printing, the Data lamp flashes when the printer is receiving or processing print jobs. Otherwise,
this lamp flashes when the print job is paused or the printer is updating the firmware.
•
Off There are no active print jobs when the Data lamp is off.
c
Message Lamp (orange)
•
On A warning message is displayed.
•
Flashing An error message is displayed.
•
Off The printer is off or is operating normally.
d
Menu button Displays the Tab Selection screen. (See "Menu Settings.")
e
Arrow buttons
•
◀ button Press this button on the Tab Selection screen to move to another tab. In menu items requiring numerical input, press this button to move to another digit.
•
▲ button
Press this button in the menu to move to another item.
➔User's Guide
67
Basic Guide
Page 68

Menu Operations

In menu items requiring numerical input, press this button to increment the number.
•
▶ button Press this button on the Tab Selection screen to move to another tab. In menu items requiring numerical input, press this button to move to another digit.
•
▼ button
Press this button in the menu to move to another item. In menu items requiring numerical input, press this button to decrement the number.
f
OK button
Press this button on the Tab Selection screen to display the menu of the tab shown.
Pressing this button in menu items of each tab for which is displayed at left will move to the lower level of the menu item, enabling you to execute menu commands or set menu values. Also press this button if the Display Screen indicates to press the OK button.
Printer Parts Operations and Display Screen
g
Stop button
Cancels print jobs in progress and ends the ink drying period.
h
Power button (green)
Turns the printer on and off. (See "Turning the Printer On and Off.")
➔User's Guide
The Power button is lit when the printer is on or in Sleep mode.
i
Navigate button
Enables you to check instructions for loading and removing paper or replacing ink tanks or printheads, as well as other operations. (See "How to View Instructions With Navigate.")
➔User's Guide
iPF850 Series
j
Back button
Displays the screen before the current screen.
k
Cut button Pressing this button when rolls are loaded cuts the paper, if you have specified Automatic or Eject in Cutting
Mode in the Control Panel menu. (See "Specifying the Cutting Method for Rolls.")
l
Feed button
➔User's Guide
Pressing this button when rolls are loaded enables you to reposition the paper. (See "Feeding Roll Paper Man-
ually.")
m
Load button
➔User's Guide
Press this button when loading or replacing paper.
(See "Loading Rolls in the Printer.") ➔P.15 (See "Loading Sheets in the Printer.")
n
Roll Media lamp (green)
➔P.25
Lit when rolls are selected as the paper source.
o
Cut Sheet lamp (green)
Lit when sheets are selected as the paper source.
•
In Sleep mode, any button can be pressed except the Power button to recover from Sleep mode.
Note
Menu Operations
Menu Operations
To view available menus organized on tabs, select a tab on the Tab Selection screen and press the OK button. For details, see "Menu Settings."
➔User's Guide
Basic Guide
Page 69
buttonOK
buttonOK
Back button
Back button
㻝㻛㻞
Load Paper
Paper Menu 㻝㻛㻞
Eject Paper Chg. Paper Type Chg. Paper Size ManageRemainRoll
Roll 1 (Upper)
Paper Menu
Roll 2 (Lower)
Ready
Plain Paper
OK: Paper Menu
Cut Sheet
Plain Paper
iPF850 Series
•
Simply press buttons on the Control Panel to access menus on various tabs from the Tab Selection screen and set or execute Menu items. The following section describes menu operations.
•
•
•
•
Menu Operations
Menus (when the Ink tab is selected and the OK button is pressed)
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
Accessing menus ➔P.69 Specifying menu items ➔P.70 Specifying numerical values ➔P.70 Executing menu commands ➔P.71
Accessing menus
Printer menus are grouped by function. Menus are displayed with the upper line selected. You can use the buttons on the Control Panel to access each menu.
Printer Parts Operations and Display Screen
•
Press Back to access a higher menu in the menu list, and press OK to access a lower one. If not all menu items are displayed, hold down ▲ or ▼ to scroll through higher and lower menu items. Items you select are highlighted.
The scroll bar at right indicates the current position in the overall menu.
Basic Guide
69
Page 70
Menu Operations
•
Lower menus are available if is displayed at left next to the second and subsequent rows. To access the lower menus, select the menu and press the OK button.

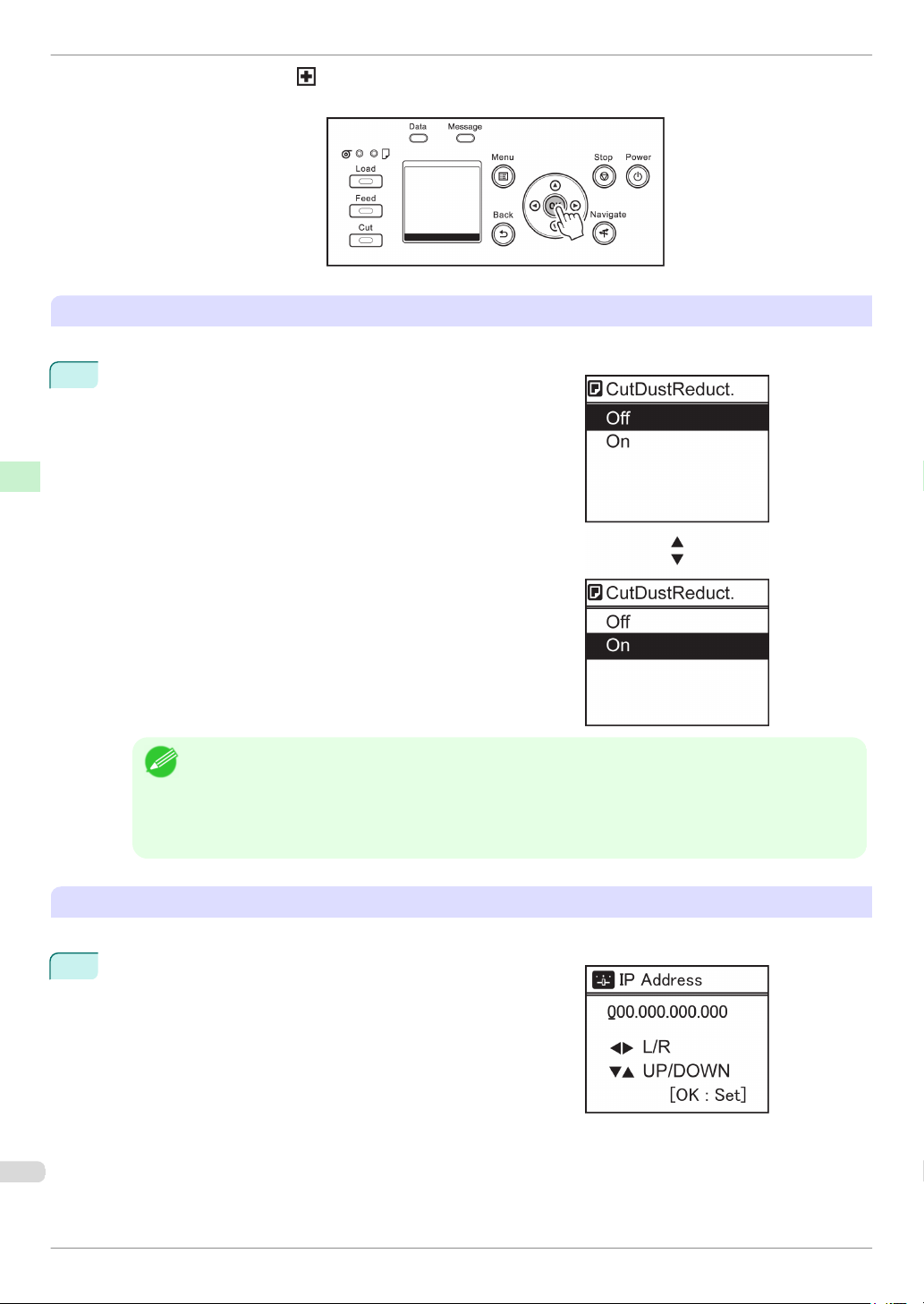

Specifying menu items
Menu items can be set as follows.
Printer Parts Operations and Display Screen
Press ▲ or ▼ to select the desired setting, and then press the
1
OK button. After two seconds, the display reverts to the upper level menu.
iPF850 Series
•
If a confirmation message is displayed regarding the setting you entered, follow the on-screen instruc­tions.
Note
•
If you have changed the Interface Setup menu settings, a message confirming whether to register the settings is displayed if you press Back button or Menu button. Follow the instructions shown on the screen.
Specifying numerical values
Follow these steps to enter numbers. In this example, network settings items are entered.
Press the ◀ or ▶ button to move to the next field for input.
1
Basic Guide
Page 71
iPF850 Series
2
Press the ▲ or ▼ button to enter the value.
3
Repeat steps 1 and 2 to complete the settings, and then press the OK button.
Menu Operations
•
Hold down ▲ or ▼ to increase or decrease the value continuously.
Note
•
If a confirmation message is displayed regarding the setting you entered, follow the on-screen instruc­tions.
Note
•
If you have changed the Interface Setup menu settings, a message confirming whether to register the settings is displayed if you press Back button or Menu button. Follow the instructions shown on the screen.
Executing menu commands
Menu commands can be executed as follows.
1
Press ▲ or ▼ to select the action to execute, and then press the OK button. The menu command is now executed.
Printer Parts Operations and Display Screen
Basic Guide
71
Page 72

Menu Structure

Menu Structure
Menu Structure
The menu structure is shown categorized by tab. The * on the right side of an item indicates the default value. The printer menu is classified into regular menu items available when no print job is in progress and menu during printing items only available while printing is in progress. see "Printer Menu Operations."
Regular menu Menu during printing
Paper Menu
Ink Menu The same Ink Menu as normal is displayed.
Job Menu The same Job Menu as normal is displayed.
Set./Adj. Menu A limited Set./Adj. Menu containing the following items is dis-
Printer Parts Operations and Display Screen
Not displayed
played.
•
Adj. Fine Feed(*1)
•
Printer Info
➔User's Guide
*1:Only displayed in the menu during printing. Not displayed in the regular menu.
For instructions on menu operations, see "Menu Operations." ➔P.68 For details on menu items, see "Menu Settings."
➔User's Guide
Menus may change according to the optional products in use.
Paper Menu
iPF850 Series
The Paper Menu is not displayed during printing.
First Level
Load Paper Roll 1 (Upper) | Roll 2 (Lower) | Cut Sheet
Eject Paper Roll 1 (Upper) | Roll 2 (Lower) | Cut Sheet
Chg. Paper Type(*1) Roll 1 (Upper) (The paper type is displayed here.) (*1)
Chg. Paper Size Sheet Size(*4) (The size of paper is displayed here.) (*2)
ManageRemainRoll Off* | On
Paper Details (The paper type is
Second Level
Roll 2 (Lower) (The paper type is displayed here.) (*1)
Cut Sheet (The paper type is displayed here.) (*1)
Roll1(Uppr)Lngth(*3) (Set the length)
Roll2(Lwr) Lngth(*3) (Set the length)
Roll 1 Wdth(Upr)(*4) (Set the width)
Roll 2 Wdth(Lwr)(*4) (Set the width)
displayed here.) (*1)
Third Level
CustomPaperSize (Set the length and width)
Head Height Automatic* | Highest | High | Standard | Low |
Skew Check Lv. Standard* | Loose | Off
Cutting Mode(*6) Automatic | Eject | Manual
Cut Speed Fast | Standard | Slow
Trim Edge First Automatic | Off | On (Preset Len) | On(Input
CutDustReduct. Off | On
VacuumStrngth Automatic* | Strongest | Strong | Standard |
Scan Wait Time Dry time Off* | 1 sec. | 3 sec. |
Fourth Level
Lowest
Length) | Manual
Weak | Weakest
Area(*5) Entire area* | Lead-
Fifth Level
5 sec. | 7 sec. | 9 sec.
ing edge
Basic Guide
Page 73
iPF850 Series
Menu Structure
First Level
Paper Details
Keep Paper Type Off* | On
Second Level
Third Level
Roll DryingTime Off | 30 sec. | 1 min. | 3 min. | 5 min. | 10 min. |
NearEnd RollMrgn 3mm | 20mm
NearEnd Sht Mrgn 3mm | 20mm
BordlessOversize Standard* | Little
Width Detection Off | On*
Return Defaults
Fourth Level
30 min. | 60 min.
Fifth Level
*1:For information on the types of paper the printer supports, refer to the Paper Reference Guide. (See "Displaying the Paper
Reference Guide.") ➔User's Guide Types of paper in the printer driver and related software (as well as on the Control Pan-
el ) are updated when you install the printer driver from the User Software CD-ROM or if you update paper information with the Media Configuration Tool. (See "Updating paper information.") ➔ User's Guide
Printer Parts Operations and Display Screen
*2:For information on the sizes of paper the printer supports, see "Paper Sizes." ➔ User's Guide *3:Available only if ManageRemainRoll is On. *4:Available only if Width Detection is Off. *5:Leading edge is not available as a setting option in the Paper Detailed Settings dialog box of the printer driver.
*6:see "Specifying the Cutting Method for Rolls." ➔ User's Guide
Ink Menu
Rep. Ink Tank
Head Cleaning A
First Level
Job Menu
First Level
Print Job Job List (Choose a print job.) Delete | Preempt Jobs(*1)
Stored Job Mailbox List (Enter a password if
Job Log(*2)(*3)
Second Level
(Choose from informa­tion about the latest three print jobs.)
Third Level
one has been set.)
Document Name
User Name
Page Count
Job Status OK | CANCELED
Print Start Time yyyy/mm/dd
Print End Time yyyy/mm/dd
Print Time xxxsec.
Output Img. Size (The image size is displayed)
Media Type
Paper Consumed
Paper Length
Paper Width
Interface USB | Network | HDD
Ink Consumed Tot.Ink Consumed xxx.xxx ml
Print settings
Head Height
Fourth Level
Job List Print | Delete
Print Job List
hh:mm:ss
hh:mm:ss
(The ink color is dis­played here.)
xxx.xxx ml
Fifth Level
73
Basic Guide
Page 74
Menu Structure
iPF850 Series
First Level
Second Level
Third Level
Temp./Humidity
Adjustment req.
Fourth Level
Print Job Log
Pause Print Off* | On
HDD Information Total capacity | Box free space
*1:If a pending job is selected, Print Anyway is displayed. *2:This is displayed when Show Job Log is On in System Setup. *3:Even if Show Job Log is Off in System Setup, it is displayed if a password is configured in Change Password in the
Admin. Menu and the password has been authenticated.
Set./Adj. Menu
Limited items are displayed during printing. The displayed items are indicated by annotations.
Printer Parts Operations and Display Screen
First Level Second Level Third Level Fourth Level Fifth Level Sixth Level Seventh Level Eighth Level
Test Print Nozzle Check | Status Print | Interface Print | GL2 Set Print | Paper Details | Print Job Log | Menu Map | Color
Palette
Adjust Printer
Mainte­nance
GL2 Set­tings
Head Posi. Adj.
Head Inc. Adj.
Feed Prior­ity
Head Cleaning
Nozzle Check
Replace P.head
Repl. maint cart
Head Info
Quality Manager
Standard
Simple
Other Initial adjustmt | Manual(*1)
Adj. Priori-tyAutomatic* | Print Quality | Print Length
Adj. Quali-
Auto(GenuinePpr) | Auto(OtherPaper) | Manual
ty(*2)
Adjust Length(*3)
Adjust­mentPrint
Change
A:High | B:Standard/Draft
A:High | B:Standard/Draft
Settings
Head Cleaning A | Head Cleaning B
Color Mode
Monochrome | Color (CAD) 1* | Color (CAD) 2 | Color (CAD) 3 | Color (CAD) 4 | Color (CAD) 5 | Color (CAD) 6
Print Quali-tyFast | Standard* | High
Fifth Level
Input Res-
600dpi* | 300dpi
olution
Print
Off* | On
(Economy)
Paper Manager
Paper
Automatic* | Roll 1 (Upper) | Roll 2 (Lower) | Cut Sheet
Source
Margin 3mm(Standard)* | 5mm
Oversize Off | On*
Conserve
Off* | On
Paper
Auto Ro-
Off* | On
tate
Enlarge/
Off* | Specify scaling | Fit to paper
Reduce
Basic Guide
Page 75
iPF850 Series
Menu Structure
First Level Second Level Third Level Fourth Level Fifth Level Sixth Level Seventh Level Eighth Level
Interface Setup(*8)
Line & Pen Manager
Processin­gOption
GL2 Set Print
EOP Tim­er(*8)
TCP/IP(*8) IPv4(*8) IPv4
Print cen­tered
Standard cut
Nesting Use Nest-
Enable merge
Pen Setup Select Pa-
Smoothing Software* | Smooth
ThickenFi­neLines
Adjust­FaintLines
Ln wdth correct
Warning Off* | On
On-the-Fly Off* | On
Detect img size
10 sec. | 30 sec. | 1 min. | 2 min. | 5 min. | 10 min.* | 30 min. | 60 min.
Off* | On
Off* | On
Off* | On
ing
Nesting Wait­Time(*4)
Cut Lines(*4)
Off* | On
lette
Define Pa­lette
Reset Pa­lette
Off* | On
Off | On*
Black/gray | Color
Off* | Command priority | Detected size
Mode(*8)
Proto­col(*5)(*8)
IPv4 Set­tings(*9)
xx min.
Off* | On
Software* | Palette A | Palette B | Factory
Palette A (Select the
pen num­ber)
Palette B (Select the
pen num­ber)
Factory (Select the
pen num­ber)
All Palette | Palette A | Palette B
Automatic | Manual*
DHCP(*8) On | Off*
BOOTP(*8) On | Off*
RARP(*8) On | Off*
IP Ad­dress(*9)
xxx.xxx.xxx.xxx
Width (Indicates
Color 0～255
Line Attrib­utes
(Indicates Width, Col­or, and Line Attributes )
(Indicates Width, Color, and Line Attributes )
Printer Parts Operations and Display Screen
the value of Width )
No Setting | Circle Set­ting
(Specify the values of Width, Col­or, and Line Attributes )
75
Basic Guide
Page 76
Menu Structure
First Level Second Level Third Level Fourth Level Fifth Level Sixth Level Seventh Level Eighth Level
Subnet
xxx.xxx.xxx.xxx
Mask(*9)
Default
xxx.xxx.xxx.xxx
G/W(*9)
DNS Set­tings(*9)
IPv6(*8) IPv6 Sup-
DNS Dync
On | Off*
update(*9)
Pri. DNS SrvAddr(*9)
Sec. DNS SrvAddr(*9)
DNS Host Name(*9)
DNS Domain Name(*9)
On | Off*
port(*8)
Printer Parts Operations and Display Screen
IPv6 Stles­sAddrs(*8)
On* | Off
(*10)
DHCPv6(*
8)(*10)
DNS Set­tings(*9) (*10)
On | Off*
DNS Dync update(*9)
Statefull Addr(*9)
Stateless
On | Off*
On | Off*
Addr(*9)
Ethernet Driver(*8)
Auto De­tect(*8)
Comm.Mo
Pri. DNS SrvAddr(*9)
Sec. DNS SrvAddr(*9)
DNS Host Name(*9)
DNS Domain Name(*9)
On* | Off
Half Duplex* | Full Duplex
de(*6)(*8)
Ethernet
10 Base-T* | 100 Base-TX | 1000 Base-T Type(*6) (*8)
Spanning
Not Use* | Use Tree(*8)
System Setup
Interface Print(*8)
Return Defaults(*8)
Sleep Tim­er(*11)
Shut Down
MAC Ad­dress(*8)
xxxxxxxxxx
xx
5 min.* | 10 min. | 15 min. | 20 min. | 30 min. | 40 min. | 50 min. | 60 min. | 210 min.
Off | 5 min. | 10 min. | 30 min. | 1 hour | 4 hours | 8 hours* | 12 hours
Timer
Buzzer Off | On*
Contrast
-4,-3,-2,-1,0*,+1,+2,+3,+4
Adj.
Date & Time(*8)
Date yyyy/mm/d
Time
hh:mm d(*7)
Date For-
yyyy/mm/dd* | dd/mm/yyyy | mm/dd/yyyy
mat(*8) Language English | 日本語 | Français | Italiano | Deutsch | Español | Português | Русский | 中文（简体字）
| 한국어
iPF850 Series
Basic Guide
Page 77
iPF850 Series
Menu Structure
First Level Second Level Third Level Fourth Level Fifth Level Sixth Level Seventh Level Eighth Level
Prep.Move Printer
Admin. Menu(*8)
Adj. Fine Feed(*12)(*13)
Printer In­fo(*12)
Time Zone(*8)
Length Unit
Detect Mis­match
Paper Size Basis
Keep Pa­per Size
Roll Switching
TrimEdge Reload
Rep.P.hea d Print
Nozzle Check
CarriageS­canWdth
Use USB(*8)
Use Ether­net(*8)
Use Remo­teUI(*8)
Reset PaprSetngs(*8)
Erase HDD Data
Output Method
Print After Recv
Common Box Set. (*5)(*8)
Show Job Log(*8)
Level 1 | Level 2 | Level 3
Change Pass­word(*9)
Init.Admin.Pswd(*9)
Paper Info
Ink Info
Head Info
System Info
0:London (GMT) | +1:Paris,Rome | +2:Athens,Cairo | +3:Moscow | +4:Eerevan,Baku | +5:Is­lamabad | +6:Dacca | +7:Bangkok | +8:Hong Kong | +9:Tokyo,Seoul | +10:Canberra | +11:NewCaledonia | +12:Wellington | -12:Eniwetok | -11:Midway is. | -10:Hawaii(AHST) |
-9:Alaska(AKST) | -8:Oregon (PST) | -7:Arizona(MST) | -6:Texas (CST) | -5:NewYork(EST) |
-4:Santiago | -3:Buenos Aires | -2: | -1:Cape Verde
meter* | feet/inch
Pause | Warning | None* | Hold Job
Sht Selec­tion 1
Sht Selec­tion 2
Off* | On
Use Optimal Size | No RollSwitching
Automatic | Off* | On
Off | On*
Frequency Standard* | 1 page | 10 pages | Off
Warning Off* | On
Automatic* | Fixed
On* | Off
On* | Off
On* | Off
High Speed(*8) | Secure High Spd.(*8) | Secure(*8)
Print* | Print (Auto Del) | Save: Box XX
Off* | On
Print* | Print (Auto Del)
Off | On*
(The screen for setting the password is displayed)
ISO A3+* | 13"x19"(Super B)
ISO B1* | 28"x40" (ANSI F)
Printer Parts Operations and Display Screen
77
Basic Guide
Page 78
Menu Structure
First Level Second Level Third Level Fourth Level Fifth Level Sixth Level Seventh Level Eighth Level
Error Log
Use Situa­tion
Tot.Print Area | Duty Counter
*1:Available after you have used Standard or Initial adjustmt in Head Posi. Adj. once. *2:Available if Adj. Priority is Automatic or Print Quality. *3:Available if Adj. Priority is Automatic or Print Length. *4:Available only if Use Nesting is On. *5:Not displayed if IPv4 Mode is Manual. *6:Not displayed if Auto Detect is On. *7:Follows the setting in Date Format. *8:Restrictions apply if a password is configured using Change Password in the Admin. Menu.
Viewing and configuration is possible for administrators, and only viewing for other users.
Printer Parts Operations and Display Screen
*9:Restrictions apply if a password is configured using Change Password in the Admin. Menu.
Viewing and configuration is possible for administrators only.
*10:Not displayed if IPv6 Support is Off. *11:Default setting for the time to enter the power save mode/Sleep mode is recommended. *12:Displayed as the menu during printing while printing is in progress. *13:Not displayed in the regular menu.
iPF850 Series
Basic Guide
Page 79
h
f
ab
i
i
g
e
d
c
iPF850 Series

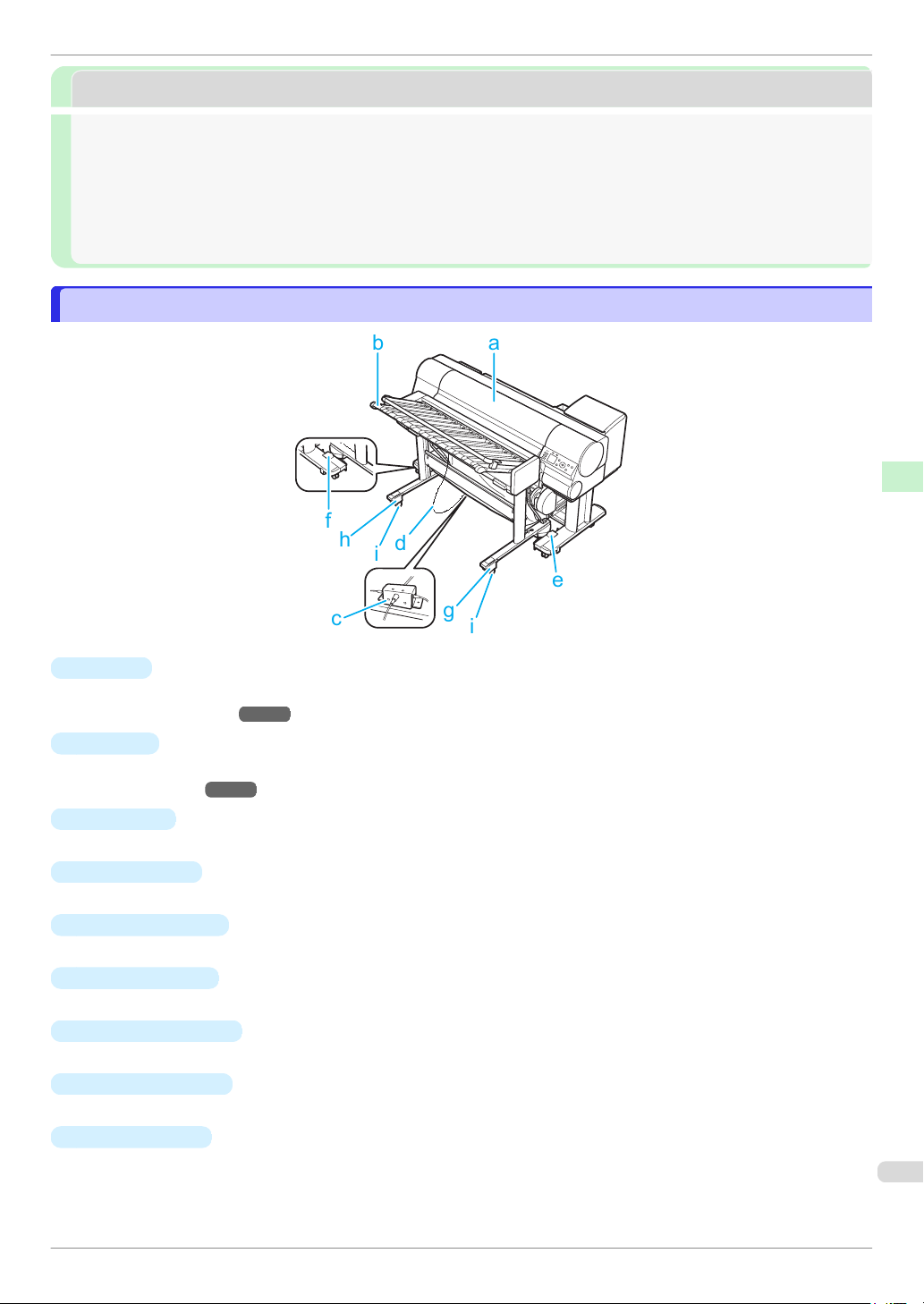

Front

Front
Front

Printer parts

Printer parts
Front ............................................................................................................................................................... 79
Printer Front .................................................................................................................................................... 80
Stacker ........................................................................................................................................................... 81
Back ............................................................................................................................................................... 82
Top Cover (Inside) ........................................................................................................................................... 83
Carriage .......................................................................................................................................................... 84
Ink Tank Cover (Inside) .................................................................................................................................... 85
Printer Parts Printer parts
a
Printer This is the main printer unit. It performs printing according to the various settings.
(See "Printer Front.") ➔P.80
b
Stacker This is the stacker unit. It stacks and holds the printed documents ejected from the Printer.
(See "Stacker.")
c
Relay box This relays the cable connections from the Printer, Stacker, Alignment unit left, and Alignment unit right.
d
Stacker cable This cable connects the Stacker and Printer.
e
Docking unit right Install the Stacker on the Printer using the markings in this area as a guide.
Docking unit left
f
Install the Stacker on the Printer using the markings in this area as a guide.
g
Alignment unit right Adjust this part to set the vertical position of the Stacker relative to the Printer.
h
Alignment unit left Adjust this part to set the vertical position of the Stacker relative to the Printer.
i
Locking Caster Lock to immobilize the caster. Be sure to unlock all of the casters before you move it. If you move it while the casters are locked, the floor
may become scratched.
➔P.81
Basic Guide
79
Page 80
t
j
o
q
m
p
n
q
a
i
h
b
l
k
l
c
c
g
s
g
d
d
r
f
e

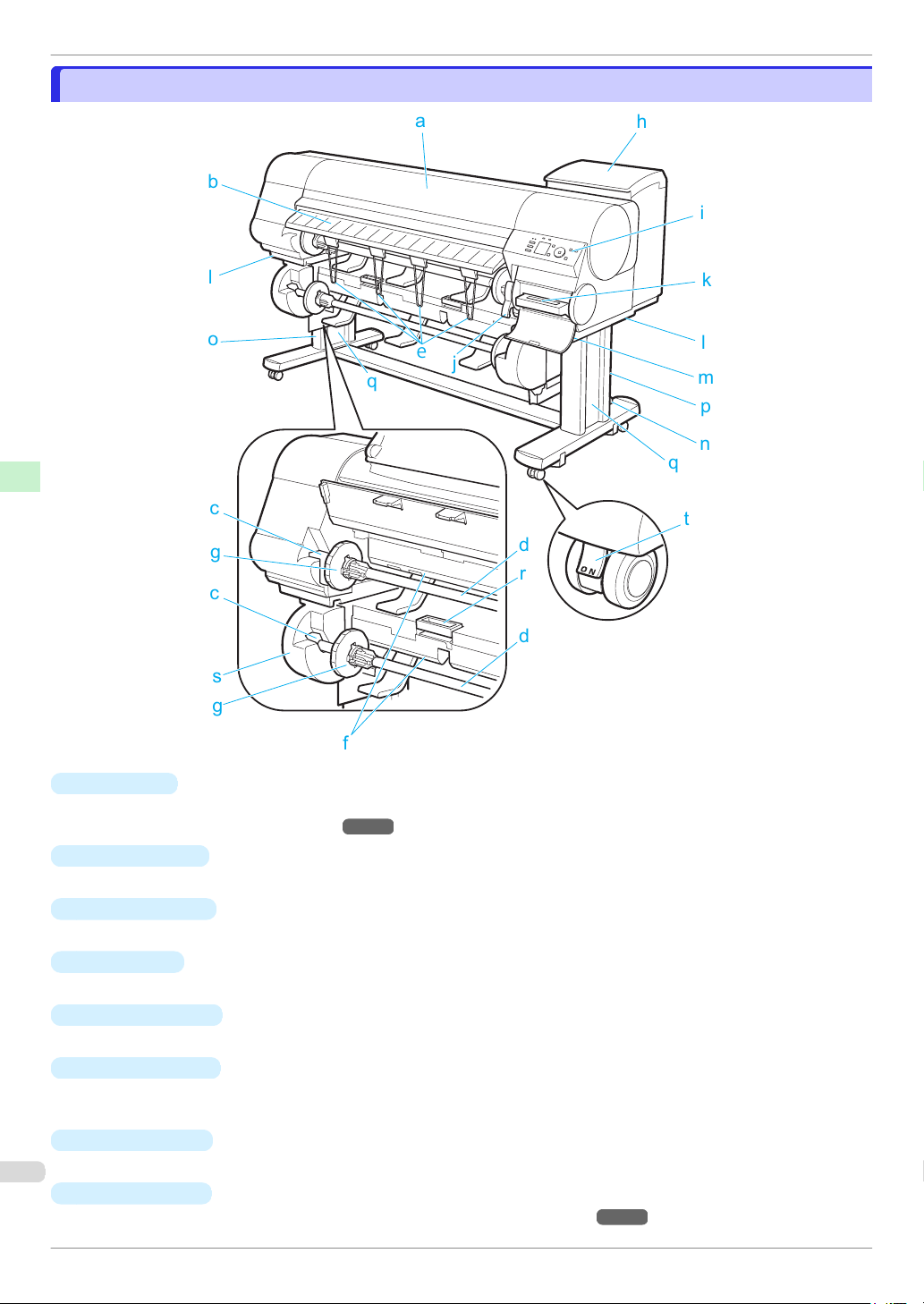

Printer Front

Printer Front
Printer Front
Printer Parts Printer parts
iPF850 Series
a
Top Cover Open this cover to install the Printhead, load paper, and remove any jammed paper from inside the printer as
needed. (See "Top Cover (Inside).") ➔P.83
b
Ejection Guide Guides printed documents as they are ejected. Open this guide when loading a roll.
c
Roll Holder Slot Slide the Roll Holder into this slot.
d
Roll Holder Load the roll on this holder.
e
Ejection Support Prevents printed documents from winding around the Roll Holder or being drawn into the Paper Feed Slot.
f
Paper Feed Slot When loading a roll, insert the edge of the roll paper here. You can load rolls in two positions, on the printer
side in the Roll 1 (Upper) position and on the roll unit side in the Roll 2 (Lower) position.
g
Holder Stopper Secure rolls on the Roll Holder with this part.
h
Ink Tank Cover Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") ➔P.85
Basic Guide
Page 81
a
b
g
f
e
cd
iPF850 Series
i
j
k
l
m
n
o
p
q
r
Stacker
Control Panel Use this panel to operate the printer and check the printer status. (See "Control Panel.") ➔P.67
Release Lever Releases the Paper Retainer. Lift this lever toward the front of the printer when loading paper.
Maintenance Cartridge Ink used for maintenance purposes such as head cleaning is absorbed. (Replace the cartridge when it is full.)
Carrying Handles When carrying the printer, have six people hold it by these handles under both sides.
Maintenance Cartridge Cover Open this cover to replace the Maintenance Cartridge.
Stand A stand that holds the printer. Equipped with casters to facilitate moving it.
Stand L The left leg of the Stand.
Stand R The right leg of the Stand.
Leg Covers Covers for Stand L and Stand R.
Roll Unit Lever Hold this lever to pull out the Roll Unit.
Printer Parts Printer parts
s
Roll Unit A unit for loading two rolls.
t
Stopper Locks the Stand casters. Always release the Stopper before moving the printer. Moving the printer while the Stopper is locked may
scratch the casters or the floor.

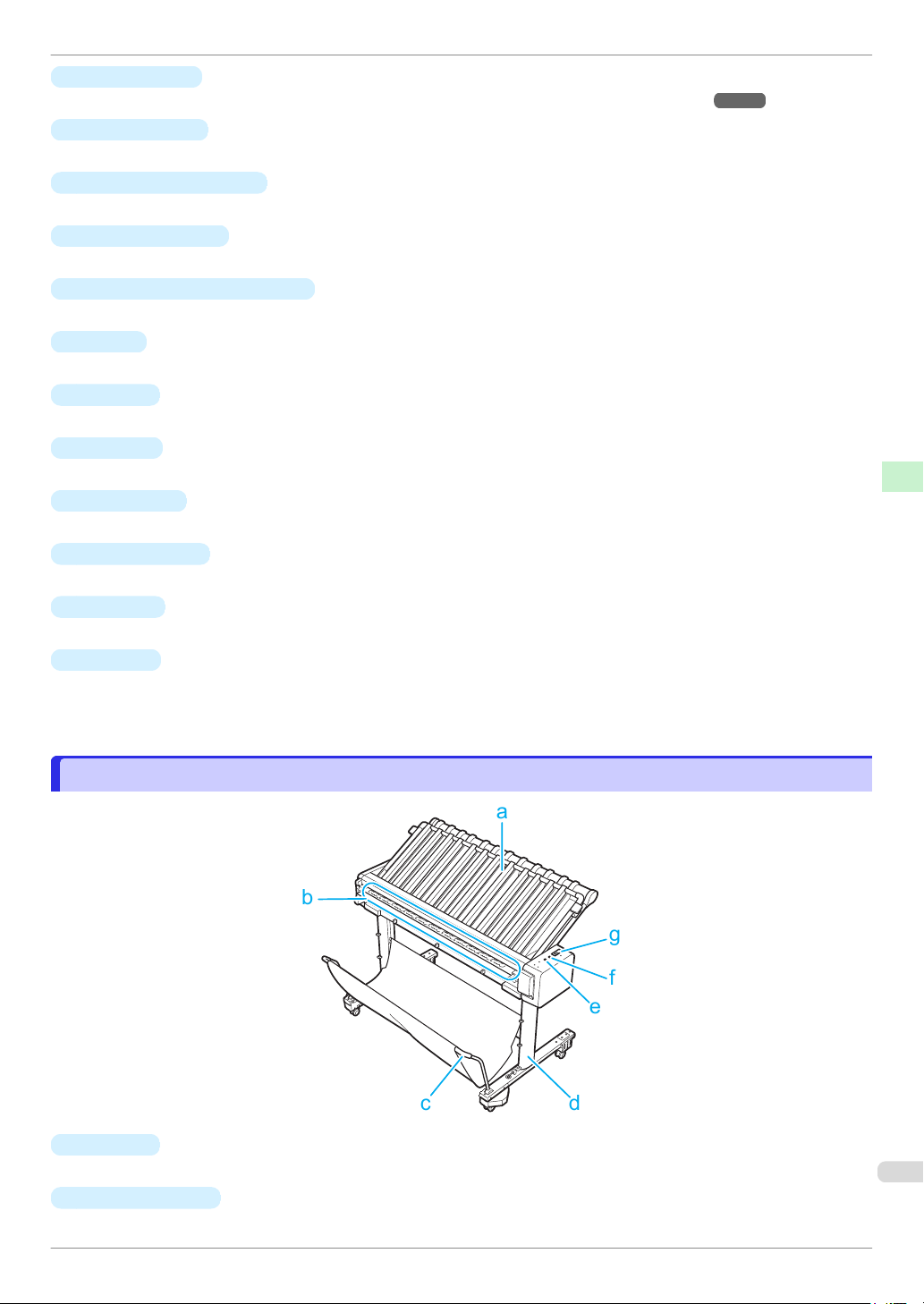

Stacker

Stacker
a
Canopy Holds and prevents the stacked paper in the Stacker from rising. To remove the paper, open it upward.
b
Paper Feed Slot The Paper Feed Slot for the Stacker.
81
Basic Guide
Page 82
f
e
d
cb
a
a
h
g

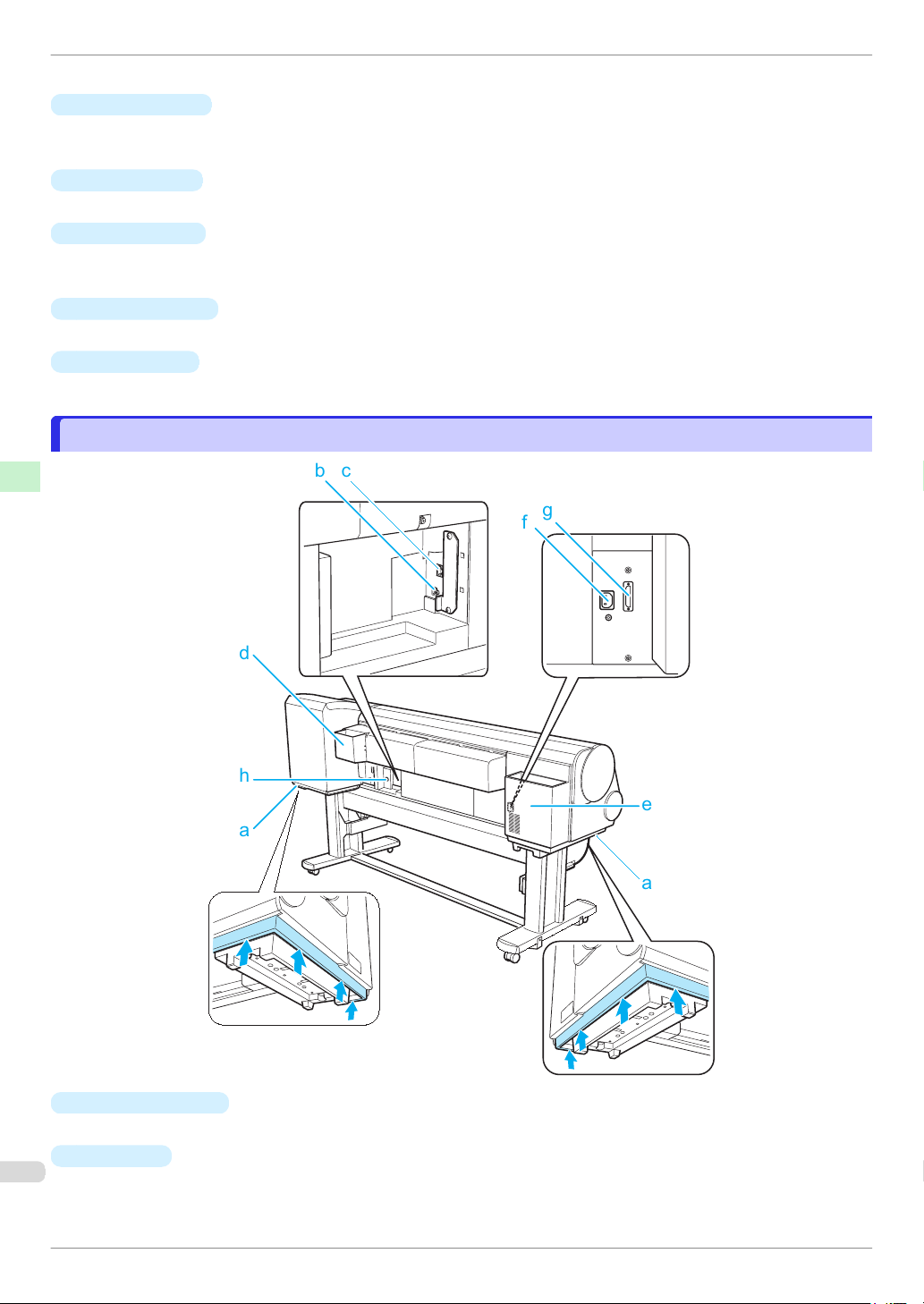

Back

This part feeds the printed documents ejected from the Printer into the Stacker.
c
Output Stacker A cloth tray that catches ejected documents. The Output Stacker can be opened and closed using the rod in front.
d
Stacker stand A stand that holds the Stacker. It is equipped with casters to facilitate movement.
e
Lamp 1 (Blue) Lit when the Stacker is ready. When not lit up, printed documents cannot be accepted from the Printer.
f
Lamp 2 (Green) Lit when the Stacker Power switch is on.
g
Printer Parts Printer parts
Power switch Turns the Stacker on and off.
Back
Back
iPF850 Series
a
Carrying Handles When carrying the printer, have six people hold it by these handles under both sides.
b
USB Port Connect a USB cable to this port. The printer is compatible with Hi-Speed USB connections.
Basic Guide
Page 83
l
k
j
i
h
g
f
e
d
c
b
a
iPF850 Series
c
d
e
f
g
h

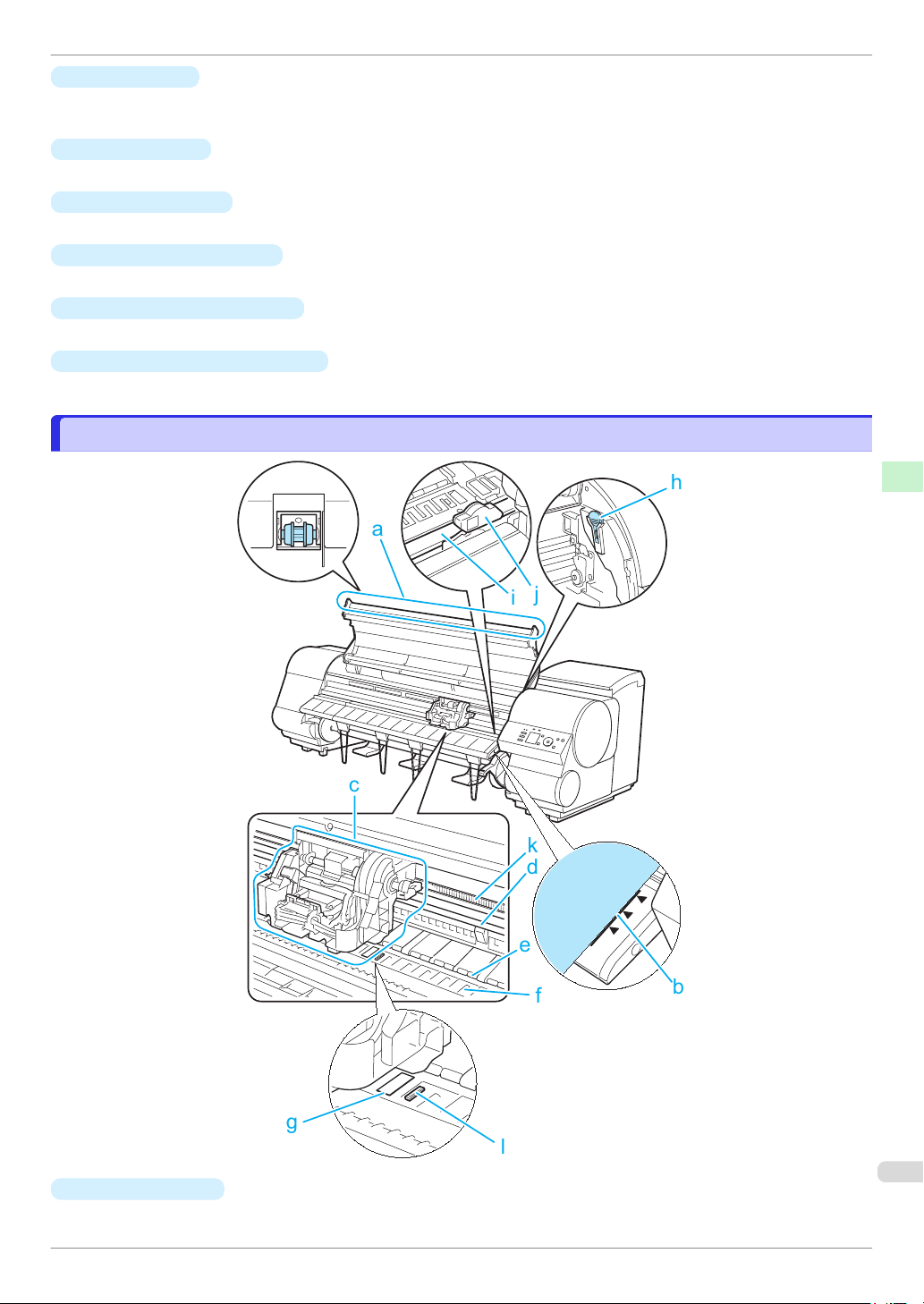

Top Cover (Inside)

Top Cover (Inside)
Top Cover (Inside)
Ethernet Port Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly and commu-
nication is possible between the computer and printer.
Manual Pocket Store printer manuals in this pocket.
Accessory Pocket Store assembly tools, Roll Holder attachments, and other items in this pocket.
Power Supply Connector Connect the power cord to this connector.
Roll Unit Power Supply Inlet Connect the connection cord for the Roll Unit.
Media Take-up Unit Power Inlet Connect the connection cord for the Stacker.
Printer Parts Printer parts
a
Top Cover Roller Prevents paper from rising when ejected.
Basic Guide
83
Page 84
d
c
b
a

Carriage

b
Paper Alignment Line Align paper with this line when loading it.
c
Carriage Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.") ➔P.84
d
Carriage Shaft The Carriage slides along this shaft.
e
Paper Retainer Important in supplying the paper. This retainer holds paper as it is fed.
f
Platen The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
g
Borderless Printing Ink Grooves
Printer Parts Printer parts
For catching ink outside the edges of paper during borderless printing.
h
Cleaning Brush When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen. Also use the brush to move the blue Switch on the Platen.
i
Cutter Rail The Cutter Unit passes over this rail to cut paper.
j
Cutter Unit A round-bladed cutter for automatic paper cutting.
iPF850 Series
k
Linear Scale The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when
cleaning inside the Top Cover or clearing paper jams.
l
Switch Set the switch to the side opposite ● if the edges of printed images are blurred. Set the switch to the ● side
before borderless printing. (See "Setting the Blue Switch on the Platen.")
Carriage
Carriage
a
Printhead Fixer Cover Holds the Printhead in place.
➔User's Guide
b
Printhead The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
Basic Guide
Page 85
M
B
K
B
K
B
G
Y
Y
d
c
b
a
iPF850 Series
c
Ink Tank Cover (Inside)
Printhead Fixer Lever Locks the Printhead Fixer Cover.
d
Angle Adjustment Lever Use this lever to fine-tune the printer to correct misalignment of printed lines.

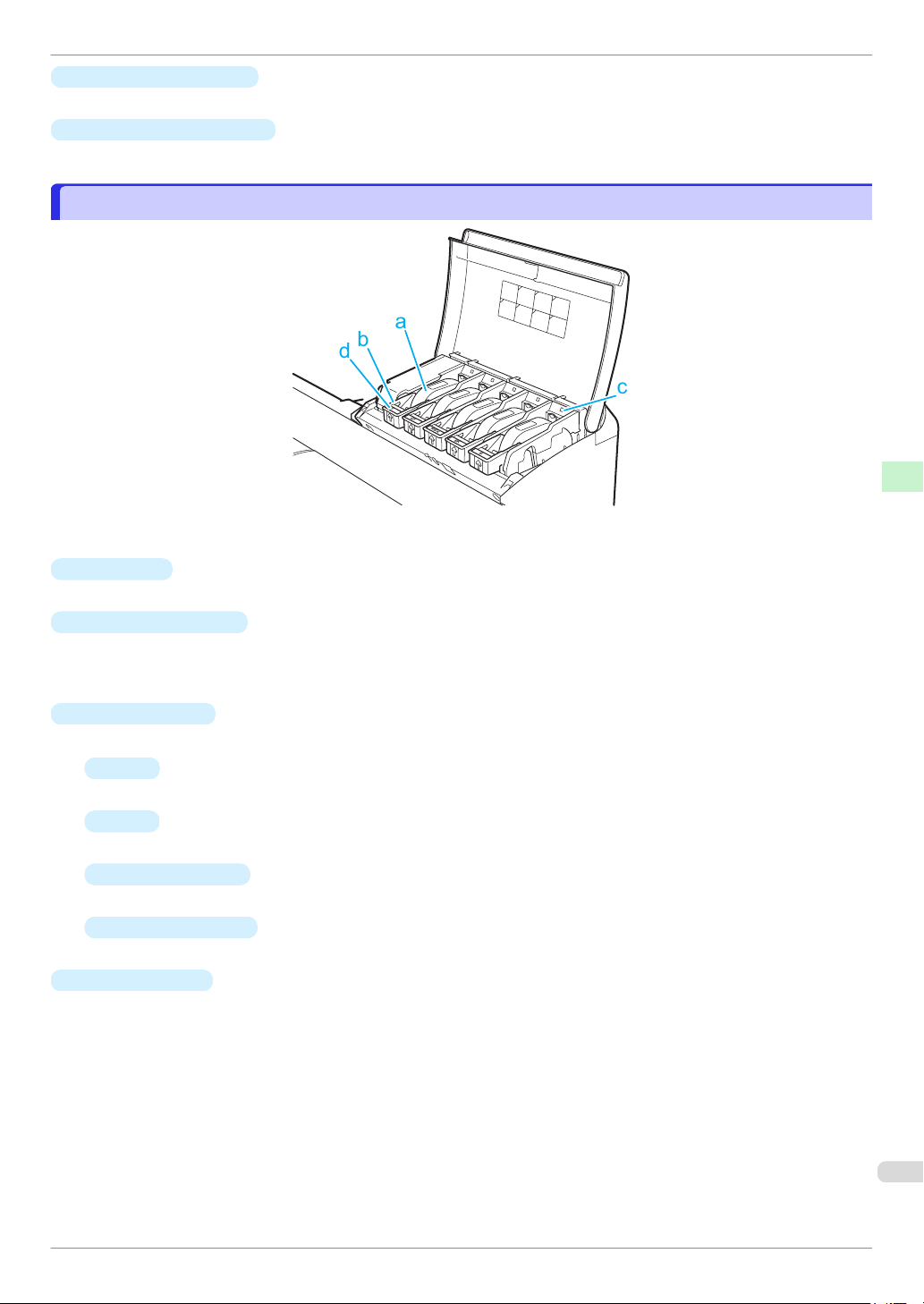

Ink Tank Cover (Inside)

Ink Tank Cover (Inside)
Note: The figure shows the printer as loaded with 700 ml (23.7 fl oz) Ink Tank.
Printer Parts Printer parts
a
Ink Tanks Cartridges of ink in various colors.
b
Ink Tank Lock Lever A lever that locks the Ink Tank in place and protects it. Lift and lower the lever when replacing an Ink Tank. To
open it, lift the stopper of the lever until it stops, and then push it down toward the front. To close it, push it down until it clicks into place.
c
Ink Lamp (Red) Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
•
On The Ink Tank is installed correctly.
•
Off No Ink Tank is installed, or the ink level detection function is disabled.
•
Flashing Slowly Not much ink is left.
•
Flashing Rapidly Ink tank is empty.
d
Ink Color Label Load an Ink Tank that matches the color and name on this label.
Basic Guide
85

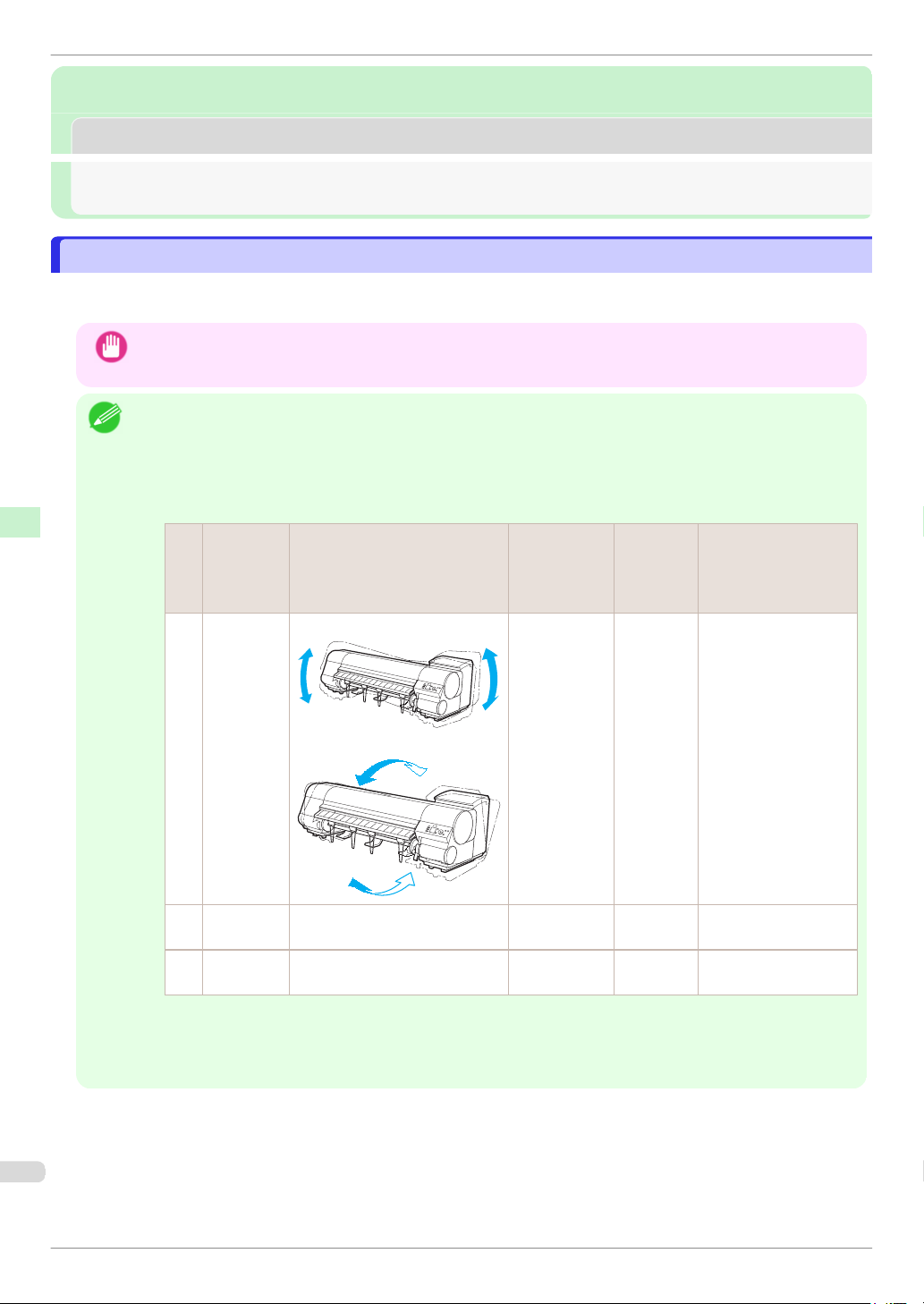

Page 86

Preparing to Transfer the Printer

Printer Relocation

Printer Relocation

Preparing to Transfer the Printer

Preparing to Transfer the Printer
Preparing to Transfer the Printer ...................................................................................................................... 86
Reinstalling the Printer .....................................................................................................................................92
Preparing to Transfer the Printer
Preparing to Transfer the Printer
To protect the internal parts in transit, always follow these steps before transferring the printer to a new location. Refer to the Setup Guide for details on packing the printer and installing it after transfer.
•
Be sure to contact your Canon dealer before transferring the printer to a new location. Ink may leak and damage
Important
Printer Relocation Preparing to Transfer the Printer
Note
the printer if you do not prepare the printer correctly and it is tipped or stood on end in transit.
•
Depending on the state of the printer, part replacement may be necessary when preparing to transfer the printer (that is, when you execute the printer menu item to prepare for transfer).
•
Ink must be drawn into the Maintenance Cartridge before Level 2 or Level 3 printer transfer, as described in the following table. Prepare the Maintenance Cartridge in advance.
•
Always follow the instructions of the service representative when transferring the printer under Level 3 conditions.
Transport and
Storage In
Level
Low Temper-
ature Envi-
ronments
1 No Lengthwise: 0–30º
Permitted Angle of Inclination
Amount of Ink to
Dispose of
Required
Maintenance
Cartridg-
es(*1)
0(*2) Moving Within a Room
Usage Examples
and Storage In Room Temperature Environ­ments
iPF850 Series
Rotation: 0–10º
2 Yes All directions: 0–30º Approx. 700
ml (20.3 fl oz)
3 Yes Lengthwise: 0–90º
Rotation: 0–30º
*1:This is the number of new Maintenance Cartridges required when you execute the Prep.MovePrinter
menu. The number varies depending on the amount remaining in the Maintenance Cartridge being used.
*2:If a message instructing you to replace the Maintenance Cartridge is displayed on the Display Screen, the
Maintenance Cartridge needs to be replaced.
Basic Guide
Approx. 700 ml (20.3 fl oz)
1 or 2 Transport By Vehicle
1 or 2 Move by temporarily
standing vertically

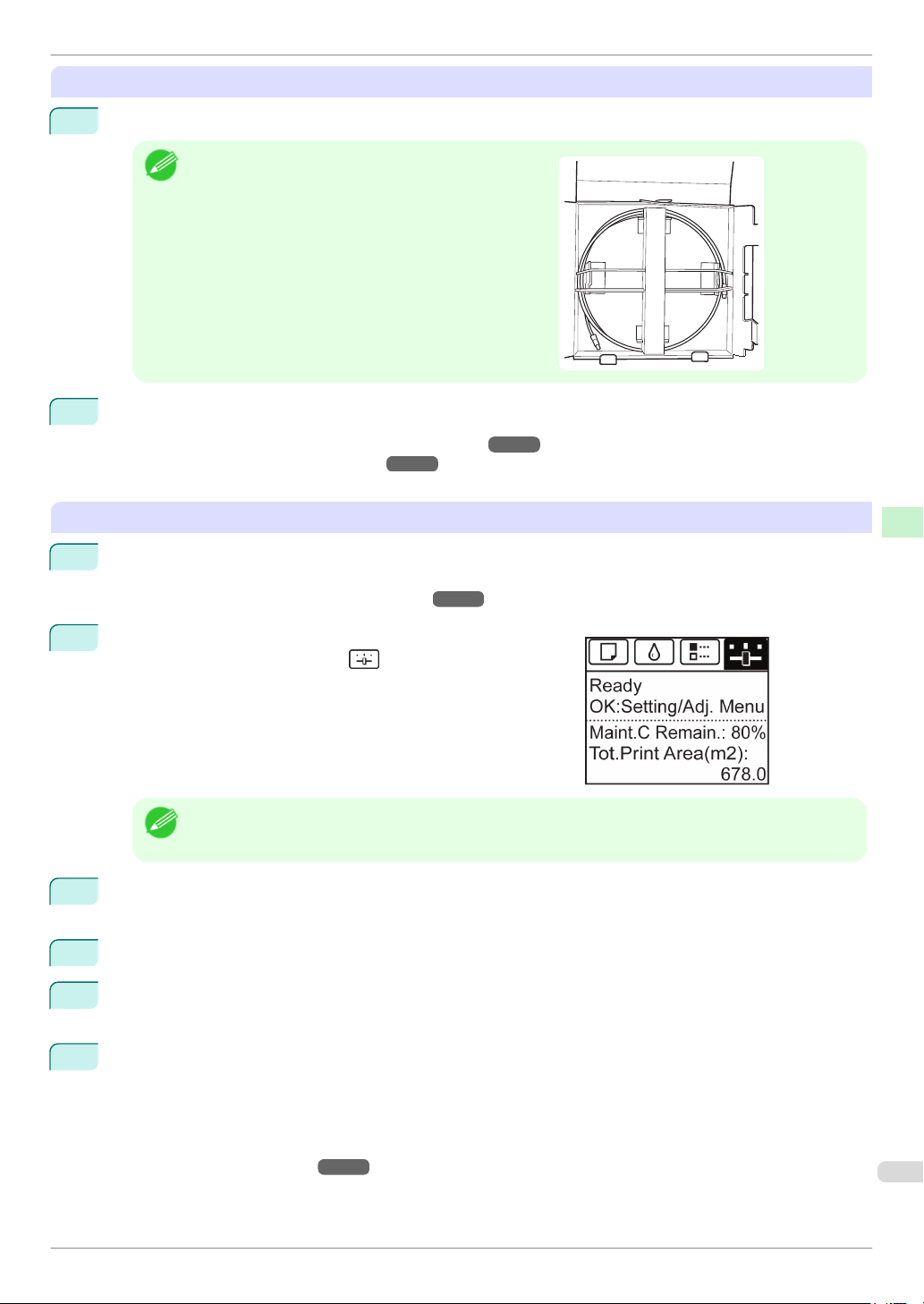

Page 87
iPF850 Series
Preparing to Transfer the Printer
Remove paper
1
Disassemble and repackage the Stacker by following the installation procedure in reverse.
2
Remove the paper.
•
Rolls (See "Removing the Roll from the Printer.") ➔P.21
•
Sheets (See "Removing Sheets.") ➔P.28
When storing the Stacker cable, place it in the cable
•
package (or in a box measuring at least 30 cm (11.81
Note
in) per side) without folding.
Printer Relocation Preparing to Transfer the Printer
Access the Prep.MovePrinter menu
1
If a message instructing you to replace the Maintenance Cartridge is displayed on the Display Screen, re­place the Maintenance Cartridge.
(See "Replacing the Maintenance Cartridge.") ➔P.54
On the Tab Selection screen of the Control Panel, press ◀ or
2
▶ to select the Settings/Adj. tab ( ).
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
3
Press the OK button. The Set./Adj. Menu is displayed.
4
Press ▲ or ▼ to select Prep.MovePrinter, and then press the OK button.
5
Press ▲ or ▼ to select the level of transfer, and then press the OK button. Displays the confirmation screen.
6
Press ▲ or ▼ to select Execute, and then press the OK button. The printer is now prepared for transfer.
•
Level 1
Once preparations are finished, a message on the Display Screen requests you to turn off the printer. Turn off and pack the printer. There is no need to remove the ink tanks.
(See "Pack the printer.") ➔P.90
•
Level 2 and Level 3 When the preparation is finished, instructions are displayed on the Display Screen.
Basic Guide
87
Page 88
a
B
K
a
Preparing to Transfer the Printer
Remove the ink tanks before packing the printer.
(See "Removing Ink Tanks.") ➔P.88
•
If consumables must be replaced, the message "Consumables must be replaced. Call for service."
Important
is shown on the Display Screen and preparation is not possible. If this message is displayed, press the OK button and contact your Canon dealer for assistance.
Removing Ink Tanks
Open the Ink Tank Cover.
1
Printer Relocation Preparing to Transfer the Printer
Lift the stopper (a) of the Ink Tank Lock Lever (a). Lift
2
the Ink Tank Lock Lever until it stops, and then push it down to the front.
iPF850 Series
Hold the Ink Tank by the handle (a) and remove it.
3
Basic Guide
Page 89
a
a
iPF850 Series
4
Repeat steps 2 and 3 to remove all ink tanks.
Push down the release lever (a) as shown as you
5
gently return all ink tank lock levers to the original po­sition.
Preparing to Transfer the Printer
Store the Ink Tank you removed in the box with the ink holes
•
Important
(a) facing up. Otherwise, ink may leak and cause stains.
Printer Relocation Preparing to Transfer the Printer
Close the Ink Tank Cover.
6
At this point, ink is drawn out from inside the tubes.
•
Important
When the process is finished, "
7
played. When this happens, replace the Maintenance Cartridge currently being used with a new Maintenance Car­tridge.
Basic Guide
Do not remove the Maintenance Cartridge except when the message for replacing it is displayed. If you remove the Maintenance Cartridge while ink is being drawn out, the ink may leak out.
Preparations for moving the printer finished. Turn the power off" is dis-
89
Page 90
Preparing to Transfer the Printer
Press the Power button and turn off the printer.
8
Pack the printer
1
Disconnect the printer power cord and interface cable, as well as the Roll Unit power cord.
•
Turn off the printer before you unplug it. It may damage the printer if you unplug it before it is off and
Printer Relocation Preparing to Transfer the Printer
2
Important
Open the Top Cover and lift the Ejection Guide.
transfer it in that state. If you accidentally unplug the printer, plug it in again, reinstall the ink tanks, and follow this procedure again.
iPF850 Series
Remove the four ejection supports and lower the
3
Ejection Guide.
Basic Guide
Page 91
c
a
b
iPF850 Series
Grasp the Belt, insert it between the Belt Stopper, and
4
affix the Belt Stopper with a hex screw at the position indicated.
Preparing to Transfer the Printer
•
Here, the Belt Stopper is the one that was removed and stored after initial installation. Neglecting to
Important
attach the Belt Stopper may damage the printer.
Do not touch the Linear Scale (a), Carriage
•
Shaft (b), or Ink Tube Stabilizer (c). Touching these parts may damage them.
Printer Relocation Preparing to Transfer the Printer
Close the Top Cover.
5
Basic Guide
91

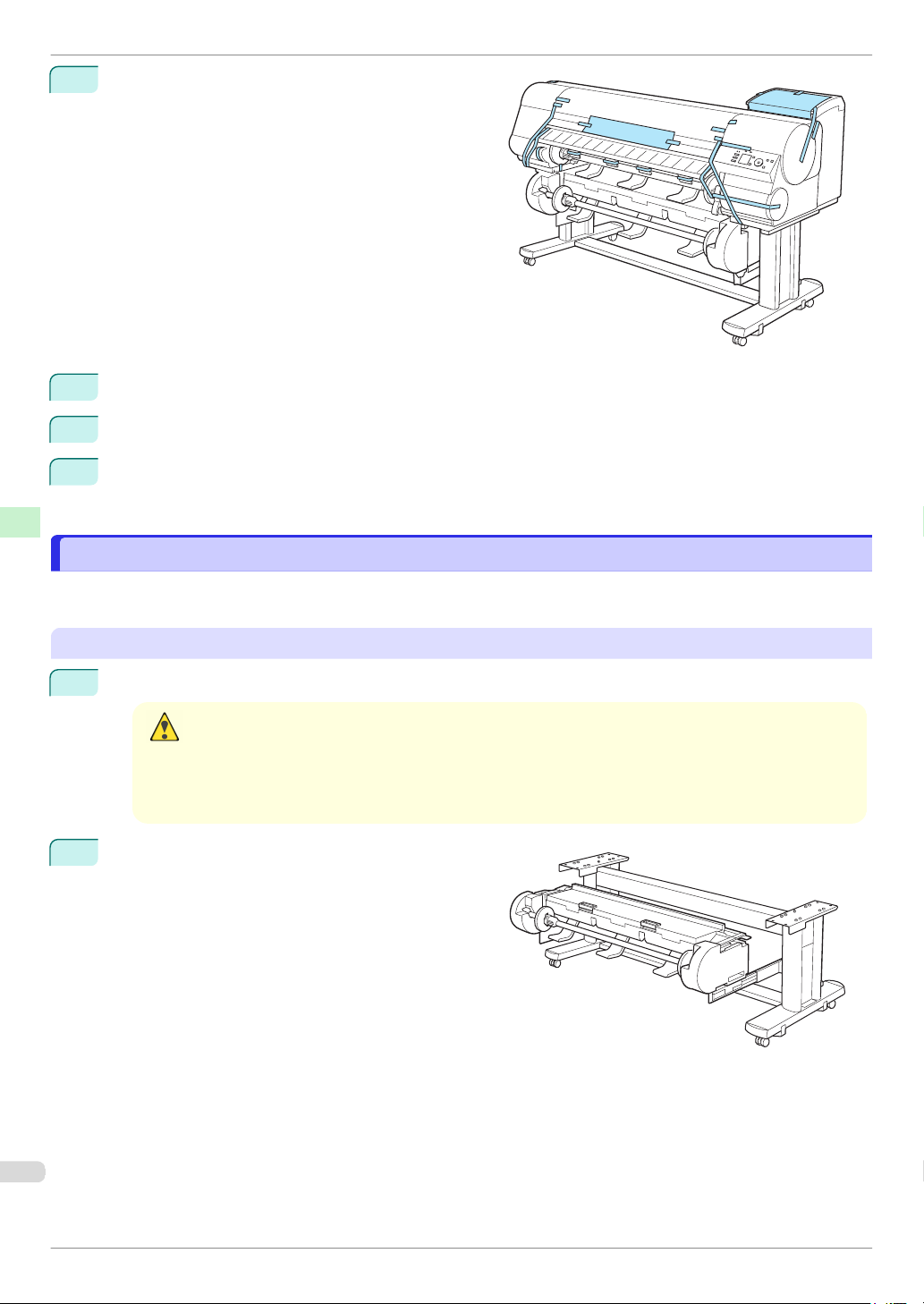

Page 92

Reinstalling the Printer

Tape down printer covers to secure them, in the re-
6
verse order of tape removal during installation.
7
Printer Relocation Preparing to Transfer the Printer
The basic workflow for reinstalling the printer is as follows. For detailed instructions, see the Setup Guide.
Remove and package the Stand by reversing the installation procedure, when it was attached to the printer.
8
Disassemble and repackage the Stand by following the installation procedure in reverse.
9
Repack the Roll Holder, Holder Stopper, and printer in shipping materials, and then package them in a shipping box.
Reinstalling the Printer
Reinstalling the Printer
iPF850 Series
Assemble the stand
1
Referring to the Printer Stand Setup Guide, assemble the Stand.
•
The Stand must be assembled by at least two people on a flat surface. Attempting assembly by yourself
Caution
Attach the Roll Unit to the Stand.
2
poses a risk of injury or bending the Stand.
•
When assembling the Stand, lock the casters. In addition, always unlock the casters before moving the assembled Stand. Attempting to move the stand when the casters are locked poses a risk of injury or damage to the location site.
Basic Guide
Page 93
a
iPF850 Series
Reinstalling the Printer
Install the printer
Mount the printer on the assembled Stand and tighten
1
the screws firmly.
Caution
•
Moving the printer requires at least six people, holding it on both sides. Be careful to avoid back strain and other injuries.
When moving the printer, firmly grasp the Carry-
•
ing Handles (a) under each side. The printer may be unsteady if you hold it at other positions, which poses a risk of injury from dropping the printer.
Printer Relocation Preparing to Transfer the Printer
Remove tape and packaging material attached to the
2
printer. Also open the Top Cover and remove stoppers and spacers inside the printer.
93
Basic Guide
Page 94
a
Reinstalling the Printer

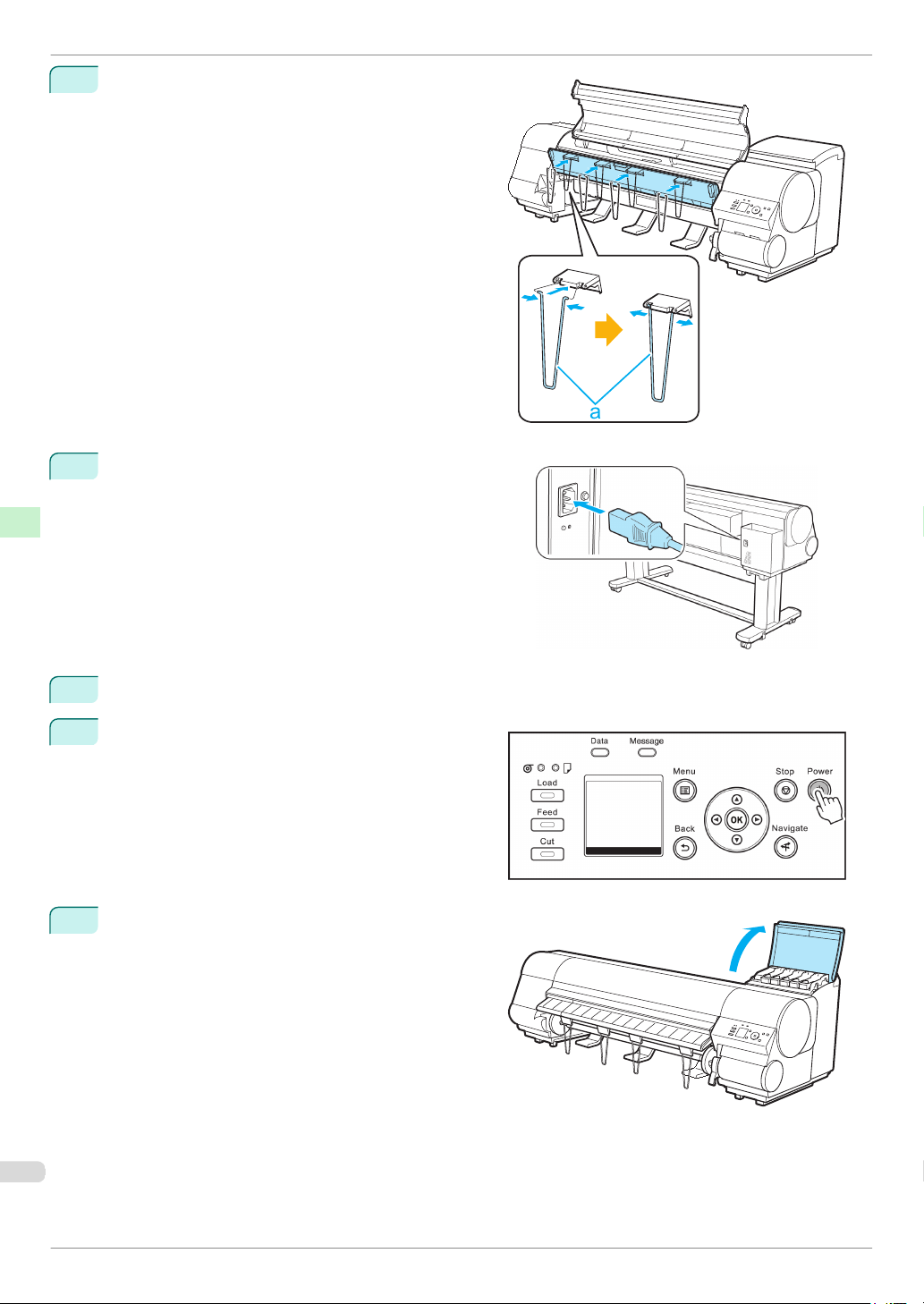

Lift the Ejection Guide and attach the four Ejection
3
Supports to the back of the Ejection Guide.
Printer Relocation Preparing to Transfer the Printer
Connect the power cord to the Power Supply Connector
4
on the back of the printer.
iPF850 Series
5
Plug the power cord into the outlet.
Press the power button to turn the printer on.
6
When the message "Has printer been reinstalled? (Do not load ink tanks yet.)" is displayed, select Yes
and press the OK button.
Open the Ink Tank Cover and install the ink tanks.
7
Basic Guide
Page 95
iPF850 Series
Attach the Roll Holder to the Roll Media.
8
(See "Attaching the Roll Holder to Rolls.") ➔P.12
Load the Roll Media in the printer.
9
(See "Loading Rolls in the Printer.") ➔P.15
Reinstalling the Printer
Printer Relocation Preparing to Transfer the Printer
10
Install the software. Note that the driver installation procedure varies depending on the type of connection.
(See "Installing the Software (Windows).") ➔P.96 (See "Installing the Software (Mac OS).") ➔P.98
Install the Stacker on the printer by referring to the
11
Stacker Setup Guide.
Basic Guide
95
Page 96

Installing the Software

Software Installation

Software Installation

Installing the Printer Driver (Windows)

Installing the Printer Driver (Windows)
Installing the Software
Installing the Software
The basic instructions for installing the software are as follows. For detailed instructions, see the Setup Guide.
Supported connection methods
The printer driver works over USB or network (TCP/IP) connections. The driver installation procedure varies depending on the type of connection. Follow these steps to install the software.
Installing the Software (Windows)
Software Installation Installing the Printer Driver (Windows)
Important
•
When setting up a USB connection, connect the USB cable during printer driver installation following the instruc­tions displayed. If you accidentally connect the USB cable first, the printer driver may not be installed correctly.
•
When the printer is connected to a network (via TCP/IP), the printer's IP address may be changed if you reinstall the printer. In this case, be sure to reconfigure the printer's IP address.
iPF850 Series
1
Turn the computer on. When setting up a TCP/IP (network) connection, after making sure the printer is on, connect the LAN cable to the Ethernet port on the left side of the printer and to your network hub port.
Insert the provided User Software CD-ROM for the
2
appropriate operating system in the CD-ROM drive.
Follow the instructions displayed to complete instal-
3
lation.
Basic Guide

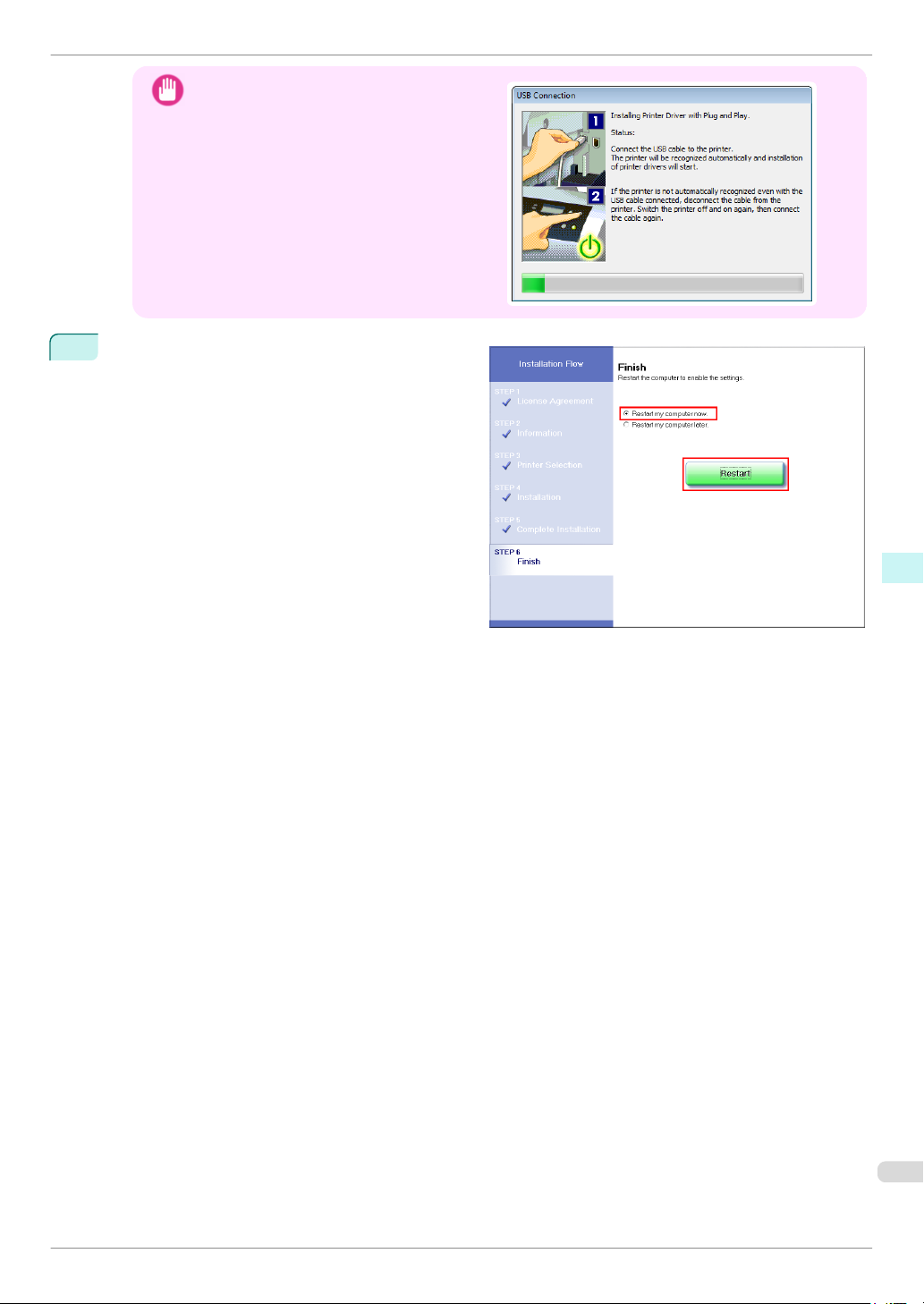

Page 97
iPF850 Series
On the Finish window, select Restart my comput-
4
er now and click Restart. Software settings take effect after the computer re­starts.
Installing the Software
For USB connections, when the dialog box at
•
Important
right is displayed, make sure the printer is on and connect the printer and computer with the USB cable.
Software Installation Installing the Printer Driver (Windows)
Basic Guide
97
Page 98

Installing the Software

Installing the Printer Driver (Mac OS)

Installing the Printer Driver (Mac OS)
Installing the Software
Installing the Software
The basic instructions for installing the software are as follows. For detailed instructions, see the Setup Guide.
Supported connection methods
The printer driver works over USB or network (Bonjour or IP) connections. Follow these steps to install the software.
Installing the software
•
When the printer is used over a network, the printer's IP address may be changed if you reinstall the printer. In
Important
Software Installation Installing the Printer Driver (Mac OS)
1
2
this case, be sure to reconfigure the printer's IP address.
After making sure the computer and printer are not connected by a cable, turn the computer on.
Insert the provided User Software CD-ROM for the appropriate operating system in the CD-ROM drive.
iPF850 Series
Follow the instructions displayed to complete instal-
3
lation.
When the dialog box at right is displayed,
•
Important
make sure the printer is on and connect the printer and computer with the cable.
Basic Guide
Page 99
iPF850 Series
After installation, click Exit.
4
Installing the Software
Software Installation Installing the Printer Driver (Mac OS)
Basic Guide
99

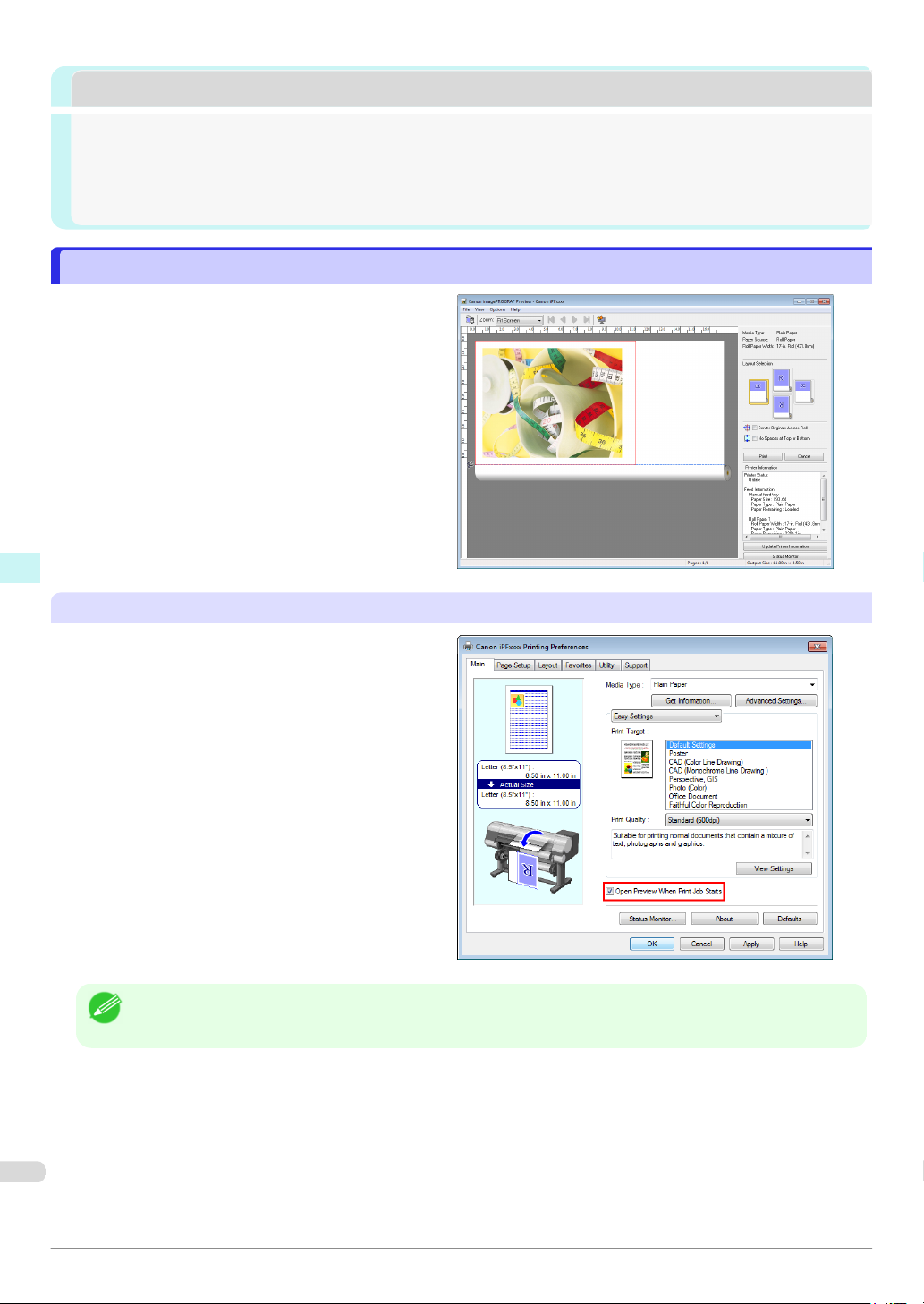

Page 100

Print Preview

Convenient Printer Driver Features

Convenient Printer Driver Features
Print Preview ................................................................................................................................................. 100
Rotate Page 90 degrees (Converse Paper) ....................................................................................................102
Borderless Printing ........................................................................................................................................ 103
Large-Format Printing ................................................................................................................................... 104
Enlarged/Reduced Printing ............................................................................................................................105
Print Preview
Print Preview
Using the print preview function enables the following.
•
Check an image of the document as arranged on the pa­per, in the position it will be printed. You can reduce printing costs by checking how documents will be printed beforehand, without the need to print them.
•
Software Installation Convenient Printer Driver Features
Change the layout orientation relative to the paper. You can save paper by correcting the direction in which the document is arranged on the paper, if necessary.
iPF850 Series
Configuring Settings in Windows
1.
Access the Main sheet.
2.
Select the Open Preview When Print Job Starts check box.
3.
Check details in the Information dialog box displayed next and click OK to close the Information dialog box.
4.
After you click OK, when you print a job, the imagePROG­RAF Preview window will be displayed.
•
Under some settings and in some environments, PageComposer may be started.
Note
Basic Guide
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
