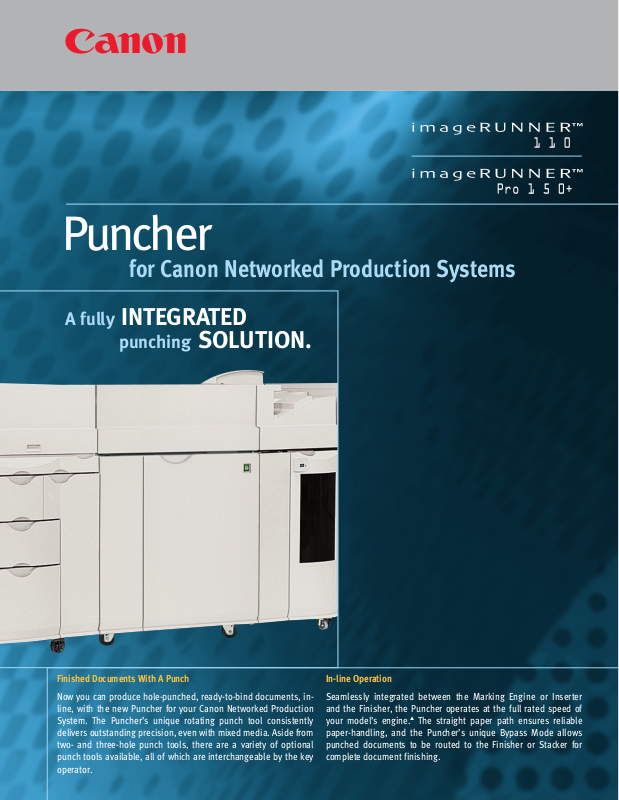

Puncher
for Canon Networked Production Systems
A fully INTEGRATED
punching SOLUTION.
Finished Documents With A Punch
Now you can produce hole-punched, ready-to-bind documents, inline, with the new Puncher for your Canon Networked Production
System. The Puncher’s unique rotating punch tool consistently
delivers outstanding precision, even with mixed media. Aside from
two- and three-hole punch tools, there are a variety of optional
punch tools available, all of which are interchangeable by the key
operator.
In-line Operation
Seamlessly integrated between the Marking Engine or Inserter
and the Finisher, the Puncher operates at the full rated speed of
your model’s engine.▲The straight paper path ensures reliable
paper-handling, and the Puncher’s unique Bypass Mode allows
punched documents to be routed to the Finisher or Stacker for
complete document finishing.
Specifications
Power Requirements: 120 VAC, 60Hz, 2.5A
100 VAC, 50/60Hz, 2.5A
200/230/240 VAC, 50Hz, 1.4A
Power Consumption: 320 VA
Dimensions (H x W x D): 49.6" x 40.2" x 31.9" (126cm x 102cm x 81cm)
Weight: 595 lb. (270kg)
Punch Tools:
• Loose-leaf/Office Hole Punch Tool
–2-hole
–3-hole (Diameter 0.313")
–4-hole (Diameter 0.276")
• Plastic Comb Punch Tool (Rectangular)
■
–Rectangular Holes (0.315" x 0.126")
• Wire Comb Punch Tool 2-1 Pitch (Round)
■
–Round Holes (Diameter 0.236")
• Wire Comb Punch Tool 3-1 Pitch (Round)
■
–Round Holes (Diameter 0.157")
• Wire Comb Punch Tool 2-1 Pitch (Rectangular)
■
–Rectangular Holes (0.256" x 0.217")
• Wire Comb Punch Tool 3-1 Pitch (Square)
■
–Square Holes (0.157" x 0.157")
Punch Tool Durability: 12 - 15 Million Actuations
NOTE: You may order customized Punch Tools to meet yourspecifications. Please contact your Canon-
authorized Dealer for more information.
▲
The Puncher is interchangeable between the imageRUNNER 110 and the imageRUNNER Pro 150+.
■
Please check with your local Canon-authorized Dealer for availability.
1-800-OK-CANON
www.usa.canon.com
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
Super Savings
The superior speed of the in-line Puncher significantly
reduces job turnaround time for hole-punched jobs. Factor
in the cost of ordering and stocking pre-punched media,
the labor required for off-line punching, and the potential
for error and document damage associated with manual
job collation, and the benefit to your operation is even
greater.
Easy To Use
As a fully integrated accessory, the in-line Puncher offers
unparalleled convenience. All punching features are
directly selectable from the machine’s operator-controlled
interface; no separate programming is required. Puncher
tools for different hole patternsare operator-interchangeable, and a variety of paper types is supported. There is
also full page-level jam recovery on the device to guarantee the set and sheet integrity of your jobs.
A Valuable Investment
Adding the in-line Puncher to your Networked Production
System will give you unmatched flexibility in producing ready-to-bind output with minimal time, cost, and
operator-involvement.
NOTE: Cannot configure
the imageRUNNER
device with both the
Booklet-maker and the
in-line Perfect Binder.
*Optional Accessories
**Optional for the imageRUNNER 110; Standard for the imageRUNNER Pro 150+
PC running ImageSmart
Document Mastering*
imageRUNNER
System Controller
imageRUNNER
Marking Engine
Inserter*
FinisherPuncher*
Booklet-maker*
Perfect Binder*
Stacker(s)* with
Removable Dolly
Paper Supply
Module**
imageSCANNER 65*
0033W257
0802-PU-7.5M
PRINTED ON RECYCLED
PAPER IN THE U.S.A.
Canon is a registered trademark, and IMAGERUNNER, Canon Know How, and the
GENUINE logo are trademarks of Canon Inc. IMAGEANYWARE is a service mark of
Canon U.S.A., Inc. All other terms and product names may be trademarks or
registered trademarks of their respective owners, and are hereby acknowledged.
Specifications subject to change without notice.
