Canon EOS70D1855KIT, EOS70DBODY User Manual

EOS 70D (W)
EOS 70D (N)
The EOS 70D (N) does not have the Wi-Fi function explained in this manual.
E
INSTRUCTION
MANUAL

Introduction

The EOS 70D (W/N) is a high-performance, digital single-lens reflex camera featuring a fine-detail CMOS sensor with approx. 20.2 effective megapixels, DIGIC 5+, high-precision and high-speed 19-point AF (all cross-type focusing), approx. 7.0 fps continuous shooting, Live View shooting, Full High-Definition (Full HD) movie shooting, and Wi-Fi function*. The camera is highly responsive to any shooting situation at any time, provides many features for demanding shots, and expands shooting possibilities with various system accessories.
* The EOS 70D (N) does not have the Wi-Fi function.
Refer to This Manual while Using the Camera to Further Familiarize Yourself with the Camera
With a digital camera, you can immediately view the image you have captured. While reading this manual, take a few test shots and see how they come out. You can then better understand the camera. To avoid botched pictures and accidents, first read the “Safety Warnings” (p.445-447) and “Handling Precautions” (p.18, 19).
Testing the Camera Before Use and Liability
After shooting, play images back and check whether they have been properly recorded. If the camera or memory card is faulty and the images cannot be recorded or downloaded to a computer, Canon cannot be held liable for any loss or inconvenience caused.
Copyrights
Copyright laws in your country may prohibit the use of your recorded images or copyrighted music and images with music in the memory card for anything other than private enjoyment. Also be aware that certain public performances, exhibitions, etc., may prohibit photography even for private enjoyment.
2

Compatible Cards

The camera can use the following cards regardless of capacity:
• SD memory cards
• SDHC memory cards*
• SDXC memory cards*
* UHS-I cards supported.
Cards that Can Record Movies
When shooting movies, use a large-capacity card with a fast reading/ writing speed as shown in the table.
Compression Method (p.265) Card
IPB 6 MB/sec. or faster
ALL-I (I-only) 20 MB/sec. or faster
If you use a slow-writing card when shooting movies, the movie may
not be recorded properly. Also, if you play back a movie on a card with a slow reading speed, the movie may not play back properly.
If you want to shoot still photos while shooting a movie, you will need
an even faster card.
To check the card’s reading/writing speed, refer to the card
manufacturer’s Web site.
In this manual, “card” refers to SD memory cards, SDHC memory cards, and SDXC memory cards. * The camera does not come with a card for recording images/
movies. Please purchase it separately.
3

Item Check List

Before starting, check that all the following items have been included with your camera. If anything is missing, contact your dealer.
Battery Pack
Camera
(with body cap)
Wide Strap
EW-EOS70D
* Battery Charger LC-E6 or LC-E6E is provided. (The LC-E6E comes with a
power cord.)
The Instruction Manuals and CD-ROMs provided are listed on the next page. If you purchased a Lens Kit, check that the lenses are included. Depending on the Lens Kit type, a lens instruction manual may also be
included.
Be careful not to lose any of the above items.
LP-E6
(with protective cover)
Interface Cable
Battery Charger
LC-E6/LC-E6E*
4

Instruction Manual and CD-ROMs

The instruction manual consists of booklets and electronic manuals (PDF files on the CD-ROM). Basic operations are explained in the
booklets. For detailed instructions on all functions and operations, see the detailed version manuals on the CD-ROM.
Camera Basic
Instruction Manual
Quick Reference Guide
* Not provided with the EOS 70D (N).
Camera Instruction Manual CD-ROM
Contains the following manuals in PDF:
• Camera Instruction Manual (Detailed version)
• Wi-Fi Function Instruction Manual (Detailed version)
• Quick Reference Guide Instructions for viewing the Camera Instruction Manual CD-ROM are on page 452.
Software CD-ROM (EOS DIGITAL Solution Disk)
Contains various software. For outlines and installation procedure of the software, see pages 456-458.
Software Instruction Manual CD-ROM
Contains software manuals in PDF . Instructions for viewing the Software Instruction Manual CD-ROM are on page
459.
Wi-Fi Function
Instruction Manual*
(Basic)
Wi-Fi Cautions*
5

Quick Start Guide

1
2
Insert the battery (p.30).
To charge the battery, see page 28.

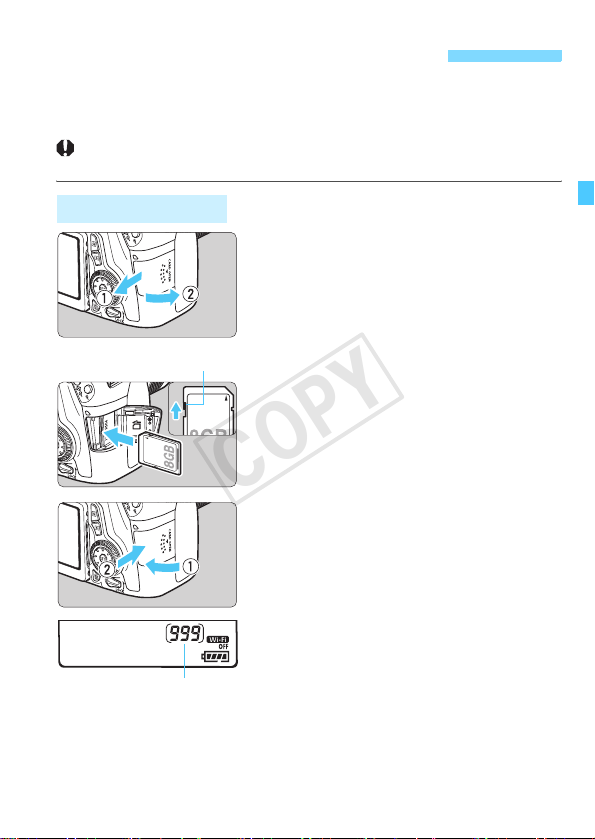

Insert a card (p.31).
With the card’s label facing
toward the back of the camera, insert it into the card slot.
White index Red index
3
4
5
6

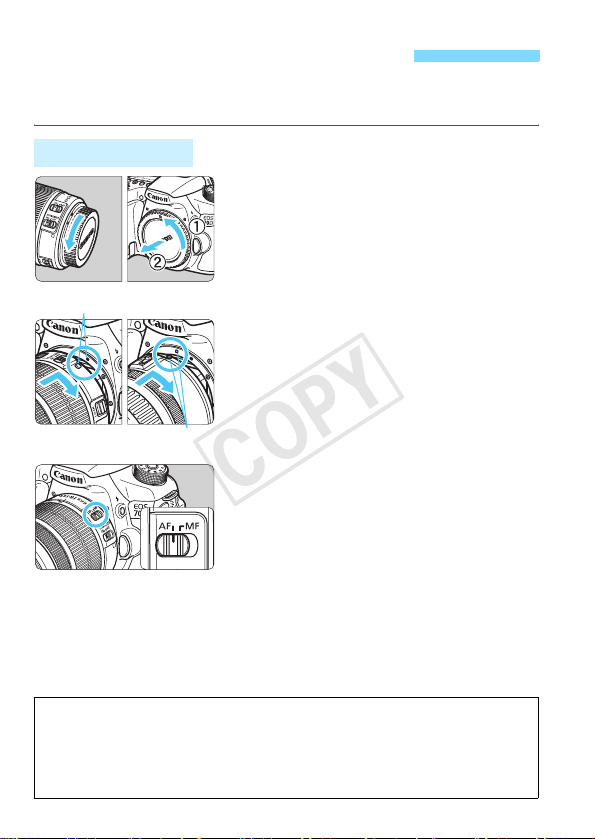

Attach the lens (p.40).
Align the lens’ white or red mount
index with the camera’s mount index of the same color.
Set the lens focus mode switch to <f> (p.40).
Set the power switch to <1>, then set the Mode Dial to <A> (Scene Intelligent Auto)
Turn the Mode Dial while holding down the lock release button at the center.
All the necessary camera settings
will be set automatically.
(p.72).
6
7
8
9
Quick Start Guide

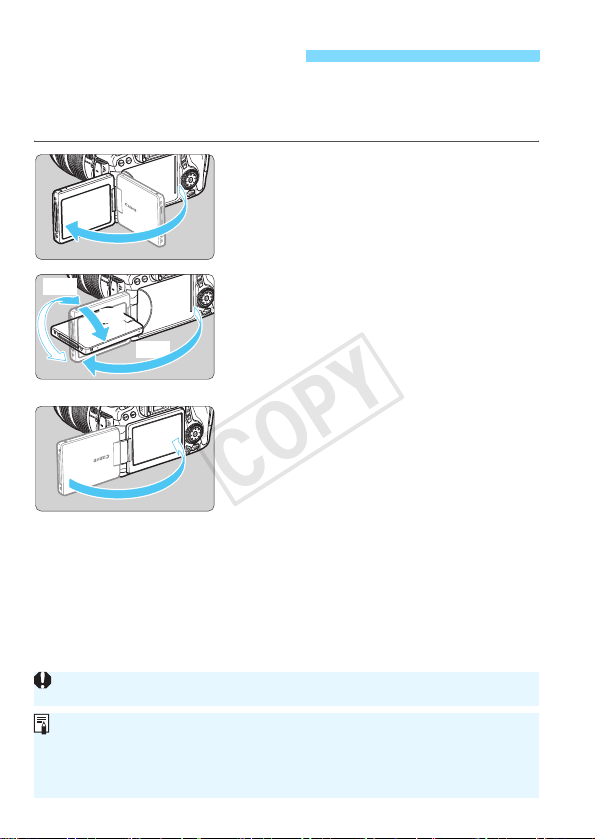

Flip out the LCD monitor (p.34).
When the LCD monitor displays the
date/time/zone setting screens, see page 37.

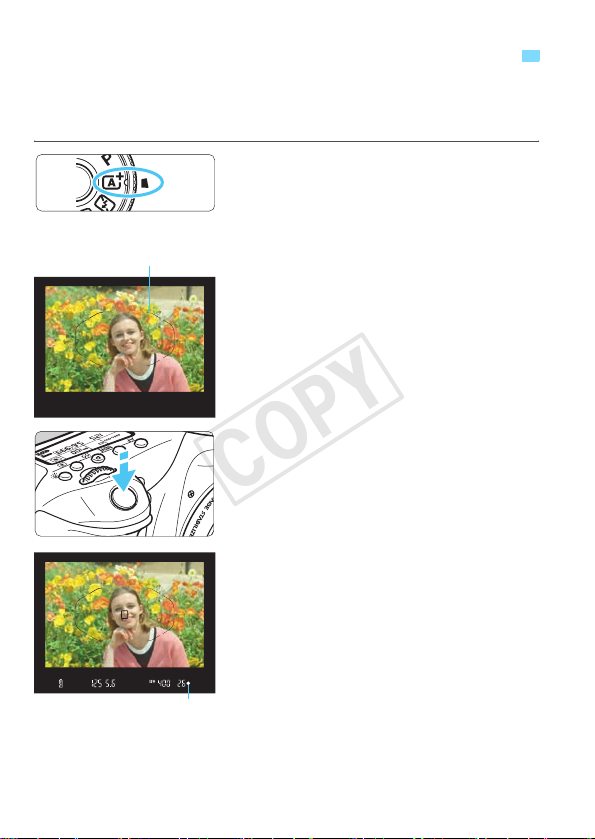

Focus the subject (p.45).
Look through the viewfinder and
aim the viewfinder center over the subject.

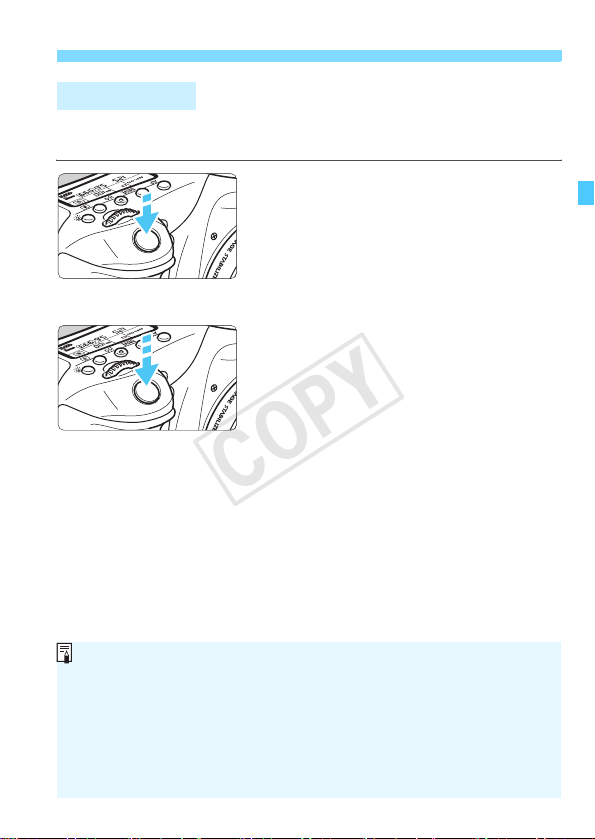

Press the shutter button halfway.
The camera will focus the subject.
If necessary, the built-in flash will be
raised.
Take the picture (p.45).
Press the shutter button completely
to take the picture.

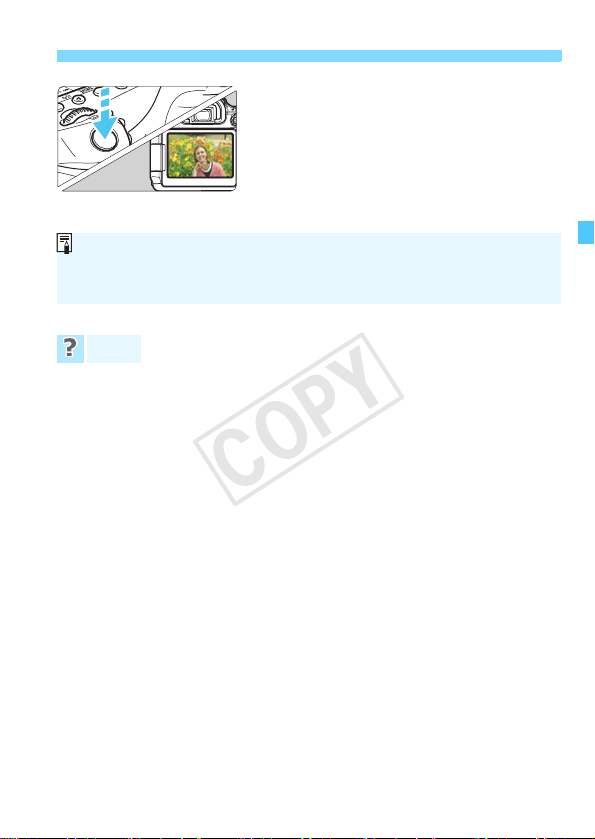

Review the picture (p.60).
The captured image will be
displayed for 2 sec. on the LCD monitor.
To display the image again, press
the <x> button (p.290).
To shoot while looking at the LCD monitor, see “Live View
Shooting” (p.215).
To view the images captured so far, see “Image Playback” (p.290). To delete an image, see “Erasing Images” (p.322).
7

Conventions Used in this Manual

Icons in this Manual
<6> : Indicates the Main Dial. <5> : Indicates the Quick Control Dial. <9> <V> <U> : Indicates the Multi-controller and the push
<0> : Indicates the Setting button. 0, 9, 7, 8 : Indicates that the corresponding function
* In this manual, the icons and markings indicating the camera’s buttons, dials,
and settings correspond to the icons and markings on the camera and on the LCD monitor.
3 : Indicates a function that can be changed by pressing the
M : When shown on the upper right of a page, it indicates that
(p.**) : Reference page numbers for more information.
Basic Assumptions
All operations explained in this manual assume that the power switch

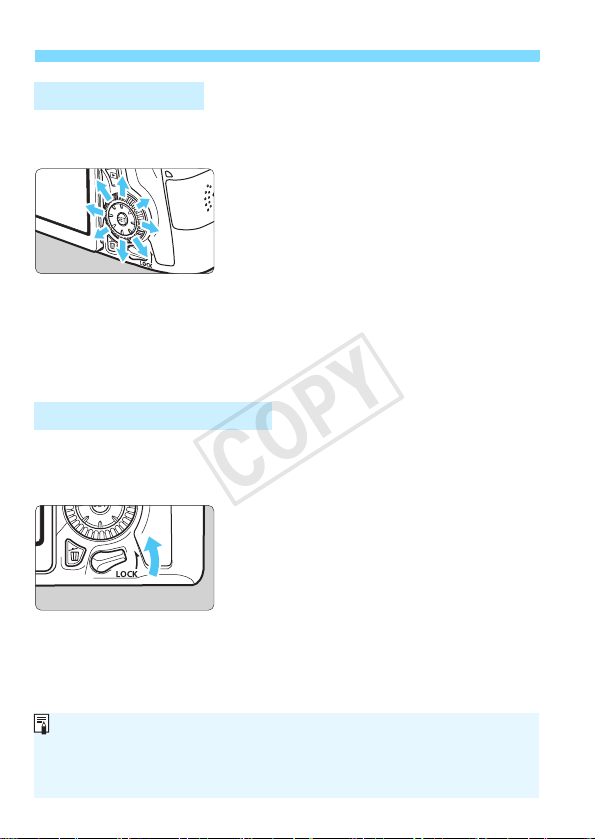

is set to <1> and the <R> switch is set down (Multi function lock released) (p.35, 48).
It is assumed that all the menu settings and Custom Functions are
set to their defaults.
The illustrations in this manual show the camera attached with the
EF-S18-135mm f/3.5-5.6 IS STM lens as an example.
<M> button and changing the setting.
the function is available only in the Creative Zone modes (p.24).
: Warning to prevent shooting problems. : Supplemental information. : Tips or advice for better shooting. : Problem-solving advice.
direction.
remains active for 4 sec., 6 sec., 10 sec., or 16 sec. respectively after you let go of the button.
8

Chapters

1
456
1
11
1
1314
1
For first-time DSLR users, Chapters 1 and 2 explain the camera’s basic operations and shooting procedures.
Introduction Getting Started Basic Shooting
2
Setting the AF and Drive Modes
3
Image Settings Advanced Operations Flash Photography Shooting with the LCD Monitor
7
Shooting Movies
8
Image Playback
9
Post-Processing Images
0
Sensor Cleaning Printing Images
2
Customizing the Camera Reference
(Live View Shooting)
2
27
71
99
115
157
187
215
251
289
327
339
345
361
393
Viewing the CD-ROM Instruction Manuals /
5
Downloading Images to Your Computer
451
9

Contents

Introduction 2
Compatible Cards............................................................................. 3
Item Check List................................................................................. 4
Instruction Manual and CD-ROMs ................................................... 5
Quick Start Guide............................................................................. 6
Conventions Used in this Manual..................................................... 8
Chapters........................................................................................... 9
Index to Features ........................................................................... 16
Handling Precautions ..................................................................... 18
Nomenclature................................................................................. 20
Getting Started 27
1
Charging the Battery ...................................................................... 28
Installing and Removing the Battery............................................... 30
Installing and Removing the Card .................................................. 31
Using the LCD Monitor................................................................... 34
Turning on the Power..................................................................... 35

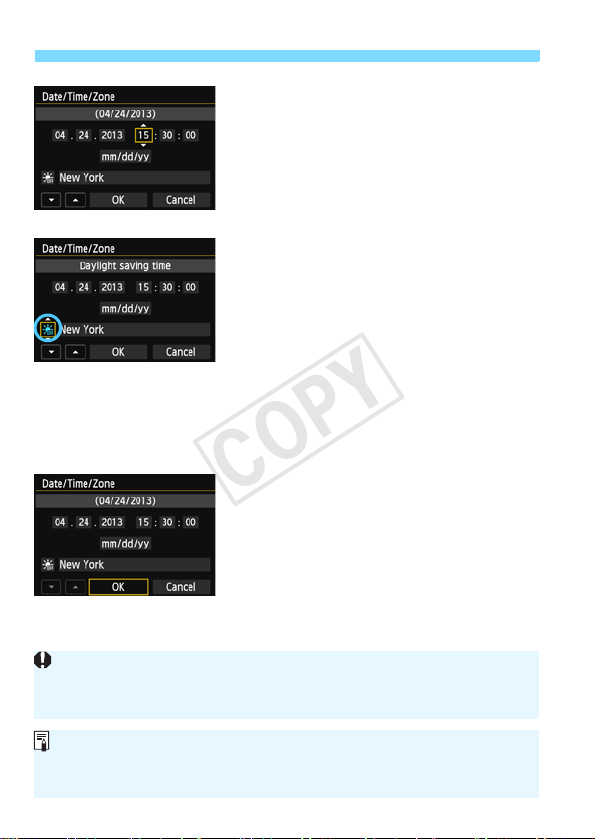

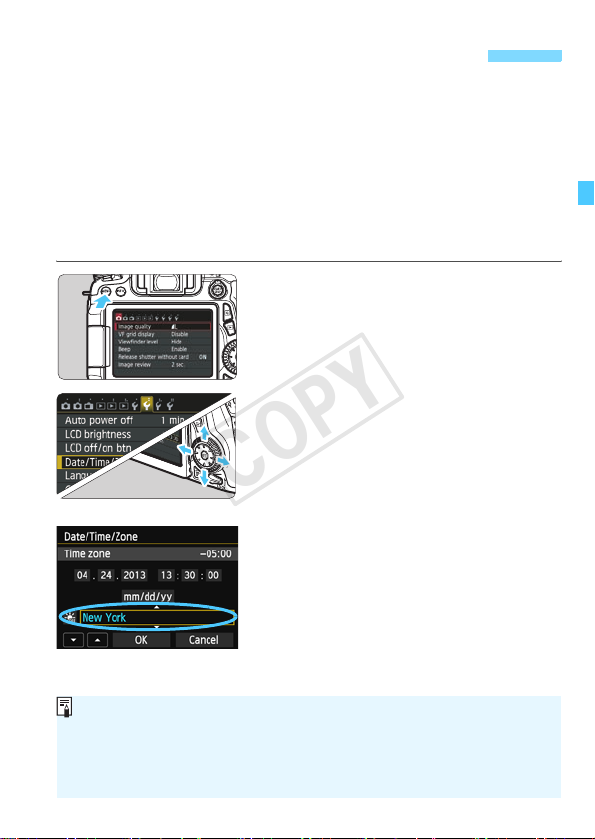

Setting the Date, Time, and Zone .................................................. 37

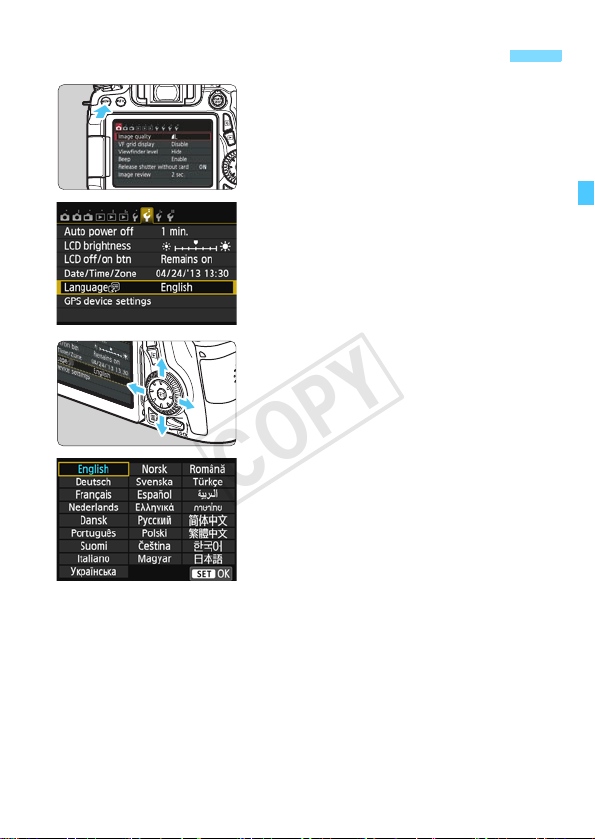

Selecting the Interface Language................................................... 39

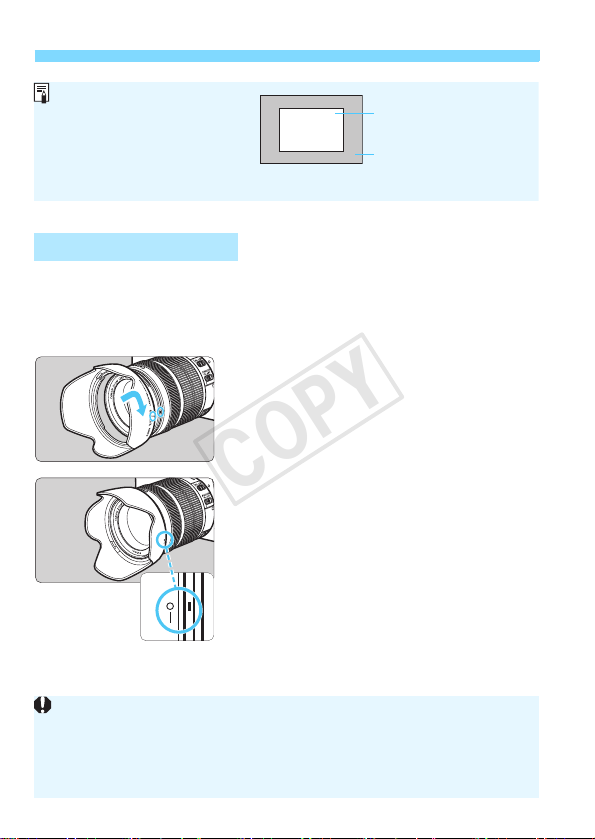

Attaching and Detaching a Lens .................................................... 40

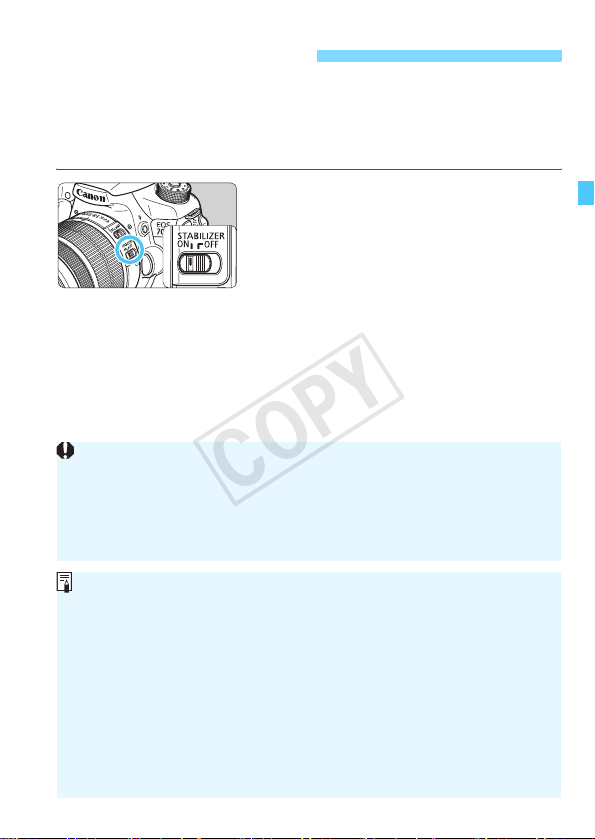

Lens Image Stabilizer..................................................................... 43
Basic Operation.............................................................................. 44

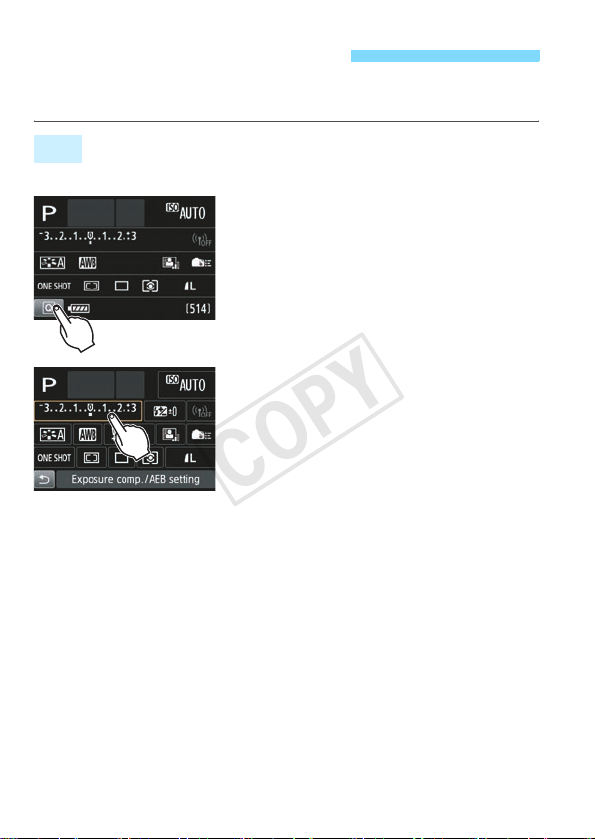

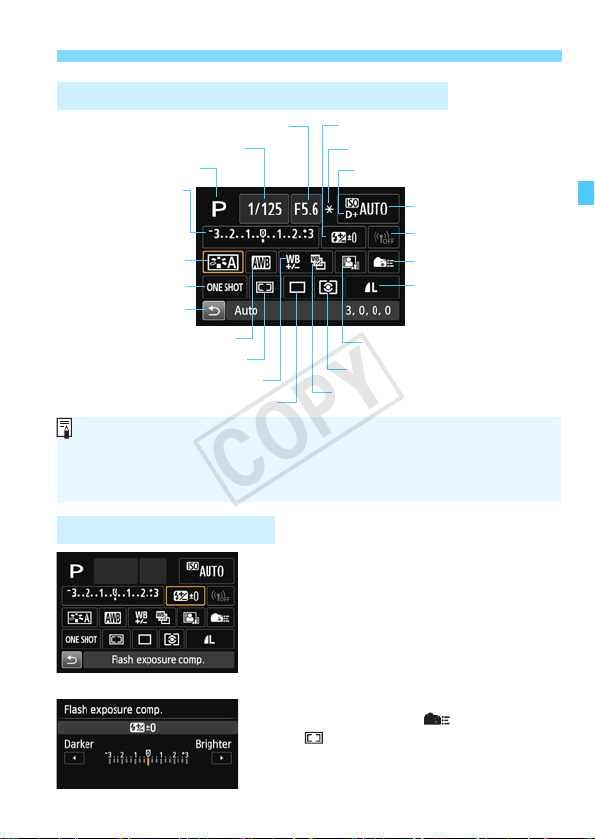

Q Quick Control for Shooting Functions....................................... 50
3 Menu Operations.................................................................. 52

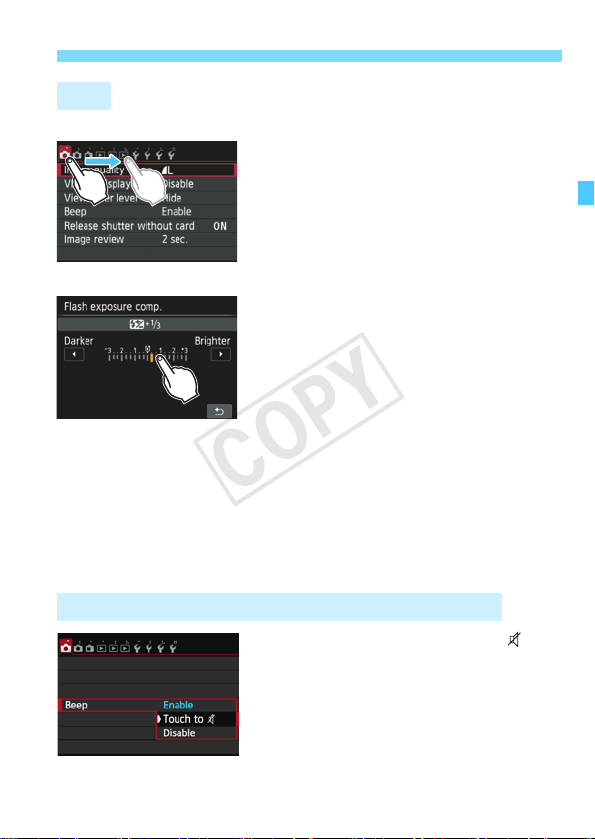

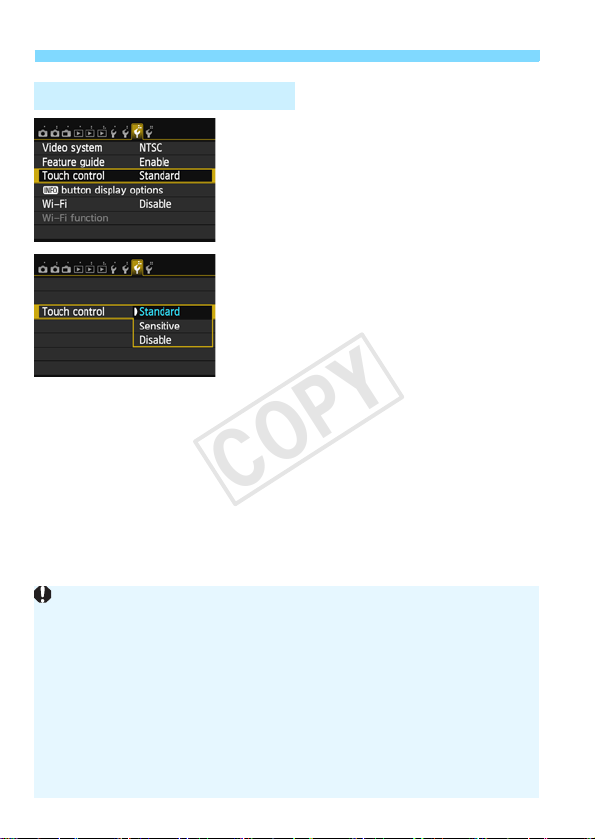

d Using the Touch Screen............................................................. 54
Before You Start............................................................................. 57

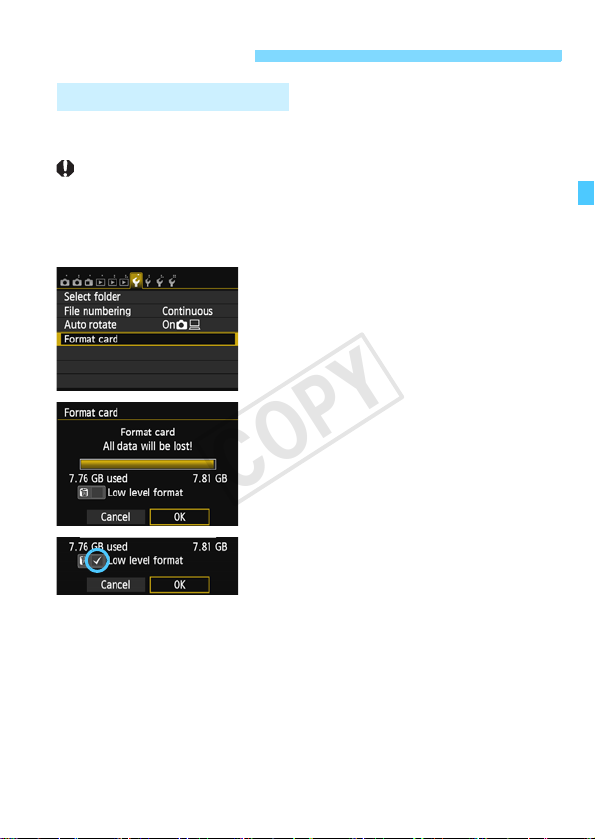

Formatting the Card..................................................................... 57

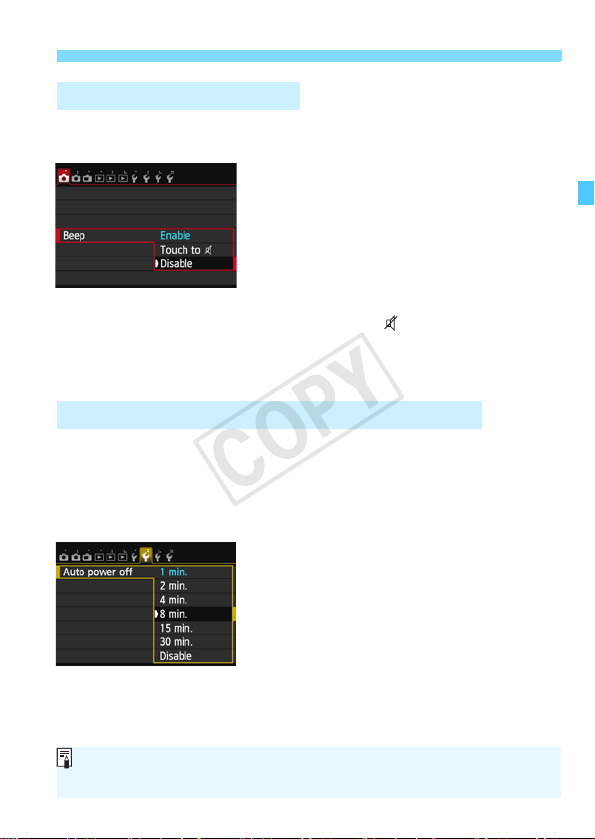

Disabling the Beeper ................................................................... 59
Setting the Power-off Time/Auto Power Off................................. 59

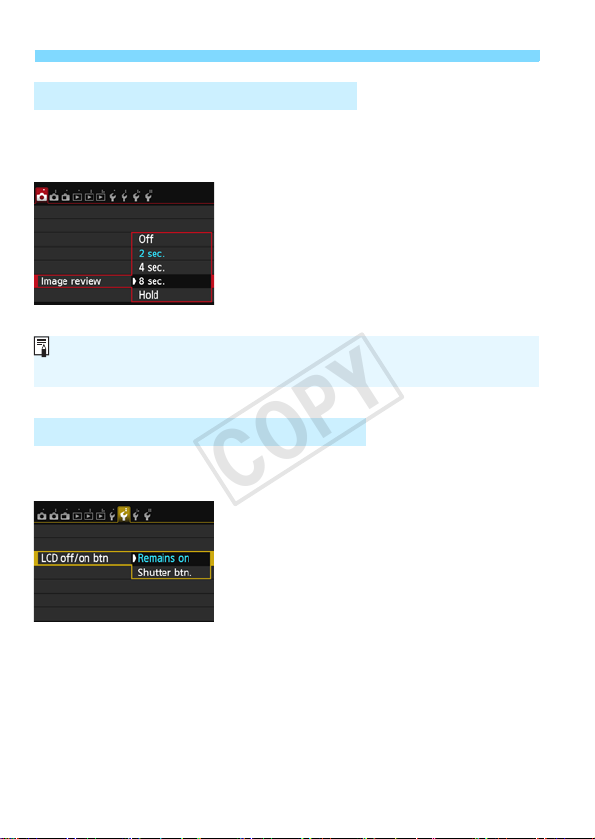

Setting the Image Review Time................................................... 60
Turning the LCD Monitor Off/On.................................................. 60

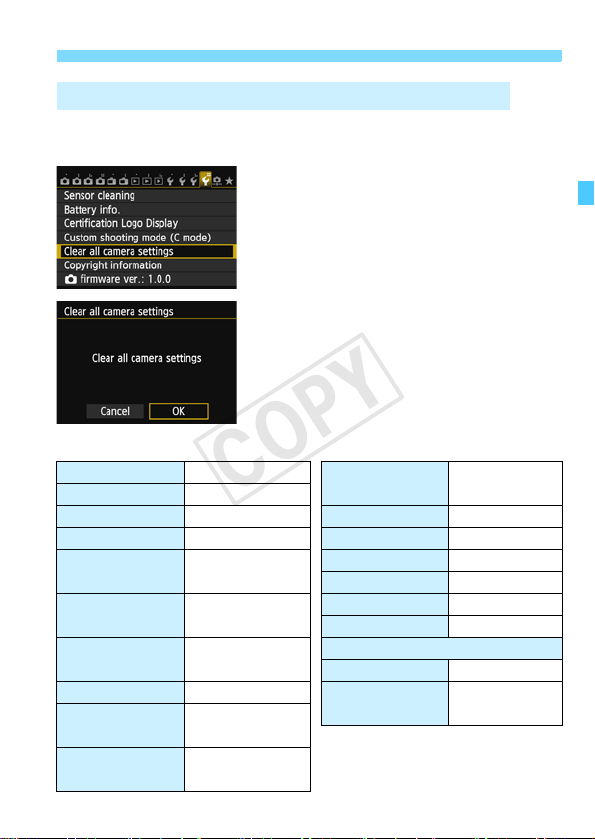

Reverting the Camera to the Default Settings............................. 61

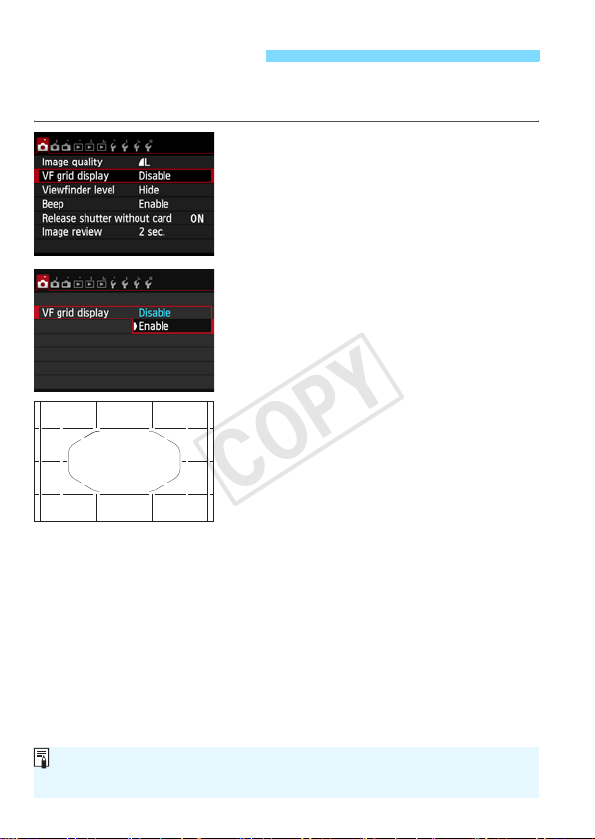

Displaying the Grid......................................................................... 64

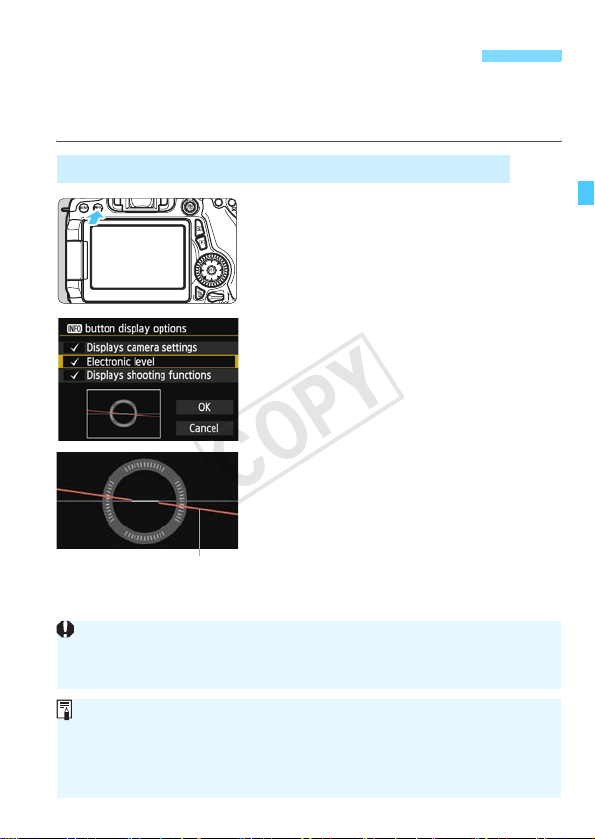

Q Displaying the Electronic Level............................................... 65

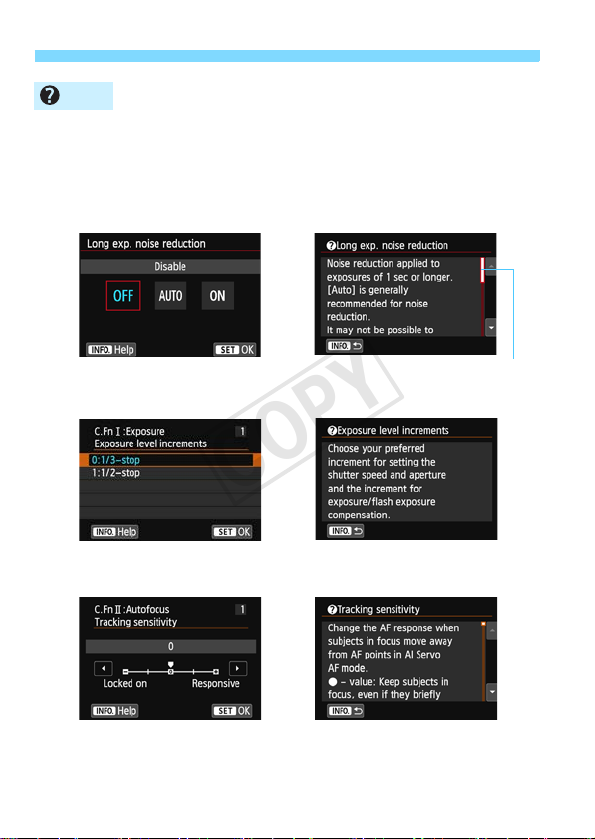

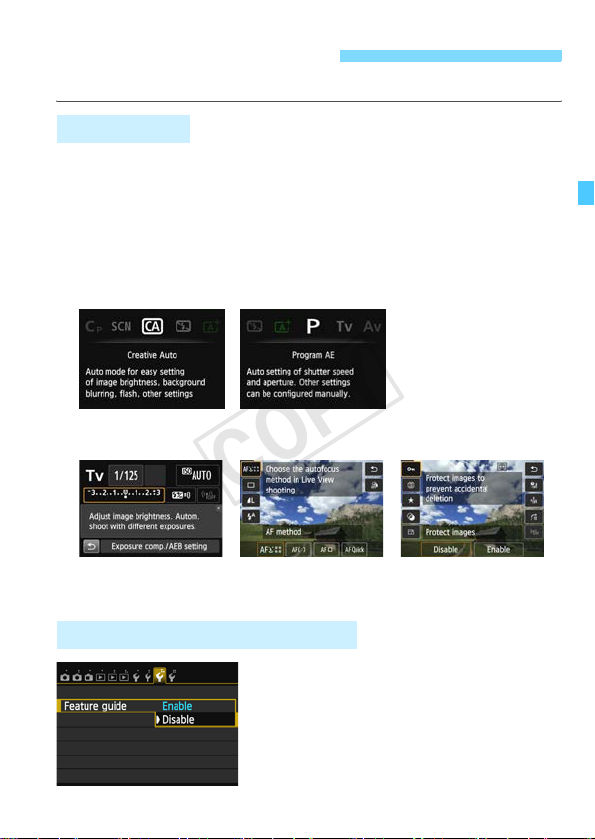

Feature Guide and Help................................................................. 69
10
Basic Shooting 71
2

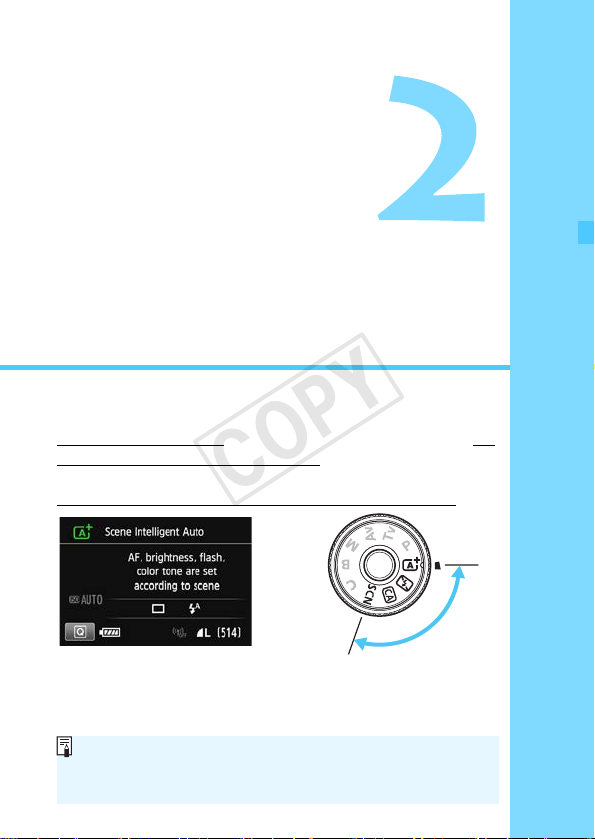

A Fully Automatic Shooting (Scene Intelligent Auto)...................72
A Full Auto Techniques (Scene Intelligent Auto).........................75
7 Disabling Flash .........................................................................77

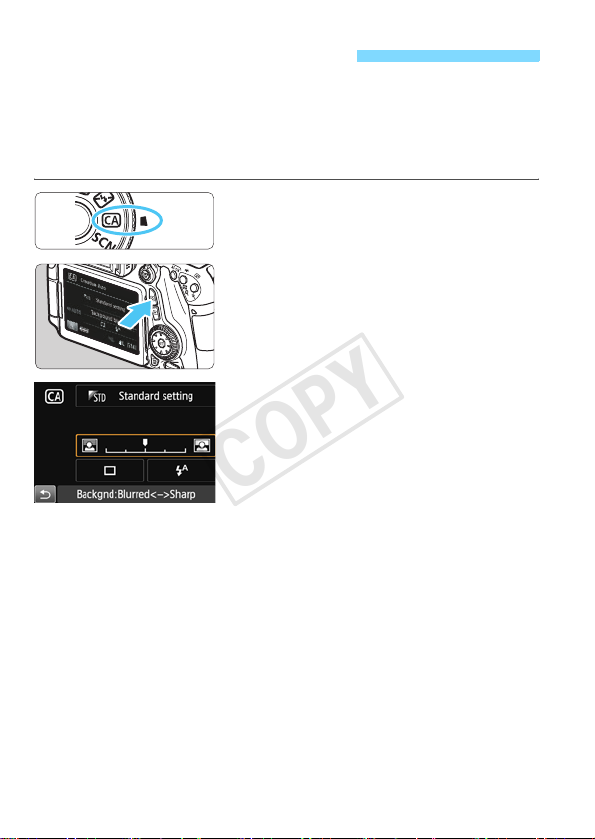

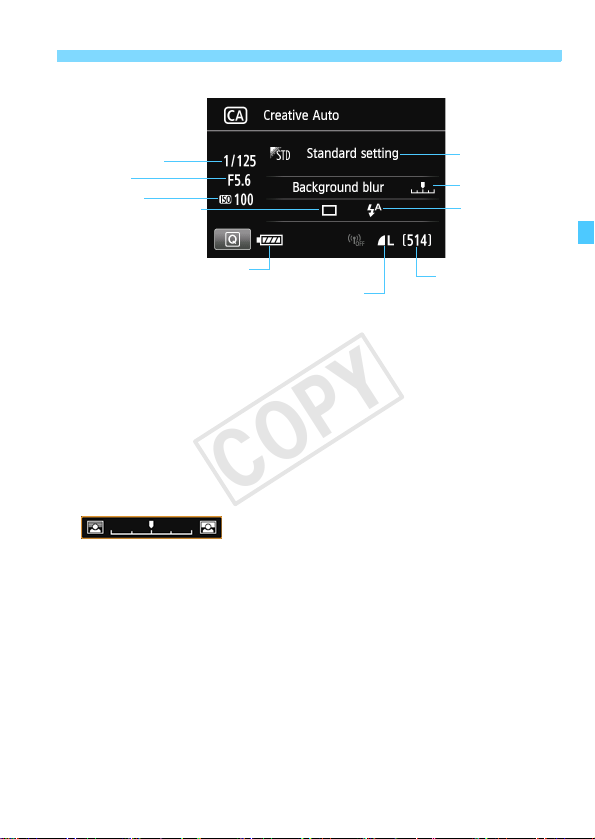

C Creative Auto Shooting.............................................................78

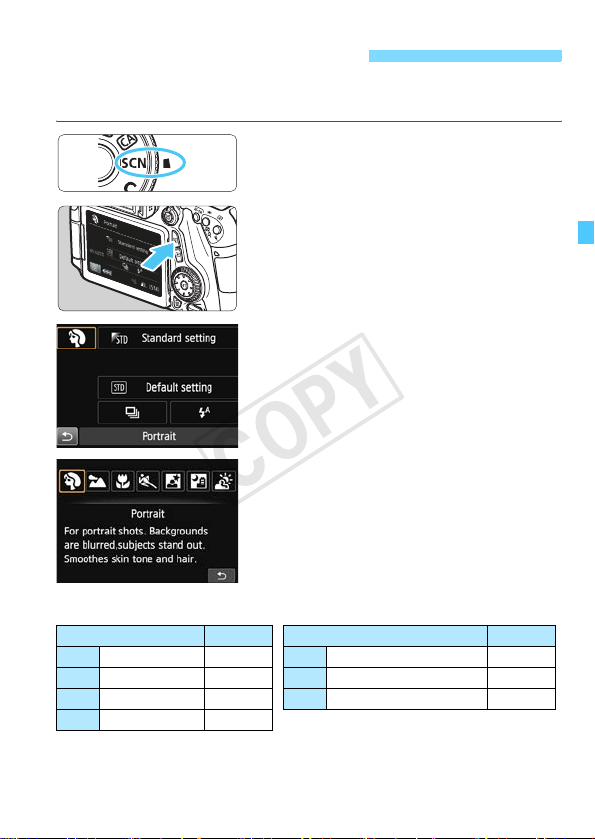

8: Special Scene Mode.............................................................81

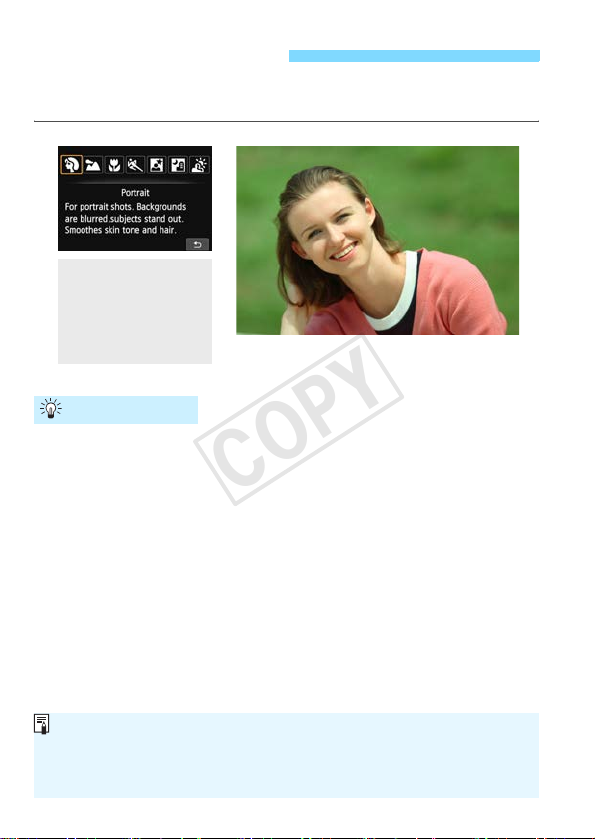

2 Shooting Portraits ......................................................................82

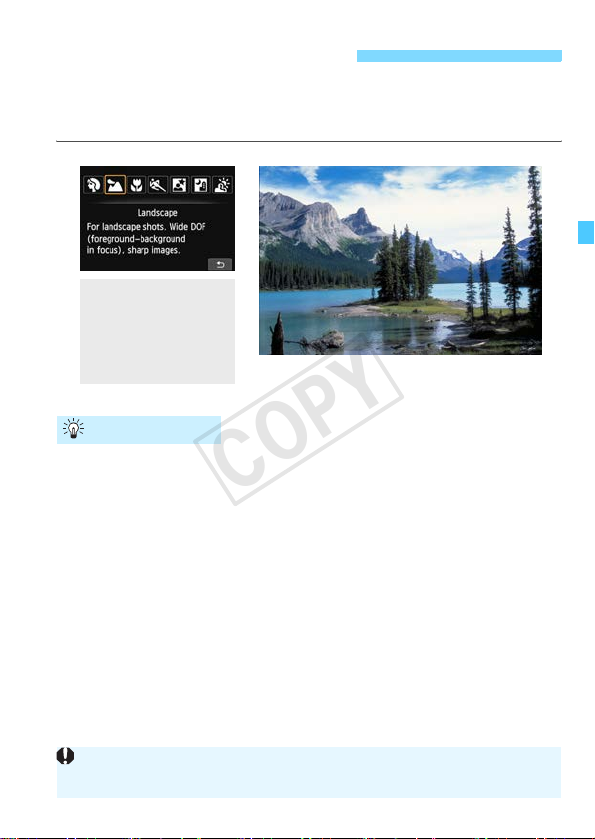

3 Shooting Landscapes...............................................................83

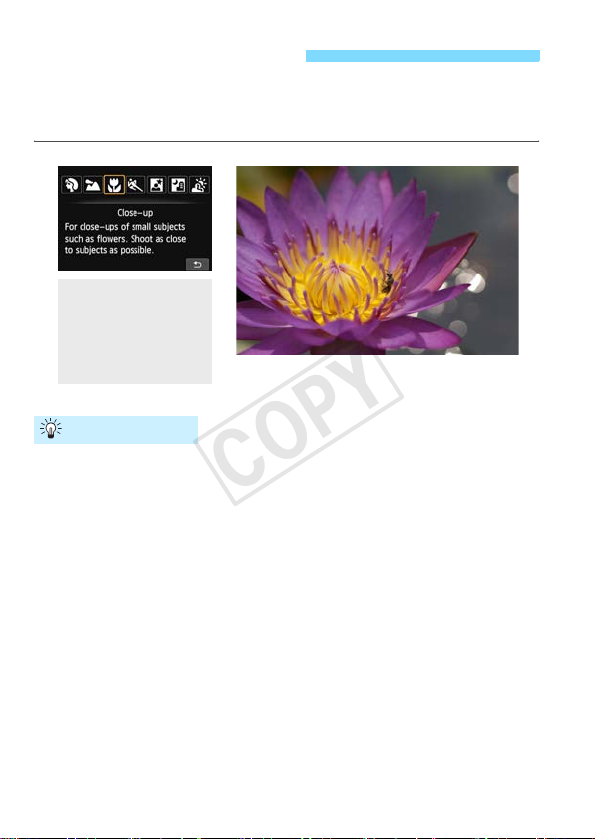

4 Shooting Close-ups....................................................................84

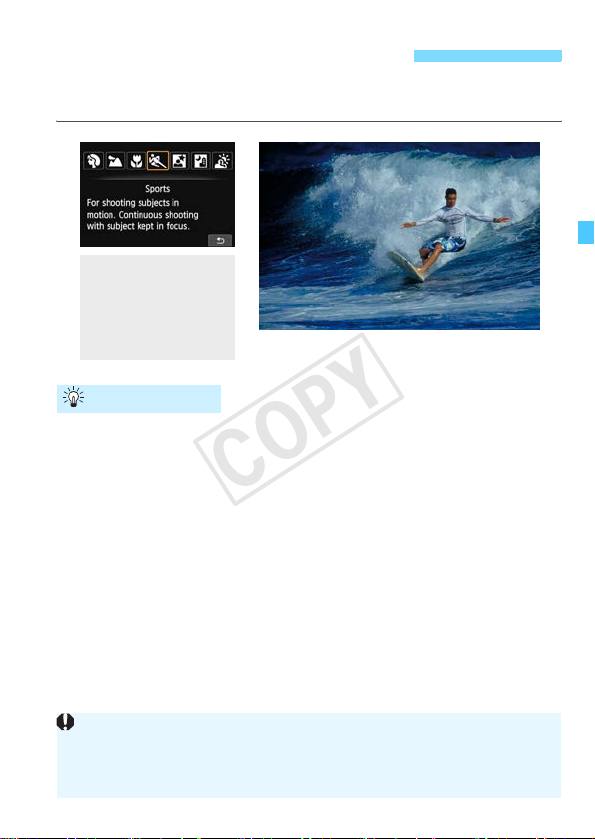

5 Shooting Moving Subjects........................................................85

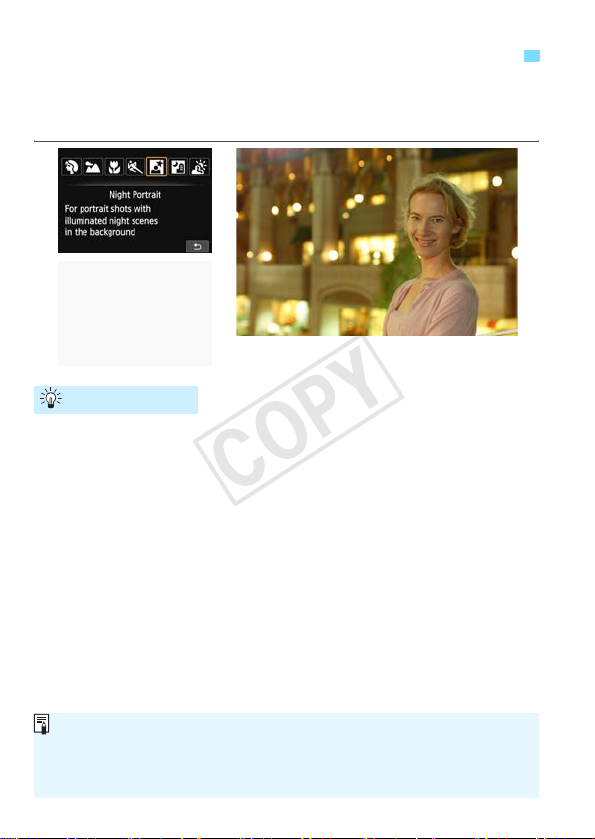

6 Shooting Night Portraits (With a Tripod)....................................86

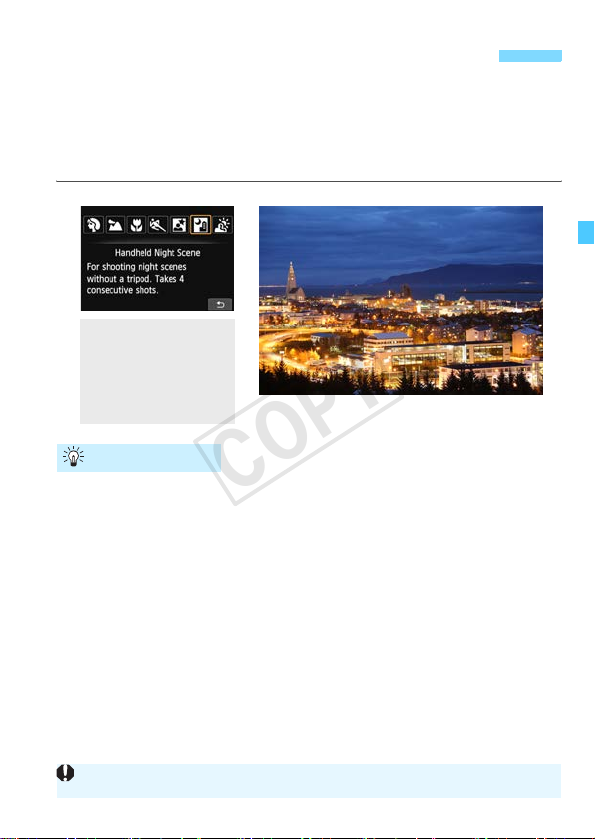

F Shooting Night Scenes (Handheld)............................................87

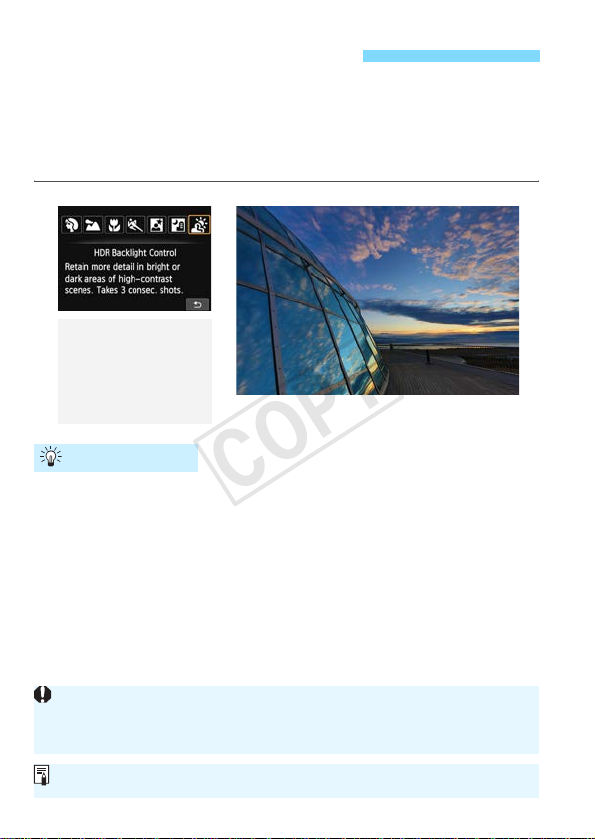

G Shooting Backlit Scenes............................................................88

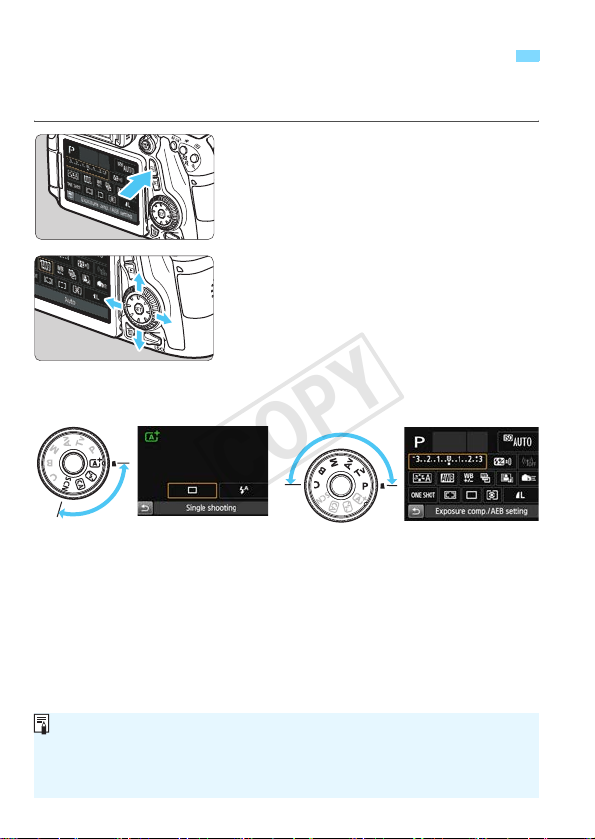

Q Quick Control.............................................................................90

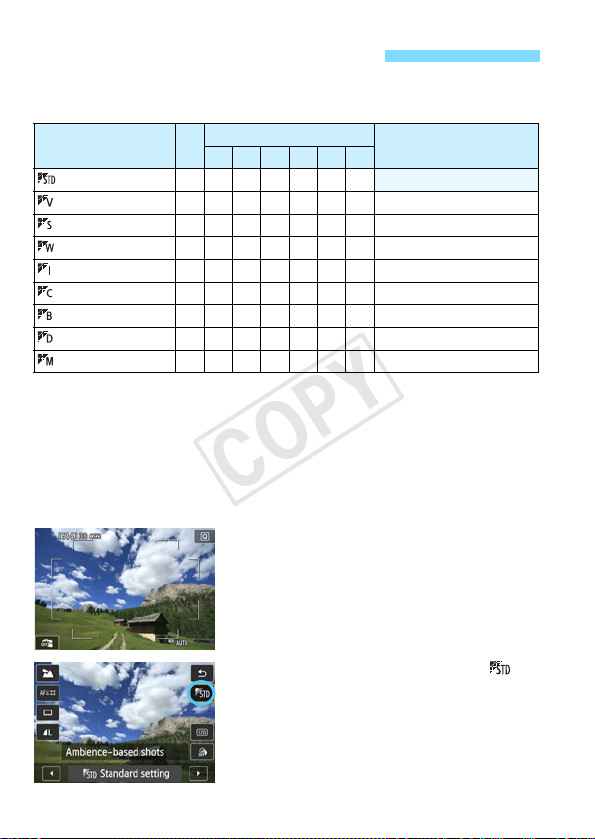

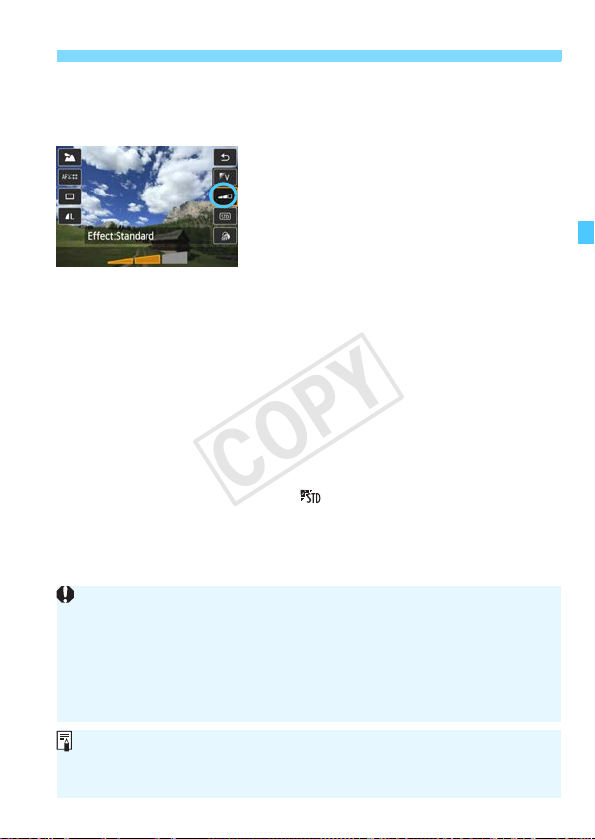

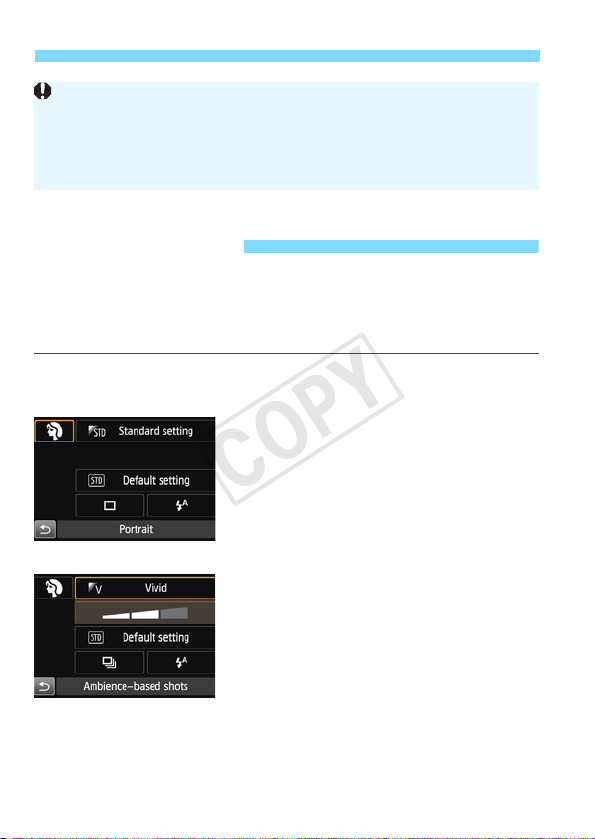

Shoot by Ambience Selection.........................................................92

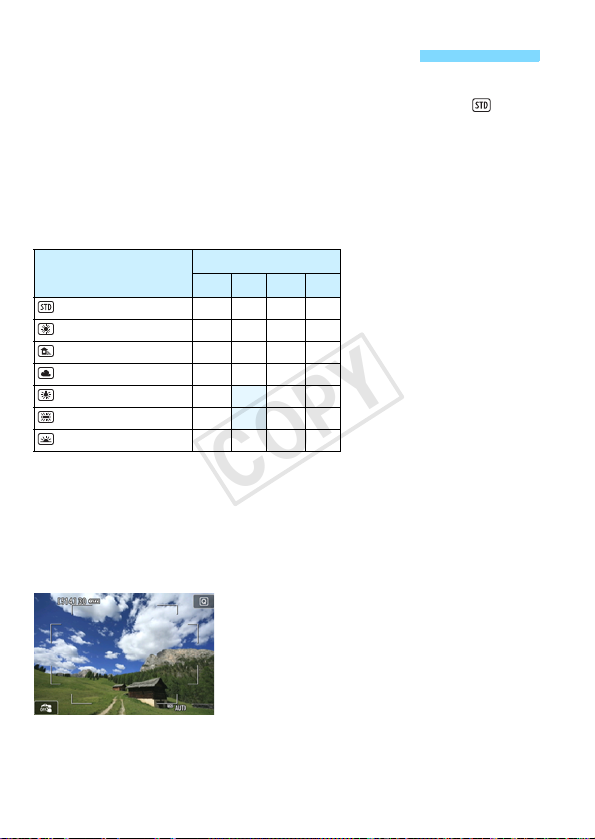

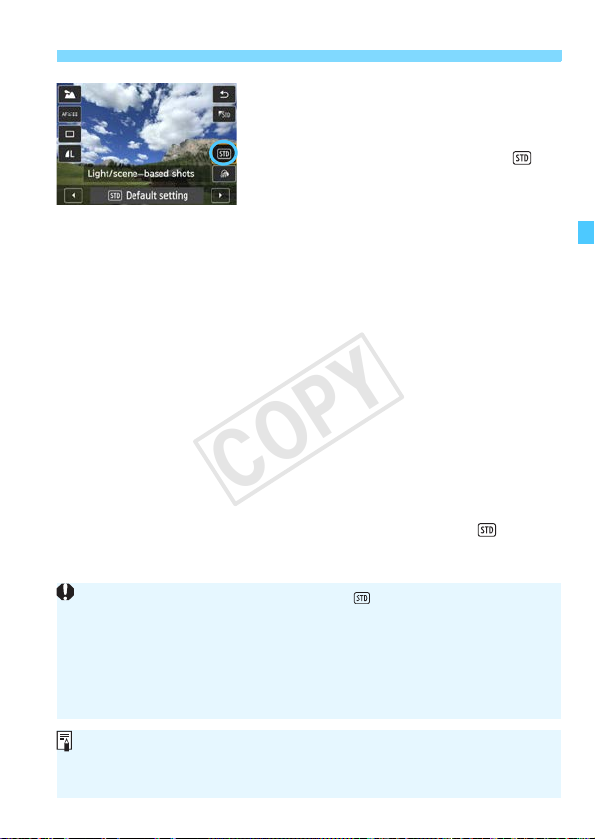

Shoot by Lighting or Scene Type ......... ...........................................96

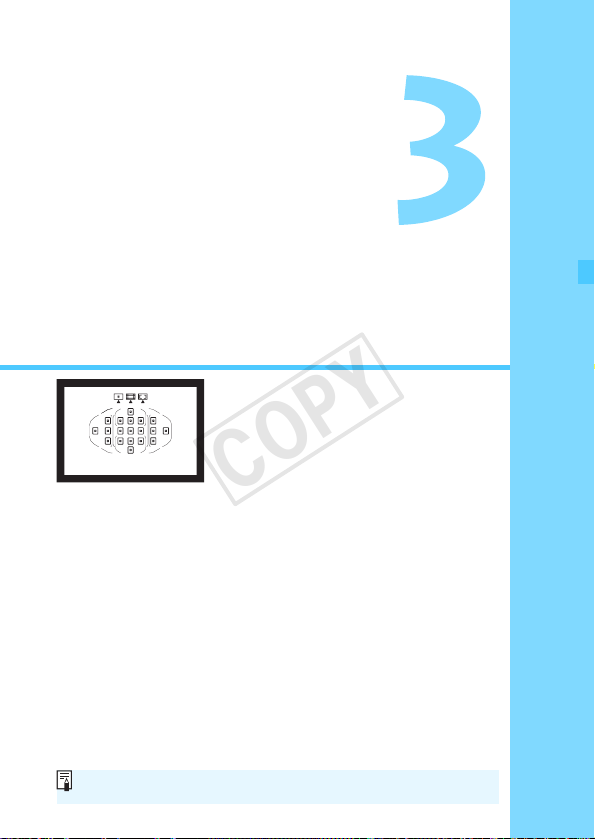

Setting the AF and Drive Modes 99
3
f: Selecting the AF Operation ...................................................100
S Selecting the AF Area.............................................................103
AF Area Selection Modes.............................................................106
When Autofocus Fails...................................................................109

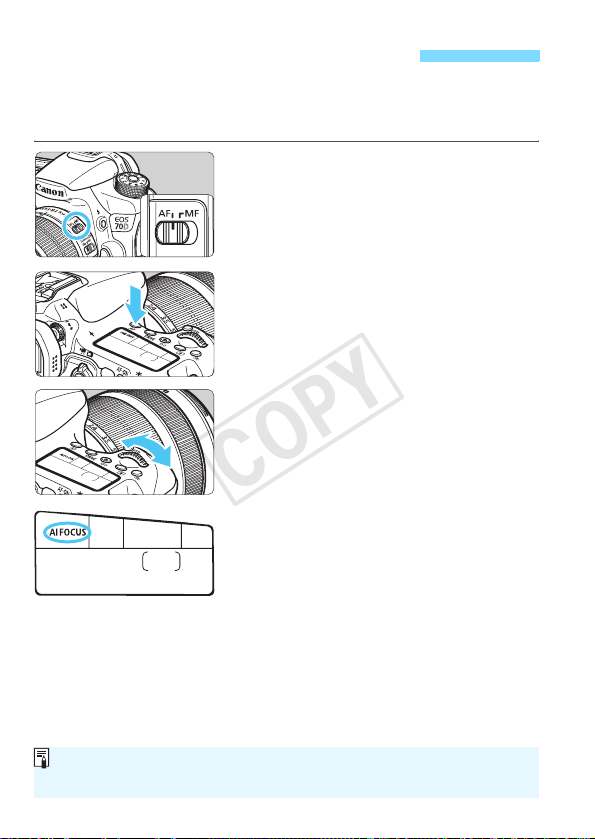

MF: Manual Focus .....................................................................110
i Selecting the Drive Mode........................................................111
j Using the Self-timer .................................................................113
Contents
Image Settings 115
4
Setting the Image-Recording Quality............................................116
i: Setting the ISO Speed..........................................................120

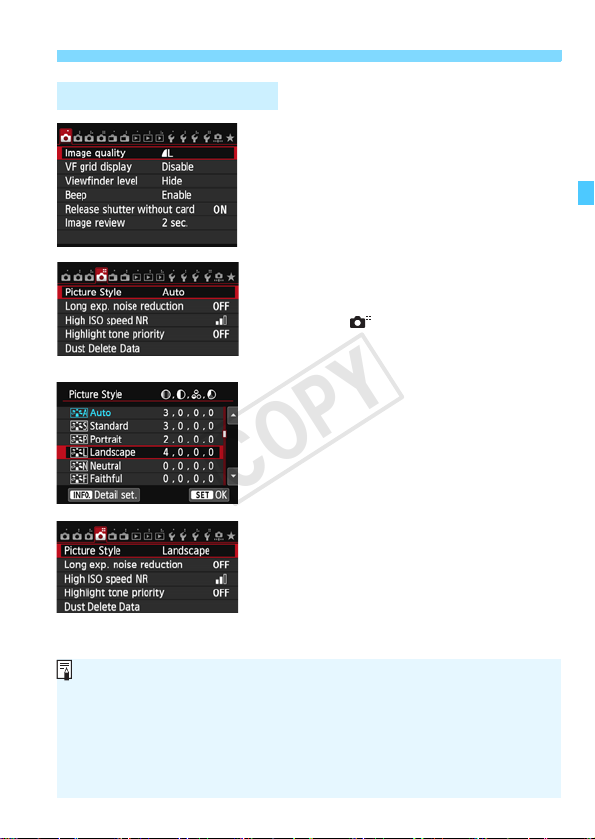

A Selecting a Picture Style.......................................................126
A Customizing a Picture Style..................................................129
A Registering a Picture Style ...................................................132
11
Contents
Setting the White Balance............................................................ 134
O Custom White Balance........................................................ 135
P Setting the Color Temperature............................................ 137
White Balance Correction............................................................. 138
Auto Correction of Brightness and Contrast................................. 140
Setting Noise Reduction............................................................... 141
Highlight Tone Priority.................................................................. 145
Lens Peripheral Illumination / Chromatic Aberration Correction .. 146
Creating and Selecting a Folder................................................... 149
File Numbering Methods .............................................................. 151
Setting Copyright Information....................................................... 153
Setting the Color Space ............................................................... 155
Advanced Operations 157
5
d: Program AE............................................................................ 158
s: Shutter-Priority AE................................................................ 160
f: Aperture-Priority AE............................................................. 162
Depth-of-Field Preview.............................................................. 163
a: Manual Exposure................................................................... 164
q Selecting the Metering Mode.................................................. 165
Setting Exposure Compensation.................................................. 167
h Auto Exposure Bracketing (AEB)........................................... 168
A AE Lock................................................................................... 170
F: Bulb Exposures....................................................................... 171
w: HDR (High Dynamic Range) Shooting.............................. 172
P Multiple Exposures................................................................. 175
2 Mirror Lockup ........................................................................ 182
Using the Eyepiece Cover............................................................ 183
F Using a Remote Switch............................................................ 184
R Remote Control Shooting.......................................................... 184
12
Flash Photography 187
6
D Using the Built-in Flash.............................................................188
D Using an External Speedlite......................................................193
Setting the Flash...........................................................................195
Using Wireless Flash....................................................................203
Shooting with the LCD Monitor (Live View Shooting) 215
7
A Shooting with the LCD Monitor...............................................216
Shooting Function Settings...........................................................222
U Shooting with Filter Effects......................................................224
Menu Function Settings................................................................228
Using AF to Focus (AF Method) ...................................................233
x Shooting with the Touch Shutter.............................................245
MF: Focusing Manually.................................................................247
Shooting Movies 251
8
k Shooting Movies.....................................................................252
Shooting Function Settings...........................................................263
Setting the Movie Recording Size.................................................265
Using Movie Digital Zoom.............................................................267
Setting the Sound Recording........................................................268
Setting the Time Code..................................................................270
Menu Function Settings................................................................273
Shooting Video Snapshots............................................................277
Contents
Image Playback 289
9
x Image Playback......................................................................290
B: Shooting Information Display .............................................292
H I Searching for Images Quickly............................................296
u/y Magnified View ...................................................................298
d Playing Back with the Touch Screen ........................................299
b Rotating the Image ..................................................................301
13
Contents
Setting Ratings............................................................................. 302
Q Quick Control for Playback..................................................... 304
k Enjoying Movies..................................................................... 306
k Playing Movies....................................................................... 308
X Editing a Movie’s First and Last Scenes ................................. 310
Slide Show (Auto Playback)......................................................... 312
Viewing Images on a TV Set........................................................ 316
K Protecting Images................................................................... 320
L Erasing Images........................................................................ 322
Changing Image Playback Settings ............................................. 324
Adjusting the LCD Monitor Brightness....................................... 324
Auto Rotation of Vertical Images............................................... 325
Post-Processing Images 327
10
R Processing RAW Images with the Camera .......................... 328
S Resizing JPEG Images........................................................... 333
U Applying Creative Filters......................................................... 335
Sensor Cleaning 339
11
f Automatic Sensor Cleaning.................................................. 340
Appending Dust Delete Data........................................................ 341
Manual Sensor Cleaning.............................................................. 343
Printing Images 345
12
Preparing to Print ......................................................................... 346
w Printing................................................................................... 348
W Digital Print Order Format (DPOF)......................................... 355
W Direct Printing of Print-Ordered Images ................................. 358
p Specifying Images for a Photobook......................................... 359
Customizing the Camera 361
13
Setting Custom Functions ............................................................ 362
Custom Functions ........................................................................ 363
14
Custom Function Settings .............................................................365
C.Fn I: Exposure ........................................................................365
C.Fn II: Autofocus ......................................................................368
C.Fn III: Operation/Others..........................................................375
8: Fine Adjustment of AF’s Point of Focus.................................377

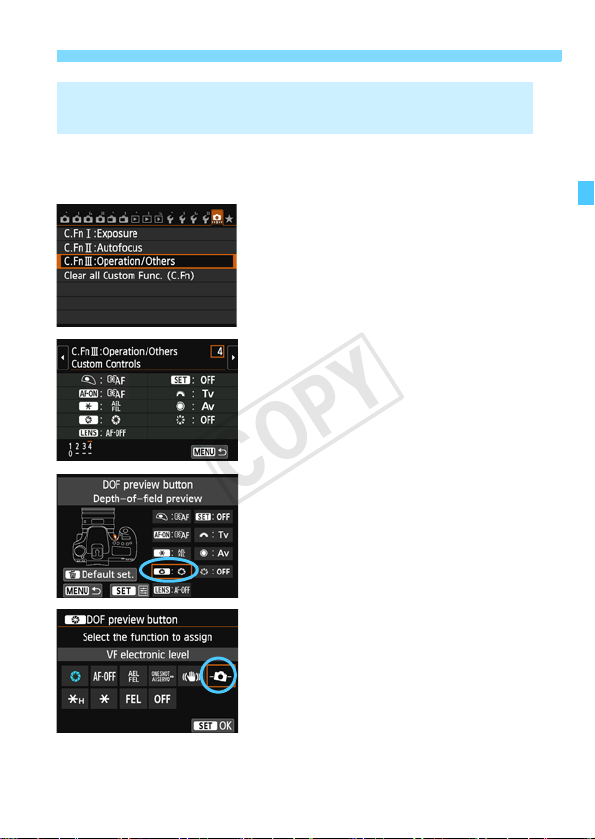

8: Custom Controls ....................................................................383
Registering My Menu....................................................................389
w: Register Custom Shooting Modes...........................................390
Reference 393
14
B Button Functions.................................................................394
Checking the Battery Information..................................................396
Using a Household Power Outlet..................................................400
H Using Eye-Fi Cards.................................................................401
Function Availability Table According to Shooting Mode..............404
Menu Settings...............................................................................408
System Map..................................................................................416
Troubleshooting Guide..................................................................418
Error Codes...................................................................................432
Specifications................................................................................433
Handling Precautions: EF-S18-55mm f/3.5-5.6 IS STM,
EF-S18-135mm f/3.5-5.6 IS STM .................................................443
Safety Warnings............................................................................445
Viewing the CD-ROM Instruction Manuals /
15
Downloading Images to Your Computer 451
Viewing the Camera Instruction Manual CD-ROM .......................452
Downloading Images to a Computer.............................................454
Software Overview........................................................................456
Installing the Software...................................................................458
Software Instruction Manual .........................................................459
Index.............................................................................................460
Contents
15

Index to Features

Power

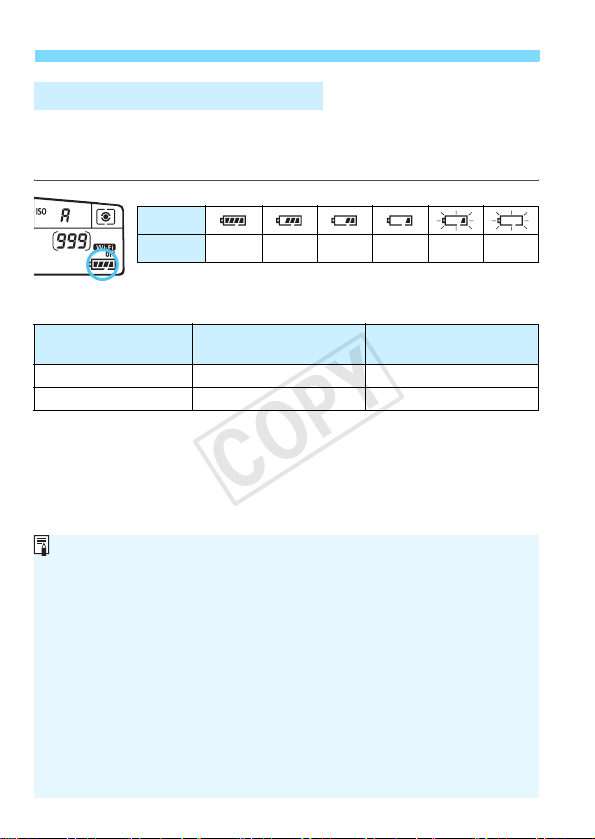

Charging the battery Î p.28 Battery check Î p.36
Battery information check
Household power outlet Î p.400 Auto power off Î p.59
Î p.396
Card
Formatting Î p.57 Release shutter
without card Î p.32
Lens
Attaching/Detaching Î p.40 Zoom Î p.41 Image Stabilizer Î p.43
Basic Settings
Language Î p.39 Date/Time/Zone Î p.37 Beeper Î p.59 Copyright information Î p.153 Clear all camera settings Î p.61
Viewfinder

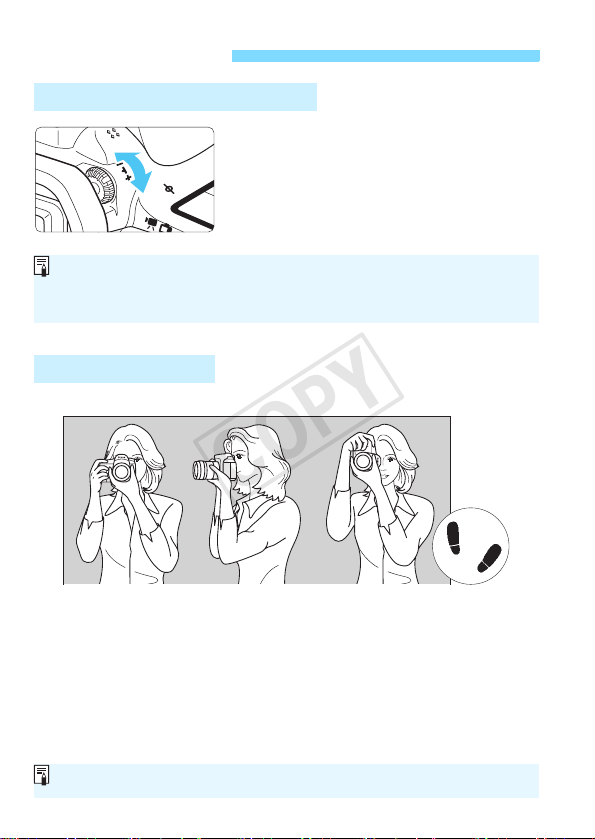

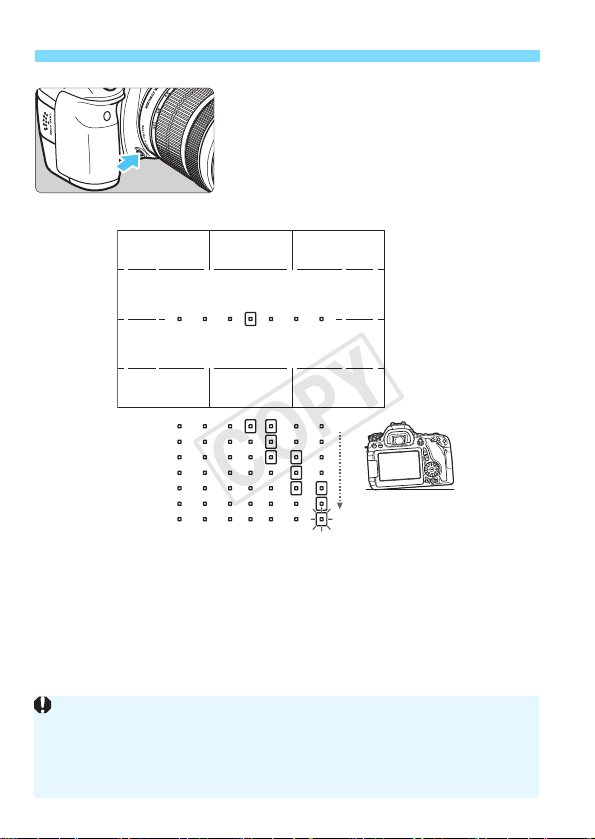

Dioptric adjustment Î p.44 Eyepiece cover Î p.183 Electronic level
(During shooting) Î p.66
Electronic level
(Before shooting) Î p.67
LCD Monitor
Brightness adjustment Î p.324 Touch screen Î p.54 Electronic level Î p.65 Feature guide Î p.69 Help Î p.70
AF
AF operation Î p.100
16
AF area selection mode Î p.103 AF point selection Î p.105 AF Microadjustment Î p.377 Manual focusing Î p.110
Metering
Metering mode Î p.165
Drive
Drive mode Î p.111 Self-timer Î p.113 Maximum burst Î p.119
Recording Images
Creating/Selecting
File numbering Î p.151
a folde
r
Î p.149
Image Quality
Image-recording quality Î p.116 ISO speed Î p.120 Picture Style Î p.126 White balance Î p.134 Auto Lighting Optimizer Î p.140 Noise reduction for high
ISO speeds Î p.141
Noise reduction for long
exposures Î p.143
Highlight tone priority Î p.145 Peripheral illumination
correction Î p.146
Chromatic aberration
correction Î p.147
Color space Î p.155
Shooting
Shooting mode Î p.24 HDR Î p.172 Multiple exposures Î p.175 Mirror lockup Î p.182 Depth-of-field preview Î p.163
Index to Features
Remote control Î p.184 Quick Control Î p.50
Exposure Adjustment
Exposure compensation Î p.167 AEB Î p.168 AE lock Î p.170 Safety shift Î p.367
Flash
Built-in flash Î p.188 External flash Î p.193 Flash function settings Î p.195 Wireless shooting Î p.203
Live View Shooting
Live View shooting Î p.215 Focusing Î p.233 Continuous AF Î p.228 Aspect ratio Î p.229 Creative filters Î p.224 Touch Shutter Î p.245
Movie Shooting
Movie shooting Î p.251 Movie Servo AF Î p.273 Movie recording size Î p.265 Digital zoom Î p.267 Sound recording Î p.268 Time code Î p.270 Still photo shooting Î p.261 Video snapshot Î p.277
Playback
Image review time Î p.60 Single-image display Î p.290 Shooting information
display Î p.292
Index display Î p.296 Image browsing
(Jump display) Î p.297
Magnified view Î p.298 Image rotate Î p.301 Rating Î p.302 Movie playback Î p.308 Slide show Î p.312 Viewing images on a
TV set Î p.316
Protect Î p.320 Erase Î p.322 Touch playback Î p.299
Image Editing
RAW image processing Î p.328 Resize Î p.333 Creative filters Î p.335
Printing
PictBridge Î p.345 Print Order (DPOF) Î p.355 Photobook Set-up Î p.359
Customization
Custom Functions (C.Fn)Î p.362 Custom Controls Î p.383 My Menu Î p.389 Custom shooting mode Î p.390
Sensor Cleaning and Dust Reduction
Sensor cleaning Î p.340 Append Dust Delete DataÎ p.341
Software
Overview Î p.456 Installation Î p.458
Wi-Fi*
Wi-Fi Î Separate booklet
* The EOS 70D (N) does not have the
Wi-Fi function.
17

Handling Precautions

Camera Care
This camera is a precision instrument. Do not drop it or subject it to physical shock. The camera is not waterproof and cannot be used underwater. If you accidentally drop the camera into water, promptly consult the nearest Canon Service Center. Wipe off any water droplets with a dry and clean cloth. If the camera has been exposed to salty air, wipe it with a well-wrung wet cloth.
Never leave the camera near anything having a strong magnetic field such
as a magnet or electric motor. Also avoid using or leaving the camera near anything emitting strong radio waves, such as a large antenna. Strong magnetic fields can cause camera misoperation or destroy image data.
Do not leave the camera in excessive heat, such as in a car in direct
sunlight. High temperatures can cause the camera to malfunction.
The camera contains precision electronic circuitry. Never attempt to
disassemble the camera yourself.
Do not block the mirror operation with your finger, etc. Doing so may cause a
malfunction.
Use a blower to blow away dust on the lens, viewfinder, reflex mirror, and
focusing screen. Do not use cleaners that contain organic solvents to clean the camera body or lens. For stubborn dirt, take the camera to the nearest Canon Service Center.
Do not touch the camera’s electrical contacts with your fingers. This is to
prevent the contacts from corroding. Corroded contacts can cause camera misoperation.
If the camera is suddenly brought in from the cold into a warm room,
condensation may form on the camera and internal parts. To prevent condensation, first put the camera in a sealed plastic bag and let it adjust to the warmer temperature before taking it out of the bag.
If condensation forms on the camera, do not use the camera. This is to avoid
damaging the camera. If there is condensation, remove the lens, card and battery from the camera, and wait until condensation has evaporated before using the camera.
If the camera will not be used for an extended period, remove the battery
and store the camera in a cool, dry, well-ventilated location. Even while the camera is in storage, press the shutter button a few times once in a while to check that the camera is still working.
Avoid storing the camera where there are chemicals that result in rust and
corrosion such as in a chemical lab.
18
Handling Precautions
If the camera has not been used for an extended period, test all its functions
before using it. If you have not used the camera for some time or if there is an important shoot such as a foreign trip coming up, have the camera checked by your Canon dealer or check the camera yourself and make sure it is working properly.
If you use continuous shooting, Live View shooting, or movie shooting for a
prolonged period, the camera may become hot. This is not a malfunction.
LCD Panel and LCD Monitor
Although the LCD monitor is manufactured with very high precision
technology with over 99.99% effective pixels, there may be a few dead pixels displaying only black or red, etc. among the remaining 0.01% or less pixels. Dead pixels are not a malfunction. They do not affect the images recorded.
If the LCD monitor is left on for a prolonged period, screen burn-in may occur
where you see remnants of what was displayed. However, this is only temporary and will disappear when the camera is left unused for a few days.
The LCD monitor display may seem slow in low temperatures, or look black
in high temperatures. It will return to normal at room temperature.
Cards
To protect the card and its recorded data, note the following:
Do not drop, bend, or wet the card. Do not subject it to excessive force,
physical shock, or vibration.
Do not touch the card’s electronic contacts with your fingers or anything
metallic.
Do not affix any stickers, etc., on the card. Do not store or use the card near anything having a strong magnetic field,
such as a TV set, speakers, or magnet. Also avoid places prone to having static electricity.
Do not leave the card in direct sunlight or near a heat source. Store the card in a case. Do not store the card in hot, dusty, or humid locations.
Lens
After detaching the lens from the camera, put down the lens with the rear end up and attach the lens caps to avoid scratching the lens surface and electrical contacts.
Contacts
19

Nomenclature

LCD panel (p.22) <i>
ISO speed
setting button (p.120) <q> Metering mode
selection button (p.165) <B> AF area
selection mode button (p.104)

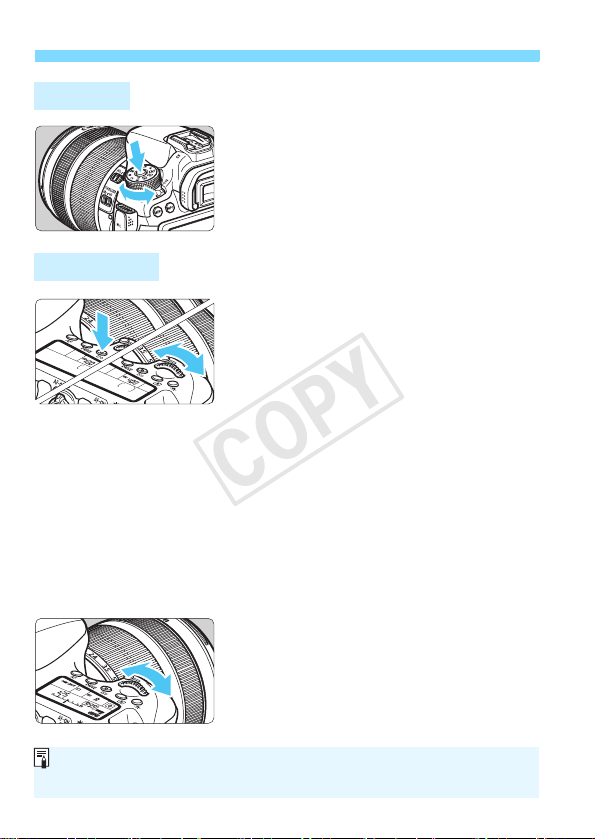

<6> Main Dial (p.46)
<U> LCD panel illumination button (p.49)
Shutter button (p.45)
Red-eye reduction/ Self-timer lamp (p.190/113)
Remote control sensor (p.184)
Grip (Battery compartment)
DC coupler cord hole (p.400)
Depth-of-field preview button (p.163)
Mirror (p.182, 343)
<Y> External microphone IN terminal (p.269)
Body cap (p.40)
<R> Drive mode selection button (p.111)
<f> AF mode selection button (p.100)
EF lens mount index (p.40)
Built-in flash/AF-assist beam (p.188/203)
Flash sync contacts
Hot shoe (p.193)
<D> Flash button (p.188)
Microphone (p.269)
Mode Dial lock-release button (p.46)
Lens lock pin
Lens mount
Contacts (p.19)
<F> Remote control terminal (p.184)
HDMI mini OUT terminal (p.316)
Audio/video OUT/Digital terminal
<D>
<q/C>
(p.319/346, 454)
Mode Dial (p.24)
Strap mount (p.27)
Speaker (p.308)
Lens release button (p.41)
20
Nomenclature
/
<V> Focal plane mark
<A/k> Live View shooting/ Movie shooting switch (p.215/251) <0> Start/Stop button (p.216, 252)
Dioptric adjustment knob (p.44)
Eyecup (p.183)
Viewfinder eyepiece
Power switch (p.35)
<M> Menu button (p.52)
<B> Info button (p.49, 65, 70, 218, 258, 290,
394)
LCD monitor (p.52, 324)
Tripod socket
<Q> Quick Control button (p.50)
<x> Playback button (p.290)
<9> <V> <U> Multi-controller (p.48)
<L> Erase button (p.322)
<p> AF start button (p.45, 100, 217, 259)
<A> AE lock/FE lock button <y> Index/Reduce button (p.170, 192/296, 298)
<S> AF point selection/ <u> Magnify button (p.105/298)
Access lamp (p.33)
Strap mount (p.27)
Card slot cover (p.31)
Battery compartment cover release lever (p.30)
Battery compartment cover (p.30)

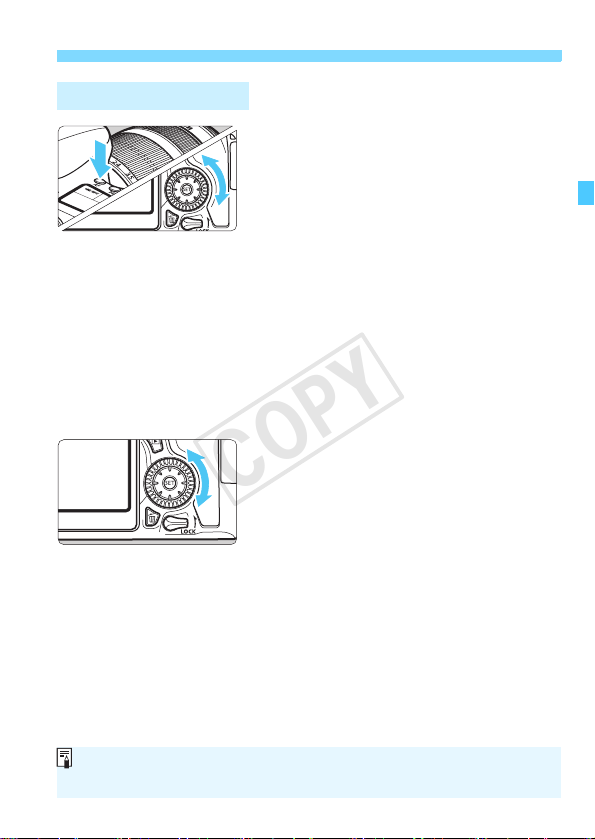

<5> Quick Control Dial (p.47)
Multi function lock switch (p.48)
<0> Setting button (p.52)
Card slot (p.31)
21
Nomenclature
A
A A
LCD panel
Drive mode (p.111)
u Single shooting o High-speed continuous shooting i Low-speed continuous shooting B Silent single shooting M Silent continuous shooting
Q Self-timer: 10 sec./remote control
k Self-timer: 2 sec./remote control
<A> Highlight tone priority (p.145)
<g> ISO speed (p.120)
ISO speed (p.120)
Possible shots Self-timer countdown Bulb exposure time
Error number/Error code (Err) Remaining images to record
F operation (p.100)
X
One-Shot AF
9
I Focus AF
Z
I Servo AF
4 L
Manual focus
<M> Multi Shot Noise Reduction (p.141)
<w> HDR shooting (p.172)
<P> Multiple-exposure shooting (p.175)
Shutter speed FE lock (FEL) Busy (buSY)
Built-in flash recycling (buSY)
Multi function lock warning (L) No card warning (Card) Card full warning (FuLL) Error code (Err) Cleaning image sensor (CLn)
<h> AEB (p.168)
Exposure level indicator Exposure compensation amount (p.167) AEB range (p.168)
Aperture
AF point selection
--
(
[ ]
AF, SEL [ ], SEL AF)
----
* The EOS 70D (N) does not have the Wi-Fi function (Not Displayed). * The display will show only the settings currently applied.
22
Metering mode (p.165)
q Evaluative metering w Partial metering r Spot metering e Center-weighted
average metering
Wi-Fi function* <k/l>
1 2
Battery check (p.36)
Viewfinder Information
Spot metering circle (p.165) Single-point AF (Manual selection)
(p.103) Zone AF points (p.103) Focusing screen
Grid (p.64)
Nomenclature
Zone AF (Manual zone selection) (p.103)
19-point automatic selection AF (p.103)
AF points (p.103)
Electronic level (p.66)
<z> Battery check
(p.36) <A> AE lock (p.170) /
AEB in-progress (p.168)
<D> Flash-ready (p.188, 193) Improper FE lock warning
<d> FE lock (p.192) / FEB in-progress (p.201) <e> High-speed sync (p.200)
<y> Flash exposure compensation (p.190, 193)
Shutter speed (p.160)
FE lock (FEL)
Busy (buSY)
Built-in flash recycling (buSY)
Multi function lock warning (L)
No card/card error warning (Card)
Card full warning (FuLL)
Error code (Err)
<A> Highlight tone priority (p.145)
Exposure level indicator Exposure compensation amount (p.167) AEB range (p.168)
Red-eye reduction lamp-on indicator
AF point selection
----
[ ]
AF, SEL [ ], SEL AF)
(
--
Aperture (p.162)
The display will show only the settings currently applied.
Warning symbol (p.376)
<g> ISO speed (p.120)
<o> Focus confirmation light (p.73)
Max. burst (p.119) Number of remaining multiple exposures (p.177)
ISO speed (p.120)
23
Nomenclature
Mode Dial
Turn the Mode Dial while holding down the Mode Dial center (Mode Dial lock release button).
Creative Zone
These modes give you more control for shooting various subjects.
d : Program AE (p.158) s : Shutter-priority AE (p.160) f : Aperture-priority AE (p.162) a : Manual exposure (p.164)
F : Bulb (p.171)
Basic Zone
Custom shooting mode
You can register the shooting mode (d/s/ f/a/F), AF operation, menu settings, etc., to w and shoot (p.390).
All you do is press the shutter button. The camera sets everything to suit the subject or scene.
A : Scene Intelligent Auto (p.72) 7 : Flash Off(p.77)
C : Creative Auto (p.78)
8 : Special scene (p.81)
2 : Portrait (p.82) 3 : Landscape (p.83) 4 : Close-up (p.84) 5: Sports (p.85) 6 : Night Portrait (p.86) F : Handheld Night Scene (p.87) G : HDR Backlight Control (p.88)
24
Lens
Lens without a distance scale
Hood mount (p.42)
Filter thread (front of lens)
Zoom ring (p.41)
Image Stabilizer switch (p.43)
Lens mount index (p.40)
Nomenclature
Focusing ring (p.110, 247)
Focus mode switch (p.40)
Zoom position index
Contacts (p.19)
25
Nomenclature
Battery Charger LC-E6
Charger for Battery Pack LP-E6 (p.28).
Power plug
Battery pack slot
Charge Lamp
IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS. DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet, if needed.
Battery Charger LC-E6E
Charger for Battery Pack LP-E6 (p.28).
Charge lamp
Battery pack slot
Power cord socket
26
Power cord

Getting Started

This chapter explains preparatory steps before you start shooting and basic camera operations.
Attaching the Strap
Pass the end of the strap through the camera’s strap mount eyelet from the bottom. Then pass it through the strap’s buckle as shown in the illustration. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.
The eyepiece cover is also
attached to the strap (p.183).
Eyepiece cover
27

Charging the Battery

Remove the protective cover.
1
Detach the protective cover provided
Attach the battery.
2
As shown in the illustration, attach the
To detach the battery, follow the
LC-E6
LC-E6E
Recharge the battery.
3
For LC-E6
As shown by the arrow, flip out the
For LC-E6E
Connect the power cord to the
X Recharging starts automatically and
with the battery.
battery securely to the charger.
above procedure in reverse.
battery charger’s prongs and insert the prongs into a power outlet.
charger and insert the plug into a power outlet.
the charge lamp blinks in orange.
Charge Level
0-49%
50-74% Blinks twice per second 75% or higher Blinks three times per second Fully charged Green Lights up
It takes approx. 2.5 hours to fully recharge a completely exhausted battery at room temperature (23°C / 73°F). The time required to recharge the battery will vary greatly depending on the ambient temperature and the battery’s remaining cap acity.
For safety reasons, recharging in low temperatures (5°C - 10°C /
41°F - 50°F) will take longer (up to approx. 4 hours).
28
Color Display
Orange
Charge Lamp
Blinks once per second
Charging the Battery
Tips for Using the Battery and Charger
Upon purchase, the battery is not fully charged.
Charge the battery before use.
Recharge the battery on the day before or on the day it is to be used.
Even during storage, a charged battery will gradually drain and lose its capacity.
After recharging the battery, detach it and disconnect the
charger from the power outlet.
You can attach the cover in a different
orientation to indicate whether the battery has been recharged or not.
If the battery has been recharged, attach the cover so that the battery-shaped hole < > is aligned over the blue sticker on the battery. If the battery is exhausted, attach the cover in the opposite orientation.
When not using the camera, remove the battery.
If the battery is left in the camera for a prolonged period, a small amount of power current is released, resulting in excess discharge and shorter battery life. Store the battery with the protective cover attached. Storing the battery when it is fully charged may lower the battery’s performance.
The battery charger can also be used in foreign countries.
The battery charger is compatible with a 100 V AC to 240 V AC 50/60 Hz power source. If necessary, attach a commercially-available plug adapter for the respective country or region. Do not attach any portable voltage transformer to the battery charger. Doing so can damage the battery charger.
If the battery becomes exhausted quickly even after being fully
charged, the battery has reached the end of its service life.
Check the battery’s recharge performance (p.396) and purchase a new battery.
After disconnecting the charger’s power plug, do not touch the prongs for approx. 10 sec.
If the battery’s remaining capacity (p.396) is 94% or higher, the battery
will not be recharged.
The charger cannot charge any battery other than Battery Pack LP-E6.
29

Installing and Removing the Battery

Load a fully charged Battery Pack LP-E6 into the camera. The camera’s viewfinder becomes bright when a battery is installed, and darkens when the battery is removed.
Installing the Battery
Open the cover.
1
Slide the lever as shown by the
arrows and open the cover.
Insert the battery.
2
Insert the end with the battery
contacts.
Insert the battery until it locks in
place.
Close the cover.
3
Press the cover until it snaps shut.
Only Battery Pack LP-E6 can be used.
Removing the Battery
Open the cover and remove the battery.
Press the battery lock lever as shown
by the arrow and remove the battery.
To prevent short circuiting of the
battery contacts, be sure to attach the provided protective cover (p.28) to the battery.
30
Loading...
+ 438 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
