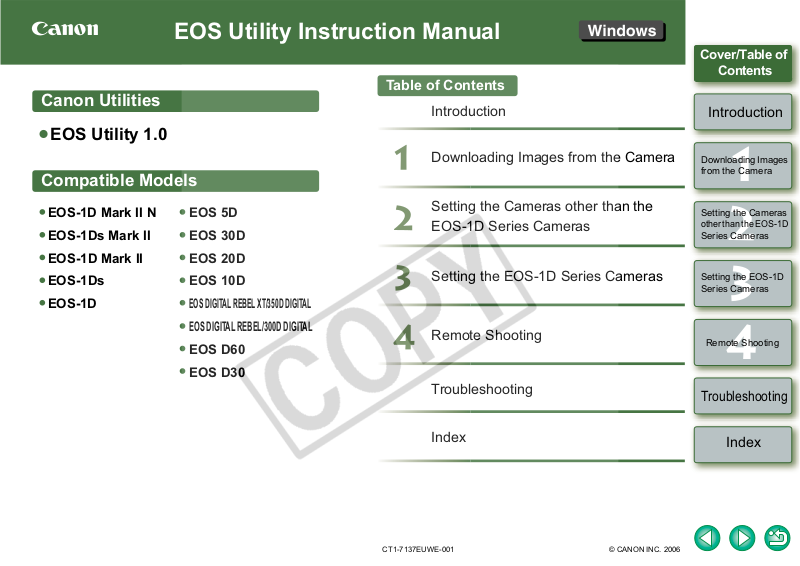

Page 1
EOS Utility Instruction Manual
Table of Contents
Cover/Table of
Contents
Canon Utilities
EOS Utility 1.0
Compatible Models
EOS-1D Mark II N EOS 5D
EOS-1Ds Mark II EOS 30D
EOS-1D Mark II EOS 20D
EOS-1Ds EOS 10D
EOS-1D
EOS DIGITAL REBEL XT/350D DIGITAL
EOS DIGITAL REBEL/300D DIGITAL
EOS D60
EOS D30
Introduction
Downloading Images from the Camera
Setting the Cameras other than the
EOS-1D Series Cameras
Setting the EOS-1D Series Cameras
Remote Shooting
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
CT1-7137EUWE-001 © CANON INC. 2006
Troubleshooting
Index
Page 2
READ CAREFULLY BEFORE USING!
CANON SOFTWARE LICENSE AGREEMENT
IMPORTANT - READ THIS AGREEMENT BEFORE USING THE SOFTWARE ON THE CD-
ROM IN THIS BOX. BY USING THE SOFTWARE, YOU AGREE TO BE BOUND BY THE
TERMS OF THIS AGREEMENT.
This is a license agreement (the [Agreement]) between you and Canon Inc. ([Canon]).
IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO
NOT USE THE SOFTWARE PROGRAM ON THE CD-ROM AND THE USER MANUAL IN
THIS BOX (COLLECTIVELY, THE [SOFTWARE]) AND RETURN THE SOFTWARE WITHIN 30
DAYS FROM THE DATE OF PURCHASE TO YOUR POINT OF PURCHASE FOR A
REFUND.
In consideration of the right to use the SOFTWARE, you agree to abide by the terms and
conditions of this Agreement.
1. LICENSE: Canon grants you the non-exclusive right to use the SOFTWARE only on a single
computer. You may physically transfer the SOFTWARE from one computer to another
provided that the SOFTWARE is used on only one computer at a time. You shall not install
or use the SOFTWARE on a network, multiple CPU, multiple site arrangement, or any other
hardware configuration where the SOFTWARE is accessible to more than one CPU or to
more than one user.
YOU SHALL NOT ASSIGN, SUBLICENSE, RENT, LEASE, LOAN, CONVEY OR OTHERWISE
USE, TRANSFER, COPY, TRANSLATE, CONVERT TO ANOTHER PROGRAMMING
LANGUAGE, ALTER, MODIFY, DECOMPILE OR DISASSEMBLE THE SOFTWARE, IN WHOLE
OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THIS AGREEMENT.
2. BACK-UP COPY: You may make one copy of the SOFTWARE solely for back-up purposes,
or copy the SOFTWARE onto the permanent storage device (e.g. a hard disk) of your
computer and retain the original for back-up purposes. Any other copying of the
SOFTWARE is a violation of this Agreement. You must reproduce and include the copyright
notice on the back-up copy.
3. SUPPORT AND UPDATES: Canon is not responsible for providing maintenance or support
for use of the SOFTWARE. No updates, fixes or support will be made available for the
SOFTWARE.
4. LIMITED WARRANTY AND LIMITATION OF LIABILITY: It is your responsibility to choose,
maintain and match the hardware and software components of your computer system. Thus
Canon does not guarantee uninterrupted service or correction of errors or that the functions
or performance of the SOFTWARE will meet your requirements. THE SOFTWARE IS
LICENSED ON AN [AS IS] BASIS AND WITHOUT WARRANTY OF ANY KIND. The CD-
ROM storing the SOFTWARE is warranted only against defective material under normal use
for a period of ninety (90) days after purchase from an authorized Canon dealer as
evidenced by your sales receipt. Your sole remedy for a defective CD-ROM shall be
replacement of the same without charge when returned by you at your expense to your
point of purchase and proven to be defective upon inspection. The replacement CD-ROM
will be warranted for the remainder of the original ninety (90) day warranty period of the
defective CD-ROM. The limited warranty does not apply if the failure of the CD-ROM
resulted from accident, abuse or misapplication of the SOFTWARE and shall not extend to
anyone other than the original user of the SOFTWARE.
EXCEPT AS SPECIFICALLY SET FORTH IN THIS PARAGRAPH 4, CANON, CANON’S
SUBSIDIARIES, DISTRIBUTORS AND DEALERS DISCLAIM ALL WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE.
NEITHER CANON NOR ANY OF CANON’S SUBSIDIARIES, DISTRIBUTORS OR DEALERS
IS LIABLE FOR ANY DAMAGES HOWSOEVER CAUSED, INCLUDING WITHOUT
LIMITATION, DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE INCLUDING
LOSS OF PROFITS, EXPENSE OR INCONVENIENCE HOWSOEVER CAUSED OR
ARISING OUT OF THE SOFTWARE OR THE USE THEREOF.
NEITHER CANON, NOR ANY OF CANON’S SUBSIDIARIES, DISTRIBUTORS OR DEALERS
SHALL HAVE ANY OBLIGATION TO INDEMNIFY YOU AGAINST ANY CLAIM OR SUIT
BROUGHT BY A THIRD PARTY ALLEGING THAT THE SOFTWARE OR THE USE THEREOF
INFRINGES ANY INTELLECTUAL PROPERTY OF SUCH THIRD PARTY.
5. TERM: This Agreement is effective upon your using the SOFTWARE and remains in effect
until expiration of all copyright interests in the SOFTWARE unless earlier terminated. You
may terminate this Agreement by destroying the SOFTWARE. This Agreement will also
terminate without notice to you if you fail to comply with any of the terms of this Agreement
and you must then promptly return the SOFTWARE. In addition, Canon may enforce its
other legal rights.
6. U.S. GOVERNMENT RESTRICTED RIGHTS NOTICE: The SOFTWARE is provided with
restricted rights. Use, duplication or disclosure is subject to restrictions as set forth in either
subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer software clause at
DFARs 252.227-7013 or subparagraph (c) (1) and (2) of the Commercial Computer
Software Restricted Rights Clause at FAR 52.227-19, as applicable.
7. SEVERABILITY: In the event that any provision of this Agreement is declared or found to be
illegal by any court or tribunal of competent jurisdiction, such provision shall be null and void
with respect to the jurisdiction of that court or tribunal and all the remaining provisions of this
Agreement shall remain in full force and effect.
8. CONTROLLING LAW: The terms of this Agreement as it relates to purchases of the
Software in the United States of America shall be governed and construed in all respects in
accordance with the laws and regulations of the State of New York, without reference to
choice of law principles. The terms of this Agreement as it relates to purchases of the
Software in Canada shall be governed by the laws of the province of Ontario.
9. OWNERSHIP: All rights, including but not limited to copyrights and trade secret rights, to the
SOFTWARE belong to Canon, its affiliated corporations and third party licensors. Your use
of the SOFTWARE is subject to the United States, Canada and other applicable copyright
and trademark laws and nothing in this Agreement constitutes a waiver of the rights of
Canon, its affiliated corporations and third party licensors under such laws.
Nothing contained in Paragraph 1 shall be construed to give Canon any ownership rights in
any images, graphics or textual material that you save in connection with the Software.
10.ACKNOWLEDGEMENT: BY USING THE SOFTWARE, YOU ACKNOWLEDGE THAT YOU
HAVE READ THIS AGREEMENT, UNDERSTOOD IT, AND AGREE TO BE BOUND BY ITS
TERMS AND CONDITIONS. YOU ALSO AGREE THAT THIS AGREEMENT IS THE
COMPLETE AND EXCLUSIVE STATEMENT OF AGREEMENT BETWEEN YOU AND
CANON CONCERNING THE SUBJECT MATTER HEREOF AND SUPERSEDES ALL
PROPOSALS OR PRIOR AGREEMENTS, VERBAL OR WRITTEN, AND ANY OTHER
COMMUNICATIONS BETWEEN THE PARTIES RELATING TO THE SUBJECT MATTER
HEREOF. NO AMENDMENT TO THIS AGREEMENT SHALL BE EFFECTIVE UNLESS
SIGNED BY A DULY AUTHORIZED OFFICER OF CANON.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
1
Page 3
Introduction
This chapter includes information on the precautions to be read before using
EOS Utility, how to use this Instruction Manual, the system requirements and
the supported image types. It also explains the software features and
configuration.
About This Manual
Thank you for purchasing this Canon product.
Precautions for using this product safely and icons to help you with procedures, etc. are
described at the beginning of this Instruction Manual. Please be sure to read these first before
proceeding to the information in the other chapters.
O It is prohibited to reproduce, in whole or part, the contents of this Instruction Manual
without permission.
O Canon may change without notice the software specifications and contents of this
Instruction Manual.
O The software screens and displays printed in this Instruction Manual may differ slightly
from the actual software.
O The content of this Instruction Manual has been reviewed thoroughly. However, if you
should notice any errors or omissions, please contact a Canon Service Center.
O Please note that irrespective of the above-mentioned, Canon does not take responsibility
for the outcome of the operation of the software.
O Click on the item to display its page.
About This Manual ............................................................................................................ 0-1
System Requirements....................................................................................................... 0-1
Compatible Models and Supported Images.................................................................... 0-1
How to Use This Instruction Manual................................................................................ 0-2
Software Main Features and Configuration .................................................................... 0-3
System Requirements
OS Windows XP (Professional/Home Edition), Windows 2000
Computer with one of the above OS preinstalled and a USB port as a
Computer
CPU 750MHz Pentium III or higher
RAM Minimum 256MB
Interface USB 1.1 to 2.0 Hi-Speed or IEEE1394
Display
standard feature or an OHCI-compliant IEEE1394 port
* Upgraded machines not supported.
Screen resolution: 1024 x 768 pixels or more
Color quality: Medium (16 bit) or more
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Trademark Acknowledgments
O Canon and EOS are trademarks of Canon Inc.
O IBM is a registered trademark of International Business Machines Corporation.
O Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
O Other names and products not mentioned above may be registered trademarks or
trademarks of their respective companies.
Compatible Models and Supported Images
This software supports the following cameras and images.
Supported Cameras Supported Images
EOS-1D Mark II N EOS 30D
EOS-1Ds Mark II EOS 20D
EOS-1D Mark II EOS 10D
EOS-1Ds EOS DIGITAL REBEL XT/350D DIGITAL
EOS-1D EOS DIGITAL REBEL/300D DIGITAL
EOS 5D EOS D60
-
EOS D30
RAW and JPEG images
shot with the camera on
the left
0-1
Remote Shooting
4
Troubleshooting
Index
Page 4
How to Use This Instruction Manual
Click to move to the
beginning of each chapter.
Click to move to the previous page.
Click to move to the next page.
Click to return to previously displayed page.
Square brackets [ ] are used to indicate items such as menu names, button names and
window names that appear on the computer screen.
: Marks additional information
that you will find helpful.
: Marks information that should be read before
use to prevent problems that would interfere
with the functioning of software and computer.
Reference page numbers are indicated in blue
either in brackets ( ) or within text. Click on the
page number to move to the corresponding page.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
O In this manual, Windows XP Professional/Home Edition is referred to as “Windows XP”
and Windows 2000 Professional is referred to as “Windows 2000”.
O For more information on the restrictions of EOS Utility, refer also to the source listed
below.
Readme: Click the [Start] button X select [All Programs] ([Programs] in Windows 2000)
X [Canon Utilities] X [EOS Utility] X [EOS Utility Readme].
O The camera name is shown in the screens as “EOS XXX”.
O Descriptions of camera operations assume that the reader is familiar with the
information in the camera’s Instruction Manual.
O In this manual, the screens used in the examples are from Windows XP.
O Text inside < > in this document indicates the keys on the keyboard and camera button
names.
O X in this document indicates the sequence of
operation as shown on the right.
Example: [View] menu X [Display Size] X [Large]
0-2
Troubleshooting
Index
Page 5
Software Main Features and Configuration
Canon Digital Camera software having the following features and functions is stored
on the EOS DIGITAL Solution Disk. Operation is done as shown on this page together with
each software application, centered around EOS Utility.
: Shows the shot image flow. : Shows software windows and descriptions of operation explained in this manual.
: Shows the camera control information from the software. : Shows the Digital Photo Professional and ZoomBrowser EX windows and description of each operation.
EOS Utility (Software for the Camera)
O Communicates with the camera to
Download image
(p.1-6)
Camera settings
(p.2-1, p.3-1)
Remote shooting
(p.4-1)
Transfer downloaded images (p.1-6)
Transfer remotely shot images
download to your computer images saved
on the memory card inside your camera,
and can transfer images to Digital Photo
Professional or ZoomBrowser EX (p.1-6).
O You can download multiple images in a
single operation, display images as a list
and download only selected images (p.1-6
to p.1-7).
O You can perform various settings for your
camera (p.2-1, p.3-1).
O You can shoot photos by controlling the
camera from your computer and download
images to your computer (p.4-1).
(p.4-1)
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Digital Photo Professional (RAW Image Viewing and Editing Software)
O Software recommended if you
mainly shoot RAW images.
Coupled with high-speed display
and processing of RAW images,
you can edit RAW images with a
variety of adjustment functions.
(You can also display and edit
JPEG images.)
For detailed instructions on Digital
Photo Professional, refer to the
“Digital Photo Professional
Instruction Manual”.
ZoomBrowser EX (Image Viewing and Editing Software)
O Software recommended if you
mainly shoot JPEG images and
can perform a standard workflow
(procedure) of downloading,
viewing, editing, and printing
images.
For detailed instructions on
ZoomBrowser EX, refer to the
“ZoomBrowser EX Instruction
Manual”.
Remote Shooting
4
Troubleshooting
Index
0-3
Page 6
Downloading Images from the Camera
1
This chapter explains preparations necessary to download images from your
camera to your computer, and downloading methods. It also explains how to
download images using a third-party card reader.
O Click on the item to display its page.
Prepare to Download Images ........................................................................... 1-2
Setting a Camera with [Communication] Settings........................................... 1-2
Connect the Camera and the Computer and then Start EOS Utility............. 1-3
Connecting a Camera other than an EOS-1D Series Camera to Your Computer ..
Connecting an EOS-1D Series Camera to Your Computer ............................ 1-4
Precautions When Connecting the Camera and Computer............................ 1-5
Downloading Images from Your Camera ........................................................ 1-6
Downloading All the Images in a Single Operation......................................... 1-6
Downloading Images to Your Computer by Operating the Camera................ 1-6
Downloading Selected Images ....................................................................... 1-7
Downloading JPEG Images Using the PTP Function .................................... 1-8
Downloading for Cameras other than the EOS-1D Series Cameras .............. 1-8
Downloading with EOS-1D Series Cameras................................................... 1-8
Precautions for the PTP Function................................................................... 1-9
1-3
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Downloading Images Using Your Card Reader.............................................. 1-9
Transferring the Images in a Specified Folder ............................................. 1-10
Specifying Preferences................................................................................... 1-10
1-1
Remote Shooting
4
Troubleshooting
Index
Page 7
Prepare to Download Images
Setting a Camera with [Communication] Settings
For a camera with [Communication] included as a menu function, you can communicate with
EOS Utility to download images to your computer by selecting a [Communication] setting.
O The setting on this page is necessary for the EOS 5D, EOS 30D, EOS 20D, EOS 10D,
EOS DIGITAL REBEL XT/350D DIGITAL and EOS DIGITAL REBEL/300D DIGITAL.
O For cameras other than the above, it is not necessary to perform settings for the
camera. Continue with the procedure in “Connect the Camera and the Computer and
then Start EOS Utility” (p.1-3).
Check that the camera is not connected to the computer and then
set the camera’s power switch to <ON>.
1
Set the camera’s [Communication].
2
O With the EOS 30D, set [ Communication]
in menu to [Print/PC].
O Set the [Communication] for other
cameras in the same procedure as the
EOS 30D, using the following for a
reference.
Operation window in the EOS 30D
O When setting the [Communication], always ensure that the camera is not connected
to the computer beforehand. Setting the [Communication] while the camera is
connected to the computer will cause camera and software malfunctions.
O When using the EOS 5D or EOS DIGITAL REBEL XT/350D DIGITAL, the remote
shooting function and camera setting function in EOS Utility cannot be used if the
camera’s [Communication] is set to [Print/PTP].
O When using the EOS 30D, the camera and EOS Utility cannot communicate if the
camera’s [Communication] is set to [LAN (WFT-E1)].
O When using the EOS 20D, EOS 10D or EOS DIGITAL REBEL/300D DIGITAL, the
camera and EOS Utility cannot communicate if the camera’s [Communication] is set
to [PTP].
O With the EOS 10D, you must change the firmware to version 2.0.0 or later. For details
on changing, refer to the Canon’s web site.
About the PTP Setting
When using Windows XP, you can also download JPEG images that use the PTP (Picture
Transfer Protocol) function (p.1-8).
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
[Communication] settings for different cameras
Camera model Menu Setting
O EOS 5D [ Communication] [PC connect.]
O EOS 30D [ Communication] [Print/PC]
O EOS 20D [ Communication] [Normal]
O EOS 10D [Communication] [Normal]
O EOS DIGITAL REBEL XT/350D DIGITAL [ Communication] [PC connection]
O EOS DIGITAL REBEL/300D DIGITAL [ Communication] [Normal]
Press the < > button to switch the LCD monitor display off
and then set the camera’s power switch to <OFF>.
3
Remote Shooting
4
Troubleshooting
Index
1-2
Page 8
Connect the Camera and the Computer and then Start EOS Utility
Connecting a Camera other than an EOS-1D Series Camera to Your Computer
Connection procedure for the EOS 5D, EOS 30D, EOS 20D, EOS 10D, EOS DIGITAL
REBEL XT/350D DIGITAL, EOS DIGITAL REBEL/300D DIGITAL, EOS D60 and EOS D30
Before downloading images to your computer or specifying the camera settings, you must
connect the camera to your computer with the interface cable supplied with the camera.
You can connect the camera while your computer is running.
O For instructions on connecting EOS-1D series cameras and your computer, refer to the next
page.
Plug the dedicated cable into the computer.
1
O Plug the cable into the USB port.
O Refer to the computer User’s Manual for
information on the terminal areas.
Plug the dedicated cable into your camera.
2
O Face the < > mark on the plug to the
front of the camera and connect the plug
to the camera’s < > terminal.
Set the camera’s power switch to <ON>.
3
¿ [EOS Utility] starts up and main window is displayed, the camera is ready to
communicate with your computer.
Proceed to “Downloading Images from Your Camera” (p.1-6) continuously.
O When the camera selection window appears, select the connected camera and then
[EOS Utility] will start up.
O The above window shows information displayable when EOS 30D is connected. The
displayed information varies depending on the camera model connected.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
O If the dialog box on the right appears, select [Canon
EOS Utility Downloads images from EOS camera] and
then click the [OK] button to start [EOS Utility].
O If [EOS Utility] does not start, double-click the [EOS
Utility] icon on the desktop or click the [Start] button X
select [All Programs] ([Programs] in Windows 2000) X
[Canon Utilities] X [EOS Utility] X [EOS Utility].
Remote Shooting
4
Troubleshooting
Index
1-3
Page 9
Connecting an EOS-1D Series Camera to Your Computer
Connection procedure for the EOS-1D Mark II N, EOS-1Ds Mark II, EOS-1D Mark II, EOS-
1Ds and EOS-1D
Before downloading images to your computer or specifying the camera settings, you must
connect the camera to your computer with the dedicated IEEE1394 interface cable supplied
with the camera. You can connect the camera while your computer is running.
O For instructions on connecting cameras other than the EOS-1D series cameras and your
computer, refer to the previous page.
Plug the dedicated cable into the computer.
1
O Plug the cable into the IEEE1394 port.
O Refer to the computer User’s Manual for
information on the terminal areas.
Plug the dedicated cable into your camera.
2
O For cameras supplied with the cable
protector, attach the cable protector to the
camera, and then follow the procedure
below to connect the dedicated cable.
O Make sure the < > mark on the plug is
facing the top of the camera and then
connect the plug to the camera’s
< > terminal.
Set the camera’s power switch to <ON>.
3
¿ [EOS Utility] starts up and main window is displayed, the camera is ready to
communicate with your computer. Proceed to “Downloading Images from Your
Camera” (p.1-6) continuously.
O When the camera selection window appears, select the connected camera and then
[EOS Utility] will start up.
O The above window shows information displayable when EOS-1D Mark II N is
connected. The displayed information varies depending on the camera model
connected.
O If the dialog box on the right appears, select [Canon
EOS Utility Downloads images from EOS camera] and
then click the [OK] button to start [EOS Utility].
O If [EOS Utility] does not start, double-click the [EOS
Utility] icon on the desktop or click the [Start] button X
select [All Programs] ([Programs] in Windows 2000) X
[Canon Utilities] X [EOS Utility] X [EOS Utility].
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
1-4
Troubleshooting
Index
Page 10
Precautions When Connecting the Camera and Computer
O You cannot communicate with the camera when you are displaying images through
the camera’s LCD monitor. Always connect the camera and your computer after
turning off the display in the LCD monitor.
O While the camera and your computer are communicating, the camera’s LCD panel
may blink.
O Use only the dedicated cable.
O With EOS-1D series cameras, if you connect the plug of the dedicated cable into the
computer’s IEEE1394 port in the reverse direction, the camera or the computer may
break down. Confirm that the shape of the plug and the shape of the IEEE1394 port
match before connecting.
O With EOS-1D series cameras, you cannot communicate with EOS Utility even if you
connect the USB interface cable supplied with the camera.
O Push the plug firmly all the way into the socket. Loose connections can cause faults
or malfunctions.
O Do not connect the camera to your computer via a hub. If you do so, the camera may
not operate correctly.
O If you connect multiple USB or IEEE1394 devices (excluding mouse and keyboard) to
your computer, the camera may not operate correctly. Disconnect from your
computer any USB devices and IEEE1394 connection devices other than the
camera.
O Operation of the Auto power off function will automatically switch the camera off,
disabling to communicate with your computer. Set the Auto power off function to
[OFF] in advance. For more details, refer to the camera’s Instruction Manual supplied
with the camera.
O Do not connect more than one camera to the same computer. The connections may
not operate correctly.
O The camera cannot communicate correctly with multiple softwares. Use one software
to communicate with the camera.
O When unplugging the dedicated cable, be sure to grip the sides of the plug as you pull
it out.
* If you are using the EOS D60 or EOS D30, pull the plug while pressing the <PUSH>
button on it.
O If you do not perform any operation while the camera and computer are connected, a
confirmation message may appear on the computer screen asking whether you wish
to continue communicating with the camera for some computer systems. If you do not
perform any operation even after this message appears, the communication with the
camera is terminated. To re-establish the communication, press the shutter button
down halfway or set the camera’s power switch to <OFF> and then back to <ON>.
Do not put your computer to sleep while it is connected to the camera.
O
If your computer goes into the sleep mode, never disconnect the dedicated cable while
your computer is still in the sleep mode. Always wake your computer up while it is
connected to the camera. On some types of computer, disconnecting the dedicated
cable while your computer is in sleep mode could prevent the computer from waking
up correctly. Refer to the computer User’s Manual for more information on sleep
mode.
O When you connect the camera and your computer, it is recommended that you use
the AC Adapter Kit (optional) for the EOS 5D, EOS 30D, EOS 20D, EOS 10D, EOS
DIGITAL REBEL XT/350D DIGITAL, EOS DIGITAL REBEL/300D DIGITAL, the DC
Coupler supplied with the camera for the EOS D60 and EOS D30, and the DC
Coupler Kit supplied with the camera for EOS-1D series cameras.
O When connecting the EOS-1D series camera and a computer with a 4-pin type
IEEE1394 port, use the EOS-1D series dedicated Canon interface cable (optional) 4pin/4-pin type for the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D Mark II, and a
4-pin/6-pin type for the EOS-1Ds and EOS-1D.
O When using the dedicated cable supplied with the EOS-1Ds or EOS-1D, either plug
(6-pin type) can be connected to the computer or your camera.
O When connecting the dedicated cable to the EOS D60 or EOS D30, insert it with the
<X> mark on the plug matched with the < X> mark on the < > terminal.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
1-5
Page 11
Downloading Images from Your Camera
Downloading All the Images in a Single Operation
You can download to your computer all the images saved on a memory card in the camera, in a
single operation. You can follow this same procedure when downloading images using a third-
party card reader (p.1-9).
Click the [Starts to download images] button.
¿ The [Save File] dialog box appears and
the images are downloaded to the
computer.
¿ The downloaded images are sorted in
folders by shot date, and are saved in the
[My Pictures] folder on the computer.
O When all the images have been
downloaded, the ZoomBrowser EX starts
up and the downloaded images are
displayed. For further instructions, refer to
the ZoomBrowser EX Instruction Manual.
O To exit EOS Utility, click the [Quit] button.
O When disconnecting the interface cable
from the camera and computer, be sure to
exit EOS Utility and then set the camera’s
power switch to <OFF> before
disconnecting the cable.
In the preferences, only images downloaded for the first time are downloaded and saved
in the [My Pictures] folder (you cannot download images previously downloaded). You
can change the image download type or the save destination in the dialog box (p.1-10)
that appears when you click the [Preferences] button.
You can change the software that starts up when you download images, from
ZoomBrowser EX to Digital Photo Professional (p.1-10). However, if you have
downloaded images following “Downloading Images Using Your Card Reader” (p.1-9),
the software that can start up is limited to ZoomBrowser EX.
The above window shows information
displayable when EOS 30D is connected.
The displayed information varies depending
on the camera model connected.
Downloading Images to Your Computer by Operating the Camera
With cameras that have the direct image transfer function, you can download to your computer
images saved in your camera’s memory card by operating the camera. For detailed instructions
on the direct image transfer function, refer to the camera’s Instruction Manual supplied with
your camera.
O This function is compatible with the EOS 30D.
Connect the camera and the computer and then start EOS Utility
(p.1-3).
1
Perform direct image transfer on the camera.
2
¿ The images from the camera are saved to the computer.
O When all the images have been downloaded, ZoomBrowser EX starts up and the
downloaded images are displayed. For further instructions, refer to the ZoomBrowser
EX Instruction Manual.
You can change the software that starts up when you download images, from
ZoomBrowser EX to Digital Photo Professional (p.1-10).
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
1-6
Page 12
Downloading Selected Images
You can display the images saved on a memory card in the camera, select the images you
want and download them to your computer. You can follow this same procedure when
downloading images using a third-party card reader (p.1-9).
Click the [Lets you select and download images] button.
1
¿ The image download window appears and
the images on the memory card are
displayed.
The above window shows information
displayable when EOS 30D is connected.
The displayed information varies depending
on the camera model connected.
Select the images to download.
2
O Click the target image.
O To select multiple images, hold down the <Ctrl> key and click the images.
O To select sequential images, click the first image and then hold down the <Shift> key
and click the last image.
You can select the folder of the
image displayed in the window.
You can select images
by condition.
Downloads the
images to
computer.
Displayed on RAW+JPEG images.
Displayed on RAW images.
Click the [Download Images] button.
3
¿ The [Download image] dialog box appears.
Specify the save destination and then click the [OK] button.
4
¿ The [Save File] dialog box appears and the images are saved in the specified folder.
O When all the images have been downloaded, the ZoomBrowser EX starts up and the
downloaded images are displayed. For further instructions, refer to the ZoomBrowser
EX Instruction Manual.
O When switching to the main window, select the [Window] menu X [Main Window].
O To exit EOS Utility, click the [File] menu X [Exit].
O When disconnecting the interface cable from the camera and computer, be sure to
exit EOS Utility and then set the camera’s power switch to <OFF> before
disconnecting the cable.
You can select the size of the displayed image.
You can show/hide the image frame.
You can show/hide the image information display area.
Starts the ZoomBrowser EX.
Deletes the image.
The display switches to
the camera settings
window (p.2-2, p.3-2).
Displays the histogram
(brightness distribution).
[Bright.] is the brightness
display, and [RGB] is the
RGB display.
Displays basic shooting
information.
Image information
display area
Displays detailed
shooting information.
Displayed on images that are protected.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
O [ ] is displayed on images previously downloaded to your computer.
O [ ] is displayed on images shot with AEB.
O With the EOS-1D series cameras, a [ ] is displayed on images with sound recorded.
O You can change the software that starts up when you download images, from
ZoomBrowser EX to Digital Photo Professional (p.1-10). However, if you have
downloaded images following “Downloading Images Using Your Card Reader”
(p.1-9), the software that can start up is limited to ZoomBrowser EX.
1-7
Page 13
Downloading JPEG Images Using the PTP Function
Downloading for Cameras other than the EOS-1D Series Cameras
Downloading method for the EOS 5D, EOS 30D, EOS 20D, EOS 10D, EOS DIGITAL
REBEL XT/350D DIGITAL and EOS DIGITAL REBEL/300D DIGITAL
When using Windows XP, you can use the PTP (Picture Transfer Protocol) function. When you
set the camera’s [Communication] and use the PTP function, you can download to your
computer JPEG images saved in your camera’s memory card without having to use EOS Utility.
O This function is compatible with the EOS 5D, EOS 30D, EOS 20D, EOS 10D, EOS
DIGITAL REBEL XT/350D DIGITAL and EOS DIGITAL REBEL/300D DIGITAL.
Check that the camera and the computer are not connected and
then set the camera’s power switch to <ON>.
1
Set the camera’s [Communication].
2
O Set the [Communication] for cameras in the same procedure as the “Setting a
Camera with [Communication] Settings” (p.1-2), using the following for a reference.
[Communication] settings for different cameras
Camera model Menu Setting
O EOS 5D [ Communication] [
O EOS 30D [ Communication] [
O EOS 20D [ Communication] [
O EOS 10D [Communication] [
O EOS DIGITAL REBEL XT/350D DIGITAL [ Communication] [
O EOS DIGITAL REBEL/300D DIGITAL [ Communication] [
Press the < > button to switch the LCD monitor display off
and then set the camera’s power switch to <OFF>.
3
Print/PTP]
Print/PC]
PTP]
PTP]
Print/PTP]
PTP]
Downloading with EOS-1D Series Cameras
Downloading method for the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D Mark II
When using Windows XP, you can use the PTP (Picture Transfer Protocol) function by
connecting the supplied USB interface cable to the camera’s direct print terminal. By using the
PTP function, you can download to your computer JPEG images saved in your camera’s
memory card without having to use EOS Utility.
O This function is compatible with the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D
Mark II.
Plug the dedicated cable into the computer.
1
O Plug the cable into the USB port.
O Refer to the computer User’s Manual for
information on the terminal areas.
Plug the dedicated cable into your camera.
2
O Face the plug’s < > mark towards the
bottom of the camera and then connect
the plug to the camera’s direct print
terminal.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Connect the camera to the computer and set the camera’s power
switch to <ON>
4
¿ The window for selecting the software to use for downloading the images is
displayed.
Select [Microsoft Scanner and Camera Wizard] and click the [OK]
button.
5
¿ The [Scanner and Camera Wizard] dialog box appears.
Download images as directed in the [Scanner and Camera
Wizard] dialog box.
6
O With the PTP function, you cannot download RAW images.
O With the EOS 10D, you must change the firmware to version 2.0.0 or later. For details
on changing, refer to the Canon’s web site.
(p.1-3).
Set the camera’s power switch to <ON>.
3
¿ The window for selecting the software to use for downloading the images is
displayed.
Select [Microsoft Scanner and Camera Wizard] and click the [OK]
button.
4
¿ The [Scanner and Camera Wizard] dialog box appears.
Download images as directed in the [Scanner and Camera
Wizard] dialog box.
5
O If you want to use the PTP function, connect with the USB interface cable supplied
with the camera.
O With the PTP function, you cannot download RAW images.
Troubleshooting
Index
1-8
Page 14
Select [View/Download Images using Canon CameraWindow] and
Precautions for the PTP Function
Due to Windows XP specifications, you may experience the following restrictions with
the PTP function. We recommend downloading shot images using EOS Utility (p.1-6).
• RAW images cannot be downloaded.
(Even if RAW images are displayed, they cannot be downloaded.)
• When a memory card in the camera contains both RAW images and JPEG images,
you may not be able to download the JPEG images.
• Shooting information for downloaded images may be altered or deleted.
• Images cannot be downloaded if there is a large quantity of images in the camera
(approximately 1,000 images).
• It may take several minutes after connecting the camera and your computer until the
PTP function is operational.
• Vertically shot images become horizontal when downloaded, or an image does not
rotate even if you use the Rotate command.
In addition to the above restrictions, you may not be able to download images correctly
depending on your OS version and computer environment.
Downloading Images Using Your Card Reader
You can also download images to the computer using a third-party card reader.
Load the card into the card reader.
1
¿ The dialog box in step 2 appears.
O If the dialog box in step 2 does not appear,
click the [Start] button X select [All
Programs] ([Programs] in Windows 2000)
X [Canon Utilities] X [CameraWindow] X
[CameraWindowMC] X [CameraWindow].
then click the [OK] button.
2
¿ CameraWindow MC (Image downloading
software for card readers) starts up.
Click the [Starts to download images] button or [Lets you select
and download images] button.
3
O To continue, you can download images
using the same procedure as in
“Downloading All the Images in a Single
Operation” (p.1-6) and “Downloading
Selected Images” (p.1-7).
O Depending on the card reader you are using, you may not be able to download
images.
O When downloading images using your card reader, the software that can start up is
limited to ZoomBrowser EX.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
O For information on connecting the card reader to your computer, refer to the card
reader User’s Manual.
O When downloading images to your computer using a third-party card reader without
using Canon software such as EOS Utility or CameraWindow, refer to “Folder
Structure and File Names” (p.5-4) and copy to your computer the folder with the shot
images.
1-9
Page 15
Transferring the Images in a Specified Folder
By inserting images in a transfer origin folder, the images can be transferred to the transfer
destination folder and displayed in Digital Photo Professional or ZoomBrowser EX.
In addition, when using the EOS dedicated Wireless Transmitter WFT-E1/E1A (optional), by
specifying the folder where the shot images will be saved, you can check the shot images in
Digital Photo Professional or ZoomBrowser EX in real time.
Click the [Monitor Folder] button.
1
¿ The [Monitor Folder] dialog box appears.
The above window shows information
displayable when EOS 30D is connected.
The displayed information varies depending
on the camera model connected.
Click the [ ] button.
3
¿ Image transfer preparation is complete.
Insert images in the transfer origin folder.
4
¿ Images are transferred to the transfer destination folder, and ZoomBrowser EX starts
up.
You cannot make the transfer origin folder and the transfer destination folder the same
folder.
You can change the software that starts up when images are transferred, from
ZoomBrowser EX to Digital Photo Professional, in the [Preferences] as described next.
Specifying Preferences
You can perform various EOS Utility settings.
Click the [Preferences] button in the main window (p.1-6).
1
¿ The [Preferences] dialog box appears.
Specify desired settings and click the [OK] button.
2
¿ The settings are applied to the EOS Utility.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Set the transfer origin folder and the transfer destination folder.
2
Monitoring of the folder
specified as the
transfer origin begins.
Monitoring of the folder specified
as the transfer origin is cancelled.
Close the [Monitor Folder]
dialog box to return to the
main window.
Click the [Browse] button
and in the dialog box that
appears, select the
transfer origin folder.
Click the [Change] button
and in the dialog box that
appears, select the
transfer destination folder.
Remote Shooting
4
Troubleshooting
Index
1-10
Page 16
Setting the Cameras other than the EOS-1D Series Cameras
2
This chapter explains the functions that can be set in the EOS 5D, EOS 30D,
EOS 20D, EOS 10D, EOS DIGITAL REBEL XT/350D DIGITAL, EOS
DIGITAL REBEL/300D DIGITAL, EOS D60 and EOS D30.
For instructions on connecting your camera and computer, and for how to start EOS
Utility, refer to Chapter 1 (p.1-3).
O Click on the item to display its page.
Basic Settings.................................................................................................... 2-2
Shot Settings ..................................................................................................... 2-3
Picture Style.................................................................................................... 2-3
White Balance Adjustment.............................................................................. 2-5
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
2-1
Remote Shooting
4
Troubleshooting
Index
Page 17
Basic Settings
tti
X
X
You can perform settings on the camera, such as setting the camera owner’s name and setting
the date and time.
Click the [Camera settings/Remote shooting] button.
1
¿ The camera settings window appears.
The above window shows information
displayable when EOS 30D is connected.
The displayed information varies depending
on the camera model connected.
Click [ ].
2
¿Thebasic se
O Click again to close the basic settings
window.
ngs window appears.
Select the item to be set and specify the settings.
3
¿ The settings are applied to the camera.
You can show/hide the shot
settings window (p.2-3).
The display switches to the
image download window (p.1-7).
You can set the camera’s
date and time.
The camera’s firmware
version is displayed, and
you can perform updates.
Displays the various
camera information.
O When switching to the main window, select the [Window] menu
O If you select the [File] menu
window.
O The above window shows information displayable when the EOS 30D is connected.
The displayed information varies depending on the camera model connected.
Initializing a memory card deletes all the data and the data cannot be recovered. Check
carefully before initializing.
[Exit], EOS Utility exits, including the camera settings
You can show/hide the basic
settings window.
You can enter up to 31
characters and register the
camera owner’s name.
You can initialize the
memory card in the camera.
Closes the window.
Returns to the previous window.
[Main Window].
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
You can shoot photos remotely. For remote
shooting, refer to Chapter 4.
Troubleshooting
Index
2-2
Page 18
Shot Settings
X
X
You can apply various shot settings to the camera.
Click the [Camera settings/Remote shooting] button.
1
¿ The camera settings wiindow appears.
Click [ ].
2
¿ The shot settings window appears.
O Click again to close the shot settings window.
Select the item to be set and specify the settings (p.2-3 to p.2-5).
3
¿ The settings are applied to the camera.
You can show/hide the shot
settings window.
The display switches to the
image download window (p.1-7).
You can show/hide the basic
settings window (p.2-2).
Picture Style
You can select a Picture Style and set it to the camera, or register a Picture Style file,
downloaded from Canon’s web site and saved on your computer, as a user setting in the
camera.
O This function is compatible with the EOS 5D and EOS 30D.
Selecting a Picture Style
Click [Picture Style].
1
¿ The [Picture Style] window appears.
Click the Picture Style to be set in the camera.
2
¿ The settings are applied to the camera,
and the display returns to the shot settings
window.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Displays the various
camera information.
O When switching to the main window, select the [Window] menu
O If you select the [File] menu
window.
O The above window shows information displayable when the EOS 30D is connected.
The displayed information varies depending on the camera model connected.
[Exit], EOS Utility exits, including the camera settings
Returns to the previous window.
Closes the window.
[Main Window].
Remote Shooting
4
Troubleshooting
Index
2-3
Page 19
Detailed Settings
Click [Picture Style].
1
¿ The [Picture Style] window appears.
O You can register up to 3 user settings in your camera.
O When you select [Monochrome] in the [Picture Style] list box, the [Filter effect] and
[Toning effect] list boxes appear.
O Refer to “Registering the Picture Style” in the camera’s Instruction Manual for
information about using the Picture Style registered in the camera.
Click the [Apply] button.
4
¿ The [Confirm settings] dialog box appears.
Cover/Table of
Contents
Introduction
Click [Settings].
2
¿ The [Picture Style setting] dialog box
appears.
Specify desired settings.
3
Select the Picture Style to be set.
If you have selected [User Defined1] to [User
Defined3] in the [Picture Style] list box, you can
click the [Open] button and load a Picture Style
file saved on your computer. You can also
select from the list box the Picture Style that will
become the base style.
Drag the slider for each item left or right to set.
Confirm the settings and click the [OK] button.
5
¿ The settings are registered in the camera.
Click the [Close] button.
6
¿ The [Picture Style setting] dialog box closes.
Select the specified user setting.
7
O Following the “Selecting a Picture Style” procedure (p.2-3), select the specified
Picture Style.
¿ The settings are applied to the camera, and the display returns to the shot settings
window.
A Picture Style file is a file that expands the Picture Style function. For detailed
information on Picture Style file, refer to the Canon’s web site.
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Cancels all the settings and closes the dialog box.
Deletes the selected Picture Style from the camera.
Applies the settings to the camera.
Index
2-4
Page 20
White Balance Adjustment
You can compensate the white balance and apply it to the camera.
O This function is compatible with the EOS 5D, EOS 30D, EOS 20D and EOS DIGITAL
REBEL XT/350D DIGITAL.
Click [WB SHIFT].
1
¿ The white balance adjustment window
appears.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
1
Click the compensation position.
2
¿ The settings are applied to the camera.
Compensates green.
Displays the
compensation value.
Compensates blue.
Click [ ].
3
¿ The display returns to the shot settings window.
O To revert the corrected values to the original values, follow the procedure in step 2.
Compensates amber.
Compensates magenta.
Setting the Cameras
other than the EOS-1D
Series Cameras
2
Setting the EOS-1D
Series Cameras
3
Remote Shooting
4
Troubleshooting
Index
2-5
Page 21
Setting the EOS-1D Series Cameras
3
This chapter explains the functions that can be set in the EOS-1D Mark II N,
EOS-1Ds Mark II, EOS-1D Mark II, EOS-1Ds and EOS-1D.
For instructions on connecting your camera and computer, and for how to start EOS
Utility, refer to Chapter 1 (p.1-4).
O Click on the item to display its page.
Basic Settings.................................................................................................... 3-2
Shot Settings ..................................................................................................... 3-3
Picture Style.................................................................................................... 3-3
Specifying the Personal White Balance .......................................................... 3-5
Specifying the JPEG Quality........................................................................... 3-6
White Balance Adjustment.............................................................................. 3-6
Specifying the Parameters.............................................................................. 3-7
Specifying the Color Matrix ............................................................................. 3-8
Personal Function Settings.............................................................................. 3-8
Description of Personal Functions .................................................................. 3-9
Checking Personal Function Settings........................................................... 3-14
Saving and Loading Personal Function Settings .......................................... 3-15
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
3-1
Remote Shooting
4
Troubleshooting
Index
Page 22
Basic Settings
tti
X
X
You can perform settings on the camera, such as setting the camera owner’s name and setting
the date and time.
Click the [Camera settings/Remote shooting] button.
1
¿ The camera settings window appears.
The above window shows information
displayable when EOS-1D Mark II N is
connected. The displayed information varies
depending on the camera model connected.
Click [ ].
2
¿Thebasic se
O Click again to close the basic settings
window.
ngs window appears.
Select the item to be set and specify the settings.
3
¿ The settings are applied to the camera.
You can show/hide the shot
settings window (p.3-3).
The display switches to the
image download window (p.1-7).
You can set the camera’s
date and time.
Displays the various
camera information.
O When switching to the main window, select the [Window] menu
O If you select the [File] menu
window.
O The above window shows information displayable when the EOS-1D Mark II N is
connected. The displayed information varies depending on the camera model
connected.
[Exit], EOS Utility exits, including the camera settings
You can show/hide the basic
settings window.
You can enter up to 31
characters and register the
camera owner’s name.
You can set the Personal
Function (p.3-8).
Closes the window.
Returns to the previous window.
[Main Window].
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
You can shoot photos remotely. For remote
shooting, refer to Chapter 4.
With the EOS-1Ds and EOS-1D, the [Format] item is displayed and you can initialize the
memory card. Initializing a memory card deletes all the data and the data cannot be
recovered. Check carefully before initializing.
Remote Shooting
4
Troubleshooting
Index
3-2
Page 23
Shot Settings
X
X
You can apply various shot settings to the camera.
Click the [Camera settings/Remote shooting] button.
1
¿ The camera settings window appears.
Click [ ].
2
¿ The shot settings window appears.
O Click again to close the shot settings window.
Select the item to be set and specify the settings (p.3-3 to p.3-8).
3
¿ The settings are applied to the camera.
You can show/hide the shot
settings window.
The display switches to the
image download window (p.1-7).
You can show/hide the basic
settings window (p.3-2).
Picture Style
You can select a Picture Style and set it to the camera, or register a Picture Style file,
downloaded from Canon’s web site and saved on your computer, as a user setting in the
camera.
O This function is compatible with the EOS-1D Mark II N.
Selecting a Picture Style
Click [Picture Style].
1
¿ The [Picture Style] window appears.
Click the Picture Style to be set in the camera.
2
¿ The settings are applied to the camera,
and the display returns to the shot settings
window.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Displays the various
camera information.
O When switching to the main window, select the [Window] menu
O If you select the [File] menu
window.
O The above window shows information displayable when the EOS-1D Mark II N is
connected. The displayed information varies depending on the camera model
connected.
[Exit], EOS Utility exits, including the camera settings
Returns to the previous window.
Closes the window.
[Main Window].
Remote Shooting
4
Troubleshooting
Index
3-3
Page 24
Detailed Settings
Click [Picture Style].
1
¿ The [Picture Style] window appears.
O You can register up to 3 user settings in your camera.
O When you select [Monochrome] in the [Picture Style] list box, the [Filter effect] and
[Toning effect] list boxes appear.
O Refer to “Registering the Picture Style” in the camera’s Instruction Manual for
information about using the Picture Style registered in the camera.
Click the [Apply] button.
4
¿ The [Confirm settings] dialog box appears.
Cover/Table of
Contents
Introduction
Click [Settings].
2
¿ The [Picture Style setting] dialog box
appears.
Specify desired settings.
3
Select the Picture Style to be set.
If you have selected [User Defined1] to [User
Defined3] in the [Picture Style] list box, you can
click the [Open] button and load a Picture Style
file saved on your computer. You can also
select from the list box the Picture Style that will
become the base style.
Confirm the settings and click the [OK] button.
5
¿ The settings are registered in the camera.
Click the [Close] button.
6
¿ The [Picture Style setting] dialog box closes.
Select the specified user setting.
7
O Following the “Selecting a Picture Style” procedure (p.3-3), select the specified
Picture Style.
¿ The settings are applied to the camera, and the display returns to the shot settings
window.
A Picture Style file is a file that expands the Picture Style function. For detailed
information on Picture Style file, refer to the Canon’s web site.
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Applies the settings to the camera.
Deletes the selected Picture Style from the camera.
Drag the slider for each item left or right to set.
Cancels all the settings and closes the dialog box.
Index
3-4
Page 25
Specifying the Personal White Balance
Up to 3 white balance files saved with RAW Image Task can be registered in the camera as
personal white balance.
O These functions are compatible with all EOS-1D series cameras.
O For how to save a white balance file with RAW Image Task, refer to “Processing RAW
Images” in the ZoomBrowser EX Instruction Manual.
O When you register a personal white balance file to the camera, < > to < > is
displayed on the rear LCD display panel of the camera.
O For more information on setting the personal white balance on the camera, refer to
“Selecting the White Balance” in the camera’s Instruction Manual.
Click [Personal white balance].
1
¿ The [Personal white balance settings]
dialog box appears.
Select the personal white balance to be registered.
2
Click the [Open] button.
3
¿ The [Open] dialog box appears.
Displays the setting status for the
personal white balance registered
on the camera along with their
titles.
Closes the dialog box.
Deletes the selected personal white balance from the camera.
Registers the selected personal white balance settings on the camera.
Enter a title for the personal white balance to be registered.
Open the folder containing the saved white balance file, select the
file, and then click the [Open] button.
4
¿ The white balance file is loaded.
Enter a title in the [Title] input box.
5
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Click the [Apply to camera] button.
6
¿ The personal white balance file is registered on the camera.
O To register another setting, repeat steps 2 to 6. You can register up to 3 settings
(PC-1, PC-2 and PC-3).
Click the [Close] button.
7
¿ The [Personal white balance settings] dialog box closes, and the display returns to
the shot settings window.
Remote Shooting
4
Troubleshooting
Index
3-5
Page 26
Specifying the JPEG Quality
You can specify the JPEG quality and register the settings on the camera.
O This function is compatible with the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D
Mark II.
Click [JPEG Quality].
1
¿ The [JPEG Quality] window appears.
Click the setting position.
2
¿ The settings are applied to the camera.
O Higher values give a lower compression
ratio and higher image quality for any size.
Click [ ].
3
¿ The display returns to the shot settings window.
White Balance Adjustment
You can compensate the white balance and apply it to the camera.
O This function is compatible with the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D
Mark II.
Click [WB SHIFT].
1
¿ The white balance adjustment window
appears.
Click the compensation position.
2
¿ The settings are applied to the camera.
Compensates green.
Displays the
compensation value.
Compensates blue.
Click [ ].
3
¿ The display returns to the shot settings window.
O To revert the corrected values to the original values, follow the procedure in step 2.
Compensates amber.
Compensates magenta.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
3-6
Index
Page 27
Specifying the Parameters
You can upload sharpness and contrast settings as well as a tone curve file saved with RAW
Image Task and register up to 3 of these in the camera as processing parameters.
O This function is compatible with the EOS-1Ds Mark II, EOS-1D Mark II, EOS-1Ds and
EOS-1D.
O For how to save a tone curve file with RAW Image Task, refer to “Processing RAW Images”
in the ZoomBrowser EX Instruction Manual.
O For more information on setting the processing parameters on the camera, refer to “Setting
the Processing Parameters” in the camera’s Instruction Manual.
Click [Parameters].
1
¿ The [Parameters settings] dialog box
appears.
Specify desired settings.
3
[Standard]:
The standard tone curve is set.
[User Defined TCD1] to [User Defined
TCD3]:
You can apply the tone curve file saved in
RAW Image Task.
With the EOS-1Ds and EOS-1D, [User
Defined] is displayed and you can select
one tone curve file.
Click the [Add] button and in the dialog box
that appears, select the tone curve file
saved on your computer.
Applies the settings to the camera.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
1
2
Select a tab to be set.
2
Closes the dialog box.
Drag the slider left or right to specify the sharpness and contrast.
With the EOS-1Ds and EOS-1D, [Sharpness] and [JPEG Quality] are displayed. Select
the item to be set from the list box.
Click the [Apply to Camera] button.
4
¿ The [Confirm settings] dialog box appears.
Confirm the settings and click the [OK] button.
5
¿ The processing parameter is registered on the camera.
Click the [Close] button.
6
¿ The [Parameters settings] dialog box closes, and the display returns to the shot
settings window.
Setting the EOS-1D
Series Cameras
3
Remote Shooting
4
Troubleshooting
Index
3-7
Page 28
Personal Function Settings
Specifying the Color Matrix
You can set the color matrix. You can also set in the camera up to 2 color matrix ([6CM set1]
and [7CM set2]) that have color space, color saturation and color tone set optionally.
O This function is compatible with the EOS-1Ds Mark II and EOS-1D Mark II.
O For more information on setting the color matrix on the camera, refer to “Selecting the Color
Matrix” in the camera’s Instruction Manual.
Click [Color matrix].
1
¿ The [Color matrix] window appears.
Click the color matrix to be set in the camera.
2
¿ The settings are applied to the camera,
and the display returns to the shot settings
window.
O For the color space, color saturation and
color tone of [6CM set1] or [7CM set2],
click the [Settings] button and set in the
[Color matrix settings] dialog box that
appears.
You can set detailed settings for each function and apply them to the camera. You can also
save the specified settings on your computer and load the saved settings.
O These functions are compatible with all EOS-1D series cameras.
Click the [ ] button.
1
¿ The basic settings window appears.
Click [Personal functions].
2
¿ The [Personal functions] dialog box
appears.
Select a tab to be set.
3
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
The optional settings [Color space], [Saturation] and [Color tone] in the [Color matrix
settings] dialog box can only be set when [6CM set1] or [7CM set2] is selected in the
[Color matrix] list box.
Loads the details of the Personal
Functions that have been specified on
the camera.
All data set in each window is cancelled.
Cancels all the settings and closes the
dialog box.
Applies the settings
to the camera.
¿ The selected window appears.
O In the [Combination] tab sheet, you can check the specified Personal Function
settings and the status of whether or not the settings are applied to the camera. You
can also save and load the Personal Function settings (p.3-14, p.3-15).
Applies the settings to the camera
and closes the dialog box.
Troubleshooting
Index
3-8
Page 29
Checkmark the box [ ] and specify desired settings (p.3-9 to p.3-14).
4
O If you enter a numerical value, values outside the valid range of settings are ignored.
Check the settings and save them on your computer if necessary
(p.3-14, p.3-15).
5
Click the [OK] button.
6
¿ The settings are applied to the camera,
the [Personal functions] dialog box closes,
and the display returns to the basic
settings window.
¿ When a Personal Function is applied to
the camera, < > appears on the LCD
panel.
Description of Personal Functions
O The shown in this section provides brief descriptions of the Custom Function Settings
for the respective camera functions. For more details, refer to “Custom Function Settings” in
the camera’s Instruction Manual supplied with the camera.
P.Fn-01
O Checkmark the shooting modes you do not want to use.
O Unwanted shooting modes can be skipped while you are selecting the shooting mode.
O This makes selecting the desired shooting mode faster.
O With the EOS-1Ds and EOS-1D, [Disable depth-of-field AE] is also displayed.
P.Fn-02
O Checkmark the metering modes you do not want to use.
O Unwanted metering modes can be skipped while you are selecting the metering mode.
O This makes selecting the desired metering mode faster.
P.Fn-03
O Select the metering mode to be specified.
O You can specify the metering mode to be used in the manual exposure mode.
O When you set the manual exposure mode, the metering mode selected here will be set
Disables the shooting modes
At least one checkbox must be left unchecked.
Disables the metering modes
At least one checkbox must be left unchecked.
Specifies the metering mode for manual exposure
automatically. In the manual exposure mode, this enables you to use a metering mode
different from the one used in the AE modes.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
3-9
Troubleshooting
Index
Page 30
P.Fn-04
O Select the maximum and minimum shutter speeds from the list box.
O This makes shutter speed selection faster and prevents a slow-speed sync. in aperture-
P.Fn-05
O Select the maximum and minimum apertures from the list box.
O You can better control the apertures used by setting the range of usable apertures.
P.Fn-06
O Only while you press the < > button, you can switch to the preset shooting mode,
O Select settings that are appropriate for each shooting mode.
O The modes and settings are preset with the camera.
O Convenient when you want to instantly select the preset modes and settings to suit a
Sets the maximum and minimum shutter speeds to be used
For example, if you set 1/2000 sec. as the fastest shutter speed and 1/60 sec. as the
slowest, the shutter speed range will be 1/2000 to 1/60 sec.
priority AE mode with the flash.
O If you set the maximum and/or minimum shutter speed to one that is not a full-stop
increment (such as 1/750 sec.), the controllable and settable shutter speed range
might not be as exact as you set it (A slight deviation may occur.). This applies if you
also set Custom Function C.Fn-6-1 and C.Fn-6-2 and set the maximum and/or
minimum shutter speed to one that is not a full-stop increment (such as 1/3200 sec.).
O To ensure that a proper flash sync speed is set in the Program AE mode, a shutter
speed range of 1/200 sec. to 1/80 sec. cannot be set with the EOS-1D Mark II N,
EOS-1Ds Mark II, EOS-1D Mark II and EOS-1Ds, and the range of 1/400 sec. to 1/80
sec. cannot be set with the EOS-1D.
O If safety shift has been enabled (with C.Fn-16), it will override P.Fn-04’s shutter
speed range.
Sets the maximum and minimum apertures to be used
For example, if you set 1.4 for the largest aperture (minimum f/number) and 8.0 for the
smallest aperture (maximum f/number), the usable aperture range will be f/1.4 to f/8.0.
O Specify a minimum aperture value that is smaller than the maximum aperture setting.
If you select a minimum aperture value that is larger than the maximum aperture, a
warning message appears and the setting reverts to the default value.
O If you set the maximum and/or minimum aperture to one that is not a full-stop
increment (such as f/4.5), the controllable and settable aperture range might not be
as exact as you set it (A slight deviation may occur.). This applies if you also set
Custom Function C.Fn-6-1 or C.Fn-6-2 and set the maximum and/or minimum
aperture to one that is not a full-stop increment (such as f/6.3).
O If the largest aperture of the attached lens is smaller than the largest aperture you set
with P.Fn-05, the largest aperture will be set to the lens’ largest aperture. And if the
largest aperture of the attached lens is smaller than the smallest aperture you set with
P.Fn-05, the aperture will be set and fixed to the lens’ largest aperture.
O If safety shift has been enabled (with C.Fn-16), it will override P.Fn-05’s aperture range.
Registers and switches the shooting mode and metering mode
exposure setting (such as the aperture for aperture-priority AE), metering mode, and
exposure compensation amount.
particular shooting situation such as backlit or front-lit conditions.
P.Fn-06
1
2
O To register the modes and settings, first press the < > button before the < >
O Bulb cannot be preset.
O You cannot select the registered modes and settings during continuous shooting.
O If P.Fn-03 has been set to specify the metering mode for manual exposure, and
O If P.Fn-04 and/or P.Fn-05 has been set, set the shutter speed and aperture within
O If the shooting and metering modes you want to set are excluded by the
O Even if the shooting and metering modes selected by P.Fn-06 are excluded by the
Registering the Modes and Settings with the Camera
Set the shooting mode and shooting mode settings (for
example, aperture setting for aperture-priority AE mode). Then
set the metering mode and exposure compensation amount.
Register the modes and settings.
O First press the < > button, then press
the < > button.
¿ < >appears in the LCD panel,
indicating that the modes and settings
have registered.
O The registered modes and settings can
be modified any number of times.
button. If you press the < > button first, the camera will only select the
registered modes and settings instead.
P.Fn-06 is used to register the manual exposure mode and a metering mode
different from the one specified with P.Fn-03, you can select the metering mode
specified with P.Fn-03 by pressing the < > button.
the range specified with P.Fn-04 and/or P.Fn-05.
restrictions in P.Fn-01 and P.Fn-02, those Personal Functions must be disabled.
For information on clearing and resetting Personal Functions, refer to “Clearing
and Resetting Personal Functions” in the camera’s Instruction Manual supplied
with the camera.
restrictions in P.Fn-01 and P.Fn-02, they are still valid for P.Fn-06.
O If C.Fn-4-1 or C.Fn-4-3 has been set, AF and AE will also take effect when you
press the < > button.
O When C.Fn-18 is set, P.Fn-06 is disabled.
3-10
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
Page 31
P.Fn-07
O While you hold down the shutter button, bracketing repeats continuously in the currently
O This function is useful when you want to continuously repeat the bracketing sequence.
P.Fn-08
O Select the number of shots from the list box.
O The usual 3-shot bracketing is changed to 2-, 3-, 5-, or 7-shot bracketing.
O In bracketing shots, if you select 5-shot bracketing with 1-stop increment, the bracketing for
O This function is useful for adjusting the range of bracketing.
P.Fn-09
Repeats bracketing during continuous shooting
selected drive mode.
Sets the number of shots to be bracketed
the shots is –2, –1, 0, +1 and +2.
O Even when the setting is outside the bracketing level display range, the exposure is
compensated as specified.
O This function can be used in combination with C.Fn-09-2/3 and P.Fn-09.
Changes the bracketing sequence for C.Fn-09-2/3 to increased
exposure, standard exposure, and decreased exposure
O The bracketing sequence when C.Fn-09-2/3 is selected (decreased exposure J standard
exposure J increased exposure) changes to increased exposure J standard exposure J
decreased exposure.
O This function is useful when you want to start the bracketing sequence with a increased
exposure.
This function can be used in combination with P.Fn-08.
P.Fn-10
O Normally, any program shift amount is canceled after you take the picture. This Personal
O This function is useful when you want to shift the standard program line so that priority is
By shifting the program, you can change the shutter speed or aperture and still retain the same
exposure level. Under the same brightness, you can shift the program line toward the right to
set a faster shutter speed and a larger aperture (lower f/number). Or you can shift the program
line toward the left to set a slower shutter speed and a smaller aperture (higher f/number).
P.Fn-10 retains the amount of program shift. Select the appropriate amount of shift for the level
of priority you want to give to the shutter speed or aperture setting.
Retains the shift amount for program shift
Function retains the program shift amount.
given to the shutter speed or to the aperture.
Darker Brightness (EV at ISO100) Brighter
9 1011121314151617181920 21
567
4
3
2
1
0
-1
-2
-3
-4
-5
8
4
2
8
Standard program line
Program line shifted toward a faster shutter speed.
Program line shifted toward a slower shutter speed.
421
8 15 30 60 125 250
2000100030 15
500
Shutter Speed
2322
32
80004000
Aperture
22
16
11
8
5.6
4
2.8
2
1.4
1.0
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
1
Setting the Cameras
other than the EOS-1D
Series Cameras
2
Setting the EOS-1D
Series Cameras
3
Remote Shooting
4
With EF50mm f/1.4 USM
O The program shift amount remains in effect until you set it back to the standard program
manually or replace the battery or press the <CLEAR> button.
O The shift amount is retained even after you change the lens.
P.Fn-13
Executes AI Servo AF continuous shooting giving priority to
the drive speed
O This function is compatible with the EOS-1D only.
O During continuous shooting, shutter release-priority takes effect instead of focus-priority.
O Effective when it is more important to capture an image even though it might be slightly out
of focus.
3-11
Troubleshooting
Index
Page 32
P.Fn-14
O Normally, when you press the shutter button halfway and focus cannot be achieved, the
O When focus has been achieved once and refocusing fails, the subsequent lens driving
P.Fn-15
O This disables the external Speedlite’s built-in AF-assist beam.
O At a joint photo session, etc., this prevents the AF-assist beam’s pattern projected on the
P.Fn-16
O This takes the picture automatically when the subject comes to the preset focusing distance.
O
O Keep pressing the shutter button fully.
O Using an accessory such as Remote Controller RS-80N3 which can lock the shutter button
Disables focus detection (search driving) by the lens drive
lens is driven to search the correct focus. This lens driving operation can be turned off.
operation can result in grossly out of focus. This subsequent lens driving operation is turned
off. P.Fn-14 is especially suited for super telephoto lenses.
If autofocusing is attempted while the lens is way out of focus, the lens may stop
operating. Focus manually until the subject outline becomes discernable, then
autofocus.
Disables the AF-assist beam from being emitted
subject from being photographed by other photographers.
Enables automatic shooting when focus is achieved at the
fixed point of focus while the shutter button is pressed fully
Focusing detection is performed using the selected AF point.
Set the lens focus mode switch to <MF> and focus manually at the desired point of focus.
relieves you from holding down the shutter button while you wait for the subject.
O Because the camera remains on standby while the shutter button is fully pressed,
battery power is used up more quickly. For long periods of photography, use the DC
Coupler Kit supplied with the camera.
O When this function is used in combination with a flash, the flash remains on standby
at full charge. Consequently, the flash batteries are used up more quickly. (The
Speedlite’s SE mode is disabled.)
O When you use a flash with this function, set the drive mode to single shooting. If you
select continuous shooting, the flash will be unable to charge in time for successive
shots and will not fire at full charge.
O If you set the drive mode to continuous shooting, set the number of shots in P.Fn-20.
If you do not use P.Fn-20, once the camera focuses on the subject, continuous
shooting will continue until the capacity of the memory card is reached.
O P.Fn-16 cannot be used with manual focus lenses or with lenses that are too slow to
be used with autofocusing.
O Do not use this function when C.Fn-4-1/3 is set as shots will be taken regardless of
whether the image is in focus.
P.Fn-17
O When you select beyond the peripheral AF point, the selection stops there. It makes
P.Fn-18
O Enables the standard horizonal AF point selection together with automatic AF point
O Convenient when you want to use automatic AF point selection while C.Fn-11-2 has been
P.Fn-19
O In the list box, select the speed of continuous shots during continuous shooting.
O By reducing the maximum continuous shooting speed, AI Servo AF continuous shooting can
O With the EOS-1Ds Mark II and EOS-1Ds, only [Continuous Shooting] is displayed.
P.Fn-20
O This enables you to enter the maximum number of shots to be exposed during continuous
O Convenient when you do not want to shoot an unwanted scene that follows.
Disables automatic AF point selection
selecting a peripheral AF point faster.
O If C.Fn-11-2 has been set, you can switch to automatic AF point selection by pressing
the < > button during autofocusing. For more details, refer to “Selecting the AF
Point” in the camera’s Instruction Manual supplied with the camera.
O If automatic AF point selection has been preset at [AF frame registration] setting, the
preset setting remains valid. For more details, refer to “Registering and Switching the
AF Point” in the camera’s Instruction Manual supplied with the camera.
Enables automatic AF point selection when C.Fn-11-2 has
been set
selection with C.Fn-11-2.
set.
If P.Fn-17 [Disables automatic AF point selection] has also been set, P.Fn-17 will
override P.Fn-18 to disable automatic AF point selection.
Sets the continuous shooting speed
be more stable.
In AI Servo AF, it may not be possible to complete the selected speed of continuous
shots.
Limits the number of shots during continuous shooting
shooting while the shutter button is pressed fully.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
Using an accessory such as Remote Controller RS-80N3 which can lock the shutter
button is recommended.
3-12
Page 33
P.Fn-21
O When single shooting is selected, this function selects quiet camera operation when you
O This is useful when the camera operation noise would be disturbing after you take the
P.Fn-23
O After you press and release a button, the respective function remains active for a specific
O The function’s activation time can be set from 0 to 3600 sec. (1 hour).
O If the standard activation time is too short or too long, you can adjust it.
P.Fn-24
O After the bulb exposure starts, press the <LCD panel illumination> button to illuminate the
O Convenient when you want to monitor the elapsed bulb exposure time.
Enables quiet operation when the shutter button is OFF after
picture-taking
release the shutter button from the fully pressed position to the half way position.
picture.
If you select continuous shooting, the camera operates normally.
Setting mirror lockup with C.Fn-12 will further reduce the shooting noise.
Changes the timer’s time length
number of seconds. You can change this number of seconds as necessary.
6 sec. timer
16 sec. timer O FE lock time after you press the < > button.
Post-shutter
release timer
(2 sec. timer)
Note that if you set a longer activation time, the battery become exhausted more quickly
and the number of possible shots will be reduced.
To turn off the function’s activation time midway, press the < > button, < >
button or < > button.
Illuminates the LCD panel during bulb exposures
LCD panel until the bulb exposure ends.
Note that if you take bulb shots for long periods, the battery becomes exhausted more
quickly and the number of possible shots will be reduced.
O AE lock time after you press the shutter button halfway or the < >
button.
O Exposure setting retaining time after the picture is taken. Setting
this to a longer time can make it easier to shoot in the same
exposure with AE lock.
O LCD panel illumination time after the picture is taken.
P.Fn-25
O You can use this function to select the default settings when you press the <CLEAR>
O Convenient when you want to instantly switch to frequently-used settings.
P.Fn-26
O This function is compatible with the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D
O Normally, the shutter-release time lag is controlled for stability. This Personal Function
O This is effective when a shorter shutter-release time lag is more important than a stable
P.Fn-27
O The electronic dial’s rotational function can be reversed for selecting the AF point and
O By matching the dial’s rotation direction to the particular operation, the operation can feel
P.Fn-28
O The Quick Control Dial cannot be used to set exposure compensation.
O This prevents exposure compensation from being set accidentally while the AF point is
Sets the default settings when the <CLEAR> button is ON
button.
Shortened release time lag
Mark II.
eliminates this control. As a result, the shutter-release time lag can be reduced by as much
as about 20 percent when the aperture needs to be stopped down by no more than 3 stops.
shutter-release time lag.
Since the difference is in 10-millisecond increments, the time lag may not feel any
shorter.
Enables the electronic dial’s function to be used in the reverse
direction
setting the shutter speed and aperture.
more intuitive.
When the Main Dial’s rotational function is reversed, the horizontal AF point selection
direction does not change.
Prevents exposure compensation with the Quick Control Dial
being selected.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
3-13
Page 34
P.Fn-30
O This function is compatible with the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D
O Setting the Quick Control Dial switch to <OFF> disables the Main and Quick Control Dials.
Enables Quick Control Dial switch to turn on/off Main Dial, too
Mark II.
Checking Personal Function Settings
You can check the specified Personal Functions and the status of whether or not the settings
are applied to the camera.
Cover/Table of
Contents
P.Fn-30
O This function is compatible with the EOS-1Ds only.
O Select which part of an image is enlarged.
O If you take the shot on the camera with this function [ON], you can enlarge an image.
O For more imformation on using this function on the camera, refer to “P.Fn-30 Enlarging the
P.Fn-31
O This function is compatible with the EOS-1D Mark II N, EOS-1Ds Mark II, EOS-1D Mark
O The data that shows whether or not the image is the original one can be added to the image.
O To verify whether the image is the original, you will need the EOS dedicated accessory Data
Enlargement mode
image” in the EOS-1Ds Instruction Manual.
O If you wish to enlarge an image, set P.Fn-30 to [ON] during shooting and playback.
The image shot on the camera without setting P.Fn-30 to [ON] cannot be enlarged.
O The image shot on any camera other than the EOS-1Ds cannot be enlarged.
Add original decision data
II and EOS-1Ds.
When selecting the display format of Shooting information (INFO), the [ ] icon showing the
captured image with Original image verification data is displayed.
For more details, refer to “Shooting Information Display” in the camera’s Instruction Manual.
Verification Kit DVK-E2 (optional).
The original decision data cannot be added to the JPEG or TIFF image converted from
the RAW image.
Specify the Personal Functions (p.3-8 to p.3-14).
1
Select the [Combination] tab.
2
¿ The [Combination] tab sheet appears.
Check the settings.
3
O You can check the Personal Function
settings and check if these settings are
applied on the camera.
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
You can load the Personal
Function settings saved on
your computer (p.3-15).
You can save the specified Personal
Function settings (p.3-15).
Troubleshooting
Index
3-14
Page 35
Saving and Loading Personal Function Settings
You can save the specified Personal Function settings on your computer as a Personal
Function settings file and then load the saved Personal Function settings file and apply the
settings to the camera.
Saving the Settings on Your Computer
Cover/Table of
Contents
Introduction
Click the [Save as] button.
1
¿ The [Save As] dialog box appears.
Select the destination folder, enter the file name, and then click
the [Save] button.
2
¿ The specified Personal Function settings are saved to the computer as a Personal
Function settings file.
The Personal Function settings file is not compatible with a camera other than the one
the function was set.
O To update an existing Personal Function settings file, click the [Save] button.
O Personal Function settings file saved in your computer is compatible with both
Windows and Macintosh.
Loading the Settings Saved on Your Computer
Click the [Open] button.
1
¿ The [Open] dialog box appears.
Open the folder containing the settings, select the file, and then
click the [Open] button.
2
¿ The saved Personal Function settings file is loaded.
Click the [OK] button.
3
¿ The loaded settings are applied to the
camera, the [Personal functions] dialog
box closes, and the display returns to the
basic settings window.
¿ When a Personal Function is applied to
the camera, < > appears on the LCD
panel.
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
3-15
Page 36
4
X
Remote Shooting
Cover/Table of
Contents
This chapter explains how to take shots remotely by controlling from your
computer.
For instructions on connecting your camera and computer, and for how to start EOS
Utility, refer to Chapter 1 (p.1-1).
O To perform remote shooting and camera settings for a camera with [Communication]
included as a menu function, you need to set the [Communication] according to the
following table.
[Communication] settings for different cameras
Camera model Menu Setting
O EOS 5D [ Communication] [PC connect.]
O EOS 30D [ Communication] [Print/PC]
O EOS 20D [ Communication] [Normal]
O EOS 10D [Communication] [Normal]
O EOS DIGITAL REBEL XT/350D DIGITAL [ Communication] [PC connection]
O EOS DIGITAL REBEL/300D DIGITAL [ Communication] [Normal]
For instructions on settings, refer to “Setting a Camera with [Communication] Settings”
(p.1-2).
O Click on the item to display its page.
Remote Shooting............................................................................................... 4-1
Single Shooting............................................................................................... 4-1
Timer Shooting ............................................................................................... 4-2
Interval Timer Shooting................................................................................... 4-2
Specifying the Camera Settings ...................................................................... 4-3
Remote Shooting
Single Shooting
You can take a shot by remote controlling your camera from a computer.
Click the [Camera settings/Remote shooting] button.
1
¿ The camera settings window appears.
O When switching to the main window, select
the [Window] menu
[Main Window].
The above window shows information
displayable when EOS 30D is connected.
The displayed information varies depending
on the camera model connected.
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Specifying Preferences..................................................................................... 4-3
Index
4-1
Page 37
Specify desired settings.
X
2
Allows you to specify and
check the camera settings
(p.4-3).
You can rotate and download the
shot images regardless of the
camera position. Each time you click
the button, the image rotates 90°.
* When using the rotation function,
select the [File] menu X
[Preferences], and checkmark the
[Rotate image] in the [Remote
Shooting] tab sheet.
Shoot button
Click to take a shot.
Timer Shooting
You can automatically take a shot when the specified time elapses.
Select the [Tool] menu X [Timer shooting]
1
¿ The [Timer shooting setting] dialog box appears.
Enter a delay time and click the [Start] button.
2
O Enter a value between 0 seconds and 99 minutes 59 seconds in 1-second
increments.
¿ The shot is taken when the specified time elapses.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
1
O The above window shows information displayable when the EOS 30D is connected.
The displayed information varies depending on the camera model connected.
Click the [ ] button.
3
¿ The shot image is transferred to your computer and is displayed in ZoomBrowser EX.
O Alternatively, you can press the camera’s shutter button to take a shot.
O If you select the [File] menu
window.
O If the camera is not ready for shooting (the lens is not attached, etc.), you cannot
perform the operation as explained.
O When you are using auto focus, you cannot take shots if the camera cannot focus. In
this case, focus manually.
O Bulb exposure is not available.
O Alternatively, you can press the space bar to take a shot.
O The number of available shots changes depending on the available capacity on your
computer’s hard disk. Check the Shots to Go display (p.4-3).
O The transfer time to the computer of RAW images shot remotely is approximately 4 to
7 seconds.
• The above time is only an estimate. Transfer times vary widely depending on the
camera model used, the type of computer, and the subject of the photo.
• Transfer times are based on Canon testing standards.
(When using the following: OS: Windows XP, CPU: 2.2 GHz Pentium 4; RAM: 512MB)
• The times for images shot in JPEG will be shorter than those shown above.
O You can change the software that starts up when you download images, from
ZoomBrowser EX to Digital Photo Professional (p.4-3).
[Exit], EOS Utility exits, including the camera settings
Interval Timer Shooting
You can automatically take shots by setting the interval between shots and the number of shots
to be taken.
Select the [Tool] menu X [Timer shooting].
1
¿ The [Timer shooting setting] dialog box appears.
Checkmark the [Interval timer shooting].
2
Enter the shooting interval and the number of shots. Then click
the [Start] button.
3
O Enter a value between 5 seconds and 99 minutes 59 seconds in 1-second
increments.
O For EOS-1D series cameras, the number of shots is 2 to maximum 1999; for cameras
other than the EOS-1D series cameras, the number of shots is 2 to maximum 999.
¿ Shooting is performed at the specified interval and for the specified number of shots.
On some types of computers, if you set a short interval between shots and there is
insufficient time to download and save the images, it may not be possible to take shots at
the specified interval. In this case, set a longer interval between shots and take the shots
again.
Setting the Cameras
other than the EOS-1D
Series Cameras
2
Setting the EOS-1D
Series Cameras
3
Remote Shooting
4
Troubleshooting
Index
4-2
Page 38
Specifying the Camera Settings
You can check and change the settings in the camera from your computer remotely.
Check the camera setting.
1
Shooting mode
White Balance
Metering mode
Exposure
compensation
Bracket shots
Battery status
When you are using a battery,
[ ] is displayed. When you
are using the AC Adapter Kit
(optional) or DC Coupler Kit, [ ]
is displayed.
O The above window shows information displayable when the EOS 30D is connected.
O Set the functions which you cannot set remotely (drive mode, AF mode etc.) directly
O In the [Remote Shooting] tab sheet in the [Preferences], you can save shot images to
Click the icon to be set.
2
O The icon displayed here shows exposure
Use the buttons to change a value.
3
¿ The changed settings are applied to the camera.
Image recording quality
The displayed information varies depending on the camera model connected.
in the camera.
both your computer and the memory card by setting [Save also to camera’s memory
card].
compensation as an example.
Allows you to decrease
the value by 1 step.
Specifies the
minimum value.
Shutter speed
Aperture
ISO Speed
Save destination of shot images
The [Preferences] dialog box is
displayed and you can set the save
destination for shot images.
Drive mode
AF mode
Shots to Go
Displays the number of
available shots.
Warning display
Displayed when the remote shooting is
impossible due to inappropriate settings.
Allows you to increase
the value by 1 step.
Specifies the
maximum value.
Settable functions and settings displays by camera model
EOS-1D Mark II N
EOS-1Ds Mark II
EOS-1D Mark II
EOS-1Ds
Shooting mode
Shutter speed
Aperture
White balance
ISO speed
Metering mode
Image recording quality
Save destination of shot images
Exposure compensation
Bracket shots
Drive mode
AF mode
Battery status
Warning display
Shots to Go
: Allows you to display camera settings and perform camera settings
: Allows you to display camera settings; camera settings not possible
*1
: Display with EOS-1Ds not possible
*2
: Setting with EOS 10D not possible
*1
EOS 5D
EOS 30D
EOS 20D
EOS DIGITAL REBEL
XT/350D DIGITAL
EOS 10D
EOS DIGITAL REBEL/
300D DIGITAL
--
Specifying Preferences
You can perform various EOS Utility settings.
Select the [File] menu X [Preferences]
1
¿ The [Preferences] dialog box appears.
Specify desired settings and click the [OK] button.
2
¿ The settings are applied to the EOS Utility.
Cover/Table of
EOS-1D
EOS D60
EOS D30
Contents
Introduction
*2
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
Before you specify the settings, be sure to check that the camera is ready for shooting. If
the camera is not ready for shooting (the lens is not attached, etc.), you cannot make
some of the settings.
4-3
Page 39
Troubleshooting
This chapter provides troubleshooting and explains how to uninstall the
software.
Troubleshooting
If you could not complete the installation correctly, or communication between the camera and
computer fails, or you connected the camera and computer before installing the software,
consult the items described below.
O For instructions on installing, refer to the “Software Guide” supplied with the camera.
Installation failed.
O Are you using Windows XP under a setting other than [Computer
administrator] privileges or using Windows 2000 under a setting other than
[Administrator] privileges?
J You cannot install software if a user setting other than [Computer administrator]
privileges or [Administrator] privileges is selected. Select the [Computer administrator]
privileges user setting in Windows XP or the [Administrator] privileges user setting in
Windows 2000. For detailed information on selecting the user setting, refer to your
computer’s instruction manual.
O Is the cable firmly plugged into its socket?
J To complete the installation, ensure that the plugs on the dedicated cable are securely
plugged into the ports on the camera and computer when you connect the camera to
your computer.
O Are the camera and computer set up correctly for communication?
J Is the camera’s power switch set to <ON>?
J Even when the camera’s power switch is set to <ON>, operation of the Auto power off
function will automatically switch the camera off. To prevent this, set the Auto power off
function to [Off]. For more details, refer to the camera’s Instruction Manual supplied with
the camera.
O Does the [Add New Hardware Wizard] ([Found New Hardware Wizard] in
Windows 2000) dialog box appear during installation?
J Click the [Cancel] button, disconnect the dedicated cable, and then repeat the
installation procedure from the beginning.
O Doesn’t the installer panel appear?
J Use the following procedure to display the installer panel.
Click the [Start] button X [My Computer]. (In Windows 2000, double-click
[My Computer] on the desktop.) X click on the CD-ROM drive containing
the CD with the right button on the mouse X select [Open] from the menu
that appears X double-click the icon on the right.
O Click on the item to display its page.
Troubleshooting ................................................................................................................ 5-1
Uninstalling the Software ................................................................................................. 5-3
Uninstalling the Driver .................................................................................................... 5-3
Folder Structure and File Names ..................................................................................... 5-4
Index ................................................................................................................................... 5-4
I have installed the software but the camera and
computer cannot communicate.
O Is the driver installed?
J The driver is required for communication between the camera and computer. When you
want to communicate between the camera and computer, be sure to install the driver
shown below appropriate to your windows.
• Windows XP: WIA Driver
• Windows 2000: TWAIN Driver
O Have you installed the WIA Driver or TWAIN Driver?
J Even if you have installed the WIA Driver or TWAIN Driver, installation is not completed
unless the camera is connected to the computer. Insert the Solution Disk into the CD-ROM
drive, install the WIA Driver or TWAIN Driver, and then connect the camera to your
computer.
O Does your computer comply with these requirements?
Cameras other than EOS-1D series cameras
J Computer with Windows XP or Windows 2000 preinstalled and equipped with a USB
port as a standard feature.
* Operation is not guaranteed when a connection is used on computer systems other
than those listed above.
EOS-1D series cameras
J Computer with Windows XP or Windows 2000 preinstalled and equipped with an
OHCI-compliant IEEE1394 port.
* Operation is not guaranteed when a connection is used on computer systems other
than those listed above.
O Are the camera and computer connected correctly?
J Connect the camera to your computer correctly using the dedicated cable (p.1-3, p.1-4).
O Have you made the correct [Communication] settings for cameras that
require [Communication] settings?
J Set the camera’s [Communication] to [PC connect.] or [PC connection] for the EOS 5D
and EOS DIGITAL REBEL XT/350D DIGITAL, to [Print/PC] for the EOS 30D, and to
[Normal] for the EOS 20D, EOS 10D and EOS DIGITAL REBEL/300D DIGITAL (p.1-2).
* With the EOS 10D, you must also change the firmware to version 2.0.0 or later. For
details on changing, refer to the Canon’s web site.
5-1
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
Index
Page 40
O Is there sufficient charge left in the camera battery?
J Your computer does not supply power to the camera. Connect the AC Adapter Kit
(optional) for the EOS 5D, EOS 30D, EOS 20D, EOS 10D, EOS DIGITAL REBEL XT/
350D DIGITAL and EOS DIGITAL REBEL/300D DIGITAL, the DC Coupler supplied with
the camera for the EOS D60 and EOS D30, and the DC Coupler Kit supplied with the
camera for the EOS-1D series cameras. Alternatively, insert a fully charged battery and
connect your computer and camera.
O Do you have more than one camera connected to your computer?
If you connect more than one camera to the same computer, the driver and camera may not
operate normally.
J Exit the software and disconnect all the dedicated cables. Then connect only one
camera to the same computer again.
O Is the driver operating normally?
Connect the camera to your computer
with the dedicated cable and set the
camera’s power switch to <ON> and
open [Device Manager].
Click the plus symbol [+] to the left of
[Imaging devices] and check that the
connected camera is displayed.
J If the connected camera is not
displayed, the driver is not operating
normally.
Briefly disconnect and then reconnect the dedicated cable, ensuring that the connection
is secure. If the connected camera still does not appear, use the following procedure to
re-install the driver.
1 Disconnect the dedicated cable and delete the driver (p.5-3).
2 Re-install the driver.
J When the [X], [!] or [?] symbol is displayed beside the connected camera, part of the
driver is missing or corrupted. Use the following procedure to re-install the driver.
1 Delete the camera displayed in [Imaging devices].
2 Disconnect the dedicated cable and delete the driver (p.5-3).
3 Re-install the driver.
O Is the driver installed correctly?
J Connect the camera to your computer with the dedicated cable and set the camera’s
power switch to <ON> and open [Device Manager]. Click the plus symbol [+] to the left of
[Other devices] or [Unknown devices] and check whether the connected camera or
[Canon Digital Camera] is displayed.
J If the connected camera or [Canon Digital Camera] is displayed in [Other devices] or
[Unknown devices], the driver was not installed correctly. Use the following procedure to
re-install the driver.
1 Delete the camera or [Canon Digital Camera] displayed in [Other devices] or
[Unknown devices].
2 Disconnect the dedicated cable and delete the driver (p.5-3).
3 Re-install the driver.
I connected the camera to the computer before installing
the software
O Did you set the camera’s power switch to <ON>?
J If you did not set the camera’s power switch to <ON>, proceed as follows:
1 Disconnect the dedicated cable from the camera and computer.
2 Install the Solution Disk software on your computer using the correct installation
procedure and then connect the camera to your computer to complete the installation.
J If you set the camera’s power switch to <ON>, proceed as follows:
1 If [Found New Hardware Wizard] or any other dialog boxes appear, click the [Cancel]
buttons to cancel all the dialog boxes.
2 Set the camera’s power switch to <OFF>.
3 Disconnect the dedicated cable from the camera and computer.
4 Install the Solution Disk software on your computer using the correct installation
procedure and then connect the camera to your computer to complete the installation.
To Display the Device Manager
O Windows XP
J Click the [Start] button X select [Control Panel] X [Performance and Maintenance]
X [See basic information about your computer]. Then select the [Hardware] tab
and click the [Device Manager] button.
O Windows 2000
J Click the [Start] button X select [Settings] X [Control Panel]. Then double-click the
[System] icon to open and select the [Hardware] tab and click the
[Device Manager] button.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
Troubleshooting
5-2
Index
Page 41
Uninstalling the Software
O Log in under [Computer administrator]/[Administrator] privileges when uninstalling the
software.
O Before starting the software uninstallation, exit all programs you are using and disconnect
the dedicated cable from your computer.
O To prevent computer malfunctions, always restart your computer after you have uninstalled
the software. Re-installing the software without first restarting your computer is likely to
result in computer malfunctions.
Click the [Start] button X select [All Programs] ([Programs] in
Windows 2000) X [Canon Utilities] X [EOS Utility] X [EOS Utility
1
Uninstall].
Proceed with the uninstallation as directed by the on-screen
messages.
2
¿ Software is uninstalled.
Uninstalling the Driver
This section explains how to uninstall the EOS-1D Mark II N, EOS-1Ds Mark II, EOS 5D, EOS
30D, EOS 20D and EOS DIGITAL REBEL XT/350D DIGITAL driver. Refer to the software
Instruction Manual supplied with the camera about deleting drivers in cameras other than those
mentioned above.
O Log in under [Computer administrator]/[Administrator] privileges when uninstalling the
driver.
O Before starting the driver uninstallation, exit all programs you are using and disconnect the
dedicated cable from your computer.
Uninstall [EOS XXX WIA Driver] or [EOS XXX TWAIN Driver].
1
O Your camera model is displayed in EOS XXX.
O For Windows XP, click the [Start] button X select [All Programs] X [Canon Utilities] X
[EOS XXX WIA Driver] X [WIA Driver Uninstall].
O For Windows 2000, click the [Start] button X select [Programs] X [Canon Utilities] X
[EOS XXX TWAIN Driver] X [TWAIN Driver Uninstall].
Proceed with the uninstallation as directed by the on-screen
messages.
2
¿ The driver is uninstalled.
Restart the computer.
3
O When the dialog box on the right appears,
select the [Yes, I want to restart my
computer now.] and click [Finish] button.
¿ When the computer is restarted,
uninstalling of the driver is completed.
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
Setting the Cameras
other than the EOS-1D
Series Cameras
Setting the EOS-1D
Series Cameras
1
2
3
Remote Shooting
4
5-3
Troubleshooting
Index
Page 42
Folder Structure and File Names
Index
Images shot with the camera are saved in the memory card’s [DCIM] folder, with the following
folder structure and file names.
DCIM
xxxCANON
or
xxxEOS5D
xxxEOS1D
CANONMSC
O The “xxx” in the folder names represent a number between 100 to 999.
O The folder structure for the EOS-1D Mark II N, EOS-1Ds Mark II and EOS-1D Mark II
CF card and SD card is the same.
O When you perform DPOF settings on the camera, a [MISC] folder is created. The files
that manage the DPOF settings are saved in the [MISC] folder.
When Adobe RGB is specified, the file names of images shot with the EOS-1D Mark II N,
EOS-1Ds Mark II, EOS-1D Mark II, EOS 5D, EOS 30D, EOS 20D and EOS DIGITAL
REBEL XT/350D DIGITAL have an underbar “ _ ” as the first character.
Cameras other than EOS-1D series cameras
File name Image type/Camera used
IMG_YYYY.JPG JPEG image
IMG_YYYY.CR2
IMG_YYYY.CRW
CRW_YYYY.THM Image for displaying the camera’s index
O The “YYYY” in the file names represents a number between 0001 and 9999.
EOS-1D series cameras
File name Image type/Camera used
****YYYY.JPG JPEG image
****YYYY.CR2
****YYYY.TIF EOS-1Ds, EOS-1D
****YYYY.WAV Audio file
O The camera specific character string set at the time of factory shipment
appears in “****” of the file name.
O The camera specific character string set at the time of factory shipment or
set in the camera appears in “****” of images shot with the EOS-1D Mark II N.
O The “YYYY” in the file names represents a number between 0001 and 9999.
The folder that holds the image control files in the [DCIM] folder.
EOS 5D, EOS 30D, EOS 20D, EOS DIGITAL
REBEL XT/350D DIGITAL
RAW
EOS 10D, EOS DIGITAL REBEL/300D DIGITAL,
EOS D60, EOS D30
EOS-1D Mark II N, EOS-1Ds Mark II, EOS-1D Mark II
RAW
A
About the PTP Setting .............................. 1-2
B
Basic Settings.................................... 2-2, 3-2
Basic Settings Window ...................... 2-2, 3-2
C
Camera Settings Window ... 2-2, 3-2, 4-1, 4-3
[Communication] Settings for
Different Cameras ..................... 1-2, 1-8, 4-1
Compatible Models and Supported
Images...................................................... 0-1
Connecting the Camera to
Your Computer .................................. 1-3, 1-4
D
Downloading All the Images in a Single
Operation.................................................. 1-6
Downloading Images from Your Camera... 1-6
Downloading Images to Your Computer by
Operating the Camera .............................. 1-6
Downloading Images Using Your Card
Reader...................................................... 1-9
Downloading JPEG Images Using the PTP
Function.................................................... 1-8
Downloading Selected Images ................. 1-7
E
Exiting the Camera Settings Window
..................................... 2-2, 2-3, 3-2, 3-3, 4-2
Exiting the EOS Utility ....................... 1-6, 1-7
F
Folder Structure and File Names.............. 5-4
I
Initializing a Memory Card ................. 2-2, 3-2
P
Personal Function Settings....................... 3-8
Checking Personal Function Settings... 3-14
Description of Personal Functions ........ 3-9
Saving and Loading Personal Function
Settings............................................... 3-15
Picture Style
Detailed Settings........................... 2-4, 3-4
Selecting a Picture Style ............... 2-3, 3-3
Precautions for the PTP Function ............. 1-9
Precautions When Connecting the Camera
and Computer ........................................... 1-5
R
Remote Shooting
Interval Timer Shooting......................... 4-2
Single Shooting..................................... 4-1
Timer Shooting...................................... 4-2
S
Settable Functions and Settings Displays by
Camera Model .......................................... 4-3
Setting a Camera with [Communication]
Settings..................................................... 1-2
Shot Settings .................................... 2-3, 3-3
Shot Settings Window....................... 2-3, 3-3
Specifying Preferences................... 1-10, 4-3
Specifying the Color Matrix....................... 3-8
Specifying the JPEG Quality..................... 3-6
Specifying the Parameters........................ 3-7
Specifying the Personal White Balance.... 3-5
Starting the Camera Settings Window
..................................... 2-2, 2-3, 3-2, 3-3, 4-1
Starting up EOS Utility ...................... 1-3, 1-4
System Requirements .............................. 0-1
T
Transferring the Images in a Specified Folder
................................................................ 1-10
U
Uninstalling the Driver............................... 5-3
Uninstalling the Software .......................... 5-3
W
White Balance Adjustment................ 2-5, 3-6
5-4
Cover/Table of
Contents
Introduction
Downloading Images
from the Camera
1
Setting the Cameras
other than the EOS-1D
Series Cameras
2
Setting the EOS-1D
Series Cameras
3
Remote Shooting
4
Troubleshooting
Index
Loading...
