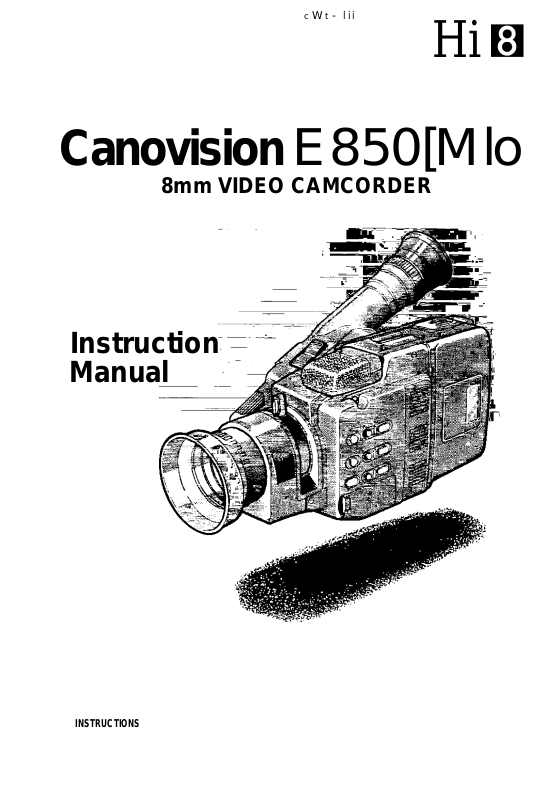

Canon E850 User Manual

cWt- lii

Canovision

8mm VIDEO CAMCORDER

Instruction Manual

E850[Mlo

INSTRUCTIONS

Thank you for purchasing the Canon 8mm Video Camcorder Canovision E850Hi. The E850Hi can record and play back standard 8mm or Hi8 video cassettes in full stereo.

• Use only video cassettes marked with the HI0 (E5/P5 type) or 0 (P5 type).

• With the E850Hi, stereo recording is possible. However, tapes recorded in stereo will play back on monaural 8mm VTRs in monaural.

Please check that this package contains the following items:

Lens Cap Sports Finder

E850H1

Optional Accessories

WS-20 Wrist Strap CB-110 Car Battery Adapter HC-850 System Case SC-800 Soft Carrying Case MM-200 Stereo Mixing Microphone ZM-100 Stereo/Zoom Microphone RS-800 Rain Shield MB-100 Microphone Boom TL-46 Tele-converter TL-55L3X Tele-converter WD-46 Wide Converter

Microphone One Lithium Battery WL-200 Wireless Controller

Two R03 (MICRO) Batteries

-Lens Hood

DC-100 DC Coupler BP-E77K Battery Pack CA-100 Compact Power Adapter RU-lOO RE Unit SS-300 Shoulder Strap ST-150 Stereo Cable S-150 S-video Cable P5-30 HMP 8mm Video Cassette

Filter Set 46 Filter Set 46U VL-20 Battery Video Light BP-E722 Battery Pack Wide Attachment 46 Multi-conversion Lens 46 C-150 AV Cable PC-170ST Stereo SC ART Cable PC-270SST S-Stereo SCART Cable VE-100 Video Editor RGB-100 RGB Converter

Important Usage Instructions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

Important Usage Instructions

...........................................................................

Before Using Your Camera

Camera Parts and Functions

Wireless Controller ........................................................................................... 7

Inserting Batteries in Wireless Controller ............................................... 7

Power Sources ................................................................................................... 8

Battery Pack ............................................................................................ 8

Attaching Battery Pack

Removing Battery Pack ........................................................................... 8

Charging Battery Pack CA-100 Compact Power Adapter CB-110 Car Battery Adapter (Option)

Connection Procedure ........................................................................... 11

Inserting New Lithium Battery ............................................................. 11

Viewfinder Displays ....................................................................................... 12

Camera Preparations ....................................................................................... 14

Attaching Straps .................................................................................... 14

Adjusting Grip Belt ............................................................................... 14

Attaching and Removing Lens Cap and Lens Hood

Adjusting 180° FlexiGrip with Integral Electronic Viewfinder

Sports Finder ......................................................................................... 15

Adjusting Diopter .................................................................................. 15

Setting Date and Time ........................................................................... 16

.............................................................................

...........................................................................

............................................................................

.........................................................

..................................................

.............................

............

10 10

14 15

Basic Operations

Camera Recording .......................................................................................... 18

Record Search (Assembly Editing) ................................................................. 22

Record Review ................................................................................................ 23

Playback Connection Procedure

Playback Procedure ......................................................................................... 30

Special Playback Methods ............................................................................ 32

Tape Return ..................................................................................................... 34

.....................................................................

Advanced Functions

White Balance ................................................................................................. 36

Focusing .......................................................................................................... 38

Auto Tracking Focus ....................................................................................... 40

Manual Focus ................................................................................................. 42

Zooming ......................................................................................................... 43

Macro Recording ............................................................................................ 44

High-Speed Shutter

Fade ................................................................................................................ 46

Self and Interval Timer Recording ................................................................. 48

Built-in Graphics and Music............................................................................ 50

Add Titles to Recordings ................................................................................ 54

Recording Date and Time ............................................................................... 58

STEREO MIC & HEADPHONES Terminals ................................................ 59

Recording Using a Tripod Editing to Another VTR

........................................................................................

..............................................................................

.................................................................................

59 60

Additional Information

Canovision E850Hi Video System Chart ....................................................... 62

SC-800 Soft Carrying Case ............................................................................ 62

HC-850 System Case ...................................................................................... 63

Optional Accessories ...................................................................................... 64

Problems and Trouble Shooting Condensation (DEW)

Specifications .................................................................................................. 69

.....................................................................................

.....................................................................

66 68

Camera Parts and Functions

|QP№ATtl(T ^ l|g-

OPERATE/CAUTION Indicator

This indicator lights when the camera is turned on. It flashes to warn that there is internal condensation or to indicate that the battery pack needs to be recharged.

O EJECT Button ( cr p.18)

O OPERATE Button ( o p.18)

Remote Sensor { □= p.7)

Zooming Lever ( o- PP-42, 43, 44)

Macro Button ( cr p 44)

© Focusing Ring ( cr P-38) O Video Cassette Compartment ( i:y p.18) 0 DC OUT Terminal ( ^ p.59) © DISPLAY Button [character title] ( cr p.57) © COLOUR Button [character title] ( cr p.55) 0 DATE Button ( cr p.58) © FOCUS Button ( Ci pp.40, 42)

Before Using Your Camera

© SHUTTER Button ( cr p.45) © ON/OFF Button (graphic] ( 'Cr pp.52, ® SELECT Button [graphic] ( O’ p.50) © ON/OFF Button [music] ( cr P-52) 0 SELECT Button [music] ( '/ p.50) © Lens Cap (r> P-14) © Lens Hood ( cr p.14)

57)

5.c1

g titletjate

-O'-!

SHIFT [

ate SEARCH

riS

Lo

is)

*. FF

' tiPlETi

DI’ JE!"“

:■ - y

-------PfcUSEl JETOP STHt. №C

HfSf’ E

"OC

^ ^ ^ ^

® Diopter Adjustment Ring ( rr p.15) ® Eyecup ® Strap Attachment Bars ( o p.14)

® REMOTE Terminal ( , p.61)

® Stereo Audio Output Terminals

( cr pp.24, 25)

® S-VIDEO Output Terminal ( cr pp.24, 25, 60)

® Audio Output Terminal ( cr pp.24, 25) ® RF Unit DC Output ® Video Output Terminal ( cr pp.24, 25) ® HEADPHONES Terminal ( cr p.59)

® Grip Belt ( cr p.14) ® Thumb Rest

Place your thumb here when you are recording or carrying the camera.

® START/STOP Button ( c? p.18)

® AudioA/ideo Compartment Cap

® SET C.TITLE/DATE Button ( Q- pp.16, 54)

SHIFT Button ( 3- pp.16, 54) SELF/INT. Button ( :? p.48)

REW Button ( ? pp.30, 32)

PLAY Button ( nr p.30)

STOP Button ( cr p.30)

COUNTER RESET Button ( -3. p.34)

REC SEARCH [ + ] Button ( :> pp.16, 17, 22, 48, 55) REC SEARCH [ - ] Button ( nr pp.16, 17, 22, 23, 48, 55) FF Button ( G= pp.30, 32) REC Button ( p.21)

PAUSE/STILL Button ( nr p.32)

EDIT Button ( c? p.60)

TAPE SPEED Button ( cr p.18)

Camera Parts and Functions

Ф Accessory Shoe ( cr p.59) Ф Power Zoom Buttons ( q= p.43) Ф STEREO MIC Terminal ( ct p.59) Ф Microphone ( c? p.59) Ф Tally Lamp ® GRIP UNLOCK Switch ( о» p.15) © ВАТТ EJECT Switch ( O’ p.8) © Power Source Compartment ( pp.8, 10)

Before Using Your Camera

The tally lamp performs four important functions;

• Flashes rapidly during recording.

• Flashes slowly during self-timer standby and then starts flashing rapidly when recording starts.

• Flashes slowly when interval timer is set.

• Lights up when wireless controller is in use.

Wireless Controller

Wireless controller buttons perform the same functions as the camera

Using wireless controller from a distance

Remote Sensor

Operation

buttons.

CHARACTER TITLE Button [Character title only] ( lT p.57) —

TAPE RETURN Button ( Cr p.34)

COUNTER RESET Button ( O' p.34)

PLAY Button -

( ^ P.30)

REW Button ( D" pp.30, 32) REC Button

( cr p.19) STOP Button

( cr p.30)

The WS-20 Wrist Strap can be attached.

• Aim wireless controller at camera remote sensor and press control buttons to operate camera. The tally lamp lights up when remote sensor receives a signal.

• Operate wireless controller within 30° angle on either side and 15° angle above and below the camera remote sensor, up to a distance of five metres.

• If you are too close to camera when operating wireless controller, camera may not respond to wireless controller’s signal.

---------

---------------------

--------------------------

—

Transmitter

~rr3

------------

BziiS

■fe

START/STOP Button

( cr P-18)

ZOOM Buttons

( cr P-43)

FADE START/STOP Button ( ' p.47)

DATE Button

( Cr p.58) ON SCREEN Button

( lT p.12) FF Button

( cr pp.30, 32) PAUSE/STILL Button

( P-32)

Inserting Batteries in Wireless Controller

The wireless controller operates on two R03 (MICRO) batteries.

Remove cover from back by pressing down and sliding in

direction of arrow.

Insert two R03 (MICRO) batteries following ( + ) and (-) markings inside unit. Be carefui not to reverse poiarity of batteries.

Repiace cover foilowing guide grooves.

Notes:

• Do not leave wireless controller exposed to direct sunlight or in hot or humid places.

• Wireless controller uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote sensor may shorten operating distance.

• Wireless controller will not function if RS-800 Rain Shield Is attached to the camera.

Camera Parts and Functions/Wireless Controller

Power Sources

Battery Pack

Make sure battery pack is fully charged before use. Continuous recording time is approximately 40 minutes.

• Some camera modes consume more power than others, so actual recording

• The safest policy is to have enough batteries to cover two to three times

• Using battery pack in low temperatures will shorten recording time.

• Battery pack normally becomes warm during use.

• Battery’s ( + ) and (-) terminals may short circuit if they come in contact

• Power is slowly drained while the battery pack is attached to the camera,

• See battery pack instruction manual for further information regarding

• Use the optional BP-E722 Battery Pack for lengthy recording (see p.64).

Attaching Battery Pack

time may be less than 40 minutes.

the length of recording time scheduled.

with any metal objects. Take care when handling battery pack, and keep it in plastic or other protective covering when carrying or storing.

even when the camera is turned off. Remove the battery pack when you don’t expect to use the camera.

battery pack.

Slide battery pack into power source compartment.

• Insert the end marked with a triangle.

• Slightly loosen grip belt and press it down for easy battery loading.

Press until it clicks and locks in place.

Removing Battery Pack

ВАТТ EJECT

Slide and hold ВАТТ EJECT switch up.

Pull battery pack out as shown.

• Be sure to turn camera off (OPERATE/CAUTION indicator goes off) before removing battery pack. Removal during camera operation may cause damage.

8 Before Using Your Camera

Charging Battery Pack

Use the CA-100 Compact Power Adapter (or optional CB-110 Car Battery Adapter) to charge battery pack. Connect battery pack to CA-KX) (or CB-110) as shown. Then plug into mains outlet (or car cigarette lighter socket.)

• Charging time is shown in the table below. (Charging time varies

• When charging battery pack, charge indicator on compact power adapter

• When charging a brand-new battery pack or one that has not been used

• When attaching the battery pack to the CA-100 (or CB-110), make sure

• It is possible to charge battery pack when ambient temperature range is

• Immediately after use, the battery pack will be hot and it is best not to

• When you don’t expect to use the battery pack for a long time (three

according to ambient temperature and remaining charge in battery.)

blinks. When battery pack is charged, charge indicator lights.

for approx, three months, charge completely once (until charge indicator lights). Then disconnect and reconnect battery pack to CA-KX) (or CB-110) and charge once more.

that the battery pack guide and battery pack groove are properly aligned. When attaching or removing the battery pack, slide it in perpendicularly as shown.

between 0°—40°C. For best results, charge battery pack when ambient

temperature is between 10°—30°C. Use of battery pack under extremely high temperatures (above 40°C) may activate safety circuit, making operation impossible.

recharge it at this time. Make sure that the battery pack has cooled off before recharging.

months or more), store in a discharged condition. Storing in a charged

condition will shorten the life of the battery pack.

Battery Warning

_______

BAT T

Charge indicator

The charge

indicator blinks during charging, and remains lit

when charging is

completed.

CA-100 Compact Power Adapter or CB-110 Car Battery Adapter

Battery Pack

Continuous recording time

BP-E77K approx. 40 minutes BP-E722 approx. 85 minutes

When battery charge is nearly exhausted, "ВАТТ" flashes in camera viewfinder

and the OPERATE/CAUTION indicator also flashes. Replace or recharge battery pack (be sure to turn camera off before removing the battery pack).

• If the camera is turned on with an exhausted battery pack attached, it may turn off immediately, without a "ВАТТ” warning.

Charging time

approx. 70 minutes approx. 130 minutes

Power Sources

CA-100 Compact Power Adapter

Using AC Power

Plug into a mains outlet. Input voltage: 100—240 V AC, 50/60 Hz.

• Use together with the DC-100 DC Coupler.

• Refer to CA-100 instruction manual for further details.

CB-110 Car Battery Adapter (Option)

Using Car Battery

Plug into cigarette lighter socket. For use only with 12 or 24 V DC negative-ground car battery.

• Use together with the DC-100 DC Coupler.

• When using car battery adapter, car engine must be running.

• Refer to CB-110 instruction manual for further details.

Connection Procedure

To use the compact power adapter or car battery adapter:

Insert DC-100 DC Coupler into power source compartment.

• Insert and remove in the same way as the battery pack (see p.8).

Connect DC-100 cable to compact power adapter (or car battery adapter).

Attach DC-100 cable to grip belt as shown.

Caution:

Using the compact power adapter near the TV may cause the TV to emit noise. If this occurs, move the compact power adapter further away from the TV or aerial cable.

10 Before Using Your Camera

Inserting New Lithium Battery

(

-----------

-------------------

DA T t

The CR2025 type lithium battery provides your camera with enough power to store titles, date and time settings, even when the camera is turned off.

One lithium battery will last approximately one year (lifespan of lithium

battery varies slightly, according to ambient conditions). When lithium battery is not in place or is nearly exhausted, “DATE” flashes in viewfinder, indicating that the lithium battery needs to be replaced.

Be sure to connect a power source to the camera before changing the lithium battery, otherwise titles, date and time settings will be cleared from camera’s memory and will have to be reset.

Warning:

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic CR2025 or Duraceli DL2025B.

Use of another battery may present a risk of fire or explosion. The used battery should be handed back to the supplier.

Caution:

• Make sure plus (+) side is facing up in the holder.

• Keep battery out of children's reach. If swallowed, contact physician immediately.

• To ensure proper contact, wipe battery with clean, dry cloth before use.

• Do not pick up battery using tweezers or other metal tools which may cause short circuiting

• Do not disassemble, heat or immerse in water, to avoid risk of explosion.

Power Sources

Viewfinder Displays

Press the ON SCREEN button on the wireless controller to see viewfinder displays on a connected TV screen.

• Only character titles, digital titles, date and time are recorded with scenes.

Graphic Menu Display

(D-

©-

(D-

No.

WB LOCK

1/2000 <R. RED> I EDIT I

ABCDEFGHIJKLMNDP QRSTUVWXYZO 1 2 3 4 6

H i 8 SP PAUSE

'SELF

SELF 30

----

I-N-T—1-0-

I NT.

I NT,

BLU ■

Mode Display Focus mode (Focus zone)

2 0

6 0

-1

2 3:4 5-

T. END-

BATT□ EW□ATE-

10:27 AM-

JUL. 19 9 1-

Description When AF or Auto Tracking Focus mode is selected, the focus

zone is displayed. In Auto Tracking Focus mode, the ATE zone changes in size according to focal depth of the subject.

No display

White Balance No display

WB LOCK

High-Speed No display Normal shutter speed (1/50)

Shutter

1/250 1/500

The focus zone is not displayed in MANUAL mode. Auto white balance White balance lock

1/250th of a second 1/500th of a second

1/1,000 1/1,000th of a second

1/2,000 1/2,000th of a second

Digital Title Colour

WHT, RED, GRN, BLU, YEL, SKY, VIO, BLK

Digital title colours are displayed. For normal titles, abbreviated colour codes are displayed. Digital title colour selection; white, red, green, blue, yellow, sky blue, violet, black

<WHT> See-through colour

(The same eight colours can be selected.)

R.WHT

Reverse colour (The same eight colours can be selected.)

<R.WHT>

Reverse see-through colour (The same eight colours can be selected.)

EDIT Mode EDIT

“EDIT” is not displayed in other modes. When the EDIT

button is pressed, “EDIT” appears in viewfinder.

Hi8

Tape Speed SP

No display Standard 8mm mode Hi8

Hi 8 mode Standard Play

Long Play

GRAPHIC

1^2 7,A

Music Menu Display

MUSIC

1 ONE SUNNY DAY

ij)

4 >)

12 Before Using Your Camera

No.

Mode Operation PAUSE

Display

REC

Description Record pause Recording

PLAY Normal playback, fast forward playback (9X), or rewind

playback (7X) STILL STOP

Still playback

Stop FF Fast forward REW Rewind EJECT

Eject function is operated. EJECT (flashes) Safety mechanism functions

Tape Counter - 9:59:59 to

Tape counter reading

9:59:59

Tape Status

Battery Warning

® @

Condensation DEW (flashes) Condensation is detected in camera (see p.68). Lithium Battery

TAPE (flashes) No cassette is loaded. T.END

Tape reaches the end. ВАТТ (flashes) Battery charge is nearly exhausted.

DATE (flashes) Lithium battery charge is low or no battery is inserted.

Warning Character Title

2 lines X

16 characters

Alphabet: A to Z

Special Characters and Accents: AOU0AiENUE

Numerals: 0 to 9

Symbols: ,/__’ ”:;?!*&

Character Title Colour

Time

WHT, RED, GRN, BLU, YEL, SKY, VIO

12:(Ю AM to

Character title and date/time colour codes are displayed.

Character title and date/time colour selection: white, red,

green, blue, yellow, sky blue, violet

Present time

11:59 PM

Date

1. JAN. 1990 to

Current date

31. DEC. 2010

Timer Recording Menu

-SELF SELF 30

— Arrow indicates selected mode.

INT.IO INT.20 INT.60

Timer OSEC-IOSEC Recording reminder

Recording

SELFIO-SELFI Self-timer countdown SELF30-SELF1

Self 30 recording INT.IO 10 sec. interval recording INT.20 20 sec. interval recording INT.60

Graphic Menu Eight graphic

60 sec. interval recording

Press SELECT (graphic) button to display menu. symbols

Music Menu

Music Recording

Music title

d>J 1-8

Only one music title at a time is displayed in the viewfinder.

Displayed when music is in use.

Viewfinder Displays 13

Camera Preparations

Attaching Straps

Attach shoulder strap to the strap attachment bars, and adjust it to the most comfortable length.

The optional wrist strap can only be attached to the lower strap attachment bar.

Adjusting Grip Belt

Tighten or loosen grip belt as necessary for a comfortable fit. Hold grip

with your right hand while adjusting grip belt with your left.

Attaching and Removing Lens Cap and Lens Hood

Remove lens cap before recording and hook it onto grip belt using clip on lens cap. Replace lens cap again when you stop recording or turn the camera off. When using a filter, attach the lens hood so the lens cap can be replaced.

• To remove the lens hood, hold focusing ring and filter with one hand and loosen the lens hood using the flat palm of your other hand, not your fingers (see diagram left).

Focusing Ring

Filter Lens Hood

14 Before Using Your Cam era

Adjusting 180° FlexiGrip with Integral Electronic Viewfinder

The 180° FlexiGrip allows you to adjust the camera angle to 5 clickpositions up or down (every 18°). Slide and hold GRIP UNLOCK switch to release the grip. Then rotate grip to desired position, until grip locks into place. Release GRIP UNLOCK switch.

• The grip cannot be rotated when the optional RS-800 Rain Shield is used. Use the camera with the grip set horizontally.

Switch

Sports Finder

The Sports Finder allows you to monitor the viewfinder from as much as an arm’s length from the camera.

To remove: Align the triangular marks on grip and finder. Gently slide finder off.

Adjusting Diopter

Diopter Adjustment Ring

To attach: Slide finder onto grip to align triangular marks. Turn finder to the right to lock in place.

Adjust the diopter to individual eyesight correction when using the camera for the first time, when changing camera operators, or when changing eye distance from the finder.

To adjust diopter: Turn the camera on and turn diopter adjustment ring until viewfinder displays are clearly visible.

• For the sports finder, you must adjust the diopter everytime you change eye distance from the finder.

Camera Preparations 15

Setting Date and Time

SET C.TITLE/DATE

Button

+ /— Buttons

SHIFT Button

Set date and time when you first begin using the camera or you change the lithium battery without back-up power. See p.58 for recording date and time.

Example: Setting date to 8 July, 1991 and time to 2:35 p.m. Partial changes in date and time are not possible. To make any adjustments perform steps two through twelve.

Turn camera on.

• OPERATE/CAUTION indicator lights up.

Press and hold SET C.TITLE/DATE button for approx, three

seconds.

• Date and time are displayed in viewfinder.

• Year display flashes in viewfinder.

SHIFT

f—

___

\J JUL 1

1 2-: 0 0 AM

1 JAN 1 9 9 1

1 2 ; 0 0 AM

1 JAN 1 9 9 1

----

12 0 0

К jul; 1

ILL

- 12:00 AM 9 9 1

Press (+) and (—) buttons to scan year display.

• Press once to scan one year at a time.

• Press and hold to scan years quickly.

• Press (-) button to scan display in reverse order.

-1990 1991 «

"Ч

Press SHIFT button when correct year Is shown.

.........

2008 2009 « 2010

• Year is set and month display flashes.

Press (+) and (—) buttons to scan month display.

•JAN. FEB.

r- ■n

....................

OCT. NOV. « DEC.*

Press SHIFT button when correct month Is shown.

• Month is set and day display flashes.

---

■

16 Before Using Your Cam era

12:00 AM

JUL. 19 9 1

Press (+) and (—) buttons to scan day display.

• The camera knows the number of days in each month and which years are leap years.

1 2 3

.......

29 30 31

SHIFT

12:00 AM

JUL. 19 9 1

2:00 PM

JUL. 19 9 1

2:00 PM

JUL. 19 9 1

2:35 PM

JUL, 19 9 1

Press SHIFT button when correct day is shown.

• Date is set and hour display flashes.

Press ( + ) and (—) buttons to scan hour display.

• Hour display rotates through 24 hours.

-12AM 1AM <-►

..........

10PM 11PM-

□

Press SHIFT button when correct hour is shown.

• Hour is set and minute display flashes.

Press ( + ) and (—) buttons to scan minute display.

• Minute display rotates through 60 minutes. 00 01 02

.......

58 59-

□

SHIFT

2:35 PM

JUL 1991

Press SHIFT button when correct minute is shown.

• Minute display stops flashing and auto date and time starts functioning.

• Press DATE button to make display disappear from viewfinder.

Notes:

• Date and time cannot be set during camera recording or playback.

• When you change or remove the lithium battery, be sure to connect a power source to the camera, otherwise date and time will be cleared from memory.

• Reset date and time when you travel to a different time zone.

• Date and time have the same colour as the character title (see p.55).

Camera Preparations 17

Camera Recording

Attach power source.

• When using a battery pack, make sure it is fully charged (see p.9).

Turn camera on.

• OPERATE/CAUTION indicator lights up.

4 Push

□

TAPE SPEED

[SPj/LP

EJECT

/■

---------

PAUSE

__________

_______

0 0:00

Press EJECT button.

• Video cassette compartment opens.

Load video cassette and close video cassette compartment.

• Insert with window facing out.

• Camera goes into record pause mode.

• If erasure prevention switch is set to “save”, camera goes into stop mode (see p.2I).

Press TAPE SPEED button to select tape speed.

• For best picture quality, select SP.

• For double recording time, select LP.

Turn grip for easy handling.

• See p.l5 for adjusting grip.

PAUSE

V-

Basic Operations

0:012 3 '

Press START/STOP button.

• Recording starts.

• Tally lamp flashes rapidly and “REC” appears in viewfinder.

• See Advanced Functions section for information on making your recordings more effective (pp.36—61).

Press START/STOP button again to temporarily pause recording.

• Press START/STOP button once again to resume recording.

• See “Record Review” (p.23) to check your recording.

Use video cassettes marked with the hliEl (E5/P5 type) or Q (P5 type).

EJECT

Push Remove video cassette and ciose video cassette

[OPERATE ¡L-J

.jfrm

When recording has ended, press EJECT button.

• Video cassette compartment opens.

compartment again.

Turn camera off.

□

• OPERATE/CAUTION indicator goes off.

- Battery Pack GRIP UNLOCK

Switch

The camera automatically detects whether the cassette loaded is a

hliQ video cassette (for Hi8 recording/playback) or a standard □ video

cassette (for standard recording/playback) and automatically sets the mode.

• A standard 8mm video cassette cannot be recorded in Hi8 mode.

• It is impossible to record in standard mode with a hli^ video cassette.

Hint:

REC

I I • The camera enters record pause mode.

(Wireless

Controller)

Notes: ' '

• The tape counter will be reset to “0:00:00" when a video cassette is loaded.

• The camera automatically turns off if record pause mode lasts more than approximately seven minutes. To resume recording turn camera on and press START/STOP button

• For security, check the viewfinder display for correct mode during shooting. (For details, see p.12 and 13)

• Avoid pressing START/STOP button repeatedly. Put a sufficiently long interval in between, otherwise trouble may result,

• Avoid recording near sources of electric or magnetic fields, such as a TV tower, which can cause noise in the picture or a camera malfunction.

• If tape speed is changed during recording, the tape will contain noise at that point.

• When recording in dark places; if a bright objet, such as a candle flame enters the picture, a luminous bar may

appear vertically on the screen.

Press REC button during stop mode to place camera in record pause mode.

• Use the normal recording procedure for recording.

Camera Recording 19

Tape Counter

Recording Reminder

During recording, the tape counter in the viewfinder indicates how long you have recorded.

You have recorded for approx. 35 minutes and 40 seconds (in SP mode).

• The tape counter is reset to “0:00:00” when you press the COUNTER RESET button or load a video cassette.

• The tape counter also appears during playback and record search, so you can use it to verify how long the tape has run.

• Tape counter time and actual recording length may be slightly different. Use the tape counter only as an approximate guide.

• When recording in LP mode, actual recording length is approximately twice the tape counter time.

• Tape counter is only activated by recorded tape. Blank tape (even if it occurs between recorded sections of tape) will not activate tape counter.

When you start to record, the camera counts off the first “10” seconds of your recording and displays “0” SEC through “10” SEC in the viewfinder. This function is designed to help you make sure your scenes aren’t too short, for easy viewing and editing.

Try to record for at least the full 10 seconds.

• Recording reminder time and actual recording length may be slightly different. Use recording reminder only as an approximate guide.

Video Cassette Warning

---------

------------------

__________

-----------------

__________

T END

TAPE

“T. END” appears in viewfinder when tape is completely used up.f

“TAPE” flashes in viewfinder if camera is turned on and a video cassette is not loaded.

Battery Pack Warning

----------

-----------------

Ч_____

ВАТТ

“ВАТТ” flashes in viewfinder when battery pack charge is nearly

exhausted. If the camera is turned on with an exhausted battery pack attached, it may turn off immediately, without a “ВАТТ” warning.

20 Basic Operations

+ 50 hidden pages

Canon E850 User Manual

Important Usage Instructions

Contents

Camera Parts and Functions

OPERATE/CAUTION Indicator

Wireless Controller

Operation

Inserting Batteries in Wireless Controller

Insert two R03 (MICRO) batteries following ( + ) and (-) markings inside unit. Be carefui not to reverse poiarity of batteries.

Repiace cover foilowing guide grooves.

Attaching Battery Pack

Slide battery pack into power source compartment.

Press until it clicks and locks in place.

Removing Battery Pack

Slide and hold ВАТТ EJECT switch up.

Pull battery pack out as shown.

Charging Battery Pack

CA-100 Compact Power Adapter

Using AC Power

CB-110 Car Battery Adapter (Option)

Using Car Battery

Connection Procedure

Insert DC-100 DC Coupler into power source compartment.

Connect DC-100 cable to compact power adapter (or car battery adapter).

Attach DC-100 cable to grip belt as shown.

Inserting New Lithium Battery

Viewfinder Displays

Attaching Straps

Adjusting Grip Belt

Attaching and Removing Lens Cap and Lens Hood

Adjusting 180° FlexiGrip with Integral Electronic Viewfinder

Adjusting Diopter

Setting Date and Time

Turn camera on.

Press (+) and (—) buttons to scan year display.

Press SHIFT button when correct year Is shown.

Press (+) and (—) buttons to scan month display.

Press SHIFT button when correct month Is shown.

Press (+) and (—) buttons to scan day display.

Press SHIFT button when correct day is shown.

Press ( + ) and (—) buttons to scan hour display.

Press SHIFT button when correct hour is shown.

Press ( + ) and (—) buttons to scan minute display.

Press SHIFT button when correct minute is shown.

Camera Recording

Attach power source.

Turn camera on.

Press EJECT button.

Load video cassette and close video cassette compartment.

Press TAPE SPEED button to select tape speed.

Turn grip for easy handling.

Press START/STOP button.

Press START/STOP button again to temporarily pause recording.

When recording has ended, press EJECT button.

Turn camera off.

Tape Counter

Recording Reminder

Video Cassette Warning

Battery Pack Warning
