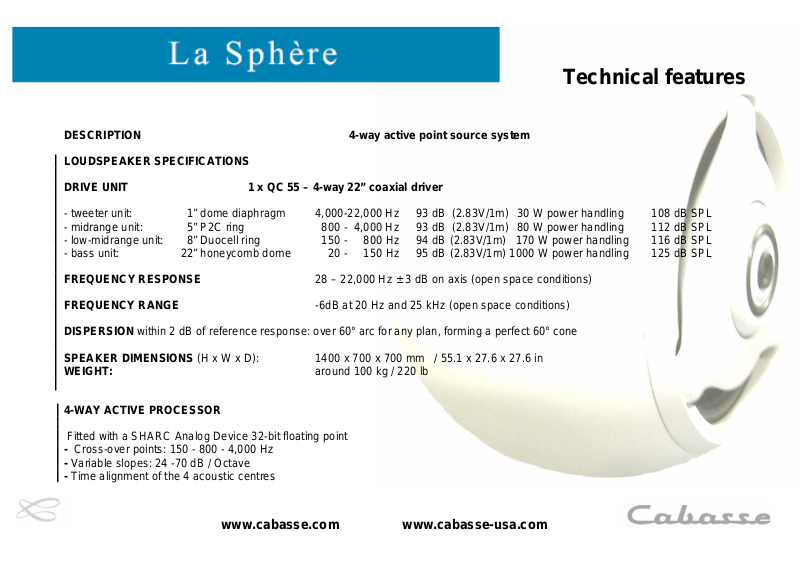

Technical features

DESCRIPTION 4-way active point source system
LOUDSPEAKER SPECIFICATIONS
DRIVE UNIT 1 x QC 55 – 4-way 22” coaxial driver

- tweeter unit: 1” dome diaphragm 4,000-22,000 Hz 93 dB (2.83V/1m) 30 W power handling 108 dB SPL

- midrange unit: 5” P2C ring 800 - 4,000 Hz 93 dB (2.83V/1m) 80 W power handling 112 dB SPL

- low-midrange unit: 8” Duocell ring 150 - 800 Hz 94 dB (2.83V/1m) 170 W power handling 116 dB SPL

- bass unit: 22” honeycomb dome 20 - 150 Hz 95 dB (2.83V/1m) 1000 W power handling 125 dB SPL

FREQUENCY RESPONSE 28 – 22,000 Hz ± 3 dB on axis (open space conditions)
FREQUENCY RANGE -6dB at 20 Hz and 25 kHz (open space conditions)
DISPERSION within 2 dB of reference response: over 60° arc for any plan, forming a perfect 60° cone
SPEAKER DIMENSIONS (H x W x D): 1400 x 700 x 700 mm / 55.1 x 27.6 x 27.6 in

WEIGHT: around 100 kg / 220 lb

4-WAY ACTIVE PROCESSOR
Fitted with a SHARC Analog Device 32-bit floating point

- Cross-over points: 150 - 800 - 4,000 Hz

- Variable slopes: 24 -70 dB / Octave

- Time alignment of the 4 acoustic centres
