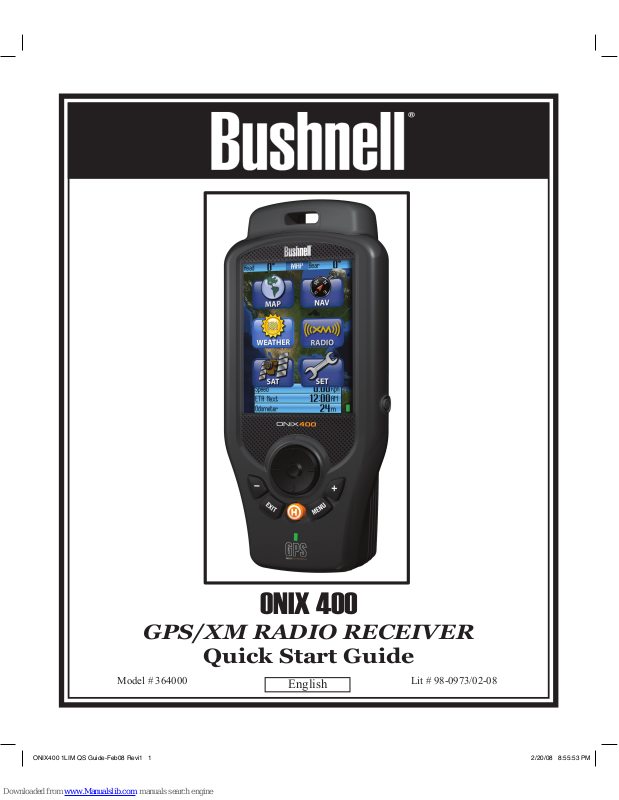

ONIX 400
GPS/XM RADIO RECEIVER
Quick Start Guide
Model # 364000 Lit # 98-0973/02-08
English
ONIX400 1LIM QS Guide-Feb08 Revi1 1 2/20/08 8:55:53 PM
NOTES
ONIX400 1LIM QS Guide-Feb08 Revi2 2 2/20/08 8:55:53 PM
3
Warnings and Notices
GPS System & Map Data Accuracy Notice:
The Global Positioning System (GPS) is operated by the government of the United States, which is solely responsible
for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance
of all GPS equipment.
All map data sources contain some level of inaccuracies or incomplete data. Bushnell strives to provide the most
recent map information at a reasonable cost. Basemap data is supplied by NAVTEQ® , a major supplier of digital
map data for handheld and vehicle navigation products worldwide. NAVTEQ® continually renes and improves
their digital map databases to maintain their leadership position in the industry.
Warning:
This device is intended as a supplemental handheld navigation aide only. The user assumes all responsibility
associated with the use of this product. It must not be used for any purpose requiring precise measurement of
location, direction, distance, velocity or topography. This device should not be used for any aircraft navigation
applications.
Warning:
This device uses a rechargeable lithium-ion battery pack. Follow the directions for charging the battery before use.
Do not attempt to open the battery pack, modify or charge it other than as directed. Check the battery compartment
after the unit has had any prolonged exposure to signicant amounts of water (rain, snow, etc), and remove any
moisture before continuing to use the unit. If it becomes necessary to dispose of the battery pack, please take it to
your local waste collection service or recycling center for environmentally responsible processing.
Vehicular Use Notice:
Bushnell is committed to the safe and responsible enjoyment of the outdoors.
Do not use this product while driving. An accident can result in property damage, injury or death if the operator fails
to practice prudent driving practices. It is the sole responsibility of the driver of any vehicle to operate the motor
vehicle in a safe manner. Information from the GPS unit can distract the operator of a motor vehicle. It is unsafe
to operate the controls of the GPS unit while operating a motor vehicle. If used in a motor vehicle, it must not be
used by the operator of the motor vehicle. If it is used in a motor vehicle it must be mounted in a manner such that
it does not distract the operator, does not interfere with the operator’s eld of view, and does not block or interfere
with the air bags or other safety mechanisms of the motor vehicle.
Software License Agreement
BY USING THE ONIX, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE
FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY.
Bushnell grants you a limited license to use the software embedded in this device (the “Software”) in binary executable
form in the normal operation of the product. Title, ownership rights and intellectual property rights in and to the
Software remain with Bushnell.
You acknowledge that the Software is the property of Bushnell and is protected under the United States of America
copyright laws and international copyright treaties. You further acknowledge that the structure, organization and code
of the Software are valuable trade secrets of Bushnell and that the Software in source code form remains a valuable
trade secret of Bushnell. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer or
reduce to human readable form the Software or any part thereof or create any derivative works based on the Software.
You agree not to export or re-export the Software to any country in violation of the export control laws of the United
States of America.
ONIX400 1LIM QS Guide-Feb08 Revi3 3 2/20/08 8:55:54 PM
4
Thank you for purchasing the Bushnell ONIX400 – the most advanced outdoor navigation device available today!
This device is capable of receiving both GPS Satellite and XM Satellite Radio signals in an outdoor environment.
The ONIX400 comes preloaded with a base road map of the United States and Canada including a Points of Interest
data base. The GPS receiver has the capability to receive satellite signals worldwide. The XM Satellite Radio
receiver presently only functions in the United States and Canada.
ONIX has been designed to be much simpler to operate than other handheld GPS receivers, while offering powerful
features like TruView navigation, which allows you to layer satellite photos or topographic maps right over your
trail map screen, providing a useful “real world” frame of reference1. And for the rst time in a handheld GPS
device, the ONIX400 lets you receive and view XM Weather data for your location right on the map-you can even
layer weather radar over a satellite photo of the area! And, you can listen to XM Radio music or news and keep an
eye on the latest sports scores or weather developments without leaving the GPS map screen2 ! As much or as little
information as you choose can all be displayed together in various combinations on the extra large 3.5” full color
LCD screen.
Easily create and store user proles that let you store your most frequently used personal setups, including satellite
photos of your favorite camping or hunting area. Bushnell’s exclusive SafeTrack™ battery conservation feature
extends your battery life while maintaining GPS contact, so you can check your current location anytime without
the restart delay typical of other GPS receivers. You will nd your ONIX to be an invaluable companion for all your
outdoor adventures. Just hit the “Hot” button to quickly see your current position, or view updated nearby weather
conditions.
Before using your new ONIX, please read the instructions contained in this manual and take time to familiarize
yourself with the unit’s operation and many great features. You may want to start near your home, by turning on
the ONIX, then pressing the MENU button to run through the six basic screens (MAP, NAV, XM Weather, XM
Radio, SAT, SET) while reading the manual section for each. After that, practice using the “Hot” button and 5-way
button to see and select from a menu of options, perhaps on the SET screen by setting a few personal preferences
for information displays. Once you begin feeling more comfortable with the controls and screens, the best way to
really learn to use your ONIX is to take it outside (right in your own neighborhood or a local park), and let it lock
onto the GPS satellite signals as you watch the SAT page (be patient, this can take 3 or 4 minutes the rst time
you use it-make sure you have a clear view of the sky and are not right next to a large building for best results),
then take a short walk and nish by using the ONIX to guide you back to your starting point (you can either mark
a waypoint at the start by clicking the center of the 5-way button twice, or just begin walking, later following the
dotted “breadcrumb” trail back). After that, you might try downloading a satellite photo of this local area, layer it on
top of the map screen, and try walking the same trail again, setting a few waypoints as you go. Continue referring
to this manual and practicing as often as necessary until you master the basics, before heading out on a hike of any
signicant length or attempting to navigate an unfamiliar area.
• Extra Large 3.5” Full Color LCD • Download Topographic Maps
1
• WAAS Enabled • Download Georeferenced Satellite Photographs
1
• Heads-Up Digital Compass • Built-In SiRF Technology 20 Channel Receiver
• Built-In Base Maps (North America) • Waterproof (IPX7 Standard)
• Save/Load Waypoints, Trails and Routes • Durable Rubber Armoring
• Stores Up to 1000 Waypoints & 20 Routes • SafeTrack™ Battery Conservation Mode
• Micro SD Card Storage (128MB card inc.) • Display XM WX Weather Data 2
• Exclusive Screen Layering inc. XM Weather • Listen to XM Radio Entertainment and Sports
2
with Bushnell ONIX Channel Monitor
ONIX 400 Model #36-4000 FEATURES
2
Subscription to XM weather and/or entertainment services required
1
Download satellite photos and topo maps at www.bushnellgps.com
ONIX400 1LIM QS Guide-Feb08 Revi4 4 2/20/08 8:55:54 PM
5
• The internal Lithium Ion battery pack must be charged before the ONIX can be used for the rst time. Make sure
the MicroSD card is inserted in the card slot rst, then attach the battery pack by lining it up with the opening on the
bottom of the unit, pushing it straight onto the unit until ush with the surface, then sliding the battery down towards
the end with the USB and accessory ports, until it locks securely into place (to remove the battery, press the soft
release area (see yellow arrow below) at the curved end of the battery, then slide it up and lift directly away from the
ONIX body). Connect the supplied AC charging cord to the accessory connector port at the bottom of the unit, then
into a wall outlet. When the Status LED changes from red to green, the battery is fully charged.
• The ONIX is designed to be waterproof to a depth of 1 meter (IPX7 rating), however it is recommended that the
user opens and checks the battery compartment following any submersion or prolonged exposure to rain, snow, etc.
Any moisture observed inside the battery compartment or on the exterior of the battery pack or MicroSD card should
be dried off immediately and completely. Prolonged submersion (over 30 minutes) and/or to water depths greater
than 1 meter can cause damage to the unit.
• If the ONIX exterior becomes dirty, clean it with a soft cloth dampened with a mild detergent solution, then
wipe dry. To avoid possible scratches, a (dry) micro ber cloth is ideal for cleaning the display screen. Do not use
chemical solvents or cleaners of any type on the ONIX unit’s exterior, battery compartment, or display, as these may
damage plastic components.
INCLUDED PARTS LIST
• ONIX 400 GPS/XM Receiver
• Lithium Ion Battery Pack
• 128MB MicroSD Card
• AC Charging Cord
• USB Cable
• Earbuds
• Info Pack with Quick Start Guide,
Registration Card, and CD-ROM
BATTERY CHARGING, CLEANING & MAINTENANCE
MicroSD Card
Battery pack attachment lugs
Push here to release
battery pack
To attach battery
pack
Battery Pack & Compartment Details
Push In to Insert or Remove
ONIX400 1LIM QS Guide-Feb08 Revi5 5 2/20/08 8:55:55 PM
6
MENU Button: Press to
view Main Menu with choice
of 6 Pages. (Hold down to see
Display Options for layers/
info boxes.)
5-Way Button Pad: Used to
navigate on screen, select from menu
options, and create waypoints. Press
Up/Down arrows to select items in a
menu, Right arrow to view submenus
(if available), Left arrow to exit the
menu. Press the “OK” center button
to conrm a menu selection or turn
an option on or off. Press the center
“OK” button to set a waypoint on the
MAP.
EXIT Button: Press to exit
any menu and return to current
screen with selected layers
and info boxes.
“Hot” Button:
controls all actions:
• Navigation
• SafeTrack
• XM Weather-Location
Selection
• XM Radio Preferences
Power Button: located on
right side of ONIX.
Push to turn on. Once the
unit is on, press briey to
see the Power Menu.
Hold button for 2 sec to
turn power off.
USB Port: connect to PC
with supplied cable
Accessory Port: used for AC
charging cord and optional XM
accessories
Battery Pack Module: houses
Lith-Ion battery pack. Also
covers MicroSD card slot.
Audio Out Jack: connect
supplied earbuds to hear XM
Satellite Radio entertainment
Status LED:
Red=charging,
Green=battery charging
complete.
Blinking Red (during use)=
SafeTrack mode
CONTROLS AND PORTS IDENTIFICATION
Zoom Buttons: Zoom the view
closer in or further out on maps
and photos by pressing the “+” or
“-” buttons. Also used as volume
controls for XM Radio.
Helical Satellite Antennas
and Lanyard Attachment
Current Page Indicator
3.5” Color LCD
Display Screen
Battery Level Indicator
ONIX400 1LIM QS Guide-Feb08 Revi6 6 2/20/08 8:55:56 PM
7
1. MAP-you will likely spend the most time on the MAP page, since it shows your current location
relative to other objects and places. You can layer aerial photos, weather information, a compass and
other navigation related items alone or in combinations over the top of the base map, making it even more
useful and informative.
2. NAV (Navigation)- a basic display of the digital compass. View your current heading and true or
magnetic north at any time by switching to this page.
3. XM Weather-use this page to choose the day/time and location for weather forecast data (see included
“How to Activate XM Service”). Note: XM reception must be set to “ON” in the SET Page.
4. XM Radio-select from over 170 channels of music, news, sports and entertainment (XM reception
must be activated) . Listen to your favorites while you navigate, or just listen at the end of the day when
you reach your campsite, boat, or home. Note: XM reception must be set to “ON” in the SET Page.
5. SAT (Satellite)-this page allows you to monitor the signal strength of multiple GPS satellites, conrming
when you have a “lock”-adequate number and quality of satellites to ensure good reception.
6. SET (Setup)-go here to set your personal user preferences, enable XM satellite reception, setup a
custom user prole, and other user adjustable operating utilities.
THE SIX PAGES OF THE ONIX400
Press the MENU button briey, use the 5-way buttons to select (highlight) a page
on the menu display, then press OK (center button) to view and use that page.
1. MAP Page
2. NAV Page
3. XM Weather Page
6. SET Page
5. SAT Page
4. XM Radio Page
Main MENU
ONIX400 1LIM QS Guide-Feb08 Revi7 7 2/20/08 8:55:57 PM
8
Figure 1
Figure 3
Figure 2
e ONIX400 uses the latest technology and exclusive features to provide the most
ecient combination of battery life and functionality.
e rechargeable Lithium Ion battery pack provides an extended capacity of power to
run both your GPS and XM Satellite Radio features simultaneously.
TIPS FOR MAXIMIZING BATTERY LIFE IN THE ONIX 400
Power Saving Options
e following features allow the user to extend battery life.
Utilize SafeTrack™ and Auto Update modes to maximize battery life.
• Backlight – Turn the backlight “O” when outdoors in
daylight to increase battery life. Use the backlight in low light,
or dark conditions, or when indoors.
• Brightness – Increasing brightness increases power
consumption. Select a brightness level based on your viewing
requirements
• XM/Sports/Weather – See Figure 2.
• GPS – Turn GPS “O” when not using the GPS navigation functions or when indoors
where GPS signals are not accessible.
2) SafeTrack™ Battery Conservation Mode
a. SafeTrack Mode creates a low power state while maintaining satellite
connection
b. Utilize SafeTrack to extend battery life during navigation
c. XM Satellite Radio audio does not function when Safetrack is activated
d. XM Weather and XM Sports information can be updated while utilizing
SafeTrack (See “Auto Update”)
e. Access SafeTrack from the Hot “H” button menu (see Figure 3).
For more information on Safe Track please reference “Using the SafeTrack
Battery Conservation Mode” on pg.18.
1) Power Menu
a. Access this quick menu anytime by clicking the Power Button
(see Figure 1)
Options to increase battery life:
1. XM must be turned “On” to listen to XM Radio audio programming.
2. When not listening to XM audio programming, turn XM “O” to signicantly
increase battery life.
3. e “Auto Update” mode provides for periodic updates of XM Weather and XM
Sports data while providing extended battery life versus the XM “On” mode.
XM audio programming is not available in this mode.
ONIX400 1LIM QS Guide-Feb08 Revi8 8 2/20/08 8:55:59 PM
9
1. You must charge the battery pack before using the ONIX400. Attach the battery pack (rst, verify
that the MicroSD card is installed in its slot), referring to the instructions and photos on pg. 4. Plug the
AC charger cord into the accessory port (pg. 5), then into an AC outlet (110-120 volt/60 cycle).
2. The initial charge may take up to 4 hours. A full charge is indicated when the status LED below the
orange Hot button changes from red to green. You may then disconnect the charger cord from the outlet
and accessory port. Store it safely for future use.
3. To ensure adequate satellite signal strength, make sure you are in a location with an unobstructed
view of the sky (GPS units typically do not work well indoors unless you are very near to a window)
4. Press and hold the power button for a few seconds until the display starts up.
5. Press the MENU button briey. You will see the Main Menu screen, with six “pages” to choose
from. Use the 5-way switch to select (highlight) SAT, then press the “OK” (center) button.
6. You are now viewing the Satellite (SAT) page. You will begin to see multiple icons on the circular
“radar” screen, representing the closest satellites to you in the global GPS system. These icons will
turn green as the ONIX “locks on” to each satellite, and the satellite ID# will be shown. The bar graph
below the “radar” screen indicates the relative signal strength of each satellite. Once you have a lock
on at least 3 or 4 satellites, you are ready to navigate. Note that the satellite “lock” process will take
longer (up to 3 or 4 minutes), the rst time you use your GPS in a new geographical area, but will be
much faster on future usage in the same area
(see “Reset Data” in the SET Page>GPS options, if you
later relocate more than 300 miles away from your initial area)
. You can check reception with the SAT
page at any time, but will likely nd that you use it less than any other page-in fact, you may simply go
directly to the MAP (or any other) page the next time you use your ONIX.
7. You’re ready to go! Let’s take a look in more detail at the other pages, then see how easy it is to enjoy
the many features and capabilities of the ONIX400 for yourself to mark and name your own waypoints
(locations or objects you want to return to later), navigate towards a nearby point of interest, layer a
compass or weather radar over the map, and even listen to a ball game or your favorite music while
you walk!
GETTING STARTED
To use the XM Satellite Weather and/or Entertainment features of the ONIX400, you will
rst need to set up your subscription to these XM services and activate XM reception
for your unit. It’s fast and easy... just follow the directions on the “XM Satellite Service
Activation” page included in your ONIX information pack, or call 1-800-985-9200.
In order to activate the XM Radio services, you will need your XM Radio ID number.
This ID# can be found on the product label inside the battery pack compartment, or on
the SET page in the “Unit Info” (Go to the SET page, press UP or DOWN buttons to
highlight “Unit Info”, then press the OK button to display all unit info, including your
XM ID number).
ONIX400 1LIM QS Guide-Feb08 Revi9 9 2/20/08 8:55:59 PM
Loading...
