Bush CMC361DABBT Instruction manual

Download

Instruction Manual

CMC361DABBT

Table of contents

008:28:23

Product Code

CMC361DABBT

Accessories included ............................. 3

Overview of controls .............................. 3

Overview of controls .............................. 4

Remote control battery installation. . . . . . . . . . . . . . . 4

Speaker connections ...........................5

Power supply & standby ........................5

Connecting the mains power ..................... 5

Standby function ................................. 5

General operation ..............................5

Mute ............................................. 5

Volume controls .................................. 5

Switching modes ................................. 5

CD operation ...................................6

Play/pause ....................................... 6

Stop .............................................. 6

Skipping tracks .................................. 6

Fast searching tracks ............................ 6

Numeric buttons ................................. 6

Repeat ........................................... 6

Random .......................................... 6

Program .......................................... 6

Intro .............................................. 7

Dab operation ..................................7

Getting started ................................... 7

Listening to the stored dab stations .............. 7

Storing station presets ........................... 7

Recalling station presets ......................... 7

Display modes ................................... 8

Performing a station scan ........................ 8

Manual tuning ................................... 8

Pruning .......................................... 8

DRC ( dynamic range control ) .................... 9

FM operation ...................................9

Getting started ................................... 9

Tuning radio stations ............................. 9

Storing station presets ........................... 9

Recalling station presets ......................... 9

Scan modes ...................................... 9

Scan modes (cont) ..............................10

Stereo / mono mode ............................ 10

Display modes ..................................10

Advanced audio adjustment .................. 10

EQ modes .......................................10

Bass / Treble adjustment ........................10

Connecting an external audio source .......... 10

Connecting an external audio source (cont) ... 11

Playing audio from the audio source .............11

USB operation ................................ 11

Switching modes ................................11

Playing audio from a usb source .................11

Controlling audio playback from usb ............ 11

Bluetooth operation .......................... 11

Bluetooth operation (cont) .................... 12

Controlling the paired device .................... 12

Advanced operation .......................... 12

Factory reset ....................................12

Setting the time manually .......................12

Sleep mode .....................................12

Sleep mode (cont) ...............................13

DAB availability ............................... 13

UK Mains plug information .................... 13

Disc handling information .................... 13

Technical speciﬁcations ...................... 13

Disposal information ......................... 14

Care & maintenance .......................... 14

Page 1

Safety information

Important – Please read these instructions fully before using

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE ANY COVER. NO USER-SERVICEABLE PARTS INSIDE, REFER ANY SERVICING TO QUALIFIED SERVICE PERSONNEL.

• Please take the time to follow the instructions in this owner’s guide carefully. It will help you set up and operate your system properly and enjoy all of its advanced features.

• Please save this owner’s guide for future reference.

• The product label is located on the back of the product.

• Heed all warnings - on the product and in the owner’s guide.

• Do not use this apparatus near water or moisture.

• Do not use this product near a bathtub, washbowl, kitchen sink, and laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or moisture is present.

• Only use attachments/accessories speciﬁed by the manufacturer.

• Unplug this apparatus during lightning storms or when unused for long periods of time - to prevent damage to this product.

• Refer all servicing to qualiﬁed service personnel

• Servicing is required when the apparatus has been damaged in any way: such as liquid has been spilled or objects have fallen into the apparatus; the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped -

• Do not attempt to service this product yourself.

• Opening or removing covers may expose you to dangerous voltages or other hazards.

• To prevent risk of ﬁre or electric shock, avoid overloading wall outlets, extension cords, or integral convenience receptacles.

• Use suitable power sources - Plug the product into a suitable power source, as described in the operating instructions or as marked on the product.

• The mains plug is used as the disconnect device, the disconnect device shall remain readily accessible.

• The apparatus shall not be exposed to dripping or splashing and that no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Batteries shall not be exposed to excessive heat such as sunshine, ﬁre or the like.

This symbol means that this unit is double insulated. An earth connection is not required.

CAUTION : CLASS 1 LASER PRODUCT

This product utilizes a Class 1 laser. This laser DVD Player is equipped with safety switches to avoid exposure when the door is open and the safety interlocks are defeated. Invisible laser radiation is present when the Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

LASER SAFETY

This unit employs a laser, only qualiﬁed service personnel should attempt repair.

• Any electrical work that is required to install this appliance MUST be carried out by a qualiﬁed electrician.

• Before making any electrical connections, ensure the following:

• Do not bend, stretch or pull the supply cable in order to avoid electric shock.

• The supply voltage should be the same as that indicated in the technical speciﬁcations and the appliance rating plate.

• When installed, the power socket must be within easy reach.

• If the socket outlets in your home are not suitable for the plug supplied with this unit check with a qualiﬁed electrician for replacement.

• The use of multiple connectors or extension cables are not recommended.

• The appliance must be connected to a 100-240 volt 50/60Hz AC supply by means of a three pin socket.

• The main plug is used as the disconnect device, the disconnect device shall remain readily operable.

• In order to disconnect the apparatus from the mains completely, switch off the outlet and remove the mains plug completely.

CAUTION

RISK OF ELECTRIC SHOCK!

DO NOT OPEN!

This product complies with European low voltage (2006/95/EC) and electromagnetic compatibility (2004/108/EC) directives.

Page 2

Functions & controls

Please familiarize yourself with the parts and accessories listed below

Accessories included

• 1 x CMC361DABBT • 1 x Remote control • 1 x Instruction manual

Overview of controls

1 2

8 9 151413121110

008:28:23

LINE-IN

6 73 4 5

1616

SPEAKER

STOP button

1: 2: STANDBY button 3: CD drawer 4: LED display 5: SOURCE button 6: EJECT button 7:

PLAY/PAUSE button

Page 3

/ TUNE- button

9: POWER ON/OFF button 10: SKIP 11: VOLUME control 12: CD/USB source button 13: SKIP 14: USB input socket

/CH- button

/CH+ button

15:

/ TUNE+ button

16: SPEAKERS 17: ANTENNA 18: LINE-IN inputs 19: SPEAKER terminals 20: MAINS power cable

Installation

Overview of controls

21 50

24 25

27 28

30 31

46 45

44 43

39 38

21: STANDBY button 22: NUMERIC buttons 23: INFO button 24: MENU button 25:

NAVIGATION/ CH+ button

26:

NAVIGATION/TUNE-/ button

27:

PLAY/PAUSE button

28:

STOP button

29: AUTO button 30: BASS button 31: TREBLE button 32: INTRO button 33: EQ button 34: REPEAT button 35: RANDOM button 36: MUTE button 37: SLEEP button 38: VOL- button 39: VOL+button 40: SAVE button 41: CD/USB source button 42: SKIP 43: SKIP 44: 45: ENTER button 46: 47: DAB/FM button 48: SOURCE button 49: PROG button 50: EJECT button

button button

NAVIGATION/ CH- button

NAVIGATION/TUNE+/ button

Remote control battery installation

Before use, the remote control will need batteries ﬁtting.

1: Remove the battery compartment lid as shown.

2: Fit 2 x AAA batteries as shown. Take care to match

the polarities of the remote to the batteries. EG: the + sign on the battery matches the + sign on the remote control battery compartment.

3: Replace the battery compartment lid and proceed

to use.

NOTE: Leaking batteries may damage the battery compartment and the remote as a whole, so they should be removed from the compartment when becoming ﬂat or when the remote is not to be used with batteries for some time.

Page 4

User instructions

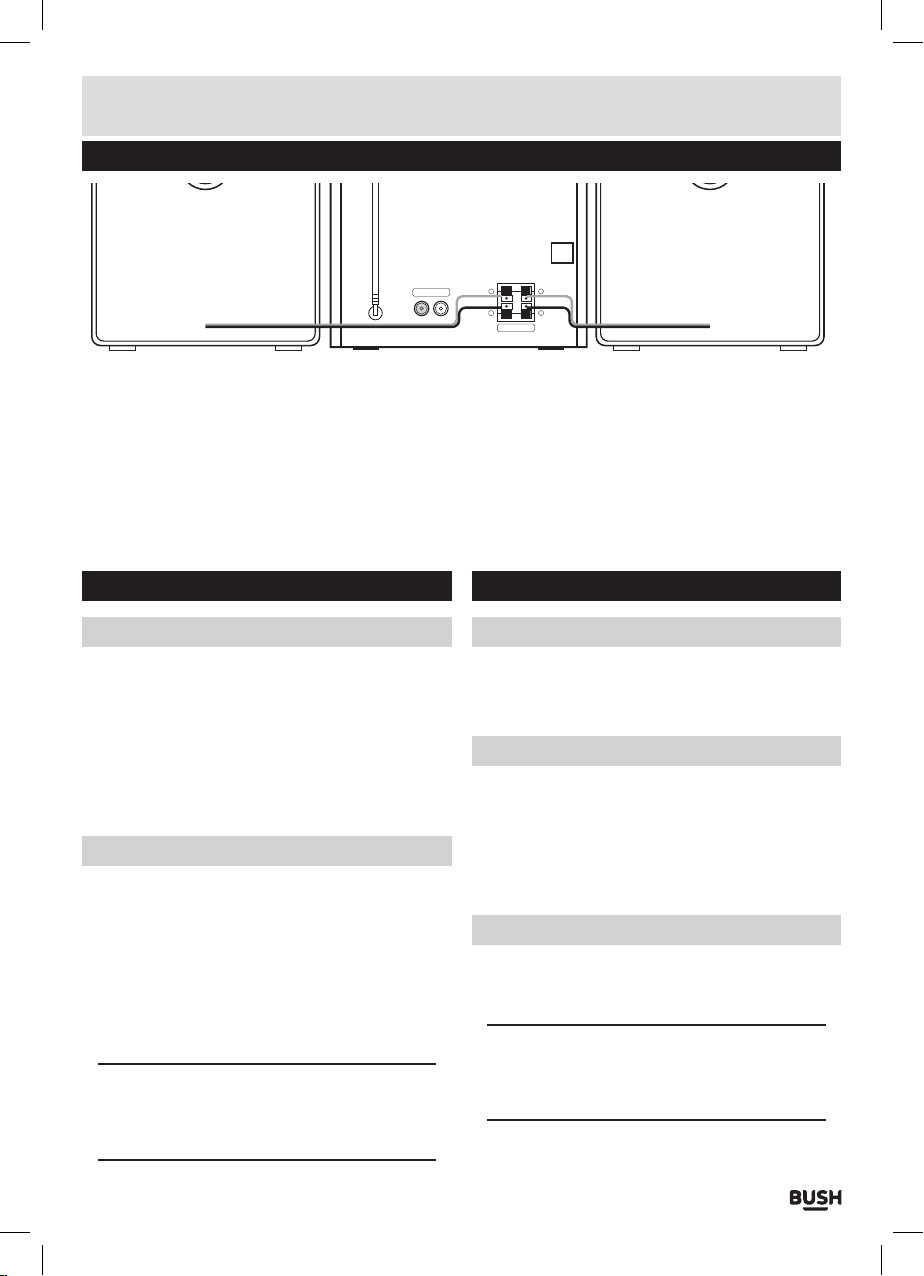

Speaker connections

LINE-IN

Connect the speaker wires as shown above.

1: Take the RIGHT speaker cable and insert the WHITE

cable into the RED terminal on the rear of the unit marked with an ‘R’. You will need to push the RED spring clip towards the rear of the unit to allow the wire to be inserted.

2: Repeat the process for the BLACK cable from the

RIGHT speaker. But insert this wire into the BLACK

Power supply & standby

Connecting the mains power

Before connecting the power, ensure all the speaker connections (above) are correct & secure.

1: Connect the mains plug to a UK mains outlet. 2: Switch the UK mains outlet ON. 3: Press the POWER button (9) on the main unit. 4: Press the STANDBY button either on the remote

control (21) or on the main unit (2).

Standby function

This function will enter a power saving mode that enables the unit to be quickly powered on.

1: Press the STANDBY button either on the remote

control (21) or on the main unit (2) to wake the unit from STANDBY mode.

2: To enter STANDBY mode press the STANDBY button

either on the remote control (21) or on the main unit (2).

NOTE: This unit is designed to enter STANDBY mode automatically after 20 MINUTES of inactivity. Press the STANDBY button to wake the unit.

SPEAKER

terminal underneath the RED one also marked ‘R’.

3: Take the LEFT speaker cable and insert the WHITE

cable into the RED terminal on the rear of the unit marked with an ‘L’ . You will need to push the RED spring clip towards the rear of the unit to allow the wire to be inserted.

4: Repeat the process for the BLACK cable from the

LEFT speaker. But insert this wire into the BLACK terminal underneath the RED one also marked ‘L’ .

General operation

Mute

1: To temporarily silence playback of any mode press the

MUTE button (36) on the remote control.

2: Press once more to resume the audio output.

Volume controls

1: Press the VOL+ button (39) on the remote control

or rotate the VOLUME control (11) clockwise on the main unit to increase the volume level.

2: Press the VO L- button (38) on the remote control or

rotate the VOLUME control (11) anti-clockwise on the main unit to increase the volume level.

Switching modes

1: Press the SOURCE button on the remote control

(48) or main unit (5) repeatedly until you reach the

required input.

NOTE: When in CD or USB mode. If no disc is found, but a USB device is the unit will switch to USB mode. Likewise if a disc is found but no USB drive then CD mode will be selected.

Page 5

User instructions

CD operation

Follow the below instructions to begin playback of an audio CD.

1: Select CD mode using the instructions from the

‘Switching modes’ section.

2: Press the EJECT button (6, 50), load a disc on the

drawer (label facing upwards) and press the EJECT button once more to close.

3: After a brief period the unit will automatically read the

disc and begin playback from track 01.

Play/pause

1: From the STOP position, press the PLAY/PAUSE

button on the main unit (7) or remote control (27) to begin playback.

2: Press again to PAUSE playback. From the PAUSE

position pressing the PLAY/PAUSE button resumes playback.

Stop

1: Press the STOP button on the main unit (1) or remote

control (28) during playback to stop the disc at it’s current position.

Skipping tracks

1: Press the SKIP

track on a disc.

2: Press the SKIP

previous track on a disc.

button (13,43) to skip to the next

button (10,42) to skip to the

Numeric buttons

During CD playback you can jump directly to a track using only the NUMERIC buttons (22) on the remote control. For example:-

Track 2: Press 2 Track 16: Press 10+ and 6 Track 22: Press 10+ two times and then 2

Repeat

During playback you can choose to repeat single tracks or multiple tracks.

1: Press the REPEAT button (34) on the remote control

to repeat the current track. You will see the ﬂash on the display.

2: Press the REPEAT button again to repeat all tracks

on the current disc. You will see the ﬂashing and remain solid.

3: To cancel the repeat function press the REPEAT

button once more. The the display.

Random

1: During CD playback pressing the RANDOM button

(35) on the remote will playback all tracks on the

current disc in a random order. You will see ‘RAN’ appear on the display to indicate this function is active.

2: Press the RANDOM button once more to cancel the

function. The ‘RAN’ icon will disappear.

icon will disappear from

icon

icon stop

Fast searching tracks

1: During playback pressing the

(15) or

NAVIGATION/TUNE+/ button (46) on the

remote will fast forward the current track. Press the PLAY/PAUSE button to resume playback from the current position.

2: During playback pressing the

(8) or

NAVIGATION/TUNE-/ button (26) on the

remote will fast rewind the current track. Press the PLAY/PAUSE button to resume playback from the current position.

NOTE: No audio will be heard during fast search.

/ TUNE+ button

/ TUNE- button

Program

It is possible to program a playback sequence up to 20 tracks using this function.

1: Press the STOP button (1, 28) to stop playback (if

required).

2: Press the PROG button (49) on the remote control.

You will see ‘P01’ on the display to indicate the program function is active.

3: Use the NUMERIC buttons (22) to enter the track

number you want to play in slot P01.

4: Press the PROG button once more to proceed to

slot P02. When ‘P02’ appears on the display you can repeat step 3 and enter the track number of slot P02.

5: Repeat steps 4-5 until you have programmed all

tracks you want in the sequence.

Page 6

User instructions

Program (cont)

6: To begin playback of the programmed sequence

press the PLAY/PAUSE button.

7: To cancel playback press the STOP button.

Intro

1: Press the INTRO button (32), you will see ‘INTRO ON’

appear on the display. The ﬁrst 15 seconds of each track on the current disc will now play.

2: Press the INTRO button again to cancel. You will see

‘INTRO OF’ appear on the display.

Dab operation

Getting started

Before attempting to tune a radio station the telescopic antenna needs to be extended fully.

LINE-IN

SPEAKER

1: Select DAB mode using the instructions from the

‘Switching modes’ section.

Getting started (cont)

NOTE: If no stations where located during the scan, relocate the unit, extend the antenna fully and read the ‘Manual Tuning’ section on page 8.

Listening to the stored dab stations

1: To listen the DAB stations that have been stored press

either CH- / CH+ button (10,13) main unit or (44,25) on the remote to cycle through the list.

2: Press the

PLAY/PAUSE button (7) main unit or

ENTER (45) to tune to the selected station.

Storing station presets

It is possible to store up to 10 of your favourite stations to the preset keys.

1: Tune to the station you wish to store as a preset and

follow the below instructions.

2: Press and hold the SAVE button (40). The display

will show ‘EMPTY 1’, where ‘1’ is the selected preset location.

3: Use the CH- / CH+ buttons (44,25) to select the

preset number from 1-10 you wish to use. Then press the ENTER button (45) to store.

4: When stored the display will show ‘STORED’.

NOTE: Once a station is saved to preset location 1 you will no longer see ‘EMPTY 1’ when pressing and holding the SAVE button, instead the saved station name will appear.

NOTE: There are two radio source options. When you see RADIO on the display the ﬁrst press is DAB mode the second press is FM mode.

2: Alternatively you can press the DAB/FM button

(47) on the remote to jump to DAB mode (from any mode other than radio), or press repeatedly to cycle between DAB & FM.

3: When the DAB mode is activated for the ﬁrst time the

unit will perform a scan for available stations. You will see ‘SCAN 0’ appear on the display until stations are located and then the ‘0’ will change to the amount of stations found. When complete the ﬁrst alphabetical station will begin playback unless no stations were located.

Page 7

Recalling station presets

1: To recall a stored preset station press the relevant

numeric button (22) on the remote control.

For example to recall the station stored on preset 3 press the numeric button ‘3’. And to recall a station stored on location 10, press the ‘0’ button.

User instructions

Display modes

Every time you press the “INFO” button (23) on the remote control, the display will cycle through the following display modes: The information is displayed on the lower segment of the LCD display.

DLS (scrolling text)

Signal Strength

Programme Type

Ensemble Name

Channel Frequency

Mode

Time

Date

DLS (dynamic label segment)

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. This message usually includes information, such as program detail etc.

Signal strength

This option will display a bar indicating the signal strength.

Program type

This describes the “Style” or “genre” of music that is being broadcast e.g. “Rock “or “Classical”.

Ensemble/Multiplex (group name)

A multiplex/ensemble is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are speciﬁc to that area e.g. MXR West.

NOTE: DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

Channel frequency

Displays the current DAB multiplex in use.

Mode

Displays the current mode.

Time & date

The time & date can be set automatically from the DAB or FM broadcast or set manually. Follow the steps on page 12 to set manually.

Performing a station scan

There are two types of scan, one is Quick scan and the other is Auto scan.

Quick scan: searches the UK DAB band III Full scan: searches all DAB channels.

1: To activate the quick scan press the AUTO button (29). 1: To activate the full scan press the MENU button (24)

on the remote.

2: When the ‘FULL SCAN’ option appears press the

ENTER button (45) to perform a full scan.

Manual tuning

As well as an auto tune function, you can manually tune the receiver. This can help when aligning your aerial or when adding stations that were missed while auto tuning.

1: Press the MENU button (24). 2: When the ‘FULL SCAN’ option appears press

either TUNE- or TUNE+ (26,46) button and locate ‘MANUAL’, press the ENTER button (45).

3: Use the TUNE- or TUNE+ (26,46) buttons to cycle

through the DAB multiplexes, which are numbered

174.928 - 239.200MHz.

4: Now press the ENTER button (45) to enter the

selected ensemble/multiplex, there will be a bar graph denoting the signal strength displayed.

5: To save any extra stations located to the station list

or to return to the default screen, press the ENTER button (45).

Pruning

When the radio has performed a Scan in several locations you may ﬁnd there are stored stations that you can no longer receive. This function automatically removes them from the stored station list.

1: Press the MENU button (24). 2: When the ‘FULL SCAN’ option appears press either

TUNE- or TUNE+ (26,46) button and locate ‘PRUNE’, press the ENTER button (45).

3: Use the TUNE- or TUNE+ (26,46) buttons to select ‘Y’

(yes) and press the ENTER button (45) to perform the

prune function.

Page 8

User instructions

DRC ( dynamic range control )

This function causes the radio to reduce the dynamic range of the audio signal. The purpose of this is to adapt the dynamic range of the audio signal to listening in a noisy environment.

NOTE: this is not available on many DAB stations.

1: Press the MENU button (24). 2: When the ‘FULL SCAN’ option appears press either

TUNE- or TUNE+ (26,46) button and locate ‘DRC’, press the ENTER button (45).

3: Use the TUNE- or TUNE+ (26,46) buttons to select

between DRC OFF, DRC LOW and DRC HIGH.

4: Press ENTER button (45) to save the setting.

FM operation

Getting started

Before attempting to tune a radio station the telescopic antenna needs to be extended fully.

Tuning radio stations

1: To scan for radio stations press and hold either of

the TUNE- or TUNE+ buttons (main unit 8,15) or (remote 26,46) for two seconds to scan down or up

the frequency band. When a station is found the scan will stop and the station will begin to play.

2: To ﬁne tune the frequency press either of the TUNE-

or TUNE+ buttons (main unit 8,15) or (remote 26,46)

(do not press & hold), to jump 0.05 MHz.

3: Alternatively you can press the MENU button (24) and

when ‘SCAN UP’ appears press the ENTER button (45) to begin scanning up the frequency range. When

a station is located playback will begin automatically.

Storing station presets

It is possible to store up to 10 of your favourite stations to the preset keys.

1: Tune to the station you wish to store as a preset and

follow the below instructions.

2: Press and hold the SAVE button (40). The display

will show ‘EMPTY 1’, where ‘1’ is the selected preset location.

3: Use the CH- / CH+ buttons (44,25) to select the

preset number from 1-10 you wish to use. Then press the ENTER button (45) to store.

4: When stored the display will show ‘STORED’.

LINE-IN

SPEAKER

1: Select FM mode using the instructions from the

‘Switching modes’ section.

NOTE: There are two radio source options. When you see RADIO on the display the ﬁrst press is DAB mode the second press is FM mode.

2: Alternatively you can press the DAB/FM button

(47) on the remote to jump to FM mode (from any mode other than radio), or press repeatedly to cycle

between DAB & FM.

Page 9

NOTE: Once a station is saved to preset location 1 you will no longer see ‘EMPTY 1’ when pressing and holding the SAVE button, instead the saved station name or frequency will appear.

Recalling station presets

1: To recall a stored preset station press the relevant

numeric button (22) on the remote control.

2: For example to recall the station stored on preset 3

press the numeric button ‘3’. And to recall a station stored on location 10, press the ‘0’ button.

Scan modes

1: Press the MENU button (24). 2: When the ‘SCAN UP’ option appears press either

TUNE- or TUNE+ (26,46) button and locate ‘SCAN SET’, press the ENTER button (45).

User instructions

Scan modes (cont)

3: Use the TUNE- or TUNE+ (26,46) buttons to select

between LOCAL (Strong local stations only) or DX (All available stations).

4: Press ENTER button (45) to save the setting and

MENU to exit.

Stereo / mono mode

Sometimes Stereo radio stations can suffer from interference (static & crackles) to reduce this problem you can enable MONO mode.

1: Press the MENU button (24). 2: When the ‘SCAN UP’ option appears press either

TUNE- or TUNE+ (26,46) button and locate ‘AUDIO’, press the ENTER button (45).

3: Use the TUNE- or TUNE+ (26,46) buttons to select

between STERO or MONO.

4: Press ENTER button (45) to save the setting and

MENU to exit.

Display modes

Radio Text

Audio Mode (St/Mono)

Display modes (cont)

Time & date

The time & date can be set automatically from the DAB or FM broadcast or set manually. Follow the steps on page 12 to set manually.

Advanced audio adjustment

EQ modes

1: Press the EQ button (33) on the remote control

repeatedly to cycle through the available sound EQ presets of: FLAT, JAZZ, ROCK, POP & CLASSIC.

Bass / Treble adjustment

1: Press the BASS button (30) ‘BASS’ will appear on the

display with a number next to it denoting the Bass level. Use the VOL +/- buttons (38,39) to increase or decrease the Bass level.

2: Press the TREBLE button (31) ‘TRE’ will appear on the

display with a number next to it denoting the Treble level. Use the VOL +/- buttons (38,39) to increase or decrease the Treble level.

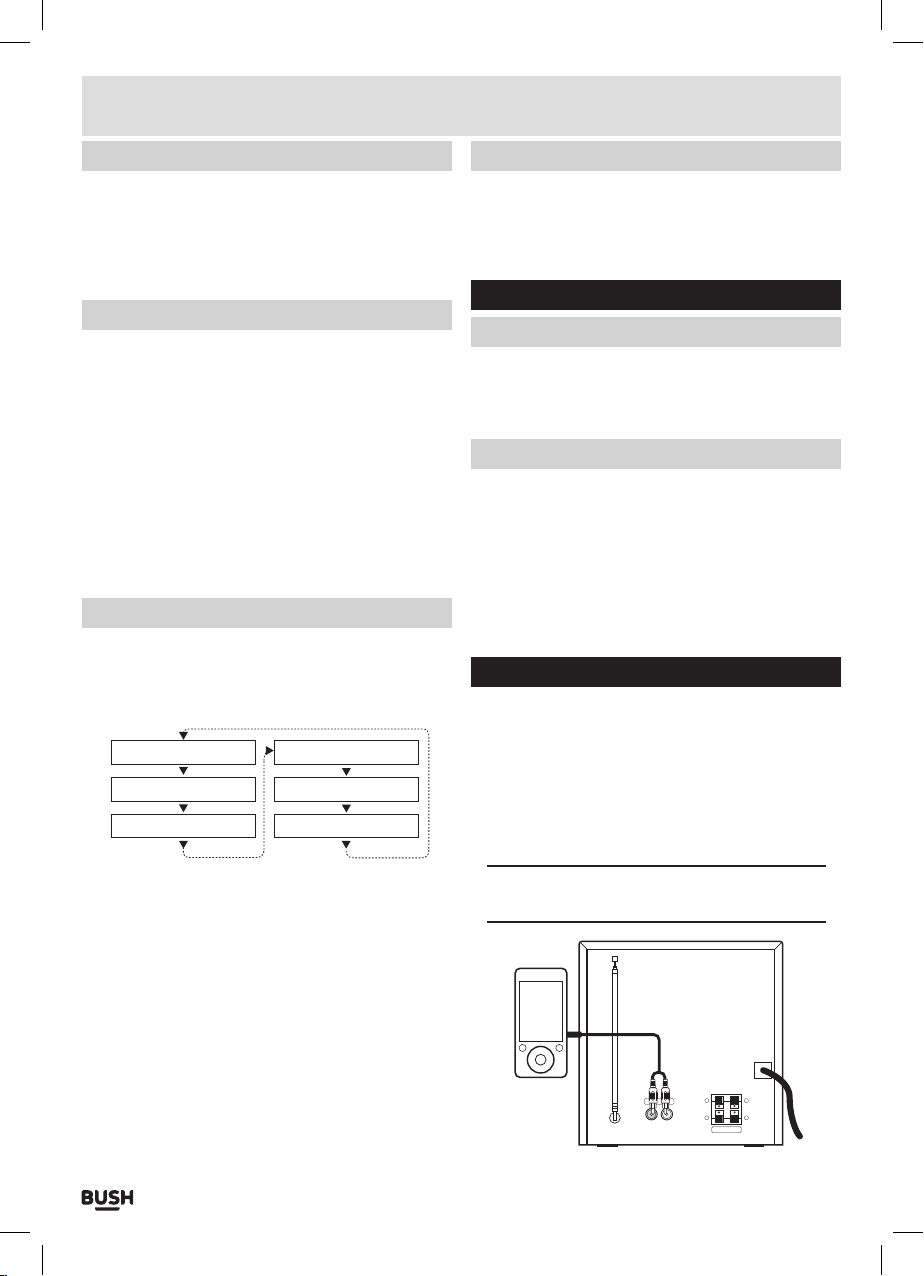

Connecting an external audio source

Follow the steps below to connect the unit to an external audio device using a 3.5mm to PHONO audio cable (not supplied).

Program Type

Program Name

Time

Date

Radio text

As with DAB, broadcasters can include a scrolling text that displays information about the current program. If radio text is not available then the display will show ‘NO TEXT’.

Program type

This describes the “Style” or “genre” of music that is being broadcast e.g. “Rock “or “Classical”.

Program name

Displays the frequency of the current station.

Audio mode

Displays the current FM mode of STEREO or MONO.

1: Connect the 3.5mm plug end of the cable (not

supplied) to an audio sources headphone / Line

output and the RED & WHITE sockets to the LINE IN input (18) sockets on the rear of the unit.

NOTE: You must match the RED plug to the RED socket and the WHITE plug to the WHITE socket.

LINE-IN

SPEAKER

Page 10

User instructions

Connecting an external audio source (cont)

Playing audio from the audio source

1: Select LINE IN mode using the instructions from the

‘Switching modes’ section.

2: Press PLAY on the external audio source EG:- MP3

player.

NOTE: the volume output is effected by the volume level on the source EG: MP3 player so make sure that is set to about 70-80% ( not too loud to avoid distortion ).

3: Adjust the VOL +/- buttons (38,39) or VOLUME

CONTROL (11) to increase or decrease the volume to

the required listening level.

USB operation

Switching modes

1: Press the SOURCE button on the remote control (48)

or main unit (5) repeatedly until you reach the USB mode.

2: You can also press the CD/USB button (12) on the

main unit to cycle only between those two mode.

Playing audio from a usb source

1: Insert a compatible USB ﬂash drive into the USB port

(14) on the front of the unit.

008:28:23

USB FLASH DRIVE

2: The unit will scan the USB ﬂash drive and display the

total number of tracks found on the drive. Playback of track 01 will begin automatically.

NOTE: Tracks inside folders are listed as part of the total number of tracks. So if you have 20 tracks in folder 1 the ﬁrst track of folder 2 will be Track 21.

Controlling audio playback from usb

PLAY/PAUSE 1: From the STOP position, press the PLAY/PAUSE

button on the main unit (7) or remote control (27) to begin playback.

2: Press again to PAUSE playback. From the PAUSE

position pressing the PLAY/PAUSE button resumes playback.

STOP 1: Press the STOP button on the main unit (1) or remote

control (28) during playback to stop the disc at it’s current position.

SKIPPING TRACKS 1: Press the SKIP

track on a disc.

2: Press the SKIP

previous track on a disc.

RANDOM 1: During playback pressing the RANDOM button (35)

on the remote will toggle the SHUFFLE function.

REPEAT 1: During playback pressing the REPEAT button (34) on

the remote will toggle the REPEAT functions of: OFF, SINGLE or ALL.

Bluetooth operation

When using the Bluetooth connection, you can listen to audio wirelessly from a Bluetooth stereo audio device within 10 metres of the CMC361DABBT.

1: Select BT mode using the instructions from the

‘Switching modes’ section.

2: When the Bluetooth mode is selected a BLUE

indicator LED will ﬂash 3 times and then a beep will be heard. The unit is now in connection mode and will pair with any previously connected devices, denoted by the RED & BLUE alternate ﬂashes on the LED.

3: If you have not connected a device you can now

enable ‘discovery’ mode on your device and select the CMC361DABBT Bluetooth connection. If you are asked for a pass code enter ‘0000’.

NOTE: If you turn off either device before pairing is complete the process will need to be repeated when powered ON again.

button (13,43) to skip to the next

button (10,42) to skip to the

Page 11

User instructions

Bluetooth operation (cont)

4: Once paired the BLUE LED indicator will ﬂash slowly. 5: When playback from the device is initiated the RED &

BLUE LED indicators will ﬂash simultaneously

6: If using a mobile phone as an audio source, when

receiving a phone call the audio playback stops while you receive the call. When you hang up the audio is restored, but you will need to press PLAY once more on the device.

NOTE: the volume output is effected by the volume level on the audio source EG: Phone or laptop, so make sure that is set to about 70-80% (not too loud to avoid distortion).

Controlling the paired device

Once connected you can either use the controls on the audio device to begin playback, skip tracks etc. Or you can use the control buttons on the speaker unit.

1: The PLAY/PAUSE button (7 or 27) when pressed will

begin playback of the selected track on the audio device. Press again to pause playback.

2: To skip to the next track press the NEXT button (13

or 43).

3: To skip to the previous track press the PREV button

(10 or 42).

Advanced operation

Factory reset

There may be times when you need to reset the unit back to its original factory setting.

NOTE: the factory reset function can ONLY be activated from DAB or FM mode.

1: Press the MENU button (24). 2: When the ‘FULL SCAN’ option appears (DAB mode) or

‘SCAN UP’ (FM mode) press either TUNE- or TUNE+ (26,46) button and locate ‘SYSTEM’, press the ENTER button (45).

3: Use the TUNE- or TUNE+ (26,46) buttons to ﬁnd

‘RESET’ and press ENTER (45).

4: Use the TUNE- or TUNE+ (26,46) buttons to select ‘Y’

(yes) and press the ENTER button (45) to perform the

reset function.

Advanced operation (cont)

Setting the time manually

You can set the time manually if the radio signal is not strong enough to set automatically.

1: Press the MENU button (24). 2: When the ‘FULL SCAN’ option appears (DAB mode) or

‘SCAN UP’ (FM mode) press either TUNE- or TUNE+ (26,46) button and locate ‘SYSTEM’, press the ENTER button (45).

3: Use the TUNE- or TUNE+ (26,46) buttons to ﬁnd

‘TIME’ and press ENTER (45).

4: From this menu there is multiple options :- SET TIME,

UPDATE & 12/24 HOUR. Select one and press the ENTER button (45) to proceed.

SET TIME 1: Use the CH- / CH+ buttons (44,25) to adjust the digits

and the ENTER button (45) to skip to the next setting.

2: Use the buttons outlined above to set the time and

then the date.

3: Press ENTER (45) when complete to store the

settings.

UPDATE

This setting speciﬁes the automatic clock setting.

1: Use the CH- / CH+ buttons (44,25) to select from

ANY (sets the clock from any mode possible), DAB (sets the clock only from DAB mode), FM (sets the clock only from FM mode), NONE (does not set the clock automatically and uses the manual time as described above).

2: Press the ENTER button (45) to store the setting.

12/24 HOUR

Select how the clock is displayed.

1: Use the CH- / CH+ buttons (44,25) to select from 12

or 24. Press ENTER (45) to store the setting.

Sleep mode

Using this function you can set a timer to switch the unit into STANDBY mode.

1: Press the SLEEP button (37) on the remote control

repeatedly to cycle through the timer options of:- 120, 90, 60, 45, 30, 15 & OFF.

Page 12

User instructions

Sleep mode (cont)

2: You do not need to press ENTER to store, just pause

on the selected timer duration and the countdown will begin.

NOTE: A ‘ZZZ’ icon will appear on the display to indicate the SLEEP TIMER function is active.

DAB availability

Check how many stations you can get in your area by texting DAB and your postcode to 88600# or ﬁnd out which stations on the website at:

http://www.getdigitalradio.com/

UK Mains plug information

For your convenience a mains plug with a fuse (3 Amp) has been ﬁtted to this appliance. For your safety please observe the following information.

Disc handling information (cont)

• If you cannot wipe off the dust with a soft cloth, wipe

the disc lightly with a slightly moistened soft cloth and ﬁnish with a dry cloth.

• Do not use any type of solvent such as thinner,

benzene, commercially available cleaners or antistatic spray for vinyl. It may damage the disc.

• Do not store discs in a place subject to direct sunlight

or near heat source.

• Do not store discs in a place subject to moisture and

dust such as a bathroom or near a humidiﬁer.

• Store discs vertically in a case, stacking or placing

object on discs outside or their case may cause warping.

Technical speciﬁcations

General

Power ................................ 230-240V ~ 50Hz

Power Consumption ..........................80 Watts

Dimensions .......Approx. 190(W) x 190(H) x 235(D)mm

AUX input ................................... R/L Phono

Tuner

FM ......................................87.5 - 108 MHz

DAB ............................174.928 - 239.200 MHz

• The unit is designed to operate on AC mains supply 230 volts, 50 Hz.

• The wires in the mains lead are coloured in accordance with the following code:

BLUE - NEUTRAL

BROWN - LIVE

Under no circumstances should the Neutral or Live wires be connected to the ‘E’ (Earth) terminal.

Disc handling information

• Do not touch the playback side of the disc.

• Do not attach paper or tape to disc.

• Fingerprints and dust on the disc cause picture and

sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

Page 13

CD Player

Playback system ...Compact Disc Digital Audio System

Frequency response .............20Hz - 20KHz (± 3 dB)

Distortion ....................................... ≤ 0.7%

Total harmonic distortion .......................... 10%

Audio

Output Power ...........................20 W x 2 (RMS)

Speaker impedance .......................... 8 Ω ohms

Disc Compatibility

Disc Type ......................... CD-DA/CD-R/CD-RW

Size ....................................... 12cm & 8cm

User instructions

Troubleshooting

In the unlikely event of difﬁculties with your appliance please follow the trouble shooting guide below. If the problem persists, contact the retailer if the machine is still under guarantee. Customer helpline: 0870 600 3030

Problem Reason(s) Solution(s)

No Power • Power cable not connected to

No Sound CD/LINE IN • Volume is too low

Sound is distorted Sound is distorted from LINE IN input

Unable to Play • No disc in the tray

Static Sound Burbling sound

Unit powers off after 20 minutes

Unit powers off with the volume level set to 3

wall socket

• Power socket is not switched on

• LINE IN source volume is too low

• Volume is too high

• LINE IN source volume is too high

• Disc not loaded properly

• Disc is dirty

• Poor reception

• Poor DAB reception

• Auto standby mode in operation

• Make sure the plug is connected

• Switch the power on

• Increase the volume

• Increase the output volume of the LINE IN source.

• Reduce the volume

• Reduce the output volume of the LINE IN source.

• Insert a compatible disc

• Check the disc loaded

• Clean the disc

• Re-locate the antenna (FM)

• Re-locate the antenna (DAB)

• This unit is designed to enter STANDBY mode automatically after 20 MINUTES of inactivity or if the volume level is set below 4.

• Press the STANDBY button to wake the unit.

Disposal information

WEEE marking “Information for the consumer”

Disposal of your old product Your product is designed and manufactured with high quality

materials and components, which can be recycled and reused. When this crossed out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please make yourself aware of the local collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Care & maintenance

After using your radio

• Set to Standby.

• Switch the unit off at the mains and unplug it if you are leaving it unattended for a long period (holidays etc).

• Avoid leaving batteries ﬁtted if you leave the radio unattended for long periods. They may leak and damage the radio.

Care and cleaning

• All care and cleaning operations should be carried out with the unit unplugged from the mains power.

• Occasionally wipe the cabinet with a lint free duster. Never clean the unit with liquids or solvents.

Page 14

Guarantee

PRODUCT GUARANTEE

This product is guaranteed against manufacturing defects for a period of

Year

This product is guaranteed for twelve months from the date of original purchase.

Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

Page 15

The guarantee is subject to the following provisions:

The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or

consumable items. The product must be correctly installed and operated in accordance with the instructions

contained in this manual.

It must be used solely for domestic purpose.

The guarantee will be rendered invalided if the product is re-sold or has been damaged by

inexpert repair. Specifications are subject to change without notice. The manufacturer disclaims any liability for the incidental or consequential damages. The guarantee is in addition to, and does not diminish your statutory or legal rights.

Guarantor: Argos Limited

489 - 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW

Bush CMC361DABBT Instruction manual

Specifications and Main Features

Frequently Asked Questions

User Manual
