Bully Dog Jeep JK 11+ User Manual

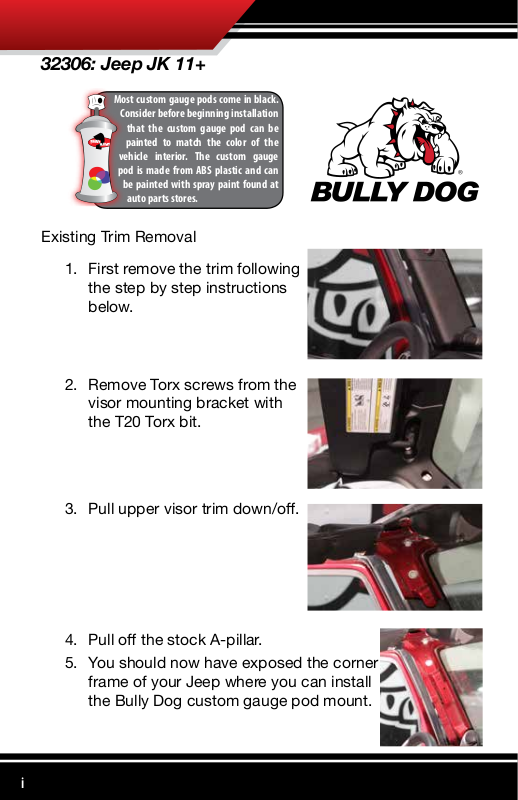

32306: Jeep JK 11+

Most custom gauge pods come in black.

Consider before beginning installation

that the custom gauge pod can be

painted to match the color of the

vehicle interior. The custom gauge

pod is made from ABS plastic and can

be painted with spray paint found at

auto parts stores.

Existing Trim Removal

1. First remove the trim following
the step by step instructions
below.

2. Remove Torx screws from the
visor mounting bracket with
the T20 Torx bit.

3. Pull upper visor trim down/o.

4. Pull o the stock A-pillar.

5. You should now have exposed the corner

i

frame of your Jeep where you can install
the Bully Dog custom gauge pod mount.

Custom Pod Mount Install

6. Install the appropriate mount adapter and run cables
for your vehicle through the accessory hole in the Bully

Dog A-pillar as needed. (Some route out through, while

some mount back in before install) Pull the driver side

dash panel o to run cables under the dash to the

OBDII Plug.

7. Install Bully Dog A-pillar by
guiding the push pins into the
appropriate hole and pushing
it until it locks in place.

8. Install visor trim piece.

9. Reinstall visor.

10. Finish by inserting plastic
screws.

11. Enjoy the sleek new look of your
Custom Mounted Bully Dog GT!

32306-99 v1.1
