BT 5110 User Manual

User Guide

BT DIVERSE 5110

This equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services.

This product is intended for connection to analogue public switched telephone networks and private switchboards in the UK.

* YOU MUST

SUBSCRIBE TO A

CALLER DISPLAY AND

CALL WAITING SERVICE

BEFORE YOUR DIVERSE 5110

WIL DISPLAY THIS INFORMATION.

A QUARTERLY FEE IS PAYABLE.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse 5110 ~ 6th Edition ~ 15th May ’03 ~ 5183

Please open this page for an ‘At a glance’ guide to your BT Diverse 5110.

At a glance

Option buttons

Lets you select from the menu options shown on the display.

Green phone

For making and answering calls.

Star/Bell

Switches the handset

ringer on and off.

Hash/Keyguard

Switches the keypad guard on and off.

For use with

switchboards and certain

Network Services.

Keypad

Microphone

Display

Displays the status of

your handset.

Extra Directory

Used to store 10 additional names and numbers.

Red phone

To end a call, return to idle and turn the power off and on.

Directory

Used to store and

dial numbers in the

directory.

BT Diverse 5110 ~ 6th Edition ~ 15th May ’03 ~ 5183

Right hand side

Takes you into

the calls list.

Left hand side

Takes you into

the redial list.

Right hand side

Takes you into the menu options.

Left hand side

To access list of internal handsets registered to the base.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

Base

Contact points

Display option buttons

The OPTION buttons allow you to select options within each menu that are shown on the display.

INT MENU-> ->

Press the right side of the button to confirm (OK) menu selection.

Press the left side of the button for and right side of the button for when going through the menu options.

Handset display

When in IDLE SCREEN mode, and the clock has been set.

Base underside

Power socket

Telephone line cord socket

INT

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

In this guide

At a glance 1

Menu structure 4

Quick guide 6

Quick guide to handset display icons 7

Introduction 8

Unpacking your BT Diverse 5110 8 For your records 8

Safety information 9

Setting up 10

Registering and charging the handset 10

Using the telephone 15

Making and ending calls 15 Call timer 16 Name and number directory 16 Extra directory 18 Redial 19 Secrecy 20 Paging and Internal calls 20

Caller Display and other BT Calling Features 23

Caller Display 23 Calls list 23 Call Waiting 26 Call Divert 27 Withhold number 27 Ring Back 28 Voice Mail 28

Handset settings 30

Keyguard 32

Base station settings 33

Base Station PIN (Personal Identification Number) 33

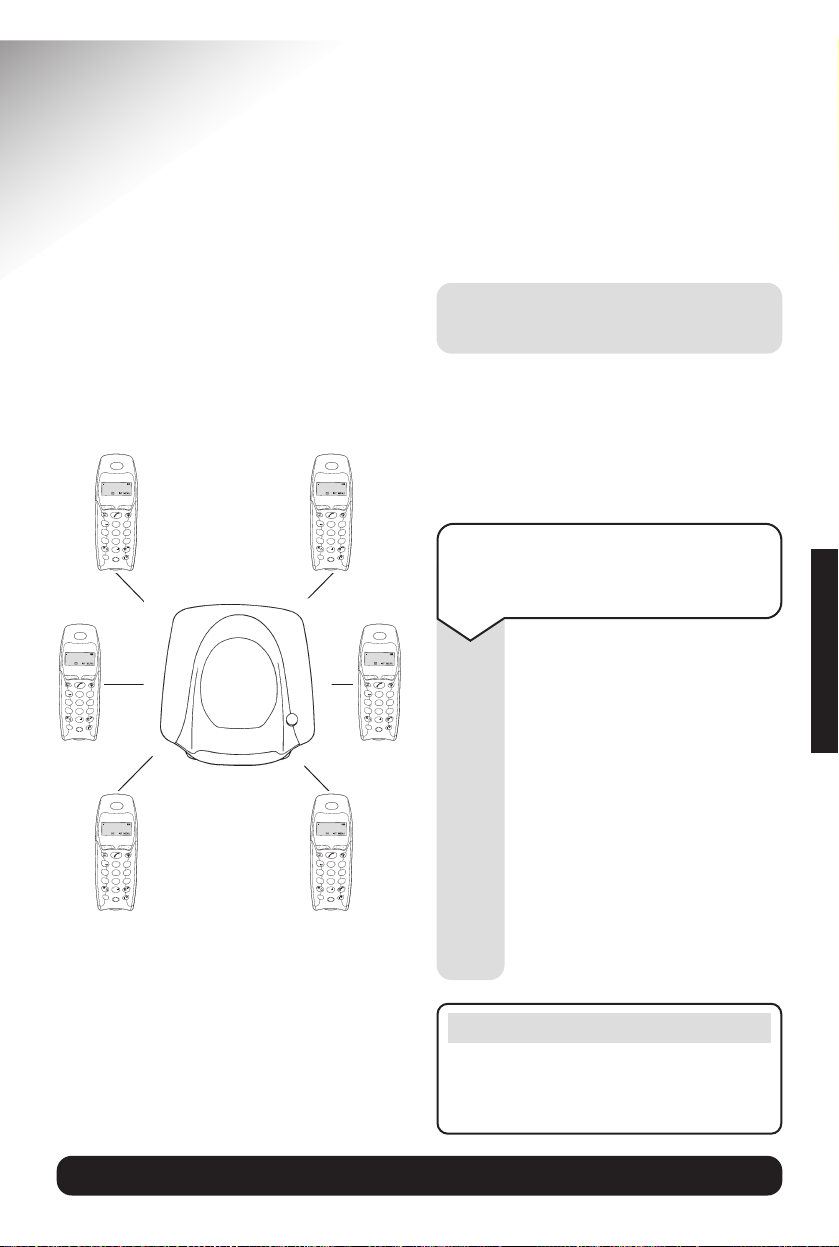

Using additional handsets and bases 35

Registering additional handsets 35

Help 38

General information 39

Guarantee 39 Technical information 40 Switchboard compatibility 40 Setting pauses 42

Index 43

Hints and tips boxes

In this user guide, we’ve included helpful tips and important notes. They are shown in boxes like this.

Helpline

If you experience any difficulties with your BT Diverse 5110, please call the BT Diverse Helpline on 08457 908 070.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Menu Structure

Sel Services Withhold No.

Call Waiting

Ringback Off

Call Divert

Audio Set H/Set Vol set

Ringer set

Melody set

Base Set Date/Time Date Set

Clock Set

Clock Mode 12H

24H

System PIN enter

Base Reset default

Add Features Dial Mode Tone

Pulse

tbr 100 MS

120 MS

180 MS

250 MS

300 MS

600 MS

Barge In on/off

Mailbox Set Key 1

(On display) Redial list Edit entry

Copy to dir.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

IMPORTANT

If you make a mistake, you can return to the previous menu by pressing the RED PHONE button. If you keep pressing the RED PHONE button you will return to the

idle screen.

Menu structure for directory, redial list, extra directory

Opens directory

Edit entry

Opens extra directory New entry

Show entry

Delete

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Quick guide

Commonly used handset functions and settings

Hold down

Select one of last 5 numbers

Enter number

Enter name

Call all or

Handset no. (e.g. 2)

Enter the date

Enter time

OKAM/PMOKOK

CLOCK SETOKDATE/TIMEOKBASE SETMENU

OKDATE SETOKDATE/TIMEOKBASE SETMENU

INT

SAVEDOKOKH/SET VOLOKAUDIO SETMENU

OKCALLS

SAVEDOK

OKOKNEW ENTRYMENU

Switch handset on/off

Switch keyguard on/off

Switch handset ringer on/off

Make an external call

To end a call

Redial a number

To store a name and number in the directory

Dial from the directory

Dial from the Calls list

Handset earpiece volume

Make internal call

Transfer call to handset

Set date

Set time

Page

no.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Quick guide to handset display icons

Redial, lists up to the last 5 dialled number.

Flashes to indicate new messages.

For calling other handsets.

Opens the menu.

Shows the status of the handset battery.

Scroll through the menu.

Confirms the function displayed.

Scroll left and right when entering numbers or messages.

Deletes numbers/characters (from left to right).

Do not disturb/Ringer off.

Handset locked.

Shows the number of the handset and is displayed in top left hand corner.

eg.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Introduction

Unpacking your BT Diverse 5110

If anything is missing, please contact your place of purchase immediately.

One BT Diverse 5110 base station

One BT Diverse 5100 handset

One power supply for the base station

One telephone line cord

Two AAA rechargeable batteries

Battery compartment cover

For guarantee purposes proof of purchase is required so please keep your receipt.

Enter your base station PIN code here:

For more information on your base PIN codes see page 33.

BT Accessories and Replacement Items

For a full range of accessories and replacement items for BT products please call 0870 240 5522, or visit:

For your records

Date of purchase:

Place of purchase:

INTRODUCTION

䊳

➔

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Safety information

General

Only use the power supply included with the product. Using an unauthorised power supply will invalidate your guarantee and may damage the telephone. Power supply number is M-GA35-095130F.

For the handset use only nickel-metal hydride (NiMH) AAA rechargeable batteries. Never use other batteries or conventional alkaline batteries. They could lead to a short circuit or destroy the battery casing. The batteries should have a power rating of at least 700mAh

1.2V. Batteries and accessories are available from withandwithoutwires.com or call 0870 240 5522.

If the Keyguard is switched on, it is NOT possible to make calls, including emergency numbers (999/112).

Do not open the base station or handset (other than to change batteries). This could expose you to high voltages or other risks.

Radio signals transmitted between the handset and base may cause interference to hearing aids.

This product should not be used near emergency/intensive care medical equipment and should not be used by people with pacemakers.

Never dispose of batteries in a fire. There is a serious risk of explosion and/ or the release of highly toxic chemicals.

Cleaning

Simply clean the handset and base station with a damp (not wet) cloth, or an anti-static wipe. Never use household polish as this will damage the product. Never use a dry cloth as this may cause a static shock.

Environmental

Do not expose to direct sunlight.

The product may heat up when the batteries are being recharged. This is normal. However, we recommend that you do not place the product on antique/veneered wood to avoid damage.

Do not stand your product on carpets or other surfaces which generate fibres, or place it in locations preventing the free flow of air over its surfaces.

Do not submerge any part of your product in water and do not use it in damp or humid conditions, such as bathrooms.

Do not expose your product to fire, explosive or other hazardous conditions.

There is a slight chance that your phone could be damaged by an electrical storm. We recommend that you unplug the power and telephone line cord during an electrical storm.

SAFETY INSTRUCTIONS

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

Plan the location

Situate your product close enough to the telephone and mains power sockets so that the cables will reach.

Make sure it is at least 1 metre away from other electrical products to avoid interference.

Do not situate the product in the bathroom or other humid areas.

WARNING

Do not connect the telephone line cord to the phone socket until your handset is fully charged. This will prevent the risk of the phone being answered before the battery is charged. Answering the phone before the battery is fully charged may prevent it from reaching its optimum capacity.

IMPORTANT

Please note that your handset is NOT registered to the base station. The BT Diverse 5100 handset will be easily registered once you complete the steps 1 to 3 below.

2 Plug the power supply unit

into the wall socket

Setting up

1 Connect the base station

Plug the power supply cable into the power socket on the underside of your base.

SETTING UP

BT Diverse Helpline – 08457 908 070

3 Registering and charging

the handset

The display is protected by a plastic film. You can remove this protective plastic film from the display.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Insert the two batteries supplied, as indicated inside the battery compartment and slide the battery compartment cover shut.

Insert the batteries

SETTING UP

When the handset is registered the display will show:

If the icons on the display

flash continuously...

It means that the handset is not registered with the base station.

Ensure you have correctly carried out step 3 on page 10. If the product has still not registered, please see “Registering manually” on page 36.

All additional handsets you purchase will need to be individually registered with the base station before they will work with the BT Diverse 5110.

Leave the handset for approx. 16 hours in the base station to charge the batteries, as they are not charged in the factory. The battery status icon flashes on the handset to indicate that the batteries are being charged.

The battery cover may be found in the packaging with the batteries.

To register your handset, place it in the base station with the display facing upward. After approx. one minute, the handset's internal number is displayed (e.g. 1). Successful registration is signalled by a confirmation tone.

WARNING

Under no circumstances should non-rechargeable batteries be used. Using incorrect batteries will invalidate your guarantee and may damage the telephone.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

SETTING UP

Battery performance

Batteries and case may become warm during charging. This is normal.

Under ideal conditions, the handset batteries should give about 13 hours talktime or 170 hours standby time on a single charge. However, new NiMH batteries do not reach their full capacity until they have been in normal use for several days.

The charge capacity of rechargeable batteries will reduce with time as they wear out, so reducing the talk/standby time of the handset. Eventually they will need to be replaced. New batteries are available from www.withandwithoutwires.com or call 0870 240 5522.

If you replace the handset batteries with ones that have been fully charged, the battery indicator will not show full until the next charge cycle has been completed. Charge the handset until the batteries register full again. From then on the display will be correct.

Out of range?

The range for the BT Diverse 5110 is 300 metres outdoors and 50 metres indoors. If you go out of range of a base station for a long time while your handset is switched ON, it may take more than 20 minutes to ‘find’ the base station again when you come back within range. However, by simply switching the handset OFF for a moment, then ON again, it will find the base station within a few seconds.

Battery level icons

When the batteries are almost flat a beep sounds and the display shows the empty battery icon. You will need to recharge your handset before you can use it. The various states of charge are shown below:

Batteries fully charged

Batteries at 66%

Batteries at 33%

Batteries empty

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

4 Connect the telephone line

cord to the base and plug into the wall socket

Ensure that each end of the line cord is fitted into the correct socket.

Setting the date and time

Press the MENU options button.

Press the DOWN button until the display shows

BASE SET

Press the OK button. The display will show

DATE/TIME

Press the OK button. The display will show

DATE SET.

Press the OK button.

Use the keypad to enter the date (DD/MM/YY).

Press the OK button.

Press the DOWN button until the display shows

CLOCK SET

Press the OK button.

Use the keypad to enter the time in 12-hour clock format (HH/MM).

After entering the time in the 12-hour clock format, press the OK button.

Press the DOWN button to choose

or PM.

Press the OK button.

Press the RED PHONE button until you return to the idle screen.

BT Diverse Helpline – 08457 908 070

SETTING UP

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Note

If you subscribe to a Caller Display Service the time and date will be set with the first incoming call. However, the year setting will have to be changed manually, see page 13.

To set the time mode (12 or 24-hour clock)

The handset’s default setting is 12-hour clock. To change the clock to the 24-hour setting:

Press the MENU options button.

Press the DOWN button until the display shows

BASE SET

Press the DOWN button until the display shows

DATE/TIME

Press the OK button.

Press the DOWN button until the display shows

CLOCK MODE

Press the OK button.

Press the DOWN button to switch between

24 H

and

12 H

settings.

Press the OK button to confirm the setting you want.

Press the RED PHONE button until you reach the idle screen.

SETTING UP

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Using the telephone

To switch the handset power on and off

Press and hold the RED PHONE button to switch the

handset off.

Press and hold the RED PHONE button to switch the handset on again.

Your BT Diverse 5110 has a menu driven display. The OPTION buttons below the display allow you to select options within each menu and make adjustments to their settings. When the phone is in idle mode, press the MENU button to enter the main menu. During a call, if you press the MENU button it will open the menu for that particular situation.

Note

To quit a menu at any time, press the RED PHONE button. This will take you back one step. Keep pressing the RED PHONE button to get back to the idle screen.

Making and ending calls

To make an external call

Ensure the handset is switched ON.

Press the GREEN PHONE button. You will hear the dial tone.

Dial the number.

Preparatory dialling

Enter the phone number first. If you make a mistake press the DELETE button to remove any incorrect digits.

Press the GREEN PHONE button to dial the number.

To end a call

Press the RED PHONE button.

USING

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

To receive an external call

Press the GREEN PHONE button to answer the call.

If the handset is on the base, simply lift it up and speak. You do not need to press the GREEN PHONE button.

This is called auto-talk. You can switch autotalk off so you always have to press the GREEN PHONE button to answer a call, see page 31.

Call timer

Your handset automatically times the duration of all external calls, showing it on the display during your call and for a few seconds after it is finished.

To store a name and number in the directory

Press the DIRECTORY button.

Press the MENU options button.

Press the DOWN button until the display shows

NEW ENTRY

Press OK to confirm.

Enter the telephone number you want to store.

Press OK to confirm.

Entering names

Enter the name using the letters on the keypad. (See ‘Character map’ on the following page for how to enter special characters). For example, to enter the name TOM:

Press the 8 button until

appears on the display.

Press the 6 button until the display shows

Then press 6 until the display shows

Press OK to confirm. The display will show

SAVED

and

TOM

USING

TUV

MNO

Name and number directory

You can store up to 20 of your most frequently used names (up to 12 letters) and numbers (up to 22 digits long).

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

To dial a number from the directory

Press the DIRECTORY button.

If you wish, you can use the keypad to enter the ﬁrst letter of the name, for example to ﬁnd

TOM

, press the 8 button.

Press the DOWN button to scroll to the entry you want.

Press the GREEN PHONE button to dial the number.

TUV

Press the GREEN PHONE button to dial the number.

Press the RED PHONE button until you reach the idle screen.

Character map

As well as the standard letters and numbers you can include special characters in the directory entry.

Space

–-–

✱

(

)

--|

Press

press

A B C

To edit a directory entry

Press the DIRECTORY button.

Use the keypad to enter the first letter of the name you wish to edit.

When the name you wish to edit is displayed, press the MENU options button. Press the DOWN button until

SHOW ENTRY

is displayed.

Press the OK button.

Edit the number.

Press the OK button.

<NAME>

is displayed.

If the name is correct, press the OK button.

If you wish to edit the name, enter a new name now.

Press the OK button. The display will show

SAVED

You can either press the GREEN PHONE button to dial the number or the RED PHONE button until you reach the idle screen.

A B C

USING

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

To delete all entries from the directory

Press the DIRECTORY button.

Press the MENU options button.

Press the 6 button,

DELETE?

is displayed.

Press the OK button to confirm. All director y numbers are deleted.

Press the RED PHONE button until you reach the idle screen.

MNO

To delete an entry from the directory

Press the DIRECTORY button.

Use the keypad to enter the first letter of the name.

Use the DOWN button to find the entry you want.

Press the MENU options button.

Press the DOWN button to display

DELETE

Press the OK button to confirm. The number is deleted.

Press the RED PHONE button until you reach the idle screen.

Note

To cancel any procedure, press the RED PHONE button until the display returns to the idle screen.

A B C

To store names and numbers in the Extra directory

Press the EXTRA DIRECTORY button.

Press the MENU button.

The structure for this directory menu is the same as the main name and number directory.

You can follow the instructions starting on page 16 for storing, dialling, editing and deleting numbers in this directory.

Extra directory

This is an additional directory where you are able to store up to 10 names and numbers.

Note

This Extra directory does not ‘name and number match’ when used with Caller Display.

USING

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Redial

Your handset automatically saves the last five telephone numbers dialled into a redial list.

To dial a number in the redial list

Press the REDIAL options button. The last number dialled will be displayed.

Press the DOWN button to scroll through the redial list.

Press the GREEN PHONE button to dial the number.

To copy numbers shown in the redial list to the directory

Press the REDIAL options button.

Press the DOWN button until the number you want is displayed.

Press the MENU button.

Press the DOWN button until the display shows

COPY TO DIR

Press the OK button. The number is shown on the display.

Press OK to confirm.

NAME

is displayed.

Note

To cancel any procedure, press the RED PHONE button until the display returns to the idle screen.

Enter the name to the number you want to copy into the directory.

Press OK to confirm.

The display will show

SAVED

and the name of the entry.

You can dial this number by pressing the GREEN PHONE button or return to the idle screen by pressing the RED

PHONE button.

To delete the redial list

Press the REDIAL options button.

Press the MENU options button. Display shows

EDIT

ENTRY

Press the 6 button. Display shows

DELETE?

Press OK to confirm deletion of the list. You hear a confirmation tone.

Press the RED PHONE button until you reach the idle screen.

MNO

USING

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

Secrecy

When on a call you can talk to someone in the same room, without your caller hearing.

To switch secrecy on/off

During a call: Press the INT options button.

The call is put on hold and your caller will hear music.

To resume the call:

Press the MENU options button. Display shows

BACK

Press OK to confirm. You can now speak to your caller again.

Paging and internal calls

You can alert handset users that they are wanted, or locate a missing handset.

If you have multiple handsets registered to the base you can make internal calls between handsets.

Press the INT button.

Use the DOWN ARROW on the options button to find the handset number you want to page or call.

Press the GREEN PHONE button to call the handset.

If you want to page all the handsets registered to the base, highlight

CALL ALL

on the display and press the GREEN PHONE button.

You can also page all handsets by pressing the PAGE button on the base station

INT

USING

INT

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

To transfer an external call between handsets

You can transfer an external call to another handset registered to the base.

Press the INT options button.

Enter the number of the handset to which you wish to transfer the call, or scroll to find using the UP or DOWN option buttons. When the other handset answers you can tell them you are transferring the call and press the RED PHONE button. The call is transferred and the original handset shows

LINE IN USE

the display.

INT

BT Diverse Helpline – 08457 908 070

To return to an external call if the internal call is not transferred

To speak to your external caller again:

Press the MENU options button. Display shows

GO BACK

Press the OK options button.

USING

To switch 3-way conversation function on/off

You can allow your BT Diverse 5110 to hold 3-way calls between handsets.

Press the MENU options button.

Press the DOWN options button until the display shows

BASE SET

Press the OK options button.

Press the DOWN options button until the display shows

ADD FEATURES

Press the OK options button.

Press the DOWN options button until the display shows

BARGE IN

Press the OK options button to switch the function on.

SAVED

is displayed

BARGE IN

is then displayed with a tick next to it.

Press the OK options button again to switch off, tick is deleted.

Press the RED PHONE button until you reach the idle screen.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

To hold a 3-way conversation

You can talk to one external caller and another internal caller at the same time on your BT Diverse 5110 handset.

While another handset user is talking to an external caller the display shows

LINE IN USE

Press the GREEN PHONE button to join the conversation. Display shows

LISTENING IN

A tone is heard by all three parties when one party enters or leaves the call.

Press the RED PHONE button to end your call.

USING

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

CALLER DISPLAY

Caller Display and other BT Calling Features

IMPORTANT

To use Caller Display and Call Waiting you must first subscribe to the Services from your Network Provider. For more information on BT’s Calling Features call BT free on 0800 800 150.

Note

Calls that are ‘withheld’, ‘unavailable’ or ‘international’ are not stored in the Calls list, as there is no telephone number sent via the network.

Note

If you have a new call in your Calls list, the icon will flash.

If you subscribe to a Caller Display Service you can see who is calling you on your handset display, as well as the date and time of their call (unless the number has been withheld).

If you have stored a name to go with the number in your handset directory, the name will be displayed instead.

Please ensure that you have stored the full telephone number, including the area code, otherwise the name will not match the number stored in the directory.

If the caller has withheld their number, the display will show

WITHHELD

If you call from another handset, the display shows the handset number and

INT

Calls list

The Calls list contains the telephone numbers of your last 10 callers.

Whether you take a call or not, the caller’s details are stored in the Calls list. You can display, scroll through and dial numbers in the list and copy them into the directory.

If a call is received when the Calls list is full then the oldest entry will be deleted automatically.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

CALLER DISPLAY

To view the Calls list

Press the ENVELOPE options button. A flashing envelope indicates new calls. New calls are displayed immediately.

If there are no new entries, continue to open the Calls list.

The display will show the type of calls you have received in your Calls list, e.g.

CALLS

02/06

means you have received 2 new calls and have 6 old calls.

Press the OK button to display the most recent number to call you.

Press the UP and DOWN buttons to scroll backwards and forwards through the Calls list.

When you have found the entry you want, you have the options to:

Call a number from the Calls list:

When the number you wish to call is displayed, press the GREEN PHONE button. The number will be dialled automatically.

Display the time of the call:

Press the MENU options button.

Press the DOWN button to highlight

TIME.

Press the OK options button. The date and time of the call are displayed.

To return to the beginning of the calls list, press the RED PHONE button repeatedly until it is displayed.

Display the status of the call:

Press the MENU options button.

Press the DOWN button to highlight

STATUS

Press the OK button.

NEW

= New call.

OLD

= Previously viewed.

Press the RED PHONE button until you reach the idle screen.

Remember

If you have missed a call the icon will flash on the display.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

CALLER DISPLAY

Press the DOWN button to highlight

DELETE LIST

Press the OK button. The display shows

NO CALLS

Press the RED PHONE button until you reach the idle screen.

Store a number from the Calls list into the directory:

When the number you want to store is displayed:

Press the MENU options button.

Press the DOWN button to highlight

COPY TO DIR

Press the OK button. The number is displayed.

Press the OK button again.

Enter a name, see page 16 for instructions.

Press the OK button.

The display shows

SAVED

. You can either copy another entry from the Calls list or press the RED PHONE button until you reach the idle screen.

Delete a number from the Calls list.

When the number you want to delete is displayed.

Press the MENU options button.

DELETE

is displayed.

Press the OK button to confirm. The display shows

DELETED

Delete the whole Calls list:

When any number is displayed, press the MENU options button.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

CALLER DISPLAY

Call Waiting

If you also subscribe to a Call Waiting Service, when you are on a call and another person tries to call you, the second caller’s number will appear on the handset display and you will hear an intermittent beep through the handset. This is to alert you to the other caller waiting to speak to you.

To accept a waiting call

During a call when you hear the Call Waiting beeps:

The number (or name if stored in the directory) of the second caller will flash on the display.

Press the MENU options button. Display shows

Press the OK options button. Your current call is put on hold and you are connected to the second caller.

Press the RECALL button to toggle between callers.

To switch Call Waiting on/off

You can choose whether to have your Call Waiting service switched on or off depending on what you are doing i.e. if you are using the Internet via your PC and do not want Call Waiting to interrupt you.

Press the MENU options button,

SEL SERVICES

is displayed.

Press the OK options button.

Press the DOWN until the display shows

CALL WAITING

Press the OK options button.

Use the UP or DOWN button to select whether you want the service on or off.

Press the OK options button.

You will hear a Network message confirming your divert request.

Press the RED PHONE button until you reach the idle display.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

CALLING FEATURES

Note

Call Divert requires subscription from your Network provider. You may be charged a subscription fee.

Withhold number

Your number appears on the display of the person you call if they subscribe to a Caller Display service. You are able to withhold your telephone number from the next call you make if you wish.

To withhold your number from being sent

Press the MENU options button,

SEL SERVICES

displayed.

Press the OK options button,

WITHHOLD NO

is displayed.

Press the OK options button.

Call Divert

You can divert all incoming calls to another number where you can be reached.

To divert calls

Press the MENU options button,

SEL SERVICES

highlighted.

Press the OK options button.

Use the DOWN arrow on the options button until

CALL

DIVERT

is highlighted.

Press the OK options button.

You now have a choice of when you want calls to be diverted:

AUTOMATIC

– calls are put straight through to the number you have set.

NO ANSWER

– calls are diverted

if your phone is not answered.

F BUSY

– calls are forwarded

if your phone is engaged.

Select your required option and press the OK options button, ONis displayed.

Press the OK options button again.

Enter the phone number where you want the calls to be diverted to.

Press the OK options button.

You will hear a Network message confirming your divert request.

Press the RED PHONE button until you reach the idle display.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

CALLING FEATURES

To switch Ring Back off if set

Press the MENU options button,

SEL SERVICES

highlighted.

Press the OK options button.

Use the DOWN arrow on the options buttton until

RINGBACK

OFF

is highlighted.

Press the OK options button. This will cancel your ringback call.

You will hear a Network message confirming your divert request.

Press the RED PHONE button until you reach the idle display.

Ring Back

If you want to make a call and the number is engaged you can set your telephone to ring you back when the caller has finished their call by pressing the 5 button. To switch this service off before your call is returned i.e. if you have to go out before your caller has returned your call.

Voice Mail

If you have a Voice Mail message service ie. Call Minder or Meridian Mail on your telephone line you can set the 1 button to access your messages directly via one button.

To set up quick access to your Voice Mail service

Press the MENU options button.

Press the DOWN options button. Display shows

MAILBOX

Press OK. Display shows

SET KEY 1

Press the OK button.

Enter the telephone number of your messaging service. For example, 1571 to access ‘BT Answer’ voice mail service.

Press OK. The display shows

SAVED

Press the RED PHONE button until you reach the idle screen.

Enter the telephone number you want to call.

Press the OK options button, the number will be dialled but your number will not be sent to your caller.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

CALLING FEATURES

Note

If you store your security PIN as part of the quick access number, anyone with access to the handset will be able to retrieve your messages.

To retrieve messages from your Voice Mail service

Press and hold down the 1 button.

When set up as opposite this will take you into your message service. If during the set up you entered your security PIN as well as the telephone number you will be taken quickly into your messages. If the security PIN was not included you will have to enter this number now.

Press the

button.

You will be taken into your messages.

To set up quick access to your Voice Mail service when behind a switchboard eg. Meridian Mail.

Follow the steps on the previous page, but when you come to enter the telephone number of your messaging service, you will need to follow the example below:

Enter the access number for your messaging service, e.g.

7000

Press and hold the RECALL button to enter a pause in the dialling sequence,

Enter your extension number, followed by a hash, e.g.

1234 #

Press and hold the RECALL button to enter another pause in the dialling sequence,

Enter your PIN followed by a hash, e.g.

000000 #

The entire number should look like this:

7000P1234#P000000#

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

HANDSET SETTINGS

To adjust the handset ringer volume

You can choose from 5 levels (1– 5), a ‘crescendo’ ring that increases in volume, or you can switch the ringer off altogether (Off).

Press the MENU options button.

Use the DOWN button to highlight

AUDIO SET

Press the OK button.

Press the DOWN button to highlight

RINGER

Press the OK button.

You hear the current volume level and the level is shown on the display.

Press the UP/DOWN button to select the level you want.

Press the OK button to confirm.

SAVED

is displayed.

Press the RED PHONE button until you reach the idle screen.

Handset settings

To adjust the handset ringer melody

There are 10 melodies to choose from (1–10).

Press the MENU options button.

Press the DOWN button to highlight

AUDIO SET

Press the OK button.

Press the DOWN button to highlight

MELODY

Press the OK button.

You hear the current melody and its number is shown on the display.

Press the DOWN button to select the melody you want.

Press the OK button.

Press the RED PHONE button until you reach the idle screen.

Shortcut button

If you want to switch the handset ringer off quickly you can also press and hold the button. The icon is displayed. To turn the handset ringer back on press and hold down the button again and the symbol will disappear.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

HANDSET SETTINGS

To switch autotalk on and off

If autotalk is switched on you do not need to press the GREEN PHONE button to answer a call you can simply pick the handset up from the base station.

If you switch autotalk off you always have to press the GREEN PHONE button to answer a call.

The default setting for autotalk is on.

Press the MENU options button.

To switch autotalk on:

Press the 9 button.

Press the 1 button.

Press the 1 button again.

To switch autotalk off:

Press the 9 button.

Press the 1 button.

Press the 0 button.

To adjust the earpiece volume

There are 3 volume levels to choose from and you can even adjust the volume during a call.

Press the MENU options button.

Press the DOWN button to highlight

AUDIO SET

Press OK to confirm. The display show

H/SET VOL

Press OK to confirm.

You hear the current volume and the level is displayed.

Select the required level.

Press OK to confirm.

SAVED

displayed.

Press the RED PHONE button until you reach the idle screen.

WXYZ

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

HANDSET SETTINGS

To reset your handset to the original settings

Press the MENU options button.

Press the 9 button.

Press the 3 button. The display shows

RESET?

Press OK to confirm.

This will reset:

Earpiece volume 1

Ringer volume 5

Ringer melody 1

Autotalk ON

Battery low beep ON

Redial list DELETED

This will not delete the directory or Calls list.

This will not reset:

Handset PIN

Registration to the base station.

WXYZ

DEF

Keyguard

You can lock the keypad so that it cannot be used accidentally while carr ying it around.

To switch keyguard on/off

Press and hold the #button to switch keyguard on. You hear a confirmation tone.

The keypad is now locked and you cannot dial out. You can answer calls as normal by pressing the GREEN PHONE button.

To switch keyguard off, press and hold the

button again. You hear a confirmation tone and the handset is now unlocked.

IMPORTANT

If the keyguard is active, the emergency numbers 999 and 112 can NOT be dialled.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

BASE STATION SETTINGS

Base station PIN (Personal Identification Number)

Your base station PIN has a default setting of

0000

but you may want to change this to prevent unauthorised use of your handset(s).

If you change your PIN keep a record of the new number by writing it in the space provided on page 8.

To change the base station PIN

Press the MENU options button.

Press the DOWN button to highlight

BASE SET

Press the OK button.

Press the DOWN button to highlight

SYSTEM PIN

Press the OK button.

Enter current PIN (original setting

0000

Press the OK button. Display shows

NEW PIN

Enter your new 4 digit PIN.

Press the OK button. Display shows

Enter your new 4 digit PIN again.

Press the OK button to confirm. Display shows

SAVED

Press the RED PHONE button to return to the idle screen.

Base station settings

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

BASE STATION SETTINGS

To reset your base station to its original settings

Press the MENU options button.

Press the DOWN button to highlight

BASE SET

Press the OK button.

Press the DOWN button to highlight

BASE RESET

Press the OK button.

Enter your 4-digit PIN (original setting

0000

Press the OK button. Display shows

RESET?

Press the OK button to confirm.

RESET

is displayed.

This will reset:

Dialling mode DTMF

Pause after picking up line/dial-out code 3 seconds

It will delete the Calls list.

It will not reset:

The base station PIN.

Handset registration settings.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

ADDITIONAL

Up to six handsets can be registered and operated from the BT Diverse 5110 base station. This allows you to make an internal call between two handsets while a third is making an external call.

Each handset can only be registered with one base at a time.

Using additional handsets and bases

Registering additional handsets

If you purchase new handsets to use with your current BT Diverse 5110, they will not be pre-registered to a base station. You will need to do this before you can use them.

To register a new BT Diverse 5100 handset to a BT Diverse 5110 base station

For this method of registration your handset must be a BT Diverse 5100.

Place your handset on the base.

Ensure that the handset is switched on.

After about 1 minute, the handset’s internal number will be displayed, e.g.

The next available internal number (2–6) will be automatically assigned to the handset.

Note

If all internal numbers have been assigned then the internal number 6 will be re-assigned.

➔➔

DEF

ABC

MNO

JKL

GHI

WXYZ

TUV

PQRS

䊳

➔➔

DEF

ABC

MNO

JKL

GHI

WXYZ

TUV

PQRS

䊳

➔➔

DEF

ABC

MNO

JKL

GHI

WXYZ

TUV

PQRS

䊳

➔➔

DEF

ABC

MNO

JKL

GHI

WXYZ

TUV

PQRS

䊳

➔➔

ABC

JKL

GHI

TUV

PQRS

➔➔

DEF

ABC

MNO

JKL

GHI

WXYZ

TUV

PQRS

䊳

DEF

MNO

WXYZ

䊳

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

ADDITIONAL

To register BT Diverse 2000/ 3000/4000 series handsets and other makes

Providing your handset is GAP (Generic Access Profile) compliant, you can register it to your BT Diverse 5110 base.

Place your handset into registration mode according to the instructions in it’s user guide.

When the handset is in registration mode, you will need to press the PAGE button located on the top of your BT Diverse 5110 base station, for approximately 3 seconds. After a short period of time the handset will be registered. The BT Diverse 5110 will allocate the next available handset number. You will hear a confirmation tone.

To manually register a BT Diverse 5100 handset to another base station

If you want to register your handset to another base station you will need to manually register it.

On the handset to be registered:

Press the MENU options button.

Press the DOWN button until the display shows

Press the OK button. Display shows

Enter your 4-digit Pin (original setting

0000

Press the OK button. Display flashes

Following the user guide for the base station you are registering to place the base into registration mode.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

ADDITIONAL

To de-register a handset

Press the INT options button.

Press the UP or DOWN button to select the handset to be de-registered (1-6).

Press the MENU options button.

The display shows

DE-REG H/SET

Press the OK button. Display will show

PIN ****

Enter your 4-digit PIN (original setting

0000

Press the OK button. Display shows

DE-REGISTER?

Press the OK button to confirm.

SAVED

is displayed.

Press the RED PHONE button until you reach the idle screen.

INT

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

HELP

Help

Problem

Handset not registering.

You have forgotten your base station PIN number.

No display

When you press a button, nothing happens.

No radio signal to the base – all displays flashing.

Handset in base doesn’t charge.

Handset does not ring.

Your caller cannot hear you.

Caller’s number is not displayed even though you have subscribed to Caller Display.

The error beep – a descending tone – is played.

Possible cause

The base is not powered. There are no batteries in the handset.

You have changed the PIN.

Handset not switched on. Batteries exhausted.

Keyguard may be switched on.

Handset out of range. Handset not registered. Base not switched on.

Base is not connected to the power supply.

Ringer is switched off.

The INT button has been,pressed, muting the microphone.

The number has been withheld.

You have pressed the wrong button.

Solution

Make sure that the power supply is plugged in at the base and switched on. Make sure that the rechargeable batteries (included) are fitted in the handset correctly. Switch the handset off and then back on again, place the handset on to the base again and leave for approx. 1 minute to try registering again.

If this is not successful they try a manual registration (see page 36).

Try entering the default PIN (0000). If you have changed the PIN and cannot remember the number you will need to contact the BT Diverse Helpline on 08457 908070.

Hold down the RED PHONE button for 1 second. Charge or replace batteries.

Hold down the

button for 1 second.

Move closer to the base. Register the handset (see page 35). Check the base is connected properly

(see page 10).

Make sure that the power supply is in at the base and the power source is switched on. Check that the batteries are fitted correctly.

Switch ringer back on, see page 30.

Select GO BACK option via the

button to switch the

microphone back on.

Callers can stop their number being sent over the network.

Retry. If necessary, check the instructions.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

GENERAL INFORMATION

General information

Within the 12-month guarantee period:

If you experience difficulty using the product, prior to returning your product, please read the Help section beginning on page 38, or contact the BT Diverse Helpline on 08457 908070 for assistance.

In the unlikely event of a defect occurring, please follow the Helpline’s instructions for replacement or repair.

Outside the 12-month guarantee period:

If your product needs repair after the guarantee period has ended, the repair must meet the approval requirements for connection to the telephone network. We recommend that you call the Helpline on 08457 908070 and ask for details of our recommended repair agents.

BT Accessories and Replacement Items

For a full range of accessories and replacement items for BT products please call 0870 240 5522, or visit:

Guarantee

Your BT Diverse 5110 is guaranteed for a period of 12 months from the date of purchase.

Subject to the terms listed below the guarantee will provide for the repair of, or at BT’s or its agent’s discretion the option to replace the BT Diverse 5110, or any component thereof, (other than batteries), which is identified as faulty or below standard, or as a result of inferior workmanship or materials. Products over 28 days old from the date of purchase may be replaced with a refurbished product.

The conditions of this guarantee are:

• The guarantee shall only apply to

defects that occur within the 12 month guarantee period.

• Proof of purchase is provided.

• The equipment is returned to point

of purchase.

• This guarantee does not cover any

faults or defects caused by accidents, misuse, fair wear and tear, neglect, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents.

• This guarantee does not affect your

statutory rights.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

GENERAL INFORMATION

Technical information

How many telephones can you have?

All items of telephone equipment have a Ringer Equivalence Number (REN), which is used to calculate the number of items that may be connected to any one telephone line. The BT Diverse 5110 has a REN of 1. Any other instrument provided by BT may be assumed to have a REN of 1 unless stated otherwise. A total REN of 4 is allowed. (For example: if a BT Diverse 5110 is used in conjunction with three extension telephones, each with a REN of 1, the total REN is 4.)

Only use approved power supply item code: C39 280-Z4-C478.

R&TTE

This product is intended for use within the UK for connection to the public telephone network and compatible switchboards.

This equipment complies with the essential requirements for the Radio Equipment and Telecommunications Terminal Equipment Directive (1999/5/EC). In demonstration with the Essential Requirement for the efficient use of the radio spectrum, the product complies with TBR6.

If you would like a copy of the Declaration of Conformity please contact the BT Diverse Helpline.

Switchboard compatibility

Generally this telephone may be connected to switchboards. In the event of any difficulties please consult your switchboard service provider.

To set the dialling mode

You need only adjust this setting if your switchboard does not operate with the pre-set tone dialling. You can change the dial mode to pulse dialling.

Press the MENU button.

Press the DOWN button until the display shows

BASE SET

Press the OK button.

Press the DOWN button until display shows

ADD FEATURES

Press the OK button. Display shows

DIAL MODE

Press the OK button.

Press the DOWN button to select:

– TONE (with TBR) – PULSE Press the OK button to confirm.

The display shows

SAVED

Press the RED PHONE button until you reach the idle screen.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

GENERAL INFORMATION

To set the recall time

You need only adjust this setting if your switchboard requires a different recall time to the pre-set recall time of 100 MS.

Press the MENU button.

Press the DOWN button until the display shows

BASE SET

Press the OK button.

Press the DOWN button until display shows

ADD FEATURES

Press the OK button.

Press the DOWN button until display shows

TBR

Press the OK button.

Press the DOWN button to select the recall time

80, 100

120, 180, 250, 300

, or

600ms

Press the OK button to confirm. The display shows

SAVED

Press the RED PHONE button until you reach the idle screen.

To switch temporarily from pulse to tone dialling

If you are using pulse dialling with your switchboard but need tone dialling to use certain functions on your BT Diverse 5110 you can switch to tone dialling during the call.

During the call:

Press the MENU button.

Press the DOWN button until the display shows

TEMP TONE

Press the OK button. Tone dialling is now active.

Note

This setting is only for the duration of the call.

Note

100 ms is the standard setting for most UK switchboards.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

GENERAL INFORMATION

To set the duration of a pause

You can set the length of a pause that is inserted after pressing the RECALL button.

Press the MENU button.

Press the 8 button.

Press the 9 button.

Press the 1 button.

Press the 2 button.

Enter the number for the corresponding pause length:

1 = None 2 = 800ms 3 = 1600ms 4 = 32ms

Press the OK options button.

SAVED

is displayed.

Press the RED PHONE button until you reach the idle screen.

TUV

WXYZ

ABC

To set a pause before dialling

You can insert a pause to allow your switchboard time to get a line before your BT Diverse 5110 dials the number.

Press the MENU button.

Press the 8 button.

Press the 9 button.

Press the 1 button.

Press the 6 button.

Enter the number for the corresponding pause length (e.g. 2 for 3 seconds):

1 = 1 second 2 = 3 seconds 3 = 7 seconds 4 = 2.5 seconds

Press the OK options button.

SAVED

is displayed.

Press the RED PHONE button until you reach the idle screen.

Setting pauses

TUV

WXYZ

MNO

Note

If you want to insert a pause into a telephone number you are storing in your directory, start storing the number (see page 16) and where a pause is needed, press and hold the button. A‘

’ will appear in the number.

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

INDEX

Index

Additional handset and bases 35

Autotalk on/off 31

Base station reset 34

Base station PIN 33 Batteries

charging 10 installing 11 performance 12 replacing 12 warning beeps 12

Call divert 27

Call timer 16 Call Waiting 26 Caller Display 23 Calls list 23

delete 25 dialling a number 24 display status of call 24 display time of call 24 store number to directory 25 view 24

Calls

end 15 external 15 holding 22 internal 20 making 15 receiving 16 redial 19 secrecy 20 three-way 21 transferring 21

Character map 17

Date set 13

Delete

all directory entries 18 calls list 25 directory entry 18

redial list 19 De-register handset 37 Dialling mode 40

temporary setting 41 Directory 16

delete an entry 18

delete all entries 18

dial a number 17

edit an entry 17

extra directory 18

store name and number 16 Display icons 7

Earpiece volume 31

Ending calls 15 External calls 15 Extra directory 18

Guarantee 39

Handset

display 2

on/off 15

reset 32

ringer melody 30

ringer volume 30 Handset quick guide 6

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

BT Diverse Helpline – 08457 908 070

INDEX

Help 38 Holding calls 20

Internal calls 20

Keyguard 32

Making calls 15

Melody

handset 30 Menu structure 4 Music on hold 20

On/off

auto talk 31

handset power 15

keyguard 32

secrecy 20

Page a handset 20

Pause 42 Phone socket 13 PIN 33 Power connection 10 Preparatory dialling 15 Pulse dialling 41

Quick guide

display 7

handset 6

Range warning 12

Recall time 41 Receiving calls 16 Redial 19

copy to directory 19

delete 19

dial number in redial list 19 Registering additional handsets 35

Registration 35

manual 36 REN, how many phones can I have? 40 Reset

base settings 34

handset settings 32 Ring Back 28 Ringer volume 30 Ringers on/off 30

Safety information 9

Secrecy 20 Setting up 10 Switchboard compatibility 40

Technical information 40

Telephone line cord 13 Three-way conversation 21 Time set 13 Tone dialling 41 Transferring calls 21

Voice Mail 28

Volume

earpiece 31

handset ringer 30

Withhold number 27

BT Diverse 5110 ~ 7th Edition ~ 15th May ’03 ~ 5183

Visit us at www.bt.com

Ofﬁces worldwide

The telecommunications services described in this publication are subject to availability and may be modiﬁed from time to time. Services and equipment are provided subject to British Telecommunications plc’s respective standard conditions of contract. Nothing in this publication forms any part of any contract.

© British Telecommunications plc 2003. Registered Ofﬁce: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000. BT Diverse 5110 (05/03) 7 Designed and produced by The Art & Design Partnership Ltd.

Siemens number: A31008-A200-P101-1-7619

CE compliant to R&TTE Directive (1999/5/EC)

0682

BT 5110 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
