Multi-Protocol On-board Ethernet Print Server and Wireless
Ethernet Print Server
NETWORK
USER’S GUIDE
This Network User's Guide provides useful information of
network settings using your Brother printer. You can also find
supported protocol information and detailed troubleshooting tips.
To download the latest manual, please visit the Brother Solutions
Center at (http://solutions.brother.com/
the latest drivers and utilities for your printer, read FAQs and
troubleshooting tips or learn about special printing solutions from
the Brother Solutions Center.
). You can also download
Version B
ENG
Applicable models
This User’s Guide applies to the following models.
RJ-4040
Definitions of notes
We use the following icons throughout this User’s Guide:
IMPORTANT
Note
IMPORTANT indicates a potentially hazardous situation which, if not
avoided, may result in damage to property or loss of product functionality.
Notes tell you how you should respond to a situation that may arise or give
tips about how the operation works with other features.
Compilation and publication notice
Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the
latest product’s descriptions and specifications.
The contents of this manual and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained
herein and shall not be responsible for any damages (including consequential) caused by reliance on the
materials presented, including but not limited to typographical and other errors relating to the publication.
©2012 Brother Industries, Ltd. All rights reserved.
IMPORTANT NOTE
This product is approved for use in the country of purchase only. Do not use this product outside the
country of purchase as it may violate the wireless telecommunication and power regulations of that
country.
Windows
In addition, Windows
Windows Vista
Windows
Windows Server
Windows Server
R2.
®
XP in this document represents Windows® XP Professional, and Windows® XP Home Edition.
®
XP in this document does not represent Windows® XP x64 Edition.
®
in this document represents all editions of Windows Vista®.
®
7 in this document represents all editions of Windows® 7.
®
2003 in this document does not represent Windows Server® 2003 x64 Edition.
®
2008 in this document represents Windows Server® 2008 and Windows Server® 2008
Not all models are available in all countries.
i
Table of Contents
1 Introduction 1
Network features........................................................................................................................................1
2 Changing your printer’s network settings 2
Changing your printer’s network settings (IP address, Subnet mask and Gateway).................................2
Using the BRAdmin Light utility ...........................................................................................................2
Other Management Utilities .......................................................................................................................4
BRAdmin Professional utility (Windows
3 Configuring your printer for a wireless network 5
Overview....................................................................................................................................................5
Confirm your network environment............................................................................................................6
Connected to a computer with a WLAN access point/router in the network (Infrastructure mode) .....6
Connected to a wireless capable computer without a WLAN access point/router in the network
(Ad-hoc mode).................................................................................................................................7
Wireless configuration temporarily using a USB cable (Recommended) ..................................................8
One-push configuration using Wi-Fi Protected Setup................................................................................9
4 Printing the Printer Set-up Information 10
®
) ...........................................................................................4
Printing the Printer Set-up Information ....................................................................................................10
5 Web Based Management 11
Overview..................................................................................................................................................11
Configuring the printer settings using Web Based Management (web browser).....................................12
6 Troubleshooting 13
Overview..................................................................................................................................................13
A Appendix A 17
Supported protocols and security features ..............................................................................................17
ii
B Appendix B 18
Types of network connections and protocols...........................................................................................18
Types of network connections ...........................................................................................................18
Protocols............................................................................................................................................20
Configuring your printer for a network .....................................................................................................22
IP addresses, subnet masks and gateways ......................................................................................22
Wireless network terms and concepts.....................................................................................................24
Specifying your network ....................................................................................................................24
Security terms....................................................................................................................................24
Other ways to set the IP address (for advanced users and administrators) ............................................26
Using DHCP to configure the IP address ..........................................................................................26
Using RARP to configure the IP address ..........................................................................................26
Using BOOTP to configure the IP address........................................................................................27
Using APIPA to configure the IP address..........................................................................................27
Using ARP to configure the IP address .............................................................................................28
iii
1
Introduction 1
Network features 1
Your Brother printer can be shared on an IEEE 802.11b/g/n wireless Ethernet network using the internal
network print server. The print server supports various functions and methods of connection depending on
the operating system you are running on a network supporting TCP/IP. The following chart shows what
network features and connections are supported by each operating system.
1
Operating Systems
BRAdmin Light
See page 2.
BRAdmin Professional
See page 4.
Status Monitor rr
Driver Deployment Wizard rr
Network Setting Tool rr
1
BRAdmin Professional is available as a download from http://solutions.brother.com/.
1
Windows® XP
Windows Vista
Windows®7
Windows Server® 2003/2008
®
rr
rr
1
2
Note
Changing your printer’s network settings 2
Changing your printer’s network settings (IP address, Subnet mask and Gateway)
Using the BRAdmin Light utility 2
The BRAdmin Light utility is designed for initial setup of Brother network connected devices. It also can
search for Brother products in a TCP/IP environment, view the status and configure basic network settings,
such as IP address.
Installing BRAdmin Light 2
a Please make sure that your printer is on.
b Turn on your computer. Close any running applications before configuration.
c Insert the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically. If
the model name screen appears, choose your printer. If the language screen appears, choose your
language.
2
2
d The CD-ROM main menu will appear. Click Utility Installation.
e Click BRAdmin Light and follow the on-screen instructions.
• You can download the latest Brother BRAdmin Light utility version from http://solutions.brother.com/. This
®
utility is only available for Windows
• If you require more advanced printer management, use the latest Brother BRAdmin Professional utility that
is available as a download from http://solutions.brother.com/
users.
• If you are using firewall, anti-spyware, or antivirus software, temporarily disable them. Once you are sure
that you can print, enable them again.
• The node name appears in the current BRAdmin Light window. The default node name of the print server
in the printer is “BRNxxxxxxxxxxxx” or “BRWxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is based on your printer’s
MAC Address / Ethernet Address.)
• The default password for Brother print servers is access.
Setting the IP address, Subnet Mask and Gateway using BRAdmin Light 2
users.
. This utility is only available for Windows®
a Start the BRAdmin Light utility.
Click Start / All Programs / Brother / BRAdmin Light / BRAdmin Light.
b BRAdmin Light will search for new devices automatically.
2
Changing your printer’s network settings
Note
c Double-click the unconfigured device.
• If you don’t use a DHCP/BOOTP/RARP server, the device will appear as Unconfigured in the BRAdmin
Light utility screen.
• You can find the node name and MAC Address by printing the Printer Settings. (See Printing the Printer
Set-up Information uu page 10.)
d Choose STATIC from Boot Method. Enter the IP Address, Subnet Mask and Gateway (if needed) for
your print server.
2
e Click OK.
f With the correctly programmed IP address, you will see the Brother print server in the device list.
3
Changing your printer’s network settings
Note
Other Management Utilities 2
Your Brother printer can be used with the following management utilities in addition to the BRAdmin Light
utility. You can change your network settings using these utilities.
BRAdmin Professional utility (Windows®) 2
BRAdmin Professional is a utility for a more advanced management of network connected Brother devices.
This utility can search for Brother products on your network and view the device status from an easy to read
Explorer style window that changes color identifying the status of each device. You can configure network
®
and device settings along with the ability to update device firmware from a Windows
BRAdmin Professional can also log activity of Brother devices on your network and export the log data in an
HTML, CSV, TXT or SQL format.
computer on your LAN.
2
For more information and downloading, visit us at http://solutions.brother.com/
.
• Please use the latest version of the BRAdmin Professional utility that is available as a download from
http://solutions.brother.com/
. This utility is only available for Windows® users.
• If you are using firewall, anti-spyware, or antivirus software, temporarily disable them. Once you are sure
that you can print, enable them again.
• The node name appears in the current BRAdmin Professional window. The default node name is
“BRNxxxxxxxxxxxx” or “BRWxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is based on your printer’s MAC Address /
Ethernet Address.)
4
Note
Configuring your printer for a wireless
3
network
Overview 3
To connect your printer to your wireless network, see the installation procedure in the User’s Guide.
Configuration using the CD-ROM installer and a USB cable is the recommended method for users. By using
this method, you can easily connect your printer to your wireless network.
For additional wireless configuration methods please read this chapter for more details on how to configure
the wireless network settings. For information on TCP/IP settings, see Changing your printer’s network
settings (IP address, Subnet mask and Gateway) uu page 2.
• To achieve optimum results with normal every day document printing, use the Brother printer as close to
the WLAN access point/router as possible with minimal obstructions. Large objects and walls between the
two devices as well as interference from other electronic devices can affect the data transfer speed of your
documents.
Due to these factors, wireless may not be the best method of connection for all types of documents and
applications. You can use USB for the fastest throughput speed.
• Before configuring wireless settings, you will need to know your SSID and Network Key.
3
3
5
Configuring your printer for a wireless network
Confirm your network environment 3
Connected to a computer with a WLAN access point/router in the network (Infrastructure mode) 3
5
1
4
3
3
1 WLAN access point/router
1
If your computer support s Intel® My WiFi Technology (Intel® MWT), you can use your computer as a Wi-Fi Protected Setup supported access
point.
1
2
2 Wireless network printer (your printer)
3 Wireless capable computer connected to the WLAN access point/router
4 Wired computer (which is not wireless capable) connected to the WLAN access point/router with
an Ethernet cable
5 Smartphone
Install method 3
The following instructions will offer the methods for installing your Brother printer in a wireless network
environment. Choose the method you prefer for your environment.
Wireless configuration temporarily using a USB cable (Recommended)
See Wireless configuration temporarily using a USB cable (Recommended) uu page 8.

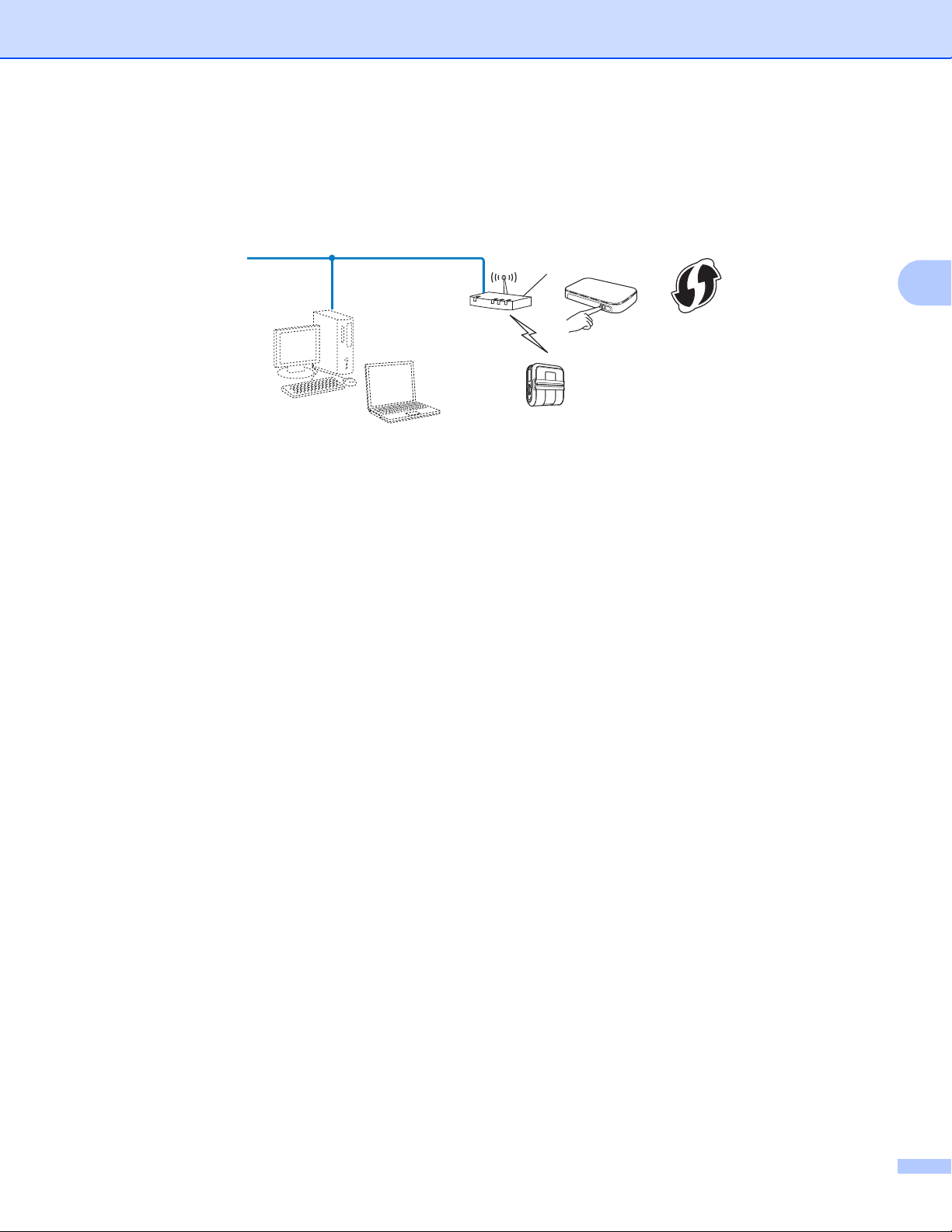

One-push wireless configuration using WPS
See One-push configuration using Wi-Fi Protected Setup uu page 9.
6
Configuring your printer for a wireless network
Connected to a wireless capable computer without a WLAN access point/router in the network (Ad-hoc mode) 3
This type of network does not have a central WLAN access point/router. Each wireless client communicates
directly with each other. When the Brother wireless printer (your printer) is part of this network, it receives all
print jobs directly from the computer sending the print data.
1
2
1 Wireless network printer (your printer)
2 Wireless capable computer
We cannot guarantee wireless network connection with Windows Server
®
products in Ad-hoc mode.
3
7
Configuring your printer for a wireless network
Wireless configuration temporarily using a USB cable (Recommended) 3
It is recommended that you use a PC wirelessly connected to your network for this method.
You can remotely configure the printer from the computer on the network using a USB cable (A)
A
1
You can configure the wireless settings of the printer using a USB cable temporarily connected to a wired or wireless computer.
1
.
3
See the installation procedure in the User’s Guide.
8
Configuring your printer for a wireless network
One-push configuration using Wi-Fi Protected Setup 3
You can use WPS to configure your wireless network settings easily if your WLAN access point/router (A)
1
supports Wi-Fi Protected Setup (PBC
1
Push Button Configuration
See the installation procedure in the User’s Guide.
).
A
3
9
4
Note
Note
Printing the Printer Set-up Information 4
Printing the Printer Set-up Information 4
You can use the (Feed) button to print a report that lists the following printer settings:
Program version
Printer usage history
Missing dot test pattern
Utility setting information
List of transferred data
Network setting information
Wi-Fi setting information
• You can use the utility to set in advance which items will be printed.
• The node name appears in the Printer Settings. The default node name is “BRNxxxxxxxxxxxx” or
“BRWxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is based on your printer’s MAC Address / Ethernet Address.)
a Make sure that a roll of 4" (101.6 mm) receipt paper has been loaded and the RD Roll compartment cover
is closed.
b Turn on the printer.
c Press and hold the (Feed) button until the POWER indicator starts blinking in green.
The settings will be printed.
• To print the Printer Settings, we recommend to use 4" (101.6 mm) receipt paper or continuous length label.
4
• This operation can also be performed using RJ Utility. See the User’s Guide for more details about RJ
Utility.
10
5
Note
Web Based Management 5
Overview 5
You can use a standard web browser to manage a printer on your network using HTTP. When using Web
Based Management, the following are possible:
Display printer status information
Change network settings such as TCP/IP information
Display software version information of the printer and print server
Change network and printer configuration details
We recommend Microsoft® Internet Explorer®7.0/8.0 or Firefox®3.6 for Windows®. Please also make
sure that JavaScript and cookies are always enabled in whichever browser you use.
In order to use Web Based Management, your network must use TCP/IP, and the printer and computer must
have a valid IP address.
5
11
Web Based Management
Note
Configuring the printer settings using Web Based Management (web browser) 5
A standard web browser can be used to change your print server settings using the HTTP (Hyper Text
Transfer Protocol).
a Type http://printer_ip_address/ into your browser. (Where printer_ip_address is the IP
address or the print server name.)
For example:
http://192.168.1.2/ (if the printer’s IP address is 192.168.1.2.).
If you have edited the hosts file on your computer or are using a Domain Name System, you can also enter
the DNS name of the print server. As the print server supports TCP/IP and NetBIOS, you can also enter
the NetBIOS name of the print server. The NetBIOS name can be seen on the printer settings page. The
NetBIOS name assigned is the first 15 characters of the node name and by default it will appear as
“BRNxxxxxxxxxxxx” where “xxxxxxxxxxxx” is the Ethernet address.
b Click Network Configuration.
5
c Enter a user name and a password. The User Name is admin and the default Password is access.
d Click OK.
e You can now change the print server settings.
12
6
Troubleshooting 6
Overview 6
This chapter explains how to resolve typical network problems you may encounter when using your Brother
printer. If, after reading this chapter, you are unable to resolve your problem, please visit the Brother Solutions
Center at: http://solutions.brother.com/
Make sure that the following items are configured before reading this chapter.
First check the following:
The power cord is connected properly and the Brother printer is turned on.
The access point (for wireless configurations) is turned on and its link light is blinking.
All protective packaging has been removed from the printer.
The front and back covers are fully closed.
The roll is inserted properly in the Roll compartment.
I cannot complete the wireless network setup configuration.
Question Solution
Are your security settings
(SSID/Network Key) correct?
Reconfirm and choose the correct security settings.
.
• The manufacturer's name or model no. of the WLAN access point/router may
be used as the default security settings.
6
Are you using MAC address
filtering?
Is your WLAN access
point/router in stealth mode?
(not broadcasting the SSID)
I have checked and tried all of
the above, but still cannot
complete the wireless
configuration. Is there anything
else I can do?
Is your Brother printer properly
connected to the WLAN access
point/router?
• See the instructions supplied with your WLAN access point/router for
information on how to find the security settings.
• Ask the manufacturer of your WLAN access point/router or ask your Internet
provider or network administrator.
Confirm that the MAC address of the Brother printer is allowed in the filter. You can
find the MAC address from the Network Setting Tool. See the User’s Guide for more
details about the Network Setting Tool.
You should type the correct SSID name or Network Key by hand.
Check the SSID name or the Network Key in the instructions supplied with your
WLAN access point/router and reconfigure the wireless network setup.
Use the Network Setting Tool.
If the Wi-Fi indicator is lit, the network is properly connected. If the Wi-Fi indicator is
blinking, the network is not connected properly, and the wireless network setup must
be reconfigured.
13
Troubleshooting
The Brother printer is not found on the network during the RJ-4040 installation.
Question Solution
Are you using security
software?
Is your Brother printer placed
too far from the WLAN access
point/router?
Are there any obstructions
(walls or furniture, for example)
between your printer and the
WLAN access point/router?
Is there a wireless computer,
Bluetooth supported device,
microwave oven or digital
cordless phone near the
Brother printer or the WLAN
access point/router?
Confirm your settings in the installer dialog.
Allow access when the alert message of the security software appears during the
RJ-4040 installation.
Place your Brother printer within about 3.3 feet (1 meter) from the WLAN access
point/router when you configure the wireless network settings.
Move your Brother printer to an obstruction-free area, or closer to the WLAN access
point/router.
Move all devices away from the Brother printer or WLAN access point/router.
6
The Brother printer cannot print via the wireless network.
The Brother printer is not found on the network even after successful installation.
Question Solution
Are you using security
software?
Is your Brother printer assigned
with an available IP address?
See I'm using security software. uu page 15.
Confirm the IP address and the Subnet Mask.
Verify that both the IP addresses and Subnet Masks of your computer and the
Brother printer are correct and located on the same network.
For more information on how to verify the IP address and the Subnet Mask, ask
the network administrator.
Confirm the IP address and the Subnet Mask using the Network Setting Tool.
Confirm your settings using the Network Setting Tool.
See the User’s Guide for more details about the Network Setting Tool.
14
Troubleshooting
The Brother printer cannot print via the wireless network.
The Brother printer is not found on the network even after successful installation. (continued)
Question Solution
Did your previous printing job
fail?
If the failed print job is still in your computer’s print queue, delete it.
Double-click the printer icon in the following folder and then choose
Cancel All Documents in the Printer menu:
(Windows
®
XP)
Start and Printers and Faxes.
®
(Windows Vista
)
, Control Panel, Hardware and Sound and then Printers.
(Windows
Printers and Faxes.
Are you connecting the Brother
printer to the network
wirelessly?
Print the Printer settings. (For how to print, see Printing the Printer Set-up
Information uu page 10.)
See The Brother printer is not found on the network during the RJ-4040
installation. uu page 14.
I have checked and tried all of
Uninstall the RJ-4040 installer and reinstall it.
above, however the Brother
printer does not print. Is there
anything else I can do?
I'm using security software.
Question Solution
Did you choose to accept the
security alert dialog during the
standard installation or
BRAdmin Light installation or
when using the printing
features?
I want to know the necessary
port number for the security
software settings.
If you did not choose to accept the security alert dialog, the firewall function of your
security software may be rejecting access. Some security software might block
access without showing a security alert dialog. To allow access, see the instructions
of your security software or ask the manufacturer.
The following port numbers are used for Brother network features:
BRAdmin Light i Port number 161 / Protocol UDP
For details on how to open the port, see the instructions of the security software or
ask the manufacturer.
®
7)
, Control Panel, Hardware and Sound, Devices and Printers and then
6
15
Troubleshooting
I want to check that my network devices are working properly.
Question Solution
Is your Brother printer, access
point/router or network hub
turned on?
Where can I find the Brother
printer's network settings, such
as IP address?
Check the Link Status in the
Network Configuration Report.
Can you ping the Brother printer
from your computer?
Make sure you have confirmed all instructions in Make sure that the following items
are configured before reading this chapter. uu page 13.
Print the Printer settings. (For how to print, see Printing the Printer Set-up
Information uu page 10.)
Print the Network Configuration Report and check that Wireless Link Status is
showing Link OK.
If the Link Status shows Link DOWN or Failed To Associate, start again from the
Make sure that the following items are configured before reading this chapter.
uu page 13.
Ping the Brother printer from your computer using the IP address or the node name.
Successful i Your Brother printer is working correctly and connected to the same
network as your computer.
Unsuccessful i Your Brother printer is not connected to the same network as
your computer.
6
Is the Brother printer connected
to the wireless network?
Ask the network administrator and use the Network Setting Tool.
Print the Printer Settings to confirm the state of a wireless connection. (For how to
print, see Printing the Printer Set-up Information uu page 10.)
16
A
Appendix A A
Supported protocols and security features A
Interface Wireless IEEE 802.11b/g/n (Infrastructure Mode / Ad-hoc Mode)
Network
(common)
Network
(Security)
Protocol (IPv4) ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS name
resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD,
Custom Raw Port/Port9100, FTP Server, TFTP server, SNMPv1/v2c,
ICMP
Wireless SSID (32 chr), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK
(AES), LEAP, EAP-FAST
A
17
B
TCP/IPTCP/IP
In this section, you will find basic information about advanced network features of the Brother printer along
general networking and common terms.
The supported protocols and the network features differ depending on the model you are using.
Appendix B B
Types of network connections and protocols B
Types of network connections B
Wired network connection example B
Peer-to-Peer printing using TCP/IP B
In a Peer-to-Peer environment, each computer directly sends and receives data to each device. There is no
central server controlling file access or printer sharing.
Network printer
(your printer)
1 Router
In a smaller network of 2 or 3 computers, we recommend the Peer-to-Peer printing method as it is easier
to configure than the Network Shared printing method. See Network Shared printing uu page 19.
Each computer must use the TCP/IP Protocol.
The Brother printer needs an appropriate IP address configuration.
If you are using a router, the Gateway address must be configured on the computers and the Brother
printer.
B
18
Appendix B
Network Shared printing B
In a Network Shared environment, each computer sends data via a centrally controlled computer. This type
of computer is often called a “Server” or a “Print Server”. Its job is to control the printing of all print jobs.
Network printer
(your printer)
1 Client computer
2 Also known as “Server” or “Print server”
3 TCP/IP or USB
In a larger network, we recommend a Network Shared printing environment.
The “server” or the “print server” must use the TCP/IP print protocol.
The Brother printer needs to have an appropriate IP address configuration unless the printer is connected
via the USB or the serial interface at the server.
B
19
Appendix B
Note
Note
Protocols B
TCP/IP protocols and functions B
Protocols are the standardized sets of rules for transmitting data on a network. Protocols allow users to gain
access to network connected resources.
The print server used on the Brother printer supports the TCP/IP (Transmission Control Protocol/Internet
Protocol) protocol.
TCP/IP is the most popular set of protocols used for communication such as Internet and E-mail. This protocol
®
can be used in almost all operating systems such as Windows
The following TCP/IP protocols are available on the Brother printer.
• You can configure the protocol settings by using the HTTP interface (web browser). (See Configuring the
printer settings using Web Based Management (web browser) uu page 12.)
• To find what protocols your Brother printer supports, see Supported protocols and security features
uu page 17.
DHCP/BOOTP/RARP B
, Windows Server®, Mac OS X and Linux®.
B
By using the DHCP/BOOTP/RARP protocols, the IP address can be automatically configured.
To use the DHCP/BOOTP/RARP protocols, please contact your network administrator.
APIPA B
If you do not assign an IP address manually (using the BRAdmin software) or automatically (using a
DHCP/BOOTP/RARP server), the Automatic Private IP Addressing (APIPA) protocol will automatically
assign an IP address from the range 169.254.1.0 to 169.254.254.255.
ARP
Address Resolution Protocol performs mapping of an IP address to a MAC address in a TCP/IP network.
DNS client B
The Brother print server supports the Domain Name System (DNS) client function. This function allows the
print server to communicate with other devices by using its DNS name.
NetBIOS name resolution
Network Basic Input/Output System name resolution enables you to obtain the IP address of the other device
using its NetBIOS name during the network connection.
B
B
WINS
Windows® Internet Name Service is a service providing information for NetBIOS name resolution, by
consolidating an IP address and a NetBIOS name that is on the local network.
B
20
Appendix B
LPR/LPD B
Commonly used printing protocols on a TCP/IP network.
Custom Raw Port (Default is Port 9100)
Another commonly used printing protocol on a TCP/IP network. It enables interactive data transmission.
mDNS B
mDNS allows the Brother print server to automatically configure itself to work in a Mac OS X Simple Network
Configured system.
SNMP B
The Simple Network Management Protocol (SNMP) is used to manage network devices including computers,
routers and Brother network ready printers. The Brother print server supports SNMPv1 and SNMPv2.
LLMNR B
The Link-Local Multicast Name Resolution protocol (LLMNR) resolves the names of neighboring computers
if the network does not have a Domain Name System (DNS) server. The LLMNR Responder function works
in both the IPv4 or IPv6 environment when using a computer that has the LLMNR Sender function such as
®
Windows Vista
and Windows®7.
B
B
21
Appendix B
Note
Configuring your printer for a network B
IP addresses, subnet masks and gateways B
To use the printer in a networked TCP/IP environment, you need to configure its IP address and subnet mask.
The IP address you assign to the print server must be on the same logical network as your host computers.
If it is not, you must properly configure the subnet mask and the gateway address.
IP address B
An IP address is a series of numbers that identifies each device connected to a network. An IP address
consists of four numbers separated by dots. Each number is between 0 and 255.
Example: In a small network, you would normally change the final number.
• 192.168.1.1
• 192.168.1.2
• 192.168.1.3
How the IP address is assigned to your print server: B
If you have a DHCP/BOOTP/RARP server on your network the print server will automatically obtain its IP
address from that server.
On smaller networks, the DHCP server may also be the Router.
For more information on DHCP, BOOTP and RARP, see:
Using DHCP to configure the IP address uu page 26.
Using BOOTP to configure the IP address uu page 27.
Using RARP to configure the IP address uu page 26.
If you do not have a DHCP/BOOTP/RARP server, the Automatic Private IP Addressing (APIPA) protocol will
automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255. For more information on
APIPA, see Using APIPA to configure the IP address uu page 27.
B
22
Appendix B
Subnet mask B
Subnet masks restrict network communication.
Example: Computer 1 can talk to Computer 2
•Computer 1
IP Address: 192.168. 1. 2
Subnet Mask: 255.255.255.0
•Computer 2
IP Address: 192.168. 1. 3
Subnet Mask: 255.255.255.0
Where the 0 is in the Subnet mask, there is no limit to communication at this part of the address. What this
means in the above example is, we can communicate with any device that has an IP address that begins with
192.168.1.x. (where x. are numbers between 0 and 255).
Gateway (and router) B
A gateway is a network point that acts as an entrance to another network and sends data transmitted via the
network to an exact destination. The router knows where to direct data that arrives at the gateway. If a
destination is located on an external network, the router transmits data to the external network. If your network
communicates with other networks, you may need to configure the Gateway IP address. If you do not know
the Gateway IP address then contact your Network Administrator.
B
23
Appendix B
Wireless network terms and concepts B
Specifying your network B
SSID (Service Set Identifier) and channels B
You need to configure the SSID and a channel to specify the wireless network you want to connect to.
SSID
Each wireless network has its own unique network name which is technically referred to as an SSID or
ESSID (Extended Service Set Identifier). The SSID is a 32-byte or less value and is assigned to the access
point. The wireless network devices you want to associate to the wireless network should match the
access point. The access point and wireless network devices regularly send wireless packets (referred to
as a beacon) which has the SSID information. When your wireless network device receives a beacon, you
can identify the wireless network that is close enough for the radio waves to reach your device.
Channels
Wireless networks use channels. Each wireless channel is on a different frequency. There are up to 14
different channels that can be used when using a wireless network. However, in many countries the
number of channels available are restricted.
B
Security terms B
Authentication and encryption B
Most wireless networks use some kind of security settings. These security settings define the authentication
(how the device identifies itself to the network) and encryption (how the data is encrypted as it is sent on the
network). If you do not correctly specify these options when you are configuring your Brother wireless
printer, it will not be able to connect to the wireless network. Therefore care must be taken when
configuring these options.
Authentication and Encryption methods for a personal wireless network B
A personal wireless network is a small network, for example using your printer in a wireless network at home,
without IEEE 802.1x support.
24
Appendix B
Authentication methods B
Open system
Wireless devices are allowed to access the network without any authentication.
Shared key
A secret pre-determined key is shared by all devices that will access the wireless network.
The Brother wireless printer uses a WEP key as the pre-determined key.
WPA-PSK/WPA2-PSK
Enables a Wi-Fi Protected Access Pre-shared key (WPA-PSK/WPA2-PSK), which enables the Brother
wireless printer to associate with access points using TKIP for WPA-PSK, or AES for WPA-PSK and
WPA2-PSK (WPA-Personal).
Encryption methods
None
No encryption method is used.
WEP
When using WEP (Wired Equivalent Privacy), the data is transmitted and received with a secure key.
TKIP
TKIP (Temporal Key Integrity Protocol) provides per-packet key mixing, a message integrity check and
rekeying mechanism.
AES
®
AES (Advanced Encryption Standard) is the Wi-Fi
authorized strong encryption standard.
Network key B
Open system/Shared key with WEP
This key is a 64-bit or 128-bit value that must be entered in an ASCII or hexadecimal format.
• 64 (40) bit ASCII:
Uses 5 text characters. e.g. “WSLAN” (this is case sensitive)
• 64 (40) bit hexadecimal:
B
B
Uses 10 digits of hexadecimal data. e.g. “71f2234aba”
• 128 (104) bit ASCII:
Uses 13 text characters. e.g. “Wirelesscomms” (this is case sensitive)
• 128 (104) bit hexadecimal:
Uses 26 digits of hexadecimal data. e.g. “71f2234ab56cd709e5412aa2ba”
WPA-PSK/WPA2-PSK and TKIP or AES
Uses a Pre-Shared Key (PSK) that is 8 or more characters in length, up to a maximum of 63 characters.
25
Appendix B
Note
Other ways to set the IP address (for advanced users and administrators) B
Using DHCP to configure the IP address B
The Dynamic Host Configuration Protocol (DHCP) is one of several automated mechanisms for IP address
allocation. If you have a DHCP server on your network, the print server will automatically obtain its IP address
from the DHCP server and register its name with any RFC 1001 and 1002-compliant dynamic name services.
If you do not want your print server configured via DHCP, BOOTP or RARP, you must set the Boot Method
to static so that the print server has a static IP address. This will prevent the print server from trying to
obtain an IP address from any of these systems. To change the Boot Method, use the BRAdmin
applications or Web Based Management (web browser).
Using RARP to configure the IP address B
The Brother print server’s IP address can be configured using the Reverse ARP (RARP) facility on your host
computer. This is done by editing the /etc/ethers file (if this file does not exist, you can create it) with an
entry similar to the following:
00:80:77:31:01:07 BRN008077310107 (or BRW008077310107 for a wireless network)
Where the first entry is the MAC Address (Ethernet Address) of the print server and the second entry is the
name of the print server (the name must be the same as the one you put in the /etc/hosts file).
If the RARP daemon is not already running, start it (depending on the system the command can be rarpd,
rarpd -a, in.rarpd -a or something else; type man rarpd or refer to your system documentation for
additional information).
The Brother print server will get the IP address from the RARP daemon when the printer is powered on.
B
26
Appendix B
Note
Using BOOTP to configure the IP address B
BOOTP is an alternative to RARP that has the advantage of allowing configuration of the subnet mask and
gateway. In order to use BOOTP to configure the IP address make sure that BOOTP is installed and running
on your host computer (it should appear in the /etc/services file on your host as a real service; type
man bootpd or refer to your system documentation for information). BOOTP is usually started up via the
/etc/inetd.conf file, so you may need to enable it by removing the “#” in front of the bootp entry in that
file. For example, a typical bootp entry in the /etc/inetd.conf file would be:
#bootp dgram udp wait /usr/etc/bootpd bootpd -i
Depending on the system, this entry might be called “bootps” instead of “bootp”.
In order to enable BOOTP, simply use an editor to delete the “#” (if there is no “#”, then BOOTP is already
enabled). Then edit the BOOTP configuration file (usually /etc/bootptab) and enter the name, network
type (1 for Ethernet), MAC Address (Ethernet Address) and the IP address, subnet mask and gateway of
the print server. Unfortunately, the exact format for doing this is not standardized, so you will need to refer
to your system documentation to determine how to enter this information. Some examples of typical
/etc/bootptab entries include: (“BRN” below is “BRW” for a wireless network.)
BRN310107 1 00:80:77:31:01:07 192.168.1.2
and:
BRN310107:ht=ethernet:ha=008077310107:\ip=192.168.1.2:
Certain BOOTP host software implementations will not respond to BOOTP requests if you have not included
a download filename in the configuration file. If this is the case, simply create a null file on the host and specify
the name of this file and its path in the configuration file.
As with RARP, the print server will load its IP address from the BOOTP server when the printer is powered on.
Using APIPA to configure the IP address B
The Brother print server supports the Automatic Private IP Addressing (APIPA) protocol. With APIPA, DHCP
clients automatically configure an IP address and subnet mask when a DHCP server is not available. The
device chooses it's own IP address in the range 169.254.1.0 through to 169.254.254.255. The subnet mask
is automatically set to 255.255.0.0 and the gateway address is set to 0.0.0.0.
By default, the APIPA protocol is enabled. If you want to disable the APIPA protocol, you can disable it using
BRAdmin Light or Web Based Management (web browser).
B
27
Appendix B
Note
Using ARP to configure the IP address B
If you are unable to use the BRAdmin application and your network does not use a DHCP server, you can
®
also use the ARP command. The ARP command is available on Windows
installed. To use ARP enter the following command at the command prompt:
arp -s ipaddress ethernetaddress
ping ipaddress
Where ethernetaddress is the MAC Address (Ethernet Address) of the print server and ipaddress is
the IP address of the print server. For example:
®
Windows
Windows
systems
®
systems require the dash “-” character between each digit of the MAC Address (Ethernet
Address).
arp -s 192.168.1.2 00-80-77-31-01-07
ping 192.168.1.2
systems that have TCP/IP
You must be on the same Ethernet segment (that is, there cannot be a router between the print server and
operating system) to use the arp -s command.
If there is a router, you may use BOOTP or other methods described in this chapter to enter the IP address.
If your administrator has configured the system to deliver IP addresses using BOOTP, DHCP or RARP
your Brother print server can receive an IP address from any one of these IP address allocation systems.
In which case, you will not need to use the ARP command. The ARP command only works once. For
security reasons, once you have successfully configured the IP address of a Brother print server using the
ARP command, you cannot use the ARP command again to change the address. The print server will
ignore any attempts to do this. If you wish to change the IP address again, use a Web Based Management
(web browser), TELNET (using the SET IP ADDRESS command) or factory reset the print server (which
will then allow you to use the ARP command again).
B
28
Loading...
