Brother PR670E, PR670EC Operation Manual

Embroidery Machine

Operation Manual

Product Code: 884-T20

Be sure to read this document before using the machine. We recommend that you keep this document nearby for future reference.

Trademarks

IBM is a registered trademark or a trademark of International Business Machines Corporation. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation.

Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.

All other brands and product names mentioned in this manual are registered trademarks of their respective companies. However, the explanations for markings such as ® and ™ are not clearly described within the text.

Open Source Licensing Remarks

This product includes open-source software. To see the open source licensing remarks, please go to the manual download section on your model's home page of Brother Solutions Center at “ http://s.brother/cpbac ”.

Introduction

Thank you for purchasing this embroidery machine. Before using this machine, carefully read the “IMPORTANT SAFETY INSTRUCTIONS”, and then study this manual for the correct operation of the various functions. In addition, after you have finished reading this manual, store it where it can quickly be accessed for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Please read these safety instructions before attempting to use the machine.

DANGER - To reduce the risk of electric shock:

1Always unplug the machine from the electrical outlet immediately after using, when cleaning, when making any

user servicing adjustments mentioned in this manual, or if you are leaving the machine unattended.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

2Always unplug the machine from the electrical outlet when lubricating it or when making any other user

servicing adjustments mentioned in the operation manual

• To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp the plug and pull it out of the electrical outlet. Do not pull on the cord.

• Plug the machine directly into the electrical outlet. Do not use an extension cord.

• Always unplug your machine if the power is cut.

3Electrical Hazards:

• This machine should be connected to an AC power source within the range indicated on the rating label. Do not connect it to a DC power source or inverter. If you are not sure what kind of power source you have, contact a qualified electrician.

• This machine is approved for use in the country of purchase only.

4Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped

or damaged, or water is spilled on the unit. Return the machine to the nearest authorized Brother dealer or service center for examination, repair, electrical or mechanical adjustment.

• To avoid electric shock or fire; do not use a damaged power supply plug or loose electrical outlet, and ensure that the power supply plug is fully inserted and secure.

While the machine is stored or in use if you notice anything unusual, such as an odor, heat, discoloration or

• deformation, stop using the machine immediately and unplug the power cord.

• When transporting the machine, be sure to lift it from the bottom positions. Lifting the machine by any other part may damage the machine or result in the machine falling, which could cause injuries.

• When lifting the machine, be careful not to make any sudden or careless movements, otherwise you may injure your back or knees.

• While the machine is being transported, be careful not to touch the operation panel, thread guides or any other part, otherwise injuries may result.

5Always keep your work area clear:

• Never operate the machine with any air openings blocked. Keep ventilation openings of the machine free from the build up of lint, dust, and loose cloth.

• Do not use extension cords. Plug the machine directly into the electrical outlet.

• Never drop or insert any object into any opening.

• Keep fingers out of all machine openings, such as near the carriage, otherwise injuries may result.

• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

• Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine, power cord or garment being sewn may ignite, resulting in fire or an electric shock.

• Do not use this machine near an open flame; the movement of the embroidery frame could cause the garment being sewn to catch fire.

• Do not place this machine on an unstable surface, such as an unsteady or slanted table, otherwise the machine may fall, resulting in injuries.

• While attaching or detaching an embroidery frame or other included accessory or while maintaining the machine, be careful not to hit the machine with your body or any other part of it.

6Special care is required when sewing:

• Always pay close attention to the needle. Do not use bent or damaged needles.

• Keep fingers away from all moving parts. Special care is required around the machine needle.

• While the machine is in operation, keep your hands away from the needle bar case and all moving parts near the needle bar case, otherwise injuries may result.

• Switch the machine to the symbol “O” position to turn it off when making any adjustments in the needle area, such as changing the needle.

• Do not use a damaged or incorrect needle plate, as it could cause the needle to break.

7This machine is not a toy:

• Your close attention is necessary when the machine is used by or near children.

• This machine is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with this machine.

• Do not use the included scissors or seam ripper in any other way than how they are intended. In addition, when opening a hole with the seam ripper, do not place your hands or fingers in the cutting path, otherwise injuries may result if the seam ripper slips.

• The plastic bag that this machine was supplied in should be kept out of the reach of children or disposed of. Never allow children to play with the bag due to the danger of suffocation.

• Do not use outdoors.

8For a longer service life:

• When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine near a space heater, iron, halogen lamp, or other hot objects.

• Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the case and machine, and should never be used.

• Always consult the operation manual when replacing or installing any assemblies, needle, or other parts to assure correct installation.

9For repair or adjustment:

• Do not try to disassemble, repair or alter this machine in any way, otherwise a fire, electric shock or injuries may

result.

• If the light unit is damaged, it must be replaced by an authorized Brother dealer.

• In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of

the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Brother dealer.

Use this machine only for its intended use as described in the manual. Use accessories recommended by the manufacturer as contained in this manual. Use only the interface cable (USB cable) included with this machine. Use only a mouse designed specifically for this machine. The contents of this manual and specifications of this product are subject to change without notice. For additional product information and updates, visit our website at www.brother.com

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

FOR USERS IN COUNTRIES EXCEPT CENELEC COUNTRIES

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

FOR USERS IN CENELEC COUNTRIES

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

FOR USERS IN THE UK, EIRE, MALTA

AND CYPRUS ONLY

IMPORTANT

• In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark,

rating as marked on plug.

• Always replace the fuse cover. Never use plugs with the fuse cover omitted.

• If the available electrical outlet is not suitable for the plug supplied with this equipment, you should contact your

authorized Brother dealer to obtain the correct lead.

Federal Communications Commission (FCC) Declaration of Conformity

(For USA Only)

Responsible Party: Brother International Corporation

200 Crossing Boulevard P.O. Box 6911 Bridgewater, NJ 08807-0911 USA TEL : (908) 704-1700

declares that the product

Product Name: Brother Embroidery Machine Model Number: PR670E

complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The included interface cable should be used in order to ensure compliance with the limits for a Class B digital device.

• Changes or modifications not expressly approved by Brother Corporation could void the user’s authority to operate the equipment.

License Agreement

The enclosed machine includes data, software and/or documentation (collectively “CONTENT”) that are proprietary products of Brother Industries, Ltd. (“BROTHER”). BY USING THE CONTENT, THE CUSTOMER ACCEPTS THE TERMS AND CONDITIONS OF THIS AGREEMENT. BROTHER retains ownership of all rights to CONTENT and to the copies of the CONTENT included in this package. The CONTENT are licensed (not sold) to you (“CUSTOMER”) under the terms and conditions of this Agreement.

CUSTOMER is licensed to:

• Use the CONTENT in combination with an embroidery machine to create embroidery.

• Use the CONTENT in combination with an embroidery machine that CUSTOMER owns or uses, provided that

the CONTENT is not used on more than one embroidery machine at a time.

Except as otherwise provided herein, CUSTOMER may not:

• Allow more than one copy of the CONTENT to be available for use at any one time.

• Reproduce, modify, publish, distribute, sell, rent, sublicense or otherwise make available to others CONTENT.

• Distribute, rent, sublicense, lease, sell, transfer or assign the media card or CONTENT.

• Decompile, disassemble or otherwise reverse engineer the CONTENT or assist others to do the same.

• Alter, translate, modify or adapt the CONTENT or any part thereof for business, commercial or industrial

purposes.

• Sell or otherwise distribute the EMBROIDERY created by use of the CONTENT, WHICH ORIGINALLY BEARS

CERTAIN COPYRIGHT NOTICE UNDER THE NAME OF ANY THIRD PARTIES OTHER THAN BROTHER (e.g. “©DISNEY”).

BROTHER retains all rights not expressly granted to CUSTOMER herein.

Nothing in this agreement constitutes a waiver of the rights of BROTHER under any law. This agreement shall be governed by the laws of Japan.

Please direct all inquiries concerning this Agreement in writing by regular mail, to Brother Industries, Ltd., 1-1-1 Kawagishi, Mizuho-ku, Nagoya 467-8562, Japan, Attention: P&H company Sales and Marketing Dept.

Warning Labels

The following warning labels are on the machine. Be sure to observe the precautions described in the labels.

Please put a drop of oil onto the hook once a day before use.

Label locations

Machine Structure and Features

Memo

The thread colors assigned to the needle bars are

Six-needle machine embroidering

Your machine has six needles, each threaded with a different color of thread. It can sew embroidery patterns that contain several colors by automatically selecting the appropriate needle for each color.

The mechanism that moves the needles up and down is called the needle bar, and the needle bars are in the needle bar case. The needle bars are named from right to left: needle bar 1, needle bar 2, needle bar 3, needle bar 4, needle bar 5 and needle bar 6.

listed on the screen. Thread the needle bars as indicated.

The spool pins, thread tension knobs, thread takeup levers and thread paths, mentioned when threading the upper thread, are different according to their corresponding needle bar number.

1 The threads threaded on the needle bars are

indicated as shown here.

1 Needle bar 1 2 Needle 1 3 Needle bar case

The machine automatically assigns a thread color to each needle. There are two methods for assigning the thread colors. With the automatic method (default method when the machine is purchased), needles that are already threaded with a color that will be used in the next pattern are assigned to the same thread color based on the needle bar assignments from the previous pattern in order to reduce the number of thread spool changes.

For more professional embroidering, using a manual color sequence allows the needle bar assignments to easily be specified manually. Thread color and needle bar combinations can be selected manually to create a menu so that the needle bar assignments can be based on the thread color numbers. (Refer to “Selecting/Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 108.)

• Sewing is not necessarily performed in the order of the needle bar numbers.

Not all six needles can be used to sew at the same time. Only one needle is moved to the embroidering position at a time. According to the sewing order, the needle bar case is moved to the left and right so that the needle bar and needle thread with the required color can be moved to the embroidering position.

1 Needle at the embroidering position

The needle is positioned over the hole in the needle plate 2.

When starting the machine, the presser foot is automatically lowered. The embroidery is sewn and thread is pulled away from the material when thread trimming and when changing thread colors (moving to the different needles to be sewn within the embroidery). When sewing is finished, the machine stops. If the pattern uses seven or more thread colors, the machine will stop when it is necessary for the thread spools to be changed, and the corresponding instructions appear on the LCD.

(However, when “Manual Color Sequence” is set to “ON”, the machine does not automatically stop when a thread spool must be changed. For details, refer to “Selecting/Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 108.)

Differences from single-needle machines

■ Can sew embroidery patterns using six or less colors without the need to replace the thread spools

With single-needle machines, the thread spool must be changed and the machine must be threaded each time a different thread color is used. With this machine, it is not necessary to change the thread spool or rethread the machine with embroidery patterns containing six or less colors. If total colors are less than six colors, and if total color change is more than seven times, machine will come back to the needle that the machine is already used and sew the same color again automatically.

■ Automatic sewing reduces sewing time

Except to change the thread spools with patterns containing seven or more colors, once the machine is started, it continues to operate automatically, from lowering the presser foot to performing the specified operations at the starting and end positions in addition to changing the thread colors. Since the machine can change threads and finish stitching, sewing time is reduced.

■ Automatically pulls and holds the thread tails to the under side of fabric at the beginning and end of stitching

Since the machine automatically pulls the upper thread under the fabric at the beginning of a color, and pulls the upper thread from the fabric at the time of thread trimming, you don’t need to deal with the upper thread tail at all.

■ Automatically moves the embroidery frame to the embroidering position

With a single-needle machine, in most cases, the embroidery pattern is centered in the frame and the fabric must be correctly positioned within the embroidery frame with the center of the desired embroidering position aligned with the center of the embroidery frame. However, with 6 needle embroidery machine, the embroidery frame is moved to determine the embroidering position, making it easier to sew the pattern at any place in the frame. In addition, the embroidering position can be freely determined manually after the fabric is hooped and the embroidery frame is attached to the machine, regardless of how the fabric is positioned in the embroidery frame.

Other features

■ Large 10.1-inch LCD screen

The machine is equipped with a large 10.1-inch LCD screen, the same as on many tablets. The colors of an embroidery pattern can be previewed in a nearly realistic image. In addition, since the LCD is a touch panel, the keys that are displayed can be touched to easily perform operations.

■ Embroider while replacing the

thread spool a minimal number of times

Before starting to embroider, touch the thread color

sorting key ( ) to rearrange the embroidery order and sort it by thread colors. For example, when

embroidering after simply arranging the same pattern to be repeated side-by-side, you will need to replace the thread spool multiple times with each pattern. However, by using the thread color sorting function, the thread color order will be rearranged allowing you to embroider the same color at one time, while replacing the thread spool a minimal number of times. The thread color sorting function cannot be used with overlapping patterns.

■ Link function – for your embroidery business –

You can send embroidery patterns edited in embroidery editing software provided with the Link function, such as PE-DESIGN NEXT /10 or later, from a computer to an embroidery machine. You can connect up to 4 machines to a single computer at a same time. (Refer to “Sending Embroidery Patterns From a Computer to the Machine (Link Function)” on page 142.)

■ More user friendly pattern editing

Pattern editing, such as changing all parts with the same thread color to a different color or adding characters while entering text, has become more user friendly.

■ Deselect region function

Since you can specify a part of the embroidery pattern or a specific color not to be sewn, you can arrange the sewn embroidery without editing the pattern.

■ Safety mechanism

The machine is equipped with a locking mechanism that helps prevent injuries from accidental operation. The machine can only be started after the machine is unlocked. The color of the start/stop button changes to inform you of whether or not the machine is locked.

Lit in red Flashing in green

■ Embroidering progress bar

Since numbers for the time and stitches do not always provide the clearest image of the remaining embroidery time, the new embroidering progress bar shows the progress of the entire embroidery at a glance.

The machine is locked.

The machine can be

started.

■ Wide selection of built-in thread color information

The thread color information for manufacturers’ threads is available, making it easy to choose the appropriate thread color.

■ Expanded thread color display feature enables colors to be displayed as realistic true color

The colors and thread color numbers are stored in the machine’s memory. From this thread color library, you can select colors to create your own color thread table. If the pattern colors are changed using this table, the pattern can be displayed with only the thread colors that you have. In addition, the embroidery pattern can be displayed as it would appear after it is embroidered.

■ USB port/SD card slot available as standard equipment

By connecting a computer to the machine using the included USB cable, embroidery patterns can be transferred to/from the computer. (Refer to “Saving embroidery patterns in the computer” on page 136.)

■ Automatic needle-threading mechanism

Using the automatic needle-threading mechanism, threads each needle easily. In addition, you can specify that automatic needle threading be canceled for specific needle bars.

If the machine is positioned at a distance that prevents the USB cable from reaching the computer, embroidery patterns can be transferred from the computer by temporarily saving them on USB media or an SD card, which is then inserted into the machine. (Refer to “Saving embroidery patterns to USB media/SD card” on page 135.)

■ Moving or threading a selected needle bar at any time

When selecting, editing or embroidering a pattern, any one of the needle bars can be selected at any time to be threaded or moved to the embroidering position.

Touch to open the needle move screen, then select the needle bar number that you want to move or thread. (Refer to “Moving and threading a selected needle bar” on page 55.)

Available features

Designs with a maximum size of 200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W)) can be embroidered.

■ Manual color sequence - More professional use of this machine

If you specify the thread colors used with this machine, or if you use DST files frequently, it would be convenient to use the manual color sequence. (Refer to “Selecting/Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 108.)

■ Various built-in patterns

Many built-in character patterns, embroidery patterns and frame patterns enable you to start embroidering right after purchasing this machine.

■ Embroidery pattern editing

Lettering and embroidery patterns can be combined or a text arrangement can be specified to arrange the patterns. The machine can also be set to repeatedly sew the same pattern.

Manual Structure

This manual is constructed as described below. Before using the machine, check the procedures described with the numbered titles in chapter 2. This shows the sequence of these basic operations.

Read before use

Chapter 1: Getting Ready

The setup of the embroidery machine and the various preparations required before starting to sew are described in this chapter.

Chapter 2: Embroidering Tutorial

This chapter describes the basic embroidering operations in order—from turning on the machine and sewing a pattern to finishing sewing. Follow the steps of the tutorial to embroider a pattern and master the operation of this embroidery machine.

Chapter 3: Other Basic Procedures

This chapter provides explanations on operations other than those described in chapter 2, such as sewing a pattern with seven or more colors, and other necessary operations, for example, changing the needle.

Read when additional information is required

Chapter 4: Embroidering Settings

This chapter contains descriptions on the various embroidering settings, which make editing patterns simple.

Chapter 5: Selecting/Editing/Saving Patterns

Searching for information

■ Searching the manual

By title

Check the descriptions at the left for the contents of each chapter, and then check the table of contents.

By keyword

Search the index at the end of this manual. Look for the desired keyword, and then refer to the page that is indicated.

By screen

Descriptions of the keys and other information that appear in the main LCD screens are provided in the tables on pages 63 to 72. For details, refer to the page that is indicated.

By condition

Various possible conditions and the corresponding operations are described on page 73. For details, refer to the page that is indicated.

■ Searching the machine

This machine is equipped with a help feature.

Learning how to perform an operation

Touch the machine operations guide key, and then check for the desired information. (Refer to “Using the Machine Operations Guide Key” on page 187.)

This chapter provides details on selecting, editing and saving embroidery patterns.

Chapter 6: Basic Settings and Help Feature

This chapter contains descriptions on the use of the settings key and the machine operations key. Details on changing the basic embroidery machine settings and viewing operations on the LCD will be provided.

Chapter 7: Appendix

This chapter provides descriptions of techniques for various embroidering operations, pointers for creating beautiful embroidery, and details on maintenance procedures and corrective measures that should be taken when a problem occurs.

Contents

Introduction ................................................. 1

IMPORTANT SAFETY INSTRUCTIONS ........ 1

License Agreement ....................................... 5

Warning Labels............................................. 6

Machine Structure and Features................... 7

Six-needle machine embroidering ............................... 7

Differences from single-needle machines .................... 8

Other features.............................................................. 9

Available features...................................................... 12

Manual Structure........................................ 13

Read before use......................................................... 13

Read when additional information is required........... 13

Searching for information .......................................... 13

Chapter1 GETTING READY 17

Names of Machine Parts and Their

Functions .................................................... 17

Front view ................................................................. 17

Right-side/rear view................................................... 18

Operation panel........................................................ 18

Accessories................................................. 19

Included accessories.................................................. 19

Accessories that are included in some countries or

regions ...................................................................... 20

Optional Accessories.................................. 21

Setting Up the Machine.............................. 23

Setup and transporting precautions............................ 23

Setup location ........................................................... 23

Setting up the machine .............................................. 24

Adjusting the operation panel position ...................... 25

Preparing the thread guide assembly ......................... 26

Positioning the spool stand........................................ 27

Attaching the embroidery frame holder ..................... 28

Chapter2 EMBROIDERING TUTORIAL 29

Operating Precautions................................ 29

Power supply precautions.......................................... 29

Needle precautions ................................................... 30

Checking the needle.................................................. 30

Bobbin precautions ................................................... 30

Upper thread recommendations ................................ 31

Fabric recommendations........................................... 31

Display recommendations ......................................... 31

Basic Procedures ........................................ 32

1. Installing the Bobbin .............................. 33

Removing the bobbin case ........................................ 33

Installing the bobbin.................................................. 33

Installing the bobbin case.......................................... 34

2. Turning ON the Machine ....................... 35

Setting your machine for the first time ....................... 36

Understanding the screens......................................... 36

Screen overview........................................................ 37

3. Selecting an Embroidery Pattern ............ 38

Selecting an embroidery pattern ................................ 39

4. Editing the Embroidery Pattern............... 40

5. Previewing the Image ............................. 41

Checking a preview image ........................................ 41

6. Hooping the Fabric in the Embroidery

Frame ......................................................... 42

Hooping the fabric in the embroidery frame.............. 42

7. Attaching the Embroidery Frame to the

Machine ...................................................... 44

Attaching the embroidery frame ................................ 45

Continuing to the embroidering settings screen ......... 46

8. Specifying Embroidering Setting.............. 46

9. Checking the Embroidery Area................ 47

Temporarily stopping to check the area ..................... 48

Continuing to the embroidering screen...................... 48

10. Upper Threading ................................... 48

Checking the needle bars and thread colors .............. 48

Upper threading ........................................................ 50

Threading the needle................................................. 54

11. Sewing the Embroidery ......................... 57

Starting embroidering ................................................ 57

Stopping embroidering .............................................. 59

12. Removing the Embroidery Frame and

Fabric .......................................................... 60

Removing the embroidery frame................................ 60

Removing the fabric .................................................. 61

13. Turning OFF the Machine ..................... 61

Screen Quick Reference Guide ................... 63

Key displays .............................................................. 63

Understanding the pattern type selection screen........ 64

Understanding the pattern list screen......................... 65

Understanding the pattern editing screen................... 66

Understanding the embroidering settings screen........ 68

Understanding the embroidering screen .................... 71

When You Have a Question, This May Help

You.............................................................. 73

Technical terms:........................................................ 73

Patterns: .................................................................... 73

Embroidering:............................................................ 73

Useful external connection functions......................... 74

USB mouse operation................................................ 76

Chapter3 OTHER BASIC PROCEDURES 79

Changing the Needle................................... 79

Replacing the needle................................................. 79

Correctly Using the Embroidery Frames...... 80

Embroidery frame holders.......................................... 80

When difficult to replace the embroidery frame......... 81

Types of embroidery frames/frame holders and their

applications............................................................... 82

Attaching Iron-On Stabilizer (Backing) to

Fabric .......................................................... 84

Hooping the Fabric ..................................... 85

Hooping the fabric in the extra-large and large

embroidery frames..................................................... 85

Using the embroidery sheet ....................................... 86

Large/small pieces of fabric ....................................... 86

Embroidery Frame Position and

Movement ................................................... 88

Changing the Embroidering Position ........... 89

Adjusting the angle.................................................... 91

Switching the Thread Colors on

the Screen ................................................... 93

Embroidering a Pattern Containing Seven or

More Colors ................................................ 94

Checking if thread spool changes are necessary........ 94

Changing the Thread Spools with Designs of

Seven or More Colors................................. 95

Change thread spools message ................................. 95

Easily changing the thread spools ............................. 96

If the Thread Breaks or the Bobbin Thread

Runs Out While Embroidering.................... 97

If the upper thread breaks ......................................... 97

If the bobbin thread breaks or runs out ..................... 98

Embroidering From the Beginning or

Middle of the Pattern.................................. 99

Resume Embroidering After Turning Off

the Machine.............................................. 101

Adjusting the Thread Tension of both

the Bobbin and Upper Thread .................. 102

Adjusting the tension of the bobbin thread.............. 102

Adjusting the tension of the upper thread................ 103

Chapter4 EMBROIDERING SETTINGS 105

Basting Embroidery................................... 105

Creating an Appliqué Piece....................... 106

Creating an appliqué piece ..................................... 106

Selecting/Managing Thread Colors for Each

Needle Bar (Manual Color Sequence)....... 108

Convenience of the manual color sequence ........... 108

Specifying the manual color sequence.................... 109

Using the manual color sequence........................... 109

Precautions on the manual color sequence............. 110

Deselect Region Setting ............................ 110

Specifying sewing of a specific thread color to be

skipped................................................................... 110

Cancelling the deselect region setting..................... 111

Automatic Lock Stitch Setting................... 112

Starting/Ending Position Settings .............. 113

Repeatedly sewing a pattern along a diagonal ........ 114

Embroidering linked characters............................... 115

Maximum Sewing Speed Setting ............... 116

Setting the Machine to Stop at Color

Changes .................................................... 117

Stopping the machine at the next color change....... 117

Specifying pause locations before embroidering ..... 118

Temporary Needle Bar Setting.................. 119

Uninterrupted embroidering (monochrome)............ 119

Reserved Needle Bar and Sewing Speed

Settings ..................................................... 120

Chapter5 SELECTING/EDITING/SAVING

PATTERNS 123

Using the Memory Function ..................... 123

Embroidery data precautions .................................. 123

Concerning USB media .......................................... 124

Selecting an Embroidery Pattern............... 124

General pattern selection........................................ 124

Embroidery patterns................................................ 125

Frame patterns ........................................................ 126

Utility embroidery patterns/Large buttonhole

patterns................................................................... 127

Monogram and frame designs................................. 127

Alphabet patterns.................................................... 130

Decorative alphabet patterns .................................. 133

Saving embroidery patterns in the machine’s

memory .................................................................. 135

Saving embroidery patterns to USB media/SD

card ........................................................................ 135

Saving embroidery patterns in the computer ........... 136

Retrieving patterns from the machine’s memory...... 137

Recalling from USB media/SD card......................... 138

Recalling from the computer................................... 139

Saving embroidery patterns from any memory

source to another memory ...................................... 141

Sending Embroidery Patterns From a Computer to the Machine

(Link Function) ......................................... 142

Operations available with the Link function............ 142

Embroidering using the Link function...................... 143

Disabling the Link function..................................... 145

Editing the Embroidery Pattern

(Pattern Editing Screen) ............................ 146

Enlarge the pattern image on the screen.................. 146

Combining patterns................................................. 146

Selecting the pattern to be edited............................ 147

Grouping multiple selected patterns........................ 148

Moving a pattern..................................................... 148

Flipping a pattern horizontally ................................ 149

Changing the size of a pattern

(Normal resizing mode) .......................................... 150

Changing the pattern size while maintaining

the desired thread density (stitch recalculator)......... 151

Rotating a pattern.................................................... 152

Changing the text arrangement of a character ......... 153

Changing the character spacing .............................. 153

Separating combined character patterns.................. 154

Trimming the threads between characters............... 155

Combining the separated character patterns............ 155

Specifying multi-color text ...................................... 156

Changing the character font .................................... 156

Changing the font and size of individual

characters ............................................................... 156

Changing the thread density (only for selected

character and frame patterns).................................. 157

Changing the colors of the pattern .......................... 157

Find new color schemes with the color shuffling

function .................................................................. 159

Thread color sorting................................................ 162

Designing repeated patterns.................................... 162

Creating a custom thread table................................ 167

Choosing a color from the custom thread table....... 169

Saving and recalling the custom thread table

using USB media .................................................... 170

Duplicating a pattern .............................................. 171

Deleting a pattern ................................................... 171

Editing the Embroidery Pattern

(Embroidering Settings Screen)................. 172

Rotating the entire pattern....................................... 172

Editing a Combined Pattern ...................... 173

Chapter6 BASIC SETTINGS AND HELP

FEATURE 177

Using the Settings Key .............................. 177

Understanding the settings screen ........................... 177

Changing the display guides ................................... 180

Changing the thread color information.................... 182

Selecting the thread color information for “PES”

format data ............................................................. 183

Changing the background colors of the embroidery

patterns or thumbnails ............................................ 183

Specifying jumpstitch trimming / “DST” jump

codes for trimming .................................................. 184

Deleting short stitches ............................................. 184

Specifying the remaining length of thread................ 185

Selecting the “Eco Mode” or “Shutoff Support

Mode”..................................................................... 185

Changing the screen saver settings........................... 186

Using the Machine Operations Guide

Key ........................................................... 187

Viewing the operation guides .................................. 187

Playing a tutorial video............................................ 189

Playing MPEG-4 (MP4) videos................................. 190

Chapter7 APPENDIX 191

Appliqué Sewing....................................... 191

Sewing appliqué patterns......................................... 191

Using a frame pattern to create appliqués (1)........... 192

Using a frame pattern to create appliqués (2)........... 193

Sewing Large-size (Split) Embroidery

Patterns .................................................... 195

Helpful Tips for the Operation of

the Machine ............................................. 197

Checking the thread tension of built-in patterns....... 197

Sewing a pattern aligned with a mark on

the fabric................................................................. 199

Color thread table.................................................... 200

Colors of Tajima (.dst) embroidery data ................... 200

Creating Beautiful Embroidery ................. 201

Threads ................................................................... 201

Stabilizers (backing)................................................. 202

Hooping techniques................................................ 203

Fabric/stabilizer compatibility chart......................... 204

Using the Optional Bobbin Winder.......... 205

Precautions.............................................................. 205

Optional bobbin winder and its accessories ............ 205

Setting up the optional bobbin winder..................... 206

Connecting the AC adapter...................................... 206

Winding the bobbin ................................................ 207

Maintenance............................................. 210

Cleaning the LCD.................................................... 210

Cleaning the machine surface.................................. 210

Cleaning the hook ................................................... 210

Cleaning around the needle plate............................ 211

Cleaning the bobbin case........................................ 212

Cleaning the thread paths of the upper threads........ 213

Oiling the machine.................................................. 214

About the maintenance message ............................. 216

Troubleshooting ....................................... 216

On-screen troubleshooting...................................... 216

Troubleshooting ...................................................... 217

Error messages......................................................... 223

If the machine does not respond when a key is

pressed.................................................................... 230

Specifications ........................................... 231

Embroidery machine specifications ......................... 231

Upgrading Your Machine’s Software........ 231

Upgrade procedure ................................................. 231

Index ........................................................ 233

Chapter 1

GETTING READY

After unpacking the machine, first refer to “Accessories” on page 19, and check that all listed accessories are included. After checking that all accessories are included, the embroidery machine can be set up. The setup of the machine and the various preparations required before starting to sew are described in this chapter.

Names of Machine Parts and Their Functions

The names of the various parts of the sewing machine and their functions are described below. Before using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

Front view

1 Thread tension knobs

Adjust the tension of the thread.

2 Needle bar case

Moves to the left and right to move the needle to the embroidering position.

3 Lower thread guide 4 Carriage

Attach the embroidery frame to the carriage. When the machine is turned on or when the machine is embroidering, the carriage moves forward, backward, left and right.

5 Hook cover/Hook

Open the hook cover, and then insert the bobbin case into the hook.

6 Feet

Use the feet to adjust the height of the legs.

7 Sewing light

The brightness of the sewing light can be adjusted in the settings screen. Refer to page 178.

8 Operation panel

9 Spool stand

Put 6 thread spools to embroider.

0 Thread guide assembly support A Thread guide

B Upper thread guide pretension knob C Thread guide pins D Middle thread guide

Right-side/rear view

Operation panel

1 Start/Stop button

Press the start/stop button to start or stop the machine. The lighting status and color of the button changes depending on the operation condition of the machine.

Bottom

1 Touch pen holder

Use the touch pen holder to hold the touch pen when not in use.

2 SD card slot

Insert an SD card into the SD card slot in order to import/export embroidery pattern data.

3 USB port for media

In order to send patterns from/to USB media, plug the USB media directly into the USB port.

4 USB port for computer

In order to import/export patterns between a computer and the machine, plug the USB cable into the USB port.

5 Main power switch

Use the main power switch to turn the machine ON (I) and OFF (

).

Do not turn the power on soon after turning the power off. It is recommended that you wait 5 seconds before turning the power back on.

6 Power supply plug

Insert the plug on the power supply cord into the power supply plug.

7 Ventilation slots 8 Handwheel

Rotate the handwheel to move the needle up and down. Be sure to rotate the handwheel toward the LCD panel (counterclockwise).

Lit in red : When the machine cannot start

sewing

Flashing in green : When the machine can start

sewing

Lit in green : While the machine is sewing

Flashing in orange : When the machine can cut the

thread

Off : When the machine is turned off

2 Thread trimming button

Press the thread trimming button to trim both the upper and the bobbin threads.

3 Automatic needle-threading button

Press the automatic needle threading button to thread the needle.

4 Speaker 5 LCD (touch panel)

Touch the keys that appear on the touch panel to select and edit patterns and confirm various information.

Accessories

The accessories listed below are included with this machine. Make sure to use the accessories designed for this machine.

12.

13.

Part Na me

Part Code

Phillips screwdriver

XC6543-051

Standard screwdriver

GETTING READY

Included accessories

After opening the box, check that the following accessories are included. If any item is missing or damaged, contact your authorized Brother dealer.

Part Na me

Part Code

10.

Accessory case

XC6482-051

Needle set × 2

XC6469-001

Prewound bobbin × 6

XC6368-051

Spool net × 6

S34455-000

Seam ripper

XF4967-001

Scissors

XF2052-001

Tweezers

XC6542-051

Touch pen

XA9940-051

Needle changing tool (Threader)

XF2212-001

Needle plate spacer

X55468-051

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24. Embroidery frame (extra-large)

Allen screwdriver

XC5159-051

Offset screwdriver

XC6545-051

Disc-shaped screwdriver

XC1074-051

Wrench 13 mm × 10 mm

XC6159-051

Oiler

XZ0206-051 XG3677-001 (for Europe and Turkey)

Cleaning brush

X59476-051

Weight (L)

XC5974-151

Spool mat × 6

XC7134-051

Spool cap × 6

130012-054

USB cable

XD1851-051

200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W))

PRH300 (Americas) PRH300: XC6284-052 (Other area)

11.

XC6499-151

Spacer (on machine)

XF1978-001

25. Embroidery frame (large) 130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W))

PRH180 (Americas) PRH180: XC6285-052 (Other area)

CAUTION

Part Name

Memo

Part Code

26. Embroidery frame (medium) 100 mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W))

PRH100 (Americas) PRH100: XC6286-052 (Other area)

• The included touch pen can be stored in the touch pen holder on the back of the operation panel. Refer to page 18.

27. Embroidery frame (small)

28. Embroidery sheet (extra-large)

29. Embroidery sheet (large)

30. Embroidery sheet (medium)

31. Embroidery sheet (small)

32.

40 mm (H) × 60 mm (W) (1-1/2 inches (H) × 2-3/8 inches (W))

PRH60 (Americas) PRH60: XC6287-052 (Other area)

200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W))

XC5704-051

130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W))

XC5721-051

100 mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W))

XC5759-051

40 mm (H) × 60 mm (W) (1-1/2 inches (H) × 2-3/8 inches (W))

XC5761-051

Embroidery frame holder A (with white corner cover)

Accessories that are included in some countries or regions

Part Name

Part Code

Embroidery Design Guide

XG8278-001

Bobbin winder set (Refer to page 205.)

PRBW1

33.

34.

35.

36.

37.

38.

XF2222-001

Embroidery frame holder B (with light gray corner cover)

XF2223-001

Operation Manual

This manual

Quick reference guide

XG8272-001

Embroidery Design Guide

XG8276-001

Power cord

Visit your authorized Brother dealer.

Bobbin case (on machine)

XC7206-001

• Be sure to use the included power cord for this machine. Using any other power cord may result in damage.

Optional Accessories

The following are available as optional accessories to be purchased separately.

Part Name

Part Code

1. Advanced cap frame 2 set

10.

11.

GETTING READY

Part Name

Part Code

Round frame (100 mm (4 inches))

PRPRF100 (Americas) PRPRF100: XE8427-001 (Other area)

Round frame (130 mm (5 inches))

PRPRF130 (Americas) PRPRF130: XE8430-001 (Other area)

PRCF3 (Americas) PRCF3: XE2158-201 (Other area)

2. Advanced cap frame 2 60 mm (H) × 130 mm (W) (2-3/8 inches (H) × 5-1/8 inches (W))

PRCFH3 (Americas) PRCFH3: XE2162-001 (Other area)

3. Advanced cap frame 50 mm (H) × 130 mm (W) (2 inches (H) × 5-1/8 inches (W))

PRCFH2 (Americas) PRCFH2: XC7610-052 (Other area)

Mounting jig

PRCFJ2 (Americas) PRCFJ2: XC7611-052 (Other area)

Cylinder frame set

PRCL1 (Americas) PRCL1: XE2166-001 (Other area)

12.

Round frame (160 mm) (6 inches))

PRPRF160 (Americas) PRPRF160: XE8433-001 (Other area)

13.

Embroidery frame holder C (with dark gray corner covers)

PRPARMC (Americas) PRPARMC: XE8436-001 (Other area)

14. Flat frame

200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W))

PRF300 (Americas) PRF300: XE2086-001 (Other area)

15. Clamp frame S straight set 24 mm (H) × 45 mm (W) (7/8 inch (H) × 1-3/4 inches (W))

PRCLP45B (Americas) PRCLP45B: XF2251-001 (Europe) PRCLP45B: XF2252-001 (Other area)

16. Clamp frames S L & R 24 mm (H) × 45 mm (W) (7/8 inch (H) × 1-3/4 inches (W))

PRCLP45LR (Americas) PRCLP45LR: XF2255-001 (Europe) PRCLP45LR: XF2256-001 (Other area)

6. Cylinder frame

80 mm (H) × 90 mm (W) (3 inches (H) × 3-1/2 inches (W))

PRCLH1 (Americas) PRCLH1: XE2170-001 (Other area)

7. Quilt frame

200 mm × 200 mm (7-7/8 inches × 7-7/8 inches)

PRPQF200 (Americas) PRPQF200: XE8411-001 (Other area)

8. Border frame

100 mm (H) × 300 mm (W) (4 inches (H) × 11-3/4 inches (W))

PRPBF1 (Americas) PRPBF1: XE8414-001 (Other area)

Round frame set

PRPRFK1 (Americas) PRPRFK1: XE8402-001 (Other area)

17. Clamp frame S straight 24 mm (H) × 45 mm (W) (7/8 inch (H) × 1-3/4 inches (W))

PRCLP45S (Americas) PRCLP45S: XF2269-001 (Europe) PRCLP45S: XF2268-001 (Other area)

18. Clamp frames S L & R set 24 mm (H) × 45 mm (W) (7/8 inch (H) × 1-3/4 inches (W))

PRCLP45LRD (Americas) PRCLP45LRD: XF2270-001 (Europe) PRCLP45LRD: XF2272-001 (Other area)

19. Clamp frame M set 100mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W))

PRCLPM1 (Americas) PRCLP100B: 115D02E000B (Europe) PRCLPM1AP: 115D02E700B (Other area)

Note

Part Name

Memo

Part Code

20. Compact frame set 70: 41 mm (H) × 70 mm (W) (1-5/8 inches (H) × 2-3/4 inches (W)) 50: 50 mm (H) × 50 mm (W) (2 inches (H) × 2 inches (W)) 44: 38 mm (H) × 44 mm (W) (1-1/2 inches (H) × 1-3/4 inches (W)) Portrait orientation: 33 mm (H) × 75 mm (W) (1-5/16 inches (H) × 2-15/16 inches (W))

PRHCK1 (Americas) PRSFK1: 115D02E000A (Europe) PRHCK1AP: 115D02E700A (Other area)

• Always use accessories recommended for this machine.

• All specifications are correct at the time of printing. Please be aware that some specifications may change without notice.

21. Sleeve frame 200 mm (H) × 70 mm (W) (7-7/8 inches (H) × 2-3/4 inches (W))

PRHSL200 (Americas) PRHSL200: 115D02E000C (Europe) PRHSL200AP: 115D02E700C (Other area)

22. Magnetic frame set 50 mm (H) x 50 mm (W) (2 inches (H) x 2 inches (W))

PRMHA50 (Americas) PRMFA50: 115D02E000E (Europe) PRMFA50AP: 115D02E700E (Other area)

23. Magnetic frame 50 mm (H) x 50 mm (W) (2 inches (H) x 2 inches (W))

PRMH50 (Americas) PRMF50: 115D02E000F (Europe) PRMF50AP: 115D02E700F (Other area)

24.

25.

Embroidery Table

PRWT1 (Americas) PRWT1: XE8417-001 (Other area)

Embroidery Stand

PRNSTD2 (Americas) VRPRNSTD: 115Z05E0005 (Europe) VRPRNSTD: 115Z05E7005 (Other area)

26.

27.

28.

Metal bobbin

100376-051

Weight (S)

XC6631-051

USB mouse

XE5334-101

• Visit your nearest authorized Brother dealer for a complete listing of optional accessories for your machine.

Setting Up the Machine

CAUTION

The procedures for setting up the machine are described below. If the machine is not set up correctly, it may shake or produce loud noises and the embroidery will not be sewn correctly. An optional embroidery stand is also available.

Setup and transporting precautions

• The temperature of the operating environment

should be between 5 °C (40 °F) and 40 °C (104 °F). If the machine is operated in an environment that is either too cold or too hot, the machine may malfunction.

• Do not use the machine in a location where it

will be exposed to direct sunlight, otherwise the machine may malfunction.

• Set up the machine with it’s four adjustable

feet completely in contact with the desk or table, so that the machine is level.

• Do not block the ventilation slots at the back

and on the rear underside of the machine by such as putting anything under the embroidery machine, and do not allow lint or dust to accumulate in the ventilation slots, otherwise the machine’s motor may overheat, resulting in a fire or in damage to the machine.

• The machine weight is approximately 38 kg

(84 lb). The transporting or setting up of the embroidery machine should be performed by two people.

• When transporting the machine, be sure to

have two people lift the machine from the bottom at the indicated slots (1). Lifting the machine from any other area may damage the machine or result in the machine falling, which could cause injuries.

GETTING READY

• When lightning occurs, turn off the machine and unplug the power supply cord. Lightning may cause the machine to malfunction.

• Do not plug in the power supply cord until setup of the machine is completed, otherwise injuries may result if the start/stop button is accidentally pressed and the machine starts sewing.

• When lubricating the machine, wear protective eyeglasses and gloves to prevent the oil or grease from getting into your eyes or on your skin. Do not put the oil or grease into your mouth. Keep the oil and grease out of the reach of children.

• While attaching or detaching an embroidery frame or other included accessory or while maintaining the machine, be careful not to hit the machine with your body or any other part of it.

Setup location

Set up the machine in a location that meets the following requirements.

• Position the machine a minimum of 50 mm (2 inches) away from the wall

• Allow sufficient space around the machine

• Place no objects within the moving range of the embroidery frame

• Set-up machine near an electrical outlet

• Use a level and stable surface, such as a desk or stand

• Use a surface that can support the weight of the machine (about 38 kg (84 lb))

• Allow open space around the ventilation slots at the back and on the rear underside of the machine

762 mm (30 inches)

More than

CAUTION

Note

250 mm (9-1/32 inches)

512 mm (20-5/32 inches)

More than 250 mm (9-1/32 inches)

Minimum of 50 mm (2 inches)

587 mm (23 inches)

More than 350 mm (13-3/4 inches)

Setting up the machine

When setting up the machine, adjust the legs so that the machine is steady.

Make sure that all packing tape affixed to

the machine is peeled off and that all packing material is removed.

Set up the machine while making sure that

there is sufficient space around it.

Minimum of 50 mm (2 inches)

• In order to prevent malfunctions or damage, do not set up the machine in a location exposed to the following conditions.

• Insufficient space

• Liquids, such as water (1)

• Direct sunlight (2)

• Objects within the moving range of the

embroidery frame (3)

• Extremely high or extremely low

temperatures. The operating environment should be between 5 °C (40 °F) and 40 °C (104 °F). (4)

•Extreme dust (5)

• Blocked ventilation slots (6)

• An unstable surface (7)

• Connection to extension cords or multiple

adapters (8)

587 mm (23 inches)

More than 350 mm (13-3/4 inches)

More than 250 mm (9-1/32 inches)

512 mm (20-5/32 inches)

More than 250 mm (9-1/32 inches)

Adjust the legs so that the machine is

steady.

Use the included wrench to loosen the lock nut on the leg that you wish to adjust.

• For your safety: Since the machine weighs

approximately 38 kg (84 lb), do not set it up on an unstable table or desk.

1 Lock nut 2 Adjustable foot nut

 The foot can be turned.

Use the included wrench to turn the

adjustable foot nut on the foot.

Turning the nut in direction 1 lengthens the leg; turning the nut in direction 2 shortens the leg.

1 Adjustable foot nut

• Adjust all four legs so that they securely contact the desk or table, and the machine is level.

After adjusting the legs to the desired

length, use the included wrench to tighten the nuts.

GETTING READY

Adjusting the operation panel position

Adjust the orientation and angle of the operation panel so it can easily be operated.

Loosen 2 thumb screws to bring the

operation panel forward.

1 Thumb screws

1 Lock nut

Press down on each corner of the

embroidery machine to check that it is stable.

If it is still unstable, perform steps c through e again to adjust the legs.

Adjust the operation panel to an easy-to-

operate position, and then tighten the thumb screws.

Adjust the orientation of the operation

panel.

Loosen the thumb screw, adjust the operation panel to an easy-to-view orientation, and then tighten the thumb screw.

1 Thumb screw

Adjust the angle of the operation panel.

Note

Loosen the 2 thumb screws behind the operation panel, adjust the operation panel to an easy-to-view angle, and then tighten the thumb screws.

(Side view) (Top view)

1 Thumb screws

• Using the disc-shaped screwdriver included, loosen and firmly tighten the five thumb screws.

Preparing the thread guide assembly

Raise the thread guide assembly. Locate the included Phillips screwdriver.

Using the Phillips screwdriver, loosen the

screws on the left side of the thread guide assembly support so that the thread guide assembly can be raised.

Remove screw 1, and then turn screw 2 three or four times to loosen it.

1 Remove the screw. 2 Turn the screw three or four times to loosen it.

Raise thread guide into position and tighten

screw 2 on the left. Insert screw 1 into right side of the thread guide assembly support and tighten.

1 Insert screw and tighten. 2 Tighten screw.

Using the Phillips screwdriver, loosen the

Note

screws on the left and right sides of the thread guide assembly and lift up the thread guide so that it is level.

1 Loosen screws.

Tighten the screws on the left and right

sides of the thread guide assembly.

GETTING READY

Positioning the spool stand

Secure the spool stand in the embroidering position. Locate the included disc-shaped screwdriver.

Loosen the thumb screw, and then open up

the spool stand to the left and right.

1 Tighten screws.

• If the screws are not loosened enough, it may not be easy to move the thread guide assembly support and the thread guide. Do not apply extreme force when moving the thread guide assembly support and the thread guide. Be sure that the screws are loosened well enough before moving these parts.

• Be sure to tighten each screw well enough that the thread guide assembly support and the thread guide are secured.

1 Thumb screw 2 Spool stand

After the spool stand is fully opened up,

tighten the thumb screw.

 Secure the spool stand in the opened position.

Attaching the embroidery frame

Memo

Note

holder

Attach the embroidery frame holder to the carriage.

Use the embroidery frame holder

appropriate for the embroidery frame that you are using. (Refer to page 82.)

Remove the two thumb screws of the

embroidery frame holder.

Secure the embroidery frame holder with

the two thumb screws removed in step

1 Thumb screws

1 Thumb screws 2 Corner covers

Align the holes in the embroidery frame

holder with the pins on the frame-mounting plate of the carriage.

• Using the disc-shaped screwdriver included, firmly tighten the thumb screws.

• Two types of embroidery frame holders are included with this machine. Embroidery frame holder A is used with the four included embroidery frames. (Refer to “Correctly Using the Embroidery Frames” on page 80 for the details.)

This completes the preparation of the machine.

1 Pins on the frame-mounting plate 2 Holes in the embroidery frame holder 3 Corner covers

• Each embroidery frame holder has different color of corner cover. Holder A: White corner covers Holder B: Light gray corner covers Holder C: Dark gray corner covers (Optional)

Chapter 2

WARNING

CAUTION

EMBROIDERING TUTORIAL

Operating Precautions

The necessary points to ensure the correct operation of this machine are described below.

Power supply precautions

Be sure to observe the following precautions concerning the power supply.

• Use only regular household electricity for the

power source. Using other power sources may result in fire, electric shock, or damage to the machine.

• Make sure that the plugs on the power supply

cord are firmly inserted into the electrical outlet and the power supply cord receptacle on the machine. Otherwise, a fire or electrical shock may result.

• Do not insert the plug on the power supply

cord into an electrical outlet that is in poor condition.

• If any of the following occur, turn off the

embroidery machine and unplug the power supply cord, otherwise a fire, an electric shock or damage to the machine may result.

• When you are away from the machine.

• After using the machine.

• If a power outage occurs while the machine is being operated.

• If the machine is not operating properly, for example, when there is a loose or cut connection.

• During electrical storms.

• Use only the power supply cord included with this machine.

• Do not plug this machine in with extension cords or multi-plug adapters with any other appliances plugged into them, otherwise a fire or an electric shock may result.

• Do not plug in or unplug the power supply cord with wet hands, otherwise an electric shock may result.

• When unplugging the power supply cord, be sure to first turn off the machine, and then grasp the plug when unplugging the cord. Pulling on the cord may damage it or result in a fire or an electric shock.

• Do not allow the power supply cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled. In addition, do not place heavy objects on the cord or expose it to heat, otherwise damage to the cord, fire or an electric shock may result. If the power supply cord or its plug is damaged, stop using the machine, and then take the machine to your authorized Brother dealer for repairs before continuing use.

• If the machine is not to be used for a long period of time, unplug the power supply cord, otherwise a fire may result.

• When leaving the machine unattended, either the main switch of the machine should be turned to OFF or the plug must be removed from the socket-outlet.

• When servicing the machine or when removing covers, the machine must be unplugged.

•For U.S.A only This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the electrical outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper electrical outlet. Do not modify the plug in any way.

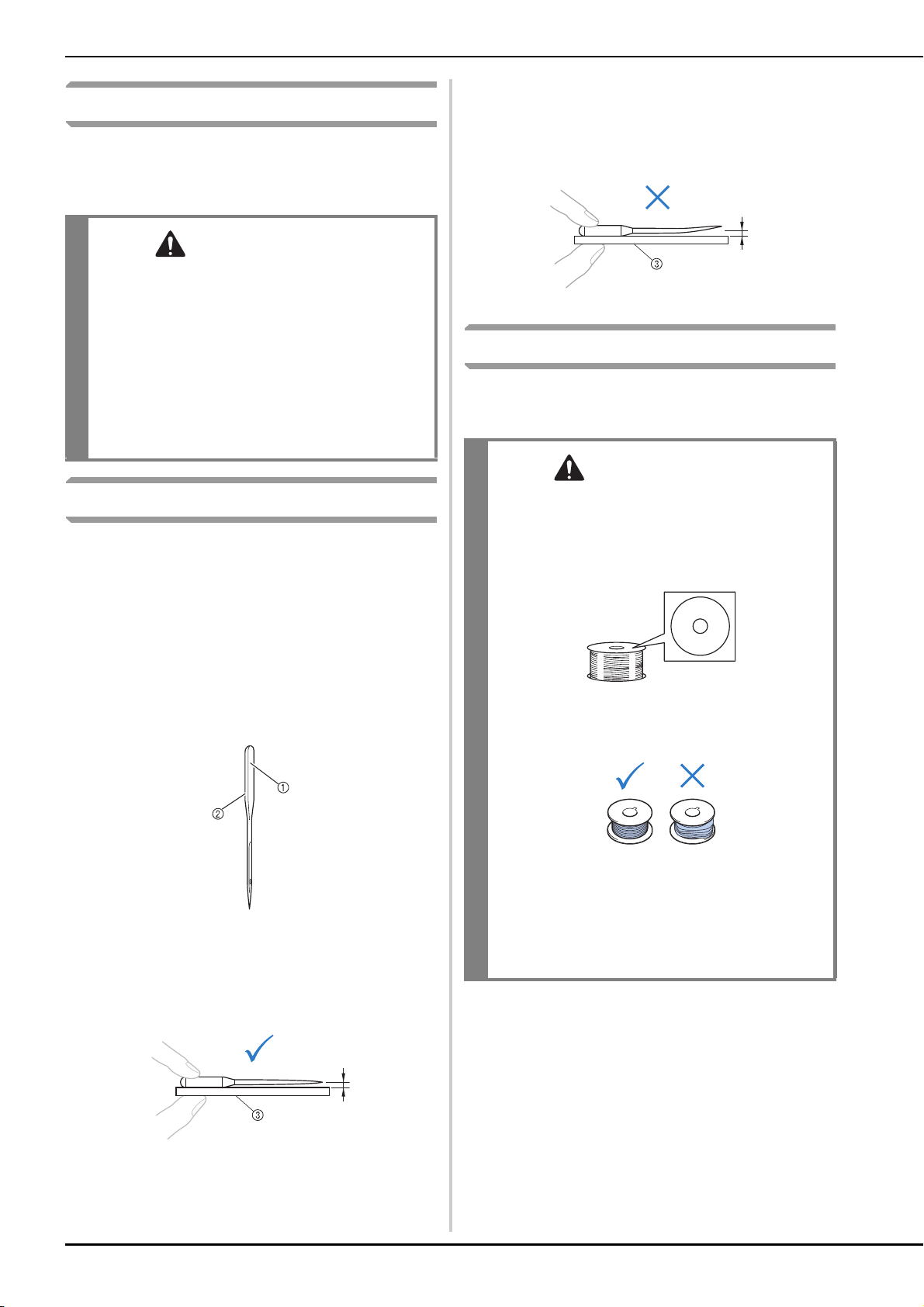

Needle precautions

CAUTION

COATS

Polyester

Be sure to observe the following precautions concerning the correct choice of needle for your machine.

• Your machine is designed to use household embroidery needles. The factory recommended needle is “HAX 130 EBBR” (Organ). Schmetz needles 130/705 H-E may be used as a substitute. Use of any other needles may break the needle or thread or damage the needle-threading mechanism or result in injuries.

• Never use bent needles. Bent needles can easily break, possibly resulting in injuries.

■ Bad needle

If the distance between the needle and the flat surface is not even, the needle is bent. Do not use a bent needle.

3 Flat surface

Bobbin precautions

Be sure to observe the following precautions concerning the bobbin.

Checking the needle

Sewing with a bent needle is extremely dangerous since the needle may break while the machine is operating.

Place the flat side of the needle on a flat surface and check that the distance between the needle and the flat surface is even. If the needle is bent or the tip of the needle is broken, replace the needle with a new one. (Refer to “Changing the Needle” on page 79.)

1 Flat side 2 Needle type marking

• Only use prewound bobbin (COATS “L” type/ TRU-SEW POLYESTER “Filaments”) or bobbins designed specifically for this machine. Use of any other bobbin may result in injuries or

damage to the machine.

• Use a bobbin thread that has been correctly wound, otherwise the needle may break or the

thread tension will be incorrect.

• When winding a bobbin, only use optional bobbin winder (refer to page 205) and metal bobbins (Part code: 100376-053).

• When winding the bobbin, be sure to use cotton or spun polyester bobbin thread (between 74 dtex/2 and 100 dtex/2).

■ Good needle

3 Flat surface

Upper thread recommendations

Note

Be sure to observe the following recommendations concerning the upper thread.

• It is recommended that rayon or polyester embroidery thread be used (120 den x 2 / 135 dtex x 2 / 40 weight (in Americas and Europe) / #50 (in Japan)).

Fabric recommendations

Be sure to observe the following recommendations concerning the fabric.

• Your machine can embroider fabric that is up to 2 mm (5/64 inch) thick. If thicker fabric is sewn, the needle may bend or break.

• When embroidering overlapping stitches, it is difficult for the needle to penetrate the fabric, possibly resulting in the needle bending or breaking.

• Attach stabilizers to thin or stretch fabrics. (Refer to “Attaching Iron-On Stabilizer (Backing) to Fabric” on page 84 for information.)

• When embroidering large pieces of fabric, make sure that the fabric is not caught in the carriage.

EMBROIDERING TUTORIAL

Display recommendations

Be sure to observe the following recommendations concerning the use of the operation panel display.

• Only touch the display with your finger or included touch pen. Do not use a mechanical pencil, screwdriver or any other hard or sharp object. In addition, do not apply extreme pressure to the display screen, otherwise damage to the display screen may result.

Basic Procedures

Basic embroidering procedures are described below. Check the overall procedure below, before operating the embroidery machine.

Step Operation

1 Install the bobbin. p. 33 p.30

2 Turn on the machine. p. 35 p.29

3 Select an embroidery pattern. p. 38

4 Edit the embroidery pattern. p. 40

5 Check the previewed image. p. 41

6 Hoop the fabric in the embroidery frame. p. 42 p.31

7 Attach the embroidery frame to the machine. p. 44

8 Specify the embroidering settings. p. 46

9 Check the embroidery area. p. 47

10 Thread the upper threads. p. 48 p.31

Unlock the machine, then press the start/stop button to start

embroidering. (Once embroidering is completed, the machine automatically stops.)

Remove the embroidery frame, and then remove the fabric from the

frame.

Tutorial

Reference Page

p. 57

p. 60

Operating

Precaution

Reference Page

13 Turn off the machine. p. 61

The operations to embroider the pattern are described on the following pages. Although embroidering can continue without the pattern being edited or embroidering settings being specified, refer to page 146 for details on editing the patterns, and refer to page 105 for details on specifying embroidering settings. Descriptions of the keys and other information that appear in the main LCD screens are provided in the tables on pages 63 to 72. Use these tables for quick reference.

The various operating precautions that must be observed during the basic procedures are provided on pages 29 to 31. These precautions must be strictly observed in order for the machine to function properly. Make sure to read these precautions.

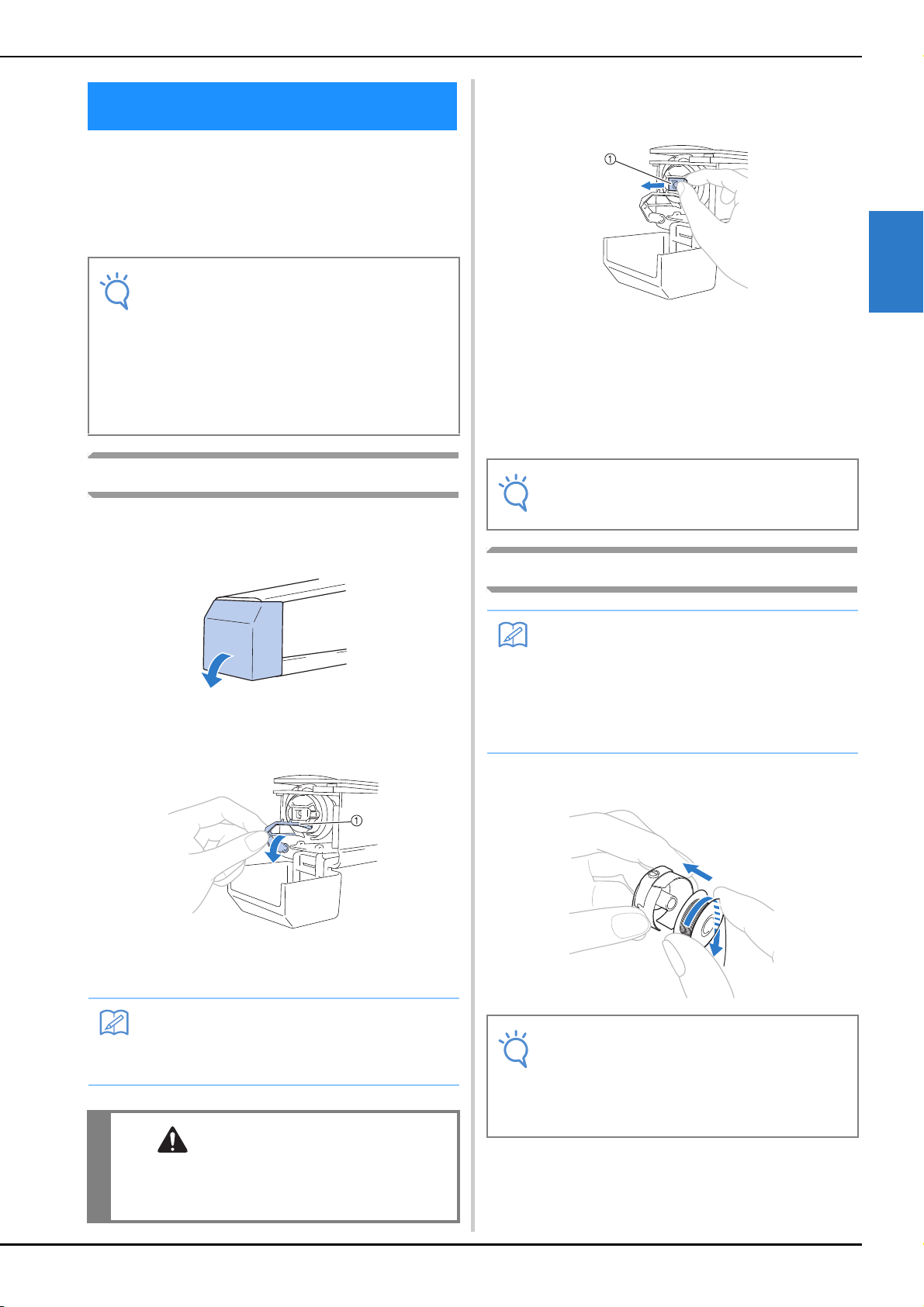

1. Installing the Bobbin

Note

Memo

CAUTION

Note

Memo

Note

When the machine is purchased, only the bobbin case is installed in the hook. Insert a bobbin wound with bobbin thread for embroidering. For precautions concerning the bobbin, refer to page 30.

• The machine does not indicate how much bobbin thread is remaining. Before starting to embroider make sure that there is enough bobbin thread for the pattern.

• Make sure to clean the bobbin case every time the bobbin is changed. For details on cleaning the bobbin case, refer to “Cleaning the bobbin case” on page 212.

Removing the bobbin case

Open the hook cover.

Pull the hook cover toward you.

EMBROIDERING TUTORIAL

Grab the bobbin case latch, and remove the

bobbin case.

1 Latch

■ Oiling the machine

After removing the bobbin case, apply oil to the machine. The race should be oiled. For details on oiling the machine, refer to “Oiling the machine” on page 214.

• Put a drop of oil onto the hook once a day before use.

Installing the bobbin

Pull the thread picker toward you if it was

not pulled toward the front.

1 Thread Picker

To gain access to the bobbin case easily, pull the thread picker toward front.

• Thread picker is a device that is used to hold the thread when beginning to sew or when trimming the thread.

• This embroidery machine is not equipped with a bobbin-winder. Use pre-wound (L type) bobbins.

• The optional bobbin winder (stand-alone type) and optional metal bobbins can also be used. (Refer to page 22, 205.)

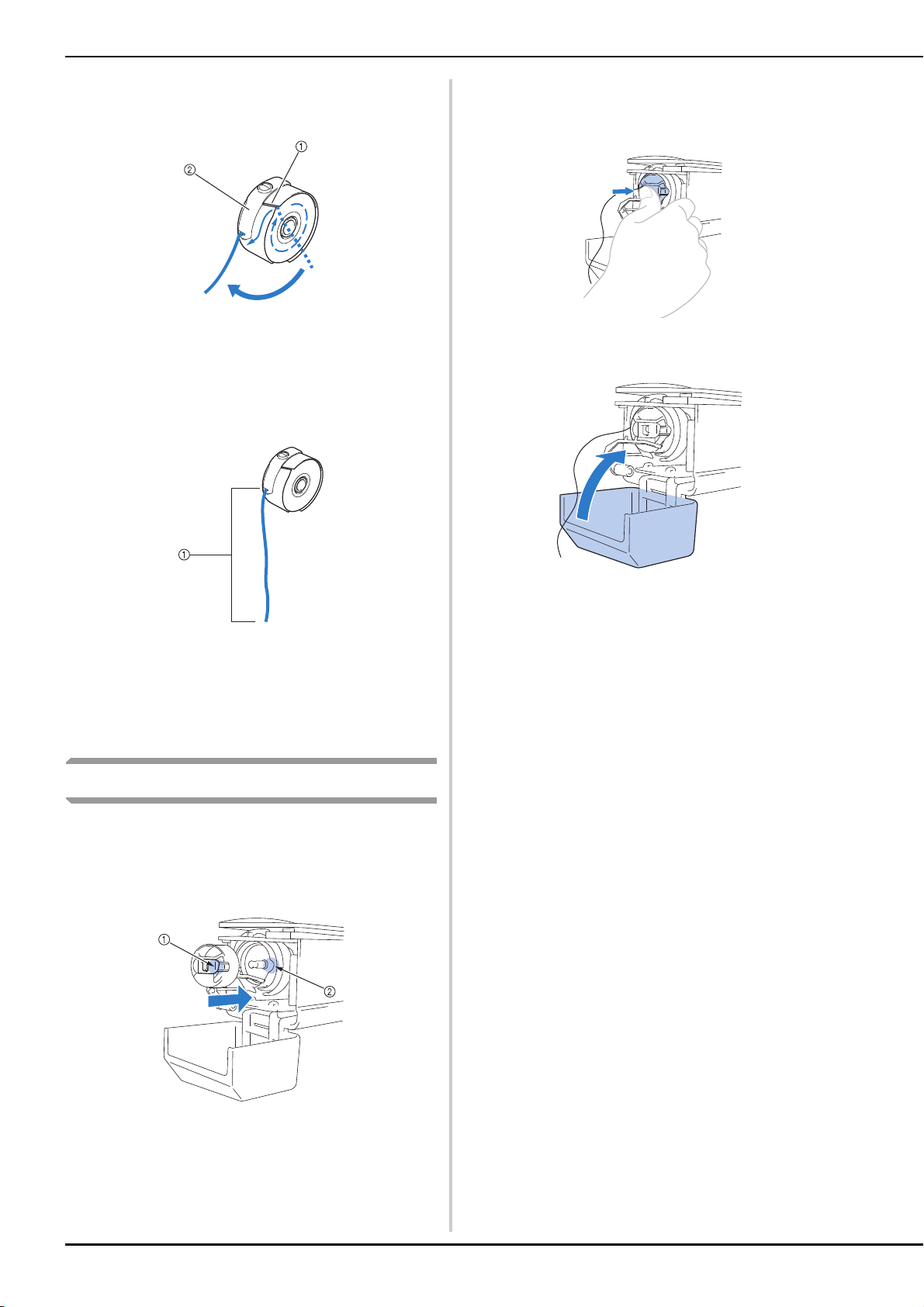

Insert the bobbin into the bobbin case.

• Check that the thread winds off the bobbin clockwise as shown in the illustration. If the bobbin is installed with the thread winding off in the opposite direction, the embroidery will not be sewn correctly.

• The thread picker can only be moved within a certain range. Do not pull it with extreme force.

Pass the thread through the thread slit and

under the tension-adjusting spring.

1 Thread slit 2 Tension-adjusting spring

Pull the thread about 50 mm (2 inches)

through the opening in the tensionadjusting spring.

Fully insert the bobbin case until it snaps

into place.

Close the hook cover.

1 About 50 mm (2 inches).

For adjusting the tension of the bobbin thread, refer to “Adjusting the tension of the bobbin thread” on page 102.

Installing the bobbin case

Insert the bobbin case into the hook.

Insert the bobbin case while aligning the tab on the bobbin case with the notch in the hook, as shown in the illustration.

1 Tab 2 Notch

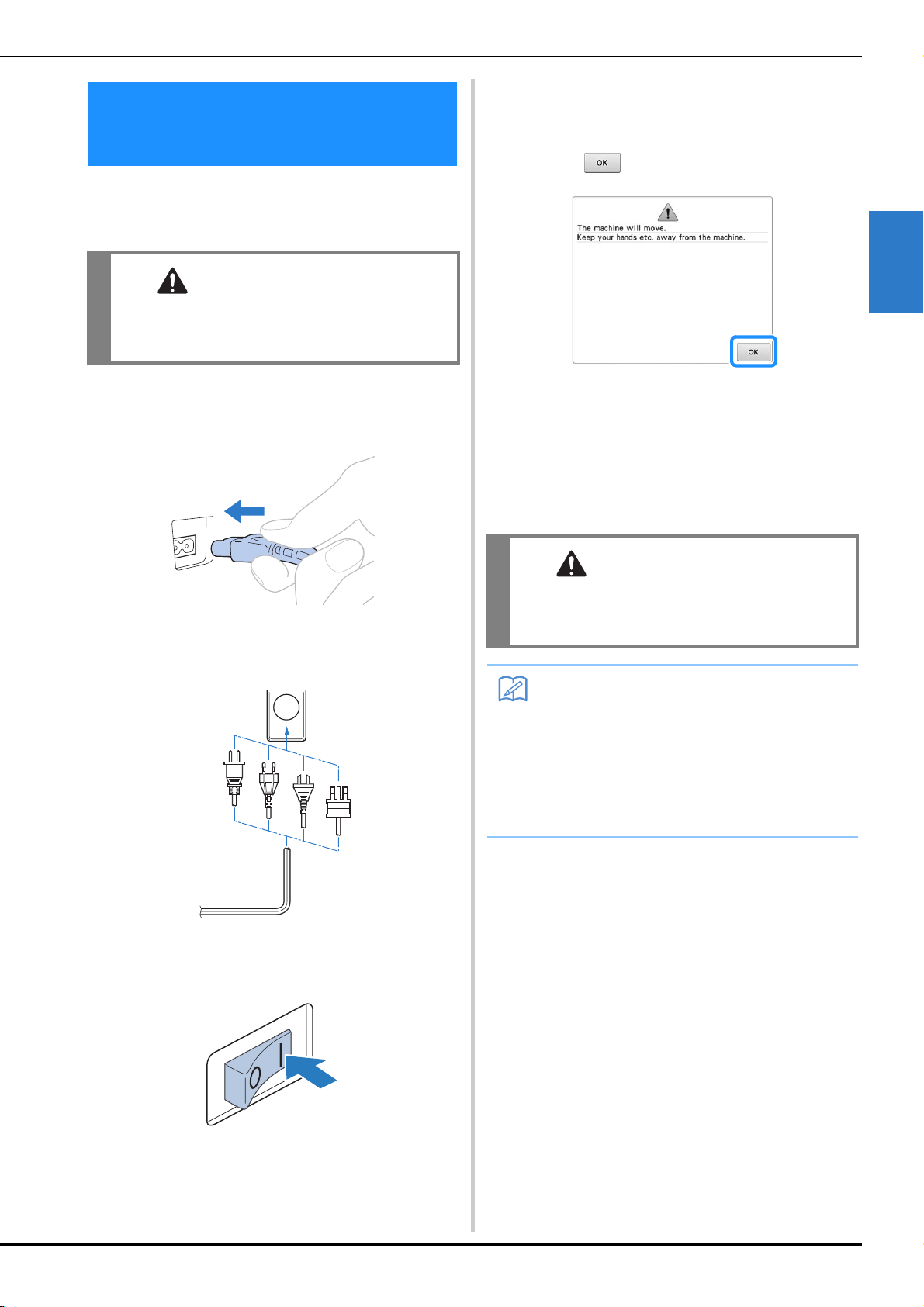

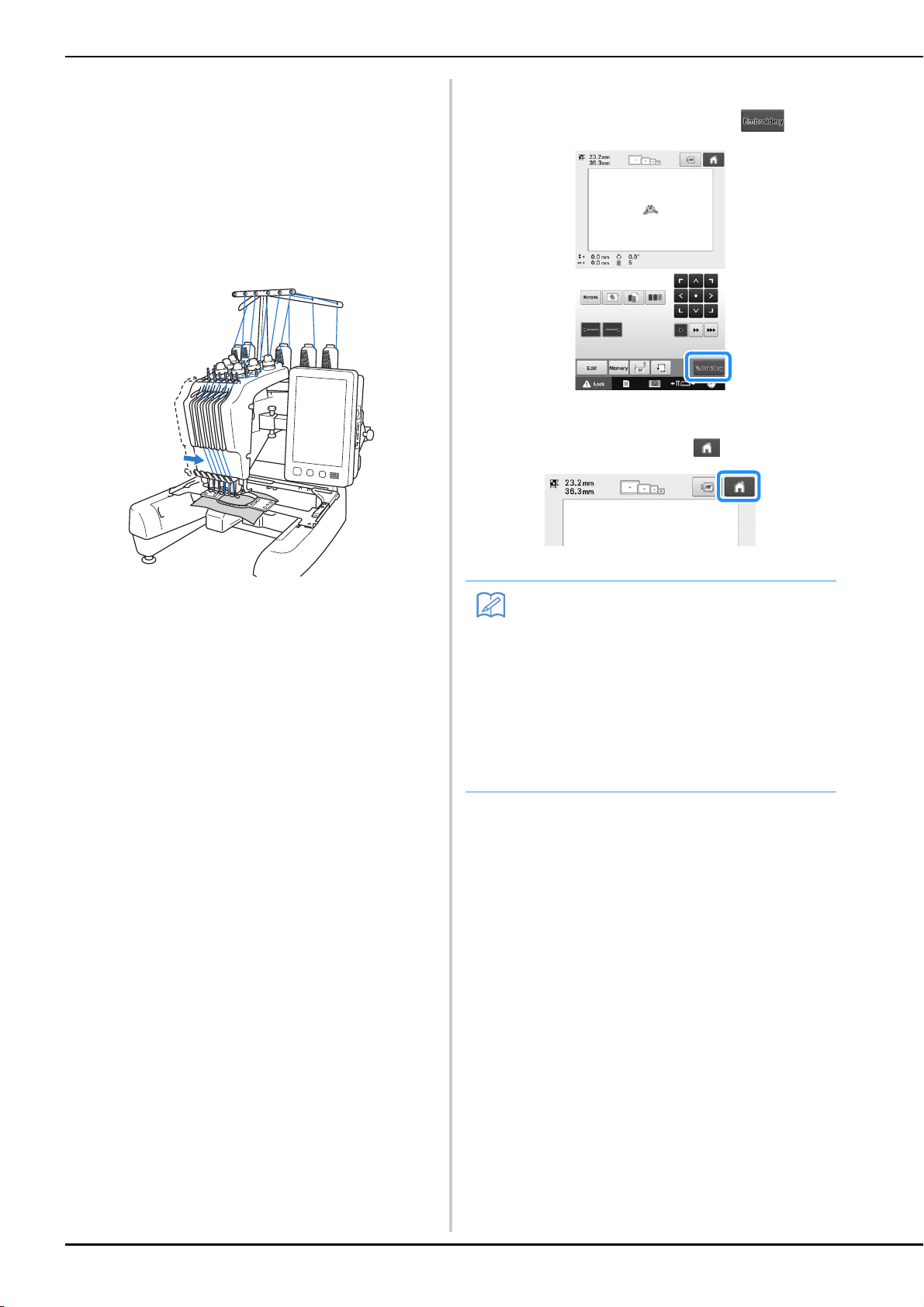

2. Turning ON the

CAUTION

Memo

Machine

Connect the power supply cord, and then turn on the embroidery machine. For precautions concerning the power supply, refer to page 29.

• Be sure to use the included power cord for this machine. Using any other power cord may result in damage.

EMBROIDERING TUTORIAL

When the machine is turned on, the

opening movie is played. Touch anywhere on the screen to display the message below.

Touch .

Plug the power supply cord into the

machine.

Insert the plug of the power supply cord

into a household electrical outlet.

 The pattern type selection screen appears, and the

start/stop button lights up in red.

The carriage moves to its initial position.

• If the number 1 needle bar is not already at the embroidering position, the needle bar case moves and the number 1 needle bar moves to the embroidering position.

• Make sure to keep your hands and other items away from the carriage, in order to prevent any injuries.

• If the machine is turned off in the middle of

embroidering, the machine will automatically save the design position when turned on again. At that time, you will be asked if you wish to continue embroidering or begin a new operation. (Refer to “Resume Embroidering After Turning Off the Machine” on page 101.)

Switch on the main power switch on the

back of the machine to “I”.

 The LCD screen comes on.

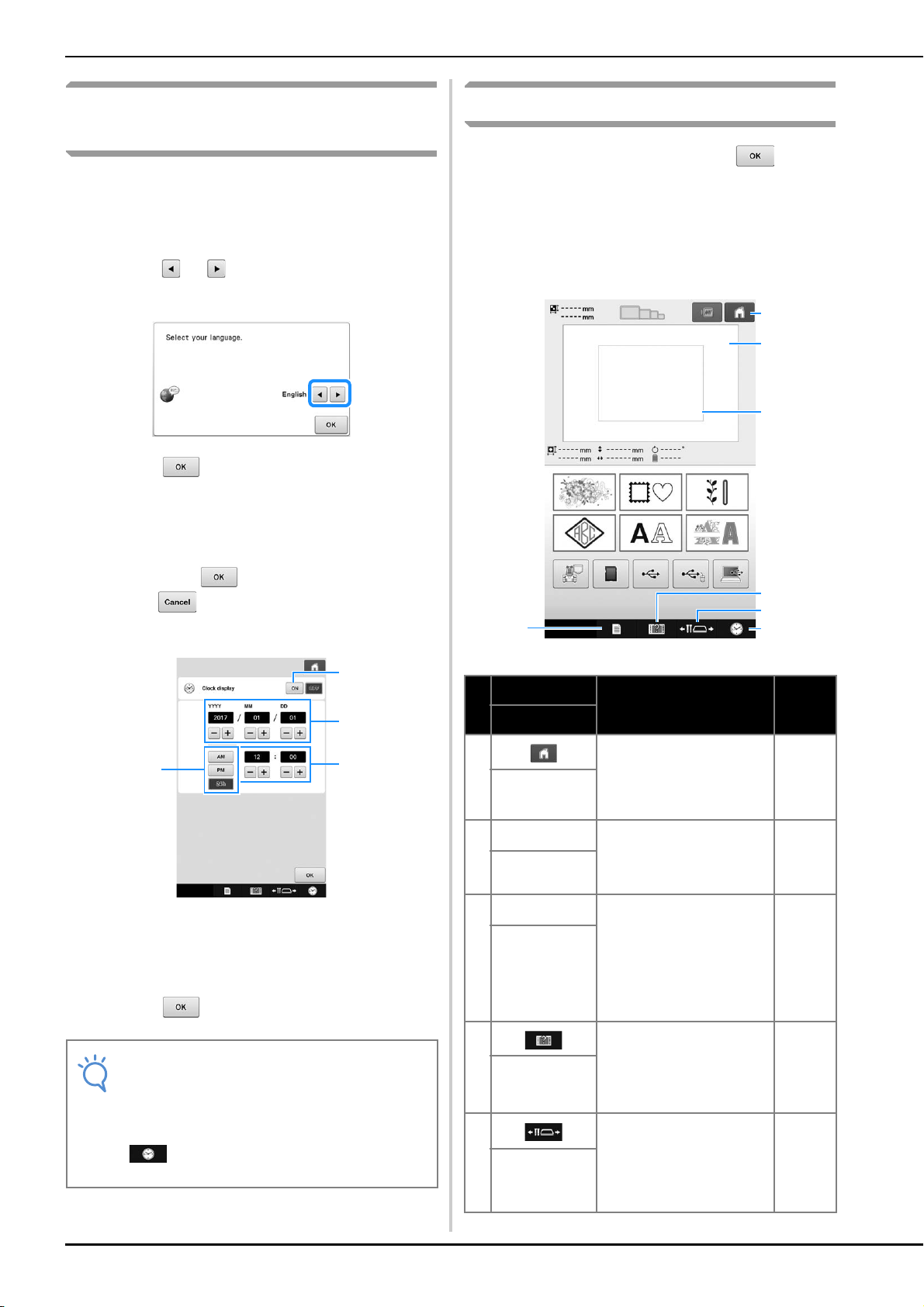

Setting your machine for the first

Note

time

When you first turn on the machine, set the language and time/date to your language and local time/date. Follow the procedure below when the settings screen appears automatically.

Touch or and to set your local

language.

Touch .

 The carriage moves to its initial position.

The message screen, confirming if you want

to set time/date, appears. To set the time/ date, touch ; to cancel the setting, touch .

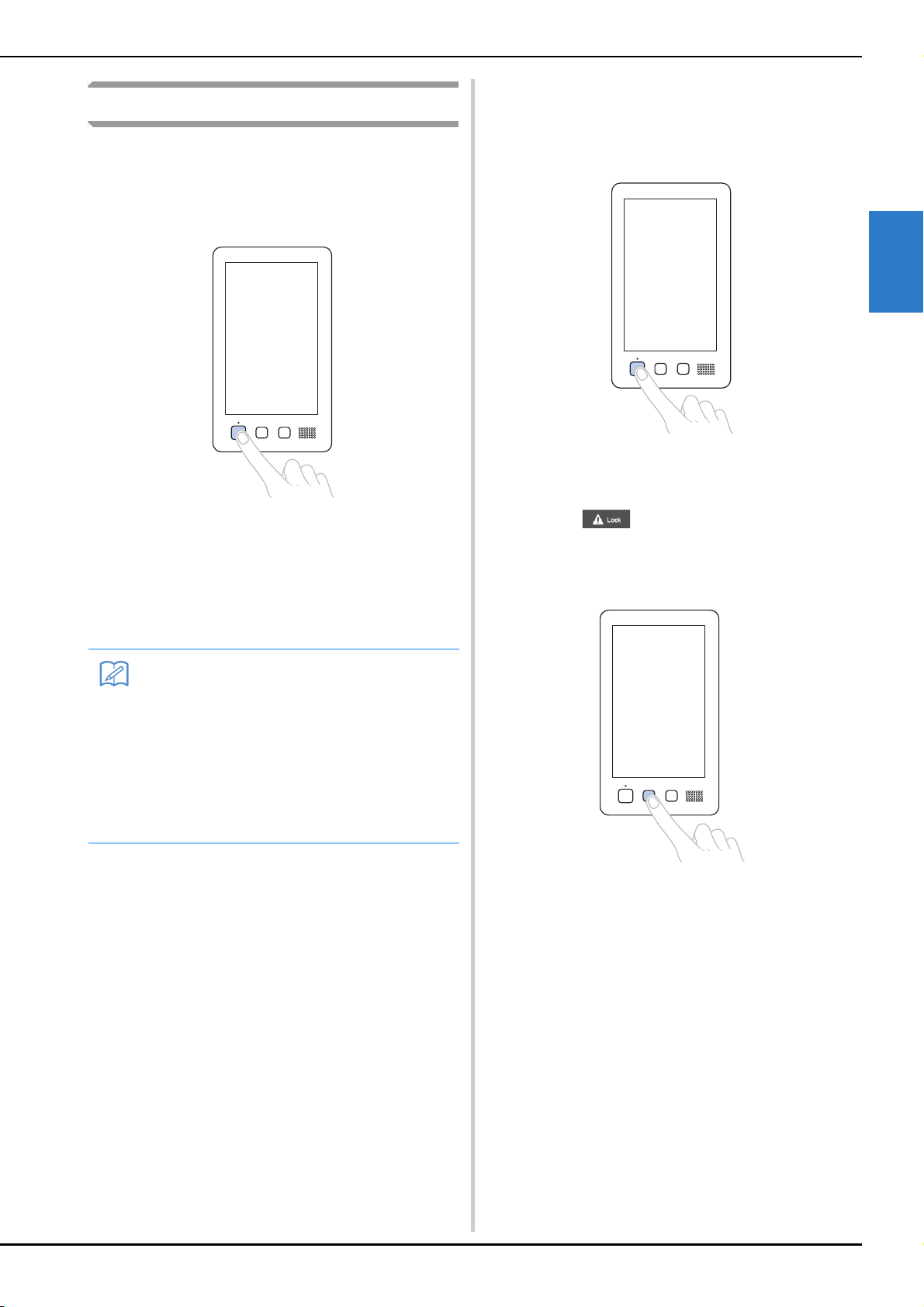

Understanding the screens

When the machine is turned on and is touched, the pattern type selection screen appears.

The operations described below will be entered using the operation panel. For precautions concerning the use of the touch panel, refer to page 31.

 The screen to set time/date appears.

1 Touch to display the time on the screen. 2 Set the year (YYYY), month (MM) and date (DD). 3 Select whether 24h or 12h setting to display. 4 Set the current time.

Touch to start using your machine.

• The time/date you set may be cleared, if you don't turn on the machine for an extended period of time.

• Time setting is also available by pressing

screen.

on the bottom right of the LCD

No.

Display

Key Name

Home key

Pattern display

Embroidering

area line

Machine

operations

guide key

Needle bar/

Frame move key

–

area

–

Function Page

Touch this key to cancel all operations previously performed and return to the initial pattern group selection screen.

This area displays the selected pattern.

Shows the available embroidering area for the attached embroidery frame. The embroidery frame indications, the grid lines and other display settings can be specified from the machine settings screen.

Touch this key to check a machine operation.

Touch this key to move or thread a selected needle bar, to position the carriage, or to oil the machine so the embroidery frame can easily be removed or attached.

–

p.180

p.187

p.55 p.80

EMBROIDERING TUTORIAL

No.

Display

Key Name

Touch this key to set the

Clock key

Settings key

* The keys in the table above appear and can be used

in most of the screens described later in this manual.

clock to your local time.

Touch this key to change the embroidery machine settings.

Function Page

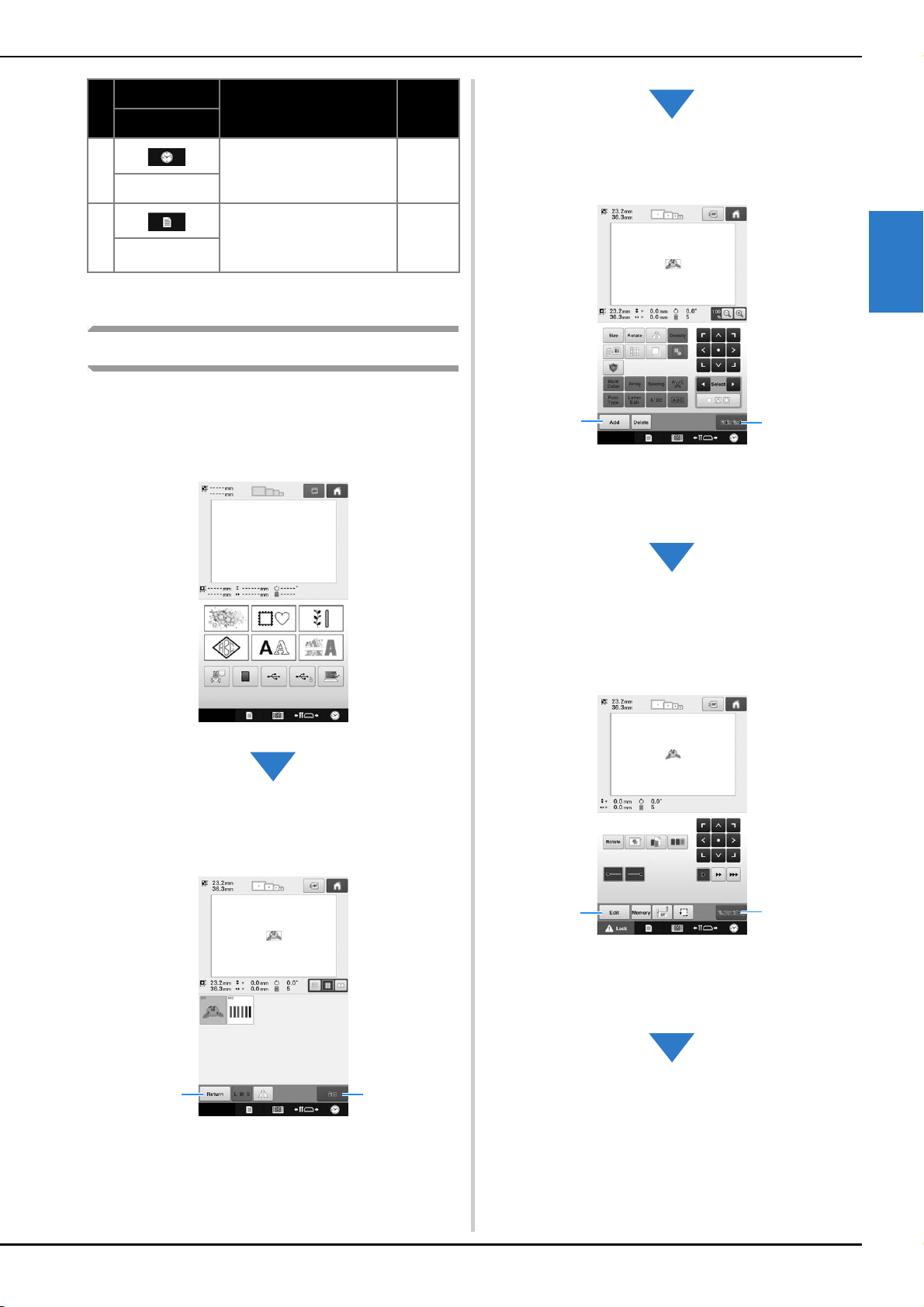

Screen overview

The basic operation flow is shown below.

In the pattern type selection screen, select a pattern type. (Refer to page 38, 64.)

p.36

p.177

In the pattern editing screen, edit the pattern. (Refer to page 40, 66.)

1 Touch this key to return to the pattern type

selection screen and add another pattern.

2 Touch this key to continue to the embroidering

settings screen.

In the pattern list screen, select the pattern. (Refer to page 39, 65.)

In the embroidering settings screen, if it is a combined pattern, edit the entire pattern, specify the embroidering settings and check the embroidery area. (Refer to page 46, 68.)

1 Touch this key to return to the pattern editing

screen.

2 Touch this key to continue to the embroidering

screen.

1 Touch this key to return to the pattern type

selection screen.

2 Touch this key to continue to the pattern editing

screen.

In the embroidering screen, check the thread

1 2

colors assigned to the needle bars, and then install the upper threads. Touch to unlock the

machine so that the start/stop button starts flashing in green. The embroidery machine is now ready to begin sewing.

1 Touch this key to return to the embroidering

settings screen.

2 Unlock key

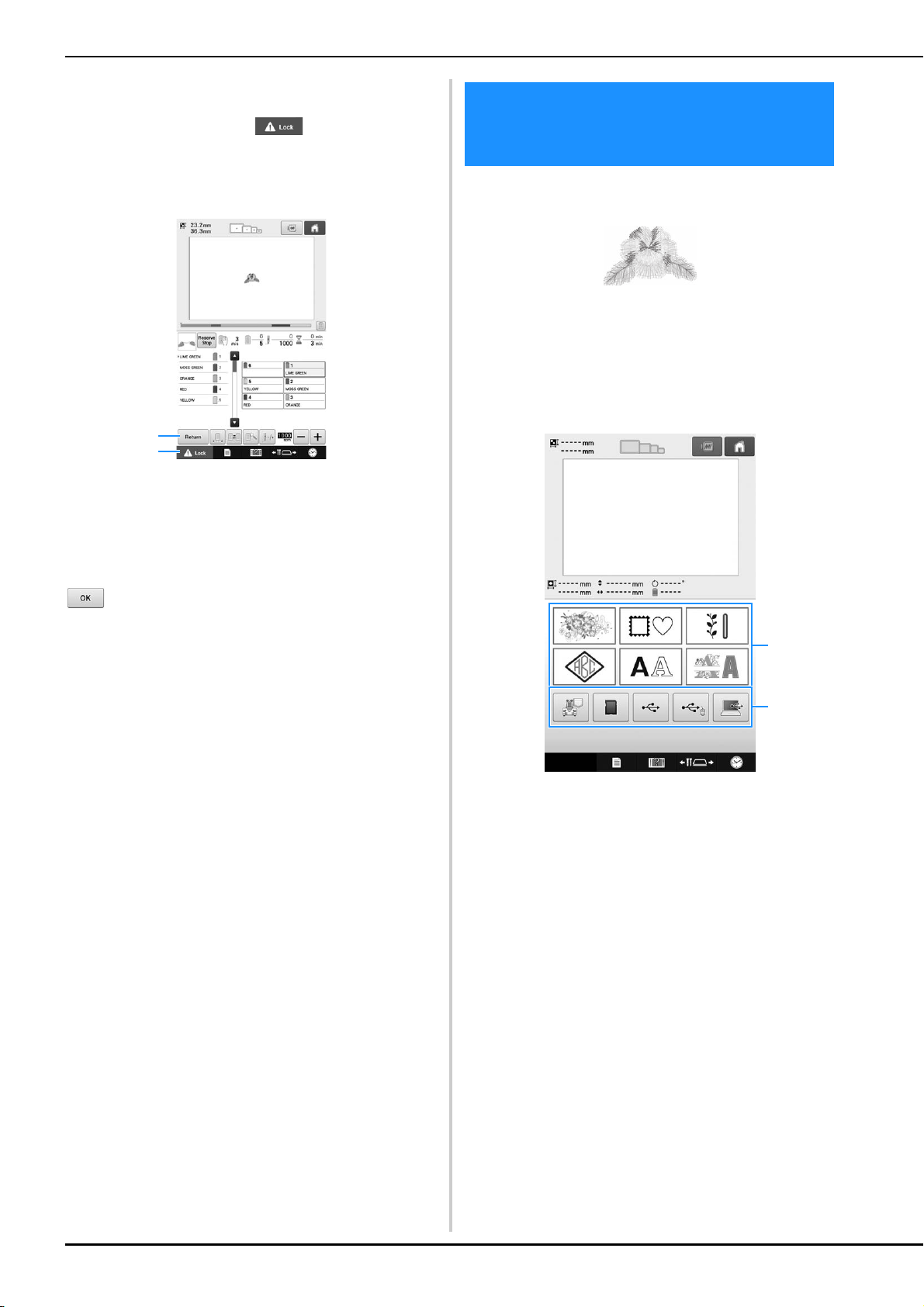

3. Selecting an Embroidery Pattern

As an example, we will select the pattern shown below.

In the pattern type selection screen, select a pattern category (type).

Pattern type selection screen (For details on the keys and other information on the screen, refer to page 64.)

After the embroidery pattern is sewn, a “Finished embroidering” message screen appears. Touch

to return to the embroidering settings

screen. (Refer to page 46, 68)

1 Pattern type keys 2 Touch to retrieve the saved patterns.

In the pattern list screen, search for the desired

pattern, and then touch the key for the pattern.

Pattern list screen (For details on the keys and other information on the screen, refer to page 65.)

EMBROIDERING TUTORIAL

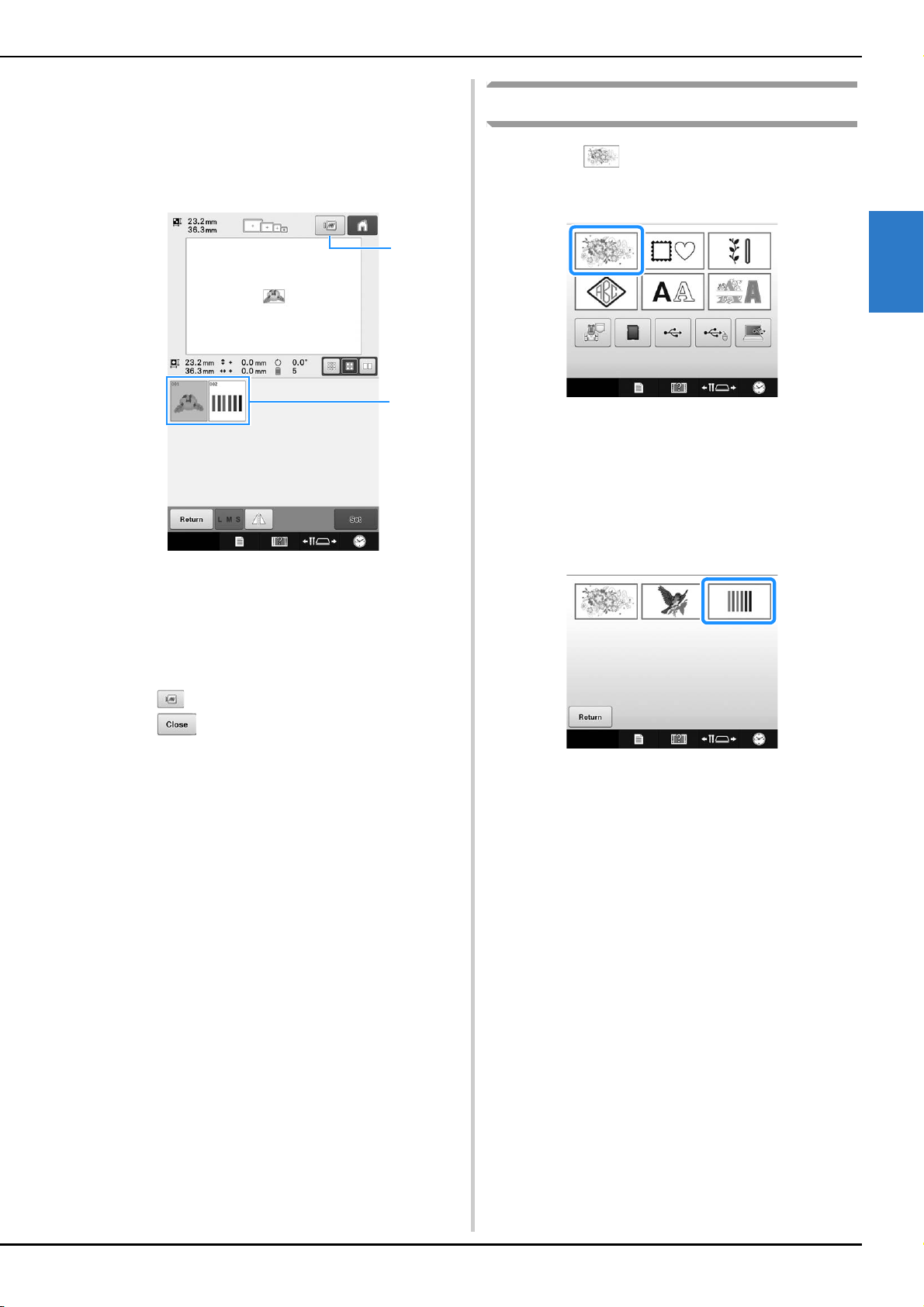

Selecting an embroidery pattern

Touch to select the embroidery

patterns category.

 The embroidery pattern categories appear.

• Sub-category keys may appear for some pattern categories. Touch the key for the sub-category containing the desired pattern.

1 Displays a preview image. 2 Pattern keys

■ Checking a preview image from the pattern list screen

Touch to preview the image prior to selecting.

Touch to return to the pattern list screen.

Select an embroidery pattern category.

Touch the desired pattern category.

 The pattern list screen appears.

Touch the desired pattern.

Memo

In this case, touch .

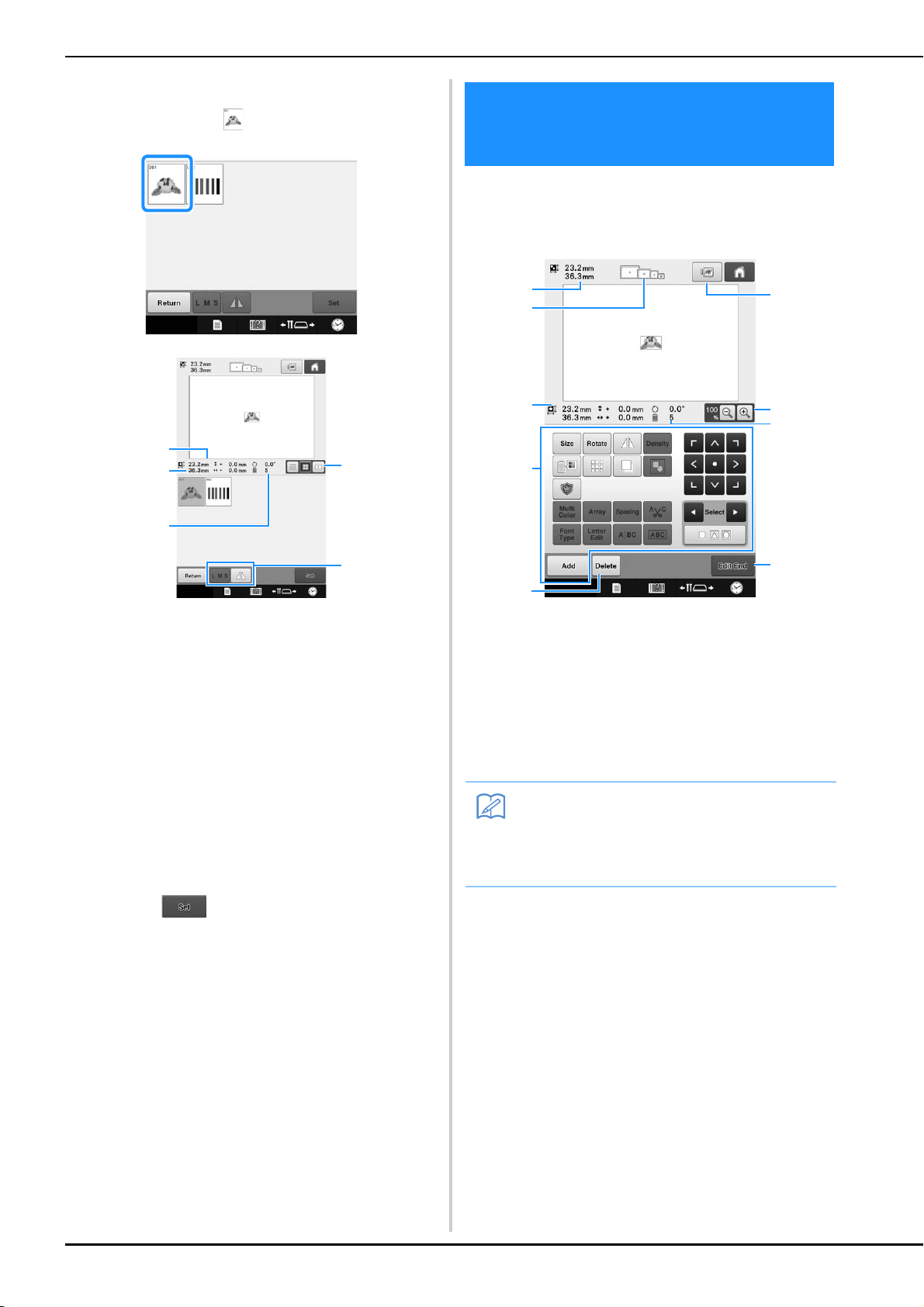

4. Editing the Embroidery Pattern

From this screen, the pattern can be edited. Pattern editing screen (For details on the keys and other information on the screen, refer to page 66.)

After a pattern is selected, the following appear:

1 Vertical length of the pattern 2 Horizontal width of the pattern 3 Number of thread color changes 4 Thumbnail size selection key

The size of the pattern thumbnails can be set to large, medium or small.

5 These keys can be used to change the pattern size

or to flip the pattern horizontally. The functions may be used differently depending on the type of pattern that is selected.

(Refer to “Flipping a pattern horizontally” on page 149.)

• If the wrong pattern was selected or you wish to select a different pattern, touch the desired pattern.

Touch to display the next screen.

This confirms the pattern selection.

 The pattern editing screen appears.

1 Shows the size of the embroidery pattern currently

displayed in the pattern display area. The top value shows the height and the bottom value shows the width. If the embroidery pattern consists of multiple patterns that have been combined, the size of the entire pattern, including all patterns, is shown.

2 Highlights the sizes of embroidery frames that can

be used to sew the currently selected embroidery pattern.

• If the embroidery frame holder is not attached to the machine, the embroidering area will not display the correct frame size. (Refer to page 45.)

3 Shows the size of the currently selected

embroidery pattern. The top value shows the height and the bottom value shows the width.

4 Touch to edit the pattern. 5 Touch this key to delete the pattern, for example, if

the wrong pattern was selected. No pattern is selected and the pattern type selection screen appears.

6 Displays a preview image. 7 Touch to change the size of the on screen

embroidery image presentation.

8 Shows the number of thread color changes for the

currently selected embroidery pattern

9 Continues to the next screen.

In this example, we will not edit the pattern. Without performing any editing operations, continue to confirm the pattern.

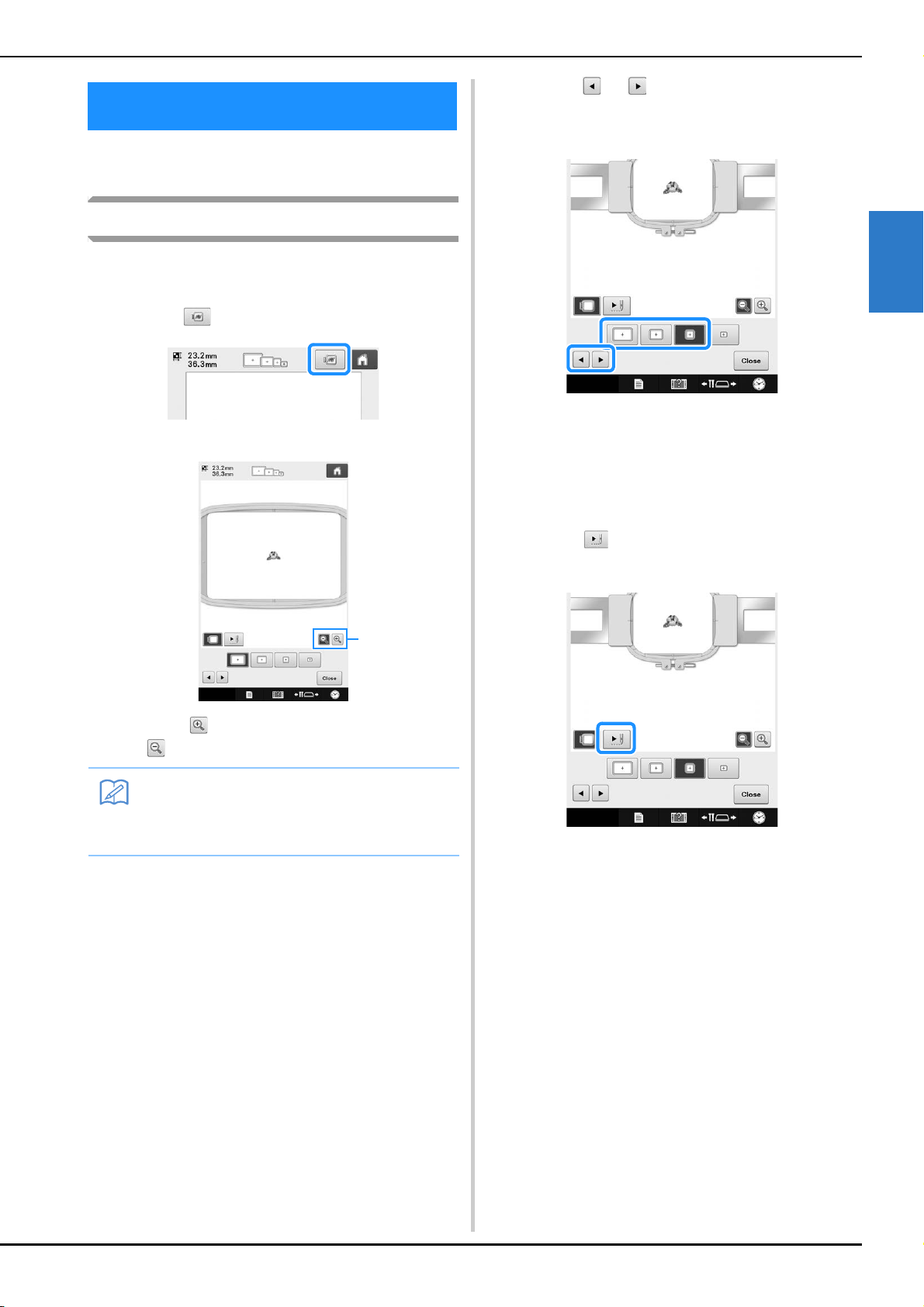

5. Previewing the Image

Memo

You can view an image of the completed pattern within the embroidery frame.

Checking a preview image

EMBROIDERING TUTORIAL

Touch or to select the type of

embroidery frame holder, and then select the embroidery frame you are going to use.

Display the preview image to check that the embroidery will be sewn as desired.

Touch .

 The preview image is displayed.

• After determining the type of embroidery frame holder and size of embroidery frame that are best for your embroidery, change the embroidery frame holder and embroidery frame that are installed. The machine will automatically detect the embroidery frame holder and embroidery frame and change the display.

Touch to check the embroidering

order.

1 Touch to display the pattern enlarged. Touch

to display the pattern reduced.

• A preview image in a landscape orientation cannot be rotated to a portrait orientation, even if there is space at the top and bottom.

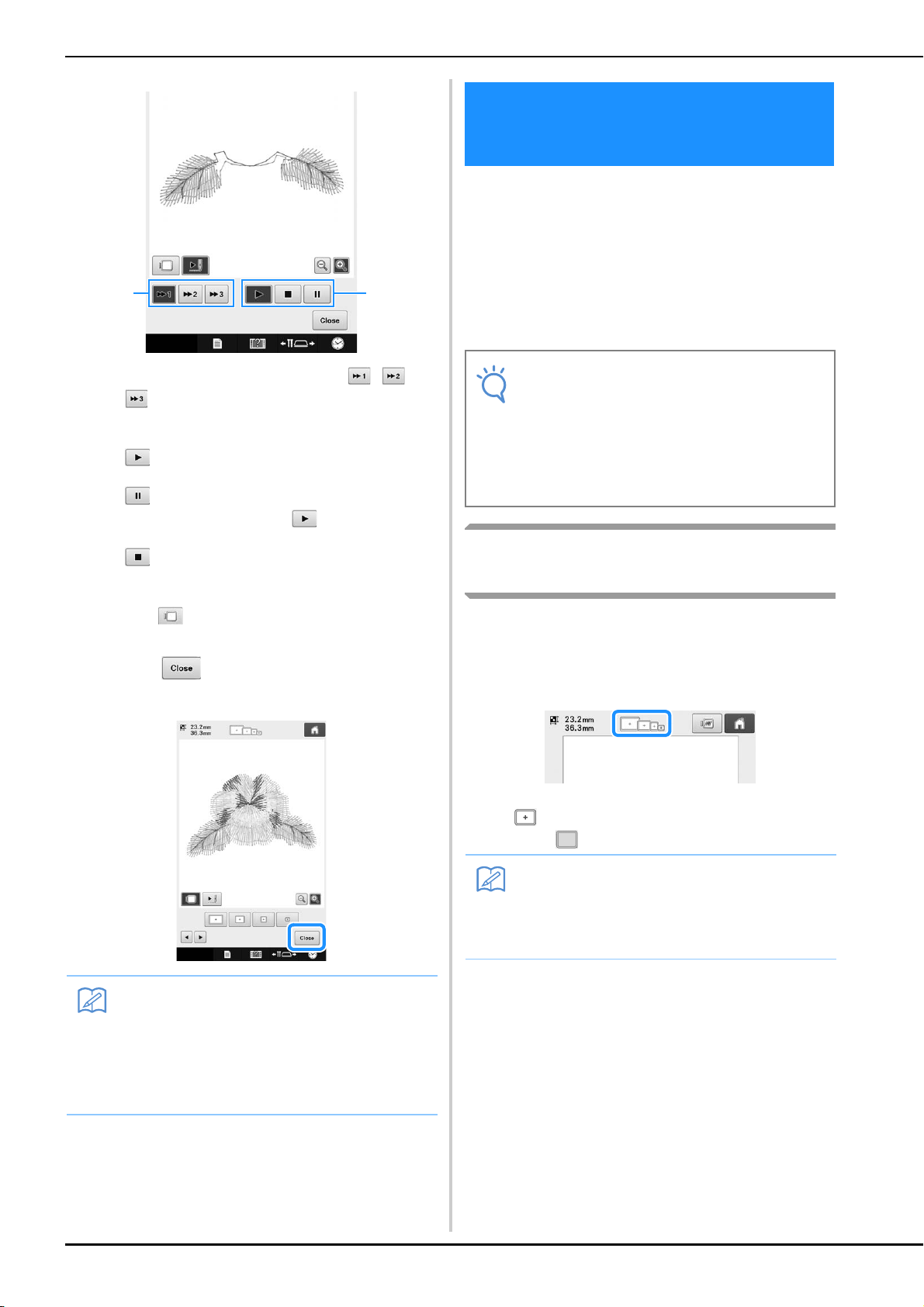

 The stitch simulator screen appears.

Memo

1 2

6. Hooping the Fabric in

Note

Memo

the Embroidery Frame

After selecting the pattern to be embroidered, check which embroidery frames can be used to sew the pattern. Select the appropriate frame, and hoop the fabric and stabilizer in the embroidery frame. (Refer to “Attaching Iron-On Stabilizer (Backing) to Fabric” on page 84.) For precautions concerning the fabric, refer to page 31.

1 Select the simulation speed. Touch , or

to change the speed. The speed can even be

changed while the simulation is running.

2 Operation keys

: Touch to start the simulation at the set

speed.

: Touch this key while the simulation is

running to pause it. Touch to continue the simulation.

: Touch this key while the simulation is

running or paused to stop it and return to the condition before it was started.

• Touch to return to the embroidery frame holder/ embroidery frame selection screen.

Touch to return to the previous

screen.

• If the fabric is not taut, the pattern may be misaligned or the fabric may pucker. Follow the procedure described below to firmly stretch the fabric in the embroidery frame so that the fabric is not loose. In addition, be sure to work on a level surface when putting the fabric in the embroidery frame.

Hooping the fabric in the embroidery frame

Select an embroidery frame.

From the sizes of embroidery frames indicated in the screen, select the embroidery frame that you wish to use.

Embroidery frames that can be used appear lighter

( ) embroidery frames that cannot be used appear

darker ( ).

• The embroidery can be sewn while the preview image is displayed in the embroidering screen. If the preview image is displayed in any screen other than the embroidering screen, the embroidery cannot be sewn.

• If the embroidery frame holder is not attached to the machine, the embroidering area will not display the correct frame size. (Refer to page 45.)

EMBROIDERING TUTORIAL

CAUTION

Note

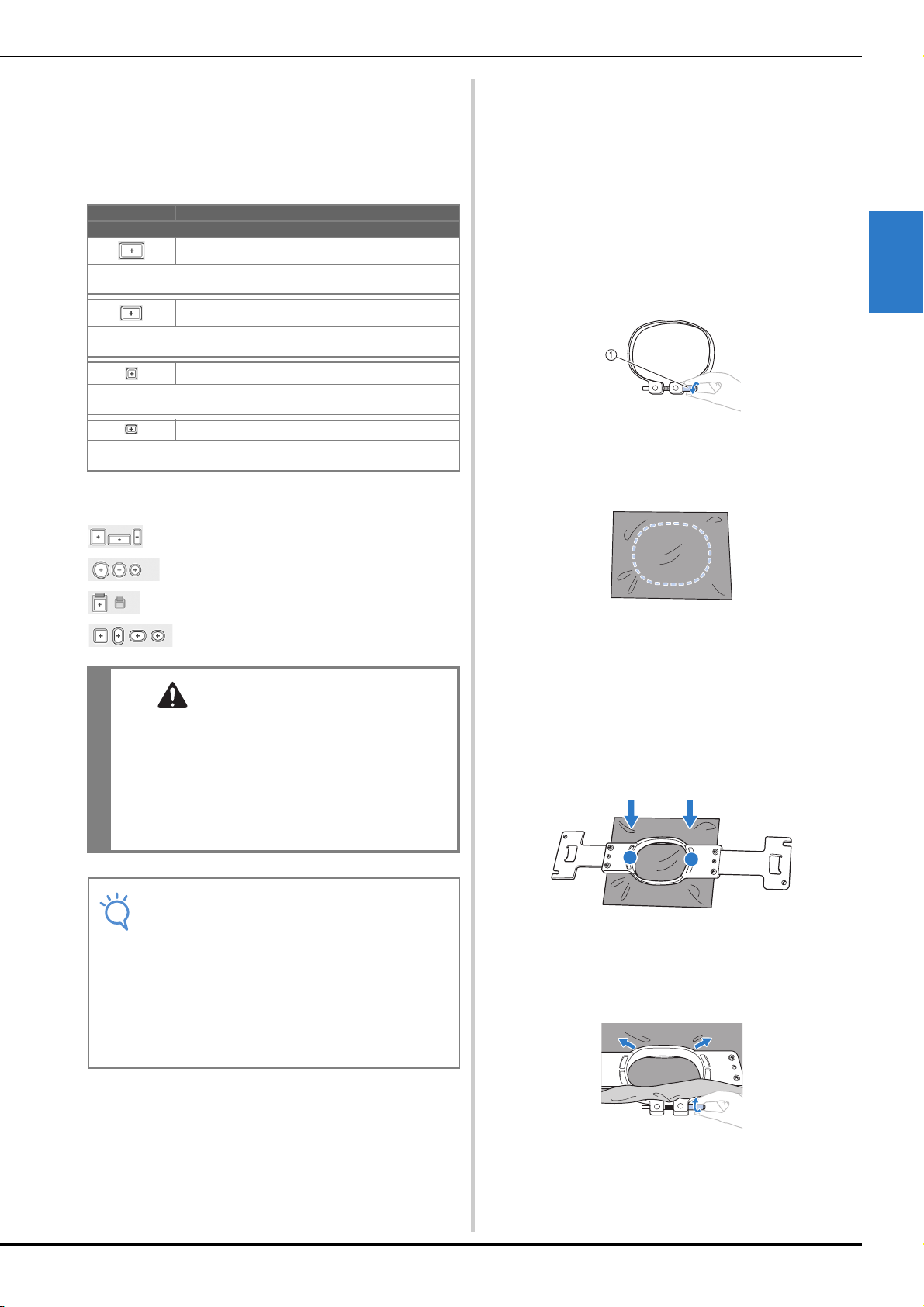

■ Embroidery frame types

There are four sizes of embroidery frames included with this machine, which are used with the included embroidery frame holder A. For details on the uses for each frame, refer to “Correctly Using the Embroidery Frames” on page 80.

Icon Name

Embroidering area

Extra-large embroidery frame

200 mm (H) × 300 mm (W)

(7-7/8 inches (H) × 11-3/4 inches (W))

Large embroidery frame

130 mm (H) × 180 mm (W)

(5-1/8 inches (H) × 7-1/8 inches (W))

Medium embroidery frame

100 mm (H) × 100 mm (W)

(4 inches (H) × 4 inches (W))

Small embroidery frame

40 mm (H) × 60 mm (W)

(1-1/2 inches (H) × 2-3/8 inches (W))

If you use any of the optional embroidery frames, the following icons appear in the screen.

: Embroidery frame holder B

■ Hooping fabric in the small embroidery frame

The procedure for hooping fabric in the small embroidery frame is described below. The same procedure is used to hoop the fabric in the medium embroidery frame. For details on hooping fabric in the other included embroidery frames, refer to “Hooping the Fabric” on page 85.

Loosen the screw on the outer frame.

1 Screw

Place the fabric with the right side up on

top of the outer frame.

: Embroidery frame holder C

: Embroidery frame holder D

: Embroidery frame holder E

• If embroidery frames other than the four included frames or recommended optional frames are used, the embroidery frame may hit the presser foot and damage the machine, or cause injury to the user. (See “Correctly Using the Embroidery Frames” on page 80 for the details about the embroidery frames.)

• The embroidery frame indicators show all

embroidery frame sizes in which the embroidery pattern can be sewn. Be sure to use an embroidery frame of the most suitable size. If the embroidery frame that is too large is used, the pattern may be misaligned or the fabric may pucker. (Refer to “Correctly Using the Embroidery Frames” on page 80.)

• The outer frame does not have a front or back side. Either side can be used as the front.

• In order to prevent shrinkage of the stitching or misaligned patterns, we recommend that iron-on stabilizer (backing) be used for embroidering. (Refer to “Attaching Iron-On Stabilizer (Backing) to Fabric” on page 84.)

Press the inner frame into the outer frame.

• Be sure that there are no wrinkles in the fabric after it is positioned in the embroidery frame.

Lightly tighten the screw, and then pull the

edges of the fabric.

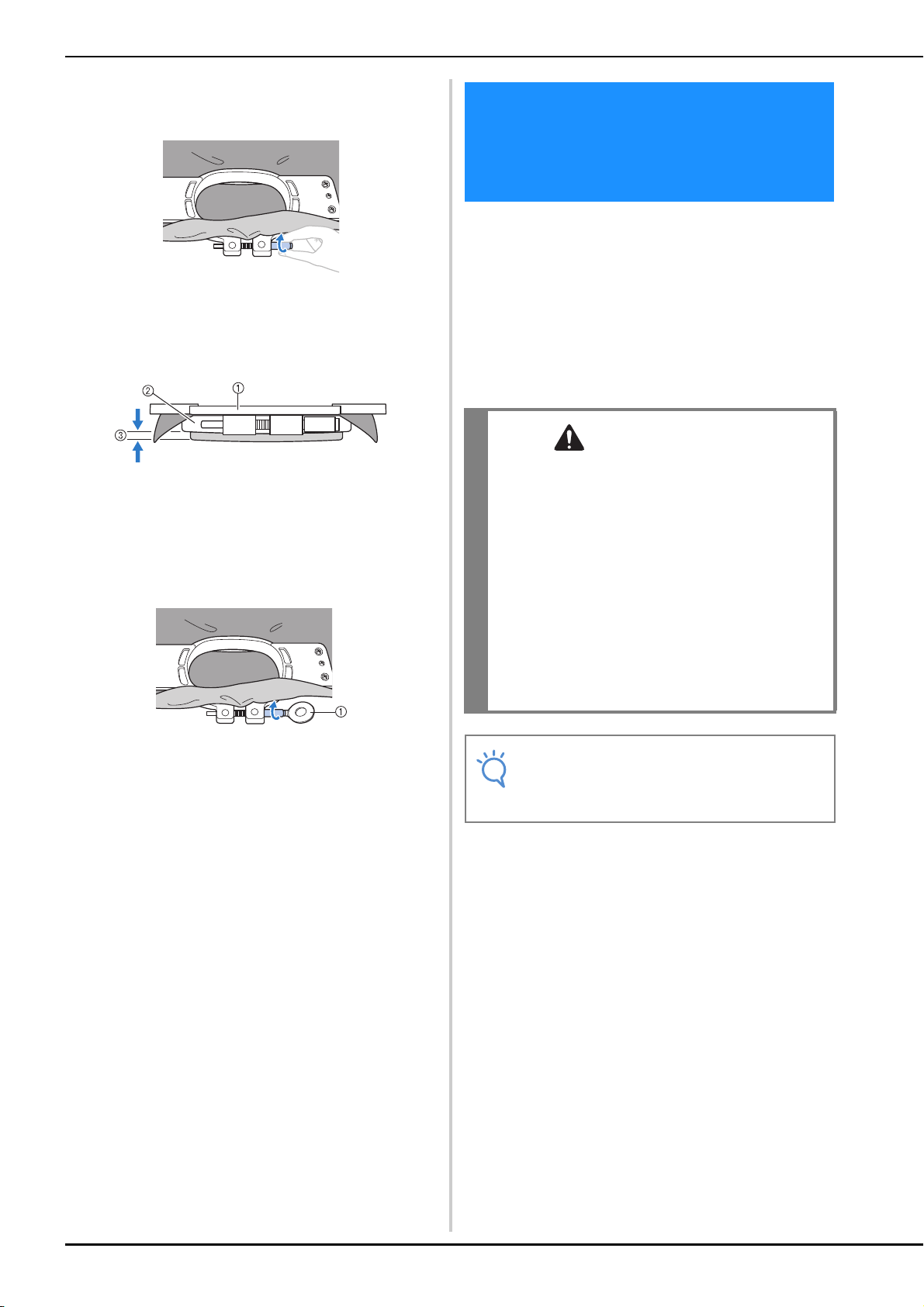

Securely tighten the screw, and then check

CAUTION

Note

to make sure that the fabric is taut.

• After securing the fabric, lightly tapping it should produce a drum-like sound.

• Firmly clamp together the inner and outer frames so that the bottom of the inner frame is lower than the bottom of the outer frame.

7. Attaching the Embroidery Frame to the Machine

After hooping the fabric in the embroidery frame, attach the frame to the embroidery machine. Embroidery frame holders A and B are included accessories with this machine. Install embroidery frame holder A when an included embroidery frame is to be used. (See “Correctly Using the Embroidery Frames” on page 80 for the details about the embroidery frame holders.)

1 Inner frame 2 Outer frame 3 Bottom of inner frame

• Using the included disc-shaped screwdriver, firmly tighten the screw.

1 Disc-shaped screwdriver

The amount that the fabric is stretched and the use of stabilizer material differ depending on the type of fabric being embroidered. Try various methods to achieve the best embroidering results. (Refer to “Hooping techniques” on page 203.)

• If the embroidery frame is not correctly attached it may hit the presser foot and damage the machine, or cause injury to the user.

• When attaching the embroidery frame, make sure that the start/stop button is lit in red. If the start/stop button is flashing in green, the embroidery machine may start sewing. If the embroidery machine accidentally starts operating, injuries may result.

• When attaching the embroidery frame, make sure that the embroidery frame does not hit any other part of the embroidery machine.

• Before attaching the embroidery frame,

check that there is enough thread in the bobbin.

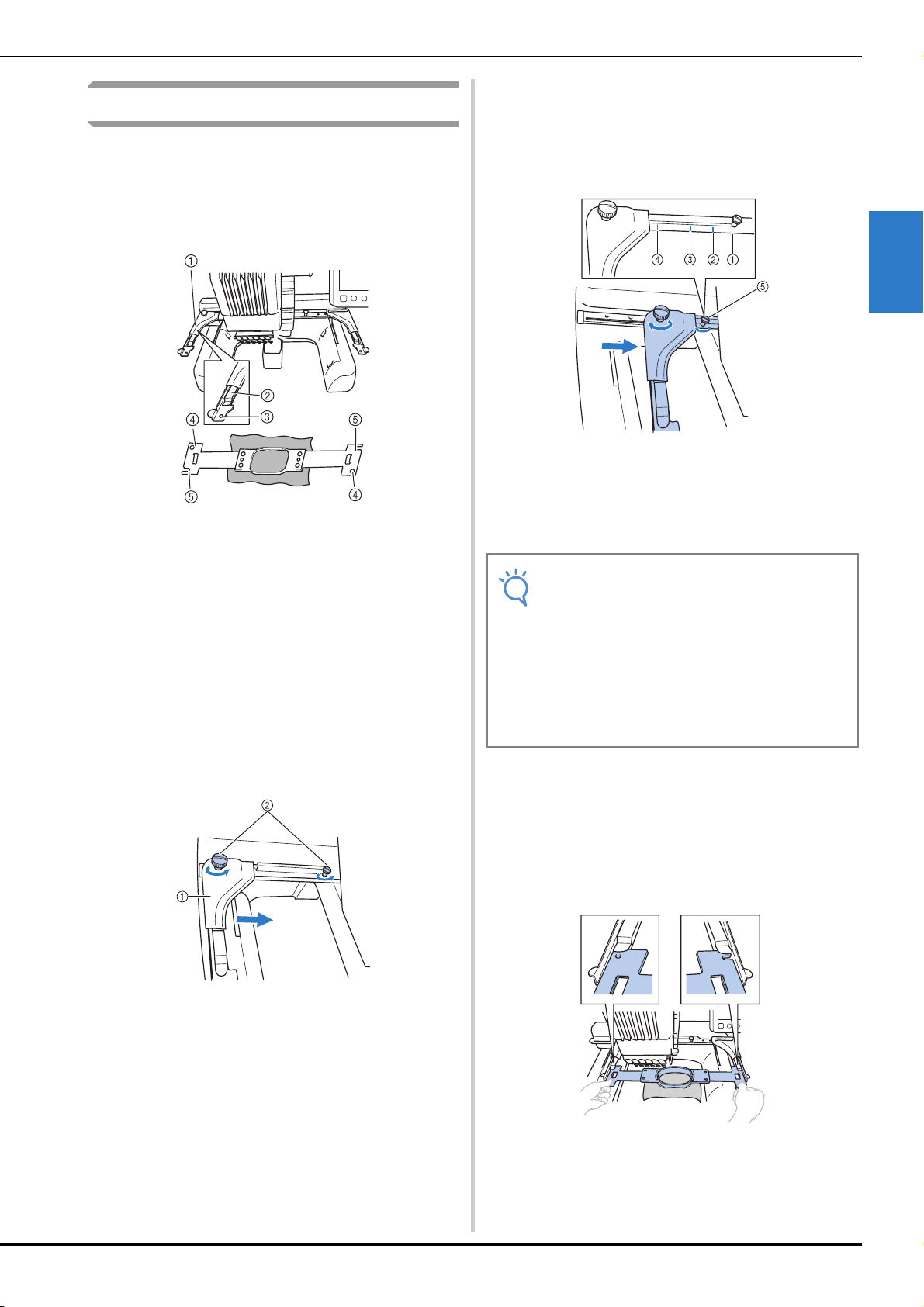

Attaching the embroidery frame

Note

Adjust the width of the embroidery frame holder to the size of the embroidery frame, and then attach the embroidery frame to the machine. As an example, the procedure for attaching the small embroidery frame is described below.

1 Left arm of embroidery frame holder

Move the arm of the embroidery frame holder to the left or right to adjust it to the size of the embroidery frame.

2 Clip on embroidery frame holder.

Insert the embroidery frame into the clips on the embroidery frame holder.

3 Positioning pin 4 Holes 5 Positioning slots

Loosen the two thumb screws on the

embroidery frame holder.

If the screw is too tight, please use the included discshaped screwdriver.

EMBROIDERING TUTORIAL

Move the left arm to align the screw on the

right side with the mark for the embroidery frame to be installed, and then tighten the thumb screws.

For this example, align with mark 4.

1 Mark for extra-large embroidery frame 2 Mark for large embroidery frame 3 Mark for medium embroidery frame 4 Mark for small embroidery frame 5 Align the screw with the mark.

• Please firmly tighten the two thumb screws with included disc-shaped screwdriver. If the thumbscrews are not tightened, any of the following problems may occur.

• The machine will detect the embroidery frame size incorrectly.

• The starting position for the embroidery frame is misaligned.

• The embroidery pattern is misaligned.

 The embroidery frame holder is ready for the

embroidery frame to be attached.

1 Left arm 2 Thumb screws

 The left arm of the embroidery frame holder can be

moved.

• Only loosen the thumb screws a maximum of 2 turns counterclockwise. Do not remove the screw.

Hold the embroidery frame level, and then

simultaneously align both the left and right mounts with the embroidery frame holder clips.

• The inner frame should be on top.

Note

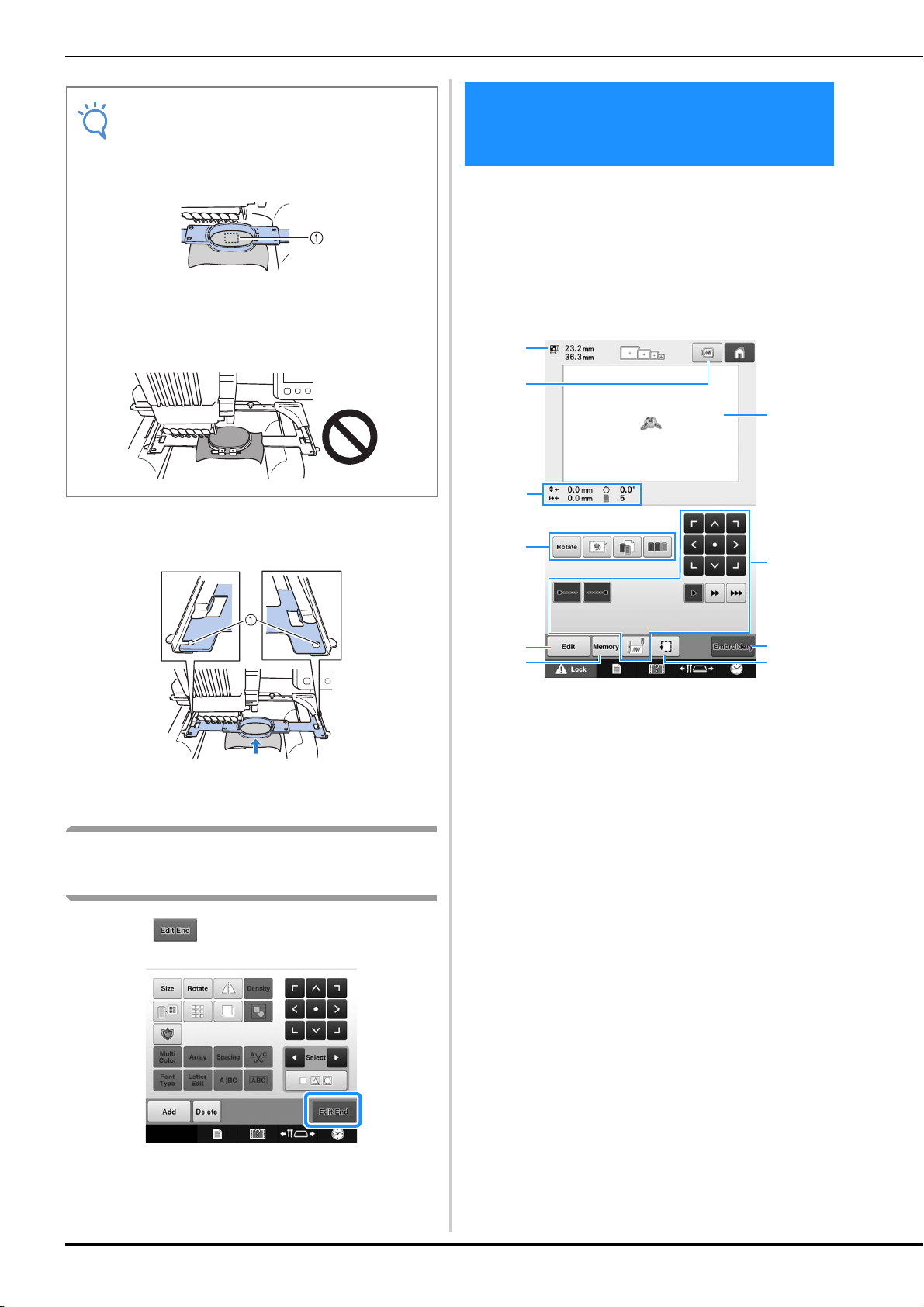

• Attach the embroidery frame to place the

5 6

needle plate under the embroidering area otherwise the embroidery frame hits the needle plate.

1 Needle plate

• If the outer frame is on top, as shown below, the embroidery frame is incorrectly attached.

Insert the embroidery frame until it snaps

into place.

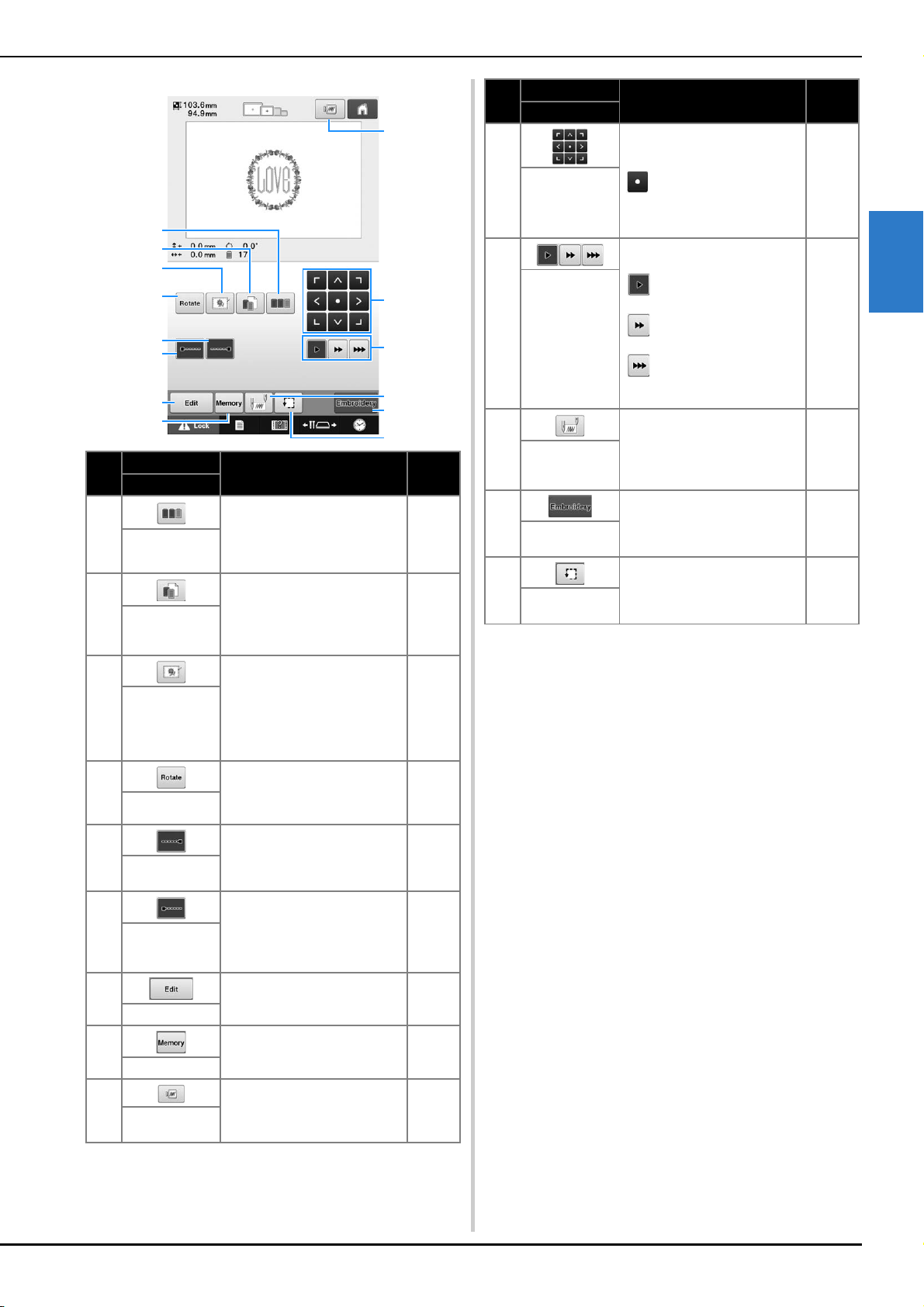

8. Specifying Embroidering Setting

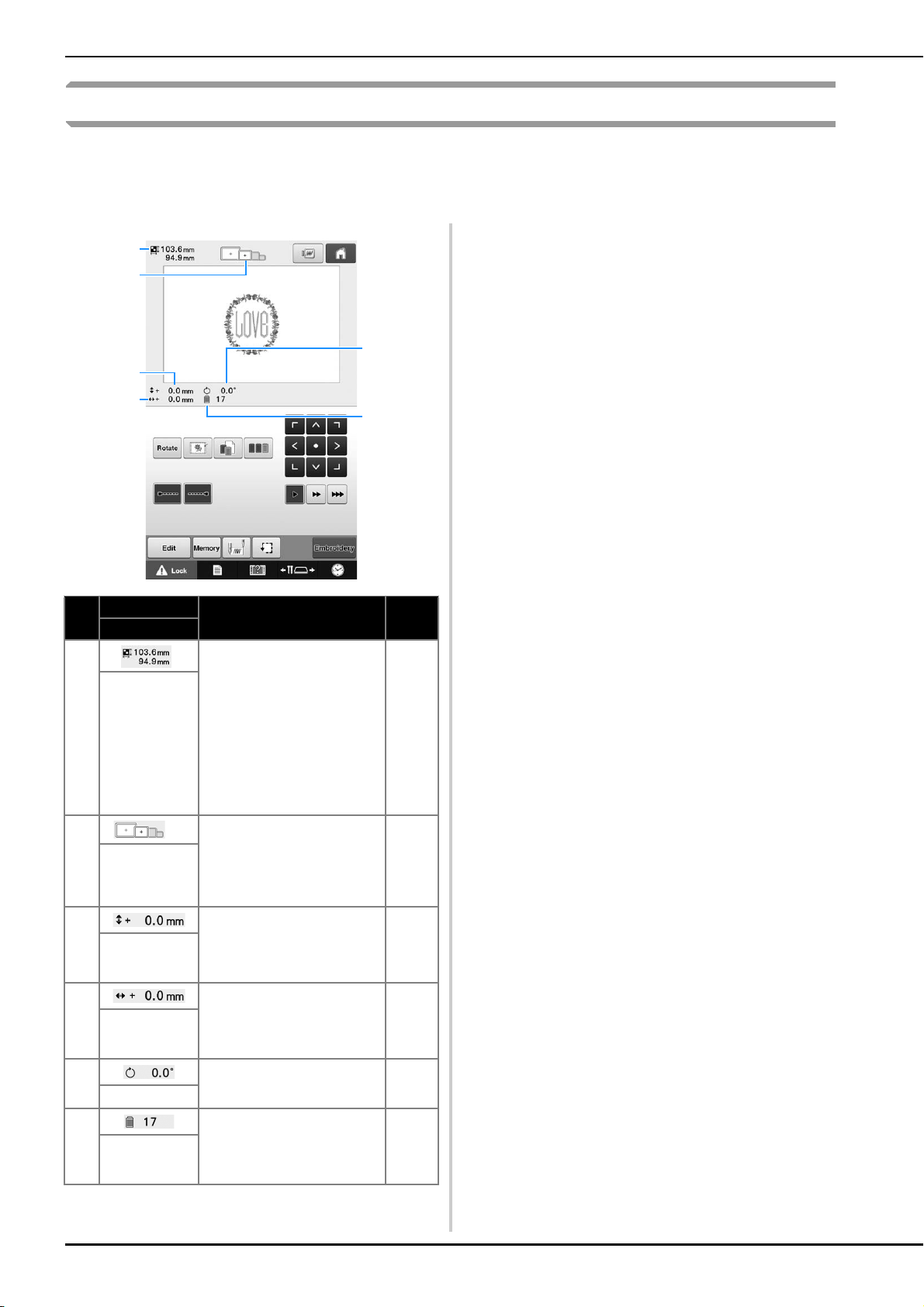

From this screen, the entire pattern can be edited and embroidering settings can be specified. In addition, the embroidering position can be checked and a pattern can be saved for later use. Embroidering settings screen (For details on the keys and other information on the screen, refer to page 68.)

1 Shows the size of the pattern in the pattern display

area.

2 Displays a preview image. 3 Image on the Design Page shows image size,

1 Make sure that the pins on the left and right arms

of the embroidery frame holder fit into the positioning slot and hole on the embroidery frame.

Continuing to the embroidering settings screen

Press .

In this example, we will not specify any of the

rotation, number of thread changes and measured position of image within the embroidery area.

4 Touch for additional editing functions. 5 Returns to the pattern editing screen. 6 Touch to store the pattern in memory. 7 The embroidering area guide in the pattern display

area indicates the size of the embroidery frame that is actually installed.

8 Touch these keys to specify how the pattern will

be embroidered.

9 Continues to the next screen 0 Touch to check the embroidering area.

embroidering settings. Continue with the next operation.

→ The embroidering settings screen is displayed.

Note

• Available keys are not the same if you set

Memo

“Manual Color Sequence” to “ON” in the settings screen. For details on the keys and other information on the screen, refer to page 70.

• If the embroidery frame is not positioned correctly when continuing to the embroidering settings screen, the embroidery frame is moved to the correct position at the same time that the embroidering settings screen is displayed. (Refer to “Moving to the correct position” on page 89.)

EMBROIDERING TUTORIAL

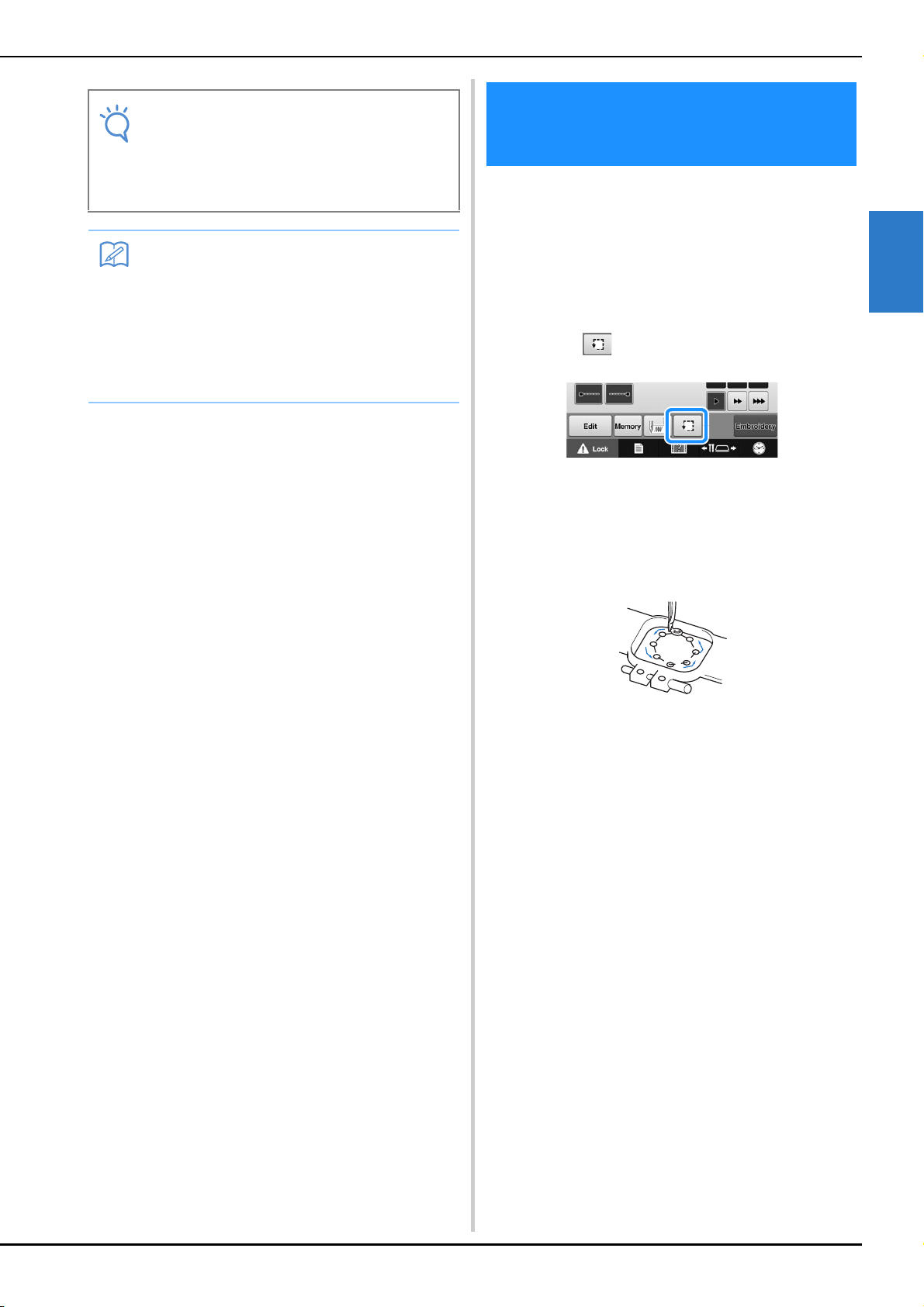

9. Checking the Embroidery Area

Check the embroidery area to make sure that the embroidery will be sewn in the desired location and will not be misaligned and that the embroidery frame will not hit the presser foot. If the embroidery frame is not correctly positioned, it moves to the correct position, and then the embroidering position is indicated.

Touch .

 The presser foot is lowered and the embroidery

frame moves to show the embroidery area.

The corners of the octagon showing the

embroidery area for the pattern are indicated by changing direction.

Carefully watch the movement of the embroidery frame and check that the embroidery is sewn in the desired location and that the embroidery frame does not hit the presser foot.

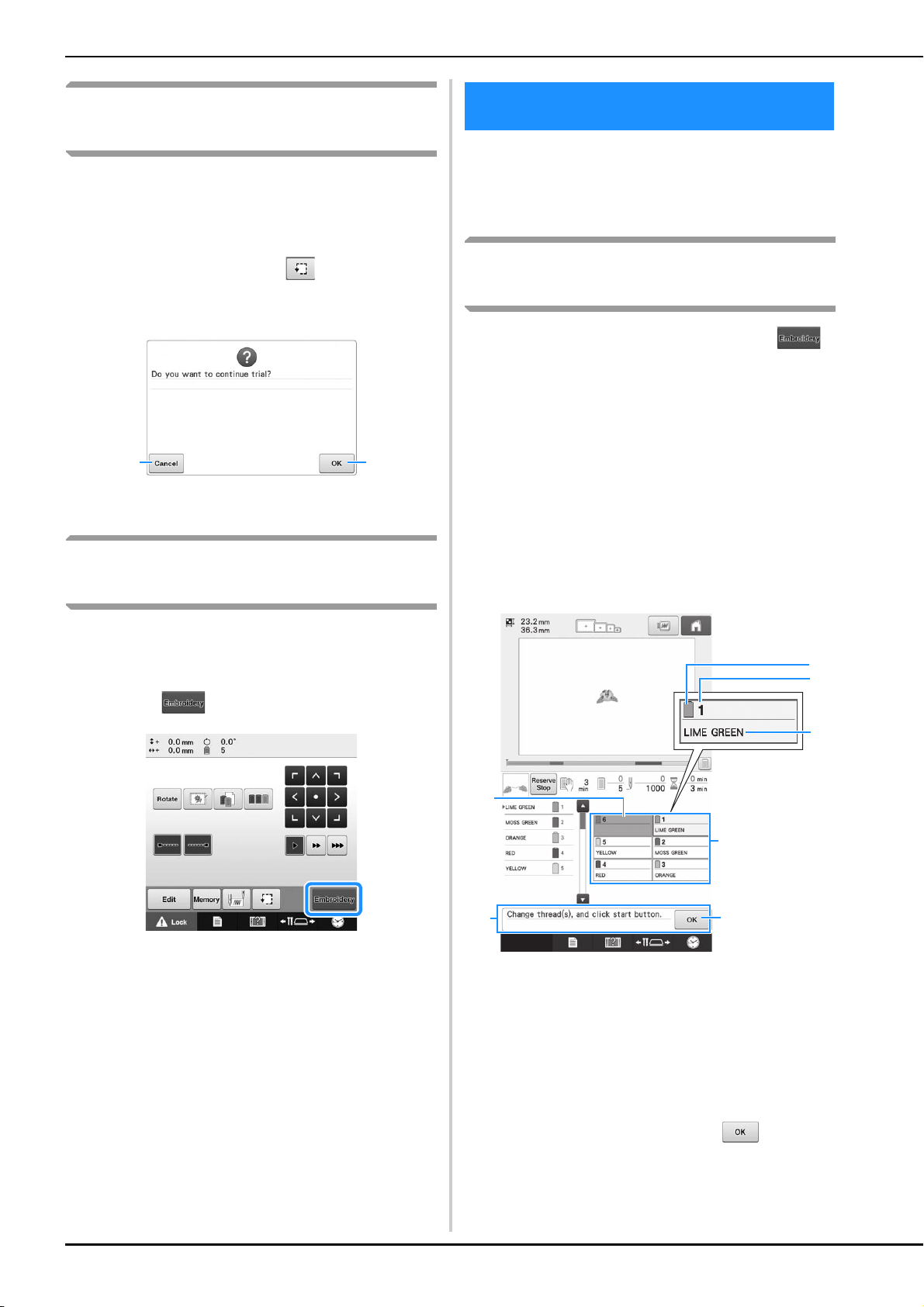

Temporarily stopping to check

5 6

the area

The embroidery frame can be temporarily stopped at a desired position or the checking of the embroidering area can be stopped.

10. Upper Threading

Check the embroidering screen for information on which needle bars should be threaded with which thread colors, and then thread the upper threads.

When the embroidery frame moves to the

desired position, touch

 The embroidery frame stops moving, and the next

screen appears.

1 Touch to continue moving the frame. 2 Touch to stop checking the embroidering area.

again.

Continuing to the embroidering screen

After finishing the necessary operations in the embroidering settings screen, continue to the embroidering screen.

Checking the needle bars and thread colors

In the embroidering settings screen, touch to display the embroidering screen. Check the thread colors in this screen.

Change thread spools message will appear if the thread spools from the previous embroidery project need to be changed. If you set “Manual Color Sequence” to “ON” in the settings screen, the message does not appear even if the thread spools need to be changed. (Refer to “Selecting/ Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 108.)

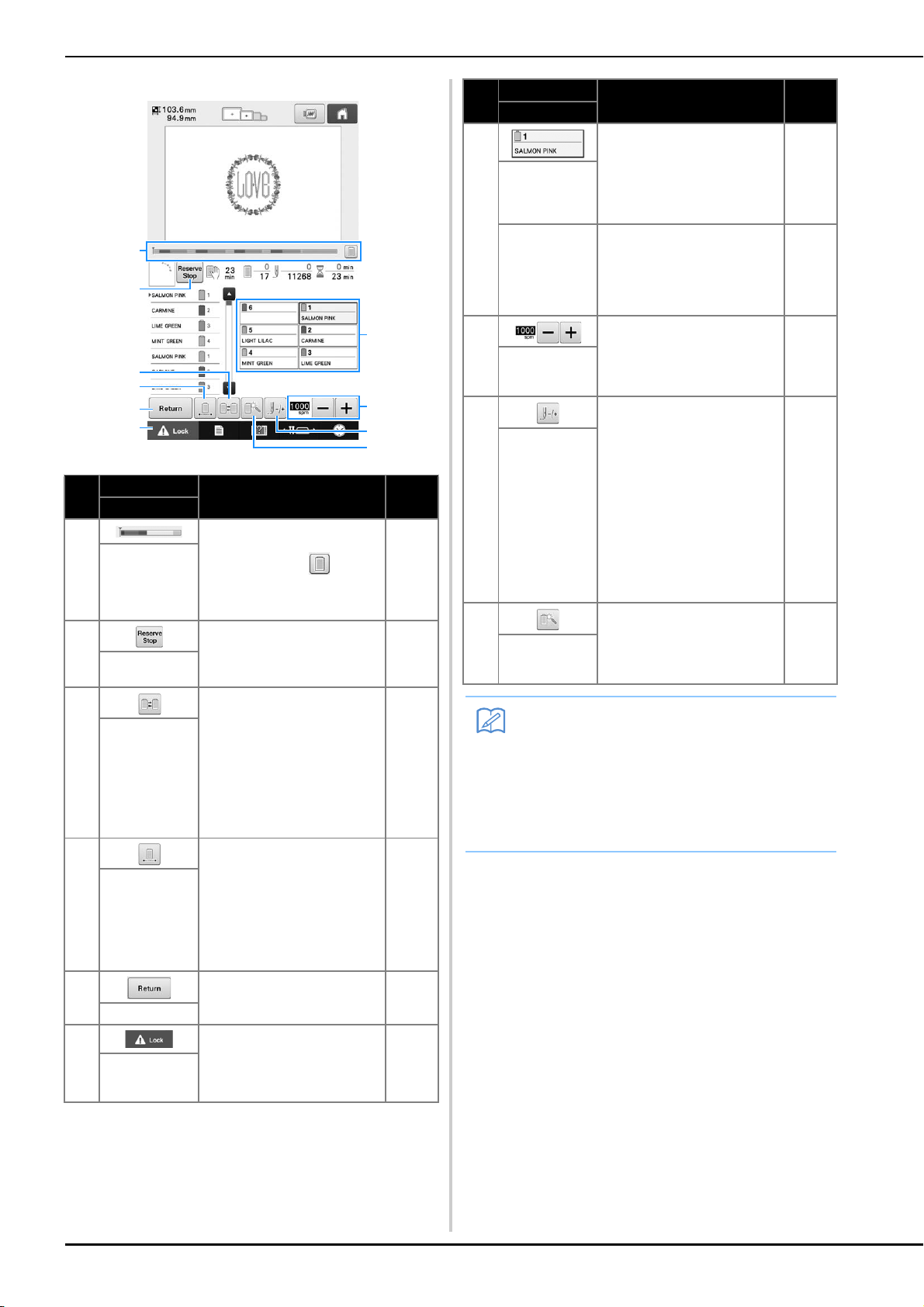

Embroidering screen (For details on the keys and other information on the screen, refer to page 71.)

Touch .

 The embroidering screen appears.

1 Thread information for the first to sixth needle bars 2 If no thread color name is displayed, that needle

bar has not been used. If a thread color had been assigned to the needle bar on a previously sewn design, the needle bar will show the previously assigned color.

3 Change thread spools message. (Refer to

page 95.) This message appears when it is necessary for the

thread spools to be changed. If 4 is not touched to close the message, embroidering

cannot continue.

Memo

• The thread information for the thread spool

Note

1 2

to be changed appears framed in red. When the automatic needle-threading button is pressed, the frame disappears.

5 Thread color 6 Needle bar number 7 Thread color name or number

If the thread color number (#123) is selected in the settings screen (Refer to “Changing the thread color information” on page 182), the thread brand will also displayed.

Thread with the color name that appears beside each needle bar number is threaded on that needle bar. For the screen shown

1: LIME GREEN 2: MOSS GREEN 3: ORANGE 4: RED 5: YELLOW

If there is no name beside the needle bar number, that needle bar is not used. For this example, needle bar 6 is not used.

EMBROIDERING TUTORIAL

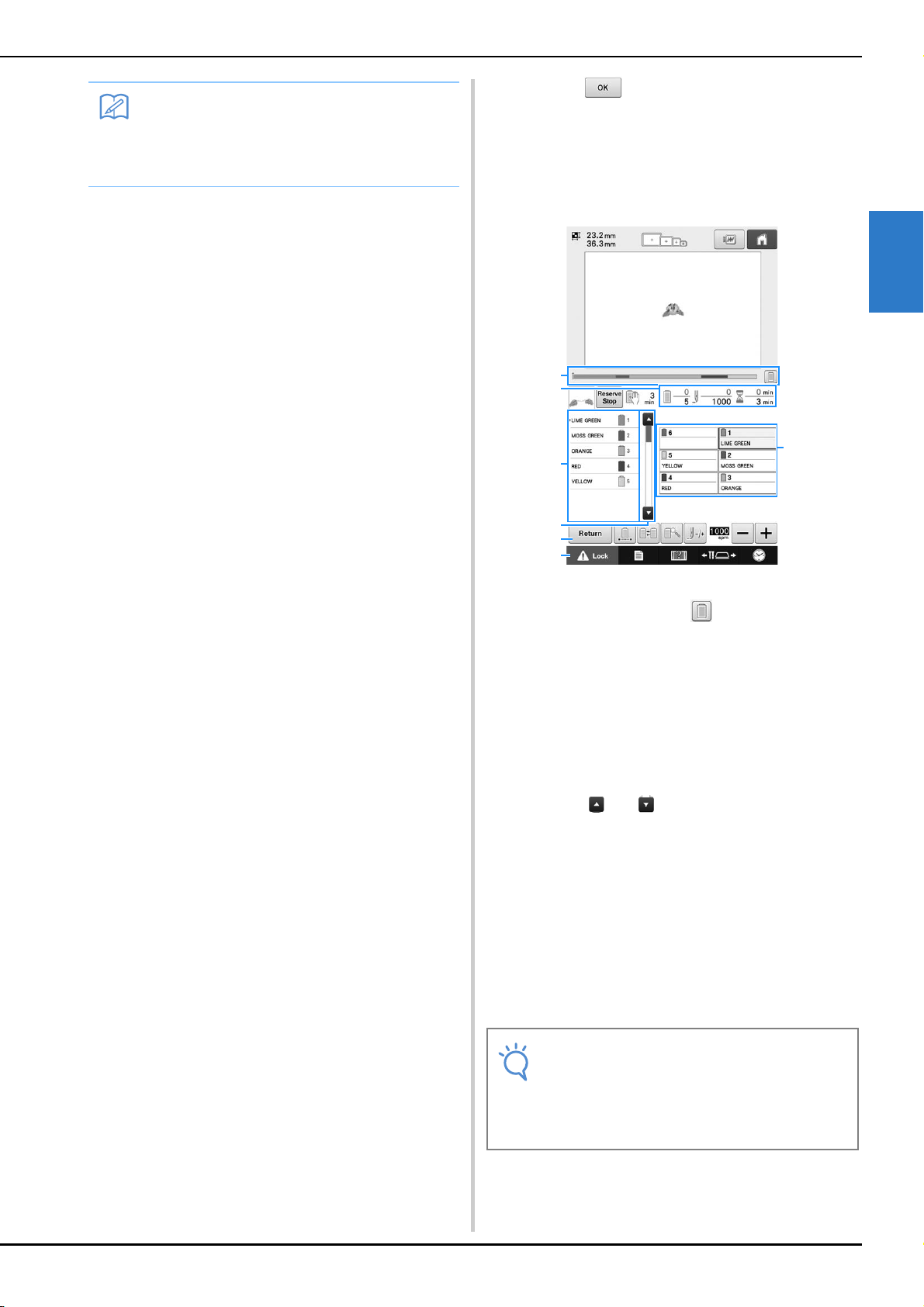

Touch .

 The screen indicating that the spools be changed is

closed.

• In addition to checking the thread colors, information such as the number of stitches and the sewing time can be checked and various embroidering settings can be specified in the embroidering screen.

1 The embroidering progress is shown by the red

mark in the bar. Touch to display (in the indicator) only the thread color being embroidered.

2 Shows the number of thread color changes, the

number of stitches, the embroidering time and the length of time until the machine will stop.

3 Shows the thread colors, embroidering order and

number of the needle bar assigned to the thread colors. A red triangle appears beside the thread color being embroidered. In addition, the box changes to gray and it will scroll off the page when embroidering is finished.

4 Touch and to view the embroidering order

and needle bar number for thread colors that cannot be seen in the screen.

5 Use these keys to return to the embroidering

settings screen.

6 When starting the machine or cutting the threads,

touch this button to unlock the machine, and then press the start/stop button or thread trimming button.

7 Touch a key to move the selected needle bar to

the sewing position. Use when threading the needle with the automatic needle-threading mechanism.

• Available keys are not the same if you set “Manual Color Sequence” to “ON” in the settings screen. (Refer to page 71 for details on the keys and other information on the screen.)

CAUTION

• When (unlock key) in the

CAUTION

Note

Memo

embroidering screen is touched, the start/stop button begins flashing in green and the embroidery machine can start sewing. If the upper threading is being performed or the needle is being threaded, be careful that the embroidery machine is not accidentally started, otherwise injuries may result.

Upper threading

Use machine embroidery thread to thread the needle bars in order, starting with needle bar 1.

• When threading the upper thread, carefully follow the instructions. If the upper threading is not performing correctly, the thread may break or become tangled, causing the needle to bend or break.

Place on spool pin 1 the spool of thread

with the color (lime green) specified for needle bar 1.

• It is recommended that rayon or polyester

machine embroidery thread be used (120 den/2, 135 dtex/2, 40 weight (in Americas and Europe), #50 (in Japan)).

• The path that the embroidery machine

should be threaded is indicated by a line on the machine. Be sure to thread the machine as indicated.

• Make sure that the spool stand is opened in the shape of a V.

• When using small spools of thread, be sure to place the included spool mat on the spool pin before placing the spool on the pin.

• Place the thread in the center of the spool stand so that the thread feeds off of the spool correctly and does not get tangled around the spool pin directly under the thread spool.

• Use spool cap on all spools of thread shorter than the height of the spool pin.

1 Spool mat 2 Small spool 3 Spool cap

• When using a flanged thread spool, place the spool on the spool pin, and then place the included spool cap onto the spool pin, over the spool.

The numbers indicate the thread path for each of the numbered needle bars. Be very careful to correctly thread the needle bars.

EMBROIDERING TUTORIAL

Pass the thread through the hole in the

number 1 upper thread guide and pull the thread toward you.

Pass the thread through the number 1 hole

in the thread guide just above the spool, and then pass the thread through the number 1 hole in the thread guide toward the front of the machine.

1 Hole in upper thread guide

Hold the thread with both hands, and then

pass it under the guide plate from the right.

1 Upper thread guide plate

1 Number 1 hole in the thread guide above the spool 2 Number 1 hole in the thread guide toward the front

of the machine

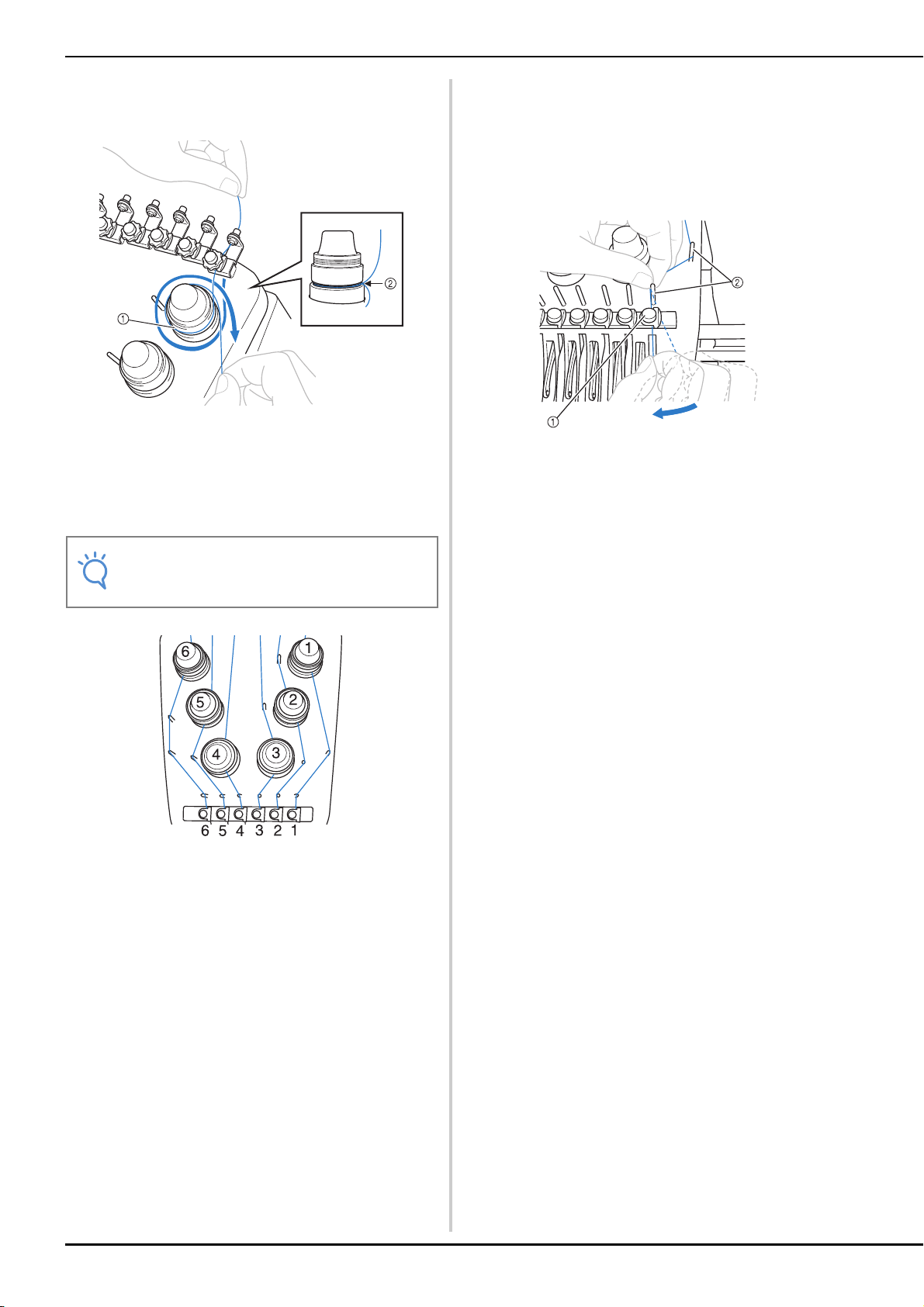

Wind the thread clockwise once around the

Note

number 1 thread tension disc.

1 Thread tension disc 2 Pass thread in a clockwise direction at this

location on the tension disks.

• Make sure that the thread is securely caught in the thread tension disc and passed correct thread guide pins.

• All thread tension discs are threaded in clockwise direction.

Lead the thread along the thread path and

around the correct thread guide pins as indicated on the machine.

Slip the thread under the number 1 middle

thread guide plate from the right.

1 Middle thread guide 2 Thread guide pin

• The path from the upper thread guide around the thread tension disc and to the middle thread guide (steps

e through f) differs depending on the spool

number. Passing the thread from the left to the right through the thread guide pins is designed to prevent the thread from becoming tangled. Be sure to follow the thread path indicated on the machine.

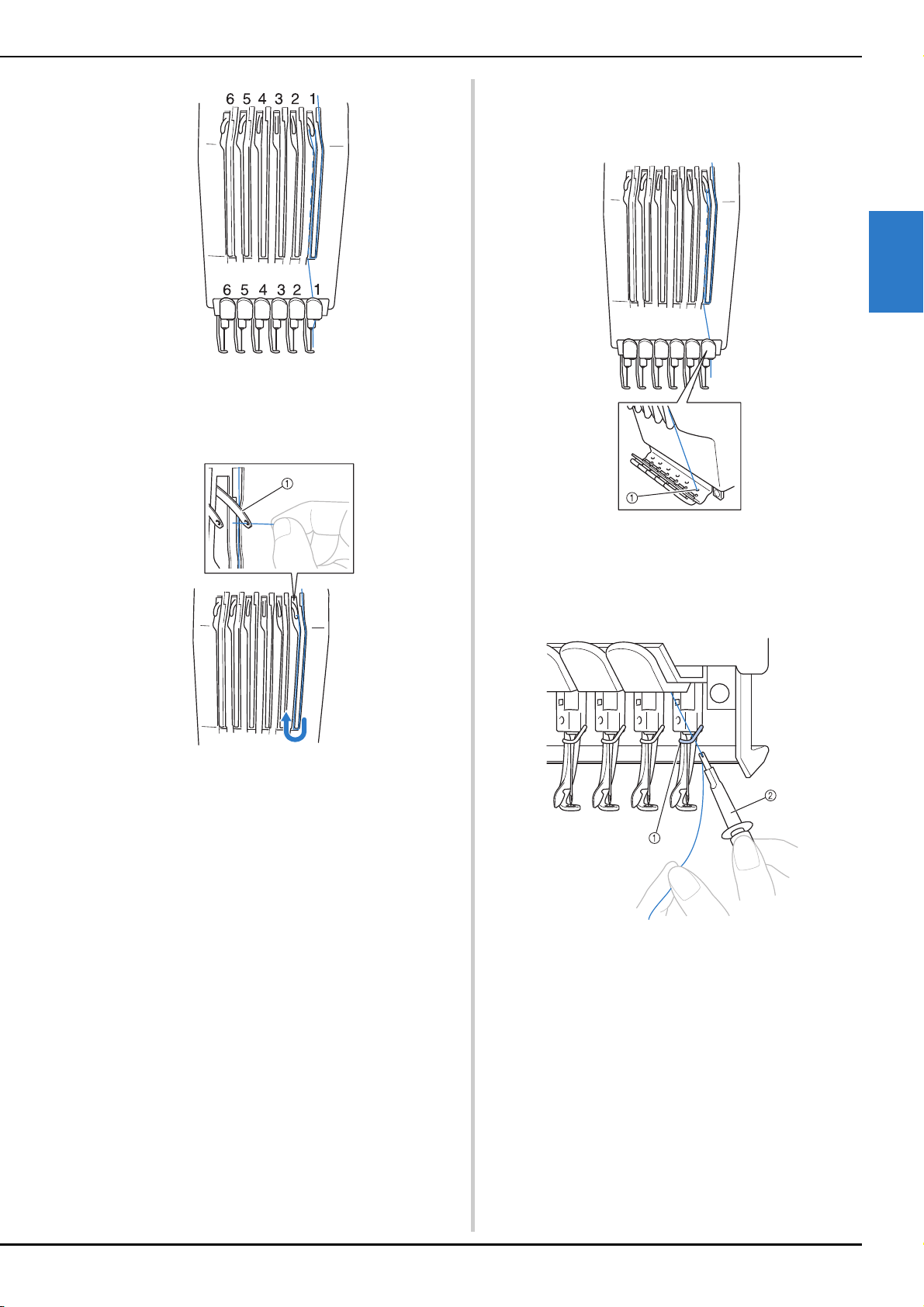

Pass the thread along the number 1 slot to

pass it through the number 1 take-up lever hole from right to left.

EMBROIDERING TUTORIAL

Pass the thread down through the slot to the

lower thread guide, and then through the hole in the number 1 lower thread guide.

1 Thread take-up lever

1 Hole in lower thread guide

Use the included threader to pass the

thread into the number 1 needle bar thread guide.

1 Needle bar thread guide 2 Needle changing tool (Threader)

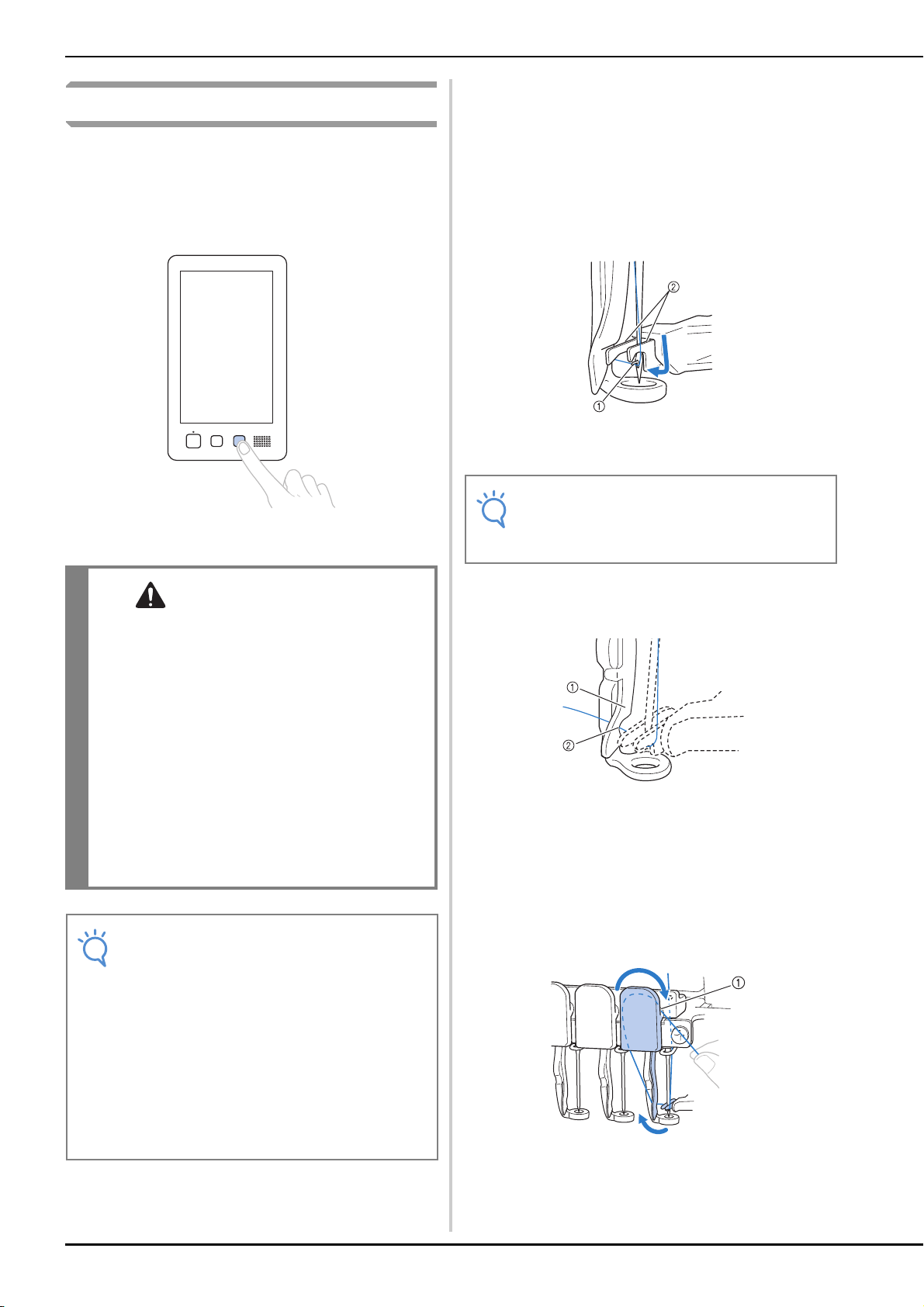

Threading the needle

CAUTION

Note

Use the automatic needle-threading mechanism to thread the needle.

Press the automatic needle-threading

button.

Pull out about 150 mm (6 inches) of thread.

Allow thread to relax and eliminate any stress on the thread. Then, as shown in the illustration, pass the thread under the fork of the automatic needle-threading mechanism from the right, and then catch the thread with the hook that passes through the eye of the needle.

1 Hook 2 Fork

 The hook on the automatic needle-threading

mechanism passes through the eye of the needle.

• If the needle is not fully inserted, the hook of the automatic needle-threading mechanism will not pass through the eye of the needle during automatic needle threading, and the hook may bend or the needle cannot be threaded.

• If the hook of the automatic needle-threading mechanism is bent or damaged, contact your authorized Brother dealer.

• While the hook of the automatic needlethreading mechanism is passed through the eye of the needle, do not rotate the handwheel, otherwise the automatic needlethreading mechanism may be damaged.

• To avoid damage, the automatic needle-

threading mechanism may return to the back position when you turn the handwheel.

• The automatic needle-threading mechanism

can thread one needle at the sewing position. When this mechanism is used, be sure that the needle bar that you want to thread is positioned as the sewing position, otherwise the automatic needle-threading mechanism cannot be used at the particular needle. If the needle bar is not at the sewing position, move it there. (Refer to page 55.)

• When catching the thread with the hook, be careful that the thread does not become loose.

Pass the thread under the guide on the

presser foot.

1 Guide on presser foot 2 Notch in guide on presser foot

• Make sure that the thread securely passes through the notch in the guide on the presser foot.

Securely pass the thread through the groove

in the thread cutter, and then lightly pull the thread to cut it.

1 Groove in thread cutter

Note

• If the thread is not correctly passed through

Note

the groove in the thread cutter, the message “Wiper error” appears and the needle cannot be threaded. Be sure to securely pass the thread through the groove.

• If enough thread is not pulled out, the thread cannot be pulled through the thread cutter.

Press the automatic needle-threading

button.

EMBROIDERING TUTORIAL

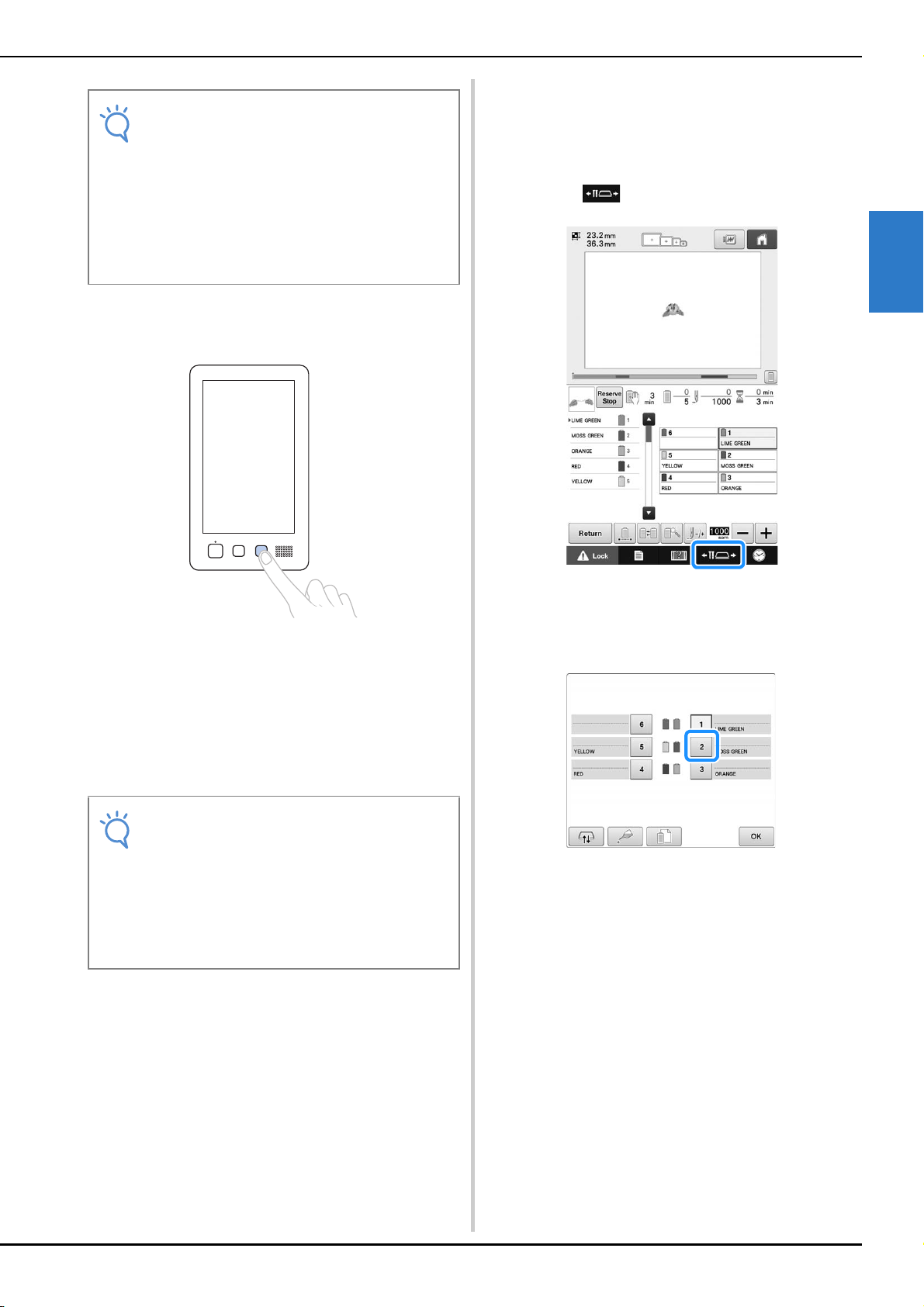

■ Moving and threading a selected needle bar

You can move and thread a selected needle bar to the embroidering position at any time.

Touch .

• The threader moves back away from the needle. The thread is pulled through the needle eye.

• The wiper comes out and catches the thread between the needle and the threader.

• The threader goes back to the original home position.

This completes the upper threading for needle bar 1.

Thread the remaining needle bars in the same way.

• If the needle bar to be threaded is not moved to the embroidering position, the needle cannot be threaded with the automatic needle-threading mechanism. For the remaining needle bars, perform the following operation to move the needle bar to the embroidering position before trying to thread the needle.

 The needle bar move screen appears.

Touch the key for the needle bar that you

wish to move or thread.

 The selected needle bar moves to the position of

embroidery.

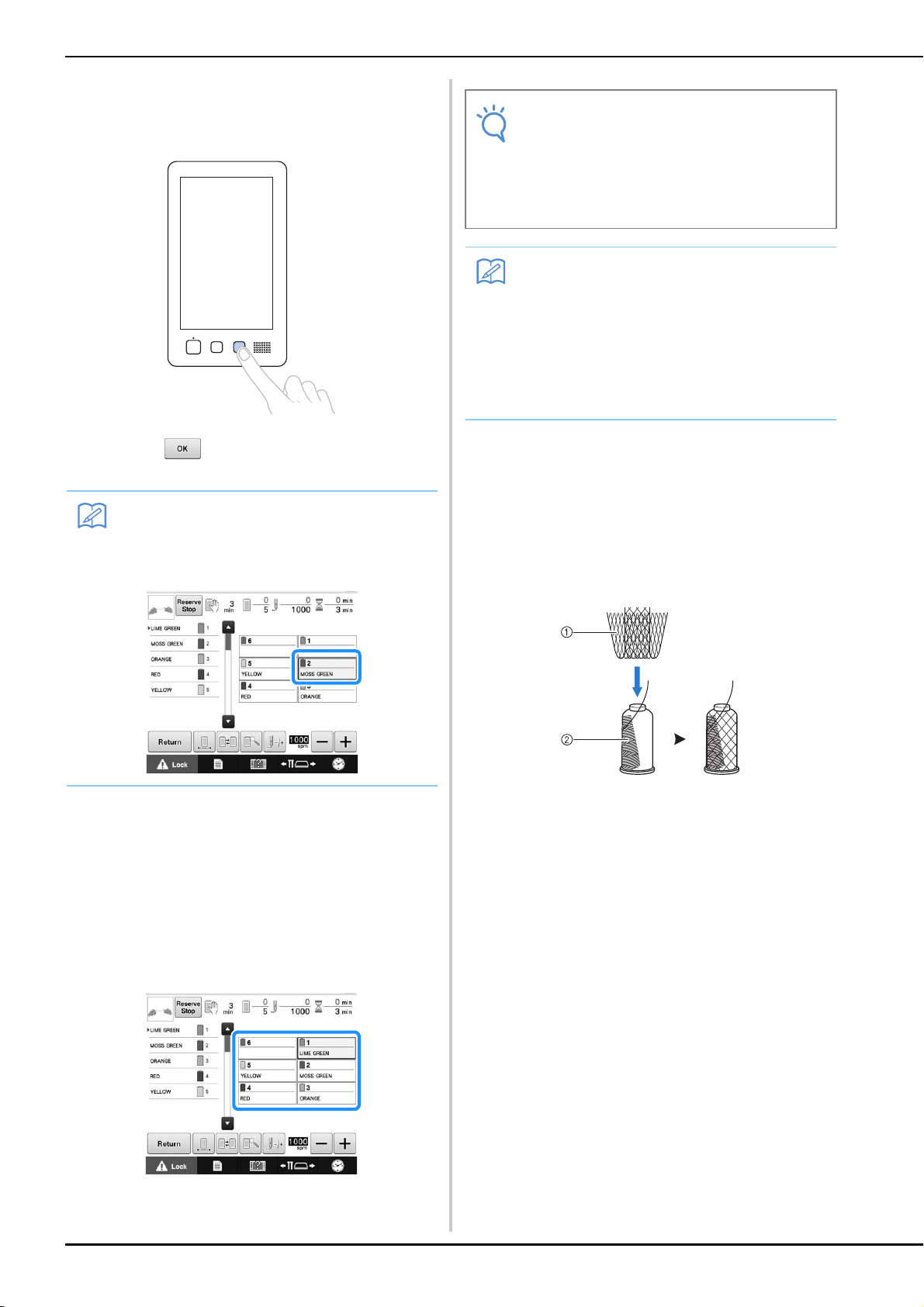

Press the automatic needle-threading

Memo

Note

Memo

button while the needle bar move screen appears.

• If the thread is not taut, it may come out of the thread tension disc. After upper threading is finished, check again to make sure that the thread is correctly passed into the thread tension disc. (Refer to step page 52.)

• When changing one of the upper thread colors, it is easy to re-thread by cutting the thread currently being used between the spool and the thread guide above the spool. Place the new spool on the spool pin and tie the end of the new thread to the end of the previous thread. Then pull the thread through to the needle. (Refer to page 96.)

e on

Touch to return to the previous

screen.

• In the embroidering screen, a blue frame appears around the thread information box of the selected needle bar.

■ Moving the needle bar to be threaded to the position of embroidery

You can move the needle bar in the embroidering screen.

■ Using the spool net

When using metallic thread or any other strong thread, place the included spool net over the spool before sewing. If the spool net is too long, fold it once to match the size of the spool before placing it over the spool. It may be necessary to adjust thread tension when using the spool net.

1 Spool net 2 Thread

Touch the key for the needle bar that you wish to thread.

 The selected needle bar moves to the embroidering

position.

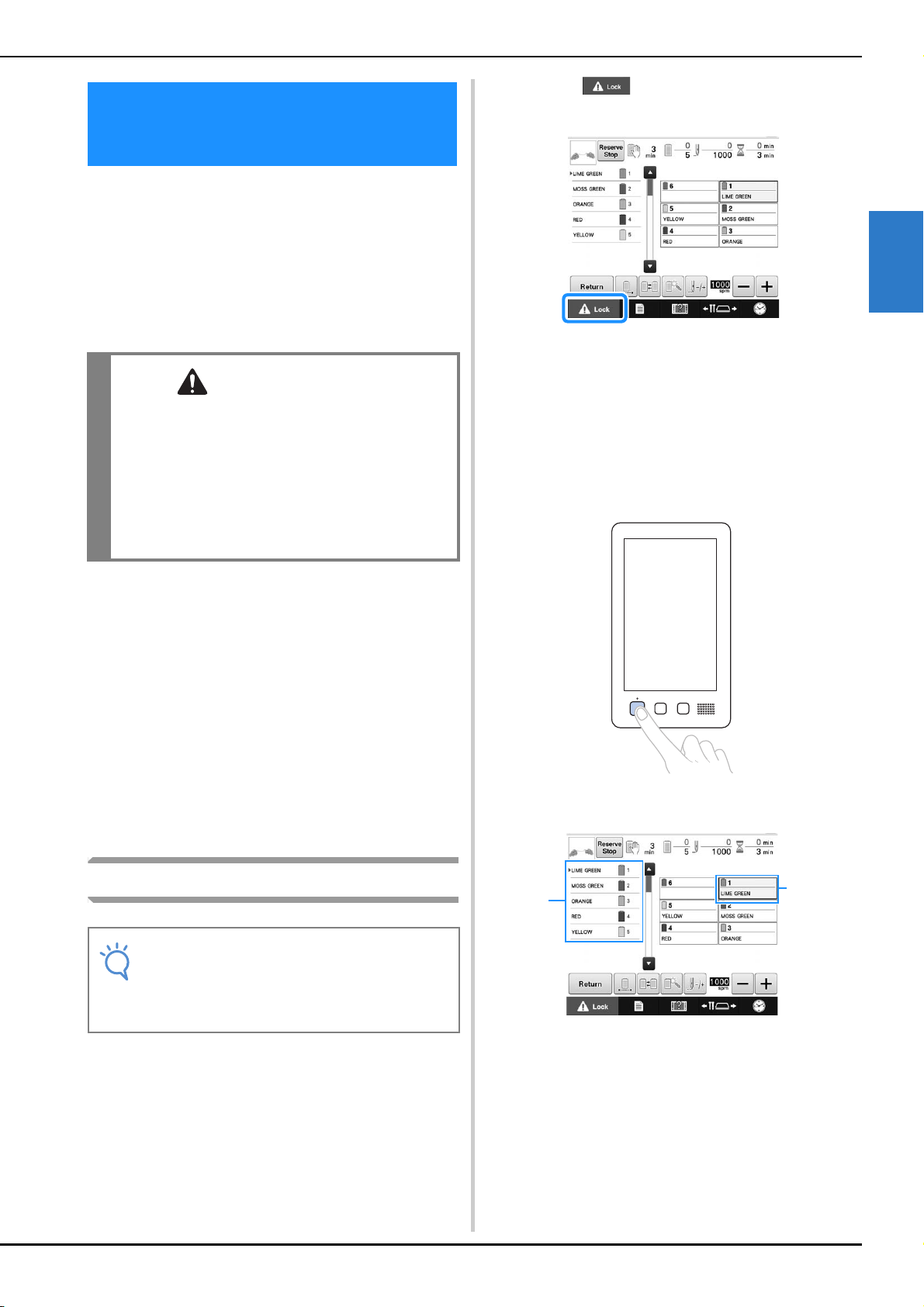

11. Sewing the

CAUTION

Note

Embroidery

Now, the embroidery machine is ready to begin sewing. When the machine starts sewing, the presser foot is automatically lowered, the necessary thread trimming operations at the end of stitching are performed, the threads are changed as necessary while the embroidery is sewn, and the machine stops when the end of the stitching is reached.

• For safety reasons, the embroidery machine must not be left unattended while it is sewing.

• While the machine is in operation, pay special attention to the needle location. In addition, keep your hands away from all moving parts such as the needle, needle bar case, thread take-up lever and carriage, otherwise injuries may result.

EMBROIDERING TUTORIAL

Touch to unlock the embroidery

machine.

 The start/stop button begins flashing in green and

the embroidery machine can be started.

• If the start/stop button is not pressed within 10 seconds after unlocking the embroidery machine, the machine becomes locked again.

Press the start/stop button.

Press the start/stop button while it is flashing in green. If the start/stop button returns to being lit in red, perform this procedure again from step a.

■ Locking mechanism

For safety reasons, this embroidery machine is equipped with a locking function. Normally, the embroidery machine is locked (it cannot start sewing). Unless the machine is unlocked, it cannot start sewing. If the embroidery machine is not started within 10 seconds after unlocking it, it automatically returns to being locked. The start/stop button shows whether or not the embroidery machine is locked. If the start/stop button lights up in red, the machine is locked. If the start/stop button flashes in green, the machine is unlocked.

 The start/stop button lights up in green and begins

sewing the first color.

Starting embroidering

• Make sure that there are no objects within the moving area of the embroidery frame. If the embroidery frame hits another object, the pattern may become misaligned.

1 The thread color for the needle bar that is currently

being used for sewing or will soon be used for sewing appears at the top of the thread color sequence display. The remaining thread colors are listed in the sewing order, starting from the top.

2 A blue frame appears around the thread

information box of the needle bar currently being selected.

• While the embroidery machine is sewing, the point

Memo

being sewn is indicated by the green crosshairs in the pattern display area. In addition, the number of stitches and the time count up.

After sewing of the first color is finished,

the machine automatically stops and trims the thread. The needle bar case moves to the 2nd color position and sewing of the 2nd color begins.

■ Continuing embroidering

To sew the same pattern again, touch .

 The embroidering screen appears so the same

pattern can be sewn again.

To select a new pattern, touch .

 The thread color display in the screen continues to

the second color, and the thread information for the second needle bar is surrounded by the blue frame.

This continues until the last color is sewn,

and the embroidery machine automatically stops.

 The embroidering settings screen reappears.

 The start/stop button lights up in red.

• No thread trimming operations at the beginning of stitching and at the end of stitching are necessary.

 The pattern type selection screen appears.

• Automatic Lock stitching can be set so that it is sewn at the beginning of the embroidery, when starting to sew after changing thread colors, and when trimming the thread. (Refer to “Automatic Lock Stitch Setting” on page 112.)

• The sewing speed can be changed, even while the pattern is being sewn. (Refer to “Maximum Sewing Speed Setting” on page 116.)

Stopping embroidering

Memo

EMBROIDERING TUTORIAL

■ Resume sewing after the machine was turned off

The machine can be stopped during sewing.

■ Temporarily pausing

Press the start/stop button.

 The machine stops and the start/stop button lights up

in red.

• Embroidering can also be stopped by touching an area displaying the pattern.

• The thread is not trimmed.

• To continue sewing, after checking that the upper thread is taut, touch the unlock key, and then press the start/stop button.

Press the start/stop button.

 The embroidery machine stops and the start/stop

button lights up in red.

• The thread is not trimmed.

Touch to unlock the embroidery

machine.

Press the thread trimming button.

• If the Reserve Stop key is touched while embroidery is being sewn, the machine stops sewing before the next color begins. (Refer to “Stopping the machine at the next color change” on page 117.)

• Before starting to sew, the machine can be set to stop at any thread color change. (Refer to “Specifying pause locations before embroidering” on page 118.)

 The bobbin and upper threads are trimmed.

• Before turning off the embroidery machine, be sure to trim the threads.

Set the main power switch to “”.

Memo

CAUTION

 The embroidery machine is turned off and the

display and the start/stop button indicator go off.

• Sewing can resume after the embroidery machine is turned on again. Back up several stitches to overlap the stitching. (Refer to “Resume Embroidering After Turning Off the Machine” on page 101 for details.)

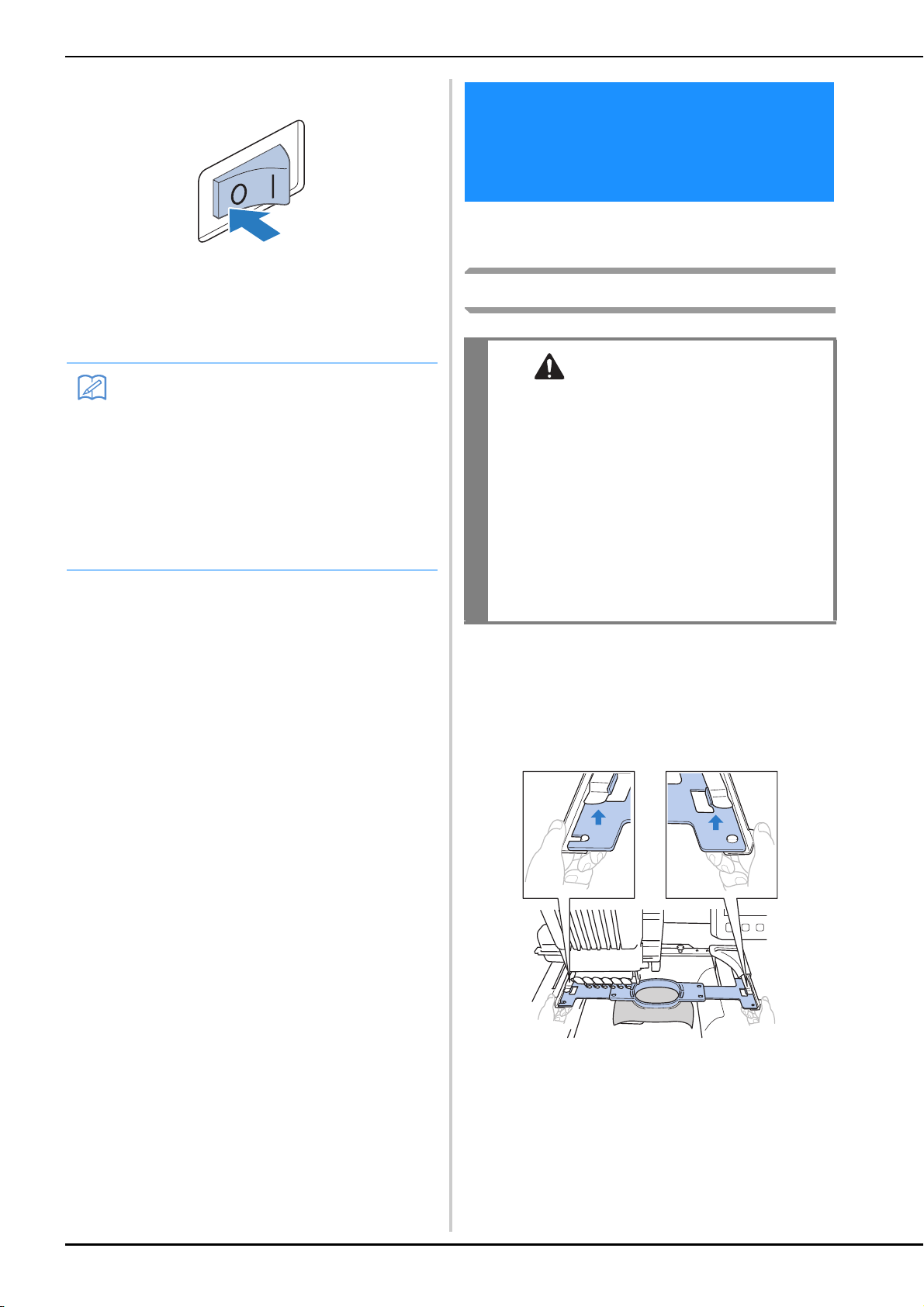

12. Removing the Embroidery Frame and Fabric

After sewing is finished, remove the embroidery frame, and then remove the fabric from the frame.

Removing the embroidery frame

• The machine can be stopped at any time, even while it is embroidering; however, if the machine is stopped when the thread color is changed, it is not necessary to go back through the stitching when embroidering is continued. The machine can be set to stop when the thread color is changed. (For details, refer to “Specifying pause locations before embroidering” on page 118.)

■ If the thread breaks while sewing

If a problem occurs while sewing, such as if the thread breaks, the machine stops automatically. Re-thread the broken thread, back up several stitches, and then continue sewing. (Refer to “If the Thread Breaks or the Bobbin Thread Runs Out While Embroidering” on page 97 for details.)

• When removing the embroidery frame, make sure that the start/stop button is lit in red. If the start/stop button is flashing in green, the machine may start sewing. If the machine accidentally starts operating, injuries may result.

• When removing the embroidery frame, be careful that the embroidery frame does not hit any other part of the machine.

• Do not lift up the embroidery frame holder with extreme force, otherwise it may be damaged.

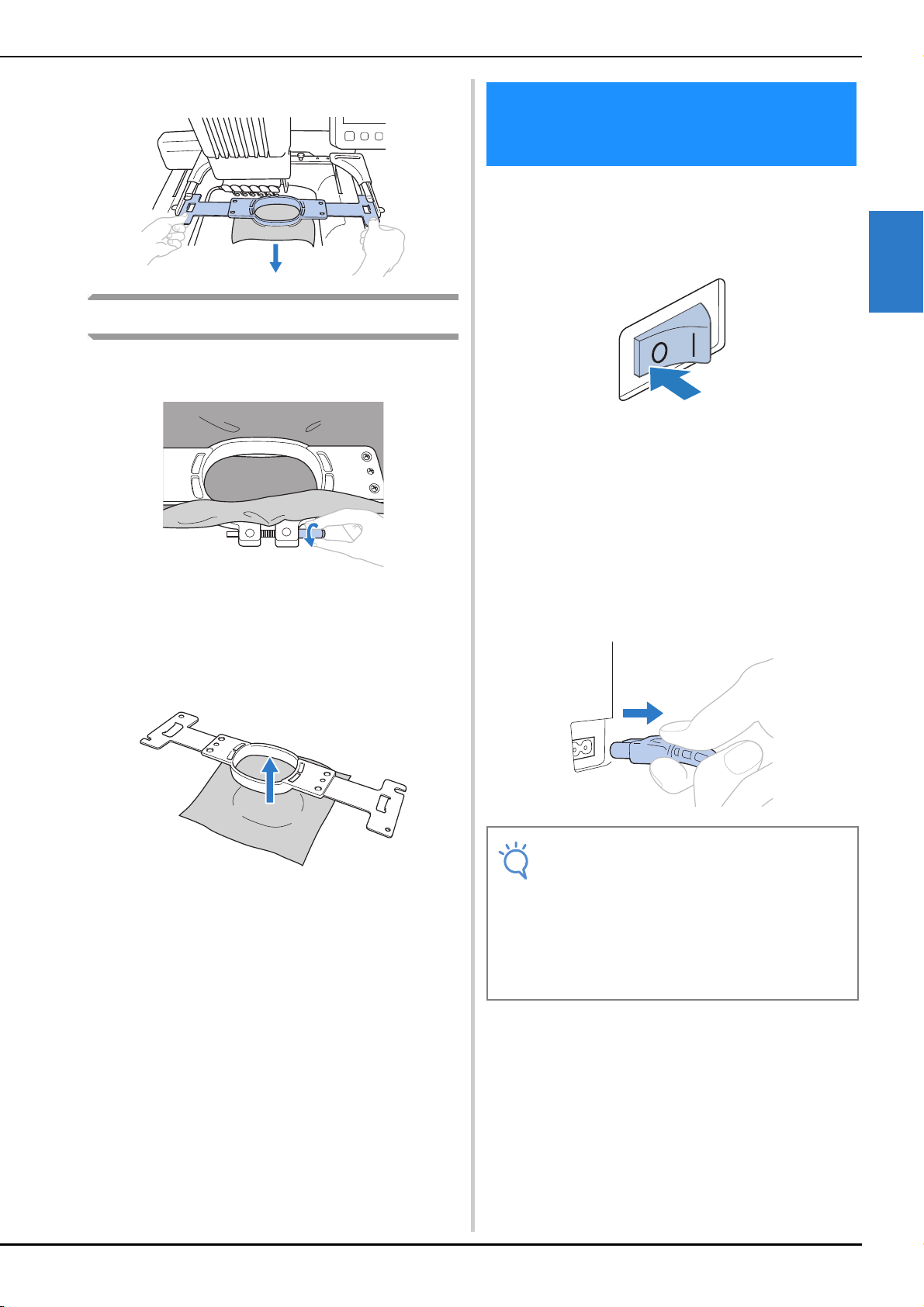

With both hands, grab the left and right

sides of the arms of the embroidery frame holder, and then slightly lift up the frame.

The pins on the arms of the embroidery frame holder should come out of the holes in the sides of embroidery frame.

Pull off the embroidery frame toward you.

Note

Removing the fabric

Loosen the outer frame screw.

EMBROIDERING TUTORIAL

13. Turning OFF the Machine

After all embroidery is finished, turn off the machine.

Set the main power switch to “”.

 The embroidery machine is turned off and the

display and the start/stop button indicator goes off.

Unplug the power supply cord from the

electrical outlet.

Grasp the plug when unplugging the power supply cord.

 If the screw was tightened using a disc-shaped

screwdriver, use the included disc-shaped screwdriver to loosen it.

Remove the outer frame, and then remove

the fabric.

If necessary, unplug the power supply cord

from the machine.

Store the power supply cord in a safe place.

• If a power outage occurs while the embroidery machine is being operated, turn off the embroidery machine and unplug the power supply cord. When restarting the embroidery machine, follow the necessary procedure to correctly operate the machine. (Refer to “2. Turning ON the Machine” on page 35.)

Memo

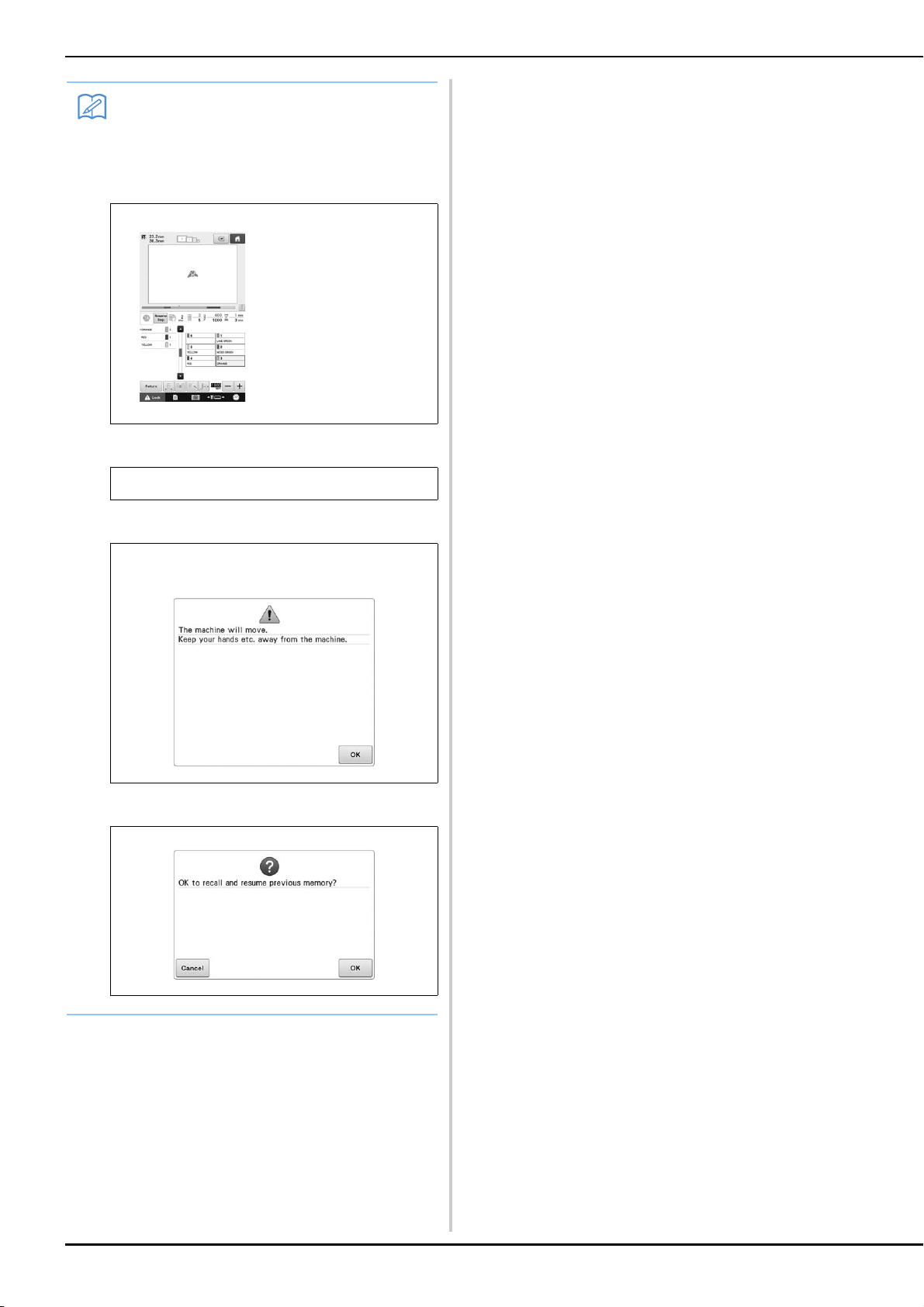

• If the machine is turned off while it is sewing, embroidering can continue when the machine is turned on again. (Refer to “Resume Embroidering After Turning Off the Machine” on page 101.)

Turned off while embroidering



Turned on



After the opening movie



EMBROIDERING TUTORIAL

Screen Quick Reference Guide

Descriptions of the keys and other information that appear in the screens are provided in the tables below.

Key displays

The appearances of the keys have the following meanings, all keys work in the same manner.

Example:

(Normal color display) : This key is not selected, but can be selected.

(Dark-colored display) : This key is selected.

(Gray display) : This key cannot be selected.

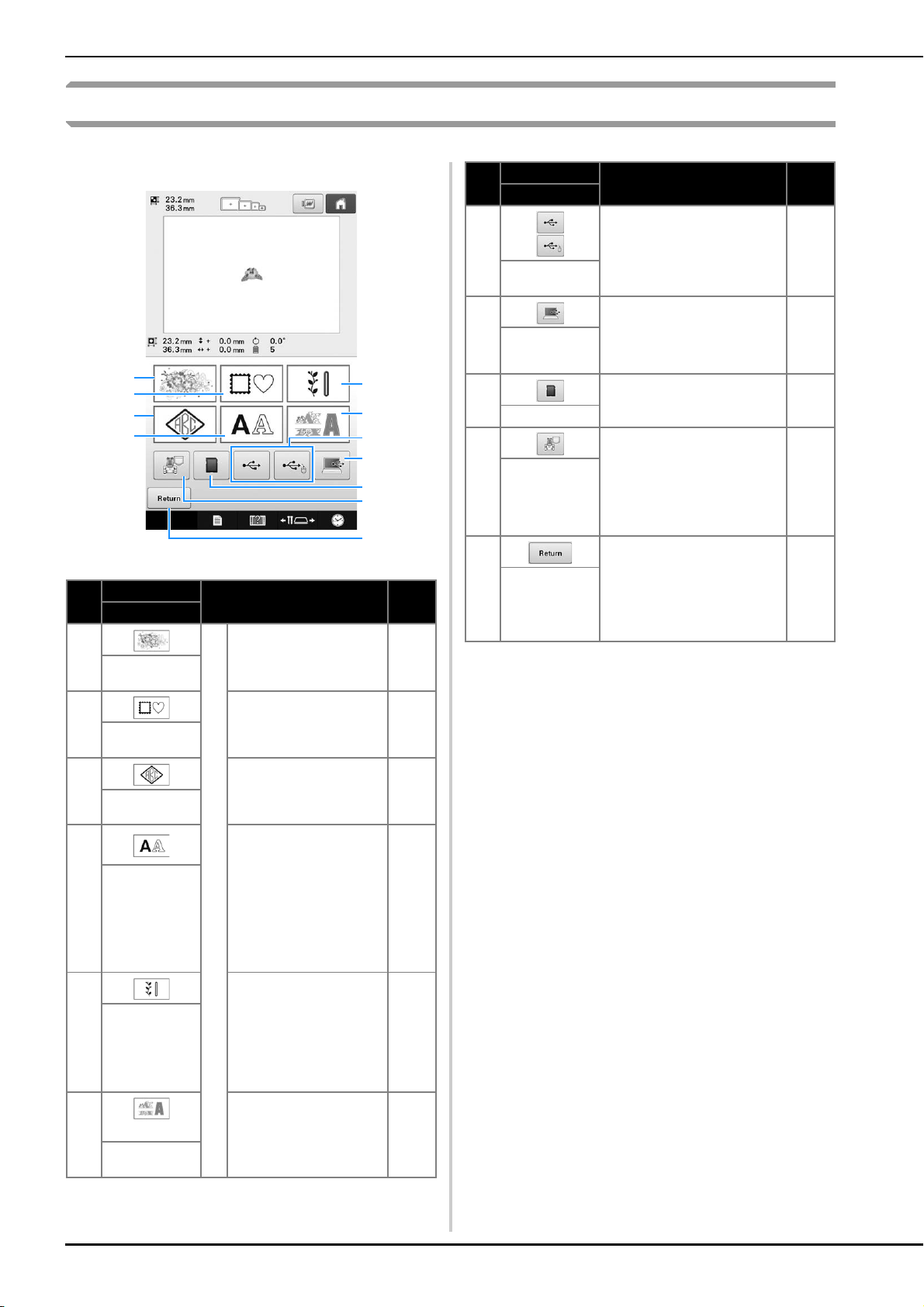

Understanding the pattern type selection screen

1 2

In this screen, select a pattern category (type).

No.

Display

Key Name

Function Page

USB media

keys

Computer (USB) key

SD card key

Embroidery

No.

Display

Key Name

Embroidery pattern key

Frame pattern

key

Monogram

and frame key

Alphabet key

Utility

embroidery

pattern/Large

buttonhole pattern key

Decorative

alphabet key

Function Page

The embroidery pattern for a design can be selected.

14 stitch types can be combined with 10 frame shapes, such as a circle and a square.

Monogram designs can be created by combining two or three letters.

Uppercase and lowercase letters, numbers, symbols and accented characters from 37 fonts can be selected in small, medium and large sizes. Japanese fonts can be

Built-in patterns

selected in large and small sizes.

Various utility embroidery patterns and large buttonhole patterns can be selected. Large buttonhole patterns can be selected from small, medium and large sizes.

Various character patterns, such as floral characters, appliqué characters and so on, can be selected.

p.125

p.126

p.127

p.130

p.127

p.133

patterns

stored in the

machine

memory key

Return key

Recalls patterns from USB media.

By using the included USB cable to connect a computer to the embroidery machine, patterns can be recalled from the computer.

Recalls patterns from SD cards.

Recalls patterns stored in the machine’s memory.

This key is not displayed unless a pattern is selected. Touch this key to quit trying to add another pattern from the pattern type selection screen. Return to the pattern editing screen.

p.138

p.139

p.138

p.137

p.146

EMBROIDERING TUTORIAL

8 0

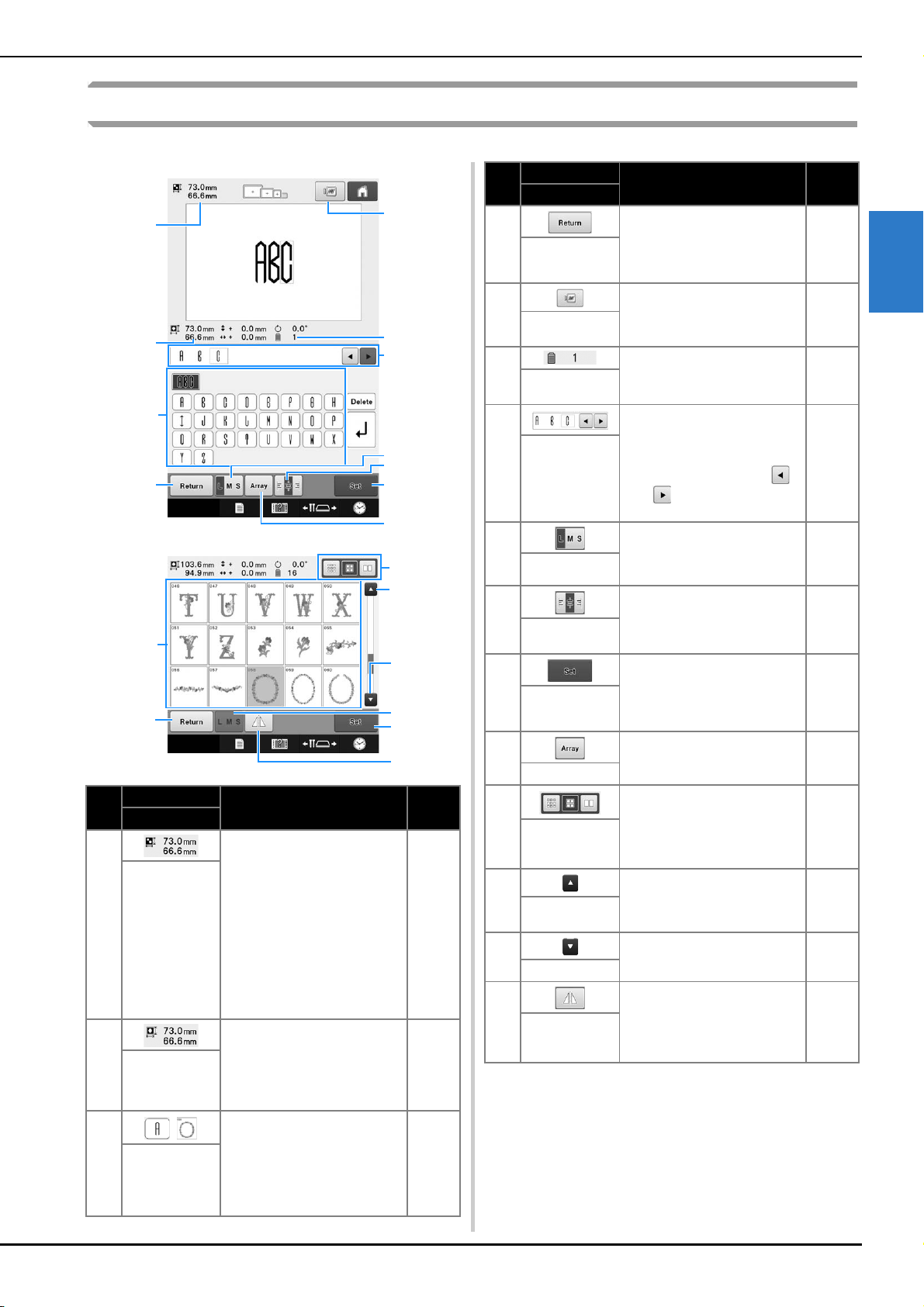

Understanding the pattern list screen

In this screen, select the pattern.

No.

Display

Key Name

Size

Pattern keys

Function Page

Shows the size of the embroidery pattern currently displayed in the pattern display area. The top value shows the height and the bottom value shows the width. If the embroidery pattern consists of multiple patterns that have been combined, the size of the entire pattern, including all patterns, is shown.

Shows the size of the pattern selected when its pattern key is touched. The top value shows the height and the bottom value shows the width.

An image of the pattern appears on the key. Touch the image to select the pattern. Drag your finger up and down in this area to scroll through the pages.

–

p.124

Display

Key Name

Touch to leave the currently selected pattern category and choose a different

Return key

Preview key

Number of

thread colors

Text preview

area

Size key

Text

alignment key

Set key

Array key

Thumbnail

size selection

key

Next page key

Horizontal

mirror image

key

* Some patterns cannot be edited with 8, 9, A or

category. Returns to the pattern type selection screen.

Displays an image of the pattern that is to be embroidered so it can be previewed.

Shows the number of thread colors for the currently selected embroidery pattern.

The character information of an entered character pattern can be checked here. Since characters will be entered

after the red cursor, use and to change the input

position.

Allows the size of the currently selected embroidery pattern to be changed.

Touch to select a left, center or right alignment for a paragraph of a multi-line character pattern.

Touch after selecting the pattern. The selection of the pattern is confirmed and the pattern editing screen appears.

Touch this key to change the configuration of a character pattern.

The size of the pattern thumbnails can be set to large, medium or small.

Touch this key to display the previous page.

Touch this key to display the next page.

Flips the pattern being selected horizontally.

Function Page

p.124

p.41

–

p.132

p.131

p.133

p.125

p.132

p.125

p.149

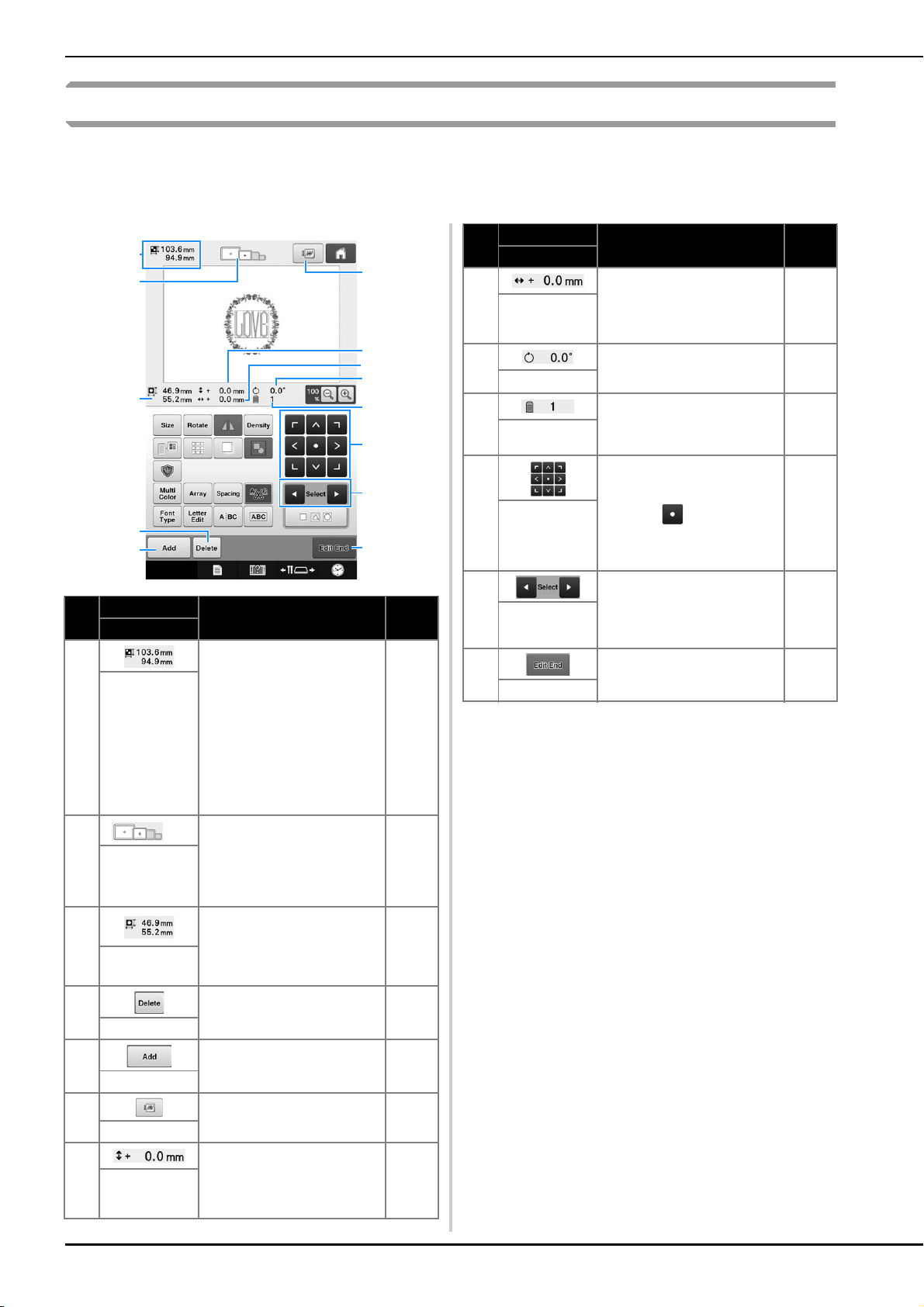

Understanding the pattern editing screen

In the pattern editing screen, patterns can be individually edited. (The entire pattern cannot be edited from this screen.) The pattern selected in the pattern display area can be repositioned, resized, rotated and rearranged, and its color scheme can be changed. In addition, multiple patterns can be selected and combined. Entered character patterns can also be edited in various ways.

No.

Display

Key Name

Pattern size

Embroidery

frame

indicators

Size

Delete key

Add key

Preview key

Function Page

Shows the sizes of embroidery frames that can be used to sew the embroidery pattern currently displayed in the pattern display area.

Shows the size of the pattern being edited. The top value shows the height and the bottom value shows the width.

Deletes the pattern. If touched, the pattern being edited is deleted.

Adds a pattern. If touched, the pattern group selection screen appears.

Displays an image of the pattern so that it can be previewed.

–

p.42

–

p.171

p.146

p.41

Display

Key Name

Distance from

center

(horizontal)

Rotation angle

Number of

thread colors

Positioning

keys

Pattern

selection keys

Edit End key

Function Page

Shows the horizontal distance that the pattern being edited is moved.

Shows the rotation angle that the pattern being edited is rotated.

Shows the total number of thread colors for the pattern that is being edited.

Moves the sewing position of the pattern that is being edited in the direction of the

arrow. (If is touched, the sewing position is moved to

the center of the embroidering area.)

Selects the pattern that is being edited when the embroidery pattern consists of multiple patterns that have been combined.

Finish editing and continue to the embroidering settings screen.

p.148

p.152

–

p.148

p.147

p.46

Distance from

center

(vertical)

Shows the vertical distance that the pattern being edited is moved.

p.148

EMBROIDERING TUTORIAL

8 9

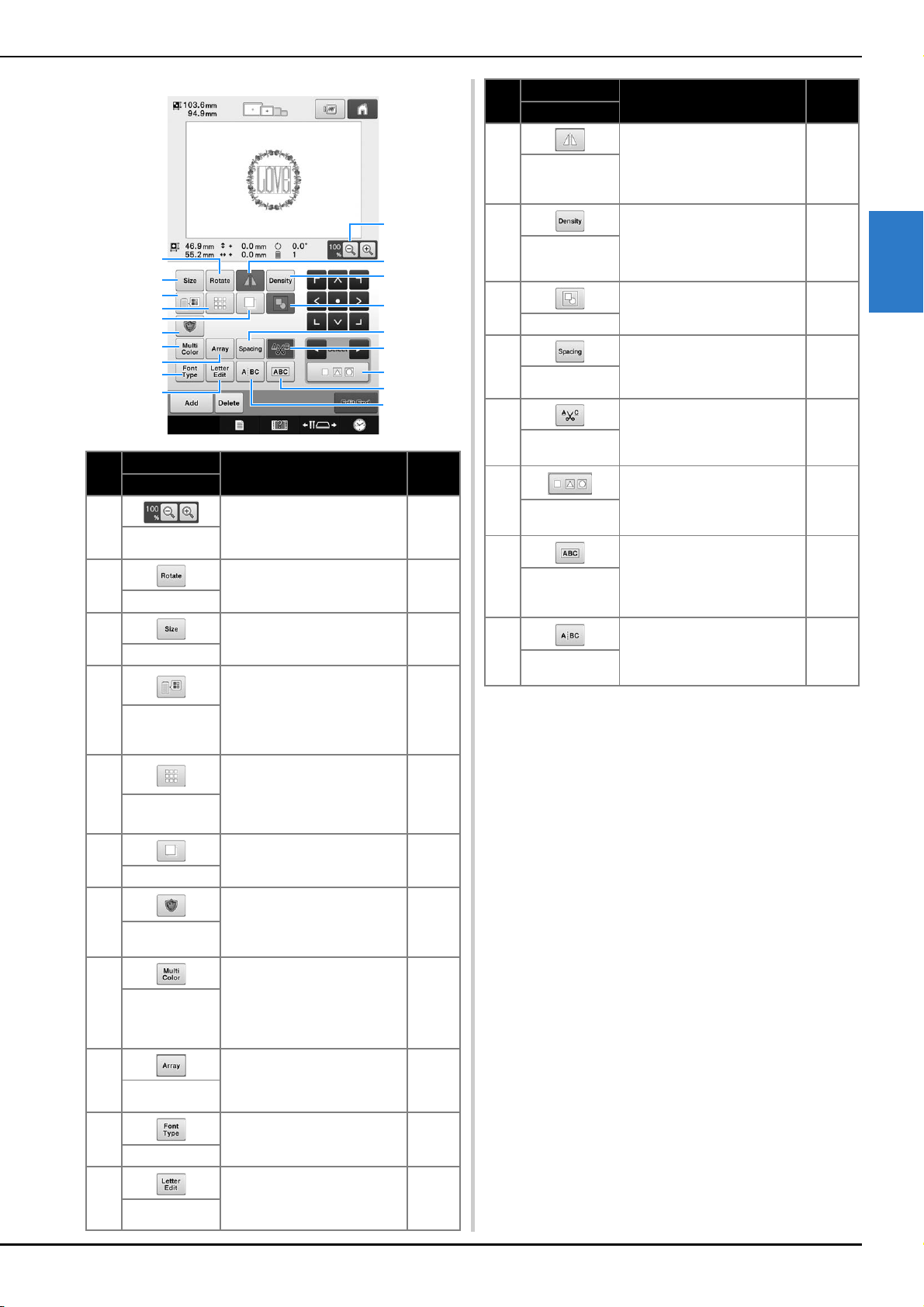

No.

Display

Key Name

Enlarge key

Rotate key

Size key

Function Page

Select from 100%, 125%, 150% or 200% to adjust how the pattern being edited is displayed.

Rotates the pattern that is being edited.

Changes the size of the pattern that is being edited.

p.146

p.152

p.150

No.

Display

Key Name

Horizontal

mirror image

key

Density key

Grouping key

Spacing key

Thread trim

setting key

Multiple

selection key

Text

combining

key

Text dividing

key

Function Page

Flips the pattern being edited horizontally.

Changes the density of the pattern that is being edited; can only be used if an alphabet or frame pattern is selected.

Touch to group the multiple selected patterns.

Changes the spacing between the characters in the character pattern that is being edited.

Automatically trim any excess thread jumps within the letters of alphabet pattern.

Touch to select multiple patterns.

Touch to group the selected character patterns.

Touch to ungroup the selected character pattern.

p.149

p.157

p.148

p.153

p.155

p.147

p.155

p.154

6 Duplicates the pattern. p.171

Change

thread color

key

Border key

Duplicate key

Embroidery

Appliqué key

Multi Color

key

Array key

Font Type key

Letter Edit key

Changes the color of the pattern.

Makes and edits a repeating pattern.

Touch to change the pattern being edited into an appliqué pattern.

Enables the thread color of each character in an alphabet pattern to be changed; can only be used when an alphabet is selected.

Changes the orientation of the characters in the alphabet pattern that is being edited.

Touch to change the font of the character pattern being edited.

Touch to change the size and font of individual characters in the character pattern being edited.

p.157

p.162

p.106

p.156

p.153

p.156

Understanding the embroidering settings screen

From this screen, the entire pattern can be edited and embroidering settings can be specified. In addition, the embroidering position can be checked and a pattern can be saved for later use. Keys available in this screen differ when you set “Manual Color Sequence” to “ON” in settings screen. (Refer to page 70 and

108.)

No.

Display

Key Name

Pattern size

Embroidery

frame

indicators

Distance from

center

(vertical)

Distance from

center

(horizontal)

Rotation angle

Number of

thread colors

changes

Function Page

Shows the sizes of embroidery frames that can be used to sew the embroidery pattern currently displayed in the pattern display area.

Shows the vertical distance that the pattern being combined/edited is moved.

Shows the horizontal distance that the pattern being combined/edited is moved.

Shows the rotation angle that the pattern being edited is rotated.

Shows the total number of thread colors for the pattern that is being edited.

–

p.42

p.89

p.91

p.172

–

EMBROIDERING TUTORIAL

No.

Display

Key Name

Color sorting

key

Individual

region

setting key

Embroidery

basting key

Rotate key

Function Page

Specifies that the sewing sequence for multiple patterns that have been combined be rearranged by thread color.

Touch to change the setting the thread color individually, for example, pause function or deselect region function.

When stabilizer material is not affixed to the fabric, sew basting stitches along the outline of the pattern to minimize shrinkage of the stitching and misaligned patterns.

Rotates the entire embroidery pattern when it consists of multiple patterns that have been combined.

p.162

p.118 p.110

p.105

p.91

p.172

No.

Display

Key Name

Positioning

keys

Frame movement speed keys

Starting/

ending

position key

Embroidery

key

Trial sewing

key

Function Page

Moves the sewing position of the whole pattern in the direction of the arrow. (If

is touched, the sewing

position is moved to the center of the embroidering area.)

Selects the speed to move the frame.

Touch to move the

frame by 0.1 mm.

Touch to move the

frame by 0.5 mm.

Keep touching to move

the frame at maximum speed.

Specifies the needle position at the beginning of sewing and at the end.

Finish all operations in the embroidering settings screen and continues to the embroidering screen.

Moves the embroidery frame so that the embroidering position can be checked.

p.89

p.113

p.48

p.47

Lock stitching

(end) key

Lock stitching

(beginning)

key

Edit key

Memory key

Preview key

Specifies that automatic lock stitch is sewn when the thread is trimmed.

Specifies that automatic lock stitch is sewn at the beginning of the pattern and at the beginning of sewing after thread trimming.

Touch to return to the pattern editing screen.

Save a pattern in the machine’s memory, USB media or a computer.

Displays an image of the pattern that is to be embroidered so it can be previewed.

p.112

–

p.135 p.136

p.41

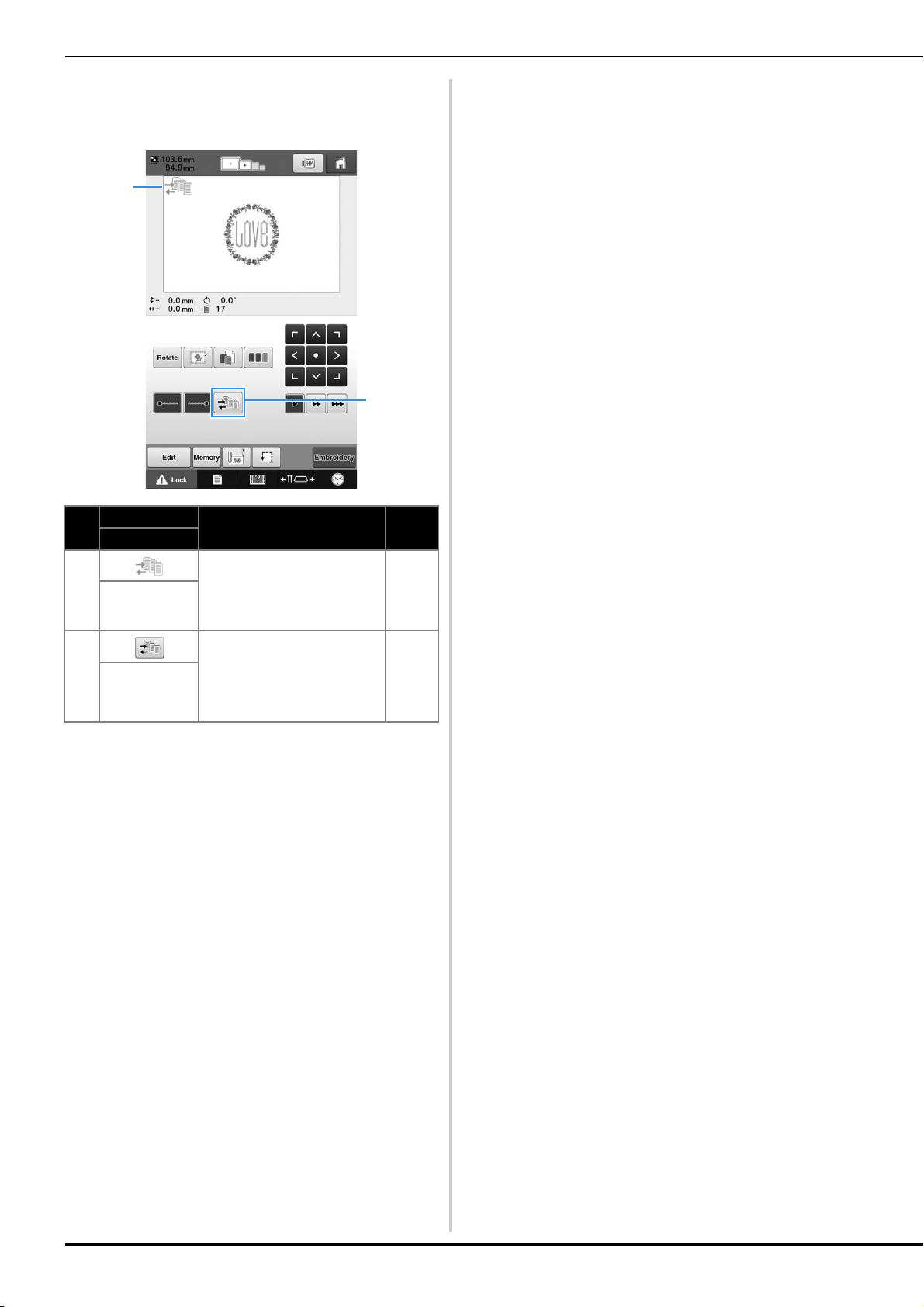

■ In the “Manual Color Sequence”

mode

No.

Display

Key Name

Manual color

sequence

mode icon

Manual color

sequence key

Function Page

This illustration appears when the sewing machine is in the “Manual Color Sequence” mode.

Touch to change the needle bar color setting. This key appears when you set “Manual Color Sequence” to “ON” in settings screen.

p.108

p.109

EMBROIDERING TUTORIAL

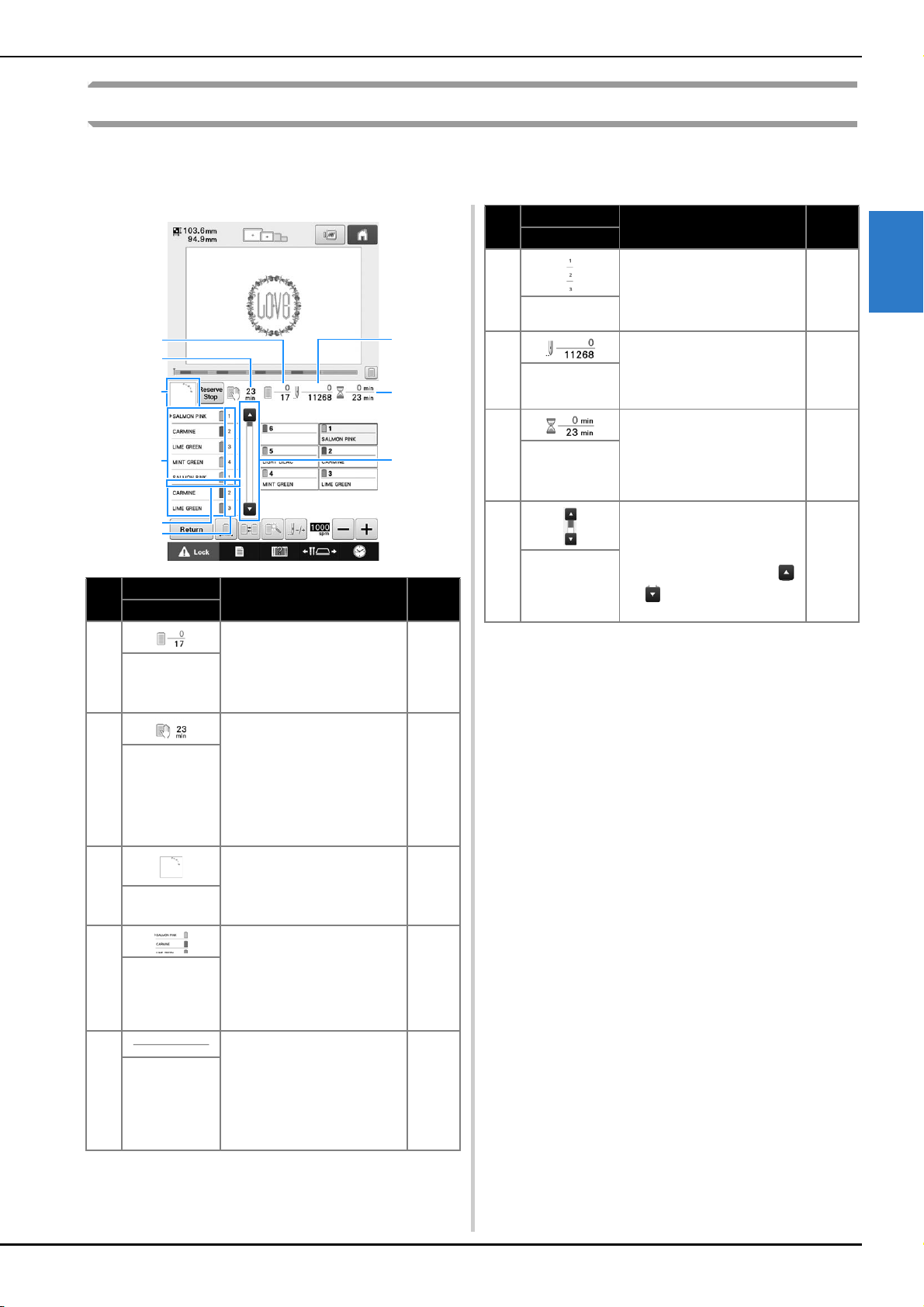

Understanding the embroidering screen

From this screen, the total number of thread colors and the sewing time can be checked, the needle bar settings can be specified, and the needle placement forward or backward can be done. Keys available in this screen differ when you set “Manual Color Sequence” to “ON” in settings screen. (Refer to page 108.)

No.

Display

Key Name

Sewing order

Time until the machine stops

Region display

Thread color

sequence

display

Spool change

indicator

Function Page

The bottom value shows the total number of thread colors in the pattern and the top value shows the thread colors that is currently being sewn.

Shows the amount of time until the machine will stop. When the last thread spool is being sewn, the number appears in red. If the thread color needs to be changed, this shows the time until the thread spool will need to be changed.

Shows the part of the pattern that will be sewn with the thread color shown first in the thread color sequence display.

Shows the order for the thread color changes. During embroidering, this display scrolls automatically so that the color of the thread currently being sewn appears at the top.

This red line indicator shows when the thread spools will need to be changed. The thread spools will need to be changed at the point between the two thread colors where the indicator is displayed.

–

p.94

–

p.95

Display

Key Name

Needle bar

number

Stitch count

Sewing time

Scroll bar

Function Page

Indicates the needle bar number where the thread color at the left is assigned.

The bottom value shows the total number of stitches in the pattern and the top value shows how many stitches have already been sewn.

The bottom value shows the total amount of time required to sew the pattern and the top value shows how much time has already passed sewing.

The thread color sequence display shows the first seven thread colors. To check the sequence for the eighth and

later thread colors, touch

or , or touch the scroll bar.

–

Memo

No.

Display

Key Name

Needle bar

key

Thread color

set up display

Function Page

Touch a key to move the needle bar position to the selected needle bar number. Use when threading the needle with the automatic needle-threading mechanism.

Shows the color and the thread color name (number) for the thread on the needle bar indicated on the key. Thread the machine as indicated here.

–

p.48

sewing speed

Maximum

key

Specifies the maximum sewing speed.

Moves the needle forward or backward through the stitching. Use this key in the following situations:

p.116

• If the thread breaks or

No.

Display

Key Name

Progress bar

Reserve Stop

key

Switch spool

key

(Not available

in the

“Manual

Color

Sequence”

mode)

Uninterrupted

embroidery

key/

Monochrome

Return key

Unlock key

Function Page

The embroidering progress is shown by the red mark in the

indicator. Touch to display (in the indicator) only the thread color being embroidered.

While sewing embroidery, touch this key for the machine to stop prior to the next color beginning.

Change the needle bar settings from the screen without changing the thread spools on the machine.

Touch to sew the pattern in the same color, regardless of specified color changes. The entire thread color sequence display will appear in the same color. The progress bar thread color setup display 7 will show the original colors.

Touch this key to quit sewing and return to the embroidering settings screen.

Unlocks the machine so it can start sewing within 10 seconds. When this key is touched, the start/stop button flashes in green.

1 and

–

p.117

p.93

p.119

–

p.57

Forward/

Backward

stitch key

Temporary needle bar

settings key

• The thread color numbers in the thread color sequence display and the thread color set up display can be changed, for example, to the color name or the thread color number for other brands. (Refer to “Changing the thread color information” on page 182.)

runs out while embroidering

• To restart sewing from the beginning

• To continue sewing after the machine was turned off

Enables the needle bar settings to manually be specified.

p.97

p.119

EMBROIDERING TUTORIAL

When You Have a Question, This May Help You

Technical terms:

■ DST

This is the extension of Tajima data file (*.dst) that is one of the data formats of embroidery patterns. Tajima data does not contain color information, therefore the embroidery machine automatically assigns colors when a Tajima (.dst) file is loaded. (Refer to page 200.)

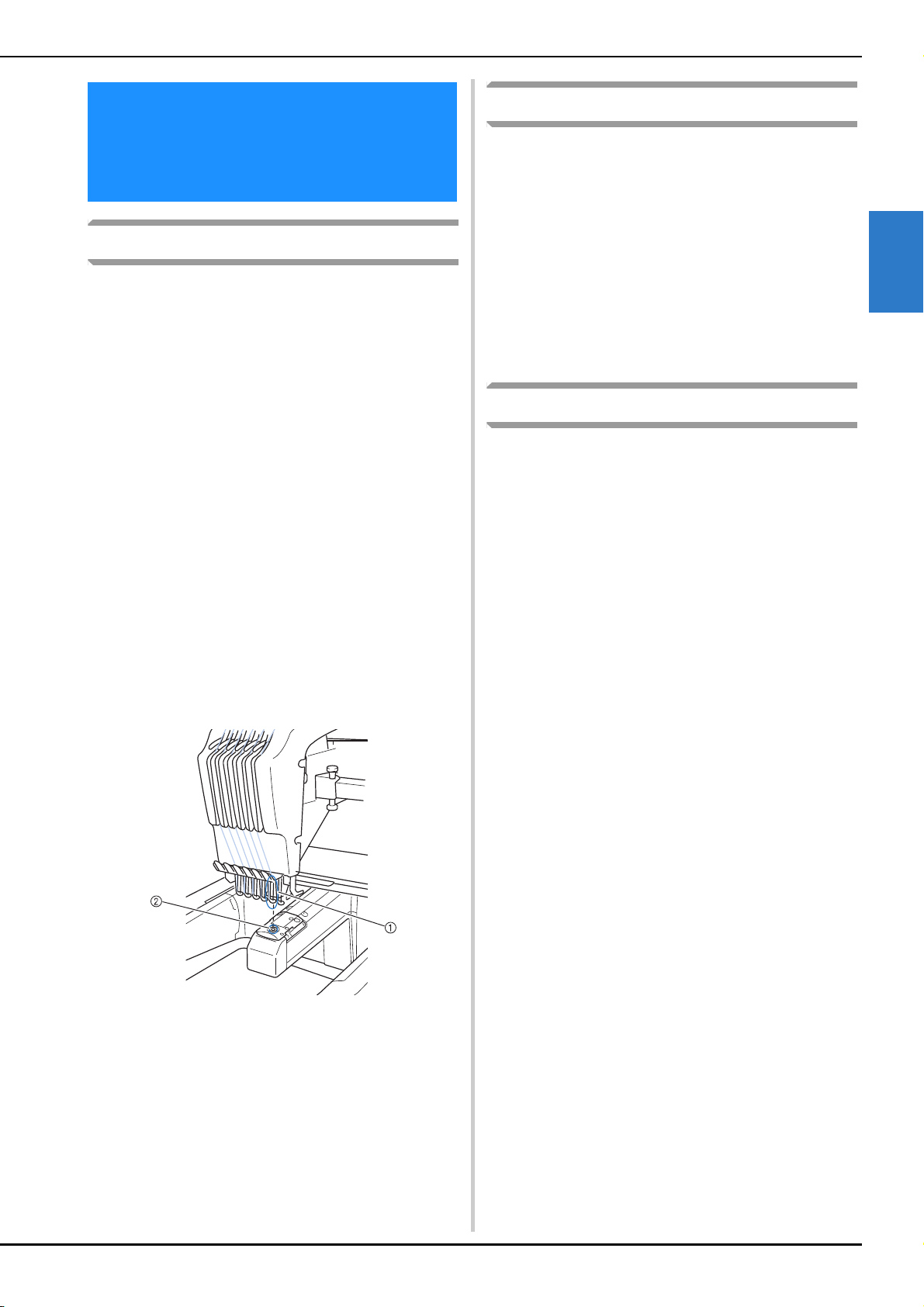

■ Needle number

The needles are numbered from right to left. The far right needle is number 1 needle. (Refer to page 7.)

■ Needle at the “embroidering position”

This is the needle that is placed above the needle hole in the needle plate. The needle bar case is moved to position that particular needle with the next thread color to the “embroidering position”. Also when using the needle threader, the needle that is going to be threaded should be moved to the “position of embroidery”. (Refer to page 55 and page 56.)

Patterns:

Following patterns can be processed by the machine to embroider.

- Use USB media or SD cards to transfer the embroidery data with *.pen, *.pes, *.phc or *.dst format to the machine. Using the USB cable, the data can be transferred from the PC to the machine.

- Optional embroidery cards

- Embroidery patterns created by digitizing software program

- The patterns saved on USB media or SD cards by the machine

Embroidering:

■ Customize the embroidery colors

- Use the thread color function by selecting either 64 colors or 300 colors, or by setting the custom thread color table on the pattern editing screen. For more details, see page 167 and page 169.

- Use the manual color sequence function in the embroidering settings screen. For more details, see page 108.

- Use the “Temporary needle bar setting” function by selecting the key on the “Embroidering” screen. More details please see the page 119.

■ Resume an unfinished pattern from the last time the machine was switched off.

- The machine remembers the pattern and the

position even after turning off the power. And the machine can resume the embroidery when the machine turns on again. (Refer to “Resume Embroidering After Turning Off the Machine” on page 101.)

1 Needle 2 Needle hole in the needle plate

■ Wiper

This is the mechanism for pulling the thread. The wiper pulls the thread when the needle threader is used. The wiper also pulls the thread from the material when the machine trims the thread. This makes trimming threads after embroidering un-necessary. (Refer to page 55.)

■ Getting false thread breakage error

Note

- Check that the position of the upper thread is under the upper thread guide plates. (Refer to page 50.)

- Check that the position of the upper thread is around the thread tension disc. (Refer to page 52.)

- Check that no lint or dust has accumulated in the thread tension disc. If it has, remove it. (Refer to “Cleaning the thread paths of the upper threads” on page 213.)

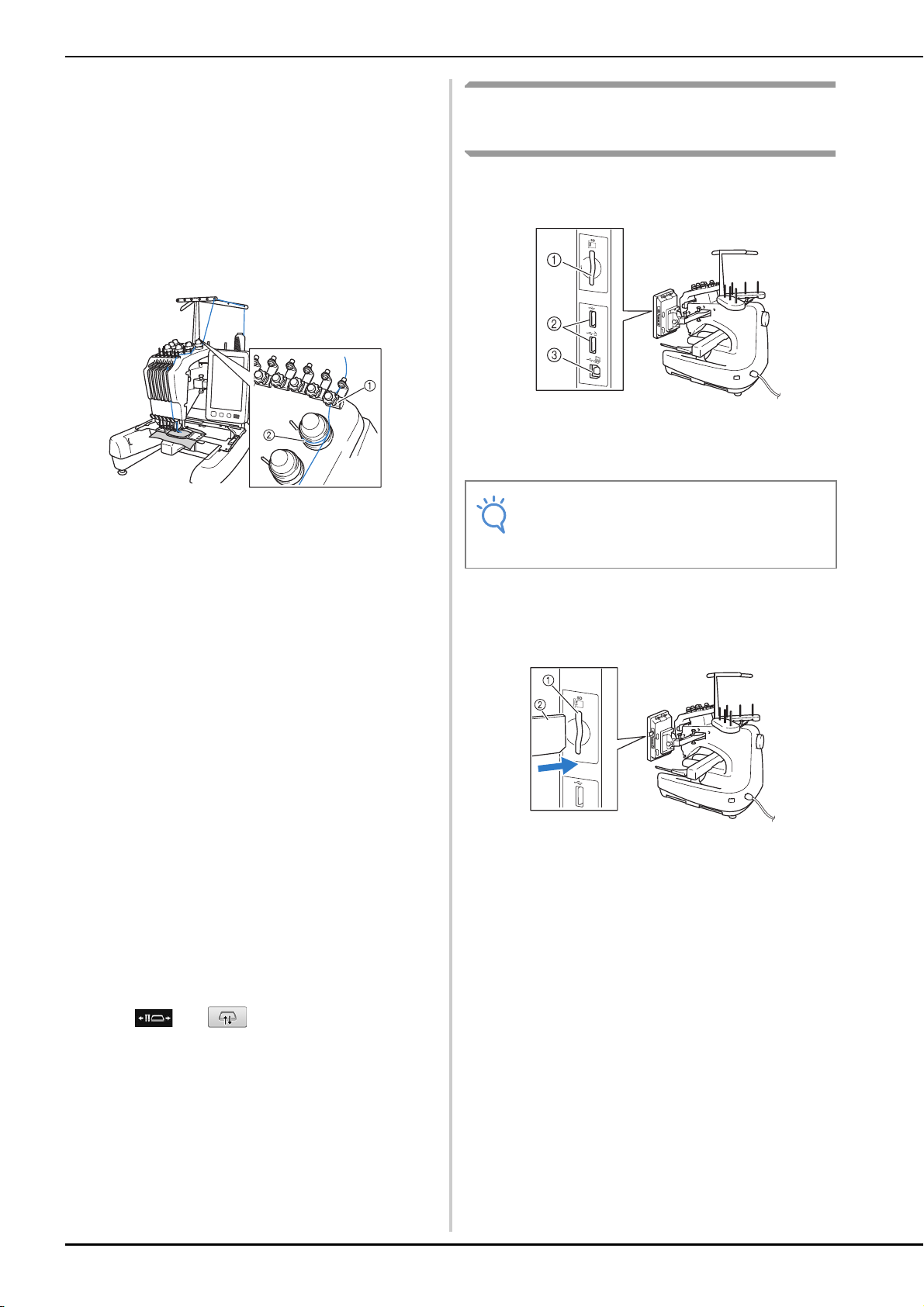

Useful external connection functions

You can access various patterns by using the machine’s USB port and SD card slot.

1 SD card slot 2 USB ports for media (USB 2.0) 3 USB port for computer

1 Upper thread guide plates 2 Thread tension disc

■ Thread tension changed suddenly

- Thread is caught on a rough edge of the spool of upper thread.

- Upper thread is caught under the spool of thread.

- The thread dust or lint is gathered under the bobbin’s tension spring.

- Check that no lint or dust has accumulated in the thread tension disc. If it has, remove it. (Refer to “Cleaning the thread paths of the upper threads” on page 213.)

■ The embroidery frame becomes separated from the carriage

Make sure that the positioning pins are placed into the frame’s positioning slot and hole. (Refer to page 45.) To insure proper registration of pattern for embroidery, turning off the machine and turning it back on will allow the embroidery arm to reset it’s registration points.

■ Unable to detach the frame from the machine

• Do not insert anything other than USB media into the USB media port. Otherwise, the USB media drive may be damaged.

■ Using SD cards

When using SD cards to import or export pattern data, insert the card into the SD card slot.

1 SD card slot 2 SD card

Touch and to move the carriage, then the frame will be detachable. (Refer to page 81.)

■ Cancel the current design and start again

Select the “Home” key on the upper right of the screen. The pattern and all information will be deleted. (Refer to page 36.)

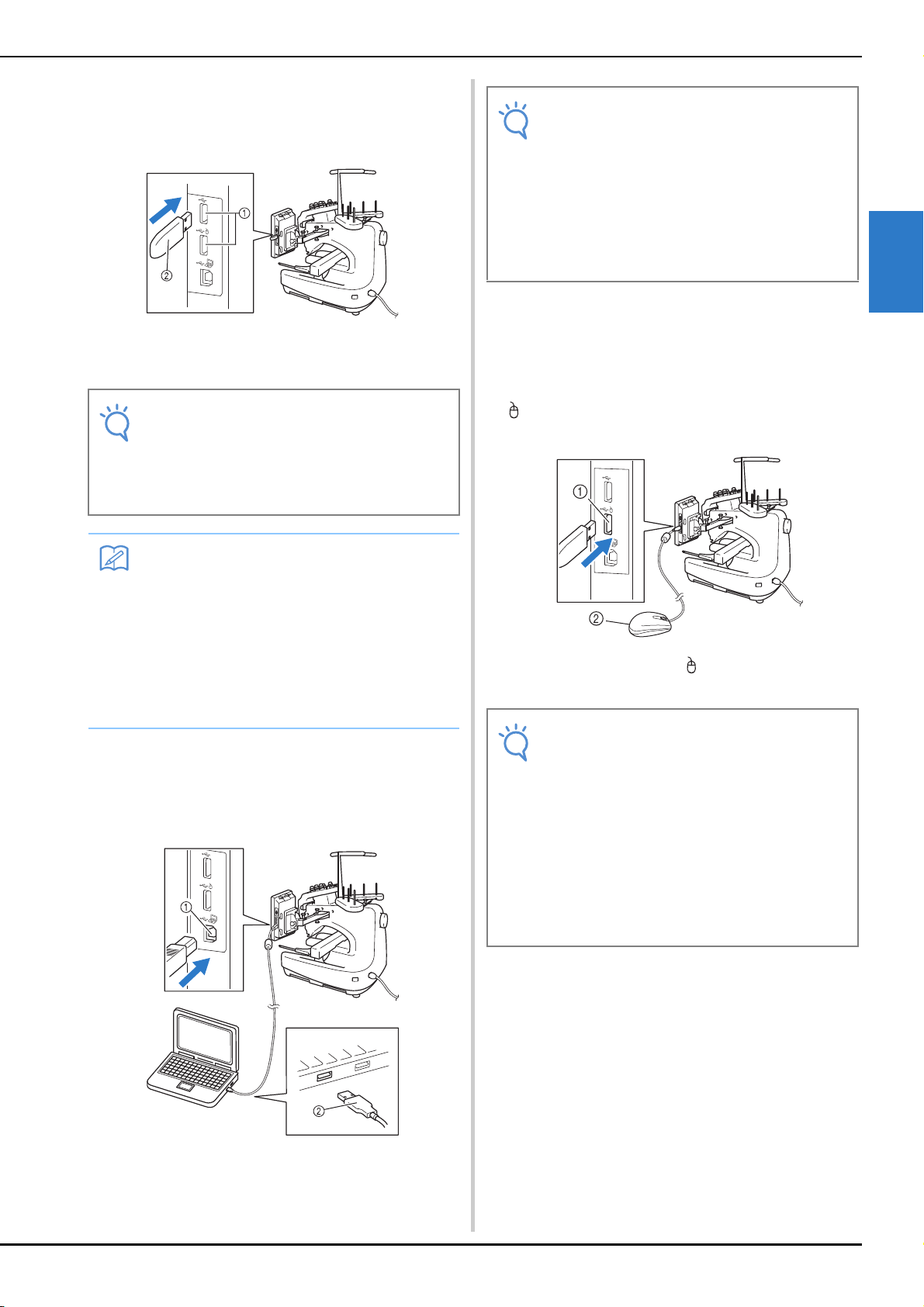

■ Using USB media

Note

Memo

Note

When sending or reading patterns using the USB media, connect the device to the USB port.

1 USB ports 2 USB media

• The processing speed may vary by quantity of data.

• Do not insert anything other than USB media into the USB media port. Otherwise, the USB media drive may be damaged.

EMBROIDERING TUTORIAL

• The connectors on the USB cable can only be inserted into a port in one direction. If it is difficult to insert the connector, do not insert it with force. Check the orientation of the connector.

• For details on the position of the USB port on the computer (or USB hub), refer to the instruction manual for the corresponding equipment.

■ Using a USB mouse

The USB mouse, connected to the sewing machine, can be used to perform a variety of operations in the screens. Connect a USB mouse to the USB port marked with

. You can also connect a USB mouse to the other

USB port.

• USB media is widely used, however some USB media may not be usable with this machine. Please visit our website ( http://s.brother/cpbac ) for more details.

• Depending on the type of USB media being used, either directly plug the USB device into the machine's USB port or plug the USB media Reader/Writer into the machine's USB port.

■ Connecting the machine to the computer

Using the included USB cable, the sewing machine can be connected to your computer.

1 USB port marked with 2 USB mouse

• Do not perform operations with the mouse at the same time that you are touching the screen with your finger or the included touch pen.

• A USB mouse can be connected or disconnected at any time.

• Only the left mouse button and its wheel can be used to perform operations. No other buttons can be used.

• The mouse pointer does not appear in the screen saver.

1 USB port for computer 2 USB cable connector

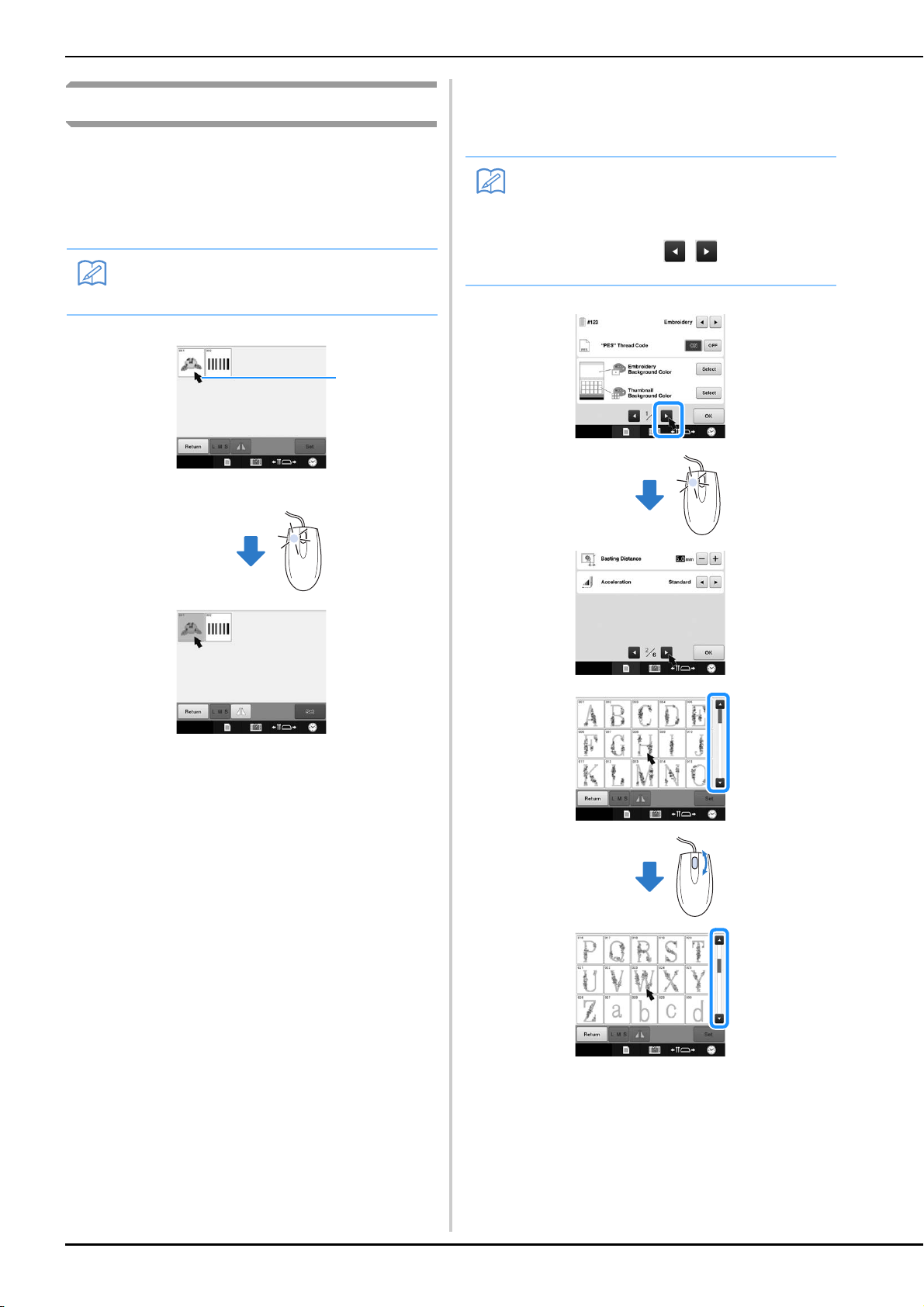

USB mouse operation

Memo

■ Clicking a key

When the mouse is connected, the pointer appears on the screen. Move the mouse to position the pointer over the desired key, and then click the left mouse button.

• Double-clicking has no effect.

1 Pointer

■ Changing pages

Rotate the mouse wheel to switch through the tabs of the pattern selection screens.

• If page numbers and a vertical scroll bar for additional pages are displayed, rotate the mouse wheel or click the left mouse button

with the pointer on / to display the previous or next page.

EMBROIDERING TUTORIAL

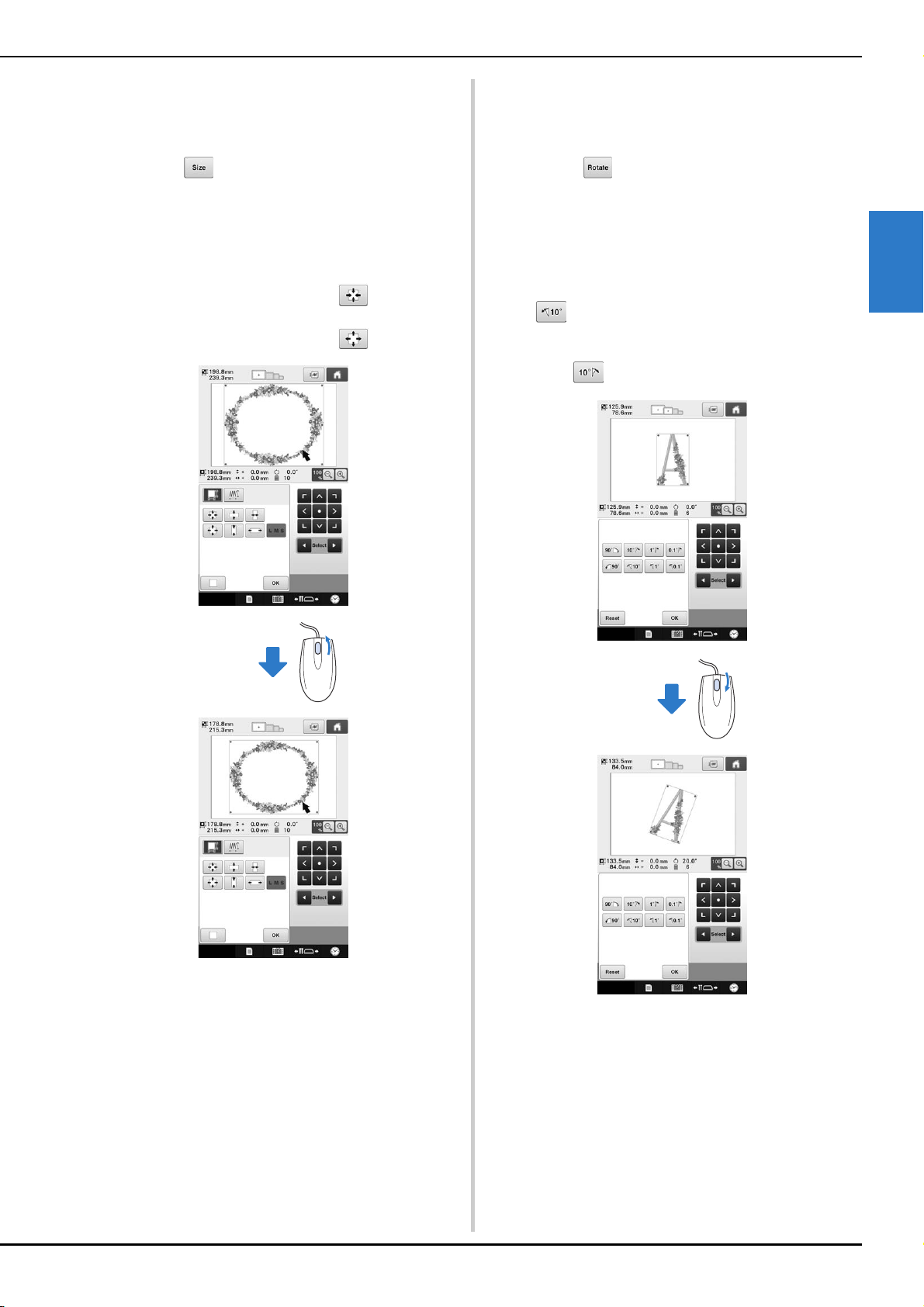

■ Changing the size

Refer to “Changing the size of a pattern (Normal resizing mode)” on page 150.

Touch .

Change the size of the pattern.

• Rotate the mouse wheel away from you to shrink the

pattern in the same way as when is touched.

• Rotate the mouse wheel toward you to enlarge the

pattern in the same way as when is touched.

■ Rotating the pattern

Refer to “Adjusting the angle” on page 91 and “Rotating a pattern” on page 152.

Touch .

Rotate the pattern.

• Rotate the mouse wheel away from you to rotate the pattern 10 degrees to the left in the same way as when

is touched.

• Rotate the mouse wheel toward you to rotate the pattern 10 degrees to the right in the same way as

when is touched.

Chapter 3

CAUTION

Note

This chapter provides explanations on operations other than those described in chapter 2, such as sewing a pattern with seven or more colors, changing the needles and changing thread spools.

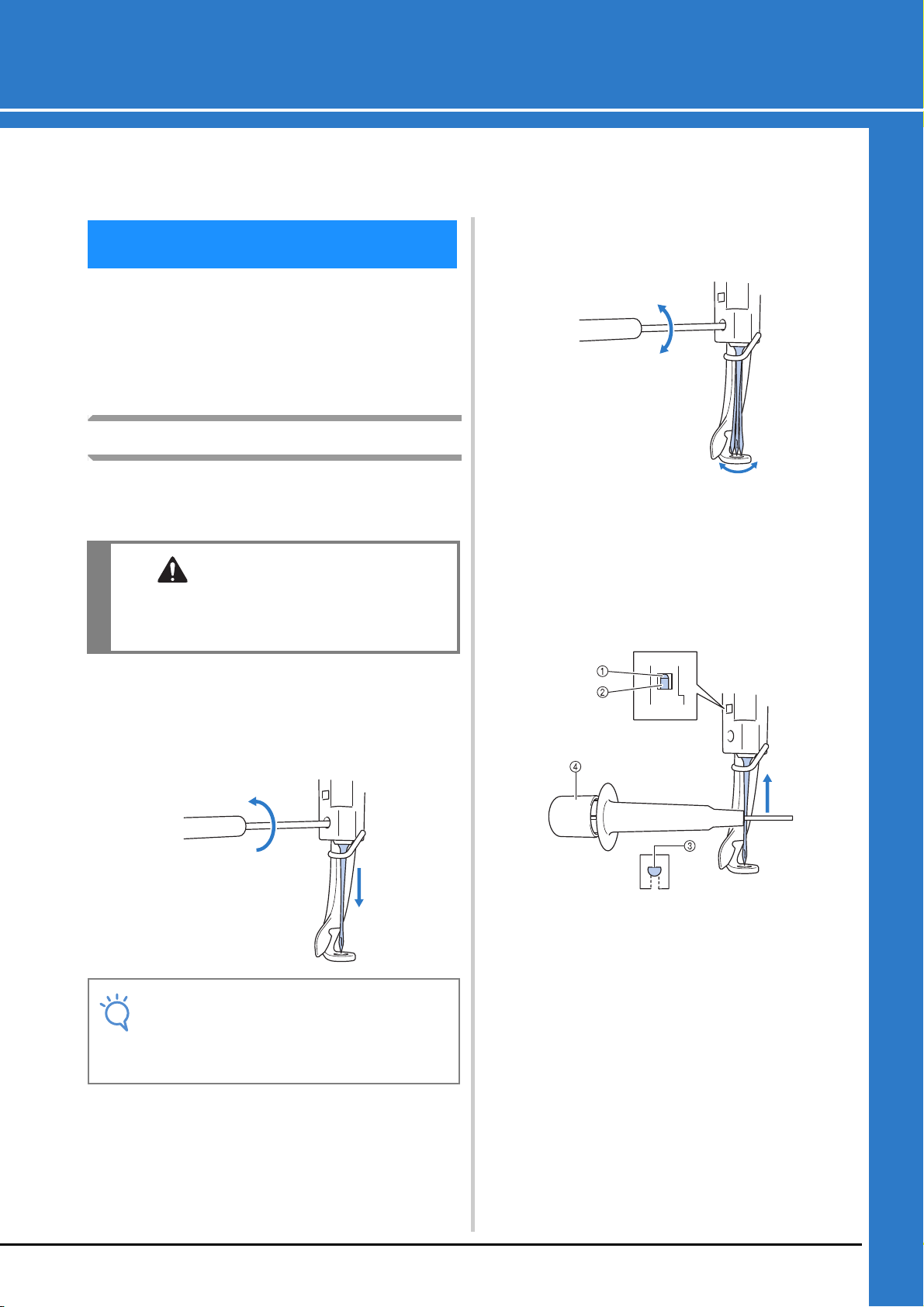

Changing the Needle

If the needle is bent or the tip of the needle is broken, replace the needle with a new one. Use the included Allen screw driver to replace the needle with one that is designed specifically for this machine and that passes the test described in “Checking the needle” on page 30.

OTHER BASIC PROCEDURES

• Do not apply extreme force when loosening or tightening the needle set screw, otherwise the machine may be damaged.

Replacing the needle

Turn off the embroidery machine.

• Be sure to turn off the embroidery machine before replacing the needle, otherwise injuries may result if the machine starts sewing.

With the flat side of the needle toward the

back of the machine, insert the needle all the way up until it touches the needle bar stopper.

Pass the needle through the hole in the presser foot, and then use the needle changing tool to lift up the needle.

Loosen the needle set screw and remove the

needle.

Hold the needle down with your left hand, and then hold the Allen screw driver in your right hand and turn the needle set screw counterclockwise.

• Be sure to use the included Allen screw

driver to replace the needle, otherwise too much force may be applied to the needle, causing it to break.

1 Needle bar stopper 2 Needle 3 Flat side of needle 4 Needle changing tool

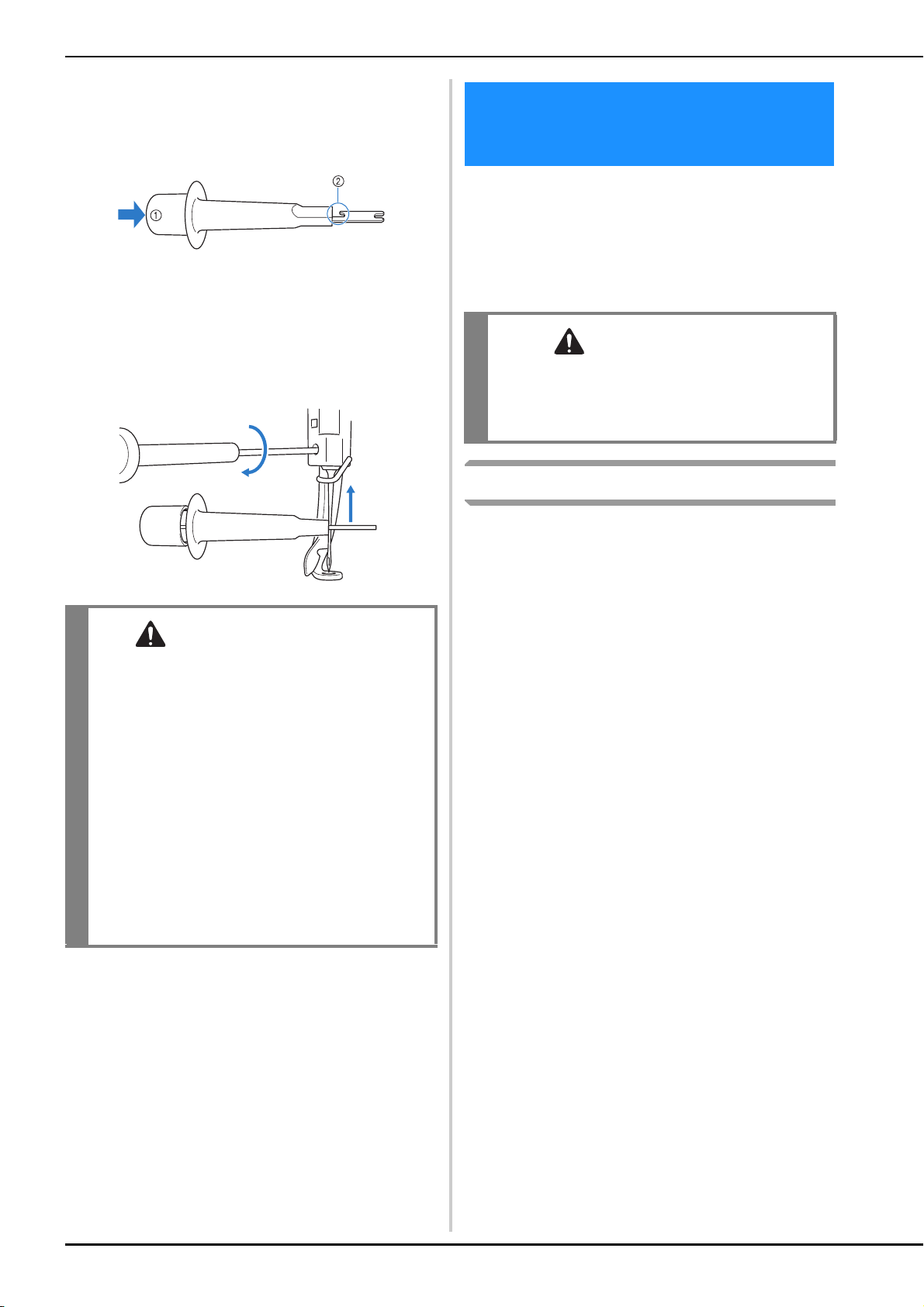

Hold the needle changing tool and press the end of the

CAUTION

needle changing tool 1 in to extend the needlemounting clamp 2. Attach the clamp to the needle, and then release the pressed area to clamp the needle. To unclamp the needle, press 1 again.

1 End of the needle changing tool 2 Needle mounting clamp

While holding the needle in place with your

left hand, tighten the needle set screw.

Use the Allen screw driver to turn the needle set screw clockwise.

• Be sure to insert the needle in the needle bar chamber until it reaches the needle bar stopper and securely tighten the needle set screw with the Allen screw driver, otherwise the needle may break or the machine may be damaged.

• If the hook of the automatic needle-threading mechanism is bent or damaged, contact your authorized Brother dealer.

Correctly Using the Embroidery Frames

Various types of embroidery frames can be used with this machine to suit your project. In addition to the four included embroidery frames, there are many frames that can be used with this embroidery machine. (Refer to “Optional Accessories” on page 21.)

• Only use embroidery frames of the sizes indicated in the screen, otherwise the embroidery frame may hit the presser foot, which may result in injuries.

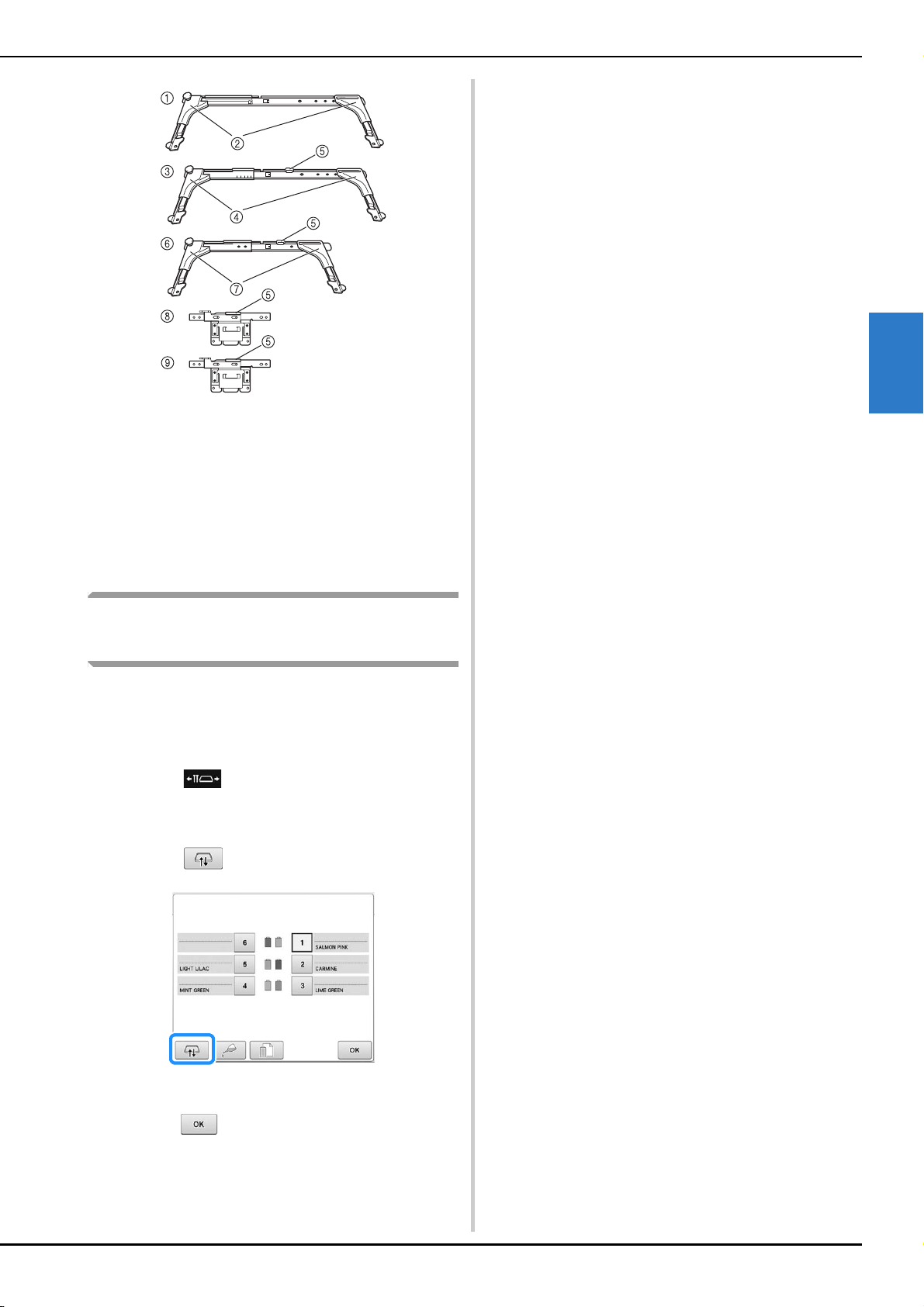

Embroidery frame holders

Two types of embroidery frame holders (embroidery frame holder A and embroidery frame holder B) are included with this machine.

Embroidery frame holder A is used with the four included embroidery frames. Embroidery frame holder B is used with the optional embroidery frames. In addition, if you purchase optional round frame set, clamp frame set or compact frame set, specified frame holder C, D or E is included. For details on which embroidery frame can be installed on each embroidery frame holder, refer to “Types of embroidery frames/frame holders and their applications” on page 82.

1 Embroidery frame holder A 2 White corner covers 3 Embroidery frame holder B 4 Light gray corner covers 5 Magnet 6 Embroidery frame holder C (optional) 7 Dark gray corner covers 8 Embroidery frame holder D (optional) 9 Embroidery frame holder E (optional)

OTHER BASIC PROCEDURES

When difficult to replace the embroidery frame

Depending on the position of the needle bars, it may be difficult to replace the embroidery frame. In that case, follow the procedure described below to move the embroidery frame.

Touch .

 The needle bar move screen appears.

Touch .

 The carriage automatically moves to a position

where the embroidery frame can easily be replaced.

• Touch to close the needle bar move screen

and to move the carriage to the previous position.

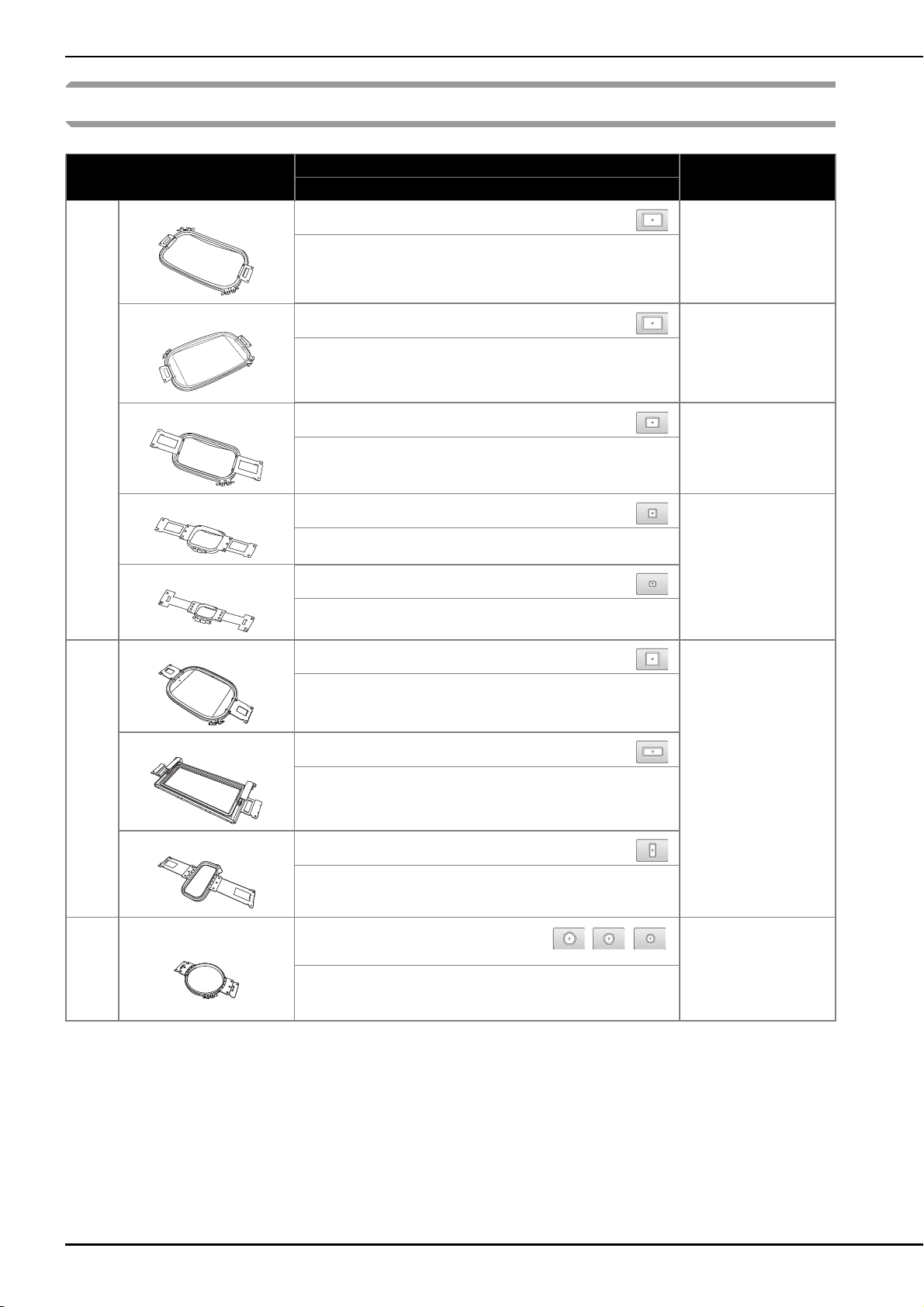

Types of embroidery frames/frame holders and their applications

Embroidery type

Extra-large embroidery frame 200 mm (H) × 300 mm (W)

(7-7/8 inches (H) × 11-3/4 inches (W))

Use when embroidering connecting characters or patterns, combined patterns or large embroidery patterns.

Flat frame (optional) 200 mm (H) × 300 mm (W)

Large embroidery frame 130 mm (H) × 180 mm (W)

Embroidery frame holder A

Medium embroidery frame 100 mm (H) × 100 mm (W)

Small embroidery frame 40 mm (H) × 60 mm (W)

(7-7/8 inches (H) × 11-3/4 inches (W))

Use when embroidering jackets and other thick garments.

(5-1/8 inches (H) × 7-1/8 inches (W))

Use when embroidering patterns with a size less than 130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W))

(4 inches (H) × 4 inches (W))

Use when embroidering standard-sized patterns.

(1-1/2 inches (H) × 2-3/8 inches (W))

Use when embroidering small-sized patterns, such as nametags.

Embroidering area

Usage

Reference

(Refer to “Hooping the Fabric” on page 85.)

Consult your nearest authorized Brother dealer.

(Refer to “Hooping the Fabric” on page 85.)

(Refer to “6. Hooping the Fabric in the Embroidery Frame” on page 42.)

Quilt frame (optional) 200 mm (H) × 200 mm (W)

Border frame (optional) 100 mm (H) × 300 mm (W)

Embroidery

frame holder B

Sleeve frame (optional) 200 mm (H) × 70 mm (W)

Round frame (optional) =diameter

(optional)

Embroidery

frame holder C

(7-7/8 inches (H) × 7-7/8 inches (W))

Use when embroidering pieces for quilts.

(4 inches (H) × 11-3/4 inches (W))

Use when embroidering a long string of characters or patterns.

(7-7/8 inches (H) × 2-3/4 inches (W))

Use when embroidering long items such as shirt sleeves.

100 mm (4 inches) 130 mm (5 inches) 160 mm (6 inches)

Use when adding a built-in embroidery pattern to a sleeve. Select the frame appropriate for the size of the pattern.

Consult your nearest authorized Brother dealer.

OTHER BASIC PROCEDURES

Note

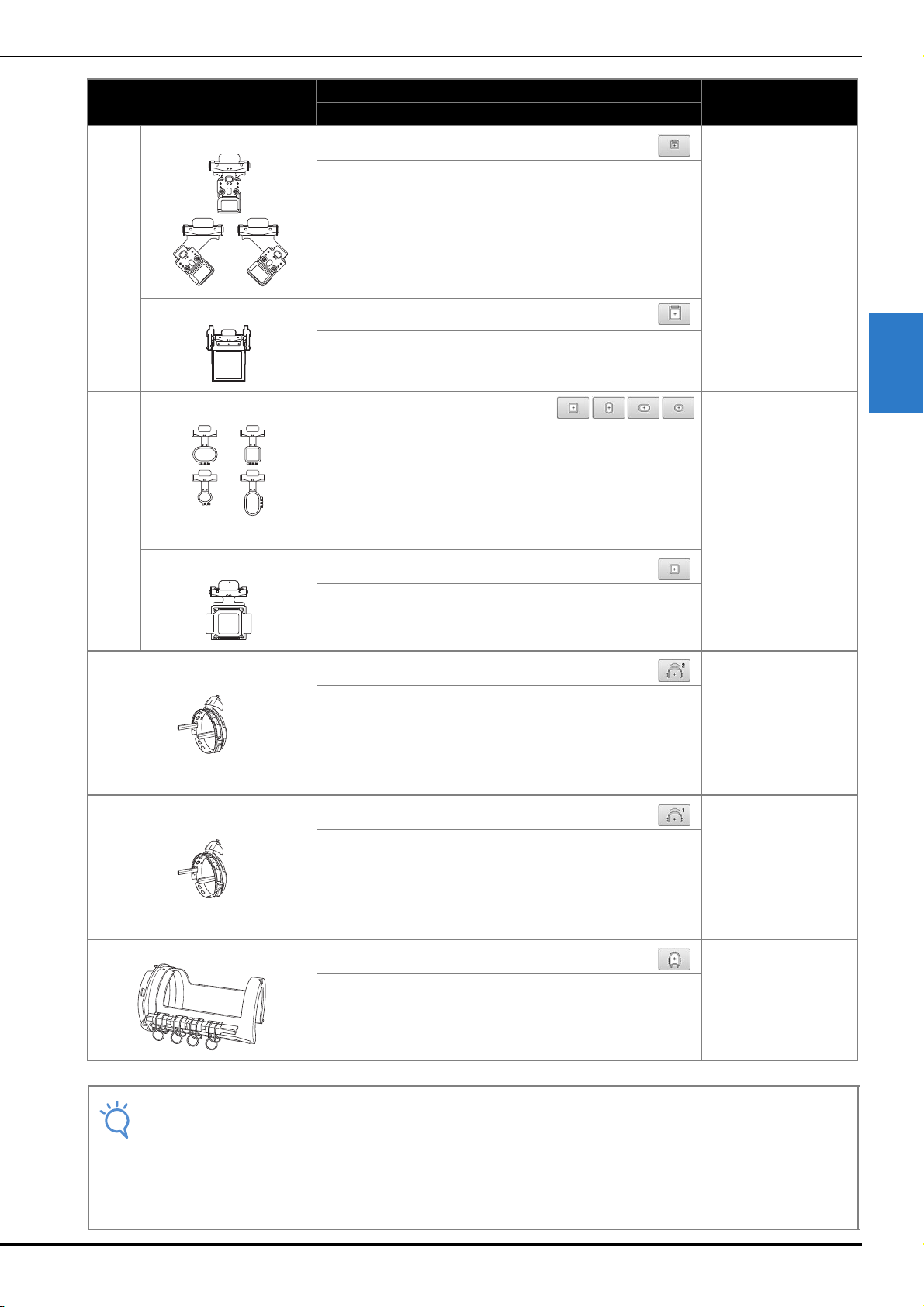

Embroidery type

Clamp frame S (optional) 24 mm (H) × 45 mm (W)

(optional)

Embroidery

frame holder D

Clamp frame M (optional) 100 mm (W) × 100 mm (H)

Compact frame (optional) 70: 41 mm (H) × 70 mm (W)

(optional)

Embroidery

Magnetic frame (optional) 50 mm (H) × 50 mm (W)

frame holder E

(7/8 inches (H) × 1-3/4 inches (W))

Use when embroidering specialty shaped items that cannot be held in normal frames, such as shoes and gloves.

(4 inches (H) × 4 inches (W))

Use when embroidering specialty shaped items, such as narrow bags.

(1-5/8 inches (H) × 2-3/4 mm (W))) 50: 50 mm (H) × 50 mm (W) (2 inches (H) × 2 inches (W)) 44: 38 mm (H) × 44 mm (W) (1-1/2 inches (H) × 1-3/4 inches (W)) Vertical: 33 mm (H) × 75 mm (W) (1-5/16 inches (H) × 2-15/16 inches (W))

Use when embroidering logos or embroidery patterns on small items.

(2 inches (H) × 2 inches (W))

Use to prevent the embroidery frame from leaving traces in the fabric.

Embroidering area

Usage

Reference

Consult your nearest authorized Brother dealer.

Advanced cap frame 2 (optional) 60 mm (H) × 130 mm (W)

(2-3/8 inches (H) × 5-1/8 inches (W))

Use when embroidering caps. Baseball (golf) caps, tulip hats and bucket hats can be embroidered with these frames. These frames cannot be used with hats having a front area of 60 mm (2-3/8 inches) or less, such as sun visors and children’s hats. In addition, these cannot be used with hats that have a brim longer than 80 mm (3-1/8 inches).

Advanced cap frame 50 mm (H) × 130 mm (W)

(2 inches (H) × 5-1/8 inches (W))

Use when embroidering caps. Baseball (golf) caps, tulip hats and bucket hats can be embroidered with these frames. These frames cannot be used with hats having a front area of 50 mm (2 inches) or less, such as sun visors and children’s hats. In addition, these cannot be used with hats that have a brim longer than 80 mm (3-1/8 inches).

Cylinder frame (optional) 80 mm (H) × 90 mm (W)

(3 inches (H) × 3-1/2 inches (W))

Use when embroidering tubular and curved fabric, such as shirt sleeves and turtlenecks.

Consult your nearest authorized Brother dealer.

• The embroidery frame indicators show all embroidery frame sizes in which the embroidery pattern can be sewn. Be sure to use an embroidery frame of the most suitable size. If the embroidery frame that is used is too large, the pattern may be misaligned or the fabric may pucker.

• Due to the weight of the embroidery frame and fabric it is recommended that the optional table be used, to prevent the frame holder from bending, which may result in the distortion of your design or machine damage.

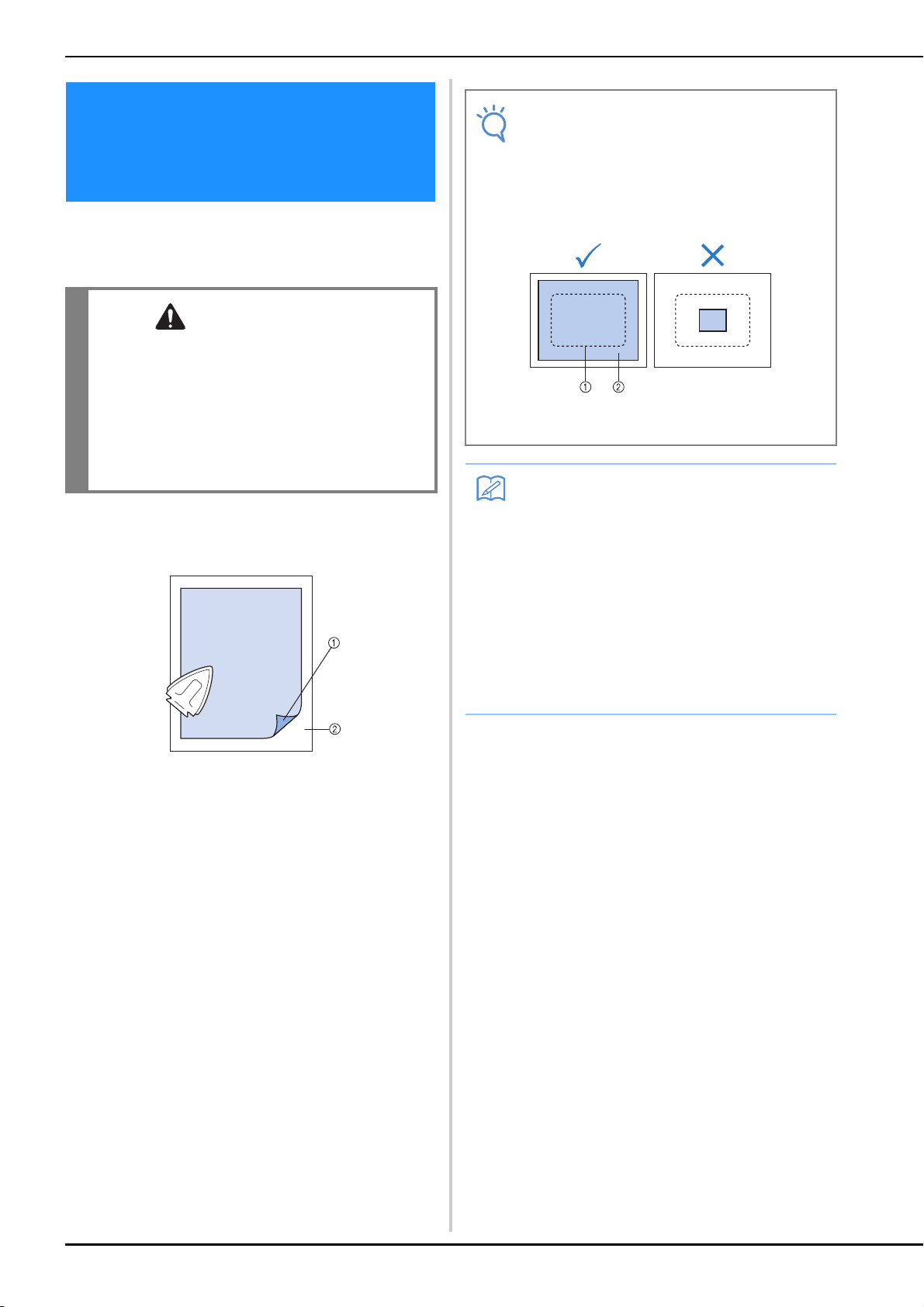

Attaching Iron-On

CAUTION

Note

Memo

Stabilizer (Backing) to Fabric

In order to prevent shrinkage of the stitching or misaligned patterns, we recommend that iron-on stabilizer (backing) be used for embroidering.

• When embroidering on thin or stretch fabrics, fabrics with a coarse weave or fabrics that easily allow the stitching to shrink, be sure to use iron-on stabilizer (backing) for embroidering. If iron-on stabilizer (backing) is not used while embroidering, the needle may bend or break or the pattern may become misaligned.

Using an iron, affix the iron-on stabilizer

(backing) to the back of the fabric.

• Use a piece of iron-on stabilizer (backing) that is larger than the embroidery frame. When framing the fabric in the embroidery frame, be sure that the stabilizer (backing) is clamped on all edges in order to prevent wrinkles in the fabric.

1 Area of embroidery frame 2 Iron-on stabilizer (backing)

• When embroidering thin fabrics, such as organza or lawn, use a water-soluble stabilizer (backing). Water-soluble stabilizers dissolve when washed, allowing you to create beautiful embroidery that is not stiff.

• When embroidering fabric with a nap, such as towels or corduroy, hoop a layer of ironon stabilizer (backing) under the fabric in the embroidery frame without ironing it.

• For other uses of stabilizer (backing), refer to “Stabilizers (backing)” on page 202.

1 Adhesive side of iron-on stabilizer (backing) 2 Fabric (wrong side)

• When embroidering fabric that should not be ironed or when embroidering an area that is difficult to iron, hoop a layer of the iron-on stabilizer (backing) under the fabric in the embroidery frame without ironing it.

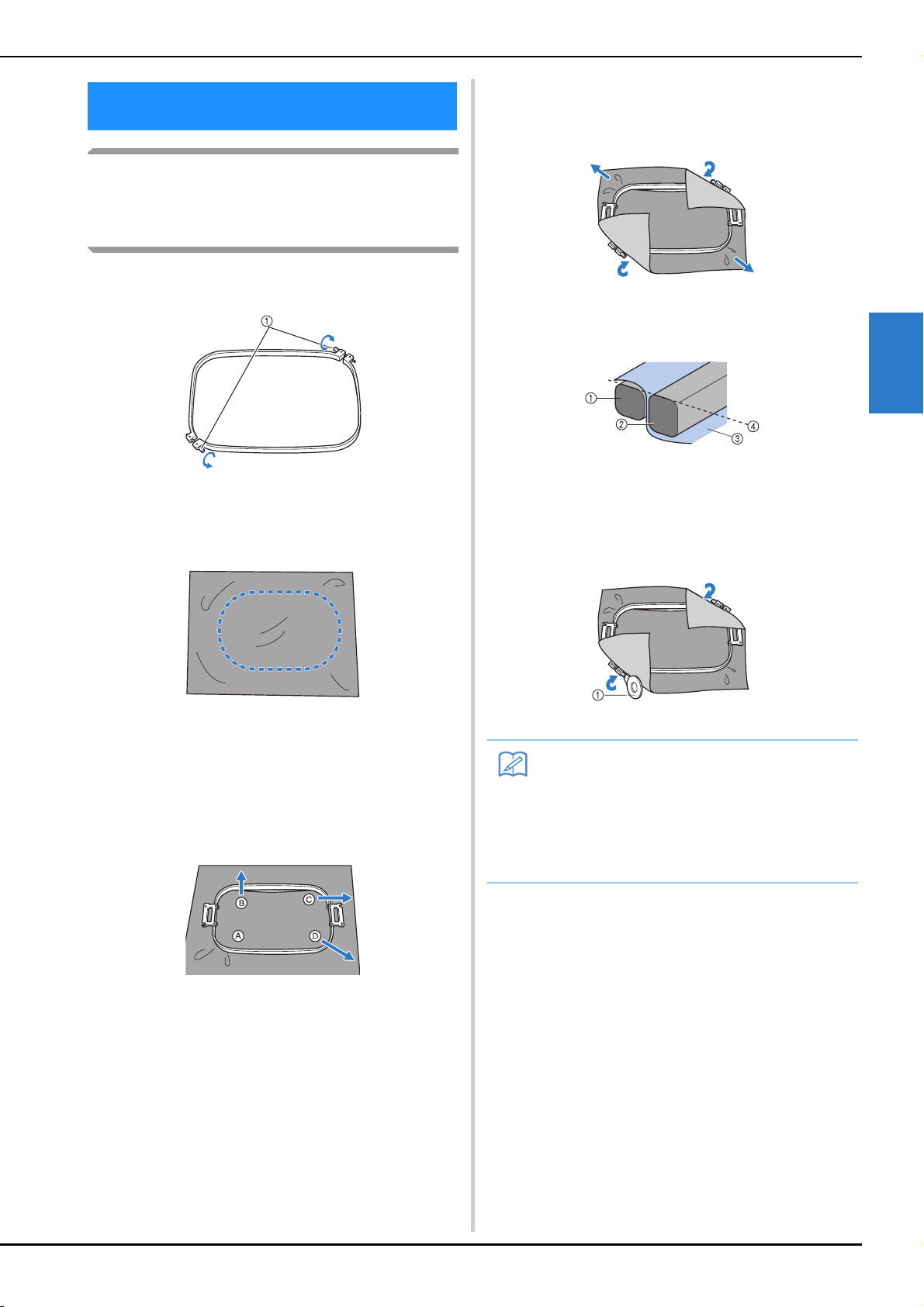

Hooping the Fabric

Memo

Hooping the fabric in the extralarge and large embroidery frames

OTHER BASIC PROCEDURES

While stretching the fabric even more,

securely tighten the screw so that the fabric is taut.

Loosen the screw on the outer frame.

1 Screw

Place the fabric with right side up on top of

the outer frame.

• The outer frame does not have a front or back side. Either side can be used as the front.

• After stretching the fabric, lightly tapping it should produce a drum-like sound.

• Firmly clamp together the inner and outer frames so that their tops are even.

1 Outer frame 2 Inner frame 3 Right side of fabric 4 Top of inner and outer frames are even

• Using the included disc-shaped screwdriver, firmly tighten the screw.

1 Disc-shaped screwdriver

Press the inner frame into the outer frame.

First insert the inner frame at the corner with the screw A, next insert the nearby one corner B, and then insert the opposite corner C. Then insert the opposite corner (non screw) D.

First, align the inner and outer frames at the corner with the screw A. Then, while lightly pulling the fabric in the direction indicated by arrow B so that the fabric is taut, insert the inner frame at corner B. In the same way, lightly pull the fabric in the direction indicated by arrow C and insert corner C, and then lightly pull the fabric in the direction indicated by arrow D and insert corner D.

• Be sure that there are no wrinkles in the fabric after it is stretched in the embroidery frame.

• To correctly frame the fabric in the embroidery frame, we recommend using a flat surface.

• Refer to “Hooping fabric in the small embroidery frame” on page 43 for details on hooping smaller frames.

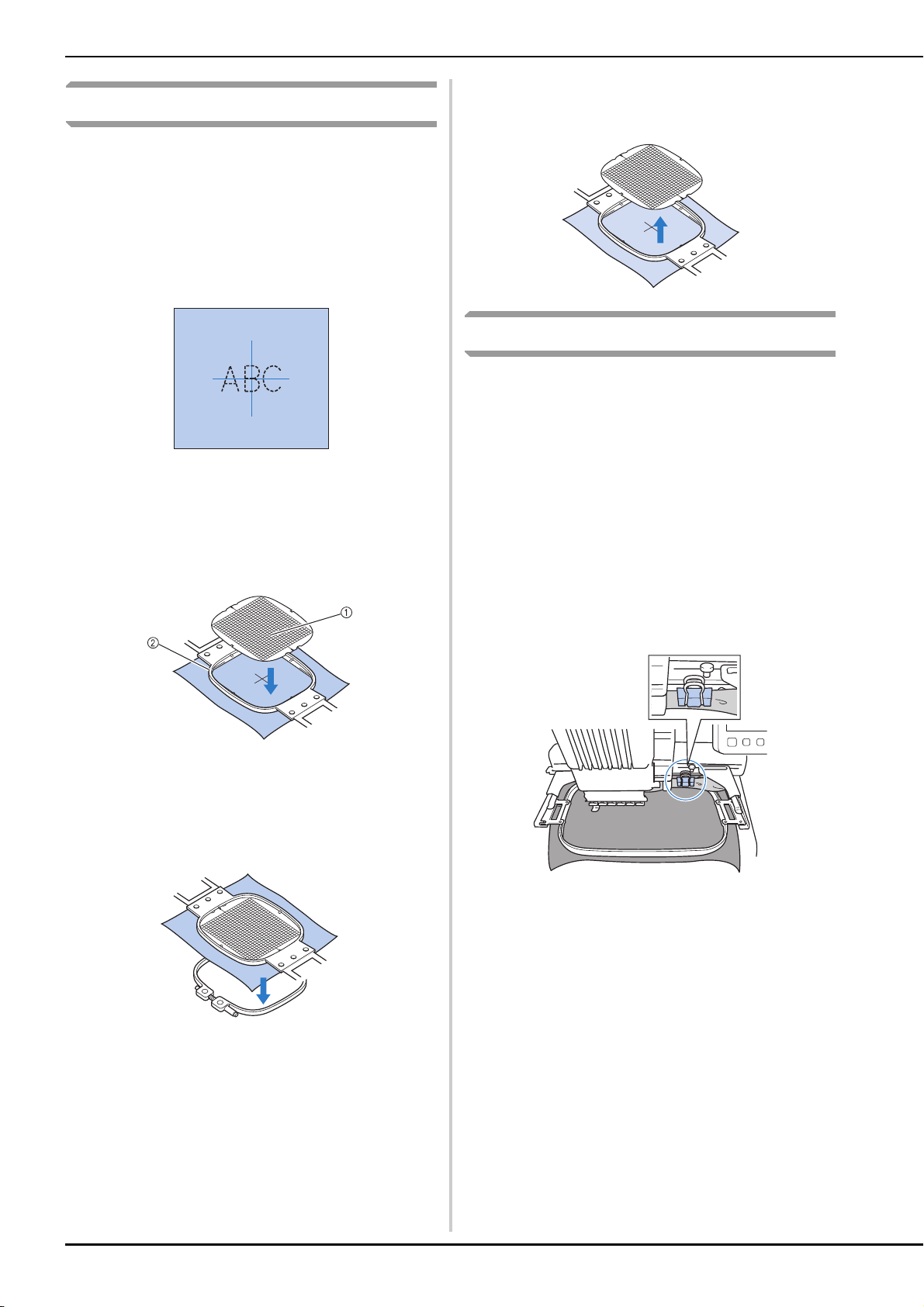

Using the embroidery sheet

In order to hoop the fabric so that the pattern will be sewn in the correct position, use the guidelines on the embroidery sheet to accurately stretch the fabric in the frame.

With a fabric marker, mark the area of the

fabric you want to embroider.

Place the embroidery sheet on the inner

frame. Align the guidelines on the embroidery sheet with the marks that you drew on the fabric.

Press the inner frame into the outer frame.

Remove the embroidery sheet.

Large/small pieces of fabric

This section provides information on embroidering fabric that is either much larger or much smaller than the embroidery frame.

■ Embroidering large pieces of fabric or heavy clothing

When embroidering large pieces of fabric or heavy pieces of clothing, use a clothespin or binder clip to fasten the excess fabric to the embroidery frame so that it does not hang down from the frame. Embroidering with excess fabric hanging down from the embroidery frame may prevent the frame from moving properly and may result in a misaligned pattern.

1 Guidelines 2 Inner frame

Gently stretch the fabric, so that there are

no folds or wrinkles.

• Use a clothespin or binder clip to fasten the excess fabric to the embroidery frame.

OTHER BASIC PROCEDURES

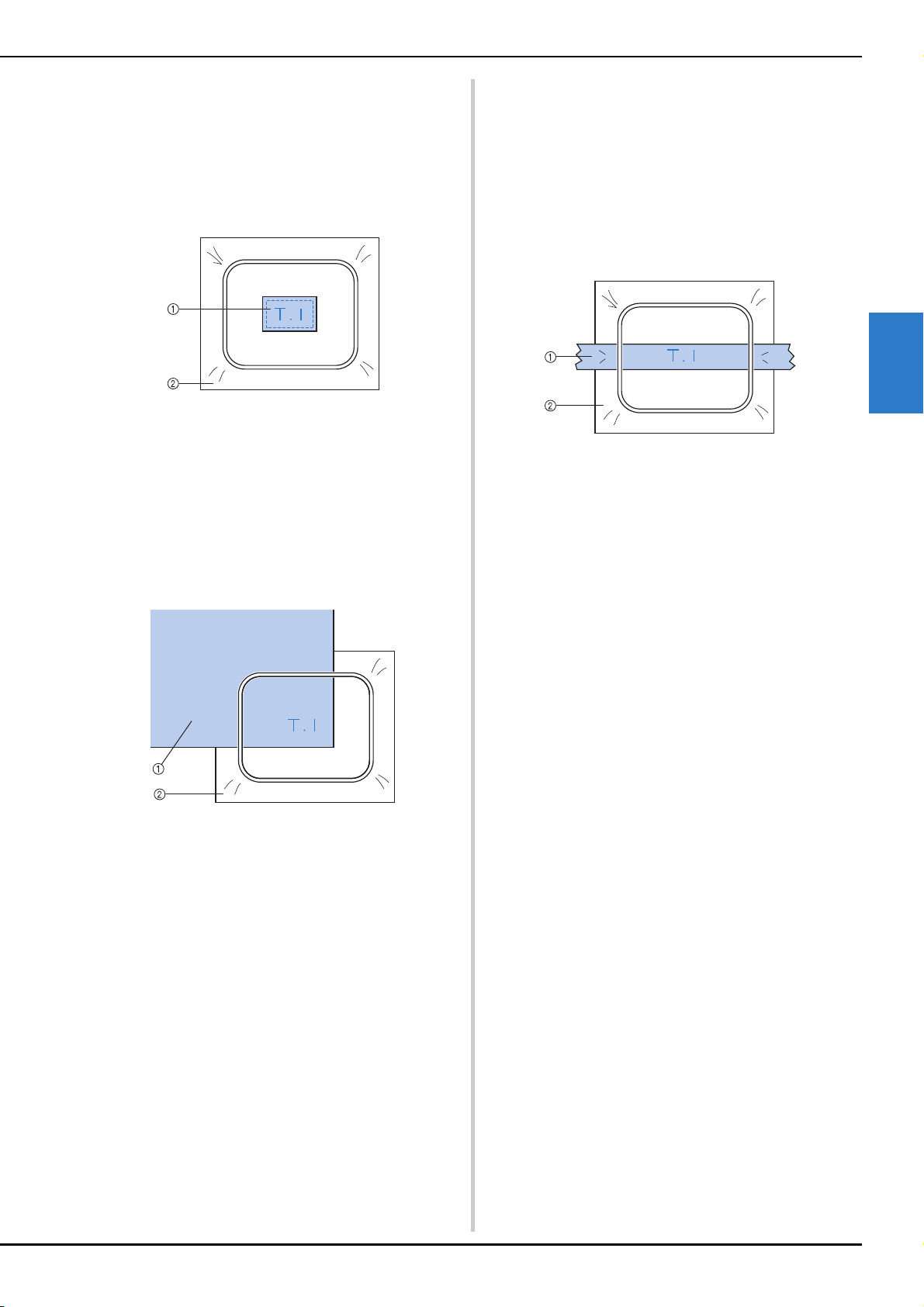

■ Embroidering small pieces of fabric

When embroidering pieces of fabric that are smaller than the embroidery frame, use spray fabric adhesive to attach the fabric to stabilizer (backing) hooped in the embroidery frame. With fabrics where you do not wish to use spray adhesive, baste the fabric to the stabilizer (backing).

1 Fabric 2 Stabilizer (backing)

■ Embroidering the corner of fabric

When embroidering the corner of a piece of fabric, use spray fabric adhesive to attach the corner of the fabric to stabilizer (backing), and then hoop the stabilizer (backing) in the embroidery frame. With fabrics where you do not wish to use spray adhesive, baste the fabric to the stabilizer (backing).

■ Embroidering narrow pieces of fabric, such as ribbon

When embroidering narrow pieces of fabric, use spray fabric adhesive to attach the fabric to stabilizer (backing), and then hoop the stabilizer (backing) in the embroidery frame. With fabrics where you do not wish to use spray adhesive, clamp both ends of the fabric, together with the stabilizer (backing), in the embroidery frame.

1 Ribbon 2 Stabilizer (backing)

1 Fabric 2 Stabilizer (backing)

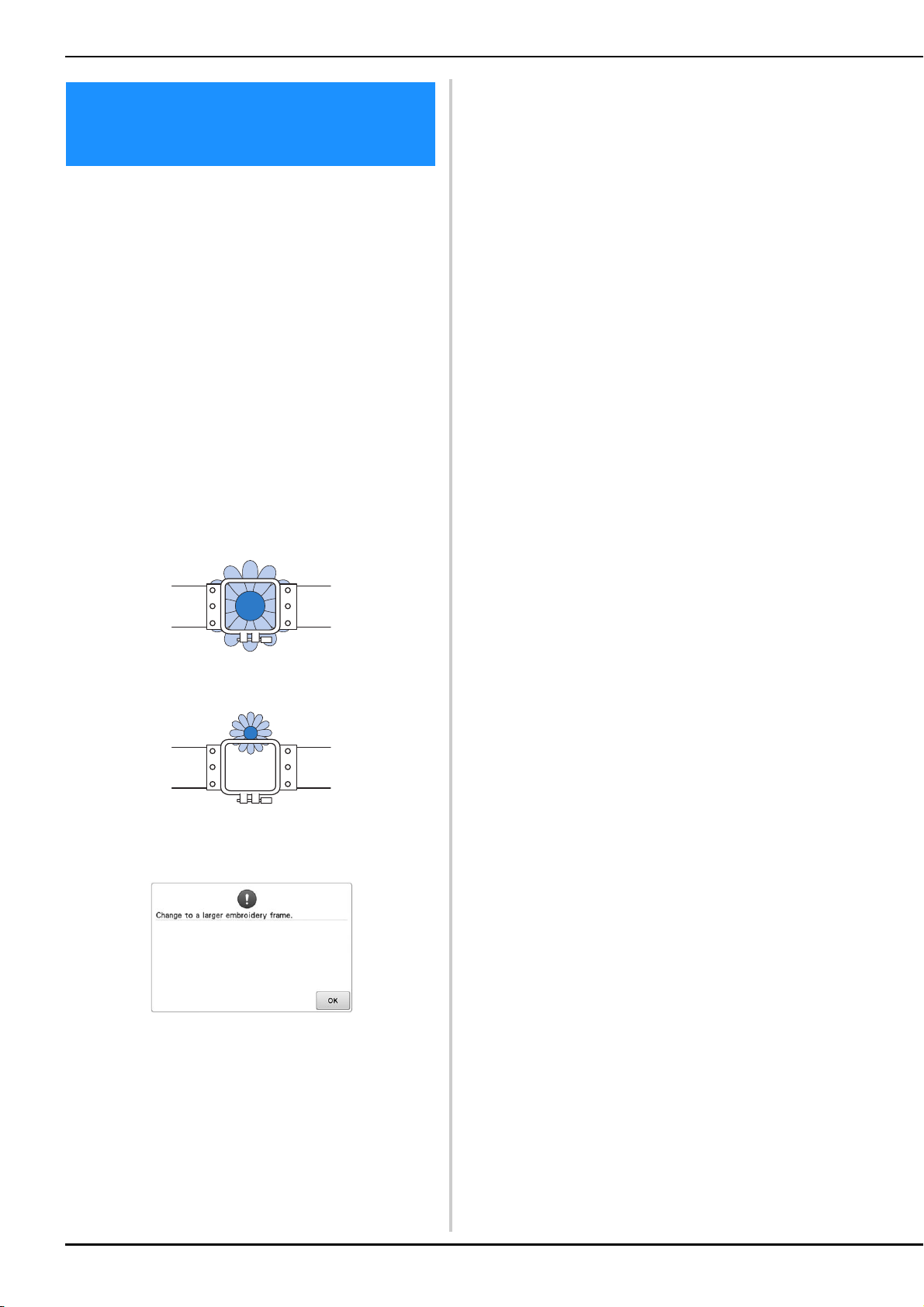

Embroidery Frame Position and Movement

The following provides information concerning the embroidery frame when operating the embroidery machine.

■ Embroidery frames that cannot be used for embroidering

As explained on page 42, the embroidery frame indicators at the top of the screen show the embroidery frames that can be used to sew the currently selected pattern. Embroidery frames with an embroidering area smaller than the pattern cannot be used. In addition, the embroidery frame cannot be used if the embroidery is smaller than the embroidering area but is positioned so that it extends out of the embroidering area of the frame.

Embroidery frames with an embroidering area smaller than the pattern

A message indicating that the embroidery frame be replaced may appear even if no embroidery frame is installed. The embroidery machine detects which embroidery frame is installed according to the position of the left arm of the embroidery frame holder. Therefore, the embroidery frame size is determined by the position of the left arm, even if the embroidery frame is not actually installed. In addition, if the embroidery frame holder is not installed, the embroidery machine determines that the cap frame (optional) is installed.

Patterns that extend out of the embroidering area of the frame

In either of these cases, a message appears on the embroidery machine, warning that the embroidery frame must be changed.

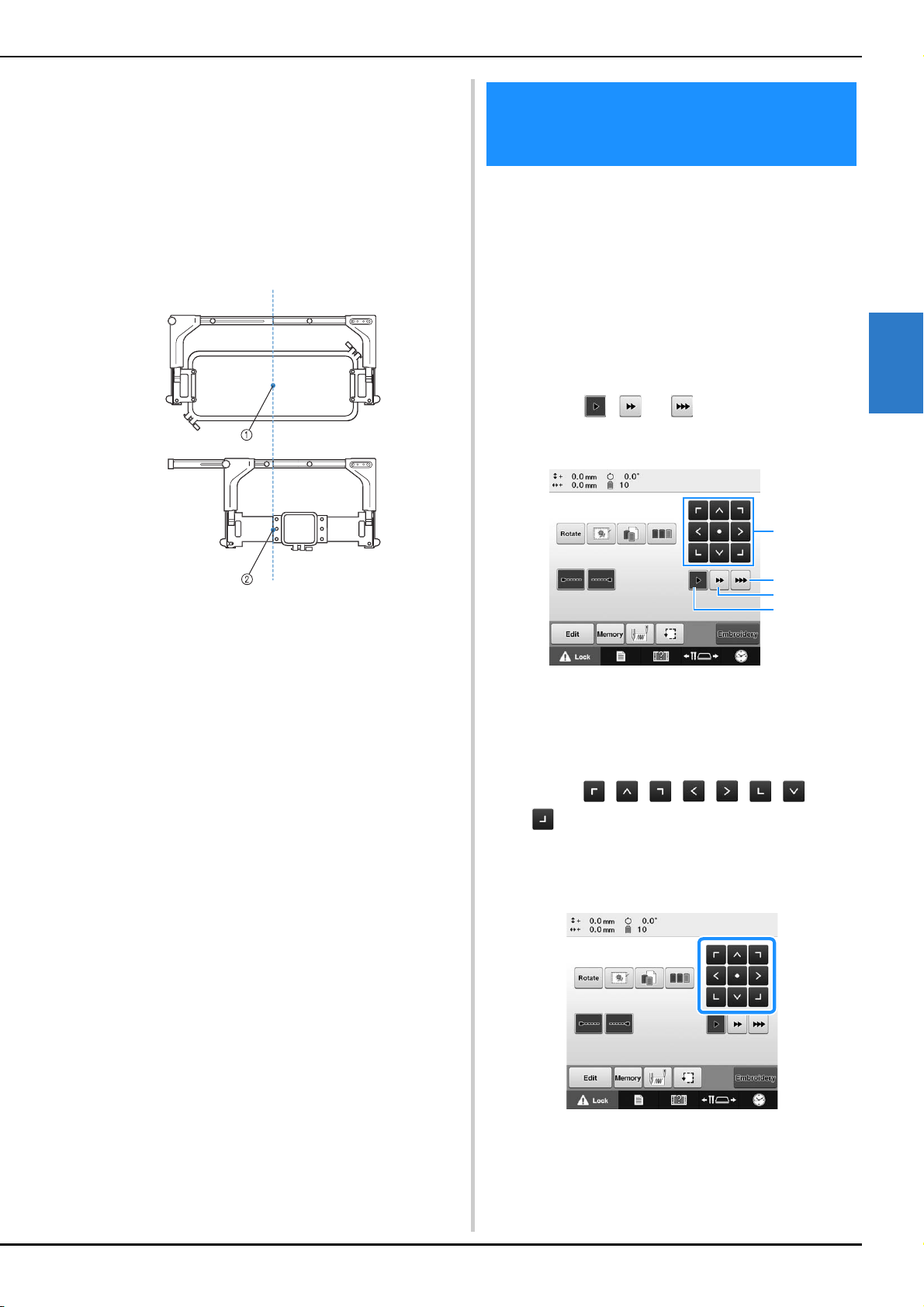

■ Moving to the correct position

3 2

If the center of the embroidery frame is at the needle drop point in the embroidering area, the embroidery frame is correctly positioned, in other words, at the starting position before embroidering. If the embroidery frame is changed, the next frame that is installed will not be correctly positioned. For example, if the extra-large embroidery frame is replaced with the small frame, the following will occur.

OTHER BASIC PROCEDURES

Changing the Embroidering Position

When the embroidery machine is purchased, it was adjusted so that the beginning of the stitching was from the center of the pattern. Therefore, move the frame and adjust the embroidering position so that the center of the pattern aligns with the needle drop point at the sewing position. In addition, the angle of the entire pattern can be adjusted if the fabric cannot be hooped evenly within the embroidery frame and the pattern is positioned at an angle on the fabric.

Touch , or in the embroidering

settings screen to select the speed.

1 Center of embroidery frame at the correct position 2 Needle position when the embroidery frame is

replaced

In order to correct the misalignment of this embroidery frame, the embroidery frame automatically moves to the correct position when any of the following are performed.

• The embroidery machine is turned on.

The embroidery frame will move.

• The embroidering settings screen is displayed.

The embroidery frame will not move if it is correctly positioned. If the pattern extends out of the embroidering area for the frame, a message appears, indicating that the embroidery frame should be replaced. Either replace the embroidery frame or return to the pattern editing screen and move the embroidering position.

• The embroidery frame is replaced while the

embroidering settings screen or embroidering screen is displayed, and then the key for checking the embroidering area, for moving the embroidery frame, or for starting embroidering is touched.

The embroidery frame will move. Since the embroidery frame is moved to the correct position and paused, touch the desired key again. If the pattern extends out of the embroidering area for the frame after the frame is moved, a message appears, indicating that the embroidery frame should be replaced. Either replace the embroidery frame or return to the pattern editing screen and adjust the pattern size or embroidering position.

1 Touch to move the frame by 0.1 mm. 2 Touch to move the frame by 0.5 mm. 3 Keep touching to move the frame at maximum

speed.

4 Move key

Touch , , , , , , and

in the embroidering settings screen.

Move the embroidery frame so that the needle drop point is at the center of the area where you wish to embroider.

 The embroidery frame moves in the opposite

direction of the arrow.

 The pattern in the pattern display area moves in the

same direction of the arrow.

Memo

• If the LED pointer is set to "ON", it shows

Note

1 2

Note

you the needle drop point.

• The LED pointer may not be available depending on the type of embroidery frame attached.

• With fabric that has a very uneven or textured surface, the position of the LED pointer may not be correctly aligned. In this case, the pointer indication should be used only as a reference.

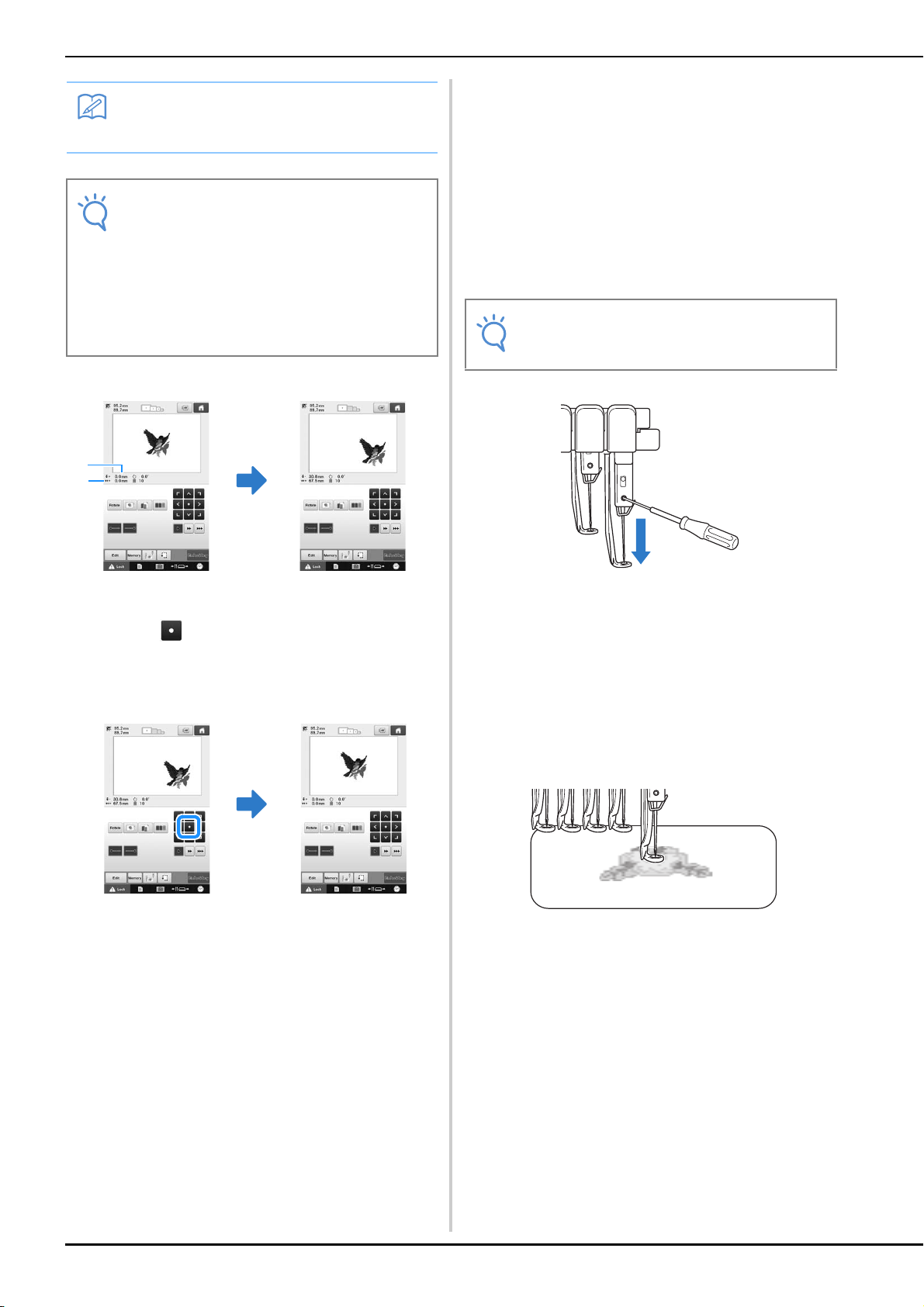

■ Finding the sewing position

By locking the needle bar (securing the needle and presser foot in the down position), the needle drop point can easily be seen.

As shown in the illustration, insert the Allen

screwdriver into the hole in the needle clamp to slowly lower the needle bar down till needle bar stops then clicks into the lock position.

• Make sure that the needle is not lowered beyond the positioning click into the fabric.

1 Shows the vertical distance moved from center 2 Shows the horizontal distance moved from center

• Touch to move the embroidery frame back to its original position (where the center of the embroidery frame is aligned with the needle drop point at the sewing position).

The pattern can also be moved by dragging it. If a USB mouse is connected, move the mouse to position the pointer on the desired pattern, and then while holding in the left mouse button, drag the pattern. The pattern can also be dragged by selecting it directly in the screen with your finger or the touch pen.

 The needle and presser foot are locked in the down

position.

Touch the arrow keys in the embroidering

settings screen to move the embroidery frame so that the needle drop point is at the center of the area where you wish to embroider.

• With a USB mouse, your finger or the touch pen, drag the pattern to move it.

• When specifying the starting of stitching, align the needle drop point with the point specified as the starting of stitching. (For details on specifying the starting/ending of stitching, refer to page 113.)

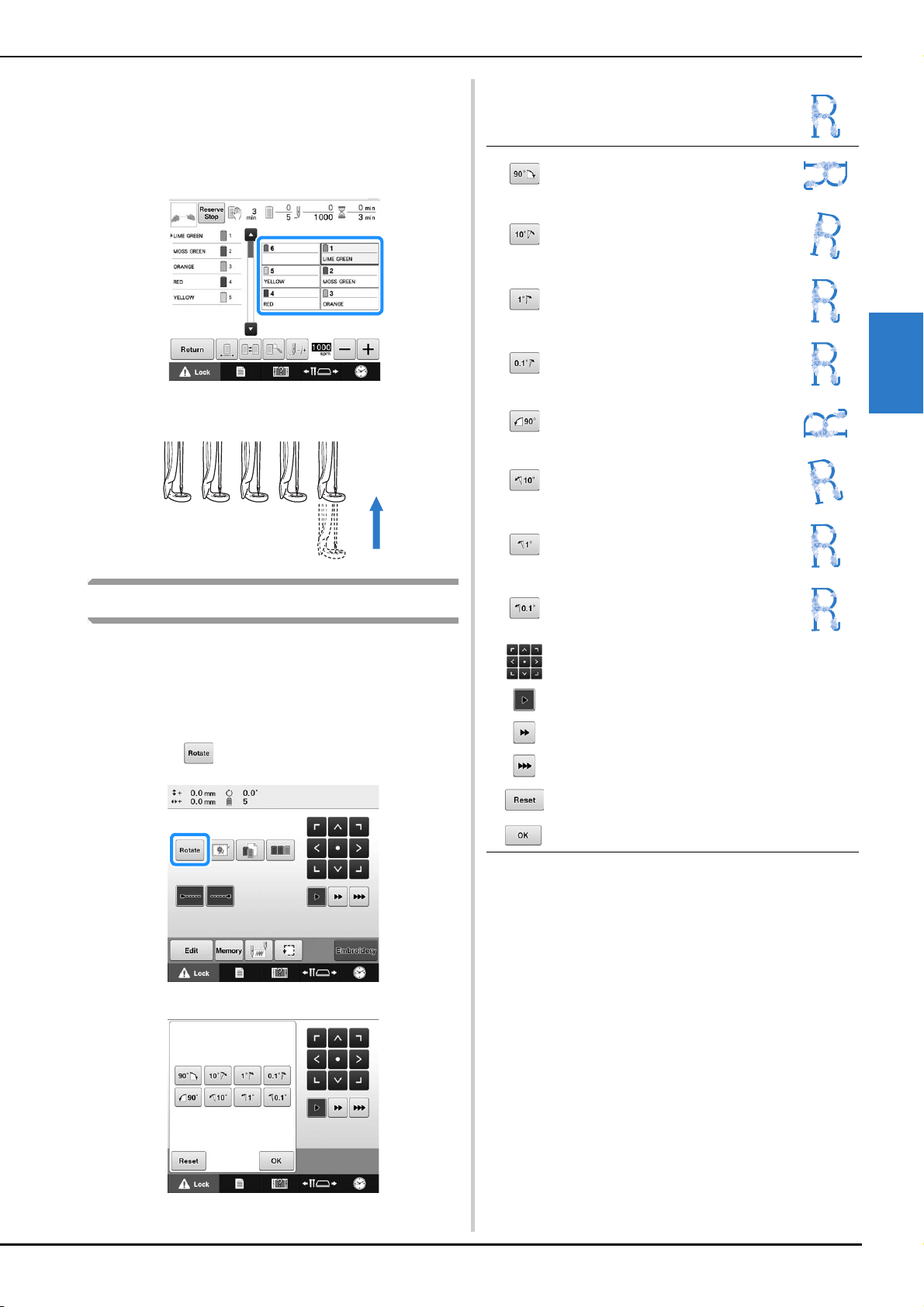

■ Unlocking the needle bar

Display the embroidering screen, and then

touch the key for any needle bar other than the one that is locked.

OTHER BASIC PROCEDURES

Example: Original angle

Rotates 90 degrees to the right

Rotates 10 degrees to the right

Rotates 1 degree to the right

 The needle bar is unlocked and will return to

original position.

Adjusting the angle

Depending on the type of fabric being embroidered, it may not be possible to stretch the fabric in the embroidery frame at the desired angle. In this case, adjust the angle of the pattern so that it is correctly positioned on the fabric.

Touch .

Rotates 0.1 degree to the right

Rotates 90 degrees to the left

Rotates 10 degrees to the left

Rotates 1 degree to the left

Rotates 0.1 degree to the left

Moves the pattern in the direction of the arrow on the key.

Moves the frame by 0.1 mm.

Moves the frame by 0.5 mm.

Moves at maximum speed when a key is held down.

Touch this key to return the pattern to its original angle.

The following screen appears.

Touch this key to close this screen.

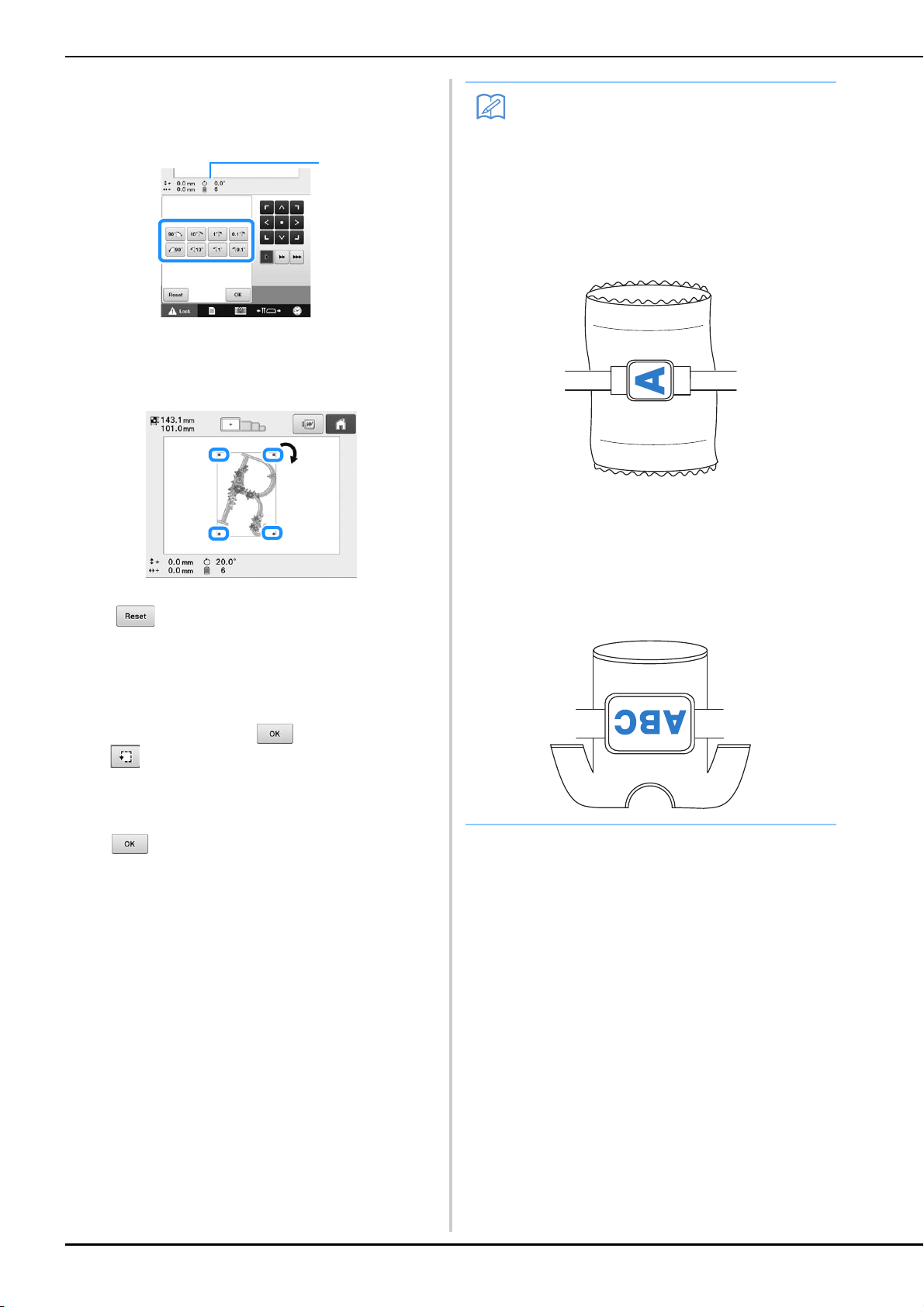

Touch the keys to adjust the pattern to the

Memo

desired angle.

Each touch of a key rotates the pattern.

1 Shows the angle of the pattern after a key is

touched to change it.

The pattern can also be rotated by holding down and dragging a red point around the pattern.

• To return the pattern to its original angle, touch

• With this operation, fine adjustments can be made to the angle; also, this operation is particularly useful when embroidering items, such as bags and tubular items, that have limitations to being hooped in the embroidery frame. Example: When embroidering a pillowcase Rotate the pattern 90 degrees to the left before embroidering.

Example: When embroidering a T-shirt Rotate the pattern 180 degrees. Pass the

machine bed through from the waist of the T-shirt, not from the neck, and attach the embroidery frame to the machine. This will prevent the neck of the shirt from being stretched when the embroidery frame is moving.

If necessary, touch the arrow keys to adjust

the position of the pattern.

For more details, refer to page 89.

If necessary, touch and then touch

to check the embroidering area.

For more details, refer to page 47.

After making the desired changes, touch

The embroidering settings screen appears again.

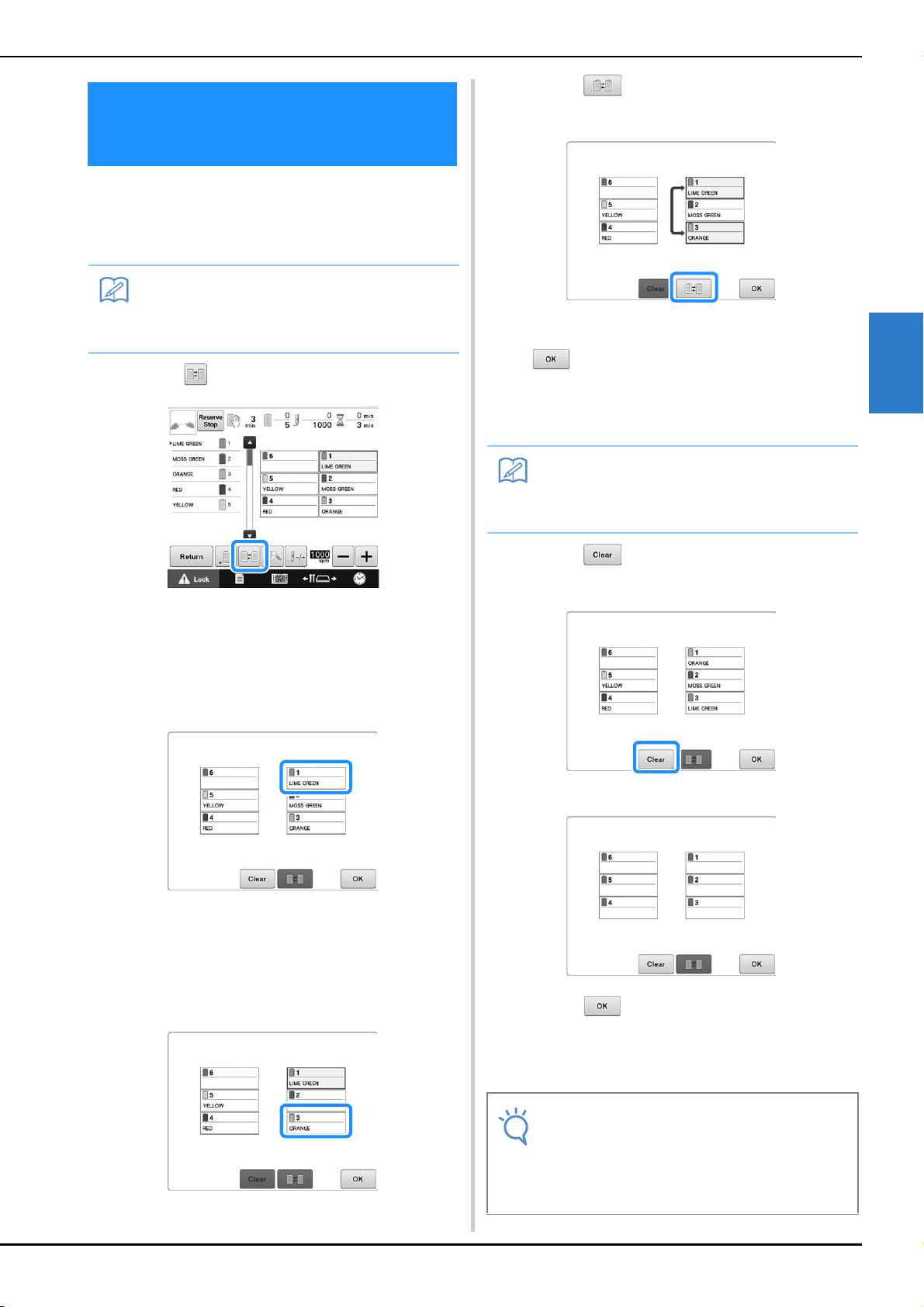

Switching the Thread

Memo

Note

Colors on the Screen

If a thread color on the spool stand is different than the needle position thread color on the screen, the thread colors on the screen can be switched to match the spool stand thread color position.

• This function is not available when you set “Manual Color Sequence” to “ON” in settings screen.

Touch in the embroidering screen.

OTHER BASIC PROCEDURES

Touch to switch the two thread

colors.

After making the desired changes, touch

■ To cancel the thread color settings for all previously stitched design

• The color settings will be completely canceled even if the machine is in the middle of the embroidery.

 The spool selection screen appears.

Touch the number of the first needle bar

that will be switched.

• To cancel the selection, touch the same needle number again.

Touch the number of the other needle bar

that will be switched. The two needle numbers are connected with an arrow.

• To cancel the selection, touch the same needle number again.

Touch .

 The thread color setting is canceled.

Touch .

 Thread colors are assigned by the machine again,

regardless of the previous spool setting.

• This function will not clear anchor settings of any of the needles which have been assigned a thread color (Refer to “Reserved Needle Bar and Sewing Speed Settings” on page 120).

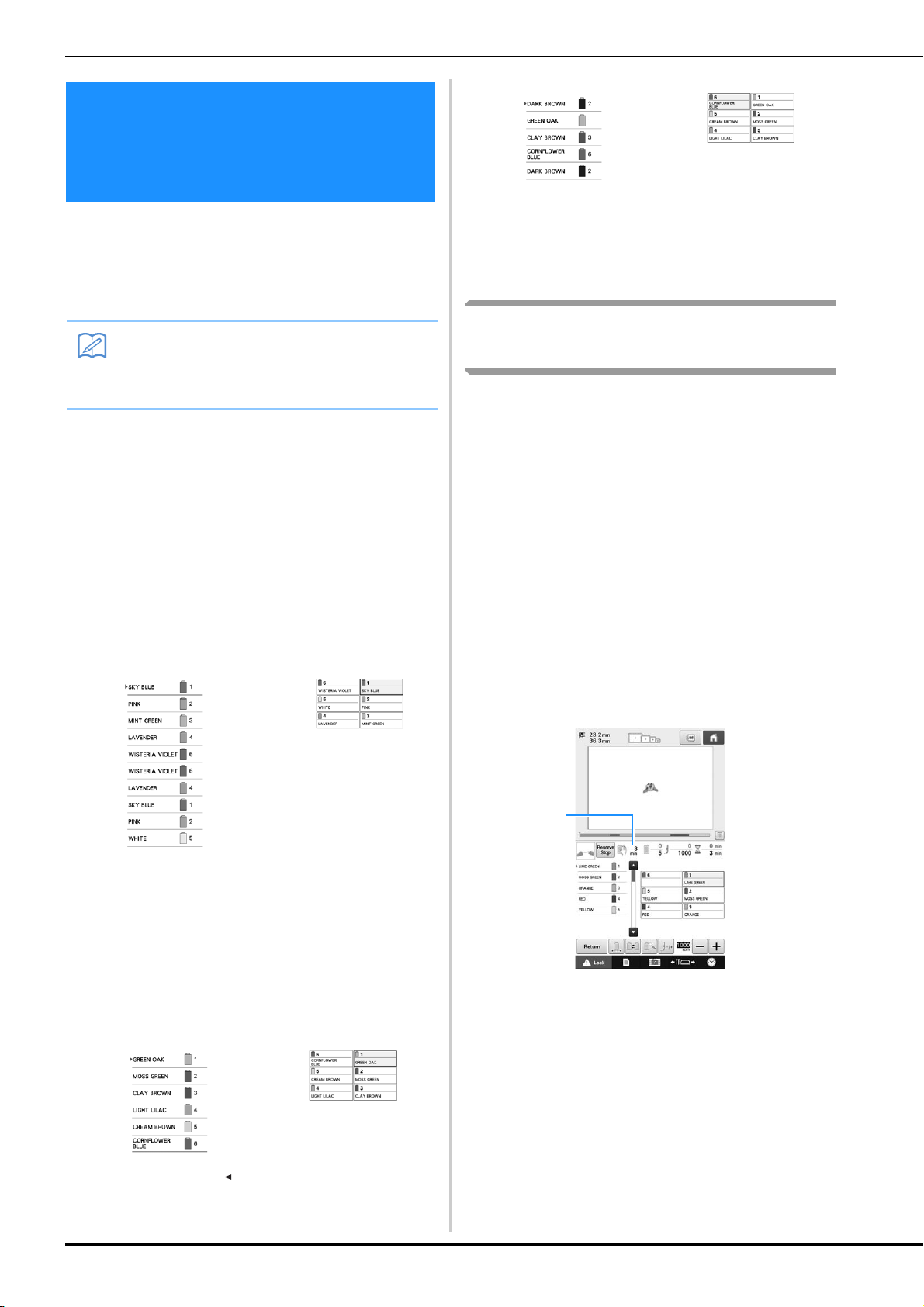

Embroidering a Pattern

Memo

Containing Seven or More Colors

When embroidering a pattern that uses seven or more thread colors, it is necessary to change the thread spools. When changing the thread spools, instruction to change the thread spools will appear with the machine automatically stopping.

Needle bar 2 Needle bar 10

Needle bar 2

Since the thread colors on needle bars 1, 3 and 6 will be used again after the thread spools are changed, they will not be replaced. However, different colors are assigned to the other needle bars.

Checking if thread spool changes

• This function is not available when you set “Manual Color Sequence” to “ON” in settings screen.

■ Assignment of thread colors to needle bars

Thread colors are automatically assigned by the machine to needle bars 1 to 6, starting with the thread colors that are sewn first. (However, if a new pattern has thread colors that are the same as the previously sewn pattern, the thread colors will be assigned to the same needle bar as before, regardless of the sewing order.) For example, for a pattern with 6 thread colors and ten thread color changes, the thread colors are assigned as shown below.

1 Needle bar 1

2 Needle bar 2

3 Needle bar 3

4 Needle bar 4

6 Needle bar 6

5 Needle bar 5

are necessary

When selecting a pattern, the number of thread changes can be viewed, however, which thread colors are used in the pattern cannot be checked on this screen. Whether or not and when thread spools will need to be changed can be checked with the following indicators.

■ Time until the machine stops embroidering

This indicator shows the amount of time until the machine stops embroidering. The machine stops when a spool change is required, or when the machine is set to be stopped by other settings. If the spool change indicator is appears, the machine will require a spool change. When the time is indicated in red, it is the last color embroidering before the machine stops.

For a pattern with seven or more thread colors, the thread spool information is updated when the seventh thread color is needed. Afterward, the machine adjusts the assignment of thread colors to reduce the number of times that the thread spools will have to be changed. For example, for a pattern with seven thread colors and eleven thread color changes, the thread colors are assigned as shown below.

Needle bar 1

Needle bar 2

Needle bar 3

Needle bar 4

Needle bar 5

Needle bar 6

Change thread spools here.

1 2

1 Time until the machine stops

■ Spool change indicator ( )

Memo

The spool change indicator in the embroidering screen indicates the number of times that the thread spools will need to be changed and the amount of time between changes.

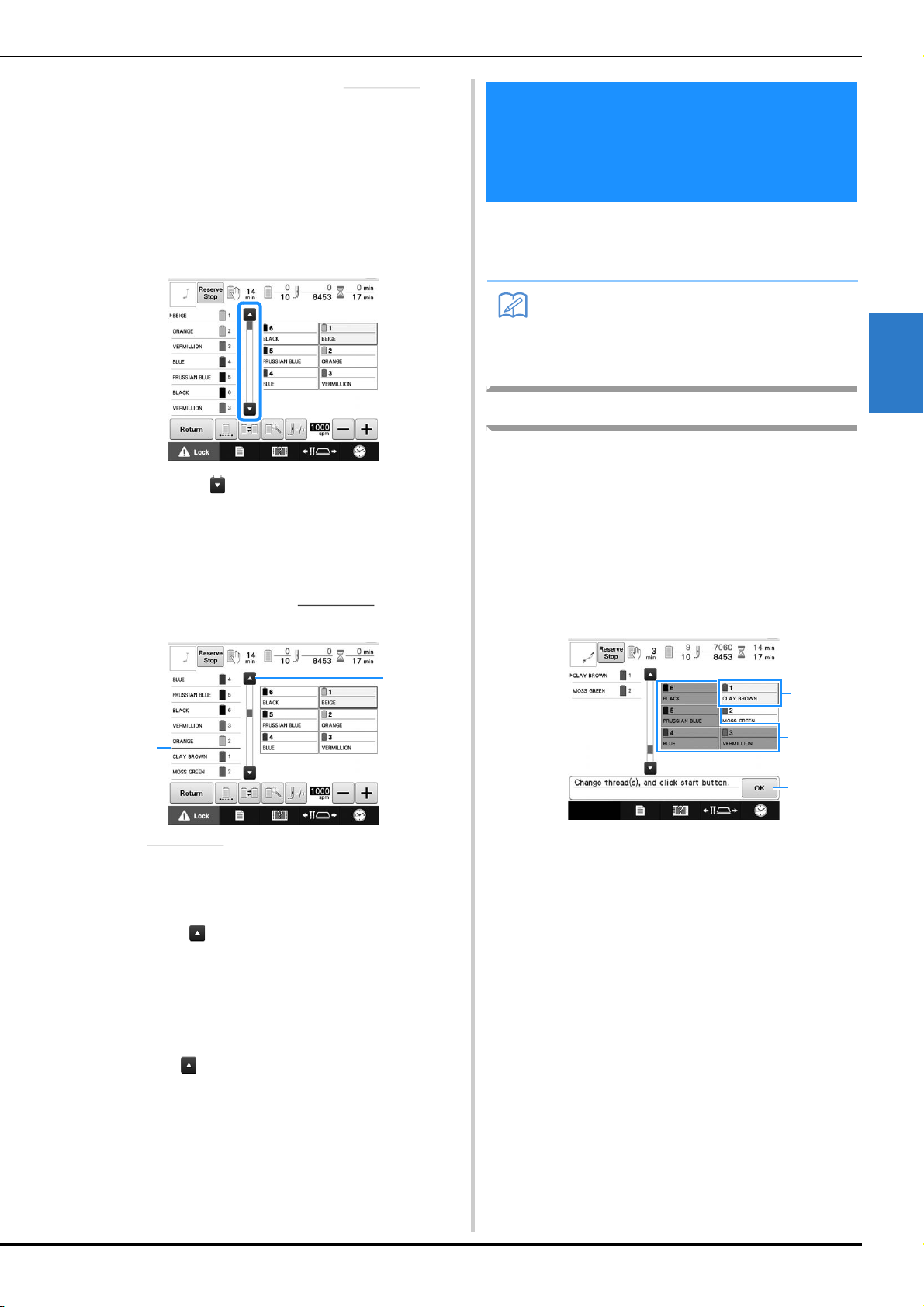

Use the scroll bar on the right side of the

thread color sequence display in the embroidering screen.

 Each time is touched, the thread color sequence

display scrolls down to the next color. After reaching the last color in the thread color sequence display, the first color is selected.

• The display can also be scrolled by using the scroll bar.

Check the position of .

OTHER BASIC PROCEDURES

Changing the Thread Spools with Designs of Seven or More Colors

This section contains details on understanding the change thread spools message and on easily changing the thread spools.

• This feature is not available if “Manual Color Sequence” has been set to “ON” in the settings screen.

Change thread spools message

When it is necessary to replace the thread spool while embroidering a pattern that contains seven or more colors, the machine automatically stops sewing and the message shown below appears.

This message also appears when it is necessary to change the thread spools before beginning to embroider a new pattern. Change the thread spools according to their new assignments.

1 indicates when the thread spools will

need to be changed. The thread spools will need to be changed the number of times that this indicator is displayed and between the two thread colors at the point where it is displayed.

2 Touch to scroll up through the thread color

sequence display. Each time this key is touched, the previous color in the thread color sequence display is selected. After reaching the first color in the thread color sequence display, the last color is selected.

After checking the desired information,

touch or the top of the scroll bar to return to the first color.

1 The thread information for the thread spool to be

changed appears in the new thread color and framed in red.

2 The thread information for the thread spool needs

not to be changed appears in gray.

3 Touch this key to close the message indicating

that the thread spool be changed.

Note

• Touch needle bar key to move the needle

Memo

Note

into the correct position for threading into the new thread color. Refer to “Moving and threading a selected needle bar” on page 55.

• When the embroidering screen appears, the needle bar settings are saved.

• If the needle bar settings are saved and the next pattern that is opened contains thread colors that are the same as those from the previous pattern, the same needle bars will be assigned the same thread colors from the previous pattern.

• If you wish to delete all assigned color on display refer to “To cancel the thread color settings for all previously stitched design” on page 93.

• To use a different thread color than the one that was specified, use the temporary needle bar setting key, and then change the thread color setting. (For details, refer to “Temporary Needle Bar Setting” on page 119.)

• To minimize changing the thread spools, frequently used thread colors can be specifically assigned to certain needle bars. (For details, refer to “Reserved Needle Bar and Sewing Speed Settings” on page 120.)

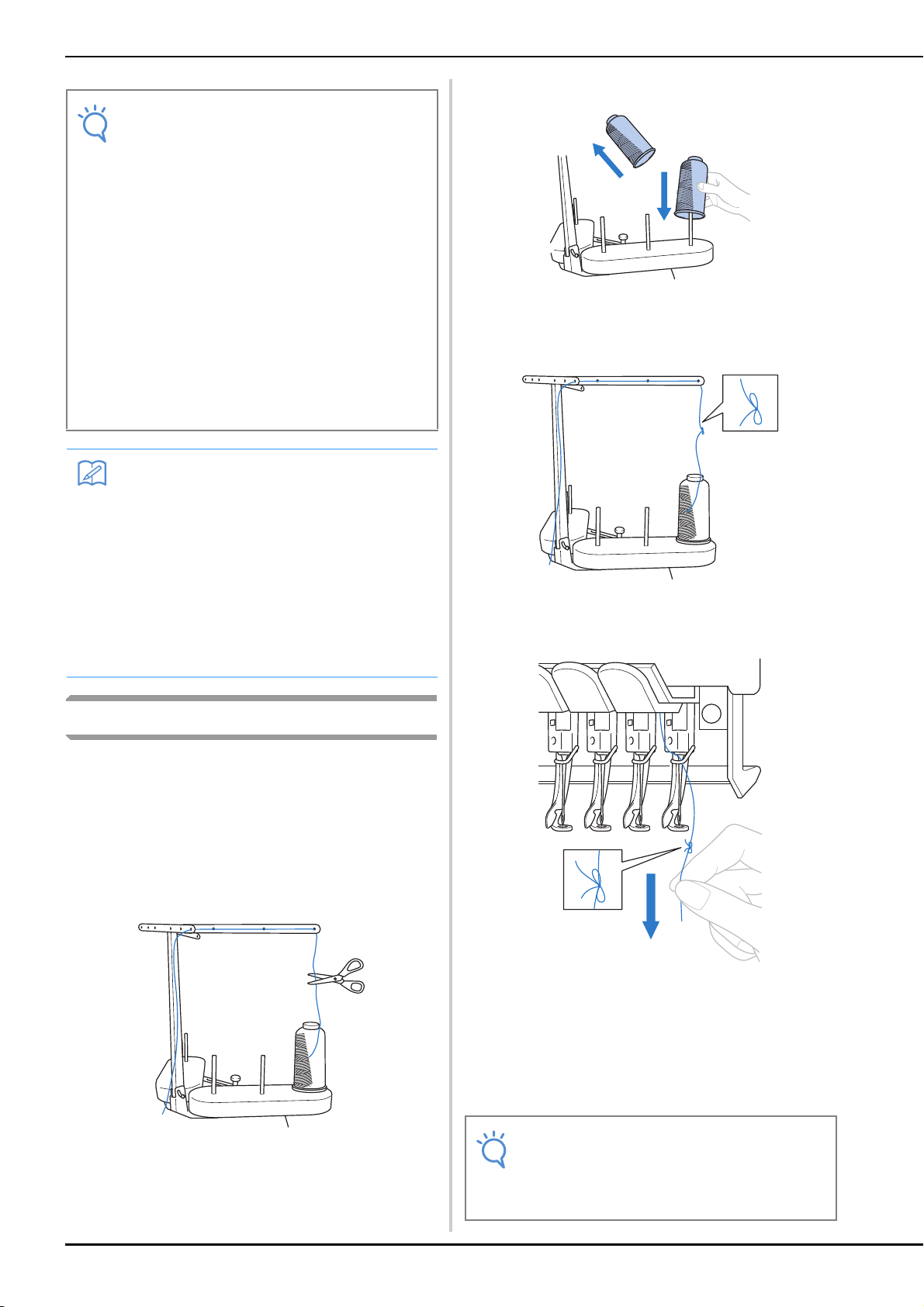

Change the thread spool.

Tie the end of the thread on the new spool

with the end of the thread remaining from the previous color.

Pull out the old thread just after the needle

bar thread guide.

Easily changing the thread spools

When replacing the thread spools, it is necessary to re-thread the upper thread. However, the thread spools can easily be changed when replacing a thread spool whose thread is correctly threaded through the machine.

Cut the thread between the thread spool

and the thread guide.

Continue pulling the thread until the knot is above the needle. Cut the knot.

Use the automatic needle-threading

mechanism to thread the needle with the new thread. (Refer to page 54.)

 This completes the changing of the thread spool.

• When pulling out the thread, do not pull the knot through the eye of the needle. If the knot is pulled through the eye of the needle, the needle may be damaged.

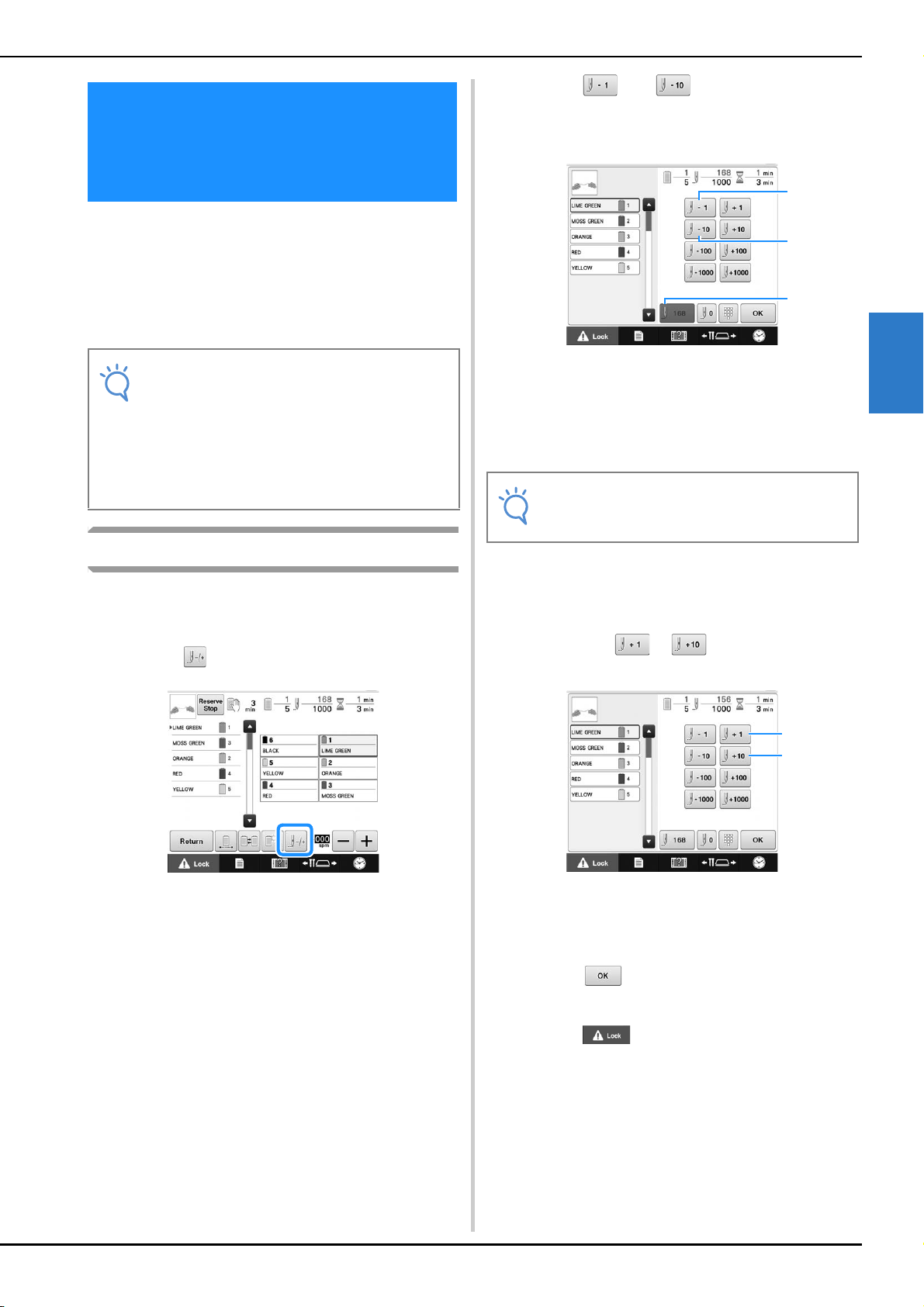

If the Thread Breaks or

Note

the Bobbin Thread Runs Out While Embroidering

If the thread breaks or the bobbin thread runs out while embroidering, the machine will automatically stop. Since some stitches may be sewn with only one thread, go back through the stitching to a point where stitches have already been sewn before continuing embroidering.

OTHER BASIC PROCEDURES

Touch and to go back through

the stitching to a point where stitches have already been sewn.

• If the thread sensor is turned off, the machine does not stop until embroidering is finished. Normally, the thread sensor should be turned on. (Refer to page 179.)

• Be careful when going back or forward through the stitching since the embroidery frame moves at the same time.

If the upper thread breaks

Re-thread the upper thread. (Refer to

page 50.)

Touch .

1 Each touch of this key moves one stitch back

through the stitching.

2 Each touch of this key moves ten stitches back

through the stitching.

3 Touch this key to return to the point in the

stitching before the changes.

• It is recommended to stitch over the last two or three stitches for complete coverage.

You can also touch the specific point of the embroidery progress bar to move the stitch count to the desired point. If the needle bar is moved back too far through the

stitching, touch or to go forward through the stitching.

 The stitch navigating screen appears.

1 Each touch of this key moves one stitch forward

through the stitching.

2 Each touch of this key moves ten stitches forward

through the stitching.

Touch .

 The embroidering screen appears again.

Touch , and then press the start/stop

button to continue embroidering.

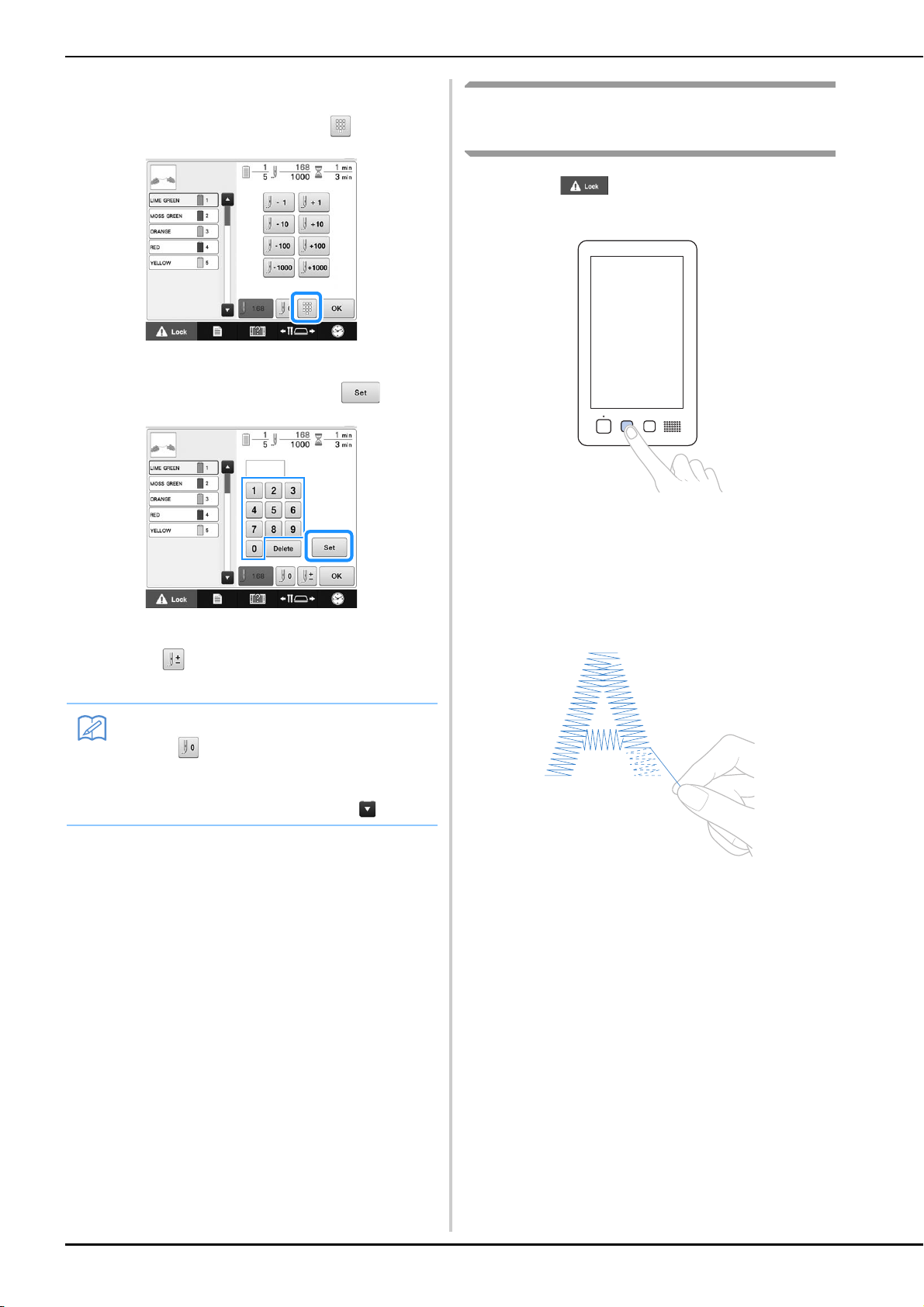

■ Specifying a stitch number

Memo

In step c on page 97, touch .

Use the number keys to enter the desired

stitch number, and then touch .

If the bobbin thread breaks or runs out

Touch , and then press the thread

trimming button.

 The upper thread is trimmed.

• If the bobbin thread breaks or runs out, also trim the upper thread.

 The embroidery frame moves to the specified stitch.

Touch to return to the previous screen,

and then continue with step

• Touch to reset the stitch number and embroider from the first stitch.

• To specify the last stitch number, select the last thread color, and then touch .

Remove the stitches sewn only with the

upper thread.

Pull the trim end of the upper thread.

• If the stitches cannot be cleanly removed, trim the thread with scissors.

Brother PR670E, PR670EC Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
