DCP-J125/J315W/J515W/J715W

MFC-J220/J265W/J410/J415W/J615W

Please read this booklet before attempting to operate the machine, or before attempting any maintenance. Failure to follow these instructions may result in an increased risk of fire, electrical shock, burns or suffocation.

Symbols and conventions used in the documentation

The following symbols and conventions are used throughout the documentation.

Bold Bold typeface identifies specific

buttons on the machine’s control panel, or on the computer screen.

WARNING indicates a potentially

hazardous situation which, if not avoided, could result in death or serious injuries.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injuries.

WARNING

CAUTION

IMPORTANT

Italics Italicized typeface emphasizes

an important point or refers you to a related topic.

Courier New

Text in the Courier New font identifies messages on the LCD of the machine.

IMPORTANT indicates a potentially hazardous situation which may result in property-damage-only accidents or loss of product functionality.

Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

Electrical Hazard icons alert you to possible electrical shock.

Improper Setup icons alert you to devices and operations that are not compatible with the machine.

Follow all warnings and instructions marked on the machine.

The illustrations in this guide show the MFC-J615W.

Version 0

ARL/ASA/NZ/SAF

Compilation and Publication Notice 1

Under the supervision of Brother Industries, Ltd. this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

To use the machine safely 1

WARNING

DO NOT place the machine near heaters, air conditioners, water, chemicals or devices that contain magnets or generate magnetic fields.

Plastic bags are used in the packing of your machine. To avoid the danger of suffocation, keep these bags away from babies and children.

DO NOT use flammable substances, any type of spray, or an organic solvent/liquid that contains alcohol or ammonia to clean the inside or outside of the machine. Refer to Basic User’s Guide.

Never push objects of any kind into this product through cabinet slots, since they may touch dangerous voltage points or short out parts resulting in the risk of fire or electric shock. If metal objects, water or other liquids get inside the machine, immediately unplug the machine from the electrical socket. Call your Brother dealer or Brother Customer Service.

Never touch telephone wires or terminals that are not insulated unless the telephone line has been unplugged at the wall socket. Never install telephone wiring during a lightning storm. Never install a telephone wall socket in a wet location. (MFC only)

This machine should be connected to an adjacent grounded AC power source within the range indicated on the rating label.

CAUTION

DO NOT handle the plug with wet hands. Doing this might cause an electrical shock. (This illustration is an example for Australia.)

Always make sure the plug is fully inserted.

This machine is equipped with a 3-wire grounded plug. This plug will only fit into a grounded power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, call your electrician to replace your obsolete outlet. DO NOT defeat the purpose of the grounded plug.

(This illustration is an example for Australia.)

DO NOT connect it to a DC power source or inverter. If you are not sure, contact a qualified electrician.

DO NOT attempt to service this machine yourself because opening or removing covers may expose you to dangerous voltage points and other risks and may void your warranty. Call your Brother dealer or Brother Customer Service.

Put your machine on a flat, stable surface that is free of vibration and shocks, such as a desk.

Put the machine near a telephone socket and a standard grounded electrical socket.

Choose a dry, well ventilated location where the temperature remains between 10 °C and 35 °C. Slots and openings in the casing and the back or bottom are provided for ventilation. To ensure reliable operation of the machine and to protect it from overheating, these openings must not be blocked or covered.

Some areas of the machine can cause injury if covers (shaded) are closed with force. Take care when placing your hand in the areas shown in the illustrations.

IMPORTANT

Note

DO NOT carry the machine by holding the scanner cover or the Jam Clear Cover.

If the machine becomes unusually hot, releases smoke, generates any strong smells, or if you accidentally spill any liquid on it, immediately unplug the machine from the electrical socket. Call your Brother dealer or Brother Customer Service.

If the machine has been dropped or the casing has been damaged, unplug this machine from the power socket and call your Brother dealer or Brother Customer Service.

• DO NOT put objects on top of the machine.

• If the machine does not operate normally when the operating instructions are followed, adjust only those controls that are covered by the operating instructions. Incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the machine to normal operation.

• Use of controls, adjustments or performance of procedures other than those specified in the documentation supplied with the machine may result in hazardous radiation exposure.

• DO NOT place anything in front of the machine that will block printouts. DO NOT place anything in the path of received faxes. (MFC only)

• Wait until pages have exited the machine before picking them up.

Product Warranty & Liability 1

Approval Information (MFC only) 1

THIS EQUIPMENT IS DESIGNED TO WORK WITH A TWO WIRE ANALOGUE PSTN LINE FITTED WITH THE APPROPRIATE CONNECTOR.

Brother advises that this product may not function correctly in a country other than where it was originally purchased, and does not offer any warranty in the event that this product is used on public telecommunication lines in another country.

IMPORTANT - For Your Safety 1

To ensure safe operation the two-pin plug or the three-pin plug supplied must be inserted only into a standard two-pin power point or three-pin power point which is effectively grounded through the normal household wiring.

Extension cords used with the equipment must be two-conductor or three-conductor and be correctly wired to provide connection to ground. Incorrectly wired extension cords are a major cause of fatalities.

The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, consult a qualified electrician.

Radio interference 1

This product complies with EN55022 (CISPR Publication 22)/Class B. When connecting the machine to a computer, ensure that you use a USB cable which does not exceed 2 m in length.

International ENERGY STAR® Qualification Statement 1

The purpose of the International ENERGY STAR® Program is to promote the development and popularization of energy-efficient office equipment.

As an ENERGY STAR® Partner, Brother Industries, Ltd. has determined that this product meets

the ENERGY STAR

specifications for energy efficiency.

Important Information for Australia (MFC only) 1

Important safety instructions 1

1 Read all of these instructions. 2 Save them for later reference. 3 Follow all warnings and instructions marked on the product. 4 Unplug this product from the wall socket before cleaning the outside of the machine and the

scanner glass. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 5 Do not use this product near water. 6 Do not place this product on an unstable cart, stand, or table. The product may fall, causing

serious damage to the product. 7 Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure

reliable operation of the product and to protect it from overheating, these openings must not

be blocked or covered. The openings should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should never be placed near or over a radiator

or heater. This product should never be placed in a built-in installation unless adequate

ventilation is provided. 8 This product should be connected to an AC power source within the range indicated on the

rating label. Do not connect it to a DC power source. If you are not sure, contact a qualified

electrician. 9 This product is equipped with a 3-wire grounded plug, a plug having a third (grounded) pin.

This plug will only fit into a grounded power outlet. This is a safety feature. If you are unable to

insert the plug into the outlet, call your electrician to replace your obsolete outlet. Do not defeat

the purpose of the grounded plug. 10 Do not place anything on top of the power cord including this machine. Do not allow the power

cord to be stepped on. 11 Do not place anything in front of the machine that will block printouts. Do not place anything in

the path of received faxes. 12 Do not touch a document during printing. 13 Never push objects of any kind into this product through cabinet slots, since they may touch

dangerous voltage points or short out parts resulting in a risk of fire or electric shock. Never

spill liquid of any kind on the product. 14 Do not attempt to service this product yourself, because opening or removing covers may

expose you to dangerous voltage points and/or other risks. Refer all servicing to service

personnel. 15 Wait until pages have exited the machine before picking them up.

16 Unplug this product from the electrical socket and refer servicing to Authorized Service

Personnel under the following conditions:

 When the power cord is damaged or frayed.  If liquid has been spilled into the product.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.

Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance, indicating a need for service.

17 Small metallic objects such as pins and staples may be attracted to the phone’s earpiece.

Important Information for New Zealand (MFC only)0

Important Safety Instructions 1

1 Read all of these instructions. 2 Save them for later reference. 3 Follow all warnings and instructions marked on the product. 4 Unplug this product from the wall outlet before cleaning the outside of the machine. Do not use

liquid or aerosol cleaners. Use a damp cloth for cleaning. 5 The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has

accepted that the item complies with minimum conditions for connection to its network. It

indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty.

Above all, it provides no assurance that any item will work correctly in all respects with another

item of Telepermitted equipment of a different make or model, nor does it imply that any

product is compatible with all of Telecom’s network services. 6 This equipment does not fully meet Telecom’s impedance requirements. Performance

limitations may occur when used in conjunction with some parts of the network. Telecom will

accept no responsibility should difficulties arise in such circumstances. 7 If a charge for local calls is acceptable, the “Dial Button” should not be used for local calls. Only

the 7-digits of the local number should be dialled from your telephone. Do not dial the area

code digit or the “0” prefix. 8 This equipment shall not be set to make automatic calls to the Telecom ‘111’ Emergency

Service. 9 This equipment should not be used under any circumstances which may constitute a nuisance

to other Telecom customers. 10 Not all telephones will respond to incoming ringing when connected to the extension socket. 11 The answer delay setting of this equipment shall not be set to less than the default setting as

this will destroy Caller ID information. 12 All persons using this device for recording telephone conversations shall comply with New

Zealand law. This requires that at least one party to the conversation is to be aware that it is

being recorded. In addition, the Principles enumerated in the Privacy Act 1993 shall be

complied with in respect to the nature of the personal information collected, the purpose for its

collection, how it is to be used and what it disclosed to any other party. 13 Do not place this product on an unstable surface, stand, or table. The product may fall, causing

serious damage to the product. 14 Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure

reliable operation of the product and to protect it from overheating, these openings must not

be blocked or covered. The openings should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should never be placed near or over a radiator

or heater. This product should not be placed in a built-in installation unless proper ventilation

is provided.

15 This product should be connected to an AC power source within the range indicated on the

rating label. Do not connect it to a DC power source. If you are not sure, contact a qualified electrician.

16 This product is equipped with a 3-wire earthed plug. This plug will fit into only an earthed

socket. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete socket. Do not defeat the purpose of an earthed plug.

17 Do not place anything on top of the power cord including this machine. Do not allow the power

cord to be stepped on.

18 Do not place anything in front of the machine that will block printouts. Do not place anything in

the path of received faxes. 19 Do not touch a document during printing. 20 Never push objects of any kind into this product through cabinet slots, since they may touch

dangerous voltage points or short out parts resulting in a risk of fire or electric shock. Never

spill liquid of any kind on the product. 21 Do not attempt to service this product yourself, because opening or removing covers may

expose you to dangerous voltage points and/or other risks. Refer all servicing to service

personnel. 22 Unplug this product from the mains power and telephone line sockets, and refer servicing to

qualified Service Personnel under the following conditions:

 If the power cord is damaged or frayed.  If liquid has been spilled into the product.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.

Adjust only those controls that are covered by the operating instructions. Incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance, indicating a need for service.

23 This unit will only work in conjunction with a tone signalling (DTMF) telephone, but some

telephones are not compatible. Since noise or speech from the telephone can upset dialling

from this unit, errors may result if the devices are used together in other than quiet conditions. 24 Where it is necessary to dial prefix digits, such as a Caller Display override code (“0196” or

“0197”), this unit will have to be used in conjunction with an associated tone signalling (DTMF)

telephone. 25 Note that some telephones are not compatible with this unit and dialling errors may result if the

two devices are used together in other than quiet conditions. The Telecom Faults Service is

not to be called should such problems arise. In such cases, it is recommended that the prefix

and wanted number are dialled manually. 26 This equipment may not provide for the effective hand-over of a call to another device

connected to the same line.

27 This equipment is not capable, under all operating conditions, of correct operation at the higher

speeds for which it is designed. Telecom will accept no responsibility should difficulties arise in such circumstances. This condition typically applies to 56 kbit/s modems and facsimile machines operating at >14.4 kbit/s.

28 When using the Caller Line Identification incorporated in this device, verify the integrity of the

recorded digits prior to dialling.

29 Some parameters required for compliance with Telecom’s Telepermit requirements are

dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecom’s Specifications:

 There shall be no more than 10 call attempts to the same number within any 30 minute

period for any single manual call initiation.

 The equipment shall go on-hook for a period of not less than 30 seconds between the end

of one attempt and the beginning of the next call attempt.

 Automatic calls to different numbers are spaced such that there is not less than 5 seconds

between the end of one call attempt and the beginning of another.

 Equipment shall be set to ensure that calls are answered within 3 and 30 seconds of the

receipt of ringing.

30 In the event of any problem with this device, it is to be disconnected, and a CPE item connected

to one of its terminal ports may be connected directly in its place. The user should then arrange for the product to be repaired. Should the matter be reported to Telecom as a wiring fault and the fault is proven to be due to this product, a call out charge will be incurred by the customer.

31 The Caller ID telephone numbers that are displayed and stored in this equipment include the

caller’s area code but not the toll access “0” prefix. When calling back it is necessary to add a “0” to the telephone number, or if the telephone number is a local number, omit the area code digit. If the toll services of a service provider other than Telecom are being used then a toll charge may be incurred if the “0” prefix toll access code and area code are used.

Important Information for Some Countries (MFC only)

Important Safety Instructions 1

scanner glass. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 5 Do not place this product near water. 6 Do not place this product on an unstable cart, stand, or table. The product may drop, causing

serious damage to the product. 7 Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure

reliable operation of the product and to protect it from overheating, these openings must not

be blocked or covered. The openings should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should never be placed near or on a radiator

or heater. This product should never be placed in a built-in installation unless proper ventilation

is provided.

8 This product should be connected to an AC power source within the range indicated on the

rating label. Do not connect it to a DC power source. If you are not sure, contact a qualified

electrician. 9 This product is equipped with a 2-wire grounding type plug or a 3-wire grounding type plug

(Only for Singapore, Malaysia, Hong Kong and India), a plug having two or three pins. This

plug will only fit into only a grounding-type power outlet. This is a safety feature. If you are

unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.

Do not defeat the purpose of the grounding-type plug. 10 Do not place anything on top of the power cord including this machine. Do not allow the power

cord to be stepped on. 11 If an extension cord is used with this product, make sure that the total ampere ratings on the

products plugged into the extension cord do not exceed the extension cord ampere rating. 12 Do not place anything in front of the machine that will block printouts. Do not place anything in

the path of received faxes. 13 Do not touch a document during printing. 14 Never push objects of any kind into this product through cabinet slots, since they may touch

dangerous voltage points or short out parts resulting in the risk of fire or electric shock. Never

spill liquid of any kind on the product. 15 Do not attempt to service this product yourself, as opening or removing covers may expose

you to dangerous voltage points and/or other risks, and may void your warranty. Please refer

all servicing to our Authorized Service Personnel. A list of Authorized Service Centres has

been included for your convenience, or you may contact the Brother Dealer for Service.

16 Unplug this product from the wall outlet and refer servicing to Authorized Service Personnel

under the following conditions:

 If the power cord is damaged or frayed.  If the product has been spilled by liquid.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance, indicating a need for service.

17 To protect your product against power surges, we recommend the use of a power protection

device (Surge Protector).

Regulatory Notices 1

WARNING

CAUTION

DO NOT use this machine near water, for example, near a bath tub, wash bowl, kitchen sink or washing machine, in a wet basement or near a swimming pool.

Avoid using this machine during an electrical storm. There may be a remote risk of electric shock from lightning.

DO NOT use this machine to report a gas leak in the vicinity of the leak. (MFC only)

Use only the power cord supplied with this machine.

DO NOT use the machine if the power cord is frayed or damaged, doing so may cause a fire.

DO NOT allow anything to rest on the power cord.

DO NOT place this product where people can walk on the cord.

DO NOT pull on the middle of the AC power cord. Doing this might cause an electrical shock.

For protection against the risk of electrical shock, always disconnect all cables from the wall outlet before servicing, modifying or installing the equipment.

This product must be installed near an electrical socket that is easily accessible. In case of an emergency, you must unplug the power cord from the electrical socket to shut off the power completely. (IEC)

IMPORTANT

• LAN connection (MFC-J615W and DCP-J715W only)

Note

DO NOT connect this machine to a LAN connection that is subject to over-voltages. (IEC)

• This equipment may not be used on coin service lines provided by the telephone company or connected to party lines.

Brother cannot accept any financial or other responsibilities that may be the result of your use of this information, including direct, special or consequential damages. There are no warranties extended or granted by this document.

Trademarks 1

The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Multi-Function Link is a registered trademark of Brother International Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United

States and/or other countries. Microsoft, Windows, Windows Server and Internet Explorer are registered trademarks of Microsoft

Corporation in the United States and/or other countries. Apple and Macintosh are trademarks of Apple Inc., registered in the United States and other

countries. Adobe, Flash, Illustrator, PageMaker and Photoshop are either registered trademarks or

trademarks of Adobe Systems Incorporated in the United States and/or other countries. Nuance, the Nuance logo, PaperPort and ScanSoft are trademarks or registered trademarks of

Nuance Communications, Inc. or its affiliates in the United States and/or other countries. PowerPC is a trademark of International Business Machines Corporation. Memory Stick, Memory Stick PRO, Memory Stick PRO Duo, Memory Stick Duo, MagicGate

Memory Stick, Memory Stick Micro and M2 are trademarks of Sony Corporation. AOSS is a trademark of Buffalo Inc. Wi-Fi, WPA, WPA2, Wi-Fi Protected Access and Wi-Fi Protected Setup are either trademarks or

registered trademarks of Wi-Fi Alliance in the United States and/or other countries. Intel and Pentium are trademarks of Intel Corporation in the U.S. and other countries. AMD is a trademark of Advanced Micro Devices, Inc. FaceFilter Studio is a trademark of Reallusion, Inc. BRAdmin Professional is a trademark of Brother Industries, Ltd. UNIX is a registered trademark of The Open Group. Linux is the registered trademark of Linus Torvalds in the U.S. and other countries. CorelDraw, Corel Paint Shop Pro and Corel WordPerfect are trademarks or registered trademarks

of Corel Corporation and/or its subsidiaries in Canada, the United States and/or other countries. Each company whose software title is mentioned in this manual has a Software License

Agreement specific to its proprietary programs.

Any trade names and product names of companies appearing on Brother products, related documents and any other materials are all trademarks or registered trademarks of those respective companies.

Open Source Licensing Remarks 1

This product includes open-source software. Please see Open Source Licensing Remarks and Copyright information on the supplied CD-ROM “X:\\License.txt” (where X is your drive letter).

Unlawful use of copying equipment 1

It is an offence to make reproductions of certain items or documents with the intent to commit fraud. We suggest you check with relevant legal authorities if in doubt about a particular item or document.

The following is a non-exhaustive list of documents which may not lawfully be copied:

 Currency  Bonds or other certificates of debt  Certificates of Deposit  Armed Forces Service or Draft papers  Passports  Postage Stamps (cancelled or uncancelled)  Immigration Papers  Welfare documents  Cheques or Drafts drawn by Governmental Agencies  Identification Documents, badges or insignias

Copyrighted works cannot be copied, subject to the “fair dealing” exception relating to sections of a copyrighted work. Multiple copies would indicate improper use.

Works of art should be considered the equivalent of copyrighted works. Licenses and Certificates of Title to motor vehicles may not be copied under certain national laws.

BASIC USER’S GUIDE

MFC-J220 MFC-J265W MFC-J410 MFC-J415W

Version 0

ARL/ASA/NZ

If you need to call Customer Service

Please complete the following information for future reference:

Model Number: MFC-J220, MFC-J265W, MFC-J410 and MFC-J415W (Circle your model number)

Serial Number:

Date of Purchase:

Place of Purchase:

The serial number is on the back of the unit. Retain this User's Guide with your sales receipt as a permanent record of your purchase, in the event of theft, fire or warranty service.

http://www.brother.com/registration/

User's Guides and where do I find it?

Which manual? What's in it? Where is it?

Safety and Legal Please read the Safety Instructions before you

set up your machine.

Quick Setup Guide Read this Guide first. Follow the instructions for

setting up your machine and installing the drivers and software for the operating system and connection type you are using.

Basic User's Guide Learn the basic Fax, Copy, Scan and

PhotoCapture Center™ operations and how to replace consumables. See troubleshooting tips.

Advanced User's Guide Learn more advanced operations: Fax, Copy,

security features, printing reports and performing routine maintenance.

Software User's Guide Follow these instructions for Printing, Scanning,

Network Scanning (MFC-J265W and MFC-J415W only), PhotoCapture Center™, PC-Fax Send, and using the Brother ControlCenter utility.

Network User's Guide (MFC-J265W and MFC-J415W only)

This Guide provides more advanced information for configuring the Wireless network connections. In addition, find information about network utilities, network printing, troubleshooting tips and supported network specifications.

Printed / In the box

PDF file / Documentation CD-ROM

Table of Contents

(BASIC USER’S GUIDE)

1 General information 1

Using the documentation ....................................................................................... 1

Symbols and conventions used in the documentation .................................... 1

Accessing the Advanced User’s Guide, Software User’s Guide and

Network User’s Guide.........................................................................................1

Viewing Documentation ................................................................................... 1

Accessing Brother Support (Windows

Accessing Brother Support (Macintosh) ................................................................3

Control panel overview ..........................................................................................4

LCD screen indications....................................................................................6

Basic Operations .............................................................................................6

Volume settings .....................................................................................................7

Ring Volume ....................................................................................................7

Beeper Volume................................................................................................7

Speaker Volume..............................................................................................8

LCD display ...........................................................................................................8

Setting the backlight brightness....................................................................... 8

)................................................................3

2 Loading paper 9

Loading paper and other print media.....................................................................9

Loading envelopes and postcards.................................................................11

Removing small printouts from the machine .................................................13

Printable area ................................................................................................14

Paper settings......................................................................................................15

Paper Type....................................................................................................15

Paper Size.....................................................................................................15

Acceptable paper and other print media..............................................................16

Recommended print media ...........................................................................16

Handling and using print media.....................................................................16

Choosing the right print media.......................................................................18

3 Loading documents 20

How to load documents .......................................................................................20

Using the ADF (MFC-J410 and MFC-J415W only) .......................................20

Using the scanner glass ................................................................................20

Scannable area .............................................................................................21

4Sending a fax 22

How to send a fax ................................................................................................22

Setting scanner glass size for faxing .............................................................23

Colour fax transmission .................................................................................23

Cancelling a fax in progress .......................................................................... 23

Transmission Verification Report...................................................................24

5 Receiving a fax 25

Receive modes....................................................................................................25

Choose the Receive Mode .................................................................................. 25

Using receive modes ...........................................................................................26

Fax Only ........................................................................................................26

Fax/Tel...........................................................................................................26

Manual...........................................................................................................26

External TAD .................................................................................................26

Receive mode settings ........................................................................................27

Ring Delay ..................................................................................................... 27

F/T Ring Time (Fax/Tel mode only)...............................................................27

Fax Detect .....................................................................................................28

6 Telephone and external devices 29

Voice operations..................................................................................................29

Tone or pulse (Not Available for New Zealand)............................................. 29

Fax/Tel mode.................................................................................................29

Telephone Service for Australia...........................................................................29

Telstra

Caller ID......................................................................................................... 31

How Does the Caller ID Work?......................................................................32

The Caller ID is Stored in Your Machine Memory .........................................32

Telephone Service for New Zealand ...................................................................32

FaxAbility .......................................................................................................32

Caller ID......................................................................................................... 34

How Does the Caller ID Work?......................................................................34

Telephone Service for Some Countries...............................................................35

Distinctive Ring (For Singapore and Hong Kong)..........................................35

Caller ID (For Singapore, Hong Kong and Taiwan).......................................36

Connecting an external TAD (telephone answering device)................................37

Settings.......................................................................................................... 37

Recording an outgoing message (OGM) on an external TAD.......................37

Multi-line connections (PABX) ....................................................................... 38

External and extension telephones......................................................................38

Connecting an external or extension telephone ............................................38

Operation from external and extension telephones.......................................39

Using a cordless external telephone .............................................................39

Using remote codes....................................................................................... 39

FaxStream® Duet® (Distinctive Ring).............................................. 29

iii

7 Dialling and storing numbers 41

How to dial ...........................................................................................................41

Manual dialling...............................................................................................41

Speed Dialling ...............................................................................................41

Search ...........................................................................................................41

Fax Redial ..................................................................................................... 42

Additional dialling operations...............................................................................42

Outgoing Call history ..................................................................................... 42

Caller ID history .............................................................................................43

Storing numbers ..................................................................................................44

Storing a pause .............................................................................................44

Storing Speed Dial numbers..........................................................................44

Changing Speed Dial names or numbers......................................................45

8 Making copies 46

How to copy .........................................................................................................46

Stop copying ..................................................................................................46

Copy settings.................................................................................................47

Paper Options................................................................................................47

9 Printing photos from a memory card 48

PhotoCapture Center™ operations .....................................................................48

Using a memory card ....................................................................................48

Getting started .....................................................................................................49

Print Images.........................................................................................................51

View Photos...................................................................................................51

PhotoCapture Center™ print settings..................................................................51

How to scan to a memory card ............................................................................52

10 How to print from a computer 54

Printing a document .............................................................................................54

11 How to scan to a computer 55

Scanning a document ..........................................................................................55

Scanning using the scan key...............................................................................55

Scanning using a scanner driver .........................................................................55

A Routine maintenance 56

Replacing the ink cartridges ................................................................................56

Cleaning and checking the machine....................................................................58

Cleaning the scanner glass ...........................................................................58

Cleaning the paper pick-up rollers .................................................................59

Cleaning the print head .................................................................................60

Checking the print quality ..............................................................................60

Checking the print alignment .........................................................................61

B Troubleshooting 62

Error and Maintenance messages.......................................................................62

Error animations display ................................................................................ 66

Transferring your faxes or Fax Journal report ...............................................66

Document jam (MFC-J410 and MFC-J415W only) ....................................... 67

Printer jam or paper jam................................................................................68

Troubleshooting ..................................................................................................71

If you are having difficulty with your machine ................................................ 71

Dial Tone detection........................................................................................78

Telephone line interference / VoIP ................................................................78

Machine Information ............................................................................................79

Checking the serial number........................................................................... 79

Reset functions .............................................................................................. 79

How to reset the machine..............................................................................79

C Menu and features 80

On-screen programming......................................................................................80

Menu table...........................................................................................................81

Entering Text .......................................................................................................96

Inserting spaces ............................................................................................ 96

Making corrections ........................................................................................96

Repeating letters ...........................................................................................96

Special characters and symbols....................................................................96

D Specifications 97

General................................................................................................................97

Print media...........................................................................................................99

Fax.....................................................................................................................100

Copy ..................................................................................................................101

PhotoCapture Center™ ..................................................................................... 102

Scanner .............................................................................................................103

Printer ................................................................................................................ 104

Interfaces ...........................................................................................................105

Computer requirements.....................................................................................106

Consumable items .............................................................................................107

Network (MFC-J265W and MFC-J415W only) ..................................................108

EIndex 109

Table of Contents

(ADVANCED USER’S GUIDE)

The Advanced User's Guide explains the following features and operations. You can view the Advanced User's Guide on the Documentation CD-ROM.

1 General setup

Memory storage Setting Daylight Saving Time Sleep Mode LCD display Mode Timer

2 Security features

TX Lock

3 Sending a fax

Additional sending options Additional sending operations

4 Receiving a fax

Additional receiving operations

5 Dialling and storing numbers

Additional dialling operations Additional ways to store numbers

A Routine maintenance

Cleaning and checking the machine Packing and shipping the machine

B Glossary

CIndex

6 Printing reports

Fax reports Reports

7 Making copies

Copy settings

8 Printing photos from a memory

card

PhotoCapture Center™ operations Print Images PhotoCapture Center™ print settings Scan to a memory card

Note

General information 1

Using the documentation

Thank you for buying a Brother machine! Reading the documentation will help you make the most of your machine.

Notes tell you how you should respond to a situation that may arise

or give tips about how the operation works with other features.

Electrical Hazard icons alert you to possible electrical shock.

Symbols and conventions used in the documentation 1

The following symbols and conventions are used throughout the documentation.

Bold Bold typeface identifies specific

buttons on the machine’s control panel, or on the computer screen.

Italics Italicized typeface emphasizes

an important point or refers you to a related topic.

Courier New

Text in the Courier New font identifies messages on the LCD of the machine.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injuries.

CAUTION

Accessing the Advanced User’s Guide, Software User’s Guide and Network User’s Guide

This Basic User’s Guide does not contain all the information about the machine such as how to use the advanced features for Fax, Copy, PhotoCapture Center™, Printer, Scanner, PC-Fax and Network. When you are ready to learn detailed information about these operations, read the

Software User’s Guide Network User’s Guide

Documentation CD-ROM.

Viewing Documentation 1

a Turn on your computer. Insert the

Documentation CD-ROM into your CD-ROM drive.

Advanced User’s Guide

and

that are on the

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injuries.

IMPORTANT

IMPORTANT indicates a potentially hazardous situation which may result in property-damage-only accidents or loss of product functionality.

(Windows® users) If the screen does not appear automatically, go to

My Computer (Computer)

double-click the CD-ROM icon, and then double-click

index.html

b (Macintosh users)

Double-click the CD-ROM icon, and then double-click index.html.

Chapter 1

Note

c Click your country.

Point to your language, point to and then click the guide you want to read.

View Guide

How to find Scanning instructions 1

There are several ways you can scan documents. You can find the instructions as follows:

Software User’s Guide

 Scanning  ControlCenter  Network Scanning (MFC-J265W and

MFC-J415W only)

ScanSoft™ PaperPort™11SE with OCR How-to-Guides

(MFC-J410 and MFC-J415W only) (Not available in Hong Kong and Taiwan)

(Windows

The complete ScanSoft™ PaperPort™11SE



)

with OCR How-to-Guides can be viewed from the Help selection in the ScanSoft™ PaperPort™11SE application.

Presto! PageManager User’s Guide (MFC-J410 and MFC-J415W only)

(Windows®) (Hong Kong and Taiwan users only)

 Instructions for scanning directly from

Presto! PageManager. The complete Presto! PageManager User’s Guide can be viewed from the Help selection in the Presto! PageManager application.

• (Windows® users only) Your web browser may display a yellow bar at the top of the page that contains a security warning about Active X controls. For the page to display correctly you must click on the bar, click Allow Blocked Content, then click Yes in the Security Warning dialog box.

• (Windows

users only)1 For faster access, you can copy all user documentation in PDF format to a local folder on your computer. Point to your language, then click Copy to local disk.

Microsoft® Internet Explorer® 6.0 or greater.

Presto! PageManager User’s Guide (MFC-J410 and MFC-J415W only) (Macintosh)

Presto! PageManager must be downloaded and installed before use. See Accessing Brother Support (Macintosh) on page 3 for further instructions.



The complete Presto! PageManager User’s Guide can be viewed from the Help selection in the Presto! PageManager application.

How to find Network setup instructions (MFC-J265W and MFC-J415W only)

Your machine can be connected to a wireless network. You can find basic setup instructions in the Quick Setup Guide. If your wireless access point or router supports Wi-Fi Protected Setup or AOSS™, you can also follow the steps in the Quick Setup Guide. For more information about network setup please see the Network User's Guide on the Documentation CD-ROM.

General information

Accessing Brother Support (Windows

You can find all the contacts you will need, such as Web support (Brother Solutions Center), on the Installation CD-ROM.

 Click Brother Support on the Top Menu.

The following screen will appear:

) 1

Accessing Brother Support (Macintosh)

You can find all the contacts you will need, such as Web support (Brother Solutions Center) on the Installation CD-ROM.

 Double-click the Brother Support icon.

The following screen will appear:

 To access our website

(http://www.brother.com Brother Home Page.

 For the latest news and product support

information (http://solutions.brother.com/ Brother Solutions Center.

 To visit our website for original Brother

Supplies (http://www.brother.com/original/ click Supplies Information.

 To access the Brother CreativeCenter

(http://www.brother.com/creativecenter/ for FREE photo projects and printable downloads, click Brother CreativeCenter.

 To return to the Top Menu, click Back or

if you have finished, click Exit.

), click

)

 (MFC-J410 and MFC-J415W only)

To download and install Presto! PageManager, click Presto! PageManager.

 To register your machine from the Brother

Product Register Page (http://www.brother.com/registration/ click On-Line Registration.

 For the latest news and product support

information (http://solutions.brother.com/ Brother Solutions Center.

 To visit our website for original Brother

Supplies (http://www.brother.com/original/ Supplies Information.

), click

Chapter 1

1:41

01. 01. 2010

Control panel overview 1

The MFC-J220, MFC-J265W, MFC-J410 and MFC-J415W have the same control panel keys.

Fax Mem.

1:4

01:41

01. 01. 2010

1 Fax and telephone keys:

 Redial/Pause

Redials one of the last 30 numbers called. It also inserts a pause when programming quick dial numbers.

 Hook

Press before dialing if you want to make sure a fax machine will answer, and then press Mono Start or Colour Start.

Also, press this key after picking up the handset of an external telephone during the F/T pseudo/double-ring.

2 Mode keys:

 FAX

Lets you access Fax mode.

 SCAN

Lets you access Scan mode.

 COPY

Lets you access Copy mode.

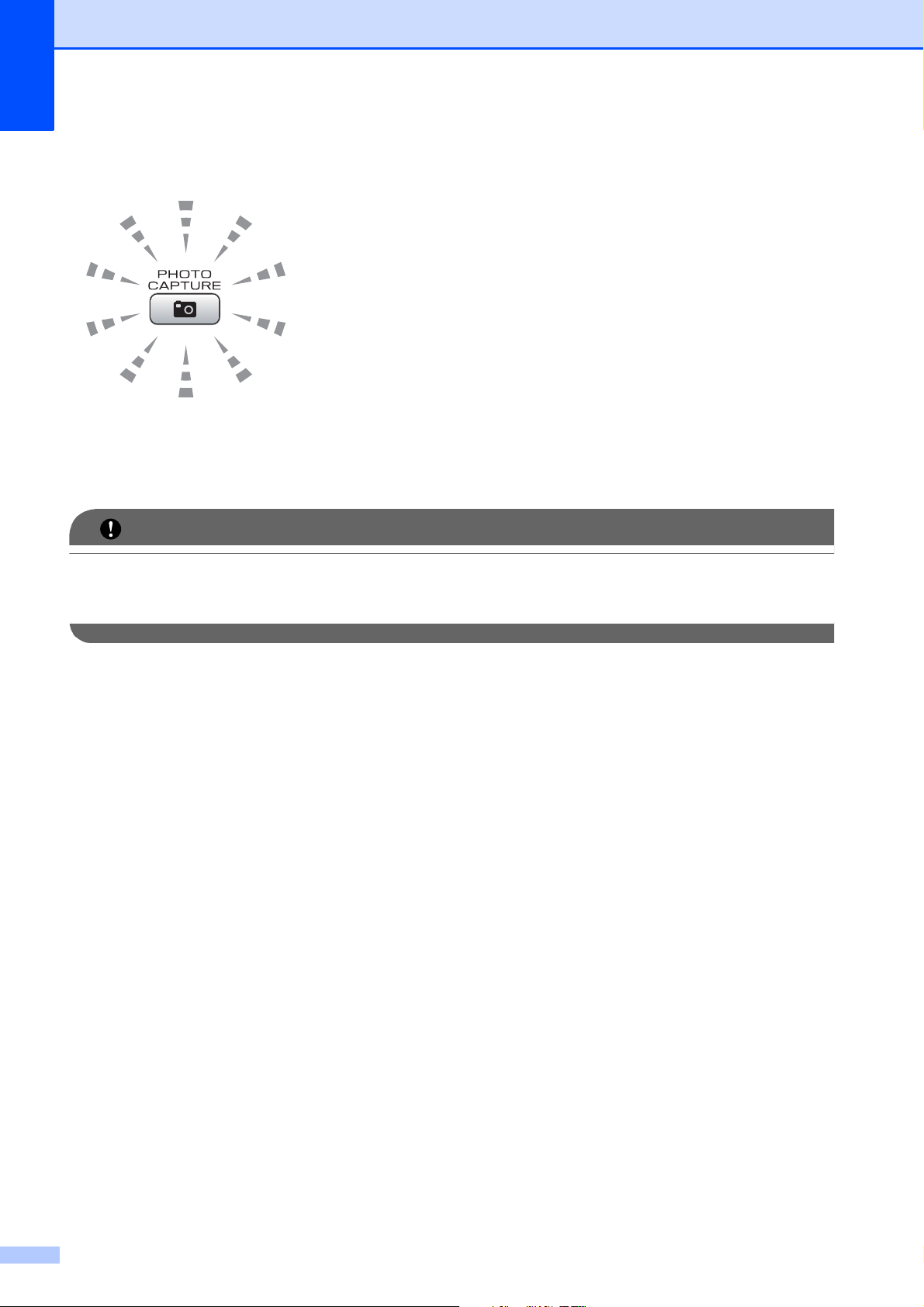

 PHOTO CAPTURE

Lets you access PhotoCapture Center™ mode.

3 Menu keys:

 Volume keys

d c

While the machine is idle, you can press these keys to adjust the ring volume.

 Speed Dial key

Lets you store, look up, and dial numbers that are stored in the memory.

 d or c

Press d or c to move the selected area left or right on the LCD.

 a or b

Press a or b to scroll through the menus and options.

 Menu

Access the main menu.

 Clear

 OK

Press to delete characters or to go back to the previous menu level.

Lets you confirm a selection.

General information

Note

Fax Mem.

01:41:4101:41

01. 01. 201001. 01. 201001. 01. 2010

2 34

4 Start keys:

 Mono Start

Lets you start sending faxes or making copies in monochrome. Also lets you start a scanning operation (in colour or mono depending on the scanning setting in the ControlCenter software).

 Colour Start

Lets you start sending faxes or making copies in full colour. Also lets you start a scanning operation (in colour or mono, depending on the scanning setting in the ControlCenter software).

5 Stop/Exit

Stops an operation or exits the menu.

6 LCD (Liquid Crystal Display)

Displays messages on the screen to help you set up and use your machine.

7 Dial Pad

Use these keys to dial telephone and fax numbers and as a keyboard for entering information into the machine.

The # key lets you temporarily switch the dialling mode during a telephone call from Pulse to Tone. (Not available in New Zealand)

8On/Off

You can turn the machine on and off. Press On/Off to turn the machine on. Press and hold down

off. The LCD will show Shutting Down and will stay on for a few seconds before going off.

If you have connected an external telephone or TAD, it is always available.

If you turn the machine off, it will still periodically clean the print head to maintain print quality. To prolong print head life, provide the best ink cartridge economy, and maintain print quality, you should keep your machine connected to the power at all times.

On/Off

to turn the machine

Most of the illustrations in this User’s Guide show the MFC-J415W.

Chapter 1

1:41

01. 01. 2010

LCD screen indications 1

The LCD shows the current machine status when the machine is idle.

1:4

01:41

01. 01. 2010

Fax Mem.

2 3 4

1 Wireless Status (MFC-J265W and

MFC-J415W only)

A four level indicator shows the current wireless signal strength if you are using a wireless connection.

Basic Operations 1

The following steps show how to change a setting in the machine. In this example the Mode Timer setting is changed from 2 minutes to 30 seconds.

a Press Menu. b Press a or b to choose

General Setup.

MENU Select

Ink Management

General Setup

Fax

Press OK.

c Press a or b to choose Mode Timer.

General Setup

0Max

2 Current Receive Mode

Lets you see the current receive mode.

 Fax (Fax only)  F/T (Fax/Tel)  TAD (External TAD)  Mnl (Manual)

3 Memory Status

Lets you see the available memory in the machine.

4 Ink indicator

Lets you see the available ink volume.

The warning icon appears when there is an error or a maintenance message. For

details, see Error and Maintenance messages on page 62.

Mode Timer

2Mins

Paper Type

Paper Size

Press OK.

d Press a or b to choose 30Secs.

Mode Timer

Off

0Sec

30Secs

1Min

Press OK. You can see the current setting on the LCD:

General Setup

Mode Timer

30Secs

Paper Type

Paper Size

e Press Stop/Exit.

General information

Volume settings 1

Ring Volume 1

You can choose a range of ring volume levels, from High to Off.

While the machine is idle, press d or c to adjust the volume level. The LCD shows the current setting, and each key press will change the volume to the next level. The machine will keep the new setting until you change it.

You can also change the volume through the menu, by following the instructions below:

Setting the Ring Volume from the menu

a Press Menu. b Press a or b to choose

General Setup. Press OK.

Beeper Volume 1

When the beeper is on, the machine will beep when you press a key, make a mistake, or after you send or receive a fax.

You can choose a range of beeper volume levels, from High to Off.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose Volume.

Press OK.

d Press a or b to choose Beeper.

Press OK.

e Press a or b to choose Low, Med, High

or Off. Press OK.

f Press Stop/Exit.

c Press a or b to choose Volume.

Press OK.

d Press a or b to choose Ring.

Press OK.

e Press a or b to choose Low, Med, High

or Off. Press OK.

f Press Stop/Exit.

Chapter 1

Speaker Volume 1

You can choose a range of speaker volume levels, from High to Off.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose Volume.

Press OK.

d Press a or b to choose Speaker.

Press OK.

e Press a or b to choose Low, Med, High

or Off. Press OK.

f Press Stop/Exit.

LCD display 1

Setting the backlight brightness 1

If you are having difficulty reading the LCD, try changing the brightness setting.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose LCD Settings.

Press OK.

d Press a or b to choose Backlight.

Press OK.

e Press a or b to choose Light, Med or

Dark.

Press OK.

f Press Stop/Exit.

Loading paper 2

Loading paper and other print media

a If the paper support flap is open, close it,

and then close the paper support. Pull the paper tray completely out of the machine.

b Lift the output paper tray cover (1).

c With both hands, gently press and slide

the paper side guides (1) and then the

paper length guide (2) to fit the paper size. Make sure that the triangular marks (3) on the paper side guides (1) and paper length guide (2) line up with the marks for the paper size you are using.

Chapter 2

Note

IMPORTANT

When you are using Legal size paper, press and hold the universal guide release button (1) as you slide out the front of the paper tray.

e Gently put the paper into the paper tray

print side down and top edge in first. Check that the paper is flat in the tray.

d Fan the stack of paper well to avoid

paper jams and misfeeds.

Always make sure that the paper is not curled or wrinkled.

Be careful that you do not push the paper in too far; it may lift at the back of the tray and cause feed problems.

f Gently adjust the paper side guides (1)

to fit the paper using both hands. Make sure the paper side guides touch the sides of the paper.

Loading paper

IMPORTANT

g Close the output paper tray cover.

h Slowly push the paper tray completely

into the machine.

Loading envelopes and postcards 2

About envelopes 2

 Use envelopes that weigh between 80 to

95 gsm.

 Some envelopes need margin settings to

be set in the application. Make sure you do a test print first before printing many envelopes.

DO NOT use any of the following types of envelopes, as they will cause paper feed problems:

• That are of a baggy construction.

• That are embossed (have raised writing on them).

i While holding the paper tray in place,

pull out the paper support ( ) until it clicks and unfold the paper support

flap ( ).

• That have clasps or staples.

• That are pre-printed on the inside.

Glue Double flap

Occasionally you may experience paper feed problems caused by the thickness, size and flap shape of the envelopes you are using.

DO NOT use the paper support flap for Legal size paper.

Chapter 2

IMPORTANT

Loading envelopes and postcards 2

a Before loading, press the corners and

sides of envelopes or postcards to make them as flat as possible.

If envelopes or postcards are “doublefeeding”, put one envelope or postcard in the paper tray at a time.

b Put envelopes or postcards in the paper

tray with the side to be printed on face down, and the shortest edge in first as shown in the illustration. With both hands, gently press and slide the paper side guides (1) and paper length guide (2) to fit the size of the envelopes or postcards.

Loading paper

If you have problems printing on envelopes with the flap on the short edge, try the following:

a Open the envelope flap. b Put the envelope into the paper tray with

the address side down and the flap positioned as shown in the illustration.

Removing small printouts

from the machine 2

When the machine ejects small paper onto the output paper tray cover you may not be able to reach it. Make sure printing has finished, and then pull the tray completely out of the machine.

c Adjust the size and margin in your

application.

Chapter 2

Note

Printable area 2

The printable area depends on the settings in the application you are using. The figures below show the unprintable areas on cut sheet paper and envelopes. The machine can print in the shaded areas of cut sheet paper when the Borderless print feature is available and turned on.

(See Printing for Windows

Cut Sheet Paper Envelopes

or Printing and Faxing for Macintosh in the Software User’s Guide.)

Top (1) Bottom (2) Left (3) Right (4)

Cut Sheet 3 mm 3 mm 3 mm 3 mm Envelopes 12 mm 24 mm 3 mm 3 mm

The Borderless feature is not available for envelopes.

Loading paper

Note

Paper settings 2

Paper Type 2

To get the best print quality, set the machine for the type of paper you are using.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose Paper Type.

Press OK.

d Press a or b to choose Plain Paper,

Inkjet Paper, Brother BP71, Brother BP61, Other Glossy or Transparency.

Press OK.

e Press Stop/Exit.

Paper Size 2

You can use five sizes of paper for printing copies: A4, A5, Letter, Legal and 10  15 cm and three sizes for printing faxes: A4, Legal and Letter. When you change the size of paper you load in the machine, you will need to change the paper size setting at the same time so your machine can fit an incoming fax on the page.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose Paper Size.

Press OK.

d Press a or b to choose A4, A5,

10x15cm, Letter or Legal.

Press OK.

e Press Stop/Exit.

The machine ejects paper with printed surfaces face up onto the paper tray in front of the machine. When you use transparencies or glossy paper, remove each sheet at once to prevent smudging or paper jams.

Chapter 2

Acceptable paper and other print media

The print quality can be affected by the type of paper you use in the machine.

To get the best print quality for the settings you have chosen, always set the Paper Type to match the type of paper you load.

You can use plain paper, inkjet paper (coated paper), glossy paper, transparencies and envelopes.

We recommend testing various paper types before buying large quantities.

For best results, use Brother paper.

 When you print on inkjet paper (coated

paper), transparencies and glossy paper, be sure to choose the correct print media in the Basic tab of the printer driver or in the Paper Type setting of the menu. (See Paper Type on page 15.)

Recommended print media 2

To get the best print quality, we suggest using Brother paper. (See the table below.)

If Brother paper is not available in your country, we recommend testing various papers before purchasing large quantities.

We recommend using “3M Transparency Film” when you print on transparencies.

Brother paper

Paper Type Item

A4 Plain BP60PA A4 Glossy Photo BP71GA4 A4 Inkjet (Matte) BP60MA 10  15 cm Glossy Photo BP71GP

Handling and using print media 2

 When you print on Brother Photo paper,

load one extra sheet of the same photo paper in the paper tray. An extra sheet has been included in the paper package for this purpose.

 When you use transparencies or photo

paper, remove each sheet at once to prevent smudging or paper jams.

 Avoid touching the printed surface of the

paper immediately after printing; the surface may not be completely dry and may stain your fingers.

 Store paper in its original packaging, and

keep it sealed. Keep the paper flat and away from moisture, direct sunlight and heat.

 Avoid touching the shiny (coated) side of

photo paper. Load photo paper with the shiny side facing down.

 Avoid touching either side of

transparencies because they absorb water and perspiration easily, and this may cause decreased output quality. Transparencies designed for laser printers/copiers may stain your next document. Use only transparencies recommended for inkjet printing.

IMPORTANT

DO NOT use the following kinds of paper:

• Damaged, curled, wrinkled, or irregularly shaped paper.

1 2 mm or greater curl may cause jams

to occur.

• Extremely shiny or highly textured paper

Loading paper

• Paper that cannot be arranged uniformly when stacked

• Short grain paper

Paper capacity of the output paper tray cover

Up to 50 sheets of 80 gsm A4 paper.

 Transparencies and photo paper must be

picked up from the output paper tray cover one page at a time to avoid smudging.

Chapter 2

Choosing the right print media 2

Paper type and size for each operation 2

Paper Type Paper Size Usage

Fax Copy

Cut Sheet A4 210  297 mm (8.3  11.7 in.) Yes Yes Yes Yes

Letter 215.9  279.4 mm (8 1/2  11 in.) Yes Yes Yes Yes Legal 215.9  355.6 mm (8 1/2  14 in.) Yes Yes – Yes Executive 184  267 mm (7 1/4  10 1/2 in.) – – – Yes JIS B5 182  257 mm (7.2  10.1 in.) – – – Yes A5 148  210 mm (5.8  8.3 in.) – Yes – Yes A6 105  148 mm (4.1  5.8 in.) – – – Yes

Cards Photo 10  15 cm (4  6 in.) – Yes Yes Yes

Photo 2L 13  18 cm (5  7 in.) – – Yes Yes Index Card 127  203 mm (5  8 in.) – – – Yes Postcard 1 100  148 mm (3.9  5.8 in.) – – – Yes Postcard 2

(Double)

Envelopes C5 Envelope 162  229 mm (6.4  9 in.) – – – Yes

DL Envelope 110  220 mm (4.3  8.7 in.) – – – Yes COM-10 105  241 mm (4 1/8  9 1/2 in.) – – – Yes

148  200 mm (5.8  7.9 in.) – – – Yes

Photo Capture

Printer

Transparencies

Monarch 98  191 mm (3 7/8  7 1/2 in.) – – – Yes JE4 Envelope 105  235 mm (4.1  9.3 in.) – – – Yes A4 210  297 mm (8.3  11.7 in.) – Yes – Yes Letter 215.9  279.4 mm (8 1/2  11 in.) – Yes – Yes Legal 215.9  355.6 mm (8 1/2  14 in.) – Yes – Yes A5 148  210 mm (5.8  8.3 in.) – Yes – Yes

Loading paper

Paper weight, thickness and capacity 2

Paper Type Weight Thickness No. of

sheets

Cut Sheet Plain Paper

Inkjet Paper

64 to 120 gsm

64 to 200 gsm

0.08 to 0.15 mm

0.08 to 0.25 mm 20

100

Other Glossy Paper

Cards Photo Card

Index Card

Postcard

Envelopes

Up to 220 gsm

Up to 120 gsm

Up to 200 gsm

75 to 95 gsm

Up to 0.25 mm

Up to 0.15 mm 30

Up to 0.25 mm 30

Up to 0.52 mm 10

Transparencies – – 10

Up to 100 sheets of 80 gsm paper.

BP71 (260 gsm) paper is especially designed for Brother inkjet machines.

IMPORTANT

Loading documents 3

How to load documents

You can send a fax, make copies, and scan from the ADF (automatic document feeder) and from the scanner glass.

Using the ADF (MFC-J410 and MFC-J415W only) 3

The ADF can hold up to 15 pages and feeds each sheet individually. Use standard 80 gsm paper and always fan the pages before putting them in the ADF.

Document Sizes Supported 3

Paper:

Length: 148 to 355.6 mm Width: 148 to 215.9 mm Weight:

80 gsm A4

64 to 90 gsm

c Adjust the paper guides (2) to fit the

width of your document.

d Make sure you place your documents,

face down, top edge first in the ADF underneath the guides until you feel them touch the feed roller and the LCD shows ADF Ready.

DO NOT leave thick documents on the scanner glass. If you do this, the ADF may jam.

How to load documents 3

• DO NOT pull on the document while it is feeding.

• DO NOT use paper that is curled, wrinkled, folded, ripped, stapled, paper clipped, pasted or taped.

• DO NOT use cardboard, newspaper or fabric. Instead use the scanner glass.

Make sure documents written with ink are completely dry.

a Unfold the ADF Document Output

Support Flap (1).

b Fan the pages well.

Using the scanner glass 3

You can use the scanner glass to fax, copy or scan pages of a book or one page at a time.

Document Sizes Supported 3

Length: Up to 297 mm Width: Up to 215.9 mm Weight: Up to 2 kg

How to load documents 3

Note

IMPORTANT

To use the scanner glass, the ADF must be empty. (MFC-J410 and MFC-J415W only)

Loading documents

If you are scanning a book or thick document, DO NOT slam the cover down or press on it.

a Lift the document cover. b Using the document guidelines on the

left and top, place the document face down in the upper left corner of the scanner glass.

Scannable area 3

The scannable area depends on the settings in the application you are using. The figures below show unscannable areas.

Usage

Fax A4 3 mm

Document Size

Top (1)

Bottom (2)

Left (3)

Right (4)

3 mm

Letter 3 mm 4 mm Legal

(MFC-J410 and

J415W

MFC only)

Copy A4 3 mm 3 mm

Letter 3 mm 3 mm

Scan A4 3 mm 3 mm

Letter 3 mm 3 mm

c Close the document cover.

The unscannable area is 1 mm when you use the ADF.

3 mm 4 mm

Note

Sending a fax 4

How to send a fax 4

The following steps show how to send a fax.

a When you want to send a fax, or change

fax send or receive settings, press the

 The LCD shows:

(FAX) key to illuminate it in blue.

Press Start

Enter Number

Fax Resolution

Standard

• If you send a mono fax from the ADF when the memory is full it will be sent in real time.

• You can use the scanner glass to fax pages of a book one at a time. The documents can be up to A4 or Letter size.

• To send colour faxes with multiple pages use the ADF. (MFC-J410 and MFC-J415W only)

• Since you can only scan one page at a time, it is easier to use the ADF if you are sending a multiple page document. (MFC-J410 and MFC-J415W only)

c Set the scanner glass size, fax

resolution or contrast if you want to change them.

Contrast

b Do one of the following to load your

document:

 Place the document face down in the

ADF. (See Using the ADF (MFC-J410 and MFC-J415W only)

on page 20.)

 Load your document face down on

the scanner glass. (See Using the scanner glass on page 20.)

For more advanced fax sending operations and settings, see Sending a

fax in chapter 3 in the Advanced User’s Guide:

 Broadcasting

 Real Time TX

 Overseas Mode

 Fax Resolution

 Contrast

 Glass ScanSize

d Enter the fax number.

Using the dial pad

Using the Phone Book

 Speed Dial

Using call history

 Outgoing Call

 Caller ID hist.

Sending a fax

Note

e Press Mono Start or Colour Start.

Faxing from the ADF (MFC-J410 and MFC-J415W only)

 The machine starts scanning the

document.

Faxing from the scanner glass

 If you press Mono Start, the

machine starts scanning the first page.

Do one of the following:

• To send a single page, press 2 to choose No(Send) (or press Mono Start again).

The machine starts sending the document.

• To send more than one page, press 1 to choose Yes and place the next page on the scanner glass. Press OK. The machine starts scanning the page. (Repeat this step for each additional page.)

 If you press Colour Start, the

machine starts sending the document.

To cancel, press Stop/Exit.

Setting scanner glass size for faxing 4

When documents are Letter size, you need to set Scan Size to Letter. If you do not, the side portion of the faxes will be missing.

a Press (FAX).

b Press a or b to choose

Glass ScanSize. Press OK.

c Press a or b to choose Letter.

Press OK.

You can save the setting you use most often by setting it as default. (See Setting

your changes as a new default in chapter 3 in the Advanced User’s Guide.)

Colour fax transmission 4

Your machine can send a colour fax to machines that support this feature.

Colour faxes cannot be stored in the memory. When you send a colour fax, the machine will send it in real time (even if Real Time TX is set to Off).

Cancelling a fax in progress 4

If you want to cancel a fax while the machine is scanning, dialling or sending, press

Stop/Exit.

Chapter 4

Note

Transmission Verification Report 4

You can use the Transmission Verification Report as proof that you sent a fax. This report lists the sender’s name or fax number, the time and date of transmission, duration of transmission, number of pages sent, and whether or not the transmission was successful.

There are several settings available for the Transmission Verification Report:

 On: Prints a report after every fax you

send.

 On+Image: Prints a report after every fax

you send. A portion of the fax’s first page appears on the report.

 Off: Prints a report if your fax is

unsuccessful due to a transmission error. Off is the default setting.

f Press Stop/Exit.

• If you choose On+Image or Off+Image the image will only appear on the Transmission Verification Report if Real Time Transmission is set to Off. (See Real

Time Transmission in chapter 3 in the Advanced User’s Guide.)

• If your transmission is successful, "OK" will appear next to "RESULT" on the Transmission Verification Report. If transmission is not successful, "ERROR" will appear next to "RESULT".

 Off+Image: Prints a report if your fax is

unsuccessful due to a transmission error. A portion of the fax’s first page appears on the report.

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Report Setting. Press OK.

d Press a or b to choose Transmission.

Press OK.

e Press a or b to choose On, On+Image,

Off or Off+Image.

Press OK.

Receiving a fax 5

Receive modes 5

You must choose a receive mode depending on the external devices and telephone services you have on your line.

Choose the Receive Mode 5

By default, your machine will automatically receive any faxes that are sent to it. The diagram below will help you choose the correct mode.

For more detailed information on the receive modes, see Using receive modes on page 26.

Do you want to use the telephone features of your machine (if available) or an external telephone or external telephone answering device connected on the same line as the machine?

Yes

Are you using the voice message function of an external telephone answering device?

Do you want the machine to answer fax and telephone calls automatically?

To set a receive mode follow the instructions below:

a Press Menu. b Press a or b to choose Initial Setup.

Press OK.

c Press a or b to choose Receive Mode.

Press OK.

Fax Only

Manual

Fax/Tel

Yes

External TAD

Yes

d Press a or b to choose Fax Only, Fax/Tel, External TAD or Manual.

Press OK.

e Press Stop/Exit.

The LCD will display the current receive mode.

Chapter 5

Note

Using receive modes 5

Some receive modes answer automatically (Fax Only and Fax/Tel). You may want to change the ring delay before using these modes. (See Ring Delay on page 27.)

Fax Only 5

Fax Only mode will automatically answer every call as a fax call.

Fax/Tel 5

Fax/Tel mode helps you automatically manage incoming calls, by recognising whether they are fax or voice calls and dealing with them in one of the following ways:

 Faxes will be automatically received.

External TAD 5

External TAD mode lets an external answering device manage your incoming calls. Incoming calls will be dealt with in one of the following ways:

 Faxes will be automatically received.  Voice callers can record a message on the

external TAD.

(For more information see Connecting an external TAD (telephone answering device) on page 37.)

Do not turn off Distinctive Ring if you are subscribed to FaxStream

Duet®.

 Voice calls will start the F/T Ring to tell you

to pick up the line. The F/T Ring is a fast double-ring made by your machine.

(See F/T Ring Time (Fax/Tel mode only) on page 27 and Ring Delay on page 27.)

Manual 5

To receive a fax in manual mode lift the handset of an external telephone. When you hear fax tones (short repeating beeps), press Mono Start or Colour Start and choose Receive. You can also use the Fax Detect feature to receive faxes by lifting a handset on the same line as the machine.

(See Fax Detect on page 28.)

Receiving a fax

Note

Receive mode settings 5

Ring Delay 5

The Ring Delay sets the number of times the machine rings before it answers in Fax Only or Fax/Tel mode. If you have external or extension telephones on the same line as the machine choose the maximum number of rings.

(See Operation from external and extension telephones on page 39 and Fax Detect on page 28.)

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Setup Receive. Press OK.

d Press a or b to choose Ring Delay.

Press OK.

e Press a or b to choose how many times

the line rings before the machine answers (2-10 for Australia, 1-10 for New Zealand, Press OK. If you choose 0, the line will not ring at all.

f Press Stop/Exit.

0-10

for some countries).

F/T Ring Time (Fax/Tel mode only) 5

When somebody calls your machine, you and your caller will hear the normal telephone ring sound. The number of rings is set by the ring delay setting.

If the call is a fax, then your machine will receive it; however, if it is a voice call the machine will sound the F/T Ring (a fast double-ring) for the time you have set in the F/T Ring Time setting. If you hear the F/T Ring it means that you have a voice caller on the line.

Because the F/T Ring is made by the machine, extension and external telephones will not ring; however, you can still answer the call on any telephone. (For more information see Using remote codes on page 39.)

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Setup Receive. Press OK.

d Press a or b to choose

F/T Ring Time. Press OK.

e Press a or b to choose how long the

machine will ring to alert you that you have a voice call (20, 30, 40 or 70 seconds for Australia and some countries, 20, 30, 40 or 55 seconds for New Zealand). Press OK.

f Press Stop/Exit.

Even if the caller hangs up during the fast double-ring, the machine will continue to ring for the set time.

Chapter 5

Note

Fax Detect 5

If Fax Detect is On: 5

Fax Detect is turned On as default. The machine receives a fax call

automatically, even if you answer the call. When you see Receiving on the LCD or when you hear “chirps” through the handset you are using, just replace the handset. Your machine will do the rest.

If Fax Detect is Off: 5

If you are at the machine and answer a fax call by lifting the handset, press Mono Start or Colour Start, then press 2 to receive the fax.

If you answered at an extension telephone, press l 51 (l 91 for New Zealand). (See Operation from external and extension telephones on page 39.)

• If this feature is set to On, but your machine does not connect a fax call when you lift an extension or external telephone handset, press the remote activation code l 51 (l 91 for New Zealand).

• If you send faxes from a computer on the same telephone line and the machine intercepts them, set Fax Detect to Off.

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Setup Receive. Press OK.

d Press a or b to choose Fax Detect.

Press OK.

e Press a or b to choose On (or Off).

Press OK.

f Press Stop/Exit.

Note

Telephone and external devices 6

Voice operations 6

Tone or pulse (Not Available for New Zealand) 6

If you have a Pulse dialling service, but need to send tone signals (for example, for telephone banking), follow the instructions below:

a Pick up the handset of the external

telephone.

b Press # on the machine’s control panel.

Any digits dialled after this will send tone signals.

When you hang up, the machine will return to the Pulse dialling service.

Fax/Tel mode 6

When the machine is in Fax/Tel mode, it will use the F/T Ring (fast double-ring) to alert you to pick up a voice call.

If you are at an external telephone, lift the handset of the external telephone, and then press Hook to answer.

If you are at an extension telephone, you'll need to lift the handset during the F/T Ring Time and then press #51 (#91 for New Zealand) between the fast double-rings. If no one is on the line, or if someone wants to send you a fax, send the call back to the machine by pressing l 51 (l 91 for New Zealand).

Telephone Service for Australia

Telstra® FaxStream® Duet® (Distinctive Ring) 6

Telstra® FaxStream® Duet® is an enhanced Public Switched Telephone Service (PSTS)

offered by Telstra additional number on one phone line, with its

own distinctive ring pattern. Telstra FaxStream

that helps users distinguish voice and facsimile calls. With FaxStream

incoming calls to a fax number are announced by a different, distinctive ring signal. Only one call can be answered (or made) at any one time and while this call is in progress, incoming calls to either number will be presented with a busy tone.

Your machine has a Distinctive Ring function, allowing you to dedicate one phone number just for receiving faxes.

After you have set the Distinctive Ring feature to On, the receive mode is set to Manual automatically. Your Distinctive Ring Number does not allow Voice calls - only Faxes. You can not change the receive mode from Manual mode while the Distinctive Ring is set to on.

that allows you to have an

Duet® is a call handling feature

Duet®,

Chapter 6

What is the Advantage of using

Telstra

Using Telstra® FaxStream® Duet® is the most efficient way to receive both fax and telephone calls on the same line. When the voice call comes in, all phones (extension and external) and the fax machine will ring to alert you to pick it up. If a fax call comes in, the fax machine will answer automatically without ringing, whereas the extension and external phones will ring twice with a distinctive ring pattern. It is also a more efficient way of operating a Fax machine with an extension phone as you do not have to use the remote activation codes. It gives you two independent numbers without the higher cost of a second line.

FaxStream® Duet® Function?6

How does Telstra® FaxStream® Duet® Work?

Incoming calls to the voice number, will have the standard ring pattern of long, long tone, followed by a pause, repeated, while the new fax number will have a different ring pattern of three short bursts of ring, repeated at regular intervals.

When FaxStream receive a voice call all extension and external phones will ring with a standard ring pattern. The fax machine will ring on the third ring with a standard ring pattern. All external and the extension phones will continue to ring, until you or a telephone answering device can answer the voice number.

When FaxStream receive a fax call on the Duet

Fax machine will answer and automatically receive the fax message without ringing. On the other hand, all extension and external phones will ring twice with a distinctive ring pattern. Do not answer the phone as you are receiving a fax message.

Flowchart Sequence of Incoming call

Duet® is On and you

number the

(either Voice or Fax)

All extension phones ring twice, fax machine is silent.

Registered Duet (Fax) Number

Fax machine automatically receives and prints fax message without ringing.

You answer the call at an external phone or an extension phone or at the machine's handset.

Incoming Call

Main number (Voice Number)

Fax machine begins ringing on third ring.

Telephone Answering Device (TAD) answers the call.

Telephone and external devices

Note

Registering the Distinctive Ring pattern

Very Important!

After you have set the Distinctive Ring feature to on, the receive mode is set to Manual automatically. Your Distinctive Ring Number does not allow Voice calls - only Faxes. You cannot change the receive mode to another mode while the Distinctive Ring is set to on.

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Miscellaneous. Press OK.

d Press a or b to choose Distinctive. e Press a or b to choose On.

Press OK.

f Press Stop/Exit.

Distinctive Ring is now set to on.

Caller ID 6

Caller ID is a telephone service that allows the subscriber to see a display of the caller’s phone number or name as the telephone rings. It is a fast way to screen your calls. You can respond quickly to calls you missed, because Caller IDs are received and stored in your machine memory.

To get the Caller ID Service: apply for the Caller ID service at your local telephone company, if available.

Advantages of Caller ID 6

For Business

All businesses profit from a quicker response to customer calls. Businesses that provide mail order services, money-lending services or provide confidential information, can protect themselves from false orders or acceptance of false identification.

Turning off Distinctive Ring 6

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Miscellaneous. Press OK.

d Press a or b to choose Distinctive. e Press a or b to choose Off.

Press OK.

f Press Stop/Exit.

If you turn off Distinctive Ring, the machine will stay in Manual receive mode. You will need to set the Receive Mode again. (See Choose the Receive Mode on page 25.)

At Home

Residential customers can protect themselves from unwanted calls.

Chapter 6

Note

How Does the Caller ID Work?6

The Caller ID Appears on the Display When Your Telephone Rings

As your telephone rings, the display shows you the caller’s phone number or name if the name has stored in the Speed Dial. Once you answer the call, the caller’s ID disappears. You will see up to the first 16 characters of the number on the display.

•If ID Unknown appears on the display, it means that the call came from outside your caller ID service area or a public

phone.

•If ID Withheld appears on the display, it means the caller intentionally blocked the

transmission of his/her ID.

Depends on network function.

Telephone Service for New Zealand

FaxAbility 6

FaxAbility is a service offered by Telecom that allows you to have an additional number on one phone line, with its own distinctive ring pattern. This way, when you get an incoming call, you can identify the number being called by its ring.

How Will the Fax Machine Treat All Other Numbers?

FaxAbility mode ensures that the machine will answer calls to the FaxAbility (secondary) number. When a call comes in to your main number, all the phones will ring. You can set an external answering device (TAD) to answer calls on the other number(s). (See the chart in the following page.)

The Caller ID is Stored in Your Machine Memory 6

The machine can store a maximum of the last 30 incoming caller IDs in the memory, along with the time and date of reception. The 31st call will cause the oldest ID to be erased.

The Caller ID information stored in the memory can be used for the following.

 Printing the Caller ID List.

You can review calls you received by checking the Caller IDs in memory. This report will list the Date, Time, Phone Number (Caller ID) name, and type of Call (Comment) if available. (See How to print

a report in chapter 6 in the Advanced User’s Guide.)

What is the Advantage of Using the FaxAbility Function?

Using FaxAbility is the most efficient way to receive both fax and telephone calls on the same line. It is much easier for your callers who dial manually. The fax machine will answer with receiving tones so they will not have to press an activation code. And the people who call to talk on your main number will not have to talk to your fax machine. Basically, it gives you two independent numbers without the higher cost of a second line.

Telephone and external devices

Note

All extension phones ring twice, fax machine is silent.

Fax machine automatically receives and prints fax message without ringing.

Fax machine begins ringing on third ring.

Registered Duet (Fax) Number

Main number (Voice Number)

You answer the call at an external phone or an extension phone or at the machine's handset.

Telephone Answering Device (TAD) answers the call.

Incoming Call

(either Voice or Fax)

Flowchart Sequence of Incoming call

How Does FaxAbility Work? 6

Your telephone number will have the standard ring pattern of long, long tone, while the new number will have a ring pattern of long, silence, long, etc. When FaxAbility is On, you will not hear the first ring of all incoming calls on the fax machine. Extension phones will ring as usual. If the fax machine recognizes the ring pattern, all ringing will stop and the fax machine will answer and automatically receive the fax message. Otherwise, you will hear the extension phones and the fax machine continue to ring. The fax machine always listens to the ring pattern before it answers, so do not pick up the phone during that time. You will quickly learn to recognize the ring pattern for faxes, so you will not be tempted to answer that number. Either you or a telephone answering device can answer the main number(s).

How to Turn FaxAbility OFF or ON 6

The FaxAbility function is designed to accommodate the FaxAbility service provided by Telecom. To change the setting, repeat steps a-g; Step e is where you can choose either On or Off.

Call Waiting beeps caused by incoming calls on your main number can affect fax transmissions. If you have FaxAbility Service but don’t have Call Waiting, you need do nothing at this stage. If you do have Call Waiting as well as FaxAbility, set the Call Waiting menu option to On. See below.

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Miscellaneous. Press OK.

After you have set the FaxAbility feature to On, the receive mode is set to Manual automatically. Unless you have a TAD or Voice Mail set up on the FaxAbility number, Manual mode means you must answer all the call yourself. You can not change the receive mode to the other mode while the FaxAbility is set to on.

d Press a or b to choose Faxability.

Press OK.

e Press a or b to set FaxAbility to On

(or Off). If you have FaxAbility service, choose On. Press OK.

f Press a or b to choose Call waiting.

Press OK.

g Press a or b to choose Call Waiting to

On (or Off). If you have Call Waiting service, choose On to avoid the trouble caused by Call Waiting. Press OK.

h Press Stop/Exit.

Chapter 6

Note

Caller ID 6

Caller ID is a telephone service that allows the subscriber to see a display of the caller’s phone number and name if available as the telephone rings. It is a fast way to screen your calls. You can respond quickly to calls you missed, because Caller IDs are received and stored in your machine memory.

To get the Caller ID Service, apply for the Caller ID service at your local telephone company, if available.

Advantages of Caller ID 6

For Business

How Does the Caller ID Work?6

The Caller ID Appears on the Display When Your Telephone Rings

As your telephone rings, the display shows you the caller’s phone number or name if available. Once you answer the call, the caller’s ID disappears. You will see up to the first 16 characters of the number and name if available on the display. (See How to print a

report in chapter 6 in the Advanced User’s Guide.)

•If ID Unknown appears on the display, it means that the call came from outside

your caller ID service area.

•If ID Withheld appears on the display, it means the caller intentionally blocked the

transmission of his/her ID.

Depends on network function.

At Home

Residential customers can protect themselves from unwanted calls.

Telephone and external devices

Note

Telephone Service for Some Countries

Distinctive Ring (For Singapore and Hong Kong) 6

This machine feature lets you use the Distinctive Ring subscriber service offered by some telephone companies, which allows you to have several telephone numbers on one phone line. Each phone number has its own Distinctive Ring pattern, so you will know which phone number is ringing. This is one way you can have a separate phone number for your machine.

Your machine has a Distinctive Ring function, allowing you to dedicate one phone number just for receiving faxes. You will need to set Distinctive Ring to On.

c Press a or b to choose

Miscellaneous.

Press OK.

d Press a or b to choose Distinctive.

Press OK.

e Press a or b to choose On.

Press OK.

f Press Stop/Exit.

Distinctive Ring is now set to on.

Turning off Distinctive Ring 6

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Miscellaneous. Press OK.

You can switch it off temporarily, then turn it back on. When you get a new fax number, make sure you reset this function.

• The machine will answer only calls to the Distinctive Ring number.

Registering the Distinctive Ring pattern

Very Important!

After you have set the Distinctive Ring feature to on, the receive mode is set to Manual automatically. Unless you have a TAD or Voice Mail set up on the Distinctive Ring number, Manual mode means you must answer all the calls yourself. You cannot change the receive mode to another mode while the Distinctive Ring is set to on.

d Press a or b to choose Distinctive.

Press OK.

e Press a or b to choose Off.

Press OK.

f Press Stop/Exit.

If you turn off Distinctive Ring, the

machine will stay in Manual receive mode. You will need to set the Receive Mode again. (See Choose the Receive Mode on page 25.)

a Press Menu. b Press a or b to choose Fax.

Press OK.

Chapter 6

Note

Caller ID (For Singapore, Hong Kong and Taiwan) 6

The Caller ID feature of this machine lets you use the Caller ID subscriber service offered by many local phone companies. Call your telephone company for details. This service provides you, by means of the screen display, the telephone number (or name) of your caller as the line rings.

After a few rings, the screen displays the telephone number of your caller (or name, if available). Once you answer the call, the Caller ID information disappears from the screen, but the call information remains stored in the Caller ID memory.

 You will see the first 16 characters of the

number or name.

 ID Unknown display means call

originates outside your Caller ID service area.

Setting the Caller ID to On (Taiwan only)

If you have Caller ID on your line, then this function should be set to On to display the caller's telephone number on the LCD as the telephone rings.

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Miscellaneous. Press OK.

d Press a or b to choose Caller ID.

Press OK.

e Press a or b to choose On (or Off).

Press OK.

f Press Stop/Exit.

 ID Withheld display means the caller

has intentionally blocked transmission of information.

You can print a list of Caller ID information received by your machine. (See How to

print a report in chapter 6 in the Advanced User’s Guide.)

Caller ID service varies with different carriers. Call your local phone company to determine the kind of service available in your area.

Connecting an external

Note

IMPORTANT

Note

(Example for Australia)

Telephone and external devices

TAD (telephone answering device)

You may choose to connect an external answering device. However, when you have an

external

as the machine, the TAD answers all calls and the machine “listens” for fax calling (CNG) tones. If it hears them, the machine takes over the call and receives the fax. If it does not hear CNG tones, the machine lets the TAD continue playing your outgoing message so your caller can leave you a voice message.

The TAD must answer within two rings (the recommended setting is two rings). The machine cannot hear CNG tones until the TAD has answered the call, and with four rings there are only 8 to 10 seconds of CNG tones left for the fax “handshake”. Make sure you carefully follow the instructions in this guide for recording your outgoing message. We do not recommend using the toll saver feature on your external answering machine if it exceeds five rings.

TAD on the same telephone line

DO NOT connect a TAD elsewhere on the

same telephone line.

Settings 6

The external TAD must be connected as shown in the previous illustration.

a Set your external TAD to one or two

rings. (The machine's Ring Delay setting does not apply.)

b Record the outgoing message on your

external TAD.

c Set the TAD to answer calls. d Set the Receive Mode to

External TAD. (See Choose the Receive Mode on page 25.)

Recording an outgoing

If you do not receive all your faxes, shorten the Ring Delay setting on your external TAD.

1TAD 2 Protective Cap

When the TAD answers a call, the LCD shows Telephone.

message (OGM) on an external TAD 6

Timing is important in recording this message.

a Record 5 seconds of silence at the

beginning of your message. (This allows your machine time to listen for the fax CNG tones of automatic transmissions before they stop.)

b Limit your speaking to 20 seconds.

We recommend beginning your OGM with an initial 5-second silence because the machine cannot hear fax tones over a resonant or loud voice. You may try omitting this pause, but if your machine has trouble receiving, then you must re-record the OGM to include it.

Chapter 6

Multi-line connections (

Most offices use a central telephone system. Brother recommends that all our machines be

connected to a discreet (dedicated) line. Although a particular PABX may appear to work with a particular model of fax machine, we cannot guarantee that the unit will operate correctly.

While it is often relatively simple to connect a fax machine to a PABX, (Private Automatic Branch Exchange), we suggest that you contact the company that installed your telephone system and ask them to connect the fax machine for you.

Brother does not recommend the use of a PABX line. PABX limitations in general can cause some functions of the fax machine not to work correctly.

PABX

External and extension telephones

Connecting an external or extension telephone 6

You can connect a separate telephone to your machine as shown in the diagram below.

(Example for Australia)

1 Extension telephone

2 External telephone

3 Protective Cap

When you are using a telephone on the same phone line, the LCD shows Telephone.

Telephone and external devices

Note

Operation from external and extension telephones 6

If you answer a fax call on an extension or an external telephone, you can make your machine take the call by using the Remote Activation Code. When you press the Remote Activation Code l 51 (l 91 for New Zealand), the machine starts to receive the fax.

If the machine answers a voice call and fast double-rings for you to take over, use the Remote Deactivation Code #51 (#91 for New Zealand) to take the call at an extension telephone. (See F/T Ring Time (Fax/Tel mode only) on page 27.)

If you answer a call and no one is on the line:

You should assume that you're receiving a manual fax.

Press l 51 (l 91 for New Zealand) and wait for the chirp or until the LCD shows Receiving, and then hang up.

You can also use the Fax Detect feature to make your machine automatically take the call. (See Fax Detect on page 28.)

Using a cordless external telephone 6

Once the base unit of the cordless telephone has been connected to the same telephone line as the machine (see External and extension telephones on page 38), it is easier to answer calls during the Ring Delay if you carry the cordless handset around with you.

If you let the machine answer first, you will have to go to the machine so you can press

Hook to send the call to the cordless handset.

Using remote codes 6

Remote Activation code 6

If you answer a fax call on an extension or external telephone, you can tell your machine to receive it by dialling the Remote Activation Code l 51 (l 91 for New Zealand). Wait for the chirping sounds then replace the handset. (See Fax Detect on page 28.)

If you answer a fax call at the external telephone, you can make the machine receive the fax by pressing Mono Start and choose Receive.

Remote Deactivation Code 6

If you receive a voice call and the machine is in F/T mode, it will start to sound the F/T Ring (fast double-ring), after the initial ring delay. If you pick up the call on an extension telephone you can turn the F/T Ring off by pressing #51 (#91 for New Zealand) (make sure you press this between the rings).

If the machine answers a voice call and fast double-rings for you to take over, you can take the call at the external telephone by pressing Hook.

Chapter 6

Note

Changing the remote codes 6

If you want to use Remote Activation, you have to turn on the remote codes. The preset Remote Activation Code is l 51 (l 91 for New Zealand). The preset Remote Deactivation Code is #51 (#91 for New Zealand). If you want to, you can replace them with your own codes.

a Press Menu. b Press a or b to choose Fax.

Press OK.

c Press a or b to choose

Setup Receive. Press OK.

d Press a or b to choose Remote Codes.

Press OK.

e Press a or b to choose On (or Off).

Press OK.

f Enter the new Remote Activation Code.

(See Entering Text on page 96.)

g Enter the new Remote Deactivation

Code. (See Entering Text on page 96.)

h Press Stop/Exit.

• If you are always disconnected when accessing your external TAD remotely, try changing the Remote Activation Code and Remote Deactivation Code to another three-digit code using the numbers 0-9, l, #.

• Remote Codes might not work with some telephone systems.

Note

Dialling and storing numbers 7

How to dial 7

Manual dialling 7

Press all of the digits of the fax or telephone number.

Speed Dialling 7

a Press (Speed Dial).

Search 7

You can search for names you have stored in the Speed Dial memory.

a Press (Speed Dial).

You can also choose Speed Dial by pressing (FAX).

b Press a or b to choose Search.

Press OK.

c Press a or b to choose

Alphabetical Order or Numerical Order.

Press OK.

d If you chose Alphabetical Order in

step c, use the dial pad to enter the first letter of the name, and then press a or b to choose the name and number you want to call. Press OK.

You can also choose Speed Dial by pressing (FAX).

b Press a or b to choose Search.

Press OK.

c Press the two-digit Speed Dial number.

(See Storing Speed Dial numbers on page 44.)

If the LCD shows Not Registered when you enter or search a Speed Dial number, a number has not been stored at this location.

Chapter 7

Note

Fax Redial 7

If you are sending a fax manually and the line is busy, press Redial/Pause, and then press Mono Start or Colour Start to try again. If you want to make a second call to a number you recently dialled, you can press Redial/Pause and choose one of the last 30 numbers from the Outgoing Call List.

Redial/Pause only works if you dialled from the control panel. If you are sending a fax automatically and the line is busy, the machine will automatically redial up to three times at five minute intervals.

a Press Redial/Pause. b Press a or b to choose the number you

want to redial. Press OK.

c Press a or b to choose Send a fax.

Press OK.

Additional dialling operations

Outgoing Call history 7

The last 30 numbers you sent a fax to will be stored in the outgoing call history. You can choose one of these numbers to fax to, add to Speed Dial, or delete from the history.

a Press Redial/Pause.

You can also choose Outgoing Call by pressing (FAX).

b Press a or b to choose the number you

want. Press OK.

c Do one of the following:

 To send a fax, press a or b to choose

Send a fax.

d Press Mono Start or Colour Start.

In Real Time Transmission the automatic redial feature does not work when using the scanner glass.

Press OK. Press Mono Start or Colour Start.

 If you want to store the number,

press a or b to choose Add to Speed Dial.

Press OK. (See Storing Speed Dial numbers

from Outgoing Calls in chapter 5 in the Advanced User’s Guide.)

 Press a or b to choose Delete.

Press OK. Press 1 to confirm.

d Press Stop/Exit.

Dialling and storing numbers

Note

Caller ID history 7

This feature requires the Caller ID subscriber service offered by many local telephone companies. (See Caller ID on page 31.) (See Caller ID on page 34.) (See Caller ID (For Singapore, Hong Kong and Taiwan) on page 36.)

The numbers, or names if available, from the last 30 faxes and telephone calls you received will be stored in the Caller ID history. You can view the list or choose one of these numbers to fax to, add to Speed Dial or delete from the history. When the thirty-first call comes into the machine, it replaces information about the first call.

If you are not a Caller ID subscriber, you can still view call dates from the Caller ID history, and delete entries from the list.

d Press Stop/Exit.

You can print the Caller ID list. (See How to print a report in chapter 6 in the Advanced User’s Guide.)

a Press Redial/Pause and press l.

You can also choose Caller ID hist. by pressing

(FAX).

b Press a or b to choose the number you

want. Press OK.

c Do one of the following:

 To send a fax, press a or b to choose

Send a fax. Press OK. Press Mono Start or Colour Start.

 If you want to store the number,

press a or b to choose Add to Speed Dial. Press OK. (See Storing Speed Dial numbers from Outgoing Calls in chapter 5 in the Advanced User’s Guide.)

 If you want to delete the number,

press a or b to choose Delete. Press OK. Press 1 to confirm.

Chapter 7

Note

Storing numbers 7

You can set up your machine to do the following types of easy dialling: Speed Dial and Groups for broadcasting faxes. When you dial a Quick Dial number, the LCD shows the number.

If you lose electrical power, the Quick Dial numbers that are in the memory will not be lost.

Storing a pause 7

Press Redial/Pause to put a 3.5-second pause between numbers. If you are dialling overseas, you can press Redial/Pause as many times as needed to increase the length of the pause.

Storing Speed Dial numbers 7

Names and numbers can be stored as two-digit Speed Dial locations. You can store up to 40 different Speed Dial locations. When you dial you will only have to press a few keys

(for example: (Speed Dial), Search, OK, the two-digit number, and Mono Start or Colour Start).

a Press (Speed Dial). b Press a or b to choose

Set Speed Dial. Press OK.

c Press a or b to choose the Speed Dial

location where you want to store the number in. Press OK.

d Do one of the following:

 Enter the name (up to 16 characters)

using the dial pad. Press OK.

(To help you enter letters, see Entering Text on page 96.)

 To store the number without a name,

press OK.

e Enter the fax or telephone number (up to

20 digits). Press OK.

f Press a or b to choose Complete.

Press OK.

g Do one of the following:

 To store another Speed Dial

number, go to step c.

 If you are finished storing numbers,

press Stop/Exit.

Dialling and storing numbers

Note

Changing Speed Dial names or numbers 7

You can change a Speed Dial name or number that has already been stored.

a Press (Speed Dial).

b Press a or b to choose

Set Speed Dial. Press OK.

c Press a or b to choose the 2-digit

Speed Dial location you want to change. Press OK.

d Do one of the following:

 Press a or b to choose Change.

Press OK.

 Press a or b to choose Delete.

Press OK. Press 1 to confirm. Go to step h.

h Press Stop/Exit.

How to change the stored name or number:

If you want to change a character, press d or c to position the cursor under the character you want to change, and then press Clear. Re-enter the character.

e If you want to change the name, press

a or b to choose Name, then press OK and enter the new name using the dial pad (up to 16 characters). Press OK. (See Entering Text on page 96.)

f If you want to change the Fax/Tel

number, press a or b to choose Fax/Tel:, then press OK and enter the new fax or telephone number using the dial pad (up to 20 digits). Press OK.

g Press a or b to choose Complete.

Press OK.

Note

Making copies 8

How to copy 8

The following steps show the basic copy operation. For details about each option, see the Advanced User’s Guide.

a Make sure you are in copy mode, press

 The LCD shows:

(COPY) to illuminate it in blue.

Press Start

0101

b Do one of the following to load your

document:

 Place the document face down in the

ADF. (See Using the ADF (MFC-J410 and

MFC-J415W only) on page 20.)

 Load your document face down on

the scanner glass. (See Using the scanner glass

on page 20.)

c If you want more than one copy, enter

the number (up to 99).

d Press Mono Start or Colour Start.

Stop copying 8

To stop copying, press Stop/Exit.

Quality

Normal

Enlarge/Reduce

Paper Type

1 No. of Copies

You can enter the number of copies you want by using the dial pad.

The default setting is Fax mode. You can change the amount of time that the machine stays in Copy mode after the last copy operation. (See Mode Timer in chapter 1 in the Advanced User’s Guide.)

Making copies

Note

Copy settings 8

You can change the following copy settings. Press COPY and then press a or b to scroll through the copy settings. When the setting you want is highlighted, press OK.

(Basic User’s Guide) For details about changing the following copy

settings, see page 47.

 Paper Type

 Paper Size

(Advanced User’s Guide) For details about changing the following copy

settings, see chapter 7:

 Quality

 Enlarge/Reduce

 Density  Stack/Sort (MFC-J410 and

MFC-J415W only)

 Page Layout

 Set New Default

Paper Options 8

Paper Type 8

If you are copying on special paper, set the machine for the type of paper you are using to get the best print quality.

a Press (COPY).

b Load your document. c Enter the number of copies you want. d Press a or b to choose Paper Type.

Press OK.

e Press a or b to choose Plain Paper,

Inkjet Paper, Brother BP71, Brother BP61, Other Glossy or Transparency.

Press OK.

f If you do not want to change additional

settings, press Mono Start or Colour Start.

 Factory Reset

If you want to sort copies, use the ADF. (MFC-J410 and MFC-J415W only)

Paper Size 8

If you are copying on paper other than A4 size, you will need to change the paper size setting. You can copy only on A4, Legal, Letter, A5 or Photo 10  15 cm paper.

a Press (COPY).

b Load your document. c Enter the number of copies you want. d Press a or b to choose Paper Size.

Press OK.

e Press a or b to choose A4, A5,

10x15cm, Letter or Legal.

Press OK.

f If you do not want to change additional

settings, press Mono Start or Colour Start.

Printing photos from a memory

card

PhotoCapture Center™ operations

Even if your machine is not connected to your computer, you can print photos directly from digital camera media. (See Print Images on page 51.)

You can scan documents and save them directly to a memory card. (See How to scan to a memory card on page 52.)

If your machine is connected to a computer, you can access a memory card that is inserted in the front of the machine from your computer.

(See PhotoCapture Center

Remote Setup & PhotoCapture Center Macintosh in the Software User’s Guide.)

™

for Windows® or

™

for

Using a memory card 9

Your Brother machine has media drives (slots) for use with the following popular digital camera media: Memory Stick™, Memory Stick PRO™, Memory Stick Duo™, Memory Stick PRO Duo™, SD and SDHC.

The PhotoCapture Center™ feature lets you print digital photos from your digital camera at high resolution to get photo quality printing.

Printing photos from a memory card

IMPORTANT

Getting started 9

Firmly put a memory card into the correct slot.

1 Memory card slot

Slot Compatible memory cards

Upper slot

Memory Stick™ Memory Stick PRO™

Memory Stick Duo™ Memory Stick PRO Duo™

Memory Stick Micro™ (Adapter required)

Lower slot

SD SDHC

mini SD (Adapter required)

micro SD (Adapter required)

DO NOT insert a Memory Stick Duo™ into the lower SD slot, this may cause damage to the machine.

Chapter 9

IMPORTANT

PHOTO CAPTURE key indications:

 PHOTO CAPTURE light is on, the memory card is correctly inserted.  PHOTO CAPTURE light is off, the memory card is not correctly inserted.  PHOTO CAPTURE light is blinking, the memory card is being read or written to.

DO NOT unplug the power cord or remove the memory card from the media drive (slot) while the machine is reading or writing to the memory card (the PHOTO CAPTURE key is blinking).

You will lose your data or damage the card.

The machine can only read one device at a time.

Printing photos from a memory card

Note

001

Print Images 9

View Photos 9

You can preview your photos on the LCD before you print them. If your photos are large files there may be a delay before each photo is displayed on the LCD.

a Make sure you have put the memory

card in the correct slot. Press (PHOTO CAPTURE).

b Press a or b to choose

View Photo(s). Press OK.

c Press d or c to choose your photo. d Enter the number of copies you want

using the dial pad.

e Repeat step c and step d until you

have chosen all the photos.

PhotoCapture Center™ print settings

You can change the print settings temporarily.

The machine returns to its default settings after 3 minutes, or if the Mode Timer returns the machine to Fax mode. (See Mode Timer in chapter 1 in the Advanced User’s Guide.)

You can save the print settings you use most often by setting them as the default. (See Setting your changes as a new

default in chapter 8 in the Advanced User’s Guide.)

Press Start

Print Quality

Paper Type

Paper Size

001


Press Clear to go back to the previous level.

f After you have chosen all the photos, do

one of the following:

 Press OK and change the print

settings. (See PhotoCapture Center™ print settings on page 51.)

 If you do not want to change any

settings, press Colour Start to print.

1 No. of prints

(For View Photo(s) You can see the total number of photos that will

be printed.

(For Print All Photos, Print Photos) You can see the number of copies of each

photo that will be printed.

(For DPOF printing) This does not appear.

Chapter 9

IMPORTANT

Note

How to scan to a memory card

You can scan monochrome and colour documents onto a memory card. Monochrome documents will be stored in PDF (*.PDF) or TIFF (*.TIF) file formats. Colour documents may be stored in PDF (*.PDF) or JPEG (*.JPG) file formats. The factory setting is Color 150 dpi and the default file format is PDF. The machine automatically creates file names based on the current date. (For details, see the Quick Setup Guide.) For example, the fifth image scanned on July 1, 2010 would be named

01071005.PDF. You can change the colour and quality.

Quality Selectable File

Format

Color 150 dpi JPEG / PDF Color 300 dpi JPEG / PDF Color 600 dpi JPEG / PDF B/W 200x100 dpi TIFF / PDF B/W 200 dpi TIFF / PDF

d Press a or b to choose

Scan to Media.

Select

Scan to File

Scan to Media

Scan to E-mail

Press OK.

e Do one of the following:

 To change the quality, press a or b to

choose Quality. Press OK.

Go to step f.

 Press Mono Start or Colour Start to

start scanning without changing additional settings.

f Press a or b to choose

Color 150 dpi, Color 300 dpi, Color 600 dpi, B/W 200x100 dpi

or B/W 200 dpi. Press OK.

a Make sure you have put the memory

card in the correct slot.

DO NOT take out the memory card while PHOTO CAPTURE is blinking to avoid damaging the card or data stored on it.

b Load your document.

c When you want to scan to a memory

card, press (SCAN).

g Do one of the following:

 To change the file type, go to step h.  Press Mono Start or Colour Start to

start scanning without changing additional settings.

h Press a or b to choose File Type.

Press OK. Press a or b to choose JPEG, PDF or TIFF. Press OK.

• If you chose a Color resolution in step f, you cannot choose TIFF.

• If you chose a B/W resolution in step f, you cannot choose JPEG.

i Do one of the following:

Note

 To change the file name, go to

step j.

 Press Mono Start or Colour Start to

start scanning without changing additional settings.

j The file name is set automatically;

however, you can enter a name of your choice using the dial pad. Press a or b to choose File Name. Press OK. Enter the new name. (See Entering Text on page 96.) You can only change the first 6 characters. Press OK.

Printing photos from a memory card

Press Clear to delete the current name.

k Press Mono Start or Colour Start.

How to print from a computer 10

Printing a document 10

The machine can receive data from your computer and print it. To print from a computer, install the printer driver.

(See Printing for Windows

Faxing for Macintosh in the Software User’s Guide for the details about the print settings.)

or Printing and

a Install the Brother printer driver on the

Installation CD-ROM. (See the Quick Setup Guide.)

b From your application, choose the Print

command.

c Choose the name of your machine in the

Print dialog box and click Properties.

d Choose the settings you want in the

Properties dialog box.

 Media Type/Quality

 Paper Size

 Page Layout

 Colour Settings

 Scaling

 Use Watermark

 Print Date & Time

e Click OK. f Click OK to begin printing.

How to scan to a computer 11

Scanning a document 11

There are several ways to scan documents. You can use the SCAN key on the machine or the scanner drivers on your computer.

a To use the machine as a scanner, install

a scanner driver. If the machine is on a Network, configure it with a TCP/IP address. (MFC-J265W and MFC-J415W only)

 Install the scanner drivers on the

Installation CD-ROM. (See the Quick Setup Guide and Scanning in the Software User’s Guide.)

 (MFC-J265W and MFC-J415W only)

Configure the machine with a TCP/IP address if network scanning does not work. (See Configuring Network

Scanning in the Software User’s Guide.)

b Load your document. (See How to load

documents on page 20.)

 Use the ADF to scan multiple pages

of documents. It feeds each sheet automatically. (MFC-J410 and MFC-J415W only)

Scanning using the scan key

For more information, see Using the Scan key in the Software User’s Guide.

a Press the SCAN key. b Choose the scan mode you want.

 Scan to File

 Scan to Media

 Scan to E-mail

 Scan to OCR

 Scan to Image

MFC-J410 and MFC-J415W only (Macintosh users) Presto! PageManager must be downloaded and installed before use. See Accessing Brother Support (Macintosh) on page 3 for further instructions.

c (MFC-J265W and MFC-J415W only)

Choose the computer you want to send the data to.

d Press Start to begin scanning.

 Use the scanner glass to scan a

page of a book or one sheet at a time.

c Do one of the following:

 To scan using the SCAN key, go to

Scanning using the scan key.

 To scan using a scanner driver at

your computer, go to Scanning using a scanner driver.

Scanning using a scanner driver

For more information, see Scanning a document using the TWAIN driver or Scanning a document using the WIA driver in the Software User’s Guide.

a Start a scanning application and click

the Scan button.

b Adjust the settings such as Resolution,

Brightness and Scan Type in the Scanner Setup dialog box.

c Click Start or Scan to begin scanning.

Note

IMPORTANT

Routine maintenance A

Replacing the ink cartridges

Your machine is equipped with an ink dot counter. The ink dot counter automatically monitors the level of ink in each of the 4 cartridges. When the machine detects an ink cartridge is running out of ink, the machine will tell you with a message on the LCD.

For example, when one of the ink cartridge is nearly empty, the LCD will display Ink low (name of colour).

You should purchase a replacement cartridge in preparation for when the machine indicates the colour is completely empty.

When one of the ink cartridge is empty, the LCD will display Cannot Print or B&W Print Only.

You should only replace the actual ink cartridge when this message Cannot Print or B&W Print Only appears on the LCD.

The LCD will tell you which ink cartridge is low or needs replacing. Be sure to follow the LCD prompts to replace the ink cartridges in the correct order.

Brother multifunction machines are designed to work with ink of a particular specification and will work to a level of optimum performance and reliability when used with genuine Brother Original ink cartridges. Brother cannot guarantee this optimum performance and reliability if ink or ink cartridges of other specifications are used. Brother does not therefore recommend the use of cartridges other than genuine Brother Original cartridges or the refilling of used cartridges with ink from other sources. If damage is caused to the print head or other parts of this machine as a result of using incompatible products with this machine, any repairs required as a result may not be covered by the warranty.

a Open the ink cartridge cover.

If one or more of the ink cartridges have reached the end of their life, the LCD shows Cannot Print or B&W Print Only.

b Press the lock release lever as shown to

release the cartridge indicated on the LCD. Remove the cartridge from the machine.

Even though the machine tells you to replace an ink cartridge, there will be a small amount of ink left in the ink cartridge. It is necessary to keep some ink in the ink cartridge to prevent air from drying out and damaging the print head assembly.

Routine maintenance

Note

c Open the new ink cartridge bag for the

colour shown on the LCD, and then take out the ink cartridge.

d Turn the green knob on the protective

yellow cap clockwise until it clicks to release the vacuum seal, then remove the cap (1).

e Each colour has its own correct position.

Insert the ink cartridge in the direction of the arrow on the label.

f Gently push the ink cartridge until it

clicks, and then close the ink cartridge cover.

g The machine will automatically reset the

ink dot counter.

• If you replaced an ink cartridge, for example Black, the LCD may ask you to verify that it was a brand new one (for

example, Did You Change Black). For each new cartridge you installed, press 1 (Yes) to automatically reset the ink dot counter for that colour. If the ink cartridge you installed is not a brand new one, be sure to press 2 (No).

• If the LCD shows No Ink Cartridge or Cannot Detect after you install the ink cartridges, check that the ink cartridges are installed correctly.

CAUTION

IMPORTANT

If ink gets in your eyes, wash it out with water at once and call a doctor if you are concerned.

Cleaning and checking the machine

Cleaning the scanner glass A

• DO NOT take out ink cartridges if you do not need to replace them. If you do so, it may reduce the ink quantity and the machine will not know the quantity of ink left in the cartridge.

• DO NOT touch the cartridge insertion slots. If you do so, the ink may stain your skin.

• If ink gets on your skin or clothing immediately wash it off with soap or detergent.

• If you mix the colours by installing an ink cartridge in the wrong position, clean the print head several times after correcting the cartridge installation.

• Once you open an ink cartridge, install it in the machine and use it up within six months of installation. Use unopened ink cartridges by the expiration date written on the cartridge package.

a Lift the document cover (1). Clean the

scanner glass (2) and the white plastic (3) with a soft lint-free cloth moistened with a non-flammable glass cleaner.

b (MFC-J410 and MFC-J415W only)

In the ADF unit, clean the white bar (1) and the glass strip (2) with a lint-free cloth moistened with a non-flammable glass cleaner.

• DO NOT dismantle or tamper with the ink cartridge, this can cause the ink to leak out of the cartridge.

Routine maintenance

Note

Cleaning the paper pick-up

In addition to cleaning the glass strip with a non-flammable glass cleaner, run your finger tip over the glass strip to see if you can feel anything on it. If you feel dirt or debris, clean the glass strip again concentrating on that area. You may need to repeat the cleaning process three or four times. To test, make a copy after each cleaning attempt.

When there is a spot of dirt or correction fluid on the glass strip the printed sample shows a vertical line.

After the glass strip is cleaned the vertical line is gone.

rollers A

a Pull the paper tray completely out of the

machine.

b Unplug the machine from the electrical

socket and open the Jam Clear Cover (1).

c Clean the Paper Pick-up Rollers (1) with

isopropyl alcohol on a cotton swab.

d Close the Jam Clear Cover.

Make sure the cover is closed correctly.

e Put the paper tray firmly back in the

machine.

f Re-connect the power cord.

Cleaning the print head A

IMPORTANT

Note

Checking the print quality A

To maintain good print quality, the machine will automatically clean the print head when needed. You can start the cleaning process manually if there is a print quality problem.

Clean the print head and ink cartridges if you get a horizontal line in the text or graphics, or blank text on your printed pages. You can clean Black only, three colours at a time (Cyan/Yellow/Magenta), or all four colours at once.

Cleaning the print head consumes ink. Cleaning too often uses ink unnecessarily.

DO NOT touch the print head. Touching the print head may cause permanent damage and may void the print head's warranty.

If faded or streaked colours and text appear on your output, some of the nozzles may be clogged. You can check this by printing the Print Quality Check Sheet and looking at the nozzle check pattern.

a Press Menu. b Press a or b to choose

Ink Management. Press OK.

c Press a or b to choose Test Print.

Press OK.

d Press a or b to choose

Print Quality. Press OK.

e Press Colour Start.

The machine begins printing the Print Quality Check Sheet.

a Press Menu. b Press a or b to choose

Ink Management. Press OK.

c Press a or b to choose Cleaning.

Press OK.

d Press a or b to choose Black, Color or

All.

Press OK. The machine cleans the print head. When cleaning is finished, the machine will go back to the standby mode automatically.

If you clean the print head at least five times and the print has not improved, try installing a new Brother Original Innobella™ ink cartridge for each problem colour. Try cleaning the print head again up to five more times. If the print has not improved call your Brother dealer.

f Check the quality of the four colour

blocks on the sheet.

g The LCD asks you if the print quality is

OK. Do one of the following:

 If all lines are clear and visible, press

1 (Yes) to finish the Print Quality check and go to step k.

 If you can see missing short lines as

shown below, press 2 to choose No.

OK Poor

h The LCD asks you if the print quality is

OK for black and three colours. Press 1 (Yes) or 2 (No).

Routine maintenance

IMPORTANT

Note

i The LCD asks you if you want to start

cleaning. Press 1 (Yes). The machine starts cleaning the print head.

j After cleaning is finished, press

Colour Start. The machine starts printing the Print Quality Check Sheet again. Return to step f.

k Press Stop/Exit.

If you repeat this procedure at least five times and the print quality is still poor, replace the ink cartridge for the clogged colour. After replacing the ink cartridge, check the print quality. If the problem still exists, repeat the cleaning and test print procedures at least five times for the new ink cartridge. If ink is still missing, call your Brother dealer.

DO NOT touch the print head. Touching the print head may cause permanent damage and may void the print head's warranty.

Checking the print alignment A

You may need to adjust the print alignment after transporting the machine, if your printed text becomes blurred or images become faded.

a Press Menu. b Press a or b to choose

Ink Management. Press OK.

c Press a or b to choose Test Print.

Press OK.

d Press a or b to choose Alignment.

Press OK.

e Press Mono Start or Colour Start.

The machine starts printing the Alignment Check Sheet.

f Check the 600 dpi and 1200 dpi test

prints to see if number 5 most closely matches number 0.

g Do one of the following:

 If the number 5 samples of both the

600 dpi and 1200 dpi test prints are the best matches, press 1 (Yes) to finish the Alignment Check and go to step j.

When a print head nozzle is clogged the printed sample looks like this.

After the print head nozzle is cleaned, the horizontal lines are gone.

 If another test print number is a

better match for either 600 dpi or 1200 dpi, press 2 (No) to choose it.

h For 600 dpi, press the number of the test

print that most closely matches the number 0 sample (1-8).

i For 1200 dpi, press the number of the

test print that most closely matches the number 0 sample (1-8).

j Press Stop/Exit.

Troubleshooting B

Error and Maintenance messages B

As with any sophisticated office product, errors may occur and consumable items may need to be replaced. If this happens, your machine identifies the error and shows an error message. The most common error and maintenance messages are shown below.

You can correct most errors and routine maintenance by yourself. If you need more help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips.

Visit us at http://solutions.brother.com/

Error Message Cause Action

B&W Print Only

Replace Ink

One or more of the colour ink cartridges have reached the end of their life.

You can use the machine in monochrome mode for approximately four weeks depending on the number of pages you print.

While this message appears on the LCD, each operation works in the following way:

 Printing

If you click

Advanced

driver you can use the machine as a monochrome printer.

 Copying

If the paper type is set to

Plain Paper or Inkjet Paper you can

make copies in monochrome.

 Faxing

If the paper type is set to

Plain Paper or Inkjet Paper, the machine

will receive and print the faxes in monochrome.

If a sending machine has a colour fax, the machine’s “handshake” will ask that the fax be sent as monochrome.

If the paper type is set to Other Glossy, Brother BP71 or Brother BP61 the machine will stop all print operations. If you

unplug the machine, or take out the ink cartridge, you cannot use the machine until you change to a new ink cartridge.

Greyscale

tab of the printer

in the

Replace the ink cartridges. (See Replacing the ink cartridges on page 56.)

Error Message Cause Action

Troubleshooting

Cannot Detect You installed a new ink cartridge

too quickly and the machine did not detect it.

If you are using non Brother Original ink the machine may not detect the ink cartridge.

An ink cartridge is not installed correctly.

Cannot Print

Replace Ink

Comm.Error Poor telephone line quality

One or more of the ink cartridges have reached the end of their life. The machine will stop all print operations. While memory is available, monochrome faxes will be stored in the memory. If a sending machine has a colour fax, the machine's “handshake” will ask that the fax be sent as monochrome.

caused a communication error.

Take out the new ink cartridge and re-install it slowly until it clicks.

Replace the cartridge with a Brother Original ink cartridge. If the error message remains, contact your Brother dealer.

Take out the new ink cartridge and reinstall it slowly until it clicks. (See Replacing the ink cartridges on page 56.)

Replace the ink cartridges. (See Replacing the ink cartridges on page 56.)

If the problem continues, call the telephone company and ask them to check your telephone line.

Cover is Open The scanner cover is not

completely closed. The ink cartridge cover is not

completely closed.

Data Remaining Print data is left in the machine's

memory.

Disconnected The other person or other

person's fax machine stopped the call.

Document Jam The document was not inserted or

fed correctly, or the document scanned from the ADF was too long.

High Temperature The print head is too warm. Allow the machine to cool down.

Lift the scanner cover and then close it again.

Firmly close the ink cartridge cover until it clicks.

Press Stop/Exit. The machine will cancel the job and clear it from the memory. Try to print again.

Try to send or receive again.

(See Using the ADF (MFC-J410 and MFC-J415W only) on page 20.)

(See Document jam (MFC-J410 and MFC-J415W only) on page 67.)

Error Message Cause Action

Ink Absorber Full Internal servicing required.

This problem may be caused by the use of cartridges other than genuine Brother Original cartridges or the refilling of empty cartridges with ink from other sources. If damage is caused to the print head or other parts of this machine as a result of using other brands of ink or ink cartridges, any repairs required as a result may not be covered by the warranty.

Ink Absorber NearFull

Ink low One or more of the ink cartridges

The ink absorber box or flushing box is near full.

are near the end of their life. If a sending machine has a colour fax to send, your machine’s “handshake” will ask that the fax be sent as monochrome. If the sending machine has the ability to convert it, the colour fax will be printed at your machine as a monochrome fax.

Call Brother Customer Service / your Brother dealer.

Order a new ink cartridge. You can continue printing until the LCD shows

Cannot Print. (See Replacing the ink cartridges on page 56.)

Low Temperature The print head is too cold. Allow the machine to warm up. Media Error The memory card is either

corrupted, incorrectly formatted, or there is a problem with the memory card.

Media is Full. The memory card you are using

already contains 999 files.

No Caller ID There is no incoming call history.

You did not receive calls or you have not subscribed to the Caller ID service from your telephone company.

No File The memory card in the media

drive does not contain a .JPG file.

No Ink Cartridge An ink cartridge is not installed

correctly.

Put the card firmly into the slot again to make sure it is in the correct position. If the error remains, check the media drive (slot) of the machine by putting in another memory card that you know is working.

Your machine can only save to your memory card if it contains less than 999 files. Try deleting unused files to free some space and try again.

If you want to use the Caller ID feature call your telephone company. on page 31

(See (See

and Taiwan) on page 36 Put the correct memory card into the slot

again. Take out the new ink cartridge and re-

install it slowly until it clicks. (See Replacing the ink cartridges on page 56.)

Caller ID on page 34.)

Caller ID (For Singapore, Hong Kong

(See Caller ID

Error Message Cause Action

Troubleshooting

No Paper Fed The machine is out of paper or

paper is not correctly loaded in the paper tray.

The paper is jammed in the machine.

The Jam Clear Cover is not closed correctly.

No Response/Busy The number you dialled does not

answer or is busy.

Not Registered You tried to access a Speed Dial

number that is not programmed.

Out of Memory The machine's memory is full. When copy operation is in progress, press

Do one of the following:

 Refill the paper in the paper tray, and

then press Mono Start or Colour Start.

 Remove the paper and load it again

and then press Mono Start or Colour Start. (See Loading paper and

other print media on page 9.)

Remove the jammed paper by following the steps in Printer jam or paper jam on page 68.

Check the Jam Clear Cover is closed evenly at both ends. (See Printer jam or paper jam on page 68.)

Verify the number and try again.

Set up the Speed Dial number. (See Storing Speed Dial numbers on page 44.)

Stop/Exit and wait until the other operations in progress finish and then try again.

The memory card you are using does not have enough free space to scan the documents.

Paper Jam Paper is jammed in the machine. Open the Jam Clear Cover (at the back of

Unable to Clean XX

Unable to Init. XX

Unable to Print XX

Unable to Scan XX

Wrong Paper Size Paper is not the correct size. Check that the Paper Size setting matches

The machine has a mechanical problem.

—OR—

A foreign object such as a paper clip or ripped paper is in the machine.

Delete unused files from your memory card to make some free space and then try again.

the machine) and remove the jammed paper. (See Printer jam or paper jam on page 68.)

Make sure the paper length guide is adjusted to the correct paper size. Do not extend the paper tray when you load A5 or smaller size paper.

Open the scanner cover and remove any foreign objects and paper scraps from inside the machine. If the error message continues, see Transferring your faxes or Fax Journal report on page 66 before disconnecting the machine so you will not lose any important messages. Then, disconnect the machine from the power for several minutes and reconnect it.

the size of paper in the tray. Load the correct size of paper, and then press

Mono Start or Colour Start. (See Paper Size on page 15.)

Error animations display B

Error animations display step-by-step instructions when paper gets jammed. You can read the steps at your own pace by pressing c to see the next step and d to go backward.

Transferring your faxes or Fax

Transferring faxes to another fax machine

If you have not set up your Station ID, you cannot enter fax transfer mode. (See Enter

personal information (Station ID) in the Quick Setup Guide.)

a Press Stop/Exit to interrupt the error

temporarily.

Journal report B

If the LCD shows:

 Unable to Clean XX  Unable to Init. XX  Unable to Print XX  Unable to Scan XX

We recommend transferring your faxes to another fax machine or to your PC. (See Transferring faxes to another fax machine on page 66.)

You can also transfer the Fax Journal report to see if there are any faxes you need to transfer. (See Transferring the Fax Journal report to another fax machine on page 67.)

b Press Menu. c Press a or b to choose Service.

Press OK.

d Press a or b to choose

Data Transfer. Press OK.

e Press a or b to choose Fax Transfer.

Press OK.

f Do one of the following:

 If the LCD shows No Data, there

are no faxes left in the machine's memory.

Press Stop/Exit.

 Enter the fax number to which faxes

will be forwarded.

g Press Mono Start.

Troubleshooting

Transferring the Fax Journal report to another fax machine

If you have not set up your Station ID, you cannot enter fax transfer mode. (See Enter

personal information (Station ID) in the Quick Setup Guide.)

a Press Stop/Exit to interrupt the error

temporarily.

b Press Menu. c Press a or b to choose Service.

Press OK.

d Press a or b to choose

Data Transfer. Press OK.

e Press a or b to choose

Report Trans.

Press OK.

Document jam (MFC-J410 and

MFC-J415W only) B

Documents can jam in the ADF unit if they are not inserted or fed correctly, or if they are too long. Follow the steps below to clear a document jam.

Document is jammed in the top of the ADF unit

a Take out any paper from the ADF that is

not jammed.

b Open the ADF cover. c Pull the jammed document out to the

left.

f Enter the fax number to which the Fax

Journal report will be forwarded.

g Press Mono Start.

d Close the ADF cover. e Press Stop/Exit.

IMPORTANT

To avoid document jams close the ADF cover correctly by pushing it gently in the middle.

Document is jammed inside the ADF

IMPORTANT

unit

a Take out any paper from the ADF that is

not jammed.

b Lift the document cover. c Pull the jammed document out to the

left.

Printer jam or paper jam B

Take out the jammed paper depending on where it is jammed in the machine.

a Unplug the machine from the electrical

socket.

Before you unplug the machine from the power source, you can transfer your faxes that are stored in the memory to your PC or another fax machine so you will not lose any important messages. (See

Transferring your faxes or Fax Journal report on page 66.)

b Open the Jam Clear Cover (1) at the

back of the machine. Pull the jammed paper out of the machine.

d Close the document cover. e Press Stop/Exit.

Troubleshooting

Note

IMPORTANT

c Close the Jam Clear Cover.

Make sure the cover is closed correctly.

d If the paper support flap is open, close it,

and then close the paper support. Pull the paper tray completely out of the machine.

f Using both hands, grasp the plastic tabs

on both sides of the machine and lift the scanner cover (1) until it locks securely in the open position.

Move the print head (if necessary) to take out any paper remaining in this area. Make sure that jammed paper is not left in the corners of the machine. Check both ends of the print carriage.

e Pull out the jammed paper (1).

If the print head is at the right corner as shown in the illustration, you cannot move it. Re-connect the power cord, then hold down Stop/Exit until the print head moves to the middle. Unplug the machine from the power source, and take out the paper.

If ink gets on your skin or clothing immediately wash it off with soap or detergent.

g Lift the scanner cover to release the

IMPORTANT

lock ( ). Gently push the scanner cover support down ( ) and close the scanner cover ( ) using both hands.

h Push the paper tray firmly back into the

machine.

i While holding the paper tray in place,

pull out the paper support ( ) until it clicks, and then unfold the paper

support flap ( ).

Make sure you pull out the paper support until it clicks.

DO NOT use the paper support flap for Legal size paper.

j Re-connect the power cord.

Troubleshooting

Troubleshooting B

If you think there is a problem with your machine, check the chart below and follow the troubleshooting tips.

Most problems can be easily resolved by yourself. If you need additional help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips. Visit us at http://solutions.brother.com/

If you are having difficulty with your machine B

Printing

Difficulty Suggestions

No printout. Check the interface cable or wireless connection on both the machine and your

computer. (See the Quick Setup Guide.) Check that the machine is plugged in and that the On/Off key is on. One or more ink cartridges have reached the end of their life.

(See Replacing the ink cartridges on page 56.) Check to see if the LCD is showing an error message.

(See Error and Maintenance messages on page 62.) If the LCD shows Cannot Print and Replace Ink, see Replacing the ink

cartridges on page 56. Check that the correct printer driver has been installed and chosen. Make sure that the machine is online. Click Start and then Printers and Faxes.

Brother MFC-XXXXX (where XXXXX is your model name), and make sure that Use Printer Offline is unchecked.

When you choose the Print Odd Pages and Print Even Pages settings, you may see a print error message on your computer, as the machine pauses during the printing process. The error message will disappear after the machine re-starts printing.

Poor print quality. Check the print quality. (See Checking the print quality on page 60.)

Make sure that the Media Type setting in the printer driver or the Paper Type setting in the machine’s menu matches the type of paper you are using.

(See Printing for Windows® or Printing and Faxing for Macintosh in the Software User’s Guide and Paper Type on page 15.)

Make sure that your ink cartridges are fresh. The following may cause ink to clog:

 The expiration date written on the cartridge package has passed. (Brother

Original cartridges stay usable for up to two years if kept in their original packaging.)

 The ink cartridge has been in your machine for over six months.

 The ink cartridge may not have been stored correctly before use.

Make sure you are using Brother Original Innobella™ ink. Brother does not recommend the use of cartridges other than genuine Brother Original cartridges or the refilling of used cartridges with ink from other sources.

Try using the recommended types of paper. (See Acceptable paper and other print media on page 16.)

The recommended environment for your machine is between 20 C to 33 C.
