PARTS REFERENCE LIST

MODEL:LW-810icBL

REVISED EDITION

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items: (1) Code

(2) Q'ty (3) Description (4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO.

SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 1 01 A

Design change indication Specification No. Pattern alteration No. Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new CHNG#B : replaceable from old to new CHNG#D : incompatible ADD : newly established

3. The original of this list was made based on the information available in February, '98.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT HEAD ASSEMBLY........................................................................1

2 . CHASSIS ATTACHMENTS.......................................................................3

3 . COVERS ..................................................................................................7

4 . DETECTOR SWITCHES.......................................................................... 9

5 . AC ADAPTER .........................................................................................11

6 . MAIN PCB.............................................................................................13

7 . POWER SUPPLY PCB ...........................................................................17

8 . LCD........................................................................................................19

9 . FLOPPY DISK DRIVE ............................................................................21

10 . ACCESSARY........................................................................................23

11 . PRINTED MATTERS............................................................................ 25

12 . PACKING MATERIALS.........................................................................27

13 . KEYBOARD UNIT(LIST)....................................................................... 29

13-1 . KEYBOARD UNIT/GERMAN.............................................................31

13-2 . KEYBOARD UNIT/UK........................................................................32

13-3 . KEYBOARD UNIT/FRENCH..............................................................33

13-4 . KEYBOARD UNIT/HOLLAND............................................................ 34

13-5 KEYBOARD UNIT/SWISS.................................................................35

13-6 . KEYBOARD UNIT/BELGIAN ............................................................. 38

1 . PRINT HEAD ASSEMBLY

MODEL LW810icBL 53T-411-017

1 . PRINT HEAD ASSEMBLY

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 US3362001 1 PRINT HEAD ASSY 2, MONO 1 US3363001 1 PRINT HEAD ASSY 2, COLOR

MODEL LW-810icBL 53T-411-017

2 . CHASSIS ATTACHMENTS

MODEL LW810icBL 53T-411-033

2 . CHASSIS ATTACHMENTS

MODEL LW810icBL 53T-411-033

2 . CHASSIS ATTACHMENTS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1-54 US2886001 1 PF UNIT

1 US2887001 1 PF BASE ASSY 2 US2970001 1 PE SENSOR 3 US2971001 1 SENSOR HARNESS 4 US2890001 1 PF STOPPER 5 US2891001 1 STOPPER SPRING 6 US2892001 1 PF MOTOR FRAME ASSY 7 US3198001 1 PF MOTOR 8 000300515 2 SCREW, BIND M3X5

9 U06923001 1 TAPTITE, BIND B M3X10 10 085312015 1 TAPTITE, BIND B M3X20 11 US2898001 1 PF ROLLER ASSY 12 US2900000 1 PF ROLLER GEAR 13 048040346 2 RETAINING RING, E4 14 US2902001 1 SPRING R

15-16 US2903001 1 CHANGE LEVER 2 ASSY

15 US2904000 1 CHANGE LEVER 2 16 US2905000 1 IDLE GEAR 3 17 US2906000 1 IDLE GEAR 2

18-20 US2907001 1 CHANGE LEVER 1 ASSY

18 US2908000 1 CHANGE LEVER 1 19 US2905000 1 IDLE GEAR 3 20 US2909001 1 WASHER, SPRING 21 US2910000 1 IDLE GEAR 5 22 US2911000 1 IDLE GEAR 6 23 US2912000 1 IDLE GEAR 1 24 048030346 1 RETAINING RING, E3

25-26 US2913001 1 EJECT ROLLER ASSY

25 US2914001 1 EJECT ROLLER SHAFT 26 US2915001 4 EJECT ROLLER 27 US2916000 1 EJECT ROLLER GEAR 28 US2925000 1 HOLDER PLATE 29 US2926001 1 ROLLER HOLDER R 30 US2927001 2 ROLLER HOLDER M 31 US2928001 1 ROLLER HOLDER L 32 US3153001 4 PRESSURE ROLLER 33 US2929001 1 PRESSURE ROLLER SPRING A 34 US2930000 1 IDLE GEAR 4 35 US2931001 1 ACF SHAFT ASSY 36 US2936001 1 SPRING 37 US2937000 1 ACF SHAFT STOPPER 38 U06923001 1 TAPTITE, BIND B M3X10 39 US2938000 1 ACF SHAFT LOCKER 40 US2939001 1 LOCKER SPRING 41 US2940001 1 RELEASE SHAFT 42 US2941021 1 RELEASE LEVER, GRAY1251 43 US2942001 1 RELEASE SPRING 44 US2944001 1 FORM 45 US2945001 1 SPACER 46 U06923001 1 TAPTITE, BIND B M3X10

47-49 US2917021 1 HOPPER ASSY

47 US2918021 1 HOPPER, GRAY1251 48 US2919001 2 SEPARATE PAD 49 US2923021 1 PAPER GUIDE, GRAY1251 50 US2920001 1 ACF CHANGE SHAFT 51 US2921021 1 ACF CHANGE LEVER, GRAY1251 52 US2922001 1 CHANGE SPRING 53 US2924001 2 HOPPER SPRING 54 US3468001 3 PRESSURE ROLLER SPRING B

55-73 US2946001 1 CA UNIT

55 US2947000 1 CA FRAME 56 US2948001 1 CARRIAGE ASSY 57 US2955001 1 TIMING BELT 58 US2956001 1 GUIDE SHAFT 59 US0727000 1 MAIN SHAFT STOPPER 60 085280515 1 TAPTITE, BIND S M2.6X5 61 US2957001 1 CA MOTOR

MODEL LW-810icBL 53T-411-033

2 . CHASSIS ATTACHMENTS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

62 US0468001 1 TAPPING SCREW, PAN S M3X6 63 US2959000 1 IDLE PULLEY HOLDER 64 US2960000 1 IDLE PULLEY 65 US2961001 1 PULLEY HOLDER SPRING 66 U22702001 1 SCREW, PAN (S/P WASHER) M3X10 67 US2962000 1 FPC LOCKER 68 US2963001 1 MS HOLDER ASSY 69 US0468001 1 TAPPING SCREW, PAN S M3X6 70 US2965001 1 STAR WHEEL HOLDER ASSY 71 US2972001 1 LEAF SWITCH ASSY 72 US2973001 1 LEAF SWITCH COVER 73 000261215 1 SCREW, BIND M2.6X12 74 US2969001 1 EARTH SPRING 75 U06923001 2 TAPTITE, BIND B M3X10 76 U08740001 2 TAPTITE, BIND B M4X12

MODEL LW-810icBL 53T-411-033

3 . COVERS

MODEL LW810icBL 53T-411-061

3 . COVERS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 US2974020 1 UPPER COVER ASSY, WHITE1250

2-4 US3184020 1 LCD U COVER 14EB ASSY, W1250

2 US2981020 1 LCD UPPER COVER 14, WHITE1250

3 US3185001 1 LCD PANEL 14EB

4 US2979001 1 COLOR MARK

5 U05404001 2 TAPTITE, BIND B M3X8

6 US2991001 1 LCD PLATE

7 U05404001 2 TAPTITE, BIND B M3X8

8 US2992020 1 LCD VOLUME KNOB, WHITE1250

9 US2993020 1 LCD LATCH, WHITE1250 10 US2994001 2 LATCH SHAFT 11 US2995001 1 SPRING 12 US2996020 1 LCD LOWER COVER, WHITE1250 13 U04887001 7 TAPTITE, BIND B M2.6X8 14 000300515 1 SCREW, BIND M3X5 15 US2997020 2 LCD RUBBER LR, WHITE1250 16 US2998020 2 LCD SPACER LR, WHITE1250 17 US2999020 1 LCD SPACER M, WHITE1250 18 US3000001 1 HINGE ASSY 19 U22702001 2 SCREW, PAN (S/P WASHER) M3X10 20 US3001000 1 LCD BEARING 21 U05404001 2 TAPTITE, BIND B M3X8 22 US3003020 1 BOTTOM COVER 14, WHITE1250 23 UA5284020 1 HANDLE, WHITE1250 24 U41192001 2 FELT FOOT 25 US3006020 1 PAPER TRAY, WHITE1250 26 085311415 2 TAPTITE, BIND B M3X14 27 US3008020 1 TOP COVER, WHITE1250 28 US3009020 1 PAPER SUPPORTER, WHITE1250 29 US3010020 1 SUB PAPER SUPPORTER, WHITE1250 30 US3012001 1 DEMO LABEL 30 US3345001 1 DEMO LABEL, LW810ICBL G (GER,CHE,AUS) 30 US3346001 1 DEMO LABEL, LW810ICBL F (FRA,CHE) 30 US3347001 1 DEMO LABEL, LW810ICBL D (NLD) 31 US3231001 1 RATING LABEL, LW-810ICBL

MODEL LW-810icBL 53T-411-061

4 . DETECTOR SWITCH

MODEL LW810icBL 53T-411-100

4 . DETECTOR SWITCH

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 U11409001 1 KB SWITCH ASSY

2 002020305 2 SCREW, PAN M2X3

MODEL LW-810icBL 53T-411-100

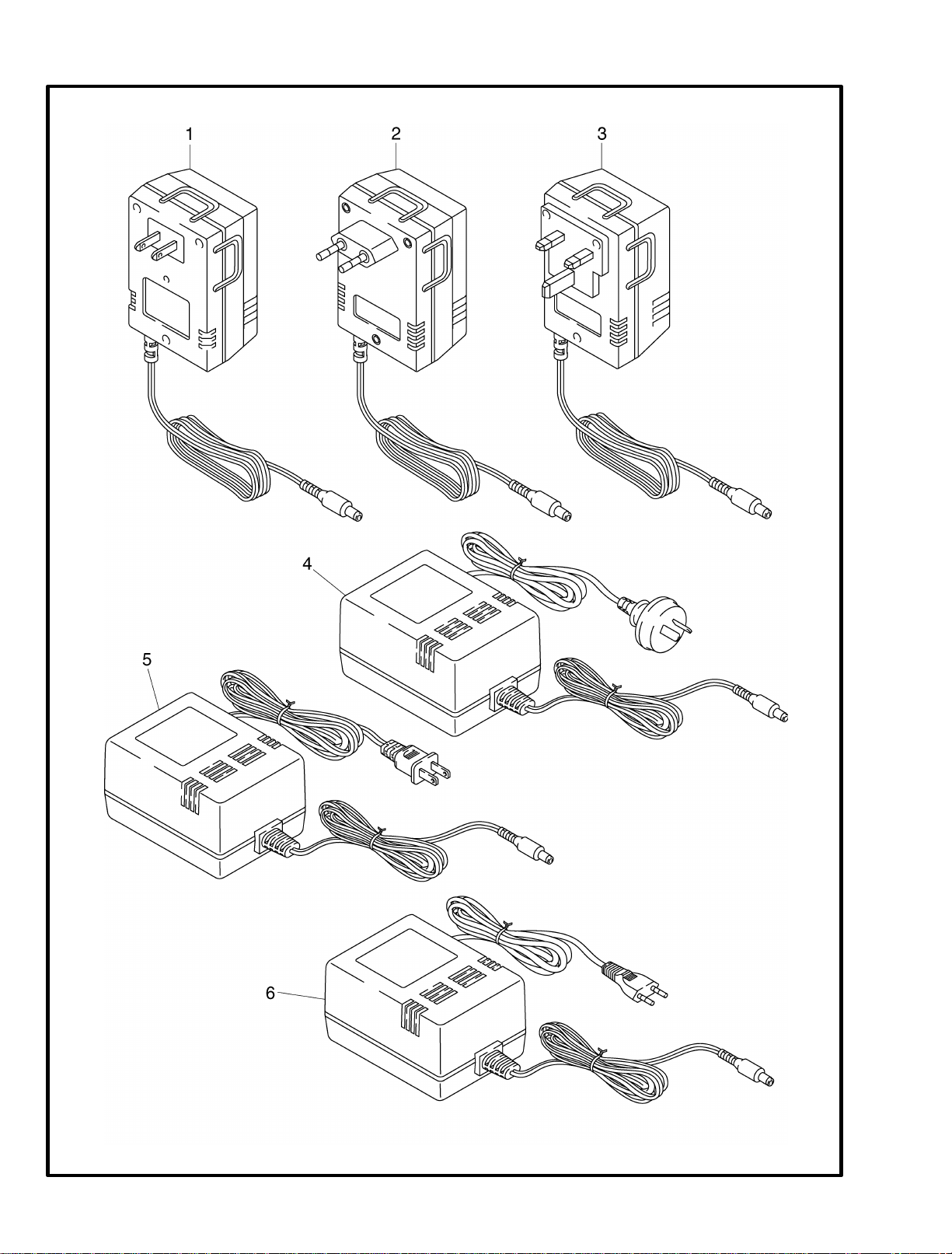

5 . AC ADAPTERS

MODEL LW810icBL 53T-411-101

5 . AC ADAPTERS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 US3593001 1 AC ADAPTOR ASSY AXIS-120 (SP)

1 US3594001 1 AC ADAPTOR ASSY AXIS-230 (SP)

1 US3595001 1 AC ADAPTOR ASSY AXIS-UK (SP)

1 US3610001 1 AC ADAPTER ASSY AXIS-SAA(SP)

1 US3611001 1 AC ADAPTER ASSY AXIS-MEX(SP)

1 US3681001 1 AC ADAPTER ASSY AXIS-230S(SP)

MODEL LW-810icBL 53T-411-101

6 . MAIN PCB

MODEL LW810icBL 53T-411-102

6 . MAIN PCB

MODEL LW810icBL 53T-411-102

6 . MAIN PCB TW99011

REF.NO. SYMBOL CODE Q'T

1-82 B48J300-212 US3605012 1PCB B48J300 ASSY 14B (SP) GER CHNG#A 1-82 B48J300-213 US3605013 1PCB B48J300 ASSY 14B (SP) FRA CHNG#A 1-82 B48J300-214 US3605014 1PCB B48J300 ASSY 14B (SP) AUS CHNG#A 1-82 B48J300-215 US3605015 1PCB B48J300 ASSY 14B (SP) NLD CHNG#A 1-82 B48J300-216 US3605016 1PCB B48J300 ASSY 14B (SP) CHE CHNG#A 1-82 B48J300-217 US3605017 1PCB B48J300 ASSY 14B (SP) BEL CHNG#A

1 #8 UC9201000 1MPU:HG71C207FD 2 #11 US3427085 1MASK ROM 16M-12 LW810-1 2 #11 US3428085 1MASK ROM 16M-12 LW810-2 2 #11 US3429085 1MASK ROM 16M-12 LW810-3 2 #11 US3430085 1MASK ROM 32M-12 LW810-4 3 #10 US3096085 1DRAM:NN514260-60 4 #6 US3097085 1SRAM:N341256SJ 5 #5 UC9033085 1LSI:GM82C765B 6 #1 UC9034085 1LSI:AMD211EARS 7 #4 US3098085 1IC:TL1453CNSLE 8 #2,3 UC9543085 2IC:A6817SEP CHNG#A

9 #7 US3410085 1IC:SN74HCU04 SOL 10 Q8,13 US3099085 2TR:2SA1036K 11 Q5 US1552085 1TRANSISTOR:2SA1797Q-T101 12 Q12 UC8307085 1TRANSISTOR, :2SA1952TL-Q 13 Q19 US0609085 1TR:2SB1198K 14 Q7 US3100085 1TR:2SC2411K 15 Q14-16,18 US0608085 4TR:2SC2412KLNRS-T146 16 Q6 US3101085 1TR:2SC4668 17 Q1-4,23-26 US2168085 8TR:2SD2170-T101 18 Q9,11 US0656085 2TR:DTC143-ZKA-T146 19 D3,4,6,8 US0612085 4DIODE:RLS71-TE-11 20 D1,2 US1553085 2DIODE:RB160L-40-TE-25 21 ZD2 US1546085 1ZENER DIODE:RLZJ3.9B-TE-11 22 ZD7 US3307085 1ZENER DIODE:RLZ6.2B-TE-11 23 ZD5 US3102085 1ZENER DIODE:HZM16NB3 24 ZD3 US0745085 1ZENER DIODE:RLZ18C-TE-11 25 XT4 US3103085 1CERAMIC OSCILLATOR CSA14.74MX 26 XT2 UC9584085 1CERAMIC OSCILLATOR, 16.00MHZ 27 XT1 UB5030085 1CERAMIC OSCILLATOR:CSA18.0MX 28 XT3 UJ0735085 1CERAMIC OSCILLATOR:CSA20MXZ04 29 BZ1 US3467085 1BUZZER:CD11PA-XZ 30 R9,25 094112005 2FIXED RESISTOR, G-C116F1101 31 R22 094332005 1FIXED RESISTOR, G-C116F332 32 R8 094203005 1FIXED RESISTOR, G-C116F203 33 R19,21,23,26 094333005 4FIXED RESISTOR, G-C116F333 34 R34-37 Y02209509 4FIXED RESISTOR, G-B1G220-1 35 R24,27 Y01500519 2FIXED RESISTOR, G-B1J151 36 R3 090222327 1FIXED RESISTOR, D-B12Y222 37 R4 094471225 1FIXED RESISTOR, G-C18J471T 38 R28 094222225 1FIXED RESISTOR, G-C18J222T 39 R68 094000025 1FIXED RESISTOR, G-C116J000 40 R67,71 094330025 1FIXED RESISTOR, G-C116J330 41 R56,62-64 094101025 4FIXED RESISTOR, G-C116J101 42 R38 094331025 1FIXED RESISTOR, G-C116J331 43 R14,30,33,41,48,

50,74,76,79,81 44 R39 094122025 1FIXED RESISTOR, G-C116J122 45 R1,2,5,7,10,31,32,

42,54,58,59,72,73 46 R29,40,46,53,70,

75,77,80 47 R18 094153025 1FIXED RESISTOR, G-C116J153 48 R11,12 094333025 2FIXED RESISTOR, G-C116J333

49 R20 094473025 1FIXED RESISTOR, G-C116J473 50 R17 094124025 1FIXED RESISTOR, G-C116J124 51 R15 094564025 1FIXED RESISTOR, G-C116J564 52 R57,60 094105025 2FIXED RESISTOR, G-C116J105 53 RA10-13 YA1014055 4RESISTOR ARRAY, 101X4C

094102025 10FIXED RESISTOR, G-C116J102

094222025 13FIXED RESISTOR, G-C116J222

094103025 8FIXED RESISTOR, G-C116J103

DESCRIPTION REMARKS

MODEL LW-810icBL 53T-411-102

6 . MAIN PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

54 RA2,3 YA2214055 2 RESISTOR ARRAY, C221X4C 55 RA1,4,5 YA2224055 3 RESISTOR ARRAY, 222X4C 56 RA6,7 YA1044055 2 RESISTOR ARRAY, 104X4C 57 C1-5,12,16,17,19,

26,28,29,32-36,39,

46-52,58 58 C14 Y81030017 1 CAPACITOR, CERAMIC 50C103CH 59 C20,22-25 Y81020017 5 CAPACITOR, CERAMIC 50C102B 60 C13,15,18 Y74712117 3 CAPACITOR, CERAMIC 50C471CH 61 C37,38,53,54 Y73002117 4 CAPACITOR, CERAMIC 50C300CH 62 C31 Y71004117 2 CAPACITOR, CERAMIC 50C100CH 63 C31 Y41021091 1 CAPACITOR, ALUM-ELEC 10B102 64 C21,60 Y42202097 2 CAPACITOR, ALUM-ELEC 16B220 65 C6 Y43313097 1 CAPACITOR, ALUM-ELEC 25B331 66 C43 Y44704907 1 CAPACITOR, ALUM-ELEC 35B470 67 C27 US3422085 1 CAPACITOR,ALUMI-ELEC 35B470KMF 68 C10 US3421000 1 CAPACITOR,ALUMI-ELEC 35B471KMF 69 L4 UG3128000 1 COIL:DL-6503C 70 L5 US1539085 1 COIL: LHL06TB471K 71 L1 US3104000 1 COIL:MCDR1511-151K 72 L3 UC2514000 1 COIL:RCH-110-150 73 CN9 US0206000 1 CONNECTOR, 34PIN 74 CN4,5 US3309000 2 CONNECTOR:3-84387-0 75 CN12 UA3044000 1 CONNECTOR:5229-17CPB 76 CN7 U41750000 1 CONNECTOR:B12B-PHK 77 CN1 US2099000 1 CONNECTOR:DR-E9P-NJ-000 78 CN13,14 U17118000 2 CONNECTOR:B2B-PH 79 CN6 U17534000 1 CONNECTOR:B3B-PH 80 CN3,11 U17535000 2 CONNECTOR:B5B-PH 81 CN2,10 U04254000 2 CONNECTOR:B2B-XH-A 82 US3022000 1 GROUND PLATE CO 83 US3466001 1 FDD POWER HARNESS ASSY AXIS 84 US3021000 1 SHIELD PLATE 85 US3023000 2 GROUND PLATE KB 86 US3414000 1 GROUND PLATE KB2 87 U06923001 4 TAPTITE, BIND B M3X10

Y81042407 26 CAPACITOR, CERAMIC 25C104F

MODEL LW-810icBL 53T-411-102

7 . POWER SUPPLY PCB

MODEL LW-810icBL 53T-411-104

7 . POWER SUPPLY PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-8 B48J295-3 US3596001 1 SWITCH PCB ASSY AXIS (SP)

1 D1 US0782000 1 DIODE, 1N5400 2 C3 Y42223092 1 CAPACITOR, ALUM-ELEC 25B222 3 SW1 U17200000 1 POWER SWITCH:WK-837 4 P1 W00325001 1 JACK:HEC0470 5 F1 US3413000 1 GLASS FUSE, 4A-235 6 F1 US0589000 2 FUSE CLIP:HTC-200M 7 CN1 US3108001 1 POWER HARNESS ASSY AXIS 8 L1 UC7738000 1 COIL:BM1012LF 9 U06923001 1 TAPTITE, BIND B M3X10

MODEL LW-810icBL 53T-411-104

8 . LCD

MODEL LW810icBL 53T-411-108

8 . LCD

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 US3602001 1 LCD:480X128 UG48D10SCBT4-B(SP) 2 US3118001 1 LCD HARNESS ASSY AXIS2 3 UL8212000 1 FERRITE CORE:19X10X10 4 US3603001 1 INV PCB ASSY AXIS2 (SP)

MODEL LW-810icBL 53T-411-108

9 . FLOPPY DISK DRIVE

MODEL LW810icBL 53T-411-302

9 . FLOPPY DISK DRIVE TW2000008

REF.NO. CODE Q'T

1-3 LC0132020 1 FDD STD ASSY (SP)

1 US4792020 1 FDD BODY MI2HD M3STD 2 UC9813020 1 FRONT BEZEL MIM3 3 UC9814020 1 EJECT BUTTON MIM3 4 US3024000 1 PLATE AL 5 US3025000 1 PLATE AR 6 000300515 3 SCREW, BIND M3X5 7 US3026000 1 GROUND PLATE PR 8 US3023000 1 GROUND PLATE KB

9 U06923001 3 TAPTITE, BIND B M3X10 10 UC8236001 1 FDD HARNESS ASSY 11 US3263001 1 FD ASSY 015 (GER,AUT) 12 US3269001 1 FD ASSY 018 (GER,AUT) 13 US3273001 1 FD ASSY 020 (FRA) 14 US3277001 1 FD ASSY 022 (FRA) 15 US3279001 1 FD ASSY 023 (NLD) 16 US3283001 1 FD ASSY 025 (NLD) 17 US3297001 1 FD ASSY 032 (BEL) 18 US3510001 1 FD ASSY 034 (BEL) 19 US3285001 1 FD ASSY 026 (CHE) 20 US3289001 1 FD ASSY 028 (CHE)

DESCRIPTION REMARKS

MODEL LW-810icBL 53T-411-302

10 . ACCESSARY

MODEL LW810icBL 53T-411-910

10 . ACCESSORY

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 US3056020 1 CARTRIDGE CASE ASSY, WHITE1250

MODEL LW-810icBL 53T-411-910

11 . PRINTED MATTERS

MODEL LW810icBL 53T-411-920

11 . PRINTED MATTERS TW99001

REF.NO. CODE Q'T

1 US3060001 1USER'S MANUAL (USA.ENGLISH)

1 US3220001 1USER'S MANUAL, GERMAN

1 US3221001 1USER'S MANUAL, FRENCH

1 US3222001 1USER'S MANUAL, DUTCH

1 US3224001 1USER'S MANUAL, BILINGUAL-F

1 US3225001 1USER'S MANUAL, BILINGUAL-D

1 US3223001 1USER'S MANUAL, BILINGUAL-G

2 UC9800001 1WARRANTY EUROPE CHNG#D

3 US3398001 1CAUTION SHEET

4 US0739001 1PERFORATED BAG

4 UA7282001 1PERFORATED BAG (W.HOLL)

4 US1727001 1PERFORATED BAG, EC 230X310

4 US1728001 1PERFORATED BAG, EC 320X420

5 US3063001 1POP DISPLAY

6 US3064001 1POP LAMINATED

7 US3345001 1DEMO LABEL, LW810ICBL G

7 US3346001 1DEMO LABEL, LW810ICBL F

8 US3923001 1INSERTION SHEET FOR AXIS NZ

DESCRIPTION REMARKS

MODEL LW-810icBL 53T-411-920

12 . PACKING MATERIALS

MODEL LW810icBL 53T-411-930

12 . PACKING MATERIALS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 US3070021 1 CARTON (NOBRO) 1 US3236054 1 CARTON 2 US3081000 1 STYROFOAM PAD L 3 US3082000 1 STYROFOAM PAD R 4 UA7283001 1 PERFORATED BAG 4 US1726001 1 PERFORATED BAG, EC 660X800 5 US3584000 1 PAPER SUPPORTER PAD 6 US3084001 1 TUBE HOLDER 7 US3822001 1 KEYBOARD PAD 2 8 US3586001 1 PAPER TRAY PAD 9 US3814000 1 CARRIAGE PAD

MODEL LW-810icBL 53T-411-930

13 . KEYBOARD UNIT LIST

REF.NO. CODE Q'TY DESCRIPTION REMARKS

13-1 US3150020 1 KB ASSY 08 13-2 US3148020 1 KB ASSY 14 13-3 US3152020 1 KB ASSY 20 13-4 US3516020 1 KB ASSY 32 13-5 US3518020 1 KB ASSY 36 13-6 US3517020 1 KB ASSY 56

MODEL LW-810icBL 53T-411-4XX
