Quick Setup Guide
WARNING
Note
2
1
DCP-J515W
Start Here
Before you can use the machine, please read this Quick Setup Guide for the correct setup and installation.
WARNING
CAUTION
Warnings tell you what to do to prevent possible personal injury.
Cautions specify procedures you must follow or avoid to prevent possible minor injuries.
DCP-J715W
Unpack the machine and check the components
1
Black
Yellow
Cyan
Magenta
Inbox Ink Cartridges
[x4]
(Approx. 65% yield of the
replacement cartridge)
For details, see
Consumable items in the
Basic User’s Guide.
Quick Setup Guide
Basic User’s Guide Safety and Legal
booklet
Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep
these bags away from babies and children.
Most of the illustrations in this Quick Setup Guide show the DCP-J515W.
Installation CD-ROM
Documentation CD-ROM
Power Cord
a Remove the protective tape and film covering the machine,
and also from the LCD.
b Remove the green protective part a by lifting the front of the
machine and then pulling down on the packing part.
c Remove the plastic bag b containing the ink cartridges from on top of
the paper tray.
d Make sure you have all components.
• The components included in the box may differ depending on your country.
• Save all packing materials and the box in case for any reason you must ship your machine.
• You need to purchase the correct interface cable for the interface you want to use (for USB or network
connection).
USB cable
Please make sure you use a USB 2.0 cable (Type A/B) that is no more than 2 metres long (cable not included).
Network cable (DCP-J715W only)
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.
UK/IRE/GEN Version 0
1
Load plain A4 paper
1
IMPORTANT
2
a Pull the paper tray a completely out of the
machine.
b Lift the output paper tray cover a.
1
c With both hands, gently press and slide the
paper side guides a and then the paper length
guide b to fit the paper size.
Make sure that the triangular marks c on the
paper side guides a and paper length guide b
line up with the mark for the paper size you are
using.
1
3
2
3
d Fan the stack of paper well to avoid paper jams
and misfeeds.
e Gently put the paper into the paper tray print
side down and top edge first. Check that the
paper is flat in the tray.
DO NOT push the paper in too far.
2
f Gently adjust the paper side guides to the
paper with both hands. Make sure that the
paper side guides touch the edges of the
paper.
g Close the output paper tray cover.
WARNING
1
2
IMPORTANT
Note
h Slowly push the paper tray completely into the
machine.
i While holding the paper tray in place, pull out
the paper support a until it clicks, and then
unfold the paper support flap b.
Connect the power cord
3
DO NOT connect the USB cable yet (if you are
using a USB cable).
a Connect the power cord.
The machine must be fitted with an earthed
plug.
The Warning LED on the control panel will stay on
until you have installed the ink cartridges.
Choose your language
4
a
Press a or b to choose your language and press
OK.
b Press a or b to choose Yes or No and press
OK.
If you set the wrong language, you can change
the language after setting the date and time.
(For details, see Changing LCD language in
chapter 1 in the Advanced User’s Guide on the
documentation CD-ROM.)
3
Install the ink cartridges
CAUTION
Note
Note
1
1
1
1
2
5
If ink gets in your eyes, wash them out with water
at once, and if irritation occurs consult a doctor.
a Make sure that the power is turned on.
The LCD shows No Ink Cartridge.
b Open the ink cartridge cover a.
e Turn the green knob on the protective yellow
cap clockwise until it clicks to release the
vacuum seal, then remove the cap a.
c Remove the green protective part a.
Do not throw away the green protective part. You
will need it if you transport the machine.
d Unpack the ink cartridge.
Make sure you install the Inbox Ink Cartridges
included with your machine first.
f Take care to match the colour of the lever a
with the cartridge colour b, as shown in the
diagram below.
g Install each ink cartridge in the direction of the
arrow on the label.
4
h
Note
1
Gently push the ink cartridge until it clicks. After
all the ink cartridges are installed close the ink
cartridge cover.
The machine will prepare the ink tube system for
printing. This process will take approximately four
minutes. Do not turn off the machine.
Check the print quality
6
a When the preparation process has finished, the
LCD shows Set Paper and Press Start.
Press Colour Start.
b Check the quality of the four colour blocks a
on the sheet. (black/yellow/cyan/magenta)
1
c If all lines are clear and visible, press (Yes)
to finish the quality check and go to step 7.
OK
If you can see missing short lines, press
(No) and follow the steps on the LCD.
Poor
5
Set the date and time
7
Setting the date and time allows the machine to clean
the print head regularly and maintain optimum print
quality. It also allows the machine to name files
created when using the Scan to Media feature.
a Press Menu.
b Press a or b to choose Initial Setup.
Press OK.
c Press a or b to choose Date&Time.
Press OK.
d To enter the last two digits of the year, press a,
b, d or c to select a number and press OK. To
OK
set the year, press a, b, d or c to select
and press OK.
OK
Date&Time
Date&Time
Year:20 10
1 23
456
789
0
(e.g. Enter 1 0 for 2010.)
Complete OK
OK
OK
e Repeat for month/day/time in 24-hour format.
f Press Stop/Exit.
6
8
Note
Choose your connection type
Windows
For USB interface cable
Windows®, go to page 8
Macintosh, go to page 11
For Wired Network (DCP-J715W only)
Windows®, go to page 13
Macintosh, go to page 17
For Windows Server® 2003/2003 x64 Edition/2003 R2/2003 R2 x64 Edition/2008/2008 R2, see the Network
User’s Guide on the documentation CD-ROM.
®
USB Wired Network
Macintosh
Windows
®
Macintosh
Wireless Network
For Wireless Network
Windows® and Macintosh,
go to page 20
7
USB
IMPORTANT
Note
Note
For USB interface users
(Windows
Windows Vista
®
2000 Professional/XP/XP Professional x64 Edition/
®
/Windows® 7)
Before you install
9
a Make sure that your computer is ON and you
are logged on with Administrator rights.
• DO NOT connect the USB cable yet.
• For the latest drivers and information, visit
http://solutions.brother.com/
• If there are any programs running, close
them.
• The screens may differ depending on your
operating system.
Windows
®
b The CD-ROM Top Menu will appear. Click
Install MFL-Pro Suite and click Yes if you
accept the license agreements. Follow the
on-screen instructions.
• If this screen appears, click OK and restart
your computer.
Install MFL-Pro Suite
10
a Put the supplied installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
• If the installation does not continue
automatically, open the top menu again by
ejecting and then reinserting the CD-ROM or
double-click the start.exe program from the
root folder, and continue from b to install
MFL-Pro Suite.
• For Windows Vista
the User Account Control screen appears,
click Allow or Yes.
®
and Windows® 7, when
8
USB
IMPORTANT
Windows
®
c Choose Local Connection, and then click
Next. The installation continues.
(DCP-J515W)
(DCP-J715W)
d When this screen appears, go to the next step.
b Connect the USB cable to the USB socket
marked with a symbol. You will find the
USB socket inside the machine as shown
below.
DCP-J515W
USB
LAN USB
DCP-J715W
c Carefully guide the USB cable through the
trench as shown below, following the trench
around and toward the back of the machine.
Then connect the cable to your computer.
Windows
®
USB
Macintosh
Connect the USB cable
11
a Using both hands, use the plastic tabs on both
sides of the machine to lift the scanner cover
until it locks securely into the open position.
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
9
USB
Now go to
IMPORTANT
1
3
2
Note
Note
Finish
Note
d Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c.
e The installation will continue automatically.
The installation screens appear one after
another.
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
f When the User’s Guides screen is displayed,
click View Manuals on the Web if you want to
download the manuals and follow the
on-screen instructions. You can also view the
manuals on the documentation CD-ROM.
Windows
®
Finish and restart
12
a Click Finish to restart your computer.
After restarting the computer, you must be
logged on with Administrator rights.
• If an error message appears during the
software installation, run the Installation
Diagnostics located in Start/All Programs/
Brother/DCP-JXXX (where DCP-JXXX is your
model name).
• Depending on your security settings, a
Windows Security or antivirus software window
may appear when using the machine or its
software. Please allow or permit the window to
continue.
g When the On-Line Registration screen is
displayed, make your selection and follow the
on-screen instructions.
h If you do not want to set your machine as the
Default printer, uncheck Set as Default
Printer.
b In the Check for Firmware Updates screen,
choose the firmware update setting you want
and click OK.
Internet access is required for the firmware
update.
The installation is now
complete.
Proceed to Install Optional Applications on
page 32.
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver when printing from
applications that use the XML Paper Specification
documents. Please download the latest driver by
accessing the Brother Solutions Center at
http://solutions.brother.com/
10
USB
IMPORTANT
IMPORTANT
IMPORTANT
1
3
2
Macintosh
For USB interface users (Mac OS X 10.4.11, 10.5.x, 10.6.x)
b Connect the USB cable to the USB socket
Before you install
9
marked with a symbol. You will find the
USB socket inside the machine as shown
below.
DCP-J515W
a Make sure your machine is connected to the
power and your Macintosh is ON. You must be
logged on with Administrator rights.
USB
• For the latest drivers and information on the
Mac OS X you are using, visit
http://solutions.brother.com/
• For Mac OS X 10.4.0 to 10.4.10 users,
upgrade to Mac OS X 10.4.11 - 10.6.x.
Connect the USB cable
10
• DO NOT connect the machine to a USB port
on a keyboard or a non-powered USB hub.
• Connect the machine directly to your
Macintosh.
a Using both hands, use the plastic tabs on both
sides of the machine to lift the scanner cover
until it locks securely into the open position.
LAN USB
DCP-J715W
c Carefully guide the USB cable through the
trench as shown below, following the trench
around and toward the back of the machine.
Then connect the cable to your Macintosh.
Windows
®
USB
Macintosh
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
d Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c.
11
USB
Finish
Install MFL-Pro Suite
11
a Put the supplied installation CD-ROM into your
CD-ROM drive.
b Double-click the Start Here OSX icon to install.
Macintosh
e Choose the machine from the list, and then
click OK.
f When this screen appears, click Next.
c Choose Local Connection, and then click
Next. Follow the on-screen instructions.
(DCP-J515W)
(DCP-J715W)
d Please wait, it will take a few seconds for the
software to install. After the installation, the
Brother software will search for the Brother
device.
g When the Brother Support screen appears,
click Close to finish the installation or go to
step 12.
Download and install
Presto! PageManager
12
When Presto! PageManager is installed OCR
capability is added to Brother ControlCenter2. You
can easily scan, share and organize photos and
documents using Presto! PageManager.
(DCP-J715W only)
a Click the Presto! PageManager icon to go to
the Presto! PageManager download site, and
follow the on-screen instructions.
12
The installation is now
complete.
Wired Network
IMPORTANT
IMPORTANT
Note
LAN USB
For wired network interface users (DCP-J715W only)
(Windows
Windows Vista
9
a Make sure that your computer is ON and you
are logged on with Administrator rights.
• For the latest drivers and information, visit
http://solutions.brother.com/
• If there are any programs running, close
them.
• The screens may differ depending on your
operating system.
®
2000 Professional/XP/XP Professional x64 Edition/
®
/Windows® 7)
b Connect the network cable to the LAN socket
Before you install
marked with a symbol. You will find the
LAN socket inside the machine on the left as
shown below.
Windows
®
Connect the network
10
cable
a Using both hands, use the plastic tabs on both
sides of the machine to lift the scanner cover
until it locks securely into the open position.
c Carefully guide the network cable through the
trench as shown below, following the trench
around and toward the back of the machine.
Then, connect the cable to your network.
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
If both USB and LAN cables are being used,
guide both cables through the trench with one on
top of the other.
Windows
Wired Network
®
Macintosh
13
Wired Network
IMPORTANT
Note
3
1
2
Note
Windows
®
d Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c.
If you have previously set up your machine for
a wireless network and then want to set it up
on a wired network, you should check that the
machine’s Network I/F is set to Wired LAN.
The wireless network interface will become
inactive with this setting.
On your machine, press Menu.
Press a or b to choose Network and press OK.
Press a or b to choose Network I/F and
press OK.
Press a or b to choose Wired LAN and press
OK.
Press Stop/Exit.
b The CD-ROM Top Menu will appear. Click
Install MFL-Pro Suite and click Yes if you
accept the license agreements. Follow the
on-screen instructions.
• If this screen appears, click OK and restart
your computer.
• If the installation does not continue
automatically, open the top menu again by
ejecting and then reinserting the CD-ROM or
double-click the start.exe program from the
root folder, and continue from b to install
MFL-Pro Suite.
• For Windows Vista
the User Account Control screen appears,
click Allow or Yes.
®
and Windows® 7, when
Install MFL-Pro Suite
11
a Put the supplied installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
c Choose Wired Network Connection, and
then click Next.
14
Wired Network
Note
IMPORTANT
Note
Windows
®
d When this screen appears, choose Change
the Firewall port settings to enable network
connection and continue with the
installation. (Recommended) and click Next.
(Not for Windows
If you are using a firewall other than Windows
Firewall or Windows
may appear.
See the instructions provided with your firewall
software for information on how to add the
following network ports.
For network scanning, add UDP port 54925.
If you still have trouble with your network
connection, add UDP port 137.
• If there is more than one machine connected to
the network, choose your machine from the list,
and then click Next.
This window will not appear if there is only one
machine connected on the network, it will be
chosen automatically.
®
2000 users)
®
Firewall is off, this screen
e The installation of the Brother drivers will
automatically start. The installation screens
appear one after another.
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
For Windows Vista® and Windows® 7, when the
®
Windows Security screen appears, click the
check box and click Install to complete the
installation correctly.
f When the User’s Guides screen is displayed,
click View Manuals on the Web if you want to
download the manuals and follow the
on-screen instructions. You can also view the
manuals on the documentation CD-ROM.
g When the On-Line Registration screen is
displayed, make your selection and follow the
on-screen instructions.
h If you do not want to set your machine as the
Default printer, uncheck Set as Default
Printer.
Windows
Wired Network
®
• If your machine is not found over the network,
the following screen will appear.
Confirm your settings by following the
on-screen instructions.
Macintosh
15
12
Now go to
Note
Note
Note
Finish
Note
Wired Network

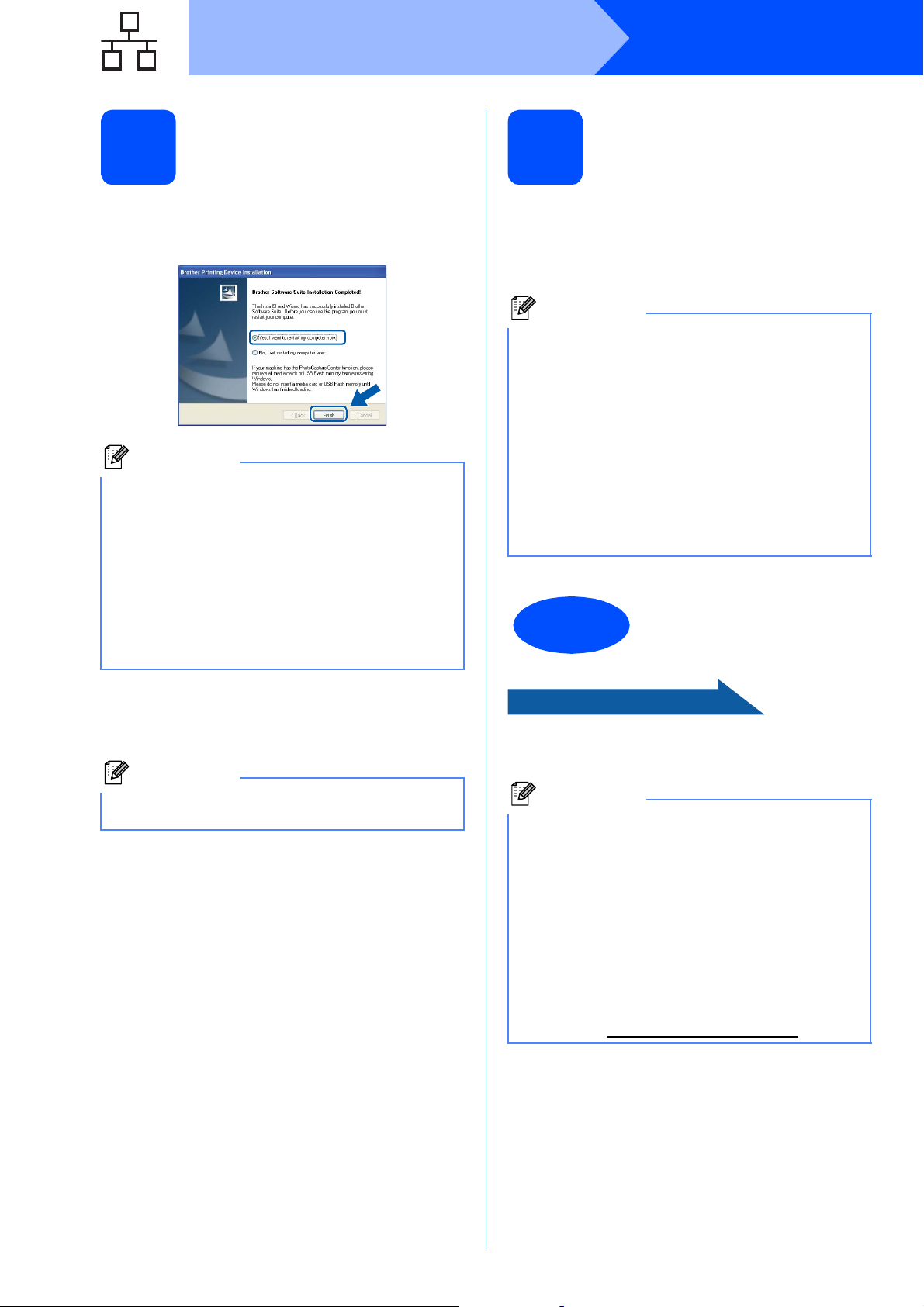

Finish and restart
13
Windows
®
Install MFL-Pro Suite on additional computers (if needed)
a Click Finish to restart your computer. After
restarting the computer, you must be logged on
with Administrator rights.
• If an error message appears during the
software installation, run the Installation
Diagnostics located in Start/All Programs/
Brother/DCP-JXXX (where DCP-JXXX is your
model name).
• Depending on your security settings, a
Windows Security or antivirus software window
may appear when using the machine or its
software. Please allow or permit the window to
continue.
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 11 on page 14. Also see
step 9 on page 13 before you install.
Network license (Windows®)
This product includes a PC license for up to 2
Users. This license supports the installation of the
MFL-Pro Suite including ScanSoft™
PaperPort™11SE on up to 2 PCs on the network.
If you want to use more than 2 PCs with
ScanSoft™ PaperPort™11SE installed, please
purchase the Brother NL-5 pack which is a
multiple PC license agreement pack for up to 5
additional users. To purchase the NL-5 pack,
contact your authorized Brother dealer or contact
Brother customer service.
The installation is now
complete.
b In the Check for Firmware Updates screen,
choose the firmware update setting you want
and click OK.
Internet access is required for the firmware
update.
Proceed to Install Optional Applications on
page 32.
• If you specify an IP Address for the machine,
you must set the Boot Method to Static by using
the control panel. For more information, see
the Network User’s Guide on the
documentation CD-ROM.
• XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is
the most suitable driver when printing from
applications that use the XML Paper
Specification documents. Please download the
latest driver by accessing the Brother Solutions
Center at http://solutions.brother.com/
16
Wired Network
IMPORTANT
LAN USB

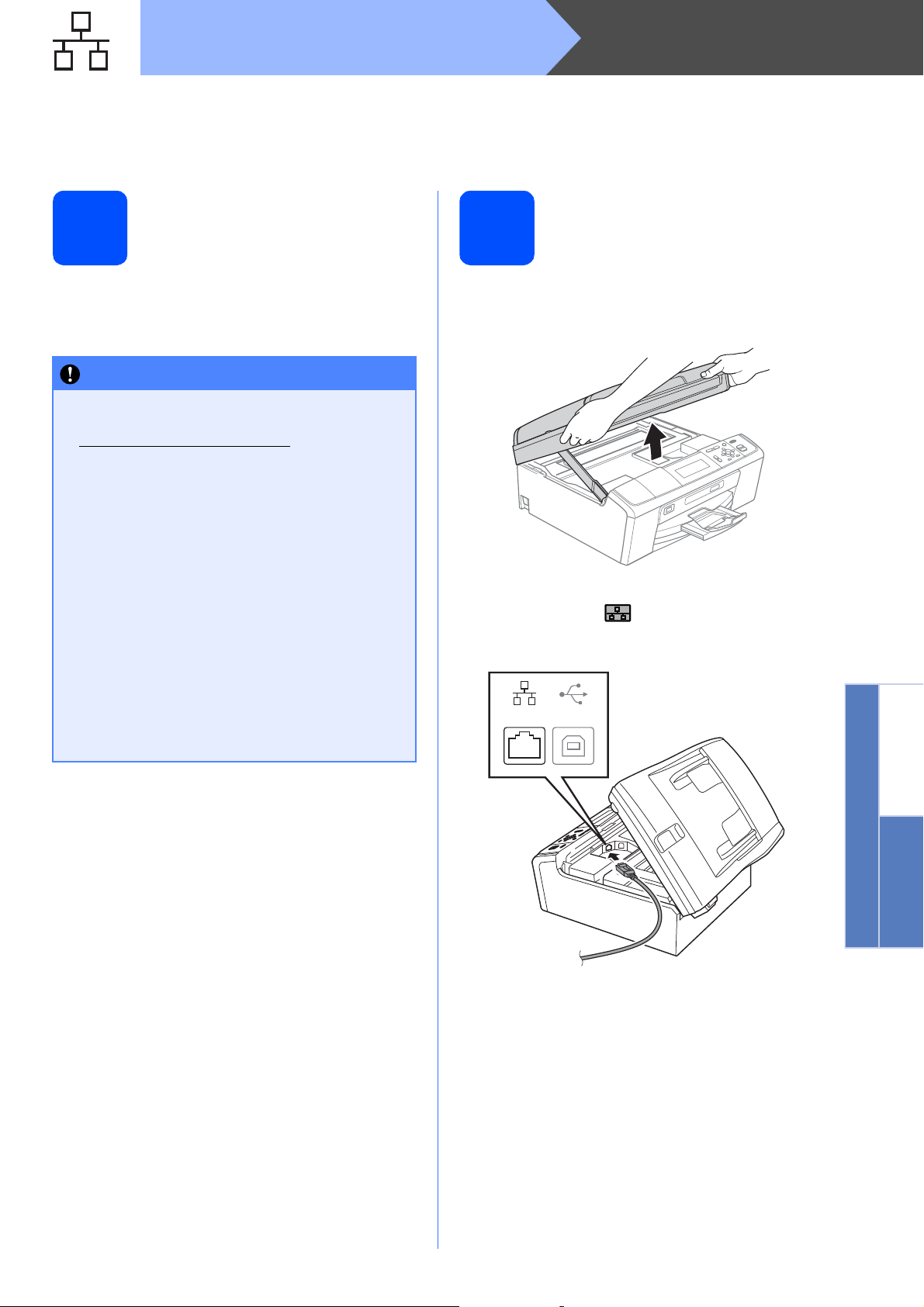

For wired network interface users (DCP-J715W only) (Mac OS X 10.4.11, 10.5.x, 10.6.x)
Macintosh
Before you install
9
a Make sure your machine is connected to the
power and your Macintosh is ON. You must be
logged on with Administrator rights.
• For the latest drivers and information on the
Mac OS X you are using, visit
http://solutions.brother.com/
• For Mac OS X 10.4.0 to 10.4.10 users,
upgrade to Mac OS X 10.4.11 - 10.6.x.
• If you have previously set up your machine
for a wireless network and then want to set
it up on a wired network, you should check
that the machine’s Network I/F is set to
Wired LAN. The wireless network interface
will become inactive with this setting.
On your machine, press Menu.
Press a or b to choose Network and press
OK.
Press a or b to choose Network I/F and
press OK.
Press a or b to choose Wired LAN and press
OK.
Press Stop/Exit.
Connect the network
10
cable
a Using both hands, use the plastic tabs on both
sides of the machine to lift the scanner cover
until it locks securely into the open position.
b Connect the network cable to the LAN socket
marked with a symbol. You will find the
LAN socket inside the machine on the left as
shown below.
Windows
Wired Network
®
Macintosh
17
Wired Network
IMPORTANT
Note
3
1
2
c Carefully guide the network cable through the
trench as shown below, following the trench
around and toward the back of the machine.
Then, connect the cable to your network.
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
Macintosh
Install MFL-Pro Suite
11
a Put the supplied installation CD-ROM into your
CD-ROM drive.
b Double-click the Start Here OSX icon to install.
c Choose Wired Network Connection, and
then click Next. Follow the on-screen
instructions.
If both USB and LAN cables are being used,
guide both cables through the trench with one on
top of the other.
d Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c.
d Please wait, it will take a few seconds for the
software to install. After the installation, the
Brother software will search for the Brother
device.
e If the machine is configured for your network,
choose the machine from the list, and then click
OK.
18
Wired Network
Note
Finish
Note
Macintosh
• If your machine is not found over the network,
confirm your network settings.
• If this screen appears click OK.
Enter a name for your Macintosh in Display
Name up to 15 characters long and click OK.
Go to f.
The name you enter will appear on the
machine’s LCD when you press the SCAN key
and choose a scan option. (For more
information, see Network Scanning (For
models with built-in network support) in the
Software User’s Guide on the documentation
CD-ROM.)
f When this screen appears, click Next.

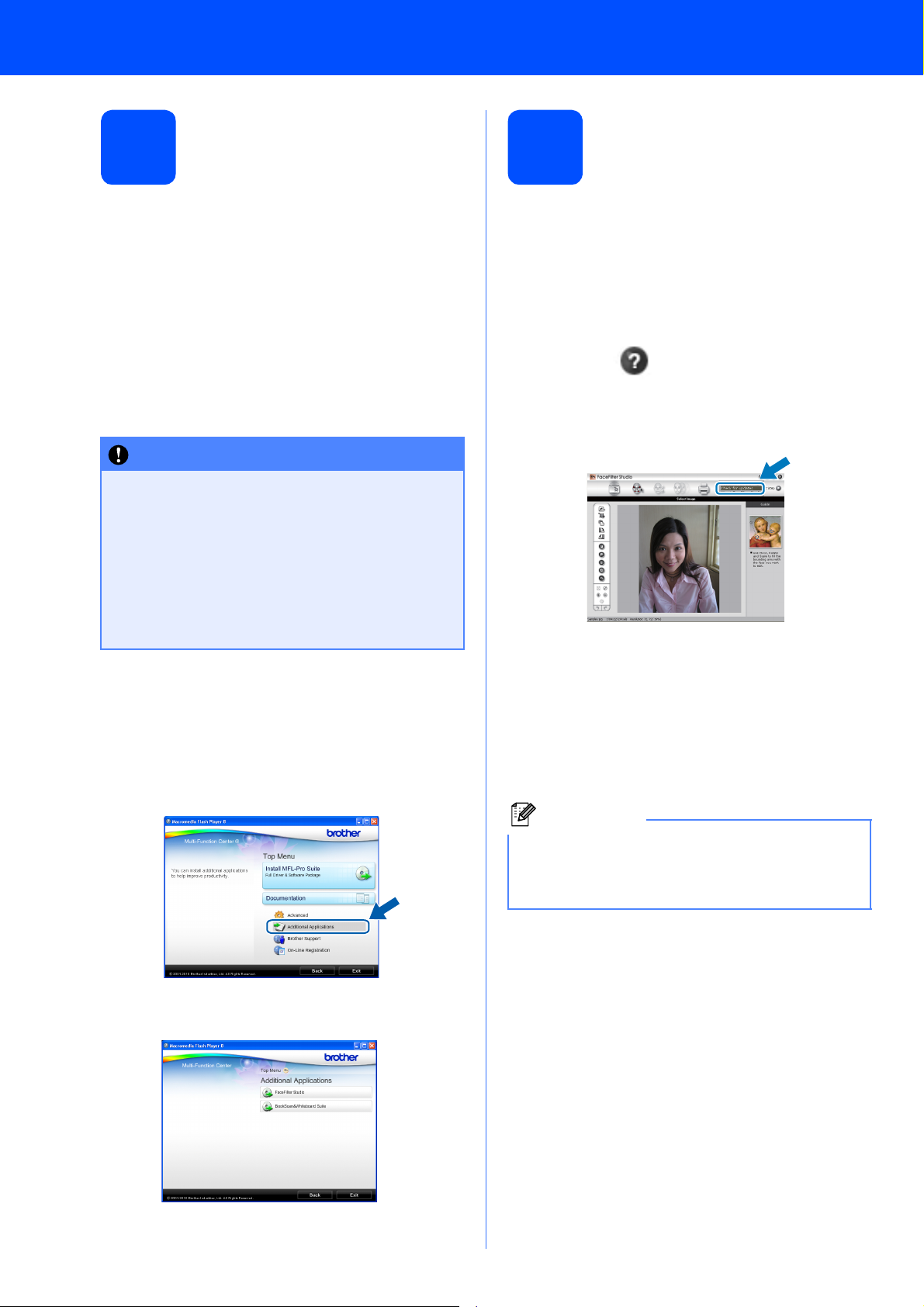

Download and install
12
When Presto! PageManager is installed OCR
capability is added to Brother ControlCenter2. You
can easily scan, share and organize photos and
documents using Presto! PageManager.
Presto! PageManager
a Click the Presto! PageManager icon to go to
the Presto! PageManager download site, and
follow the on-screen instructions.
Install MFL-Pro Suite on
additional computers
13
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 11 on page 18. Also see
step 9 on page 17 before you install.
(if needed)
Windows
g When the Brother Support screen appears,
click Close to finish the installation or go to
step 12.
The installation is now
complete.
If you specify an IP Address for the machine, you
must set the Boot Method to Static by using the
control panel. For more information, see the
Network User’s Guide on the documentation
CD-ROM.
Wired Network
®
Macintosh
19
For Wireless Network Users
IMPORTANT
Note
1
2
3
4
For wireless network interface users
Before you begin
9
First you must configure the wireless network settings of your machine to communicate with your network access
point/router. After the machine is configured to communicate with your access point/router, computers on your
network will have access to the machine. To use the machine from these computers, you will need to install the
drivers and software. The following steps will guide you through the configuration and installation process.
To achieve optimum results with normal everyday document printing, place the Brother machine as close to the
network access point/router as possible with minimal obstructions. Large objects and walls between the two
devices as well as interference from other electronic devices can affect the data transfer speed of your documents.
Due to these factors, wireless may not be the best method of connection for all types of documents and
applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you
may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput speed.
Although the Brother DCP-J715W can be used in both a wired and wireless network, only one of the connection
methods can be used at a time.
If you have previously configured the wireless settings of the machine you must reset the network
(LAN) settings before you can configure the wireless settings again.
On your machine, press Menu. Press a or b to choose Network and press OK.
Press a or b to choose Network Reset, and then press OK.
Press twice to choose Yes .

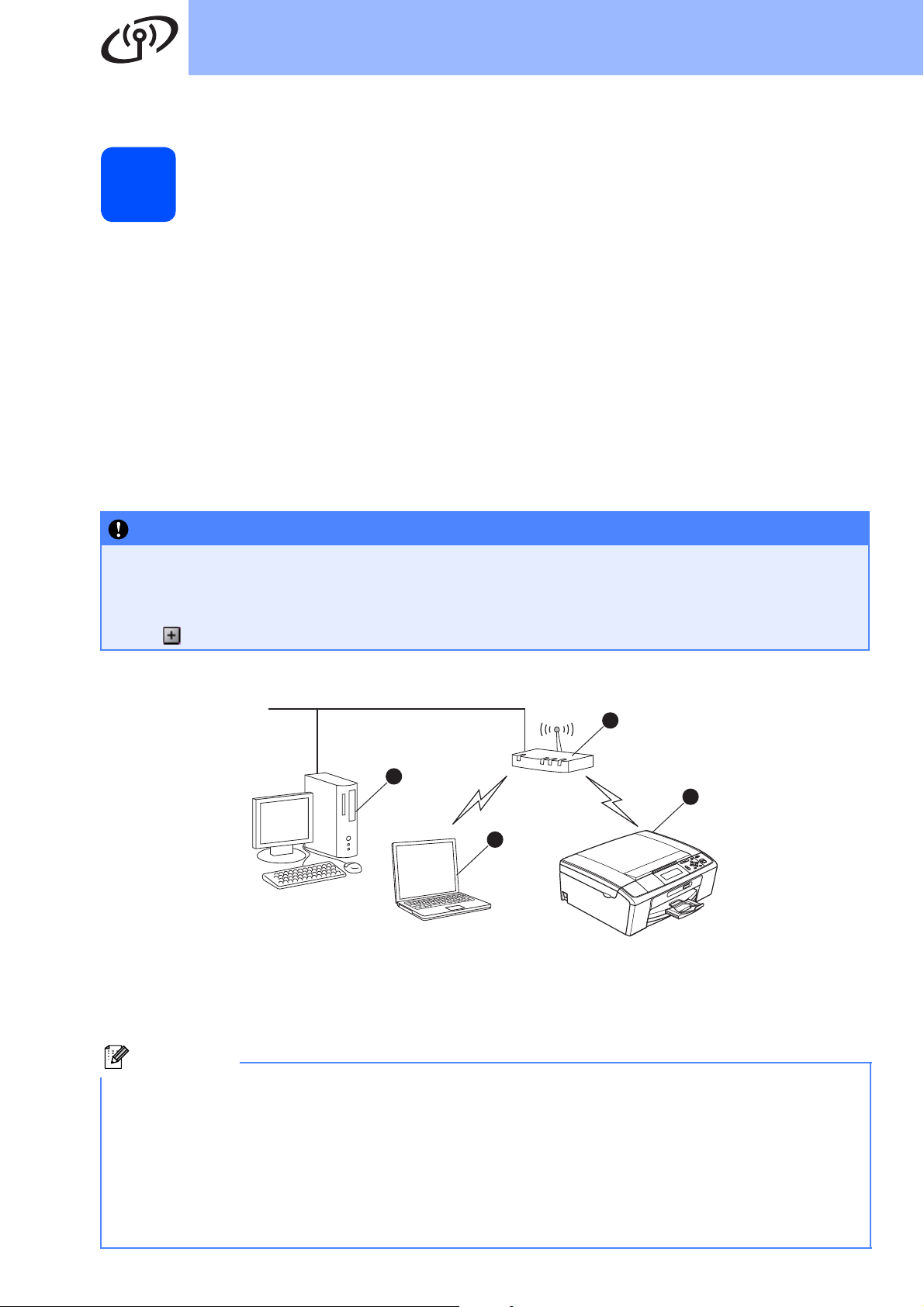

The following instructions are for infrastructure mode (connected to a computer through an access point/router).
Infrastructure Mode
a Access point/router
b Wireless Network machine (your machine)
c Wireless capable computer connected to the access point/router
d Wired computer connected to the access point/router
Please make sure the wireless network settings of the machine match the access point/router.
20
To set up your machine in Ad-hoc mode (connected to a wireless capable computer without an access
point/router) you can find instructions in the Network User’s Guide on the documentation CD-ROM.
Also you can download the Network User’s Guide by following the instructions below.
1 Turn on your computer. Insert the installation CD-ROM into your CD-ROM drive.
For Windows
2 Choose your model and the language. The CD-ROM top menu will appear.
3 Click Documentation, and follow the on-screen instructions.
For Macintosh:
2 Double-click Documentation, and follow the on-screen instructions.
®
:
For Wireless Network Users
IMPORTANT
Note
Now go to
Now go to
Confirm your network environment (Infrastructure Mode)
10
The following instructions will offer two methods for installing your Brother machine in a wireless network
environment.
a If your wireless access point/router does not support Wi-Fi Protected Setup (WPS) or AOSS™, write
down the wireless network settings of your wireless access point/router in the area below.
Please do not contact Brother Customer Service for assistance without the wireless security
information. We cannot assist you in locating your network security settings.
Item Record the current wireless network settings
Network Name: (SSID/ESSID)
Password (Network Key)
* The Password may also be described as the Network Key, Security Key or Encryption Key.
If you do not know this information (Network Name (SSID/ESSID) and Password (Network Key)),
you cannot continue the wireless setup.
How can I find this information (Network Name (SSID/ESSID) and Password (Network Key))
1) You should see the documentation provided with your wireless access point/router.
2) The initial network name could be the manufacturer’s name or the model name.
3) If you do not know the security information, please consult the router manufacturer, your system
administrator, or internet provider.
page 22
b If your wireless access point/router supports automatic wireless (one-push) setup (Wi-Fi Protected
Setup or AOSS™)
Wireless Network
page 23
21
For Wireless Network Users
Now go to
Now go to
Note
Connecting the Brother machine to the wireless network
Configure the wireless
settings (typical Wireless
11
Setup in infrastructure
mode)
a On your machine, press Menu.
Press a or b to choose Network and press
OK.
(For DCP-J715W, press a or b to choose WLAN
and press OK.)
Press a or b to choose Setup Wizard and
press OK.
When WLAN Enable? or Network I/F
switched to Wireless. is displayed,
press OK to accept.
This will start the wireless setup wizard.
To cancel, press Stop/Exit.
b The machine will search for available SSIDs. If
a list of SSIDs is displayed, use the a or b keys
to choose the SSID you wrote down in
step 10-a on page 21, then press OK. If you
are using an authentication and encryption
method that requires a Password (Network
Key), go to c.
If your authentication method is Open System
and your encryption mode is None, go to d.
d Your machine will now try to connect to your
wireless network using the information you
have entered.
It may take a few minutes to connect to your
wireless network.
e A connection result message appears for
60 seconds on the LCD and a wireless LAN
report will automatically be printed. If the
connection failed, check the error code on the
printed report and refer to Troubleshooting
on page 24.
Wireless setup is now complete. A four
level indicator at the top of your
machine’s LCD will show the wireless
signal strength of your access
point/router.
To install MFL-Pro Suite, continue to
step 12.
For Windows® Users:
Page 26
For Macintosh Users:
It will take several seconds to display a list of
available SSIDs.
If a list of SSIDs is not displayed, make sure your
access point is on. Move your machine closer to
the access point and try starting from a again.
If your access point is set to not broadcast the
SSID, you will have to manually add the SSID
name. For details, see the Network User’s
Guide on the documentation CD-ROM.
c Enter the Password (Network Key) you wrote
down in step 10-a on page 21. Press a, b, d or
c to select a letter or number, and press OK.

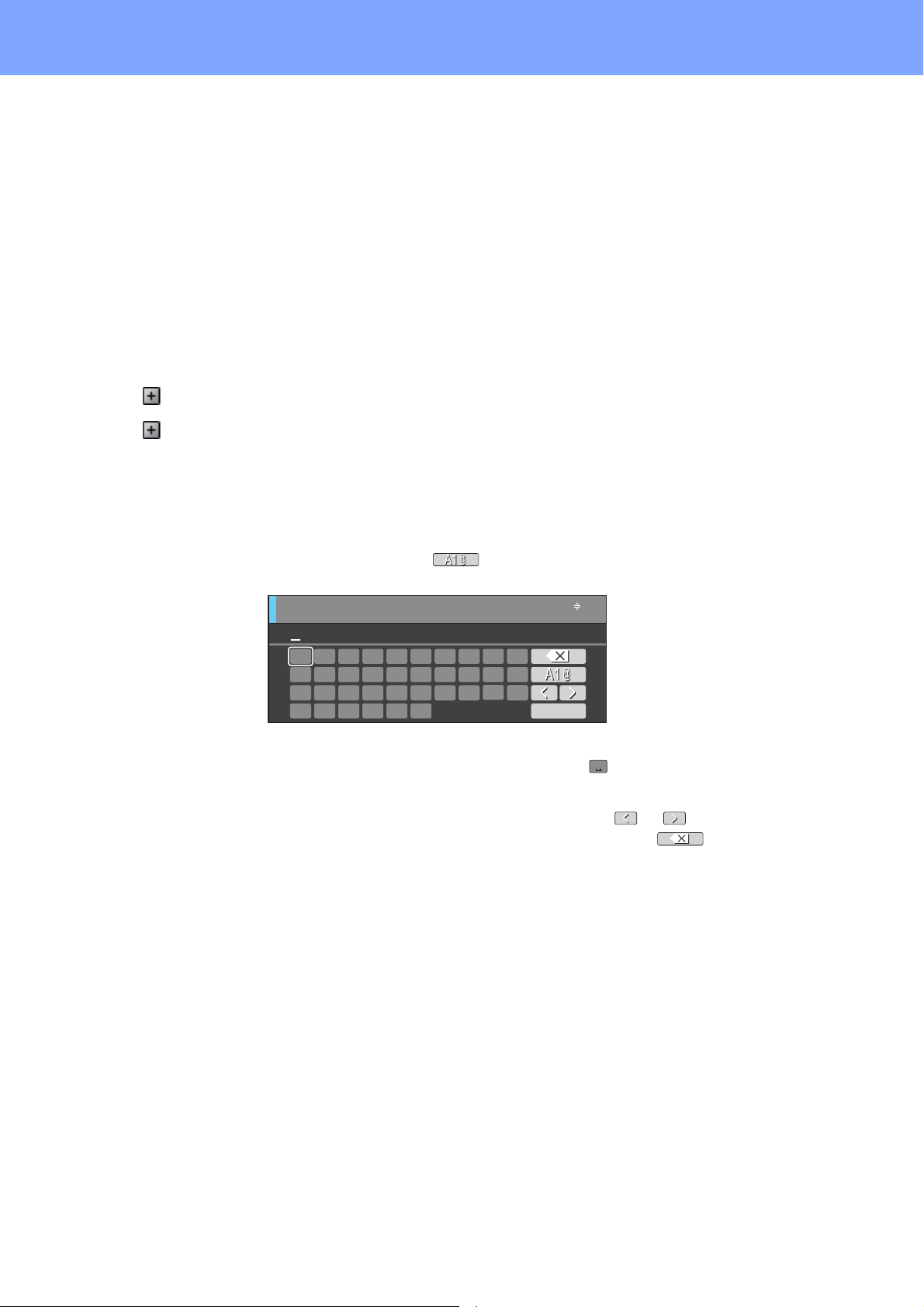

(For more information, see Entering Text for
Wireless Settings on page 33.)
When you have entered all the characters,
OK
press a, b, d or c to select and press
OK. Then press (Yes) to apply your
settings.
OK
Page 30
22
For Wireless Network Users
Now go to
Now go to
Note
Configure the wireless
settings using the
11
automatic wireless (onepush) method

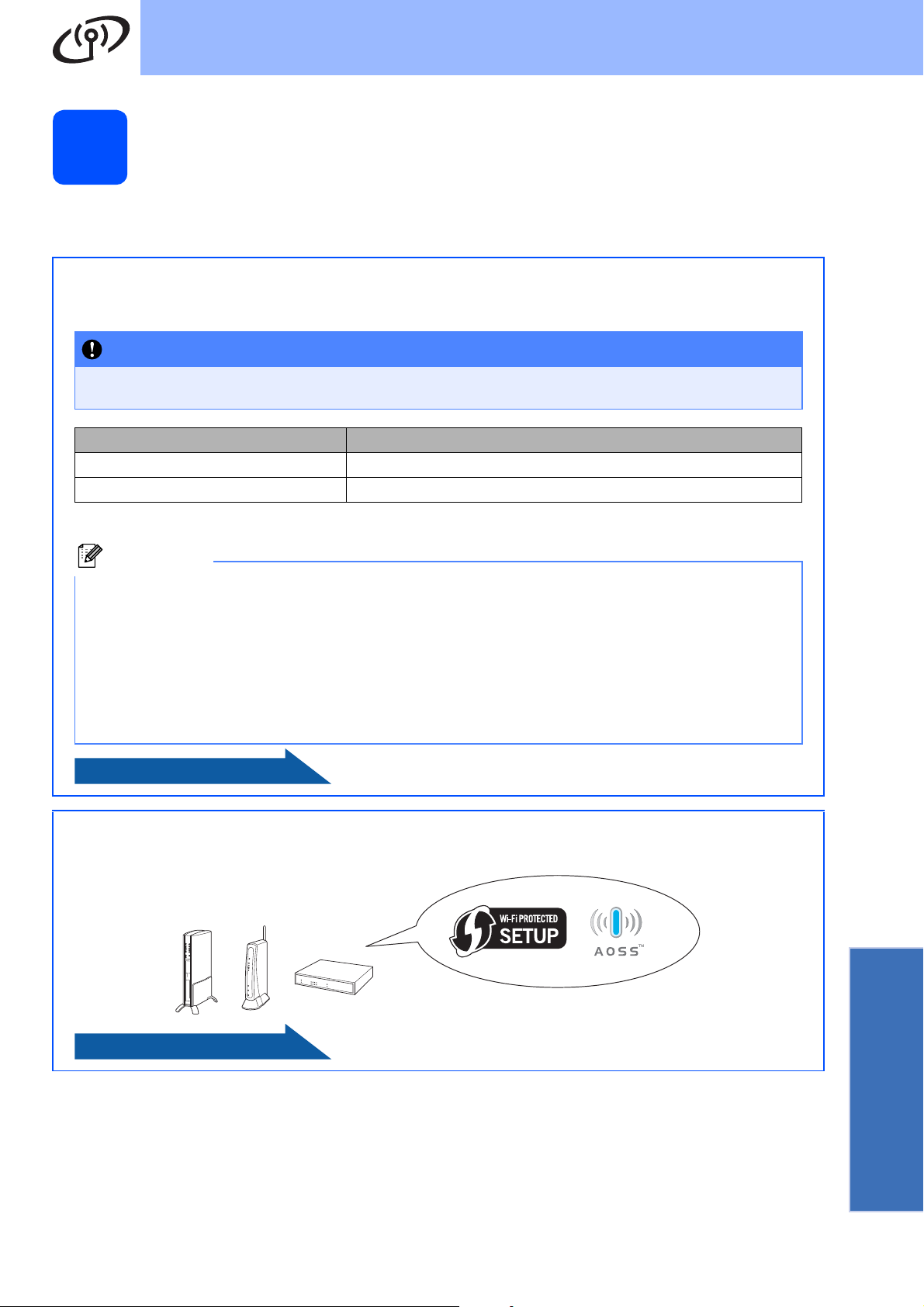

a Confirm your wireless access point/router has
the Wi-Fi Protected Setup or AOSS™ symbol
as shown below.
b Place the Brother machine within range of your
Wi-Fi Protected Setup or AOSS™ access
point/router. The range may differ depending
on your environment. Refer to the instructions
provided with your access point/router.
c Push the Wi-Fi Protected Setup or AOSS™
button on your wireless access point/router.
See the user’s guide for your wireless access
point/router for instructions.
e A connection result message appears for
60 seconds on the LCD and a wireless LAN
report will automatically be printed. If the
connection failed, check the error code on the
printed report and refer to Troubleshooting
on page 24.
Wireless setup is now complete. A four
level indicator at the top of your
machine’s LCD will show the wireless
signal strength of your access
point/router.
To install MFL-Pro Suite, continue to
step 12.
For Windows® Users:
Page 26
For Macintosh Users:
d On your machine, press Menu.
Press a or b to choose Network and press
OK.
(For DCP-J715W, press a or b to choose WLAN
and press OK.)
Press a or b to choose WPS/AOSS and press
OK.
When WLAN Enable? or Network I/F
switched to Wireless. is displayed,
press OK to accept.
This will start the wireless setup wizard.
This feature will automatically detect which
mode (Wi-Fi Protected Setup or AOSS™) your
access point/router uses to configure your
machine.
If your wireless access point/router supports
Wi-Fi Protected Setup (PIN Method) and you
want to configure your machine using the PIN
(Personal Identification Number) Method, see
Using the PIN Method of Wi-Fi Protected Setup in
the Network User’s Guide on the documentation
CD-ROM.
Page 30
Wireless Network
23
For Wireless Network Users
IMPORTANT
Troubleshooting
Please do not contact Brother Customer Service for assistance without the wireless security
information. We cannot assist you in locating your network security settings.
How can I find the wireless security information (SSID and Network Key)
1) You should see the documentation provided with your wireless access point/router.
2) The initial network name could be the manufacturer’s name or the model name.
3) If you do not know the security information, please consult the router manufacturer, your system
administrator, or internet provider.
* The Network Key may also be described as the Password, Security Key or Encryption Key.
Wireless LAN report
If the wireless LAN report that printed shows that the connection failed, check the error code on the printed report
and refer to the following instructions.
Error code Recommended Solutions
The wireless setting is not activated, turn the wireless setting to ON.
- If a LAN cable is connected to your machine, disconnect it and turn the wireless setting of
your machine to ON.
TS-01
TS-02
On your machine, press Menu.
Press a or b to choose Network and press OK.
Press a or b to choose WLAN Enable (For DCP-J515W) or Network I/F (For
DCP-J715W) and press OK.
Press a or b to choose On (For DCP-J515W) or WLAN (For DCP-J715W) and press OK.
Press Stop/Exit.
The wireless access point/router cannot be detected.
1. Check the following 4 points.
- Make sure that the wireless access point/router is powered on.
- Move your machine to an obstruction-free area, or closer to the wireless access
point/router.
- Temporarily place your machine within about one metre from the wireless access point
when you are configuring the wireless settings.
- If your wireless access point/router is using MAC address filtering, confirm the MAC
address of the Brother machine is allowed in the filter.
24
2. If you manually entered the SSID and security information (SSID/authentication
method/encryption method/Network Key), the information may be incorrect.
Reconfirm the SSID and security information and reenter the correct information as
necessary.
See How can I find the wireless security information (SSID and Network Key) on page 24 to
confirm.
TS-04
For Wireless Network Users
The Authentication/Encryption methods used by the selected wireless access point/router are
not supported by your machine.
For infrastructure mode, change the authentication and encryption methods of the wireless
access point/router.
Your machine supports the following authentication methods:
authentication method encryption method
WPA-Personal
WPA2-Personal AES
Open
Shared key WEP
If your problem is not solved, the SSID or network settings you entered may be incorrect.
Reconfirm the wireless network settings.
See How can I find the wireless security information (SSID and Network Key) on page 24 to
confirm.
None (without encryption)
TKIP
AES
WEP
TS-05
TS-06
TS-07
For ad-hoc mode, change the authentication and encryption methods of your computer for
the wireless setting.
Your machine supports Open authentication method only, with optional WEP encryption.
The security information (SSID/Network Key) is incorrect.
Reconfirm the SSID and security information (Network Key).
If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother
machine supports the use of the first WEP key only.
See How can I find the wireless security information (SSID and Network Key) on page 24 to
confirm.
The wireless security information (Authentication method/Encryption method/Network Key) is
incorrect.
Reconfirm the wireless security information (Authentication method/Encryption
method/Network Key) in the table of TS-04.
If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother
machine supports the use of the first WEP key only.
See How can I find the wireless security information (SSID and Network Key) on page 24 to
confirm.
The machine cannot detect a wireless access point/router that has WPS or AOSS™ enabled.
If you would like to configure your wireless settings using WPS
or AOSS™, you must operate both your machine and the
wireless access point/router.
Confirm your wireless access point/router supports WPS or
AOSS™ and try starting again.
Wireless Network
TS-08
If you do not know how to operate your wireless access
point/router using WPS or AOSS™ see the documentation
provided with your wireless access point/router, ask the
manufacturer of your wireless access point/router or ask your
network administrator.
Two or more wireless access points that have WPS or AOSS™ enabled are detected.
- Confirm that only one wireless access point/router within range has the WPS or AOSS™
method active and try again.
- Try starting again after a few minutes in order to avoid interference from other access
points.
25
Wireless Network
IMPORTANT
Note
Note
Install the drivers & software
(Windows
Windows Vista
®
2000 Professional/XP/XP Professional x64 Edition/
®
/Windows® 7)
Before you install
12
a Make sure that your computer is ON and you
are logged on with Administrator rights.
• For the latest drivers and information, visit
http://solutions.brother.com/
• If there are any programs running, close
them.
• The screens may differ depending on your
operating system.
Windows
®
b The CD-ROM Top Menu will appear. Click
Install MFL-Pro Suite and click Yes if you
accept the license agreements. Follow the
on-screen instructions.
• If this screen appears, click OK and restart
your computer.
Install MFL-Pro Suite
13
a Put the supplied installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
• If the installation does not continue
automatically, open the top menu again by
ejecting and then reinserting the CD-ROM or
double-click the start.exe program from the
root folder, and continue from b to install
MFL-Pro Suite.
• For Windows Vista
the User Account Control screen appears,
click Allow or Yes.
®
and Windows® 7, when
26
Wireless Network
Note
Windows
®
c Choose Wireless Network Connection, and
then click Next.
(DCP-J515W)
(DCP-J715W)
e Choose your machine from the list, and then
click Next.
• If your wireless settings fail, the Wireless
Device Setup Wizard will appear during the
installation of MFL-Pro Suite. Confirm your
settings by following the on-screen
instructions. If you encounter this failure, go to
step 10-a on page 21 and setup the wireless
connection again.
d When this screen appears, choose Change
the Firewall port settings to enable network
connection and continue with the
installation. (Recommended) and click Next.
(Not for Windows
If you are using a firewall other than Windows
Firewall or Windows
may appear.
See the instructions provided with your firewall
software for information on how to add the
following network ports.
For network scanning, add UDP port 54925.
If you still have trouble with your network
connection, add UDP port 137.
®
2000 users)
®
Firewall is off, this screen
• If you are using WEP and the LCD displayed
Connected but your machine is not found,
make sure you entered the WEP key correctly.
The WEP key is case sensitive.
®
Windows
Wireless Network
®
Macintosh
27
Wireless Network
IMPORTANT
Note
Note
Note
f The installation of the Brother drivers will
automatically start. The installation screens
appear one after another.
Windows
®
Finish and restart
14
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
For Windows Vista® and Windows® 7, when the
Windows Security screen appears, click the
check box and click Install to complete the
installation correctly.
g When the User’s Guides screen is displayed,
click View Manuals on the Web if you want to
download the manuals and follow the
on-screen instructions. You can also view the
manuals on the documentation CD-ROM.
h When the On-Line Registration screen is
displayed, make your selection and follow the
on-screen instructions.
i If you do not want to set your machine as the
Default printer, uncheck Set as Default
Printer.
a Click Finish to restart your computer. After
restarting the computer, you must be logged on
with Administrator rights.
• If an error message appears during the
software installation, run the Installation
Diagnostics located in Start/All Programs/
Brother/DCP-JXXX (where DCP-JXXX is your
model name).
• Depending on your security settings, a
Windows Security or antivirus software window
may appear when using the machine or its
software. Please allow or permit the window to
continue.
b In the Check for Firmware Updates screen,
choose the firmware update setting you want
and click OK.
Internet access is required for the firmware
update.
28
Wireless Network
Now go to
Note
Finish
Note
Install MFL-Pro Suite on
additional computers
15
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 12 on page 26.
(if needed)
Windows
®
Network license (Windows®)
This product includes a PC license for up to 2
Users. This license supports the installation of the
MFL-Pro Suite including ScanSoft™
PaperPort™11SE on up to 2 PCs on the network.
If you want to use more than 2 PCs with
ScanSoft™ PaperPort™11SE installed, please
purchase the Brother NL-5 pack which is a
multiple PC license agreement pack for up to 5
additional users. To purchase the NL-5 pack,
contact your authorized Brother dealer or contact
Brother customer service.
The installation is now
complete.
Proceed to Install Optional Applications on
page 32.
(DCP-J715W only)
• If you specify an IP Address for the machine,
you must set the Boot Method to Static by using
the control panel. For more information, see
the Network User’s Guide on the
documentation CD-ROM.
• XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is
the most suitable driver when printing from
applications that use the XML Paper
Specification documents. Please download the
latest driver by accessing the Brother Solutions
Center at http://solutions.brother.com/
Windows
Wireless Network
®
Macintosh
29
Wireless Network
IMPORTANT
Note
Install the drivers & software (Mac OS X 10.4.11, 10.5.x, 10.6.x)
Before you install
12
a Make sure your machine is connected to the
power and your Macintosh is ON. You must be
logged on with Administrator rights.
• For the latest drivers and information on the
Mac OS X you are using, visit
http://solutions.brother.com/
• For Mac OS X 10.4.0 to 10.4.10 users,
upgrade to Mac OS X 10.4.11 - 10.6.x.
Macintosh
c Choose Wireless Network Connection, and
then click Next.
(DCP-J515W)
Install MFL-Pro Suite
13
a Put the supplied installation CD-ROM into your
CD-ROM drive.
b Double-click the Start Here OSX icon to install.
(DCP-J715W)
d The Brother software will search for the Brother
device in your wireless network. If the machine
is configured for your network, choose the
device you want to install, and then click Next.
If your wireless settings fail, the Wireless Device
Setup Wizard will appear during the installation of
MFL-Pro Suite. Confirm your settings by following
the on-screen instructions. If you encounter this
failure, go to step 10-a on page 21 and setup the
wireless connection again.
30
Wireless Network
Note
Finish
Note
Macintosh
e Please wait, it will take a few seconds for the
software to install. After the installation, this
window will appear.
Choose your machine from the list, and then
click OK.
If this screen appears click OK.
Enter a name for your Macintosh in
Display Name up to 15 characters long and click
OK. Go to f.
Download and install
Presto! PageManager
14
When Presto! PageManager is installed OCR
capability is added to Brother ControlCenter2. You
can easily scan, share and organize photos and
documents using Presto! PageManager.
(DCP-J715W only)
a Click the Presto! PageManager icon to go to
the Presto! PageManager download site, and
follow the on-screen instructions.
Install MFL-Pro Suite on
additional computers
15
(if needed)
The name you enter will appear on the machine’s
LCD when you press the SCAN key and choose
a scan option. (For more information, see
Network Scanning (For models with built-in
network support) in the Software User’s Guide on
the documentation CD-ROM.)
f When this screen appears, click Next.
g When the Brother Support screen appears,
click Close to finish the installation or go to
step 14.
If you want to use your machine with multiple
computers on the network, install MFL-Pro Suite on
each computer. Go to step 12 on page 30.
The installation is now
complete.
If you specify an IP Address for the machine, you
must set the Boot Method to Static by using the
control panel. For more information, see the
Network User’s Guide on the documentation
CD-ROM.
Windows
Wireless Network
®
Macintosh
31
Install Optional Applications
IMPORTANT
Note
Install FaceFilter
Studio/BookScan &
1
Whiteboard Suite
supported by Reallusion,
Inc
2
To get instructions on how to use FaceFilter Studio,
download and install FaceFilter Studio Help.
Windows
®
Install FaceFilter Studio Help
FaceFilter Studio is an easy-to-use borderless photo
printing application. FaceFilter Studio also lets you
edit your photo data and add photo effects such as
red eye reduction or skin tone enhancement.
The BookScan Enhancer software can correct your
scanned book images automatically.
The Whiteboard Enhancer software cleans up and
enhances text and images from photos taken of your
whiteboard.
• The machine must be ON and connected to
the computer.
• The computer must be connected to the
Internet.
• Make sure you are logged on with
Administrator rights.
• This application is not available for
Windows Server
®
2003/2008 series.
a Open the top menu again by ejecting and then
reinserting the installation CD-ROM or by
double-clicking the start.exe program from the
root folder.
b The CD-ROM Top Menu will appear. Choose
your language and then click Additional
Applications.
a To run FaceFilter Studio, go to
Start/All Programs/Reallusion/
FaceFilter Studio on your computer.
b Click the button on the upper right corner
of the screen.
c Click Check for updates to go to the
Reallusion update web page.
d Click the Download button and choose a folder
to save the file in.
e Close FaceFilter Studio before you start the
installer for FaceFilter Studio Help.
Double-click the downloaded file from the
folder you specified and follow the on-screen
instructions for installation.
c Click the button for the application you want to
install.
d Go back to the Additional Applications screen
to install more applications.
32
To view the complete FaceFilter Studio Help,
choose Start/All Programs/Reallusion/
FaceFilter Studio/FaceFilter Studio Help on
your computer.
For Network Users
Restore the network settings to factory default
To restore all network settings of the internal Print/Scan server to factory default, please follow the steps below.
a Make sure the machine is not operating, then disconnect all the cables from the machine (except the power
cord).
b Press Menu.
c Press a or b to choose Network.
Press OK.
d Press a or b to choose Network Reset.
Press OK.
e Press to choose Yes.
f Press to choose Yes.
g The machine will restart, re-connect cables once this is complete.
Entering Text for Wireless Settings
Press a, b, d or c to select a letter, and press OK. Select and press OK to cycle between upper case, lower
case or special characters.
SSID
SSID
0
1
A
B
K
L
U
V
Inserting spaces
To enter a space, choose special characters. Then press a, b, d or c to select , and press OK.
Making corrections
If you entered an incorrect letter and want to change it, press a, b, d or c to select or . Press OK several
times to move the cursor under the incorrect character. Then press a, b, d or c to select , and press OK.
Re-enter the correct letter.
2
C
M
W
3
4
5
6
7
D
E
F
G
H
N
O
P
Q
R
X
Y
Z
Complete OK
8
9
I
J
S
T
OK
OK
33

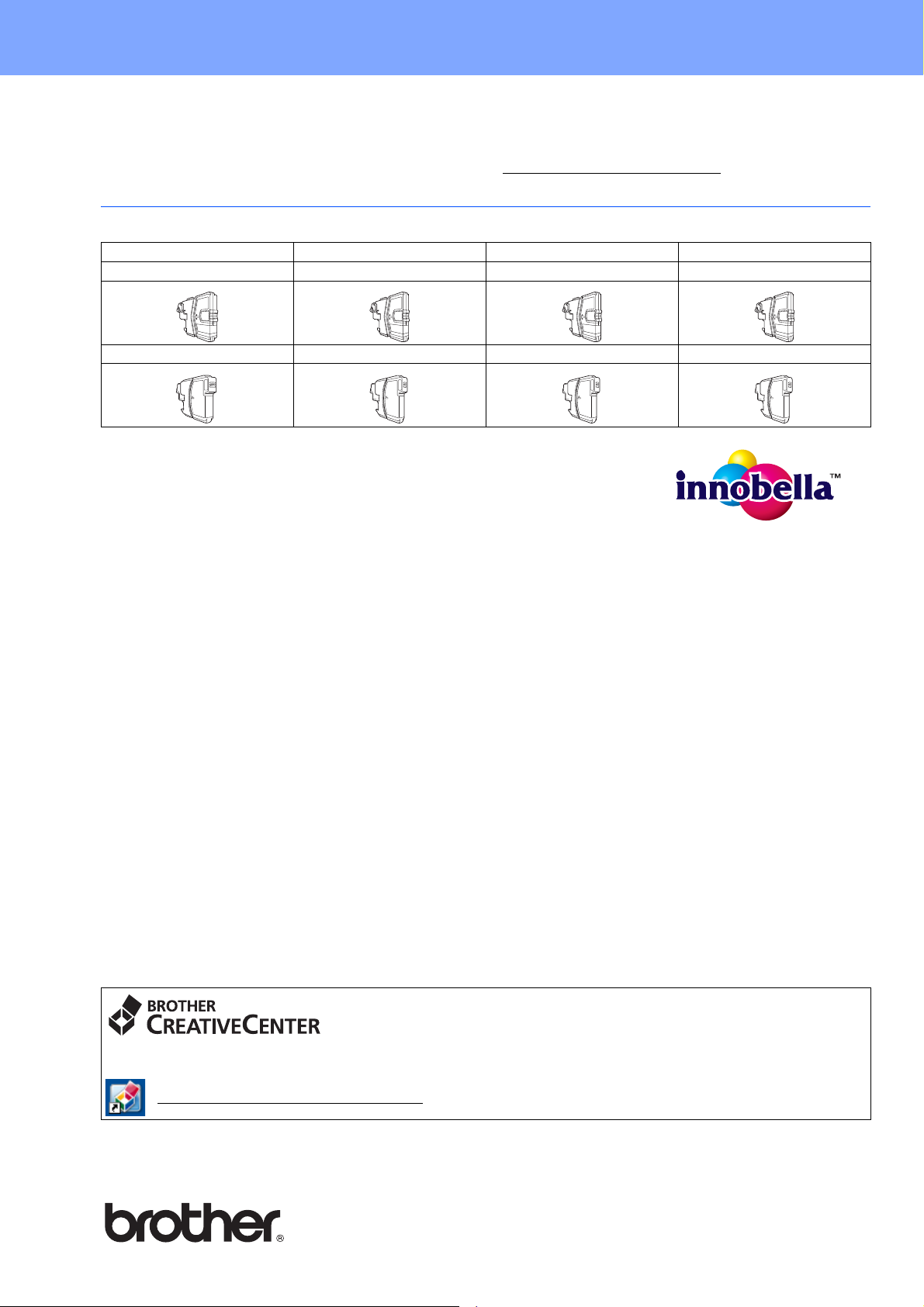

Consumables
Replacement consumables
When the time comes to replace ink cartridges, an error message will be indicated on the LCD. For more
information about the ink cartridges for your machine, visit http://www.brother.com/original/
Brother re-seller.
Ink cartridge
Black Yellow Cyan Magenta
LC985BK (DCP-J515W) LC985Y (DCP-J515W) LC985C (DCP-J515W) LC985M (DCP-J515W)
or contact your local
LC1100BK (DCP-J715W) LC1100Y (DCP-J715W) LC1100C (DCP-J715W) LC1100M (DCP-J715W)
What is Innobella™?
Innobella™ is a range of genuine consumables offered by Brother.
The name “Innobella™” derives from the words “Innovation” and “Bella”
(meaning “Beautiful” in Italian) and is a representation of the “innovative”
technology providing you with “beautiful” and “long lasting” print results.
Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd.
Brother is a registered trademark of Brother Industries, Ltd.
Multi-Function Link is a registered trademark of Brother International Corporation.
Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.
Microsoft, Windows, Windows Server and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
Apple, Macintosh and Safari are trademarks of Apple Inc., registered in the United States and other countries.
Nuance, the Nuance logo, PaperPort and ScanSoft are trademarks or registered trademarks of Nuance Communications, Inc. or its affiliates
in the United States and/or other countries.
FaceFilter Studio is a trademark of Reallusion, Inc.
AOSS is a trademark of Buffalo Inc.
Wi-Fi, WPA, WPA2, Wi-Fi Protected Access and Wi-Fi Protected Setup are either trademarks or registered trademarks of Wi-Fi Alliance in the
United States and/or other countries.
Each company whose software title is mentioned in this manual has a Software License A greement specific to it s proprietary programs.
Any trade names and product names of companies appearing on Brother products, related documents and any other
materials are all trademarks or registered trademarks of those respective companies.
Compilation and Publication
Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and
specifications.
The contents of this manual and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for
any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other
errors relating to the publication.
Copyright and License
©2010 Brother Industries, Ltd. All rights reserved.
This product includes software developed by the following vendors:
©1983-1998 PACIFIC SOFTWORKS, INC.
This product includes the “KASAGO TCP/IP” software developed by ZUKEN ELMIC,Inc.
©2008 Devicescape Software, Inc.
Get inspired. Double-click the Brother CreativeCenter icon on your desktop to access a FREE web site with many
ideas and resources for personal and professional use.
http://www.brother.com/creativecenter/
Loading...
