BROTHER BAS-311F-0, BAS-311F-L, BAS-326F-0 Parts

Download

BAS-311F-0 BAS-311F-L BAS-326F-0

Programmable Electronic Pattern Sewer With Cylinder Bed

Model

□□

BAS-311F-0

□□

□□□□

1 For heavy-weight materials S Work clamp lifter (Solenoid type) 2 For medium-weight materials A Work clamp lifter (Pneumatic type) 3 For extra heavy-weight materials 4 For special use

BAS-311F-L

BAS-326F-0

□□□□

1 For heavy-weight materials, Work clamp lifter (Pneumatic type) 4 For special use, Work clamp lifter (Pneumatic type)

□□□□

1 For heavy-weight materials, Work clamp lifter (Pneumatic type) 2 For medium-weight materials, Work clamp lifter (Pneumatic type) 4 For special use, Work clamp lifter (Pneumatic type)

Specifications

Stitch formation Single needle lock stitch

Sewing machine Lock stitch, pattern tacking sewing machine (with large shuttle hook)

Maximum pattern size BAS-311F-0: 130 × 60 mm、BAS-311F-L: 220 × 60 mm、BAS-326F-0: 220 × 100 mm

Maximum stitch number 20,000 (One pattern)

Stitch length 0.05 - 12.7 mm

Maximum sewing speed 2,500 rpm (When stitch length is 3 mm or less)

Feed mechanism Intermittent feed, pulse motor drive

Rotary hook Shuttle hook (Standard rotary hook is sold separately)

Needle

Data storage method 3.5 floppy disk 2HD /1.44 MB, 2DD

Test function Operation test function provided for use with low speed drive

Safety devices

Work clamp height

2-step work clamp For solenoid – unit work clamp, for pneumatic – separate work clamp

Work clamp lift stroke 18 mm

Intermittent stroke 0 or 3 (Factory default) – 8 mm

Weights

Power supply Single-phase 110 V, 220 V, 230V, 240 V 3-phase 220 V, 380 V, 400 V, 600 VA

Motor Three-phase 400 W induction motor Air pressure 0.5 MPa 1.8 l / min Power table T-shaped for use sitting or standing

Machine dimensions

Automatic stop function for activation in the event of misoperation realized with intermediate stop function

BAS-311F-0: For solenoid – Max. 25 mm, for pneumatic – Max. 30 mm

BAS-311F-L, BAS-326F-0: Max. 30 mm

BAS-311F-0 machine head: 65 kg, BAS-311F-L, 326F-0 machine head: 70 kg

Control box: 10-20 kg （Depending on destination）

Sitting: 1,200 W × 590 D × 1,120 H mm

Standing: 1,350 H mm (Excluding spool stand)

DP × 5, DP × 17, MR

and safety circuits

2003.1

BAS-311F-0, 311F-L, 326F-0 1/36

Thread trimmer mechanism 　　　　　　

　　　　　　 BAS-311F-0, 311F-L, 326F-0

Ref. No. Part name Part code Q’ty

45-3 Movable knife assy, N S49988-001 1

49-1 Fixed knife S10210-201 1

One-touch work clamp (Option parts) 　　　　　　　　　　　　　　　　　　　　　

　　　　　　　　　　　　　　　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

1 One-touch holder assy, UN S24612-001 1

3 One-touch work clamp set S44794-001 1

3-1 One-touch holder assy, L S20280-101 1

3-2 One-touch holder assy, R S20286-101 1

3-3 Work clamp holder assy, L S20289-101 2

3-4 Work clamp holder assy, R S20293-101 2

3-5 Bolt, socket SM 4.37 x 8 018680-822 8

BAS-311F-0, 311F-L, 326F-0 2/36

2003.1

One-touch work clamp (Option parts) 　　　　　　　　　　　　　　　　　　　　　

　　　　　　　　　　　　　　　　　　　　　 BAS-326F-0

Ref. No. Part name Part code Q’ty

6 One-touch work clamp set S57954-001 1 6-3 One-touch holder assy, L S57955-001 1 6-4 One-touch holder assy, R S57957-001 1

4 Work clamp holder set, L S20822-101 1

4-1 Work clamp holder assy, L S20289-101 1

4-2 Bolt, socket SM4.37 x 8 018680-822 2

5 Work clamp holder set, R S20823-101 1

5-1 Work clamp holder assy, R S20293-101 1

5-2 Bolt, socket SM4.37 x 8 018680-822 2

Work clamp 　　　　

　　　　 BAS-311F-0, 311F-L

*These optional parts are used to prevent work clamp looseness.

Work clamp 　　　　

　　　　 BAS-326F-0

Ref. No. Part name Part code Q’ty

75-3 Work clamp guide bracket S42798-001 1

75-4 Work clamp adjusting plate S42799-001 2

75-5 Adjusting plate S42800-001 2

75-6 Work clamp, SE - OP S42802-001 2

75-7 Screw, pan SM3.57 – 40 x 5 062670-512 4

Ref. No. Part name Part code Q’ty

5 Work clamp, UN326L S51042-001 1

77 Work clamp guide bracket S42798-001 1

78 Adjusting plate S56536-001 2

*These optional parts are used to prevent work clamp looseness.

2003.1

79 Adjusting plate S42800-001 2

81 Screw, pan SM3.57 – 40 x 6 062670-612 4

141 Work clamp, UN S56537-001 1

BAS-311F-0, 311F-L, 326F-0 3/36

Blank for work clamp 　　　　　　　　　

Work clamp blank, A – 3.2

　　　　　　　　　 BAS-311F-0

Part name Part code Q’ty

＜

Thick 3.2 mm

＞

S43824-001 1

＜Thick 4.0 mm＞

Work clamp blank, A – 4.0

＜Thick 5.0 mm＞

Work clamp blank, A – 5.0

＜Thick 3.2 mm＞

Work clamp blank, B – 3.2

＜Thick 4.0 mm＞

Work clamp blank, B – 4.0

＜Thick 5.0 mm＞

Work clamp blank, B – 5.0

＜Thick 6.0 mm＞

Work clamp blank, – 6.0

S43826-001 1

S43828-001 1

S43825-001 1

S43827-001 1

S43829-001 1

S43830-001 1

Blank for work clamp 　　　　　　　　　 BAS-311F-L

Part name Part code Q’ty

For left

＜

Thick 3.2 mm

Work clamp blank, A – 3.2 311L

＜

Thick 4.0 mm

Work clamp blank, A – 4.0 311L

＞

S57729-001 1

S57731-001 1

For left

＜Thick 5.0 mm＞

Work clamp blank, A – 5.0 311FL

＜

Thick 3.2 mm

Work clamp blank, B – 3.2 311L

＜Thick 4.0 mm＞

Work clamp blank, B – 4.0 311L

＜Thick 5.0 mm＞

Work clamp blank, B – 5.0 311FL

＜Thick 6.0 mm＞

Work clamp blank, 6.0 311FL

＞

S57733-001 1

S57730-001 1

S57732-001 1

S57734-001 1

S57735-001 1

BAS-311F-0, 311F-L, 326F-0 4/36

2003.1

Blank for work clamp 　　　　　　　　 BAS-326F-0

Part name Part code Q’ty

＜Thick 3.2 mm＞

Work clamp blank, SE A – 3.2

＜Thick 4.0 mm＞

Work clamp blank, SE A – 4.0

＜Thick 5.0 mm＞

Work clamp blank, SE A – 5.0

＜Thick 6.0 mm＞

Work clamp blank, SE A - 6.0

＜

Thick 3.2 mm

Work clamp blank, SE B – 3.2

＜Thick 4.0 mm＞

Work clamp blank, SE B – 4.0

＜

Thick 5.0 mm

Work clamp blank, SE B – 5.0

＜Thick 6.0 mm＞

Work clamp blank, SE B - 6.0

＞

S51051-001 1

S51053-001 1

S51055-001 1

S51057-001 1

S51052-001 1

S51054-001 1

S51056-001 1

S51058-001 1

＜Thick 3.2 mm＞

Work clamp blank, UN A – 3.2

＜Thick 4.0 mm＞

Work clamp blank, UN A – 4.0

＜

Thick 5.0 mm

Work clamp blank, UN A – 5.0

＜

Thick 6.0 mm

Work clamp blank, UN A - 6.0

＜Thick 3.2 mm＞

Work clamp blank, UN B – 3.2

＜Thick 4.0 mm＞

Work clamp blank, UN B – 4.0

＜

Thick 5.0 mm

Work clamp blank, UN B – 5.0

＜Thick 6.0 mm＞

Work clamp blank, UN B - 6.0

＞

S51059-001 1

S51061-001 1

S51063-001 1

S51065-001 1

S51060-001 1

S51062-001 1

S51064-001 1

S51066-001 1

2003.1

BAS-311F-0, 311F-L, 326F-0 5/36

One-touch cassette clamp assy 　　　　　　　　　　

　　　　　　　　　　 BAS-311F-0

Part name Part code Q’ty

＜Thick 0.5 mm＞

Cassette clamp assy, OT 311

＜Thick 1.0 mm＞

Cassette clamp assy, OT 311

＜Thick 2.0 mm＞

Cassette clamp assy, OT 311

Part name Part code Q’ty

＜Thick 0.5 mm＞

Cassette clamp assy, OT 311L

＜Thick 1.0 mm＞

Cassette clamp assy, OT 311L

＜Thick 2.0 mm＞

Cassette clamp assy, OT 311L

S43691-001 1

S43691-002 1

S43691-003 1

BAS-311F-L

S57737-001 1

S57739-001 1

S56540-001 1

Part name Part code Q’ty

＜Thick 0.5 mm＞

Cassette clamp plate assy, 326 - OT

＜

Thick 1.0 mm

Cassette clamp plate assy, 326 – OT

＜Thick 2.0 mm＞

Cassette clamp plate assy, 326 - OT

＞

BAS-326F-0

S51067-001 1

S51069-001 1

S51071-001 1

BAS-311F-0, 311F-L, 326F-0 6/36

2003.1

For feed plate attachment 　　　　　　　　　　　

　　　　　　　　　　　 BAS-311F-0

Part name Part code Q’ty

Feed plate blank, A 311 S55164-001 1

Feed plate blank, B 311 S55165-001 1

Feed plate blank, C 311 S55166-001 1

Feed plate inner plate S43823-001 1

Feed plate setting bracket S51804-001 1

2003.1

BAS-311F-0, 311F-L, 326F-0 7/36

For feed plate attachment 　　　　　　　　　　　

　　　　　　　　　　　 BAS-311F-L

Part name Part code Q’ty

＜Thick 1.2 mm＞

Feed plate blank, A 311L

＜Thick 1.2 mm＞

Feed plate blank, B 311L

＜Thick 1.2 mm＞

Feed plate blank, C 311L

S57723-001 1

S57724-001 1

S57725-001 1

Feed plate inner plate S45603-001 1

BAS-311F-0, 311F-L, 326F-0 8/36

2003.1

For feed plate attachment 　　　　　　　　　　　　　 BAS-326F-0

Part name Part code Q’ty

＜Thick 1.2 mm＞

Feed plate blank, 326A

＜Thick 1.2 mm＞

Feed plate blank, 326B

＜

Thick 1.2 mm

Feed plate blank, 326C

Feed plate inner plate S48555-000 1

＞

S57844-001 1

S57845-001 1

S57846-001 1

Work clamp 　　　

　　　 BAS-311F-0

Ref. No. Part name Part code Q’ty

6 Work clamp, R 311 S42772-001 1

7 Work clamp, L 311 S42773-001 1

8 Washer, plain M 4.37 025680-232 2

9 Bolt, SM4.37 x 7 153403-002 2

10 Positioning plate S10065-001 2

11 Screw, pan SM4.37-40 x 5 062680-512 2

202 Work clamp, UN ; SOL S43986-201 1

203 Work clamp, 311 UN S43987-001 1

2003.1

BAS-311F-0, 311F-L, 326F-0 9/36

Work clamp 　　　

　　　 BAS-311F-L

Ref. No. Part name Part code Q’ty

6 Work clamp, R 311L S55931-001 1

7 Work clamp, L 311L S55932-001 1

8 Washer, plain M 4.37 025680-232 2

9 Bolt, SM4.37 x 7 153403-002 2

10 Positioning plate S10065-001 2

11 Screw, pan SM4.37-40 x 5 062680-512 2

BAS-326F-0

Ref. No. Part name Part code Q’ty

6 Work clamp, R 326 S51030-001 1

7 Work clamp, L 326 S51031-001 1

8 Washer, plain M 4.37 025680-232 2

9 Bolt, SM4.37 x 7 153403-002 2

10 Positioning plate S10065-001 2

141 Work clamp, UN S56537-001 1

5 Work clamp, UN 326 S51042-001 1

BAS-311F-0, 311F-L, 326F-0 10/36

2003.1

For one-touch work clamp 　　　　　　　　　

　　　　　　　　　 BAS-311F-0, 311F-L, 326F-0

Part name Part code Q’ty

OT – feed plate bracket assy S57952-001 1

Feed plate blank for one-touch work clamp 　　　　　　　　　　　　　　　　　

　　　　　　　　　　　　　　　　　 BAS-311F-0

Part name Part code Q’ty

＜

Thick 1.2 mm

OT – feed plate blank, A

＜

Thick 1.2 mm

OT – feed plate blank, B

＞

S43700-001 1

S43821-001 1

＜Thick 1.2 mm＞

OT – feed plate blank, C

Part name Part code Q’ty

＜Thick 1.2 mm＞

OT – feed plate blank, A 311L

＜Thick 1.2 mm＞

OT – feed plate blank, B 311L

S43822-001 1

BAS-311F-L

S57726-001 1

S57727-001 1

＜Thick 1.2 mm＞

OT – feed plate blank, C 311L

2003.1

S57728-001 1

BAS-311F-0, 311F-L, 326F-0 11/36

Feed plate blank for one-touch work clamp 　　　　　　　　　　　　　　　　　

　　　　　　　　　　　　　　　　　 BAS-326F-0

Part name Part code Q’ty

＜Thick 1.2 mm＞

OT – feed plate blank, A

＜Thick 1.2 mm＞

OT – feed plate blank, B

＜Thick 1.2 mm＞

OT – feed plate blank, C

For sewing the bar tack “61.5 x 86.5” 　　　　　　　　　　　

　　　　　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

S51048-101 1

S51049-101 1

S51050-101 1

159 Work clamp, SR S14254-001 1

160 Work clamp, SL S14255-001 1

163 OT – work clamp assy, D S14846-001 2

164 Screw, flange SM4.37 149168-001 2

Feed plate for one-touch work 　　　　　　　　　　　　

　　　　　　　　　　　　 BAS-311F-0, 311F-L

Part name Part code Q’ty

For denim

＜Thick 1.2 mm＞

OT – feed plate blank, DE

For general

＜Thick 1.2 mm＞

OT – feed plate

S14253-001 1

S14252-001 1

BAS-311F-0, 311F-L, 326F-0 12/36

2003.1

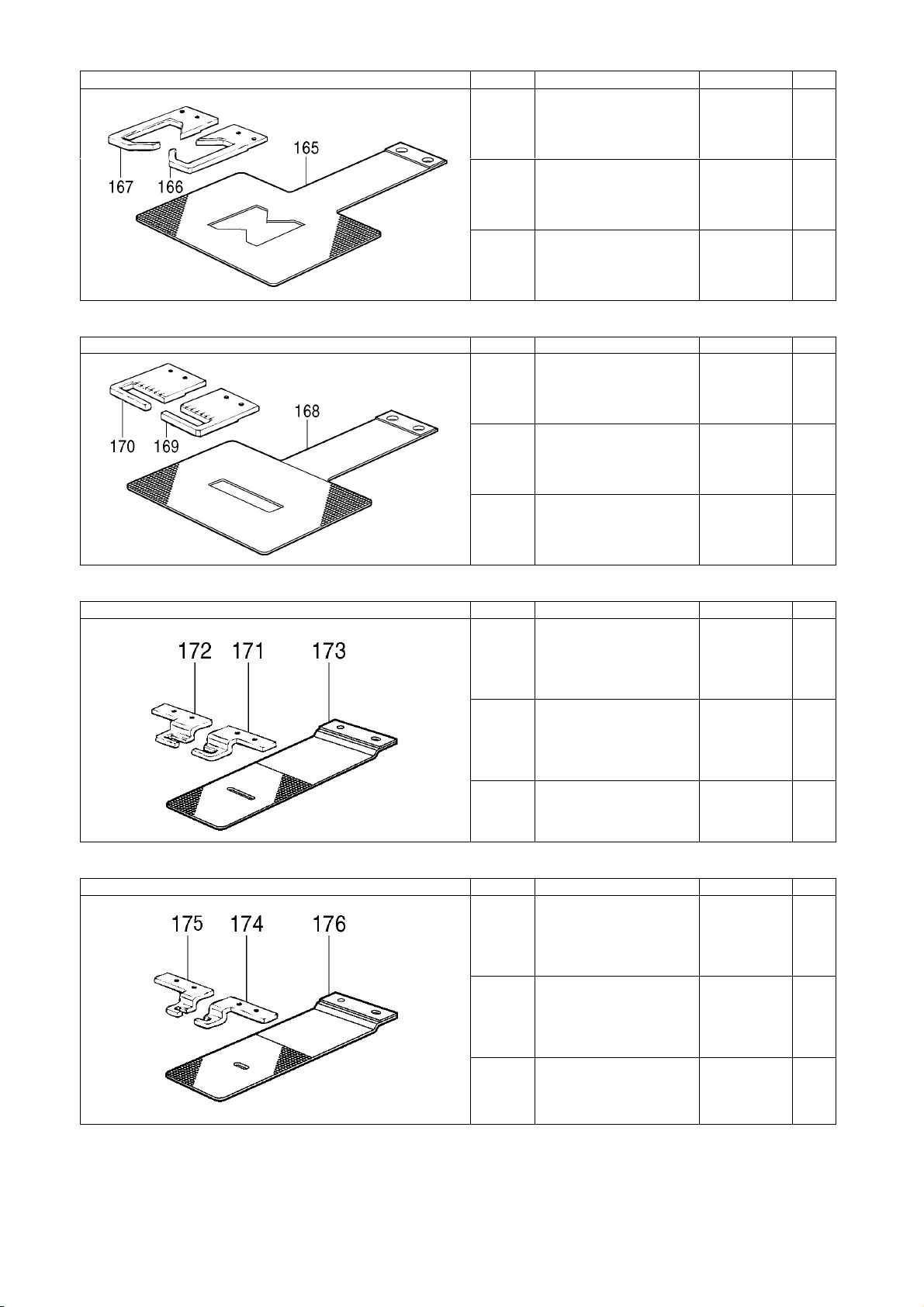

For one-touch work clamp For basting the vent 　　　　　　　　　　

　　　　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

165 Feed plate S13092-001 1

166 Work clamp, R S13090-001 1

167 Work clamp, L S13091-001 1

For attaching the thread loop 　　　　　　　　　　

For sewing the bar tack “23 x 6” 　　　　　　　　　

　　　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

168 Feed plate S13098-001 1

169 Work clamp, R S13096-001 1

170 Work clamp, L S13097-001 1

Ref. No. Part name Part code Q’ty

171 Work clamp, R311 - 004 S23818-001 1

172 Work clamp, L311 - 004 S23819-001 1

173 Feed plate, 311 - 004 S23820-001 1

For sewing the bar tack “10.4 x 4.4” 　　　　　　　　　　

Ref. No. Part name Part code Q’ty

174 Work clamp, R311 – 005 S23821-001 1

175 Work clamp, L311 – 005 S23822-001 1

176 Feed plate, 311 - 005 S23823-001 1

　　　　　　　　　　 BAS-311F-0, 311F-L

BAS-311F-0, 311F-L, 326F-0 13/36

2003.1

For one-touch work clamp For sewing the bar tack “Semi-circle” 　　　　　　　　

　　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

177 Work clamp, R311 – 006 S23824-001 1

178 Work clamp, L311 – 006 S23825-001 1

179 Feed plate, 311 - 006 S23826-001 1

For sewing the bar tack “6 x 23” 　　　　　　　　　

Ref. No. Part name Part code Q’ty

180 Work clamp, R311 – 007 S23827-001 1

181 Work clamp, L311 – 007 S23828-001 1

182 Feed plate, 311 - 007 S23829-001 1

For sewing the bar tack “X - cross” 　　　　　　　

　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

183 Work clamp, R311 – 008 S23830-001 1

184 Work clamp, L311 – 008 S23831-001 1

　　　　　　　　　 BAS-311F-0, 311F-L

185 Feed plate, 311 - 008 S23832-001 1

For sewing the bar tack “Triangle” 　　　　　　　　

　　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

186 Work clamp, R311 – 009 S23833-001 1

187 Work clamp, L311 – 009 S23834-001 1

188 Feed plate, 311 - 009 S23835-001 1

BAS-311F-0, 311F-L, 326F-0 14/36

2003.1

For attaching the button 　　　　　　

Ref. No. Part name Part code Q’ty

137 Button clamp holder S31365-001 2 189 BU work clamp, U - R S14848-001 1 190 BU work clamp, U – L S14849-001 1 191 Screw, flange SM4.37 149168-001 2 192 Button clamp assy S30015-101 1 193 Bolt, SM4.76 117363-001 2 194 Washer, plain M 4.76 025710-232 2 195 OT – feed plate, 7 plain S14069-001 1 196 Spring, 1.2 153871-001 1 197 Spring S14073-001 1 198 Screw, pan SM3.57 – 40 x 5 062670-512 2 199 Washer, plain 4 102707-002 2

　　　　　　 BAS-311F-0, 311F-L

For gauge parts 　　　　　　

Part name Part code Q’ty

H – position standard plate assy S42888-001 1

Part name Part code Q’ty

H – position standard plate assy S55161-001 1

　　　　　　 BAS-311F-0

BAS-311F-0, 311F-L

2003.1

BAS-311F-0, 311F-L, 326F-0 15/36

For gauge parts 　　　　　　

　　　　　　 BAS-326F-0

Part name Part code Q’ty

H – position standard plate assy S55954-001 1

H-position standard plate assy S56538-001 1

For cassette holder

Ref. No. Part name Part code Q’ty

156 Holder plate, cassette S13006-001 1

157 Pin, cassette holder S13007-001 2

158 Nut, 3 SM3.18 - 40 021660-306 2

BAS-311F-0, 311F-L, 326F-0 16/36

2003.1

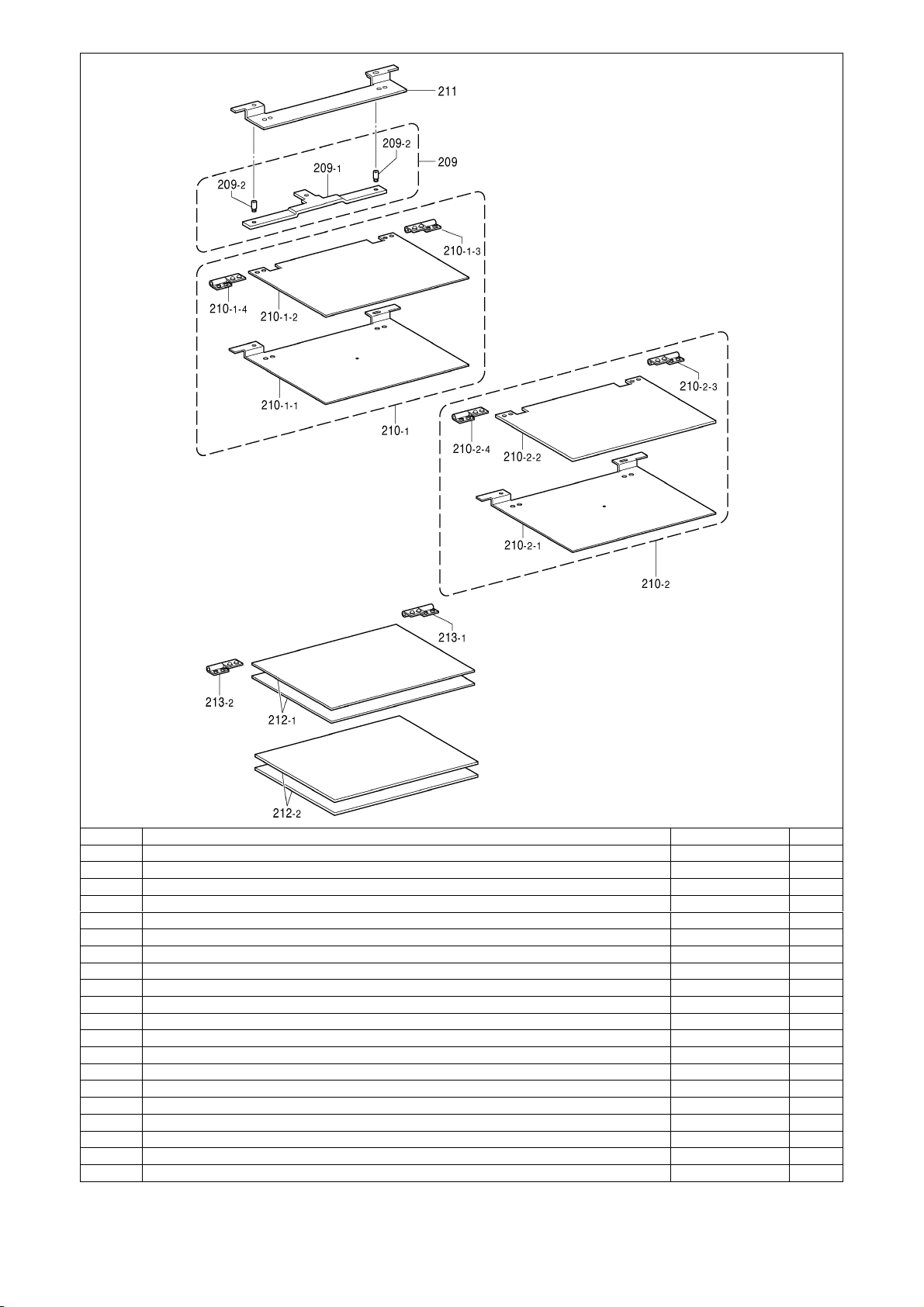

For casstte holder 　　　　　　　　

　　　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

209 Cassette holder plate assy S02963-201 1 290-1 Cassette holder plate S33533-101 1 209-2 Pin, C-holder S19629-001 2 210-1 Cassette presser assy, A S02959-101 1

210-1-1 Cassette plate, D-A S02966-101 1 210-1-2 Cassette plate, U-A :T=1 S02968-000 1 210-1-3 Hinge assy, R 152632-001 1 210-1-4 Hinge assy, L 152633-001 1

210-2 Cassette presser assy, B S02960-101 1

210-2-1 Cassette plate, D-A S02966-101 1 210-2-2 Cassette plate, U-B :T=2 S02971-000 1 210-2-3 Hinge assy, R 152632-001 1 210-2-4 Hinge assy, L 152633-001 1

211 Cassette plate, D-B S02967-101 2 212-1 Cassette lower plate, A : T=1 S02969-000 2 212-2 Cassette lower plate, B: T=2 S02970-000 2 213-1 Hinge assy, R 152632-001 2 213-2 Hinge assy, L 152633-001 2

BAS-311F-0, 311F-L, 326F-0 17/36

2003.1

For cassette holder 　　　　　　　　

　　　　　　　　 BAS-326F-0

Ref. No. Part name Part code Q’ty

156 Cassette holder plate S57849-001 1 157 Pin S13007-001 2 158 Nut, 3 SM3.18 - 40 021660-306 2 159 Cassette plate, D – A 180 S14392-201 1 160 Cassette plate, D – B 180 S14388-101 1

161

163

165-1 Hinge assy, R 152632-001 1 165-2 Hinge assy, L 152633-001 1

< Thick 1.0 mm > Cassette lower plate, D – A 180 < Thick 2.0 mm > Cassette lower plate, D – B 180 < Thick 1.0 mm > Cassette plate, U – A 180 < Thick 2.0 mm > Cassette plate, U – B 180

S14386-000 1

S14387-000 1

S14389-000 1

S14390-000 1

BAS-311F-0, 311F-L, 326F-0 18/36

2003.1

Snap fastener and hook attachment device 　　　　　　　　　　　

Part name

Part code S42803-001 S42806-001 S42808-001 S42810-001 S42812-001

Hook size (mm)

Snap size (mm)

M - 508K M - 528K M - 520K M - 525K M - 533K

311 – S.H device set

OM φ7.6,φ8.6

　　　　　　　　　　　 BAS-311F-0, 311F-L

For sewing the belt with hook 　　　　　　　　　　

　　　　　　　　　　 BAS-311F-0, 311F-L

Part name Part code Q’ty

Needle plate, H S13099-001 1

Feed dog, H S13100-001 1

2003.1

BAS-311F-0, 311F-L, 326F-0 19/36

Thread wiper mechanism 　　　　　

Ref. No. Part name Part code Q’ty

3 Plunger pin S25456-001 1 11 Plunger pin S25456-001 1 27 Thread wiper assy, side S42859-001 1 28 Wiper arm assy S42864-101 1 29 Thread wiper, A 156206-001 1 30 Screw, SM3.57 x 10 S13385-001 1 31 Set screw, socket (CP) SM4.76 014710-522 1 32 Washer S21875-001 1 33 Collar S12668-001 1 34 Nut, 2 SM3.57 021670-202 1 35 Shoulder screw, SM3.18 100659-001 1 36 Nut, 1 SM3.18 021660-102 1 37 Spring 159111-001 1

　　　　　 BAS-311F-0, 311F-L, 326F-0

Thread wiper mechanism 　　　　　

Ref. No. Part name Part code Q’ty

64-9 Presser foot, XA S42849-101 1

70 Presser bar, side S42880-001 1

　　　　　 BAS-311F-0, 311F-L, 326F-0

BAS-311F-0, 311F-L, 326F-0 20/36

2003.1

Thread breakage detector 　　　　　　　　

Ref. No. Part name Part code Q’ty

1 TR. breakage detector set, R S43833-109 1

1-1 TR. breakage detector assy, R S43834-109 1 1-1-1 Detector bracket assy S18032-001 1 1-1-2 Disc, thread guide 144504-001 2 1-1-3 Disc, thread guide 146206-009 1 1-1-4 Pre-tension spring 146058-001 1 1-1-5 Pre-tension nut 146059-001 1 1-1-6 Spring 146060-000 1 1-1-7 Tension nut 155510-001 1 1-1-8 Pulley, A 157255-100 1 1-1-9 Washer, plain S3 025030-135 1

1-1-10 Retaining ring, E2 048020-342 1 1-1-11 Sensor assy S43835-100 1 1-1-12 Sensor cover S18037-009 1 1-1-13 Screw, pan M3 x 16 062301-616 1

1-2 Cord bush 146080-000 1

　　　　　　　　 BAS-311F-0, 311F-L, 326F-0

Thread breakage detector 　　　　　　　　

Ref. No. Part name Part code Q’ty

2 TR. breakage detector set, F S43836-301 1

2-1 TR. breakage detector assy, F S43977-201 1 2-1-1 Amplifier unit S43279-200 1 2-1-2 Screw, pan M3 x 6 062300-612 2 2-1-3 Washer, plain M3 025030-232 2 2-1-4 Fiber unit, N S29468-100 1 2-1-5 Sensor setting plate S11884-001 1 2-1-6 Screw, pan M3 x 6 062300-612 1

*2-1-7 Thread guide, face plate S02617-001 1 *2-1-8 Washer, spring 2-3.5 028350-242 1 *2-1-9 Screw, bind SM3.57-40 x 6 060670-612 1

*2-2 Cord holder, NK-2N 625010-000 1 *2-3 Screw, bind SM3.57-40 x 6 060670-612 1

　　　　　　　　 BAS-311F-0, 311F-L, 326F-0

The part indicated with * is for BAS-311F-0 and 311F-L..

2003.1

BAS-311F-0, 311F-L, 326F-0 21/36

Inner clamping device 　　　　　　　　

　　　　　　　　 BAS-311F-0, 311F-L

BAS-311F-0, 311F-L, 326F-0 22/36

2003.1

Inner clamping device 　　　　　　　　

Ref. No. Part name Part code Q’ty

1 Inner clamping device set S44793-009 1

1-1 Work clamp clank assy, LA S12633-209 1 1-1-1 Work clamp crank holder, A S12634-009 1 1-1-2 Work clamp crank holder, B S12635-009 1 1-1-3 Work clamp crank holder, C S12636-001 1 1-1-4 Spacer, crank holder S12641-009 1 1-1-5 Bolt, socket SM4.37 – 40 x 12 018681-232 2 1-1-6 Reverse cylinder bracket S12638-009 1 1-1-7 Bolt, socket M3 x 12 018301-236 2 1-1-8 Bolt, socket M3 x 10 018301-036 2 1-1-9 Work clamp clank, LA S05665-001 1

1-1-10 Reverse gear 154235-001 1 1-1-11 Reverse rack 154236-001 1 1-1-12 Washer 145087-001 1 1-1-13 Set screw, SM3.18 149831-101 1 1-1-14 Work clamp plate holder, L 154237-001 1 1-1-15 Washer, plain S3.5 025350-132 1 1-1-16 Screw, SM3.57 100242-003 1 1-1-17 Reverse rod S12637-009 1 1-1-18 Reverse cylinder S12639-001 1 1-1-19 Bolt, socket M3 x 35 S12642-009 2 1-1-20 Joint S12640-009 1 1-1-21 Bolt, socket M3 x 8 018300-836 1 1-1-22 Bolt, socket M3 x 8 018300-836 1 1-1-23 Bolt, M5 x 12 017501-216 1 1-1-24 Nut, 2 M5 021500-216 1 1-1-25 Half union, Q4M5 S18415-101 2

1-2 Outer work clamp, 312 – 1 S12643-001 1

1-3 Screw, flat SM3.18 117291-002 2

1-4 Positioning plate, L 154252-001 1

1-5 Positioning plate, R 154253-001 1

1-6 Screw, pan SM3.57 – 40 x 5 062670-512 4

1-7 Washer, plain L3.5 025350-332 4

1-8 Washer, spring 2 – 3.5 028350-242 4

1-9 Work clamp plate blank, A 154256-101 1

1-10 Feed plate blank, 312 – 1 S12645-001 1

1-11 Inner clamp valve assy, 3 S44745-009 1 1-11-1 Valve setting plate, 4 – 5H S31570-209 1 1-11-2 Air manifold, 3 S44748-001 1 1-11-3 Screw, pan M3 x 25 062302-505 2 1-11-4 Washer, spring 2 – 3 028030-242 2 1-11-5 Washer, plain M3 025030-232 2 1-11-6 Solenoid valve S43683-001 1 1-11-7 Valve harness, x 1 S43696-000 1

1-11-7-1 Valve harness S44746-000 1 1-11-7-2 Valve harness, 24 V S44750-000 1

1-11-8 Half union, Q4M5 S18415-101 2 1-11-9 Regulator assy S45252-000 1

1-11-10 Joint, 3109-4-10 S45254-000 2 1-11-11 Screw, pan M4 x 40 062404-005 2

1-12 Bead band 340400-001 2

1-13 Air tube, 4L = 1300 S03803-000 2

1-14 Air tube, 4L = 300 S28741-000 1

For supply parts

<For sewing the belt & hook> 2 Needle plate, H S13099-001 1 3 Feed dog, H S13100-001 1

　　　　　　　　 BAS-311F-0, 311F-L

4 OT feed plate blank, 312 S14598-001 1 5 Outer work clamp foot, 312*2 S12644-001 1 6 Inner clamp, LL S10542-001 1

BAS-311F-0, 311F-L, 326F-0 23/36

2003.1

Inner clamping device 　　　　　　　　

　　　　　　　　 BAS-326F-0

BAS-311F-0, 311F-L, 326F-0 24/36

2003.1

Inner clamping device 　　　　　　　　

Ref. No. Part name Part code Q’ty

1 Inner clamping device set, 326F S44793-009 1

1-1 Work clamp clank assy, LA S12633-209 1 1-1-1 Work clamp crank holder, A S12634-009 1 1-1-2 Work clamp crank holder, B S12635-009 1 1-1-3 Work clamp crank holder, C S12636-001 1 1-1-4 Spacer S12641-009 1 1-1-5 Bolt, socket SM4.37 x 18 018681-232 2 1-1-6 Reverse cylinder bracket S12638-009 1 1-1-7 Bolt, socket M3 x 12 018301-236 2 1-1-8 Bolt, socket M3 x 10 018301-036 2 1-1-9 Work clamp clank, LA S05665-001 1

1-1-10 Reverse gear 154235-001 1 1-1-11 Reverse rack 154236-001 1 1-1-12 Washer 145087-001 1 1-1-13 Set screw, SM3.18 149831-101 1 1-1-14 Work clamp plate holder, L 154237-001 1 1-1-15 Washer, plain S3.5 025350-132 1 1-1-16 Screw, SM3.57-40 x 5 100242-003 1 1-1-17 Reverse rod S12637-009 1 1-1-18 Reverse cylinder S12639-001 1 1-1-19 Bolt, socket M3 x 35 S12642-009 2 1-1-20 Joint S12640-009 1 1-1-21 Bolt, socket M3 x 8 018300-836 1 1-1-22 Bolt, socket M3 x 8 018300-836 1 1-1-23 Bolt, M5 x 12 017501-216 1 1-1-24 Nut, 2 M5 021500-216 1 1-1-25 Half union, Q4M5 S18415-101 2 1-1-26 Spacer, crank holder S44424-001 1

1-2 Work clamp, outer :326F-1 S12643-001 1

1-3 Screw, flat SM3.18 117291-002 2

1-4 Positioning plate, L 154252-001 1

1-5 Positioning plate, R 154253-001 1

1-6 Screw, pan SM3.57 – 40 x 5 062670-512 4

1-7 Washer, plain L3.5 025350-332 4

1-8 Washer, spring 2 – 3.5 028350-242 4

1-9 Work clamp plate blank, A 154256-101 1

1-10 Feed plate blank, H S12645-001 1

1-11 Inner clamp valve assy, 3 S44745-009 1 1-11-1 Setting plate, 4 – 5H :valve S31570-209 1 1-11-2 Air manifold, 3 S44748-001 1 1-11-3 Screw, pan M3 x 25 062302-505 2 1-11-4 Washer, spring 2 – 3 028030-242 2 1-11-5 Washer, plain M3 025030-232 2 1-11-6 Solenoid valve S43683-001 1 1-11-7 Valve harness, x 1 S43696-000 1

1-11-7-1 Valve harness S44746-000 1 1-11-7-2 Valve harness, 24 V S44750-000 1

1-11-8 Half union, Q4M5 S18415-101 2

1-11-9-1 Regulator assy S45252-000 1 1-11-9-2 Regulator S45253-000 1

1-11-10 Joint, 3109-4-10 S45254-000 2 1-11-11 Screw, pan M4 x 40 062404-005 2

1-12 Bead band 340400-001 2

1-13 Air tube, 4L = 1300 S03803-000 2

1-14 Air tube, 4L = 300 S28741-000 1

　　　　　　　　 BAS-326F-0

“For supply parts” 13 Inner clamp, LL S10542-001 1 14 Work clamp blank, A326L S51077-001 1 15 OT-feed plate blank, H :326L S51078-101 1 16 Work clamp, outer :326F-3 S57857-001 1

BAS-311F-0, 311F-L, 326F-0 25/36

2003.1

Option parts 　　

Ref. No. Part name Part code Q’ty

11 Outer work clamp foot, 312-2 S12644-001 1 13 Inner clamp, LL S10542-001 1

　　　　　　　　 BAS-311F-0, 311F-L

Solenoid valve 　　　　　

Ref. No. Part name Part code Q’ty

6 Solenoid valve assy, OP4 S43847-201 1 6-1 Solenoid valve S43683-001 1 6-2 Valve harness, x 1 S43696-000 1

6-2-1 Valve harness S44746-000 1 6-2-2 Valve harness, 24V S44750-000 1

6-3 Air manifold, 4 S44749-001 1 6-4 Half union, Q4M5 S18415-101 2 6-5 Setting plate, 4-5 valve S31554-009 1

　　　　　 BAS-311F-0, 311F-L, 326F-0

BAS-311F-0, 311F-L, 326F-0 26/36

2003.1

Pneumatic thread wiper 　　　　　　　　　　

　　　　　　　　　　 BAS-311F-0, 311F-L, 326F-0

Ref. No. Part name Part code Q’ty

3 TR. wiper set, pneumatic type S43841-109 1 3-1 TR. wiper assy, pneumatic type S43842-109 1

3-1-1 Air cylinder S17942-100 1 3-1-2 Cylinder support plate S31777-001 1 3-1-3 Setting plate, solenoid S10214-109 1 3-1-4 Half union, Q4M5 S18415-101 2 3-1-5 Screw, pan SM3.57-40 x 6 062670-612 4 3-1-6 Stopper, cylinder S31778-000 1 3-1-7 Joint, cylinder S31779-001 1 3-1-8 Cylinder cover S31776-109 1

3-1-9 Screw, pan SM4.37-40 x 5 062680-512 2 3-1-10 EM-switch assy S43203-000 1 3-1-11 Thread wiper switch assy S43843-009 1 3-1-12 Screw, pan M3 x 6 062300-612 2 3-1-13 Plunger pin S02680-001 1

3-2 AW-solenoid valve assy, 3 S43844-001 1 3-2-1 Solenoid valve S43683-001 1 3-2-2 Air manifold, 3 S44748-001 1 3-2-3 Half union, Q4M5 S18415-101 2 3-2-4 AW-valve harness, A S44759-000 1 3-2-5 AW-valve harness, B S44760-000 1 3-2-6 Valve harness, 24V S44750-000 1

3-3 Air tube, 4L = 1900 S15031-008 2

3-4 Bead band 340400-001 7

3-5 Cord holder, 7N 149287-000 4

2003.1

BAS-311F-0, 311F-L, 326F-0 27/36

Needle cooler　　　　　　　　　　　

　　　　　　　　　　　 BAS-311F-0, 311F-L, 326F-0

Ref. No. Part name Part code Q’ty

4 Needle cooler set S43846-009 1

4-1 Needle blower S18027-101 1 4-4-2 Air tube, 4L=1900 S15031-008 1

4-3 Solenoid valve assy, OP3 S43839-008 1 4-3-1 Solenoid valve S43683-001 1 4-3-2 Valve harness, x 1 S43696-000 1

4-3-2-1 Valve harness S44746-000 1 4-3-2-2 Valve harness, 24V S44750-000 1

4-3-3 Air manifold, 3 S44748-001 1 4-3-4 Half union, Q4M5 S18415-101 2

4-4 Plug, 4 S04897-000 1

4-5 Screw, pan SM3.57-40 x 8 062670-812 2

BAS-311F-0, 311F-L, 326F-0 28/36

2003.1

Soft work clamp 　　　　　　

　　　　　　 BAS-311F-0, 311F-L

Ref. No. Part name Part code Q’ty

5 Soft work clamp set S43979-001 1 5-1 Spring S43980-001 1 5-2 Union, Y4 S12104-000 2 5-3 Air tube, S-C (L=200) S08140-000 2 5-4 Plug, 4 S04897-000 2

Soft work clamp 　　　　　　

　　　　　　 BAS-326F-0

Ref. No. Part name Part code Q’ty

5 Soft work clamp set S44450-001 1 5-1 Spring S44412-001 2 5-2 Union, Y4 S12104-000 2 5-3 Air tube, S-C (L=200) S08140-000 2 5-4 Plug, 4 S04897-000 2

BAS-311F-0, 311F-L, 326F-0 29/36

2003.1

2-step thread tension device 　　　　　　　　　

　　　　　　　　　 BAS-311F-0, 311F-L, 326F-0

Ref. No. Part name Part code Q’ty

2 2-step thread tension device set, 1 S43837-101 1 2-1 2-step thread tension assy S43838-101 1

2-1-1 Air cylinder, 10 x 10 S34706-000 1 2-1-2 Bolt, socket M3 x 20 018302-032 2 2-1-3 Tube elbow, M-5HL-4 S12150-000 2 2-1-4 Countersink claw S34533-001 1 2-1-5 Sub tension bracket assy S34534-001 1 2-1-6 Tension nut 155510-001 1 2-1-7 Spring 146060-000 1 2-1-8 Pre-tension nut 146059-001 1

2-1-9 Pre-tension spring 146058-001 1 2-1-10 Disc presser, thread guide 146206-009 1 2-1-11 Disc, thread guide 144504-001 2 2-1-12 Cylinder setting bracket S34536-001 1

2-2 Solenoid valve assy, OP3 S43839-005 1 2-2-1 Solenoid valve S43683-001 1 2-2-2 Valve harness, x 1 S43696-000 1

2-2-2-1 Valve harness S44746-000 1 2-2-2-2 Valve harness, 24V S44750-000 1

2-2-3 Air manifold, 3 S44748-001 1 2-2-4 Half union, Q4M5 S18415-101 2

2-3 Bolt, SM7.94 x 18 017821-813 2

2-4 Air tube, 4L=1900 S15031-008 2

2-5 Bead band 340400-001 5

2-6 Spring, tension 104525-001 1

2-7 Cord holder, 7N 149287-000 3

BAS-311F-0, 311F-L, 326F-0 30/36

2003.1

Auxiliary device (Option parts) 　　　　　　　

　　　　　　　 BAS-311F-0, 311F-L, 326F-0

9 Thread release cylinder set S53155-001 1

9-1 Thread release cylinder assy S53080-001 1 9-1-1 Cylinder bracket S53081-001 1 9-1-2 Cylinder, 6 x 5 S16996-000 1 9-1-3 Elbow, M5 S18382-000 1 9-1-4 Needle thread presser S16997-100 1 9-1-5 Air tube, 4 x 2.5 L=1900 S15031-008 1

9-2 Screw, bind SM4.37-40 x 5 060680-512 2

9-3 TR-presser, S S53082-001 1

9-4 Plug, 4 S04897-000 1

BAS-311F-0, 311F-L, 326F-0 31/36

2003.1

Auxiliary device (Option parts) 　　　　　　　

Ref. No. Part name Part code Q’ty

<2-step work clamp device>

7 2-step work clamp device, 311 S51436-001 1

7-1 2-step work clamp assy, 311 S51471-001 1 7-1-1 Spacer, 311 S51472-001 1 7-1-2 Cylinder assy, 25-10 S51473-000 1

7-1-2-1 Cylinder, 25-10 S51474-000 1 7-1-2-2 Elbow union, 4M5 S11426-000 2 7-1-2-3 Knuckle joint S41523-000 1 7-1-2-4 Pin S41524-000 1

7-1-3 Bolt, socket M6 x 20 018062-036 2 7-1-4 Washer, spring 2-6 028060-246 2 7-1-5 Link S51476-001 1 7-1-6 Shoulder screw, SM6.35 150451-001 1 7-1-7 Washer, plain 6.5 153138-001 1 7-1-8 Lever S51477-001 1 7-1-9 Shoulder screw, SM5.95 S19817-001 1

7-1-10 Washer, plain 6.5 153138-001 1 7-1-11 Roller shaft, w/screw SM6.35 S51478-001 1 7-1-12 Packing, 311 S51788-001 1

7-2 Screw, flat SM4.37-40x8 100032-004 3

7-3 Face plate assy, 2-SF :311 S51480-009 1 7-3-1 Packing, 2-SF S51481-009 1 7-3-2 Packing, 2-SF S51482-000 1 7-3-3 Rubber cap, 13.5 117934-001 2

7-4 Screw, pan SM4.76-32x14 062711-412 3

7-5 Air tube, 4x2.5L=1900 S15031-008 2

7-6 Cord holder, 6N 525664-000 1

7-7 Screw, pan (S/P washer) M4 x 8 0A5400806 1

7-8 Cord holder, 8N 525567-000 3

<U-thread nipper device>

8 U-thread nipper device S53154-001 1 8-1 Solenoid base plate S53071-001 1 8-2 Screw, flat SM4.37-40x8 100032-004 2

8-3-1 Thread nipper assy, 300E S53070-001 1

8-3-1-1 Fulcrum plate, TR-nipper S53072-001 1

8-3-1-2 Crank, TR-nipper S53073-001 1 8-3-1-3 Shoulder screw, M4 S46842-001 1 8-3-1-4 Connecting rod, SOL S53074-001 1 8-3-1-5 Shoulder screw, SM4.37 113730-001 1 8-3-1-6 Bracket, TR-nipper S53075-001 1 8-3-1-7 Washer S19543-001 1 8-3-1-8 Shoulder screw, M4 S46842-001 1

8-3-1-9 Connecting plate, TR-nipper S53076-001 1 8-3-1-10 Shoulder screw, SM4.37 113730-001 2 8-3-1-11 U-thread nipper S53077-001 1 8-3-1-12 Screw, bind SM3.57-40 x 5 060670-512 2 8-3-1-13 Bolt, socket SM4.37 018680-522 1 8-3-1-14 Bracket, TR-presser S53078-001 1 8-3-1-15 Screw, bind SM3.57 40 x 5 060670-512 2 8-3-1-16 TR-presser S53079-001 1 8-3-1-17 Screw, bind SM3.57-40 x 5 060670-512 2

8-4 Screw, bind SM3.57-40 x 5 060680-512 2

　　　　　　　 BAS-311F-0, 311F-L, 326F-0

BAS-311F-0, 311F-L, 326F-0 32/36

2003.1

GAUGE PARTS LIST

Presser foot 　　　

Ref. No. A ★

Ref. No. E Ref. No. F Ref. No. G Ref. No. J

Ref. No. XA

Ref. No. B Ref. No. C Ref. No. D

　　　 BAS-311F-0, 311F-L, 326F-0

Needle hole plate 　　　　

Ref. No. A Ref. No. D

Ref. No. FD Ref. No. H Ref. No. L

Ref. No. 3 ｻﾞｸﾞﾘ

Ref. No. A - F

Ref. No. E

　　　　 BAS-311F-0, 311F-L, 326F-0

★

Ref. No. ED

Ref. No. M ★

Ref. No. F

Ref. No. FM

★

2003.1

BAS-311F-0, 311F-L, 326F-0 33/36

GAUGE PARTS LIST

Ref. No. Part name Part code Q’ty

A Presser foot, A S42843-001 1

“OPTION PARTS”

B Presser foot, B S42844-001 1 C Presser foot, C S42845-001 1 D Presser foot, D S42846-001 1 E Presser foot, E S42847-001 1 F Presser foot, F 157237-001 1

G Presser foot, G 158592-001 1

J Presser foot, J S42848-001 1

XA Presser foot, XA S42849-101 1

<311F for Heavy-weight materials>

D ED FD

A-F

Needle hole plate, E  φ2.6

<311F for Medium-weight materials>

Needle hole plate, F  φ2.2

<311F for Extra heavy-weight materials>

Needle hole plate, M

“OPTION PARTS”

Needle hole plate, A  φ1.6 Needle hole plate, D  φ2.6 Needle hole plate, ED Needle hole plate, FD Needle hole plate, H

Needle hole plate, L  φ3.3 Needle hole plate, FM  φ2.2

Needle hole plate, 3  φ3.0 Needle hole plate, A-F

 φ

4.0

3.4

2.2

2.6

1.6

　　　　　　　　　　　　 BAS-311F-0, 311F-L, 326F-0

S10212-101 1

S10213-001 1

S34348-001 1

S10211-001 1 S29997-001 1 S30925-001 1 S30926-001 1 S30450-001 1 S25127-001 1 S49980-001 1 S40217-001 1 S51449-001 1

*The parts marked with ★ are standard parts

BAS-311F-0, 311F-L, 326F-0 34/36

2003.1

BAS-311F-0, 311F-L

BAS-311F-0 BAS-311F-0, -L

Subclass 1S, 4S 2A 3A 1A, 4A

Part name / Specification

Needle hole plate

Heavy materials

(Solenoid type)

(φ2.6)

S10212-101 E

Medium materials

(Pneumatic type)

(φ2.2)

S10213-001 F

Extra heavy materials

(Pneumatic type)

(φ4.0)

S34348-001 M

Heavy materials

(Pneumatic type)

(φ2.6)

S10212-101 E

Bobbin case assy S59221-001 LC S59222-001 LD S59221-001 LC

Tension spring S48664-001 AN S16075-101 B S48664-001 AN

Screw S16492-101

Spring, antispin

Bobbin

S15665-001 LA S15666-001 LB S15665-001 LA

S15667-001

Inner rotary hook assy

SA1890-001 LG SA2173-001 LF SA1890-001 LG

Large shuttle hook

152686-101 B 152682-101 A 152686-101 B

115188-001 107606-001 115188-001

Tension spring

Main

MainMain

107606-001 104525-001 S06548-001 107606-001

Spring 144588-001 B 154419-001 144588-001 B

Needle bar thread guide

S02438-001 A S02439-001 B S02438-001 A

BAS-311F-0 BAS-311F-L

SA1645-021 S A1645-019

DPx17#21

145646-021

BAS-311F-0 BAS-311F-L

Needle assy

Needle

Presser foot

SA1645-021 SA1752-016 SA1645-025

DPx17#21

145646-021

DPx5#16

107415-016

DPx17#25

145646-025

S42843-001A S42844-001 B S42843-001 A

Feed plate

DPx17#19

145646-019

S55163-001 B S55162-001 A S55163-001 B

BAS-311F-0, 311F-L, 326F-0 35/36

2003.1

S55163-001BS55941-001

　　　　　　　　　　　　　　 BAS-326F-0

Subclass

Part name / Specification

Needle hole plate

1A 2A 4A

厚物

Heavy materials

(φ2.6)

S10212-101 E

中厚物

Medium materials

(φ2.2)

S10213-001 F

厚物

Heavy materials

(φ2.6)

S10212-101 E

Bobbin case assy S59221-001 LC

Tension spring S48664-001 AN

Screw

Spring, antispin

Bobbin

S16492-101

S15667-001

S15665-001 LA

Inner rotary hook assy SA1890-001 LG SA2173-001 LF SA1890-001 LG

Large shuttle hook

152686-101 B 152682-101 A 152686-101 B

115188-001

Tension spring

Main

MainMain

107606-001 104525-001 107606-001

Spring 144588-001 B 154419-001 144588-001 B

Needle bar thread guide

S02438-001 A

Needle assy

Needle

Presser foot

SA1645-021 SA1752-016 SA1645-021

DPx17#21

145646-021

DPx5#16

107415-016

DPx17#21

145646-021

S42843-001A

Feed plate

S55953-001 B S55952-001 A S55953-001 B

BAS-311F-0, 311F-L, 326F-0 36/36

2003.1

BROTHER BAS-311F-0, BAS-311F-L, BAS-326F-0 Parts

Specifications and Main Features

Frequently Asked Questions

User Manual

Specifications

Thread trimmer mechanism

For cassette holder

GAUGE PARTS LIST
