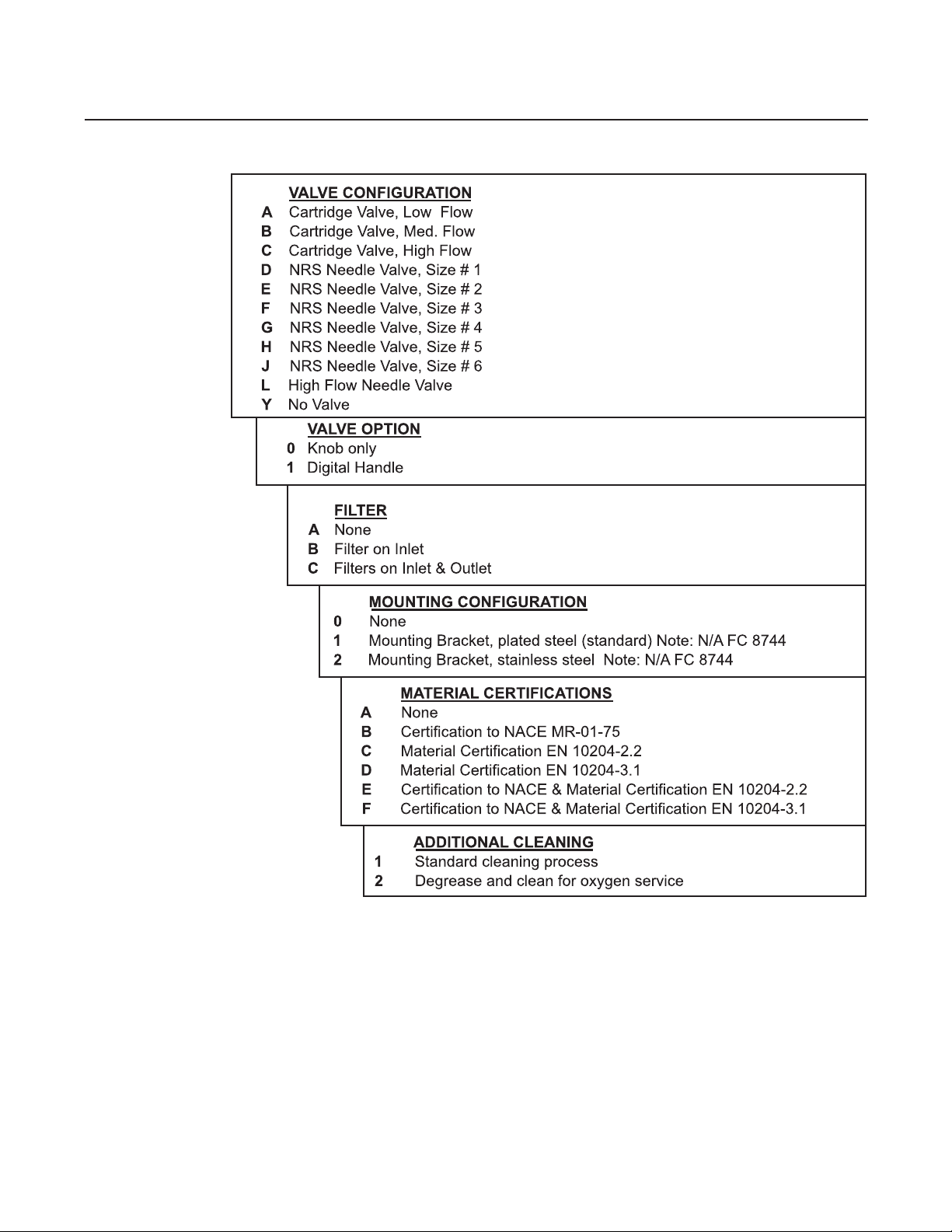

1-4 Model Code ................................................................................................................................... 1-11

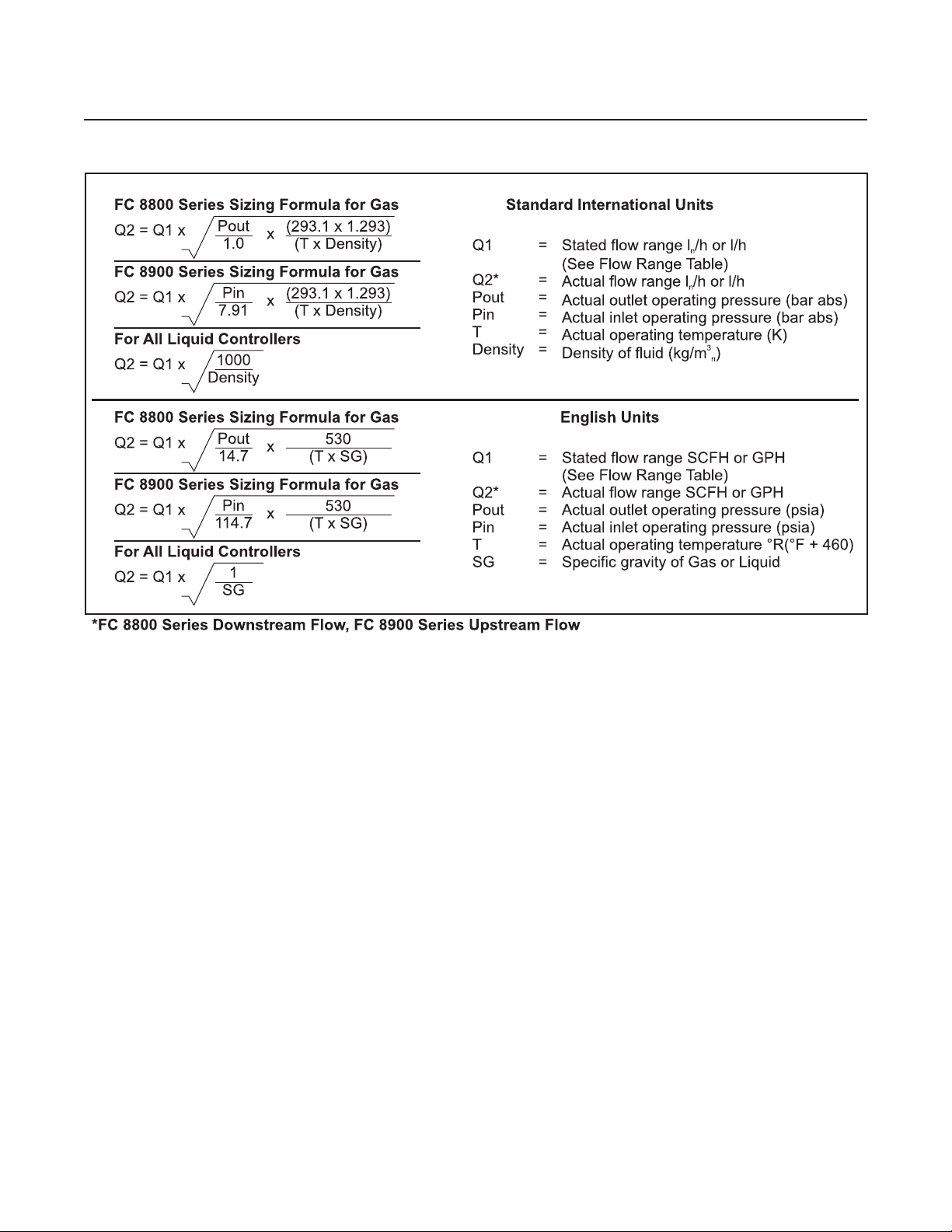

1-5 Sizing Chart...................................................................................................................................1-13
i
Contents
Flow Controllers for Gas and Liquid Service
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
THIS PAGE WAS
INTENTIONALLY
LEFT BLANK
ii
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
1-1 Description
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
Brooks® flow controllers are designed to maintain a constant differential
pressure across an integral, manual flow regulating valve. The incoming
fluid pressure on one side of the diaphragm, and outlet pressure plus
spring action on the other side, position an internal diaphragm-actuated
control valve. V ariations in the supply or discharge pressure disturb the
balance of forces on the diaphragm, causing the internal control valve to
open or close, thus maintaining a fixed differential pressure across the
integral, manual flow regulating valve resulting in constant flow .
Refer to Figure 1-1.
Model FC 8744 controllers are used for accurately adjusting and
maintaining small gas and liquid flows with variable downstream pressures.
Series FC 8800 controllers are used for accurately adjusting and
maintaining liquid and gas flows with variable upstream pressures.
1-2 Design Features
1-3 Specifications
Series FC 8900 controllers are used for accurately adjusting and
maintaining liquid and gas flows with variable downstream pressures.
• Wide range of models for high and low flow rates.
• Integral Controller with flowmeter assemblies in a compact size.
• Brass or 316 Stainless Steel construction compatible with a wide range
of fluids.
• Front or Rear Panel Mounting options.
• 15 Turn NRSTM(extremely low flow) valve option for more precise
control.
Flow Ranges
Water - up to 480 GPH / 1820 l/h
Air - up to 2130 SCFH / 56000 ln/h
Refer to Table 1-1.
Pressure and T emperature Ratings
Up to 1000 psig / 69 bar.
Refer to Table 1-2a or 1-2b.
Minimum Operating Temperature: -40°F/C.
Maximum Operating T emperature: Refer to T ables 2a or 2b.
1-1
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
Pressure Equipment Directive (97/23/EC)
Equipment falls under Sound Engineering Practice (SEP) according to the
directive.
Pressure Drop
Refer to Table 1-2a.
Materials of Construction Controller Body:
316 Stainless Steel, Brass or Aluminum (FC 8744 only).
Refer to Table 1-3.
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
Controller Diaphragm:
Buna-N, T eflon® or Viton
®
fluoroelastomers
Refer to Table 1-3.
Needle Valve:
1) 316 St ainless Steel Cartridge valve, Refer to Figure 1-3,
Refer to DS-V A-CART-eng
2) 316 Stainless Steel NRS Valve, Refer to Figure 1-2,
Refer to DS-V A-8503-eng
3) 316 Stainless S teel st andard needle valve type
Refer to Table 1-3.
O-rings:
Viton fluoroelastomers
Buna-N
Kalrez® (SS body only)
EPR (SS body only)
Kalrez®/Teflon®(SS body only)
Refer to Table 1-3.
Meter Dimensions
Refer to Figures 1-2 thru 1-1 1.
1-2
Sizing
Refer to Table 1-5.
Material Certification: (Stainless Steel body only)
Certification to NACE MR-01-75
Certification to DIN 50049-2.2
Certification to DIN 50049-3.1

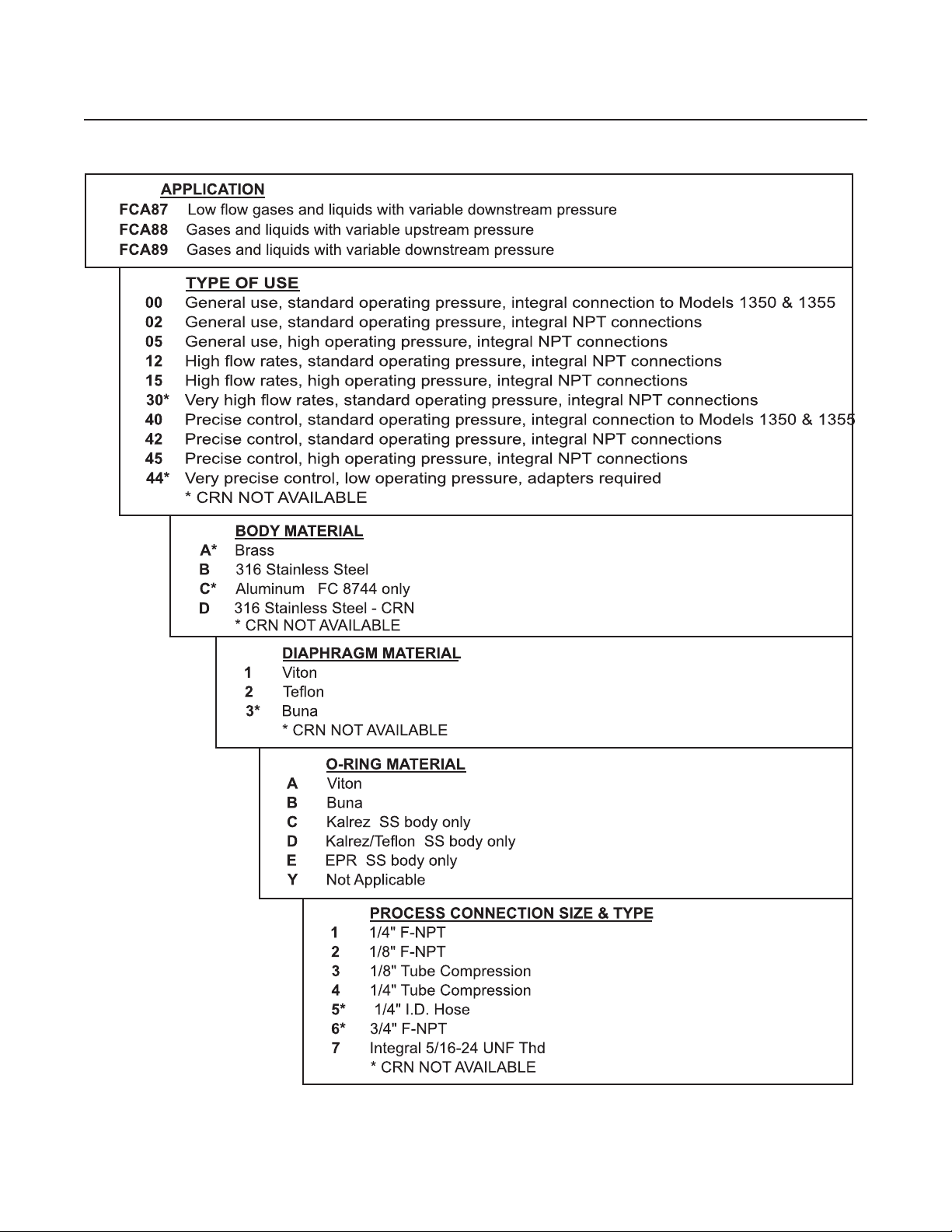

Ordering Information and Model Codes
Refer to Table 1-4.
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
Table 1-1 Flow Ranges
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
T able 1-2a Pressure/T emperature Ratings and Pressure Drop
Table 1-2b Pressure/Temperature Ratings CRN
1-3
Section 1 Introduction
A
V
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
Flow Controllers for Gas and Liquid Service
Table 1-3 Materials of Construction / Connection / Valve Option
Model
Item 00 02 05 12 15 40 42 45 FC 883 0 FC 8744
Body/Diaphragm/Valve Seat & O-ring
Brass/Viton X X - X - X X - - Brass/Buna/Buna-N X X - X - X X - - SS/Teflon XXXXXXXXX SS/Viton X X - X - X X - X -
lum/Buna-N ---------X
Connection Size and Type
1/4" F-NPT XXXXXXXX - 1/8" F-NPT XXX- - XXX-X
1/8" Tube Compressio n X X X - - X X X - X
1/4" Tube Compression XXXXXXXX - 1/4" I.D. Hose X X - X - X X - - X
3/4" F-NPT --------XIntegral 5/16-24 UNF Thd ---------X
Integral connection for 1350/55 - one end X - - - - X - - - -
Filter
Filter - inlet XXXXXXXX - X
Filter - inlet & outlet ---------X
alve Type
Cartridge valve XXX------NRS Valve -----XXX-X
Digital handle NRS Valve -----XXX-X
High Flow Needle Valve ---XX---XNo Valve XXX- -XXX -X
December, 2015
Figure 1-1 Cutaway View, Principle of Operation
Figure 1-3 Cutaway View, Cartridge ValveFigure 1-2 Cutaway View, NRS Valve
1-4
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
Figure 1-4 Dimensional Drawing Model FC 8744
Figure 1-5 Dimensional Drawing Models FC 8802 and 8812
1-5
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
Figure 1-6 Dimensional Drawing Models FC 8902 and 8912
Figure 1-7 Dimensional Drawing Model FC 8842
1-6
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
Figure 1-8 Dimensional Drawing Model FC 8942
Figure 1-9 Dimensional Drawing Model FC 8845
1-7
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
Figure 1-10 Dimensional Drawing Model FC 8945
Figure 1-11 Dimensional Drawing Models FC 8805 and 8815
1-8
Installation and Operation Manual
X-V A-FC-eng
Part Number: 541B045AAG
December, 2015
Section 1 Introduction
Flow Controllers for Gas and Liquid Service
Figure 1-12 Dimensional Drawing Models FC 8905 and 8915
Figure 1-13 Dimensional Drawing Model FC 8830
1-9
