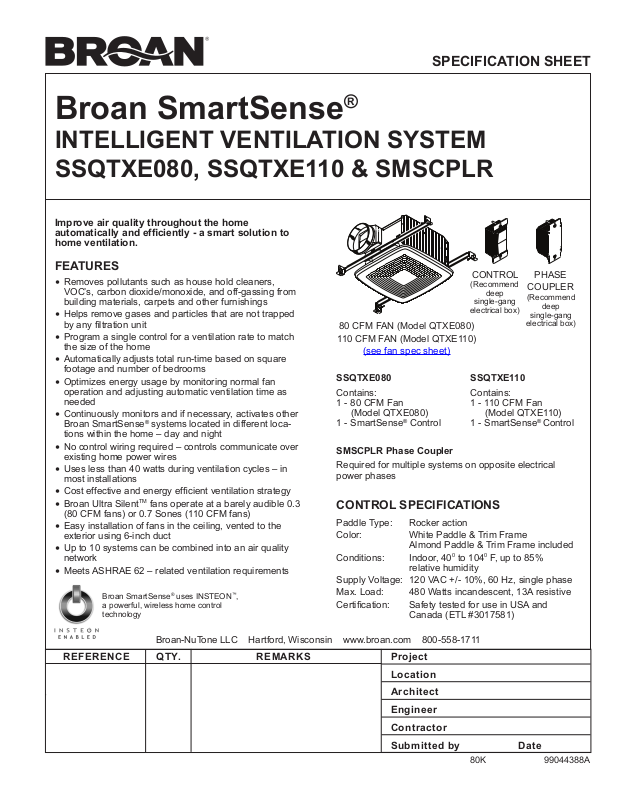

SPECIFICATION SHEET
®
Broan SmartSense
INTELLIGENT VENTILATION SYSTEM
SSQTXE080, SSQTXE110 & SMSCPLR
Improve air quality throughout the home
automatically and efciently - a smart solution to
home ventilation.
FEATURES
Removes pollutants such as house hold cleaners,
•
VOC’s, carbon dioxide/monoxide, and off-gassing from
building materials, carpets and other furnishings
Helps remove gases and particles that are not trapped
•
by any ltration unit
Program a single control for a ventilation rate to match
•
the size of the home
Automatically adjusts total run-time based on square
•
footage and number of bedrooms
Optimizes energy usage by monitoring normal fan
•
operation and adjusting automatic ventilation time as
needed
Continuously monitors and if necessary, activates other
•
Broan SmartSense® systems located in different locations within the home – day and night
No control wiring required – controls communicate over
•
existing home power wires
Uses less than 40 watts during ventilation cycles – in
•
most installations
Cost effective and energy efcient ventilation strategy
•
Broan Ultra SilentTM fans operate at a barely audible 0.3
•
(80 CFM fans) or 0.7 Sones (110 CFM fans)
Easy installation of fans in the ceiling, vented to the
•
exterior using 6-inch duct
Up to 10 systems can be combined into an air quality
•
network
Meets ASHRAE 62 – related ventilation requirements
•
Broan SmartSense® uses INSTEON™,
a powerful, wireless home control
technology
CONTROL PHASE
(Recommend
deep
single-gang
electrical box)
80 CFM FAN (Model QTXE080)
110 CFM FAN (Model QTXE110)
(see fan spec sheet)
SSQTXE080
Contains:
1 - 80 CFM Fan
(Model QTXE080)
1 - SmartSense® Control
SMSCPLR Phase Coupler
Required for multiple systems on opposite electrical
power phases
SSQTXE110
Contains:
1 - 110 CFM Fan
(Model QTXE110)
1 - SmartSense® Control
COUPLER
(Recommend
deep
single-gang
electrical box)
CONTROL SPECIFICATIONS
Paddle Type: Rocker action
Color: White Paddle & Trim Frame
Almond Paddle & Trim Frame included
Conditions: Indoor, 400 to 1040 F, up to 85%
relative humidity
Supply Voltage: 120 VAC +/- 10%, 60 Hz, single phase
Max. Load: 480 Watts incandescent, 13A resistive
Certication: Safety tested for use in USA and
Canada (ETL #3017581)
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
80K 99044388A
Broan SmartSense
®
INTELLIGENT VENTILATION SYSTEM
SSQTXE080, SSQTXE110 & SMSCPLR
Recommended rooms for fans include:
- One for each Bathroom, Watercloset, or Shower Stall
- Laundry Room
- Rec Room
- Workshop
- Exercise Room
- Home Ofce
- Playroom
RECOMMENDED CONTINUOUS VENTILATION RATE
Home
Square Footage
< 1500
1501 - 3000
3001 - 4500
4501 - 6000
6001 - 7500
> 7500
IN CFM (cubic feet per minute)
Number of Bedrooms
0 - 1 2 - 3 4 - 5 6 - 7 > 7
30 45 60 75 90
45 60 75 90 105
60 75 90 105 120
75 90 105 120 135
90 105 120 135 150
105 120 135 150 165
INSTEON
TM
POWERLINE PHYSICAL LAYER PROPERTIES
Frequency: 131.65 KHz
Modulation: BPSK
Min. Transmit Level: 3.16 Vpp into 5 Ohms
Min. Receive Level: 10 mV
Phase Bridging: SMSCPLR Hard Wired or
INSTEONTM RF Phase Coupler
