HEPA Filtration

and Fresh Air

Ventilation*

GSVH1K

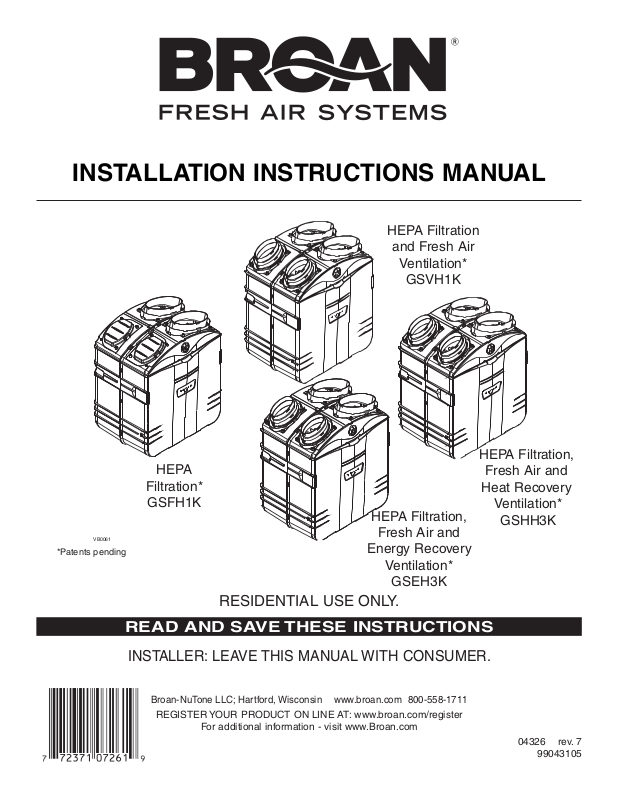

INSTALLATION INSTRUCTIONS MANUAL

RESIDENTIAL USE ONLY.

INSTALLER: LEAVE THIS MANUAL WITH CONSUMER.

*Patents pending

HEPA Filtration,

Fresh Air and

Heat Recovery

Ventilation*

GSHH3K

HEPA Filtration,

Fresh Air and

Energy Recovery

Ventilation*

GSEH3K

HEPA

Filtration*

GSFH1K

READ AND SAVE THESE INSTRUCTIONS

Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800-558-1711

For additional information - visit www.Broan.com

04326 rev. 7

99043105

Page 2

ABOUT THIS MANUAL

Congratulation! Your purchase of this whole-house HEPA filtration, with optional ventilation will allow you and your family to enjoy clean and healthy air throughout your home for years to come! Please read this manual thoroughly. Several models are described in this publication. Some details of your unit may be slightly different than the ones shown, as the illustration are typical ones. Please take note that this manual uses the following symbols to emphasize particular information:

NOTE: Indicates supplementary information needed to fully complete an instruction. We welcome any suggestions you may have concerning this manual and/or the product, or ways to better serve you. Please forward all

correspondence at the address below:

Broan-NuTone LLC

Indoor Air Quality Marketing

926 W. State St.,

Hartford, WI 53027

1-800-558-1711

WARNING

Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death.

CAUTION

Denotes an instruction which, if not followed, may severely damage the unit and/or its components.

ABOUT THESE UNITS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:

1. This unit is intented for residential installation only.

2. Installation must be done in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

3. This unit is not designed to provide combustion and/or dilution air for fuel-burning appliances.

4. Do not install in a cooking area or connect directly to an appliance.

5. Before replacing filters, servicing or cleaning unit, disconnect the power cord from electrical outlet.

6. When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

7. Do not use this unit with any solid-state speed control device other than wall controls ACCGSC1 or 40425, provided with the unit.

8. This unit must be grounded. The power supply cord has a 3-prong grounding plug for your personal safety. It must be plugged into a mating 3-prong grounding receptacle, grounded in accordance with the national electrical code and local codes and ordinances. Do not remove the ground prong. Do not use an extension cord.

9. This unit must be installed in a weatherized location out of direct sunlight and protected from the elements.

10. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in this document.

11. When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

12. When the federal, provincial or state legislation comprises more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.

CAUTION

1. For general filtration and ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2. Intended for residential installation only in accordance with the requirements of NFPA 90B.

3. For GSVH1K, GSHH3K and GSEH3K units only: Be sure to duct air outside. - Do not intake / exhaust air into spaces with in walls or ceiling or into attics, crawl spaces, or garage.

4. Do not run any air ducts directly above or closer than 2 ft (0.61 m) to any furnace or its supply plenum, boiler, or other heat producing appliance. If a duct has to be connected to the furnace return plenum, it must be connected not closer than 2 ft (0.61 m) from this plenum connection to the furnace.

5. The ductwork is intended to be installed in compliance with all local and national codes that are applicable.

6. To avoid prematurate clogged filters, turn OFF the unit during construction or renovation.

7. Please read the unit specification label on the product for further information and requirements.

8. During snow storm, turn GSVH1K unit OFF to avoid water build-up in the unit. For GSEH3K and GSHH3K, operate these units in recirculation mode.

9. At least once in a year, the unit mechanical and electronic parts should be inspected by qualified service personnel.

NOTE: The energy recovery ventilator GSEH3K is designed to assist in the management of humidity introduced into the home.

In extreme humidity conditions, the use of additional dehumidification may be desirable. Quickly remove all excess moisture and keep areas clean.

- 2 -

Page 3

1. BEFORE STARTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.1 Inspect the Content of the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6

2.1 Dimensions and Air Distribution Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.2 Ventilation Performances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

2.3 Mounting and Servicing Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3. RECOVERY NEEDS ACCORDING TO GEOGRAPHICAL LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . .7

4. PLANNING THE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8

4.1 Planning of the ductwork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5. TYPICAL INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-13

5.1 GSFH1K Unit Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

5.2 GSVH1K, GSHH3K and GSEH3K Units Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

5.3 Stand Alone Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12

5.4 Central Draw Point Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5.5 Return-to-Return Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

6. INSTALL THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-25

6.1 Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.2 Mount the Ports on the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.3 Installation Using Isolator Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.4 For Suspended Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16

6.5 Installing 8“ Ducts and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-18

6.6 Installing Insulated Flexible Ducts to Tandem® Transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.7 Installing AirDuo™ Exterior Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21

6.8 Installing Two exterior Hoods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

6.9 Connection to the 5’’ to 6’’ Oval Ports of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.10 Connecting the Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6.11 Low Temperature Applications Below Freezing (32°F or 0°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

7. CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-31

7.1 Main Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

7.2 Wall Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

7.3 Installation of the ACCGSC1 Wall Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7.4 Installation of the 40425 Wall Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7.5 Wall Controllers Connection to the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.6 Operating ACCGSC1 Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.7 Operating 40425 Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31

8. BALANCING PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

8.1 What You Need to Balance the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

8.2 Preliminary stages for Balancing the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

8.3 Installation of Flow Collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

8.4 Balancing Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

9. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-35

9.1 Semi-Annual Maintenance (Essential) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-34

9.2 Annual Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

9.3 Optional Alpine/pine Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

10. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

11. WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

TABLE OF CONTENTS

- 3 -

Page 4

• Inspect the exterior of the unit for shipping damage. Ensure there is no damage to the door, door latches, main switch, etc.

1) Cardboard strip

• Inspect the interior of the unit for damage. Ensure the blower assembly, heat recovery core (model GSHH3K), energy recovery core (model GSEH3K), insulation, dampers (models GSVH1K, GSHH3K and GSEH3K), prefilter, HEPA filter, etc. are all intact.

• If the unit was damaged during shipping, contact your local distributor, or Broan-NuTone at 1-800-558-1711.

1. BEFORE STARTING

1.1 INSPECT THE CONTENTS OF THE BOX

NOTE: Due to our ongoing commitment to product quality and innovation, all specifications are subjected to change without notice.

VD0126

CAUTION

Remove the cardboard strip inside the unit (if applicable).

WARNING

To avoid risk of suffocation, discard the plastic bag wrapping the unit.

2. TECHNICAL DATA

GSFH1K GSVH1K GSHH3K GSEH3K

HEPA Filtration HEPA Filtration, HEPA Filtration,

Models HEPA Filtration & Fresh Air Fresh Air & Fresh Air &

Ventilation Heat Recovery Energy Recovery

Ventilation Ventilation Weight 34 lb (15.4 kg) 36 lb (16.3 kg) 40 lb (18.2 kg) 40 lb (18.2 kg) Oval shaped duct collars for non-insulated ducts fits two 8” round ducts to inside Oval shaped duct collars for insulated ducts N/A fits two 5” or 6” round ducts to outside Installation: Suspended Chains, springs and hooks (provided with the unit) or rest on a shelf or floor: or 4 pads (provided with the unit) Electrical Supply 120 Volts AC, 60 Hz Power Consum. (Boost) 170 Watts 224 Watts 229 Watts 224 Watts Power Consum. (Normal) 132 Watts 152 Watts 170 Watts 170 Watts

- 4 -

Page 5

HEPA FILTRATION UNIT AND FRESH AIR VENTILATION,

MODEL GSVH1K

HEPA FILTRATION, FRESH AIR AND HEAT RECOVERY

VENTILATION, MODEL GSHH3K

HEPA FILTRATION, FRESH AIR AND ENERGY RECOVERY

VENTILATION, MODEL GSEH3K

FRONT VIEW TOP VIEW

2. TECHNICAL DATA (CONT’D)

- 5 -

2.1 DIMENSIONS AND AIR DISTRIBUTION PORTS

HEPA FILTRATION UNIT, MODEL GSFH1K

FRONT VIEW TOP VIEW

17.8''

(452 mm

29''

(737 mm)

22.9'' (581 mm)

VK0047

29.4''

(748 mm)

VK0048A

17.8''

(452 mm)

22.9'' (581 mm)

VF0029

STALE AIR

FROM BUILDING

STALE AIR

TO OUTSIDE

FRESH

AIR FROM OUTSIDE

FRESH AND FILTERED

AIR TO BUILDING

VF0033

STALE AIR

FROM BUILDING

FILTERED AIR

TO BUILDING

FRONT

2.2 VENTILATION PERFORMANCES

2.2.1 GSVH1K VENTILATION PERFORMANCES

NOTE: all tests performed at high speed.

EXT. STATIC NET VENTILATION GROSS AIR FLOW

POWER

PRESSURE AIRFLOW SUPPLY EXHAUST FILTERED Pa

100

in.w.g.

0.2

0.4

L/s

52 49

cfm 110 104

L/s

56 52

cfm 118 111

L/s

54 49

cfm 115 104

L/s 132 121

cfm 279 257

Watts

231 224

Page 6

- 6 -

2. TECHNICAL DATA (CONT’D)

2.3 MOUNTING AND SERVICING CONSIDERATIONS

• The two following pictures are showing the minimum clearance needed to open the door completely.

22.5” 15.75”

(572 mm) (400 mm)

VD0117

VD0116

22”

(559 mm)

NOTES: 1. The unit door is removable. To do so, remove the stopper (A) located on the right side

of the door hinge, then, slide the door out of its hinge. For servicing, a minimum of 15’’ (381 mm) clearance from any obstruction in front of the unit is sufficient to open the door and remove it.

2. A minimum of 8” (203 mm) clearance from any obstruction on top of the unit is required for the ductwork radius turn.

8”

(203 mm)

VD0118A

8¾”

222 mm

9¾”

248 mm

• The joist opening needed to install the Tandem®transition must be 9¾” (248 mm) minimum. Also, the maximum height of the Tandem®transition is 8¾” (222 mm).

See Tandem®transition end view beside.

NOTES: 1. If there is not enough space to use the Tandem®transition, the optional exterior

single hood must be installed to bring the fresh outside air to the unit. See Section 6.8.

2. When installing a HEPA Filtration model GSFH1K, there is no Tandem® transition.

2.2 VENTILATION PERFORMANCES (CONT’D)

2.2.2 GSHH3K V

ENTILATION PERFORMANCES 2.2.3 GSEH3K VENTILATION PERFORMANCES

NOTE: all tests performed at high speed.

EXT. STATIC NET VENTILATION GROSS AIR FLOW

POWER

PRESSURE AIRFLOW SUPPLY EXHAUST FILTERED Pa

100

in.w.g.

0.2

0.4

L/s

52 49

cfm 110 103

L/s

58 55

cfm 124 116

L/s

57 51

cfm 121 108

L/s 131 119

cfm 277 252

Watts

237 229

EXT. STATIC NET VENTILATION GROSS AIR FLOW

POWER

PRESSURE AIRFLOW SUPPLY EXHAUST FILTERED

Pa 50

100

in.w.g.

0.2

0.4

L/s

57 53

cfm 122 113

L/s

50 48

cfm 105 102

L/s

59 55

cfm 125 117

L/s 127 120

cfm 270 254

Watts

227 224

VD0170

Page 7

3. RECOVERY NEEDS ACCORDING TO GEOGRAPHICAL LOCATION

- 7 -

When recovery is important, it can be hard to find the appropriate unit. Use the map below to determine which between heat recovery (GSHH3K model) or energy recovery (GSEH3K model) will satisfy the specific needs of the consumers.

HELENA

OLYMPIA

SALEM

BOISE

BISMARCK

SALT LAKE CITY

ST. PAU L

DES MOINES

MADISON

HARRISBURG

SACRAMENTO

DENVER

TOPEKA

DETROIT

INDIANAPOLIS

SANTA FE

SPRINGFIELD

OKLAHOMA CITY

PHOENIX

COLUMBUS

NASHVILLE

ATLANTA

BATON ROUGE

AUSTIN

COLUMBIA

RALEIGH

WASHINGTON

HARTFORD

BOSTON

ZONE A

ZONE B

RENO

When exchanging air with outside: ZONE A: GSHH3K unit recommended* ZONE B: GSEH3K unit recommended

* In ZONE A, the GSEH3K unit may be used, but below 16F, the duration of exchanging air with outside will decrease.

VN0004A

The Broan Fresh Air Systems units are versatile appliances capable of delivering filtered air (model GSFH1K) or both filtered and fresh air to your home (models GSVH1K, GSHH3K and GSEH3K). Because each installation is different, it is recommended you take the time to plan your installation. The three main areas to plan for are:

• Where to locate the Broan Fresh Air Systems unit

• How to pick-up the air from the room and distribute the filtered or fresh/filtered air

• Where to bring fresh air from outside and exhaust stale air to outside (models GSVH1K, GSHH3K and GSEH3K).

Use the following chart to determine the appropriate installation method for the unit.

Example: Basement installation

in Section 5.4.1

Example: Crawl space installation

in Section 5.5.1

CAUTION

Do not install duct or duct connector directly above the furnace. Do not connect the plenum connection closer than 2’ (0.61m) to the furnace, as measured along the length of the duct.

The Return-to-Return

installation can be performed.

The Central Draw Point

installation can be performed.

Is the house equipped with a furnace or air handler?

4. PLANNING THE INSTALLATION

YES

Use Stand Alone installation.

See Section 5.3.

YES

Is there enough space to connect the unit duct(s) to the existing

furnace or air handler ductwork? (The unit duct connection can be

performed on the cold air return duct, at a minimum linear distance

of 2’ (0.61 m) from the furnace/air handler.)

Page 8

.1 PLANNING OF THE DUCTWORK

• Keep it simple. Plan for a minimum of bends and joints.

• Keep the length of insulated ducts to the outside of home to a minimum.(not for HEPA Filtration model GSFH1K).

• Do not ventilate crawl spaces or cold rooms.

• If the house has two floors or more, be sure to plan for at least one exhaust register on the highest lived-in level.

Use the table below to plan the flexible ducts length.

4. PLANNING THE INSTALLATION (CONT’D)

- 8 -

Maximum Maximum

recommended length recommended length

to reach 105 cfm to reach 95 cfm Insulated fresh air duct from outside (6” diameter)

up to 10’ from 10’ to 20’

Insulated exhaust air duct to outside (6” diameter)

up to 10’ from 10’ to 20’

Recommended Recommended

maximum length maximum length

to reach 270 cfm to reach 240 cfm Stale air duct from inside (8” diameter) Combined: 40’ Combined: 60’ with Filtered air duct to inside stale air duct not to (8” diameter) exceed 36’

FLEXIBLE DUCT LENGTH TABLE

5. TYPICAL INSTALLATIONS

Installations may vary according to the model number, the product orientation (vertical or horizontal) and the location in the home where the unit is installed. Use the following illustrations as guidelines to help you decide the appropriate installation.

The unit allows for multi positional mounting (vertical or horizontal). It may be hung to the joists (preferred method), or it may be laid down on one of three surfaces, and installed either vertically or horizontally.

NOTE: For more details, see Points 5.3 and 5.4 in Section 5 INSTALL THE UNIT. In every case, bathroom fans and a range hood should be used as spot ventilation to exhaust stale air. Also, for homes with more than

one level, we recommend placing one exhaust register at the highest lived-in level. There are three installation methods: Stand Alone, Central Draw Point* and Return-to-Return*. * Different connections to a forced air system. Multiple furnaces or air handlers may require installation of Broan Fresh Air Systems on each system for maximum IAQ benefit.

NOTE: A grounded three-prong electrical outlet has to be available within 3 feet from the unit.

WARNING

Do not attempt to recover in any ways the exhaust air from a dryer or a range hood. This would cause clogging of the filters and recovery module (if applicable); this is also a fire hazard. Not following this warning will void the warranty.

Page 9

5.1 GSFH1K UNIT INSTALLATIONS

VH0038

INSTALLATION TYPE SHOWN: CENTRAL DRAW POINT

SEE SECTION 5.4.1

STA ND ALONE INSTALLATION

SEE SECTION 5.3.1

RETURN-TO-RETURN INSTALLATION

SEE SECTION 5.5.1

HOW TO HANG THE UNIT

SEE SECTION 6.4

SECTION 7: CONTROLS

INSTALLING 8’’ DUCTS AND

REGISTERS

SEE SECTIONS 6.5

VH0037

VH0047

VD0129

VC0059

High

Low

OFF

Reset Filter

Filter Maintenance

Power

- 9 -

VI0013

NOTE: OTHER INSTALLATIONS SHOWN NEXT PAGES

Page 10

5.2 GSVH1K, GSHH3K AND GSEH3K UNITS INSTALLATIONS

VH0068

INSTALLATION TYPE SHOWN: CENTRAL DRAW POINT

SEE SECTION 5.4.1

STA ND ALONE INSTALLATION

SEE SECTION 5.3.1

RETURN-TO-RETURN INSTALLATION

SEE SECTION 5.5.1

HOW TO HANG THE UNIT

SEE SECTION 6.4

CONNECTING THE DRAIN

SEE SECTION 6.10

SECTION 7: CONTROL

VH0039

VH0043

VD0150

VO0029

VC0098

- 10 -

INSTALLING 8’’ DUCTS AND

REGISTERS

SEE SECTIONS 6.5

VI0011

VD0149

OUTDOOR CONNECTION

SEE SECTIONS 6.6, 6.7, 6.8 AND 6.9

NOTE: OTHER INSTALLATIONS SHOWN

Page 11

- 11 -

5. TYPICAL INSTALLATIONS (CONT’D)

5.3.1 BASEMENT

• Ideal for homes without a central furnace in the basement. Allows filtration and a better air circulation throughout the house.

• Easy access to perform the periodic filter maintenance and servicing.

• Offers an ambient temperature above freezing (32°F - 0°C).

• The HEPA Filtration model GSFH1K has no connection to the outside, so all parts encircled are not required.

INSTALLATION CONSIDERATIONS:

• Installing the unit near an exterior wall will shorten the length of the insulated ducts (not necessary for HEPA Filtration only model GSFH1K).

• If a HEPA Filtration Fresh Air & Heat Recovery Ventilation model GSHH3K is installed, a water drain must be close to collect the run-off.

5.3 STAN D ALONE INSTALLATION

(Primarily for homes with no central air mover or equipped with wall furnaces, radiant hot water or electric baseboard heating.)

VH0039

Only for the models GSVH1K,

GSHH3K and GSEH3K that

use fresh outside air.

Drain required only for the GSHH3K model.

5.3.2 GARAGE CLOSET

• Ideal for homes without a central furnace, or limited space applications, allows filtration and a better air circulation throughout the house.

• Easy access to perform the periodic maintenance (twice a year).

• The HEPA Filtration model GSFH1K has no connection to outside, so all parts encircled are not required.

VH0046

Only for the models GSVH1K,

GSHH3K and GSEH3K that

use fresh outside air.

CAUTION

When the ambient temperature for the unit location is below freezing (32°F - 0°C), the unit must run continuously to prevent condensation.

INSTALLATION CONSIDERATIONS:

• Installing the unit near an exterior wall will shorten the length of the insulated ducts (not necessary for HEPA Filtration model GSFH1K).

• If a HEPA Filtration Fresh Air & Heat Recovery Ventilation model GSHH3K is installed, a water drain must be close to collect the run-off.

• All ducts must be insulated.

• For the HEPA Filtration, Fresh Air & Heat Recovery Ventilation (GSHH3K) and the HEPA Filtration, Fresh Air & Energy Recovery Ventilation (GSEH3K) models only, if the ambient temperature around the unit drops below freezing (32°F - 0°C), go to Section 6.11 (Low Temperature Applications) for instructions on drain line protection (GSHH3K only) and other cold environment installation details.

Page 12

5. TYPICAL INSTALLATIONS (CONT’D)

- 12 -

5.3 STAN D ALONE INSTALLATION (CONT’D)

(Primarily for homes with no central air mover or equipped with wall furnaces, radiant hot water or electric baseboard heating.)

5.3.3 ATTIC

• Ideal for homes without a central furnace, or limited space applications, allows filtration and a better air circulation throughout the house.

• Only one partition to go through to install the registers.

• No visible ducts.

• The HEPA Filtration model GSFH1K has no connection to the outside, so all parts encircled are not required.

CAUTION

When the ambient temperature for the unit location is below freezing (32°F - 0°C), the unit must run continuously to prevent condensation.

VH0054

INSTALLATION CONSIDERATIONS:

• Installing the unit near an exterior wall will shorten the length of the insulated ducts (not necessary for HEPA Filtration only model GSFH1K).

• If a HEPA Filtration Fresh Air & Heat Recovery Ventilation model GSHH3K is installed, a water drain must be close to collect the run-off.

• All ducts must be insulated.

Only for the models GSVH1K, GSHH3K and GSEH3K that use fresh outside air.

Drain required only for the GSHH3K

model .

5.4 CENTRAL DRAW POINT INSTALLATION

(Connection to a Forced Air System)

5.4.1 BASEMENT

• Simplified installation by using the home existing ductwork to supply filtered air throughout the house.

• The central draw point should be located in the main area where most of the pollutants are produced.

• The furnace/air handler does not need to run continuously.

• Easy access to perform the periodic maintenance (twice a year).

• Offers an ambient temperature above freezing (32°F - 0°C).

• The HEPA Filtration model GSFH1K has no connection to outside, so all parts encircled are not required.

INSTALLATION CONSIDERATIONS:

• Installing the unit near an exterior wall will shorten the length of the insulated ducts (not necessary for HEPA Filtration only model GSFH1K).

• If a HEPA Filtration Fresh Air & Heat Recovery Ventilation model GSHH3K is installed, a water drain must be close to collect the run-off.

VH0040

Only for the models GSVH1K,

GSHH3K and GSEH3K that

use fresh outside air.

Drain required only for the GSHH3K.

Page 13

5. TYPICAL INSTALLATIONS (CONT’D)

5.5 RETURN-TO-RETURN INSTALLATION

(Connection to a Forced Air System)

5.5.1 CRAWL SPA C E

• Simplify the installation by using the existing ductwork.

• Non-visible ducts.

• The HEPA Filtration model GSFH1K has no connection to outside, so all parts encircled are not required.

INSTALLATION CONSIDERATIONS:

• Installing the unit near an exterior wall will shorten the length of the insulated ducts (not necessary for HEPA Filtration model GSFH1K).

• If a HEPA Filtration Fresh Air & Heat Recovery Ventilation model GSHH3K is installed, a water drain must be close to collect the run-off.

• To avoid the cross-contamination and achieve highest efficiencies, the furnace / air handler blower must always be ON (or the efficiency will be affected).

• The HEPA Filtration Fresh Air Ventilation model GSVH1K needs to be ON all the time, since it doesn’t have motorized dampers. If this unit is OFF, then the furnace / air handler will draw cold outdoor air inside.

• All ducts must be insulated.

VH0043

GSVH1K, GSHH3K and GSEH3K

that use fresh outside air.

Drain required only for the GSHH3K.

- 13 -

5.5.2 ATTIC

• Simplify the installation by using the existing ductwork.

• Non-visible ducts.

• The HEPA Filtration model GSFH1K has no connection to outside, so all parts encircled are not required.

INSTALLATION CONSIDERATIONS:

• If a HEPA Filtration Fresh Air & Heat Recovery Ventilation model GSHH3K is installed, a water drain must be close to collect the run-off.

• All ducts must be insulated.

VH0051

Drain required only for the GSHH3K.

CAUTION

When the ambient temperature for the unit location is below freezing (32°F - 0°C), the unit must run continuously to prevent condensation.

CAUTION

When the ambient temperature for the unit location is below freezing (32°F - 0°C), the unit must run continuously to prevent condensation.

Page 14

- 14 -

6. INSTALL THE UNIT

6.1 TOOLS AND MAT ER IA L S

Here are the tools and materials needed to perform the installation:

• Phillips screwdriver no. 2 or Robertson no. 1

• Hammer and flat blade screwdriver (for plenum connection installation only, to make holes in existing metal duct)

• Scissors or utility knife (to cut duct tape)

• Duct tape

• Tin snips or metal shear (for plenum connection installation only, to cut ductwork)

• Aluminum duct tape (for plenum connection installation only, use SMACNA duct tape)

• Jigsaw (except for the HEPA Filtration model GSFH1K)

• Extension cord

• Caulking gun and caulking (except for the HEPA Filtration model GSFH1K)

• 6’’ Diameter insulated ducting (except for the HEPA Filtration model GSFH1K)

• 8’’ Diameter insulated ducting.

NOTE: A 3-prong grounded 120 volt AC power outlet must exist or be installed within 3 ft of the unit, prior to unit installation.

6.2 MOUNT THE PORTS ON THE UNIT

Mount the 8” oval ports and the 5” to 6” oval ports on the top of the unit using the screws provided in the hardware box (4 screws no. 8 x 3/4” long per port).

NOTES: 1.Although 4 screws are provided and prefered; only 1 screw per port is required to meet

code.

2. The HEPA Filtration only model has no 5” to 6” oval ports.

3. Do not install the front 8’’ oval port (item 1 in illustration) at this time.

VO0018

6.3 INSTALLATION USING ISOLATOR PADS

If the unit cannot be hung, use the four adhesive square isolation pads provided with the unit. According to your needs and model (with or without drain), you can install the unit either in vertical or horizontal position.

CAUTION

When a HEPA Filtration Fresh Air & Heat Recovery Ventilation unit model GSHH3K is installed with adhesive isolator pads, keep a minimum clearance of 4” between the unit and the ground (or shelf) for the drain.

CAUTION

Make sure the unit is level.

VD0074

VERTICAL POSITION - ALL MODELS

6.4 FOR SUSPENDED APPLICATIONS

Use the four chains and springs in the hardware pack provided with the unit. According to your needs and model type, you can install the unit either in a vertical or horizontal position.

ORIZONTAL POSITION (LEFT SIDE)

LL MODELS

HORIZONTAL POSITION (RIGHT SIDE)

MODEL GSFH1K ONLY

VD0075

VD0076

Page 15

- 15 -

6. INSTALL THE UNIT (CONT’D)

CAUTION

Make sure the unit is level.

• Using a screwdriver, remove the two retaining screws of the front plate as shown, and carefully remove the front plate from the unit.

• Insert the four hooks in the square holes and fix them to the unit using four screws no. 8-32 x 3/4”.

VO0019

VO0020

6.4 FOR SUSPENDED APPLICATIONS (CONT’D)

• To remove the door, verify the switch knob is in the OFF position in order to unlock the door.

Unlatch the door, using the 2 latches to open. Remove the stopper (A) located on the right side of the door hinge, then, slide the door out of its hinge.

VD0170

CAUTION

Take care to insert the screws perpendicular to their hooks, in order to avoid potential damages due to loosen hooks. See illustrations below.

VO006 3

DO DO NOT

Page 16

- 16 -

6.4 FOR SUSPENDED APPLICATIONS (CONT’D)

NOTE: To wire the wall control, go to Section 7.4.

• Reinstall the front plate and the door.

• Hang the unit to the joists, using four no. 8 x 1½” screws, four chains and four spings. See illustration.

6.5 INSTALLING 8’’ DUCTS AND REGISTERS

6.5.1 STA ND ALONE SYSTEM (AS ILLUSTRATED IN SECTION 5.3)

Stale air collection ductwork

• Install the stale air collection register in the main area where the contaminants are produced: kitchen, living room, etc. Position the register as far from any stairway as possible

and in a way the air circulates all the lived-in spaces in the house.

• If the register is installed in the kitchen, it must be located at least 4’ (1.2 m) from the range.

• Install the register 6”-8” (152 to 203 mm) from the ceiling on an interior wall OR install it in the ceiling.

Fresh / Filtered air distribution ductwork

• Install the fresh / filtered air distribution register in a large, open area in the lowest level to ensure the greatest possible air circulation. Keep in mind the filtered air register must be located as far as possible from the stale air collection point.

• Install the register 6”-8” (152 to 203 mm) from the ceiling on an interior wall OR install it in the ceiling. The duct length should be at least 15’ (4.6 m). (The fresh / filtered air will then flow through the room and mix with room air, ensuring a continuous recirculating airflow.)

How to connect the 8’’ flexible duct to the registers and unit duct connector.

• Once the register location is determined, cut out a 10¼’’ x 6 7/8’’ (260 mm x 175 mm) hole. Run one end of the 8’’ flexible duct through the hole and fix it to the duct connector (1), using a 30’’ tie wrap and duct tape. Fix the duct connector to the wall (or ceiling) using its four plastic anchors and no. 8 x 3/4” screws. Then, snap on the register (2).

VD0077

6. INSTALL THE UNIT (CONT’D)

WARNING

Never install a stale air exhaust register in a closed room where a combustion device operates, such as a gas furnace, a gas water heater or dryer, or a fireplace.

SPRING

VD0078

Page 17

• Trace a 10 ¼’’ long x 6 7/8’’ high (260 mm x175mm) opening on the furnace / air handler return duct at a minimum linear distance of 2 ft (0.61 m) upstream (return side) from furnace / air handler.

6. INSTALL THE UNIT (CONT’D)

6.5 INSTALLING 8’’ DUCTS AND REGISTERS (CONT’D)

6.5.1 S

TA ND ALONE SYSTEM (AS ILLUSTRATED IN SECTION 5.3) (CONT’D)

How to connect the 8’’ flexible duct to the unit duct connector.

• Each port is identified on top of the unit (See illustrations below). Using the provided colored sticker dot, identify which duct it is (red dot for stale airflow and blue dot for filtered airflow). Repeat the procedure for the other register.

• Attach the fresh air to building duct (the one with the blue dot) to its corresponding port, using tie wrap (1). Then, attach the exhaust air from building duct (the one with the red dot) to the other 8’’ port (2).

NOTE: Use 8’’ insulated duct only (not included) when ductwork may go where ambient temperature is over or below comfort zone.

6.5.2 CENTRAL DRAW POINT (AS ILLUSTRATED IN SECTION 5.4)

Stale air ductwork

Same as for Stand Alone System, described in point 6.5.1.

Filtered air ductwork (Return side connection)

VJ0026A

Front door of the unit

VJ0027A

Front door of the unit

WARNING

When performing duct connections, always use approved tools and materials. Respect all corresponding laws and/or safety regulations. Please refer to your local building code. Use only UL listed duct tape.

VD0128A

2 ft minimum

SUPPLY

RETURN

Front door of the unit

• Using a metal shear or a hammer and a flat blade screwdriver, punch a hole into the furnace / air handler return duct. Then, using metal shear, cut out the rectangular hole.

• Mount the duct connector to the furnace / air handler duct using the provided four retaining screws (no. 8 x 3/4”). Seal with UL approved duct tape.

- 17 -

Page 18

• Attach this duct to the

EXHAUST AIR FROM BUILDING

port (see icon on the top of the unit)

using tie wrap and duct tape.

6.5 INSTALLING 8’’ DUCTS AND REGISTERS (CONT’D)

6.5.2 C

ENTRAL DRAW POINT (AS ILLUSTRATED IN SECTION 5.4) (CONT’D)

• Take one end of the 8’’ flexible duct and slide it over the duct connector. Secure with a tie wrap. Carefully seal the connection with UL approved duct tape. Identify the duct using the blue sticker dot included.

• Attach this duct to the

FRESH AIR TO BUILDING

port (see icon on the top of the unit)

using tie wrap and duct tape.

6.5.3 RETURN-TO-RETURN (AS ILLUSTRATED IN SECTION 5.5)

Filtered air ductwork (Return side connection)

Same as for Central Draw Point, described in point 6.5.2.

Stale air ductwork (Return side connection)

• Locate the return air inlet duct at least 2’ (0.61 m) upstream (return side) from furnace / air handler. Locate the take-off duct opening at least 3’ (0.9m) from the filtered air ductwork connection. Proceed as for the filtered air ductwork, but instead of using the blue dot sticker to identify the duct, use the red dot.

6. INSTALL THE UNIT (CONT’D)

- 18 -

VJ0026A

Front door of the unit

WARNING

Minimum 3’

(0.9 m) from

filtered air

ductwork

connection

SUPPLY

RETURN

Front door of the unit

VJ0027A

Front door of the unit

Page 19

6. INSTALL THE UNIT (CONT’D)

6.6 INSTALLING INSULATED FLEXIBLE DUCTS TO TANDEM®TRANSITION (GSVH1K, GSHH3K & GSEH3K MODELS ONLY)

Use the following procedure for connecting the insulated flexible ducts to the Tandem®transition* (

EXHAUST AIR TO OUTSIDE

and

FRESH AIR FROM OUTSIDE

*Patent pending. NOTES: 1. If the joists are perpendicular to the ducts, or if the connection to the exterior hood is in a limited area, your installation will

need two exterior hoods instead of one AirDuo™ exterior hood. In this case, do not use the Tandem®transition.

2. If there is not sufficient space to install the Tandem®transition, both optional single exterior hood and AirDuo™ exterior hood must be used. Identify each insulated duct. For fresh air from outside duct, use the blue sticker dots (one dot at each end). For exhaust air to outside duct, use the red sticker dots (one dot at each end).

Then, go to Section 6.8 and 6.9.

6.6.1 CONNECTION TO TANDEM

TRANSITION

1. For each duct, pull back the insulation to expose the interior flexible duct.

2. Connect the interior flexible duct to the smaller part of the Tandem® transition (5’’ oval) using a 24’’ tie wrap.

NOTE: If you are using a 6’’ diameter insulated duct, use the bigger part of the Tandem® transition (6’’ oval).

3. Pull the insulation over the joint. Pull the vapor barrier over the insulation.

4. Apply duct tape gently to the joint in order to make an airtight seal

. See figures below.

Identify each insulated duct. For fresh air from outside duct, use the blue sticker dots (one dot at each end). For exhaust air to outside duct, use the red sticker dots (one dot at each end). Be careful to identify the exhaust air to outside duct (red dot) at the upper

section of the transition.

6.7 INSTALLING AIRDUO™ EXTERIOR HOOD* (GSVH1K, GSHH3K AND GSEH3K MODELS ONLY)

6.7.1. ASSEMBLING AIRDUO™ EXTERIOR HOOD

AirDuo™ exterior hood requires assembly. Assemble the top metal screen, the plastic grille and the bottom metal screen to AirDuo™ exterior hood. Use provided screws. See illustration beside.

*Patent pending

- 19 -

CAUTION

Make sure the insulated ductwork vapor barrier does not tear during installation.

VJ0025

VJ0022

VJ0023

VJ0024

EXHAUST AIR TO OUTSIDE DUCT

ON TOP

VO0024

Page 20

6. INSTALL THE UNIT (CONT’D)

6.7 INSTALLING AIRDUO™ EXTERIOR HOOD* (GSVH1K, GSHH3K AND GSEH3K MODELS ONLY) (CONT’D)

6.7.2 L

OCATING THE AIRDUO™ EXTERIOR HOOD

The AirDuo™ exterior hood must be installed at a minimum distance of 18 inches (457 mm) above the ground. See illustration beside.

6.7.3 CONNECTING TANDEM® TRANSITION TO AIRDUO™ EXTERIOR HOOD

1. Using a jig saw, cut a 6’’ diameter hole in the exterior wall and insert the Tandem®

transition through this hole.

2. Joint the end of the Tandem® transition to the rear of the exterior backplate. Secure

with 2 Xmas tree pins and seal properly with duct tape.

VD0083A

18”

(457 mm)

WARNING

Make sure this hood is at least 6 feet (1.8 m) away (or more, as per applicable building codes or standards) from sources of contamination such as:

• High efficiency furnace vent. •Any exhaust from a combustion source.

• Gas meter exhaust, gas barbecue-grill. •Garbage bin.

- 20 -

CAUTION

The exterior backplate must be installed with the word “TOP” pointing upward.

CAUTION

The Tandem® transition must be inserted in such a way that the

EXHAUST AIR TO OUTSIDE

duct will be located on the top.

VD0084

VD0085

Xmas tree pin

EXHAUST AIR TO OUTSIDE duct

3. Using 4 no. 8 x 1½” screws, attach the exterior backplate to the exterior wall. Seal the

outline with caulking, as shown.

VD0086

VD0087

screw

4. Snap the assembled AirDuo™ exterior hood on its backplate and secure with two

provided screws (no. 8 x 3/4” long). Go to Section 6.9.

Page 21

6.7 INSTALLING AIRDUO™ EXTERIOR HOOD* (GSVH1K, GSHH3K AND GSEH3K MODELS ONLY) (CONT’D)

6.7.4 O

PTIONAL ALPINE/PINE FILTER

The special design of this filter makes it much more efficient to catch spores and their particles during intensive pollen season. Using this optional fine mesh filter will extend the life expectancy of your prefilter. To install it, remove the bottom metal screen of the AirDuo™ exterior hood and replace it by the optional Alpine/pine filter. See illustration beside. (Alpine/pine filter part number: ACCGSUP5)

During pollen season, or as needed, remove the asembled hood from its backplate by removing its 2 retaining screws. Then, slide out the Alpine/pine filter and clean it under water. Let dry before reinstalling it on the assembled hood. Reinstall the hood on its backplate.

6.8 INSTALLING TWO EXTERIOR HOODS* (GSVH1K, GSHH3K AND GSEH3K MODELS ONLY)

6.8.1 ASSEMBLING EXTERIOR HOODS

Both exterior AirDuo™ hood and optional exterior single hood require assembly. Assemble the top metal screen, the plastic grille and the bottom metal screen to the AirDuo™ exterior hood*. Use provided screws. Slide the bottom metal screen into the single exterior hood base. See illustrations beside. *Patent pending

6.8.2 LOCATING THE AIRDUO™ AND OPTIONAL EXTERIOR SINGLE HOOD

6. INSTALL THE UNIT (CONT’D)

- 21 -

VA0024

VO0030

VO0024

AirDuo™ EXTERIOR HOOD

OPTIONAL SINGLE FRESH AIR INLET

EXTERIOR HOOD

WARNING

Make sure the optional exterior single hood is at least 6 feet (1.8 m) away (or more, as per applicable building codes or standards) from sources of contamination such as:

• High efficiency furnace vent. • Any exhaust from a combustion source.

• Gas meter exhaust, gas barbecue-grill. • Garbage bin.

CAUTION

Due to its particular design, the AirDuo™ exterior hood must be used only for exhaust hood when performing an installation using 2 exterior hoods. Use the optional single fresh air intake exterior hood for supply air.

VD0094

4’’

(102 mm)

18’’

(457 mm)

4’’

(102 mm)

6’

(1.8 m)

Intake hood

Optional location

AirDuo™

Exhaust hood

6’

(1.8 m)

The AirDuo™ exterior hood must be installed at a minimum distance of 4 inches (102 mm) from the ground, and the optional single fresh air intake exterior hood must be installed at a minimum distance of 18 inches (457 mm) from the ground. Also, a minimum distance of 6 feet (1.8 m) is required between the hoods to avoid cross-contamination. See illustration below.

Page 22

6.8 INSTALLING TWO EXTERIOR HOODS* (GSVH1K, GSHH3K AND GSEH3K MODELS ONLY) (CONT’D)

6.8.3 C

ONNECTING INSULATED DUCTS TO EXTERIOR HOODS

1. For each exterior hood, using a jigsaw, cut a 6’’ diameter hole (if using 5’’ dia. insulated duct) or a 7’’ diameter hole (if using 6’’ dia.

insulated duct) in the exterior wall. Identify each insulated duct. For fresh air from outside duct, use the blue sticker dots (one at each end). For exhaust to outside duct, use the red sticker dots (one dot at each end). Run each flexible duct through its respective hole in the wall.

2. Pull back the insulation to expose the flexible duct and, using a tie wrap, attach it to the inner

ring of the exterior backplate (5’’ ring for the 5’’ insulated ducts or 6’’ ring for the 6’’ insulated ducts). Carefully seal with duct tape (A). Pull the insulation over the joint. Pull the vapor barrier over the insulation and over the outer ring of the exterior backplate. Apply gently duct tape to the joint making an airtight seal (B).

6. INSTALL THE UNIT (CONT’D)

CAUTION

Make sure the insulated ductwork vapor barrier does not tear during installation.

- 22 -

CAUTION

The exterior backplate must be installed with the word “TOP” pointing upward.

VD0095

3. Attach the exterior backplate to the exterior wall. Using four provided screws, fix it to the wall.

Seal the backplate with caulking, as shown.

VD0096

4. Snap each assembled exterior hood on its respective

backplate location and secure each of them with their 2 provided screws.

VD0087

VD0097

AIRDUO™ EXTERIOR HOOD SINGLE EXTERIOR FRESH AIR INTAKE HOOD

screw

6.8.4 OPTIONAL ALPINE/PINE FILTER

The special design of this filter makes it much more efficient to catch spores and their particles during intensive pollen season. Using this optional fine mesh filter will extend the life expectancy of your prefilter. To install it, remove the bottom metal screen of the optional exterior single hood and replace it by the optional Alpine/pine filter. See illustration beside. (Alpine/pine filter part number: ACCGSUP5)

During pollen season, or as needed, remove the assembled hood from its backplate by removing its 2 retaining screws. Then, slide out the Alpine/pine filter and clean it under water. Let dry before reinstalling it on the assembled hood. Reinstall the hood on its backplate.

NOTE: Roof top venting is not recommended.

VA0025

Page 23

6.9 CONNECTION TO THE 5’’ TO 6’’ OVAL PORTS OF THE UNIT (GSVH1K, GSHH3K AND GSEH3K MODELS ONLY)

Use the following procedure for connecting the insulated flexible ducts to the 5’’ to 6’’ oval ports of the unit (

EXHAUST AIR TO OUTSIDE

and

FRESH AIR FROM OUTSIDE

1. Pull back the insulation to expose the flexible duct.

2. Connect the interior flexible duct to the smaller part of the port (5’’ oval) using a

24’’ tie wrap. NOTE: If you are using a 6’’ diameter insulated duct, use the bigger part of the

port (6’’ oval).

6. INSTALL THE UNIT (CONT’D)

VJ0016

Rear side of the unit

VJ0017

Rear side of the unit

- 23 -

3. Pull the insulation over the joint and tuck it between the inner and outer rings of the port.

Pull the vapor barrier over the insulation and over the outer ring of the port.

VJ0018

Rear side of the unit

4. Apply duct tape gently to the joint in order to make an airtight seal.

VJ0019

Rear side of the unit

5. Repeat steps 1 to 4 for all insulated ducts.

See figure beside to find the

EXHAUST AIR TO OUTSIDE

(1)

and

FRESH AIR FROM OUTSIDE

(2) oval ports on the top of the unit.

Be careful to connect the right insulated duct to its corresponding port.

1) Red dot duct

2) Blue dot duct

Rear side of the unit

VJ0028A

CAUTION

Avoid compressing the insulation when you pull the tape tightly around the joint. Compressed insulation loses its insulation properties and causes water dripping due to condensation on the exterior surface of the duct.

Page 24

6. INSTALL THE UNIT (CONT’D)

- 24 -

6.10 CONNECTING THE DRAIN (GSHH3K MODEL ONLY)

VO0025

VO0046

1. Open the door by turning the switch

knob to the OFF position (to unlock the door). Then, unlatch the door and open it. Slide out the core assembly to access the 2 drain fitting hole locations (1). Punch out the holes.

2. Hand tighten the 2 plastic drain fittings (1) using the gaskets (2) and nuts (3) as shown. Close the door.

VO0027

27''

(686 mm)

7''

(178 mm)

3. Cut 2 sections of plastic tubing; one

7’’ (178 mm) long and one 27’’ (686 mm) long, and attach them to each drain fitting as shown.

VO0028

4. Join these 2 sections to the ‘’T’’

junction and main tube as shown.

VO0029

Tie-wrap

Water

To drain

5. Make a water trap loop in the tube to

prevent the unit from drawing unpleasant odors from the drain source. Make sure this loop is situated BELOW the ‘’T’’ as shown. This will prevent water from being drawn back up into the unit in case of negative pressure. Run the tube to the floor drain or an alternative drain pipe or pail. Be sure there is a slight slope for the run-off.

6.11 LOW TEMPERATURE APPLICATIONS BELOW FREEZING (32°F OR 0°C)

ALL MODELS

FOR GSHH3K HEAT RECOVERY AND GSEH3K ENERGY RECOVERY MODELS ONLY

GENERAL:

• Insulate the cabinet body using a 2” thick blanket insulation or by placing the unit in an insulated enclosure formed from 2” thick fiberglass insulation board.

• Make sure that all ductwork is insulated.

• Carefully seal all of the unit ports with duct tape to prevent air leakage.

• Install a heating cable along the drain line for freeze protection.

- Use a UL listed heat tape in accordance to the manufacturer’s instruction.

- Because of the additional weight of the heating tape on drain line, secure the plastic tubing to each drain fitting using hose clamps

(not provided).

- Make sure the heat tape is rated between 3 to 6 watts per foot at 120 V.

- Protect the circuit the heat tape is connected to with a ground-fault circuit breaker.

- Cover the drain line and heating cable with 1/2 inch thick insulation.

- If you need to extend the drain line beyond the 9 foot length supplied with the unit, use copper pipe.

CAUTION

When the ambient temperature surrounding the unit falls below freezing (32°F or 0°C), all units must run continuously to prevent condensation.

CAUTION

• When installing an GSHH3K HEPA Filtration, Fresh Air and Heat Recovery model, make sure the unit cabinet and its drain line are protected from freezing.

• When installing an GSHH3K HEPA Filtration, Fresh Air and Heat Recovery model, install a drip pan if required by local code.

Page 25

6. INSTALL THE UNIT (CONT’D)

- 25 -

6.11 LOW TEMPERATURE APPLICATIONS BELOW FREEZING (32°F OR 0°C) (CONT’D)

6.11.1 B

LANKET INSULATION

If fabricating an insulation blanket, use a 2” thick hot water heater blanket cut as shown.

Wrap the unit as shown. Make sure that all joints are fully sealed to prevent cold air penetration between the insulation and the unit.

NOTES: 1. Holes must be done in the insulation blanket

to allow drain line installation for model

GSHH3K only.

2. MAKE SURE to use excess insulation to

cover the top of unit and its ports.

1 2

Bend UP 90

Rectangular

Door

Insulation

T- Shaped

Cabinet

Insulation

Wrap

1 2

Cut slots

inches

VR0001A

VR0002

1 2

Heat tape around drain

VH0044

Attic insulation

2” Thick

ductboard

Optional

drain

pan

Waste drain

Insulated

ducts

Remove some attic insulation to allow heat into enclosure from building below

Heat

tape on

drain

line

Hose

clamp

Hose

clamp

CUT AWAY VIEW WITH THE DUCT BOARD ENCLOSURE DOOR REMOVED.

6.11.2 DUCT BOARD INSULATED ENCLOSURE

If fabricating an enclosure from 2” fiberglass duct board, make sure that the enclosure is thightly sealed.

When possible have the waste disposal point within the confines of the enclosure to expedite water removal (for GSHH3K model only).

Page 26

7.1 MAIN SWITCH

All units are equipped with a 3-position main switch, located on the front panel. The unit is intented for use with a wall controller (provided, see below). The main switch is to remain in either the “OFF” or “Normal/Remote” modes ONLY. The “Normal/Remote” mode allows the homeowner to operate the product from the wall controller, typically mounted near a thermostat or other convenient location.

7.2 WALL CONTROLLERS (ONE PROVIDED WITH THE UNIT)

There are two wall controllers available: ACCGSC1 control (intended for GSFH1K and GSVH1K models only) and 40425 control (intended for GSHH3K and GSEH3K models only).

ACCGSC1 40425

CONTROLLER CONTROLLER

- 26 -

7. CONTROLS

OFF:

UNIT IS OFF AND

DOOR IS

UNLOCKED

BOOST: UNIT IS OPERATING

ON HIGH SPEED.

VC0059

High

Low

OFF

Reset Filter

Filter Maintenance

Power

VC0098

VC0053

NORMAL/REMOTE: UNITISOPERATINGON

LOW SPEED. THIS IS THE RIGHT POSITION WHEN AN OPTIONAL WALL CONTROL IS USED

Page 27

7.3 INSTALLATION OF THE ACCGSC1 WALL CONTROLLER

1. Determine the more convenient location for the control.

2. Remove the controller cover plate (1). If you prefer to have your main control mounted on an approved outlet box or an approved mounting bracket (not included), discard the backplate (2).

3. Route the control cable from the unit to the wall controller.

Use the provided cable (4-conductor, 24-gauge, Solid, UL Listed, CM type, 40’ long). NOTE: For wall controller efficiency, the maximum wire length is 100’ (30.5 m). If needed, add another length of same wire type.

Use caution not to cross the wire colors or create any short.

4. Take one end of the provided cable and pass it through the wall control backplate (or outlet box or mounting bracket).

5. Splice back this end of the cable to access to the four wires. Remove the insulated

sleeve of each wire ends. Make a loop with each bare end wire to hook them to their corresponding screw. Connect YELLOW wire to “Y’’ screw, RED wire to “R’’ screw, GREEN to “G’’ screw and BLACK to “B’’ screw. See illustration beside.

6. Reinstall the cover plate. Using provided wall anchors and provided screws, mount the wall controller on the wall. Use only 2 screws to mount on outlet box. See illustrations below. Once done, go to Section 7.5

Wall Controllers Connection to the Unit.

1) Wall anchors 4) Control 1) Outlet box 3) Control

2) Control cable 5) Screws 2) Control cable 4) Screws

3) Backplate

- 27 -

7. CONTROLS (CONT’D)

CAUTION

Never install more than one optional wall controller per unit.

WARNING

Always disconnect the unit before making any connections. Failure in disconnecting power could result in electrical shock or damage of the wall control or electronic module inside the unit.

WARNING

To avoid risk of electrical shocks, never install another wire in the same electrical box than the one for the wall controller.

BLACK

wire

YELLOW

wire

GREEN

wire

RED wire

WARNING

Make sure that the wires do not short circuit between themselves or by touching any other components on the wall controller.

VC0052

VC0051

SURFACE MOUNT

RECESS MOUNT

CAUTION

Keep control low voltage wiring at least 1’ (305 mm) away from motors, lighting ballast, light dimming circuit and power distribution panel. Do not route control wiring along house power wiring. Avoid poor wiring connections. Failure to follow these practices can introduce electrical interference, which can cause erratic control operations.

Page 28

7. CONTROLS (CONT’D)

7.4 INSTALLATION OF THE 40425 WALL CONTROLLER

WARNING

Always disconnect the unit before making any connections. Failure in disconnecting power could result in electrical shock or damage of the wall control or electronic module inside the unit.

CAUTION

Failure to comply with the following can cause erratic operation of the unit:

• Never install more than one optional wall controller per unit.

• Keep control low voltage wiring at least 1foot (305 mm) away from motors, lighting ballast, light dimming circuit and power distribution panel. Do not route control wiring alongside house power wiring.

• Ensure the wires are securely connected.

• Disconnect power from the unit before removing the wall controller faceplate from its mounting plate.

1. Route the cable from the unit to a convenient location for the wall control.

2. Loosen the locking screw (the screw cannot be completely removed).

3. Detach the faceplate from the mounting plate by pulling the bottom part. If necessary, bore the mounting

holes and insert anchors.

4. Pass the cable (4 wires) through the opening of the mounting plate and mount the plate to the wall using

the provided screws.

5. Splice back the end of the cable to access to the 4 wires. Strip the end of each wire. Connect each wire

to its corresponding terminal: YELLOW wire to “Y’’, RED wire to “R’’, GREEN to “G’’ and BLACK to “B’’. See illustration beside.

6. Reinstall the front module onto the back plate and tighten the locking screw.

VC0095

VC0096

VC0097

VE0157

BLACK

wire

YELLOW

wire

GREEN

wire

RED

wire

- 28 -

Page 29

7.5 WALL CONTROLLERS CONNECTION TO THE UNIT (BOTH MODELS)

1. Go to the unit. Turn the unit switch knob to OFF position in order to unlock the door. Unlatch the door and open it. If required, the door can be removed. To do so, remove the stopper (A) located on the right side of the door hinge. Then, hold the door and hit with your palm its left side. Slide the door to the right to disengage it from the unit.

2. Using a screwdriver, remove both front plate retaining screws and carefully remove the front plate of the unit.

3. Using a small rod, pierce a hole through the unit at the end of the wire channel. (See photo beside). Splice back the end of the cable to access the 4 wires. Remove the insulated sleeve of each wire ends. Insert the end of the cable through the unit, using the small hole previously done. From the top right hole of the unit, pull on the wire.

4. In order to access the unit PCB terminals, remove the side door located on the electrical box and punch out its knockout. Run the cable through the knock-out hole and connect each wire in their corresponding terminal (YELLOW in “Y’’, RED in “R’’, GREEN in “G’’ and BLACK in “B’’). NOTE: Push forward slightly on the little tabs (1) to ease insertion of each wire.

See photo beside.

5. Reinstall the side door on the electrical box and install the 8’’ oval port on the unit.

6. Route the wire through its channel and reinstall the front panel on the unit.

See picture beside.

7. Plug the unit to the wall outlet.

NOTE: When using the wall controller, the main switch on the unit must always be positioned to NORMAL/REMOTE.

7. CONTROLS (CONT’D)

VO0019

VD0088

CAUTION

Never use a drill to pierce the hole through the unit, since electrical component inside the unit may be damaged.

VE0049

VD0170

VD0089

- 29 -

Page 30

7. CONTROLS (CONT’D)

7.6 OPERATING ACCGSC1 CONTROLLER

7.6.1 ACCGSC1 C

ONTROLLER DESCRIPTION

7.6.2 USING ACCGSC1 CONTROLLER

• OFF: To stop the unit, slide the button on this position.

• LOW: For a day-to-day usage, slide the button on this position. The unit then will operate on low speed, providing 70 cfm.

• HIGH: For a high speed operation, slide the button on this position.

Generally used when more ventilation is required, such as parties, smokers, or for a 6-bedroom house. This mode provides 105 cfm.

VC0059

High

Low

OFF

Reset Filter

Filter Maintenance

Power

OFF:

UNIT IS OFF.

POWER INDICATOR:

LIGHTS UP WHEN SLIDE SWITCH

IS ON LOW OR HIGH POSITION.

FILTER MAINTENANCE

INDICATOR

FLASHES EVERY MINUTE TO

INDICATE IT IS ON DUTY.

FLASHES EVERY SECOND WHEN

ITS TIME TO REPLACE

PREFILTER

. SEE SEMI-ANNUAL

MAINTENANCE IN SECTION 9.2.

LED STAYS LIT WHEN ITS TIME TO REPLACE FILTER AND PREFILTER.

Low:

NITISOPERATINGON

LOW SPEED.

RESET FILTER HOLE:

ONCE THE MAINTENANCE DONE, RESET THE FILTER

MAINTENANCE INDICATOR BY CAREFULLY INSERTING ASMALLROD

(EG: PAPER CLIP) IN THE RESET FILTER

HOLE, FOR 1 SECOND. THE FILTER MAINTENANCE INDICATOR WILL TURN OFF. REFER TO THE FILTER

MAINTENANCE RECOMMENDATIONS IN SECTION 9.

HIGH:

NITISOPERATINGON

HIGH SPEED

- 30 -

7.7 OPERATING 40425 CONTROLLER

7.7.1 ACCGSC3 C

ONTROLLER DESCRIPTION

This wall controller is in OFF mode when power is applied for the first time. The mode does not change following a power failure.

VC0098

ILLUMINATES IN ALL MODES

EXCEPT OFF MODE.

FILTER AND PREFILTER MAINTENANCE LED.

FLASHES WHEN IT IS TIME TO REPLACE

PREFILTER AND WASH CORE FILTERS

SEE BIANNUAL MAINTENANCE IN SECTION 9.1.

LIGHTS UP WHEN IT IS TIME TO REPLACE

FILTER AND PREFILTER AND WASH CORE FILTERS

SEE ANNUAL MAINTENANCE SECTION 9.2.

PRESS THIS BUTTON TO

ACCESS CONFIGURATION PARAMETERS

(SEE SECTION 7.7.3).

•PRESS EITHER BUTTON TO CHANGE

CONFIGURATION SETTING

(SEE SECTION 7.7.3).

•P

RESS BOTH BUTTONS TO RESET THE FILTER

COUNTER OR PREFILTER COUNTER

PRESS THIS BUTTON TO

SWITCH MODE

(SEE SECTION 7.7.2).

Page 31

7. CONTROLS (CONT’D)

7.7 OPERATING 40425 CONTROLLER (CONT’D)

7.7.2 OPERATING 40425 CONTROLLER

The wall controls 40415 and 40425 provide 5 operation modes. Press the Mode button to select the desired mode.

The unit exchanges air

at normal speed.

The outdoor

temperature* is displayed.

The unit exchanges air

at high speed.

The outdoor

temperature* is displayed.

The unit recirculates air. However,

every hour, the unit exchanges

air for 6 minutes so that

it can obtain a reading

of the outdoor temperature*.

The unit operates on a 60-minute cycle. For the first 40 minutes, the unit recirculates air or is off (See configuration parameter 2).

For the last 20 minutes, it exchanges air.

However, if the outdoor temperature* is too

high or too low (see configuration

parameters 3 and 4), the unit recirculates

air during the last 20 minutes.

ORMAL MODE (MIN)BOOST MODE (MAX)RECIRCULATION MODE (RE-CIRC)OFF MODE

The unit is off.

The outdoor temperature*

is not displayed.

Off in

Auto mode

Air exchange in

Auto mode

Air recirculation

in Auto mode

AUTOMATIC MODE (AUTO)

* The outdoor temperature reading is taken from the unit

FRESH AIR

FROM OUTSIDE

port; due to the lenght of the insulated duct, the reading

is slightly different from the real outside temperature.

PARAMETER OPTIONS

DEFAULT

DESCRIPTION

NUMBER SETTING

1TEMPERATURE FORMAT °C / °F °C SELECTS BETWEEN °C AND °F DISPLAY. 2A

UTO MODE OPERATION RE / OF RE

ELECTS BETWEEN AIR RECIRCULATION (RE) AND OFF (OF)

(SEE SECTION 7.7.2).

AUTO MODE LOW -30°C TO 0°C -25°C PREVENTS AIR EXCHANGE IN AUTO MODE IF THE OUTDOOR

TEMPERATURE LIMIT (-22°F TO 32°F) (-13°F) TEMPERATURE IS TOO LOW (SEE SECTION 7.7.2).

AUTO MODE HIGH 0°C TO 30°C 27°C PREVENTS AIR EXCHANGE IN AUTO MODE IF THE OUTDOOR

TEMPERATURE LIMIT

(32°F TO 86°F) (81°F) TEMPERATURE IS TOO HIGH (SEE SECTION 7.7.2).

AU: THE SCREEN ILLUMINATES FOR 12 SECONDS WHEN ANY

5BACKLIGHT MODE AU / ON AU KEY IS PRESSED

ON: THE SCREEN IS PERMANENTLY ILLUMINATED.

7.7.3 40425 WALL CONTROLLER CONFIGURATION

See the configuration table below for the list of configuration parameters. Press the Menu button for 3 seconds to enter or exit the configuration menu. NOTE: The wall control automatically saves any changes and exits the configuration menu if no button is pressed within the

next 60 seconds.

Press the Menu button briefly to advance to the next parameter (menu number). Press the or button to change the parameters setting.

CONFIGURATION TABLE

- 31 -

Page 32

- 32 -

8. BALANCING PROCEDURE (GSVH1K, GSHH3K AND GSEH3K UNITS ONLY)

8.1 WHAT YOU NEED TO BALANCE THE UNIT

• A magnehelic gauge capable of measuring 0 to 0.5 inches water gauge (0 to 125 Pa) and 2 plastic tubes.

• Two flow collars (the size will vary depending of duct diameter).

VP0005

Flow collar

8.2 PRELIMINARY STAGES FOR BALANCING THE UNIT

Seal all the unit ductwork with tape. Close all windows and doors. Turn off all exhaust devices such as: range hoods, dryers and bathroom fans. Make sure balancing dampers are fully open

(F and G in figure below).

Choose an appropriate location for the 2 flow collars according to figure below:

• On the exhaust air duct (first measuring location, A)

• On the fresh/filtered air distribution duct (second measuring location, B)

• At least 36” (914 mm) away from the unit; at least 12” (304 mm) before or after 90° elbow and at least 12” (304 mm) away from a register.

• At least 12” (304 mm) away a from a balancing damper (F and G in figure below).

12¨(304mm)

36¨(914mm)

VP0014A

12¨(304mm)

Insert the flow collars in the ducts at each location (A et B on figure above). Make sure their arrows are pointing in the direction of the airflow. Tape collars in place temporarily.

8.3 INSTALLATION OF FLOW COLLAR

8.4 BALANCING PROCEDURE

1. Set the unit to high speed.

Make sure that the furnace blower is ON if the installation is in any way connected to the ductwork of the cold air return. If not leave furnace blower OFF.

2. Place the magnehelic gauge on a level surface and adjust it to zero.

3. Connect tubing from gauge to flow collar in exhaust air stream (location A in illustration above). Be

sure to connect the tubes to their appropriate high / low fitting. If the gauge reading drops to below

zero, reverse the tubing connections.

NOTE: It is better to start with the exhaust air flow reading because the exhaust typically has more

restriction than the fresh air, especially in cases of stand alone and central draw point installations.

Hold or place the magnehelic gauge upright and level. Record the reading.

4. Move tubing to the other side of the unit (location B in illustration above and note reading. Adjust the fresh

air balancing damper F until the reading at B is approximately the same as the reading at A. If the reading at B is less than the reading at A then go back and adjust the exhaust balancing damper G to equal the fresh air flow.

5. Remove flow collars and reconnect the duct, then, seal with duct tape. Write the required airflow information on a label and stick it

near the unit for future reference: (date, maximum speed airflows, your name and phone number and business address). NOTES: 1. Most flow collar kits provide a conversion chart situated on the collar which enables you to convert magnehelic gauge readings

to equivalent cfm values.

2. A difference of ± 10 cfm ( ± 0.015 inches water gauge) between the 2 readings is considered balanced.

3. If you are using only one flow collar, then, after completing the first reading, transfer this measuring device to the other side of the unit and take the second reading.

LOW

HIGH

FLOW

VP0003

LOW

HIGH

FLOW

VP0004

All units are prebalanced. However, if your construction code requires to balance the unit, follow this procedure.

FRONT DOOR

Page 33

9. MAINTENANCE

WARNING

Risk of electrical shocks. Before performing any maintenance or servicing, always disconnect the unit from its power source.

- 33 -

9.1 SEMI-ANNUAL MAINTENANCE (ESSENTIAL)

Your wall controller (ACCGSC1 or 40425) tells you when to perform this maintenance when the Filter Maintenance light is flashing. Otherwise, maintenance should be performed every 6 months to ensure your unit proper operation for years to come. Follow these steps:

1. Turn switch knob to OFF to unlock the door.

2. Unlatch the door and open it. If required, the door can be removed. To do so, remove the

stopper (A) located on the right side of the door hinge. Then, hold the door and hit with your palm its left side. Slide the door to the right to disengage it from the unit. Clean the inner side of the door with a clean damp cloth, then wipe with a dry one.

3. Slide out the air diffuser (model GSVH1K), the heat recovery module (model GSHH3K only), the energy recovery module (model

GSEH3K only) and the filter cartridge from the unit. NOTES: 1. On model GSVH1K only, never grab the white shaft (item 2) to pull out the air diffuser.

2. To remove the filter cartridge, pull on its tabs.

1) Air Diffuser 3) Heat recovery core 4) Energy recovery core 5) Filter cartridge tabs

2) White shaft

4. Using your thumbs, push on the prefilter side to disengage it from the filter cartridge. Then, slide it out of the filter cartridge and discard

it. Install the new prefilter by reversing this operation.

1) Filter cartridge

2) Prefilter

5. Clean the inside walls of the unit with a clean damp cloth, then wipe with a dry one. Reinstall the filter cartridge.

6.1 For HEPA Filtration and Fresh Air Ventilation model GSVH1K only

Clean the air diffuser with a clean damp cloth, then wipe with a dry one. Once the air diffuser completely dry, slide it back into the unit.

VD0107

VD0091

VD0112

VD0155

VD0092

VD0093

VD0170

Page 34

9.1 SEMI-ANNUAL MAINTENANCE (ESSENTIAL) (CONT’D)

6.2 For HEPA Filtration, Fresh Air and Heat Recovery model GSHH3K only

Slide out the two core filters (item 1) from the heat recovery core and wash them under hot water with mild soap. Remove the dust on the heat recovery core (item 2) using a vacuum cleaner with a soft brush attachment. Rinse the core filters thoroughly and let dry before reinstalling them on the heat recovery core. Reinstall the heat recovery core in the unit.

1) Core filters

2) Heat Recovery Core

NOTE: Make sure the damper spring (1) is still inside the left front port opening before

reinstalling the heat recovery module.

1) Damper spring

6.3 For HEPA Filtration, Fresh Air and Energy Recovery model GSEH3K only

Slide out the two core filters (item 1) from the energy recovery core and wash them under hot water with mild soap. Remove the dust on the energy recovery core (item 2) using a vacuum cleaner with a soft brush attachment. Rinse the core filters thoroughly and let dry before reinstalling them on the energy recovery core. Reinstall the energy recovery core in the unit.

1) Core filters

2) Energy Recovery Core

NOTE: Make sure the damper spring (1) is still inside the left front port opening before

reinstalling the energy recovery module.

1) Damper spring

7. If removed, reinstall the door. Close the latches and turn ON the switch knob to its previous position.

8. Your unit is equipped with a wall controller (ACCGSC1 or 40425). For ACCGSC1, reset the filter maintenance indicator by inserting a

small rod (eg: paper clip end) into the reset filter hole of the wall control. Press lightly until the Filter Maintenance indicator light turns off. For 40425, to reset the counter and turn the LED off, simultaneoustly press both and buttons for 1 second.

9. MAINTENANCE (CONT’D)

VD0120

VD0091

CAUTION

The energy recovery core cannot be washed with water.

VD0155

- 34 -

Page 35

9.2 ANNUAL MAINTENANCE (ESSENTIAL)

Your unit is equipped with a wall controller (ACCGSC1 or 40425), which tells when to perform maintenance when the Filter Maintenance light stays ON. Otherwise, this maintenance must be performed once a year to ensure your unit proper operation for years to come. Proceed as the Semi-annual Maintenance (Section 9.1), but instead of replacing the prefilter (point 4), discard the complete HEPA Filter cartridge (including prefilter). Install a new HEPA filter cartridge with a new prefilter on it.

NOTE: In annual maintenance, for 40425 wall controller, press simultaneoustly both and buttons for 5 seconds to reset the counter

and turn the LED off.

9. MAINTENANCE (CONT’D)

- 35 -

9.3 OPTIONAL ALPINE/PINE FILTER (PART NUMBER: ACCGSUP5)

During pollen season, or as needed, remove the assembled hood from its backplate by removing its 2 retaining screws.

Then, slide out the optional Alpine/pine filter and clean it under water. Let dry before reinstalling it on the assembled hood. Reinstall the hood on its backplate.

VA0024

VD0124

screw

PROBLEMS SOLUTIONS

1.Unit does not start at Low • Check breaker or fuse in main distribution panel or GFI outlet. or High position. • Check there is 120V at the electrical outlet.

• Make sure the unit main switch is properly set in Normal or Boost position.

• If a wall control (ACCGSC1 or 40425) is connected, disconnect control wire from the unit, then make sure the unit main switch is properly set in Normal/Remote or Boost position.

• Check the fuse on electronic board. If blown, replace with the same type.

2.Unit does not run at Low • If a wall control (ACCGSC1 or 40425) is used, disconnect control wire from the unit. speed, but runs at High. Then, if the unit runs at Normal speed, check control wiring and wall control connections.

3.Unit is not operating as per • Check if the unit main switch is in “Normal/Remote” position. the selected mode. • Check wall control wiring.

4.Wall control indicators do not work

• Check wall control wiring.

properly or not at all.

5.On 40425 wall controller only, 1 or 2 • Check if the unit main switch is in “Normal/Remote” position. light indicators are flashing every second. • Check wall control wiring.

6.On 40425 wall controller only,

• Check wall controller wiring.

wall controller screen indicates E1.

7.On 40425 wall controller only, • The temperature sensor is defective. (The unit will automatically switch to OFF mode wall controller screen indicates E2. if this happens.)

10.TROUBLESHOOTING

If the problem is still not solved, call your installer or the nearest approved Service Center. Also, you can reach the Customer Service Departments or Technical Supports listed below.

Broan-NuTone LLC

• Customer Service Department: Telephone: 1-800-558-1711 Fax: 1-800-356-5862

• Technical Support: Telephone: 1-800-637-1453 Fax: 1-262-673-8709

Broan Gseh3k Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
