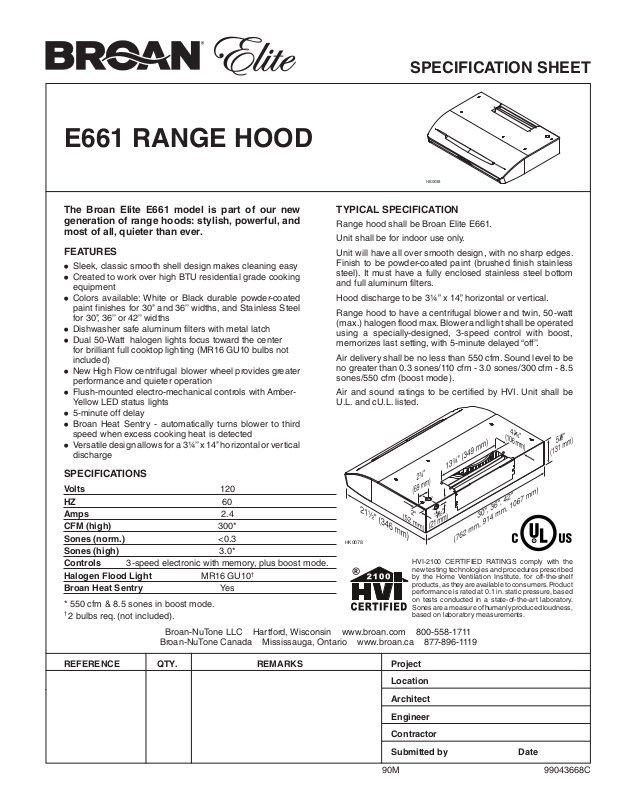

Broan E66130WH, E66136WH, E66136SS, E66130SS, E66130BL Specification Sheet

E661 RANGE HOOD

SPECIFICATION SHEET

HB0038

The Broan Elite E661 model is part of our new
generation of range hoods: stylish, powerful, and
most of all, quieter than ever.

FEATURES

Sleek, classic smooth shell design makes cleaning easy

•

Created to work over high BTU residential grade cooking

•

equipment

Colors available: White or Black durable powder-coated

•

paint finishes for 30’’ and 36’’ widths, and Stainless Steel
for 30’’, 36’’ or 42’’ widths

Dishwasher safe aluminum filters with metal latch

•

Dual 50-Watt halogen lights focus toward the center

•

for brilliant full cooktop lighting (MR16 GU10 bulbs not
included)

New High Flow centrifugal blower wheel provides greater

•

performance and quieter operation

Flush-mounted electro-mechanical controls with Amber-

•

Yellow LED status lights

5-minute off delay

•

Broan Heat Sentry - automatically turns blower to third

•

speed when excess cooking heat is detected

Versatile design allows for a 3¼’’ x 14’’ horizontal or vertical

•

discharge

SPECIFICATIONS

Volts 120
HZ 60
Amps 2.4
CFM (high) 300*
Sones (norm.) <0.3
Sones (high) 3.0*
Controls 3-speed electronic with memory, plus boost mode.
Halogen Flood Light MR16 GU10
Broan Heat Sentry Ye s

* 550 cfm & 8.5 sones in boost mode.

†

2 bulbs req. (not included).

Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711

Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119

†

TYPICAL SPECIFICATION

Range hood shall be Broan Elite E661.

Unit shall be for indoor use only.

Unit will have all over smooth design, with no sharp edges.
Finish to be powder-coated paint (brushed finish stainless
steel). It must have a fully enclosed stainless steel bottom
and full aluminum filters.

Hood discharge to be 3¼” x 14”, horizontal or vertical.

Range hood to have a centrifugal blower and twin, 50-watt
(max.) halogen flood max. Blower and light shall be operated
using a specially-designed, 3-speed control with boost,
memorizes last setting, with 5-minute delayed “off’’.

Air delivery shall be no less than 550 cfm. Sound level to be
no greater than 0.3 sones/110 cfm - 3.0 sones/300 cfm - 8.5
sones/550 cfm (boost mode).

Air and sound ratings to be certified by HVI. Unit shall be
U.L. and cU.L. listed.

HK0078

HVI-2100 CERTIFIED RATINGS comply with the
new testing technologies and procedures prescribed
by the Home Ventilation Institute, for off-the-shelf
products, as they are available to consumers. Product
performance is rated at 0.1 in. static pressure, based
on tests conducted in a state-of-the-art laboratory.
Sones are a measure of humanly produced loudness,
based on laboratory measurements.

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

90M 99043668C
