Broan E6042tss, E6030ss, E6048tss, E60e30ss, E60e36ss Specification Data
...

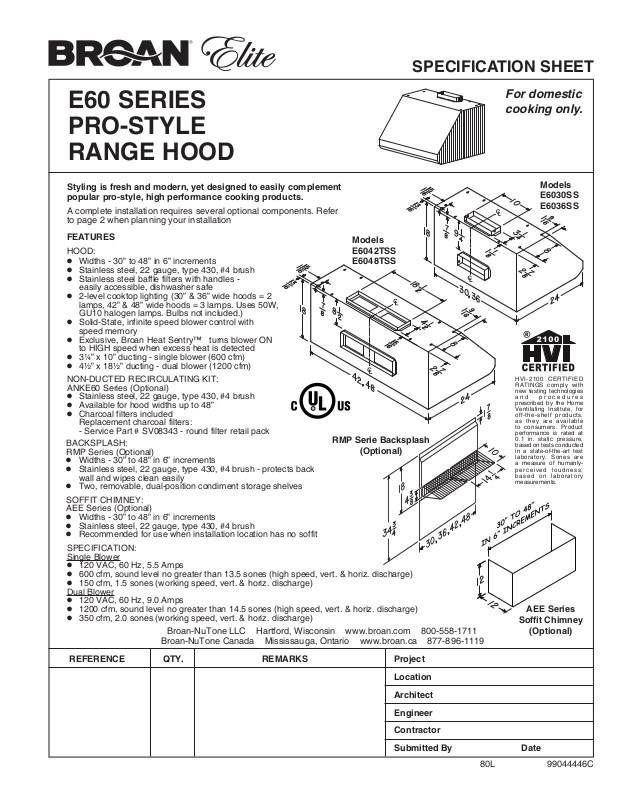

SPECIFICATION SHEET
E60 SERIES
PRO-STYLE
RANGE HOOD
Styling is fresh and modern, yet designed to easily complement
popular pro-style, high performance cooking products.
A complete installation requires several optional components. Refer
to page 2 when planning your installation
FEATURES
HOOD:
Widths - 30” to 48” in 6” increments
•
Stainless steel, 22 gauge, type 430, #4 brush
•
Stainless steel baffle filters with handles -
•
easily accessible, dishwasher safe
2-level cooktop lighting (30” & 36” wide hoods = 2
•
lamps, 42” & 48” wide hoods = 3 lamps. Uses 50W,
GU10 halogen lamps. Bulbs not included.)
Solid-State, infinite speed blower control with
•
speed memory
Exclusive, Broan Heat Sentry™ turns blower ON
•
to HIGH speed when excess heat is detected
3¼” x 10” ducting - single blower (600 cfm)
•
4½” x 18½” ducting - dual blower (1200 cfm)
•
NON-DUCTED RECIRCULATING KIT:
ANKE60 Series (Optional)
Stainless steel, 22 gauge, type 430, #4 brush
•
Available for hood widths up to 48”
•
Charcoal filters included
•
Replacement charcoal filters:
- Service Part # SV08343 - round filter retail pack
BACKSPLASH:
RMP Series (Optional)
Widths - 30” to 48” in 6” increments
•
Stainless steel, 22 gauge, type 430, #4 brush - protects back
•
wall and wipes clean easily
Two, removable, dual-position condiment storage shelves
•
SOFFIT CHIMNEY:
AEE Series (Optional)
Widths - 30” to 48” in 6” increments
•
Stainless steel, 22 gauge, type 430, #4 brush
•
Recommended for use when installation location has no soffit
•
SPECIFICATION:
Single Blower
120 VAC, 60 Hz, 5.5 Amps
•
600 cfm, sound level no greater than 13.5 sones (high speed, vert. & horiz. discharge)
•
150 cfm, 1.5 sones (working speed, vert. & horiz. discharge)
•
Dual Blower
120 VAC, 60 Hz, 9.0 Amps
•
1200 cfm, sound level no greater than 14.5 sones (high speed, vert. & horiz. discharge)
•
350 cfm, 2.0 sones (working speed, vert. & horiz. discharge)
•
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
Models
E6042TSS
E6048TSS
RMP Serie Backsplash
(Optional)
For domestic
cooking only.
Models
E6030SS
E6036SS
HV I- 21 00 C ER TI FI ED
RAT INGS co mply wi th
new testing technologies
a n d p r o c e d u r e s
prescribed by the Home
Ventilating Institute, for
off-t he -sh elf produ ct s,
as th ey a re av aila bl e
to c onsu mers . Product
performance is rated at
0.1 i n. st atic press ure,
based on tests conducted
in a state-of-the-art test
lab or atory . Son es ar e
a measure of humanlype rc eiv ed lo ud nes s,
ba sed o n l ab ora tor y
measurements.
AEE Series
Soffit Chimney
(Optional)
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted By Date
80L 99044446C
E60 SERIES RANGE HOOD SYSTEM
MODEL 437
(HIGH CAPACITY ROOF CAP)
MODEL 441
(10” ROUND WALL CAP)
MODEL 647
(7” ROUND WALL CAP)
MODEL 634 OR 644
(ROOF CAP)
MODEL 643
(8” ROUND WALL CAP)
MODEL 418
(10” ROUND ADJUSTABLE ELBOW)
MODEL 421
(10” ROUND VERTICAL
IN-LINE DAMPER)
MODEL 410
(10” ROUND DUCT - 2 FT. SECTIONS)
MODEL 415
(7” ROUND
ADJUSTABLE ELBOW)
MODEL 407
(7” ROUND -
2 FT. SECTIONS)
MODEL 412
TRANSITION
(3¼” x 10” TO 7”)
MODEL 639
(3¼” x 10”
WALL CAP)
STANDARD
DUCT
(3¼” x 10”)
MODEL 413
TRANSITION
(3¼” x 10” TO 8”)
STANDARD
DUCT
(8” ROUND)
ADJUSTABLE
ELBOW
(8” ROUND)
MODEL 427
(4½” x 18½”
TO 10” ROUND
6” HIGH - LATERAL
MODEL 423
(4½” x 18½”
TO 10” ROUND
VERTICAL
MODEL 424
(4½” x 18½”
TO 10” ROUND -
HORIZ. FRONT/REAR
MODEL 454
(4½” x 18½”
TO 10” ROUND -
HORIZ. RIGHT
MODEL 453
(4½” x 18½”
TO 10” ROUND -
HORIZ. LEFT
ADAPTER WITH DAMPER
(3¼” x 10” - SUPPLIED WITH
SINGLE BLOWER HOOD)
SINGLE BLOWER (600 CFM)
DUAL BLOWER (1200 CFM)
(42” & 48” ONLY)
ADAPTER (4½” x 18½” -
SUPPLIED WITH
DUAL BLOWER HOOD)
RMP SERIES
BACKSPLASH
(STAINLESS STEEL
WALL COVERING
WITH WARMING
SHELVES - OPTIONAL)
NON-DUCTED RECIRCULATION KIT
ANKE60 SERIES (Optional)
E60 SERIES HOOD
DECORATIVE FLUE
AEE SERIES (Optional)
2¼” HIGH
INTERNAL BLOWERS
