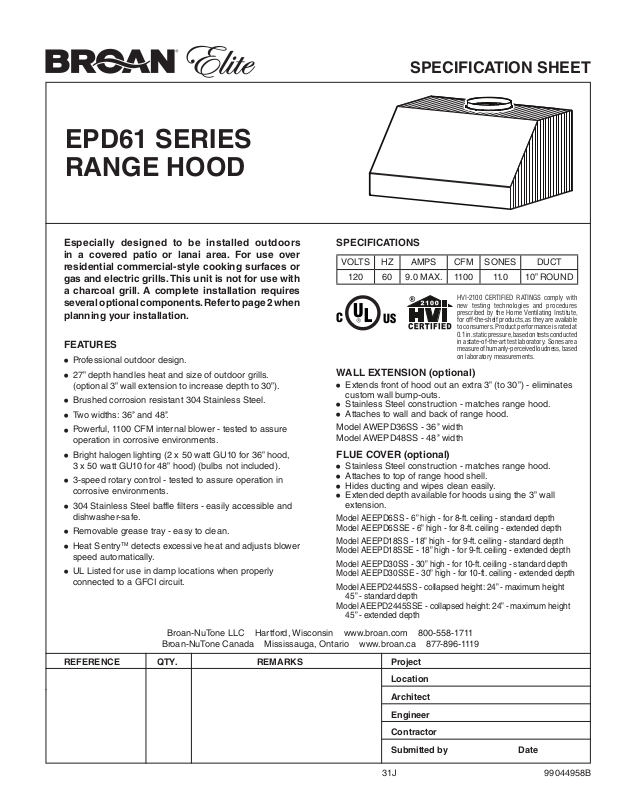

EPD61 SERIES
US
C
RANGE HOOD
SPECIFICATION SHEET
Especially designed to be installed outdoors
in a covered patio or lanai area. For use over
residential commercial-style cooking surfaces or
gas and electric grills. This unit is not for use with
a charcoal grill. A complete installation requires
several optional components. Refer to page 2 when
planning your installation.
FEATURES
Professional outdoor design.
•
27” depth handles heat and size of outdoor grills.
•
(optional 3” wall extension to increase depth to 30”).
Brushed corrosion resistant 304 Stainless Steel.
•
Two widths: 36’’ and 48’’.
•
Powerful, 1100 CFM internal blower - tested to assure
•
operation in corrosive environments.
Bright halogen lighting (2 x 50 watt GU10 for 36” hood,
•
3 x 50 watt GU10 for 48” hood) (bulbs not included).
3-speed rotary control - tested to assure operation in
•
corrosive environments.
304 Stainless Steel baffle filters - easily accessible and
•
dishwasher-safe.
Removable grease tray - easy to clean.
•
Heat SentryTM detects excessive heat and adjusts blower
•
speed automatically.
UL Listed for use in damp locations when properly
•
connected to a GFCI circuit.
SPECIFICATIONS
VOLTS HZ AMPS CFM SONES DUCT
120 60 9.0 MAX. 110 0 11. 0 10” ROUND
HVI-2100 CERTIFIED RATINGS comply with
new testing technologies and procedures
U
L
WALL EXTENSION (optional)
Extends front of hood out an extra 3” (to 30”) - eliminates
•
custom wall bump-outs.
Stainless Steel construction - matches range hood.
•
Attaches to wall and back of range hood.
•
Model AWEPD36SS - 36’’ width
Model AWEPD48SS - 48’’ width
FLUE COVER (optional)
Stainless Steel construction - matches range hood.
•
Attaches to top of range hood shell.
•
Hides ducting and wipes clean easily.
•
Extended depth available for hoods using the 3” wall
•
extension.
Model AEEPD6SS - 6” high - for 8-ft. ceiling - standard depth
Model AEEPD6SSE - 6” high - for 8-ft. ceiling - extended depth
Model AEEPD18SS - 18” high - for 9-ft. ceiling - standard depth
Model AEEPD18SSE - 18” high - for 9-ft. ceiling - extended depth
Model AEEPD30SS - 30” high - for 10-ft. ceiling - standard depth
Model AEEPD30SSE - 30” high - for 10-ft. ceiling - extended depth
Model AEEPD2445SS - collapsed height: 24” - maximum height
45” - standard depth
Model AEEPD2445SSE - collapsed height: 24” - maximum height
45” - extended depth
prescribed by the Home Ventilating Institute,
for off-the-shelf products, as they are available
to consumers. Product performance is rated at
0.1 in. static pressure, based on tests conducted
in a state-of-the-art test laboratory. Sones are a
measure of humanly-perceived loudness, based
on laboratory measurements.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
31J 99044958B
36, 48
24 - 45
36, 48
AWEPD SERIES
WALL EXTENSION
5½
EPD61 SERIES
RANGE HOOD
EPD61 SERIES
HOOD SYSTEM
Model 441
10” ROUND
WALL CAP
Model 418
10” ROUND
ADJUSTABLE ELBOW
(Optional)
Model 410
10” ROUND DUCT
(2 ft. sections)
AEEPD Series
DECORATIVE
FLUE
(Optional)
Model 437
HIGH CAPACITY
ROOF CAP
AEEPD Series
TELESCOPIC
FLUE COVER
(Optional)
EPD61 Series
RANGE HOOD
AEEPD SERIES
TELESCOPIC
FLUE COVER
AEEPD SERIES
FLUE COVER
