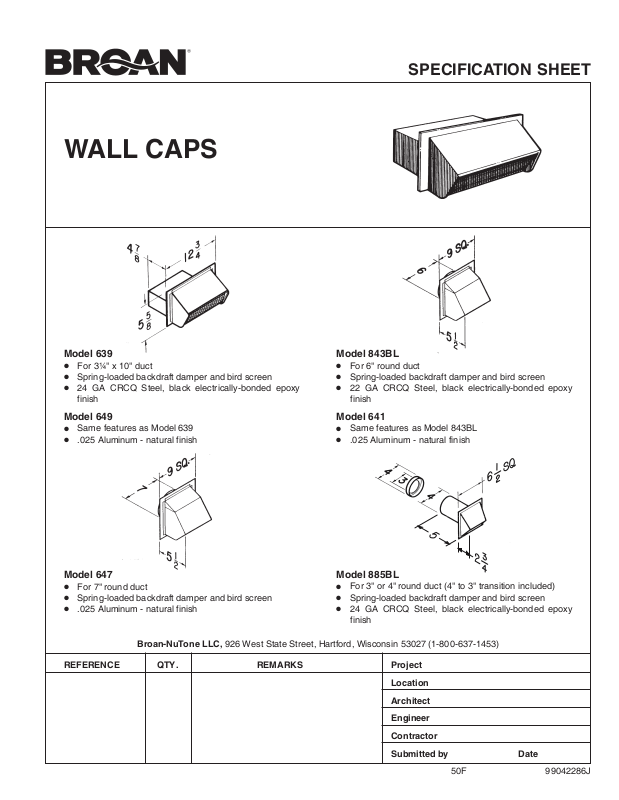

WALL CAPS
SPECIFICATION SHEET
Model 639
For 3¼" x 10" duct
•
Spring-loaded backdraft damper and bird screen
•
24 GA CRCQ Steel, black electrically-bonded epoxy
•
finish
Model 649
Same features as Model 639
•
.025 Aluminum - natural finish
•
Model 647
For 7" round duct
•
Spring-loaded backdraft damper and bird screen
•
.025 Aluminum - natural finish
•
Broan-NuTone LLC, 926 West State Street, Hartford, Wisconsin 53027 (1-800-637-1453)
Model 843BL
For 6" round duct
•
Spring-loaded backdraft damper and bird screen
•
22 GA CRCQ Steel, black electrically-bonded epoxy
•
finish
Model 641
Same features as Model 843BL
•
.025 Aluminum - natural finish
•
Model 885BL
For 3" or 4" round duct (4" to 3" transition included)
•
Spring-loaded backdraft damper and bird screen
•
24 GA CRCQ Steel, black electrically-bonded epoxy
•
finish
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
50F 99042286J
Model 885AL
For 3" or 4" round duct (4" to 3" transition included)
•
Spring-loaded backdraft damper and bird screen
•
.025 Aluminum - natural finish
•
Model 643
For 8" round duct
•
Built-in backdraft damper
•
.025 Aluminum - natural finish
•
Model 613
For 12" round duct
•
High capacity
•
Built-in backdraft damper and bird screen
•
.025 Aluminum - natural finish
•
Model 441
Gravity dampers
•
Collar with bird screen for attaching 10" round duct
•
24 GA CRCQ steel construction with aluminum louvers
•
Model 645
For 3" round duct
•
Polymeric construction - white finish
•
Model 646
For 6" round duct
•
Polymeric construction - white finish
•
Model 450 Flexible Wall Ducting Kit
Includes 5 ft. of 4", flexible, vinyl ducting, 4" diameter
•
metal duct connector, 2 duct clamps, 4" to 3" reducer and
a polymeric louvered wall vent
Model WVK1A Flexible Wall Ducting Kit
Includes 5 ft. of 4", flexible, 2-ply metallic laminate ducting,
•
4" diameter metal duct connector, 2 duct clamps, 4" to 3"
reducer and a polymeric louvered wall vent
Duct conforms to UL181 Class 1 air connector
•
requirements
Not recommended for dryer venting
•
Broan-NuTone LLC, 926 West State Street, Hartford, Wisconsin 53027 (1-800-637-1453)
