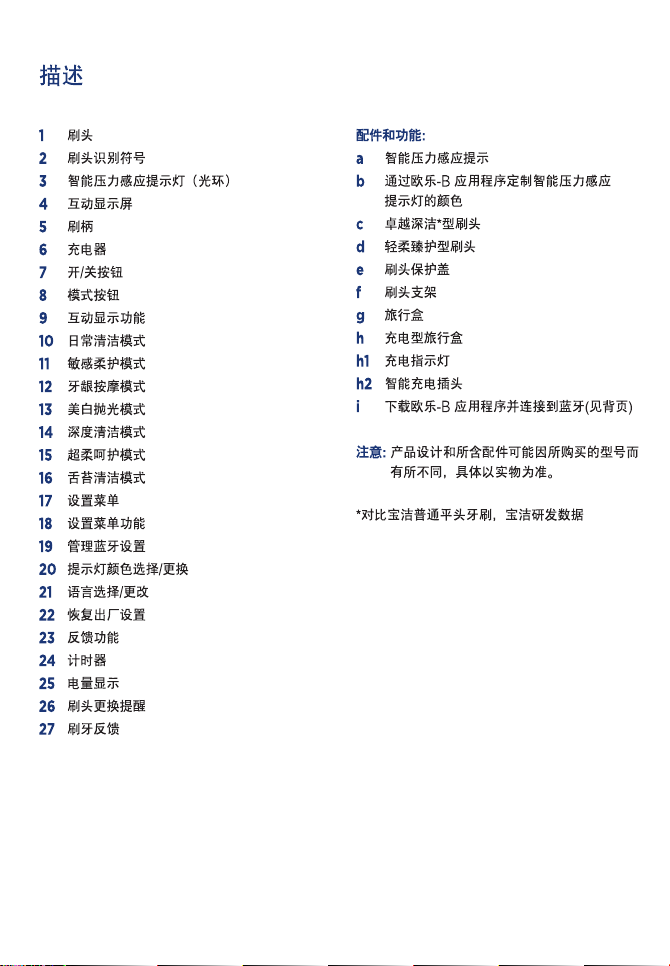

Description

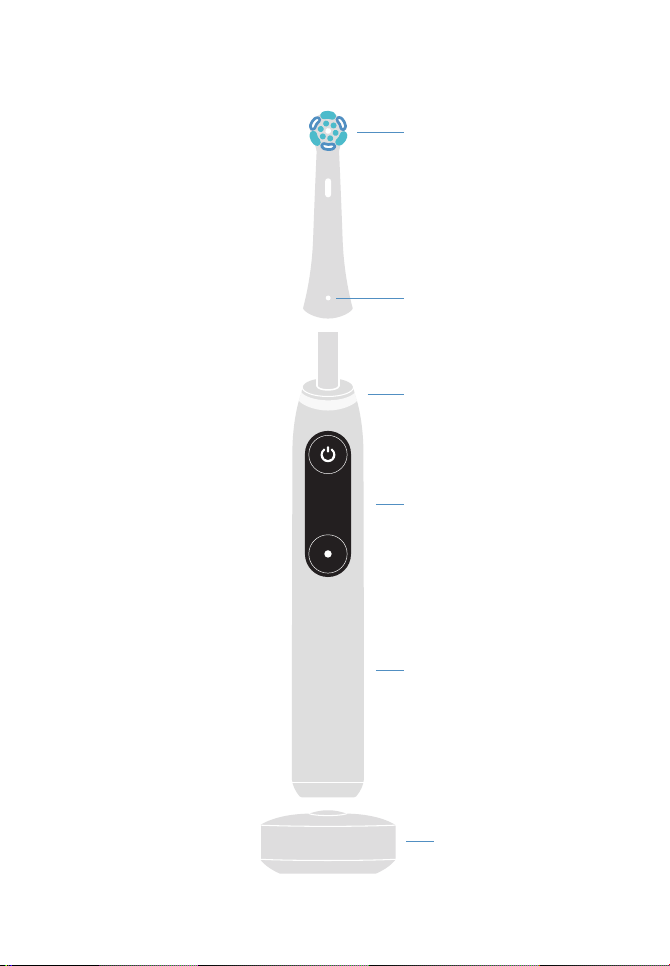

1 Brush head
2 Brush head identification symbol
3 Smart Pressure Sensor (Light Ring)
4 Interactive Display
5 Handle
6 Charger
7 On/off button
8 Mode button

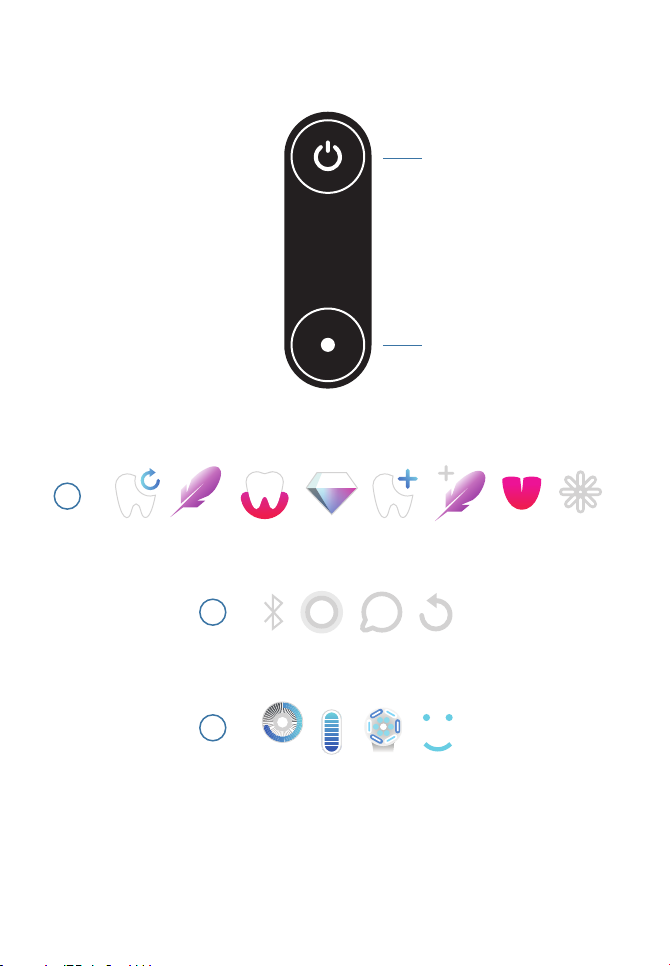

9 Interactive Display features
10 «Daily Clean» mode
11 «Sensitive» mode
12 «Gum Care» mode
13 «Whitening» mode
14 «Intense Clean» mode
15 «Super Sensitive» mode
16 «Tongue Clean» mode
17 Settings menu
18 Settings menu features
19 Manage Bluetooth
®
settings
20 Select/Change colour of Light Ring
21 Select/Change language
22 Perform factory reset
23 Feedback features
24 Timer
25 Battery status
26 Exchange reminder
27 Brush feedback

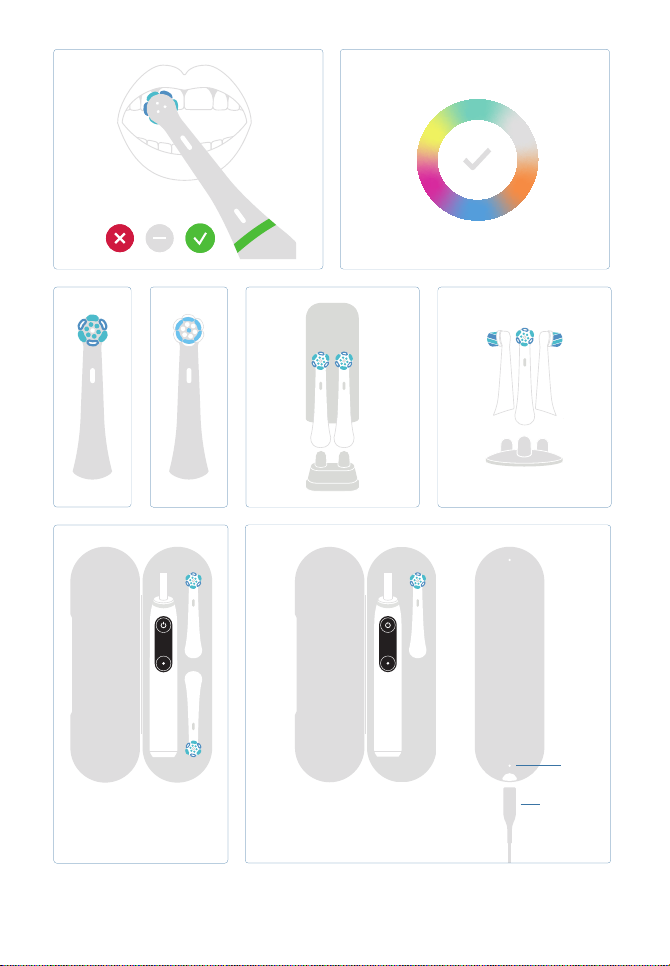

Accessories and features:
a Smart Pressure Sensor features
b Customize colour of Light Ring
via Oral-B App
c Brush head «Ultimate Clean»
d Brush head «Gentle Care»
e Brush head holder with cap
f Brush head holder stand
g Travel case
h Charging travel case
h1 Charging light
h2 Power supply (Smart Plug)
i Download Oral-B App and connect to
Bluetooth
®
(see back page)
Note: Content may vary based on the model
purchased.
12 12
English

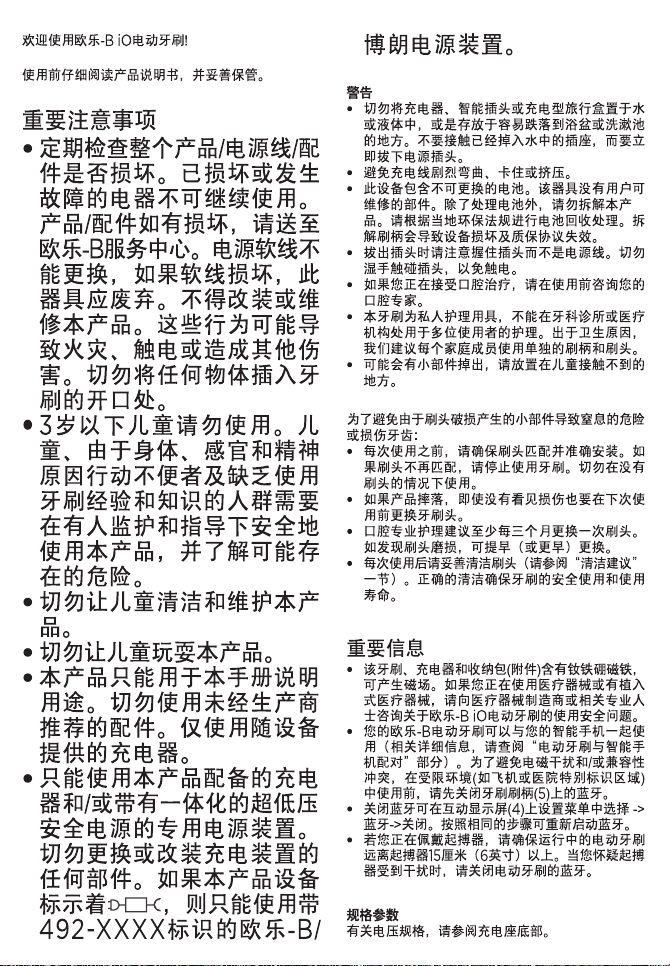

Welcome to Oral-B!
Before operating this toothbrush, please read
these instructions and save this manual for
future reference.
IMPORTANT
•
Periodically check the entire
product/cords/accessories
for damage. A damaged or
non-functioning unit should
no longer be used. If the
product/accessories are
damaged, take it to an
Oral-B Service Centre. If the
cord is damaged it should be
scrapped. Do not modify or
repair the product. This may
cause fire, electric shock or
injury. Never insert any
object into any opening of
the appliance.
•
Usage by children under age
3 is not recommended.
Toothbrushes can be used by
children and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge, if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the
hazards involved.
•
Cleaning and maintenance
shall not be performed by
children.
•
Children shall not play with
the appliance.
•
Use this product only for its
intended use as described
in this manual. Do not use
attachments which are
not recommended by the
manu
facturer. Only use the
charger provided with your
appliance.
•
Only use the charger and/or
special cord set with
integrated Safety Extra Low
Voltage power supply
provided with your
appliance. Do not exchange
or tamper with any part of it.
If the appliance is marked
with
492
, only use Oral-B/
Braun power supplies coded
492-XXXX.
WARNING
• Do not place the charger, smart plug or
charging travel case in water or liquid or
store where it can fall or be pulled into a
tub or sink. Do not reach for it when fallen
into water. Unplug immediately.
• Avoid sharp bending, jamming or squeezing
of the cord.
• This appliance contains batteries that are
non-replaceable. The appliance has no user
serviceable parts. Do not open and disassemble device except when disposing of
the battery. Follow handling and disposal
instructions of the battery/device described
in this manual.
• When unplugging, always pull the power
plug instead of the cord. Do not touch the
power plug with wet hands. This can cause
an electric shock.
• If you are undergoing treatment for any
oral care condition, consult your dental
professional prior to use.
13
• This toothbrush is a personal care device
and is not intended for use on multiple
patients in a dental practice or institution.
For hygienic reasons we recommend the
use of individual brush handles and brush
heads for each family member.
• Small parts may come off, keep out of
reach of children.
To avoid brush head breakage which may
generate a small parts choking hazard or
damage teeth:
• Prior to each use, ensure the brush head fits
well. Discontinue use of the toothbrush, if
brush head no longer fit properly. Never use
without a brush head.
• If the toothbrush handle is dropped, the
brush head should be replaced before the
next use even if no damage is visible
• Replace brush head every 3 months or
sooner if brush head becomes worn.
• Clean brush head properly after each use
(see «Cleaning recommendations» paragraph).
Proper cleaning ensures the safe
use and functional life of the toothbrush.
Important Information
• This toothbrush, charger and pouch (acces-
sory) contain NdFeB magnets and generate
magnetic fields. If you use a medical device
or have an implanted medical device, consult with the medical device manufacturer
or a physician, if you have questions about
safely using your Oral-B iO toothbrush.
• Your Oral-B toothbrush can be used with
your smartphone (find details under
«Connecting your toothbrush to your
Smartphone»). To avoid electromagnetic
interference and/or compatibility conflicts,
disable Bluetooth® on your toothbrush
handle (5) before using it in restricted surroundings, such as aircrafts or specially
marked areas in hospitals.
• Disable Bluetooth by entering the «Set-
tings» menu on the interactive display (4)
-> Bluetooth -> disable. Follow the same
procedure to enable Bluetooth again.
• Persons with pacemakers should always
keep the toothbrush more than 15 centimeters (six inches) from the pacemaker while
turned on. Anytime you suspect interference is taking place disable Bluetooth.
Specifications
For voltage specifications refer to the bottom
of the charging unit.
14

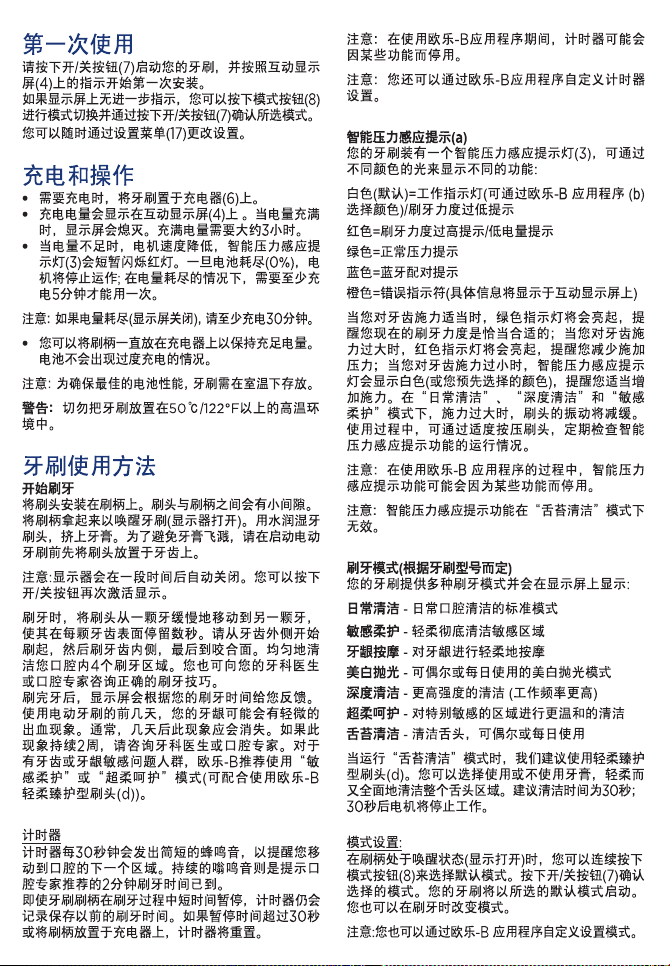

First use
Please wake up your toothbrush by pressing
the on/off button (7) and follow the instructions on the interactive display (4) to get
started for first time setup.
If not further instructed on the display, you
may toggle with the mode button (8) and
select with the on/off button (7).
You may change the settings via the «Settings»
menu (17) at any time.
Charging and Operating
• To charge the battery place the toothbrush
on the plugged-in charger (6).
• The charge level is indicated on the inter-
active display (4). Once it is fully charged
the display turns off.
A full charge typically takes 3 hours.
• If the battery is running low the motor
reduces its speed and the Smart Pressure
Sensor (3) shortly blinks in red. Once the
battery is empty, the motor stops; it will
need at least a 5-minute charge for one
usage.
Note: In case the battery is empty (display off),
charge for at least 30 minutes.
• You can always store the handle on the
plugged-in charger to maintain it at full
charge; a battery overcharge is prevented
by the device.
Note: Store handle at room temperature for
optimal battery maintenance.
Caution: Do not expose handle to temperatures higher than 50°C / 122°F.
Using your toothbrush
Start Brushing
Place the brush head on the handle. A small gap
should remain between handle and brush head.
Lift the handle off the plugged-in charger
or simply pick it up to wake up the handle
(display turns on). Wet brush head and apply
toothpaste. To avoid splashing, guide the
brush head to your teeth before switching the
handle on by pressing the on/off button.
Note: Display turns off after some time.
You may press the on/off button to activate
display again.
Guide the brush head from tooth to tooth.
Brush the outsides, the insides and the chewing surfaces. Brush all four quadrants of your
mouth equally. You may also consult your
dentist or dental hygienist about the right
technique for you.
After Brushing, the display gives you feedback
based on your brushing time.
In the first days of using any electric toothbrush, your gums may bleed slightly. In general, bleeding should stop after a few days.
Should it persist after 2 weeks, please consult
your dentist or dental hygienist. If you have
sensitive teeth and/or gums, Oral-B recommends using the «Sensitive» or «Super Sensitive» modes (optional in combination with an
Oral-B «Gentle Care» brush head (d)).
Timer
The timer signals with a short stuttering sound
at 30-seconds intervals to move to the next
quadrant of your mouth. A long stuttering
sound indicates the end of the professionally
recommended 2-minute brushing time.
The timer memorizes the elapsed brushing
time, even when the handle is briefly switched
off during brushing. The timer resets if
pausing longer than 30 seconds or placing
the handle on the plugged-in charger.
Note: During the use of the Oral-B App, the
timer may be deactivated for some features.
Note: You may also customize the timer settings via Oral-B App.
Smart Pressure Sensor features (a)
Your toothbrush is equipped with a Smart
Pressure Sensor (3) that has various functionalities indicated via different colours of light:
White (default) = Operating indicator (choose
individual colour via Oral-B App (b)) /
Low pressure indicator
Red = high pressure indicator / low battery
indicator
Green = recommended pressure indicator
Blue = Bluetooth pairing indicator
Orange = Error indicator (follow display
messages)
Brush with the right pressure indicated with a
green light. If too much pressure is applied, it
lights up in red reminding you to reduce pressure. If the Smart Pressure Sensor illuminates
in white (or your pre-selected colour), we
recommend applying more pressure.
During high pressure the brush head movement will be reduced (in «Daily Clean»,
«Intense Clean» and «Sensitive» modes).
Periodically check the operation of the Smart
Pressure Sensor by pressing moderately on
the brush head during use.
Note: During the use of the Oral-B App, the
Smart Pressure Sensor feedback may be
inactive for some features.
Note: Smart Pressure Sensor is deactived
during «Tongue Clean» mode.
Brushing modes (depending on model)
Your toothbrush offers different brushing
modes indicated on the display:
«Daily Clean» – Standard mode for daily
cleaning
«Sensitive» – Gentle, yet thorough cleaning
for sensitive areas
«Gum Care» – Gentle massage of gums
«Whitening» – Polishing for occasional or
everyday use
«Intense Clean» – For an extraordinary clean
feeling (operated with a higher speed)
«Super Sensitive» – Super gentle cleaning
for extra sensitive areas
«Tongue Clean» – Tongue cleaning for
occasional or everyday use
When operating the «Tongue Clean» mode,
we recommend using a «Gentle Care» brush
head (d). You can brush your tongue either
with or without toothpaste. Brush the whole
area of your tongue systematically in gentle
movements. The recommended brushing time
is 30 seconds; the motor stops after 30 seconds.
Mode setting:
You may first choose your default mode by
pressing the mode button (8) successively
once the handle is awake (display turned on).
Select a mode by pressing the on/off button
(7). Your toothbrush starts in the selected
default mode. You may also change modes
during brushing.
Note: You may also customize mode settings
via Oral-B App.
Interactive Display
Turn on the interactive display (4) by pressing
the on/off button (7). If not further instructed
15
on the display, you may toggle with the mode
button and select with the on/off button.
(10-16) «Mode selection» – toggle by pressing
the mode button and select default start mode
with on/off button.
(17) «Settings» – toggle through all modes
until you reach the option «Settings»;
to enter press the on/off button:
-> (19) manage Bluetooth settings (enable,
disable)
-> (20) select/change colour of Light Ring
-> (21) select/change language
-> (22) perform factory reset
(24) «Timer» – displays brushing time.
(25) «Battery status» – shows battery status
after use, when charging or when battery is low.
(26) «Exchange reminder» – reminds you
when to replace your brush head.
(27) «Brush feedback »– brushing feedback
is indicated with a smiley face.
«Brush waking» when handle is picked up,
lifted off the plugged-in charger or when you
press the on/off button the handle indicates
its readiness.
«Error messages» – «outside operating limits»:
you are operating or charging outside standard temperatures and/or above standard
battery current.
Brush heads
Oral-B offers you a variety of different Oral-B
iO brush heads (c/d) that only fit your Oral-B
iO toothbrush handle and can be used for
tooth-by-tooth precision cleaning.
Most iO Oral-B brush heads feature
INDICATOR® bristles to help you monitor
brush head replacement need.
With thorough brushing, twice a day for two
minutes, its colour will fade halfway approximately within 3 months, indicating the need to
exchange your brush head. If the bristles splay
before the colour recedes, you may exert too
much pressure on teeth and gums.
In general, we recommend replacing the brush
head every 3 months.
(SM)
/ Google Play™ or you may scan the
Store
QR code on the back page of this manual (i).
• Launch the Oral-B App. It will guide you
through the entire Bluetooth pairing
procedure. You may also find it under the
App´s settings (More -> Your brush).
Note: Oral-B App functionality is limited if
Bluetooth is deactivated on your smartphone
(for directions please refer to your smartphone’s user manual).
• Pairing is indicated via the Smart Pressure
Sensor light. Any App instructions will be
displayed on your smartphone.
• You may change Bluetooth settings at
any time on your handle via the display
-> Settings -> Bluetooth enable/disable.
• Keep your smartphone in close proximity
(within 5m distance) when using it with the
handle. Make sure the smartphone is safely
positioned in a dry place.
Note: Your smartphone must support
Bluetooth 4.2 (or higher)/Bluetooth Smart
in order to pair your handle.
Check www.oralbappavailability.co.uk
for compatible smartphones and country
availability of the Oral-B App.
Caution: Follow your smartphone’s user manual to ensure your phone/charger is designed
for use in a bathroom environment.
Cleaning recommendations

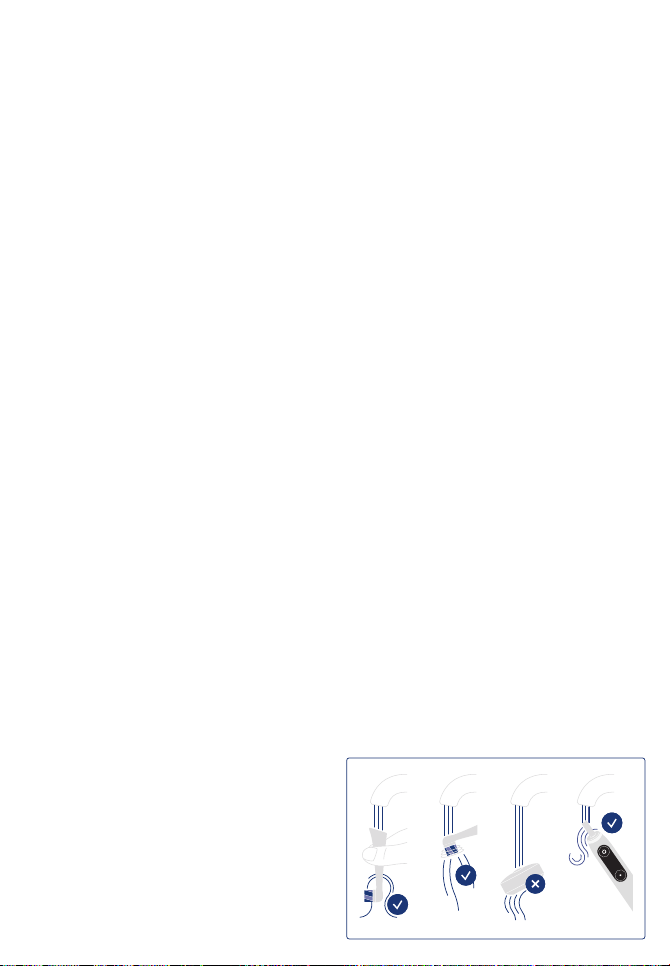

After brushing, rinse your brush head under
running water with the handle switched on.
Remove the brush head and clean the handle
and brush head separately. Make sure water
runs inside the top of the handle as well as
inside the brush head. Wipe all parts dry and
let them air-dry before reassembling your
toothbrush again.
Unplug the charger before cleaning.
Clean the charger regularly with a damp cloth.
Please check individual cleaning instructions
for each accessory in its «Accessories»
paragraph.
Connecting your toothbrush
to your Smartphone
The Oral-B App is available for smartphones
running iOS or Android™ operating systems.
It can be downloaded for free from App
16
Accessories
(depending on model)
Charging Travel Case (h)
• To charge your handle (5) place it in the
charging travel case (h) and connect it to
an electric outlet, using the extra power
supply (h2) provided. The power supply
may be used for all global mains voltage
ranges (100 – 240V).
• The flashing light (h1) of the charging travel
case indicates that the handle is charging.
Once the handle is fully charged the light
turns off. A full charge typically takes
6 hours.
• The outer and inner case should be cleaned
with a damp cloth only. Make sure that the
handle and brush head are completely dry
before storing in the travel case.
Note: Clean stains on travel case surface
immediately. Store travel case in a clean and
dry place.
Travel Case (g)
Store the clean and dry toothbrush/brush
heads in the travel case (g).
The outer and inner case should be cleaned
with a damp cloth only.
Note: Clean stains on travel case surface
immediately. Store travel case in a clean and
dry place.
Brush head holder stand (f) / Brush head
holder with cap (e)
You may store your cleaned brush heads on
the pins of the brush head holders. Make sure
brush heads are dried before placing them in
the holder and/or closing the cap. Brush head
holders and cap are dishwasher-safe.
Zipper Pouch / Magnetic Pouch
Store the clean and dry toothbrush/brush
heads in the zipper pouch.
The outer and inner case can be cleaned
under running water.
Store the clean and dry toothbrush along with
the brush head holder (e) in the magnetic
pouch. Make sure brush heads are dried
before placing them into the holder and/or
closing the cap. The outer and inner surfaces
can be cleaned under running water. Store
pouches in a clean and dry place.
Note: Clean stains on pouch surfaces immediately.
Subject to change without notice.
Environmental Notice
Product contains batteries and/or
recyclable electric waste. For environment protection do not dispose in household waste, but for recycling
take to electric waste collection points
provided in your country.
Battery removal at the end of the product’s
useful life
Do not disassemble the product except when
disposing of the battery. Run down battery
before removing. When taking out the battery
for disposal, use protective clothing (gloves,
safety glasses, etc.) to omit skin contact
whilst leaking batteries. Use caution not to
short the positive (+) and negative (–)
terminals. Insulate terminals (e.g. with tape)
and put the battery in a plastic bag for
disposal.
12
45°
3
6
Li-ion
745
17

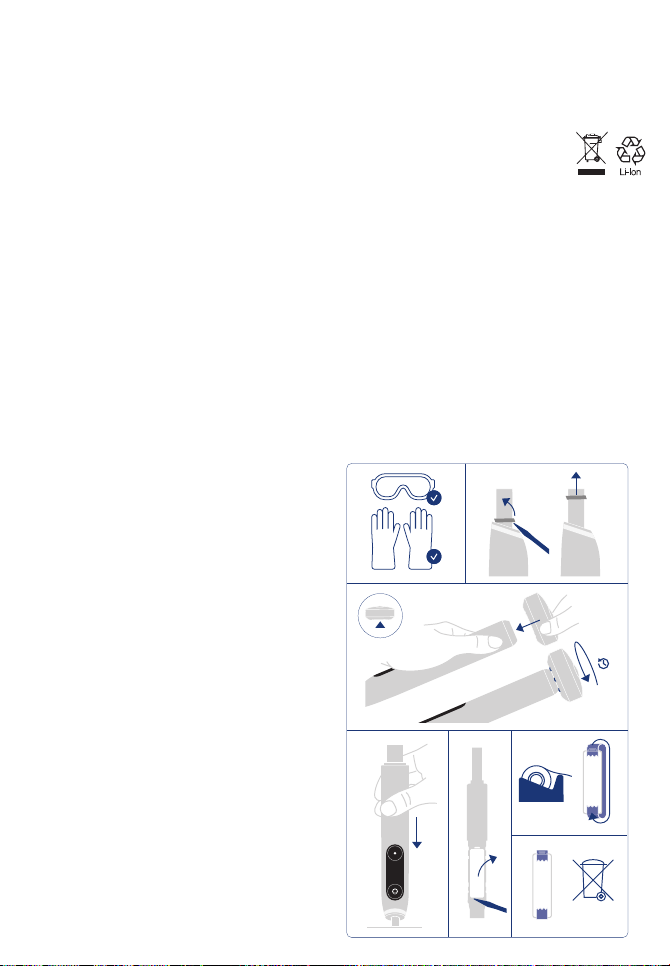

Open the handle as shown, remove the battery and dispose of it according to local environmental regulations.
Caution! Opening the handle will destroy the
appliance and invalidate the warranty.
Guarantee
We grant 2 years guarantee on the product
commencing on the date of purchase.
Within the guarantee period we will eliminate,
free of charge, any defects in the appliance
resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. Depending
on availability replacement of a unit might
sult in a different colour or an equivalent model.
This guarantee extends to every country
where this appliance is supplied by Braun/
Oral-B or its appointed distributor. This guarantee does not cover: damage due to
improper use, normal wear or use, especially
regarding the brush heads, as well as defects
that have a negligible effect on the value or
operation of the appliance.
The guarantee becomes void if repairs are
undertaken by unauthorized persons and if
original Braun/Oral-B parts are not used.
This appliance is equipped with a Bluetooth
Smart approved radio interface. Failure to
establish a Bluetooth Smart connection to
specific smartphones is not covered under the
device guarantee, unless the malfunction of
the Bluetooth interface is referable to Oral-B.
The Bluetooth devices are warranted by their
own manufacturers and not by Oral-B. Oral-B
does not influence or make any recommendations to device manufacturers, and therefore
Oral-B does not assume any responsibility for
the number of compatible devices with our
Bluetooth interface.
Oral-B reserves the right, without any prior
notice, to make any technical modifications or
changes to system implementation of device
features, interface, and menu structure
changes that are deemed necessary to ensure
that Oral-B systems function reliably.
To obtain service within the guarantee period,
hand in or send the complete appliance with
your sales receipt to an authorized Oral-B
Braun Customer Service Centre.
18
re-
Information
Bluetooth
Although all indicated functions on the Bluetooth device are supported, Oral-B does not
ensure 100% reliability in connection, and feature operation consistency.
Operation performance and connection reliability are direct consequences of each individual Bluetooth device, software version, as well
as the operating system of those Bluetooth
devices and company security regulations
implemented on the device.
Oral-B adheres to and strictly implements the
Bluetooth standard by which Bluetooth
devices can communicate and function in
Oral-B toothbrushes.
However, if device manufacturers fail to implement this standard, Bluetooth compatibility
and features will be further compromised and
the user may experience functional and feature-related issues. Please note that the software on the Bluetooth device can significantly
affect compatibility and operation.
Warranty – Exclusions and Limitations
This limited warranty applies only to the new
products manufactured by or for The Procter
& Gamble Company, its Affiliates or Subsidiaries («P&G») that can be identified by the
Braun / Oral-B trademark, trade name, or logo
affixed thereto. This limited warranty does not
apply to any non-P&G product including hardware and software. P&G is not liable for any
damage to or loss of any programs, data, or
other information stored on any media contained within the product, or any non-P&G
product or part not covered by this limited
warranty. Recovery or reinstallation of
programs, data or other information is not
covered under this limited warranty.
This limited warranty does not apply to (i)
damage caused by accident, abuse, misuse,
neglect, misapplication, or non-P&G product;
(ii) damage caused by service performed by
anyone other than Braun or authorized Braun
service location; (iii) a product or part that has
been modified without the written permission
of P&G, and (iv) damage arising out of the use
of or inability to use the Oral-B Smartphone
stand/puck, Smartphone mirror holder, or
charging travel case («Accessories»).
LIMITATION OF LIABILITY
TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL P&G ITS
®
radio module
DISTRIBUTORS OR SUPPLIERS BE LIABLE
TO YOU OR ANY THIRD PARTY FOR ANY
DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, EXEMPLARY OR PUNITIVE DAMAGES, OF ANY NATURE WHATSOEVER, ARISING OUT OF THE USE OF OR
INABILITY TO USE THE ORAL-B ACCESSORIES, INCLUDING, WITHOUT LIMITATION,
INJURY TO PERSONS, PROPERTY DAMAGE,
LOSS OF VALUE OF ANY THIRD PARTY
PRODUCTS THAT ARE USED IN OR WITH
THE ORAL-B ACCESSORIES, OR LOSS OF
USE OF THE ORAL-B ACCESSORIES OR ANY
THIRD PARTY PRODUCTS THAT ARE USED
IN OR WITH THE ORAL-B ACCESSORIES,
EVEN IF P&G HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. WITHOUT
LIMITING THE FOREGOING, YOU UNDERSTAND AND AGREE THAT P&G HAS NO LIABILITY FOR ANY DAMAGE OR DESTRUCTION
TO CONSUMER ELECTRONICS DEVICES OR
OTHER PERSONAL PROPERTY THAT ARE
CONTAINED ON OR EXTERIOR TO THE
ORAL-B ACCESSORIES, OR ANY LOSS OF
DATA CONTAINED IN THE FOREGOING
DEVICES. IN NO EVENT SHALL ANY RECOVERY AGAINST ORAL-B EXCEED THE ACTUAL
PRICE PAID FOR THE PURCHASE OF THE
PRODUCT.

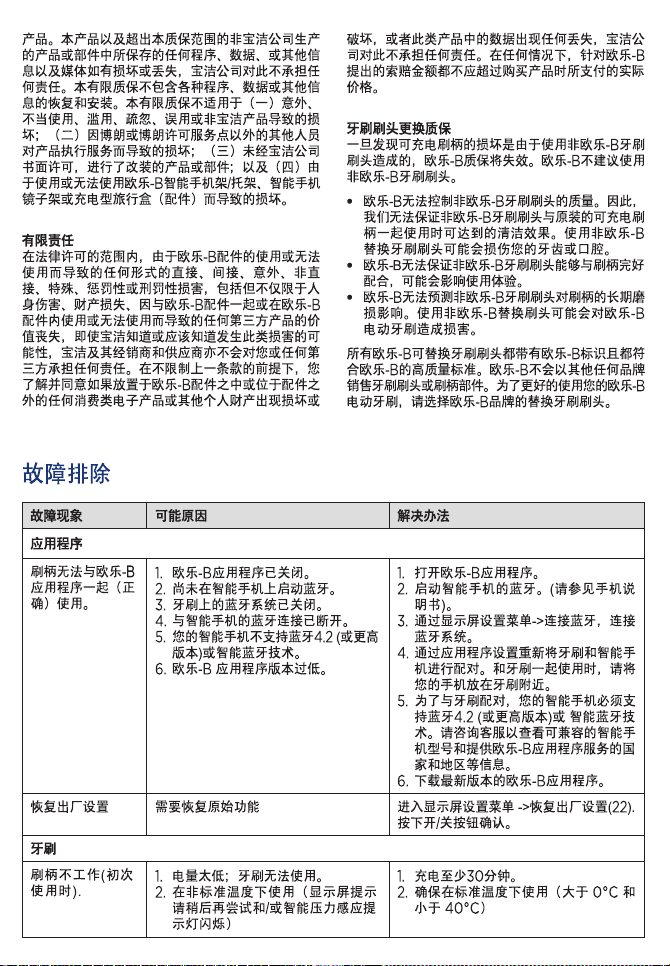

Warranty replacement brush heads
Oral-B warranty will be voided if electric
rechargeable handle damage is found to be
attributed to the use of non-Oral-B replacement brush heads.
Oral-B does not recommend the use of nonOral-B replacement brush heads.
• Oral-B has no control over the quality of
non-Oral-B replacement brush heads.
Therefore, we cannot ensure the cleaning
performance of non-Oral-B replacement
brush heads, as communicated with the
electric rechargeable handle at time of initial purchase.
• Oral-B cannot ensure a good fit of non-
Oral-B replacement brush heads.
• Oral-B cannot predict the long-term effect
of non-Oral-B replacement brush heads on
handle wear.
All Oral-B replacement brush heads carry the
Oral-B logo and meet Oral-B’s high quality
standards. Oral-B does not sell replacement
brush heads or handle parts under any other
brand name.
Trouble Shooting
Problem Possible reason Remedy
APP
Handle does
not operate
(properly) with
Oral-B App.
1. Oral-B App is closed.
2. Bluetooth is not activated on
smartphone.
3. Bluetooth is disabled on handle.
4. Bluetooth connection to smartphone has been lost.
5. Your smartphone does not support Bluetooth 4.2 (or higher)/
Bluetooth Smart.
6. Outdated Oral-B App.
1. Launch Oral-B App.
2. Activate Bluetooth on smartphone
(described in its user manual).
3. Enable Bluetooth via display
Settings -> Bluetooth enable.
4. Pair handle and smartphone again
via App settings. Keep your smartphone in close proximity when
using it with handle.
5. Your smartphone must support
Bluetooth 4.2 (or higher)/
Bluetooth Smart in order to pair
handle.
Check www.oralbappavailability.co.uk
for compatible smartphones and
country availability of the Oral-B App.
6. Download latest Oral-B App.
19
Reset to factory
settings.
TOOTHBRUSH
Handle is not
operating
(during first use).
Short stuttering
sounds after
2 minutes or handle does not
operate any
timer.
Handle does
not charge.
Rattling/loud
noise during
brushing or
turning on.
Original functionality wanted. Enter via display Settings -> Factory
1. Battery has a very low charge
level; handle does not operate.
2. Operating outside standard temperature (message on
display and/or alternating lights
of Smart Pressure Sensor)
Timer has been modified/deactivated via App.
1. Battery is at a very low charger
level (0%); it may take up to
10-15min until display turns on.
2. Ambient temperature for
charging is out of valid range
(< 0°C and > 40°C).
3. Charger may not be (properly)
connected.
1. Brush head may not be placed
correctly onto the brush handle.
2. Brush head may be worn.
Reset (22). Press on/off button to confirm.
1. Charge at least for 30 min.
2. Always operate in standard
operating temperatures
(> 0°C and < 40°C).
Use App to change timer settings or
perform factory reset
(see App Trouble Shootings).
1. Charge at least for 30min.
2. Recommended ambient temperature for charging is 5°C to 35°C.
3. Ensure charger is connected to
mains voltage.
1. Check proper fit of brush head
on handle. Small gap remains in
between.
2. Replace brush head.
The rechargeable toothbrush contains a radio
module which operates in the 2.4 to 2.48 GHz
band with a maximum power of 1mW.
Hereby, Braun GmbH declares that the radio
equipment types 3758a, 3771, 3765, 3754,
20
3762 and 3767 are in compliance with
3764,
Directive
declaration
following internet address: www.oralb.com/ce.
2014/53/EU. The full text of the EU
of conformity is available at the
91073117
Loading...
