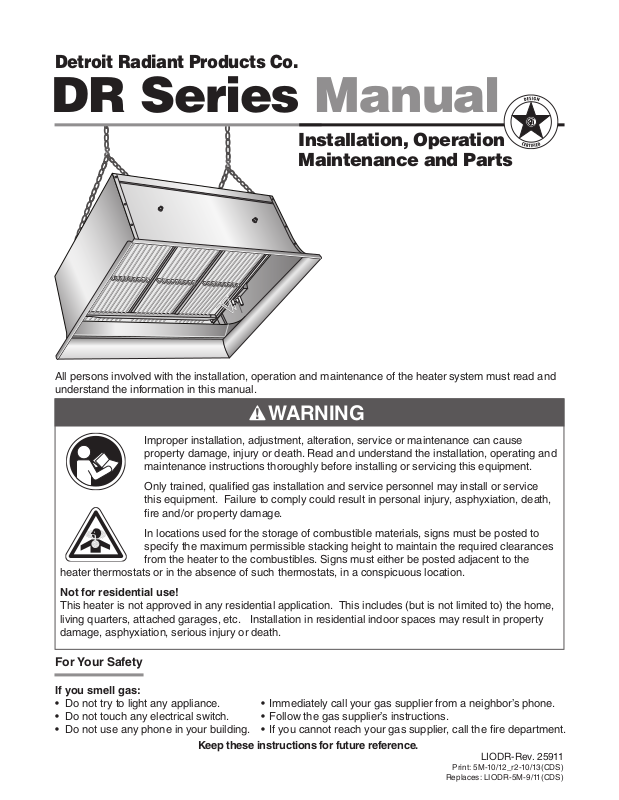

BRANT RADIANT DR User Manual

Detroit Radiant Products Co.

DR Series Manual

Installation, Operation Maintenance and Parts

All persons involved with the installation, operation and maintenance of the heater system must read and understand the information in this manual.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read and understand the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

Only trained, qualiﬁed gas installation and service personnel may install or service this equipment. Failure to comply could result in personal injury, asphyxiation, death, ﬁre and/or property damage.

In locations used for the storage of combustible materials, signs must be posted to specify the maximum permissible stacking height to maintain the required clearances from the heater to the combustibles. Signs must either be posted adjacent to the

heater thermostats or in the absence of such thermostats, in a conspicuous location.

Not for residential use!

This heater is not approved in any residential application. This includes (but is not limited to) the home, living quarters, attached garages, etc. Installation in residential indoor spaces may result in property damage, asphyxiation, serious injury or death.

For Your Safety

If you smell gas:

• Do not try to light any appliance. • Immediately call your gas supplier from a neighbor’s phone.

• Do not touch any electrical switch. • Follow the gas supplier’s instructions.

• Do not use any phone in your building. • If you cannot reach your gas supplier, call the ﬁre department.

Keep these instructions for future reference.

LIODR- Re v. 25 911

Print: 5M-10/12_r2-10/13(CDS)

Replaces: LIODR-5M-9/11(CDS)

DR Series Manual

Contents

1.0 Safety.................................................................... 3

Safety Symbols ....................................................... 3

Applications .......................................................... 3

Clearance to Combustibles .............................................. 4

Gas Connection....................................................... 6

Standards, Certiﬁcations and Government Regulations ........................ 6

Safety Signs and Labels ................................................ 8

2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Heater Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Total Area Heating ..................................................10

Spot Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

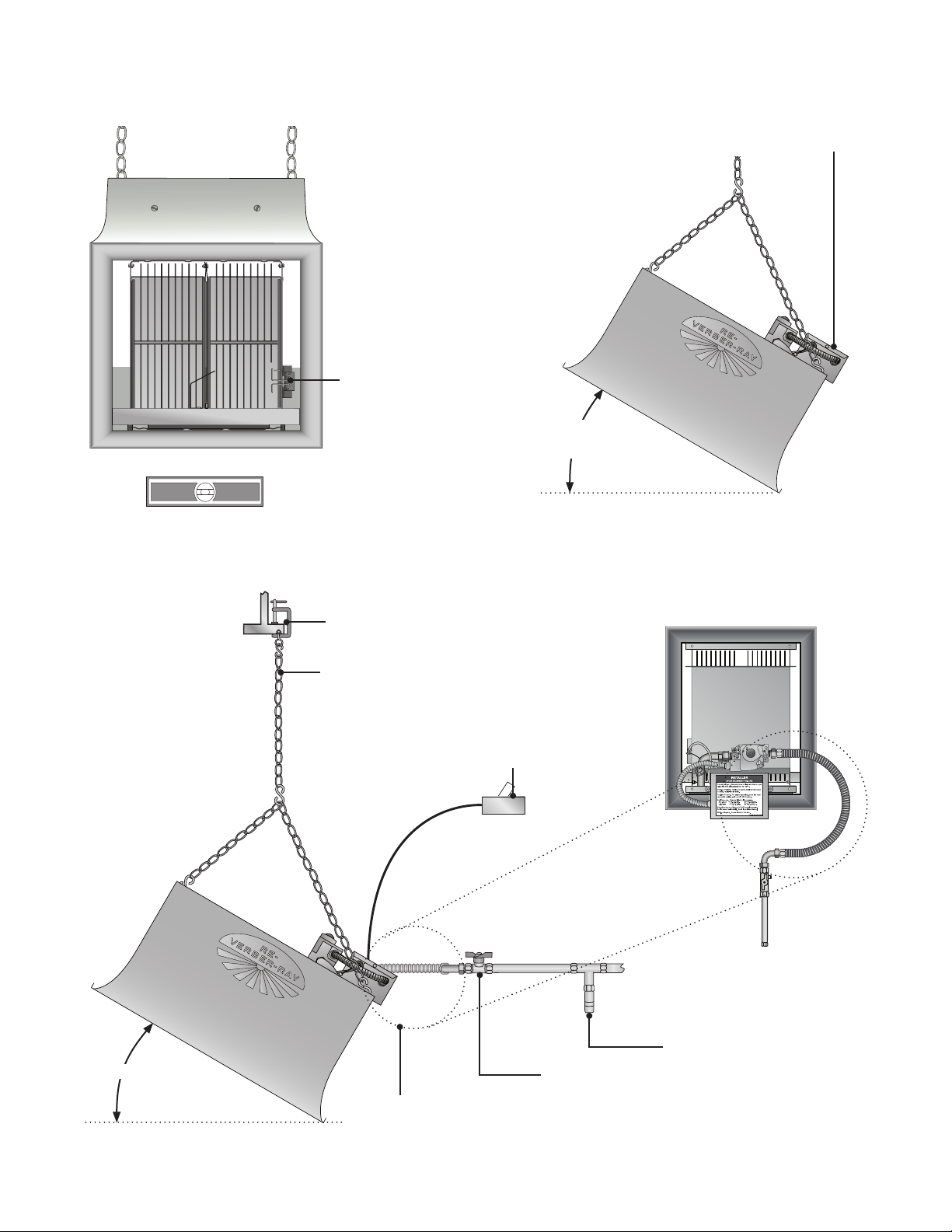

Heater Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Ventilation ...........................................................14

Gas Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Electrical ............................................................17

3.0 Operation ................................................................19

4.0 Maintenance ..............................................................20

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

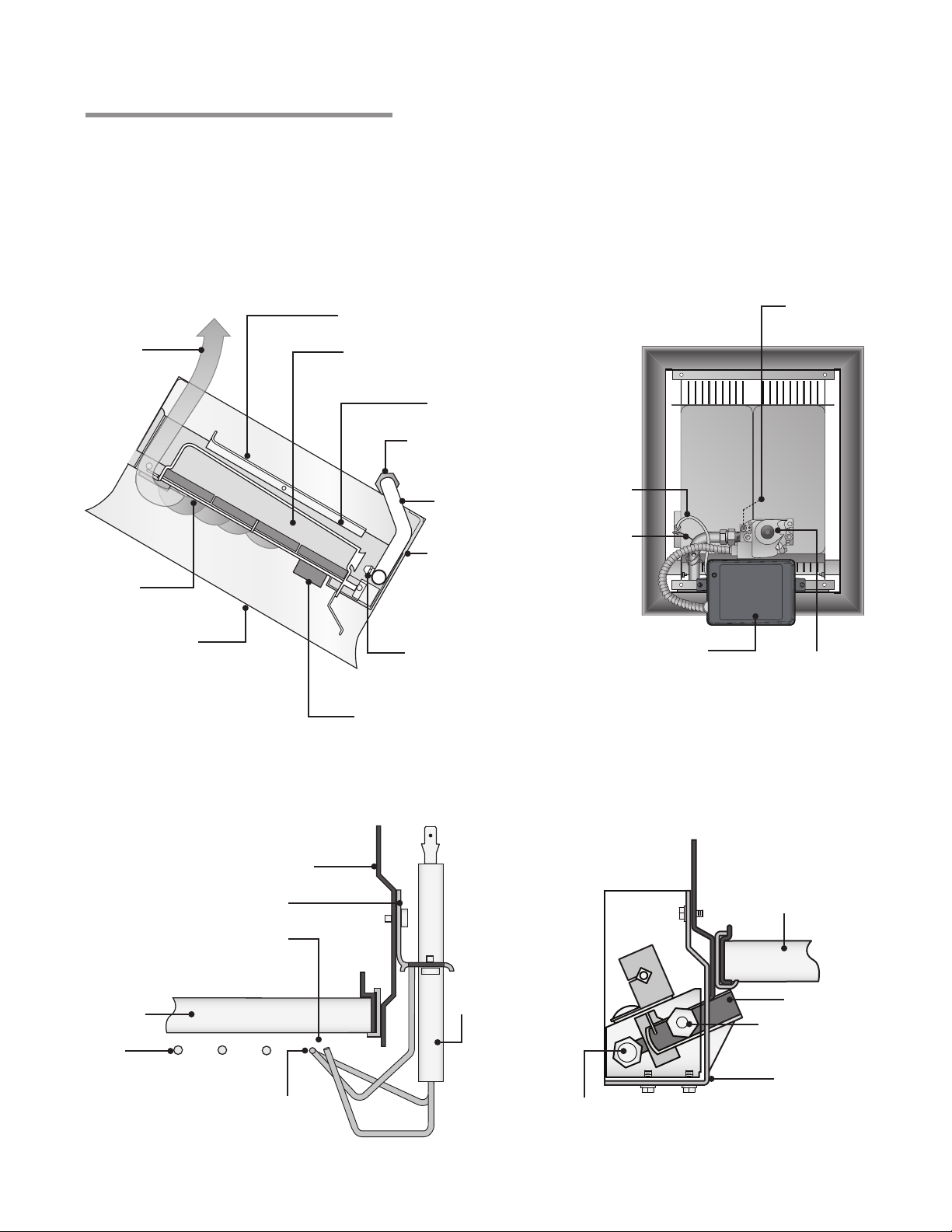

Heater Assembly Components ...........................................22

Parts Listing..........................................................23

5.0 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

DR Series Manual

1.0 Safety • Safety Symbols • Applications

1.0 Safety

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause property damage, serious injury or death. Read and understand the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. Only trained, qualiﬁed gas installation and service personnel may install or service this equipment.

Safety Symbols

Safety is the most important consideration during installation, operation and maintenance of the infrared heater. You will see the following symbols and signal words when there is a hazard related to safety or property damage.

Warning indicates a potentially hazardous situation

WARNING

which, if not avoided, could result in death or injury.

Caution indicates a potentially hazardous situation

CAUTION

NOTICE

which, if not avoided, could result in minor or moderate injury.

Notice indicates a potentially hazardous situation which, if not avoided, could result in property damage.

Applications

This is not an explosion proof heater. Consult your local ﬁre marshall, insurance carrier and other authorities for approval of the proposed installation.

Commercial / Industrial

Infrared heaters are designed and certiﬁed for use in industrial and commercial buildings such as warehouses, manufacturing plants, aircraft hangars and vehicle maintenance shops. For maximum safety, the building must be evaluated for potential hazards before installing the heater system. A critical safety factor to consider before installation is the clearance to combustibles.

Residential

This heater is NOT approved for use in any residential application. This includes, but not limited to, attached garages, living quarters, solariums, etc. Consult the local ﬁre marshal and/or insurance provider if unsure of your application.

WARNING

Not For Residential Use.

Installation of an infrared heater system in residential indoor spaces, RV’s, mobile homes, etc. may result in property damage, asphyxiation, ﬁre, serious injury or death.

1.0 Safety • Clearance to Combustibles

DR Series Manual

Clearance to Combustibles

WARNING

Improperly connected gas lines may result in serious injury or

death, explosion, poisonous fumes, toxic gases, asphyxiation. Connect gas lines in accordance to national, state, provincial and local codes.

Placement of explosive objects, ﬂammable objects, liquids and vapors close to the heater may result in explosion, ﬁre, property damage, serious injury or death. Do not store, or use, explosive objects, liquids and vapor in the vicinity of the heater.

Failure to comply with the published clearances to combustibles could result in personal injury, death and/or property damage.

CAUTION

Signs shall be posted specifying the maximum permissible stacking height in order to maintain clearances to combustibles.

Hazards Include:

For maximum safety the building must be evaluated for hazards before installing the heater system. Examples include, but are not limited to:

• Gas and electrical lines

• Combustible and explosive materials

• Chemical storage areas

• Areas of high chemical fume concentrations

• Provisions for accessibility to the heater

• Adequate clearances around air openings

• Combustion and ventilating air supply

A critical safety factor to consider before installation is the clearances to combustibles. Clearance to combustibles is deﬁned as the minimum distance you must have between the infrared surface, or reﬂector, and the combustible item. Considerations must also be made for moving objects around the infrared heater. The following is a partial list of items to maintain clearances from:

• Vehicle parking areas

• Vehicles with lifts or cranes

• Storage areas with stacked materials

• Lights

• Sprinkler heads

• Overhead doors and tracks

• Dirty, contaminated environment

Combustible Items Include: Moving Objects Include:

• Wood • Overhead doors

• Paper • Vehicles on lifts

• Fabric • Cranes

• Chemicals • Hoists

• Wall or roof insulation • Car wash equipment

When installing the infrared heater system, the minimum clearances to combustibles must be maintained. These distances are shown in Chart 1.1 and on the heater. If you are unsure of the potential hazards, consult your local ﬁre marshall, ﬁre insurance carrier or other qualiﬁed authorities on the installation of gas ﬁred infrared heaters for approval of the proposed installation.

DR Series Manual

1.0 Safety • Clearance to Combustibles

Chart 1.1 • Clearance to Combustibles in Inches (see Figure 1.1)

Model No. Sides Back Top Below/Front

DR 30 (S) 30 18 28 72

DR 45 30 18 28 72

DR 50 30 18 34 72

DR 55 32 18 40 72*

DR 60 32 18 40 72*

DR 75 48 30 42 98

DR 80 48 30 42 98

DR 85 48 30 42 98

DR 90 48 30 42 98

DR 95 48 30 52 120

DR 100 48 30 52 120

DR 130 48 30 52 120

DR 160 50 32 60 132

* This clearance is 80 in. when the heater is ﬁtted with a parabolic reﬂector. NOTE: If the heater is mounted beneath a non-combustible surface, a 24 in. minimum top clearance must be maintained from the top of the heater to prevent overheating the controls.

Figure 1.1 • Clearance to Combustibles

Top

SideSide

Front

20° - 35°

Back

Manifold or

Control End

Mount Heater Level

- Side to Side -

Below

FRONT VIEW SIDE VIEW

1.0 Safety • Gas Connection • Standards, Certiﬁcations and Government Regulations

DR Series Manual

Gas Connection

WARNING

An approved connector, suitable for the environment of equipment usage, is required. Visible or excessive swaying, ﬂexing and vibration of the gas connections must be avoided to prevent failure. Neither the gas pipe nor the connector shall be placed in the ‘ﬂue discharge area’. In no case shall the gas supply support the weight of the heater.

To ensure your safety, and comply with the terms of the warranty, all units must be installed in accordance with these instructions.

Standards, Certiﬁcations and Government Regulations

Installation of this infrared heater must comply with all applicable local, state and national speciﬁcations, regulations and building codes. Contact the local building inspector and/or ﬁre marshall for guidance.

In the absence of local codes, the installation must conform to the latest edition of: United States: National Fuel Gas Code, ANSI Z223.1 (NFPA 54). Canada: CAN/CGA B149.1 and .2, Canadian Electrical Code C22.1

Chart 1.2 • Standards and Code Installation Guidelines • Building Aspect

Building

Aspect

Electrical

Venting

The heater must be electrically grounded in accordance with the following codes:

United States: Refer to National Electrical Code Wiring must conform to the latest edition of National Electrical Code

Canada: Refer to Canadian Electrical Code CSA C22.1 Part 1 (latest edition).

The space being heated by unvented heaters must meet ventilation requirements.

Codes and Guidelines

, ANSI/NFPA 70 (latest edition).

, local ordinances, and any special diagrams furnished.

DR Series Manual

1.0 Safety • Standards, Certiﬁcations and Government Regulations

Chart 1.3 • Standards and Code Installation Guidelines • Building Type

Building

Type

Public

Garages

Aircraft

Hangars

Codes and Guidelines

Installation of this infrared heater in public garages must conform to the following codes:

United States:

Standard for Parking Structures NFPA 88A (latest edition) or the

Code for Motor Fuel Dispensing Facilities and Repair Garages NFPA 30A (latest edition).

Canada: Refer to CAN/CGA B149.1 and B149.2: Installation Codes for Gas Burning Appliances.

Guidelines:

• Heaters must not be installed less than 8 ft. (2.4 m) above the ﬂoor. Minimum clearances to combustibles must be maintained from vehicles parked below the heater.

• When installed over hoists, minimum clearances to combustibles must be maintained from the upper most point of objects on the hoist.

Installation of this infrared heater in aircraft hangars must be in accordance with the following codes:

United States: Refer to Standard for Aircraft Hangars, ANSI/NFPA 409 (latest edition).

In Canada: Refer to Standard CAN/CGA B149.1 and B149.2.

Guidelines:

• In aircraft storage and servicing areas, heaters shall be installed at least 10 ft. (3 m) from above the upper surface of wings or of the engine enclosures of the highest aircraft that may be housed in the hangar. The measurement shall be made from the wing or engine enclosure, whichever is higher from the ﬂoor, to the bottom of the heater.

• In areas adjoining the aircraft storage area (e.g., shops, ofﬁces) the bottom of heaters shall be installed no less than 8 ft. (2.4 m) above the ﬂoor.

• Suspended or elevated heaters shall be located in spaces where they shall not be subject to damage by aircraft, cranes, movable scaffolding or other objects.

Provisions shall be made to assure accessibility to suspended infrared heaters for recurrent maintenance purposes.

Detroit Radiant Products units comply or are certiﬁed by one or more of the following organizations or standards:

• CSA Design Certiﬁed (CSA 2.35).

• American National Standards (ANSI Z83.19).

• Underwriters Laboratory (UL).

• Certiﬁcation of Europe (CE).

• Infrared Heater Safety Council. (IRSC).

1.0 Safety • Safety Signs and Labels

DR Series Manual

Safety Signs and Labels

It is important to provide warnings to alert individuals to potential hazards and safety actions. ANSI Z83.19 and the National Fuel Gas Code require you to post a sign “specifying the maximum permissible stacking height to maintain the required clearances from the heater to the combustibles” near the heater’s thermostat or in absence of such thermostats in a conspicuous location. Signs should state the hazards for the particular application and be legible to the building occupants. Consult the factory or a factory representative for additional information on signage compliance.

RE-VERBER-RAY INFRA-RED RADIANT HEATER

Safety warning labels must be maintained on the infrared heater. Illustrations of the safety labels, and their locations, are pictured below.

Back View

MODEL NO.

Volts AC:

AMPS - Starting:

AMPS - Running:

Heater Type:

DESIGN COMPLIES WITH:

ANSI Z83.20-2001-GAS FIRED LOW INTENSITY INFRA-RED HTR.

DETROIT RADIANT PRODUCTS COMPANY

21400 HOOVER ROAD - WARREN, MI (586) 756-0950 - www.drp-co.com

DR60-NFS-2 120

120V - 60Hz

0.1

FOR OUTDOOR USE AND INDOOR (Non-Residential) INSTALLATION ONLY. High - Intensity Infrared Heater Class IIIA Permanent Label

INPUT BTU/H

60,000

Manifold Pressure:

6.0 in.

W.C.P.

Maximum Inlet Pressure:

14 in.

W.C.P.

Minimum Inlet Pressure:

7.0 in.

W.C.P.

VERSION

05/97

FOR USE WITH

Heater Type

Minimum Mounting Angle:

2035DEGREES

Maximum Mounting Angle:

Serial No. 08 07 DRPC 123456 0001

Rating Plate

Natural Gas

DEGREES

Bottom View

F/N: LL01 - Clearance

Safety Tag

(Afﬁx adjacent to

heater’s thermostat)

RE-VERBER-RAY INFRA-RED RADIANT HEATER

FOR OUTDOOR USE AND INDOOR (Non-Residential) INSTALLATION ONLY. High - Intensity Infrared Heater Class IIIA Permanent Label

MODEL NO.

INPUT BTU/H

DR60-NFS-2 120

60,000

Volts AC:

Manifold Pressure:

120V - 60Hz

6.0 in.

AMPS - Starting:

Maximum Inlet Pressure:

0.1 14 in.

AMPS - Running:

Minimum Inlet Pressure:

0.1

7.0 in.

Heater Type:

DESIGN COMPLIES WITH:

ANSI Z83.20-2001-GAS FIRED LOW INTENSITY INFRA-RED HTR.

DETROIT RADIANT PRODUCTS COMPANY

21400 HOOVER ROAD - WARREN, MI (586) 756-0950 - www.drp-co.com

W.C.P.

VERSION

05/97

Serial No. 08 07 DRPC 123456 0001

FOR USE WITH

Natural Gas

Heater Type

Minimum Mounting Angle:

2035DEGREES

Maximum Mounting Angle:

DEGREES

F/N: LLDR002

F/N: LLDCL002

Clearance to Combustibles Label

DR Series Manual

2.0 Installation • Design

2.0 Installation

WARNING

Read and understand, the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

Only trained, qualiﬁed gas installation and service personnel may install or service this equipment.

CAUTION

This heater cannot be used in a building with an uninsulated roof or condensation problems can occur.

Design

To ensure a safe, properly designed heating system, a layout should be developed for the correct placement of the infrared heater(s). Aside from safety factors such as clearance to combustibles (see Chart 1.1 on page 5), you should take also into consideration the environment (e.g., cold/drafty, average, protected), heat coverage (sq. ft.) needed, heater centers, the distance behind a person or work station(s) and exhaust path. Also, the effective infrared surface temperature of a person or object may be diminished with wind above 5 mph. Wind barrier(s) may be required. Most importantly, clearance to combustibles must always be maintained! Refer to hazards on page 4.

This installation manual, along with national, state, provincial and local codes, address these issues. It is critical that you read, understand and follow all guidelines and instructions. Always inspect and evaluate the mounting conditions, space for exhaust, gas supply and wiring.

Perimeter mounting of infrared heaters provides the most effective distribution of heat. The recommended spacing between the heaters is shown in Chart 2.1. Add additional heaters in the center of the space when heaters are spaced farther than the recommended distance (see Figure 2.1 ).

When heated, materials high in hydrocarbons (solvents, paint thinner, mineral spirits, formaldehydes, etc.) can evaporate. This may result in odors or fumes being emitted into the environment. To correct this problem, clean the area and/or introduce additional ventilation. Heaters installed and serviced in accordance with the installation manual do not emit foul odors into the environment.

IMPORTANT: Fire sprinkler heads must be located at an appropriate distance from the heater. This distance may exceed the published clearance to combustibles. Certain applications will require the use of high temperature sprinkler heads or relocation of the heaters.

Sprinkler systems containing propylene glycol or other ﬂammable substances are not to be used in conjunction with this heater without careful consideration for and avoidance of potential ﬁre or explosion hazards. For further information consult NFPA 13. Always observe applicable state and local codes.

2.0 Installation • Heater Placement

DR Series Manual

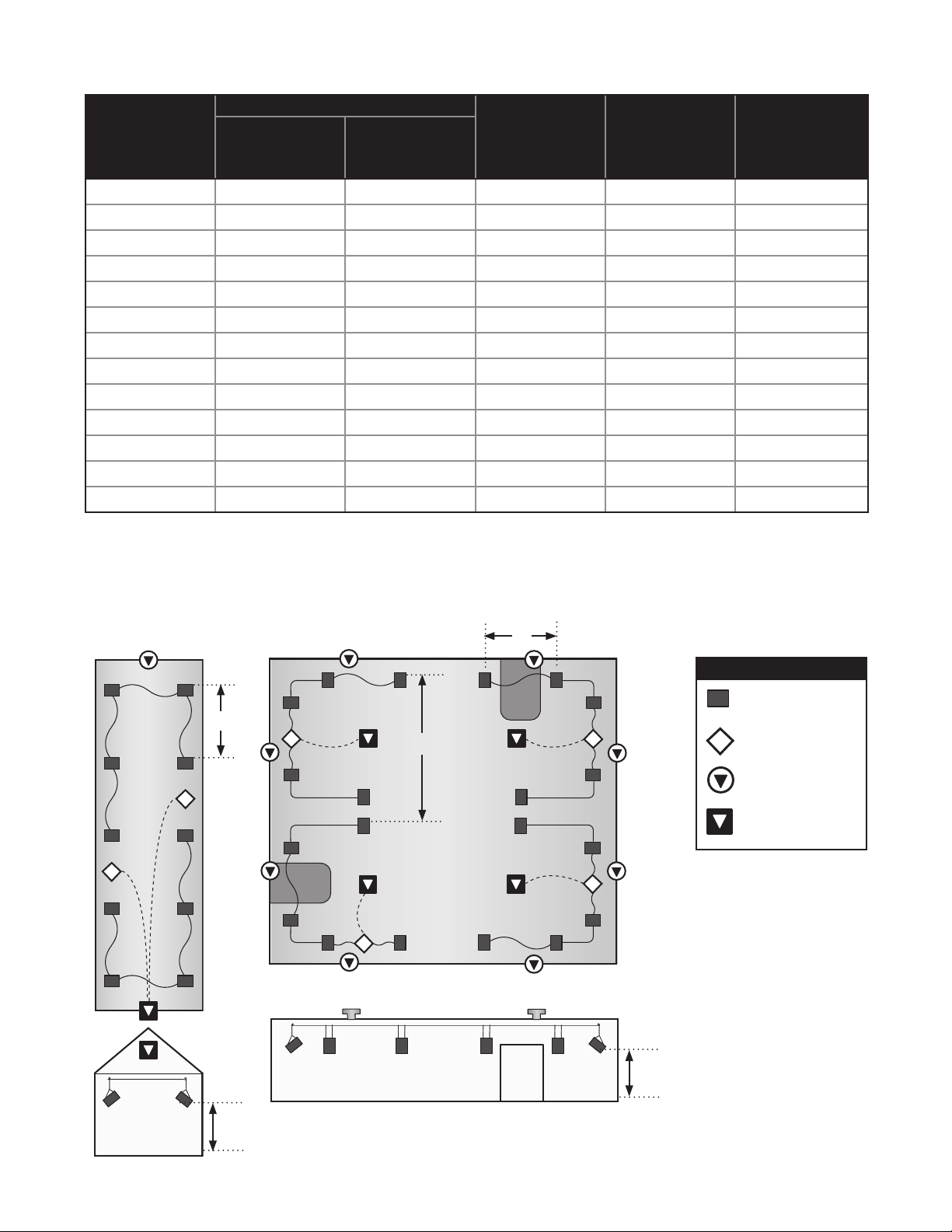

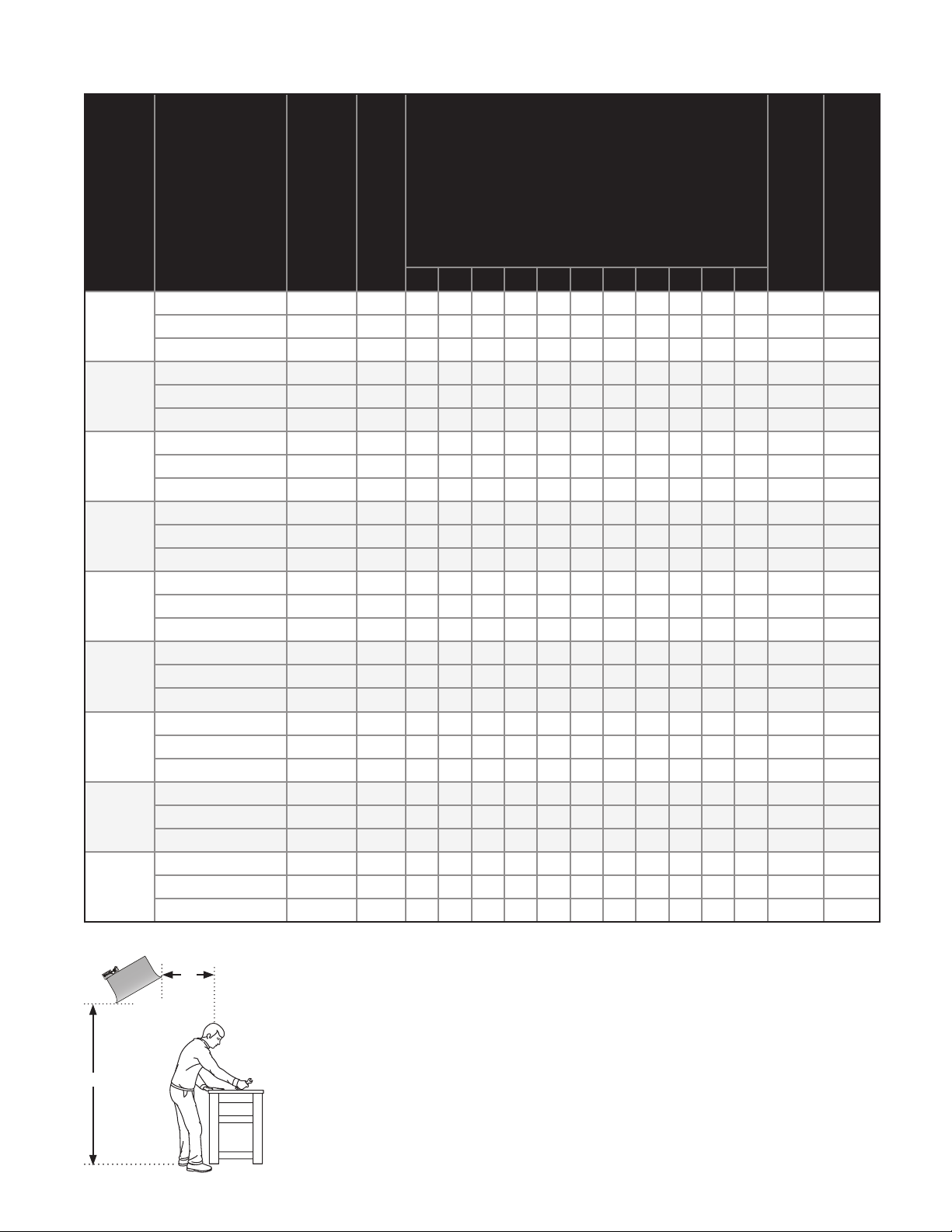

Chart 2.1 • Recommended Mounting Heights and Distances for “Total Area” Heating

Model No.

Mounting Heights Dim. A

30º Angle

Standard

Reﬂector (ft.)

30º Angle Parabolic

Reﬂector (ft.)

Distance Between

Heaters

Dim. B

(ft.)

DR 30(S) 12-14 12-15 8-24 15-40 4-8

DR 45 12-14 16-19 12-36 15-55 6-12 DR 50 12-14 17-20 12-36 15- 55 6-12 DR 55 13-15 18-21 12-36 15-55 6-12 DR 60 14-16 18-21 12-36 15-55 6-12 DR 75 15 -17 19 -22 16- 48 20 -70 6-12 DR 80 15-17 19-22 16- 48 20-70 6-12 DR 85 16-18 21-25 16-48 20-70 6-12 DR 90 16-18 21-25 16-48 20-70 6-12

DR 95 17-20 21-25 16-48 20-70 6-12 DR 100 17-20 23-27 16-48 20 -70 6 -12 DR 130 21-24 26-32 20-60 25-85 8-14 DR 160 24-28 29-35 24-65 30 -100 8 -14

Factory recommended mounting heights are listed as a guideline. If infrared heaters are mounted too low or too high, they may result in discomfort or lack of heat. Detroit Radiant Products Company generally recommends observing the recommended mounting heights to optimize comfort conditions. However, certain applications such as spot heating, freeze protection, outdoor patio heating or very high ceilings may result in the heaters being mounted outside of the recommended mounting heights.

Figure 2.1 • Total Area Heating Sample Layout

Distance Between

Heater Rows

Dim. C (ft.)

Distance Between

Heater

and Wall (ft.)

Key

Infrared heater

Thermostat

Air intake louver

Exhauster

Perimeter mounting

Perimeter and center row mounting

DR Series Manual

2.0 Installation • Heater Placement

Chart 2.2 • Recommended Mounting Heights and Distances for “Spot” Heating

Recommended

Mounting Height

(Dim. A)

Model & Input

DR-30

30,000

BTU/h

DR-45

45,000

BTU/h

DR-60

60,000

BTU/h

DR-75

75,000

BTU/h

DR-90

90,000

BTU/h

DR-95

95,000

BTU/h

DR -10 0

100,000

BTU/h

DR -130

130,000

BTU/h

DR-160

160,000

BTU/h

Type of Area

(Surroundings)

Cold/Drafty 10’ x 10’ 100 9’ 4’ 10’

Average 12’ x 12 ’ 144 10’ 12’ 5’ 12’

Protected/Insul. 14’ x 14’ 196 12’ 14’ 6’ 14’

Cold/Drafty 12’ x 12 ’ 144 10’ 12’ 5’ 12’

Average 14’ x 14’ 196 12’ 14’ 6’ 14’

Protected/Insul. 16’ x 16’ 256 14’ 16’ 7’ 16’

Cold/Drafty 16’ x 16’ 256 12’ 14’ 6’ 16’

Average 18’ x 18’ 324 14’ 16’ 7’ 18’

Protected/Insul. 20’ x 20’ 400 16’ 18’ 8’ 20’

Cold/Drafty 18’ x 18’ 324 14’ 16’ 7’ 18’

Average 22’ x 22’ 484 16’ 18’ 8’ 22’

Protected/Insul. 26’ x 26’ 676 18’ 20’ 9’ 24’

Cold/Drafty 20’ x 20’ 400 16’ 18’ 9’ 20’

Average 24’ x 24’ 576 18’ 20’ 10’ 24’

Protected/Insul. 28’ x 28’ 784 20’ 11 ’ 26’

Cold/Drafty 24’ x 24’ 576 18’ 10’ 24’

Average 28‘ x 28’ 784 18’ 20’ 11’ 26’

Protected/Insul. 32’ x 32’ 1024

Cold/Drafty 24’ x 24’ 576 18’ 10’ 24’

Average 28‘ x 28’ 784 18’ 20’ 11’ 26’

Protected/Insul. 32’ x 32’ 1024 20’ 12’ 30’

Cold/Drafty 26’ x 26’ 676 18’ 11’ 26’

Average 30’ x 30’ 900 18’ 20’ 12’ 28’

Protected/Insul. 35’ x 35’ 1225 20’ 22’ 13’ 32’

Cold/Drafty 28’ x 28’ 784 20’ 22’ 12’ 28’

Average 35’ x 35’ 1225 24’ 26’ 16’ 32’

Protected/Insul. 40’ x 40’ 1600 28’ 30’ 20’ 35’

Approx. Area Covered

10’ 12’ 14’ 16’ 18’ 20’ 22’ 24’ 26’ 28’ 30’

Approx. Coverage

(sq. ft.)

20’ 12’ 26’

Distance Behind Person

or Work Station (Dim. B)

Centers for Full Coverage

(Spot & Area) Htg. Only

Figure 2.2 • Spot Heater Heights

2.0 Installation • Heater Mounting

DR Series Manual

Heater Mounting

WARNING

Improper suspension of the infrared heater may result in collapse and being crushed. Always suspend from a permanent part of the building structure that can support the total force and weight of the heater.

Failure to maintain minimum clearance to combustibles may result in ﬁre and/or explosion, property damage, serious injury or death. Always maintain minimum clearances and post signs or provided tags (F/N: LL01) where needed. Signs should state the hazards for the particular application and be legible to the building occupants. Consult the factory or a factory representative for additional information on signage compliance.

The heater can be suspended with chains or rigid threaded rod. Local codes, or conditions that would cause the unit to move (e.g., wind drafts, blowers, crane rails, etc.), may require rigid threaded rod. Consult all applicable codes before installation.

The heater must be level from side to side and between 20° and 35° from horizontal. The pilot burner or ignitor, manifold and controls must be located on the lower end. Refer to ﬁgures 2.3 and 2.4.

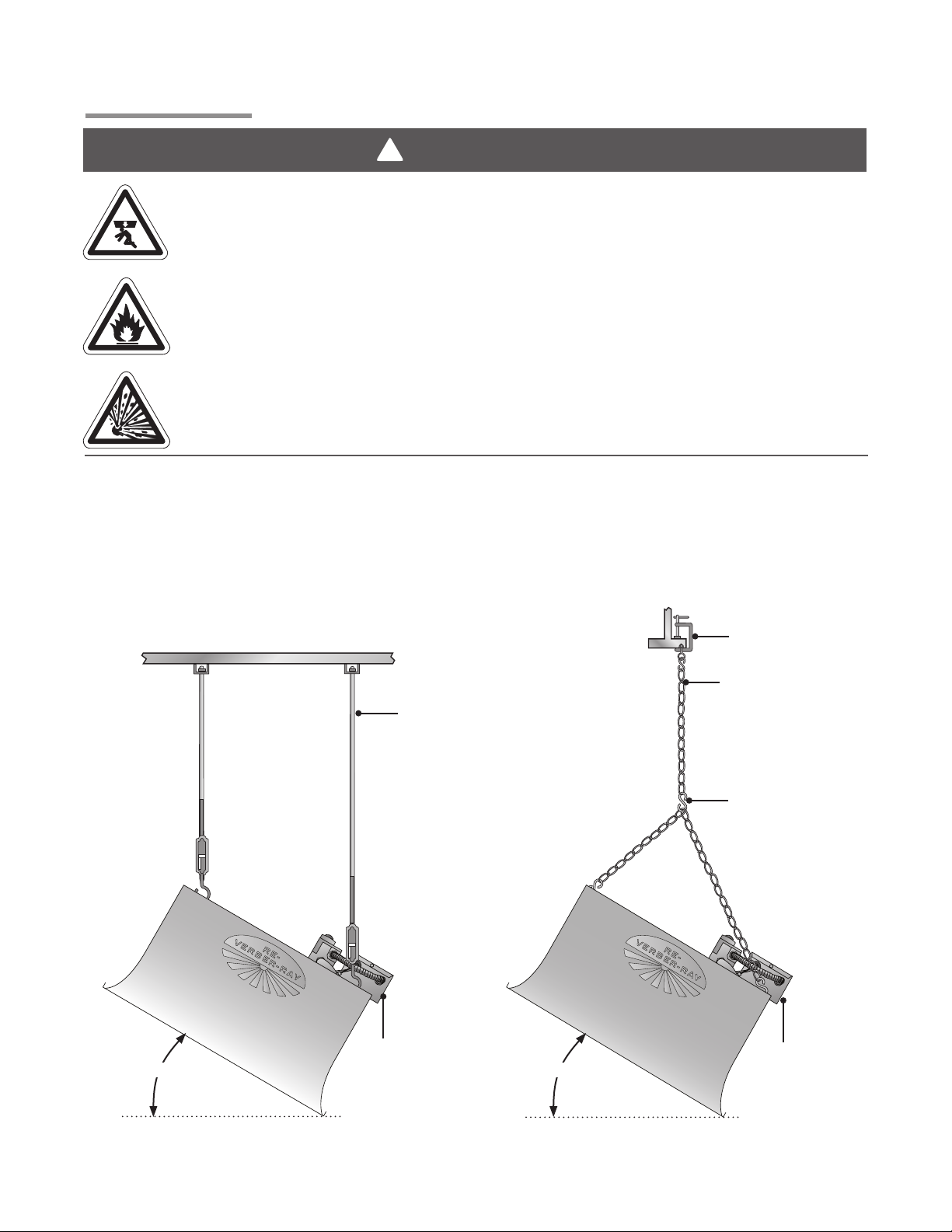

Figure 2.3 • Heater Mounting

Rigid threaded rod

Steel “C” clamp

Chain hanging set

Closed “S” hook (typical)

20˚ - 35˚

SIDE VIEW

Control

End Down

20˚ - 35˚

SIDE VIEW

Control

End Down

DR Series Manual

Figure 2.4 • Heater Orientation

Mount Heater Level - Side to Side

Pilot/spark electrode must be in lower right corner.

(excludes DR30S)

2.0 Installation • Heater Mounting

Manifold control box must be located towards the lower end of the heater (towards the ﬂoor).

Mount 20˚ - 35˚

from horizontal

FRONT VIEW

Figure 2.5 • Gas Connection

NOTE: Use a

regulator when gas supply pressure exceeds 14” W.C.P. Do not exceed 14” W.C.P to the appliance.

Steel C-clamp

Chain hanging set

SIDE VIEW

TOP VIEW

Disconnect switch

20˚ - 35˚

SIDE VIEW

Drip Leg/Sediment Trap

Ball Valve / Inlet Tap

Stainless Steel Gas Connector, formed into a smooth C-Shape (Field Supplied) Not for use with rigidly mounted heaters.

2.0 Installation • Ventilation

DR Series Manual

Ventilation

WARNING

Insufﬁcient ventilation may result in health problems, carbon monoxide poisoning or death. Vent enclosed spaces and buildings according to

national, state, provincial and local codes.

Improper venting may result in asphyxiation, ﬁre, explosion, injury or death.

It is required that the levels where heaters are mounted be properly ventilated to supply combustion air to the heaters and to sufﬁciently dilute the products of combustion. It is also required that the ﬂue discharge area is kept clear of gas piping and electrical wiring (see Figure 2.6).

This infrared heater must be vented in accordance with national, state, provincial and local codes and the guidelines in this manual. In the United Sates refer to the latest edition of ANSI Z223.1 (NFPA 54) and in Canada refer to the latest edition of the CAN/CGA B149.2 Standard.

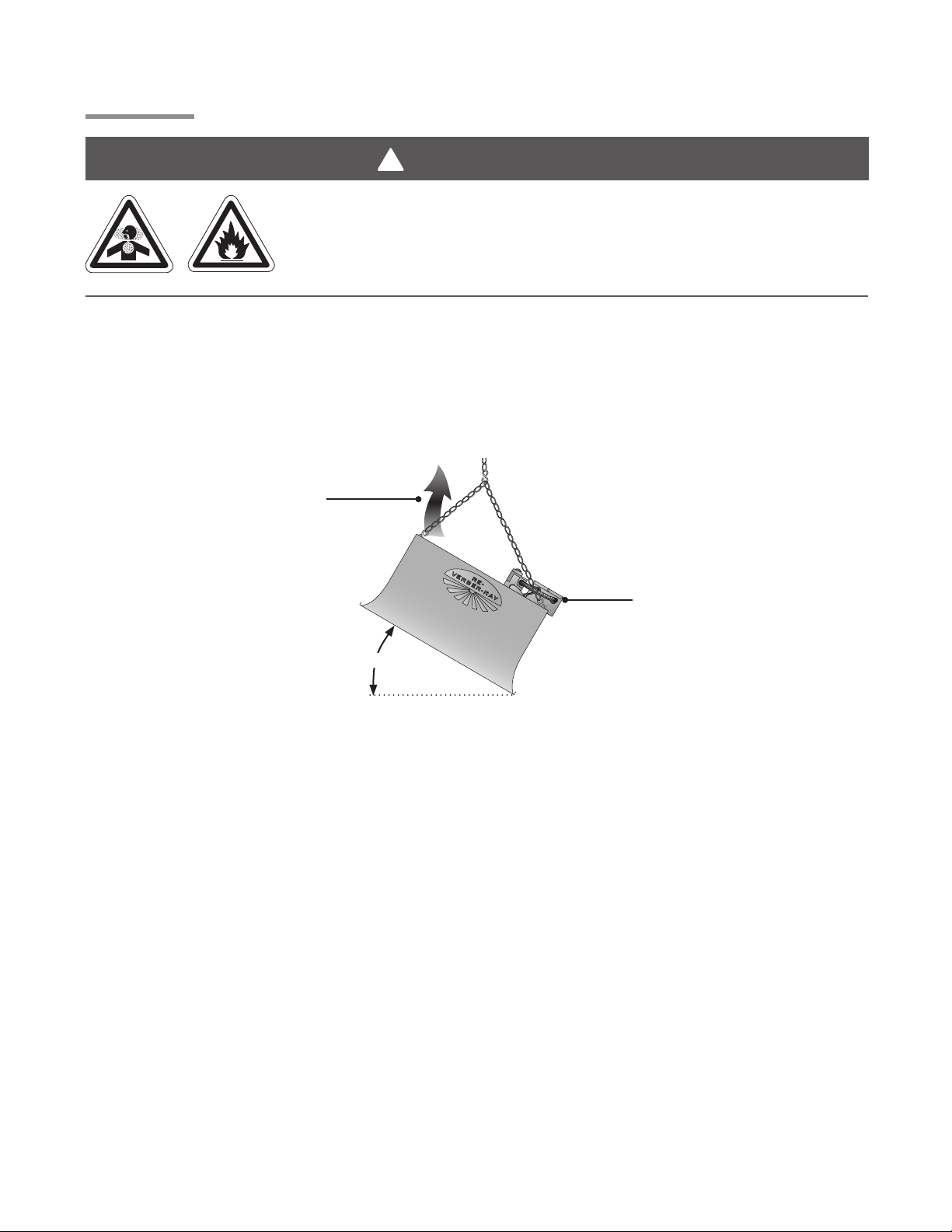

Figure 2.6 • Hot Flue Discharge

Flue Discharge Area

Important! Do not install gas piping or electrical wiring above the ﬂue discharge area!

20˚ - 35˚

SIDE VIEW

Provisions must also be made to provide sufﬁcient fresh air intake area and exhaust air outlet area. For proper ventilation, a positive air displacement of 4 cfm/1,000 BTU/h of gas consumed must be provided.

Where insufﬁcient air movement exists, induced air displacement is required. A balanced system is essential to avoid negative building pressure which causes excessive inﬁltration, unfavorable drafts and affects combustion efﬁciency.

Air displacement may be accomplished by either natural or mechanical means. Mechanical exhausters are preferred and typically mounted at high points on the roof where stagnant air accumulates inside the building. For a ﬂat roof, considerations of prevailing winds, high and low pressure areas, and distribution of air movement must be taken into consideration when locating exhausters.

Best air distribution is accomplished by using a number of small exhausters versus one large exhauster. Provide a minimum of one square inch of inlet area per 1,000 BTU/h for combustion air supply. Inlet opening in the building should be well distributed (see Figure 2.1) high in the sidewalls and should direct incoming air upward to dilute products of combustion while preventing drafts at lower levels. Inlets are typically 1 to 3 sq. ft.

Manifold/Control End Down

Local codes may require that mechanical exhaust systems be interlocked with heaters to enable both to function simultaneously (see page 17, Figure 2.7) or allow control of exhausters with a ceiling mounted humidistat.

DR Series Manual

2.0 Installation • Gas Supply

Gas Supply

WARNING

Improperly connected gas lines may result in ﬁre, explosion, poisonous fumes, toxic gases, asphyxiation or death. Connect gas lines in accordance to national, state, provincial and local codes.

The gas supply to the infrared heater must be connected and tested in accordance with national, state, provincial and local codes along with the guidelines in the Detroit Radiant DR Series manual. In the United States refer to the latest edition of the ANSI Z223.1 (NFPA 54) Standard and in Canada refer to the latest edition of the CAN/CGA B149.2 Standard.

Important! Before connecting the gas supply to the infrared heater(s):

• Check that the gas piping and service has the capacity to handle the load of all heaters being installed, as well as any other gas appliances being connected to the supply line.

• Check that the main gas supply line is of proper diameter to supply the required fuel pressures.

• If utilizing used pipe, verify that its condition is clean and comparable to a new pipe. Test all gas supply lines in accordance with local codes.

• Test and conﬁrm that inlet pressures are correct. Refer to the rating plate for required minimum and maximum pressures (see Chart 2.3). The gas supply pipe must be of sufﬁcient size to provide the required capacity and inlet pressure to the heater (if necessary, consult the local gas company).

Chart 2.3

Liqueﬁed Petroleum 10.0 Inches W.C. 11.0 Inches W.C. 14.0 Inches W.C.

Note: Check manifold pressure at the tap located either at the outlet of the gas valve or on the gas manifold pipe. Readings will be above atmospheric pressure during operation.

• Manifold Pressure

Required Manifold

Type of Gas

Natural 6.0 Inches W.C. 7.0 Inches W.C. 14.0 Inches W.C.

Pressure Equivalents: 1 inch W.C. equals .058 oz/sq. in. equals 2.49 Mbar.

Pressure

Minimum Inlet

Pressure

Maximum Inlet

Pressure

To connect the gas:

WARNING

This heater must be installed and serviced by trained gas installation and service personnel only.

The installation of this heater must conform with local building codes or, in the absence of such codes, the National Fuel Code (NFPA 54).

Failure to install, operate or service this appliance in the approved manner may result in property damage, injury or death.

2.0 Installation • Gas Supply

DR Series Manual

WARNING

The gas outlet must be in the same room as the appliance and accessible. It may not be concealed within or run through any wall, ﬂoor or partition.

Install a sediment trap / drip leg if condensation may occur at any point of the gas supply line. This will

decrease the possibly of loose scale or dirt in the supply line entering the heater’s control system and causing a malfunction. Note: High pressure gas above 14 in. W.C.P. (water column pressure) requires a high pressure regulator and ball valve (ﬁeld supplied).

Form the stainless steel ﬂexible connector (ﬁeld supplied) into a smooth C-shape allowing 12 in.

between the ﬂexible connector’s end nuts. Figure 2.5 on page 13. NOTE: Not for use on rigidly mounted heaters.

Attach the ball valve (ﬁeld supplied) to the gas supply pipe. Apply pipe compound to NPT adapter

threads to seal the joint. Use only a pipe compound resistant to liquid petroleum. NOTE: Provide a 1/8 in. NPT plugged tapping accessible for test gauge connection immediately upstream of gas connection to the heater (provided on ball valve, when supplied).

CAUTION

The ﬁttings (nuts) on the ﬂexible connector must be connected to an adapter. They may not be directly connected to the gas supply pipe.

Attach the ﬂexible connector to the adapter and gas inlet. Seal the joints.

Note: Excessive torque on the manifold may misalign the oriﬁce. Always use two wrenches to tighten mating pipe connections.

WARNING

Testing for gas leaks with an open ﬂame or other sources of ignition may lead to a ﬁre or explosion and cause serious injury or death. Test in accordance with NFPA or local codes.

Final assembly must be tested for gas leaks according to NFPA or local codes.

In high moisture or corrosive environments, use gas supply lines and connectors suitable for the environment. Periodically inspect for signs of failure or leakage.

CAUTION

DR Series Manual

2.0 Installation • Electrical

Electrical

WARNING

Electric Shock

Field wiring to the heater must be connected and grounded in accordance with national, state, provincial, local codes and to the guidelines in the this manual. In the United States refer to the most current revisions to the ANSI/NFPA 70 Standard and in Canada refer to the most current revisions the CSA C22.1 Part I Standard.

Control systems are initiated by either 120 VAC, 24 VAC or millivolt energy. The 120 VAC systems can be used directly from a 120 VAC line. On 24 VAC systems, transformers must be used to supply power of sufﬁcient VA rating for single or multiple connected installations.

Important! Proper grounding and polarity are essential for heaters with spark ignition controls. If the system is not properly grounded, it cannot determine the presence of a ﬂame and will lockout and shut off.

Millivolt systems require NO external power, as energy needed to operate the valve is developed by the power-pile generator. Do not use multiple connections, as one thermostat may only control one heater.

For wiring of controls on the unit see the wiring diagram included on page 18. It is recommended that the thermostat be installed on the hot side of a fused supply line and have a sufﬁcient ampere capacity rating for the heater(s) it will control. The ventilation system may be controlled separately from the heating system (consult local codes) by the use of a humidistat that closes when the humidity rises. The humidistat control should be installed at roof level. For summer ventilation, a simple on/off switch can be installed at the occupant level.

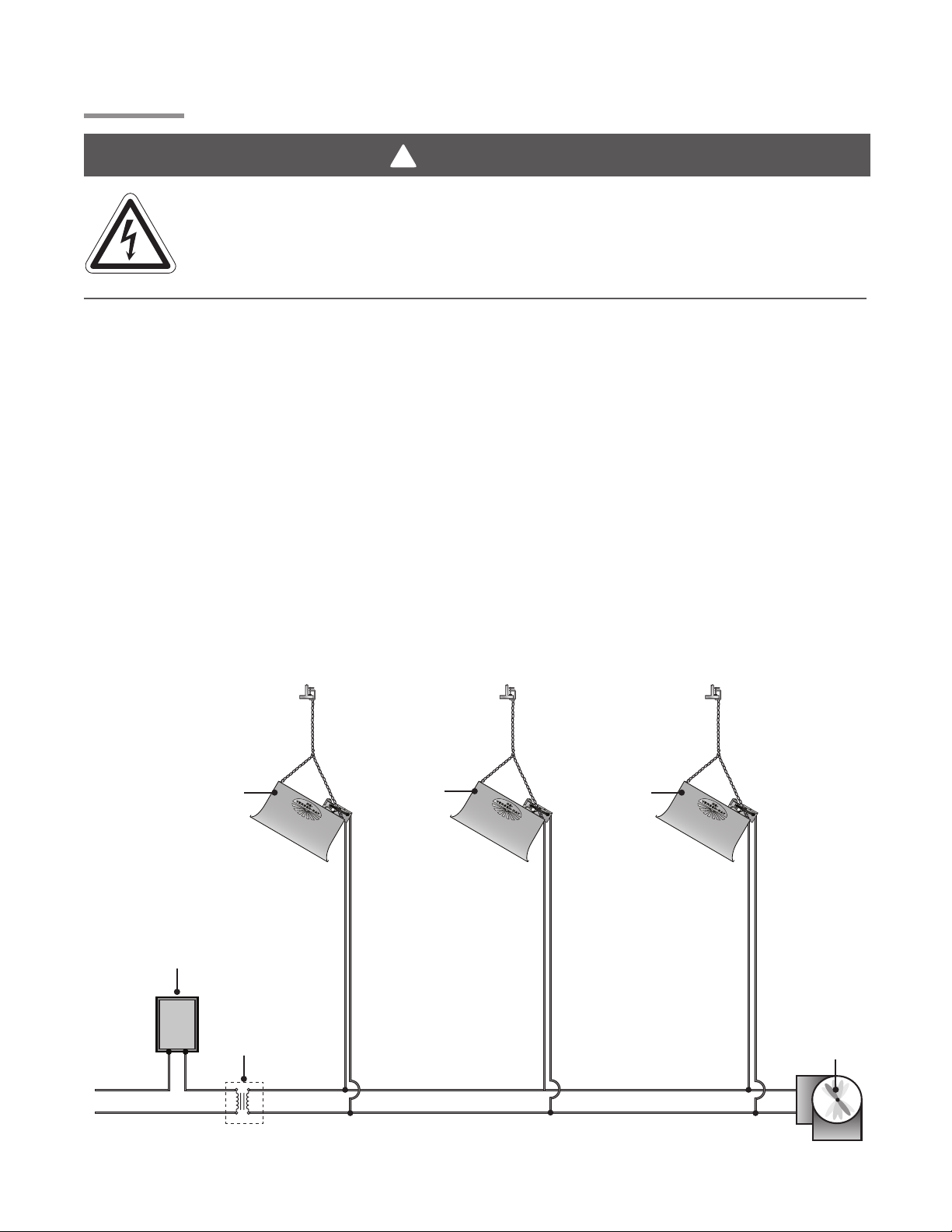

Figure 2.7 • Typical Field Wiring

DR Series

Heater

Thermostat

DR Series

Heater

DR Series

Heater

Transformer

(required on

24V heaters)

Hot

Neutral

Exhaust

Fan

N/PFS-2 24VAC

2.0 Installation • Wiring Diagrams

Wiring Diagrams

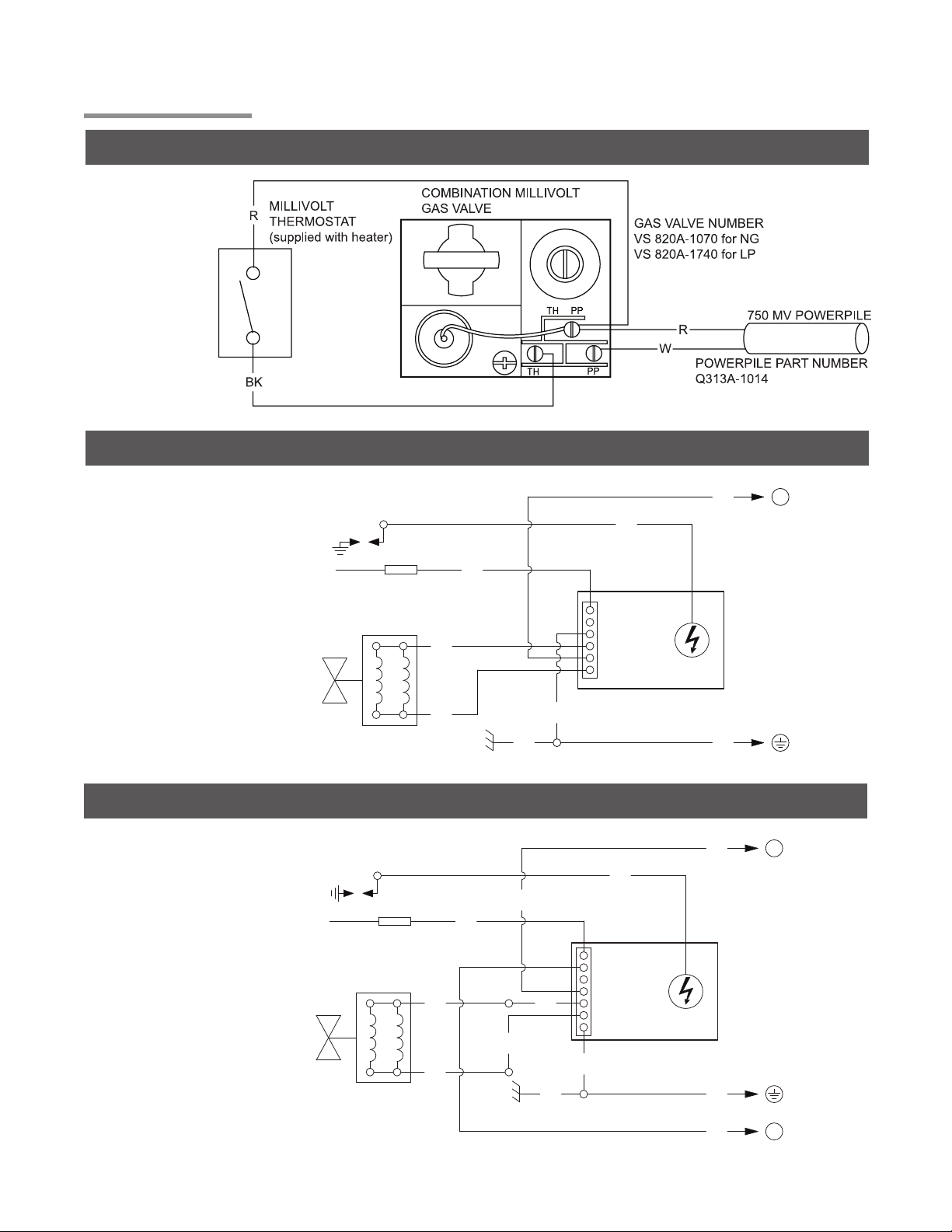

Figure 2.8 • NMV-2/PMV-2 • 750 Schematic

• Millivolt Control

Figure 2.9 • NFS-2/PFS-2 (24V) • 24 V Schematic

DR Series Manual

• Direct Spark Ignition

• VA Draw: 12

ELECTRODE

ASSEMBLY

• Amps: .48

• Potted Circuit Board

GAS VALVE

Figure 2.10 • NFS-2/PFS-2 (120V) • 120 V Schematic

• Direct Spark

Ignition

• VA Draw: 12

• Amps: .10

• Potted Circuit

Board

ELECTRODE

ASSEMBLY

GAS VALVE

SENSE

GROUND NEUTRAL THERMOSTAT VALVE

G G

24VAC DSI MODULE

SENSE NEUTRAL

THERMOSTAT NEUTRAL VALVE GROUND

120VAC DSI MODULE

HIGH

VOLTAGE

HIGH

VOLTAGE

(24VAC)

(COMMON)

DR Series Manual

3.0 Operation • Lighting Instructions

3.0 Operation

WARNING

Do not attempt to ignite a direct spark ignition heater by hand. Failure to comply could result in personal injury, property damage, explosion, ﬁre or death.

Upon satisfactory completion of the electrical supply and purging of the gas supply line to the heater(s),

follow the lighting instructions on the heater’s rating label to put the heater into operation.

Direct Spark Ignition (NFS-2 / PFS-2)

Lighting Instructions

Rotate the heater’s valve knob to the “ON” position.

Close electrical circuit (typically the thermostat).

If the heater fails to light, turn off gas, open electrical circuit and wait 5 minutes before repeating the

above steps.

Shutdown Instructions

Open electrical circuit.

Rotate the heater’s valve knob to the “OFF” position.

Sequence of Operation

Starting Circuit: Upon a call for heat, voltage is applied to L1 and Neutral. After a pre-purge, the spark

electrode is energized and the gas valve opens. The trial for ignition is 15 seconds. If ﬂame is not sensed, the heater will attempt two more times to reignite.

Running Circuit: After ignition, the sensing electrode monitors the burner ﬂame. If sense of ﬂame is lost, the control immediately acts to reignite the gas-air mixture. If ﬂame sense is not established within 15 seconds, the heater will attempt two additional ignition sequences before proceeding to hard lockout. The control can be reset by brieﬂy interrupting the power source.

Millivolt (NMV-2 / PMV-2)

Lighting Instructions

Purge main gas supply line.

Slightly depress and rotate the heater’s manual gas valve knob COUNTERCLOCKWISE from the

“OFF” position to the “PILOT” position.

Fully depress the manual gas valve knob and light the pilot burner. Continue to depress for 30

seconds and then release.

Rotate the heater’s valve knob to the “ON” position.

Close the control circuit. If the heater fails to light, turn off the gas, open control circuit and wait 5

minutes before repeating the above steps.

Shutdown Instructions

Open the control circuit.

Rotate the heater’s valve knob to the “PILOT” position, depress slightly and rotate to the “OFF” position.

Sequence of Operation

Starting Circuit: After manually lighting the pilot (see lighting instructions), upon a call for heat, the main

burner solenoid is energized. The gas valve opens and the pilot lights the main burner.

Running Circuit: After ignition, the powerpile monitors the pilot ﬂame. If the pilot ﬂame is lost, the powerpile cools and closes the valve within 180 seconds. See lighting instructions to relight the heater.

4.0 Maintenance • Maintenance Checks

DR Series Manual

4.0 Maintenance

It is recommended that the following become a standard yearly procedure to obtain maximum operating

efﬁciency and trouble free operation.

During long periods of non-usage, remove or cover heater with a polyethylene bag and shut off gas

supply. If further service to the heater is desired, contact your representative or the factory.

Main Burner

Gently use an air hose to blow any

accumulated dust and/or dirt off the heater. Air hose pressure must not exceed 30 psig.

WARNING

Gently pass the air hose over the entire

exposed area of the ceramic. A distance of 2’ to 4’ from the unit is recommended. NOTE: Blowing out the gasket material will

permanently damage the rayhead.

Gently place the air hose outlet into each

venturi tube and allow the air to ﬂow for

approximately one minute.

See troubleshooting chart (page 21) if there

are any signs of burner malfunction. Replace

if necessary.

Pilot Burner

Remove pilot access door.

Use an air hose and gently blow the pilot

burner free of dust or debris.

Use protective glasses when cleaning the heater.

Disconnect power to heater before servicing.

Do not operate unit if repairs are necessary. Do not operate unit showing any signs of burner malfunction. Call a professional for assistance.

CAUTION

Avoid Equipment Failure.

Do not blow out heating elements with high pressure air.

Gas Supply

Periodically inspect the gas supply for signs

of corrosion or failure. Replace if necessary.

DR Series Manual

4.0 Maintenance • Troubleshooting

Chart 4.1 Troubleshooting Guide

Symptom Code Possible Cause Corrective Action

Burning of gas-air mixture inside plenum (ﬂashback).

Delayed ignition. A

Low ceramic surface temperature, exces sive rollout or soot on rods.

Control system overheating.

Gas odor. A, BB• Loose pipe connection.

Heater cycles repeatedly.

Pilot on, no gas to main burner.

No spark; no ignition. A

Heater lights, and “locks out” after approximately 10 seconds.

Spark is present. No main gas operation. Unit “locks out”.

Heater will not shut off.

A, B A, B A, B A, B A, B

A, B A, B A, B A, B

A, B

A, B A, B A, B

A, B

A, B A, B A, B

A, B A, B

A, B

A, B A, B

A, B A, B A, B

• Heater mounted at incorrect angle.

• Excessive drafts.

• Gas leaking or blocked oriﬁce/venturi.

• Separation of ceramic grids.

• Ceramic grids cracked.

• Electrode out of speciﬁcation.

• Low gas pressure.

• Partially blocked oriﬁce.

• Improper oriﬁce size.

• Incorrect gas.

• Dirty or plugged rayhead ceramics.

• Partially blocked oriﬁce.

• Low inlet gas pressure.

• Low manifold gas pressure.

• High manifold pressure.

• Foreign matter in venturi tube.

• Gas supply piping too small.

• Incorrect gas.

• Heater not mounted correctly.

• Heater mounted too close to ceiling.

• Pilot not lit.

• Heater located in drafty area.

• Low gas pressure.

• Thermostat located in drafty area.

• Weak pilot ﬂame.

• Defective ﬂame detector.

B • Weak pilot ﬂame.

• No electrical power to unit.

• Pilot sensor element not located in pilot ﬂame.

• Defective main valve solenoid.

• Defective pilot generator or thermocouple.

• Excessive thermostat wire length with millivolt system.

• Manual valve off.

• Lack of 120V or 24V incoming voltage.

• Open high voltage wire.

• Improper electrode gap.

• Loose or open wire connection.

• Poor or no equipment ground.

• Unit in “safety lockout” mode.

• Defective “gas lighter” control.

• Poor or no equipment ground.

• Polarity is reversed.

• Low gas pressure.

• Electrode not sensing.

• Heater mounted at incorrect angle.

• Gas valve in “Off” position.

• Defective main valve solenoid.

• Defective “Gas lighter” control.

• Defective thermostat or wiring.

• Gas valve stuck open.

• High gas pressure.

• Mounting angle 20°-35° from horizontal.

• Relocate or shield from draft.

• Do not operate. Check with leak detector solution.

• Do not operate. Replace rayhead.

• See Figure 4.3.

• See Gas Supply section.

• Clean or replace.

• Consult dealer.

• Do not operate. See nameplate. Correct immediately.

• See maintenance instructions.

• Remove and clean.

• See Gas Supply section.

• Adjust main valve regulator for 6” W.C.P. natural gas, 10” W.C. P. propane.

• See Maintenance Section.

• Increase inlet pressure or replace.

• Do not operate. See nameplate. Correct immediately.

• Mounting angle 20°-35° from horizontal.

• Observe clearance to combustibles safety chart located on heater reﬂector. Do not operate.

• Check all connections with leak-detector solution, tighten as necessary.

• Cycle thermostat or manually light.

• Relocate or shield from draft.

• See Gas Supply section for propane.

• Replace thermostat.

• Clean or adjust pilot.

• Replace.

• Clean or adjust pilot.

• Check thermostat, manual switch or circuit breaker.

• Locate upper 3/4 of element in pilot ﬂame.

• Isolate. Ohm for resistance, replace if “0”.

• Replace.

• Wire not to exceed length provided by factory.

• Turn to “ON” position.

• Proper voltage needed or repair wire.

• Isolate and ohm for resistance, replace if “0”.

• See Figure 4.3.

• Check all wires, tighten or replace.

• Trace ground wire for complete circuit back to equipment ground from control.

• Interrupt power source, repeat trial for ignition.

• Verify proper voltage. Replace.

• Check all connections, provide positive earth ground.

• 120V to black, neutral to white.

• See Gas Supply section.

• Relocate or replace if defective.

• Mounting angle 20°-35° from horizontal.

• Turn to “On” position.

• Isolate and check for resistance. Replace if “0”.

• Verify proper voltage. Replace.

• Replace or repair.

• Replace.

• See Gas Supply section.

Code: A - Direct Spark Ignition (NFS-2/PFS-2) B - Standing Pilot (NMV-2/PMV-2)

4.0 Maintenance • Heater Assembly Components

DR Series Manual

Heater Assembly Components

For complete information on DR Series replacement parts, visit the online replacement parts library at http://www.reverberray.com/partscenter. For discontinued models, consult the factory.

NOTE: Replacement burners are called “rayheads” with rod inserts (part no. DR-RH and DR-ROD). Ceramic grids are not sold separately, order DR-RH.

Figure 4.1 • Heater Assembly Components (side view)

Heat Shield Path of exhaust

Rods

Reﬂector Shield

Rayhead Assembly with Ceramics

Side Frame

Brass Union

Manifold Pressure Tap

Manifold End Frame Assembly

Gas Oriﬁce

Figure 4.2 • Heater Assembly Components (rear view of NFS-2/PFS-2)

Cross-over Bracket

High

Voltage

Wire

Low

Voltage

Wire

Circuit Board

(Housed inside

Junction Box)

Gas

Valve

Pilot or Electrode Assembly

Figure 4.3 • Spark Electrode Side View

Side View

Side Frame

Electrode Bracket

Proper installation results

in 1/8” clearance from

face of ceramic

Ceramic Tile

Rods

Set gap to 1/8” - 3/16”

(NFS/PFS) Figure 4.4 • Pilot Assembly Side View

Electrode

Powerpile

(NMV/PMV)

Ceramic Tile

Pilot Burner

Pilot Oriﬁce

Pilot Shield

DR Series Manual

4.0 Maintenance • Parts Listing

Parts Listing

IMPORTANT: Contact factory for conversion assistance. Note: Gas type conversions require gas

valve and gas oriﬁce among other changes Conversion may also require burner and crossover changes.

Chart 4.2 • Direct Spark NFS-2/PFS-2 Control Components

Part No. Description

VR8205A-2123 Combination gas valve, natural gas 25V VR 4205M -1308 Combination gas valve, natural gas 120V DR-V24LP Combination gas valve, propane gas 25V VR 4205M -1357 Combination gas valve, propane gas 120V 32-508 Main burner electrode 25V, 120V Mark 10DX-24 25V circuit board 25V DRWH-24 Wiring harness for Mark 10DX-24 circuit board 25V Ma r k 10 DX-117 120V circuit board 120V DRWH -120 Wiring harness for Mark 10DX-117 circuit board 120V HVW-18 High voltage ignition wire 25V, 120V LVW-18 Low voltage ignition wire 25V, 120V

Voltage

Chart 4.3 • Millivolt NMV-2/PMV-2 Control Components

Part No. Description

VS820A-1070 Combination gas valve, natural gas VS820A-1740 Combination gas valve, propane gas Q313A-1014 Pilot ﬂame detector powerpile F10 -1 Pilot burner 69 -1818 Pilot oriﬁce, natural gas 69-0764 Pilot oriﬁce, propane gas RV 12- 6 ” Pilot regulator, natural gas RV 12-11” Pilot regulator, propane gas RK-13 0 Millivolt Thermostat MV-WIRE 35’ Thermostat Wire

Chart 4.4 • Miscellaneous Core Components

Part No. Description Part No. Description

DR-MAN# Manifold DR-EMB Electrode mounting bracket (NFS-2/PFS-2) DR-UF#* Upper frame (*specify 1-5) DR-RSB Red Rubber Spark Boot (NFS-2/PFS-2) DR-HS#* Heat shield (*specify 1-5) DR - LVG Low volt black wire grommet (NFS-2/PFS-2) DR-FLSH#* Flash shield (*specify 1-5) DR-HVG High volt black wire heyco grommet (NFS-2/ PFS-2) DR-RFE# Reﬂector End (*specify 1-5) J B -0 514 JB-0514 metal junction box (NFS-2/PFS-2) DR-#REF* Full Reﬂector Assembly (*specify 1-5) DR-8SMS #8 x 1/2” common sheet metal screw DR-SF Side frame DR-20MB 1/4 - 20 x 1/2” machine screw (DR Bolt) DR-SFI Side frame insert DR-20HN 1/4 - 20 hex nut (mates to DR bolt) DR-ERS Embossed reﬂector sides DR-20STB 1/4 - 20 x 1/2” self-tap DR bolt DR-RH Rayhead with center support DR-10 EMS 1/4 - 10 short electrode mounting screw DR-RHP Rayhead no center support

(DR 30-45 LP models only)

DR-CO Cross-over bracket DR-DOOR Pilot access door with zip screw (NMV-2/PMV-2) DR-LROD Long rayhead rod F10-PS Pilot shield for F10-1 pilot burner (NMV-2/ PMV-2) DR-SROD Short rayhead rod PL-1 Pilot line for DR 30 (NMV-2/PMV-2) DR-MU Union ﬁtting, 3-piece PL-2 Pilot line for DR 45-DR 160 (NMV-2/PMV-2) ORF-# Brass gas oriﬁce (specify model #) DR-PJBT Plastic junction box (Top) DR-FC 3/8” ﬂex conduit (NFS-2/PFS-2) DR-PJBB Plastic Junction Box (Bottom)

DR-FL31 3/8” conduit attachment ﬁtting

*Reference proper part number when ordering these parts: 1=DR30; 2=DR45-60; 3 = DR75-100; 4=DR 130, 5=DR 160

Visit our online parts reference library at www.reverberray.com for further part related technical data.

(NFS-2/PFS-2)

DR-8STS #8 x 1/2” sheet metal self-tap screw

5.0 Limited Warranty

DR Series Manual

5.0 Limited Warranty

One-Year Limited Warranty. Detroit Radiant Products Company (hereinafter referred to as the Company) warrants to the original purchaser or original user that all Detroit Radiant Gas Infrared Heaters sold by it and all parts thereof are free from defects in material or workmanship under normal use and service. The Company’s sole obligation under this warranty shall be limited to furnishing replacement parts, F.O.B. Warren, Michigan, for 12 months from the date of initial installation of the heater, but not to exceed 18 months from the date of shipment by the Company of the heaters, for any parts which the Company’s examination shall disclose to its satisfaction to be defective. Defective parts are to be returned to the Company, transportation charges prepaid.

Four-Year Additional Limited Warranty for CSA or UL Approved Models. In addition to the above-mentioned First-Year Warranty, the Company warrants to the original purchaser or original user of CSA or UL Listed Gas Infrared Heaters that it will at any time during the four years following the expiration date of the First-Year Warranty, furnish ceramic rayhead burners exclusive of controls, F.O.B. Warren, MI 48089, for any ceramic rayhead burners which are proved to the satisfaction of the Company to be inoperative due to defects in material or factory workmanship. The Company’s sole obligation under this warranty shall be limited to furnishing ceramic rayhead burners.

This four-year additional warranty covers the ceramic rayhead burners only.

General Conditions. The warranties set out in this certiﬁcate are the exclusive remedy of the original owner or user in lieu of all other warranties written, oral or implied (including any warranty of merchantability or ﬁtness for the purpose) and all other obligations or liabilities on the part of the Company, and the Company neither assumes nor authorizes any person to assume for it any other obligation or liabilities on the part of the Company, and the Company neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the sale, installation or use of the heater or any parts thereof.

The Company will not be responsible for labor charges for the analysis of a defective condition in the heater or for the installation of replacement parts. The warranties provided herein will not apply if the input of the heater exceeds the rated input at time of manufacturing or if the heater in the judgment of the Company has been subjected to misuse, excessive dust, improper conversion, negligence, accident, corrosive atmospheres, excessive thermal shock, excessive vibration, physical damage to the heater, alterations by unauthorized service personnel, operation contrary to the Company’s instructions or if the serial number has been altered, defaced, or removed. The Company shall not be liable for any default or delay in the performance of these warranties caused by contingency beyond its control, including war, government restriction or restraints, strikes, ﬁre, ﬂood, short or reduced supply of raw materials, or parts.

The warranties herein shall be null and void if the heater is not installed by a competent heating contractor and/ or if the heater is not installed according to Company instructions, normal industry practices and/or if the heater is not maintained and repaired according to Company’s instructions. Normal product degradation and wear (rust, oxidation, etc.) does not constitute a material defect and applicable warranty claim.

Written permission is required for the return of any parts or equipment and any such return must be made on the basis of transportation charges prepaid. Shipment may be refused unless prior written permission is obtained and goods returned prepaid.

This Warranty applies only within the United States.

21400 Hoover Road Warren, MI 48089 U.S.A.

Voice: (586) 756-0950

Fax: (586) 756-2626

Website: www.detroitradiant.com

BRANT RADIANT DR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
