Branson F36R, F42R, F36H, F42H Operator's Manual

This operator’s manual contains handling tips and precautions for safe operation of your Branson F36R(H)/ F42R(H) tractor. Read it carefully before you operate your tractor and make sure that you have a full understanding of this manual. This will ensure correct operation and to keep the tractor optimum condition.

After reading the manual, keep it close to the tractor for immediate reference. When you loan your tractor to someone else, loan the manual as well.

In case the manual is lost or damaged, please contact your local authorized dealer for a copy. Some parts of this product may have been changed for the improvement of quality or for safety reasons, in which case the photographs or drawings of the parts in this booklet may not be the same as the actual parts installed on this product. If you nd anything in this manual unclear or need further explanation, please contact your authorized dealer.

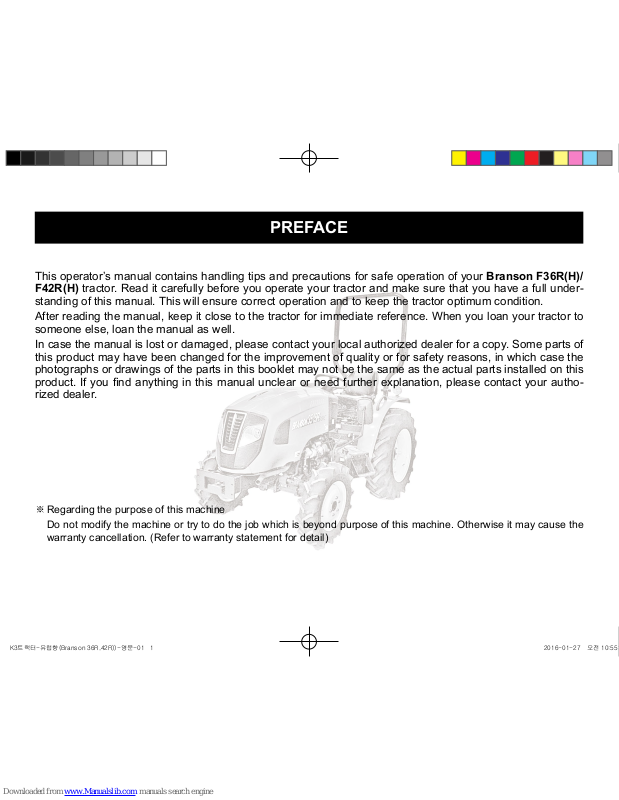

PREFACE

※ Regarding the purpose of this machine Do not modify the machine or try to do the job which is beyond purpose of this machine. Otherwise it may cause the

warranty cancellation. (Refer to warranty statement for detail)

K3트랙터-유럽향(Branson 36R,42R))-영문-01 1 2016-01-27 오전 10:55:05

K3트랙터-유럽향(Branson 36R,42R))-영문-02 2 2016-01-27 오전 10:55:06



FOR SAFE OPERATION

........................................................



REGARDING WARRANTY SUPPORT

..................................



SPECIFICATION

....................................................................



DESCRIPTION OF OPERATING SYSTEM

...........................



CONTROLS AND COMPONENTS

........................................



PERIODIC CHECKS AND MAINTENANCE

..........................



DIAGNOSIS AND TROUBLE SHOOTINGS

..........................



STORAGE AND DISPOSAL

..................................................



INDEX

.....................................................................................

SECTION

TABLE OF CONTENTS

1

2

3

4

5

6

7

8

9

K3트랙터-유럽향(Branson 36R,42R))-영문-03 3 2016-01-27 오전 10:55:06

TABLE OF CONTENTS

FOR SAFE OPERATION .............................1-1

SAFETY PRECAUTIONS ................................1-2

BEFORE USING THE MACHINE ......................... 1-2

BEFORE WORKING ........................................... 1-11

WHILE WORKING .............................................. 1-16

AFTER USING THE MACHINE .......................... 1-17

PRECAUTION FOR PROLONGED STORAGE .... 1-21

OTHER ................................................................ 1-23

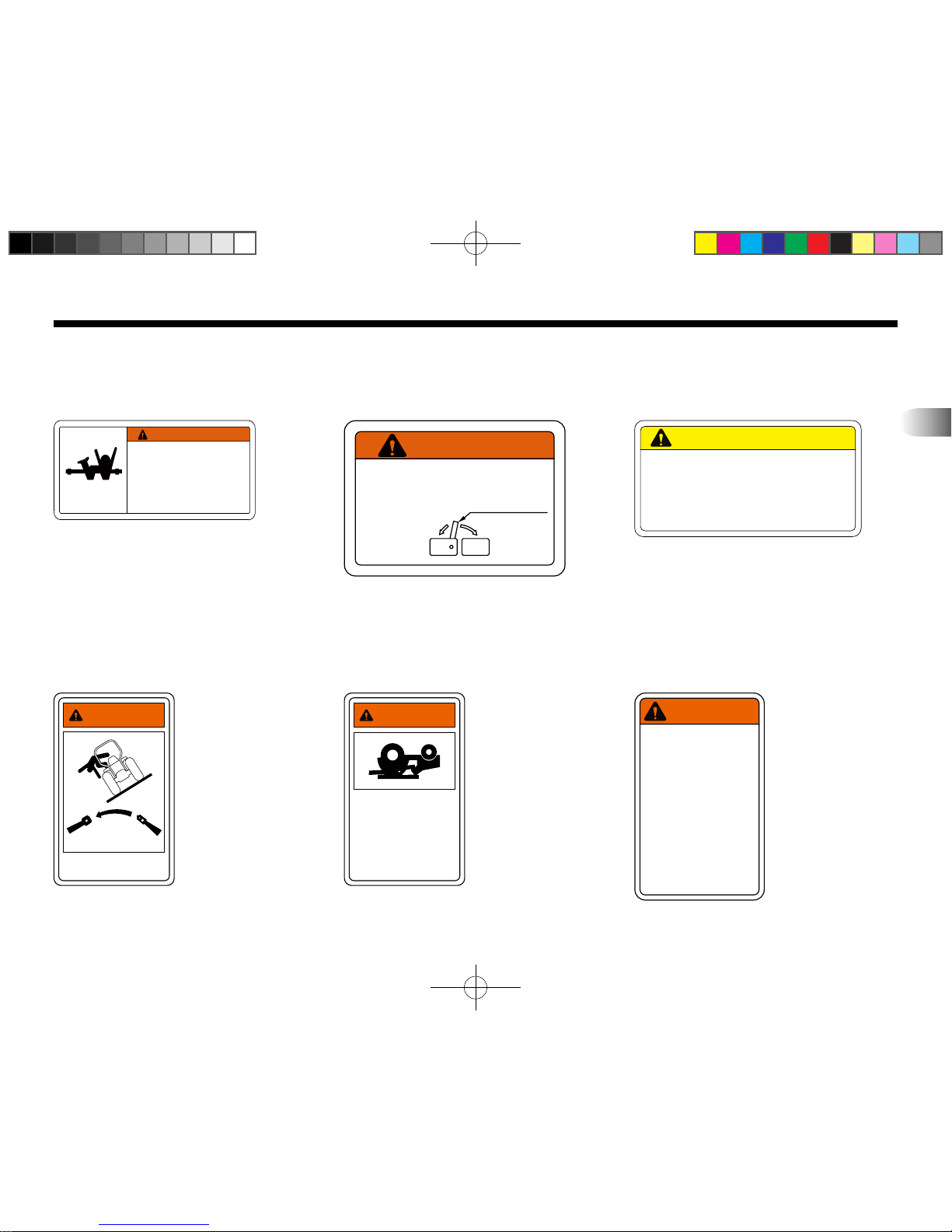

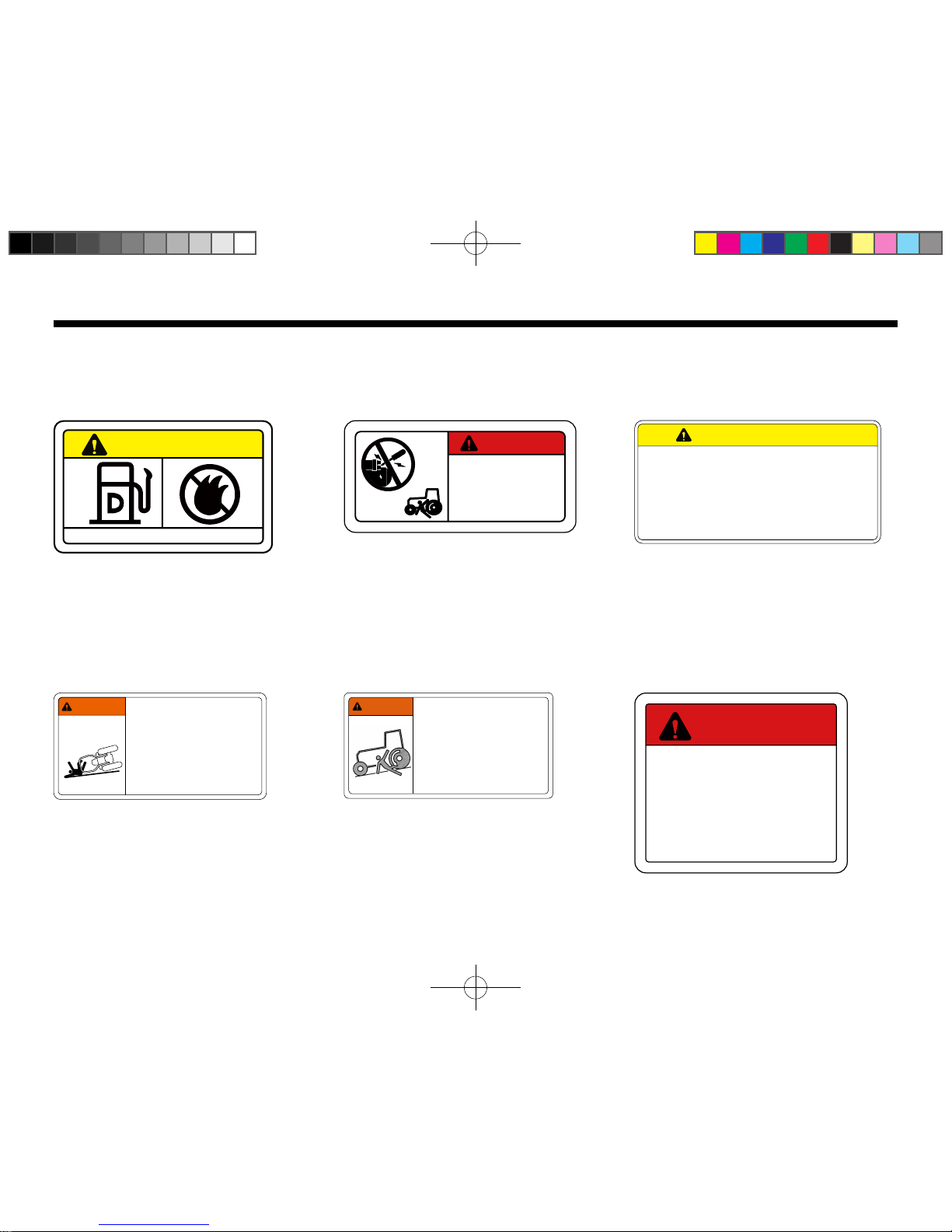

DECAL MOUNTING LOCATION ...................1-31

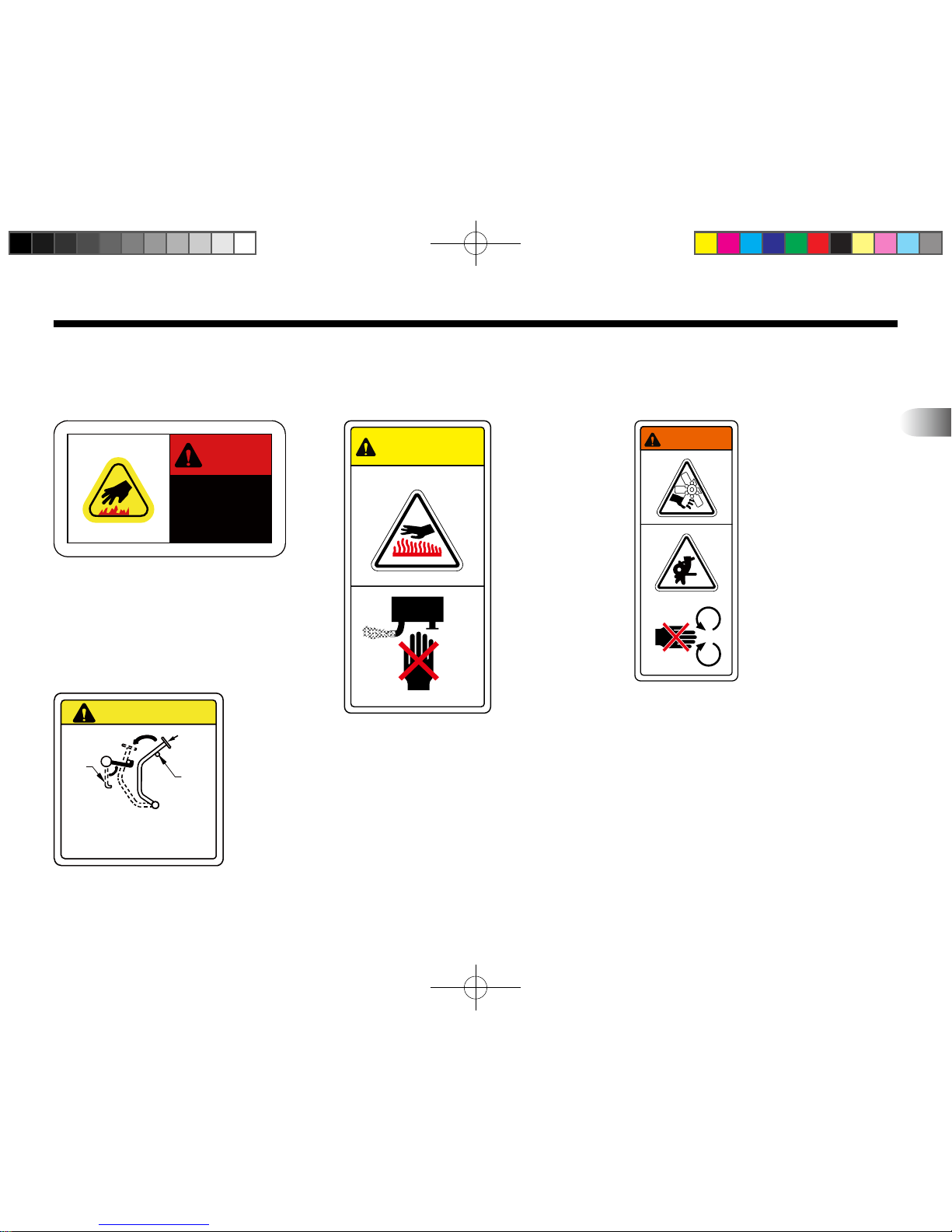

DECAL ...........................................................

1-33

CAUTIONS FOR DECAL MAINTENANCE .........1-36

REGARDING WARRANTY SUPPORT .......2-1

REGARDING WARRANTY CERTIFICATE .....2-2

REGARDING AFTER-SALES SERVICE .........2-2

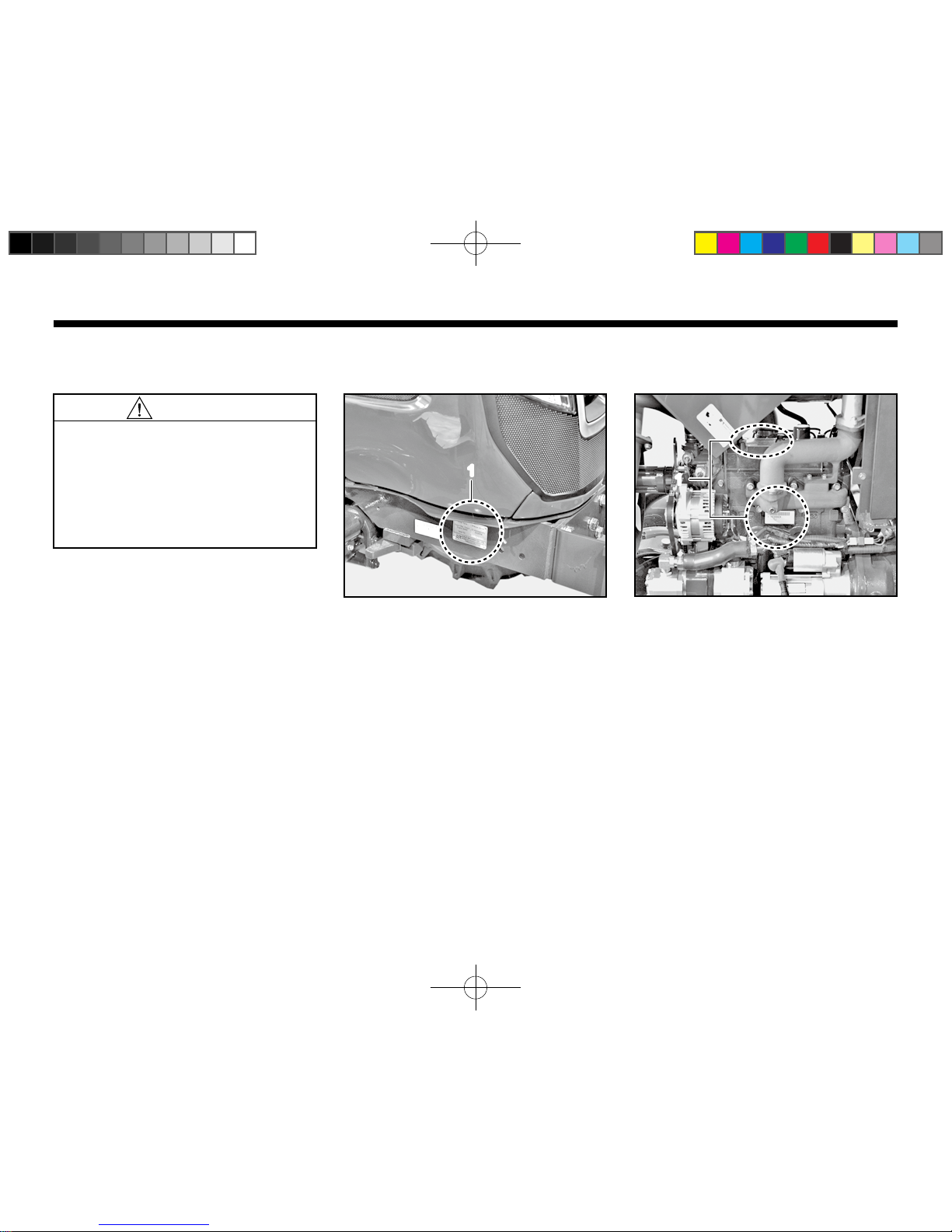

VEHICLE IDENTIFICATION NUMBER (VIN) ........ 2-2

REGARDING SUPPLYING SERVICE PARTS ... 2-3

REGARDING GENUINE PARTS AND FLUID ...... 2-3

SPECIFICATION .......................................... 3-1

MAJOR SPECIFICATIONS .............................. 3-2

DRIVING SPEED ..............................................

3-4

OPERATION DESCRIPTION ....................... 4-1

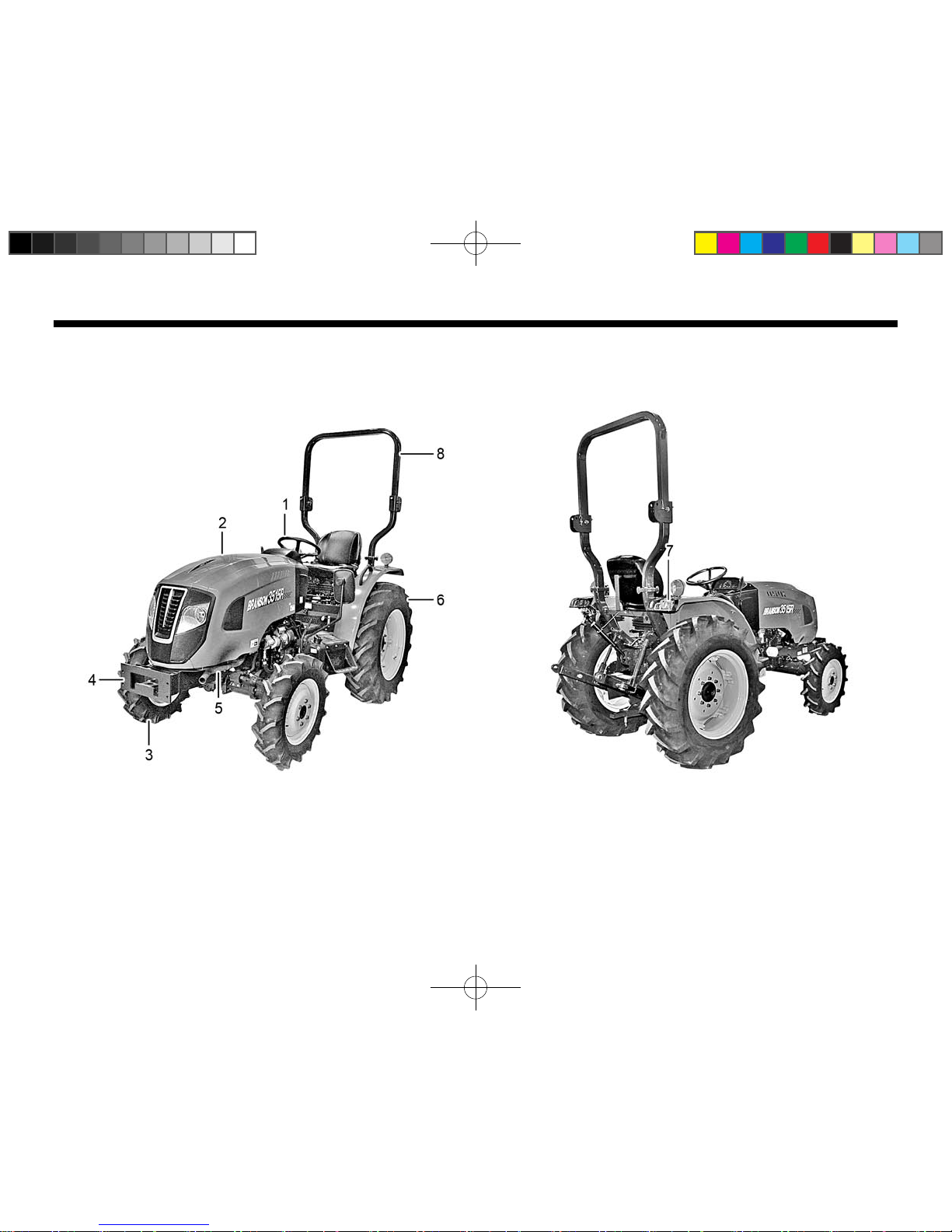

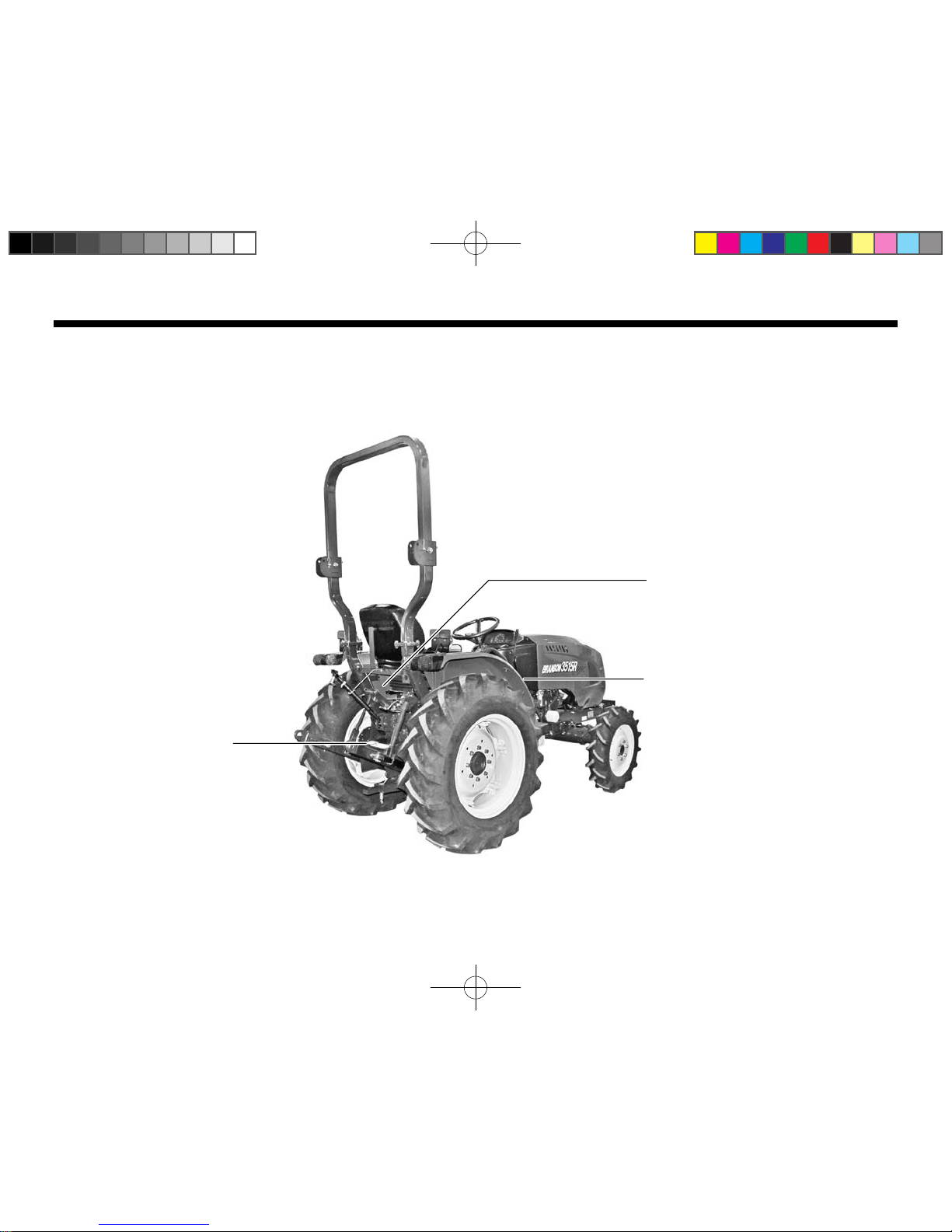

EXTERIOR VIEW ............................................. 4-2

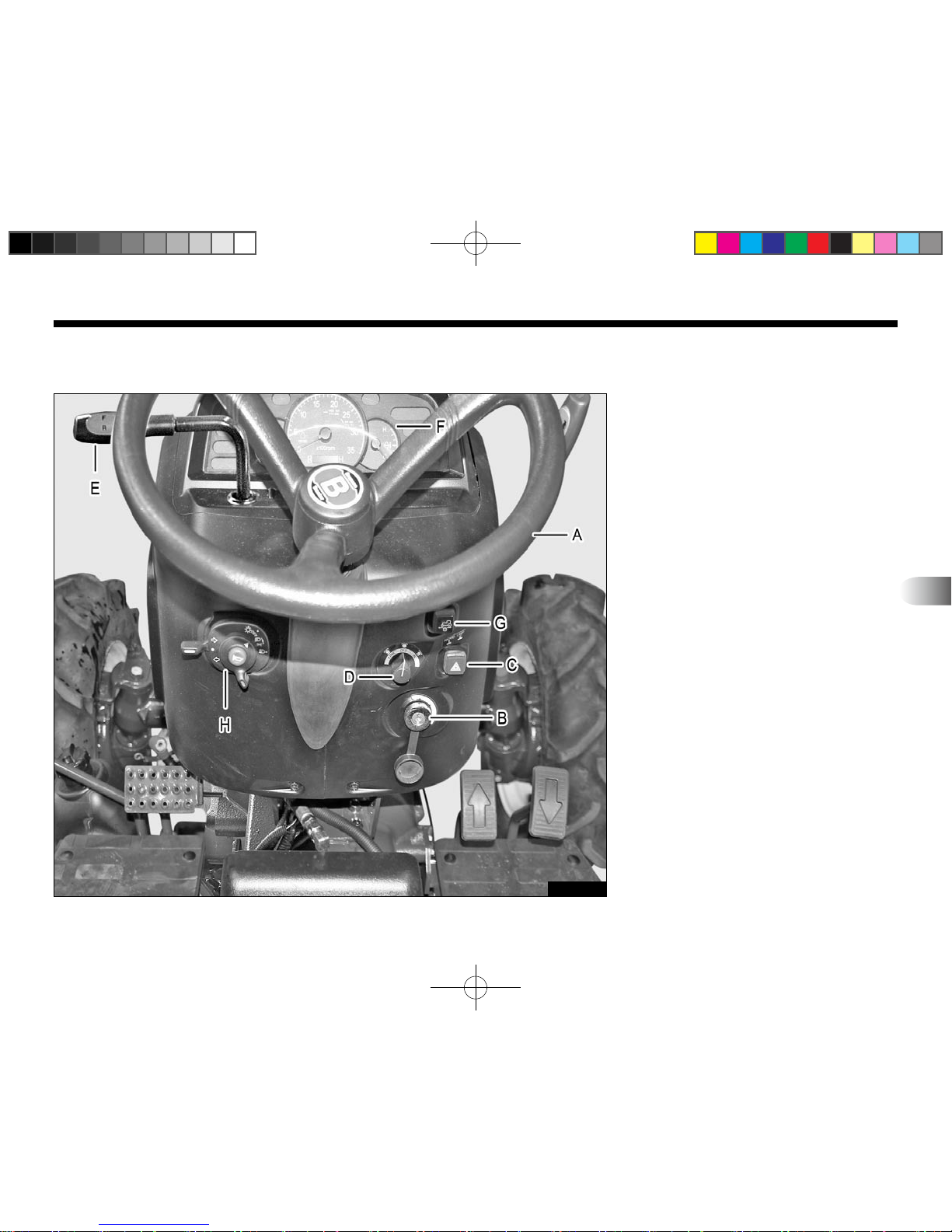

SWITCHES AND LEVERS ..............................4-3

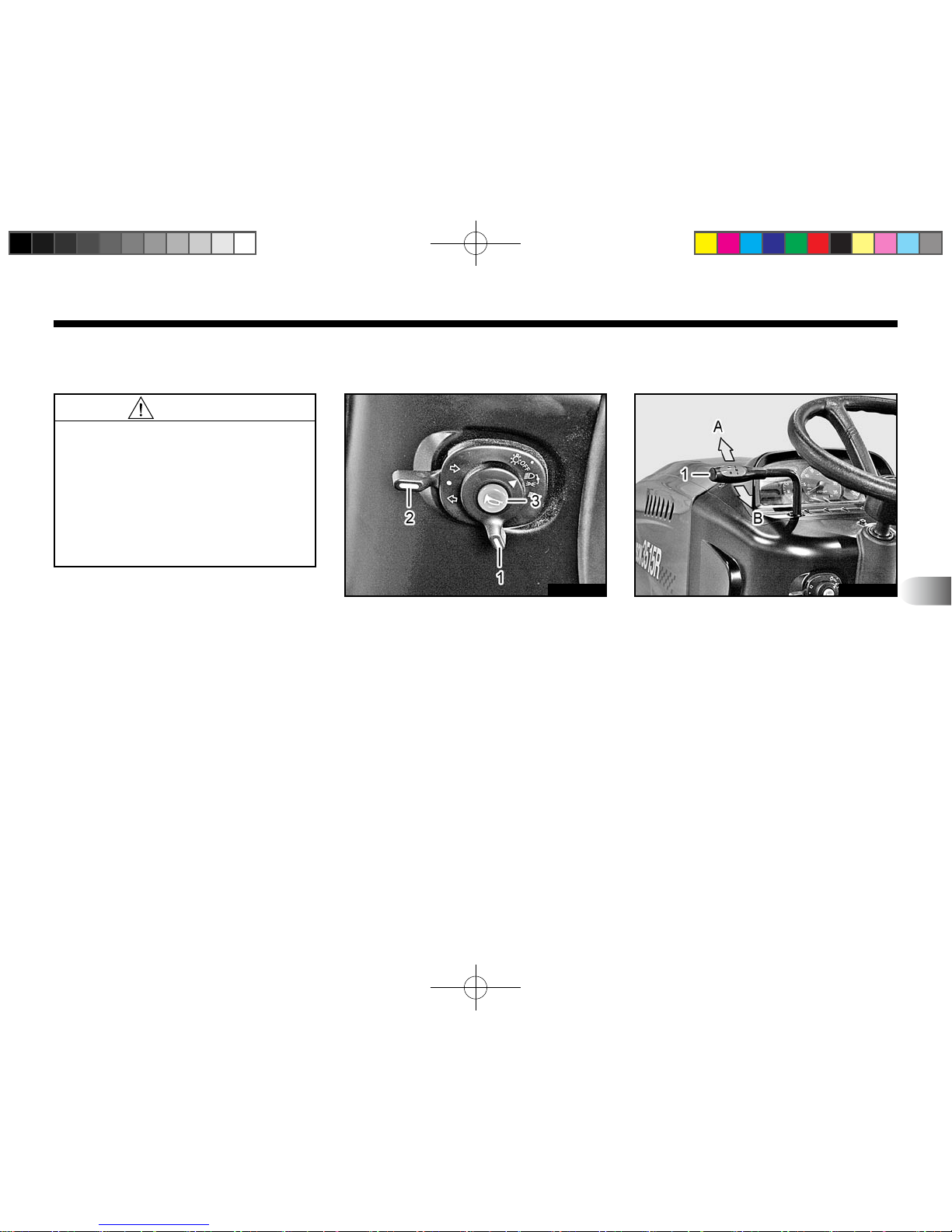

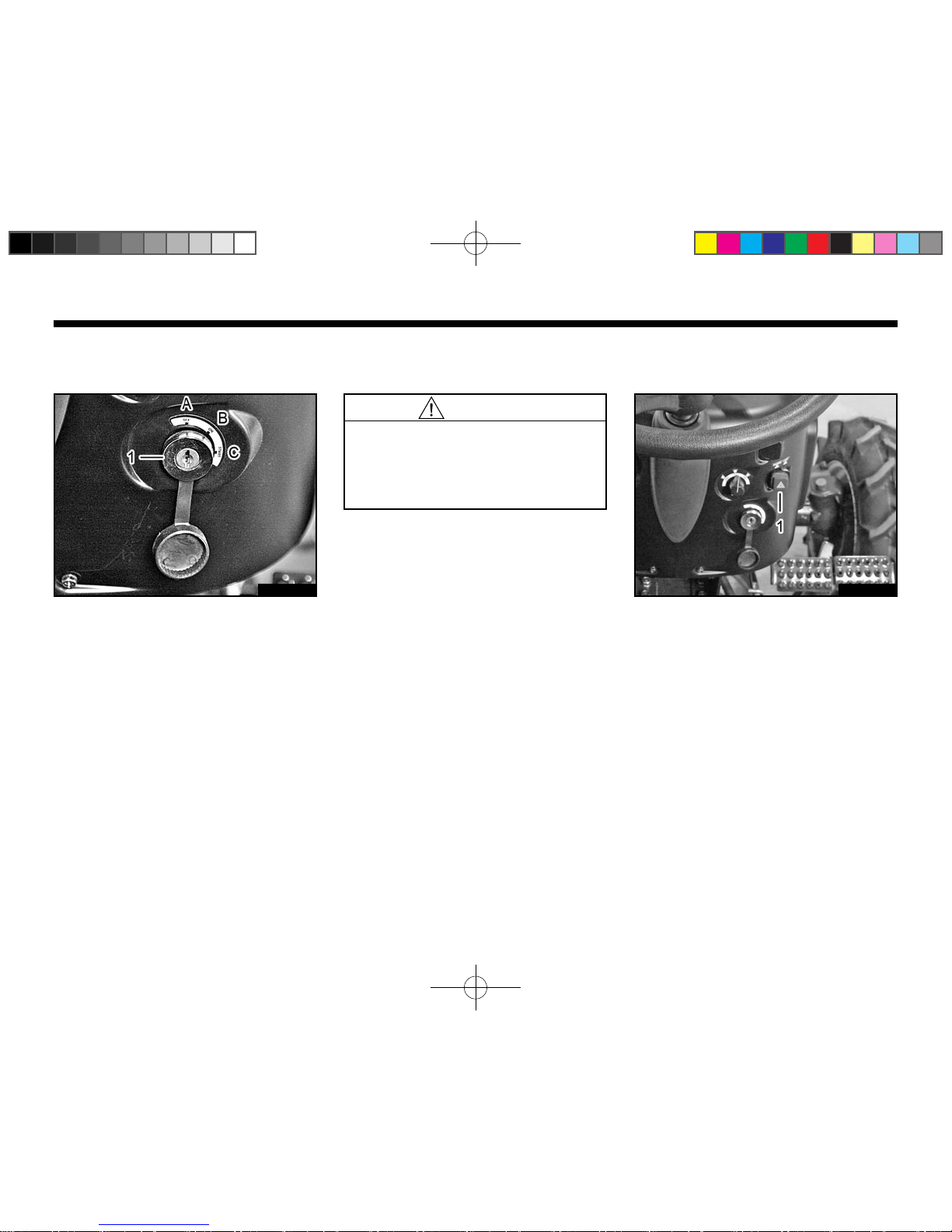

MAIN SWITCH ...................................................... 4-4

HAZARD WARNING FLASHER SWITCH ............. 4-4

TURN SIGNAL/LAMP SWITCH ............................ 4-5

SHUTTLE SHIFT LEVER [MEC. MODEL] ............ 4-5

CRUISE CONTROL SWITCH [HST MODEL] ....... 4-6

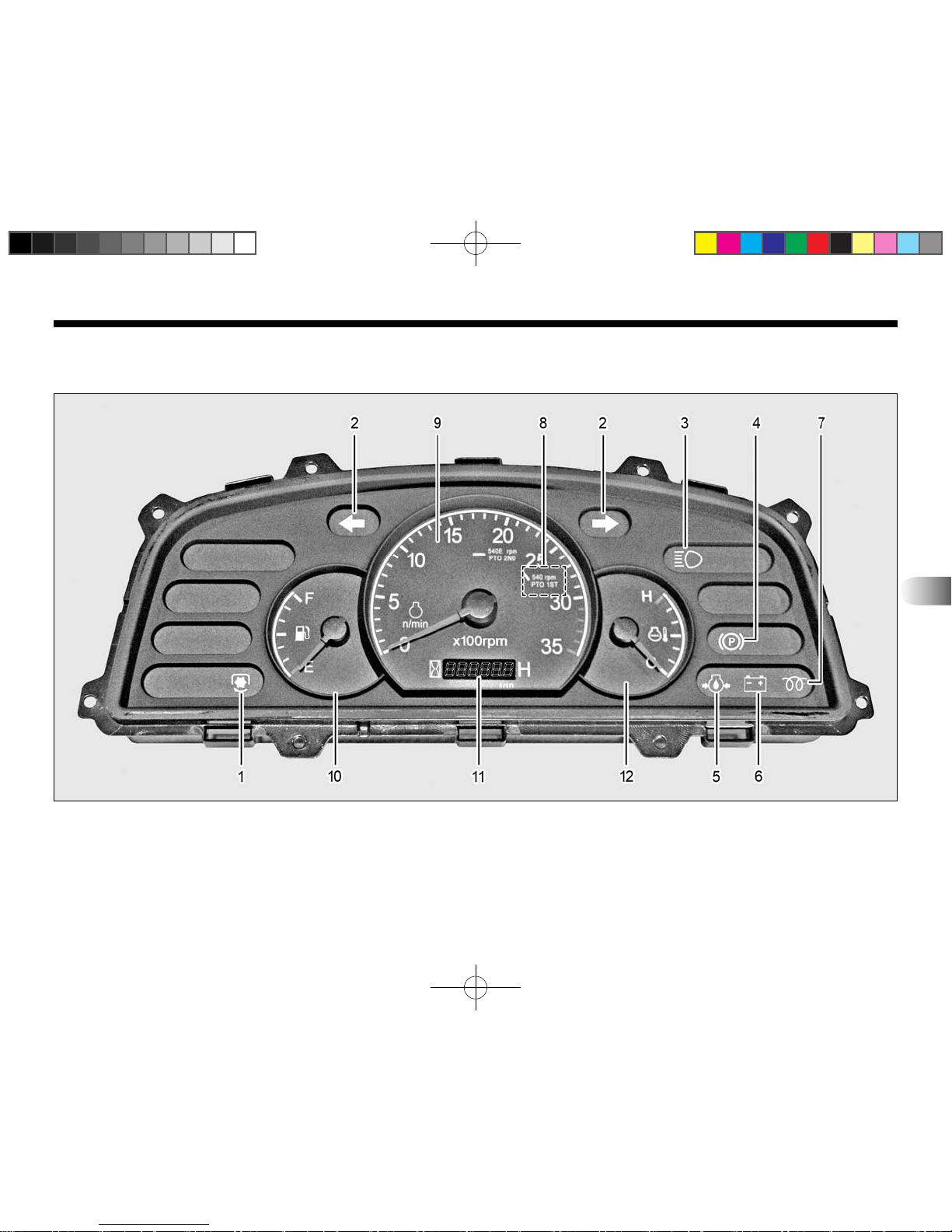

INSTRUMENT CLUSTER ................................ 4-7

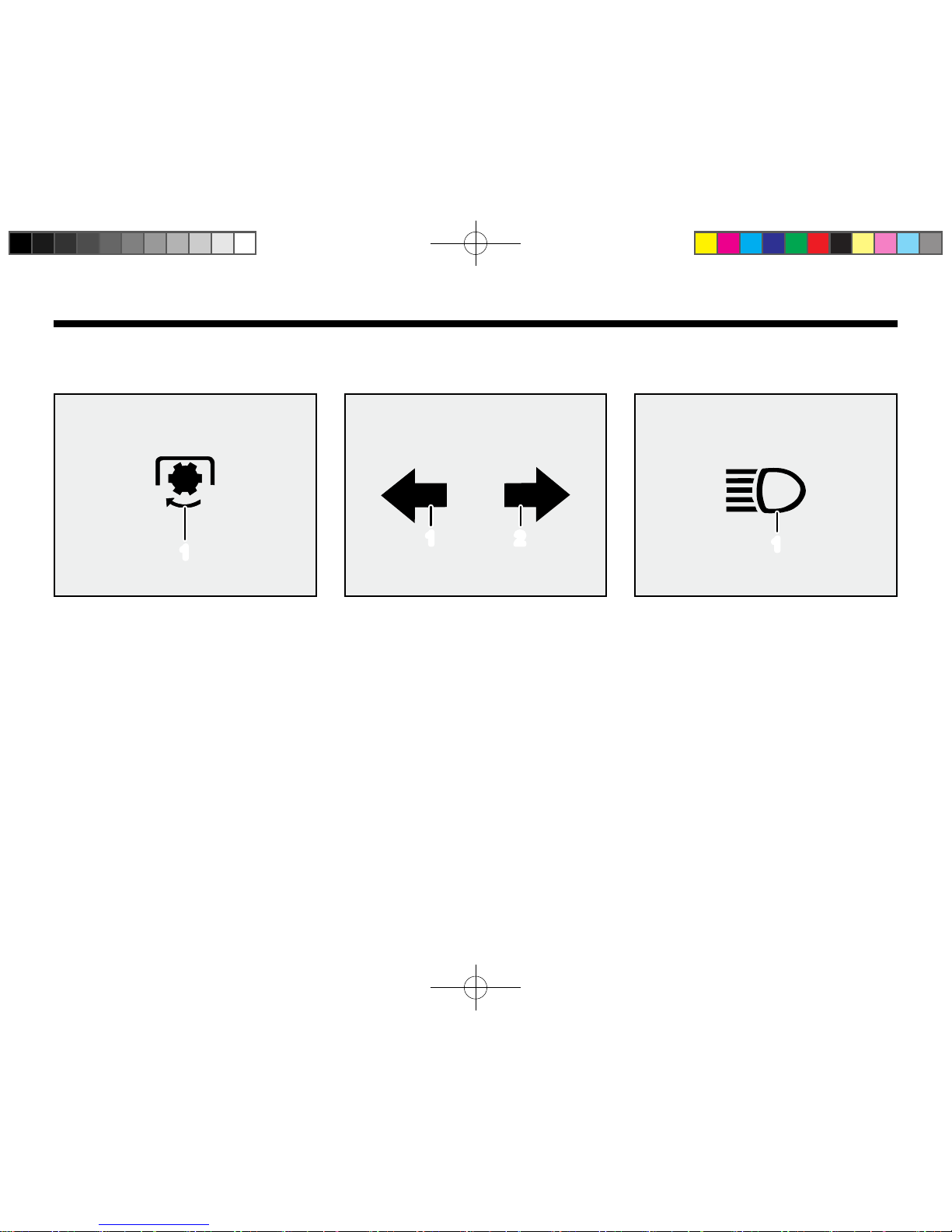

PTO INDICATOR ................................................... 4-8

K3트랙터-유럽향(Branson 36R,42R))-영문-04 4 2016-01-27 오전 10:55:06

TABLE OF CONTENTS

LEFT/RIGHT TURN SIGNAL INDICATOR ............ 4-8

HIGH BEAM INDICATOR ...................................... 4-8

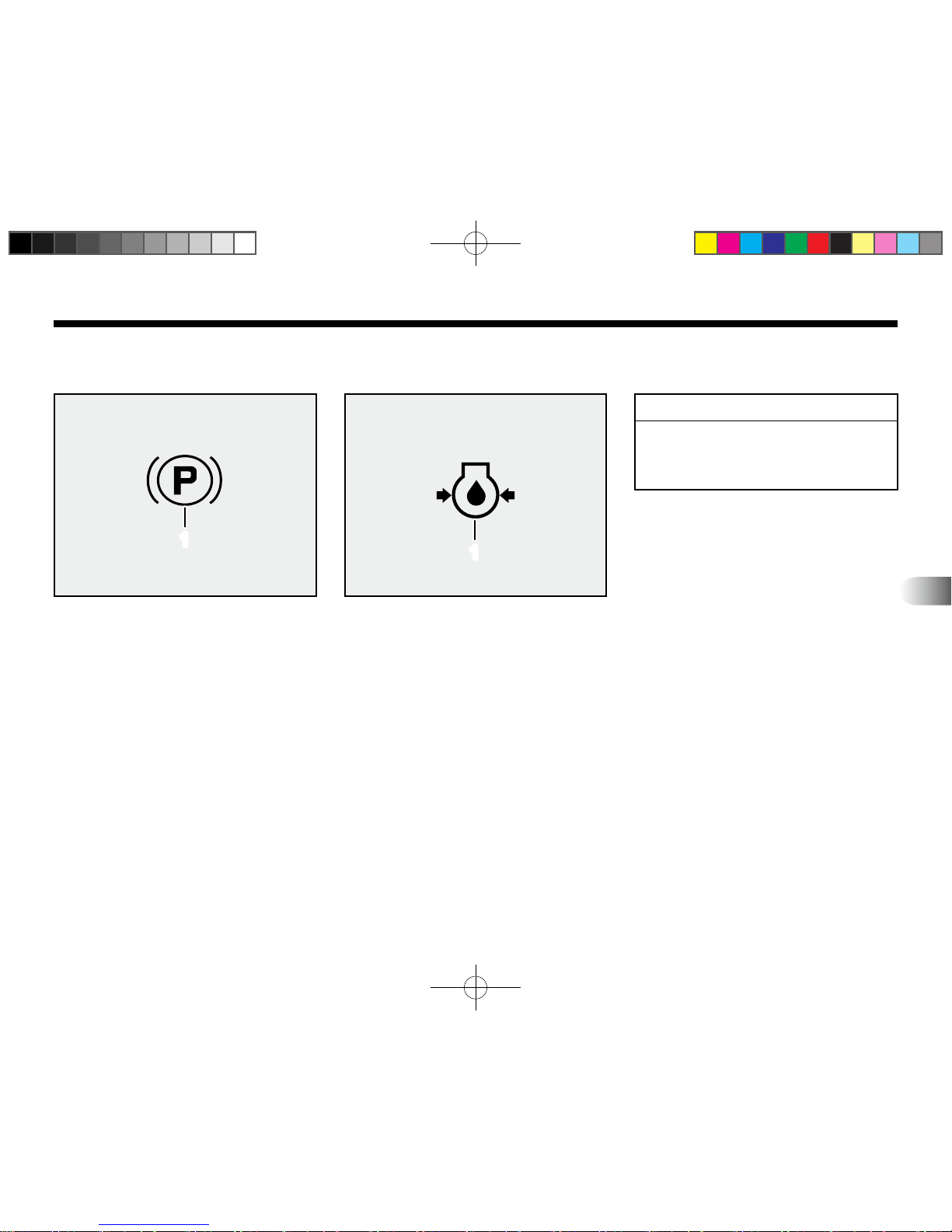

PARKING BRAKE & BRAKE INDICATOR ............ 4-9

ENGINE OIL PRESSURE WARNING LAMP ........ 4-9

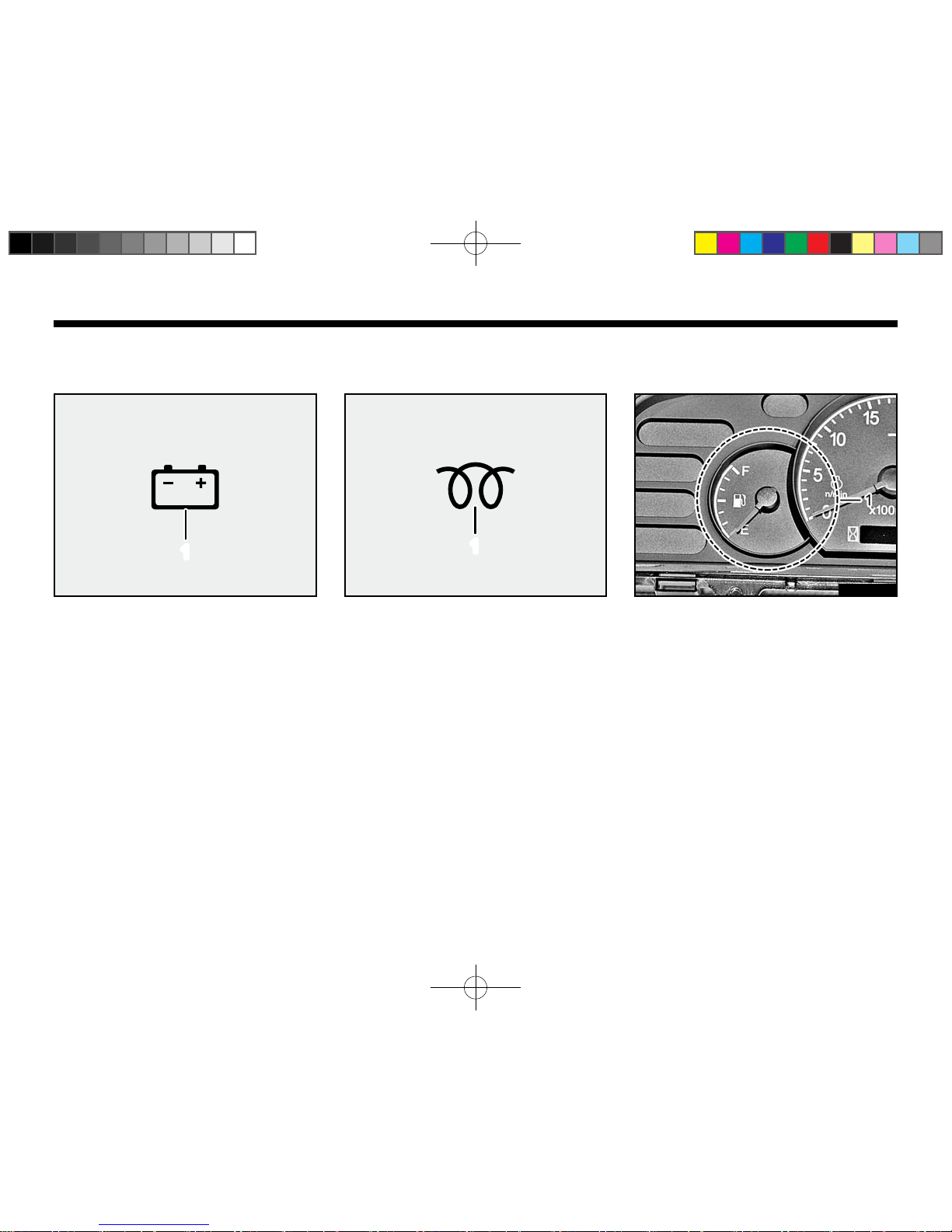

BATTERY CHARGE WARNING LAMP

...................... 4-10

PREHEAT INDICATOR ....................................... 4-10

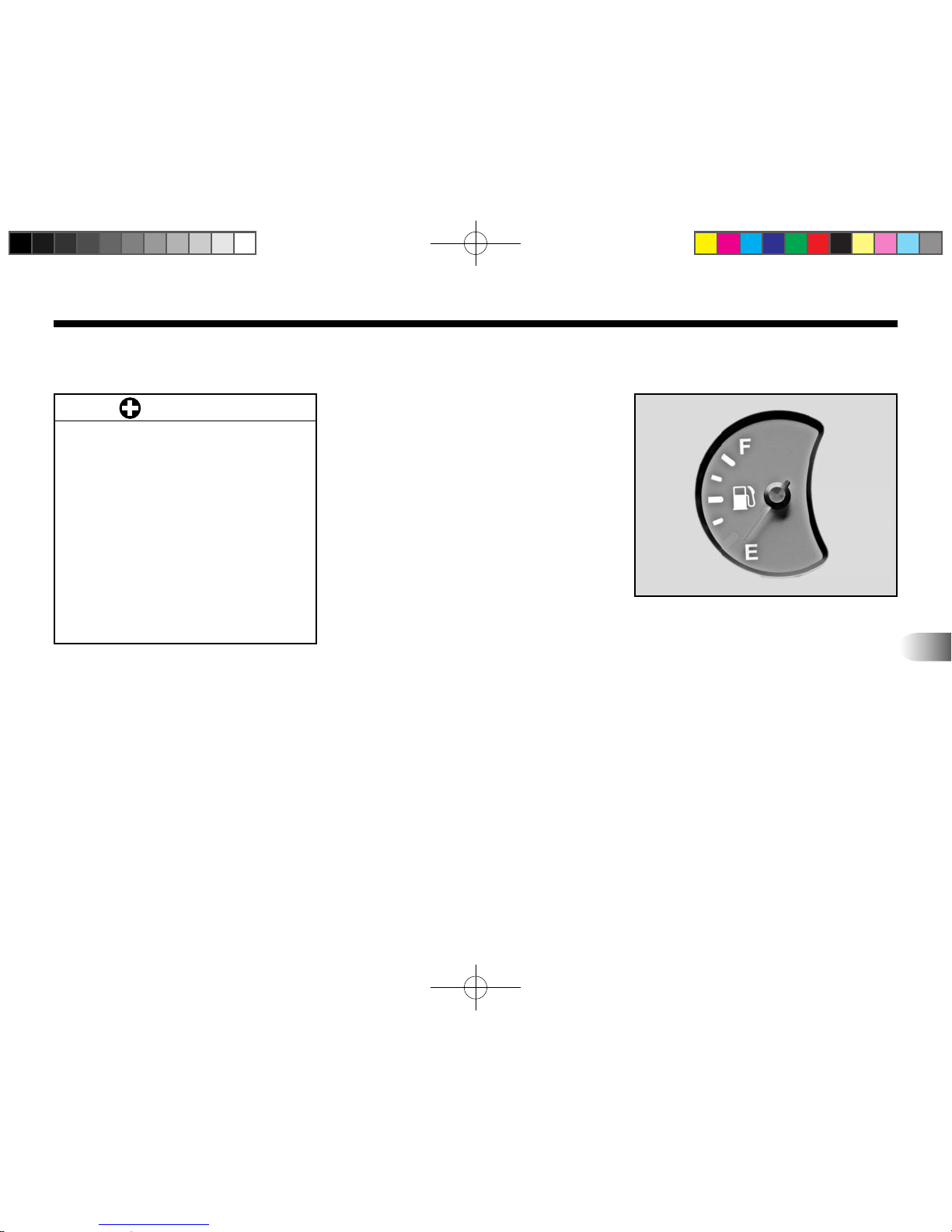

FUEL GAUGE ..................................................... 4-10

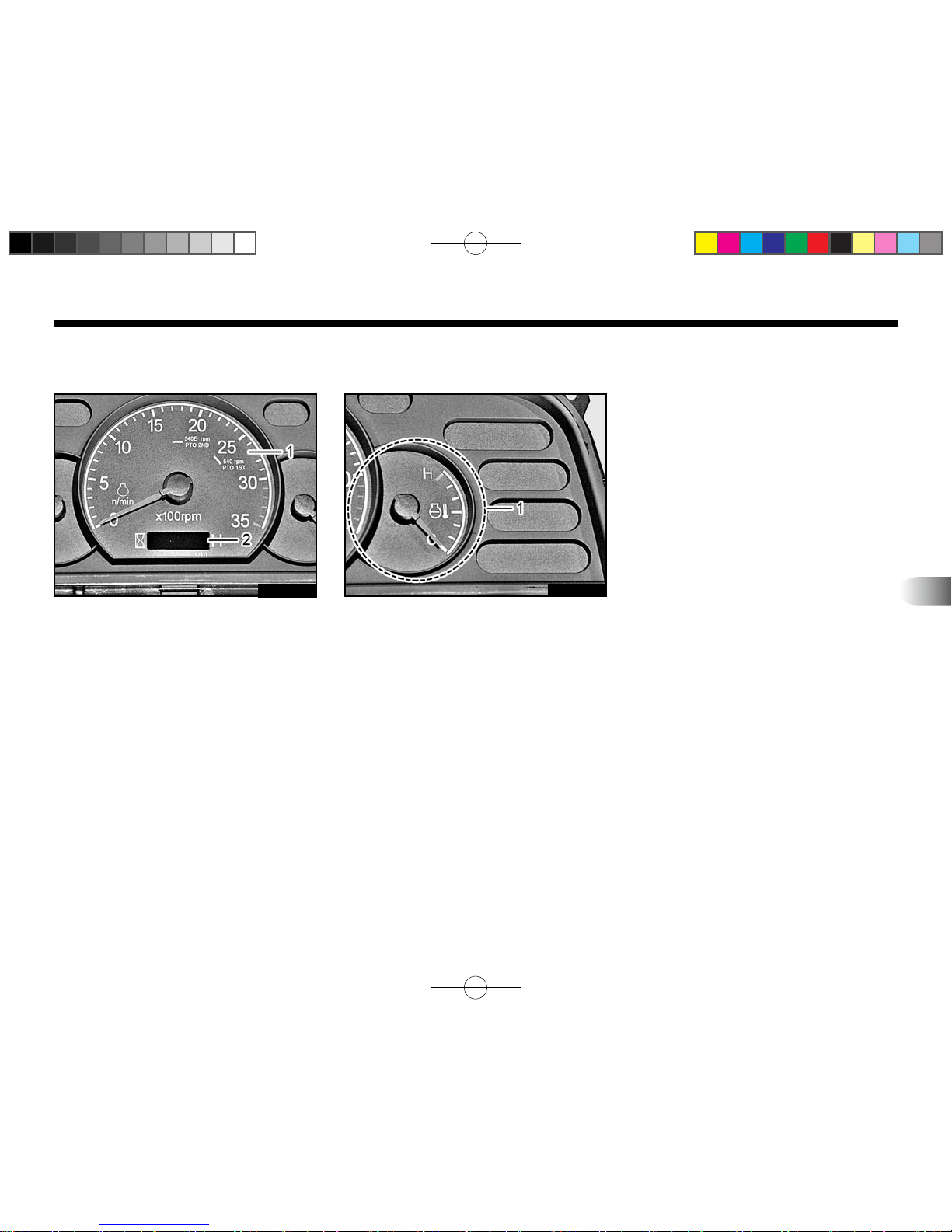

TACHOMETER/HOUR METER .......................... 4-11

COOLANT TEMPERATURE GAUGE ................. 4-11

CONTROLS 1 .................................................4-12

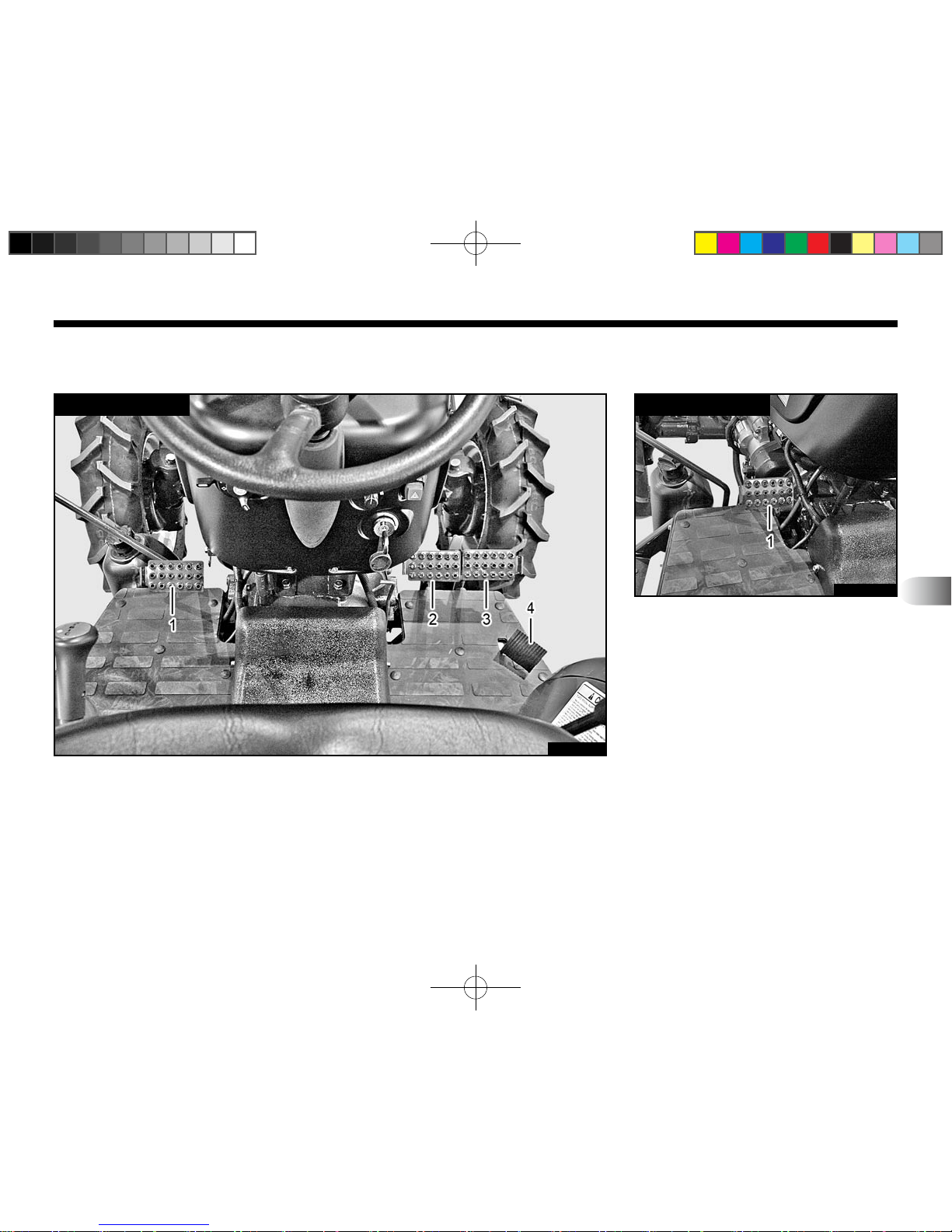

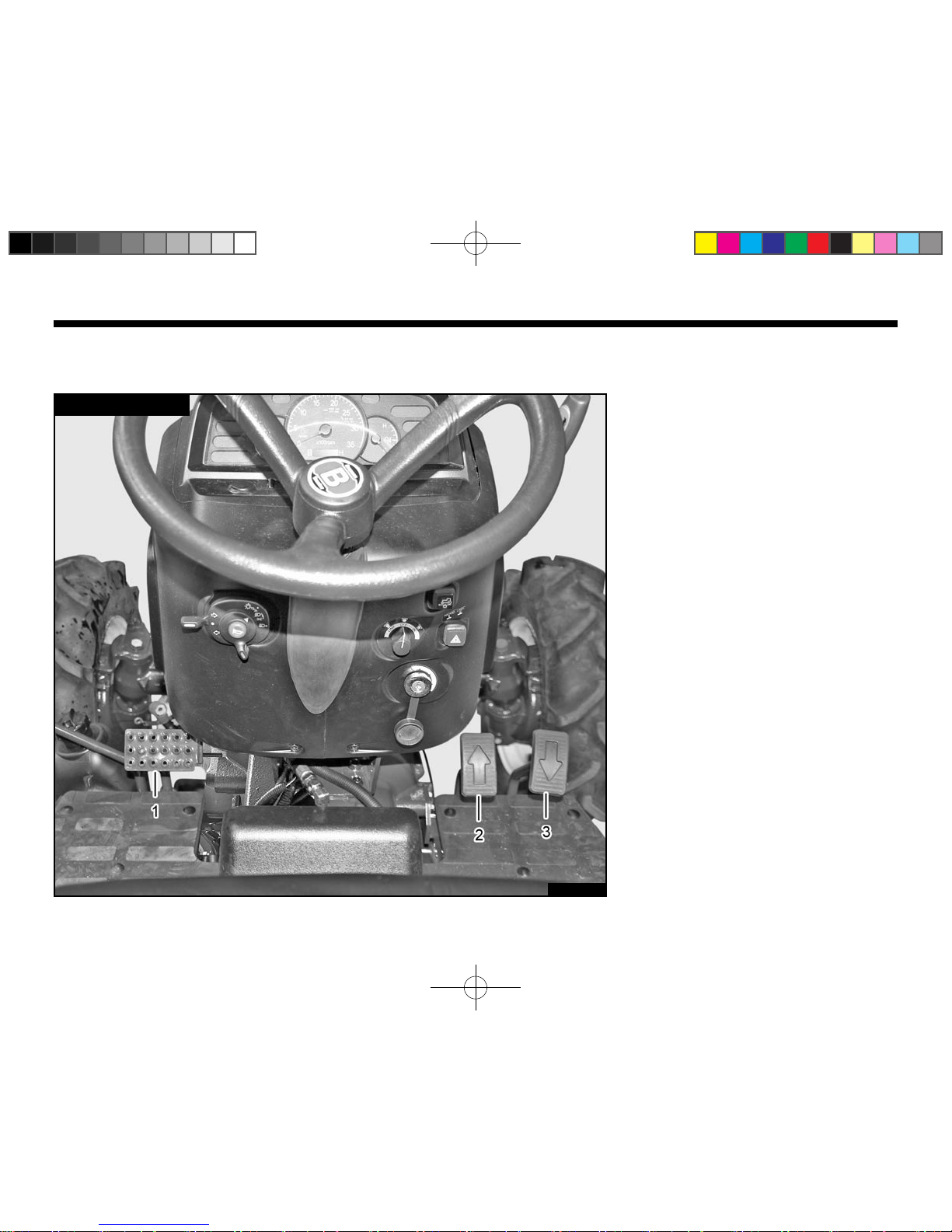

FOOT CONTROLS ............................................. 4-12

CLUTCH PEDAL ................................................. 4-13

BRAKE PEDALS (LEFT/RIGHT) ......................... 4-14

FOOT THROTTLE PEDAL .................................. 4-14

CONTROLS 2 .................................................4-15

HAND CONTROLS ............................................. 4-15

MAIN SHIFT LEVER ........................................... 4-15

RANGE SHIFT LEVER ....................................... 4-16

HAND THROTTLE LEVER ................................. 4-16

PTO ON/OFF SWITCH ....................................... 4-16

DIFFERENTIAL LOCK PEDAL ........................... 4-17

PARKING BRAKE ...............................................4-17

OPERATION ................................................5-1

DAILY INSPECTION BEFORE STARTING .....5-2

PRE-OPERATION CHECK ..............................5-2

PRE-OPERATION ................................................ 5-2

BEFORE STARTING THE ENGINE ...................... 5-2

RUNNING-IN PERIOD .......................................... 5-3

STARTING ENGINE .........................................5-3

HOW TO START ................................................... 5-3

COLD START ........................................................ 5-6

STOPPING ENGINE ........................................5-6

TRACTOR OPERATION ..................................

5-6

WHEN ATTACHING WEIGHT ............................... 5-6

REDUCE SPEED WHEN TOWING LOAD ............ 5-7

K3트랙터-유럽향(Branson 36R,42R))-영문-05 5 2016-01-27 오전 10:55:06

TABLE OF CONTENTS

HOW TO DRIVE .................................................... 5-7

STOPPING .......................................................... 5-11

PARKING ............................................................ 5-12

DIFFERENTIAL LOCK ........................................ 5-13

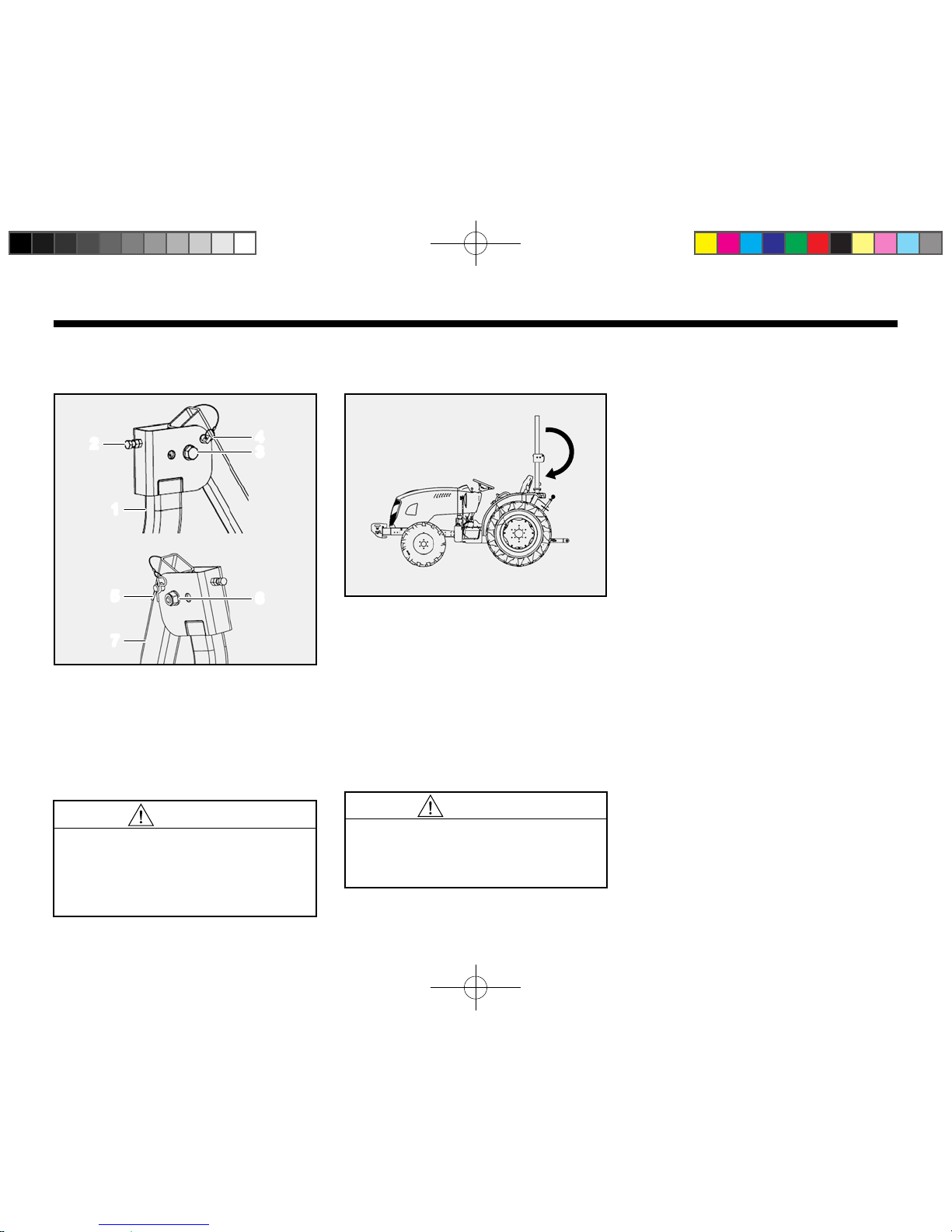

HOW TO FOLD ROPS ........................................ 5-14

CONTROL LEVER ............................................. 5-15

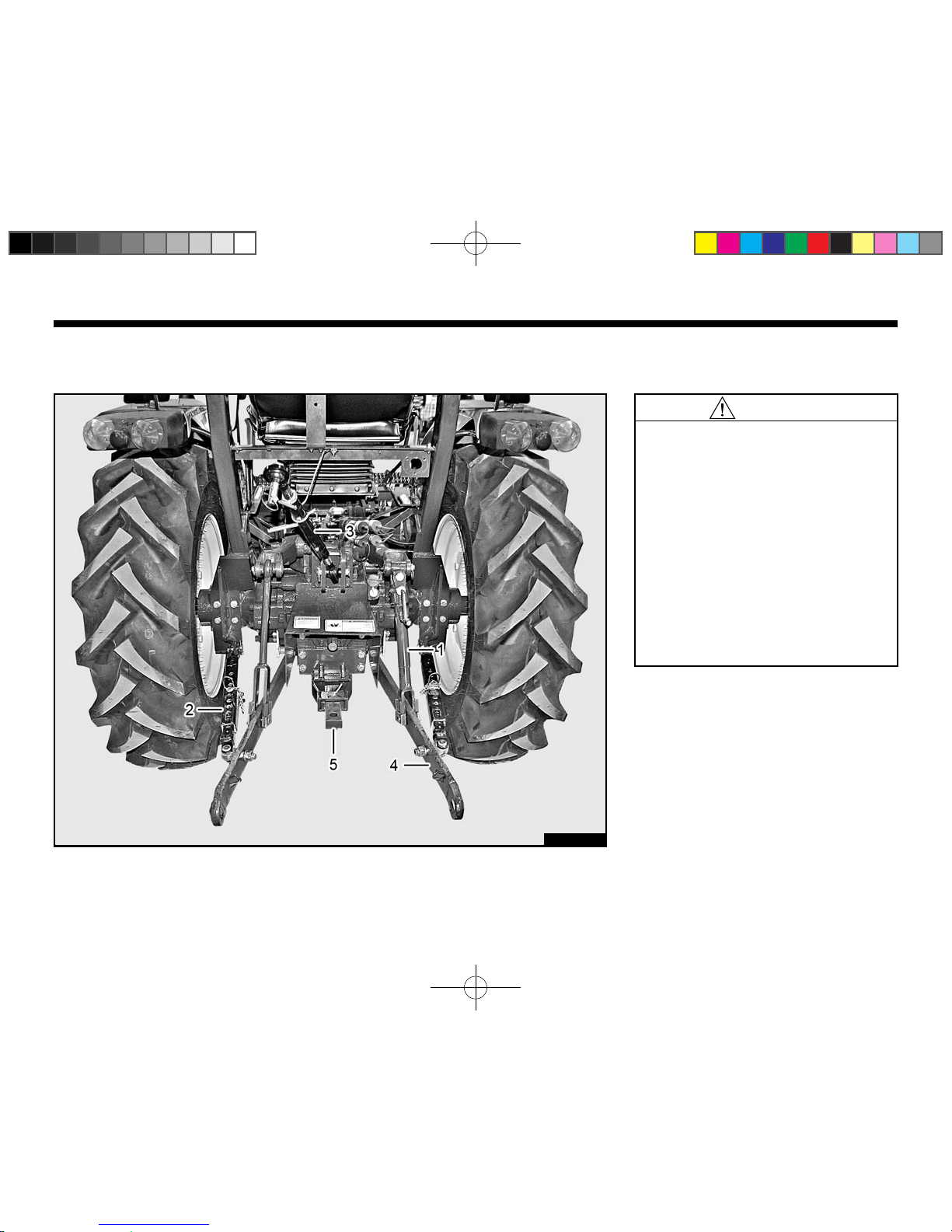

ATTACHMENT OF IMPLEMENT .................. 5-16

ATTACHMENT POSITION .................................. 5-16

CENTER LINK ADJUSTMENT ............................ 5-17

ATTACHING IMPLEMENT .................................. 5-17

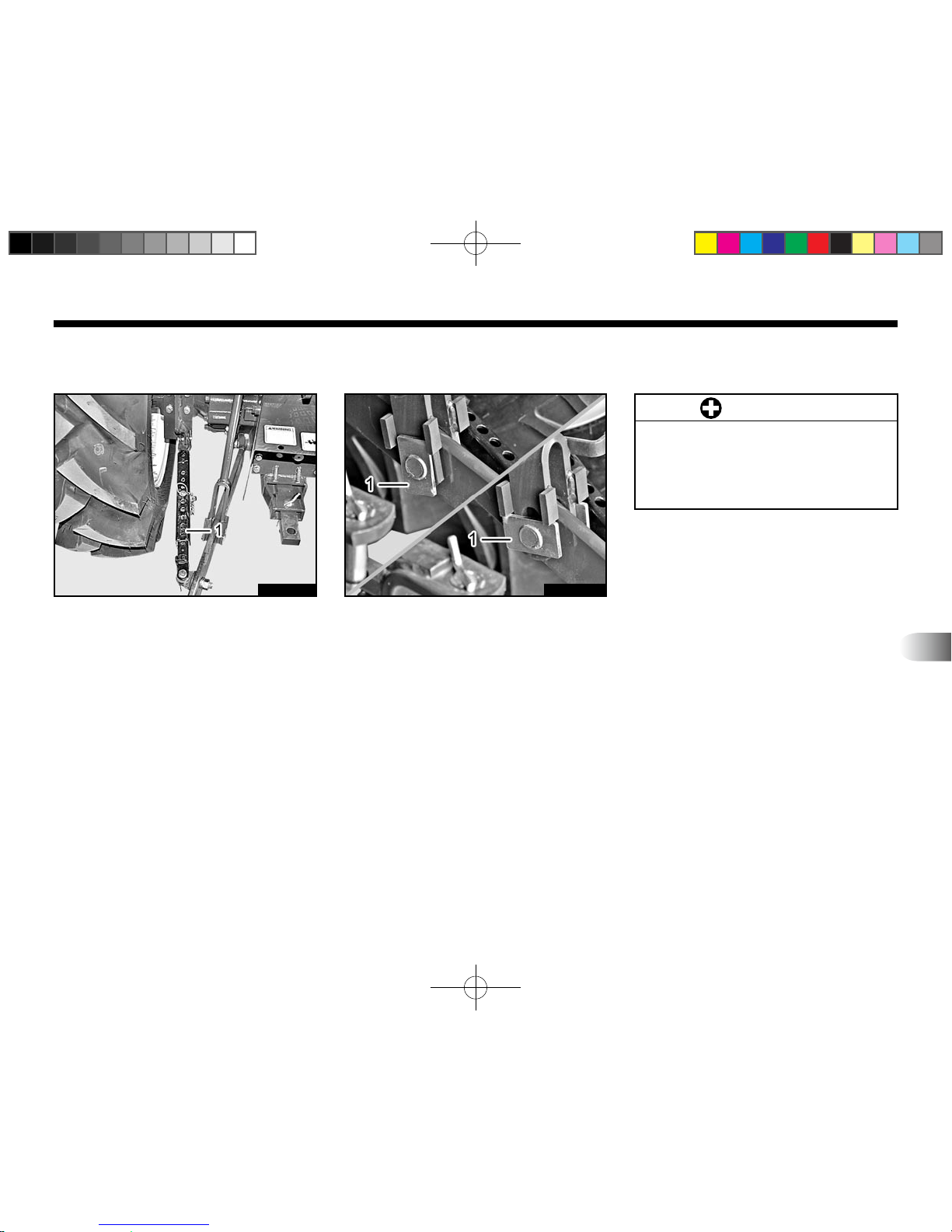

ADJUSTMENT OF CHECK BAR ........................ 5-19

ADJUSTMENT OF VERTICAL HEIGHT .............5-19

POSITIONING OF DRAW BAR ........................... 5-20

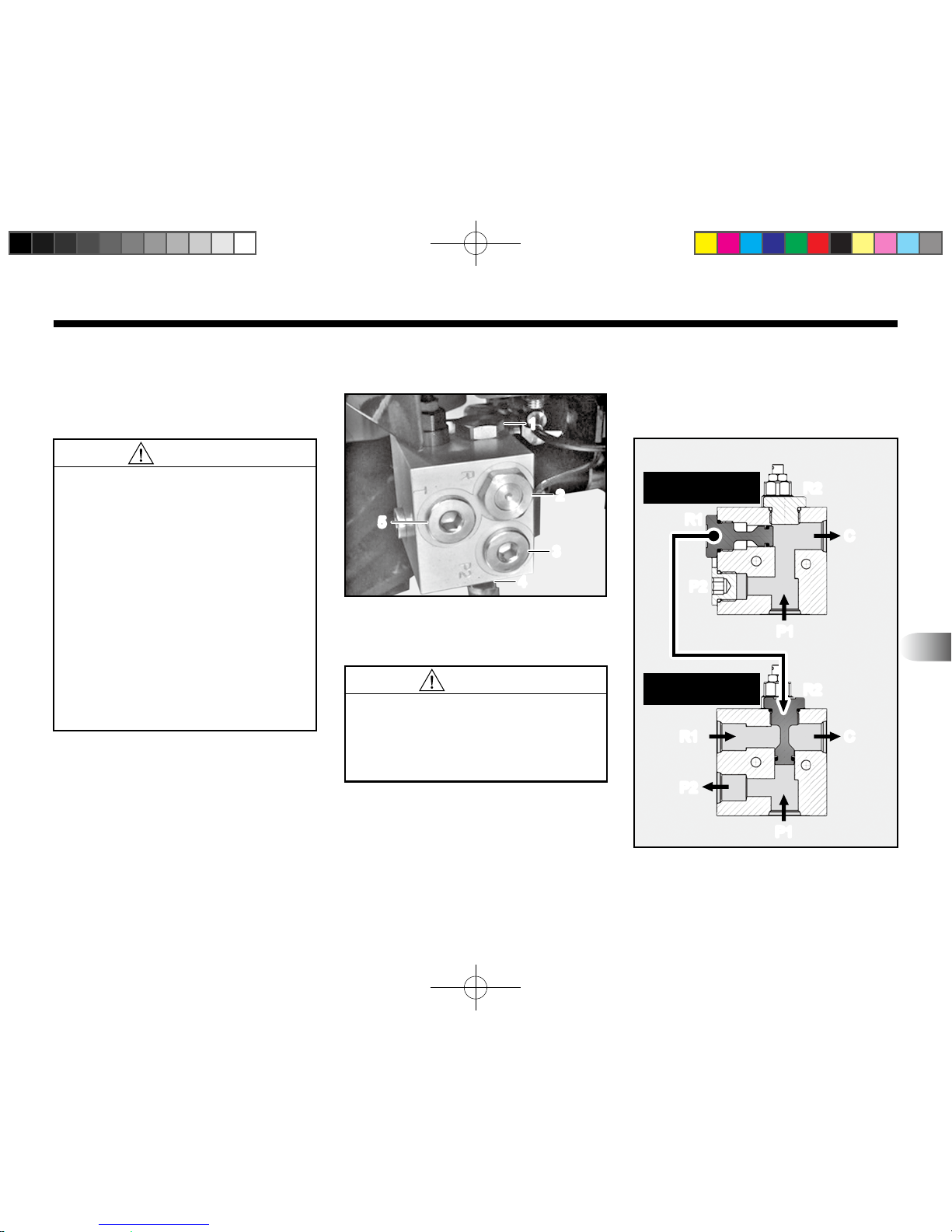

INSTALLATION OF PTO DRIVEN IMPLEMENT ... 5-20 HOW TO CONNECT HYDRAULIC

HOSE FOR LOADER ATTACHMENT ........... 5-21

CONTROL AND OPERATION OF

HYDRAULIC SYSTEM ................................

5-22

SCV CONTROL LEVER ANDCOUPLER ............ 5-22

CONNECTING CYLINDER HOSE ...................... 5-22

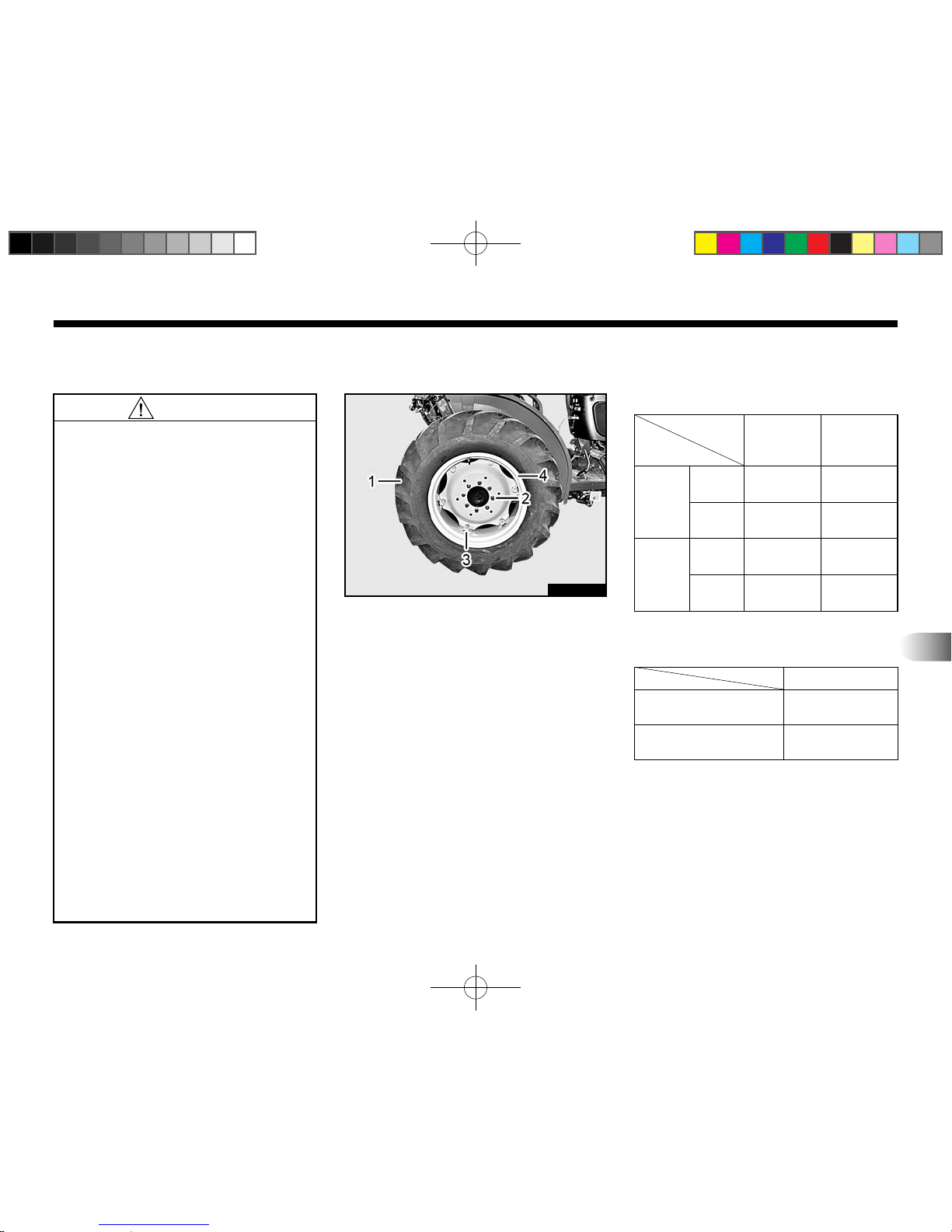

TIRES, WHEELS AND BALLAST ....................... 5-23

TIRE TYPE .......................................................... 5-23

WHEEL AND AXLE ............................................. 5-24

MAINTENANCE ........................................... 6-1

MAINTENANCE SCHEDULE CHART .............6-2

FLUIDS .............................................................

6-4

FLUIDS AND CAPACITY ....................................... 6-4

ROUTINE MAINTENANCE ..............................6-5

OPENING HOOD .................................................. 6-5

CHECKING AND REPLACING ENGINE OIL ........ 6-5

CHECKING AND CHANGING TRANSMISSION FLUID ....6-6

CHECKING AND CHANGING FRONT AXLE OIL ... 6-7

REPLACING ENGINE OIL FILTER ....................... 6-7

REPLACING TRANSMISSION FLUID FILTER ..... 6-8

CHECKING AND CHANGING COOLANT ............6-9

ANTI-FREEZE ....................................................... 6-9

K3트랙터-유럽향(Branson 36R,42R))-영문-06 6 2016-01-27 오전 10:55:06

TABLE OF CONTENTS

CHECKING AND ADDING FUEL ....................... 6-10

CHECKING BATTERY ........................................ 6-10

CHECKING HOSES AND PIPES ........................ 6-11

CHECKING ELECTRIC WIRING ........................ 6-11

GREASING ......................................................... 6-12

CHECKING AND ADJUSTING STEERING WHEEL ... 6-12

CHECKING AND ADJUSTING BRAKE ............... 6-12

BLEEDING FUEL SYSTEM ............................... 6-13

CHECKING EXHAUST GAS ............................... 6-13

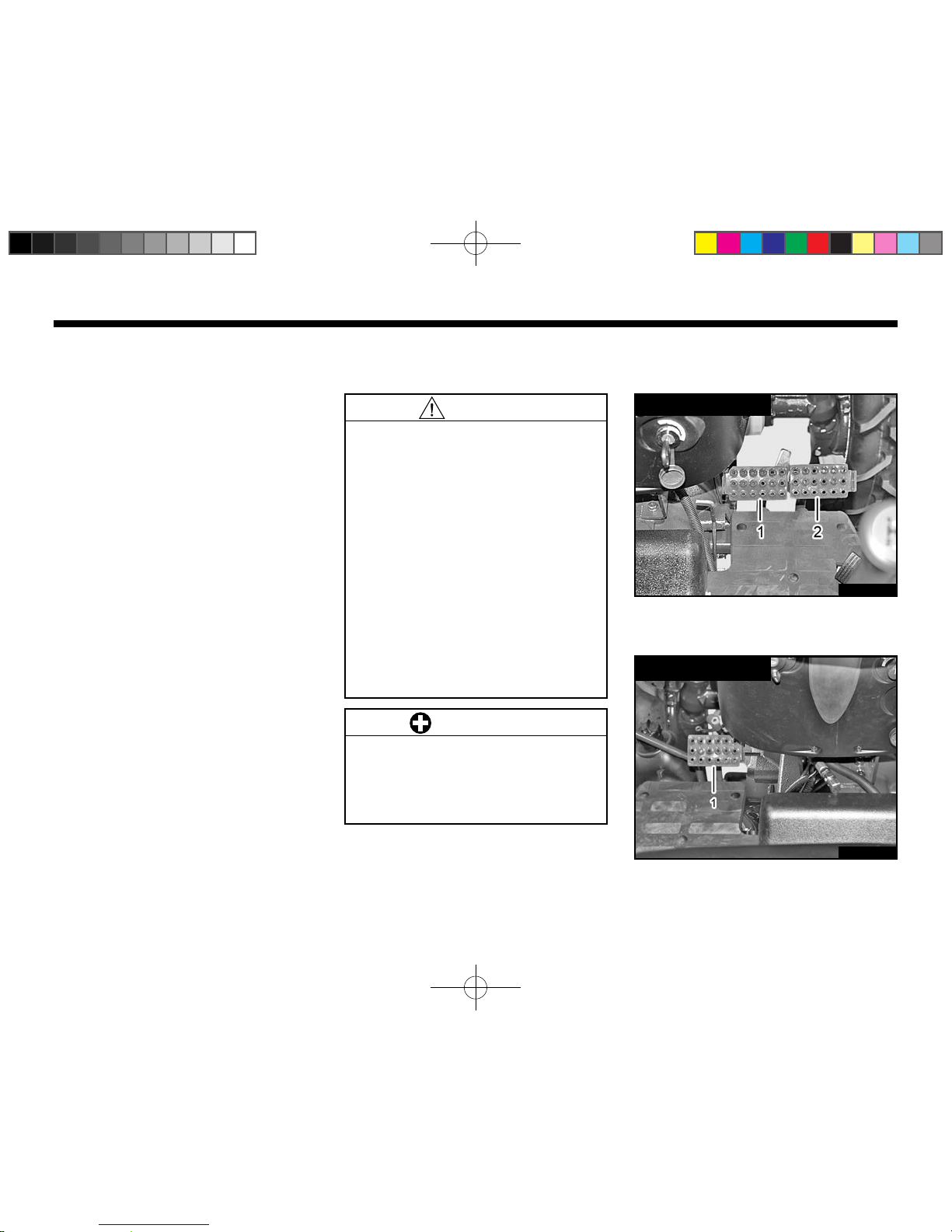

CHECKING FUSE AND FUSIBLE LINK ............. 6-14

CHECKING AND ADJUSTING TOE-IN ............... 6-14

CHECKING AND ADJUSTING FAN BELT .......... 6-15

TROUBLESHOOTING ................................. 7-1

TROUBLESHOOTING ENGINE ......................7-2

TROUBLESHOOTING CLUTCH AND BRAKE

...7-5

TROUBLESHOOTING HYDRAULIC SYSTEM

.... 7-6

TROUBLESHOOTING ELECTRIC SYSTEM

.... 7-7

STORAGE AND DISPOSAL ........................ 8-1

TRACTOR STORAGE .....................................8-2

DAILY STORAGE .................................................. 8-2

LONG-TERM STORAGE ...................................... 8-2

USING TRACTOR AFTER LONG-TERM

STORAGE .......................................................... 8-3

USE AND DISPOSAL ............................................ 8-4

INDEX........................................................... 9-1

K3트랙터-유럽향(Branson 36R,42R))-영문-07 7 2016-01-27 오전 10:55:06

SAFETY AND VEHICLE DAMAGE WARNING

This symbol indicates that a condition may result in harm, fatal injury or death to you or other persons if this instruction is ignored.

DANGER

This symbol indicates that a condition may result in harm, serious injury or death to you or other persons if this instruction is ignored.

This symbol indicates that a condition may result in damage to your vehicle or its equipment if this instruction is ignored. Also this symbol alerts the operator’s unstable operation.

This symbol indicates emphasis on notable characteristics of working procedures, and information about technology for easier operation.

NOTE

This instruction is to give additional description to operator so that he/she can operate the machine more effectively.

WARNING

CAUTION

IMPORTANT

This manual includes information titled as DANGER, WARNING, CAUTION, IMPORTANT. These safety marks stand for the safety precaution so follow the instruction with special attention:

This manual includes "Very important safety tips for safe operation" as a chapter. Be sure to read this chapter before initial operation.

K3트랙터-유럽향(Branson 36R,42R))-영문-08 8 2016-01-27 오전 10:55:06

This manual includes symbol marks of the controller to simplify operations for maneuverability and maintenance. These meanings are as below, so carefully read it for a proper function.

SYMBOL MARKS OF CONTROLLER

PTO

Preheat

Parking Brake (Brake)

Left side indicator

Engine oil pressure

High beam

Right side indicator

Battery

Low beam

K3트랙터-유럽향(Branson 36R,42R))-영문-09 9 2016-01-27 오전 10:55:07

"USE AND DISPOSAL" POLICY CONCERNED WITH ENVIRONMENT PRESERVATION

We try our best to preserve the environment, and are always concerned about our environmental impact at each step of planning, development, production, distribution, use and disposal of products, and for our overall operations through an “environmentally friendly” management system. We comply with international environmental regulations, environmental regulations designated by country and local authorities and other requirements with which we are in agreement, and we work towards the prevention of environmental pollution and the conservation of resources. We provide environmental education and have an awareness campaign to raise environmental awareness among all our employees and members of the supporting companies.

We introduce the “Use and Disposal” policy concerned with environment preservation as follows.

1. Please read the operator’s manual though for global environment protection. Overload on the machine shortens the

product life and increases the harmful exhaust gas which cause air pollution due to the incomplete combustion.

2. When replacing various uids (for engine, transmission, hydraulics, etc.) by yourself, don’t dispose the used oil to

anywhere not recommended. It can pollute the ground and water. Please contact your local dealer to dispose it legally.

3. Observe the operator’s manual and store or dispose the waste product properly. Rust, oil, etc leaked from waste product improperly stored can pollute the ground and water. Accordingly for a waste product disposal, contact the necessarily “approved waste collection and recycling facility” to discard the used materials legally.

K3트랙터-유럽향(Branson 36R,42R))-영문-010 10 2016-01-27 오전 10:55:07

1

1. FOR SAFE OPERATION

SAFETY PRECAUTIONS ......................................................................... 1-2

BEFORE USING THE MACHINE ..................................................................................1-2

BEFORE WORKING ...................................................................................................1-11

WHILE WORKING .......................................................................................................1-16

AFTER USING THE MACHINE ...................................................................................1-17

PRECAUTION FOR PROLONGED STORAGE ..........................................................1-21

OTHER ........................................................................................................................1-23

DECAL MOUNTING LOCATION ............................................................1-31

DECAL ....................................................................................................

1-33

CAUTIONS FOR DECAL MAINTENANCE .................................................................1-36

K3트랙터-유럽향(Branson 36R,42R))-영문-01 1 2016-01-26 오후 2:19:53

1

-

2

Branson F36R(H)/F42R(H)

SAFETY PRECAUTIONS

If the instructions in this chapter are ignored, it may cause a machine failure, a fatal accident with injury or death.

For further detailed information, refer to each chapter.

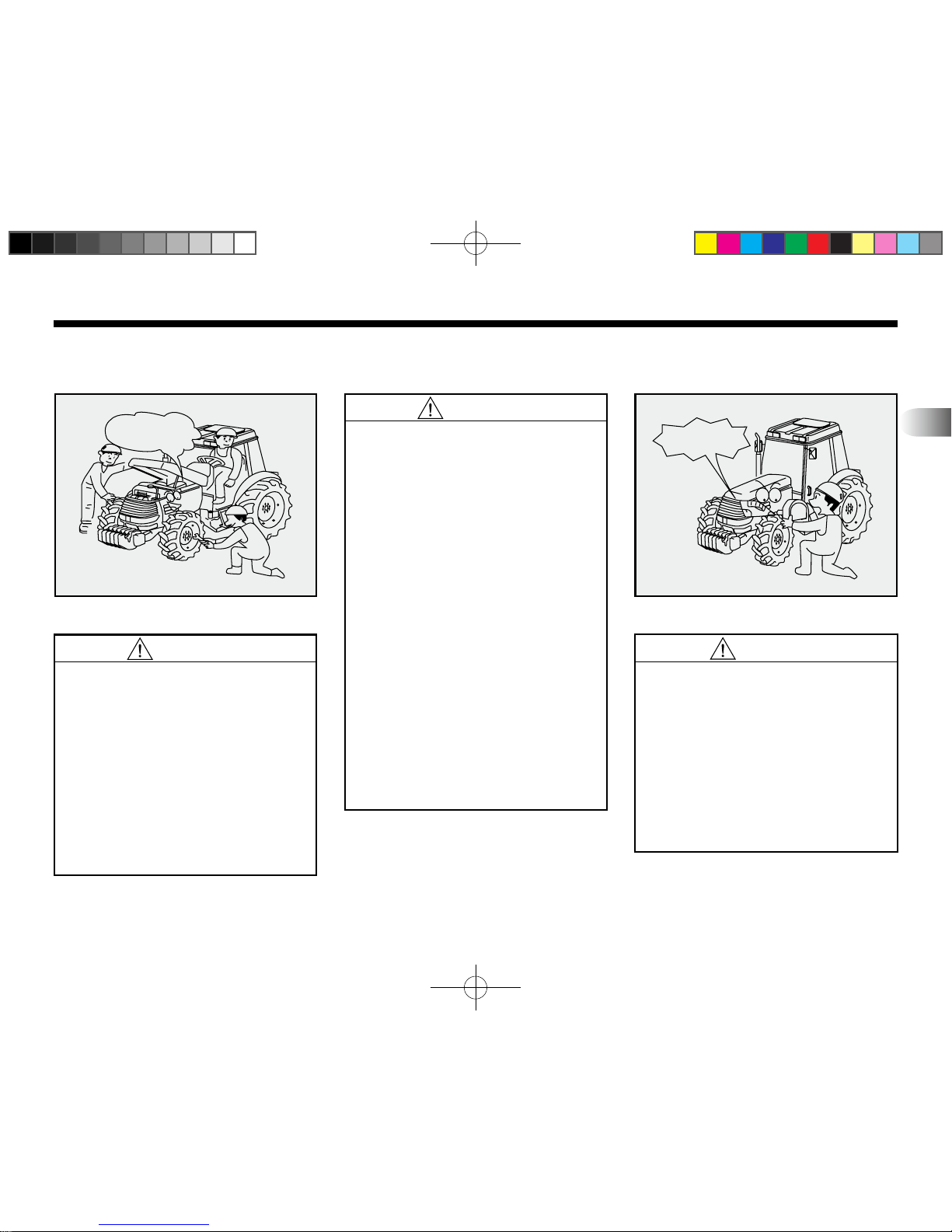

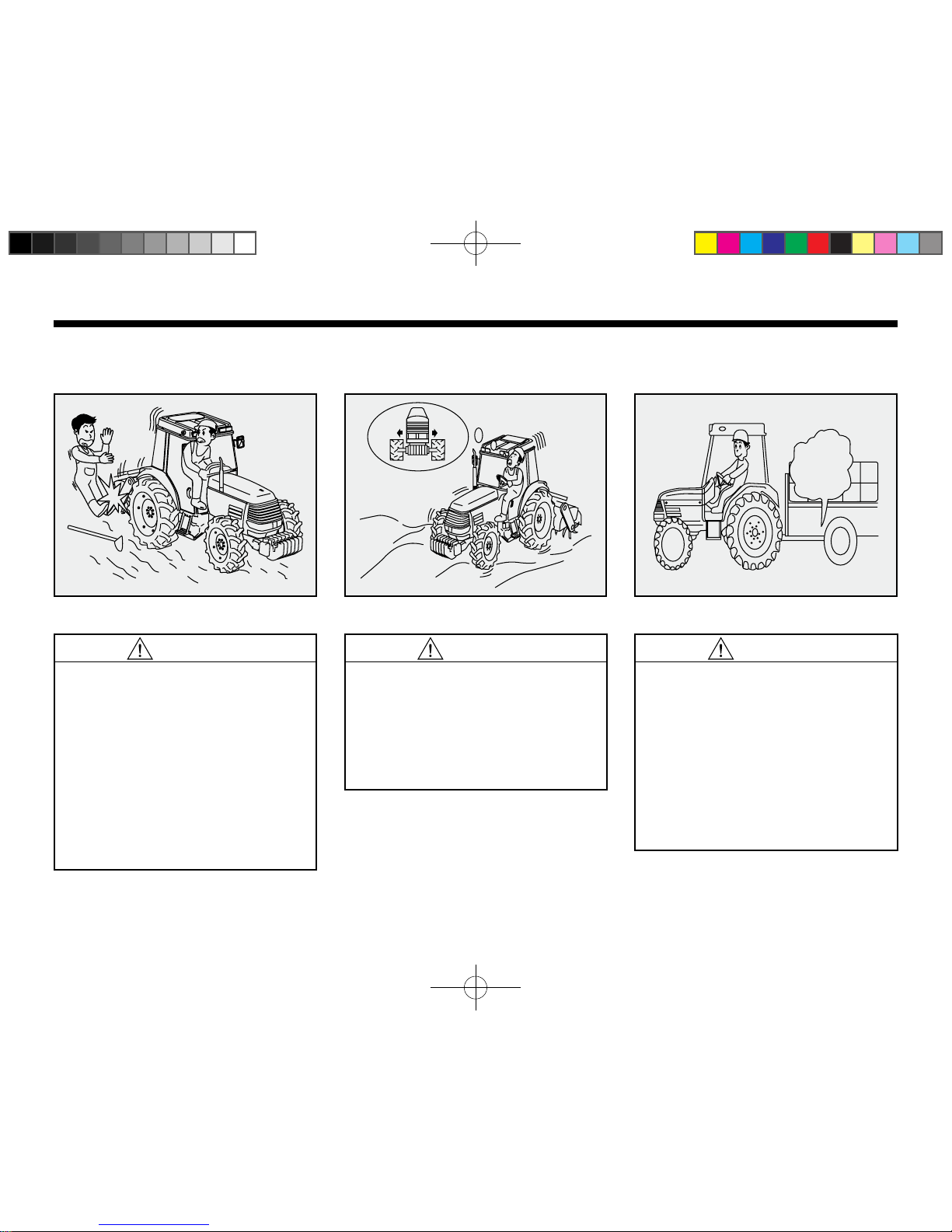

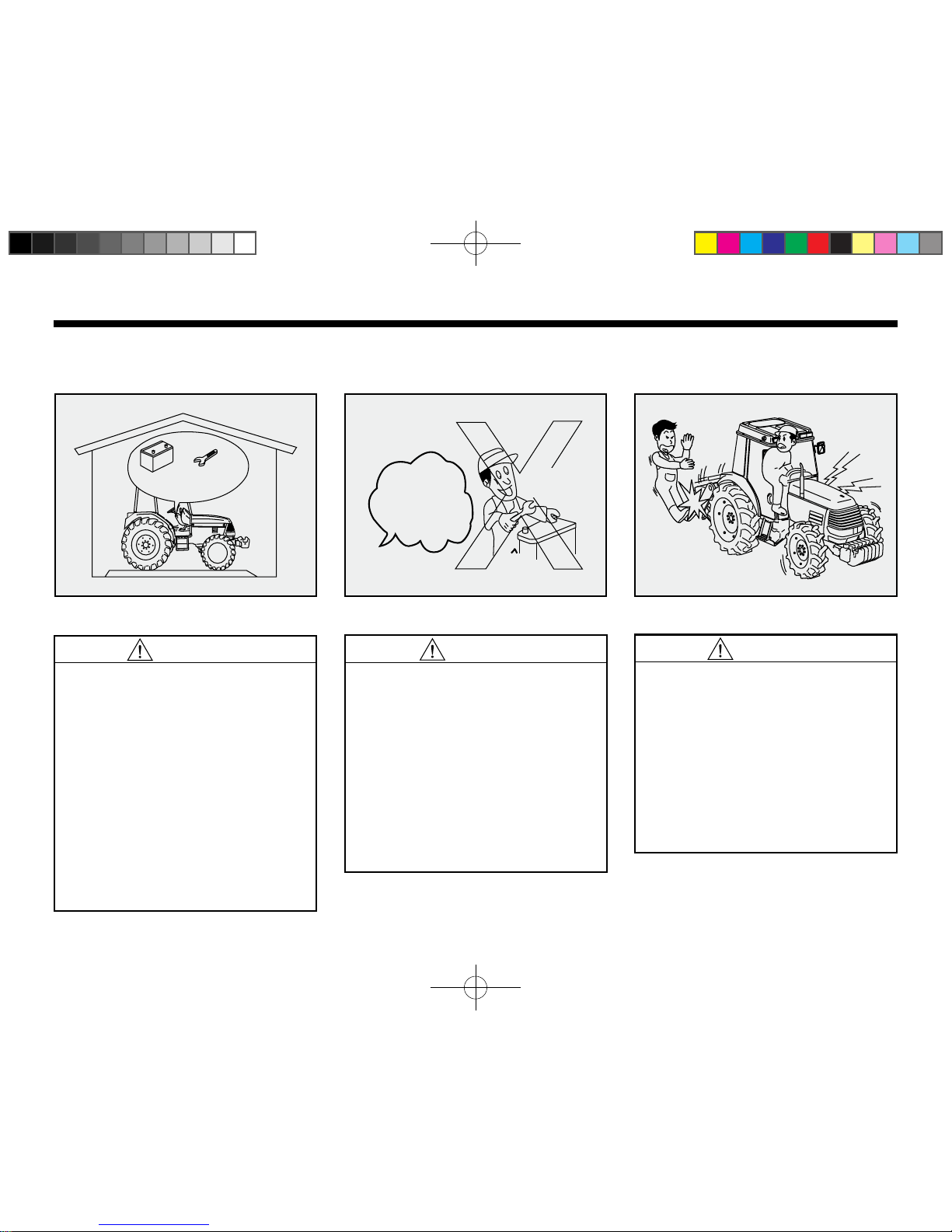

BEFORE USING THE MACHINE

6015o102a

환기를 충분히

6640o101a

Ventilating

Wide and at enough place;

Inspect or repair the tractor on a wide and at area.

If this instruction is ignored, an unexpected accident may occur, such as overturning of the tractor.

•

WARNING

Please understand that some of figures or contents in this manual may not match with your own machine due to the product variation.

This tractor is not designed for road driving. Please use a truck to move this machine on the public roads.

•

NOTE

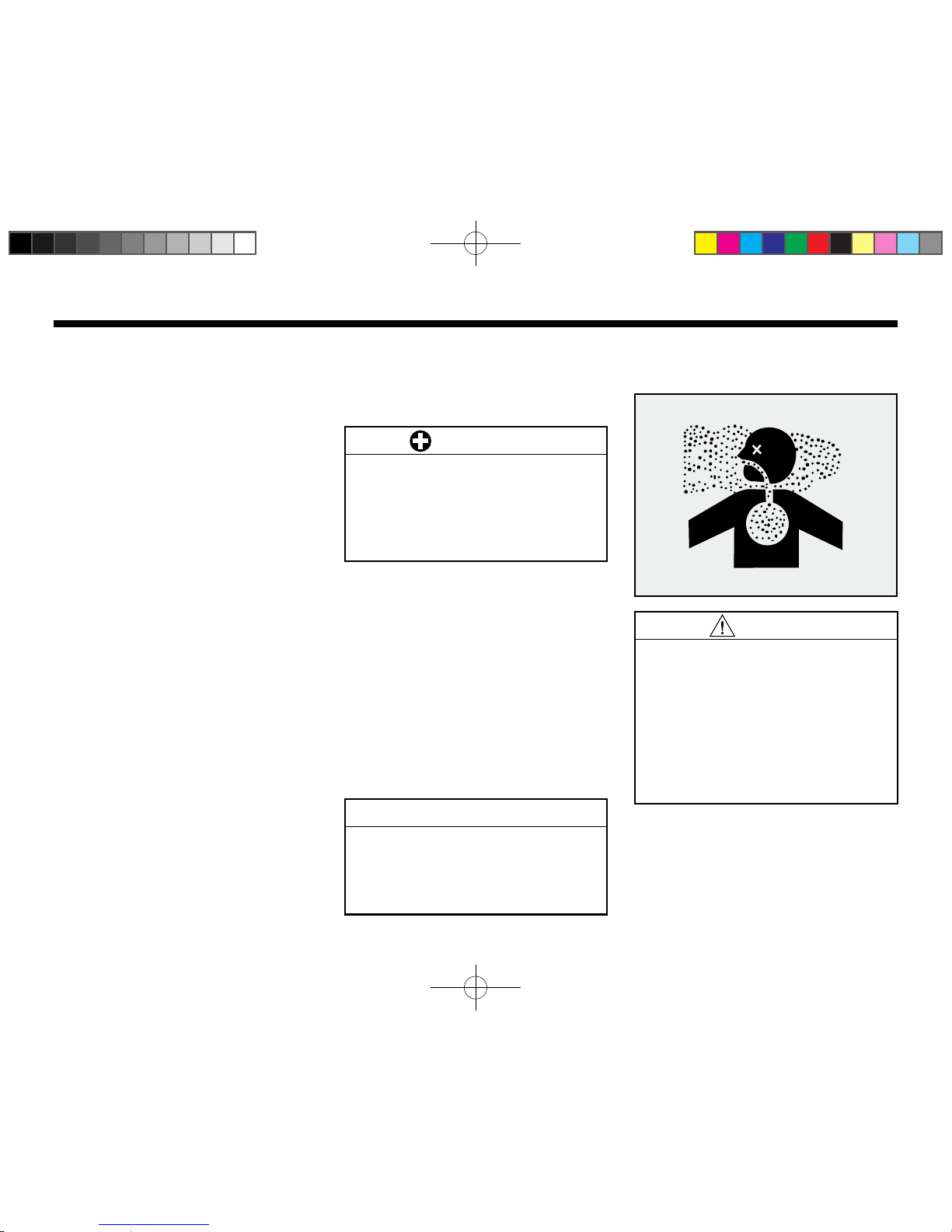

Beware of exhaust gas;

Running the engine, repairing (tightening) an pain ted part or grinding any painted area should be performed only in a well-ventilated area.

If this instruction is ignored, the exhaust gas or dust can cause in t o xication and lead to fatal consequences.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-02 2 2016-01-26 오후 2:19:54

1

-

3

FOR YOUR SAFETY

1

6015o103a 6015o104a

Carry out maintenance in a welllit place;

Make sure work area is properly lighted.

Use safety work lights with

pr o t e c t i ve c o v e r in g whe n working inside or under the machine.

If this instruction is ignored, an unexpected accident may occur, possibly re or explosion.

•

WARNING

Clean and arranged place;

Do n o t me s s th e p l ac e by dust, mud, oil, or parts

If this instruction is ignored, an unexpected accident may occur.

•

WARNING

Prepare for emergencies;

Keep a rst aid kit and re extinguisher handy at all times while operating machine.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-03 3 2016-01-26 오후 2:19:54

1

-

4

Branson F36R(H)/F42R(H)

6015o106a 6015o107a6015o105a

Do not drive if you are;

Un a bl e t o co n c e nt ra t e be cause of fatigue, under treatment of medicine.

Under the inuence on alcohol Pregnant Under the age of 18

•

WARNING

Use only recommended implements;

Be s ure to u se o nly impl ements which are recommended by manufacturer.

If this instruction is ignored, an unexpected accident may occur or tractor may not perform properly.

•

WARNING

Wear properly for the job;

Ha i r ba n d , l o os e clo t h i n g is n ot a ll ow ed . Wea r ti gh t clothes, work hat, and work shoes which have rough bottoms against slippery surface.

If this instruction is ignored, you will be exposed to a risk of being entangled, slipping, or fall-

ing.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-04 4 2016-01-26 오후 2:19:55

1

-

5

FOR YOUR SAFETY

1

6015o108a

6015o109a 6015o110a

Pay attention to the shoulder of the road;

When movin g along the unpaved r o a d wit h ditches o r slanted sides, pay attention to the shoulders.

If t h i s instruction is ignore d , there is a risk of falling over.

•

Interlock the brake pedals (left and rig h t ) when d r i ving on a road;

Mak e s u re to int e rl o ck the brake pedals (left and right) when driving on a road

If t h i s instruction is ignore d , there is a risk of abrupt turning or overturning due to one-sided braking.

•

Start the machine slowly after reminding bystander;

Start the engine after reminding bystanders of your intension. Do not start the machine abruptly.

If this instruction is ignored, unexpected accident or injury can happen.

•

WARNING

WARNINGWARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-05 5 2016-01-26 오후 2:19:56

1

-

6

Branson F36R(H)/F42R(H)

6015o112a6015o111a

6015o113a

Ob se rv e tr a f f i c re g u l at io ns when driving on a road safely;

If the machine is broke down an d s t o p p e d on the ro a d, move the machine to a safe place out of the road.

If t h i s instruction is ignore d , there is a risk of accident or injury.

•

WARNING

Avoid rapid starting, braking, turning, and excessive speed;

St ar t an d st o p th e tr a c t or slowly. Reduce engine speed when making a turn and driving on hilly or curved roads.

If t h i s instruction is ignore d , there is a risk of overturning or damage to the machine.

•

WARNING

Observe traffic regulations and drive safely;

When driving on the road, observe the traffic regulations and wear a hard hat and seat belt.

If t h i s instruction is ignore d , there is a risk of accident or injury.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-06 6 2016-01-26 오후 2:19:56

1

-

7

FOR YOUR SAFETY

1

6015o115a 6015o116a

Put machine shut down sign if the machine is stopped on the road;

If the tra c t o r is stoppe d o n the road due to the machine failure, put the machine shut down sign (Emergency triangl e r eflex reflect or) at least 100~200 yards b efore failed machine in accordance with local trafc laws.

If this instruction is ignored, the machine can be hit by a car and cause a trafc accident with injury or death.

•

WARNING

Only driver should be aboard the tractor while in operation;

This tractor is designed to allow on l y one o p e rator. The driver must not allow anyone else to get on the tractor.

Especial ly never allow children on the machine while in use.

If this instruction is ignored, an unexpected accident may occur.

•

WARNING

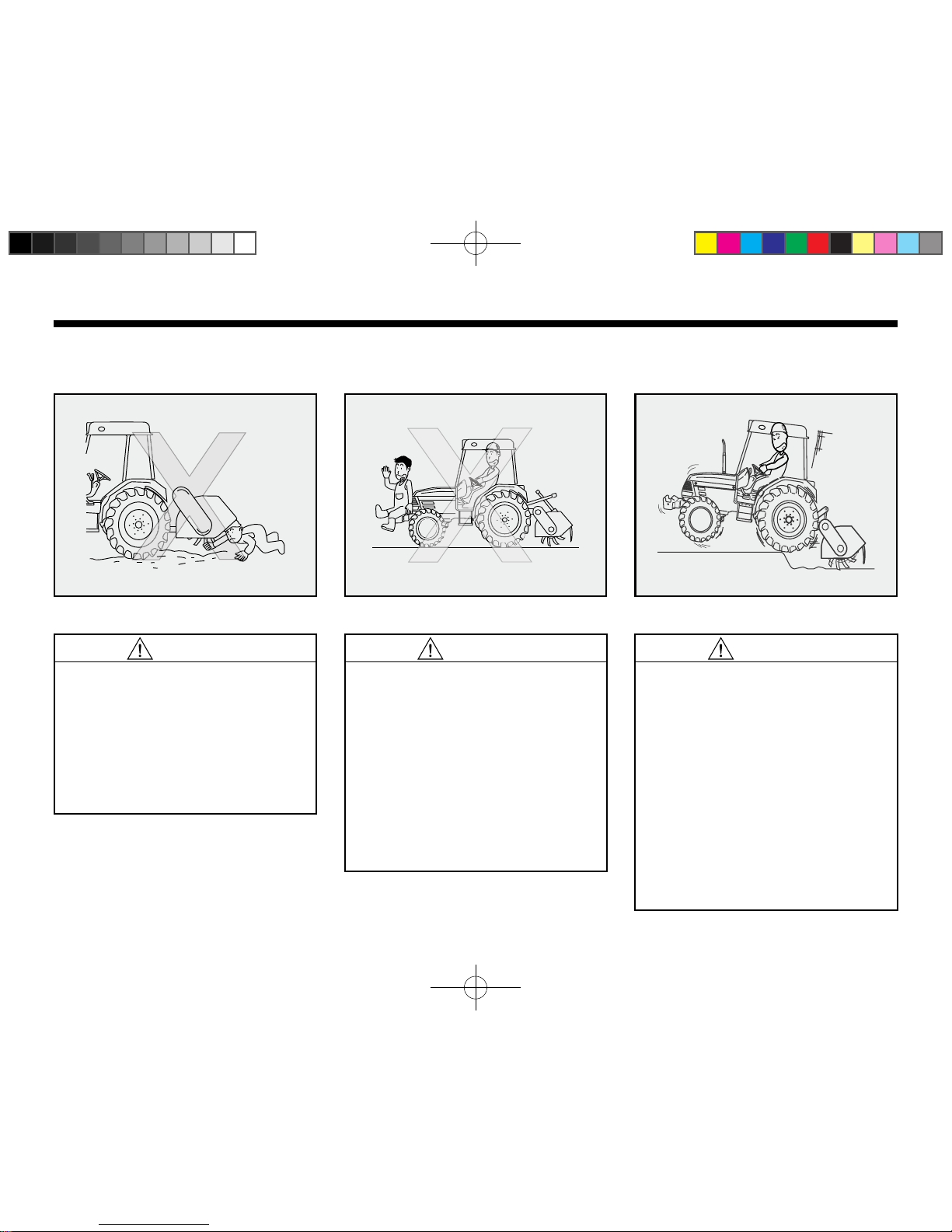

Do not allow anyone near while operating the tractor or implement;

When engaging or disengaging the implement by moving the tractor, make sure that no one is around the tractor or between the impleme nt and the tractor.

[If this instruction is ignored, there is a risk of accident or injury.

•

WARNING

100m 이상

6640o114a

100m or more

K3트랙터-유럽향(Branson 36R,42R))-영문-07 7 2016-01-26 오후 2:19:57

1

-

8

Branson F36R(H)/F42R(H)

6015o117a 6015o119a

사용전에

잘 읽는다.

설명

서

6640o118a

Read manual

before drive

Operator

manual

Use Pesticides safely;

Careless us e of a g r icultur al chemicals such as disinfectants, herbicide, pesticides, rat poison, and fertilizer can be h a rmfu l to envir o nmen t and human body. Be sure to observe all relevant regulation and instructions to use the agricultural chemicals efficiently and safely. Then it may prevent injury or accident.

•

WARNING

Properly train anyone operating;

Explain the handling tips in detail and make sure the driver reads t h e Manua l b efore driving.

If t h i s instruction is ignore d , there is a risk of death, serious

injury, or damage to tractor.

•

WARNING

Precautions for children;

Fu lly warn the children and keep them away from the tractor at all times.

If this instruction is ignored, unexpected accident of injury can happen.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-08 8 2016-01-26 오후 2:19:58

1

-

9

FOR YOUR SAFETY

1

6015o120a 6015o121a

Observe all relevant regulations for disposal;

Be sure to observe all relevant regulations when you dispose of the engine oil, transmission oil, fuel, coolant, filters and battery.

Never dispose the used oil directly to the river or drainage, follow legal procedures.

•

WARNING

No smoking or open ame when fueling;

Do not smoke or use match or lighter while refueling.

If this instruction is ignored, fuel can catch re and lead to explosion or fatal injury with burn.

•

WARNING

Observe all relevant regulations for disposal;

Careless dispo s a l of wa ste product can be harmful to environment and ecosystem.

When draining the fuel and oil, use a proper container that is not leaking, not food or beverage containers to prevent from drinking. Do not bury the waste product in the ground or dispose to drainage.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-09 9 2016-01-26 오후 2:19:58

1

-

10

Branson F36R(H)/F42R(H)

연료가 새고 있어요

6640o122a

3

1

:

폭, 길이 강도는 여유를...

6640o123a

Fuel is leaking!

Sufcient Strength, length and width...!

실을때(후진)

내릴때(전진)

6640o124a

Loading (backward)

Loading (forward)

Inspect for fuel leaking;

Check the fuel lines and hoses for damage or leakage

If t h i s instruction is ignore d , there is a risk of re.

•

WARNING

Consider the strength, length and width of loading ramps before using;

Loading or unloading must be done on a at and safe place, the tractor engine switched off, and the parking brake enga g ed . T he l o a d in g r am ps must be no n -sl i p an d hav e sufcient strength, length, and width for the tractor.

If this instruction is ignored, the tractor may roll backwards or fall off causing accident or injury.

•

WARNING

Move the tractor backward when loading, and forward when unloading;

Move t he t r a ctor backwa r d when loading it on the truck, and forward when unloading from the truck.

If this instruction is ignored, the tractor may roll or fall off causing accident or Injury.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-010 10 2016-01-26 오후 2:19:59

1

-

11

FOR YOUR SAFETY

1

BEFORE WORKING

6015o125a 6015o126a 6015o127a

Stop the engine before maintenance;

Stop the engine before maintenance when checking, repairing or cleaning the machine.

If t h i s instruction is ignore d , there is a risk of injury.

•

CAUTION

Do not shift gears on slopes or on the loading ramps;

When dri v ing on s l ope s or on loading ramps, select the proper shift gear before approaching the loading ramps and then do not shift the gear on the loading ramps.

If t h i s instruction is ignore d , there is a risk of slipping, rolling, or overturning.

•

WARNING

Be careful when driving on the loading ramps;

Be careful when driving on the loading ramps. Do not disengage the clutch, shift the main shift, range shift, or forward/ reverse lever.

If this instruction is ignored, the tractor may roll backwards or fall causing accident or injury.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-011 11 2016-01-26 오후 2:20:00

1

-

12

Branson F36R(H)/F42R(H)

6015o130a6015o129a6015o128a

Stop and cool down the engine before fueling or lubricating;

Do not fill the fuel while the engine is running or machine is hot.

If this instruction is ignored, fuel can catch re or lead to fatal injury with burn.

•

DANGER

No re or spark near to the battery;

No fi re or s park near to the battery while c h e cking and charging the battery.

If this instruction is ignored, the battery can cause a blaze or explosion and lead to a fatal injury or death.

•

DANGER

Remove dirt and debris from mufer and engine before operating;

Clean if there is dust, debris or fuel on the engine or muffler before operating the machine every day.

If t h i s instruction is ignore d , there is a risk of re.

•

DANGER

K3트랙터-유럽향(Branson 36R,42R))-영문-012 12 2016-01-26 오후 2:20:01

1

-

13

FOR YOUR SAFETY

1

6015o131a

공구는 올바르게!

6640o133a

Use a correct tool

최대 공기압 이상 으로 공기를 넣지 마십시오.

6640o132a

Do not inate the tire bead max air pressure

Use correct tools;

Use proper tools to carry out al l maintenance procedu r e. Also h a ve av a i lable th e required tools in the tractor at all times.

If t h i s instruction is ignore d , there is a risk of accident due to poor maintenance.

•

CAUTION

Check electrical component and wire harness;

Check before work if the wire harnesses are burned or stuck on any other component, if the cord cover is peeled off or if the wire connectors are loose.

If this instruction is ignored, the electrical short can cause fire and injury.

•

WARNING

Do not over inate tires;

When filling tires with air, do not inate it beyond the maximum pressure stated in this man u al . ( R ef e r t o P5- 2 2 o f Proper ination pressure)

If this instruction is ignored, the tire may blow out, causing an injury.

•

CAUTION

K3트랙터-유럽향(Branson 36R,42R))-영문-013 13 2016-01-26 오후 2:20:01

1

-

14

Branson F36R(H)/F42R(H)

6015o136a6015o135a

앗!

6640o134a

Oops!

It is necessary inspect the brake and steering wheel;

Check if the brakes work properly and evenly on both sides or if t he s te er i n g w h e el i s loose.

If t h i s instruction is ignore d , there is a risk of accident.

•

WARNING

Secure hood and side covers before operating tractor;

After d etach i ng th e cove r s for checking or maintenance, make sure to put them back in their place.

If t h i s instruction is ignore d , there is a risk that you may get entangled in the tractor or get injured.

•

CAUTION

Obse r v e c o r rect proce d ures when installing or removing the battery;

Connect the (+) terminal first wh e n i n stalling the battery, and disconnect the (-) terminal rst when removing it.

If t h i s instruction is ignore d , there is a risk of burn or re due to short circuit.

•

CAUTION

K3트랙터-유럽향(Branson 36R,42R))-영문-014 14 2016-01-26 오후 2:20:02

1

-

15

FOR YOUR SAFETY

1

6015o137a 6015o138a

확실한 점검을

6640o139a

Good Main-

tenance!

Avoid contact with the battery solution;

Be careful that your body or your clothes do not come in contact with the battery solution. If it contacts with your skin, wash immediately with water.

If this instruction is ignored, it can burn your skin or clothes.

•

DANGER

Be sure to check before and after using machine;

Be sure to check the machine before and after using. Especially inspect and repair controls such as clutch, brake, lever, etc.

If this instruction is ignored, the machine can be broken or lead to an accident or injury.

•

WARNING

Lock tilt le ver and telescop ic knob when adjusting steering wheel;

Except when you adjust the steering wheel, make sure that th e tilt lever an d t elescop ic knob are secured in the "No" and "Lock" positions.

If this instruction is ignored, the tractor may not turn properly, causing an accident.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-015 15 2016-01-26 오후 2:20:03

1

-

16

Branson F36R(H)/F42R(H)

WHILE WORKING

6015o142a6015o141a

6015o140a

Use the l o a ding ram p s when crossing a ditch or a dike;

Be s u re t o u s e t h e l o adin g ramps when crossing a ditch o r di k e , or wh e n p a s s i n g through soft land. The loading ramps must be suitable for the tractor in width, length and strength.

If t h i s instruction is ignore d , there is a risk of accident that the tractor may slip or turn over.

•

WARNING

Properly ventilate when working in a green house;

Ventilate the green house to let out the exhaust gas.

If this instruction is ignored, the exhaust gas can cause intoxication and lead to fatal consequences.

•

WARNING

Pay attention and keep hands on the steering wheel while driving;

If t h i s instruction is ignore d , there is a risk of accident or injury.

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-016 16 2016-01-26 오후 2:20:04

1

-

17

FOR YOUR SAFETY

1

AFTER USING THE MACHINE

6015o143a 6015o145a6015o144a

Do not allow anyone near while operating the tractor or implement;

When engaging or disengaging the implement by moving the tractor, make sure that no one is around the tractor or between the impleme nt and the tractor.

If t h i s instruction is ignore d , there is a risk of accident or injury.

•

WARNING

Stop the engine when removing grass, etc. from blades of the cultivator;

Stop the engine when removing grass, e t c. from b l a d es of the cultivator and lock the ow control valve not to lower the implement.

If t h i s instruction is ignore d , there is a risk that you will get entangled in the cultivator or sustain a serious injury due to lowering the implement.

•

WARNING

Perform the maintenance on a level and safe location;

Perform the maintenance on a level and safe location that will keep the tractor in place and will not cause a risk to people passing by. Before carrying out the maintenance, place blocks at the fr ont and rear tires to prevent movement.

If this instruction is ignored, an unexpected accident may occur, such as overturning of the tractor.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-017 17 2016-01-26 오후 2:20:05

1

-

18

Branson F36R(H)/F42R(H)

6015o148a

6015o146a

닿 으 면 안 돼

앗 뜨거!

공

구

함

6640o147a

It's HOT

Don't touch!

Cover the PTO shaft when not in use;

When the PTO shaft is not in use, apply grease and keep it covered.

If t h i s instruction is ignore d , there is a risk that you may get entangled or get injured. Implement shaft installation on the PTO shaft will not be easy due to the rust on it.

•

CAUTION

Carry out maintenance after the parts have cooled down;

Carr y out the m a int e nanc e wor k af ter the hea t ed are a such as the mufer or the engine is fully cooled down.

If t h i s instruction is ignore d , there is a risk of getting burnt.

•

CAUTION

Stop and cool down the engine before fueling or lubricating;

Do not fill the fuel while the engine is running or machine is hot.

If this instruction is ignored, fuel can catch re or lead to fatal injury with severe burns.

•

CAUTION

K3트랙터-유럽향(Branson 36R,42R))-영문-018 18 2016-01-26 오후 2:20:05

1

-

19

FOR YOUR SAFETY

1

6015o149a 6015o151a

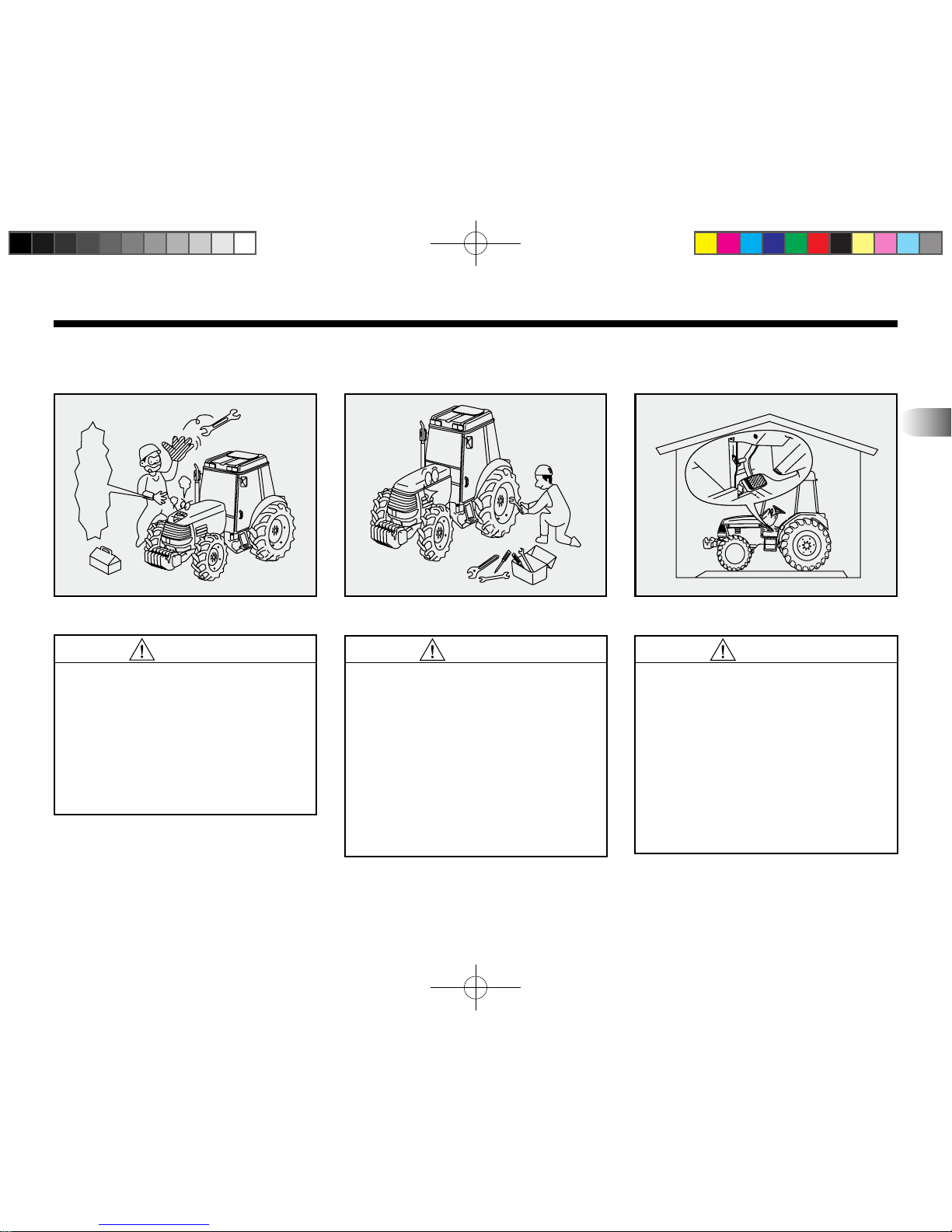

Stop the engine before maintenance;

Stop the engine before maintenance such as checking, repairing or cleaning the machine.

If t h i s instruction is ignore d , there is a risk of injury.

•

CAUTION

Be careful of high oil pressure;

Make sur e t hat the h y draulic coupling or the hose is not loose or damaged. Before separating the hydraulic coupling or the hose, eliminate the high pressure inside the hydraulic system by moving the control lever while engine is stopped.

If this instruction is ignored, the oil un d er hi g h pres s u re ma y cause skin injury.

•

CAUTION

Make sure that you are seated in the driver’s seat with your seat belt fastened before starting engine;

Wh e n st ar t i n g th e eng in e, make sure that you are seated in the driver’s seat with your seat belt fastened and check the seat position and the safety of the tractor.

If this instruction is ignored, an unexpected accident may occur.

•

WARNING

부 르 르

6640o150a

Brrr

K3트랙터-유럽향(Branson 36R,42R))-영문-019 19 2016-01-26 오후 2:20:06

1

-

20

Branson F36R(H)/F42R(H)

6015o154a6015o153a6015o152a

Put tractor rain cover on only after tractor has cooled down;

Put tractor rain cover on only after parts such as the engine and mufer have cooled down.

If t h i s instruction is ignore d , there is a risk of re.

•

WARNING

Do not op e n t h e r adiator cap when the radiator is hot;

Never open the radiator cap when the radiator is heated.

If this instruction is ignored, hot water may spurt, causing burns or damage

.

•

WARNING

Remove dirt and debris from mufer and engine before operating;

Clean if there is dust, debris or fuel on the engine or muffler before operating the machine every day.

If t h i s instruction is ignore d , there is a risk of re.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-020 20 2016-01-26 오후 2:20:07

1

-

21

FOR YOUR SAFETY

1

닿 으 면 안 돼

앗 뜨거!

공

구

함

6640o155a

It's HOT

Don't touch!

Be careful of hot mufer;

During operation and right after the engine is turned off, the muffler is very hot. Avoid touching it.

If this instruction is ignored, you may get burnt.

•

CAUTION

PRECAUTION FOR PROLONGED STORAGE

6015o157a6015o156a

Disengage the clutch when storing the tractor for a long time;

When storing the tractor for a long period of time, make sure to put the clutch pedal in the disengaging position.

If this instruction is ignored, the clutch disc can be stuck to the y wheel after long period time.

•

CAUTION

After working, immediately repair if necessary;

Immediately repair or replace the faulty parts.

- Tighten the loose bolt and nut right away.

If this instruction is ignored, an unexpected accident may occur due to poor maintenance.

•

CAUTION

K3트랙터-유럽향(Branson 36R,42R))-영문-021 21 2016-01-26 오후 2:20:08

1

-

22

Branson F36R(H)/F42R(H)

6015o160a

취부는 + 떼어낼떼는 -부터!

어느쪽도 좋아!

6640o159a

Be Careful

connect + rst connect + later when connecting

Disconnect the Battery and the key when storing the tractor for a long period of time;

When storing the tractor without use for a long period of time, park the machine on the leveled ground and clean each component, remove the battery and keep the key in a safe place.

If this instruction is ignored, batte ry power may be weakened and starting will be failed.

•

WARNING

Obse r v e c o r rect proce d ures when installing or removing the battery;

Connect the (+) terminal first wh e n i n stalling the battery, and disconnect the (-) terminal rst when removing it.

If t h i s instruction is ignore d , there is a risk of burn or re due to short circuit.

•

CAUTION

Confirm that the implement is down on the ground when starting the engine;

When starting the engine, confirm that the control lever is on "Lowest" position.

If this instruction is ignored, implement may come down suddenly and cause an injury.

•

WARNING

와

는

떼어내서 보관하세요.

6640o158a

Remove from

tractor

K3트랙터-유럽향(Branson 36R,42R))-영문-022 22 2016-01-26 오후 2:20:08

1

-

23

FOR YOUR SAFETY

1

확실한 점검을

6640o161a

Good Main-

tenance!

Maintenance periodically;

After using tractor, visit your local dealer for maintenance, such as oil change and lters.

- Contact the local dealer to discard the parts (battery, etc.) or waste materials.

If t h i s instruction is ignore d , there is a risk of accident due to poor maintenance.

•

WARNING

OTHER

개조금지

6640o162a

Don't modify!

Do not adjust or repair following components. Consult your local BRANSON dealer for these repair;

Inject i o n cap a city a n d tim ing of the engine fuel injection pump.

Correction and repair of hydraulic system (safety valve, hydraulic pump, brake valve, PST cylinder, SCV valve).

There is a risk of accident or injury or machinery breakdown. Rem emb er it may ca u se th e warranty cancellation.

If t h i s instruction is ignore d , consult you r local BRANSON dealer for those repair and adjustment.

•

WARNING

Do not modify the tractor;

Use only the genuine parts or other approved parts. Do not modify the tractor.

If t h i s instruction is ignore d , there is a risk of accident or injury or machinery breakdown. Rem emb er it may ca u se th e warranty cancellation.

•

CAUTION

K3트랙터-유럽향(Branson 36R,42R))-영문-023 23 2016-01-26 오후 2:20:09

1

-

24

Branson F36R(H)/F42R(H)

6015o163a 6015o164a

블레이크를 연결시켜요.

6640o165a

Con-

nect

brake

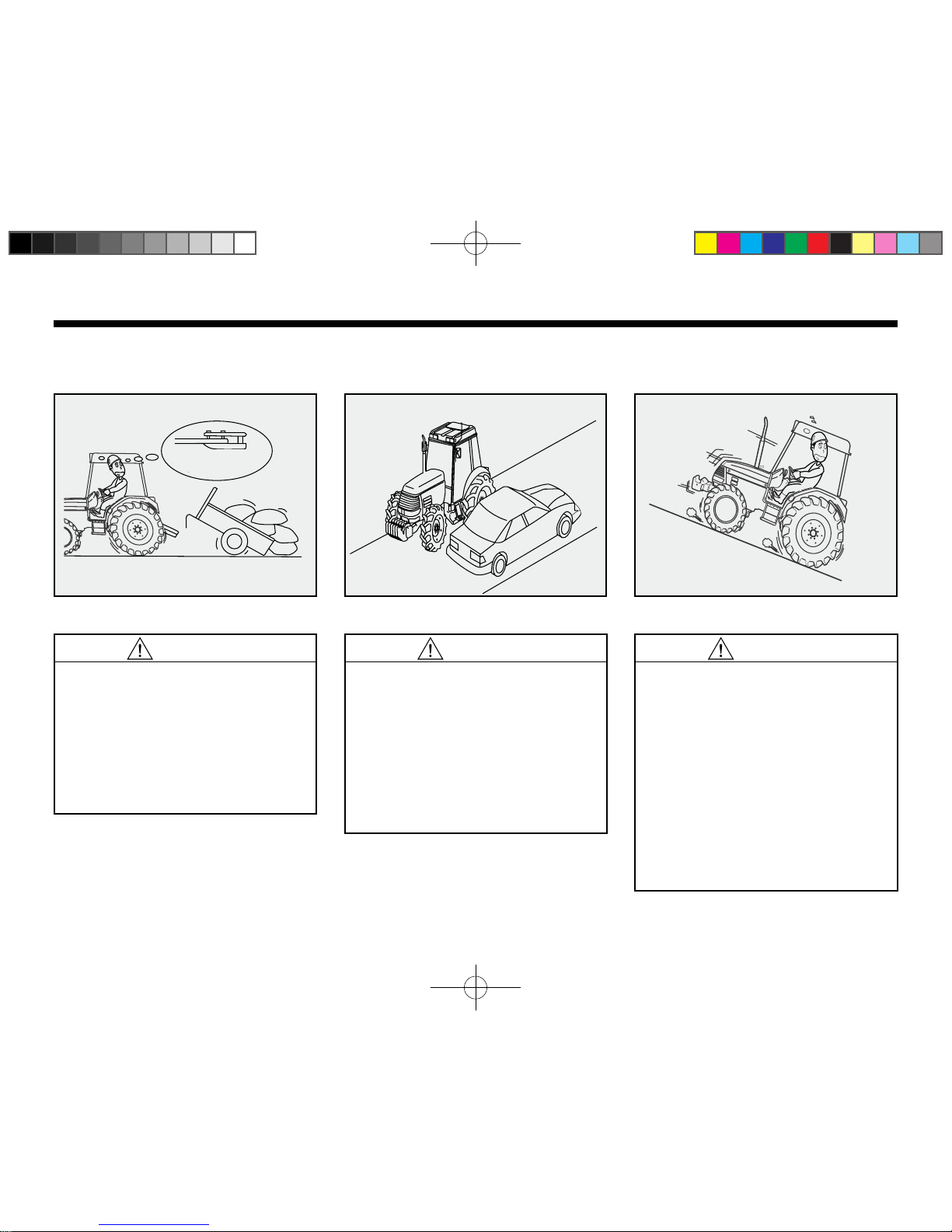

Pay attention when turning with implement;

Depending on implements, the overall leng t h ma y become very long. Pay particular attention to people or objects nearby when making a turn.

If t h i s instruction is ignore d , there is a risk of person injury

or a collision of the implement.

•

WARNING

Use caution sign when towing a trailer;

Link the brake o f the traile r with the brake of the tractor. Do not shift gears when driving on a hill.

If t h i s instruction is ignore d , there is a risk of accident or in-

jury.

•

WARNING

Move wheels to widest setting (wi d t h b e t ween left and right tires) when working slope or when towing;

If t h i s instruction is ignore d ,

there is a risk of turning over.

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-024 24 2016-01-26 오후 2:20:10

1

-

25

FOR YOUR SAFETY

1

6015o166a

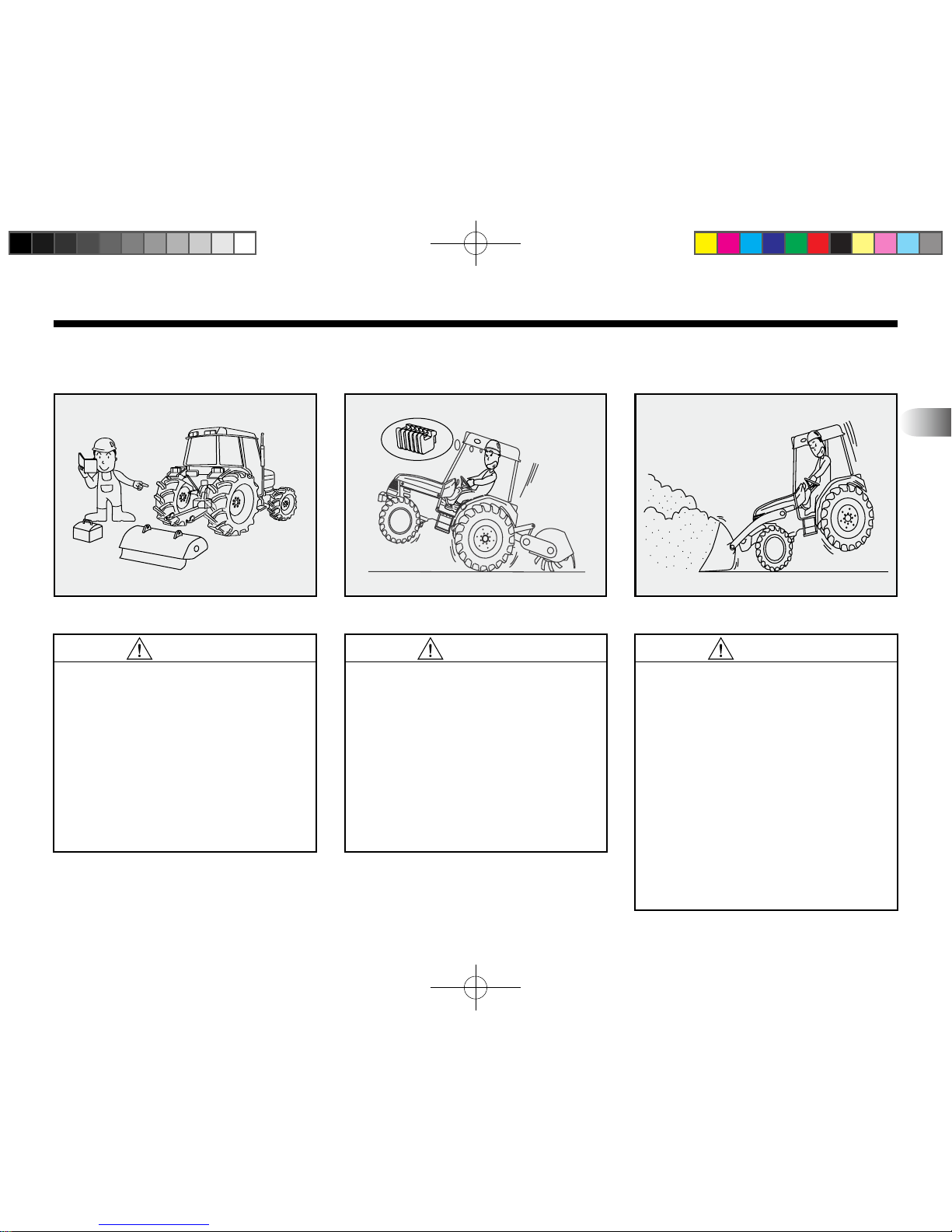

Follow the instruction manual when engaging an implement;

When engaging an implement to the tractor, foll ow the instruction manual for the implement.

If t h i s instruction is ignore d ,

t

here is a risk of personal injury

or damage to the tractor.

•

WARNING

6015o168a6015o167a

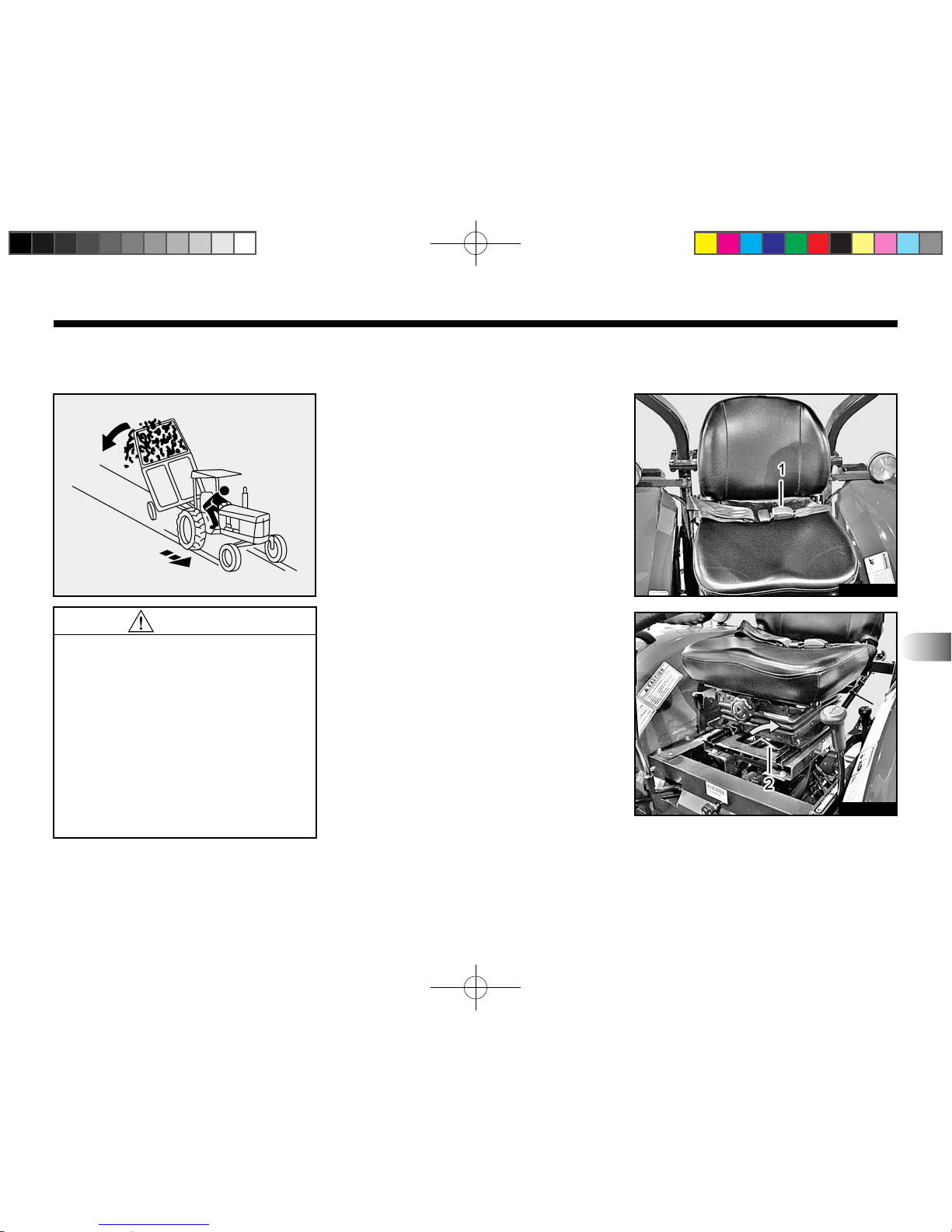

Pay attention to the balance between the front and rear sid e during the front-end-loader operation;

Dur i ng the fro n t-e n d- l oad er operation , a pply weight s or implement to avoid loosing balance between the front and the rear side of tractor.

If t h i s instruction is ignore d , there is a risk of overturning accident due to loss of balance.

•

WARNING

Balance a heavy implement with weights;

When engaging a heavy implement, load the weights on the front of tractor to keep the balance of the tractor.

If t h i s instruction is ignore d , there is a risk of accident or injury due to loss of balance.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-025 25 2016-01-26 오후 2:20:11

1

-

26

Branson F36R(H)/F42R(H)

6015o169a 6015o171a6015o170a

Do not get under or put your feet under the implement;

Do not get under or put your feet under the implement.

If this instruction is ignored, the implement unit may fall down and there is a risk of injury.

•

WARNING

D o n o t su b s t i t u t e ba l a n c e weights with a person or anything else;

Do not use a person or anything else in place of the balance weight. Use only genuine balance weight.

If t h i s instruction is ignore d , there is a risk of accident or injury.

•

WARNING

Be careful of unexpected movement when using the rotary tiller;

When working with the rotary tiller, put the tiller slowly on soft or rocky ground. The tractor may be pushed in an unexpected direction by the rotating force of the tiller.

If t h i s instruction is ignore d , there is a risk of accident or injury.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-026 26 2016-01-26 오후 2:20:11

1

-

27

FOR YOUR SAFETY

1

6015o172a

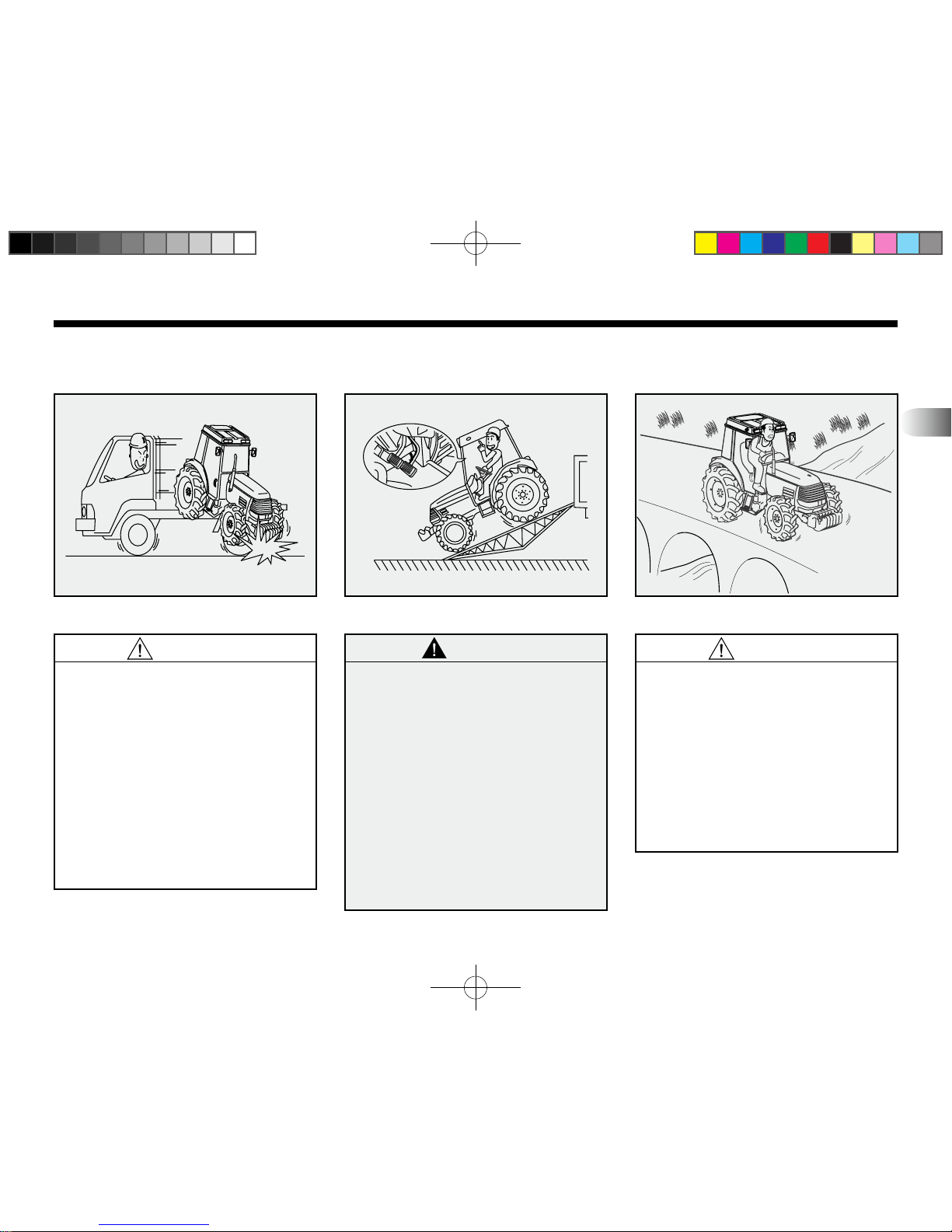

Properly secure tractor during transport;

When transporting the tractor, apply the parking brake with gear engaged and fasten the tractor to the truck securely using ropes or belts with sufcient strength.

If t h i s instruction is ignore d , There is a risk of accident that

the tractor may fall off the truck.

•

WARNING

6015o173a 6015o174a

Interlock the brake pedals for both sides when loading or unloading the tractor;

It is necessary to interlock the brake pedals for bot h sides when loading or unloading the tractor.

If this instruction is ignored, the tractor may overturn due to onesided braking when the brake pedal is depressed in an emergency.

•

DANGER

Release t h e differen t i al gear lock when making a turn;

Make sure to release the differential gear lock when making a turn.

If this instruction is ignored, the tractor may not turn to the intended direction and cause an accident.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-027 27 2016-01-26 오후 2:20:12

1

-

28

Branson F36R(H)/F42R(H)

6015o176a 6015o177a

드로바를

사용하세요.

6640o175a

Use drawbar

Pay attention to the shoulder of the road;

When movin g along the unpaved r o a d wit h ditches o r slanted sides, pay attention to the road shoulder.

If t h i s instruction is ignore d , there is a risk of falling over.

•

WARNING

Use the drawbar when towing;

Make sure to use the drawbar when towing. Never tow anything with the top link or the lower links.

If this instruction is ignored, the tractor may turn over.

•

WARNING

Be car e f u l w h en driving on a hill;

Be careful w h e n dr i ving on a hill. Do not disengage the clutch on the hill. Do not shift the main shi f t l eve r, r an g e shift lever, or shuttle lever in [neutral] on the hill.

If this instruction is ignored, the tractor may roll backwards or fall causing accident or injury.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-028 28 2016-01-26 오후 2:20:13

1

-

29

FOR YOUR SAFETY

1

6015o178a

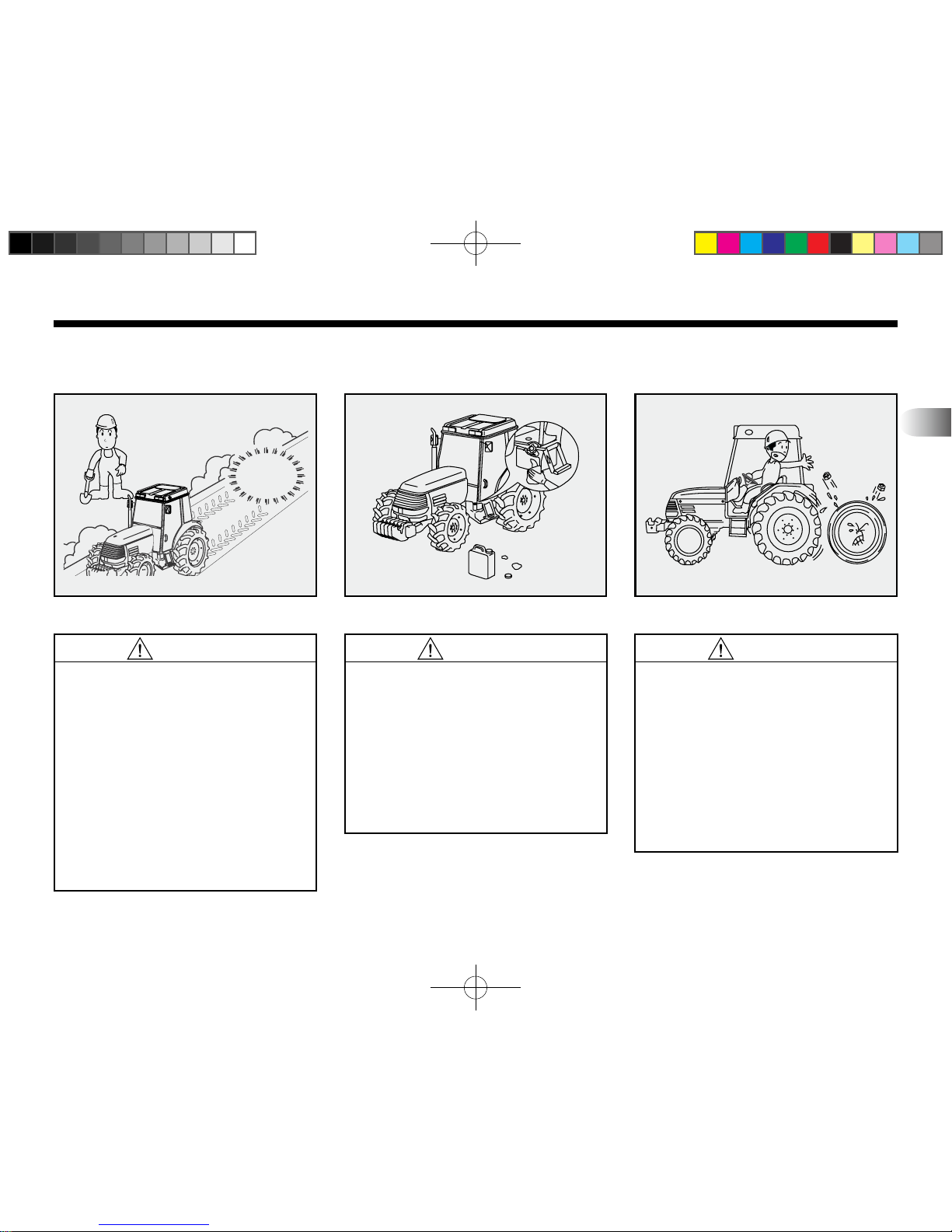

Turn off engine in a level area when leaving the tractor;

When leaving the tractor, park the tractor on a level and safe area, turn off the engine, and apply the parking brake. Also, lo w er the implement on the ground.

If this instruction is ignored, the tractor may move and cause an accident.

•

WARNING

6015o179a

Remove spilled excess fuel after closing the fuel cap;

After lling the fuel tank, close the fuel filler cap completely and wipe off the excess fuel thoroughly.

If t h i s instruction is ignore d , there is a risk of re.

•

WARNING

6015o181a

Be a ware of the PTO RPM requirements for the implements;

At t ach or detach the implements on a level area. Supply proper lighting at all times especially at night.

If t h i s instruction is ignore d , there is a risk of accident or injury.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-029 29 2016-01-26 오후 2:20:14

1

-

30

Branson F36R(H)/F42R(H)

6015o183a6015o182a

CAUTION

Engage the parking brake during warming up the engine;

If this instruction is ignored, the tractor may move and cause an accident or injury.

Only engage or disengage implements on at, level area:

Engage or disengage the imple me n t o n a f lat a n d s af e place. S u pply pr o p er lig h t ing at all times and especially

night. [Otherwise] There is a danger of accident.

•

WARNING

K3트랙터-유럽향(Branson 36R,42R))-영문-030 30 2016-01-26 오후 2:20:14

1

-

31

FOR YOUR SAFETY

1

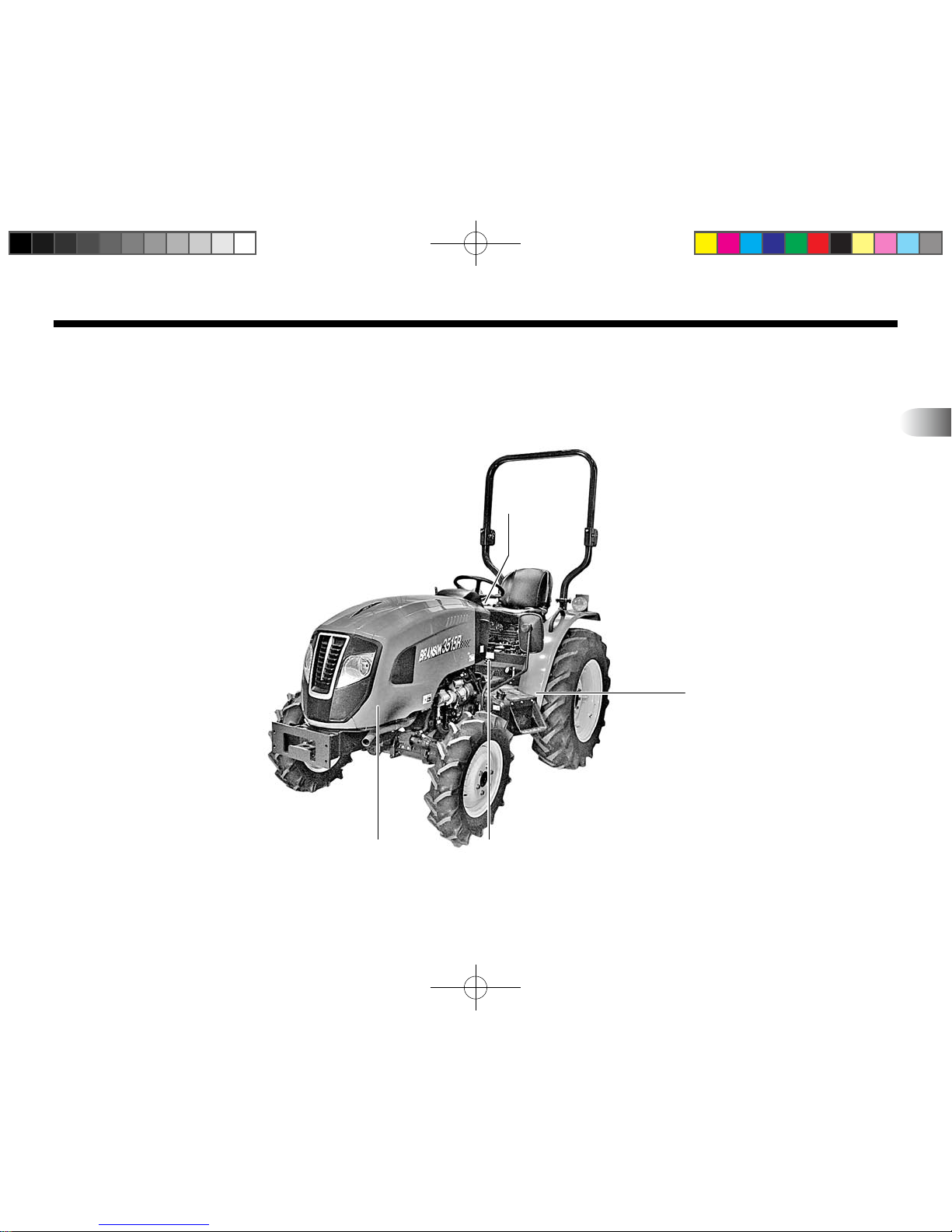

DECAL MOUNTING LOCATION

7,8

1,2,3

9

4,5,6

a42o101d

K3트랙터-유럽향(Branson 36R,42R))-영문-031 31 2016-01-26 오후 2:20:15

1

-

32

Branson F36R(H)/F42R(H)

14,15,16

12,13

10,11

a42o102d

K3트랙터-유럽향(Branson 36R,42R))-영문-032 32 2016-01-26 오후 2:20:15

1

-

33

FOR YOUR SAFETY

1

DECAL

(4) No.: TA00040603A [MEC. Model]

(1) No.: TA00036924A (2) No.: TZE5130000C4

WARNING

HOT SURFACE

75IH=CB

Clutch pedal

Stopper

Locker

For the long storage, please lock clutch pedal in the both Traction and PTO clutch are disengaged position

TA00040603A

75IH=CB

TZE5130000C4

(3) No.: TZE5180000C4

K5FB=B;

K3트랙터-유럽향(Branson 36R,42R))-영문-033 33 2016-01-26 오후 2:20:16

1

-

34

Branson F36R(H)/F42R(H)

(5) No.: TZE4190000C4

(10) No.: TZE5120000B4

(6) No.: TZE5110000B4

75IH=CB

DIESEL ONLY

TZE4190000C4

Start only from seat in park or neutral. Starting in gear kits.

DANGER

TZE5110000B4

TO AVOID PERSONAL INJURY:

WARNING

1. Attach pulled or towed loads to the drawbar only.

2. Use the 3-point hitch only with equipment designed for 3-point hitch usage.

TZE5120000B4

(9) No.: TZE5140000B3

BEFORE DISMOUNTING TRACTOR:

1. PARK ON LEVEL GROUND WHENEVER POSSIBLE. If parking on a gradient. position tractor at right angles to the slope.

2. ALWAYS SET PARKING BRAKE. Leaving transmission in gear with the engine stopped will not prevent tractor from rolling.

3. LOWER ALL IMPLEMENTS TO THE GROUND. Failure to comply to this warning may allow the wheels to slip. and could cause injury or death.

4. LOCK SHUTTLE SHIFT LEVER IN NEUTRAL POSITION AND STOP THE ENGINE.

TZE5140000B3

WARNING

(7) No.: TZE5160000B3

TO AVOID PERSONAL INJURY:

1. Read and understand the operator’s manual before operation

2. Before starting the engine, make sure that everyone is at a safe distance from the tractor and that the PTO is OFF

3. Do not allow passengers on the tractor at any time.

4. Before allowing ohterpeople to use the tractor, have them read the operator’s manual.

5. Check the tightness of all nuts and bolts regularly.

6. Keep all shields in place and stay away from all moving parts.

7. Lock the two brake pedals together before driving on the road.

8. Slow down for turns, or rough roads, or when applying individual brakes.

9. On public roads use SMV emblem and hazard lights, if required by local traffic and safety regulations.

10. Pull only from the drawbar.

11. Before dismounting lower the implement, set the parking brake, stop the engine and remove the key.

TZE560000B3

75IH=CB

(8) No.: TZE5170000B3

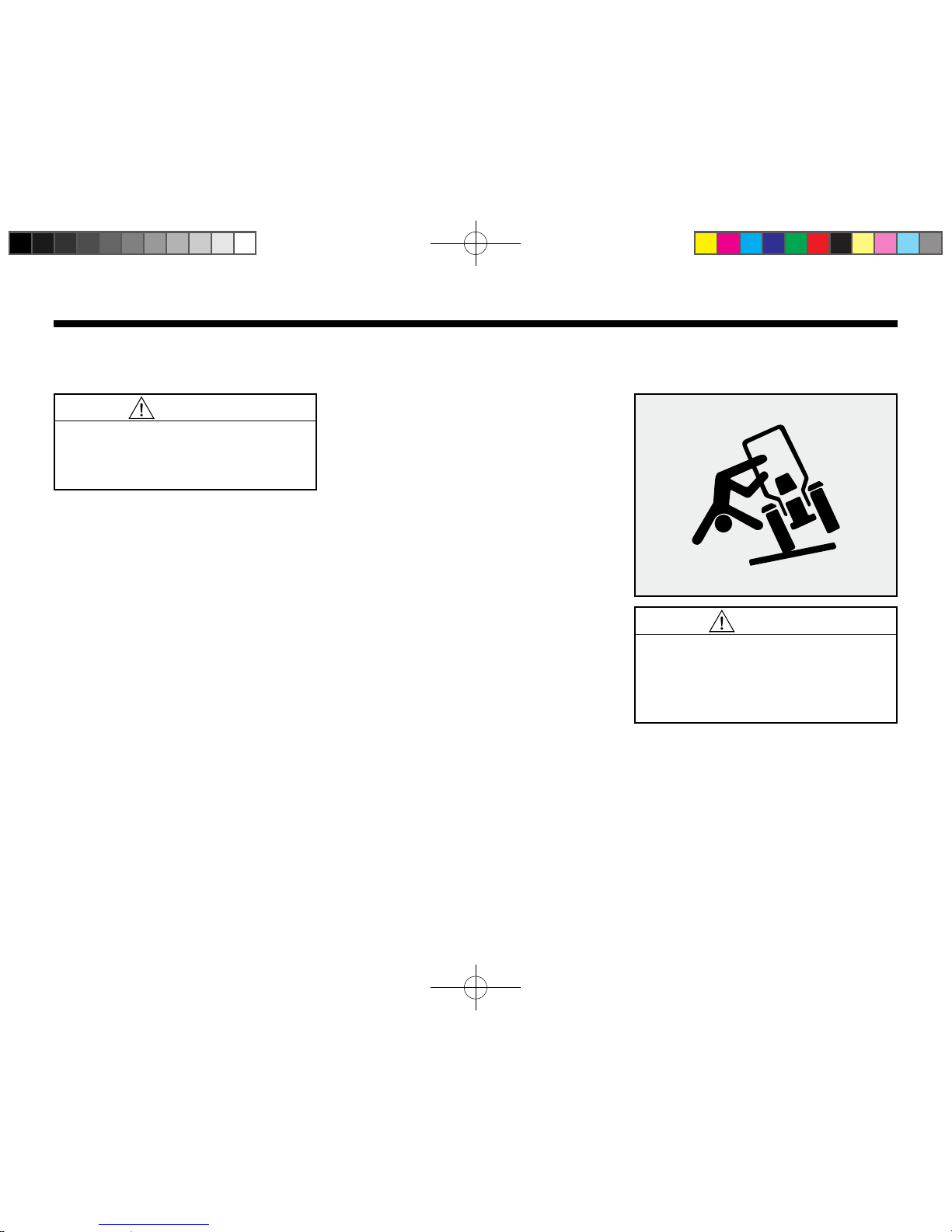

TO AVOID PERSONAL INJURY OR DEATH FROM ROLL-OVER;

TZE5170000B3

1. Branson recommends the use of a Roll-Over Protective Structures(ROPS) and seat belt in almost all applications

2. Remove the ROPS only when it substantially interferes with operation or itself presents a safety risk. (Examples include work in orchards and vineyards.) ALWAYS REINSTALL IT BEFORE USING THE TRACTOR IN OTHER APPLICATIONS.

3. Never use just the seat belt or just the ROPS. They must be used together. For further details, consult your Operator’s Manual or your local dealer.

K5FB=B;

K3트랙터-유럽향(Branson 36R,42R))-영문-034 34 2016-01-26 오후 2:20:17

1

-

35

FOR YOUR SAFETY

1

(13) No.: TZE5770000B3

75IH=CB

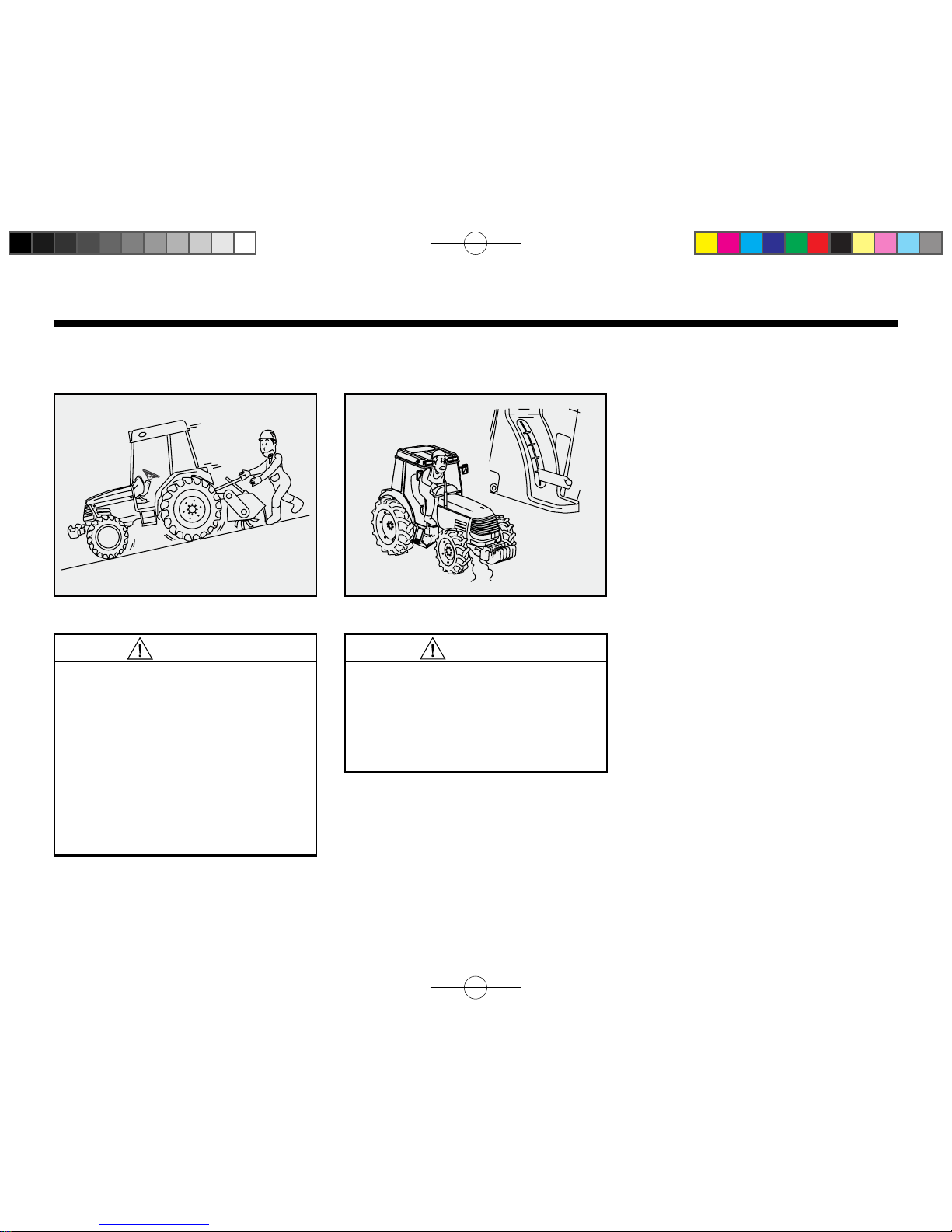

TO AVOID PERSONAL INJURY(OPERATING ON SLOPES)

1. If descending a slope, never disengage the clutch or shift levers

to neutral.

Doing so could cause the tractor to speed up out of control.

2. Slow down for slopes, especially when transporting heavy,

rear mounted equipment.

3. Before descending a slope, shift to a gear low enough to

control speed without using brakes.

TZE5770000B3

(11) No.: TA00015596B

WARNING

TO AVOID PERSONAL INJURY:

1. Keep PTO shield in place at all times.

2. Do not operate the PTO at speeds faster than the speed recommended by the implement manufacturer

3. For towing PTO-driven implements set drawbar at towing position. (see operator’s manual)

4. Keep hands, feet and clothing away.

TA00015596B

(12) No.: TZE4100000B4 [MEC. Model]

WARNING

CONNECT THE LEFT BRAKE WITH RIGHT BRAKE WHILE ON THE ROAD

DISCONNECT CONNECT

CONNECT ROD

TZE4100000B4

(14) No.: NTE5150000C4

K5FB=B;

Use seat belt

NTE5150000C4

(15) No.: NTE5210000C4

K5FB=B;

NTE5210000C4

DEATH OR INJURY MAY RESULT IF THE TRACTOR ROLLS OVER WITH THE ROPS IN THE FOLDED DOWN POSITION.

OPERATE THIS TRACTOR WITH THE ROPS FOLDED DOWN ONLY WHEN NECESSARY.

(16) No.: NTE5220000C4

This structure’s protective capability may be impaired by structural damage, overturn, or alteration. If any of these conditions occur, the structure must be replaced.

NTE5220000C4

K5FB=B;

K3트랙터-유럽향(Branson 36R,42R))-영문-035 35 2016-01-26 오후 2:20:19

1

-

36

Branson F36R(H)/F42R(H)

CAUTIONS FOR DECAL MAINTENANCE

Safety decals are attached to the tractor for safe operation. Make sure to follow the instruction on the decals as well as the following instruction:

CAUTION

Keep the decals clean and intact.

If any decal is dirty, wash it with

soap and dry with a soft cloth.

Never use a solvent such a thin-

ner or acetone, since it can ruin

the decals.

Do not spray high-pressure wa-

ter directly onto the decal. The

decal may fall off the tractor.

•

IMPORTANT

If a decal is damaged or lost, contact your local BRANSON dealer immediately to install a new decal.

Make sure to attach the decal in the correct position cleanly without bubbles after cleaning its mounting surface.

If a decal is attached to a component to be replaced, replace the decal as well.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-036 36 2016-01-26 오후 2:20:19

2

2. REGARDING WARRANTY SUPPORT

REGARDING WARRANTY CERTIFICATE ..............................................2-2

REGARDING AFTER-SALES SERVICE ..................................................2-2

VEHICLE IDENTIFICATION NUMBER (VIN) ................................................................2-2

REGARDING SUPPLYING SERVICE PARTS .........................................2-3

REGARDING GENUINE PARTS AND FLUID .................................................... 2-3

K3트랙터-유럽향(Branson 36R,42R))-영문-01 1 2016-01-26 오후 2:20:47

2

-

2

Branson F36R(H)/F42R(H)

11

REGARDING WARRANTY CERTIFICATE

REGARDING AFTER-SALES SERVICE

VEHICLE IDENTIFICATION NUMBER (VIN)

PRODUCTION SERIAL NUMBER

(1) Model And Production Serial Number (1) Engine Serial Number

Do not modify the machine. If

it is damaged by unapproved

m o d i f i c a t i o n an d mi s u s e

against description of manu-

al, it will not be covered under

warranty.

•

WARNING

ENGINE SERIAL NUMBER

11

A42O201A

The engine number is stamped on the cylinder block and is specified on the decal which is attached to the cylinder block on the left side of the engine. Also, the decal indicating the engine model and standards is attached on the top of the engine cylinder head cover.

The manufacturer's serial number is marked on the serial number decal which is attached to the front right side of the front axle bracket.

A42O202A

K3트랙터-유럽향(Branson 36R,42R))-영문-02 2 2016-01-26 오후 2:20:48

2

-

3

REGARDING WARRANTY SUPPORT

2

▶

REGARDING AFTER-SALES SERVICE

If you have a problem on your machine, refer to "Troubleshooting" of chapter 7 to check by yourself. Or contact immediately to authorized BRANSON dealer nearby.

▶

BE PREPARE FOR THE FOLLOW-

ING qUESTION BEFORE CALLING

• Model and product serial number

• In case of engine failure, engine serial number

• Working conditions (What kind of job and how fast)

• Run hour of machine

• Describe the problem in detail as possible

REGARDING GENUINE PARTS AND FLUID

The BRANSON genuine parts and fluid are passed severe durab ility and performance test. Please use BRANSON genuine parts for your safety.

We supply the service parts in accordance with the separated quality assurance regulation.

Consult your local dealer for availability and pricing.

REGARDING SUPPLYING SERVICE PARTS

순

정

오

일

순정부품s

6015O205A

Use BRANSON genuine parts only!!

Genuine parts

Genuine oil or

equivalent

K3트랙터-유럽향(Branson 36R,42R))-영문-03 3 2016-01-26 오후 2:20:48

MEMO

............................................................................................................................................................................

Branson Machinery LLC

K3트랙터-유럽향(Branson 36R,42R))-영문-04 4 2016-01-26 오후 2:20:48

3

3. SpecificationS

Major SpecificationS ....................................................................... 3-2

Driving SpeeD ......................................................................................

3-4

K3트랙터-유럽향(Branson 36R,42R))-영문-01 1 2016-01-26 오후 2:21:00

3

-

2

Branson F36R(H)/F42R(H)

Major SpecificationS

Specication Branson F36R(H) Branson F42R(H)

PTO Power kW (PS)

22 (30) 25.7 (35)

Engine

Model Vertical, 4-stroke, water-cooled diesel engine

Type A1700N4-UTR_4 A1700T2-UTR_4

No. of cylinders 3

Bore x Stroke mm (in.)

88 × 94 (3.46 × 3.70)

Displacement cc

1,714 (104.59)

Horsepower kW (ps)

25.7 (35) 29.4 (40)

Revolution rpm

2,600

Max. torque kgf

·

m/rpm 11.2/1,600 12.7/1,600

Battery V

12

Fuel Diesel fuel

Capacity

Fuel tank

ℓ (u.s. gal)

27 (7.13)

Engine crankcase

ℓ (u.s. gal)

4.3 (1.14)

Coolant

ℓ (u.s. gal)

5 (1.32)

Transmission case

ℓ (u.s. gal)

Manual: 34 (8.98) / HST: 37 (9.77)

Dimen-

sions

Overall length mm (in.)

3,096 (121.9) (W/O Front Weight)

Overall width mm (in.)

1,431 (56.34) 1,451 (57.13)

Overall height mm (in.)

2,643 (104.06) 2,643 (104.06)

※

Dimensions and weights are based on 8-16 / 12.4-24.

K3트랙터-유럽향(Branson 36R,42R))-영문-02 2 2016-01-26 오후 2:21:00

3

-

3

SPECIFICATIONS

3

Specication Branson F36R(H) Branson F42R(H)

Dimen-

sions

Wheel base mm (in.)

1,671 (65.79)

Ground clearance mm (in.)

306 (12.05) 335 (13.19)

Tread

Front wheel mm (in.) 1,151 (45.31) 1,201 (47.28)

Rear wheel mm (in.) 1,151 (45.31) 1,165 (45.87)

Weight kg 1,450 (With front weight)

Driving sys-

tem

Tire (standard)

Front wheel 7.0-16 6PR 8.0-16 6PR

Rear wheel 11.2-24 6PR 12.4-24 6PR

Steering system Electro-hydraulic power steering

Transmission Synchro Mesh, Synchro Shuttle

Brake Wet multi disc

Hydraulic

system

Hydraulic control system Position/Draft

Pump ow

ℓ

/min 52

3-point hitch CAT1

Max. lift kg

1,500

PTO

PTO shaft specication Ø 35 mm - 6 splines

Revolution rpm

560/780 (2 gears)

※

Dimensions and weights are based on 8-16 / 12.4-24.

K3트랙터-유럽향(Branson 36R,42R))-영문-03 3 2016-01-26 오후 2:21:00

3

-

4

Branson F36R(H)/F42R(H)

Driving SpeeD

RANGE A B C

MAIN 1 2 3 4 1 2 3 4 1 2 3 4

FORWARD

1.2

(0.8)

1.8

(1.1)

2.3

(1.4)

2.8

(1.8)

3.3

(2.1)

4.8

(3.0)

6.3

(3.9)

7.7

(4.8)

10.2 (6.3)

14.8 (9.2)

19.2

(12.0)

23.7

(14.8)

BACKWARD

1.2

(0.7)

1.7

(1.1)

2.2

(1.4)

2.7

(1.8)

3.2

(2.0)

4.6

(2.9)

6.0

(3.7)

7.4

(4.6)

9.7

(6.0)

14.1 (8.8)

18.3

(11.4)

22.5

(14.1)

km/h (mph)

Engine speed: 2600rpm, Tire rolling radius: 540mm (Rear 12.4-24)

RANGE A B C

MAIN 1 2 3 4 1 2 3 4 1 2 3 4

FORWARD

1.2

(0.7)

1.7

(1.1)

2.2

(1.4)

2.7

(1.7)

3.2

(2.0)

4.6

(2.9)

6.0

(3.7)

7.4

(4.6)

9.7

(6.0)

14.1 (8.8)

18.3

(11.4)

22.6

(14.1)

BACKWARD

1.1

(0.7)

1.6

(1.0)

2.1

(1.3)

2.6

(1.6)

3.0

(1.9)

4.4

(2.7)

5.7

(3.6)

7.0

(4.4)

9.2

(5.7)

13.4 (8.4)

17.4

(10.9)

21.5

(13.4)

km/h (mph)

Engine speed: 2600rpm, Tire rolling radius: 515mm (Rear 11.2-24)

※

The tractor's speed is changed by the condition of the tires and road surface.

※

To ensure safety, drive at a proper speed.

[Mec. MoDeL]

K3트랙터-유럽향(Branson 36R,42R))-영문-04 4 2016-01-26 오후 2:21:00

3

-

5

SPECIFICATIONS

3

RANGE A B C

FORWARD

5.90

(3.67)

16.1

(10.0)

30.7

(19.07)

BACKWARD

Engine speed: 2600rpm, Tire rolling radius: 540mm (Rear 12.4-24)

[HST MODEL]

km/h (mph)

Engine speed: 2600rpm, Tire rolling radius: 515mm (Rear 11.2-24)

RANGE A B C

FORWARD

5.63

(3.50)

15.36 (9.54)

29.27

(18.18)

BACKWARD

km/h (mph)

※

The tractor's speed is changed by the condition of the tires and road surface.

※

To ensure safety, drive at a proper speed.

K3트랙터-유럽향(Branson 36R,42R))-영문-05 5 2016-01-26 오후 2:21:00

MeMo

............................................................................................................................................................................

Branson Machinery LLC

K3트랙터-유럽향(Branson 36R,42R))-영문-06 6 2016-01-26 오후 2:21:00

4. OPERATION DESCRIPTION

4

EXTERIOR VIEW ....................................................4-2

SWITCHES AND LEVERS ....................................4-3

MAIN SWITCH ........................................................... 4-4

HAZARD WARNING FLASHER SWITCH .................

4-4

TURN SIGNAL/LAMP SWITCH .................................

4-5

SHUTTLE SHIFT LEVER [MEC. MODEL] ................

4-5

CRUISE CONTROL SWITCH [HST MODEL] ............

4-6

INSTRUMENT CLUSTER .......................................4-7

PTO INDICATOR ....................................................... 4-8

LEFT/RIGHT TURN SIGNAL INDICATOR ................

4-8

HIGH BEAM INDICATOR ..........................................

4-8

PARKING BRAKE & BRAKE INDICATOR

................. 4-9

ENGINE OIL PRESSURE WARNING LAMP ............

4-9

BATTERY CHARGE WARNING LAMP

.......................... 4-10

PREHEAT INDICATOR ............................................

4-10

FUEL GAUGE ..........................................................

4-10

TACHOMETER/HOUR METER ...............................

4-11

COOLANT TEMPERATURE GAUGE

...................... 4-11

CONTROLS 1 .......................................................4-12

FOOT CONTROLS .................................................. 4-12

CLUTCH PEDAL .....................................................

4-13

BRAKE PEDALS (LEFT/RIGHT) .............................

4-14

FOOT THROTTLE PEDAL ......................................

4-14

CONTROLS 2 .......................................................4-15

HAND CONTROLS .................................................. 4-15

MAIN SHIFT LEVER ................................................ 4-15

RANGE SHIFT LEVER ............................................

4-16

HAND THROTTLE LEVER ......................................

4-16

PTO ON/OFF SWITCH ............................................

4-16

DIFFERENTIAL LOCK PEDAL ................................

4-17

PARKING BRAKE ....................................................

4-17

K3트랙터-유럽향(Branson 36R,42R))-영문-01 1 2016-01-27 오전 10:55:44

4

-

2

Branson F36R(H)/F42R(H)

EXTERIOR VIEW

(1) Steering Wheel (2) Bonnet

(3) Front Tire (4) Front Weight Hitch

(5)Mufer

(6) Rear Tire

(7) Brake Lights (8) Safety Frame

A42O401A

K3트랙터-유럽향(Branson 36R,42R))-영문-02 2 2016-01-27 오전 10:55:45

4

-

3

OPERATION DESCRIPTION

4

SWITCHES AND LEVERS

A: Steering Wheel (Handle) B: Ignition Switch C: Hazard Warning Flasher Switch D: PTO Switch E: Shuttle Shift Lever [MEC. Model] F: Instrument Cluster G: Cruise Switch (only forward) [HST Model] H: Turn Signal / Lamp switch

※

Refer to the relevant content for further de

-

tailed information

A42O402v

K3트랙터-유럽향(Branson 36R,42R))-영문-03 3 2016-01-27 오전 10:55:45

4

-

4

Branson F36R(H)/F42R(H)

MAIN SWITCH

The main switch is used to start or stop the engine.

OFF: The engine is stopped, and current ends at the ignition switch.

ON: El e c t r ic cur r e n t flows to al l switches in the electrical system.

START: When the start motor is engaged, the engine will start. When the engine is started, release the key. The key will return to the "ON" position automatically and the engine will keep running.

(1) Main Switch (A) OFF (B) ON (C) START

CAUTION



To s tart the engine, put the

shuttle shift lever to the "Neutral" pos ition to r elease the safety start system.

HAZARD WARNING FLASHER SWITCH

Press the hazard flasher warning switch in emergency to warn other vehicles in order to prevent an accident.

Pressing this switch blinks all turn signal lamps regardless of the position of the main switch. Pressing it

againdisablestheasherfunction.

(1) Hazard Warning Flasher Switch

A42O403A A42O424A

K3트랙터-유럽향(Branson 36R,42R))-영문-04 4 2016-01-27 오전 10:55:45

4

-

5

OPERATION DESCRIPTION

4

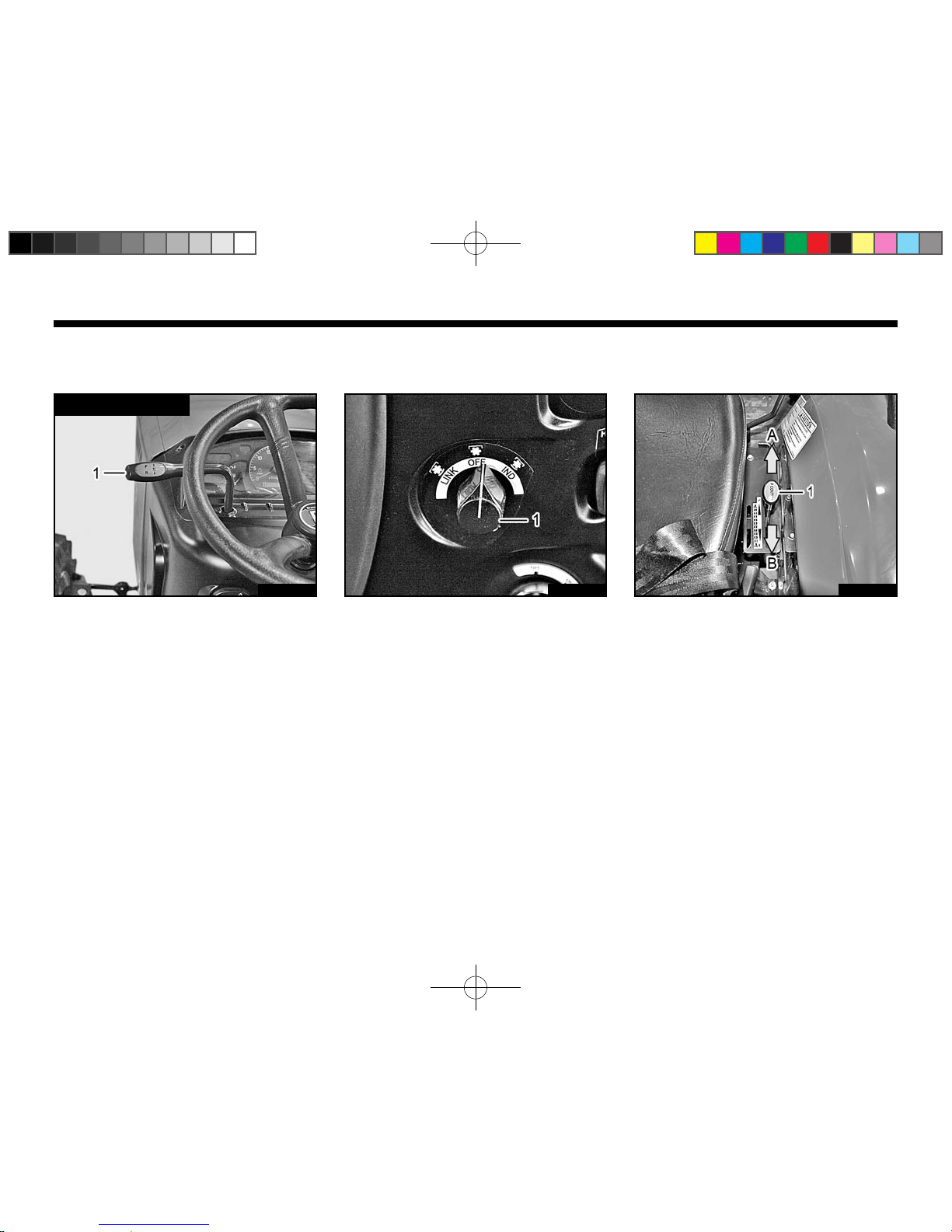

TURN SIGNAL/LAMP SWITCH

Turning the lamp switch clockwise to

therstnotchturnsonthetaillamps

and instrument cluster. Turning it further turns on the high/low beam.

Push up the turn signal lamp knob to turn on the right turn signal lamp and press down the knob to turn on the left turn signal lamp. To sound the horn, press the horn button in center of the switch.

This is used to drive the tractor forward or backward. Shift the lever with the clutch pedal and brake pedal depressed to maximum.

(1) Lamp Switch (2) Turn Signal Lamp Knob (3) Horn Button

(1) Shuttle Shift Lever (A) Forward (B) Reverse

CAUTION



Prolonged operation can con-

sume electricity excessively. Therefore, use it only in emergency. Use it only when necessa r y as it c a n d i s cha r ge the battery and obstruct other drivers' view.

A42O404A A42O405A

SHUTTLE SHIFT LEVER [MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-05 5 2016-01-27 오전 10:55:46

4

-

6

Branson F36R(H)/F42R(H)

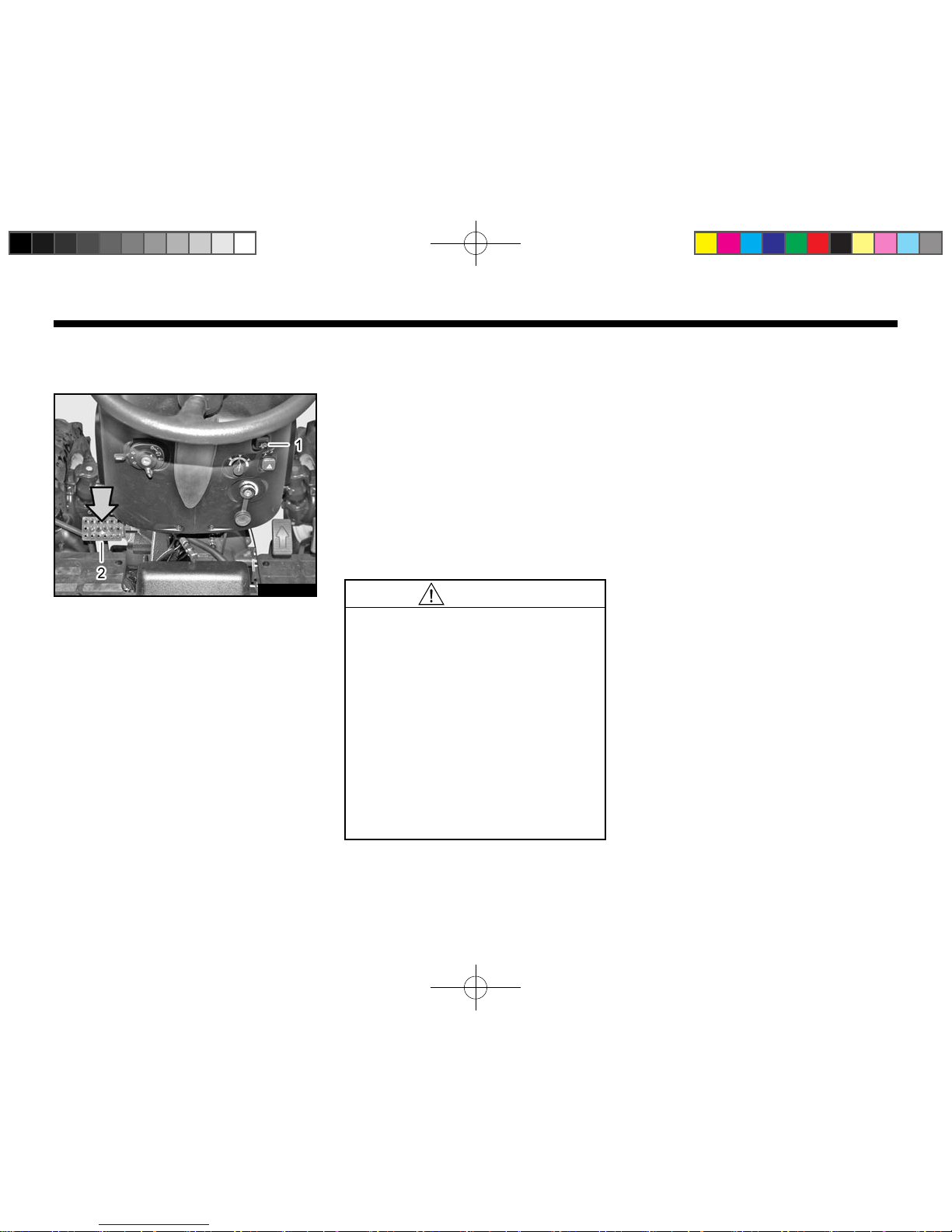

CRUISE CONTROL SWITCH [HST MODEL]

A42O407w

1. When the machine has reached

the desired speed, press cruise control switch to “ON” Release the HST pedal and the machine will operate at the selected speed.

2. When applying full pressure to the

Brake pedals, the cruise control will deactivated and it will be necessary to reset the cruise control to the desired speed.

3. When applying light pressure to

the Brake pedals, the machine’s

ground speed will be reduced until the Brake pedals released. At that point the machine will continue at the previous setting.

4. To reset the desired speed, you should turn off the cruise control switch then increase machine speed to reach the desired speed push cruise switch to on.

CAUTION



When stop the machine cruise

control ke ep mac h i ne st o p status.



Ma ke s u r e c on n e c ti ng t h e

both Brake pedals when use cruise control function.

[Otherwise]

There is a risk abrupt turning or overturning due to onesided Braking when the Brake pedal is depressed.

K3트랙터-유럽향(Branson 36R,42R))-영문-06 6 2016-01-27 오전 10:55:46

4

-

7

OPERATION DESCRIPTION

4

INSTRUMENT CLUSTER

(1) PTO Indicator (2) Turn Signal Indicator (3) High Beam Indicator

(4)

Parking Brake (Brake) Indicator

(5)

Engine Hydraulic Pressure Indicator

(6) Charge Warning Lamp

(7) Preheat Indicator (8) PTO Rotating Position (9) Tachometer

(10) Fuel Gauge (11) Hour Meter (12) Coolant Temperature Gauge

A42O406A

K3트랙터-유럽향(Branson 36R,42R))-영문-07 7 2016-01-27 오전 10:55:46

4

-

8

Branson F36R(H)/F42R(H)

PTO INDICATOR

This comes on when the PTO clutch switch is in the "IND" or "LINK" position.

LEFT/RIGHT TURN SIGNAL INDICATOR

This indicates the condition when operating one of the turn signal lamps for the desired turning direction.

HIGH BEAM INDICATOR

It indicates the high beam. Select the low beam for driving on a road.

(1) PTO Indicator (1) Left Turn Signal Indicator

(2) Right Turn Signal Indicator

(1) High Beam Indicator

1 21 2

6015O311A

11

A42O422b

11

A42O426A

K3트랙터-유럽향(Branson 36R,42R))-영문-08 8 2016-01-27 오전 10:55:46

4

-

9

OPERATION DESCRIPTION

4

PARKING BRAKE & BRAKE INDICATOR

(1) Parking Brake (Brake) Indicator

ENGINE OIL PRESSURE WARNING LAMP

When setting the main switch into the ON position while the ambient temperature is about 5℃, this indicator comes on to indicate the heater is energized. After the indicator goes off (automatically), turning the switch to the START position can start the engine. The illumination duration of the thermostat pilot lamp varies by the current applying duration of the heater according to the coolant temperature.

(1) Engine Oil Pressure Warning Lamp

11

A42O428A

11

A42O425A

Coolant temperature over 5℃: 1 sec. or shorter / Less than 5℃: 3 - 30 seconds

•

NOTE

This comes on when the parking brake is applied or the brake pedal is depressed. [US] This comes on when the parking brake is applied only. [EU] If the parking brake is applied, release the parking brake lever before driving. However, the lamp on the right side does not come on if only one side brake is released.

K3트랙터-유럽향(Branson 36R,42R))-영문-09 9 2016-01-27 오전 10:55:46

4

-

10

Branson F36R(H)/F42R(H)

BATTERY CHARGE WARNING LAMP

The battery charge warning lamp is turned on when the ignition switch is initially turned to the "ON" position before starting the engine but turned off after starting the engine. If this lamp comes on while driving, the charging system is malfunctioning. In this case, check the fan belt or ask your local dealer for further inspection if necessary.

(1) Battery Charge Warning Lamp

PREHEAT INDICATOR

The 4WD indicator comes on when the 4WD lever is placed in "ON" position.

(1) Preheat Indicator

FUEL GAUGE

This indicates the remaining fuel level. Immediatelyllthefueltankiftheneedle reads the red area.

(1) Fuel Gauge

A42O407A

1 1

A42O423A

11

A42O427A

K3트랙터-유럽향(Branson 36R,42R))-영문-010 10 2016-01-27 오전 10:55:47

4

-

11

OPERATION DESCRIPTION

4

COOLANT TEMPERATURE GAUGE

This coolant temperature gauge indicates the engine coolant temperature after the ignition switch is turned to the "ON" position. If the needle reads the red area, immediately stop working and then inspect the tractor.

(1) Coolant Temperature Gauge

A42O409A

TACHOMETER/HOUR METER

The tachometer indicates the engine rpm and the hour meter indicates the total run hour of the tractor.

(1) Tachometer (2) Hour Meter

A42O408A

K3트랙터-유럽향(Branson 36R,42R))-영문-011 11 2016-01-27 오전 10:55:47

4

-

12

Branson F36R(H)/F42R(H)

CONTROLS 1

FOOT CONTROLS

A42O410A

(1) Brake Pedal (2) Forward Pedal (3) Backward Pedal

[HST MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-012 12 2016-01-27 오전 10:55:47

4

-

13

OPERATION DESCRIPTION

4

A42O410A

(1) Clutch Pedal (2) Left Brake Pedal

(3) Right Brake Pedal (4) Foot Throttle Pedal

CLUTCH PEDAL

If the clutch pedal is depressed, driving power is stopp e d supplying. When the clutch pedal is depressed, the main/range shift lever can be operated. To start off smoothly, release the clutch pedal slowly.

(1) Clutch Pedal

A42O411A

[MEC. MODEL] [MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-013 13 2016-01-27 오전 10:55:48

4

-

14

Branson F36R(H)/F42R(H)

FOOT THROTTLE PEDAL

The foot throttle pedal and the hand throttle lever are separated. If the pedal is depressed, the engine rpm becomes faster. While the pedal is released, the engine is idling.

To speed up during driving, use this pedal.

(1) Foot Throttle Pedal

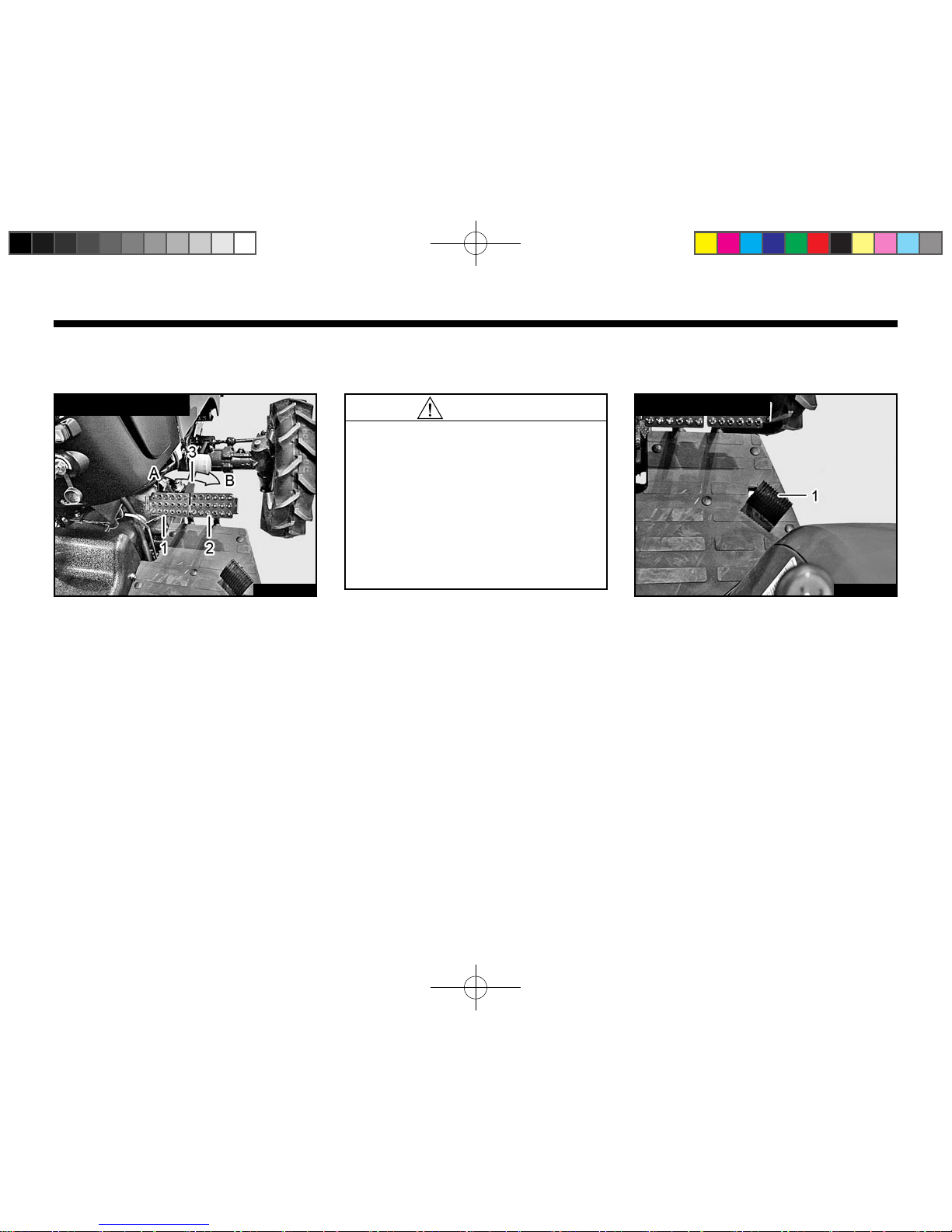

BRAKE PEDALS (LEFT/RIGHT)

Each brake pedal is activated independently. To make a sharp turn, depress one of the brake pedals on the turning direction to brake the rear wheel on the same side.

Make sure to interlock the brake pedals with the link bracket before driving on a public road.

(1) Left Brake Pedal (2) Right Brake Pedal (3) Link Bracket (A) Release (B) Engage

WARNING



Make sure to interlock the left

an d right brake pedals with the link bracket while driving for travel.

If this instr uction is ign ored, th ere is a risk of an accident such as rollover due to unintended movement.

A42O412A

A42O413A

[MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-014 14 2016-01-27 오전 10:55:48

4

-

15

OPERATION DESCRIPTION

4

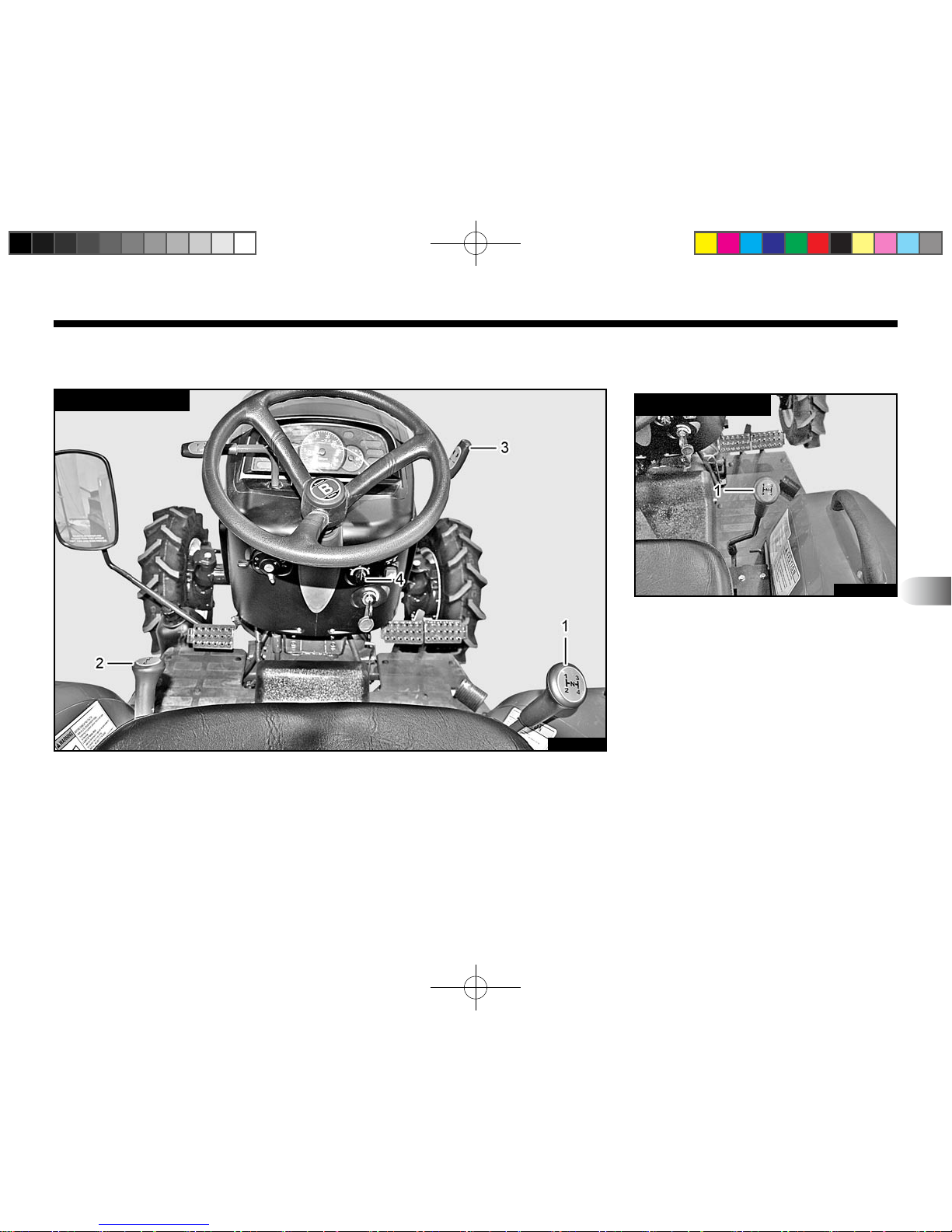

(1) Main Shift Lever (2) Range Shift Lever

(3) Hand Throttle Lever (4) PTO ON/OFF Switch

A42O415e

MAIN SHIFT LEVER

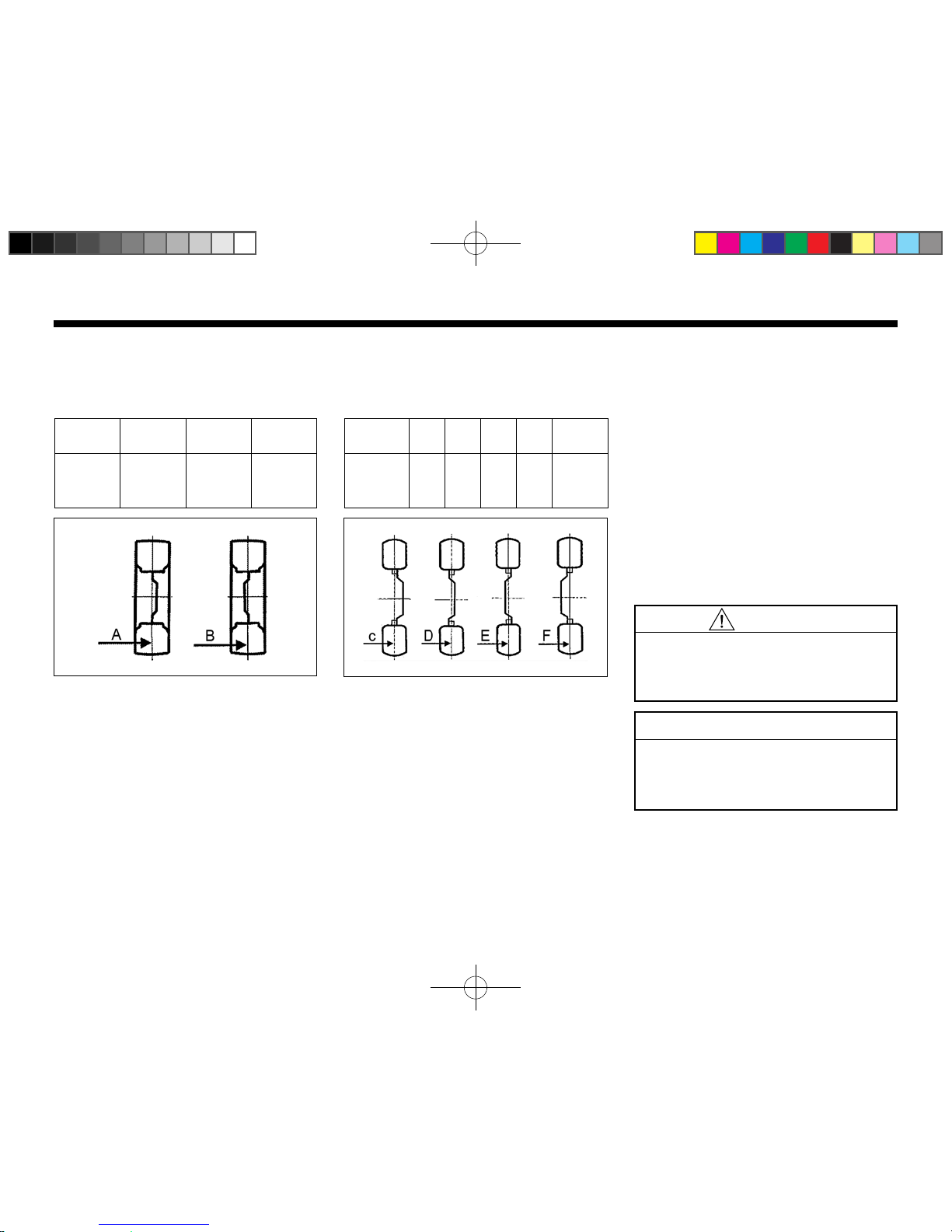

Fo ur s p eeds can be s elected by moving this main shift lever in “H” shaped path.

You can shift this lever from the 1st to 4th gears even when the tractor is moving by disengaging the clutch during driving as these gears are synchromesh type gears.

(1) Main Shift Lever

A42O416A

CONTROLS 2

HAND CONTROLS

[MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-015 15 2016-01-27 오전 10:55:48

4

-

16

Branson F36R(H)/F42R(H)

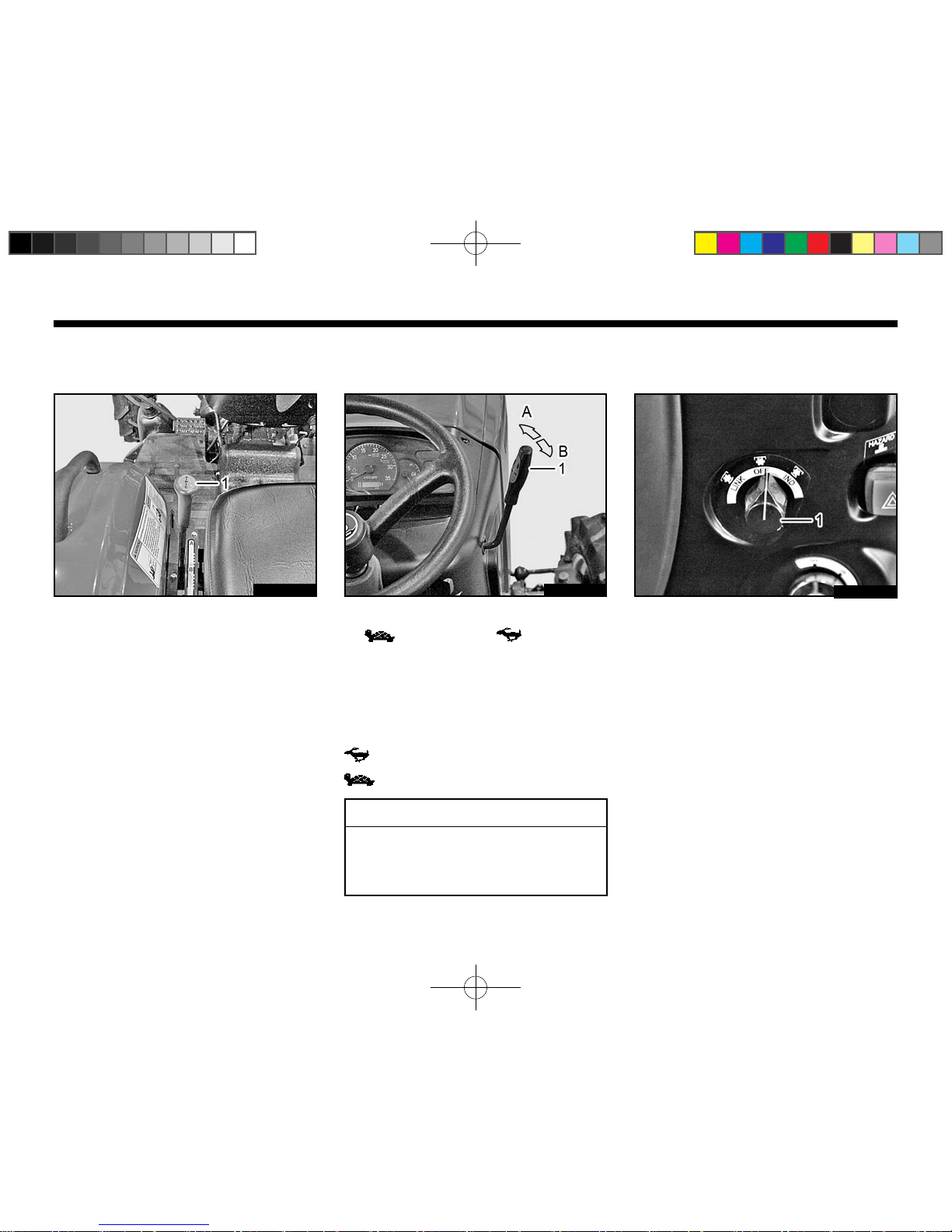

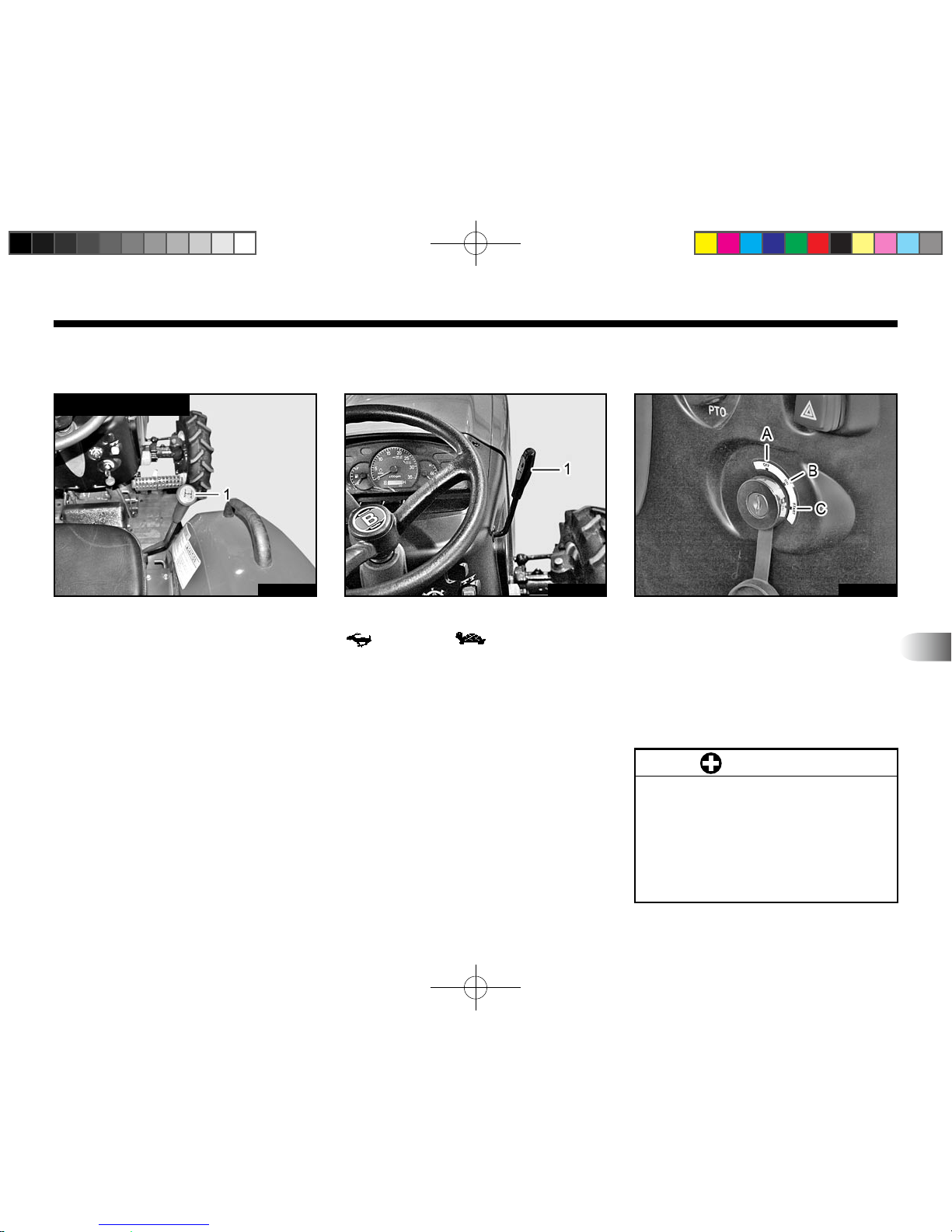

RANGE SHIFT LEVER

3 speeds can be selected by the range shift lever. Therefore, in total, 12 forward driving speeds and 12 reverse driving speeds are provided by combination of the main shift lever and range shift lever.

Make sure to operate the lever while the tractor is stationary. Shift the lever with the clutch pedal firmly depressed.

(1) Range Shift Lever

The hand throttle lever is to increase or decrease the engine rpm. This lever is mainly used while working on

aeldwiththeconstantenginerpm.

Increasing engine RPM

Decreasing engine RPM

HAND THROTTLE LEVER

(1) Hand Throttle Lever

(A)

Low Speed (B) High Speed



Use the foot throttle pedal dur-

ing driving for travel, not the hand throttle lever.

NOTE

PTO ON/OFF SWITCH

(1) PTO ON/OFF Switch

[IND]: In the IND position, the PTO

shaft rota tes constantly regardless of the position of the rear implement.

[LINK]: In the LINK position, the PTO

shaft stops rotation when the rear implement is lifted to a certain level. The PTO shaft rotates again as soon as the rear implement is lowered.

A42O417A A42O418A

A42O419A

K3트랙터-유럽향(Branson 36R,42R))-영문-016 16 2016-01-27 오전 10:55:49

4

-

17

OPERATION DESCRIPTION

4

A42O404e

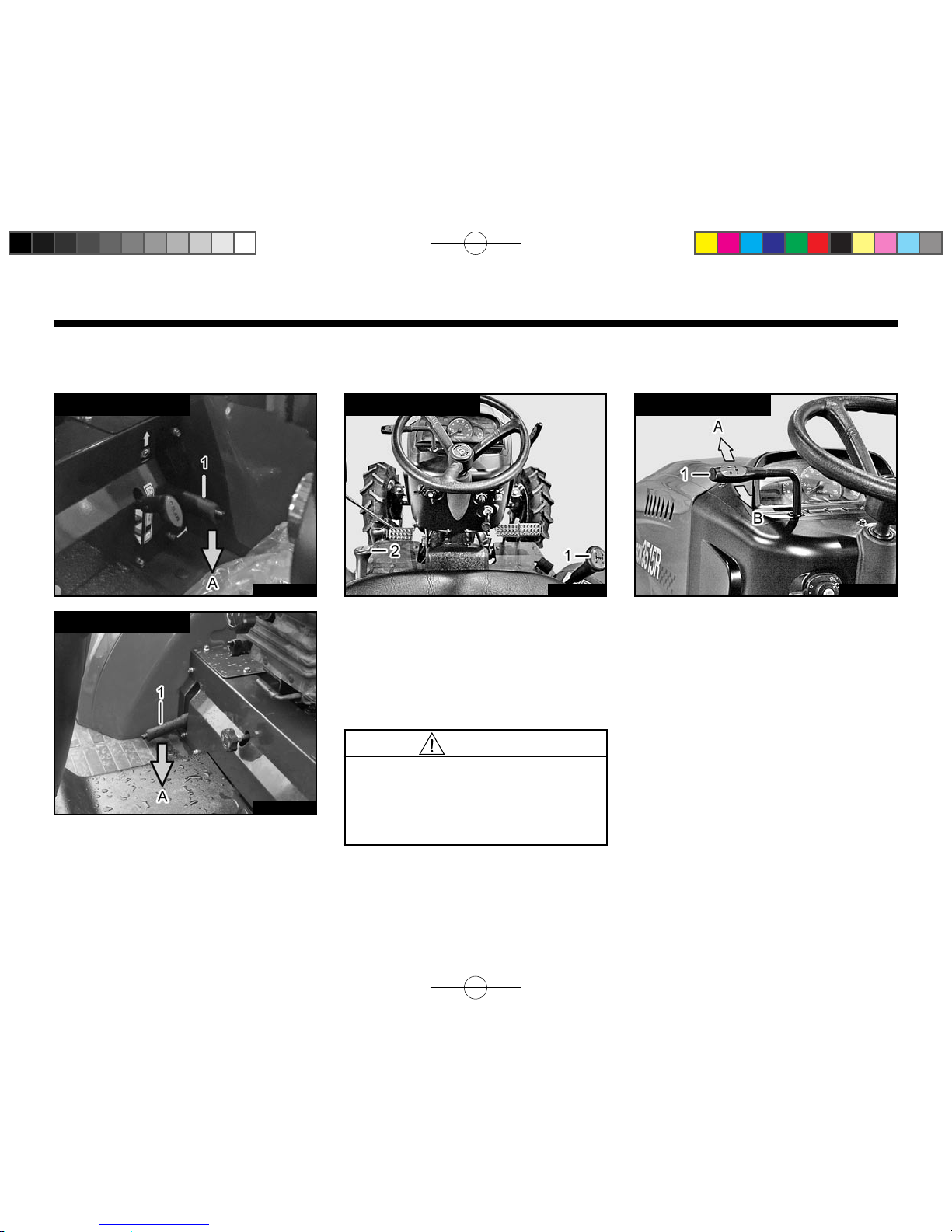

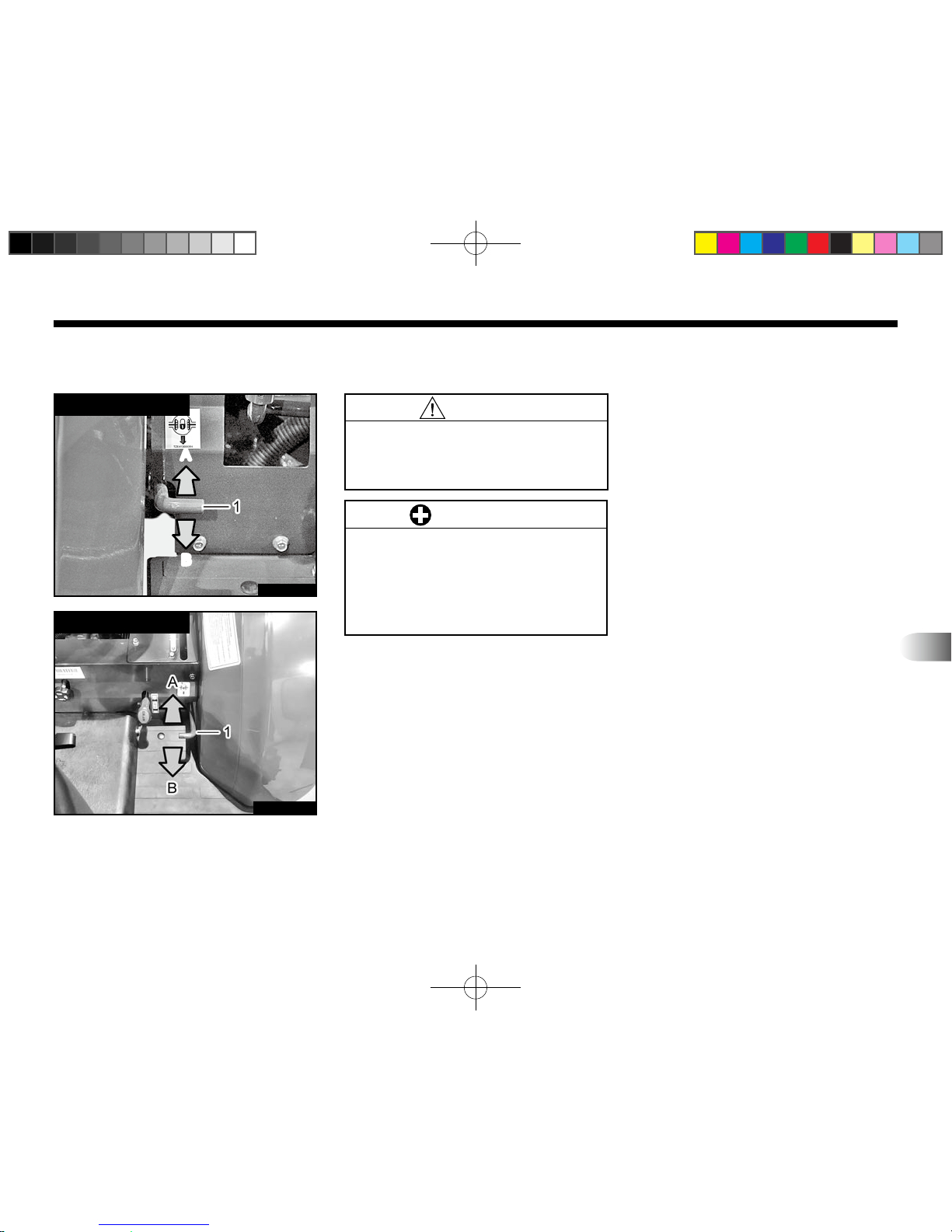

PARKING BRAKE

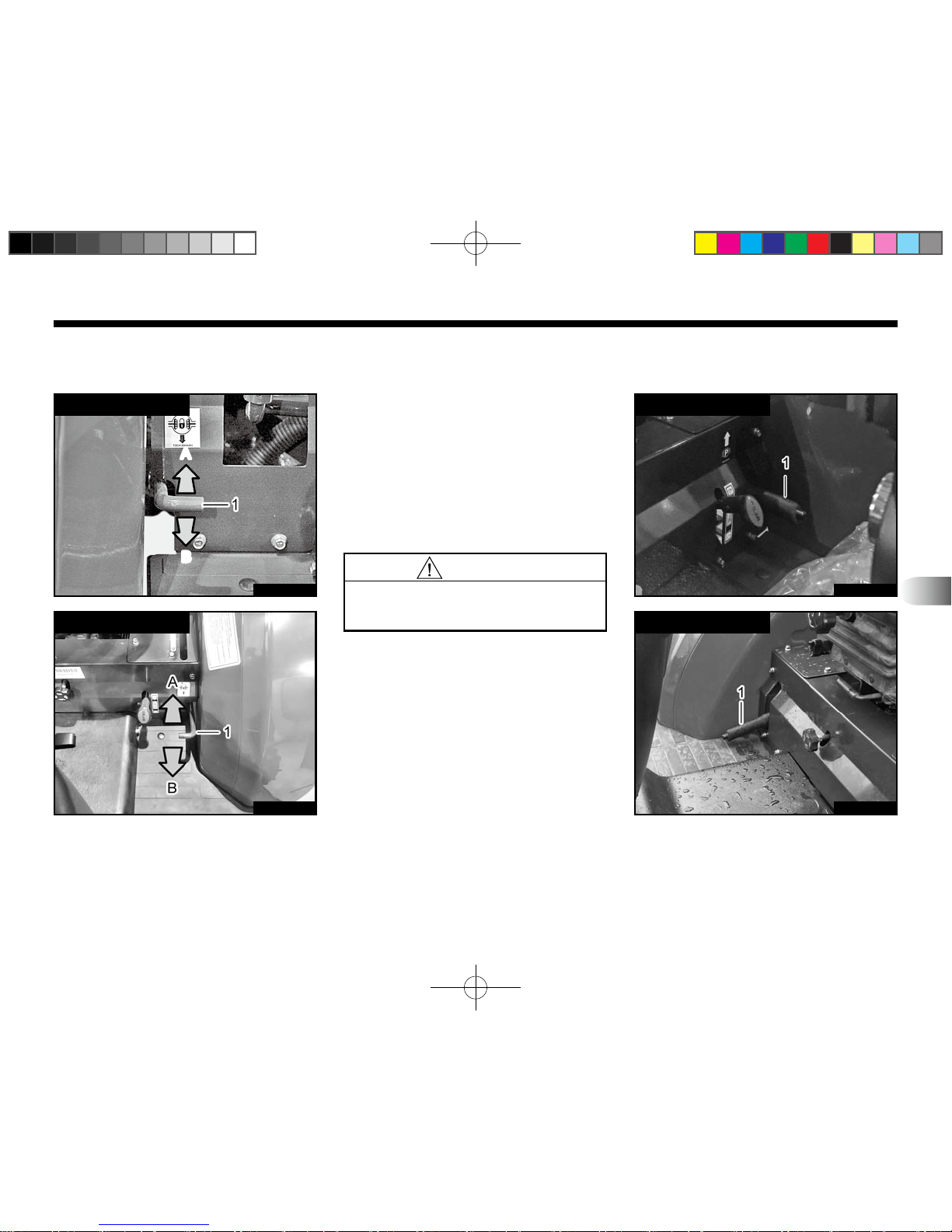

DIFFERENTIAL LOCK PEDAL

The differential lock pedal is to keep the wheel rotation on both sides the same when one of the rear wheels is idling or spinning without traction. Be sure to use the steering wheel only while the wheels are set in a straight ahead position. Otherwise, the differential system may be damaged.

WARNING



Be sure to release the differen-

tial lock before making a turn.

ABABA

B

A42O516A

(1) Differential Lock Pedal (A) Release (B) Engage

A42O405U

(1) Parking Brake Lever

[HST MODEL]

[MEC. MODEL]

A42O421e

[HST MODEL]

[MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-017 17 2016-01-27 오전 10:55:50

4

-

18

Branson F36R(H)/F42R(H)

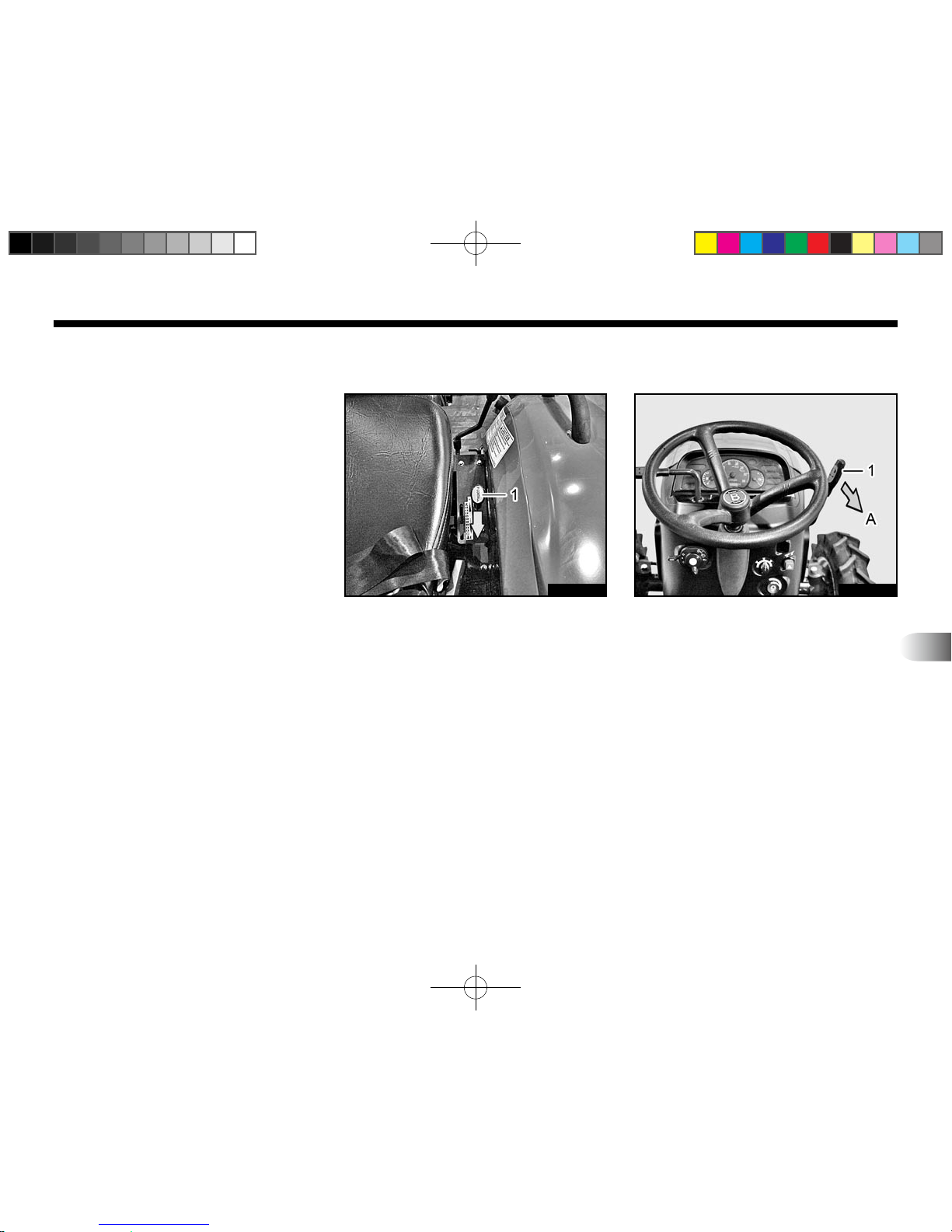

To apply th e brake, depress t h e brake pedals firmly and push the lever forward. To release the brake,

depressthebrakepedalsrmly.

K3트랙터-유럽향(Branson 36R,42R))-영문-018 18 2016-01-27 오전 10:55:50

5

5. OPERATION

DAILY INSPECTION BEFORE STARTING ............5-2

PRE-OPERATION CHECK .....................................5-2

PRE-OPERATION ....................................................5-2

BEFORE STARTING THE ENGINE .......................... 5-2

RUNNING-IN PERIOD ..............................................

5-3

STARTING ENGINE ................................................5-3

HOW TO START ........................................................ 5-3

COLD START ............................................................

5-6

STOPPING ENGINE ...............................................5-6

TRACTOR OPERATION .........................................5-6

WHEN ATTACHING WEIGHT ................................... 5-6

REDUCE SPEED WHEN TOWING LOAD ................

5-7

HOW TO DRIVE ........................................................

5-7

STOPPING ..............................................................

5-11

PARKING .................................................................

5-12

DIFFERENTIAL LOCK ............................................

5-13

HOW TO FOLD ROPS ............................................

5-14

CONTROL LEVER .................................................

5-15

ATTACHMENT OF IMPLEMENT .........................5-16

ATTACHMENT POSITION ....................................... 5-16

CENTER LINK ADJUSTMENT ................................

5-17

ATTACHING IMPLEMENT .......................................

5-17

ADJUSTMENT OF CHECK BAR .............................

5-19

ADJUSTMENT OF VERTICAL HEIGHT ..................

5-19

POSITIONING OF DRAW BAR ...............................

5-20

INSTALLATION OF PTO DRIVEN IMPLEMENT .....

5-20

HOW TO CONNECT HYDRAULIC HOSE

FOR LOADER ATTACHMENT ............................

5-21

CONTROL AND OPERATION OF

HYDRAULIC SYSTEM .......................................5-22

SCV CONTROL LEVER ANDCOUPLER ................5-22

CONNECTING CYLINDER HOSE ..........................

5-22

TIRES, WHEELS AND BALLAST ............................

5-23

TIRE TYPE ..............................................................

5-23

WHEEL AND AXLE ..................................................

5-24

K3트랙터-유럽향(Branson 36R,42R))-영문-01 1 2016-01-27 오전 10:56:58

5

-

2

Branson F36R(H)/F42R(H)

DAILY INSPECTION BEFORE STARTING

BEFORE STARTING THE ENGINE

1. Check the engine oil level. After wiping out the dipstick, insert

it fully and then withdraw it. Oil should be between the two marks on dipstick.

Do not operate the engine if oil

level is below minimum mark. If belo w, a dd t h e c o rre s pond i ng grade oil according to the season

through the ller.

2. Feed grease to all greasing points indicated below every 10 hours when working in damp and muddy conditions.

 Front axle pin  Steering shaft and Cylinder end  Tie rod both ends  Front axle supporter

3. After cleaning the machine with highly pressurized water, lubricate the indicated points with grease below if necessary.

 Bonnet latch  Seat sliding rail

PRE-OPERATION CHECK

PRE-OPERATION

Check the engine operation carefully.

6015O401A

IMPORTANT

The engine is tuned or set for normal use. In case of a new tractor, especially carry out in-

spection and check within rst

100 hours.

•



Be sure to warm up the engine. In-

spect the battery charge warning lamp, oil pressure warning lamp and engine coolant temperature gauge.



Avoid any unnec essary engin e

idling.



Frequently check the engine oil,

co olant, tran smission fluid and front axle oil levels. Also, inspect

for leakage of those uids.

Make sure to add the correspo n di n g g ra d e o il fo r t h e season. Use only genuine oil

specied by BRANSON.

•

NOTE

CAUTION

Avoid running the engine in an enclosed area. Exhaust gas

can be very harmful to your health. If it is unavoidable to

run the engine in an enclosed area, extend the exhaust pipe to the outside to release exhaust gas to the atmosphere.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-02 2 2016-01-27 오전 10:56:59

5

-

3

OPERATION

5

RUNNING-IN PERIOD

▶

Within rst 10 hours of operation



Inspect daily or every 10 hours



Tighten the wheel bolts

▶

After rst 50 hours of operation



Tighten the wheel, disc and hub

bolts



Check the alternator and fan belt

tension as well as air inlet



Tighten the c o o l ing system's

hose and clamp



Perform the scheduled 50-hour

maintenance

STARTING ENGINE

HOW TO START

1. Check the fuel gauge. Make sure

that a sufcient amount of fuel is

in the tank.

6015o323A

IMPORTANT

A l w a y s ke e p w h e e l bo l t s

t i g h t e n e d to pr e v e n t a n y acc ide n t. Co n fi r m t ha t t h e

wheel bolts are tight before operation. Check wheel bolt

tor q u e a t l e a st t wice within

the rst 10 hours of operation,

check it periodically at every 50 hours thereafter. Change the oil and filter after first 50 hours of operation.

•



C h ange the transmission/hy-

draulic oil and oil lter element

 Change the engine oil and lter  Change the front axle uid

K3트랙터-유럽향(Branson 36R,42R))-영문-03 3 2016-01-27 오전 10:56:59

5

-

4

Branson F36R(H)/F42R(H)

2. Set the shuttle shift lever in the neutral position. If not, the engine won’t be started.

(1) Shuttle shift lever

A42O501A

3. Conrm that the PTO switch is set

in the OFF position. If not, the engine won’t be started. Turn off the PTO switch to the OFF position.

4. Check the position of the implement. Push the control lever forward to lower the implement down onto the ground.

(1) PTO ON/OFF switch (1) Hitch control lever

(A) Lowering (B) Lifting

A42O502A

A42O503A

[MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-04 4 2016-01-27 오전 10:56:59

5

-

5

OPERATION

5

6. Place the hand throttle lever to the Minimum position.

7. Tu r n th e ma i n sw i t c h to t h e "START" position. When the engine is started, take your hand off the key.

(1) Hand throttle lever

Max. Min.

(1) Main switch

(A) OFF (B) ON

(C) START

5. Put the main shift lever in the neutral position.

(1) Main shift lever

A42O504A A42O505A A42O506A

IMPORTANT

Do not operate the start motor more than 20 seconds at a time. If the start motor won't start, wait until the motor is cooled down at least for 2 minutes and then try again.

•

[MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-05 5 2016-01-27 오전 10:57:00

5

-

6

Branson F36R(H)/F42R(H)

COLD START

1. When starting in cold weather, turn the ignition switch to the "ON" position and then wait until the preheat indicator is turned off.

2. For safe operation, turn the ignition switch to the "START" position with the clutch pedal depressed.

3. Repeat the above procedures until the engine is operated smoothly.

4. Let the engine idle at 1,200 rpm to warm up the engine up to the operating temperature.

CAUTION

In case of the tractor equipped with the cold start system, do

not use starting uid.

•

Make sure to reduce the engine rpm with the hand throttle lever in the Low speed position before stopping the engine. Depress the clutch pedal and put all shift levers in the neutral position.

And then turn the main switch to the "OFF" position to stop the engine.

STOPPING ENGINE

1. Reduce the speed when driving on a bumpy or rough ground.

2. Attach the additional weight needed for stability and safe cornering if required.

3. Make sure that the front wheels are not risen up when transporting implements or towing a heavy load.

TRACTOR OPERATION

WHEN ATTACHING WEIGHT

6015O404A

CAUTION

Do not drive on a road under a heavily loaded condition. Otherwise, it can lead to an injury or machine damage.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-06 6 2016-01-27 오전 10:57:00

5

-

7

OPERATION

5

Observe the guideline for towing speed and capacity as below.

1. If the trailed weight is the same or lighter than the tractor, maintain the maximum speed of 26 km/h.

2. If the trailed weight is twice the tractor or less, maintain the maximum speed of 13 km/h.

3. If the trailed weight is more than twice the tractor, do not tow it.

4. Be careful especially when towing a load on a bad condition of ground, slope or corner.

REDUCE SPEED WHEN TOWING LOAD

6015O405A

HOW TO DRIVE

(1) Safety belt (2) Seat sliding lever

CAUTION

The st op p in g d i st a nc e b eco m e s lo n g e r on a do w n hill in proportion to the speed and load weight. If the towed weight is heavier than the trac-

tor and the braking system is

not installed on the trailer, re-

duce the speed. Observe the

guideli n e for t o wing s p e ed and capacity.

•

A42O507A

A42O508A

K3트랙터-유럽향(Branson 36R,42R))-영문-07 7 2016-01-27 오전 10:57:01

5

-

8

Branson F36R(H)/F42R(H)

1. A d j us t th e s ea t pr o pe r l y and fasten the seat belt. Adju st the seat to easily reach the pedal and the steering wheel.

If the seat belt is worn across the

abdomen or waist, not the hips, an injury can occur in case of an accident or impact.

Adjust the levers properly accord-

ing to the driver's physical condition.

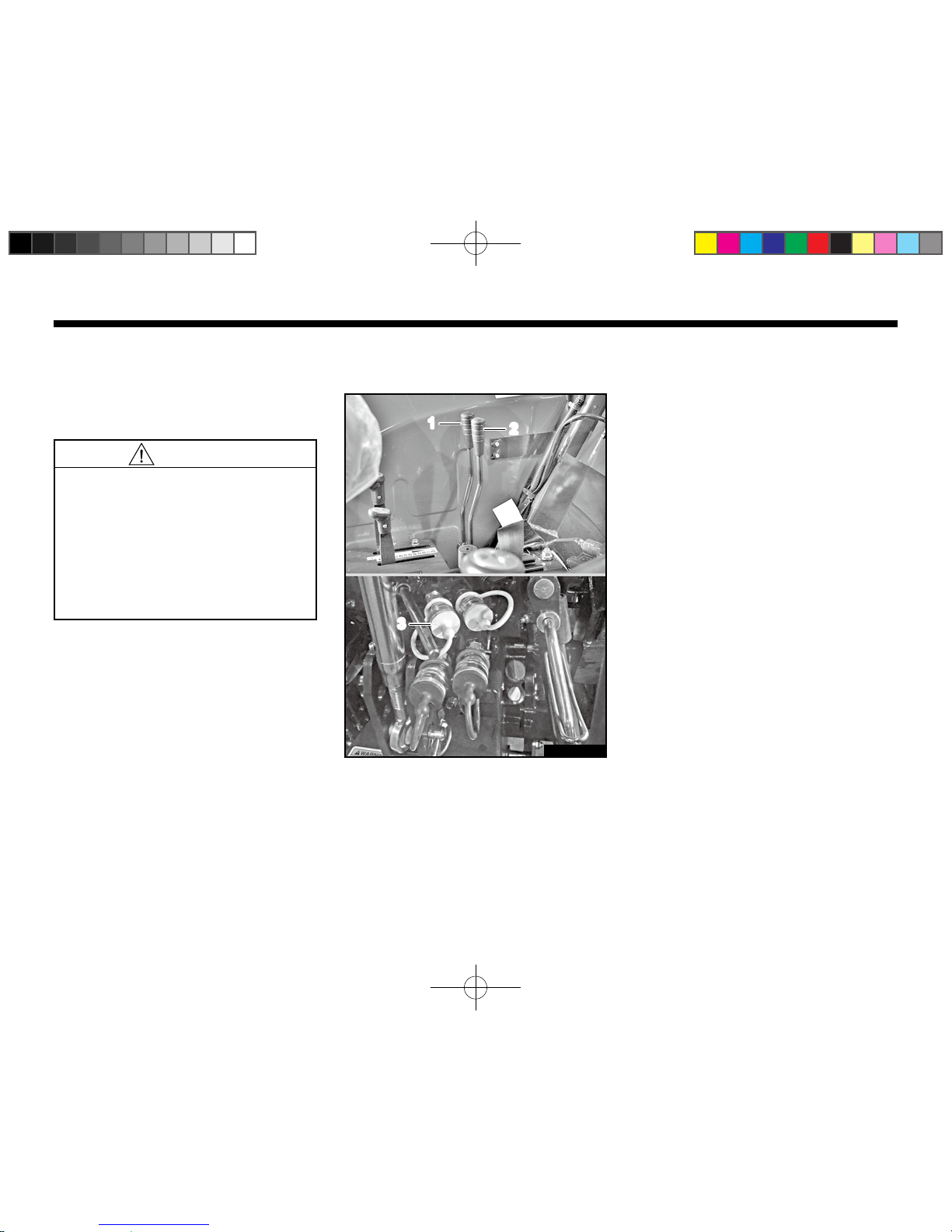

(1) Brake pedal (LH) (2) Brake pedal (RH)

CAUTION

If the tractor is out of control, it can cause a personal injury or even death. Keep the following instructions on a road:

Interlock the both brake pedals.

Use the foot throttle pedal. Reduce the speed while driv

ing on a slippe r y, o r gr avel road.

Attach the proper weight. When reducing the speed, use

the brake gently and carefully.

•

IMPORTANT

Don’t put a foot on the brake

pe d a l u nnecessarily durin g driving. Such action can re-

duce the brake's service life.

•

A42O509A

[MEC. MODEL]

(1) Brake pedal

A42O532W

[HST MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-08 8 2016-01-27 오전 10:57:01

5

-

9

OPERATION

5

2. Check if both brake pedals are interlocked.

3. Lift the implement.

To lift the installed implement, pull the control lever backward.

(1) Control lever

4. Control the hand throttle lever. Increase the engine rpm from low to high speed gradually.

(1) Hand throttle lever

(A) Engine rpm increases

A42O510A

A42O511A

K3트랙터-유럽향(Branson 36R,42R))-영문-09 9 2016-01-27 오전 10:57:01

5

-

10

Branson F36R(H)/F42R(H)

5. Release the parking brake. It can be released by depressing the

brake pedal rmly.

(1) Parking brake lever (A) Release

6. Put the main and range shift levers into the proper positions as the operator’s intention.

(1) Main shift lever (2) Range shift lever

CAUTION

The range shift lever should

be operated while the vehicle

is stationary. If not, there is a risk of machinery damage.

•

A42O513A

7. Operate the shuttle shift lever. This lever is used to select forward or reverse driving of the tractor. Shift the lever with the clutch pedal and brake pedal depressed to maximum.

(1) Shuttle shift lever (A) Forward (B) Reverse

A42O514A

[MEC. MODEL] [MEC. MODEL]

A42o408E

A42o420E

[MEC. MODEL]

[HST MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-010 10 2016-01-27 오전 10:57:02

5

-

11

OPERATION

5

CAUTION

Don’t put a foot on the clutch pe d a l u nnecessarily durin g driving. Otherwise, the clutch is set in the slip position, resulting in premature wear of the clutch.

Do no t ch an ge t he t ra ct or speed abruptly for safe driving.

Be careful of all directions of

the tractor before driving. If

not, it can cause an accident. When driving on a steep slope

or movi n g to a l o cation f o r loading or unloading, do not put your hand on t h e m a in shift lever. If the shift lever is half engaged, it can lead to an accident. Make sure to place the lever in the low speed position in advance.

•

STOPPING

1. Stop the tract o r w ith the brake pedal and clutch pedal.

2. Put the main shift lever to the neutral position.

3. Put the shuttle shift lever to the neutral position.

4. Put all SCV levers to the neutral position.

5. Set the PTO switch in the OFF position.

6. L ow e r al l imp l e m e n t s on th e ground.

7. Push the hand throttle lever back slowly

to decelerate the engine and keep

the engine for 1 - 2 minutes of unloaded idling.

8. Make sure the parking brake is applied.

9. Tu r n th e ma i n sw i t c h to t h e

「

OFF」position to stop the en-

gine.

CAUTION

When leaving the tractor, put the shuttle shift lever into the neutral posit i o n . If not, th e tractor may move even though the engine is stopped.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-011 11 2016-01-27 오전 10:57:02

5

-

12

Branson F36R(H)/F42R(H)

IMPORTANT

The tractor needs to be stationary before making a shift. If the parking brake is applied

while the tr actor is moving, the transmission can be damaged.

Ea c h pa r t of th e e ng in e i s

cooled down by the engine oil.

If the hot engine is suddenly stopped, its high temperature

or insufficient lubricant can

cause damage to the related parts.

•

CAUTION

Remove the ignition key before leaving the tractor to pre-

vent its use by an unqualied

person.

•

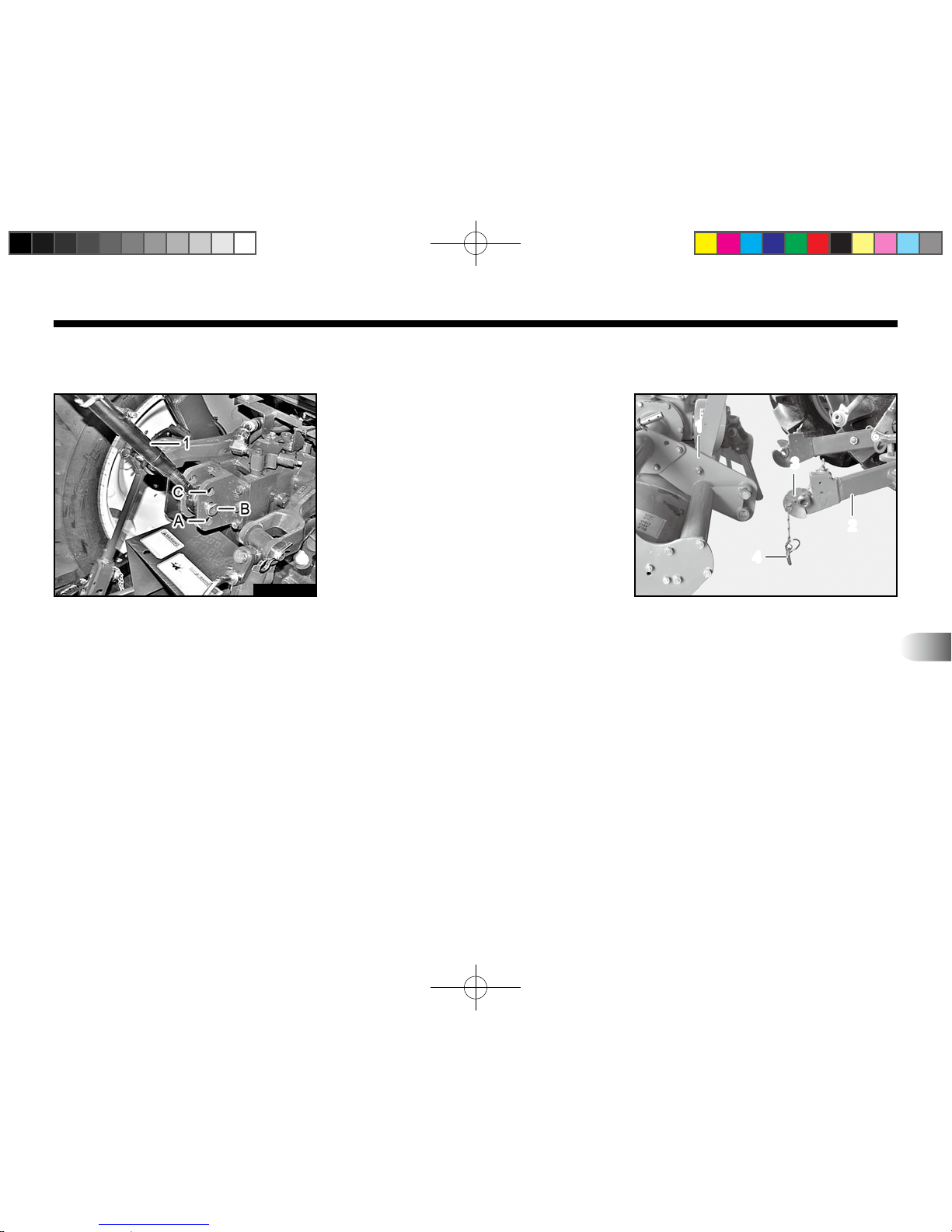

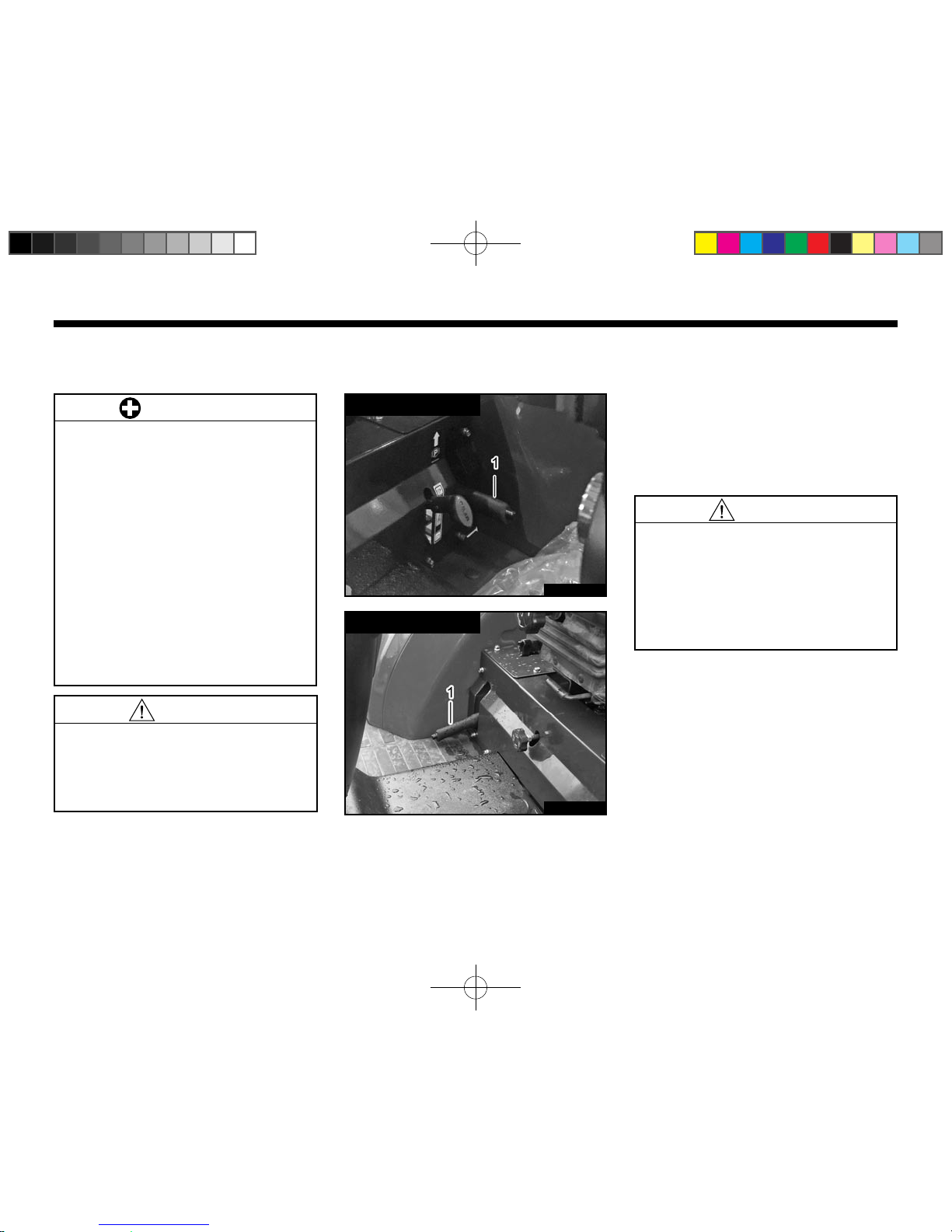

PARKING

When parking the tractor, securely engage the parking brake by pulling the parking brake lever completely. To release the parking brake, de-

press the parking brake pedal rmly.

(1) Parking brake lever

CAUTION

The brake disc can be rapidly worn if you drive with the

parking brake applied. To park

the vehicle, apply the parking brake and then place prop under the rear wheels.

•

A42o404E

[HST MODEL]

[MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-012 12 2016-01-27 오전 10:57:02

5

-

13

OPERATION

5

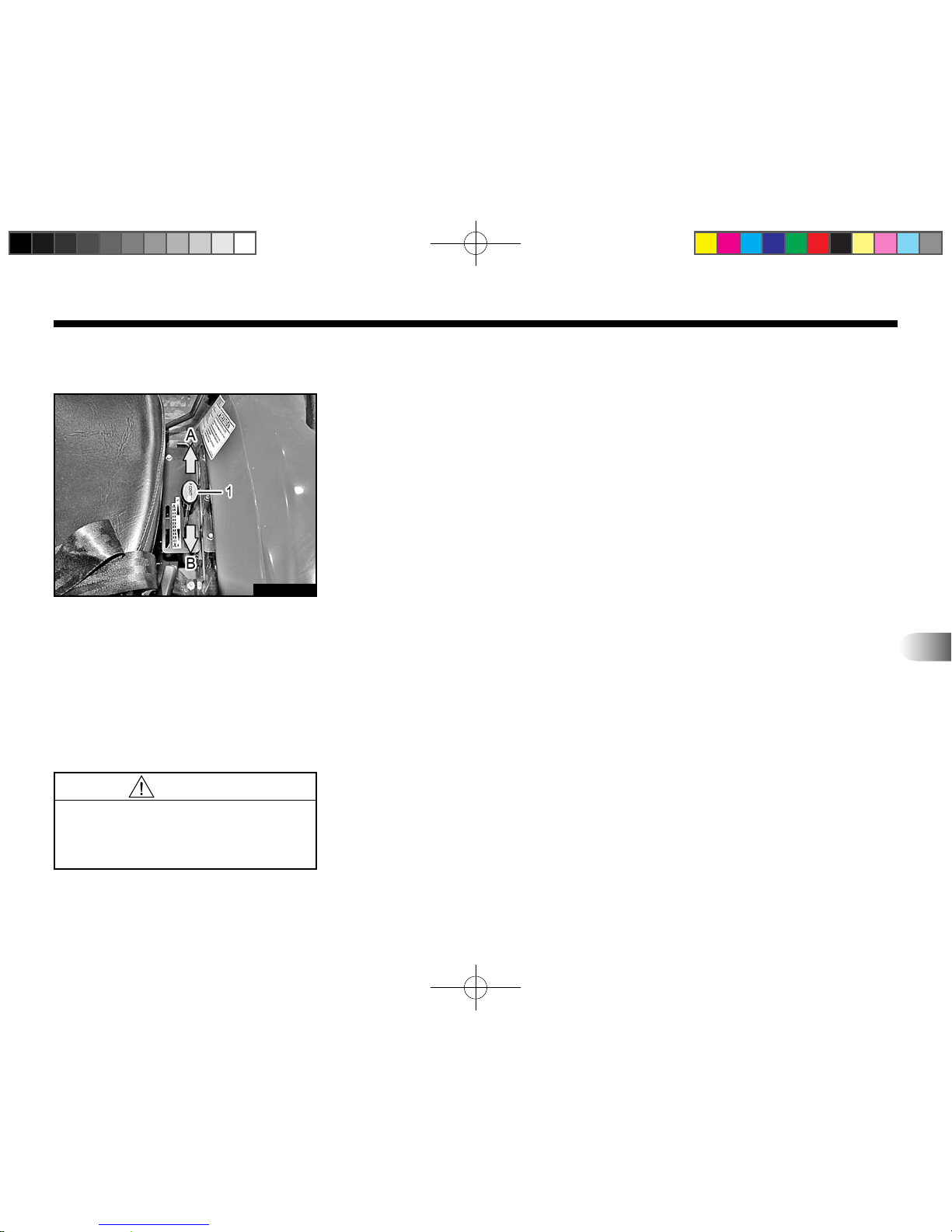

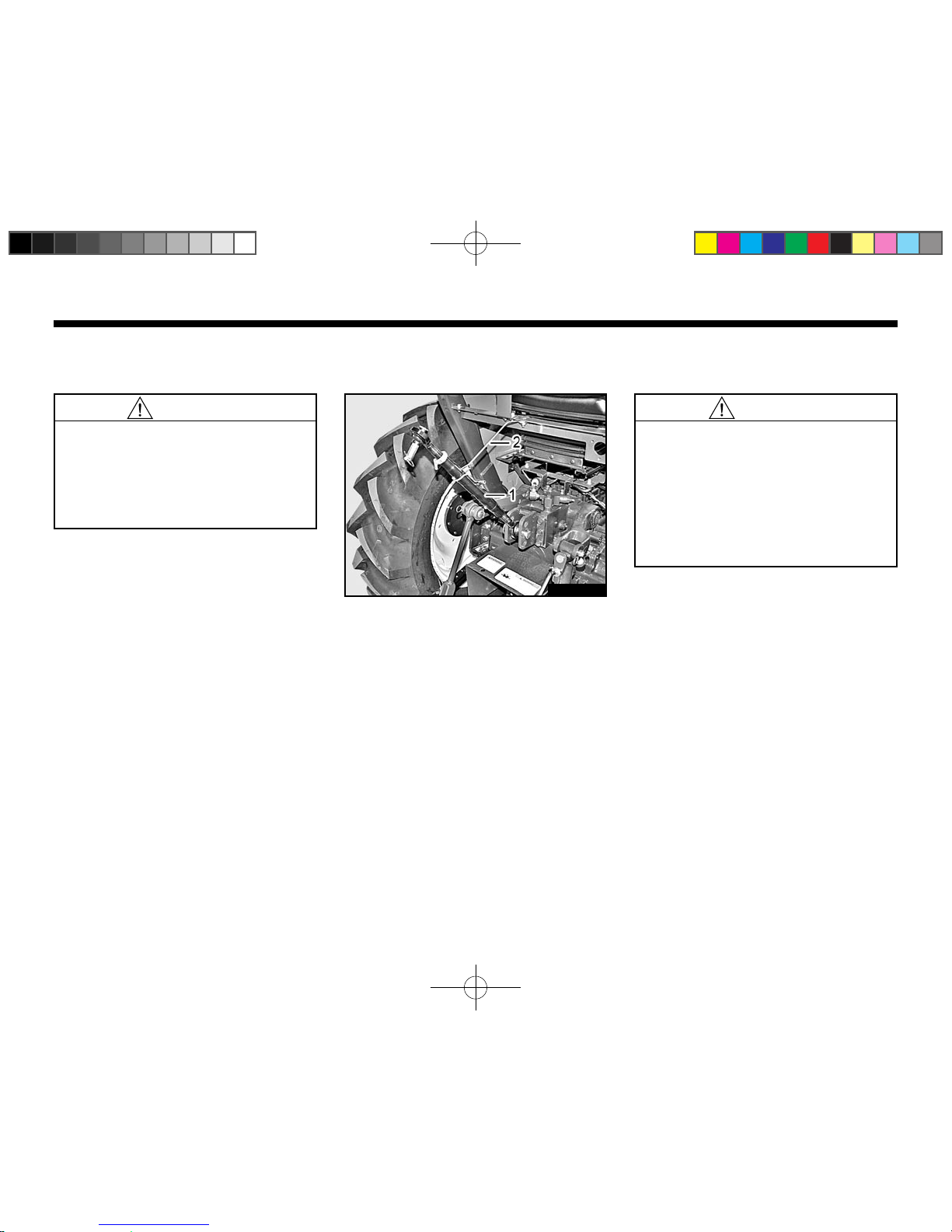

DIFFERENTIAL LOCK

ABABA

B

A42O516A

CAUTION

Do not drive the tractor at high speed or make a turn with the differential lock engaged.

•

IMPORTANT

To p r eve n t t h e p o wer trai n from damage, do not press the differential lock pedal when one wheel is spinning fast and the other wheel is stopped.

•

1. Whe n the speed a t on e whee l starts to drop, depress the differential lock pedal to activate the differential lock.

2. If the wheel traction resistance on both wheel is not even, the differential lock keeps being engaged. While both wheel traction resistance is even, the differential lock is automatically disengaged. If the differential lock is not disengaged, depress one and another brake pedal separately.

(1) Differential Lock Pedal (A) Release (B) Engage

A42o405U

3. If the tire is rotating idle repeatedly, try to engage the differential lock again.

[HST MODEL]

[MEC. MODEL]

K3트랙터-유럽향(Branson 36R,42R))-영문-013 13 2016-01-27 오전 10:57:03

5

-

14

Branson F36R(H)/F42R(H)

HOW TO FOLD ROPS

1. Loosen the bolt (3) and nut (6) of the frame. (Do not unscrew them completely.)

2. Unfold the upper frame backward after removing the snap pins (4) and pins (5) on both sides.

3. Fit the pins (5) through the holes of the frames (1 & 7) and fit the snap pins (4) into the holes of the

pins (5) to x the frames.

4. Tighten the bolt (3) and nut (6)

rmly.

Do not modify or disassemble

the safety frame without approval.

•

WARNING

• If the safety frame is incorrectly installed, it can lead to a severe accident during a rollover accident.

• Make sure to install the bolts, pins and nuts properly to set the safety frame upright securely.

• To fold the safety frame

- The safety frame is heavy. Have others help you with folding or unfolding the frame.

- The safety frame may fold abruptly by its weight. Make sure no injury is occurred by dropping frame.

- While the safety frame is folded, do not wear the seat belt.

- When the safety frame is unfolded back and work is done, set the frame upright immediately before starting to drive.

CAUTION

Be careful as the fra me can

fold by its weight, resulting

in injuries, i ncluding hea d , shoulder and hand injuries.

•

1

7

5

2

3

4

6

1

7

5

2

3

4

6

A42O530A

A42O531A

K3트랙터-유럽향(Branson 36R,42R))-영문-014 14 2016-01-27 오전 10:57:03

5

-

15

OPERATION

5

CONTROL LEVER

1. This control lever can be used to lower and lift an implement freely.

2. Pulling the lever back lifts the im

plement while pushing it forward lowers the implement.

(1) Control lever (A) Lowering (B) Lifting

A42O503A

CAUTION

To avoid a personal injury, use the control lever when attaching/detaching the implement.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-015 15 2016-01-27 오전 10:57:03

5

-

16

Branson F36R(H)/F42R(H)

ATTACHMENT OF IMPLEMENT

ATTACHMENT POSITION

(1) Lift link (2) Check bar

(3) Center link (4) Lower link

(5) Draw bar

F42O517C

CAUTION

Select an implement to match the tractor horse power;

The tractor horse power should correspond with the size of an implement. If the power level of tractor is exceeded, the imple-

men t m a y b e da maged. Als o , if the implement is too big, the trac t o r m a y be d amag e d. B e

sure of the maximum and mini-

mum power of the tractor before

attaching an implement.

K3트랙터-유럽향(Branson 36R,42R))-영문-016 16 2016-01-27 오전 10:57:04

5

-

17

OPERATION

5

CENTER LINK ADJUSTMENT

The center link can be installed to 3 selective positions according to the working condition.

A: If the center link is attached to the

bottom position, the draft system will be activated with highest sensitivity which is suitable for the implement such as a plow or equivalent which requires traction force.

B: The center hole is the standard in-

stallation hole for a rotary tiller.

(1) Center link (A) High traction (B) Mid traction (C) Low traction

ATTACHING IMPLEMENT

1

2

3

4

1

2

3

4

1. D r ive the t rac t or b ackw a rd t o

move close to an implement to t

the position of 3-point hitch.

2. Apply the parking brake and stop the engine.

3. After inserting the hitch pins of the im p lement into the lower links, secure it with the lock pin.

(1) Implement (2) Lower link (3) Ball (4) Lock pin

A42o422C

C:If the center link is attached to the

top position, the draft system will not be activated. Therefore, it is good for the implement such as a drilling machine or equivalent which does not require any traction force.

A42O518A

K3트랙터-유럽향(Branson 36R,42R))-영문-017 17 2016-01-27 오전 10:57:04

5

-

18

Branson F36R(H)/F42R(H)

To p r e v e n t t h e r o c k e r s h a f t from unexpected movement, turn "OFF" the traction (draft)

control before attaching the

implement to the hitch.

•

WARNING

A42O519A

4. Detach the center link from the xing bracket.

5. Attach the center link to the top mast of the implement.

6. Adjust the length of the center link and lower link if required.

(1) Center link (2) Fixing bracket

CAUTION

Always check if there’s no interference with the implement, quick-coupler of the implement, and other attachments when attaching to the 3-point hitch to avoid fatal personal injury or machinery damage.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-018 18 2016-01-27 오전 10:57:04

5

-

19

OPERATION

5

1. To let the implement float along contour of the g round, tu rn the rectangular steel plate to the vertical position.

2. To secure the implement, turn the rectangular steel plate to the horizontal position.

ADJUSTMENT OF VERTICAL HEIGHT

(1) Rectangular steel plate

6015O426AA42O520A

ADJUSTMENT OF CHECK BAR

1. For implements such as a plow and disc harrow, adjust the length so that it can be moved for 5 - 6 cm sideways.

2. For implements such as a rotary tiller and mower, adjust the length so that it cannot be swayed sideways.

(1) Stabilizer

IMPORTANT

Do not extend the center link exce s sive l y o u t of the l i m-

it. The center link's body or thread can be damaged.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-019 19 2016-01-27 오전 10:57:04

5

-

20

Branson F36R(H)/F42R(H)

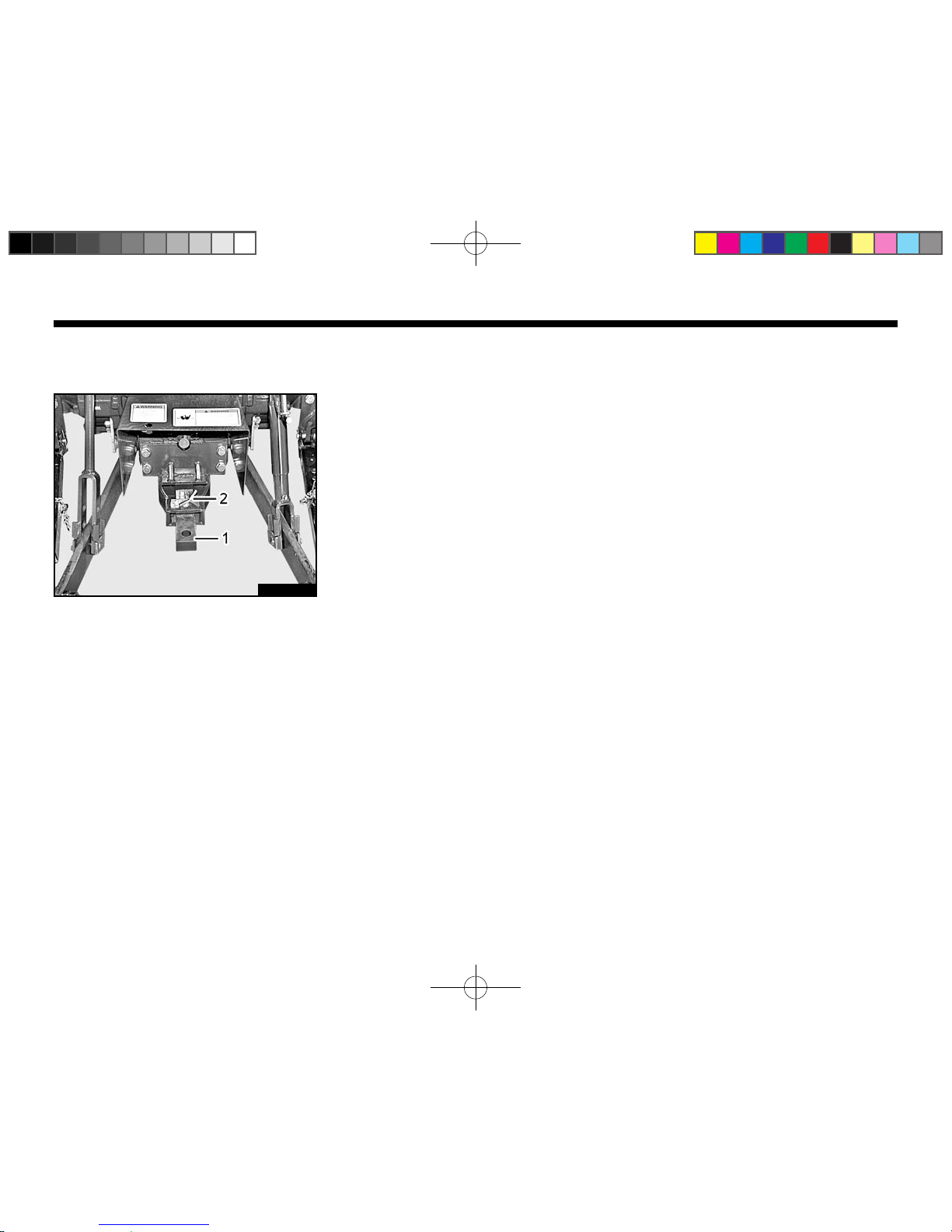

POSITIONING OF DRAW BAR

Make sure to use the drawbar when towing the i m p l e ment such as a trailer. In case of using the 3-point hitch (PTO drive), retract the draw bar to it s s h ort est po s iti o n and secure it.

The draw bar is adjusted in 2 stages.

1. Hold the draw bar and pull out the lock pin from the bracket.

2. Move the draw bar front and back

to t the lock pin.

(1) Draw bar (2) Lock pin

INSTALLATION OF PTO DRIVEN IMPLEMENT

1. Attach the implement to the tractor.

2. Lift the implement off the ground.

3. Stop the engine and put the PTO shift lever in the neutral position.

4. After opening the PTO cover, connect the universal joint shaft while turning the PTO shaft by hand so as to align the splines.

5. To che c k th e PTO s haft is se cured, check if the pin is returned to the original position by pulling the universal joint shaft.

6. Close the PTO cover.

7. Adjust the PTO shift lever according to the working speed.

8. Check if the safety shields are in place and working environment is normal. If the master safety shield is not installed, do not operate the PTO. Stop the engine to check the PTO shaft and its guards Repair or lubricate if required.

A42O521A

3. When towing a heavy load, tow it with shortest draw bar position.

K3트랙터-유럽향(Branson 36R,42R))-영문-020 20 2016-01-27 오전 10:57:05

5

-

21

OPERATION

5

9. The PTO shaft should not be interfered by any surrounding parts.

CAUTION

If someone is entangled in the rotating part, it can cause a fatal injury. Always wear protective gear and install the safety shields and guards to the drive line. Don’t wear loose clothing.

Do not r emove the in stall ed pr otectiv e cover of the P TO drive shaft without permission. If working with this protective cover removed, it can cause a severe injury. Refer to the warning decal on the cover.

•

1

2

3

5

4

1

2

3

5

4

A42O525A

(1) R2 (2) R1 (3) P2 (4) P1 (5) T

R2R2

R2

P1

P2

R1

P2

R1

C

R2

P1

P2

R1

P2

R1

C

A42O526A

Before connecting

loader hydraulic hose

(LoADER oUT)

(LoADER in)

HOW TO CONNECT HYDRAULIC HOSE FOR LOADER ATTACHMENT

CAUTION

Before installing a loader, make sure to stop the engine in advance and connect its hydraulic hose.

•

HYDRAULIC CIRCUIT OF FRONT OUTLET VALVE

After connecting loader

hydraulic hose

When installing a loader, the plug of the port R1 should be fit to the port

ChAngE LoCATion

K3트랙터-유럽향(Branson 36R,42R))-영문-021 21 2016-01-27 오전 10:57:05

5

-

22

Branson F36R(H)/F42R(H)

CAUTION

The hydraulic hoses are subject

to physical wear, aging and explosion.

Make sure to inspect the hoses

on a regular basis.

If any hose is damaged, replace it with a new one immediately.

•

R2 to enable correct operation of the loader.

CONTROL AND OPERATION OF HYDRAULIC SYSTEM

SCV CONTROL LEVER AND COUPLER

CONNECTING CYLINDER HOSE

(1) SCV control lever 1 (2) SCV control lever 2 (3) Coupler

The levers (1 and 2) adjust the oil ow

rate and direction of the SVC valves located on the rear side of the tractor. The left coupler is for expansion and the right coupler is for retraction.

1. Distinguish the hoses for expansion and retraction. The hose for expansion should be connected to the left coupler while the hose for retraction should be connected to the right coupler.

2. Remove the dust cap from the hose end.

3. Push the coupler cap.

4. Check if the hose end and the coupler are clean. Insert the hose tip into the coupler correctly. Pull the hose one time to check that it is properly inserted.

5. When connecting the outer hydraulic hose, be careful not to allow foreign material to enter it. Necessarily keep the connector clean during installation.

1

3

2

1

3

2

A42O429B

K3트랙터-유럽향(Branson 36R,42R))-영문-022 22 2016-01-27 오전 10:57:05

5

-

23

OPERATION

5

TIRES, WHEELS AND BALLAST TIRE TYPE

Though the tire pressure is factory set to the prescribed level, it naturally drops slowly in the course of time. Thus, check it everyday and inflate as necessary.

(1) Tire (2) Wheel nut (3) Rim bolt (4) Rim

A42O522A

Specication

Wheel & axle mount

-

ing bolt

167 - 206 N.m

(17 - 21 kgf.m)

Wheel rim and disc

mounting bolt

167 - 206 N.m

(17 - 21 kgf.m)

TIGHTENING TORQUE

PROPER INFLATION PRESSURE

Tire size

Ination

pressure

(Kg/cm2)

With ro

-

tary tiller

Front

wheel

7-16/8-16 2.0

Rear

wheel

11.2-24/

12.4-24

1.3

With

loader

Front

wheel

7-16/8-16 3.0

Rear

wheel

11.2-24/

12.4-24

2.0

CAUTION

Escaping hydraulic uid under pressure has sufcient force to

penetrate skin, causing a serious personal injury. Be sure to release all residual pressure before disconnecting hydraulic lines. Before adding pressure to the hydraulic system, make sure to tighten all connections.

To check leakage, use a card

-

board and protect your hands

and feet from the pressurized

uid. If injured by escaping uid, see

a medical doctor at once. This fluid injected in the skin can produce gangrene and/or severe allergic reaction.

The outer hydraulic pipes are

subject to physical wear, aging

and explosion. Failure to perform periodic inspections may

lead to a uid leak. Periodically

inspect the hoses and immediately replace if required.

•

K3트랙터-유럽향(Branson 36R,42R))-영문-023 23 2016-01-27 오전 10:57:06

5

-

24

Branson F36R(H)/F42R(H)

WHEEL AND AXLE

If the wheel or axl e i s l oosened,

tighten to the specied torque.

1. Drive the tractor about 100 m and

tighten it to the specied torque.

2. Inspect the wheel and axle every 10 hours of engine run or every 3 hours of working.

3. Inspect all wheels and axles fre

quently and securely tighten if necessary.

FRONT WHEEL ASSEMBLY

Front

wheel

A B Remarks

F36R(H) F42R(H)

1,238 1,528 8-16 6PR

A42O523A

REAR WHEEL ASSEMBLY

Front

wheel

C D E F

Remarks

F36R(H) F42R(H)

1,280 1,174 1,130 1,024

12.4-24 6PR

CAUTION

Never operate the tractor with

a l oo s e rim , w h ee l, hub o r

axle.

•

When operating a new tractor or when removing the wheel,

follow the procedures above.

•

NOTE

K3트랙터-유럽향(Branson 36R,42R))-영문-024 24 2016-01-27 오전 10:57:06

6

6. MAINTENANCE

MAINTENANCE SCHEDULE CHART ....................6-2

FLUIDS ....................................................................6-4

FLUIDS AND CAPACITY ........................................... 6-4

ROUTINE MAINTENANCE .....................................6-5

OPENING HOOD ......................................................6-5

CHECKING AND REPLACING ENGINE OIL ............

6-5

CHECKING AND CHANGING TRANSMISSION FLUID ..

6-6

CHECKING AND CHANGING FRONT AXLE OIL .....

6-7

REPLACING ENGINE OIL FILTER ...........................

6-7

REPLACING TRANSMISSION FLUID FILTER .........

6-8

CHECKING AND CHANGING COOLANT .................

6-9

ANTI-FREEZE ...........................................................

6-9

CHECKING AND ADDING FUEL ...........................

6-10

CHECKING BATTERY

............................................. 6-10

CHECKING HOSES AND PIPES ............................

6-11

CHECKING ELECTRIC WIRING .............................

6-11

GREASING ..............................................................

6-12

CHECKING AND ADJUSTING STEERING WHEEL ..

6-12

CHECKING AND ADJUSTING BRAKE ...................

6-12

BLEEDING FUEL SYSTEM .................................... 6-13

CHECKING EXHAUST GAS ...................................

6-13

CHECKING FUSE AND FUSIBLE LINK ..................

6-14

CHECKING AND ADJUSTING TOE-IN ...................

6-14

CHECKING AND ADJUSTING FAN BELT ..............

6-15

K3트랙터-유럽향(Branson 36R,42R))-영문-01 1 2016-01-27 오전 10:57:25

6

-

2

Branson F36R(H)/F42R(H)

MAINTENANCE SCHEDULE CHART

RUNNING HOURS

CHECK ITEMS

50 100 150 200 250 300 350 400 450 500 550 600 650 700 1YR 2YR

1. Engine oil

R

◎ ● ●

2. Engine oil lter

R

◎ ● ●

3. Transmission uid

R

◎ ● ●

4. Transmission uid lter

R

◎

●

5. Front axle uid

R

◎ ● ●

6. Radiator cleaning

At the time the coolant is replaced

7. Fuel oil lter and element

C

● ● ● ● ● ● ●

R

● ●

8. Coolant Check before every work (Replace every year)

9. Air cleaner element

CL

● ● ● ● ● ● ● ● ● ● ● ● ●

R

●

10. Fan and radiator cleaning

CL

● ● ● ● ● ● ● ● ● ● ● ● ● ●

11. Battery solution Replace every two years

12. Battery (specic gravity)

C

● ● ● ● ● ● ●

13. Fuel pipe and connection

C

● ● ● ● ● ● ● ● ● ● ● ● ● ●

R

●

14. Steering wheel hose

C

● ● ● ● ● ● ● ● ● ● ● ● ● ●

R

●

15. Radiator hose

C

● ● ●

R

●

K3트랙터-유럽향(Branson 36R,42R))-영문-02 2 2016-01-27 오전 10:57:25
