(Shown with optional accessories)
The Bowflex Ultimate® 2
Assembly Instructions
PN 000-430 0 Rev C (8/15/06)
1
Before You Start
Congratulations
Congratulations on your commitment to improving your
health and fitness! With the Bowflex Ultimate® 2 home
gym, you have everything you need to exceed all of your
physical fitness, strength and health expectations!
The Bowflex Ultimate® 2 home gym’s exceptional
resistance and quality is unmatched by any other single
piece of home fitness equipment available. You will not
believe the amazing results your body will get with the
Bowflex Ultimate® 2 home gym!
With all of the fitness choices available today, finding
the best workout equipment for your needs can
be confusing. Everyone at Nautilus would like to
congratulate you and thank you for selecting the
Bowflex Ultimate® 2 home gym.
The Bowflex Ultimate® 2 home gym is the best home
fitness product available, and you’re just about to prove
it to yourself.
Before You Assemble
Basic Assembly Principles
Here are a few basic tips that will make your assembly
of the Bowflex Ultimate® 2 home gym quick and easy.
By using these principles, you can simplify each process
and save yourself extra time and effort.
1. To make the assembly process go faster,
gather the pieces you need for each step and
thoroughly read the assembly instructions for
that step prior to starting assembly for the step.
2. When tightening a locknut on a bolt, use a
combination wrench to grip the locknut and
ensure that it is fastened securely.
3. When attaching two pieces, gently lift and look
through the bolt holes to help guide the bolt
through the holes.
4. As a general rule, and for all bolts and nuts on
your Bowflex Ultimate® 2 home gym, turn bolts
or nuts toward the right to tighten and left to
loosen. Or you can remember the mnemonic:
“Righty tighty, lefty loosey.”
Select where you are going to locate your Bowflex
Ultimate® 2 home gym carefully. The best place for
your home gym is on a hard, level surface. For best
results, assemble your home gym in the location where
you intend to use it. Allow a workout area of at least
8’4”L x 6’6”W (2.6m L x 2m W) of free space for safe
operation of the Bowflex Ultimate® 2 home gym.
A minimum of 7’4” of ceiling height will be required to
assemble your Bowflex Ultimate® 2 home gym.
Assembly Guide Table of Contents
Before You Start .....................................................1
Bowflex Ultimate® 2 Parts Reference Guide ......2
Parts List ..................................................................3
Tools You Will Need ...............................................7
Hardware Chart ......................................................8
Installing Your Bowflex Ultimate® 2 Accessories
Squat Attachment............................................32
Leg Extension ..................................................34
Leg Extension Seat .........................................35
Preacher Curl ..................................................35
Assembling Your Bowflex Ultimate® 2 Gym .......9
Installing Your Bowflex Ultimate® 2 Cables ......26
Bench ...............................................................36
Ab Crunch Attachment ..................................36
DVD Player ......................................................37
Bowflex Ultimate® 2 Parts Reference Guide
2
Lat Bar Rests
Lat Bar
Bench
Preacher Curl
Attachment
Seat
Vertical Main Frame
Rod Hook
Cable
Adjustable
Pulley System
Pulley Frame
Rod Box
Leg Extension/
Leg Curl Attachment
Squat
Attachment
Spring Lock
Seat Pin
Preacher Curl
Attachment
Pulley
Hand Grip/
Ankle Cuff
Standing/Squat Platform
Seat Rail
Ab Curl
Attachment
(optional)
3
Box Contents / Parts List
BOX 1
1
Box 1 Contents
Reference # Qty. Description
1 1 210 lb. Rod Pack
Box Contents / Parts List
BOX 2
4
3
6
5
4
8
2
7
9
Box 2 Contents
Reference # Qty. Description

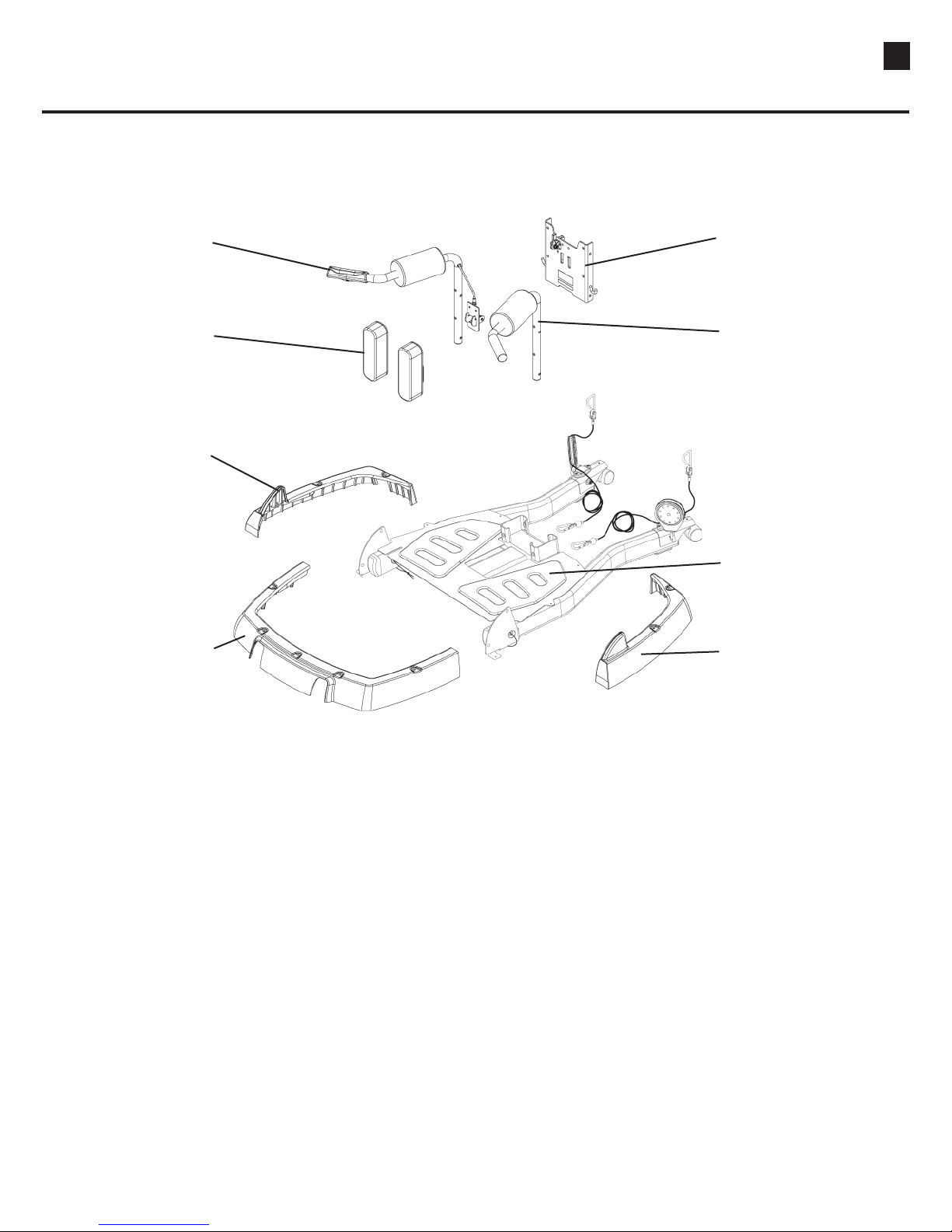

2 1 Rear Base Assembly
3 1 Right Squat Assembly Handlebar
4 1 Left Squat Assembly Handlebar
5 1 Squat Frame
6 2 Squat Assembly Pad
7 1 Front Plastic Cover
8 1 Right Rear Plastic Cover
9 1 Left Rear Plastic Cover
5
Box Contents / Parts List
BOX 3
13
14
12
Box 3 Contents
10
11
Reference # Qty. Description
10 1 Front Base Assembly
11 1 Front Base Plate
12 1 Front Handle Assembly
13 2 Single Pulley Assembly With Two Cheeks
14 2 Leg Extension Pulley Bracket
Box Contents / Parts List
BOX 4
6
23
21
20
19
22
25
26
16
17
18
24
Box 4 Contents
Reference # Qty. Description
15 2 Side Plate
16 2 Floating Pulley assembly
17 2 Single Pulley Assembly With Two Cheeks
18 2 Pulley
19 2 Pulley Slider
20 1 Cross Brace
21 1 Washer Plate
22 1 Squat Holder
23 1 Right Lower Upright
24 1 Left Lower Upright
25 1 Rod Box
26 1 Chest Bar
15
7
Box Contents / Parts List
BOX 5
27
32
28
33
34
35
36
Box 5 Contents
Reference # Qty. Description
27 1 Lat Pull Down Bar
28 1 Bench
29
30
31
29 4 Plastic Foot
30 2 Grip Ankle Cuff
31 2 Hand Grip
32 2 Foot Harness
33 1 Foot Harness Instructions
34 1 Seat Rail With Sliding Seat
35 2 Hardware Cards
36 1 Rowing Belt
37
38
40
8
Box Contents / Parts List
BOX 6
39
41
42
Box 6 Contents
Reference # Qty. Description
37 1 Top Plate
38 1 Right Lat Boom
39 1 Left Lat Boom
43
44
40 1 Lat Bar With Pulley Sliders
41 1 Rear Pulley Frame
42 1 Face Plate
43 1 Left Upper Lat Upright
44 1 Right Upper Lat Upright
9
Box Contents / Parts List
BOX 7
46
45
48
47
49
50
52
Box 7 Contents
Reference # Qty. Description
45 1 Leg Extension Seat Frame
46 1 Leg Extension Seat Pad
47 1 Preacher Curl Pad
48 1 Hardware Bag
49 1 Preacher Curl Bar
51
53
54
50 1 Preacher Curl Frame
51 2 Roller Pad
52 1 Leg Extension Assembly
53 1 Webbing With Steel Rings
54 1 Leg Extension Roller Shaft
56
58
10
Box Contents / Parts List
Ab Box
55
63
57
60
61
Ab Box Contents
Reference # Qty. Description
55 1 Ab Crunch Middle pad
56 1 Ab Crunch Handle Bar
57 1 Hardware Bag
59
62
58 1 Ab Crunch Roller Shaft
59 1 Ab Crunch Pivot Arm
60 1 Ab Crunch Frame
61 1 Ab Cable Hook
62 1 Ab Crunch Back Pad
63 2 Ab Cruch Roller Pads
11
Tools You Will Need
Tools You Will Need
Hex Wrenches Are Provided in the Box
3/16” Hex Key for 5/16” Pan Head Allen Bolts :
7/32” Hex Key for 3/8” Pan Head Allen Bolts :
5/32” Hex Key for #10 Cap Screws :
These Tools Are Not Provided in the Box
Wrench (1/2”), (7/16”), (9/16”) and (3/4”) or Adjustable Wrench
(not provided):
Phillips Head Screwdriver
NOTE: LEAVE ALL CABLES WRAPPED AND BAGGED UNTIL YOUR
BOWFLEX ULTIMATE® 2 IS FULLY ASSEMBLED.
* Specifications subject to change without notice.
(not provided):
Hardware Chart (1:1 scale)
12
13
Assembling Your Bowflex Ultimate® 2

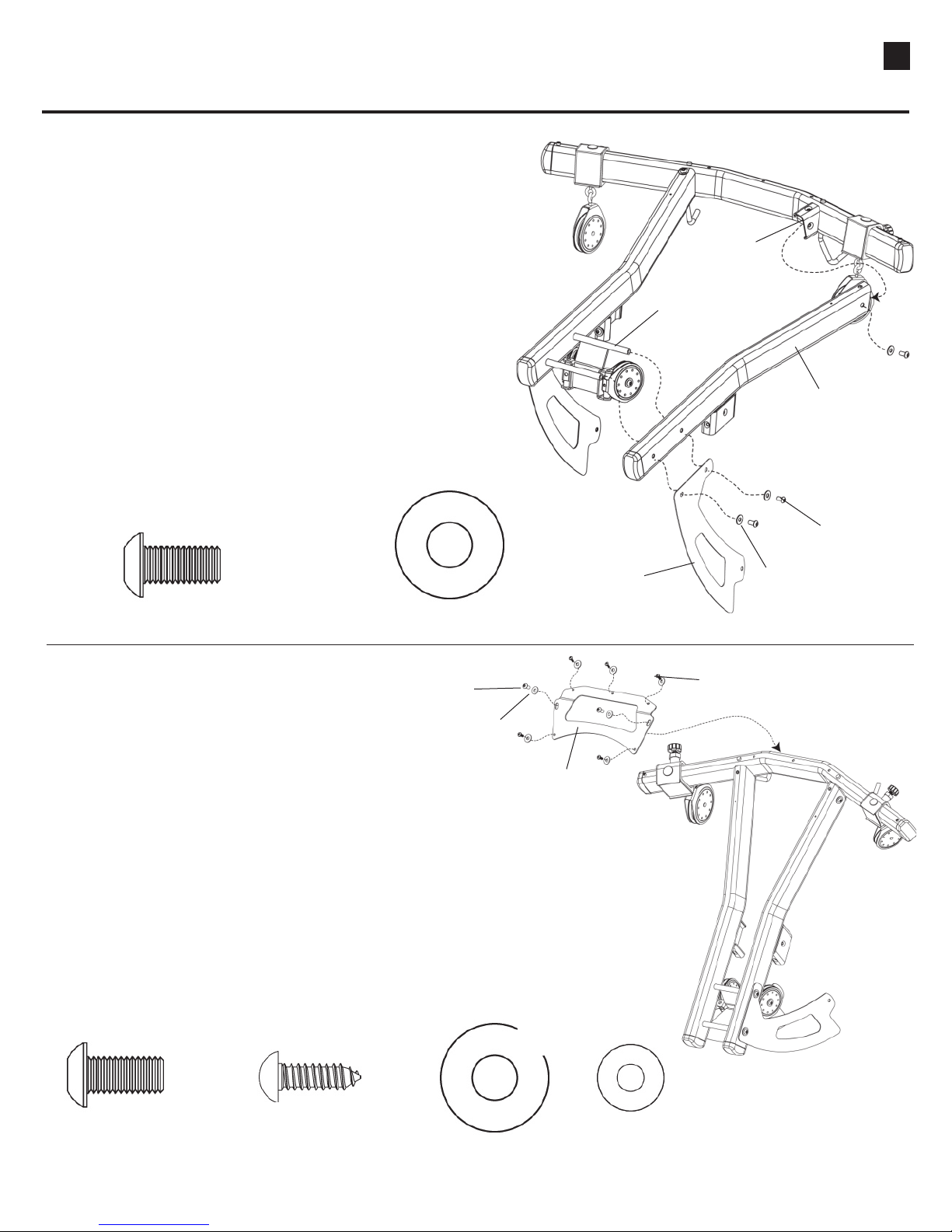

STEP 1
Parts:
• Front Base Platform (Box 3)
• Metal Handle Assembly (Box 3)
Tools:
• Hex Key (7/32”)
1-1 Move twist ties and cable ends
up and out of the way.
1-2 Position the Metal Handle Assembly (Label side
up) on the Front Base Platform.
1-3 Install and completely tighten the hardware.
Hardware (1:1):
Cable Ends
Front Base Platform
Pan Head Allen Bolt
Metal Handle Assembly
2 Pan Head Allen Bolt (3/8” X 2 1/4”)
2 Washers (3/8”)
STEP 2
14
Assembling Your Bowflex Ultimate® 2
Parts:
• Handle and Base Assembly
(from Step 1)
• Plastic Handle Top and Bottom
• Cable Retainer Pins (Hardware Card)
• Plastic Plug Covers
Tools:
• Hex Key (5/32”)
2-1 Lay the Handle and Base Assembly down on the
floor, remove the Plastic Plug Covers and
separate the Top and Bottom of the Plastic Handle.
2-2 Remove the Twist Ties.
2-3 Feed cables through Metal Handle and position
the Cable End Loop just inside the Hollow Tube.
You may have to slide the Hollow Tube toward
the Front Base to allow cables to reach.
2-4 Insert Cable Retainer Pins through hole and
cable loop.
(See Detail A)
Plastic Plug Cover (H)
Front Handle
Plastic Plug Cover (N)
Plastic Handle
Top
Hollow Tube
Plastic Plug Cover (H)
Cap Screw
Cable Retainer Pin
Plastic Handle
Bottom
2-5 Position Top and Bottom of Plastic Handle.
NOTE:
The hexagonal holes in the left side of the
Handle are shallower than the holes in the right
side. The #10 Nuts go in the deeper hexagonal
holes on the right side of the handle. The right
side can be identified by noting a small hole in
the plastic flange. (See Detail B)
2-6 Install and completely tighten the hardware.
2-7 Install Plastic Plug Covers over hardware.
NOTE: The Plug Covers are marked on the inside with
an “N” or an “H”. To insure proper fit, use the
caps marked with an “N” to cover the nuts
and the caps marked with an “H” to cover the
screw heads.
Hardware (1:1):
Nut #10
Plastic Plug Cover (N)
Cable Retainer Pin through
hole and Cable End Loop
Detail A
Note small hole in Handle
on Right side
2 Cap Screws (#10 X 1”)
2 Nut (#10)
2 5.27 Cable Retainer Pins
Deeper Hole
Detail B
15
Assembling Your Bowflex Ultimate® 2

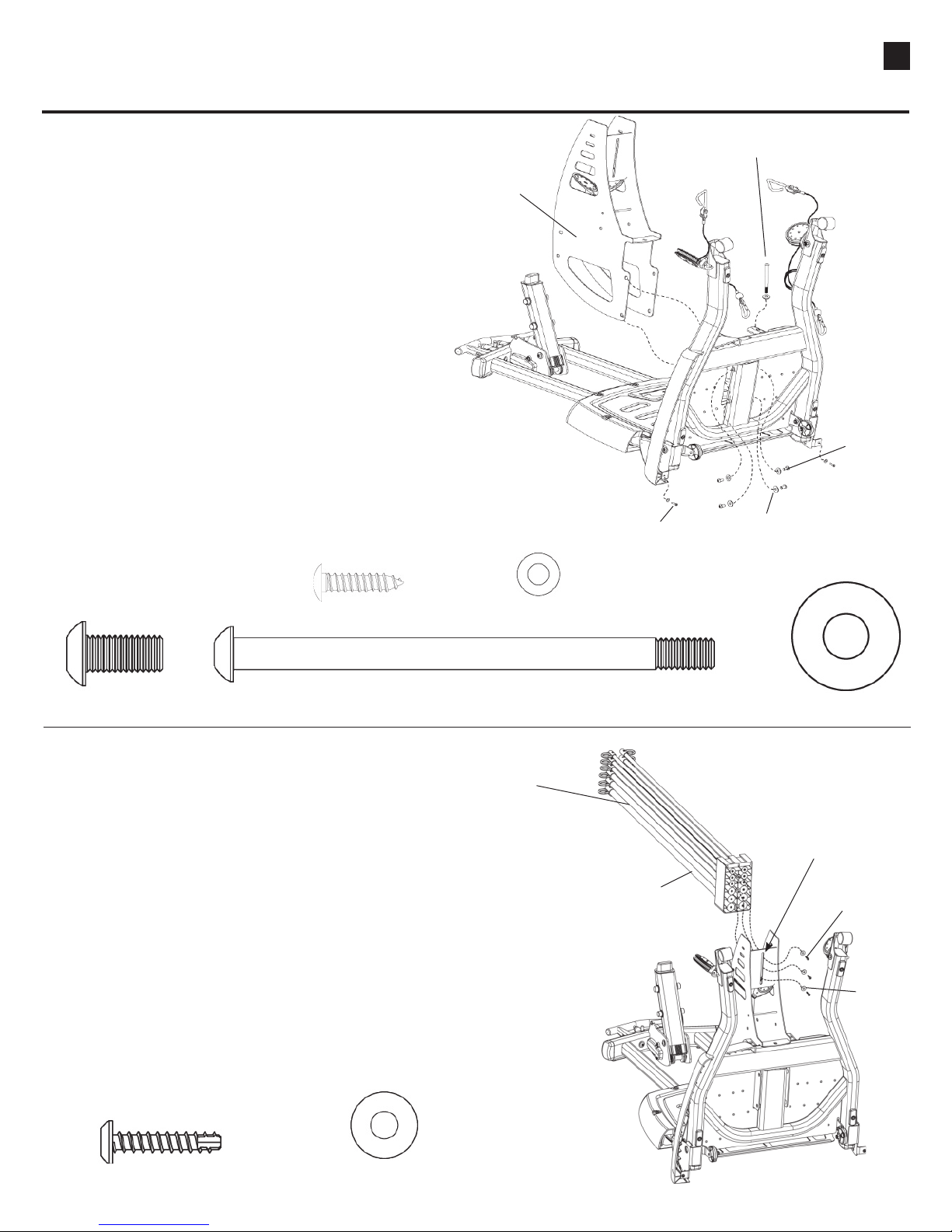

STEP 3 – Use two people for this step!
Parts:
• Front Base Assembly
• Rear Base Platform (Box 2)
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
3-1 Remove Wire Ties from Bushings.
3-2 Slide Front Base toward rear base until the
Locking Pins make contact with the side plates.
MAKE SURE the Flanges slide over the Bushings
during this procedure.
3-3 Squeeze the Front Handle to retract the Locking
Pins, lift the handle about 3-4 inches and push
Front Base completely into the Rear Base.
Release the handle and make sure the Locking
Pins protrude through the Side Plates.
- or Adjustable Wrench
(See Top Detail View)
Remove Wire Ties from
Bushings
Bushings
A
Rear Base
Platform
Locking Pin
TOP DETAIL VIEW
B
Make sure Flanges
slide over Bushings
Side Plate
3-4 Insert the Button Head Bolt and Washer then
squeeze Front Handle and fold Front Base up to
install Inside Washer and Hex nut. Completely
tighten hardware.
C
Pan Head Allen Bolt
Washer
Hardware (1:1):
D
Squeeze Handle and
Fold Front Base up
to install Nylock Nut
and Washer
Side Plate
Slide Front Base
towards Back Base
Until it Contacts Pins
Locking Pin
TOP DETAIL VIEW
Washer
Nylock Nut
2 Pan Head Allen Bolt (3/8” X 3”) 4 Washers (3/8”)
2 Nylock Nut (3/8”)
Assembling Your Bowflex Ultimate® 2
The cables that retract the locking pins may
stretch with use. If the locking pins do not fully
retract or interfere with the side plates, make
the following adjustment.
Cable Adjustment (Requires Two People)
1. Position the base somewhere between the two
locking positions.
2. Pull the handle until it is in the most compressed
position.
3. Place a 1/4” or adjustable wrench on the Adjusting
Barrel and use a 1/4” or adjustable wrench to loosen

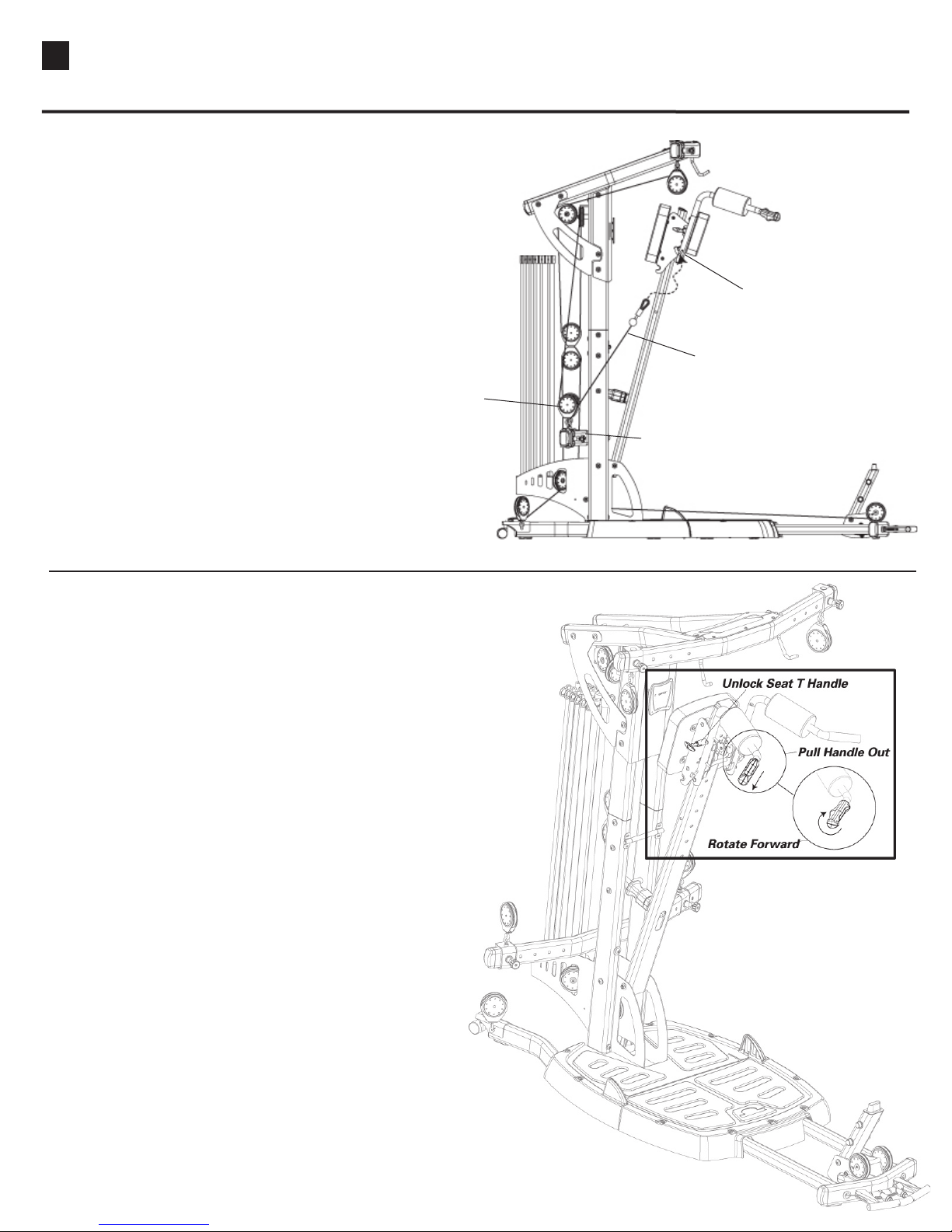

the locking nut.
(See Detail B)
16
Pull handle and position base
between the locking positions.
4. Rotate the Adjusting Barrel clockwise to increase
the cable tension. The Locking Pins should be as
close to the Side Plates as possible without making
contact.
(See Detail A)
5. Test the adjustment by releasing the handle and
rotating the base to a locking hole. Make sure pin
securely engages with the locking hole then pull the
handle and make sure the unit moves freely.
6. Repeat the procedure for both sides if necessary.
7. Tighten Lock Nuts against Adjusting Barrel.
Make sure Locking Pin is as close
as possible without making
contact with Side Plate
Adjusting Barrel
Locking Nut
Detail A Detail B
17
Assembling Your Bowflex Ultimate® 2
STEP 4
Parts:
• Base Assembly
• Front & Rear Plastic Base Covers (Box 2)
Tool:
• Hex Key (7/32”)
4-1 Position Plastic Covers on Front and
Rear Base Platforms.
4-2 Install and completely tighten the hardware.
Hardware (1:1):
9 Pan Head Allen Bolt (1/4” X 1/2”)
(from step 3)
9 Washers (1/4”)
Front Plastic Cover
Pan Head Allen Bolt
Washer
Rear Plastic Cover
STEP 5
Parts:
• Base Assembly
• Front Base Plate (Box 3)
• Front Base Feet (4) (Box 5)
Tools:
• Wrench (5/16”)
• Phillips Head Screwdriver
5-1 Fold the front base assembly into the
upright position.
5-2 Position the Base Plate and secure with
eight Phillips Head Screws and Washers.
5-3 Position the four Base Feet and secure with
Hex Washer Head Screws.
Do not over tighten.
Feet could crack with excess pressure!
5-4 Completely tighten the Base Plate hardware.
Hex Washer Head Screw
Front Base Plate
Washer
Phillips Head Screw
Front Base Foot
Hardware (1:1):
8 Self Tapping Screws (#8 X 3/4”) 8 Washers (#8 ) 4 Coach Screws (#10 X 3/4”)
Assembling Your Bowflex Ultimate® 2
18
STEP 6
Parts:
• Base Assembly
• Rod Box (Box 4)
Tools:
• Hex Key (7/32”)
6-1 Leave Base in folded position and tilt forward to
gain access to bottom of Rear Base.
6-2 Place the Rod Box through Rear Base and align
with holes in base frame.
6-3 Install the 4 3/4” screw first to hold the Rod Box in
position then install the four 3/4” screws.
6-4 Install the two #8 x 3/4” screws to secure the rear
base covers. Completely tighten all the hardware.
Hardware (1:1):
Rod Box
#8 x 3/4” Self
Tapping Screw
Pan Head Allen Bolt
4 3/4”
Pan Head Allen
Bolt 3/4”
Washer
2 Self Tapping Screws (#8 X 3/4”)
4 Pan Head Allen Bolt (3/8” X 3/4”) 5 Washers (3/8”)
1 Pan Head Allen Bolt (3/8” X 4 3/4”)
2 Washers (#8)
STEP 7 (Requires Two People)
Parts:
• Base Assembly
• Rod Pack (Box 1)
Tools:
• Phillips Head Screwdriver
7-1 Leave Base in folded position from step 6.
7-2 Have one person align the Rod Pack with the slot
in the Rod Box with the 50 Lb. rods facing down.
7-3 Have second person Install and completely
tighten hardware.
Rod Pack
50 Lb. Rods
facing down
Align with slot
in Rod Box
Self Tapping
Screw
Washer
Hardware (1:1):
3 Self Tapping Screws (#10 X 1”)
3 Washers (1/4”)
19
Assembling Your Bowflex Ultimate® 2
STEP 8
(Do Not Tighten The Hardware For This Step Until Step 9 )
Parts:
• Lower Lat Tower Uprights (Box 4)
• Squat Holder (Box 4)
• Cross Brace (Box 4)
Tool:
• Hex Key (7/32”)
8-1 Insert Cross Brace and Squat Holder into Lower
Lat Tower Uprights. Make sure the Squat Holder
faces the the
front of the Uprights. The label is
on the front and the screw holes are on the back
of the holder.
8-2 Install but do not tighten the hardware until
Step 9.
Hardware (1:1):
Cross Brace
Pan Head Allen
Bolt
Squat Holder
Label
The Cross Brace is on the
front of the Uprights
2 Pan Head Allen Bolt (3/8” X 3/4”)
2 Washers (3/8”)
STEP 9
Parts:
• Lower Lat Tower Assembly
• Base Assembly
Tools:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
9-1 Place Lower Lat Tower over extrusions on
Base Assembly.
9-2 Install and completely tighten the hardware
from steps 8 and 9.
Hardware (1:1):
(from step 8)
Lower Lat Tower
Assembly
Pan Head Allen Bolt
2 1/2”
Lower Lat Tower Uprights
Pan Head Allen Bolt
3/4”
Nylock Nut
Washer
(Rod Pack Not Shown
For Clarity)
4 Pan Head Allen Bolt (3/8” X 3/4”) 2 Pan Head Allen Bolt (3/8” X 2 1/2”) 2 Nylock Nuts
8 Washers (3/8”)
Assembling Your Bowflex Ultimate® 2
20
STEP 10
Parts:
• Seat Rail Assembly (Box 5)
• Base Assembly
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
10-1 Align holes on Seat Rail with holes
in Rod Box Assembly.
10-2 Install and completely tighten the hardware.
Hardware (1:1):
1 Pan Head Allen Bolt (3/8” X 5 1/2”)
STEP 11
(Rod Pack Not Shown
For Clarity)
Seat Rail Assembly
Hex Nut
1 Nylock Nut (3/8”)
Rod Box
Assembly
Washer
Pan Head Allen
Bolt
2 Washers (3/8”)
Parts:
• Chest Bar (Box 4)
• Pulley Sliders (Box 4)
• Washer Plate (Box 4)
Pulley Slider
Tools:
• Hex Key (5/16”)
• Wrench (3/4”)
- or adjustable wrench
11-1 Align holes in Chest Bar, Washer Plate and Lat Tower
Uprights.
11-2 Install and completely tighten the Chest Bar hardware.
11-3
Slide the Pulley Sliders on (with pulleys facing up and pull
knob facing the seat rail) then install and tighten the
1/4”x1/2” Stop Screws.
Stop Screw
Pan Head Allen
Bolt
Chest Bar
Washer Plate
Hex Nut
Washer
(Rod Pack Not Shown
For Clarity)
Hardware (1:1):
2 Nylock Nut (1/2”)
2 Pan Head Allen Bolt (1/2” X 6 3/4”)
4 Washers (1/2”)
2 Cap Screw (1./4 x 1/2”)
21
Assembling Your Bowflex Ultimate® 2
NOTE: Before you continue, be sure you have a minimum of 88” (7’4”) of ceiling height to insert the
Upper Lat Assembly into the Lower Base (see step 17).
STEP 12
Parts:
• Left Lat Boom (Box 6)
Pan Head Allen
Bolt
• Rear Pulley Frame (Box 6)
• Side Plate (Box 4)
Tool:
Washer
• Hex Key (3/16”)
12-1 Insert RearPulley Frame into
holes in Left Lat Boom.
Make sure the Pulley Frame
Side Plate
Swivel is parallel to the planes
A and B shown in the Side View.
12-2 Align holes in Side Plate and Lat Boom.
12-3 Install but do not tighten hardware.
Hardware (1:1):
Left Lat Boom
Rear Pulley
Frame
Swivel
Side View
Plane A
Plane A
Swivel
Plane B
CORRECT
Plane B
INCORRECT
2 Pan Head Allen Bolt (3/8” X 3/4”)
STEP 13
Parts:
• Pulley Frame Boom Assembly
• Lat Bar (Box 6)
Tool:
• Hex Key (3/16”)
13-1 Insert left side of Lat Bar into Left Boom.
13-2 Install but do not tighten hardware.
Hardware (1:1):
(from step 12)
2 Washers (3/8”)
Lat Bar
Pan Head Allen
Bolt
Pulley Frame, Left Boom
Assembly
Washer
1 Pan Head Allen Bolt (3/8” X 3/4”) 1 Washer (3/8”)
Assembling Your Bowflex Ultimate® 2
STEP 14
Parts:
• Lat Bar, Boom Assembly
• Right Lat Boom (Box 6)
• Side Plate (Box 4)
Tool:
• Hex Key (3/16”)
14-1 Align holes in Right Lat Boom with Rear Pulley
Frame Cross Bars and insert right side of Lat Bar
and Pulley Frame Cross Bars into Right Lat Boom.
14-2 Align Side Plate with Right Lat Boom and install
but do not tighten hardware.
Hardware (1:1):
(From step 13)
22
Right Side
of Lat Bar
Pulley Frame
Cross Bars
Right Lat Boom
3 Pan Head Allen Bolt (3/8” X 3/4”) 3 Washers (3/8”)
STEP 15
Pan Head Allen Bolt
Parts:
• Lat Bar, Boom Assembly
(From step 14)
• Top Plate (Box 6)
Tools:
• Hex Key (3/16”)
• Phillips Head Screwdriver
15-1 Align holes in Top Plate with Lat Bar and Booms.
15-2 Install but do not tighten hardware.
Washer
Top Plate
Side Plate
Pan Head Allen
Bolt
Washer
Pan Head
Screw
Hardware (1:1):
2 Pan Head Allen Bolt
(3/8” X 3/4”) 2 Washers (3/8”)
5 Self Tapping Screws
(1/4” X 3/4”)
5 Washers (1/4”)
23
STEP 16
Parts:
• Lat Boom Assembly
• Upper Lat Uprights (Box 6)
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
(from step 15)
- or Adjustable Wrench
Assembling Your Bowflex Ultimate® 2
Washer
Pan Head Allen Bolt
3/8” x 3/4”
16-1 Slide Upper Lat Uprights onto Lat Boom assembly
16-2 Install but do not tighten the two 3/8” x 3/4” screws
into the top of the uprights.
16-3 Install the two 3/8” x 2 1/4” Screws, Washers and
Nylock Nut through the Side Plates and into the
Uprights.
16-4 Completely tighten all of the hardware for steps
12 through 16.
Washer
Hex Nut
Upper Lat Uprights
Pan Head Allen Bolt
3/8” x 2 1/2”
Washer
Hardware (1:1):
2 Pan Head Allen Bolt (3/8” X 3/4”) 6 Washers (3/8”)
2 Pan Head Allen Bolt (3/8” X 2 1/2”)
2 Nylock Nut (3/8”)
Assembling Your Bowflex Ultimate® 2
STEP 17 – Upper Assembly is very heavy!
Use two people for this step!
Parts:
• Upper Lat Assembly
• Base Assembly
(from step 16)
(from step 11)
24
Upper Lat Assembly
Tool:
• Hex Key (7/32”)
17-1 Insert Upper Lat Uprights into Lower Lat Uprights.
17-2 Install and completely tighten the hardware.
Hardware (1:1):
8 Pan Head Allen Bolt (3/8” X 3/4”) 8 Washers (3/8”)
STEP 18
Parts:
• Front Face Plate (Box 6)
• Assembled Unit
Tool:
• Hex Key (7/32”)
18-1 Align holes in Face Plate and Uprights.
18-2 Install and completely tighten hardware.
(from step 17)
Pan Head Allen
Bolt
Washer
Front Face Plate
(Rod Pack Not Shown
For Clarity)
Pan Head Allen
Bolt
Washer
Base Assembly
(Rod Pack Not Shown
For Clarity)
Lat Tower Uprights
Hardware (1:1):
4 Pan Head Allen Bolt (3/8” X 3/4”) 4 Washers (3/8”)
25
Assembling Your Bowflex Ultimate® 2
STEP 19
Left Shoulder Bar
Parts:
• Squat Frame (Box 2)
• Shoulder Bars (Box 2)
Tool:
• Hex Key (3/16”) and (5/32”)
• Wrench (1/2”) & (7/16”)
- or Adjustable Wrench
19-1 Position Shoulder Bars against back of
Squat Frame with bend in arms pointing
towards the front of the frame.
19-2 Install and completely tighten the side screws,
washers and nylock nuts.
19-2 Remove the hardware securing the Lock Pin
Assembly to the Squat Frame.
19-3 Align holes in Lock Pin Assembly and
Squat Frame.
5/16” Nylock Nut
1/4” Nylock Nut
Right Shoulder Bar
(has handle and cable)
Lock Pin Assembly
Washer
Button Head Screw
(1/4” x 3/4”)
Front
Squat Frame
Side Screw
Button Head (5/16” x 1 3/4”)
19-4 Re-install and completely tighten Lock Pin
Assembly hardware.
Hardware (1:1):
4 Pan Head Allen Bolt (5/16” X 1 3/4”)
8 Washers (5/16”)
Cable Adjustment
The Release Cable should be adjusted so
that there is enough tension to keep the
cable from laying on the metal frame. In
most cases this adjustment will be fine out
of the box. If the cable needs adjustment,
loosen the locknut and turn the Adjusting
Barrel counter-clockwise until cable is taut.
The release cable may stretch with use.
Check the cable tension regularly and
adjust if needed.
4 Nylock Nut (5/16”)
Lock
Nut
Adjusting Barrel
Release Cable
Metal Frame
Assembling Your Bowflex Ultimate® 2
STEP 20
Parts:
• Squat Assembly
• Squat Back Pads (Box 2)
Tool:
• Hex Key (3/16”)
20-1 Align holes in Squat Back Pads and
Squat Assembly.
20-2 Install and completely tighten hardware.
Hardware (1:1):
(from step 19)
Pan Head Allen
Bolt
26
Washer
Squat Back
Pad
4 Pan Head Allen Bolt (5/16” X 2 1/4”) 4 Washers (5/16”)
STEP 21
Parts:
• Leg Extension Pivot Arm Assembly (Box 7)
• Roller Pads (Box 7)
• Webbing with Steel Ring (Box 7)
• Roller Shaft (Box 7)
• End Caps (Box 7)
21-1 Insert Roller Shaft through hole in one of
the rectangular arms. Place the Web
bing with Steel Rings between the two
rectangular arms, and continue to slide
the Shaft through the Webbing and hole
in opposite arm.
21-2 Slide Roller Pads and End Caps onto Roller Shaft.
Roller Shaft
End Cap
Webbing with Steel Rings
Leg Extension Pivot Arm
Assembly
Roller Pad
27
Assembling Your Bowflex Ultimate® 2
STEP 22 (optional attachment)
Parts:
• Ab Crunch Frame (Ab Box)
• Ab Crunch Pivot Arm (Ab Box)
Pivot Arm pointing to right
Ab Crunch Pivot
Arm
Pulley
pointing
away
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
22-1 Place Ab Crunch Frame on floor with hooks
on the top and pulley end pointing away
from you.
22-2 Align Ab Crunch Pivot Arm on Ab Crunch
Frame with the pivot mechanism to the right
side as shown.
22-3 Install and completely tighten hardware.
Hardware (1:1):
Hardware for this step is in the hardware bag in the AB BOX.
2 Pan Head Allen Bolt (3/8” X 4”) 4 Washers (3/8”)
Washer
Nylock Nut
Pan Head Allen
Bolt
Ab Crunch Frame
Hooks on top
2 Nylock Nuts (3/8”)
STEP 23
Parts:
• Ab Crunch Assembly
• Ab Handle Bars (Ab Box)
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
23-1 Place the Ab Handle Bars on the Ab Pivot Arm with
the Handle Bars pointing toward the same side as
the hooks on the Ab Frame as shown.
23-2 Install and completely tighten hardware.
Hardware (1:1):
Hardware for this step is in the hardware
2 Pan Head Allen Bolt (3/8” X 3”)
(from step 21)
- or Adjustable Wrench
bag in the AB BOX.
Ab Handle Bars
Pan Head Allen
Bolt
Ab Frame
4 Washers (3/8”)
Nylock Nut
Washer
Hooks
2 Nylock Nut (3/8”)
Assembling Your Bowflex Ultimate® 2
28
STEP 24
Parts:
• Ab Crunch Assembly
• Ab Back Pad (Ab Box)
• Roller Pads (Ab Box)
• Middle Pad (Ab Box)
• Roller Pad Shaft (Ab Box)
• End Caps (Ab Box)
Tool:
• Hex Key (3/16”)
24-1 Place the Middle Pad between the arms on the
bracket. Slide the Roller Pad Shaft through bracket
and the Middle Pad then install Roller Pads and
End Caps.
24-2 Align the Ab Back Pad with the wider end pointing
toward the Handlebars.
24-3 Install and completely tighten hardware.
(from step 22)
Roller Pad
Shaft
Ab Back Pad
Middle Pad
Roller Pad
Bracket Arms
End Cap
Pan Head Allen Bolt Washer
Hardware (1:1):
4 Pan Head Allen Bolt (5/16” X 1”)
Hardware for this step is in the
hardware bag in the AB BOX.
4 Washers (5/16”)
STEP 25
Parts:
• Ab Crunch Assembly
Tool:
• Wrench (1/2”)
- or Adjustable Wrench
25-1 Undo the 1/2” bolt from the bracket at the upper
end of the cable and use the same 1/2” bolt to
attach the bracket to the tab on the Pivot Arm.
(from step 23)
Ab Pivot Arm
Tab
Bolt
29
Assembling Your Bowflex Ultimate® 2
STEP 26
Pan Head Allen
Bolt
Parts:
• Seat Frame (Box 7)
• Leg Extension Seat Pad (Box 7)
Tool:
Seat Frame
• Hex Key (3/16”)
26-1 Align holes in Leg Extension Seat Pad
and Seat Frame.
26-2 Install and completely tighten hardware.
Hardware (1:1):
Hardware for this step is in the
hardware bag in BOX 7
Washer
Leg Extension
Seat Pad
4 Pan Head Allen Bolt (5/16” X 1”)
STEP 27
Parts:
• Preacher Curl Frame (Box 7)
• Preacher Curl Pad (Box 7)
Tool:
• Hex Key (3/16”)
27-1 Align holes in Preacher Curl Pad and
Preacher Curl Frame.
27-2 Install and completely tighten hardware.
Hardware (1:1):
Hardware for this step is in the
hardware bag in BOX 7
4 Washers (5/16”)
Pan Head Allen
Bolt
Preacher Curl
Frame
Preacher Curl
Pad
4 Pan Head Allen Bolt (5/16” X 1”) 4 Washers (5/16”)
Washer
Installing Your Bowflex Ultimate® 2 Cables
Cable Installation STEP 1
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
a. Uncoil cable from Upper Pulley Slider.
b. Remove Ball Stop from the end of cable that is to
be routed through pulleys by sliding the outer ball
back from the cable end and pushing out the slotted
insert. Slide the ball off of the cable and set aside.
(See Figure A)
- or Adjustable Wrench
30
Slide Ball Back
Cable End
c. Remove the pulley from the Upper Pulley Bracket,
wrap the cable over the pulley
reinsert the pulley back into the Upper Pulley
Bracket. Make sure the cable is inside the Side
Plate before moving on to STEP 2.
Remove Pulley from
Upper Pulley Bracket
Pulley
(See Figure B) and
(See Figure C)
Route Cable
Over Pulley
Remove Slotted Insert
Figure A
Cable Routed Inside
Side Plate
Replace Pulley and Hardware
with Cable
Figure B Figure C
31
Installing Your Bowflex Ultimate® 2 Cables
Cable Installation STEP 2
Tool:
• Hex Key (7/32”)
a. In Box 4 Locate a Floating Pulley Assembly and a
Single Pulley Assembly with two Cheeks.
(See Figure A)
b. Feed the cable through the Floating Pulley Assembly.
(See Figure B)
c. Route the cable behind the Side Plate and wrap over
the Single Pulley Assembly.
d. Install Single Pulley with cable on the back side of
the Lat Tower as shown.
(See Figure C)
(See Figure D)
Floating Pulley Assembly Single Pulley Assembly
Cheeks
Button Head Screw
Pulley
Washer
Figure A
(Rod Pack Removed For Clarity)
Route Cable Through
Floating Pulley Assembly
Wrap Cable Over
Single Pulley Assembly
Washer
Pan Head Al-
len Bolt
Route Cable Through
Behind Side Plate
Figure C
Figure B
Figure D
Installing Your Bowflex Ultimate® 2 Cables
Cable Installation STEP 3
a. Route Cable down and thread through Pulley
Slider on Chest Bar.
b. Replace the Ball Stop. (See Figure B and C)
(Rod Pack Removed For Clarity ) (Rod Pack Removed For Clarity )
(See Figure A)
32
Chest Bar
Pulley Slider
Slotted Insert
Ball Stop
Figure A Figure B
Slide Ball tightly against
Insert and Cable End
Cable End
Replace Slotted Insert
Figure C
33
Installing Your Bowflex Ultimate® 2 Cables
Cable Installation STEP 4
Tool:
• Hex Key (7/32”)
a. Uncoil the Cable from Lower Pulley and remove the
Ball Stop.
b. In Box 4, locate a Single Pulley Assembly with one
Cheek. Wrap the Cable under the Pulley and feed the
Cable through the hole in the Rod Box.
A)
c. Install the Single Pulley (See Figure B) making sure
the cable is between the Pulley and the small Metal
Post on the Pulley Bracket.
(See Top View of Angled Pulley)
(See Step 1/Figure A)
(See Figure
Rod Box
Single Pulley
d. Feed the Cable through the lower half of the Floating
Pulley Assembly.
Pulley Bracket
Metal Post
Cable
Pulley
Lower Pulley
Figure A
Floating Pulley
Assembly
Top View of
Angled Pulley
Figure B
Installing Your Bowflex Ultimate® 2 Cables
Cable Installation STEP 5
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
a. Observe the Cable routing in Figure A.
b. Unscrew the Nut and pull the Long Screw out just
enough to angle the Pulley Assembly and allow the
Cable to thread between the Rod and the Pulley.
(See Figure B) Leave the Long Screw loose until you
have routed the Cable on the other side of the unit.
- or Adjustable Wrench
34
Floating Pulley
Long Screw
Rod
Cutaway of
Rod Box
Figure A
Floating Pulley
Cable
Hex Nut
Washer
Figure B
35

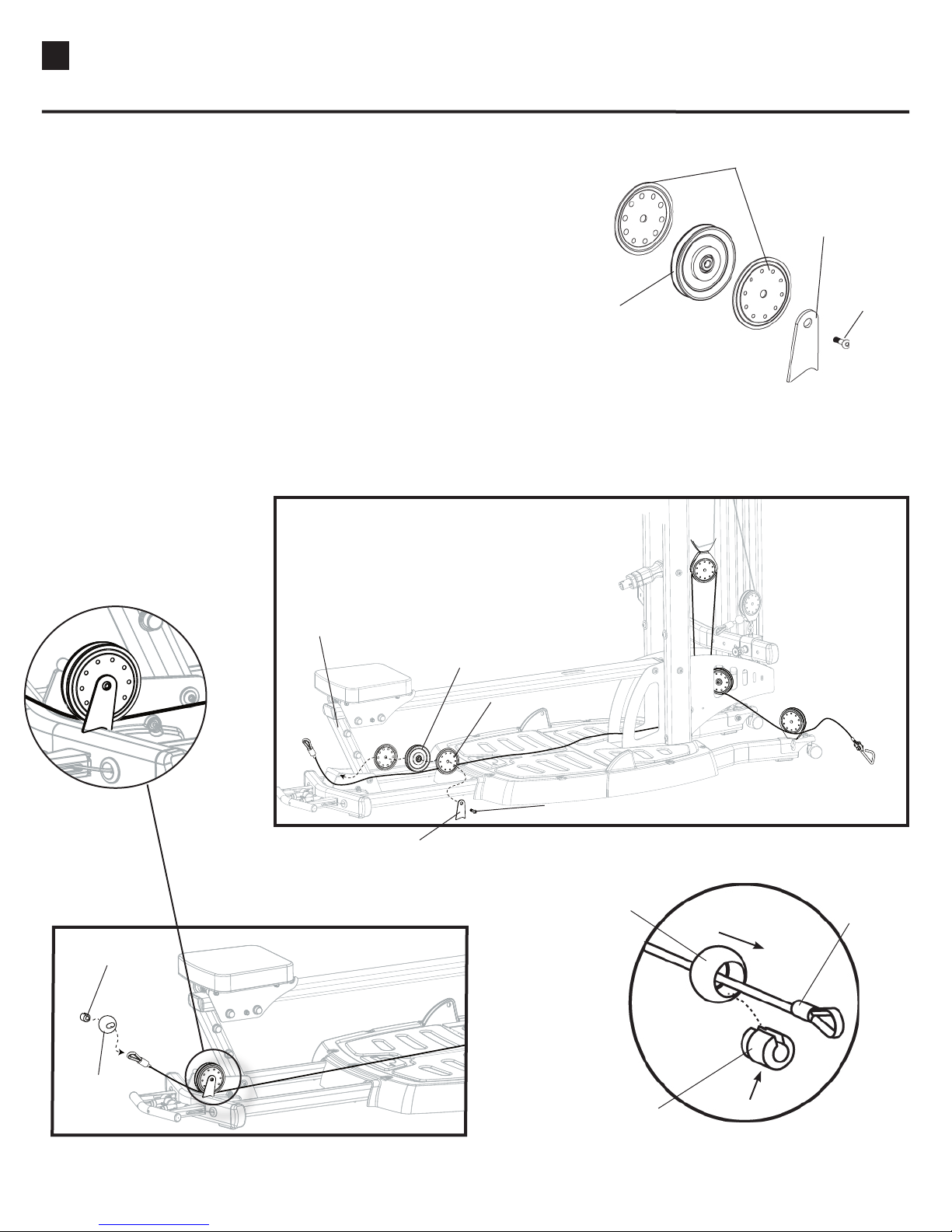

Installing Your Bowflex Ultimate® 2 Cables
Cable Installation STEP 6
Tool:
• Hex Key (7/32”)
a. In Box 3, Locate a Single Pulley Assembly with two Cheeks and a
Cable Retainer Bracket.
b. Extend the Cable to the front of the unit.
c. Route the Cable under the Pulley and attach the
Pulley to the Frame in front of the Bench Support.
NOTE: Make sure the Bracket is oriented as shown. (Detail C)
d. Replace the Ball Stop. (See Figure C and D )
(See Figure A)
Pulley
Cheeks
Cable Retainer
Bracket
Button
Head
Screw
Figure A
Detail C
Slotted Insert
Bench Support
Cable Retainer Bracket
Pulley
Cheek
Button Head Screw
Figure B
Slide Ball Tightly Against
Insert and Cable End
Cable End
Ball Stop
Replace Slotted Insert
Figure D
Figure C
REPEAT CABLE INSTALLATION STEPS 1-6 FOR THE CABLES ON THE OPPOSITE SIDE OF THE UNIT.
Installing Your Bowflex Ultimate® 2 Squat Attachment
Install Squat Attachment
1. Make sure the Seat T Handle is Locked in position on
the Seat Rail.
2. Fold Seat Rail up and insert Squat Holder into the
Round Hole on the Seat Rail. Make sure the Squat
Holder locks securely into Seat Rail.
3. Hook the lower Hook on the Squat Attachment up
onto the lower Post on the Seat Frame.
4. Rotate Squat Attachment up until it locks into place.
(See Figure D)
(Continued on page 33)
(See Figure A)
(See Figure C )
Seat T Handle
Squat Holder
Figure A
36
Locked
Unlocked
Seat Rail
Seat Rail
Round Hole
Figure B Figure C
Squat Attachment
Rotate Up
Lower Hook
Lock Into Place
Seat Frame
Figure D
37
Installing Your Bowflex Ultimate® 2 Squat Attachment
Install Squat Attachment
(Continued from page 32)
6. Extend the Cable from the Chest Bar Sliding Pulley to
the Hooks on both sides of the Squat Attachment.
(See Figure E)
Sliding Pulley
Hook
Cable
Chest Bar
Figure E
Operating Squat Attachment
1. Unlock Seat T Handle. (See Figure A)
2. Stand under Squat Attachment with Shoulder Pads
resting on shoulders.
3. Pull the Release Handle out and rotate it forward
to allow the Squat Attachment slide freely on the
Seat Rail.
Note: The Squat Attachment will not slide
downward until you push upward to
release the safety lock.
(See Figure F)
Installing Your Bowflex Ultimate® 2 Leg Extension Attachment
Install Leg Extension Attachment
1. Place Hooks on Leg Extension Attachment over
Posts on Seat Rail Support and press down into
position.
(See Figure A)
2. Attach Cables to Cable Hooks at the bottom of the
Leg Extension Attachment.
(See Figure B)
38
Leg Extension Attachment
Leg Extension Attachment
Cable Hook
Hook
Post
Figure A
Figure B
39
Installing Your Bowflex Ultimate® 2 Leg Extension Seat and Preacher Curl
Install Leg Extension Seat
1. Place Hooks on Leg Extension Seat Frame over the
posts on the Leg Extension Attachment.
2. Make sure the Cross Bar on the Seat Frame rests in
the Bracket on the Sliding Seat Frame.
Hook
Post
Leg extension Seat
Leg extension
Seat Frame
Bracket
Install Preacher Curl Attachment
1. Place Hooks on Preacher Curl Attachment over the posts
on the Leg Extension Attachment.
2. Hook the Curl Bar to the Webbing attached to the Roller
Pad Bar on the Leg Extension Attachment.
Curl Bar
Preacher Curl Attachment
Hook
Post
Webbing
Installing Your Bowflex Ultimate® 2 Bench and Ab Crunch Attachment
Install Bench
1. Place Cross Brace in Bracket on Sliding Seat and lay
Bench on Seat Rail.
40
Bench
Sliding Seat
Install Ab Crunch Attachment (Optional Attachment)
1. Place Hooks on Ab Crunch Attachment over the
posts on the Seat Rail Support and press down
into position.
2. Attach Cables to Cable Hooks at bottom of
Ab Crunch Cable.
Seat Rail
Bracket
Ab Crunch Attachment
Hook
Cable Hooks
Post
Seat Rail Support
41
Installing Your Bowflex Ultimate® 2 DVD Player
Install DVD Player (Optional Attachment)
Tool:
• Small Phillips Head Screwdriver
1. Attach the DVD Player to the two DVD Player
Brackets using the four small Phillips Head Screws
provided in the Bracket packaging.
(See Figure A)
2. Remove the Rubber Cover from the Face Plate. (See
Figure B) Insert the DVD Player Bracket into the
slots in the Face Plate.
(See Figure C)
Note: The three slots in the DVD Bracket provide
three possible angles for viewing.
Face Plate
Phillips Head Screw
Bracket
Face Plate
Bracket
DVD Player
Remove
Rubber Cover
DVD Player
Use Slots
To Adjust View
Angle
This manual is written and designed
by industry professionals. If you
have any questions regarding
®
your Bowf lex Ultimate
2 or any
instructions found in this manual,
please call 1-800-605-3369 for
assistance.
©2006. Nautilus, Inc. All rights reserved. Nautilus, Bowflex, the Bowflex logo, Bowflex Ultimate and Power Rod are either registered trademarks or trademarks of Nautilus, Inc.
Nautilus, Inc., World Headquarters, 16400 SE Nautilus Drive, Vancouver, WA 98683 1-800-NAUTILUS www.nautilus.com
Printed in China
(Shown with optional accessories)
PN000-430 0 Rev C (8/2006)
Loading...
