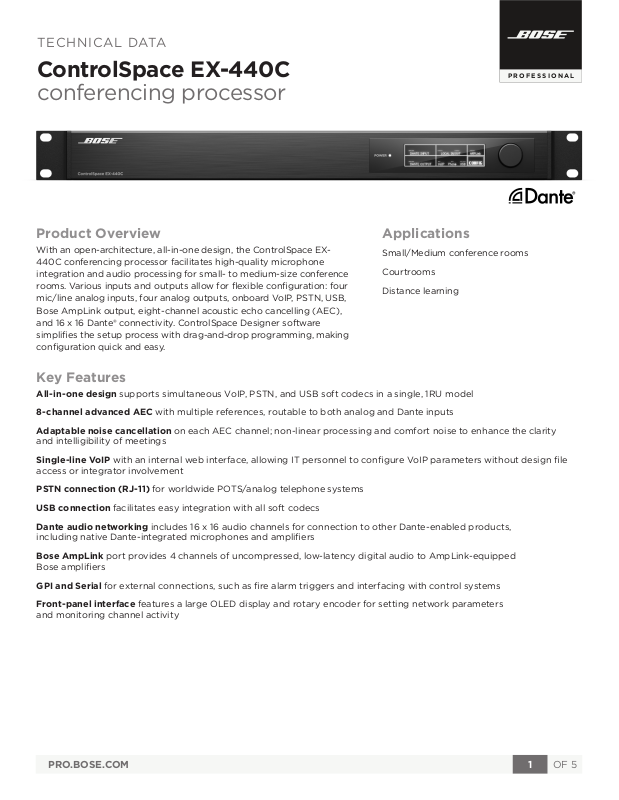

TECHNICAL DATA
ControlSpace EX-440C
conferencing processor
Product Overview
With an open-architecture, all-in-one design, the ControlSpace EX440C conferencing processor facilitates high-quality microphone
integration and audio processing for small- to medium-size conference
rooms. Various inputs and outputs allow for flexible configuration: four
mic/line analog inputs, four analog outputs, onboard VoIP, PSTN, USB,
Bose AmpLink output, eight-channel acoustic echo cancelling (AEC),
and 16 x 16 Dante® connectivity. ControlSpace Designer software
simplifies the setup process with drag-and-drop programming, making
configuration quick and easy.
PROFESSIONAL
Applications
Small/Medium conference rooms
Courtrooms
Distance learning
Key Features
All-in-one design supports simultaneous VoIP, PSTN, and USB soft codecs in a single, 1RU model
8-channel advanced AEC with multiple references, routable to both analog and Dante inputs
Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity
and intelligibility of meetings
Single-line VoIP with an internal web interface, allowing IT personnel to configure VoIP parameters without design file
access or integrator involvement
PSTN connection (RJ-11) for worldwide POTS/analog telephone systems
USB connection facilitates easy integration with all soft codecs
Dante audio networking includes 16 x 16 audio channels for connection to other Dante-enabled products,
including native Dante-integrated microphones and amplifiers
Bose AmpLink port provides 4 channels of uncompressed, low-latency digital audio to AmpLink-equipped
Bose amplifiers
GPI and Serial for external connections, such as fire alarm triggers and interfacing with control systems
Front-panel interface features a large OLED display and rotary encoder for setting network parameters
and monitoring channel activity
PRO.BOSE.COM 1 OF 5
ControlSpace EX-440C
conferencing processor
Technical Specifications
INTEGRATED DSP
Signal Processor/CPU 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz
Maximum Calculation 3.6 GIPS / 2.7 GFLOPS
Delay 43 s
Audio Latency 1.05 ms (analog in to analog out, without AEC)
A/D and D/A Converters 24-bit
Sample Rate 48 kHz
ANALOG AUDIO INPUTS
Input Channels 4 balanced, mic/line level
Connectors, Input 3.81 mm detachable Euroblock, 6-pin
Input Impedance 12 kΩ @ 1 kHz (with or without phantom power active)
Maximum Input Level +24 dBu
Equivalent Input Noise -118 dB at 44 dB gain setting
Phantom Power +48 VDC, 10 mA, software selectable per input
Gain Settings 0 / +14 / +24 / +32 / +44 / +54 / +64 dB
ANALOG AUDIO OUTPUTS
Output Channels 4 balanced, line level
Connectors 3.81 mm Euroblock, 6 -pin
Output Impedance 200 Ω
Maximum Output Level +24 dBu
AUDIO PERFORMANCE SPECIFICATIONS
Frequency Response 18 Hz to 20 kHz (+0.8 dB/-0. 2 dB ref 1 kHz)
THD+N < 0.003% @ +4 dBu (A-weighted/20 Hz to 18 kHz)
< 0.01% @ +4 4 dBu (A-weighted/20 Hz to 18 kHz)
Channel Separation (Crosstalk) < -105 dB at +4 dBu 1 kHz input signal
Dynamic Range > 115 dB, A-weighted 20 Hz – 18 kHz, analog input to analog output
ACOUSTIC ECHO CANCELLING
Tai l Le ngt h 480 ms
Noise Reduction 32 dB
Latency 50 ms
Channels 8
References 4
AUDIO OVER IP
Dante 16 × 16, primary/secondary, routable to AEC
DIGITAL AUDIO OUTPUTS
AmpLink (Ou tp ut o nl y) 4 low latency (< 21µs), 48 kHz. Requires shielded Cat 5/6
COMMUNICATION PORTS
USB Device Micro-B type, stereo in/out, HID Support
VoIP RJ-45; 1 line
PSTN RJ-11; 1 line, Tx/Rx
CONTROL INPUTS
Inputs (Control) 1 analog or digital input, 2 kΩ internal pull-up resistor to 5 V, 3.81 mm detachable
Euroblock, 2-pin
Analog Input Voltage Range 0 V to 3.3 V (maximum 5 V)
Digital Input Voltage Range 0 V to 3.3 V (threshold voltage = 1.6 V)
PRO.BOSE.COM 2 OF 5
ControlSpace EX-440C
conferencing processor
INDICATORS AND CONTROLS
Display 256 x 64 OLED with rotar y encoder
LED Status Indicators Power/Status
Audio Signal Indication On Display
ELECTRICAL SPECIFICATIONS
Mains Voltage 85 VAC-264 VAC 50/60 Hz
AC Power Consumption 35 W typical at 40 °C (104 °F) ambient
Mains Connector IEC 60320- C14 (Inlet)
Power Dissipation 60 W (205 BTU, 52 kcal)
PHYSICAL
Dimensions (H × W × D) 44 × 483 × 282 mm ( 1.7 × 19.0 × 11.1 in)
Net Weight 3.2 kg (7.1 lb)
Operating Temperature 0°C - 40°C (32°F - 104°F)
Cooling System 2 variable-speed fans, side venting
GENERAL
PC Configuration Software ControlSpace Designer software version 5.5 or later
Network Control Ethernet (RJ-45), 1 Gbps
RS-232/485 ports RS-232 (DTE) 3.81 mm detachable Euroblock, 3-pin
COMPLIANCE
Safety UL60065 (8th edition), CAN/CSA-C22.2 No.600 65 (8th edition),
IEC/EN60065 (8th edition)
UL62368-1 (2nd edition), CAN/CSA- C22.2 No. 62368-1-14 (2nd edition),
IEC/EN 62368-1 (2nd edition)
EMC EN 55032:2015, EN 61 000 -3-2:2014, EN 61000-3-3:2013, EN 55035:2017
FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, CISPR13
TELECOM
Country Standard
Australia AS/ACIF S002: 2010+Amendment 2012 NO.1 (2015) (only reports)
Canada CS- 03 Part I, Issue 9, Amendment 5 , March 2016
EEA ETSI ES 203 021-1 V2.1.1 (2005-08), 203 021-2 V2.1. 2 (2006-01), 203 021 -3 V2.1.2
(2006-01)
China CCC: GB/T9254-2008; GB9254-1998; GB925 4-2008; GB4943.1-2011; YD/T993-199 8
(certification pending)
China NAL: GB/ T 15279 -2002; YD/T 992-1998; YD/T 993-1998; YD/T 9 65-1998; YD/T 968-2002
(certification pending)
Hong Kong HK TA 2011 ISSUE 6 MAY 2010
India TEC: TEC-IR-TX-PST-01-02-MAR-15 (certification pending)
Japan JATE, Ordinance concerning terminal facilities etc., MIC Notices NO. 99
Mexico NOM-196-SCFI-2016 (IFT-004-2016)
New Zealand PTC200-May 2006 , PTC220-May 2008
UAE TRA
USA FCC Part68
Tai wan NCC: PSTN01 , EMI CNS13438, Safety: CNS14336
PRO.BOSE.COM 3 OF 5
ControlSpace EX-440C
conferencing processor
q
Front-panel OLED Display and Encoder – 256 x 64 display for metering and network info. Rotary/press knob for IP setup
q
q w e r t y u i o
Balanced Analog I/O – 4 inputs (routable to AEC), 4 outputs
q
GPI – 1 general-purpose input
w
ControlSpace Network Port – ControlSpace/Dante secondary when configured for redundant mode
e
Dante Network Port – ControlSpace/Dante Primary by default
r
1-Line VoIP – SIP 2.0-Compliant; web-page configurable
t
USB Port – Micro-B USB for PC soft codecs with stereo input and output
y
Bose Amplink – 4-channel uncompressed, low-latency digital audio output
u
Serial Port – 3-wire RS-232C (DTE) serial interface connection
i
PSTN (RJ-11) – Supports worldwide analog telephone connections
o
Mechanical Diagrams
PRO.BOSE.COM 4 OF 5
ControlSpace EX-440C
conferencing processor
Product Codes
ControlSpace EX-440C conferencing processor
US-120V 834315-1110
EU-230V 834315-2110
JP-100V 834315-3110
UK-230V 834315-4110
AU-240V 834315-5110
Accessories
ControlSpace EX-UH USB/Headset Dante endpoint 771784-0110
ControlSpace EX-4ML 4-ch mic/GPIO Dante endpoint 771783-0110
ControlSpace EX-8ML 8-ch mic/GPIO Dante endpoint 772045-0110
Dante is a registered trademark of Audinate Pty Ltd. For additional specifications and application information, please visit PRO.BOSE.COM.
Specifications subject to change without notice. 06/2019
PRO.BOSE.COM 5 OF 5
