TECHNICAL DATA
ControlSpace ESP-880AD
engineered sound processor
Product Overview
An open-architecture DSP, the Bose ControlSpace ESP-880AD engineered
sound processor is designed for a wide variety of applications — from small,
self-contained projects to large, networked systems. It features integrated
Dante™ audio networking, 8x8 analog audio I/O, a Bose AmpLink output,
and a front-panel RJ-45 Ethernet connection for localized configuration and
monitoring. Engineered for precise performance, the ControlSpace ESP-880AD
oers advanced digital signal processing with 48 kHz/24-bit audio conversion,
low-latency, and ultra-low noise operation.
PROFESSIONAL
Applications
Designed for a wide range of applications,
including:
• Auditoriums
• Places of worship
• Resorts and hospitality venues
• Retail stores
• Educational institutions
Key Features
• High-quality analog circuitry oers both mic and line-level I/O, operates with
ultra-low noise and 115 dB dynamic range.
• Advanced digital signal processing supports audio at 48 kHz sample rate/24-
bit, uses a floating-point open architecture DSP, and operates at low latencies
for sound system precision.
• Integrated Dante audio networking supports 32x32 audio channels for
connection to other Dante-enabled products.
• Integrated AmpLink connection uses standard CAT 5 cables to send up to
8 channels of low-latency, uncompressed digital audio to compatible Bose
amplifiers.
• Bose ControlSpace Designer software enables a large set of signal processing
modules, such as automatic mic mixing, multiband graphic and parametric
EQs, Bose loudspeaker libraries, signal generators, routers, mixers, AGCs,
duckers, gates, compressors, source selectors, and delays.
• Front panel RJ-45 Ethernet connection enables localized configuration and
monitoring, while enabling network passthrough with the rear-panel network
ports.
• A variety of control options — ControlSpace ESP products are compatible
with the programmable Bose CC-64 and CC-16 controllers, ControlCenter zone
controllers, and ControlSpace Remote clients.
• Supports industry-standard control systems using a comprehensive serial
protocol through onboard RS-232 and Ethernet ports, with available drivers for
AMX and Crestron-based systems.
PRO.BOSE.COM 1 OF 3
TECHNICAL DATA
ControlSpace ESP-880AD
engineered sound processor
Technical Specifications
INTEGRATED DSP
Signal Processor/CPU 32-bit fixed/floating-point DSP + ARM, 456 MHz
Maximum Calculation 3.6 GIPS / 2.7 GFLOPS
Delay 43 s
Audio Latency 860 μs (analog in to analog out)
A/D and D/A Converters 24-bit
Sample Rate 48 kHz
AUDIO PERFORMANCE SPECIFICATIONS
Frequency Response 20 Hz - 20 kHz (+0.3 dB/-0.1 dB)
THD+N < 0.002 % at +4 dBu (A-weighted/20 Hz – 20 kHz)
Channel Separation (Crosstalk) < -105 dB at +4 dBu input and output level, 1 kHz
Dynamic Range > 115 dB A-weighted 20 Hz – 20 kHz, analog through
AUDIO INPUTS
Input Channels 8 analog (balanced, mic/line level), 32 via Dante connec tion
Connectors, Input 3.81 mm Phoenix Contact®, 6-pin
Input Impedance 12 kΩ @ 1 kHz (with or without phantom power active)
Maximum Input Level +24 dBu
Equivalent Input Noise <-119 dBu (22 - 20 kHz, 150 Ω input, 64 dB gain)
Phantom Power +48 VDC, 10 mA, selectable per input
Pre-Gain Settings 0/14/24/32/44/54/64 dB
PROFESSIONAL
AUDIO OUTPUTS
Output Channels 8 analog (balanced, line level), 8 AmpLink, 32 via Dante connection
Connectors, Output 3.81 mm Phoenix Contact, 6-pin (analog), AmpLink RJ-45
Output Impedance 66 Ω
Maximum Output Level +24 dBu
CONTROL INPUTS
Inputs (Control) 5 analog or digital inputs, 2 kΩ internal pull-up resistor to 5 V, 3.81 mm Phoenix Contact, 6-pin
Analog Input Voltage Range 0 V to 3.3 V (maximum 5 V)
Digital Input Voltage Range 0 V to 3.3 V (threshold voltage = 1.6 V)
CONTROL OUTPUTS
Outputs (Control) 5 digital outputs, 3.81 mm Phoenix Contact, 6-pin
Output Voltage High: 8 V (open circuit), 2.5 V @ 10 mA; Low: < 1 V @ 100 mA, push-pull
Output Current 10 mA source, 100 mA sink (24 VDC max external supply voltage)
INDICATORS AND CONTROLS
LED Status Indicators Power/Status, Signal, Ethernet, Serial (RS-232 + CC-16)
Audio Signal Indication Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 to 0 dBFS)
ELECTRICAL SPECIFICATIONS
Mains Voltage 85 VAC-264 VAC 50/60 Hz
AC Power Consumption < 37 VA typical, over all mains voltages
Mains Connector IEC 60320-C14 (i nlet)
Power Dissipation 22 W (75 BTU/hr, 19 kcal/hr)
PHYSICAL
Dimensions 1.7" H x 19.0" W x 8.5" D (44 mm x 483 mm x 215 mm)
Net Weight 5.8 lb (2.6 kg)
PRO.BOSE.COM 2 OF 3
TECHNICAL DATA
ControlSpace ESP-880AD
engineered sound processor
Operating Temperature 32ºF - 104ºF (0ºC - 40ºC)
Cooling System Active, side venting
GENERAL
PC Configuration Software ControlSpace Designer software
Network Control Ethernet (RJ-45), 100Mb
Communications Ports RS-232 (DB9M, DTE), Bose CC-16 (3.81 mm Phoenix Contact, 3-pin)

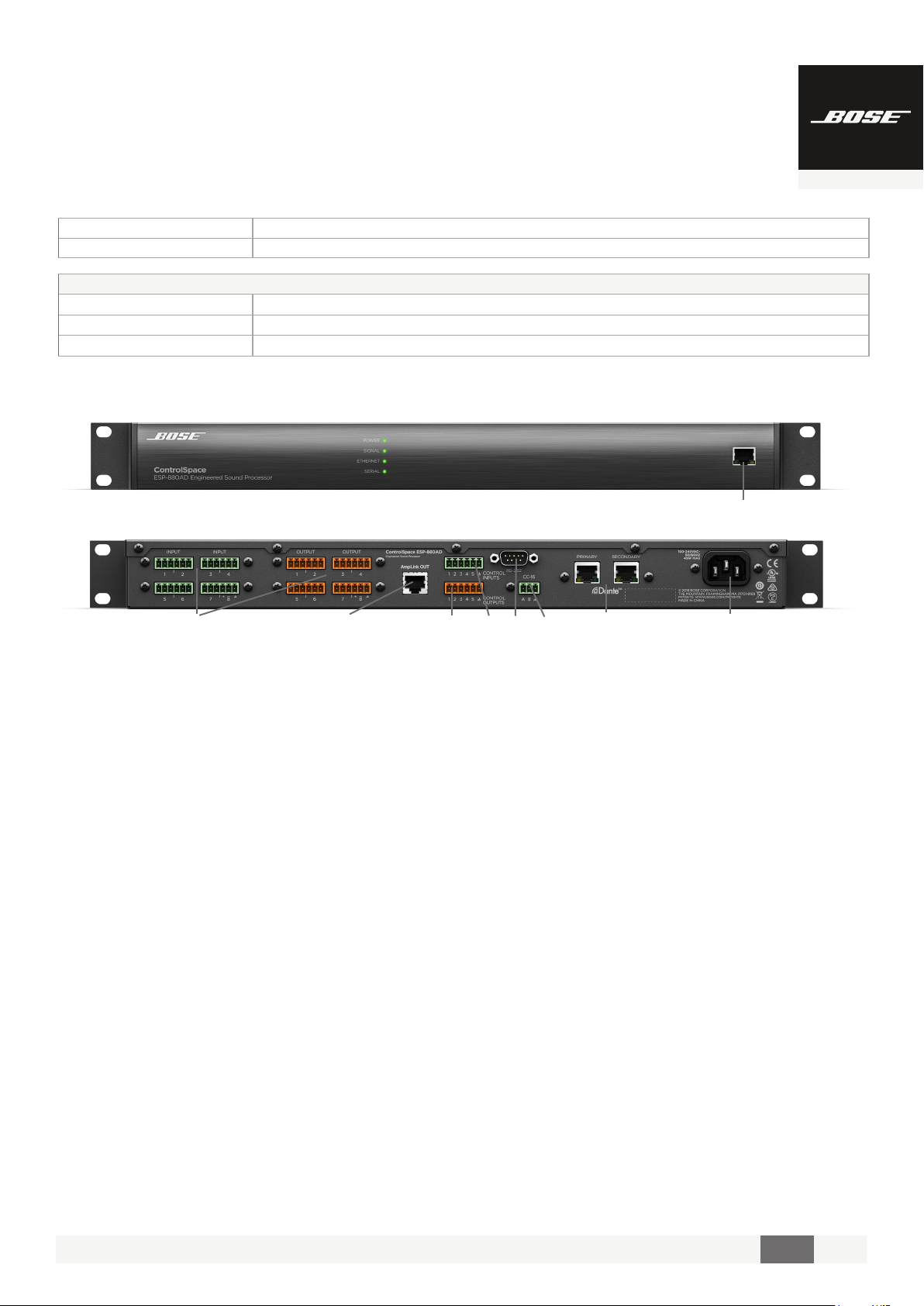

q w e r t y u i
PROFESSIONAL
o
q Analog audio connectors — Mic/line-level balanced input and line-level output connectors
w AmpLink output connector — For use with AmpLink-equipped Bose amplifiers
e Control Outputs connector — Five general-purpose control outputs
r Control Inputs connector — Five general-purpose control inputs
t RS-232 — 5-wire, RS-232-C (DTE) serial data interface connection
y CC-16 connector — Allows Bose CC-16 zone controller connections
Dante network ports — 32x32 channel, assignable with control
u
AC Mains receptacle — Power cord connection (IEC 60320-C14 inlet)
i
Lockable Network port — Control and monitoring
o
Product Codes
ControlSpace ESP-880AD engineered sound processor
US-120V 812872-1110
EU-230V 812872-2110
JP-100V 812872-3110
UK-230V 812872-4110
AU-240V 812872-5110
Dante is a trademark of Audinate Pty Ltd. Phoenix Contact is a trademark ofPhoenix Contact GmbH & Co. KG.
PRO.BOSE.COM 3 OF 3
