COMPANION® 2
MULTIMEDIA SPEAKER SYSTEM
Owner’s Guide
Guia del usuario
Notice d’utilisation
EnglishFrançais Español
SAFETY INFORMATION
Please read this owner’s guide
Please take the time to follow the instructions in this owner’s guide carefully. It will help
you set up and operate your system properly and enjoy all of its advanced features. Please
save this owner’s guide for future reference.
WARNING: To reduce the risk of fire or electrical shock, do not expose the product to rain or
moisture.
WARNING: The apparatus shall not be exposed to dripping or splashing, and objects filled
with liquids, such as vases, shall not be placed on the apparatus. As with any electronic product, use care not to spill liquids into any part of the system. Liquids can cause a fa ilure and/or
a fire hazard.
The lightning flash with arrowhead symbol within an equilateral triangle alerts the
user to the presence of uninsulated, danger
sure that may be of sufficient magnitude to con
ous voltage within the system enclo-
stitute a risk of electrical shock.
The exclamation point within an equilateral triangle, as marked on the system, is
nded to alert the user to the presence of important operating and mainte-
inte
nance instructions in this owner’s guide.
WARNING: No naked flame sources, such as lighted candles, should be placed on or near
the apparatus.
Class B emissions
This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regula
WARNING: To prevent electric shock, ma tch the wide blade of the line cord plug into the wide
tions (Canada only).
slot of the AC (mains) receptacle. Insert fully.
This product conforms to the EMC Directive 2004/108/EC and to the Low
Voltage Directive 2006/95/EC. The complete Declaration of Conformity
can be found at www.Bose.com/static compliance/index.html.
CAUTION: Use only the power supply provided with the speakers.
Notes:
• The product label is located on the bottom of the product.
• This product is intended to be used only with the power supply provided.
• These speakers must be used indoors. They are neither designed nor tested for use
outdoors, in recreational vehicles, or on boats.
• Where the mains plug or appliance coupler is used as the disconnect device, such
disconnect device shall remain readily operable.
©2007 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission. Design and specifications subject to change without notice.
2
English FrançaisEspañol
Arabic
Important Safety Instructions
1. Read these instructions – for all components
before using this product.
2. Keep these instructions – for future
reference.
3. Heed all warnings – on the product and in the
owner’s guide.
4. Follow all instructions.
5. Do not use this apparatus near water or
moisture – Do not use this product near a
bathtub, washbowl, kitchen sink, laundry tub,
in a wet basement, near a swimming pool,
or anywhere else that water or moisture are
present.
6. Clean only with a dry cloth – and as directed
by Bose Corporation. Unplug this product
from the wall outlet before cleaning.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions – To ensure reliable operation of
the product and to protect it from overheating,
put the product in a position and location that
will not interfere with its proper ventilation. For
example, do not place the product on a bed,
sofa, or similar surface that may block the
ventilation openings. Do not put it in a built-in
system, such as a bookcase or a cabinet that
may keep air from flowing through its ventilation openings.
8. Do not install near any heat sources, such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding-type plug has two blades
and a third grounding prong. The wider blade
or third prong are provided for your safety.
If the provided plug does not fit in your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked
on or pinched, particularly at plugs, conve-
nience receptacles, and the point where they
exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Unplug this apparatus during lightning
storms or when unused for long periods
of time – to prevent damage to this product.
13. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in an y way:
such as power supply cord or plug is
damaged; liquid has been spilled or objects
have fallen into the apparatus; the apparatus has been exposed to rain or moisture,
does not operate normally, or has been
dropped – Do not attempt to service this
product yourself. Opening or removing covers
may expose you to dangerous voltages or
other hazards. Please call Bose to be referred
to an authorized service center near you.
14. To prevent risk of fire or electric shock,
avoid overloading wall outlets, extension
cords, or integral convenience receptacles.
15. Do not let objects or liquids enter the
product – as they may touch dangerous volt-
age points or short-out parts that could result
in a fire or electric shock.
16. See product enclosure for safety-related
markings.
17. Use proper power sources – Plug the prod-
uct into a proper power source, as described
in the operating instructions or as marked on
the product.
Information about products that
generate electrical noise
If applicable, this equipment has been tested and
found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications. However, this is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, you are
encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment to an outlet on a different
circuit than the one to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This product complies with the Canadian ICES-003
Class B specifications.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
3
English FrançaisEspañol English
ArabicS. Chin
4
English FrançaisEspañol
ArabicS. Chin
SAFETY INFORMATION 2
GETTING STARTED 6
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpacking the carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SETTING UP 7
Choosing a speaker location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Making connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting to your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting the speakers to a power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting an optional second source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controlling the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
REFERENCE 12
Cleaning the speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Contacting Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
For your records
Serial numbers are located on the bottom of the RIGHT Companion® 2 speaker.
Serial number:_________________________________________________________________
Dealer name:__________________________________________________________________
Dealer phone: ______________________________ Purchase date:___________________
We suggest you keep your sales receipt with this owner’s guide.
5
GETTING STARTED
RIGHT speaker
RCA
audio input cable
AC
power pack
Speaker
cable
LEFT speaker
Owner’s
guide
*There are two types of power pack for this system, one of which
requires use of a power pack adapter (shown above). If your
power pack does not require an adapter, no adapter is provided.
Mini-plug
audio input cable
Power
pack adapter*
Before you begin
Thank you for choosing the Bose® Companion® 2 multimedia speaker
system. Unique features and Bose technologies make these speakers
a superior choice for upgrading your computer audio. They also provide
, full stereo sound from a second source, like a portable MP3 or CD
rich
player.
Benefits of your Companion 2 speakers:
• TrueSpace® stereo signal processing circuitry adds spaciousness.
• Ported cabinet design provides cle
• Sleek design blends in with contemporary of
Unpacking the carton
Carefully unpack your speakers (Figure 1) and save all of the packing
materials, which provide the safest means for shipping or transporting.
If any part appears damaged, do not att
authorized Bose dealer immediately. Or, to contact Bose directly , r efer to
the address sheet included in the carton.
WARNING: To avoid da nger of suffocation, keep the plastic bags that wrap
these speakers out of the reach of children.
EnglishFrançais Español
ar, deep musical tones.
fice décor.
empt to use it. Notify your
Figure 1
Carton
contents
Now is a good time to copy the serial number, located on the bottom of
the RIGHT speaker , onto the form labeled “For your r ecords” on page 5.
6
English FrançaisEspañol
RIGHT
speaker
LEFT
speaker
Volume
control
Headphone
jack
Choosing a speaker location
The angled design of these speakers allows them to direct sound
upward toward a seated listener . So placing them on a desktop is a
good choice. Magnetic shielding protects your computer monitor from
interference when the speakers are positioned close to it.
Place the speaker that has a volume contr
right of your computer and within easy reach. Place the other speaker
on the left (Figure 2).
Note: LEFT and RIGHT labels on the back of the two speakers can serve
as a placement aid.
Figure 2
Speakers in
position near
the computer
ArabicS. ChinThai KoreanNederlands
SETTING UP
ol knob on the front to the
You may prefer placing the RIGHT speaker on your left to more easily
reach the volume control and the headphone jack.
This does no harm, although it changes
how you hear the left and right
stereo sound. For an accurate sound stage, the music recorded from
stage left during a live performance comes from the left speaker.
Changing the placement of LEFT and RIGHT speakers alters that effect.
7
SETTING UP
Making connections
A speaker cable is attached to the rear of the LEFT speaker. Insert the
free end of this cable into the jack marked TO LEFT SPEAKER on the
back of the RIGHT speaker (Figure 3).
EnglishFrançais Español
Figure 3
Speaker cable
connection
Figure 4
Connection to
the computer
RIGHT
speaker
TO LEFT
SPEAKER
Speaker cable
LEFT
speaker
Connecting to your computer
Use the audio cable to make this connection.
• Insert the stereo mini plug at one end of the cable into the mini audio
out jack on your computer.
Insert the two plugs at the other end of the cable into one pair of the
•
AUDIO INPUT connectors on the right speaker.
1. Insert the white RCA plug into the white jack labeled L.
2. Insert the red RCA plug into the red jack labeled R.
RIGHT
speaker
LEFT
speaker
L
R
RCA audio input cable
8
Computer
Speaker cable
English FrançaisEspañol
To other speaker
To computer
12V
AC outlet
Power pack
RIGHT
speaker
Power pack adapter
Release
button
Figure 5
Connection
to power
Connecting the speakers to a power outlet
Use the supplied power pack, which has a cable that co nnects to the
RIGHT speaker.
1. Insert the cable connector into the connector labeled 12V on the
ck of the speaker (Figure 5).
ba
2. Plug the power pack into an AC (mains) outlet.
• If your system includes a power pack adap
as shown (below left) before plugging in the power pack.
ter , attach the adapter
ArabicS. ChinThai Korean
SETTING UP
Note: Bose recommends using a high-quality surge suppressor on all
electronics equipment.
Connecting an optional second source
The Companion 2 speakers provide a second set of input connectors
for use with a second sound source. To make this connection, use the
audio output cable provided with your MP3 player, CD player, or other
source.
9
SETTING UP

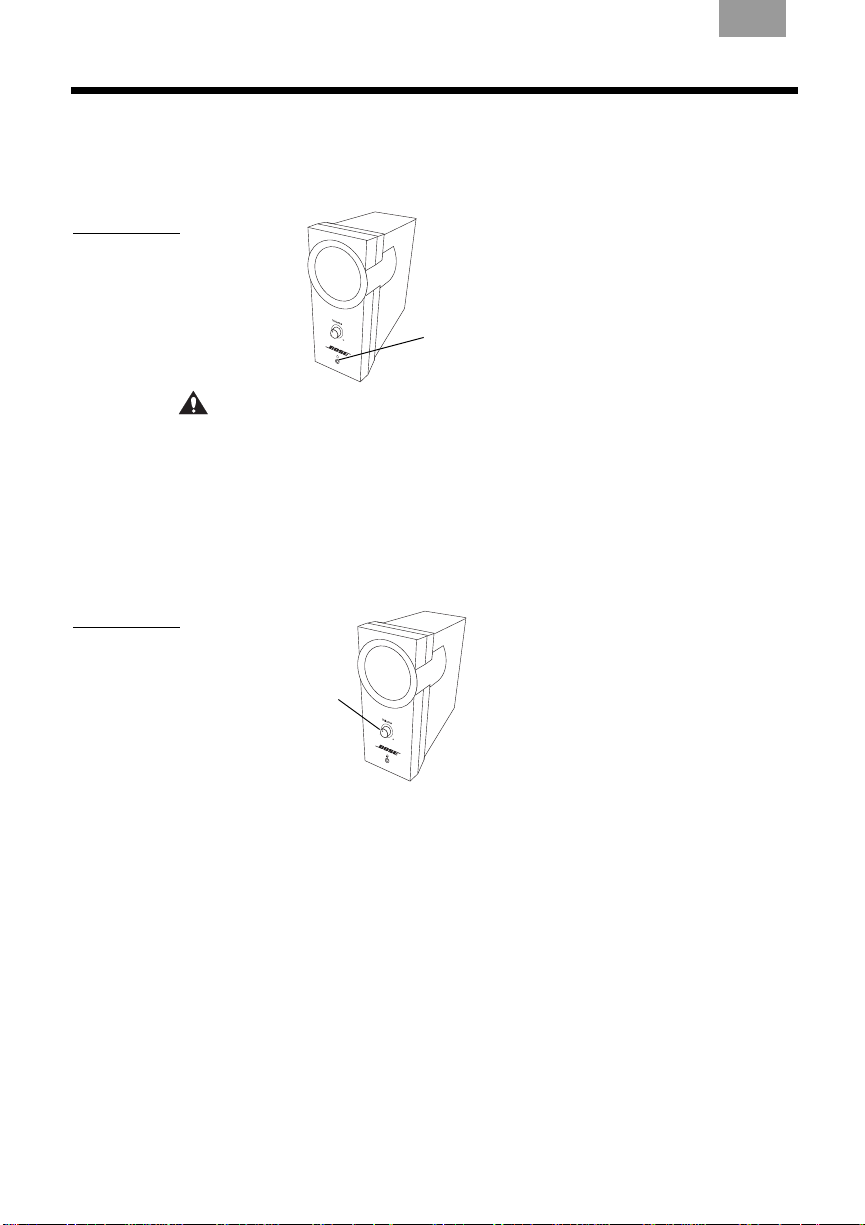

Headphone connector
RIGHT
speaker
Volume control
RIGHT
speaker
Figure 6
Headphone
connection
EnglishFrançais Español
Connecting headphones
Headphones plug into the connector on the front of the RIGHT speaker
(Figure 6). Inserting the plug mutes sound from the speakers.
WARNING: Long-term exposure to loud music may cause hearing
damage. It is best to avoid extreme volume levels when using headphones,
especially for extended periods.
Controlling the volume
You can raise or lower the volume of the speakers or a connected
headphone by turning the knob on the front of the RIGHT speaker
(Figure 7). Turn it right to raise and left to lower the volume.
Figure 7
Speaker
volume knob
On your computer or an optional sound source, set the volume at about
two-thirds the maximum volume. Then use the knob on the RIGHT
speaker to adjust the volume as you listen.
10
English FrançaisEspañol
Problem What you can do
ArabicS. ChinThai KoreanNederlands
Troubleshooting
No sound •
No sound from
one speaker
Sound is distorted
or you hear static
Background noise
when no source
is playing
Make sure
it is not on mute, and
•
Make
the sound source is plugged in and turned on,
the volume is turned up.
sure headphones are not plugged into the RIGHT
speaker.
• Be sure the power pack is
securely plugged into the
RIGHT
speaker and into the AC (mains) outlet.
•
Make sure the speakers are connected properly and all plugs are
inserted firmly.
•
Check the sound source. If it is mono
you need a mono-to-stereo adapter to send the sound
speakers. T o request an adapter, contact Bose
(has one channel only),
®
Customer Service.
to both
Refer to the address sheet included in the carton.
• Decrease the volume of the sound source affected, and
increase the volume on the speakers.
• When using any other wireless sour
ce (computer or cell phone)
move the speakers farther from that source.
• Decrease the volume level on your speakers and increase the
level on each sound source to
your preferred volume.
11
REFERENCE
Cleaning the speakers
Wipe the speakers using a soft, dry cloth. Do not use solvents,
chemicals, or sprays. Lightly vacuum the grilles as needed.
CAUTION: Do not allow liquids to spill or objects to drop into any
openings.
Contacting Customer Service
For additional help in solving problems, contact Bose® Customer
Service. Refer to the address sheet included in the carton.
Limited warranty
This system is covered by a transferable limited warranty.
Details of the limited warranty are provided on the Product Registration
Card that came with your system. Please fill out the information section
on the card and mail it to Bose. Or, register your product at
www.Bose.com\register. However, failure to do so will not affect your
limited warranty rights.
Technical information
EnglishFrançais Español
12
Driver complement
One magnetically shielded 2.5" (6.4 cm) full-range driver per speaker
Power pack rating
U.S./Canada: 120V 60 Hz 20VA maximum
Europe: 230V 50 Hz 20VA maximum
Australia: 240V 50 Hz 20VA maximum
Japan: 100V 50/60 Hz 20VA maximum
Worldwide: 100-240VAC 50/60 Hz, 600mA
Speaker inputs
Input power: 12V 1.2 A
Input signal: 2.25V maximum input
Dimensions (approximate)
1
/
7
"H x 3
2
3
/
"W x 6"D (top rear to bottom front)
8
(19 cm x 8.6 cm x 15.2 cm)
Weight
RIGHT speaker, unpacked: 2.3 lb (1.1 kg)
LEFT speaker, unpacked: 1.8 lb (.8 kg)
English FrançaisEspañol
ArabicS. ChinThai KoreanNederlands
13
©2007 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
279123 AM Rev.0
1
Loading...
