Bosch PID631BB1E User Manual
Serie | 4
The induction hob: cook fast, clean and
safely while using very little energy
●
TouchSelect: Selection of the desired cooking zone and easy
setting of the desired power level
●
Triple ring: Expandable cooking zone for very large pots and
pans
●
Front-Bevel: Elegant, appealing design with bevelled front
●
Timer with switch-off function: Turns off the assigned cooking
zone after the set time
●
Induction: Fast, precise cooking, easy cleaning and low energy
consumption
●
PowerBoost: Up to 50% more power for faster heating
Technical Data
Product name/family : Cooking zone ceramic
Construction type : Built-in
Energy input : Electric
Total number of positions that can be used at the same time : 3

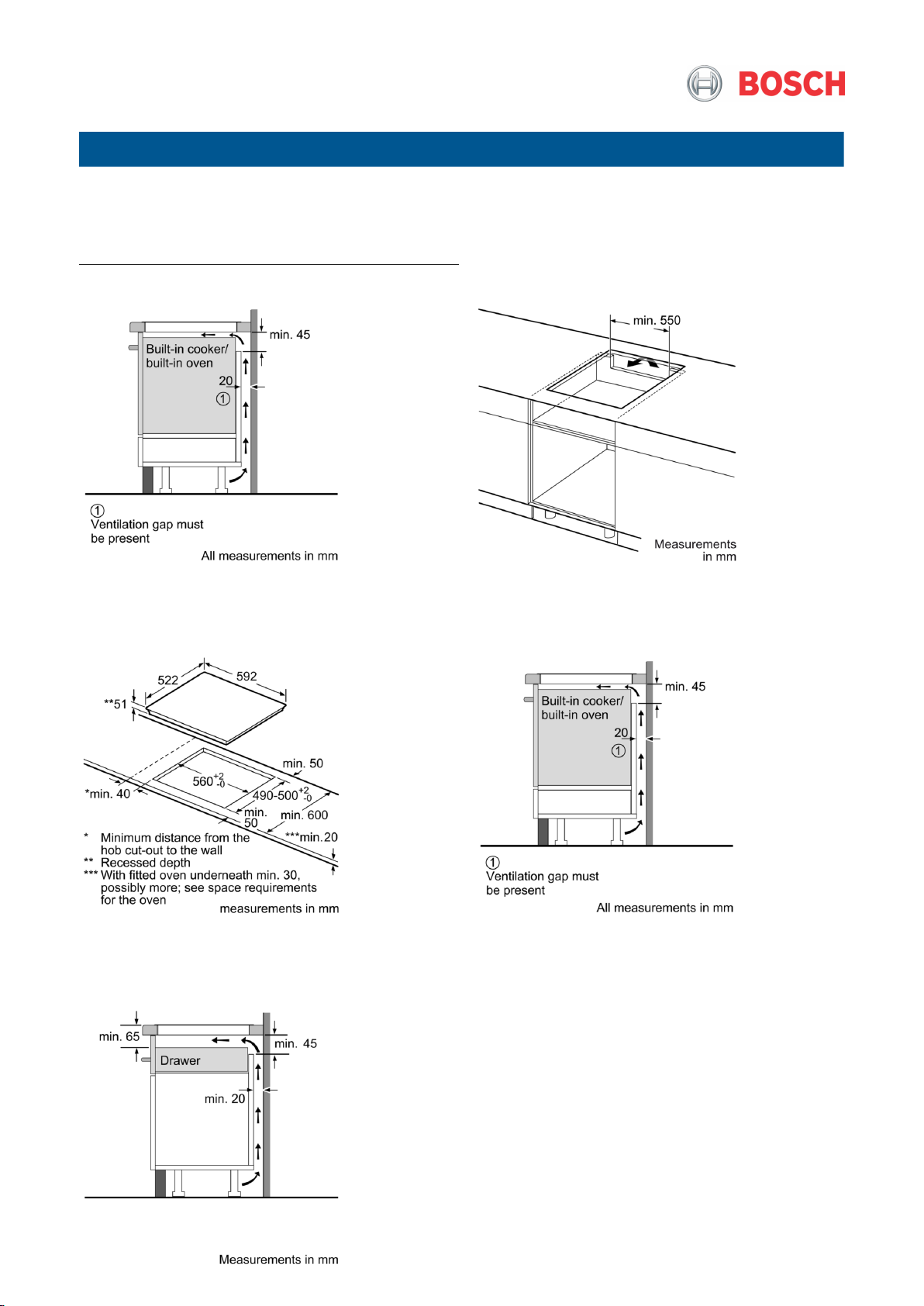

Required niche size for installation (HxWxD) :
51 x 560-560 x 490-500
Width of the product (mm) : 592
Dimensions of the product (mm) : 51 x 592 x 522
Dimensions of the packed product (HxWxD) (mm) :
126 x 753 x 603
Net weight (kg) : 13.445
Gross weight (kg) : 15.0
Residual heat indicator : Separate
Location of control panel : Hob front
Basic surface material : Ceramic
Color of surface : Black
Approval certificates : AENOR, CE
Length electrical supply cord (cm) : 110
Sealed Burners : No
heating with booster : All
Power of 2nd heating element (kW) : 2.2 ; 2.6 ; 3.3
Power of 5th heating element (kW) : 1.4
Power of 5th heating element (kW in boost) : [2.2]
Electrical connection rating (W) : 7400
Voltage (V) : 220-240
Frequency (Hz) : 60; 50
Main colour of product : Black
Energy input : Electric
Approval certificates : AENOR, CE
Plug type : no plug
Appliance Dimensions (h x w x d) (in) : + x x
Dimensions of the packed product (in) : 4.96 x 23.74 x 29.64
Net weight (lbs) : 30
Gross weight (lbs) : 32
Total number of positions that can be used at the same time : 3
Length electrical supply cord (cm) : 110
Required niche size for installation (HxWxD) :
51 x 560-560 x 490-500
Dimensions of the product (mm) : 51 x 592 x 522
Dimensions of the packed product (HxWxD) (mm) :
126 x 753 x 603
Net weight (kg) : 13.445
Gross weight (kg) : 15.0
'!2E20AC-igbfhj!
PID631BB1E
60 cm, Induction Hob
1/3
Serie | 4 Hobs
PID631BB1E
60 cm, Induction Hob
The induction hob: cook fast, clean and
safely while using very little energy
Design
Front facette design
-
1 triple zone
-
Features
3 induction cooking zones
-
17 power levels
-
Easytouch electronic control panel
-
Electronic display
-
Timer with switch-off function for all zones
-
Alarm clock
Automatic pan recognition sensor
-
PowerManagement Function
Safety switch-off
Childproof lock
Power and size:
Connected load: 7.4 kW
-
Connection cable (1.1 M )
-
Min. worktop thickness: 30 mm
-
Safety functions
Digital 2 stage residual heat indicator for each zone
-
Main switch
-
Performance
Cooking zones: 1 x Ø 320 mm, 3.3 KW (max. Power levels 5.5
-
KW) Induction; 1 x Ø 145 mm, 1.4 KW (max. Power levels 2.2
KW) Induction;1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7
KW) Induction
Cooking zone with special 5.5kW PowerBoost
-
Boost function for all zones
-
2/3
