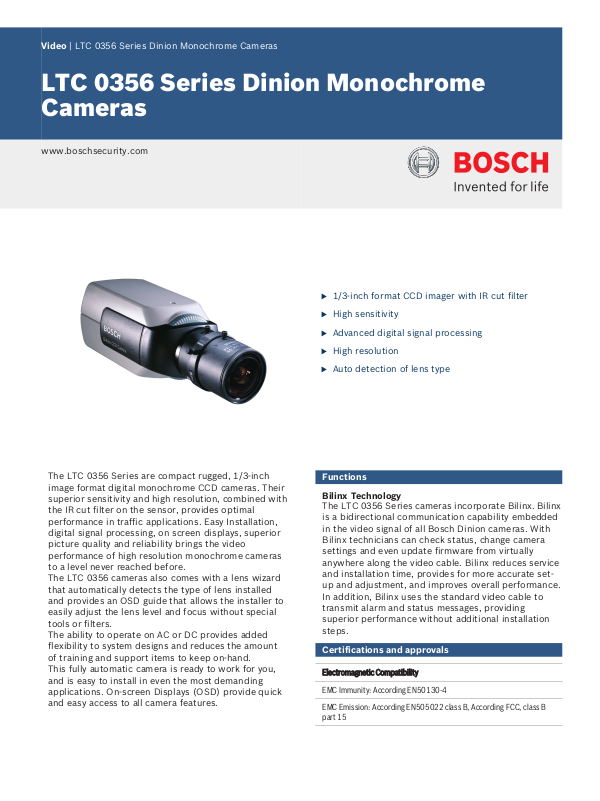

Bosch LTC 0356-20 Specsheet

Video | LTC 0356 Series Dinion Monochrome Cameras

LTC 0356 Series Dinion Monochrome
Cameras

www.boschsecurity.com

u 1/3-inch format CCD imager with IR cut filter

u High sensitivity

The LTC 0356 Series are compact rugged, 1/3-inch
image format digital monochrome CCD cameras. Their
superior sensitivity and high resolution, combined with
the IR cut filter on the sensor, provides optimal
performance in traffic applications. Easy Installation,
digital signal processing, on screen displays, superior
picture quality and reliability brings the video
performance of high resolution monochrome cameras
to a level never reached before.
The LTC 0356 cameras also comes with a lens wizard
that automatically detects the type of lens installed
and provides an OSD guide that allows the installer to
easily adjust the lens level and focus without special
tools or filters.
The ability to operate on AC or DC provides added
flexibility to system designs and reduces the amount
of training and support items to keep on-hand.
This fully automatic camera is ready to work for you,
and is easy to install in even the most demanding
applications. On-screen Displays (OSD) provide quick
and easy access to all camera features.

u Advanced digital signal processing

u High resolution

u Auto detection of lens type

Functions

Bilinx Technology

The LTC 0356 Series cameras incorporate Bilinx. Bilinx
is a bidirectional communication capability embedded
in the video signal of all Bosch Dinion cameras. With
Bilinx technicians can check status, change camera
settings and even update firmware from virtually
anywhere along the video cable. Bilinx reduces service
and installation time, provides for more accurate set­up and adjustment, and improves overall performance.
In addition, Bilinx uses the standard video cable to
transmit alarm and status messages, providing
superior performance without additional installation
steps.

Certifications and approvals

Electromagnetic Compatibility

EMC Immunity: According EN50130-4

EMC Emission: According EN505022 class B, According FCC, class B
part 15

2 | LTC 0356 Series Dinion Monochrome Cameras

Safety

LTC 0356/10: EN60065

LTC 0356/20: UL6500

Parts included

Quantity Components

1 LTC 0356 Series Monochrome Camera

1 Spare male 4-pin lens connector

Lens not included

Technical specifications

Electrical

Model No. Rated Voltage Voltage Range System

LTC 0356/10 12 VDC 10.8–39 VDC CCIR

24 VAC 50 Hz 12–28 VAC

CCIR

45–65 Hz

LTC 0356/20 12 VDC 10.8–39 VDC EIA

24 VAC 60 Hz 12–28 VAC

EIA

45–65 Hz

Power Consumption 4 W, excluding lens

Imager Interline transfer CCD, 1/3-inch image

format, with IR cut filter

Active Pixels

LTC 0356/10 752 H x 582 V

LTC 0356/20 582 H x 494 V

Sensitivity (3200 k)

Usable Picture

Full Video

(50 IRE)

Scene Illumination

1)

0.2 lux (0.02 fc) 0.9 lux (0.09 fc)

Imager Illumination 0.05 lux (0.005 fc) 0.02 lux

(0.002 fc)

Horizontal Resolution 570 TVL

Signal-to-Noise Ratio 50 dB

Gain Auto, 21 dB (max)

Synchronization

Line-lock (When powered by AC only) Synchronizes

the camera to the power line zero crossing
for roll-free vertical interval switching.
Vertical phase delay can be adjusted (0–
358 degrees) to allow vertical
synchronization in multi-phase power
installations.

Crystal-lock (When DC-supply or L/L off) Internal

crystal reference is standard on all models.

Controls

Video level

Shutter: AES / off / flickerless

AGC: on / off

BLC: on / off

Auto black: on / off

V-phase adjustment: 0–358 degrees

1) For F/1.2, 89% scene reflectance.

Mechanical

Connectors Video output: BNC

Video/DC-Iris connector: 4-pin EIA-J

Power Push type connectors, polarity

independent, isolated from video output
terminals

Tripod Mount Top and bottom, 1/4-inch 20 UNC

Lens Mount C and CS

Dimensions (H x W x D) 58 x 66 x 122 mm (2.28 x 2.6 x 4.8 in.)

including connectors

Weight 0.45 kg (0.99 lb)

Environmental

Operating Temperature -20°C to 50°C (-4°F to 122°F)

Storage Temperature -25°C to 70°C (-13°F to 158°F)

Operating Humidity 5% to 93% non-condensing

Ordering information

Electronic Shutter

Automatic, 1/50 to 1/500000 sec.
(LTC 0356/10), 1/60 to 1/600000 sec.
(LTC 0356/20)

Aperture Correction Horizontal and vertical, symmetrical

Backlight Compensation Center window weighting

Video Output Composite video 1.0 Vpp, 75 Ohm

LTC 0356/10 Dinion Monochrome Camera

1/3-inch B/W CCIR, DSP, 570 TVL, 12 VDC/24 VAC, 50
Hz, IR cut filter

Order number LTC0356/10

LTC 0356/20 Dinion Monochrome Camera

1/3-inch B/W EIA, DSP, 570 TVL, 12 VDC/24 VAC, 60
Hz, IR cut filter

Order number LTC0356/20

3 | LTC 0356 Series Dinion Monochrome Cameras

Represented by:

Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2013 | Data subject to change without notice
2101323659 | en, V1, 04. Oct 2013

Accessories

TC120PS Power Supply Unit

Order number TC120PS

TC220PS Power Supply Unit

Order number TC220PS

TC220PSX‑24 Power Supply Unit

Order number TC220PSX-24

TC1334 Power Supply Unit

Order number TC1334
