u Software for access control and security

management utilizing the innovative Access Modular
Controller family

u Cardholder administration of up to 10,000 records

in the database

System overview

Access PE provides self contained access control for
small and medium-sized companies. Its installation is
extremely simple and fast. There is no need to install
and administer a database system. The system is easy
to use and enables a person with minimal training to
create badges and administer access rights in a very
short time. Specific event logging and reporting allows
you to trace who was when and where on your
company’s grounds.
You can choose your readers and cards from the same
bundle of devices, which are supported by Bosch’s
medium to large scale BIS/ACE Access Engine
systems, thereby safeguarding your investment for
future extensions. Card personalization is included in
Access PE, providing you with the means to design
your badges, to perform image acquisition with USB­cameras and to use most commercially available Card
Printers.
In addition to given standardized door models it is
possible to use extended I/O functionality to exert
influence on diverse conditions while monitoring
inputs or setting outputs.

u Graphical location map with device control via both

maps and device tree

u Alarm management with details via alarm list and

animated GIFs on interactive location maps

u Video verification, video alarm verification, and

video monitoring of live and recorded events

The Access PE offers a map viewer, which provides a
graphical representation of the premises with device
control directly from the map. (e.g., doors opened or
cameras activated) Alarm events are queued in a list
and are easily located with the support of navigation
maps and animated icons.
The Access PE can be extended with two modules. A
Video System on the one side and an Offline Locking
System [selected markets, only] on the other side.
The Offline Locking System (OLS) is integrated into
the Access PE – so a person can use the same card for
both systems.
Through integrated video functionality and using the
wide range of Bosch IP devices an operator for
example can do a video verification by comparing live
streams with the database image of the person
requesting for access.
Access PE runs on a standard PC with a Windows
operating system:

• Windows 2008 Server

• Windows 7

• Windows 10 x64 Pro

This can be a single workstation computer or a client­server system with a central server and remote
workstations.

| Access Professional Edition 3.3

2

Functions

Pos. Description

1 Server with Access PE Software

2 Workstations

3 Printer

4 AMC2 – access controller

5 Reader

6 Door strikes

Access Control

The Access PE system, along with AMC access
controllers, offers the following features:

• A wide range of pre-defined and self-explaining door
models allow fast and easy hardware configuration
through one-click selection of the door type, such as
standard door, turnstile, elevator, with entrance / exit
reader, and so on.

• Real-time activation of reader and cardholder
configurations in the access controllers.

• Time zone support for AMC - allows installations
across different time zones.

• Time schedules for time-based access permission
defined per weekday including the definition of extra
days, holidays, etc..

• Time schedules for automatic activation/deactivation
of cardholder settings, such as access rules, pin
codes and so on.

• Time schedules for automatic activation/deactivation
of system settings, such as setting door status to
permanent open from 9 a.m. to 5 p.m.

• Online swipe – verification via database image
automatically provided through access request.

• Three PIN code types can be used for persons:

– Verification PIN with alarm code feature
– Identification PIN – substitudes a card

– IDS-PIN to arm special areas

• Choose between the following access modes
– Card only
– PIN only
– PIN or card

• Temporary activation/blocking of cardholders, either

manually or time controlled.

• Definable input fields for cardholder information.

• Anti-Passback

• Card personalization for importing cardholder images

and creating your individual corporate badge designs
printable on standard card printers.

• Up to three cards can be assigned to a person.

• Creation of an acknowledgment of receipt together

with the print of the picture and the badge design.

• Creation of logical areas, which could be single

rooms, groups of rooms, whole floors or parking lots,
where access control points could be assigned to.

• Full archival and restoral of system data.

• Using the Bosch controller family AMC digital and

monitored I/Os for additional control and monitoring
functions or easy intrusion features.

• Supported languages:
– English
– French
– German
– Dutch
– Polish
– Simplified Chinese
– Russian
– Spanish
– Portuguese (Brazil)

• Detailed event log for recording access events.

• Integrated filter- and reporting features.

• Export into standard CSV-format for further

processing.

• Comprehensive online help

Alarm management

The Access PE alarm list shows all incoming alarms to
the operator. Alarms can be accepted by the operator.
In case of an alarm, the location map will be displayed.
The icon of the device that triggered the alarm is
highlighted by animation.

| Access Professional Edition 3.3

3

1. Map tree

2. Active location map

3. Device control from the map

4. Alarm list with event information (incl. video)

5. Device tree

Optional features

The optional features listed below can be added to
meet specific customer requirements. They are usable
with the Access PE base system, but require additional
licenses.

Video

Any violation, such as door open time exceeds, will
provide alarm images for further investigation. Storage
of those alarm images and retrieval of alarm archives
using Bosch video storage systems are supported as
well.

In the case of alarm events, video cameras provide live
images to the operator, ensuring a proper response.
Image streams can be recorded for later analysis or
used as evidence. The recorded streams are linked in
the logbook for fast and accurate retrieval.
Additional functionalities are:

• Alarm verification – providing live images caused

through typical alarms around a door.

• Video playback from archives reporting on access

requests or alarm situation with minimum search
time.

• Live video can be selected from single camera or 2x2

matrix (quad mode).

Pos. Description

Additional to the positions in the first system overview the video
components are included now.

7 Cameras

8 DVR or encoder

Entrances from special interest can be equipped with
additional video devices providing different options.
The integrated video functionality in Access PE allows
to assign up to five cameras to a door, each to be used
as an ID or surveillance camera. With video verification
the security level is raised by comparing the person's
database image with a live stream while the
environment can be observed for tail-gating or
possible threats.

| Access Professional Edition 3.3

4

Offline Locking System (OLS) [selected markets
only]

The OLS uses some components of the Online System.
In the picture above the part with the grey background
shows the devices which are used for both systems.
On the left hand side there are devices of the Online­System and on the right devices of the OLS.

Notice

Writing OLS data onto cards can only be used
with an AMC2 4R4. Systems with Wiegand­interface-controller (AMC 4W) have to be
expanded with at least one AMC2 4R4 and the
corresponded reader.

Milestone XProtect integration

The Access PE can be interfaced with the video
management system XProtect from the company
Milestone. Access control and video related features
will be subject in the integration between products.
Following integration features can be set up between
both products:

• Entrance monitoring with simultaneous live view and

instant playback

• Video verification via the XProtect dialogs incl.

cardholder details

• Mapviewer with entrance control and device status

• Alarm management with integrated access alarm,

maps and video verification

• History event log with correlated video footage and

card holder details

Access control management will remain to be
operated through Access PE in integrated set-up.
Video management and security management will
handled through via the XProtect system. In integrated
set-up the mapviewer, video features and alarm list
will be disabled in the Access PE.

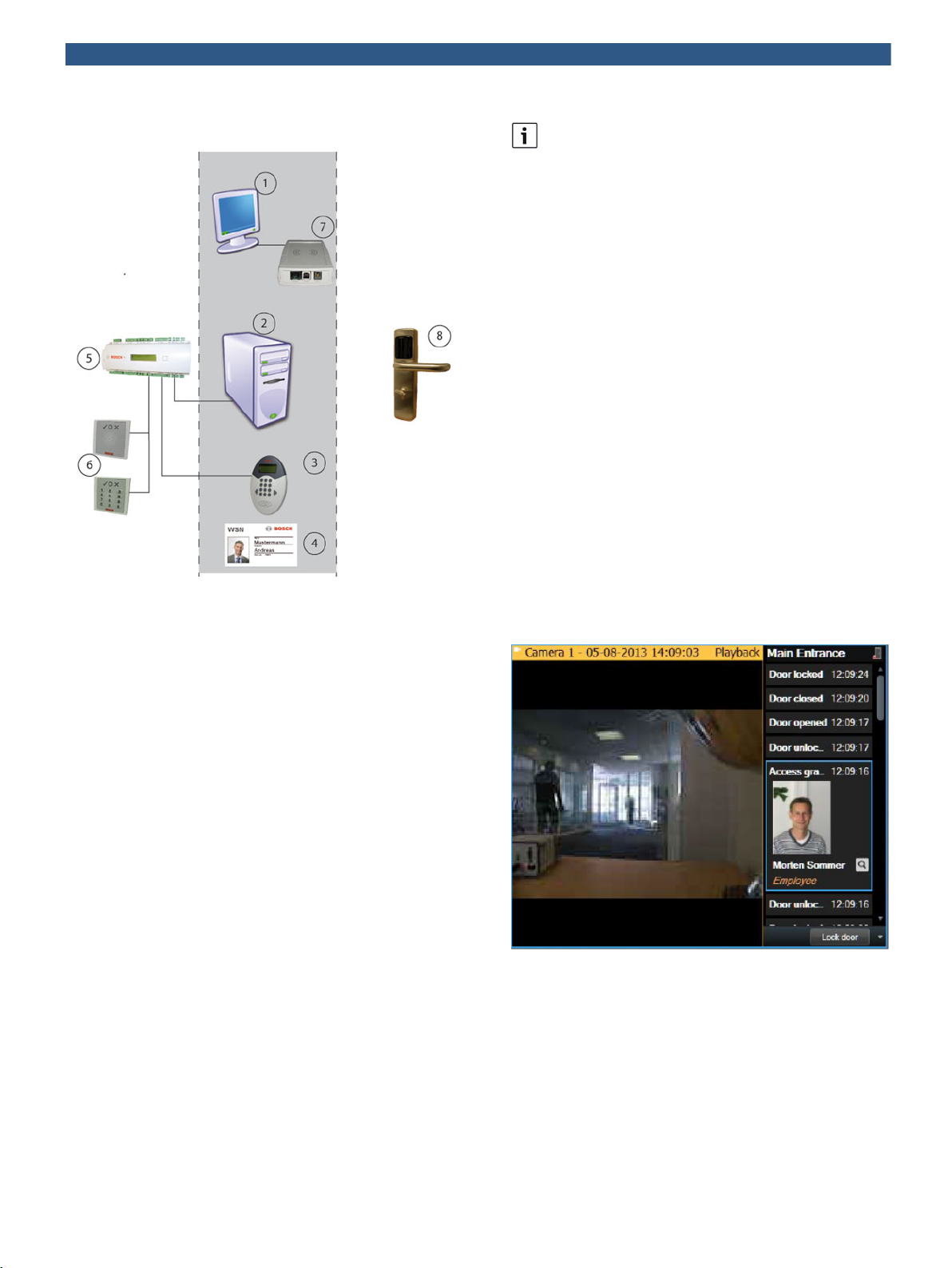

Pos. Description

1 Workstation

2 Server with configuration applications and the database

3 Access control reader with write module

4 Card – can be used for both systems

5 AMC2 4R4 – access controller

6 Access control reader

7 Dialog reader to read and write cards

8 OLS terminal

With the OLS it is possible to integrate a large quantity
of rooms which are far away or not so security relevant
in the access control system. All data are stored in the
same database and the persons need only one card for
both – the Online- and the Offline-System.
Special reader with write-module (3), which are
usually used for access control in the Online System,
renew data and validity dates on the cards

The Milestone XProtect Plugin download is available in
the Bosch Security Systems online product catalog.

SDK for Cardholder Data

The SDK for Cardholder Data is a reusable kit that can
be used by developers to integrate access control
functionalities into their applications. The SDK is
based on the Access Professional Edition version 3.2
or later. SDK integration of access control on 3rd party
applications enables the following functionalities:

• Read all person and card data.

• Create, update and delete a person.

• Assign and delete card for the specified person.

5 | Access Professional Edition 3.3

• Read all configured entrances.

• Assign authorization of an entrance to a person/
groups.

• Read any entry and existing transaction of a person.

• Read all entries and existing transactions filtered by
time frame.

• Direct control of the access to doors.

Parts included

Access PE ISO image

• Access Professional Edition Software

• Card Personalization Software

• Documentation

The Access PE ISO image download available in the
Bosch Security Systems online product catalog.

Technical specifications

Max. number of active cardholders 10,000

Max. cards per person 3

PIN codes 4 to 8 digits

PIN code types Verification PIN

Identification PIN
Arming PIN
Door PIN

Access modes Card only

PIN only
PIN or card

Card enrollment USB enrollment

devices
AMC connected
readers

Max. number of time profiles 255

Identification cameras per entrance 1

Surveillance cameras per entrance =< 4

Back surveillance per entrance 2

Front surveillance per entrance 2

Alarm and logbook cameras per entrance 1

Offline Locking System (OLS) [selected markets, only]

Max. number of entrances 256

Time models 15

Periods/ time model 4

Special days 10

Ordering information

Access PE - Basic License

1 Client, 16 Readers, 2,000 Cards

Order number ASL-APE3P-BASE

Access PE - Extended License

2 Clients, 64 Readers, 10,000 Cards

Order number ASL-APE3P-BEXT

Access PE - Reader Expansion License

16 additional readers.

Order number ASL-APE3P-RDR

Access PE - Client Expansion License

One additional client

Order number ASL-APE3P-CLI

Access PE - Video Activation License

Enables video with 16 channels

Order number ASL-APE3P-VIDB

Max. number of access authorizations 255

Max. number of area/time authorizations 255

Max. number of access authorizations groups 255

Max. number of readers 512

Max. number of remote workstations 16

Max. number of I/O extension boards per AMC 3

Mapviewer

Max. number of maps 128

Max. number of device per maps 64

Max. map links per map 64

Max. map size 2 MB

Map viewer formats JPEG, BMP, PNG

Video

Max. number of cameras 128

Access PE - Video Expansion License

16 additional channels.

Order number ASL-APE3P-VIDE

Access PE - OLS Activation License

Enables Offline Locking System (OLS) with 16 doors

Order number ASL-APE3P-OLSB

Access PE - OLS Expansion License

One additional door for the Offline Locking System
(OLS).

Order number ASL-APE3P-OLSE

Access PE - Reader Limit up to 512 readers

Extends APE to a maximum number of 512 readers.

Order number ASL-APE3P-RDRL

Access PE - XProtect interface activation

Video management and security management handled
through the Milestone XProtect system, with Entrance
monitoring, Video verification, Mapviewer, and Alarm
management.

Order number ASL-APE3P-XPRO

6 | Access Professional Edition 3.3

Represented by:

North America: Europe, Middle East, Africa: Asia-Pacific: China: Latin America and Caribbean:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
203 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2016 | Data subject to change without notice
22385783307 | en, V1, 14. Apr 2016

Access PE - SDK for cardholder data

Software Development Kit (SDK) to connect APE, for
example, to a Time & Attendance system: to import
cardholder master records, and to export access
control events. The SDK, with its command set, has its
own documentation.

Order number ASL-APE3P-API
