Blomberg DW24100B Installation

Dishwasher

Installation Manual

FOR MODELS (ADA Height)

DW 24100 B
DW 24100 SS
DW 24100 W
DW 25200 BWS
DW 25200 SSWS

DW 25200 WWS
DW 55100 B
DW 55100 FBI
DW 55100 SS

DW 55100 W

USA

Installation Manual For Dishwasher

Models

Cycle Select

Half Load /

Tablet

DW 24100 B
DW 24100 SS
DW 24100 W

Start / Pause

Time Delay

DW 25200 BWS
DW 25200 SSWS
DW 25200 WWS

DW 55100 B
DW 55100 FBI
DW 55100 SS
DW 55100 W

To prevent accidents, which could cause serious injury or death, as well as

machine damage read these instructions before installation and / or use.

Contents

1. IMPORTANT SAFETY INSTRUCTIONS 1

1.1 INSPECT THE DISHWASHER 2

1.2 HOW TO CONTACT US 2

2. TOOLS WHICH MAY BE NEEDED 3

3. MATERIALS WHICH MAY BE NEEDED 3

4. MATERIALS SUPPLIED 4

4.1 PARTS SUPPLIED 4

4.2 MANUAL BAG 4

4.3 DISHWASHER PARTS BAG 1 4

4.4 DISHWASHER PARTS BAG 2 4

4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4

5. DISHWASHER SPECIFICATIONS 5

5.1 TECHNICAL FEATURES 5

6. ENCLOSURE PREPARATION 6

6.1 ELECTRICAL PREPARATION 6

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS 6

6.3 ADJUSTING HEIGHT 6

6.4 INSTALLING THE SIDE TRIM STRIPS 8

6.5 PREPARING THE WATER CONNECTION (A) 9

6.6 DRAIN PREPARATION 10

6.7 STEAM PROTECTION FOIL 11

7. PLACEMENT OF DISHWASHER INTO THE OPENING 12

7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 12

7.2 ELECTRICAL CONNECTION 13

7.3 READJUSTING FOOT LEVELS 14

7.4 ADJUSTING THE MOVABLE TOE KICK 14

7.5 INSTALLING THE OUTER DOOR 16

8. INSTALLER CHECKLIST 21

9. FINAL INSTRUCTIONS 21

10. SELF HELP HINTS 21

INTRODUCTION

Please read this installation manual and
particularly the safety instructions completely
and carefully. They will save you time
and effort and help to ensure optimum
dishwasher performance.

Be sure to observe all listed warnings and
cautions. Look particularly for the icons with
exclamation marks inside. The information
icon also will provide important references.

WARNING

Ý

Notice

WARNING:

Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.

CAUTION:

Indicates a potentially hazardous situation
which, if not avoided, may result in injury.
It may also be used to alert against unsafe
practices.

Notice:

Indicates a potentially hazardous situation
which, if not avoided, may result in damage
to the dishwasher, the table-ware, the
equipment or the environment.

CAUTION

1. IMPORTANT SAFETY
INSTRUCTIONS

In addition to these instructions, the
dishwasher shall be installed:

In accordance with all local codes or, in •
absence of a local code,
In the United States, with the National •
Electric Code,
In Canada, with the Canadian Electric •
Code C22.1-latest edition/Provincial and
Municipal codes and/or local codes.

Notice :

Read these installation instructions
completely before installing and follow them
carefully. Save these installation instructions
and pass them on to any future user.

WARNING

When installing the dishwasher, follow
basic precautions, including the
following:

The dishwasher installation must be •
performed in accordance with this
installation manual. If you did not receive
an installation manual, order it by
calling 1-800-459-9848 or you may also
download it from our web site at

www.blombergappliances.com

The dishwasher could only be converted •
from cord-connected to permanently
connected by an authorized service
representative. (If needed contact your
dealer to schedule an authorized service
agent for conversion with an appropriate
conversion kit)
Installation and repair should be •
performed by a qualified installer.
Work by unqualified persons could be
dangerous and may void the warranty.

Notice :

Installation should be installed by an
insured licensed plumber, contractor or
trained installer. Installation performed
by persons other than this could result in
improper installation and property damage.

Do not operate the appliance if damaged, •
malfunctioning, partially disassembled or
if it has missing or broken parts.
Also follow the safety instructions of the •
user manual.
To reduce the risk of electric shock, fire, •
or injury to persons, the installer must
ensure that the dishwasher is completely
enclosed at the time of installation.
Only connect the dishwasher to the •
power supply when all installation and
plumbing work is complete.
If the dishwasher is installed in a location •
that experiences freezing temperatures
(e.g. in a vacation home, cabin, etc.),
you must drain all the water from the
dishwasher’s interior. Water system
ruptures that occur as a result of freezing
are not covered by warranty.

USA

1

Dishwasher must be secured to adjacent •
cabinetry using the brackets provided.
Failure to do this may cause damage to
property or bodily injury.
Connect to a properly rated, protected •
and sized power supply circuit to avoid
electrical overload. The dishwasher is
designed for an electrical supply of 120 V
(volts), 60 Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded
electrical circuit with a fuse or breakers
rated for 15 amperes. Electrical supply
conductors shall be a minimum of # 16
AWG copper wire rated at 75 °C (167
°F) or higher. These requirements must
be met to prevent injury and machine
damage. Consult a qualified electrician if
in doubt.
Do not use any extension cord or •
portable outlet device to connect the
dishwasher to a power supply.
Ensure that any plastic wrappings, bags, •
small pieces etc. are disposed of safely
and kept out of the reach of children.
Danger of suffocation!
Remove the door to the washing •
compartment when removing an old
dishwasher from service or discarding it.
Ensure that the appliance presents no
danger to children while being stored for
disposal.
Old appliances may contain materials •
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.

Replacement - If the dishwasher is •
replacing another dishwasher, check
the existing dishwasher connections for
compatibility with the new dishwasher,
and replace parts as necessary.

1.1 INSPECT THE DISHWASHER

After unpacking the dishwasher and prior
to installation, thoroughly inspect the
dishwasher for possible freight or cosmetic
damage. Report any damage immediately.

Notice :

Cosmetic defects must be reported within •
10 days of installation.
Do not discard any bags or items that •
come with the original package until
after the entire installation has been
completed.

1.2 HOW TO CONTACT US :

You may either call our Toll Free Number at
1-800-459-9848 or contact us via the web
site at

www.blombergappliances.com

or Contact the Blomberg Distributor for
your State or Province as listed on the
Distributor Contact List provided.

Notice :

The dishwasher drain hose must be •
installed with a drain loop at least 28”
(710mm) off the cabinet floor; otherwise
the dishwasher may not drain properly.
This dishwasher is intended for •
residential use only, and should not be
used in commercial establishments.
New installation - If the dishwasher is a •
new installation, most of the work must
be done before the dishwasher is moved
into place.

USA

2

2. TOOLS WHICH MAY BE NEEDED

3. MATERIALS WHICH MAY BE NEEDED

(Additional materials may be required to comply with local codes)

Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided
dishwasher supply line.

90° elbow with 3/8” N.P.T. male threads on one leg, and sized to fit your
water supply line (copper tubing/compression fitting, or braided hose) on
the other leg.

UL listed conduit connector or strain relief.

Teflon tape or other pipe thread compound to seal plumbing connections.

Shut-off valve and fittings appropriate for hot water supply line (copper
tubing/compression fitting, or braided hose).

Silicone

Glue

USA

3

4. MATERIALS SUPPLIED

4.1 PARTS SUPPLIED

Parts for your dishwasher will come in several plastic bags.

a.

b.

c.

d.

e.

x1

Check your parts bags shown to make sure you have all the

x1

parts as listed to the left.

x1

4.2 MANUAL BAG

The dishwasher comes with a manual bag containing:

x6

User manual, •
Installation manual and•

x1

Quick reference guide.•

f.

4.3 DISHWASHER PARTS BAG 1

x1

This dishwasher bag comes with the following parts:

g.

a. Side Trim Strips (Left)

x1

b. Side Trim Strips (Right)

h.

j.

c. Adjusting Wrench

x1

d. Screws Ø
e. Mounting Bracket Left

x1

f. Mounting Bracket Right

1

5

/

/

” x

” (Ø 3.5mm x 14mm)

8

8

g. Spring Clamp

k.

x1

h. Screw Clamp
j. Rubber Connector
k. Toe Kick Bracket - Left

l.

x1

l. Toe Kick Bracket – Right
m. Edge Protector

m.

x1

n. Long Legs
o. Toe Kick (toe kick without slots)

n.

o.

p.

r.

s.

t.

p. Toe Kick

x4

r. Toe Kick
s. Plastic Caps
t. Screws Ø

x1

z. Steam Protection Foil

x1

4.4 DISHWASHER PARTS BAG 2

In addition to the manual bag and the dishwasher parts bag

x1

1 DW 55, (dishwasher models which can accept a wooden

3

1

/

/

” x

16

” (Ø 4mm x 6mm)

4

kitchen door) also come with a door panel installation kit which

x2

x2

contains:

v. Screws Ø
y. Screws Ø

1

5

/

/

” x

” (Ø 3.5mm x 14mm)

8

3

8

16

3

/

” x 1

” (Ø 4mm x 43mm)

4

/

4.5 PARTS ATTACHED TO THE REAR OF THE

x4

v.

y.

z.

DISHWASHER

a. Side Trim Strips (Left)
b. Side Trim Strips (Right)

x4

o. Toe Kick (toe kick without slots)
p. Toe Kick

x1

r. Toe Kick

USA

4

5. DISHWASHER SPECIFICATIONS

23

9

/

16

(598mm)



4

/

1





4

/

1

- 36


2

/

1

32

(825mm - 920mm)

24

(610mm)

-36

4

/

1

32

(819mm - 920mm)

24 max

(610mm max)

5.1 TECHNICAL FEATURES

Load capacity 12 place settings
Permissible water
pressure

Electrical connection

Total power 1400 W (watts)

4.35 - 145 psi (0.3 - 10 bars)

120 V (volts), 12 A (amps),
60 Hz (hertz)

24

(610mm)

max

500mm

Heater power 1240 W (watts)

Notice :

Because we continually strive to improve our products, we may change our specifications
and design without prior notice. This device corresponds to the following directives:
UL 749 Household Dishwasher directive.

USA

5

6. ENCLOSURE PREPARATION

B

6.1 ELECTRICAL PREPARATION
WARNING

The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected to a
dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated
for 15 amperes.

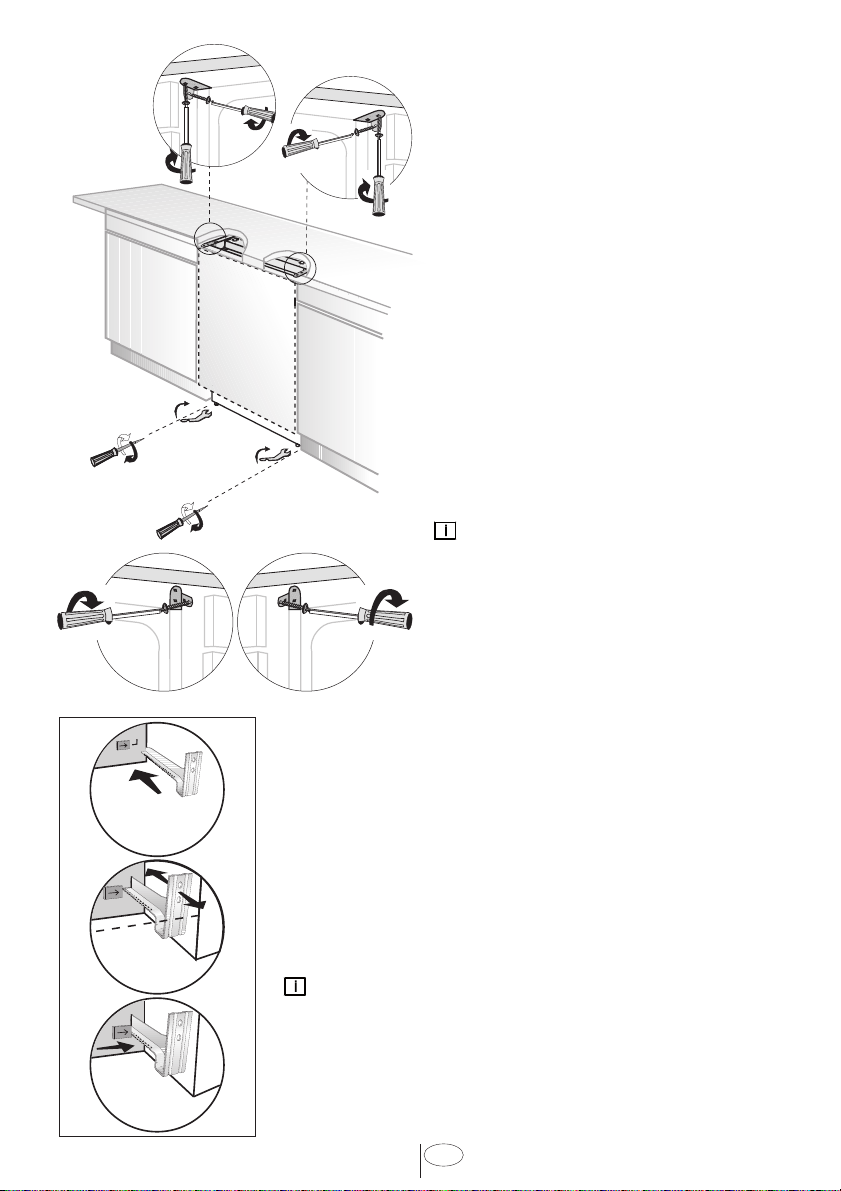

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS

WARNING

Dishwasher must be secured to adjacent

A

B

cabinetry using the mounting brackets
provided. Failure to do this may cause
damage to property or bodily injury.

A

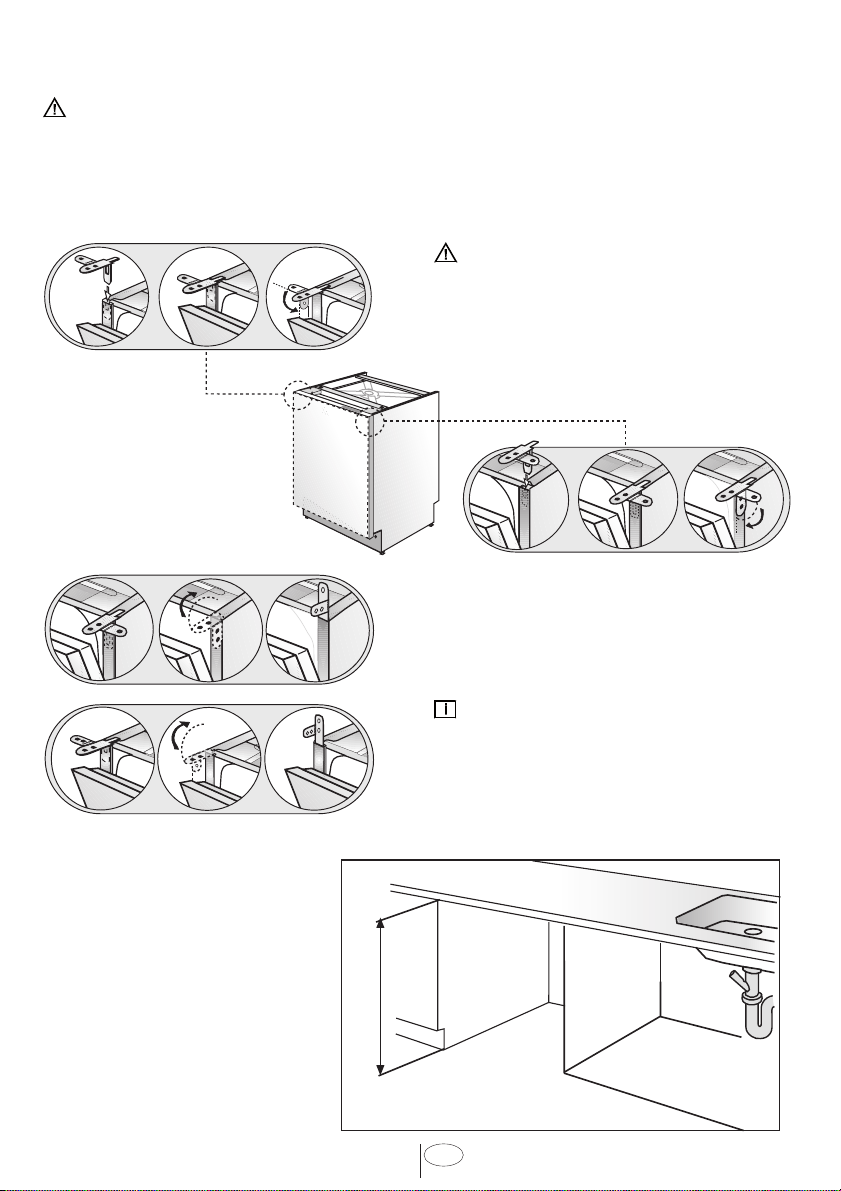

Place the two mounting brackets into the
top corners of the dishwasher.

Bend sides of mounting brackets (A) in
order to fix from sides (if necessary).

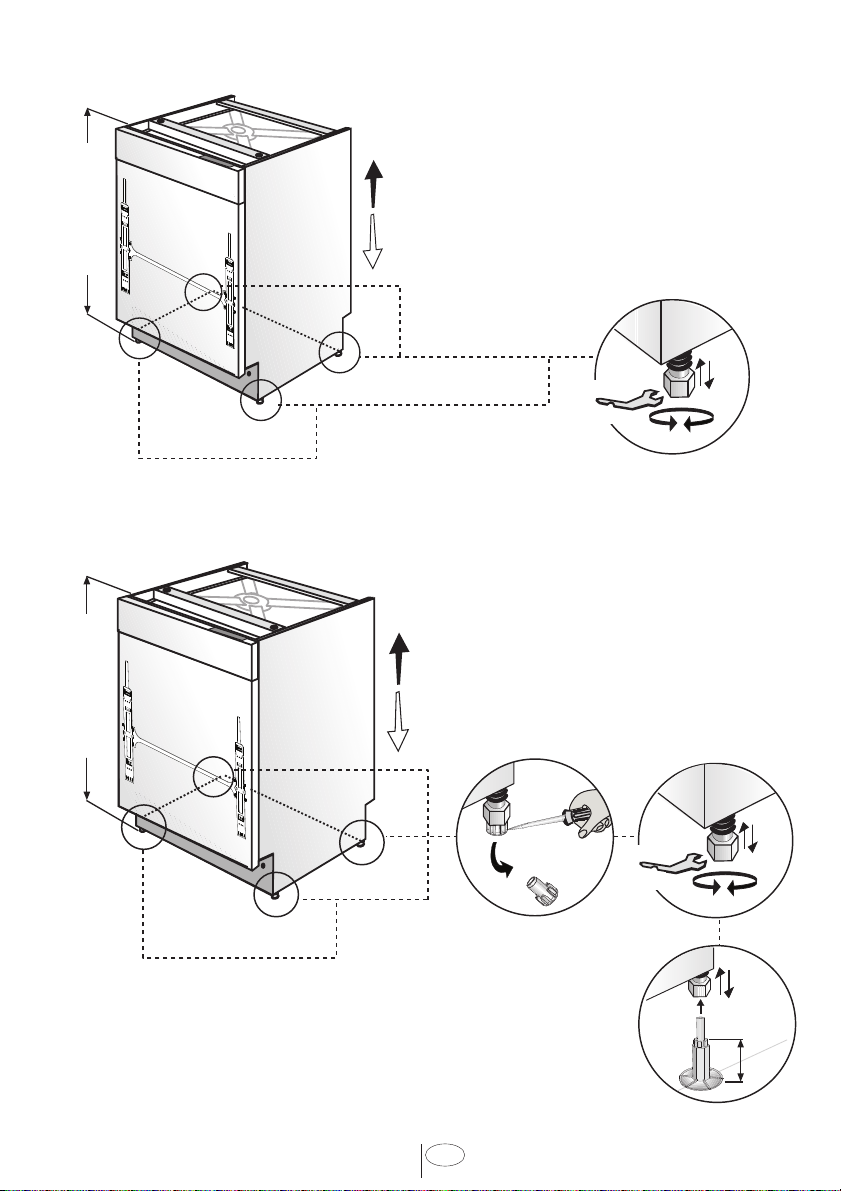

6.3 ADJUSTING HEIGHT

Measure the height of the
enclosure.

?

Notice :

For thes model, DW 55100 FBI • note that
extra bending should be done on the
brackets as shown.

USA

6

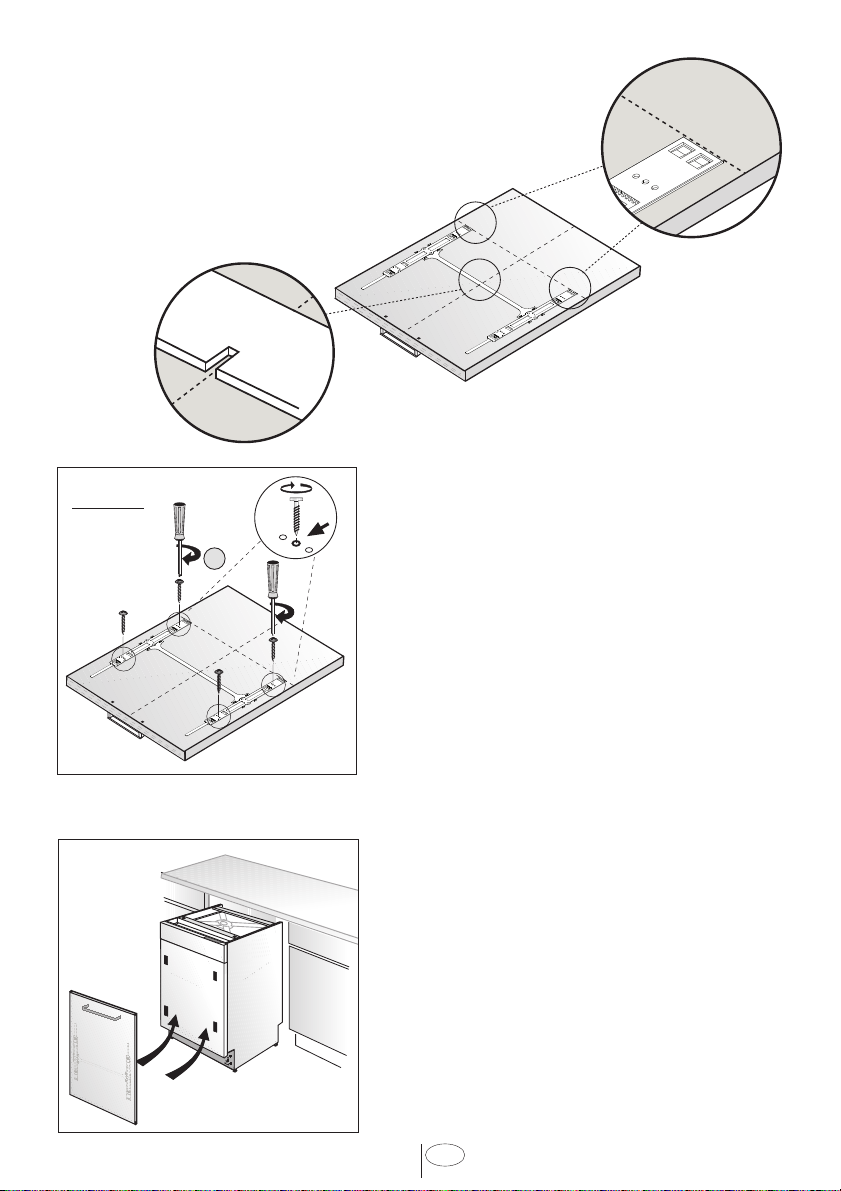

6.3.1 INSTALLING THE FOOT SUPPORTS



4

/

1

 - 34

4

/

1

32

(819mm - 870mm)



4

/

1

Supplied (4)

If the height of the enclosure is 33

1

/

34

” (850mm - 870mm) use short supports

4

as shown in the figure.

15

/

1



16

(50mm)

7

/

” to

16

 - 36

4

/

1

32

(819mm - 920mm)

If the height of the enclosure is above

1

34

/

” (870mm) use long supports as

4

shown in the figure.

15

/

1



16

(50mm)

15

/

1



16

(50mm)

Supplied (4)

15

/

1



16

(50mm)

USA

7

T20

Adjust the front foot level with the adjusting
wrench to balance and raise the dishwasher to
the enclosure height.

Adjust the rear foot level with a screwdriver
to balance and raise the dishwasher to the
enclosure height.

Notice :

Make sure the dishwasher is plumb and •
notice dishwasher can be placed with a small
clearance under the counter top.
Turning the screwdriver in the direction of the •
black arrows will bring the dishwasher back
feet up.
Turning the screwdriver in the direction of the •
white arrows will take the dishwasher rear
feet down.

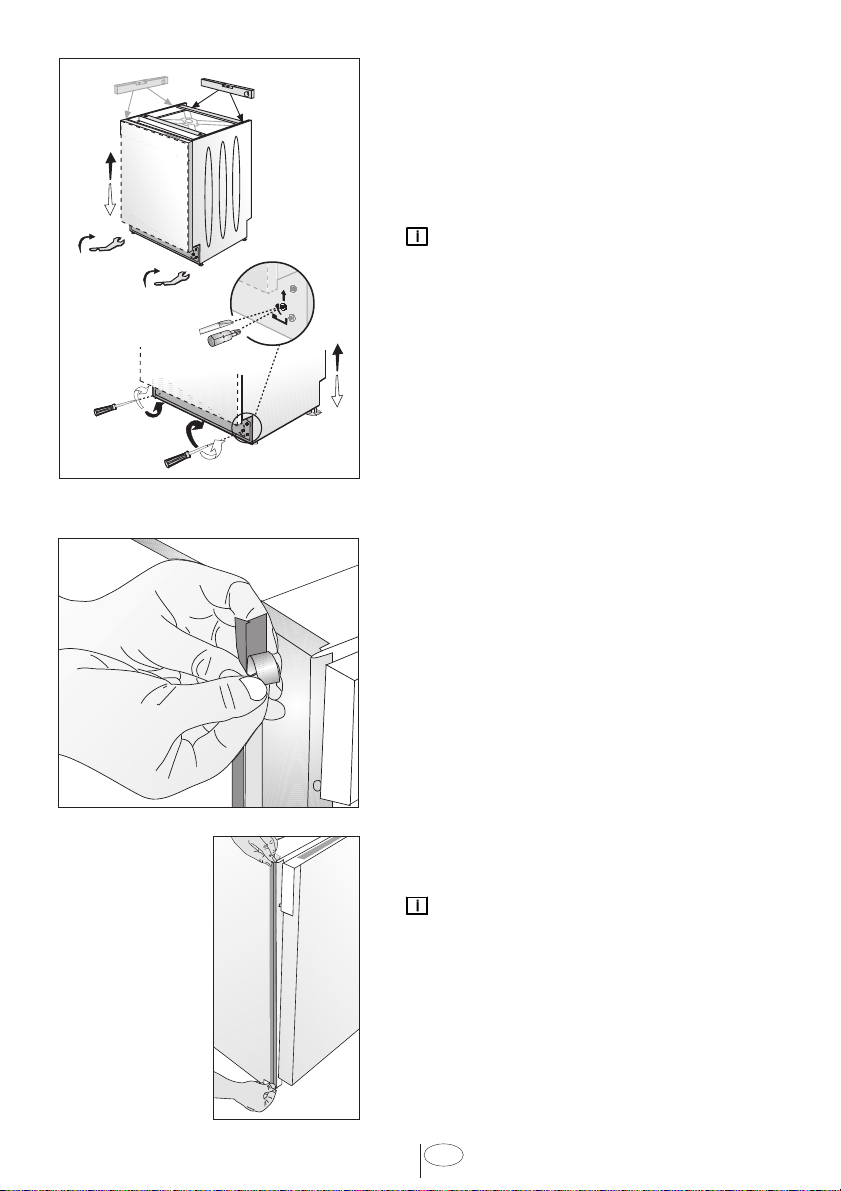

6.4 INSTALLING THE SIDE TRIM
STRIPS

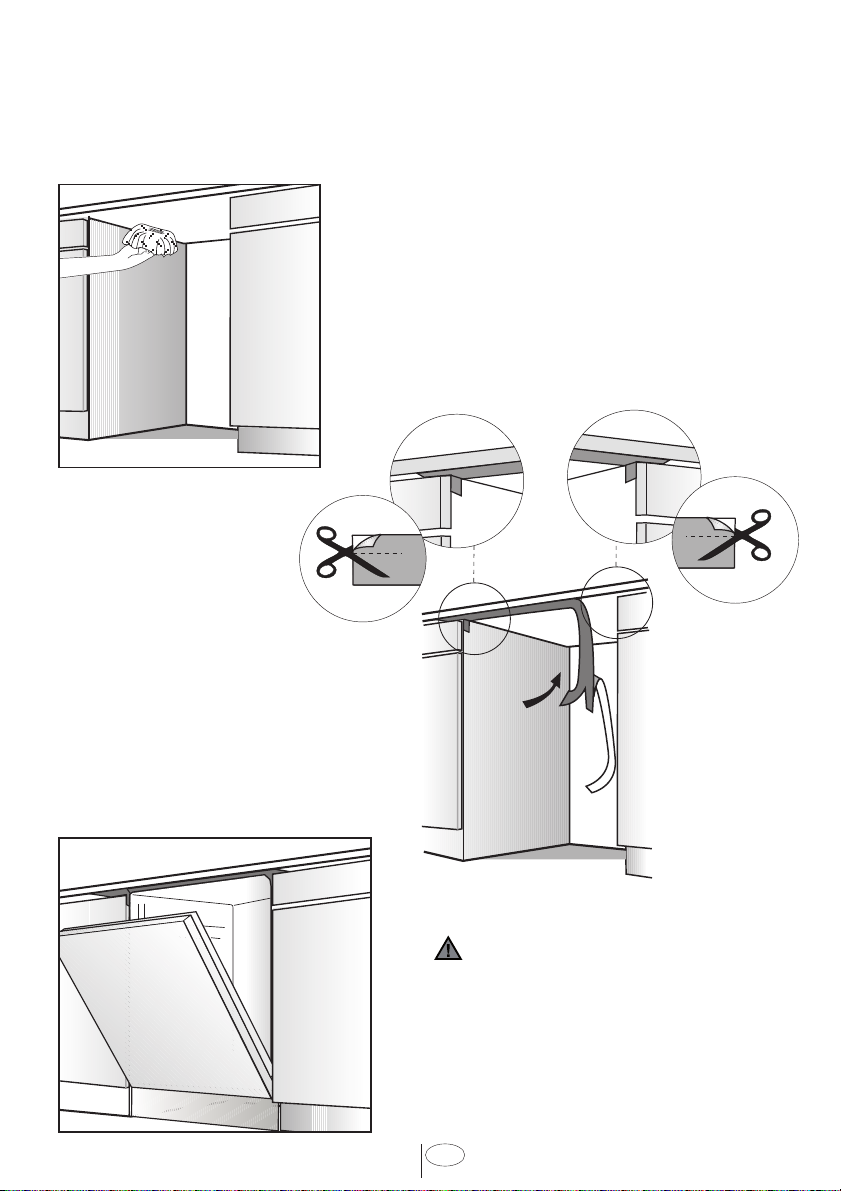

1. Remove the adhesive tape (Figure A).

A

B

Place the trim strips on the front edge of the
side walls (Figure B).

Notice :

Make sure you use the correct trim strip •
since there is a left and right side strip. The
flexible material should be facing forward
(Figure B).

USA

8

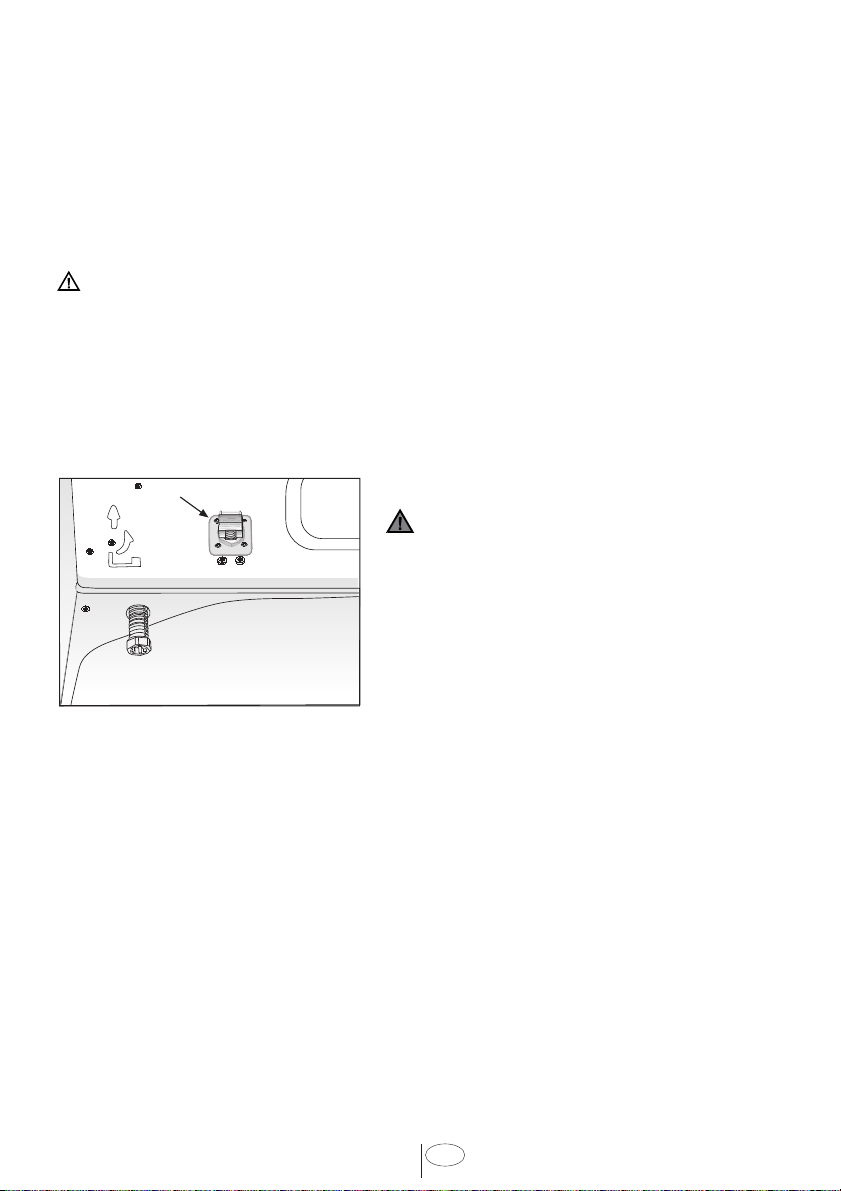

6.5 PREPARING THE WATER CONNECTION (A)

Install an easily accessible shut-off valve (not supplied) in the water supply line. All solder
connections must be made before the water line is connected to the dishwasher’s water
inlet valve. Water can also be supplied to the dishwasher by using a flexible braided hose
line.

Check with your plumbing supply sources for the proper hose and 90° elbow and
necessary fittings for the water supply line. This material is not supplied, and must be
purchased separately.

WARNING

Installation should be performed by a qualified installer. Work by unqualified
persons could be dangerous and may void the warranty.

If the dishwasher is installed in a location that experiences freezing temperatures
(e.g. in a vacation home, cabin etc.), you must drain all the water from the
dishwasher’s interior. Water system ruptures that occur as a result of freezing are
not covered by warranty.

B

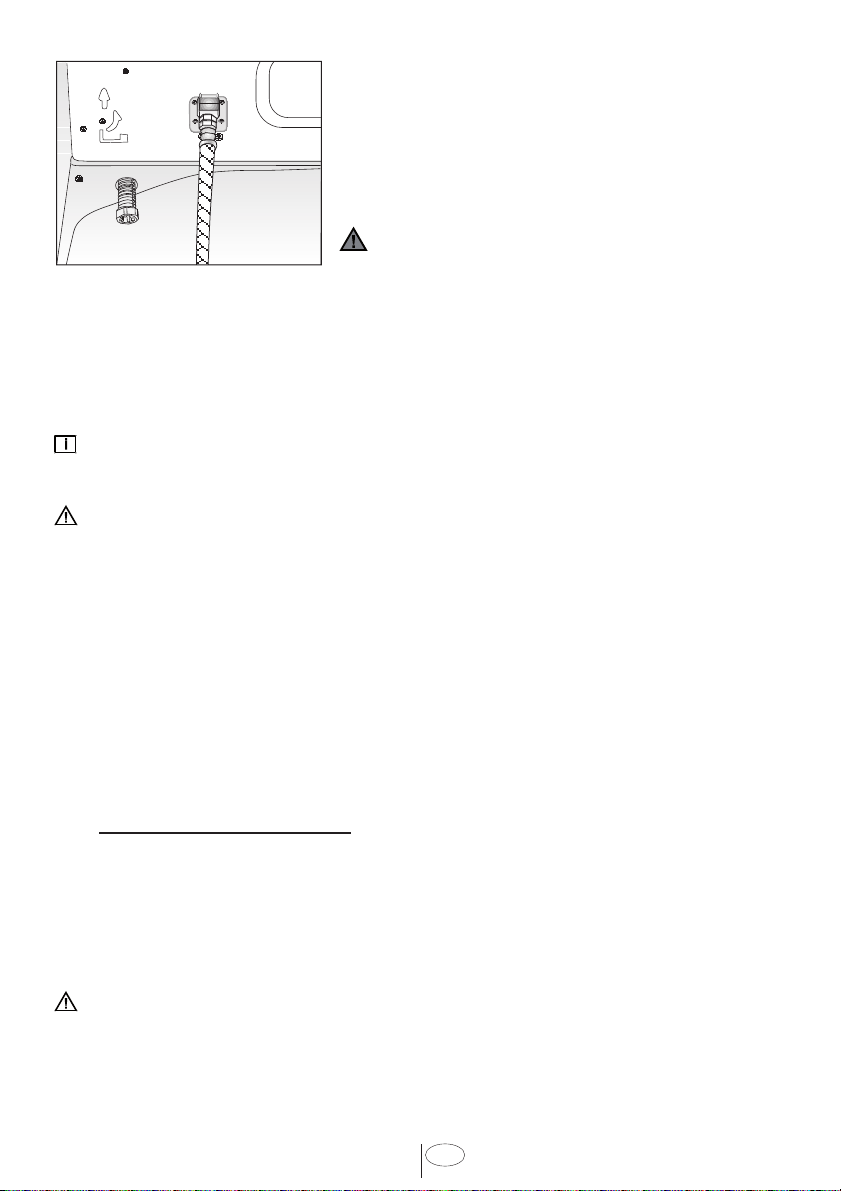

6.5.1 INSTALLING THE 90° ELBOW FITTING (B)

CAUTION

Do not over tighten the 90° elbow. Doing so
may damage the water inlet valve and cause a
water leak.

If the water supply line is to be copper tubing,
make certain that the elbow has a compression
fitting. Apply Teflon tape or other pipe sealant

A

when required. Orient the water supply connection
downwards as shown in the figure so the water line
can be easily pulled underneath or on the side of
the dishwasher.

USA

9

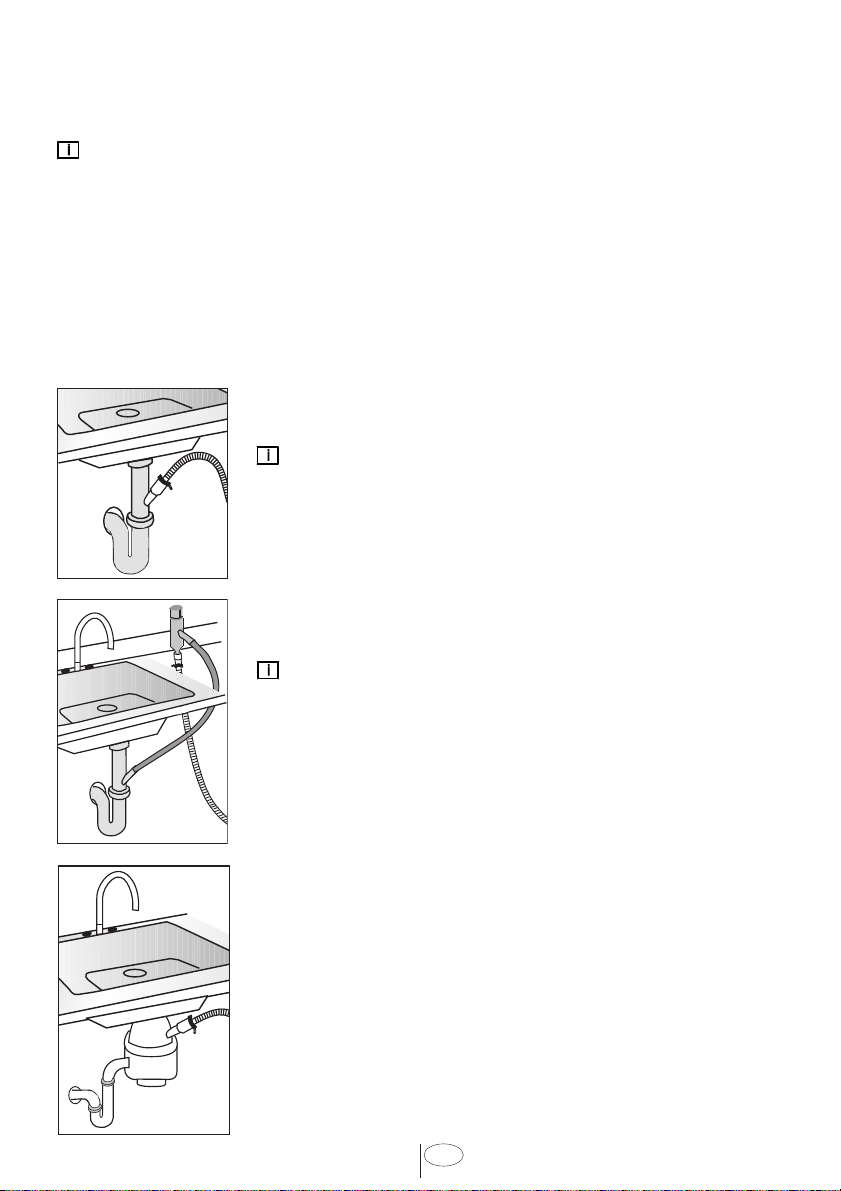

6.6 DRAIN PREPARATION

The dishwasher drain hose may be connected to the drain plumbing in one of three ways
(Figure A, B, C).

Notice :

Either one of the above methods must be used or the dishwasher will not operate •
properly.
A hose that attaches to a sink spray can burst if it is installed on the same water line as •
the dishwasher. If your sink has one, it is recommended that the hose be disconnected
and the hole plugged.
The total length of the drain hose is 76•
drainage hose of equal quality must be used.
The maximum length must not exceed 157 ½” (4000mm). Otherwise, the cleaning •
process is negatively influenced.

6.6.1 UNDER THE SINK DRAIN

Install a Y-branch tail pipe. (Figure A)

3

/

” (1950mm). If a hose extension is required, a

4

Notice :

You must add a loop at least 28” (710mm) above the floor of •
the cabinet and above the drain connection in the drain hose
to prevent waste water from not draining properly, and causing
either poor washing results or a bad odor.

A

6.6.2 INSTALLING AN AIR GAP
If the local ordinance requires an air gap (Figure B).

B

Notice :

Check with local ordinance for type of air gap required.•

6.6.3 DISPOSAL

Remove the drain connection plug before attaching the drain
hose from the dishwasher.

Every disposal has a hook up for a dishwasher; consult your
disposer manual for correct connection. (Figure C)

C

USA

10

6.7 STEAM PROTECTION FOIL

Steam will form inside the dishwasher during operation. At the end of the cycle, when the
dishwasher door is opened, it is required to use a steam protection foil to prevent any
steam from collecting on the underside of the counter top.

6.6.2 FITTING THE PROTECTION FOIL

Before applying the steam protection foil to the
underside of the countertop, clean the area with
a damp cloth (as shown in Figure A). Once the
area dries, apply the steam protection foil.

A

The steam protection
foil will be applied at the
location where the hot
steam escapes when you
first open the door (as
shown in Figure B).

B

CAUTION

Steam protection foil must be applied
where the steam escapes when door is
first opened. Failure to install the steam

protection foil during installation can
lead to damage to the cabinets and
countertop.

USA

11

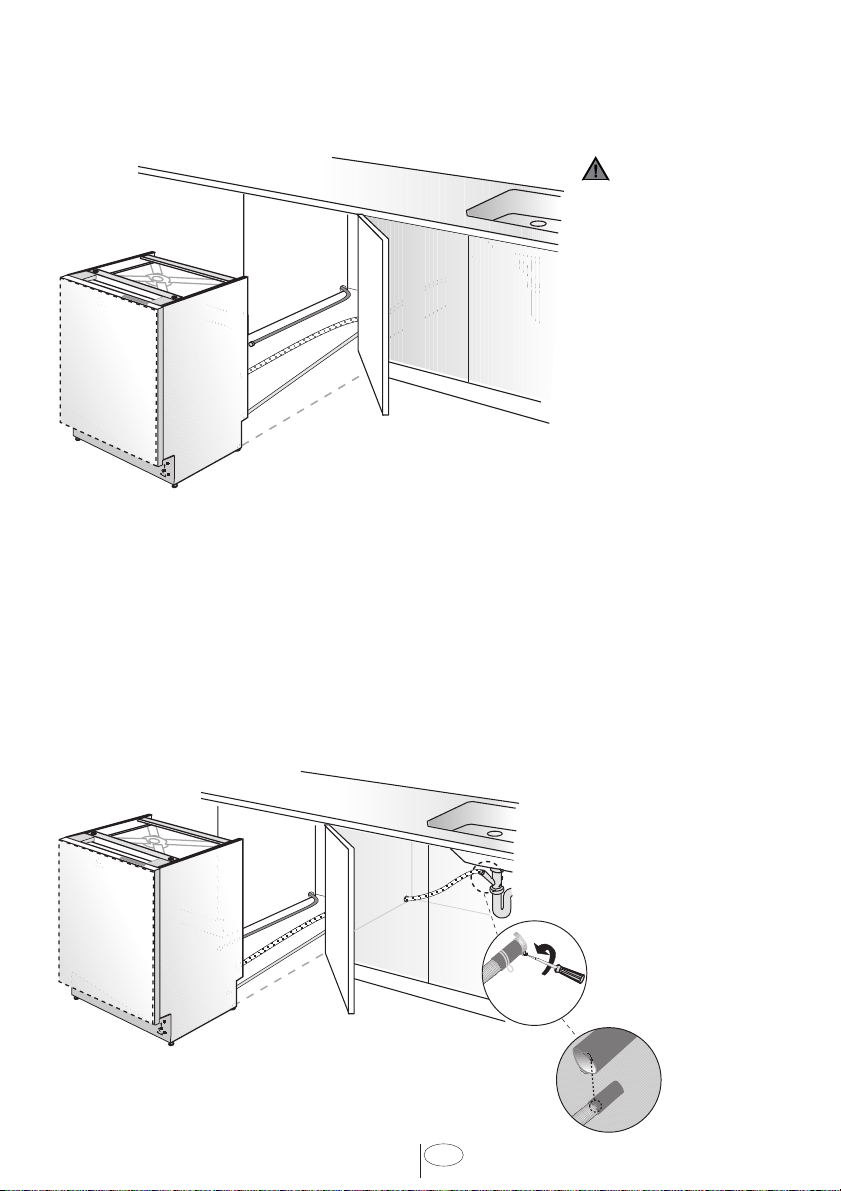

7. PLACEMENT OF DISHWASHER INTO THE OPENING

Now place the dishwasher into the opening and get ready to connect all hoses and
electrical connections.

CAUTION

Make sure all hoses
are pulled through the
side opening of the
cabinet, no hoses are
kinked and all slack is
taken out as shown in
the above figure.

7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS

7.1.1 DRAIN HOSE CONNECTION

Connect the drain hose to the drain plumbing.

1. Use the supplied rubber connection hose and drain hose clamps to connect the
dishwasher drain hose to the plumbing drain connection.

2. Use the spring clamp to secure the rubber connection hose to the dishwasher drain
hose. Use the screw clamp to secure the rubber connection hose to the plumbing drain
connection.

12

Note that the marks on the
rubber connection hose
should be on the drain hose
side

USA

7.1.2 WATER SUPPLY CONNECTION

Water supply may be connected to the dishwasher in
one of two ways:

With metal braided hose.•
With copper tubing.•

7.1.3 BRAIDED HOSE/COPPER TUBING

After connections are made turn on the water supply to
check for leaks.

CAUTION

Hot water supply line: Use minimum 3/8” O.D. copper •

tubing or metal braided dishwasher supply line.
Temperatures required for soldering and sweating will damage the dishwasher’s water •
inlet valve so if any such operation is needed, keep the heat source min. 7
away from the dishwasher’s water inlet valve.
There should not be any sharp bends in the water line that may restrict the water flow.•
Teflon tape or pipe tread compound must be used for sealing the connection. Before •
connecting the copper water supply line to the dishwasher, flush it with hot water to clear
any foreign material.

7

/

” (200mm)

8

Notice :

After connections are made turn on the water supply to check for leaks.

7.2 ELECTRICAL CONNECTION
WARNING

Make sure the voltage and frequency listed on the data plate correspond with •
the household electrical supply. This data must correspond to prevent injury and
machine damage. Consult a qualified electrician if in doubt.
Only connect the dishwasher to the mains when all installation and plumbing work •
is complete.
Do not use any extension cord or portable outlet device to connect the dishwasher •
to a power supply.
The power-supply receptacle for the appliance shall be installed in a cabinet or on •
a wall adjacent to the undercounter space in which the appliance is to be installed.
The access hole of the supply cord to the installation compartment must be •
smooth and rounded and it must be large enough for the attachment plug to pass
through. The longest dimension of the opening shall not be more than 1,5” (38
mm).If the partition is metal, it needs to be covered with the edge protector (m).
Care must be taken when the appliance is installed or removed, to reduce the •
likelihood of damage to the power-supply cord.

7.2.1 GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path of least resistance for electric
current. This appliance is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances. This appliance must be
connected to a grounded metal, permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and connected to the equipment­grounding terminal or lead on the appliance.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of •
electric shock. Check with a qualified electrician or service representative if you
are in doubt whether the appliance is properly grounded. Do not modify the plug
provided with the appliance, if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.

USA

13

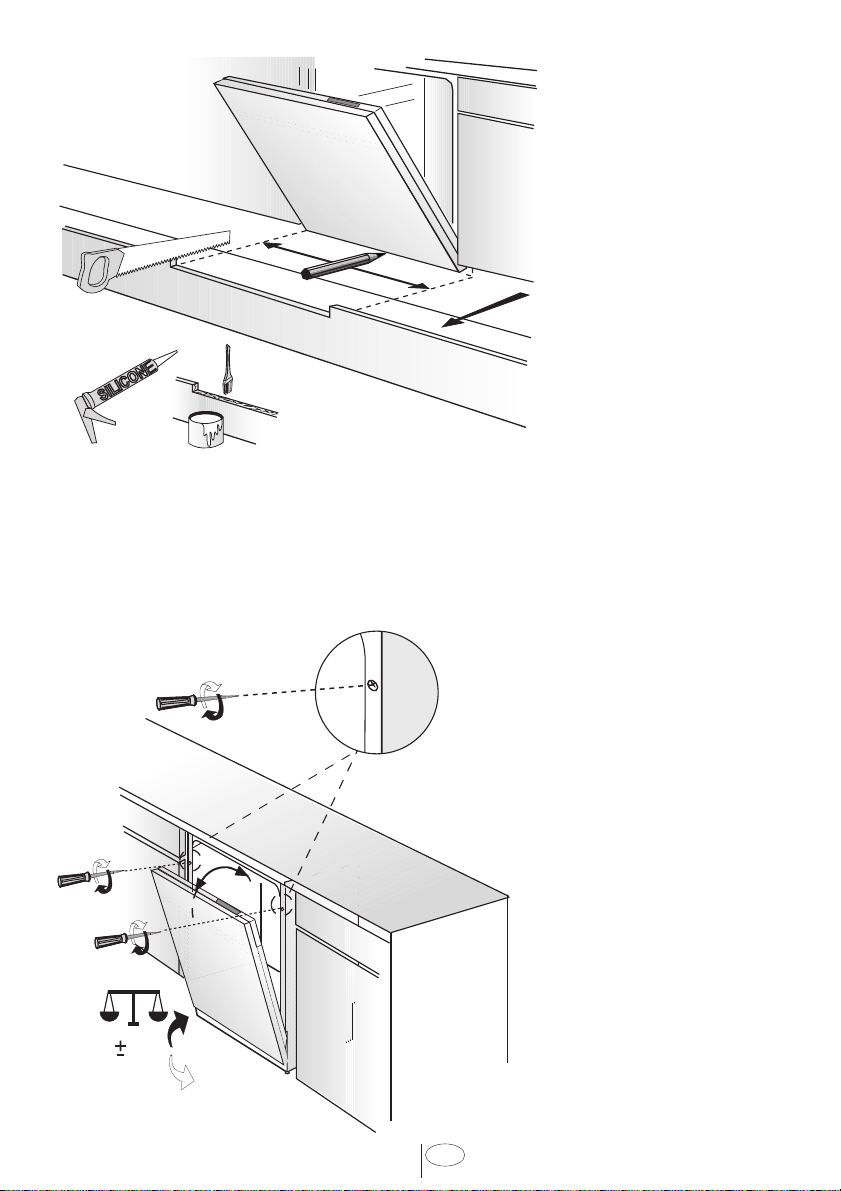

7.3 READJUSTING FOOT LEVELS

Now that the dishwasher is in the cabinet
you must readjust the feet to bring the
dishwasher up to the required height and
attach it underneath the countertop.

1. Readjust the front foot levels with adjusting
wrench to balance the dishwasher and raise
it up under the countertop, make sure the
unit is level.

2. Readjust the rear foot levels with a
screwdriver to balance the dishwasher and
raise it to the required height using the
brackets supplied.

3. Attach the dishwasher underneath the
countertop with the four screws supplied

1

(Ø

1

/

/

” x

” - Ø 3.5mm x 14mm). Make

8

8

sure you do not go through the top of the
countertop or damage granite.

Notice :

For model, DW 55100 FBI, • note that
you should keep the total height of the
dishwasher at 32

1

/

Ø

"

(3,5mm)

8

1

/

Ø

"

(3,5mm)

8

1/4

” (819mm) max.

A

C

B

7.4 ADJUSTING THE MOVABLE TOE KICK

Now that you have successfully installed the dishwasher, you
need to attach the toe kick to the dishwasher. The two piece
toe kick can be adjusted to the height and depth needed for
your kitchen. Be sure to use the slotted toe kick in the front
and the other behind it. They slide into each other.

1. Insert the movable toe kick brackets into the channel (A).

2. Make sure that the plastic tab to the left of the “L” opening
on the dishwasher has not closed the channel you will push
the bracket through.

Notice :

Be sure to notice there is a left and a right bracket.
Adjust the toe kick brackets forward or backwards so that they
will align with the kitchen toe kick (B).

USA

14

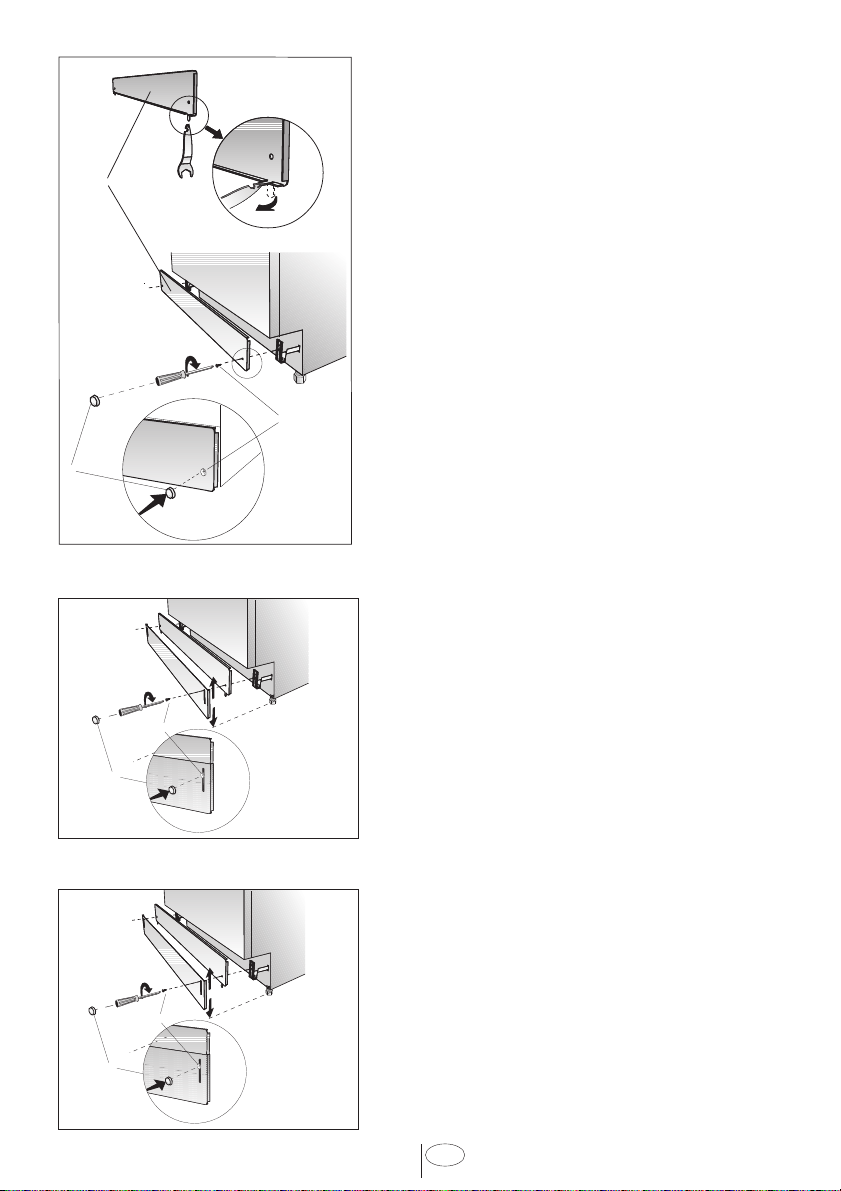

Lock the toe kick brackets as shown with the plastic
tab in the figure C by pushing the plastic tab on the

A

dishwasher into the teeth of the bracket (C).

3. Now attach the toe kick to the bracket with the
3

o

two (Ø
the caps provided as follows.

If the enclosure height is below 33

1

/

/

” x

16

” - Ø 4mm x 6mm) screws and

4

1

/

” (840mm)

16

use only “o” labelled toe kick (toe kick without slots).
Installation should be done following the steps

B

illustrated in the Figures A, B and C respectively.

1. Bend tabs on toe kick (o) inwards (A).

2. Secure toe kick to brackets with screws (t) as

shown in the supply bags (B).

3. Attach caps (s) as shown in the supply bags (C).

t

s

C

A

o

p

If the enclosure height is above 33
use “o” and “p” labelled toe kicks together. Make
sure the slotted toe kick “p” is on the outside so you
can adjust height of the toe kick. Installation should

1

/

” (840mm)

16

be done following the steps illustrated in the figures

t

B

A, B and C respectively.

1. Align the toe kick (o) and (p) (A).

2. Secure toe kicks to brackets with screws (t) after

s

C

adjusting the height of the slotted toe kick (p) (B).

3. Attach caps (s) as shown in the supply bags (C).

A

o

r

If the enclosure height is above 34
“o” and “r” labelled toe kicks together. Make sure
the slotted toe kick “r” is on the outside so you can
adjust height of the toe kick. Installation should be

1

/

” (870mm) use

4

done following the steps illustrated in the figures A,

t

B

B and C respectively.

1. Align the toe kick (o) and (r) (A).

2. Secure toe kicks to brackets with screws (r) after

s

C

adjusting the height of the slotted toe kick (t) (B).

3. Attach caps (s) as shown in the supply bags (C).

USA

15

?

?

A

2. Remove the plastic mounting brackets
from the dishwasher (Figure B).

7.5 INSTALLING THE OUTER DOOR
(DW 55100 FBI)

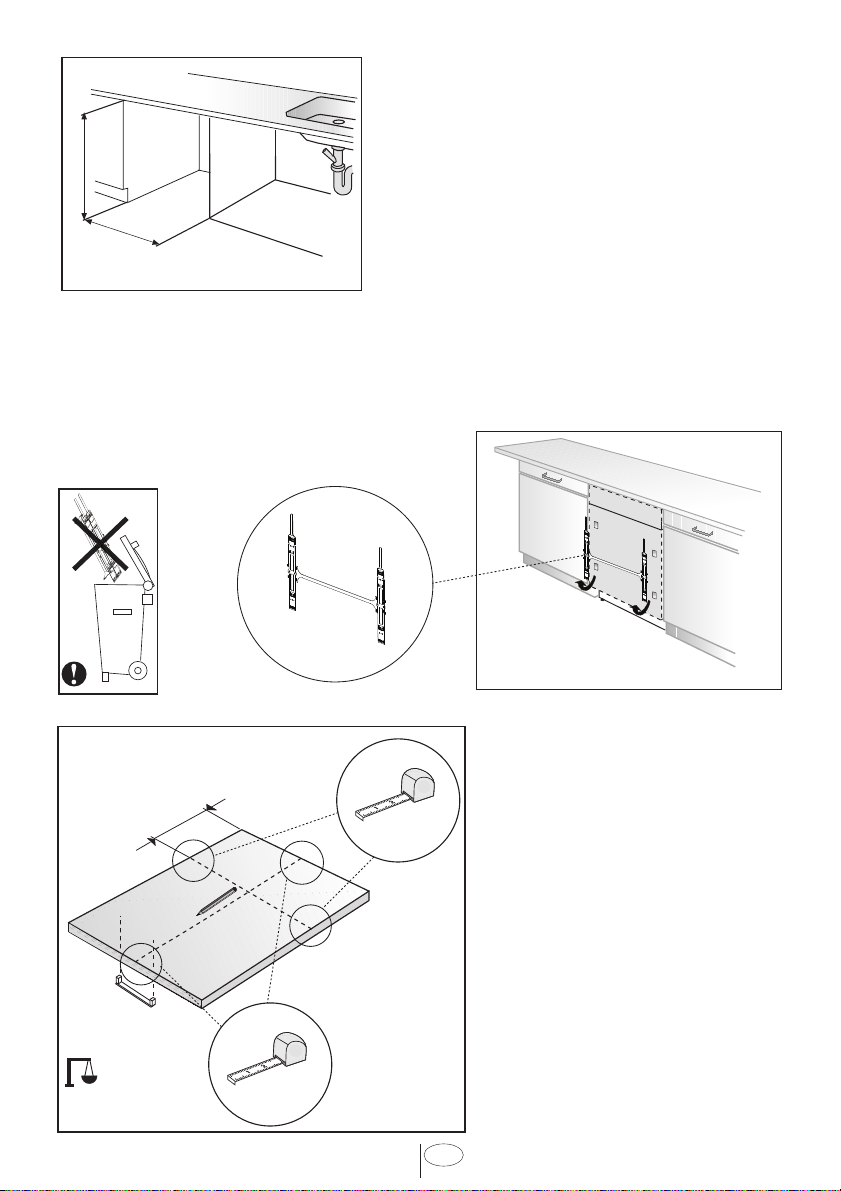

Measure the height and width of the enclosure
(Figure A) and the toe kick. Determine how big
the wooden door can be. For example if the height

7

is 33

/

” (860mm) and if the toe kick is 3

8

(100mm) the door can not be taller than 29
(760mm).

1. Prepare the wooden door with the mounting
brackets.
Height : Height of the wooden door 28” (711mm)
Width : 23 ¼” to 23 ½” (592mm - 595mm)
Thickness : ¾ “ (19mm)

15

/

15

16

”

/

”

16

Max : 12,1 lb

(5,5 kg)



/

10

1

6
(155mm)

Mid. Point

155mm

16

B

3. Mark the wooden door as shown in
the drawing (Figure C).

C

USA

4. Place the plastic mounting brackets over the
marked holes and the side tabs must be flush with
the edge of the wooden door (Figure D).

D

D

5. Attach the two mounting brackets to the

1

1

/

Ø

"

(3,5mm)

8

x4

wooden door with 4 screws (Ø

5

/

/

” x

” (Ø

8

8

3.5mm x 14mm) (Figure A).

v

A

6. Mount the wooden door onto the dishwasher

with the plastic mounting brackets which you have
attached (Figure B).

B

17

USA

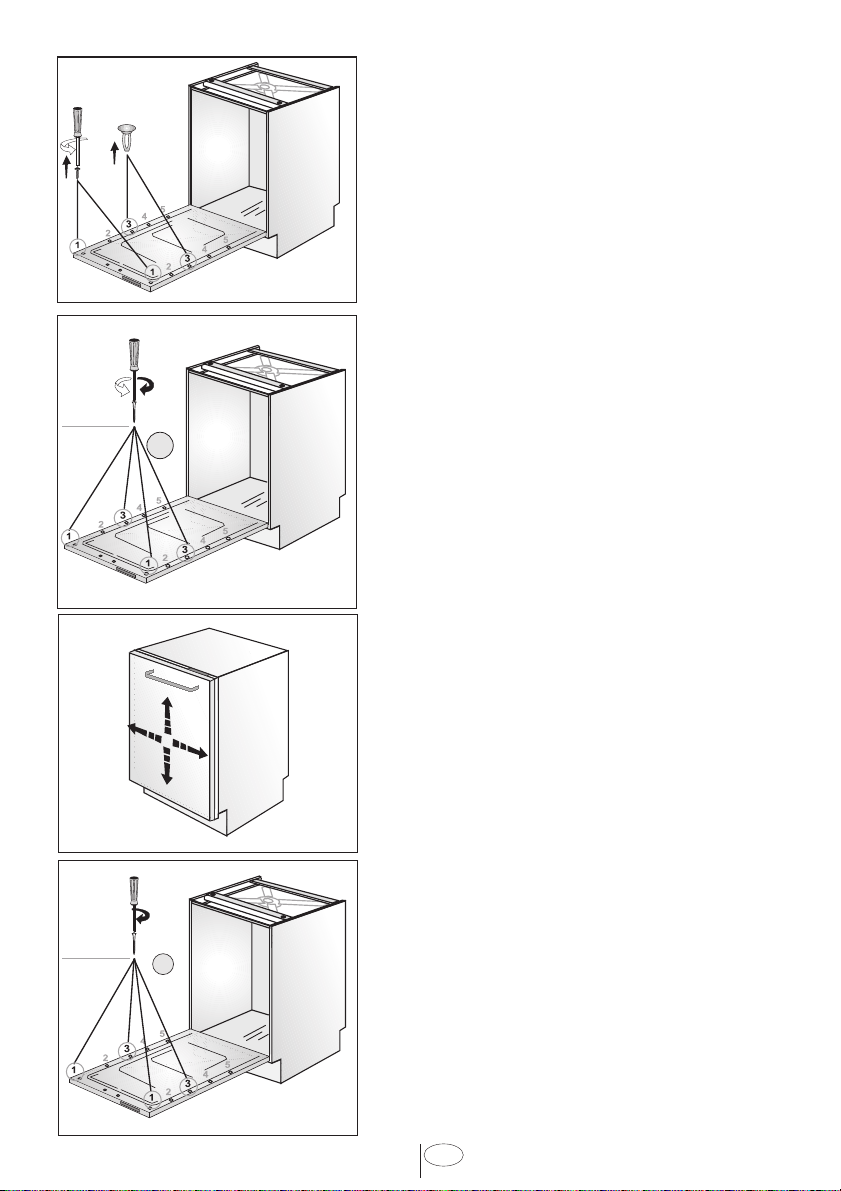

7. Open the door and remove the two caps and
two screws inside the door at position 1 and 3
(Figure C).

C

3

8. Using the four screws Ø
4mm x 43mm) provided, attach the wooden door
to the dishwasher at position 1 and 3 (Figure A).

/

” x 1

16

11

/

” (Ø

16

Ø 3/16" (4mm)

Ø 3/16" (4mm)

x4

y

A

9. Check the position of the wooden door and
make sure it is aligned properly (Figure B).

B

10. Tighten the screws in position 1 and 3
completely after the final alignment (Figure C).

x4

y

C

18

USA

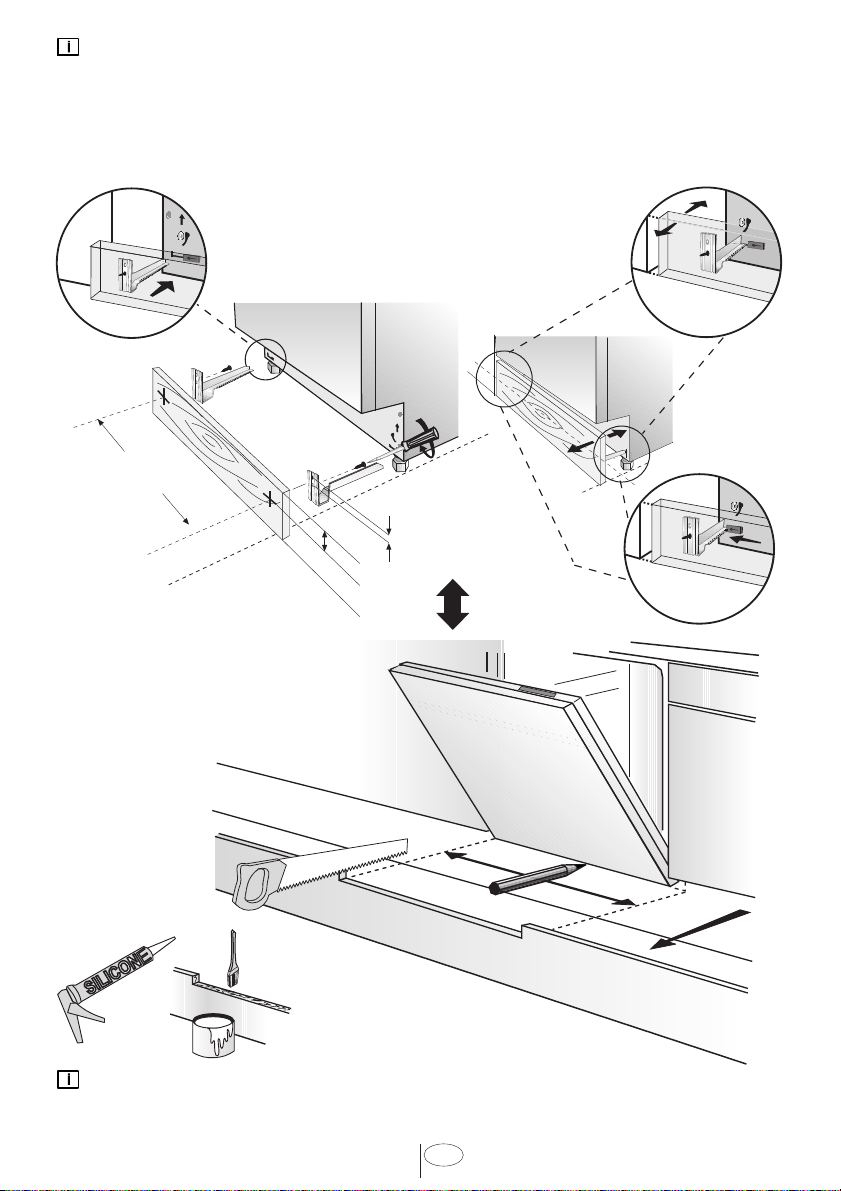

11. Check whether the bottom
of the door hits the toe kick of
the kitchen cabinet (A).

11.1. If the door hits the toe
kick cut the necessary section

A

B

out of the toe kick (B).

11.2. Apply silicon or sealant
to the cut edge of the kitchen
cabinet toe kick or paint so it
does not absorb moisture.

ADJUSTING DOOR TENSION WITH CUSTOM WOODEN DOOR
(DW 55100 FBI)

Check the door tension of the
dishwasher: If the door closes too
quickly or if the door falls open, the
spring tension needs to be adjusted.

C

The adjustment screws can be found
on the front of the dishwasher after you
open the door (see drawing).

0 kg

19

Adjust the spring tension by
turning the screw to the right for
more weight and to the left for less
weight (Figure C).

USA

Notice :

If you have a European kitchen or want to install a wooden toe kick to match your kitchen,
please refer to one of the two drawings given below. Follow the same instructions on the
brackets as for the removable toe kick.

Installation should be done following the steps illustrated in the figures A, B, C, D respectively.

B

d

1

Ø

21

(544mm)

7
/

16



See also page 19

/

"

(3,5mm)

8

A

See also page 14

3

9
/

16

40mm

/8 (10mm)

1

C

D

A

B

C

Notice :

The installer is responsible for the dishwasher installation. Incorrect installation is not
covered by the warranty.

USA

20

8. INSTALLER CHECKLIST

Your installer must have completed and
checked the following:

The dishwasher is square and level.•
The dishwasher is fastened securely to the •
cabinetry.
The dishwasher door opens and closes •
freely. The dishwasher door must close
without hitting any cabinetry or counter top.
The inlet water supply is turned on and •
checked for leaks.
The drain hose has been connected and •
checked for leaks. There must be no kinks
or obstructions in the drain hose.
The drain hose must be installed with a 28" •
(710mm) high drain loop for drain hook-ups
without any air removed.
If the dishwasher drain is hooked up to a •
garbage disposal, the drain hopper plug
must be removed.
The spray arms are free and rotate freely.•
The rinse cycle has been run.•
The water level will be below the filter •
screen after the end of the wash program.
It is normal to find some water in the drain
filter area.
Set the water softener to the correct water •
hardness for your area. If the dishwasher
drain is connected to a garbage disposal,
make sure that the drain/hopper plug has
been removed.

10. SELF HELP HINTS:

The screen does not come on:

Check to make sure the breaker to the •
dishwasher is in the on position.
Check to make sure that the Supply cord •
is plugged.

No Water is coming into the dishwasher:

Check to make sure the hot water shut-•
off is in the ON position.

Water does not drain:

Make sure drain hose is not kinked or •
comes out of air gap next to the sink.
Remove drain hose from disposal making •
sure plug is removed.

Notice :

If your dishwasher is not operating •
properly after following these steps:
Contact your dealer to schedule an
authorized service agent to inspect your
new dishwasher for any function related
failure.
The manufacturer warranty does not •
cover installation, conversion or customer
education service visits.

DW xxxxx xxxxx

uSM or uF5

9. FINAL INSTRUCTIONS

1. Press the On/Off button to turn the
dishwasher on.

2. Power indicator light comes on.

3. Use the Program Select button to choose
a washing program.

4. Start the program with the Start/Pause/
Cancel button.

5. Run the dishwasher through one complete
cycle. When the wash cycle is completed,
use the On/Off button to turn the dishwasher
off.

Notice :

If the dishwasher does not operate properly,
refer to the self help hints.

You will find the model and serial number
information on the label located on the
right-hand side of the inner door of your
dishwasher, as shown above.

Notice :

Please make a copy of your invoice and
keep it with this manual and register your
dishwasher on-line.

USA

21

17 9066 01 00-AB-USA
