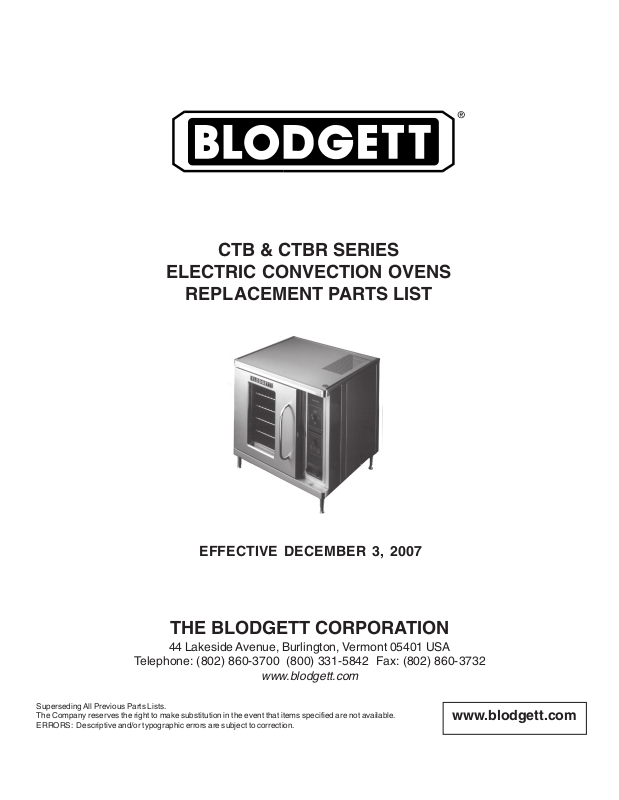

CTB & CTBR SERIES
ELECTRIC CONVECTION OVENS
REPLACEMENT PARTS LIST
EFFECTIVE DECEMBER 3, 2007
THE BLODGETT CORPORATION
44 Lakeside Avenue, Burlington, Vermont 05401 USA
Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732
www.blodgett.com
Superseding All Previous Parts Lists.
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
www.blodgett.com
DECEMBER 3, 2007 2 CTB/CTBR
IMPORTANT: When ordering parts, please provide the model, voltage
and serial number of the oven. The identification plate is located above
the control panel under the ledge.
Doors Are Not Returnable
CTB/CTBR
CONTROLS FOR OVENS
ELECTRICAL COMPONENTS
MANUFACTURED BEFORE 7/83
Ref. Part
No. No. Description
1 20350 Buzzer, Electric 240V
2 18868 Mode Selector Switch w/o Knob, 1 SP
21068 Mode Selector Switch w/o Knob, 2 SP
3 16686 Knob, Mode Selector Switch
4 30465 Cool Down Switch, Rocker SPDT Matt Black
5 16037 Indicator Light, 250V, Red, Round
16605 Fuse, 10 AMP(Before 6/88 and after1/97)
6 20162 Fuse, 10 AMP (Between 6/88 and 01/20/97)
20442 Fuse Holder (After 01/20/97)
7 20163 Fuse Holder (Between 6/88 and 01/20/97)
16604 Fuse Holder (Before 6/88)
8 32313 Motor, 230V, 1 PH, 1/4 HP, 1 SP
8 32302 Motor, 230V, 1 PH, 1/4 HP, 2 SP
9 6138 Blower Wheel Assy., (8-1/2" Diameter)
10 11204 Terminal Block w/ Screws
4888 Lug, Grounding
34898 Cord Set Assy. w/receptacle, 3 PH
34899 Cord Set Assy. w/receptacle, 1 PH
37227 Harness, Element 5 KW
16647 Harness, Element 7.5 KW
11 19118 Element Assy., 208V, 5 KW
11 8596 Element Assy., 230V, 5 KW
11 8595 Element Assy., 240V, 5 KW
19284 Element Assy., 208V, 7.5 KW
90097 Element Assy., 230V, 7.5 KW
90098 Element Assy., 240V, 7.5 KW
NOTE: 2 Element Rings in element assy = 5 KW
3 Element Rings in element assy = 7.5 KW
6177 Microswitch Plate (used with 16880)
12 16880 Microswitch Assy., Door (Before 02/14/97)
33946 Microswitch Assy., Door (After 02/14/97)
33286 Activator, Door Switch (Before 07/17/98)
used with 33946
34524 Activator, Door Switch (07/17/98 and After)
used with 33946
13 21430 Axial Fan Kit, 3", 230V (Before 05/22/97 or
S.N. 052297LA035S)
13 23034 Axial Fan Kit, 4", 230V (After 05/22/97 or
S.N. 052297LA035S)
14 38559 Mechanical Contactor Conversion Kit, (1&3PH)
R11087 Mechanical Contactor, 3 Pole,40 AMP,240V,
( 1& 3PH)
Ref. Part
No. No. Description
5147 Timer, 60 Minute Mechanical w/ Knob
16498 Knob, Timer 60 Minute Mechanical
11304 Dial, 60 Minute Mechanical Timer
16948 Timer, 60 Minute for Electric Buzzer w/ Knob
16820 Dial Plate
16030 Knob, 60 Minute Timer for Electric Buzzer
5279 Thermostat, KX-38-36 w/o Knob
(140º - 550º)
11224 Dial, Thermostat
6502 Cool Down Switch, Rocker DPDT, Red
6500 Blower Switch, Rocker DPST, Blue
6504 Indicator Light, 250V, Red, Rectangular
5255 Fuse, 10 AMP
11238 Fuse Holder
8592 Control Panel Assy., CTB-1- NLA
9637 Control Panel Assy., CTBR-1
CONTROLS FOR OVENS
MANUFACTURED
7/83 THROUGH 9/86
Ref. Part
No. No. Description
15956 Timer, 60 Minute w/o Knob (Cook Only)
16030 Knob, Timer
16536 Thermostat, Cook KX-234-36 w/o Knob
(140º - 500º)
17212 Knob, Thermostat
90588 Contactor, 50 AMP
16607 Control Decal, Lexan (Cook Only)
For KFC Only Use Below:
37296 Mercury Contactor,3 Pole, 30 AMP, 208/240V,
3PH
18651 Mercury Contactor,2 Pole, 60 Amp,208V,1PH
Ovens)
(All Contactors listed above for 5KW or 7.5KW
DECEMBER 3, 2007 3 CTB/CTBR
MISC. COMPONENTS
6
1
20350
Buzzer,
240V
7
20163 or
20442
Fuseholder
2
18868-3 pos.
21068-4 pos.
Mode Selector
Switch
3
16686
Knob,
Black
8
32313 or
32302
Motor
4
M5133
Cool Down Switch,
Rocker, Black
9
6138
Blower
Wheel
5
16037
Indicator
Light
20162 or
16605
Fuse
10
11204
Terminal
Block
11
8596 - 230V 5KW
8595 - 240V 5KW
19284 - 208V 7.5KW
90097 - 230V 7.5KW
90098 - 240V 7.5KW
Element Assy
**
18226
Timer,
60 min, 240V
**See Page 4
12
16880
Microswitch
**
18578
Control
Board, S.S.
**See Page
4
18588
Probe
**See Page 4
**
18234
Potentiometer
See Page 4
**
13
21430, 3"
or
23034, 4"
Axial Fan
30658
Controller,
Solid State Digital
**See Page 6
**
14
R11087
Contactor,
3 Pole,
40A
**
23390
Controller,
Intellihold
12 Key
**See Page 6
DECEMBER 3, 2007 4 CTB/CTBR
SOLID STATE MANUAL CONTROLS
STANDARD ON OVENS MANUFACTURED AFTER 9/86
6
16686
Knob,
Black
4
18226
Timer,
60 min, 240V
Ref. Part
No. No. Description
20346 Temperature Controller, 3 Positions
(Specify Model & Temperature Settings)
21432 Temperature Controller, 1 Position
(Specify Model & Temperature Settings)
16645 Probe, Temperature (For 1 & 3 Position
Controllers) (2 Wires)
16542 Probe, Temperature (For 1 & 3 Position Controllers) (4 Wires)
16536 Thermostat, KX-234-36, Back-Up
16393 Knob, for back up Thermostat 16536
1 18578 Temperature Control Board, Solid State
2 18588 Probe, Temperature
3 18234 Potentiometer, Remote (Infinite Control)
18577 8 Position Temperature Switch
(Specify Model & Temperature Settings)
16686 Knob, 8 Position Temperature Switch
4 18226 Timer, 60 Minute 240V
6 16686 Knob, Timer
90099 Heat Selector Switch, 3 Positions w/o Knob
(Used w/20346)
6 16686 Knob, Heat Selector Switch
5 38559 Mechanical Contactor Conversion Kit
5
R11087
Contactor,
3 Pole
40A
3
18234
Potentiometer
1
18578
Control
Board,
S.S.
2
18588
Probe
16685 Control Decal, Lexan (3 Position)
22018 Control Decal, Lexan (Infinite Cook Only)
18908 Control Decal, Lexan (8 Set Point Cook)
16637 Control Decal, Wendy's only
30465 Rocker Switch, DPDT (For 1or 3 set pt. only)
DECEMBER 3, 2007 5 CTB/CTBR
SOLID STATE DIGITAL CONTROLS
5 KEY
6
5
8
1
3
2
5
5
4
7
4
5
Ref. Part
No. No. Description
1 30658 Controller, Time/Temp. (5 Key)
FW529 Controller, Recond. Time/Temp(5 Key)
21068 Mode Switch, 4 pos.
18588 Probe, Temperature
(see picture prior page, item 2 page 4)
2 24685 Knob, Adjust
3 24684 Knob, Mode
4 16605 Fuse, 10 AMP
(Before 6/88 and after 01/20/97)
4 20162 Fuse, 10 AMP (Between 6/88 and 01/20/97)
5 20442 Fuse Holder (After 01/20/97)
5 20163 Fuse Holder (Between 6/88 and 01/20/97)
5 16604 Fuse Holder (Before 6/88)
30662 Momentary Light Switch
16880 Microswitch Assy., Door
23086 Suppressor Assy.
6 30668 Control Panel & Decal Assy., 1 SP
6 30669 Control Panel & Decal Assy., 2 SP
7 90034 Grounding Lug
8 24931 Spacer, Control Qty 2
DECEMBER 3, 2007 6 CTB/CTBR
FAN DELAY WITH PULSE PLUS
Ref. Part
No. No. Description
18291 Timer, Fan Delay, 10 Minute, 240V
18293 Timer, Fan On, 30 Minute, 240V
18583 Timer, Solid State, Pulsing, 30 Second,240V
16539 Indicator Light, 250V, Amber
18582 Relay, 3PDT, 240V w/ Bracket
18910 Control Decal, Lexan (8 Set Point)
18911 Control Decal, Lexan (Infinite)
COOK & HOLD CONTROLS
Ref. Part
No. No. Description
17982 Timer, 12 Hour w/ Knob (Before 3/7/85)
17863 Timer, 12 Hour w/o Knob (After 3/7/85)
16686 Knob, Timer
15365 Thermostat, Hold K-877-36 w/o Knob
(120º - 200º) (Before 9/86)
16392 Knob, Hold Thermostat
20351 Temperature Controller, Hold (150º - 250º)
(After 9/86)
16686 Knob, Hold Temperature Controller
18588 Probe, Temperature
18868 Mode Selector Switch w/o Knob(Before 9/86)
20347 Mode Selector Switch w/o Knob (After 9/86)
16686 Knob, Mode Selector Switch
16539 Indicator Light, 250V, Amber, Round, Hold
90268 Relay, 10 AMP, 3PDT
17926 Microswitch Assy., Door Dbl (Before 9/86)
16608 Control Decal, Lexan (C & H) (Before 9/86)
18907 Control Decal, Lexan (Infinite Cook & Hold)
(After 9/86)
INTELLITOUCH II CONTROL
33 KEY
Ref. Part
No. No. Description
INTELLITOUCH CONTROLS
17 Key
Ref. Part
No. No. Description
NLA Temperature Controller, Integrated
(Specify Model & Temperature Settings)
NOTE: Intellitouch Controller is no longer available.
Please see page 9 for IQ2 conversion kit
information.
33523 Casters, Adjustable (Set of 4)
20360 Probe, Temperature Integrated
20112 RFI Filter (Used w/ Integrated Controller)
18979 Metal Oxide Varistor Assy.
20356 Transformer, 230V to 24V
17926 Microswitch Assy., Door Double, 1SP
20167 Control Panel & Decal Assy., (Before 10/87)
19189 Control Panel & Decal Assy., (After 10/87)
INTELLIPLUS & INTELLIHOLD
CONTROLS
12 KEY & 13 KEY
Ref. Part
No. No. Description
NLA Controller, Intelliplus (13 Key)
** NLA Controller, Intellihold (12 Key) pictured p.3
NOTE: Intelliplus/hold Controllers are no longer
available. Please see page 9 for IQ2
conversion kit information.
23392 Probe, Temperature
21443 Knob, Control
23086 Suppressor Assy.
20683 Wiring Harness, Control Panel
24932 Control Panel & Decal Assy., Intelliplus
24933 Control Panel & Decal Assy., Intellihold
33472 Door Switch, 2 speed
23086 Suppressor Assy.
24503 Wiring Harness, Control Panel
34354 Control Panel & Decal Assy. Intellitouch II
24433 Controller, Intellitouch II
30857 Probe, Temperature
21169 Knob, Control
5279 Thermostat, Back-Up KX-38-36
19621 Switch, Back-Up Thermostat Rocker, DPDT,
Black
22738 Decal, Thermostat/Switch
21675 Relay, SPDT, 240VAC
19619 Switch, On/Off Controller Rocker, DPST,
Black
22962 Strip, Product
16880 Microswitch Assy., Door
DECEMBER 3, 2007 7 CTB/CTBR
CH102 CONTROLS
14 KEY
7
2
Ref. Part
No. No. Description
5
4
1
BACK OF
FUSEHOLDER
4
3
6
3
4
1 37087 Controller, CH102 14 Key
34473 Probe, RTD 36"
2 21068 Mode Selector Switch, 4 Position
19620 Light Switch, Rocker, DPST, Momentary
3 16605 Fuse, 10 Amp Qty 2
4 20442 Fuseholder, 30 Amp Qty2
5 24685 Knob, Adjust for Mode Selector Switch Qty 1
23086 Suppresor Assy
6 21675 Relay, SPDT 240V Qty 1
16563 Relay Bracket
21058 Harness, Wiring Control Compartment
34411 Harness, Wiring 2 SP
7 36290 Control Panel & Decal Assy, CH102
DECEMBER 3, 2007 8 CTB/CTBR
EXCLUSIVE TO KFC IQ CONTROLS
1997 AND AFTER OR CTB-AP (All Purpose)
Ref. Part
No. No. Description
1 34968 Control, "IQ" w/'SCK' for U.S.
1 FW531 Control, "IQ" w/'SCK' for U.S., Recon.
34450 Motor, 230V, 2SP (for IQ Cntrl.)
33902 Relay
33073 Relay Board
33074 Probe, RTD 1000 Ohm
33088 Probe Clip
33922 Socket, Relay
M6899 Transformer
2 16605 Fuse, 10 AMP
3 20442 Fuseholder, 30 AMP. Class CC
4 33240 Fuse Decal
33072 Control Harness 24V
34435 Harness, IQ Cntrl.
34436 Harness, IQ Cntrl., Rear
34951 Harness, SCK "Communication"
33904 MOV Assy.
5 19619 Rocker, DPST, Black (Power Switch)
34284 Grease Shield
34041 US Product Strip (for IQ Controls)
33527 Product Strip CAN
33155 Front Communication Port
34453 Rack Support (Qty 1)
19619
5
Rocker Switch
34968
1
IQ Control
Ref. Part
No. No. Description
35973 Liner, Baffle Assy.
34935 Baffle Bracket Kit
34875 Removeable Access Panel, Bodyside
34454 Door Assy, RH Grease Seam
34449 O-Ring (seals lower door bushings)
34947 Perimeter Door Gasket Assy(After 4/29/99)
34451 RTV, Red (caulking used with door gasket)
33241 Decal, On/Off, Reconditioned
7 32999 Control Retainer
8 33169 Gasket Retainer
9 33151 Gasket, Control Back
10 37296 Contactor, Mercury, 3 Pole, 30 Amp,208/240V
18651 Contactor, Mercury, 2 Pole, 60 Amp, 208V, 1 PH
34430 Top cap
33151
9
Gasket,
Control
8
Back
33169
Gasket,
Rubber
32999
7
Control
Retainer
33240 Fuse Decal
4
16605 Fuse
2
20442 Fuse holder
3
10
37296
CONTACTOR
DECEMBER 3, 2007 9 CTB/CTBR
IQ2 CONTROLS
10
2
2
9
7
1
8
6
4
REAR VIEW OF MODULE
3
Ref. Part
No. No. Description
1 50736 Controller, IQ2 (After 06/14/2007)
1 51062 Controller,IQ2 (Before 06/14/2007)
NOTE: for ovens prior to 06/14/20
51062 includes new panel &decal
36995 Controller, IQ2 Burger King only
33074 Probe, RTD
2 19619 Switch, Rocker, DPST
3 16605 Fuse
4 20442 Fuseholder
5 M6899 Transformer
6 33073 Relay Board
7 33902 Relay, Logic
8 33922 Socket, Relay
33072 Harness, Control 24V
34435 Harness, Controller IQ2
9 M0593 Terminal Block
10 37707 Panel & Decal Assy (After 06/142007)
51061 Panel & Decal Ass' (Before 06/14/
2007)
32999 Control Retainer
33169 Gasket, Rubber
33151 Gasket, w/Control Back
36729 IQ2 Conversion Kit (From Intellitouch)
1SP 1 PH 5 KW
36724 IQ2 Conversion Kit (From Intellitouch)
1SP 1 PH 7.5 KW
36727 IQ2 Conversion Kit (From Intellitouch,
Intellihold or Intelliplus)
2SP 1 or 3 PH 5 & 7.5 KW
07
5
Ref. Part
No. No. Description
37076 IQ2 Conversion Kit (From Intellitouch,
Burger King Only)
1SP 1 PH 5 KW
37077 IQ2 Conversion Kit (From Intellitouch,
Burger King Only)
1SP 1PH 7.5 KW
37036 IQ2 Conversion Kit (From Intellitouch,
Burger King Only)
2SP 1 or 3 PH 5 & 7.5 KW
NOTE: Conversion Kits above include all components
to convert your unit. You may order parts
separately after conversion is completed.
DECEMBER 3, 2007 10 CTB/CTBR
COMPUTER READY OVENS
FASTRON DIGITAL TIMER-KFC
Ref. Part
No. No. Description
16542 Probe, Temperature (Dual 4 Wire) for
3 Position & 1 Position Boards
16645 Probe, Temperature (2 Wires) for
8 Set Point and Infinite Boards
17925 Cable Extension (For Single Oven)
18273 Wire Assy., Extension (For Double Oven)
22929 Control Decal, KFC Only ( Pos. w/o timer)
37296 Contactor, Mercury, 3 Pole,30AMP,208/240V
(5 or 7.5KW) 3 PH
18651 Contactor, Mercury, 2 Pole, 60 AMP,208V
(5 or 7.5 KW) 1 PH
NOTE: The Fastron Digital Timer on the side or top of
your oven is not supplied or serviced by
Blodgett. If you have issues with this, please
contact Fast.
stands, Legs
BAKING COMPARTMENT
COMPONENTS
Ref. Part
No. No. Description
22637 Rack, w/ball stops, Each,
20-7/8" x 14-5/8"
8590 Rack Support, Set of 2 (Before 8/91)
31311 Rack Support, Set of 2 (After 8/91)
20353 Thermostat Bulb Clip (Each)
6056 Interior Baffle (Blower Wheel Cover)
CTB S/S
35972 Interior Baffle (Blower Wheel Cover)
CTB Porc. Replaces 10369
9543 Interior Baffle (Blower Wheel Cover)
CTBR S/S
35973 Interior Baffle(Blower Wheel Cover)
CTBR Porc. Replaces 10381
20799 Baffle Support Assy. w/ Screws
35934 Baffle Bracket
9704 Screen Assy, Baffle
Ref. Part
No. No. Description
11993 Stand, 5-3/4" Stainless
10857 Stand, 7" Stainless
18479 Stand, 16" Stainless w/ Shelf
10856 Stand, 19" Stainless w/ Shelf
10855 Stand, 24" Stainless w/ Shelf
10854 Stand, 33" Stainless w/ Shelf
34024 Stand, 11" Stainless w/Shelf & Adjustable
Casters (KFC Only)
34025 Stand, 19" Stainless w/Shelf & Adjustable
Casters (KFC Only)
18482 Stand, 16" Stainless w/ Shelf & Casters
11437 Stand, 19" Stainless w/ Shelf & Casters
15151 Stand, 24" Stainless w/ Shelf & Casters
33940 Stand, 28" No Shelf (Burger King Only)
15153 Stand, 33" Stainless w/ Shelf & Casters
30028 Stand, 33" Stainless w/Feet and Rack
20435 Legs, 4" w/ Bolts,S/S (Set of 4)
20497 Shelf for Stand, S/S w/hardware
16002 Casters (Set of 4)
33523 Casters, Adjustable (Set of 4)
33940 Stand, 28 ", ( Burger King Only)
DECEMBER 3, 2007 11 CTB/CTBR
DOOR COMPONENTS
Ref. Part
No. No. Description
MANUFACTURED AFTER 9/86
19607 Door Assy., Glass CTB
19609 Door Assy., Glass CTBR
19608 Door Assy., Solid CTB
19610 Door Assy., Solid CTBR
NOTE: ALL DOORS FOR OVENS MANUFACTURED BEFORE
9/86 DO NOT INCLUDE PART # 17865 (ROLLER LATCH W/
SCREWS), PLEASE ORDER THIS PART SEPARATELY.
MANUFACTURED BETWEEN 1/85 & 9/86
17947 Door Assy., Glass CTB
17949 Door Assy., Glass CTBR
17948 Door Assy., Solid CTB
17950 Door Assy., Solid CTBR
NOTE: ALL DOORS FOR OVENS MANUFACTURED BEFORE
9/86 DO NOT INCLUDE PART # 17865 (ROLLER LATCH W/
SCREWS), PLEASE ORDER THIS PART SEPARATELY.
MANUFACTURED BEFORE 1/85
17807 Door Assy., Roller Latch Conv. Glass CTB
17810 Door Assy., Roller Latch Conv. Glass CTBR
17808 Door Assy., Roller Latch Conv. Solid CTB
17809 Door Assy., Roller Latch Conv. Solid CTBR
8589 Handle, Door 13"
19260 Gasket, Door Perimeter CTB
(Manufactured After 9/86
20735 Gasket, Door Perimeter CTBR
(Manufactured After 9/86)
17862 Gasket, Door Perimeter
(Manufactured Between 1/85 & 9/86)
11495 Gasket, Door Perimeter
(Manufactured Before 1/85)
9036 Window Assy., Door (17-1/8" x 10")
9035 Window Tool (comes with window)
16880 Microswitch Assy., Door
(Manufactured Before 2/14/97)
33946 Microswitch Assy., Door
(Manufactured After 2/14/97)
33286 Door Pin Activator
(Between 2/14/97 & 7/17/98)
34524 Door Pin Activator (7/17/98 and after)
17946 Door Roller Assy. CTB & CTBR
(on Door) (Manufactured After 9/86)
17944 Door Roller Assy CTB
(on Door) (Manufactured Before 9/86)
17945 Door Roller Assy CTBR (on Door)
(Manufactured Before 9/86)
17865 Latch, Roller w/ Screws (on Oven)
Used with 17946, 17944, 17945
90087 Door Catch, Spring Clip
(Manufactured Before 1/85)
8583 Door Catch, Striker Plate
(Manufactured Before 7/83)
8584 Door Catch, Ball Plunger w/ Nut
(Manufactured Before 7/83)
DOOR COMPONENTS-CONT'D.
Ref. Part
No. No. Description
5742 Spanner Key, Door Catch
(Manufactured Before 7/83)
8594 Hinge Pin w/ Bolts
90017 Washers, Door,
(Manufactured After 9/86)
90004 Bushings, Door Hinge,
(Manufactured After 9/86)
912 Bushing, Welded,
(Manufactured Before 9/86)
11695 Washers, Door,
(Manufactured Before 7/83)
Set of 2
Set of 2
Qty. 1
Set of 12
EXTERIOR COMPONENTS
Ref. Part
No. No. Description
6433 Crown Assy.
90086 Nameplate, Blodgett
8585 Steam Vent Box w/ Screws for CTB-1
90092 Steam Vent Riser w/ Screws for CTB-2 S/S
18699 Access Panel, S/S (Removeable Bodyside)
(All units Before 07/01/98)
34875 Access Panel, S/S (Removeable Bodyside)
CTB-AP (07/01/98 and after)
34876 Access Panel, S/S (Removeable Bodyside)
CTB (07/01/98 and after)
34877 Access Panel, S/S (Removeable Bodyside)
CTBR (07/01/98 and after)
16002 Casters (Set of 4)
33523 Casters, Adjustable (Set of 4)
18065 Bolts, Connecting CTB-2, Set of 2
6421 Body Top, S/S CTB & CTBR
23066 Body Top, S/S CTB & CTBR
(Computer Ready only)
DECEMBER 3, 2007 12 CTB/CTBR
EXCLUSIVE TO KFC CE
CTB-AP (All Purpose)
Ref. Part
No. No. Description
26 34968 Control, "IQ" w/'SCK' CE
FW531 Control, "IQ" w/'SCK', Recon. CE
34450 Motor, 230V, 2SP (for IQ Cntrl) CE
90097 Element Assy, 230V 5KW CE
8596 Element Assy, 230V, 7.5KW CE
36066 Thermostat, High Limit Kit (Manual Reset) CE
Replaces M3295
M0593 Terminal Block CE
M3167 Fuseholder, Type HTB-36M CE (for M8593)
M8593 Fuse, Export 10 Amp CE
M8662 Fuseblock, 5mm x 20mm CE (for M6899)
M6899 Transformer, 208/240V-24V CE
19619 Rocker Switch, Black DPST CE
33072 Control Harness, 24V CE
33073 Relay Board CE
33904 MOV Assy CE
33155 Front Communication Port CE
33156 Rear Communication Port CE
33239 Control Panel Assy CE
33241 Decal, On/Off CE
33902 Relay CE
33922 Socket, Relay CE
33923 Clip, Relay CE
34435 Harness, IQ Cntrl. CE
35703 Fuse, 250V 1.0 AMP CE
35704 Fuse Label 1.0 AMP CE
35750 Decal, Fuse CE
34284 Grease Shield
34453 Rack Support (Qty 2)
35973 Liner, Baffle Assy.
34935 Baffle Bracket Kit
34875 Removeable Access Panel, Bodyside
34454 Door Assy, RH Grease Seam
34449 O-Ring Gasket
(seals lower door bushings)
34947 Perimeter Door Gasket Assy
(After 4/29/99 or S.N. 042999MA019S)
34451 RTV, Red (caulking used with door gasket)
24 32999 Control Retainer
25 33169 Gasket Retainer
28 33151 Gasket, Control Back
EXCLUSIVE TO EXPORT
Ref. Part
No. No. Description
24417 Controller, Intelliplus 50 HZ 13 Key
24413 Controller, Intellihold 50 HZ 12 Key
20084 Timer, 60 Minute, 240V, 50 HZ
20427 Timer, 12 Hour, 240V, 50 HZ
18582 Relay, 3PDT, 240V
33095 Block, Terminal, 6 Pole CE
37297 Contactor, Mercury CE, Export
36066 Thermostat, High Limit Kit (Manual Reset) CE
Replaces M3295
M3167 Fuseholder, Type HTB-36M CE (for M8593)
M8593 Fuse, Export 10 Amp CE
8596 Element Assy, 230V 5 KW, 2 Ring Element
90097 Element Assy, 230V 7.5 KW,
3 Ring Element
8595 Element Assy, 240V, 5KW, 2 Ring Element
(Great Britain only)
90098 Element Assy, 240V, 7.5KW,
3 Ring Element (Great Britain)
M3810 Tube Clamp 1/8" CE
24684 Knob, Control Infinite CE
Loading...
