BCS-8E CNV-8E COS-8E
COS-8EDS
Replacement Parts List
Effective June 9, 2010
(Supersedes All Previous Parts Lists)
P/N 53291
The Company reserves the right to make substitutions
in the event that items specified are not available. www.blodgett.com
ERRORS: Descriptive and/or typographical errors are subject to correction.
June 9, 2010 2 BCS-8E CNV-8E COS-8E
Serial Numbers
Containing...
IB IC
HQ
HA HC IG
Example: 021896HC023S
IMPORTANT: When ordering parts, please provide the model,
gas type, voltage and serial number of the oven.
The identification plate is located on the left side of the
control compartment.
TO OBTAIN LITERATURE:
800-331-5842
Fax: 802-860-3755
Email: literature@blodgett.com
or
www.blodgett.com
The Blodgett Corporation
44 Lakeside Avenue, Burlington, Vermont, 05401
802-860-3700 800-331-5842 802-860-3732 (fax)
www.blodgett.com
June 9, 2010 3 BCS-8E CNV-8E COS-8E
Table of Contents
Standard “COS” Control Panel Components .................................................................... 4
Digital “COS” Control Panel Components ......................................................................... 6
Standard “BCS” Control Panel Components ..................................................................... 8
Standard “CNV” Control Panel Components ...................................................................10
Digital “CNV” Control Panel Components .......................................................................12
Door Components .............................................................................................................14
Door Handle Components .................................................................................................16
Control Panel, Door & Exterior Components ...................................................................17
Harness and Panel Assembly .............................................................................................18
Fuse Options & Harnesses ................................................................................................20
Thermostats .......................................................................................................................21
Convection Motor Components ........................................................................................22
Steam Generator Components ...........................................................................................24
Direct Steam Components .................................................................................................26
Plumbing Components....................................................................................................... 28
Interior Components ..........................................................................................................30
Accessories ........................................................................................................................32
Body Back & Bottom Options ..........................................................................................34
June 9, 2010 4 BCS-8E CNV-8E COS-8E
Standard “COS” Control Panel
Components
19
21
16
17
20
18
22
June 9, 2010 5 BCS-8E CNV-8E COS-8E
Standard “COS” Control Panel
Components
Ref. No. Description Qty. Part No.
Control panel, Std, 60hz w/out meat probe 1 R5181
Control panel, Std, 50hz w/out meat probe 1 R5814
Control panel, Std, 60hz w/meat probe 1 R5247
Control panel, Std, 50hz w/meat probe 1 OBS
Control panel, Std, w/meat probe CE 1 OBS
Harness, control (all panels listed above) 1 R5588
Gasket, control panel (per foot) 4 R4872
2 Decal, control Std w/o meat probe 1 R5183
Decal, control Std w/meat probe 1 R5210
3 Switch, mode 4 position 1 R4623
Knob and shaft assy, mode switch 1 R8515
4 Controller, temperature 150-500 degrees P5 1 R6407
Probe, temp controller (item #4) 1 R6003
Gasket, probe, temp controller (item #4) 1 R3992
8 Switch, momentary Flush/Drain 1 R2715
9 Indicator light, clear 3 R0226
10 Indicator light, green Power On 1 R1318
12 Knob, temp control & timer 2 16686
14 Timer, 120 minute 60hz 1 R2666
Timer, 120 minute 50hz 1 R3942
16 Relay, SPST 240V ice cube 1 R2792
Relay, SPDT (CE only) 1 R7689
18 Controller, meat probe 1 R5242
Controller, meat probe (CE only) 1 R7692
19 Switch, meat probe on/off 1 R4622
20 Panel jack 1 R5219
21 Probe, meat plug-in type 1 R5315
22 Suppressor, arc assy 1 R6988
Harness, meat probe 1 R5218
Harness, meat probe (CE only) 1 OBS
Wire, thermocouple 20awg 1 R5325
Clip, meat probe 1 R5391
Holder, fuse (CE only) 1 M3167
Fuse, 24V (CE only) 1 R7717
Bracket, fuse holder 1 R7715
June 9, 2010 6 BCS-8E CNV-8E COS-8E
Digital “COS” Control Panel
Components
25
23
20
21
24
22
26
June 9, 2010 7 BCS-8E CNV-8E COS-8E
Digital “COS” Control Panel
Components
Ref. No. Description Qty. Part No.
Control Panel, TNT w/o meat probe 1 R5175
Control Panel, TNT w/meat probe 1 R5246
Control Panel, TNT w/meat probe (CE only) 1 OBS
Harness, control (all panels listed above) 1 R5565
Gasket, control panel (per foot) 3 R4872
2 Decal, control TNT w/o meat probe 1 R7426
Controller retrofit kit (from knob to all pads) 1 R7854
Controller, time & temp (all touch pads) 1 R7403
Sensor, controller 1 R6928
8 Switch, momentary Flush/Drain 1 R2715
9 Indicator light, clear 2 R0226
10 Indicator light, green Power On 1 R1318
16 Switch, mode 4 position 1 R4623
17-18 Knob and shaft assy, mode switch 1 R8515
20 Relay, SPST 120V ice cube 1 R2792
Relay, SPDT (CE Only) 1 R7689
21 Transformer, 208/240-24V (CE Only) 1 52948
22 Controller, meat probe 1 R5242
Controller, meat probe (CE Only) 1 R7692
23 Switch, meat probe on/off 1 R7198
24 Panel jack 1 R5219
25 Probe, meat plug-in type 1 R5315
26 Suppressor, arc assy 1 R6988
Harness, meat probe 1 R5218
Harness, meat probe (CE only) 1 OBS
Wire, thermocouple 20awg 1 R5325
Clip, meat probe 1 R5391
Holder, fuse (CE only) 1 M3167
Bracket, fuse holder (CE only) 1 R7715
Fuse, 24V (CE only) 1 R7717
June 9, 2010 8 BCS-8E CNV-8E COS-8E
Standard “BCS” Control Panel
Components
10
9
3
13
3
12
8
June 9, 2010 9 BCS-8E CNV-8E COS-8E
Standard “BCS” Control Panel
Components
Ref. No. Description Qty. Part No.
Control panel, Std, 60hz, w/out meat probe 1 OBS
Control panel, Std, 50hz, w/out meat probe 1 OBS
Harness, control (both panels listed above) 1 OBS
Gasket, control panel (per foot) 3 R4872
2 Decal, control Std w/o meat probe 1 OBS
3 Switch, mode 4 position 1 R4622
8 Switch, momentary Flush/Drain 1 R2715
9 Indicator light, clear 1 R0226
10 Indicator light, green Power On 1 R1318
12 Knob, timer 1 16686
13 Timer, 120 minute 60hz 1 R2666
Timer, 120 minute 50hz 1 R3942
June 9, 2010 10 BCS-8E CNV-8E COS-8E
Standard “CNV” Control Panel
Components
3
9
8
12
15
14
2
3
13
June 9, 2010 11 BCS-8E CNV-8E COS-8E
Standard “CNV” Control Panel
Components
Ref. No. Description Qty. Part No.
Control panel, Std, 60hz, w/out meat probe 1 OBS
Control panel, Std, 50hz, w/out meat probe 1 OBS
Control panel, Std, 60hz, w/meat probe 1 OBS
Control panel, Std, 50hz, w/meat probe 1 OBS
Harness, control (both panels listed above) 1 OBS
Gasket, control panel (per foot) 3 R4872
2 Decal, control Std w/o meat probe 1 R5612
Decal, control Std w/meat probe 1 R5816
3 Switch, mode 4 position 1 R5686
8 In dica tor ligh t, cl ear 1 R0226
9 Indicator light, green Power On 1 R1318
12 Controller, hot air 150-500 degrees P5 1 R6407
Probe, hot air controller 1 R6003
Gasket, hot air probe 1 R3992
13 Knob, timer & controller 2 16686
14 Timer, 120 minute 60hz 1 R2666
Timer, 120 minute 50hz 1 R3942
15 Relay, DPST 120V 1 R2792
16 Control, meat probe 1 R5242
17 Switch, meat probe 1 R4622
18 Panel jack, meat probe 1 R5219
19 Probe, meat plug in 1 R5315
20 Suppressor, arc assy 1 R6988
Harness, meat probe 1 R5218
Wire, thermocouple 20AWG 1 R5325
Clip, meat probe 1 R5391
17
19
18
16
20
June 9, 2010 12 BCS-8E CNV-8E COS-8E
Digital “CNV” Control Panel
Components
3
9
7
3
11
June 9, 2010 13 BCS-8E CNV-8E COS-8E
Digital “CNV” Control Panel
Components
Ref. No. Description Qty. Part No.
Control panel, TNT, w/meat probe 1 OBS
Control panel, TNT, w/out meat probe 1 OBS
Harness, control 1 OBS
Gasket, control panel (per foot) 3 R4872
2 Decal, control Std w/o meat probe 1 OBS
3 Switch, mode 4 position 1 R5686
7 Indicator light, green Power On 1 R1318
Conversion kit, time n’ temp (from knob to push button) 1 R7854
Controller, time n’ temp (all push button) 1 R7403
Sensor, time n’ temp controller 1 R6928
11 Relay, DPST 240V 1 R2792
12 Control, meat probe 1 R5242
13 Switch, meat probe 1 R7198
14 Connector, panel jack meat probe 1 R5219
15 Probe, meat plug in type 1 R5315
16 Suppressor, arc assy 1 R6988
Harness, meat probe 1 R5218
Wire, thermocouple 20 AWG 1 R5325
Clip, meat probe 1 R5391
13
15
14
12
16
June 9, 2010 14 BCS-8E CNV-8E COS-8E
Door Components
3
2
1
9
12
10
13
11
4
7
5
6
12
8
June 9, 2010 15 BCS-8E CNV-8E COS-8E
Door Components
Ref. No. Description Qty. Part No.
1 Door assy, RH hinge w/glass 1 R3390
Door assy, RH hinge solid 1 R7158
2 Window, door 1 R5797
Gasket, window (per foot) (not shown) 15 R2105
Rivet, monobolt 1/8 dia. x 3/8 long s/s (not shown) 22 R0759
Rivet, pop 1/8 dia. x 1/4 long s/s (not shown) 23 R1278
3 Nameplate, Blodgett 7-3/4 (not shown) 1 90086
Gasket, door perimeter (not shown) 1 R3695
Plate, mounting gasket, horiz. (not shown) 2 R3774
Plate, mounting gasket, vert. (not shown) 2 R3775
Washer, door height adjustment (not shown) 2 R2292
4 Bracket assy, door pin 1 R3785
5 Pin, door switch 1 R3990
6 Switch, micro door 1 R3628
Switch, door (CE only) 1 31485
Grommet, door switch (not shown) 1 4068
Magnet, door switch (CE only) 1 R7808
Cup, magnet door switch (CE only) 1 R7753
Bracket, door switch (CE only) 1 OBS
Plug, hole door switch (CE only) 1 OBS
7 Holder, door trough 1 R3612
8 Trough assy, door drip 1 R3615
9 Hardware kit, door hinge (contains parts below) 2 R6867
10 Hinge, door top 1 R3382
11 Hinge, door botm 1 R3383
12 Bracket, hinge pin 2 R6220
13 Pin, hinge 2 R3397
June 9, 2010 16 BCS-8E CNV-8E COS-8E
Door Handle Components
2
1
3
4
Ref. No. Description Qty. Part No.
1 Handle assy, door 1 R6313
Screw, door handle 3 R6314
2 Catch assy, door (comprised of parts below) 1 R2296
3 Latch, door s/s 1 R2780
4 Catch, door s/s 1 R2781
Name plate, Blodgett 1 90086
Name plate, Market Forge 1 OBS
June 9, 2010 17 BCS-8E CNV-8E COS-8E
Control Panel, Door & Exterior
Components
8
4
7
9
10
6
5
Ref. No. Description Qty. Part No.
4 Door assy, RH hinge w/glass (Exploded view pg. ) 1 R3390
Door assy, RH hinge solid (COS) (Exploded view pg. ) 1 R7158
Door assy, locking 1 OBS
5 Handle, door (Exploded view pg. ) 1 R6313
6 Control panel (Exploded views pg. ) 1 Various
7 Drip pan 1 R5834
Trim, drip pan 1 OBS
Fitting, drip pan 1 OBS
Tube, drip pan drain (per foot) 3 R5872
Bracket, drip pan drain tube 2 OBS
8 Funnel assy, deliming (BCS & COS only) 1 R3012
9 Handle, deliming port (BCS & COS only) 1 R3654
Cover, drain handle 1 R1325
Adapter, hose decalcifying (BCS & COS only) 1 R2998
Cap, decalifying adapter (BCS & COS only) 1 R3011
10 Panel, fuse access 1 R5607
June 9, 2010 18 BCS-8E CNV-8E COS-8E
Harness and Panel Assembly
17
19
20
21
14
13
12
11
10
22
16
23
18
15
2
3
8
Note: Mounted underneath the bracket
5
6
9
4
5
7
June 9, 2010 19 BCS-8E CNV-8E COS-8E
Harness and Panel Assembly
Ref. No. Description Qty. Part No.
1 Panel, electrical 60hz (COS) 1 OBS
Panel, electrical 60hz 480V (BCS, COS) 1 OBS
Panel, electrical 60hz 480V (CNV) 1 OBS
Panel, electrical 50hz 208/415V (COS) 1 OBS
Panel, electrical 60hz (BCS) 1 OBS
Panel, electrical 60hz (CNV) 1 OBS
2 Controller assy, steam P2 (comprised of parts below) 1 R1443
Note: Mounted underneath the bracket below the relays
4 Bracket, mouting temp controller 1 R1442
5 Potentiometer, remote 1 18234
7 Controller, 8 pot hold w/spacers 1 20351
3 Channel, mounting, plastic 1 R1440
6 Spacer, nylon 4 18268
8 Sensor, steam controller 1 R0022
9 Board, level control 1 R5708
Retrofit kit, level sensing
10 Relay, level control (50hz only) 1 OBS
11 Relay, 240V ice cube R1, R2, R3, R4 4 R2792
Note: Mounted on the front of the bracket
12 Timing board 1 R6402
Standoff, male nylon 4 R7381
Standoff, female nylon 4 R7382
13 Buzzer assy, w/resistor 1 R9498
14 Resistor only, buzzer assy 1 R8724
15 Contactor, mercury, 60 amp Hot Air/Steam K2/K3 2 R2324
16 Contactor, mercury, 30 amp Hot Air/Steam K2/K3 2 38559
17 Timer, solid state 2 R5305
18 Capacitor assy, suppressor 1 R8218
19 Contactor, motor 240V 1 51693
20 Protector, motor 1 R2128
21 End stop, terminal block 4 R1580
22 Block, terminal power 4 R1586
23 Transformer, 480/240V 1 R2051
(from UE board w/5 orange relays)1 R5776
June 9, 2010 20 BCS-8E CNV-8E COS-8E
Fuse Options & Harnesses
Ref. No. Description Qty. Part No.
1 Fuse, 1 amp (480V only) 2 R5773
Fuse, 2 amp (480V only) 1 R5774
Fuse, 5 amp 2 R5755
2 Holder, fuse 2 or 3 20442
3 Holder, fuse (CE only) 2 M3167
Bracket, fuse 1 OBS
Bracket, fuse (CE only) 1 OBS
Harness, filter to terminal block (CE only) 1 OBS
Harness, wiring 1 OBS
Harness, wiring (BCS only) 1 R5930
Harenss, wiring (CNV only) 1 OBS
Harness, wiring 480V (BCS only) 1 OBS
Harness, wiring 480V (CNV only) 1 OBS
Harness, ground (CE only) 1 OBS
Harness, wiring 3ph supply, 208/240/415V 1 R2867
Harness, wiring 3ph supply, 480V 1 OBS
Harness, wiring 208-415V 1 R5484
Harness, wiring 208/415V 50hz 1 R3940
Harness, wiring 480V 1 R5488
Harness, wiring 1ph steam 1 R2872
Harness, wiring 3ph steam, 208/240/415V 1 R1810
Harness, wiring 3ph steam, 480V 1 R2991
1
2
3
June 9, 2010 21 BCS-8E CNV-8E COS-8E
Thermostats
1
4
2
5
6
3
Ref. No. Description Qty. Part No.
1 Thermostat, cooling fan hi limit F7 1 R3662
2 Themostat, Too hot to steam P1 1 R2801
3 Thermostat, Steam pre-heat prioity P3 1 R0118
4 Thermostat, quench P4 1 R3661
Gasket, thermostat P4 1 R3755
5 Thermostat, Cooking hi limit 670 degrees F3 1 R1573
Grommet, thermostat 1 R5414
6 Thermostat, steam generator hi limit F6 1 R2630
Thermostat, 50hz 1 36441
Bracket, mounting 1 OBS
Note: F7, P1 & F3 are located on bracket next to harness and panel assembly
Note: P3 & F6 are located on bracket on top of steam generator
Note: P4 is located on bracket next to drain pump under steam generator
June 9, 2010 22 BCS-8E CNV-8E COS-8E
Convection Motor Components
14
15
June 9, 2010 23 BCS-8E CNV-8E COS-8E
Convection Motor Components
Ref. No. Description Qty. Part No.
1 Bracket, motor mount 1 R8154
2 Retainer, seal 1 R8955
3 Seal, motor shaft 1 R4244
4 Plate, insulation cover 1 R8205
11 Sealant, 1/4 x 3/16 goretex (per foot) 7 R8423
14 Motor, 1/2 hp 115/230V 1 R5108
Motor, 1/3 hp 480V 3ph 1 R4920
15 Wheel, blower 1 R5081

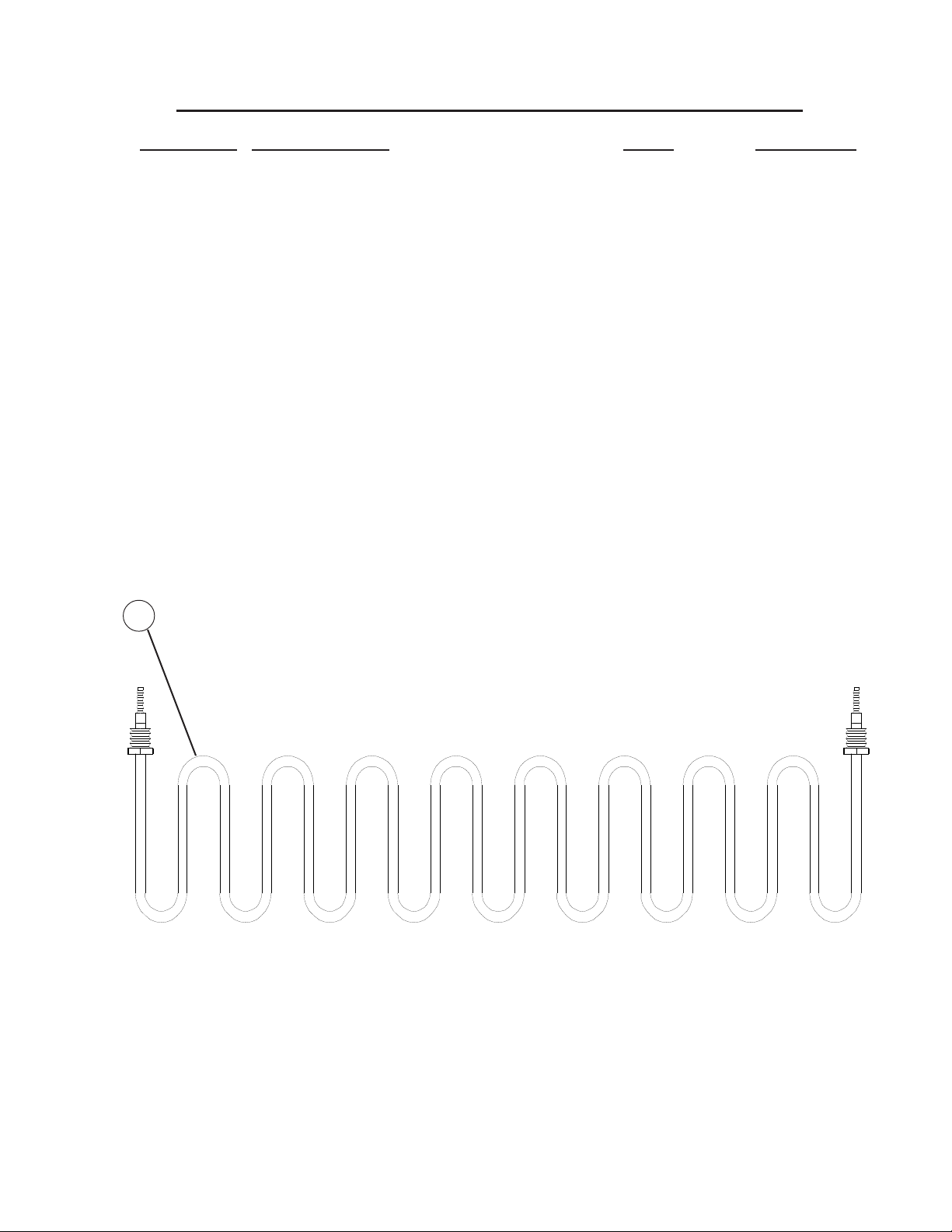

16 Element, hot air 208V 9 R3649
Element, hot air 240V 9 R3650
Element, hot air 380/220V 9 OBS
Element, hot air 480V 9 R3651
Harness, hot air elements 208/220/240/380/415V 3ph 1 OBS
Harness, hot air elements 480V 3ph 1 OBS
16
June 9, 2010 24 BCS-8E CNV-8E COS-8E
Steam Generator Components
10
4
6
12
7
8
9
11
9
1
15
14
2
3
June 9, 2010 25 BCS-8E CNV-8E COS-8E
Steam Generator Components
Ref. No. Description Qty. Part No.
1 Steam generator assy 1 R4822
Insulation, steam generator 1 R4829
2 Boot, rubber drain 1 R2467
Clamp, drain boot large 1 R2487
Plug, drain boot 1 R2624
3 Pump, drain 60hz 1 R2726
Pump, drain CE 1 R7563
O’ring, drain pump 1 R6870
Bracket, pump mounting 1 R5690
Hose, pump outlet 7/8” ID (per foot) 1 R2927
Clamp, hose plumbing 7/8” 5 R0254
4 Hose, steam transfer 1-1/4” ID (per foot) 1 R2814
Clamp, plumbing 1-1/4” 6 R0082
5 Pipe, steam supply 1 OBS
6 Probe assy, dual level sensing (used w/Warrick Board) 1 R6965
7 Probe only, level sensing 2 R5361
8 Plate, level sensing 1 R5343
9 Gasket, switch level 2 R1491
Nut, 5/8-18 bulk head, level switch 2 R2111
10 Probe, level sensing, “J” hook, 3 wire (used w/UE Board) 1 R3142
11 Plate, “J” hook probe 1 R2926
12 Probe only, “J” hook 1 R2843
14 Element, steam 208V w/thermocouple 1 R7180
Element, steam 240V w/thermocouple 1 R7182
Element, steam 480V w/thermocouple 1 R7184
15 Element, steam 208V 2 R2768
Element, steam 240V 2 R2771
Element, steam 380/220V 2 R7187
Element, steam 400/230V 2 R7723
Element, steam 480V 2 R2770
Harness, boiler ground 1 R1829
June 9, 2010 26 BCS-8E CNV-8E COS-8E
Direct Steam Components
14
17
14
15
12
1614
13
11
1
4
3
6
7
12
14
16
June 9, 2010 27 BCS-8E CNV-8E COS-8E
Direct Steam Components
Ref. No. Description Qty. Part No.
1 Nipple, 3/4 NPT x 5” Brass 1 R6289
2 Plate assy, direct steam 1 OBS
3 Pipe clamp 2 R8408
4 Nipple, 3/4 NPT x 4” Brass 1 R7111
6 Nipple, 3/4 NPT x 2” Brass 3 R7144
7 Tee, 3/4 NPT, Brass 1 R6282
9 Siphon, steam gauge, 1/4 FIP 1 OBS
10 Coupling, 1/4 NPT, Brass 1 OBS
11 Gauge 1 R5956
12 Hose adapter 3/4” hose ID x 3/4 NPT 2 R7360
13 3/4” ID Beverage hose (per foot) 11 R7406
14 Elbow, 3/4 NPT, brass 4 R6285
15 Valve, solenoid 3/4 NPT, 115V 1 R6894
16 Clamp, hose 2 R0254
17 Nipple, 3/4 NPT x 6” brass 1 R6287
June 9, 2010 28 BCS-8E CNV-8E COS-8E
Plumbing Components
3
10
1
2
4
7
5
9
8
29
6
26
28
27
19
20
17
22
24
21
23
25
23
23
18
June 9, 2010 29 BCS-8E CNV-8E COS-8E
Plumbing Components
Ref. No. Description Qty. Part No.
1 Valve assy, decalicifying (comprised of parts below) 1 R3155
2 Elbow, street 1/2 NPT 1 R1928
3 Valve, ball 1 R1142
4 Fitting, barb 3/8 x 1/2 1 R1198
5 Adapter, hose decalcifying 1 R2998
Gasket, decalcifying inlet 1 R3079
Handle, decalicifying valve 1 R3654
Cover, drain handle 1 R1325
Cap, decalicifying valve 1 R3011
Hose, decalicifying 3/8 ID (5 feet) 1 R11008
6 Overpressure assy, steam (comprised of parts below) 1 R4891
7 Outlet assy, steam 1 R7581
8 Spring, pressure relief 1 R7575
9 Gasket, pressure relief 1 R2657
10 Cover, pressure relief 1 R7570
11 Quench assy (except CNV & Direct Steam) 1 R7397
Quench assy (CNV & Direct Steam) 1 OBS
Nozzle assy, quench 2 R4242
12 Weldment, quench nozzle 1 OBS
13 Reducer, 1/2 NPT to 1/4 NPT 1 OBS
14 Elbow, 1/4 brass NPT 90 1 R3640
15 Nozzle, spray, male brass 1 OBS
16 Fitting, barb 3/8 x 1/2 1 R1198
17 Elbow, drain 1 R5644
18 Gasket, cavity drain 1 R2868
19 Solenoid valve assy, triple 208/240V 1 R5079
Solenoid valve assy, dual 208/240V (CNV only) 1 R6894
Valve body, solenoid triple 1 R5077
Fitting, .125 NPTX .38 Comp 4 R3975
20 Solenoid valve assy, single 208/240V 1 R5078
Coil, solenoid valve 208/240V 1 R5075
Valve body, solenoid single 1 R5076
21 Regulator, pressure 1 R11210
22 Fitting, 3/4 hose, male 1 R7978
23 Washer, garden hose 3 R7750
24 Regulator, water 1 OBS
25 Coupling, 3/4G x 3/4G brass 1 R7813
26 Venturi assy (comprised of parts listed below) 1 R7050
27 Elbow assy, venturi 1 R1317
28 Fitting, straight 1-3/32 1 R0640
Washer, flat 13/16 1 R0729
29 Tube, trap 1 R7510
Hose, steam transfer, green, 7/8” ID (per foot) 3 R1088
Tube, flex 3/8 x 18” 2 R6328
Tube, flex 3/8 x 36” 1 R6330
Tube, flex 3/8 x 72” 1 R6331
June 9, 2010 30 BCS-8E CNV-8E COS-8E
Interior Components
1
2
3
4
June 9, 2010 31 BCS-8E CNV-8E COS-8E
Interior Components
Ref. No. Description Qty. Part No.
1 Baffle assy 1 R9270
2 Grease filter 1 R3760
3 Rack, wire s/s 5 R3664
4 Supports, rack 2 R4409
June 9, 2010 32 BCS-8E CNV-8E COS-8E
Accessories
4
1
2
Pressure
3
Regulator
R11210
16
17
18
15
14
22
5
6
7
8
20
9
21
11
23
23
12
13
10
22
June 9, 2010 33 BCS-8E CNV-8E COS-8E
Accessories
Ref. No. Description Qty. Part No.
1 Bottle, pressure spray 1 R10955
Repair kit, spray bottle (nozzle repair only) 1 R6332
2 Leg set, 4” s/s w/feet 1 R3109
Leg set, 6” s/s w/feet 1 8600
Leg set, 6” s/s w/feet seismic 1 OBS
Leg set, 25” s/s w/feet 1 R2899
Leg set, stands 1 R5455
Leg set, stands, seizmic 1 R5456
3 Caster kit, low profile 1 R6308
Caster kit, 5” 1 R3112
Caster kit, stands ACS-18 & ACS-31 1 R5454
4 Hose, spray and nozzle assy 12’ (comprised of parts below) 1 OBS
Hose, spray and nozzle assy 10’ 1 R10899
5 Nozzle, spray 1 R10888
6 “Y” fitting 1 R0376
7 Hose, 8’ w/fittings 1 R0469
8 Hook assy, hose&nozzle 1 R5429
9 Hook, hose 2 R5392
Stand, ACS-22-8 1 R5453
15 Funnel assy, deliming (comprised of parts below) 1 R3012
16 Fitting, swivel decalcifying 1 R2999
17 Funnel, decalcifying 1 R3000
18 Tube, 3/8 ID 1 R7886
19 Deliming bottle assembly (comprised of parts below) 1 OBS
20 Hand pump assy 1 R8860
21 Bottle, deliming 1 R8861
22 Clamp, hose 2 R8875
23 Fitting, male hose, barbed 2 R8084
24 Vent, P2 1 OBS
Tubing, 1” ID PVC Food Grade (per foot) 4 R8501
Coupling, Fernco 1-1/2 (black) 1 R7835
Side shield, SS-6 w/hardware 1 R9048
June 9, 2010 34 BCS-8E CNV-8E COS-8E
Body Back & Bottom Options
Ref. No. Description Qty. Part No.
1 Shield, fan s/s 1 R5384
Shield, fan ALCT 1 R5312
2 Shield, steam 90 degree s/s 1 OBS
Shield, steam 90 degree ALCT 1 OBS
3 Shield, steam s/s 1 OBS
Shield, steam ALCT 1 OBS
4 Panel, motor cover s/s 1 OBS
Panel, motor cover ALCT 1 OBS
5 Body Bottom 1 OBS
6 Panel, back s/s 1 OBS
Panel, back s/s (CNV only) 1 OBS
Panel, back ALCT 1 OBS
Panel, back ALCT (CNV only) 1 OBS
7 Cover, thermostat access s/s 1 R5356
Cover, thermostat access ALCT 1 R3161
8 Body back, lower s/s 1 OBS
Body back, lower ALCT 1 OBS
9 Panel, access body bottom 2 R4264
10 Fan, 230V 4” axial 1 23034
11 Guard, 4” axial fan 1 M0571
1
7
10
9
11
Loading...
